This document summarizes the radio remote control product offerings from Hetronic Australia. They provide a range of remote control transmitters from basic push button models to more advanced joystick models. Features include various control elements, ranges up to 100 meters, battery life up to 500 hours, and IP65 protection. The remote controls can be customized to user applications and are available in MFSHL, mini, handheld, Ergo-F, GL, Nova, and IEC EX product series.

1. Welcome to Hetronic Australia the home of Radio Remote Controls

2. Enabling your innovation from concept through to production.

3. Transmitters

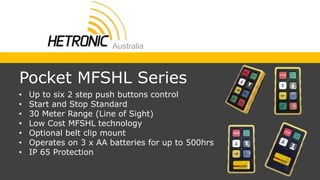

4. • Up to six 2 step push buttons control
• Start and Stop Standard
• 30 Meter Range (Line of Sight)
• Low Cost MFSHL technology
• Optional belt clip mount
• Operates on 3 x AA batteries for up to 500hrs
• IP 65 Protection
Pocket MFSHL Series

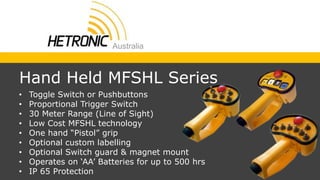

5. • Toggle Switch or Pushbuttons
• Proportional Trigger Switch
• 30 Meter Range (Line of Sight)
• Low Cost MFSHL technology
• One hand “Pistol” grip
• Optional custom labelling
• Optional Switch guard & magnet mount
• Operates on ‘AA’ Batteries for up to 500 hrs
• IP 65 Protection
Hand Held MFSHL Series

6. • Up to six 2 step push button control
• Start and Stop Standard
• 100 Meter Range (Line of Sight)
• Optional Belt clip mount
• Optional custom labelling
• ‘AA’ or rechargeable Batteries
• IP 65 Protection
Mini Series

7. • Toggle Switch or push button control
• Proportional trigger switch
• Digital or Proportional functions
• Customised to your Application
• 100 Meter Range (Line of Sight)
• One hand “pistol”grip
• Optional custom labelling
• Operates on AA Batteries for up to 20hrs
• IP 65 Protection
Hand Held Series

8. • Up to eight 3 step push button control With option
• Integrated Toggle Switch
• Optional LCD Display with Feedback
• 100 Meter Range (Line of Sight)
• Transferable Memory key
• Wrist & optional shoulder holster
• ‘AA’ or rechargeable batteries
• 434Mhz & 2.4Ghz models available
• IP 65 Protection
Ergo-F Series

9. • 1, 2, or 3 axis Joysticks with Push buttons, rotary & toggle switches
• Customised to your application and requirements
• Optional LCD Display for critical feedback information
• 100 Meter Range (Line of Sight)
• Waist belt or neck strap
• Ergonomically designed
• ‘AA’ or rechargeable batteries
• 434Mhz, 915Mhz & 2.4Ghz models available
• IP 65 Protection
GL Series

10. • 1, 2, or 3 axis Joysticks with Push buttons, rotary & toggle switches
• Customised to your application and requirements
• Optional LCD Display for critical feedback information
• 100 Meter Range (Line of Sight)
• Waist belt or neck strap
• Ergonomically designed
• ‘AA’ or rechargeable batteries lasting 8hrs
• 434Mhz, 915Mhz & 2.4Ghz models available
• IP 65 Protection
GL Series
• Up to six 3 position toggle switches
• Rotary & push button control elements available
• Customised to your application and requirements
• 100 Meter Range (Line of Sight)
• Belt clip mount or optional waist belt
• Ergonomically designed and extremely rugged
• ‘AA’ or rechargeable batteries
• IP 65 Protection
Nova-S Series

11. • 1, 2, or 3 axis Joysticks with Push buttons, rotary & toggle switches
• Customised to your application and requirements
• Optional LCD Display for critical feedback information
• 100 Meter Range (Line of Sight)
• Waist belt or neck strap
• Ergonomically designed
• ‘AA’ or rechargeable batteries lasting 8hrs
• 434Mhz, 915Mhz & 2.4Ghz models available
• IP 65 Protection
GL Series
• 1-2 Joystick + Paddle lever versions
• Rotary & push button control elements available
• Customised to your application and requirements
• 100 Meter Range (Line of Sight)
• Waist belt or neck strap
• Ergonomically designed, Compact & powerful
• ‘AA’ or rechargeable batteries
• IP 65 Protection
Nova-M Series

12. GL Series
• Joystick + Paddle lever versions
• Rotary & push button control elements available
• Customised to your application and requirements
• 100 Meter Range (Line of Sight)
• Waist belt or neck strap
• Ergonomically designed, extremely rugged
• ‘AA’ or rechargeable batteries
• IP 65 Protection
Nova-L Series

13. GL Series
• Joystick + Paddle lever versions
• Rotary & push button control elements available
• Customised to your application and requirements
• LCD + LED Feedback for critical information where you need it
• 100 Meter Range (Line of Sight)
• Waist belt or neck strap
• Ergonomically designed, extremely rugged
• ‘AA’ or rechargeable batteries
• IP 65 Protection
Nova-XL Series

14. GL Series
• Engineered to Order
• Intrinsically safe IEC Approved (Other Standards Available)
• Customised to your application and requirements
• 100 Meter Range (Line of Sight)
• Ergonomically designed, extremely rugged
• Rechargeable batteries
• Zone 1 & Zone 2 Compliant
IEC EX Series
