Untangling Cluster Management with Helix SOCC 2012 presentation

1. Untangling Cluster Management with Helix
Helix team @ LinkedIn
Kishore Gopalakrishna
http://www.linkedin.com/in/kgopalak
@kishoreg1980
Recruiting Solutions 1

2. Outline
 What is Helix
 Use case 1: distributed data store
 Architecture
 Use case 2: consumer group
 Helix at LinkedIn
 Q&A
2

3. What is Helix
Cluster management framework for distributed systems
using declarative state model
3

4. Distributed system examples
4

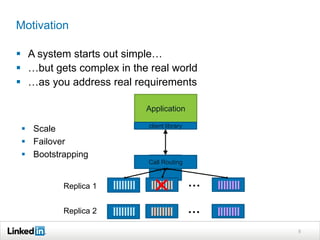

5. Motivation
 A system starts out simple…
 …but gets complex in the real world
 …as you address real requirements
Application
client library
 Scale
 Failover
 Bootstrapping
Call Routing
System
Replica 1 …
Replica 2 …
5

6. Motivation
 These are cluster management problems
  Helix solves them once…
Scale
  …so you can focus on your system
Failover
 Bootstrapping
6

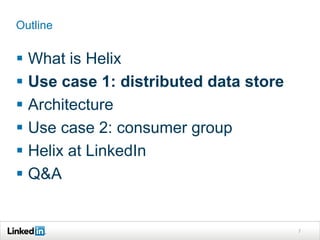

7. Outline
 What is Helix
 Use case 1: distributed data store
 Architecture
 Use case 2: consumer group
 Helix at LinkedIn
 Q&A
7

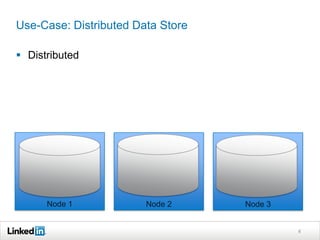

8. Use-Case: Distributed Data Store
 Distributed
P.1
Node 1 Node 2 Node 3
8

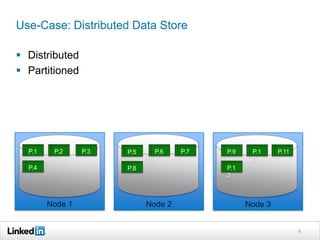

9. Use-Case: Distributed Data Store
 Distributed
 Partitioned
P.1 P.2 P.3 P.5 P.6 P.7 P.9 P.1 P.11
0
P.4 P.8 P.1
2
Node 1 Node 2 Node 3
9

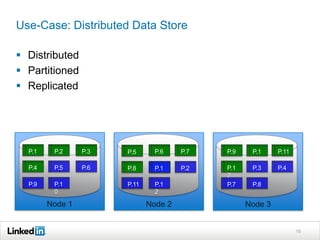

10. Use-Case: Distributed Data Store
 Distributed
 Partitioned
 Replicated
P.1 P.2 P.3 P.5 P.6 P.7 P.9 P.1 P.11
0
P.4 P.5 P.6 P.8 P.1 P.2 P.1 P.3 P.4
2
P.9 P.1 P.11 P.1 P.7 P.8
0 2
Node 1 Node 2 Node 3
10

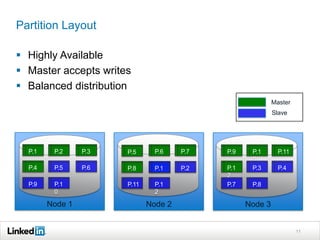

11. Partition Layout
 Highly Available
 Master accepts writes
 Balanced distribution
Master
Slave
P.1 P.2 P.3 P.5 P.6 P.7 P.9 P.1 P.11
0
P.4 P.5 P.6 P.8 P.1 P.2 P.1 P.3 P.4
2
P.9 P.1 P.11 P.1 P.7 P.8
0 2
Node 1 Node 2 Node 3
11

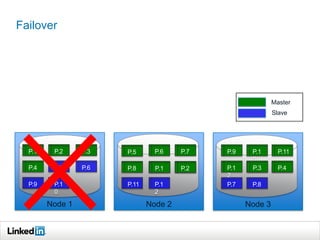

12. Failover
Master
Slave
P.1 P.2 P.3 P.5 P.6 P.7 P.9 P.1 P.11
0
P.4 P.5 P.6 P.8 P.1 P.2 P.1 P.3 P.4
2
P.9 P.1 P.11 P.1 P.7 P.8
0 2
Node 1 Node 2 Node 3

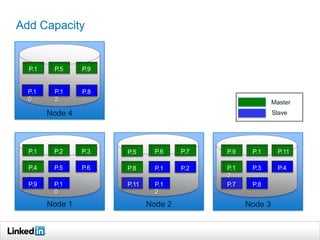

13. Add Capacity
P.1 P.5 P.9
P.1 P.1 P.8
0 2
Master
Node 4 Slave
P.1 P.2 P.3 P.5 P.6 P.7 P.9 P.1 P.11
0
P.4 P.5 P.6 P.8 P.1 P.2 P.1 P.3 P.4
2
P.9 P.1 P.11 P.1 P.7 P.8
0 2
Node 1 Node 2 Node 3

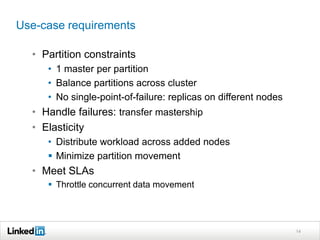

14. Use-case requirements
• Partition constraints
• 1 master per partition
• Balance partitions across cluster
• No single-point-of-failure: replicas on different nodes
• Handle failures: transfer mastership
• Elasticity
• Distribute workload across added nodes
 Minimize partition movement
• Meet SLAs
 Throttle concurrent data movement
14

15. Recruiting Solutions ‹#›

16. Generalizing cluster management
STATE MACHINE
CONSTRAINTS OBJECTIVE
16

17. Outline
 What is Helix
 Use case 1: distributed data store
 Architecture
 Use case 2: consumer group
 Helix at LinkedIn
 Q&A
17

18. Helix Based System Roles
PARTICIPANT
IDEAL STATE
SPECTATOR
Controller
Parition routing
logic
CURRENT STATE
RESPONSE COMMAND
P.1 P.2 P.3 P.5 P.6 P.7 P.9 P.1 P.1
0 1
P.4 P.5 P.6 P.8 P.1 P.2 P.1 P.3 P.4
P.1
2
P.9 P.1 P.1 P.1 P.7 P.8
0 1 2
Node 1 Node 2 Node 3
18

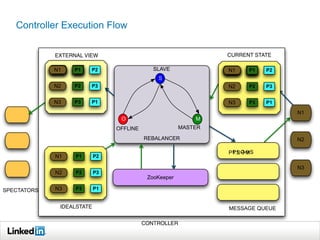

19. Controller Execution Flow
N1 P1 P2 SLAVE N1 P1 P2
S
N2 P2 P3 N2 P2 P3
N3 P3 P1 N3 P3 P1
N1
O M
OFFLINE MASTER
REBALANCER N2
P1:OS
P1:SM
N1 P1 P2
N3
N2 P2 P3
ZooKeeper
SPECTATORS N3 P3 P1
MESSAGE QUEUE

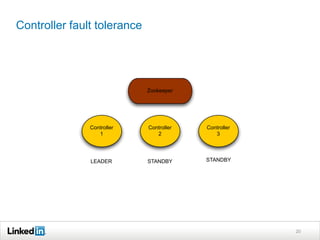

20. Controller fault tolerance
Zookeeper
Controller Controller Controller
1 2 3
LEADER STANDBY STANDBY
20

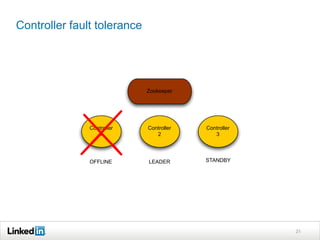

21. Controller fault tolerance
Zookeeper
Controller Controller Controller
1 2 3
OFFLINE LEADER STANDBY
21

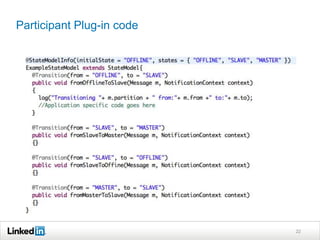

22. Participant Plug-in code
22

23. Spectator Plug-in code
23

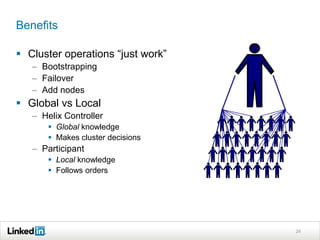

24. Benefits
 Cluster operations “just work”
– Bootstrapping
– Failover
– Add nodes
 Global vs Local
– Helix Controller
 Global knowledge
 Makes cluster decisions
– Participant
 Local knowledge
 Follows orders
24

25. Outline
 What is Helix
 Use case 1: distributed data store
 Architecture
 Use case 2: consumer group
 Helix at LinkedIn
 Q&A
25

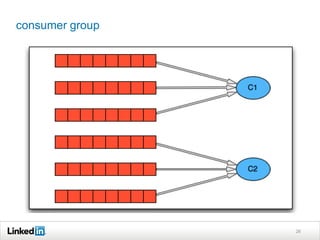

26. consumer group
26

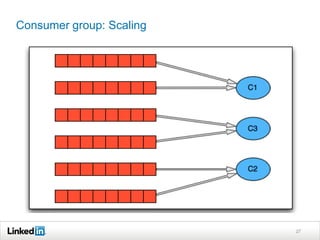

27. Consumer group: Scaling
27

28. Consumer group: Fault tolerance
28

29. Consumer group: state model
ONLINE MAX=1
OFFLINE
29

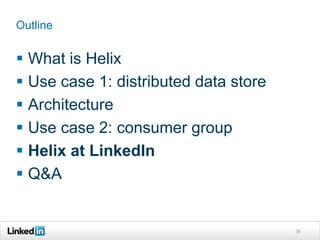

30. Outline
 What is Helix
 Use case 1: distributed data store
 Architecture
 Use case 2: consumer group
 Helix at LinkedIn
 Q&A
30

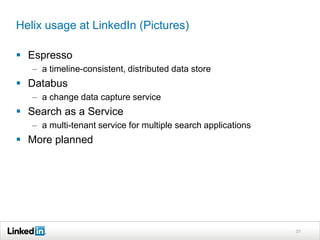

31. Helix usage at LinkedIn (Pictures)
 Espresso
– a timeline-consistent, distributed data store
 Databus
– a change data capture service
 Search as a Service
– a multi-tenant service for multiple search applications
 More planned
31

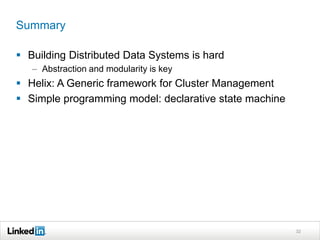

32. Summary
 Building Distributed Data Systems is hard
– Abstraction and modularity is key
 Helix: A Generic framework for Cluster Management
 Simple programming model: declarative state machine
32

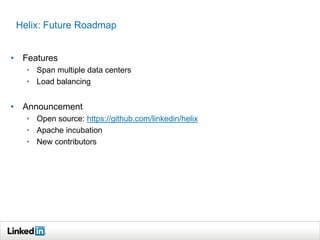

33. Helix: Future Roadmap
• Features
• Span multiple data centers
• Load balancing
• Announcement
• Open source: https://github.com/linkedin/helix
• Apache incubation
• New contributors

34. Questions?
