The Heatfast HF1220 is a self-regulating trace heating cable that provides frost protection for exposed pipework. It can also be used for temperature maintenance. The cable's conductive core allows heat output to adjust based on temperature conditions along the pipe in order to provide heat only where needed. The cable can be cut to length on site and has a maximum circuit length of 129 meters depending on the circuit breaker size. Accessories include connection kits, controls, junction boxes and warning signs.

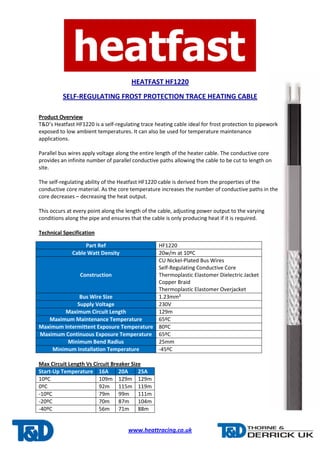

1. HEATFAST HF1220
SELF-REGULATING FROST PROTECTION TRACE HEATING CABLE
www.heattracing.co.uk
Product Overview
T&D’s Heatfast HF1220 is a self-regulating trace heating cable ideal for frost protection to pipework
exposed to low ambient temperatures. It can also be used for temperature maintenance
applications.
Parallel bus wires apply voltage along the entire length of the heater cable. The conductive core
provides an infinite number of parallel conductive paths allowing the cable to be cut to length on
site.
The self-regulating ability of the Heatfast HF1220 cable is derived from the properties of the
conductive core material. As the core temperature increases the number of conductive paths in the
core decreases – decreasing the heat output.
This occurs at every point along the length of the cable, adjusting power output to the varying
conditions along the pipe and ensures that the cable is only producing heat if it is required.
Technical Specification
Max Circuit Length Vs Circuit Breaker Size
Start-Up Temperature 16A 20A 25A
10ºC 109m 129m 129m
0ºC 92m 115m 119m
-10ºC 79m 99m 111m
-20ºC 70m 87m 104m
-40ºC 56m 71m 88m
Part Ref HF1220
Cable Watt Density 20w/m at 10ºC
Construction
CU Nickel-Plated Bus Wires
Self-Regulating Conductive Core
Thermoplastic Elastomer Dielectric Jacket
Copper Braid
Thermoplastic Elastomer Overjacket
Bus Wire Size 1.23mm²
Supply Voltage 230V
Maximum Circuit Length 129m
Maximum Maintenance Temperature 65ºC
Maximum Intermittent Exposure Temperature 80ºC
Maximum Continuous Exposure Temperature 65ºC
Minimum Bend Radius 25mm
Minimum Installation Temperature -45ºC

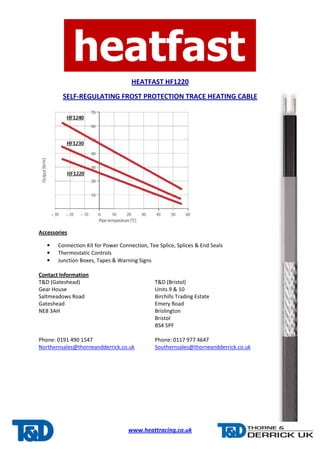

2. HEATFAST HF1220
SELF-REGULATING FROST PROTECTION TRACE HEATING CABLE
www.heattracing.co.uk
Accessories
• Connection Kit for Power Connection, Tee Splice, Splices & End Seals
• Thermostatic Controls
• Junction Boxes, Tapes & Warning Signs
