Hawaii DOT Monitoring Stations Versus National Performance Measurement Research Dataset Probe Speed Data Comparison
This presentation compares speed data from Hawaii DOT monitoring stations to the National Performance Measurement Research Data Set (NPMRDS) probe data. It finds that the two data sources match fairly well overall but that finer-grained Hawaii DOT data is needed for detailed analysis. The presentation demonstrates how to link NPMRDS travel time data to road network maps using open-source tools and provides examples of mapping and animating travel times using this data to estimate the impacts of traffic events. It concludes that the NPMRDS and Hawaii DOT data can both be used to analyze traffic conditions when combined with open-source spatial analysis tools.
Hawaii DOT Monitoring Stations Versus National Performance Measurement Research Dataset Probe Speed Data Comparison
- 1. Hawaii DOT MonitoringStations versus National Performance Measurement Research DataSet (NPMRDS ) Probe Speed Data Comparison Island Futures 2015, Honolulu, Hawaii Maaza Christos Mekuria, PhD, PE, PTOE HPMS Coordinator Hawaii Department of Transportation maaza.c.mekuria@hawaii.gov 1HI Island Futures - NPRMDS Data Modeling , Oct. 16, 2015

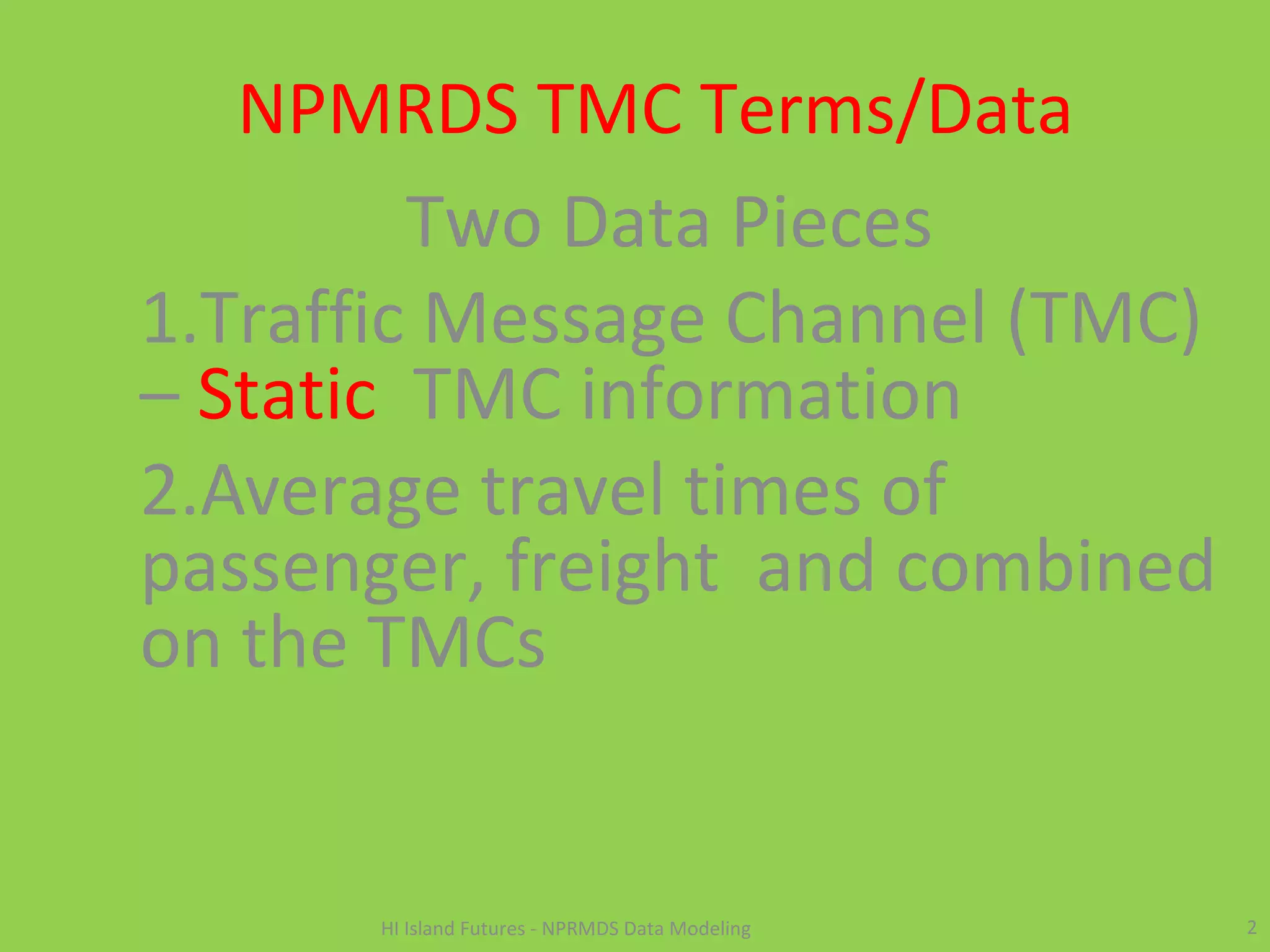

- 2. NPMRDS TMC Terms/Data TwoData Pieces 1.Traffic Message Channel (TMC) – Static TMC information 2.Average travel times of passenger, freight and combined on the TMCs 2HI Island Futures - NPRMDS Data Modeling

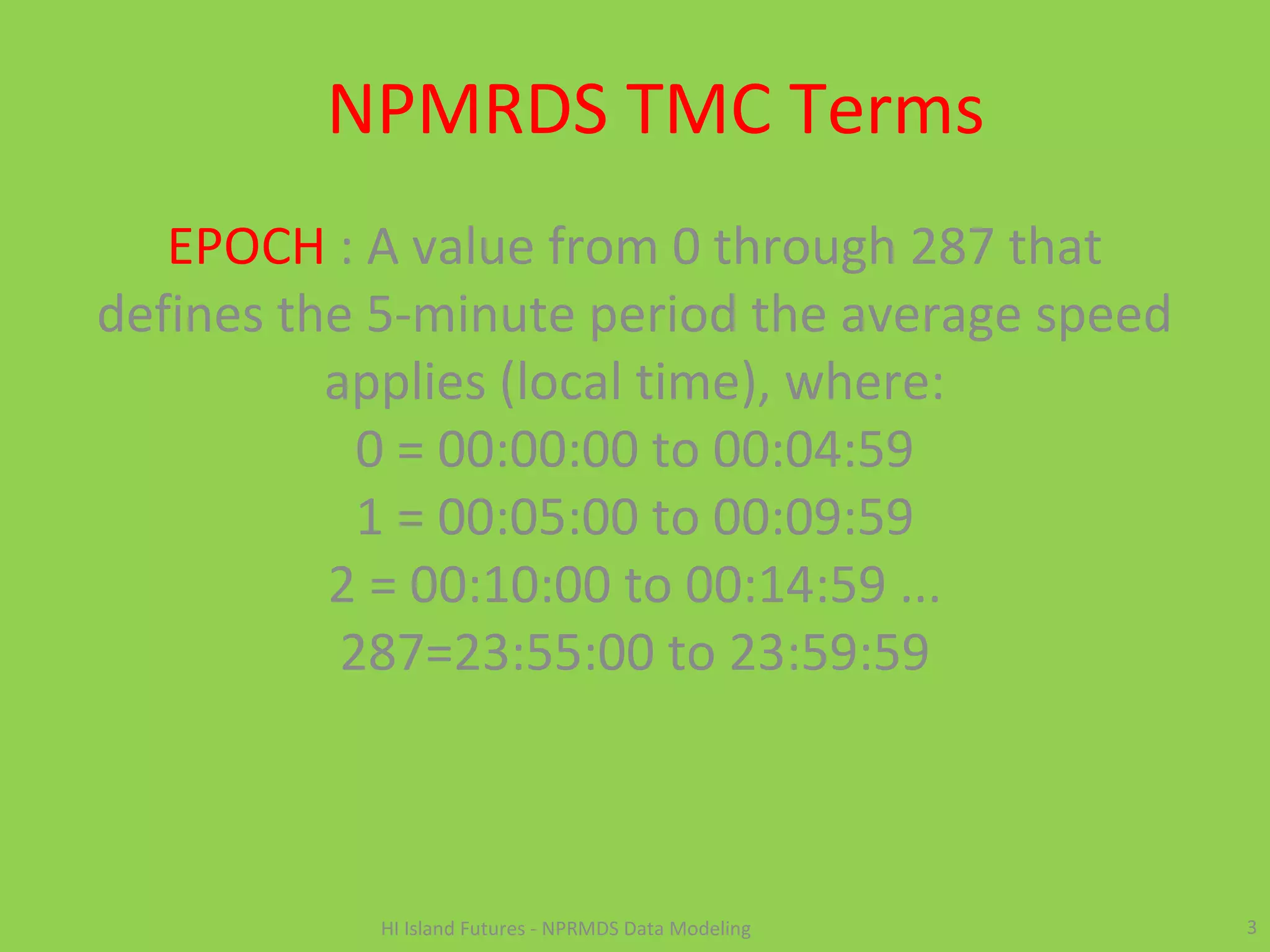

- 3. NPMRDS TMC Terms EPOCH: A value from 0 through 287 that defines the 5-minute period the average speed applies (local time), where: 0 = 00:00:00 to 00:04:59 1 = 00:05:00 to 00:09:59 2 = 00:10:00 to 00:14:59 ... 287=23:55:00 to 23:59:59 3HI Island Futures - NPRMDS Data Modeling

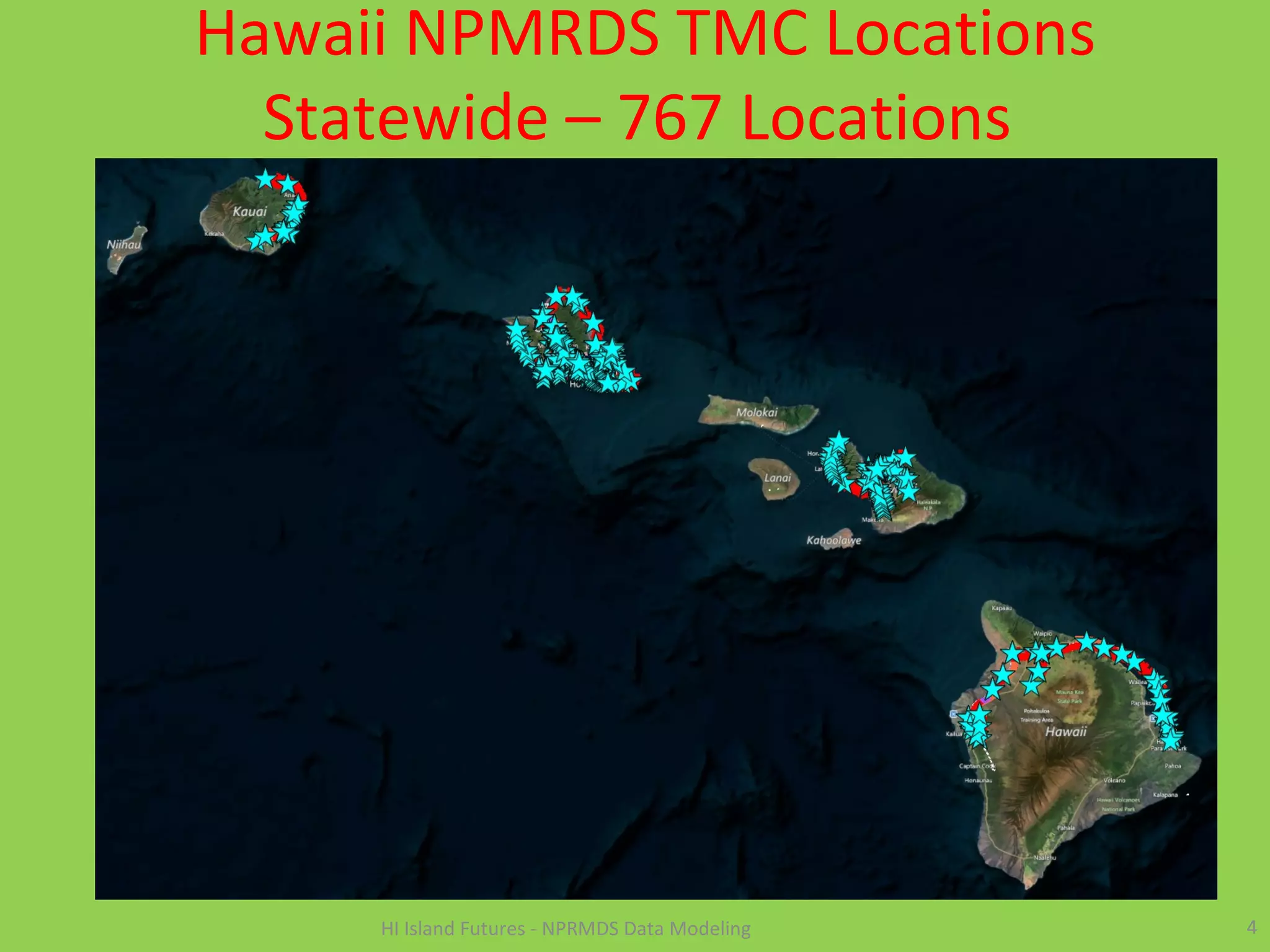

- 4. Hawaii NPMRDS TMCLocations Statewide – 767 Locations 4HI Island Futures - NPRMDS Data Modeling

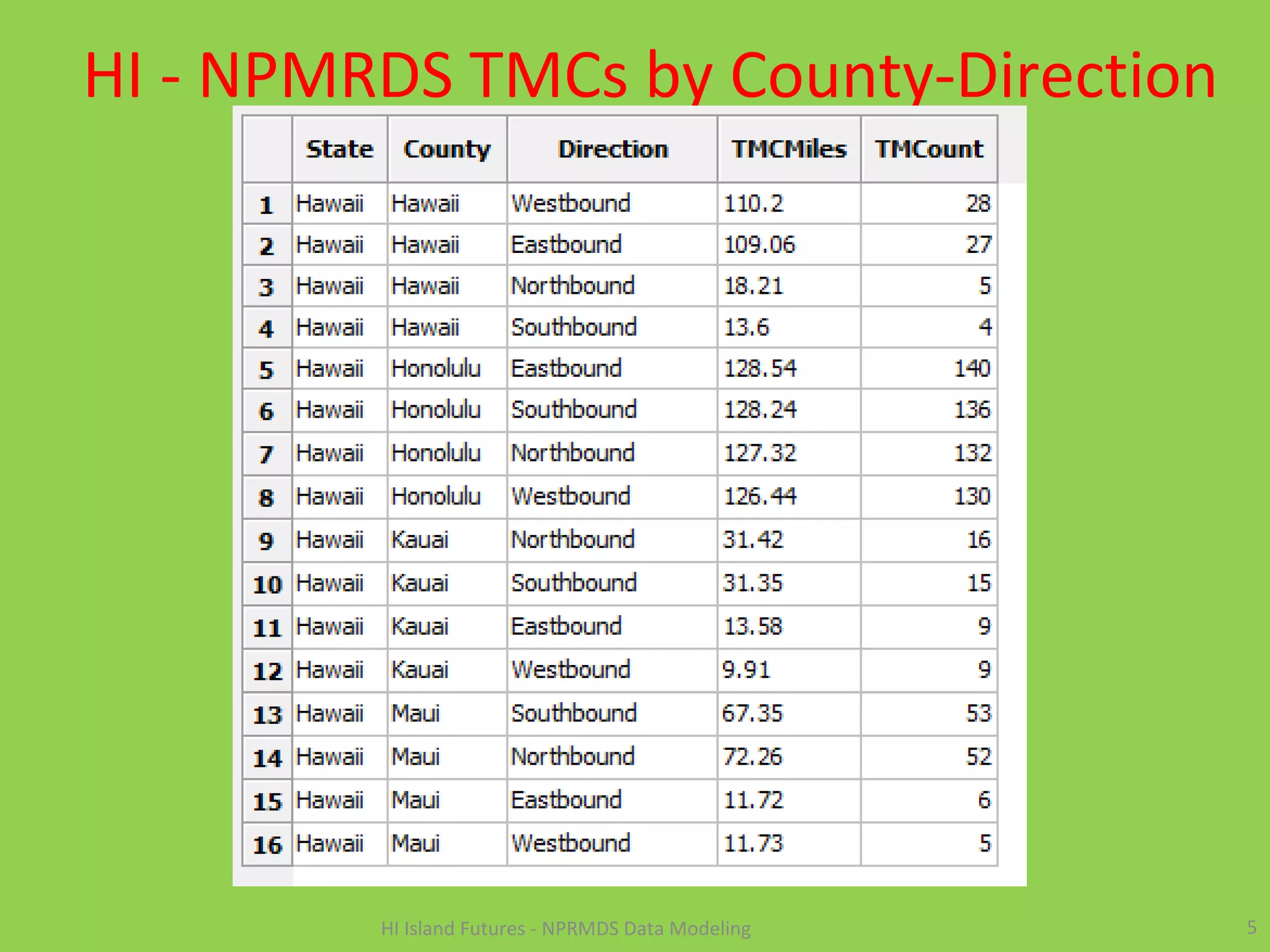

- 5. HI - NPMRDSTMCs by County-Direction 5HI Island Futures - NPRMDS Data Modeling

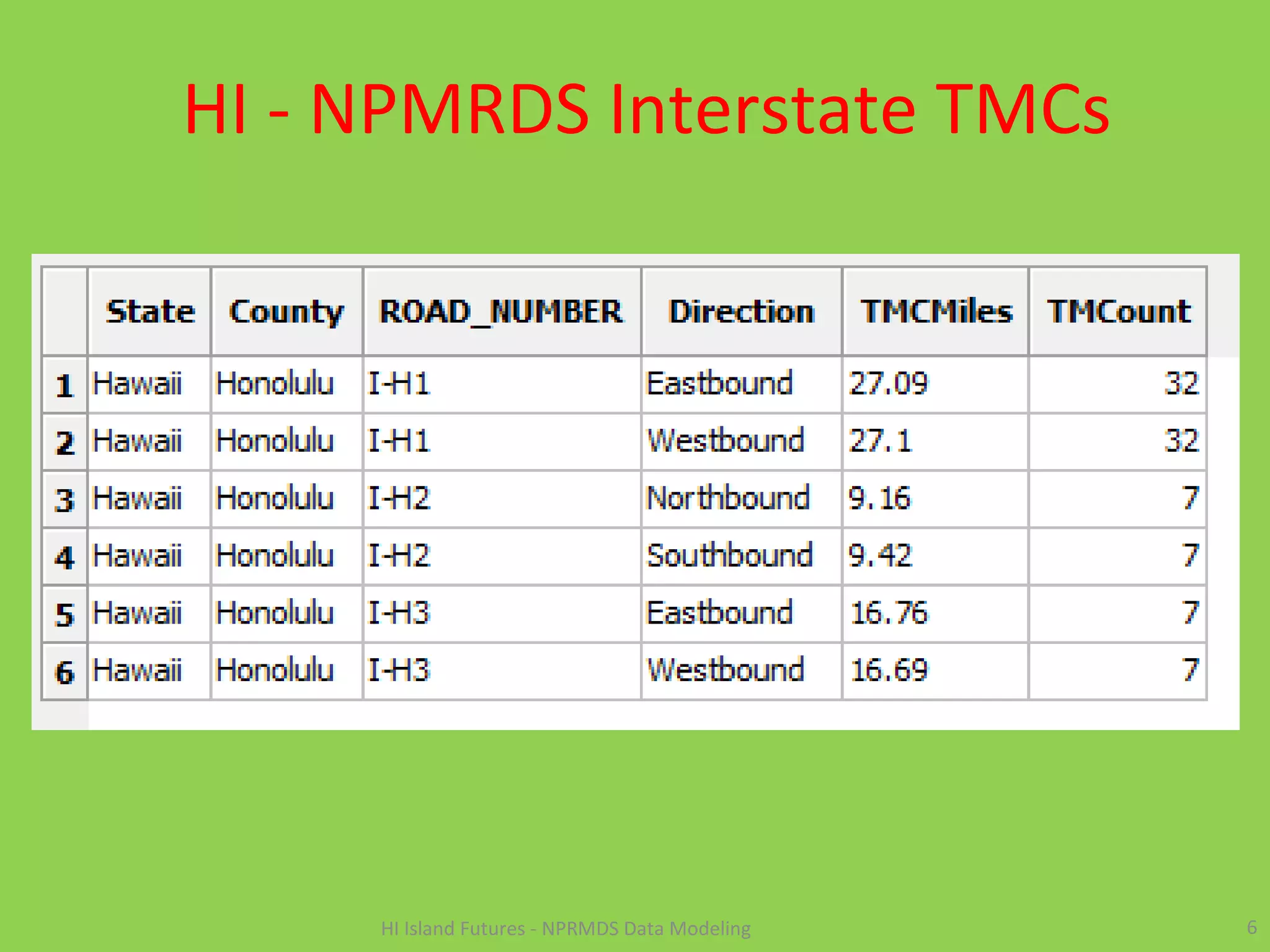

- 6. HI - NPMRDSInterstate TMCs 6HI Island Futures - NPRMDS Data Modeling

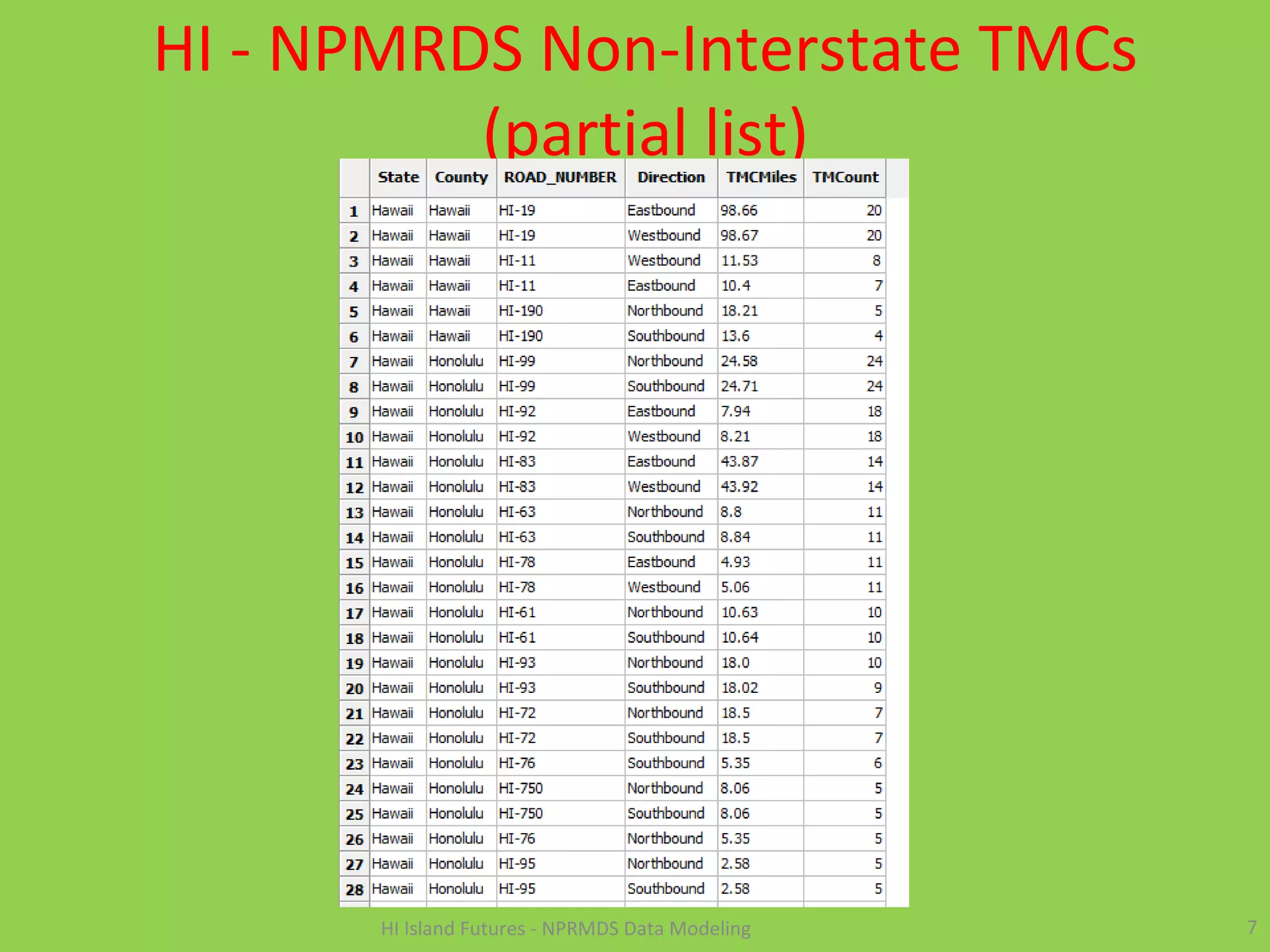

- 7. HI - NPMRDSNon-Interstate TMCs (partial list) 7HI Island Futures - NPRMDS Data Modeling

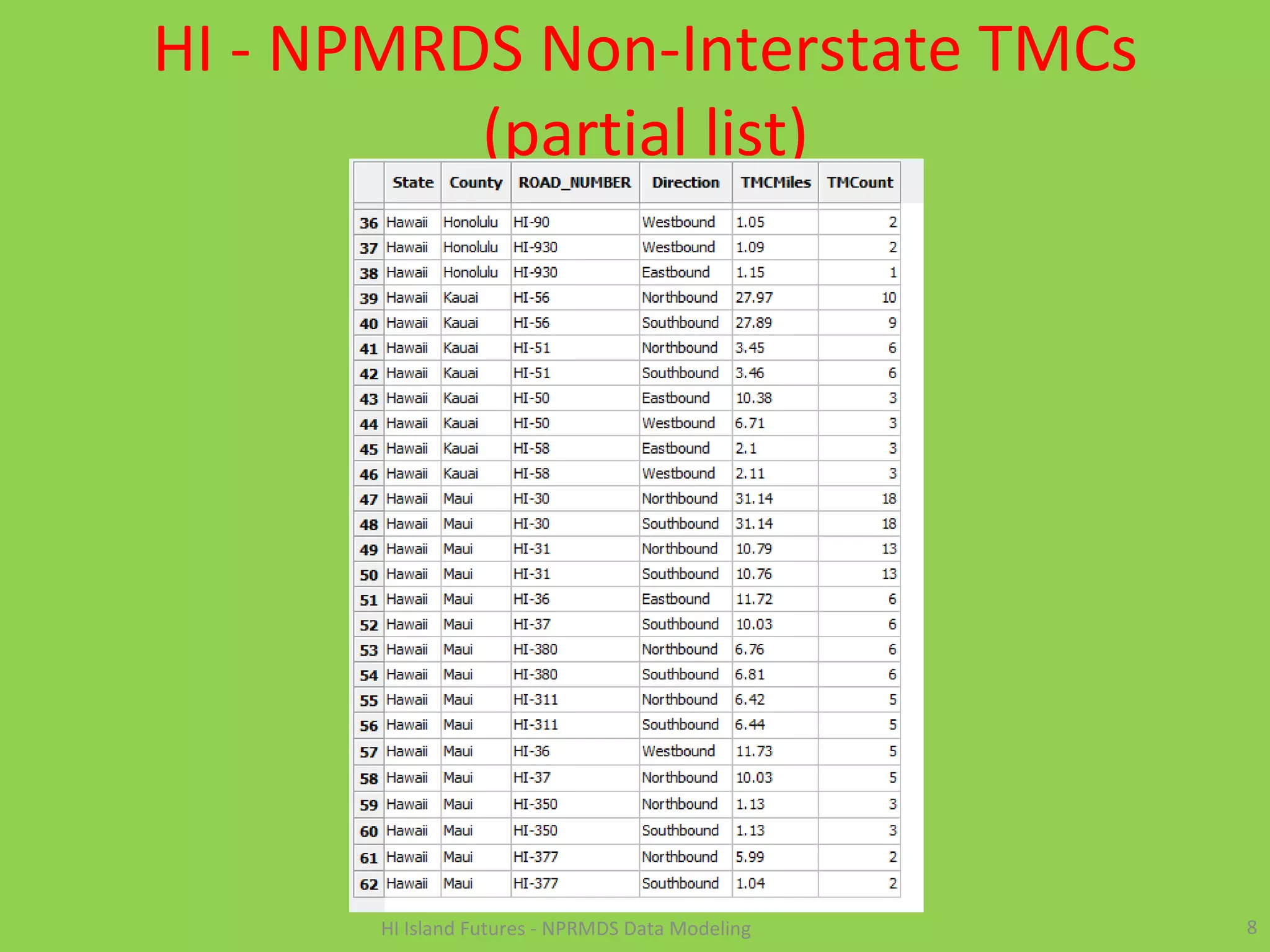

- 8. HI - NPMRDSNon-Interstate TMCs (partial list) 8HI Island Futures - NPRMDS Data Modeling

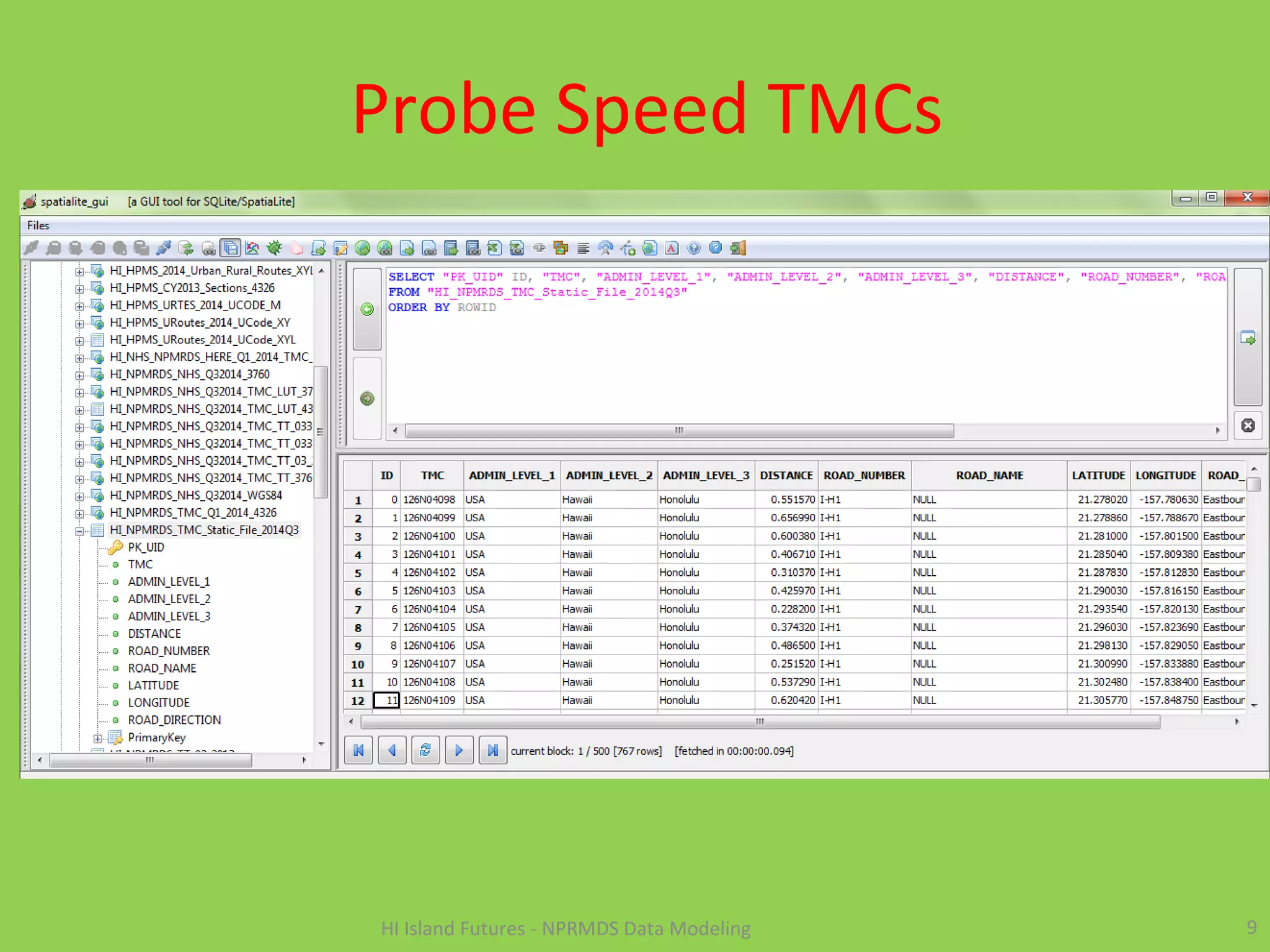

- 9. Probe Speed TMCs 9HIIsland Futures - NPRMDS Data Modeling

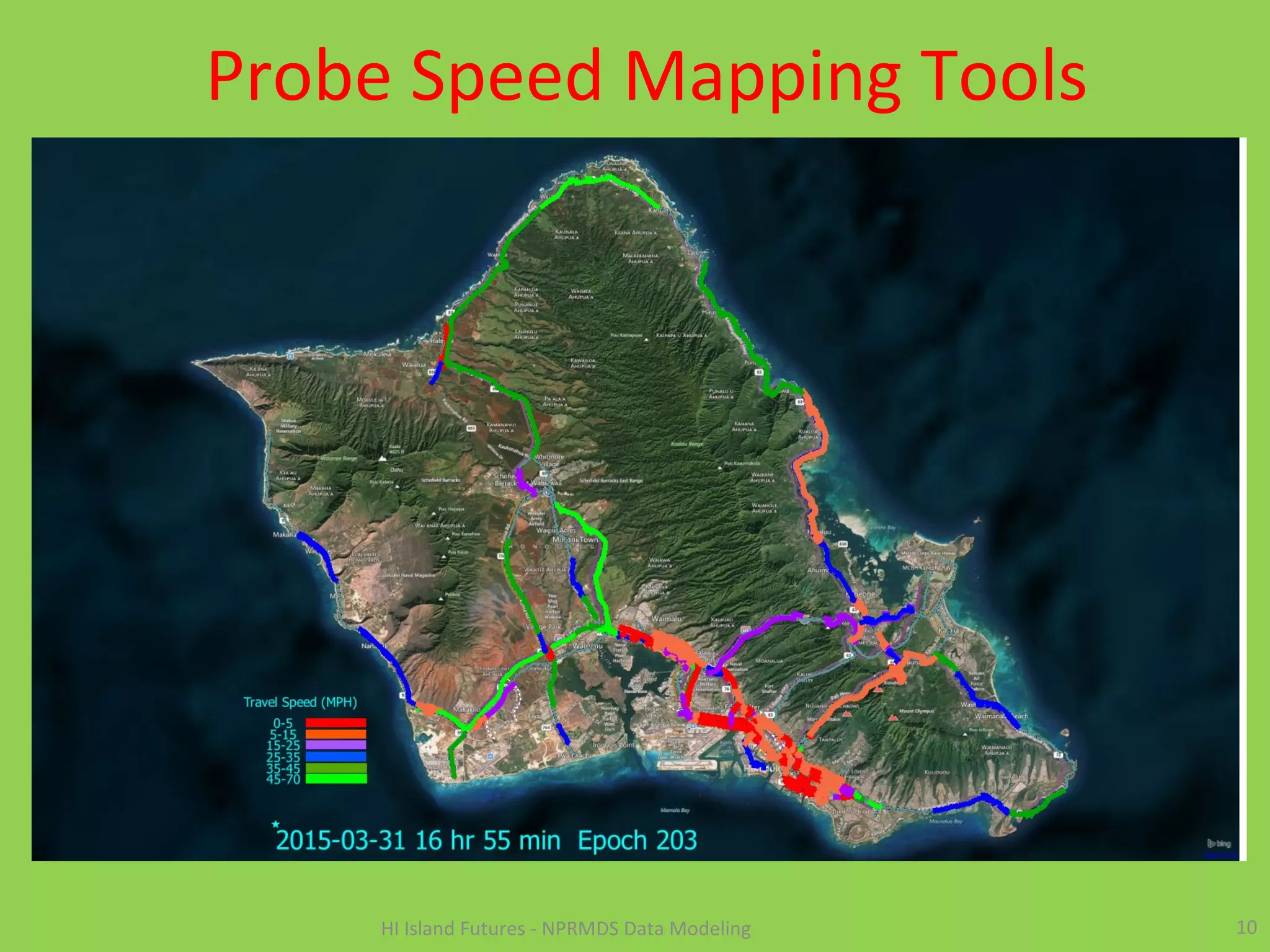

- 10. Probe Speed MappingTools 10HI Island Futures - NPRMDS Data Modeling

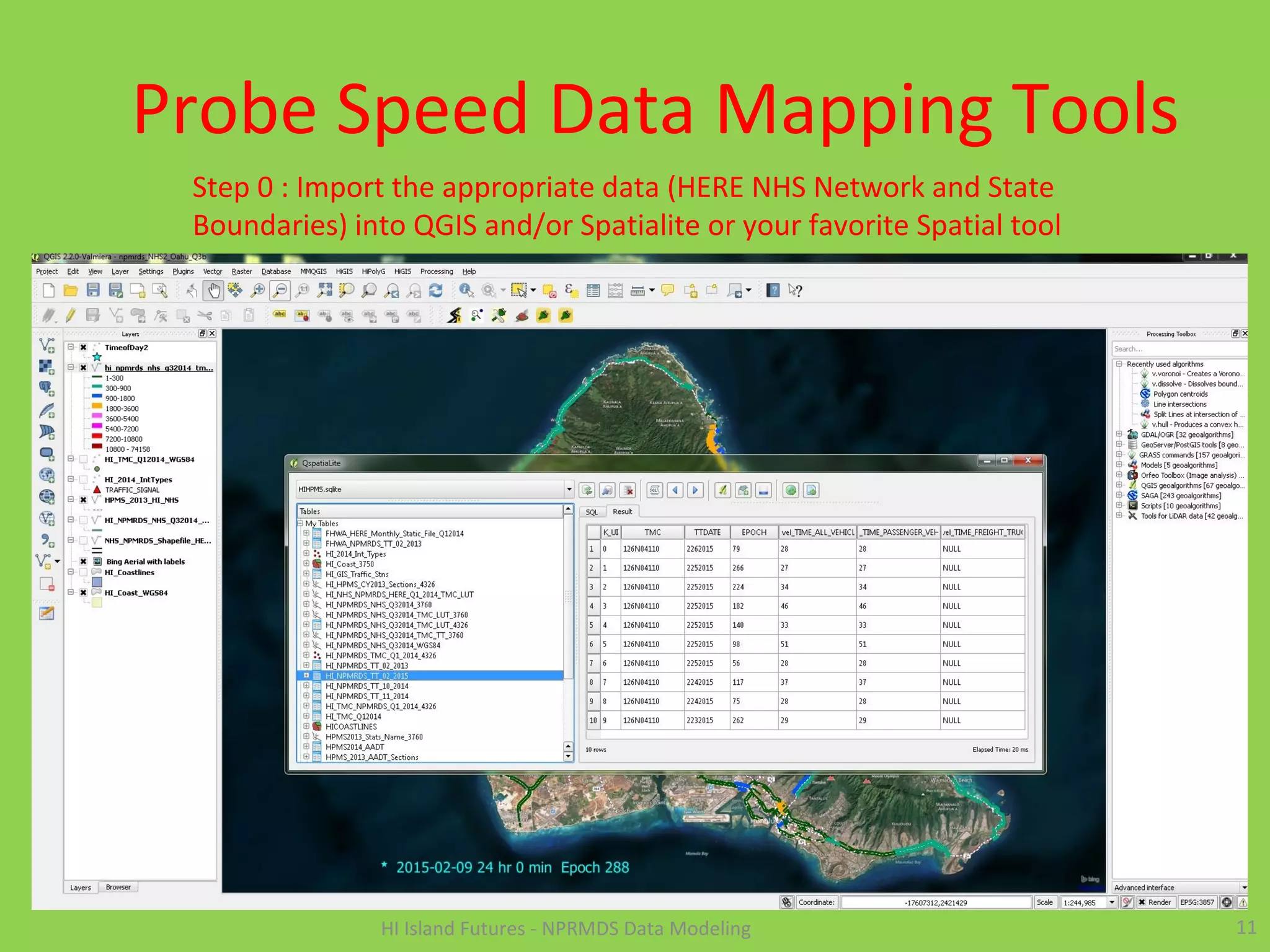

- 11. Probe Speed DataMapping Tools 11HI Island Futures - NPRMDS Data Modeling Step 0 : Import the appropriate data (HERE NHS Network and State Boundaries) into QGIS and/or Spatialite or your favorite Spatial tool

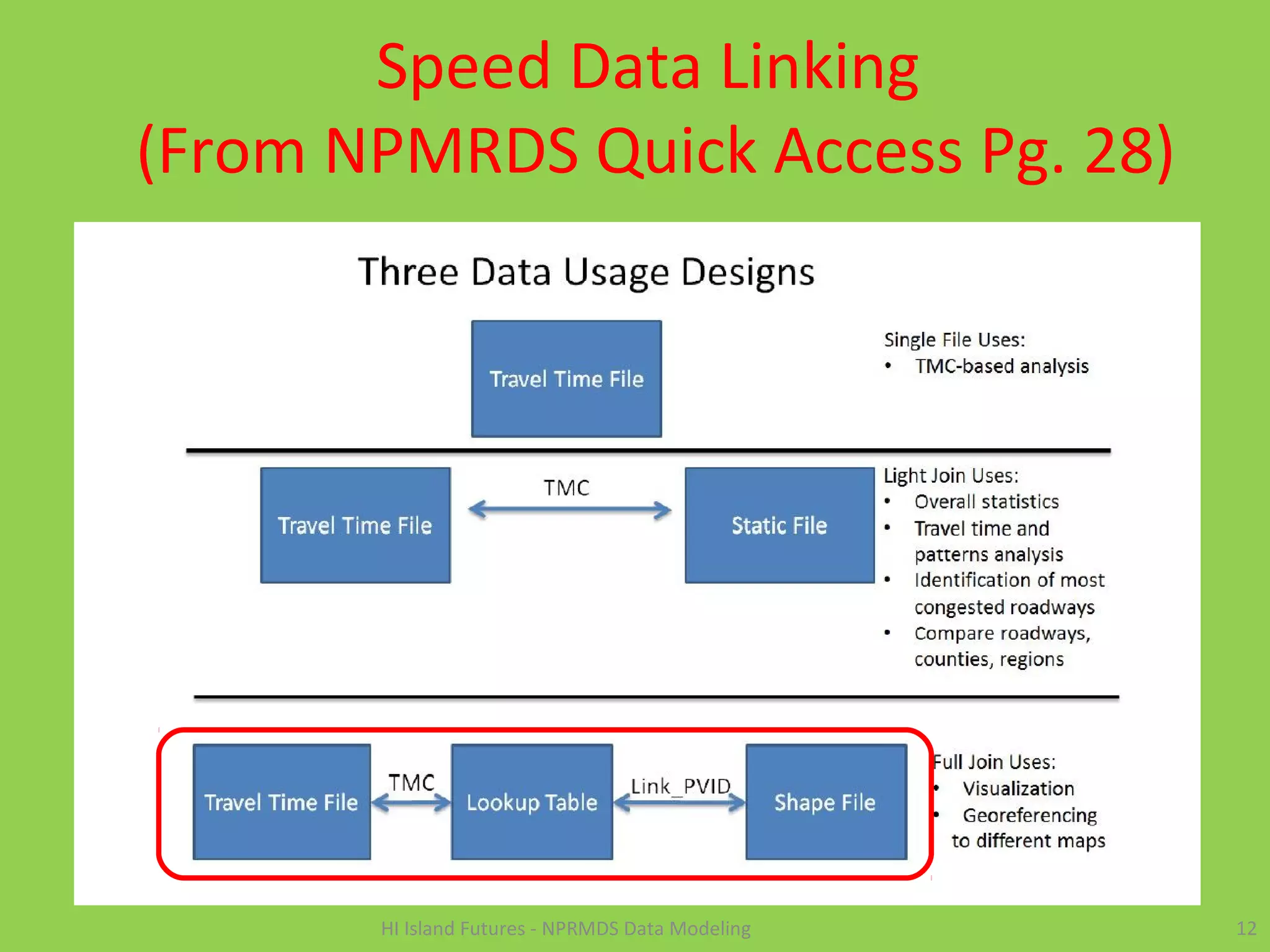

- 12. Speed Data Linking (FromNPMRDS Quick Access Pg. 28) 12HI Island Futures - NPRMDS Data Modeling

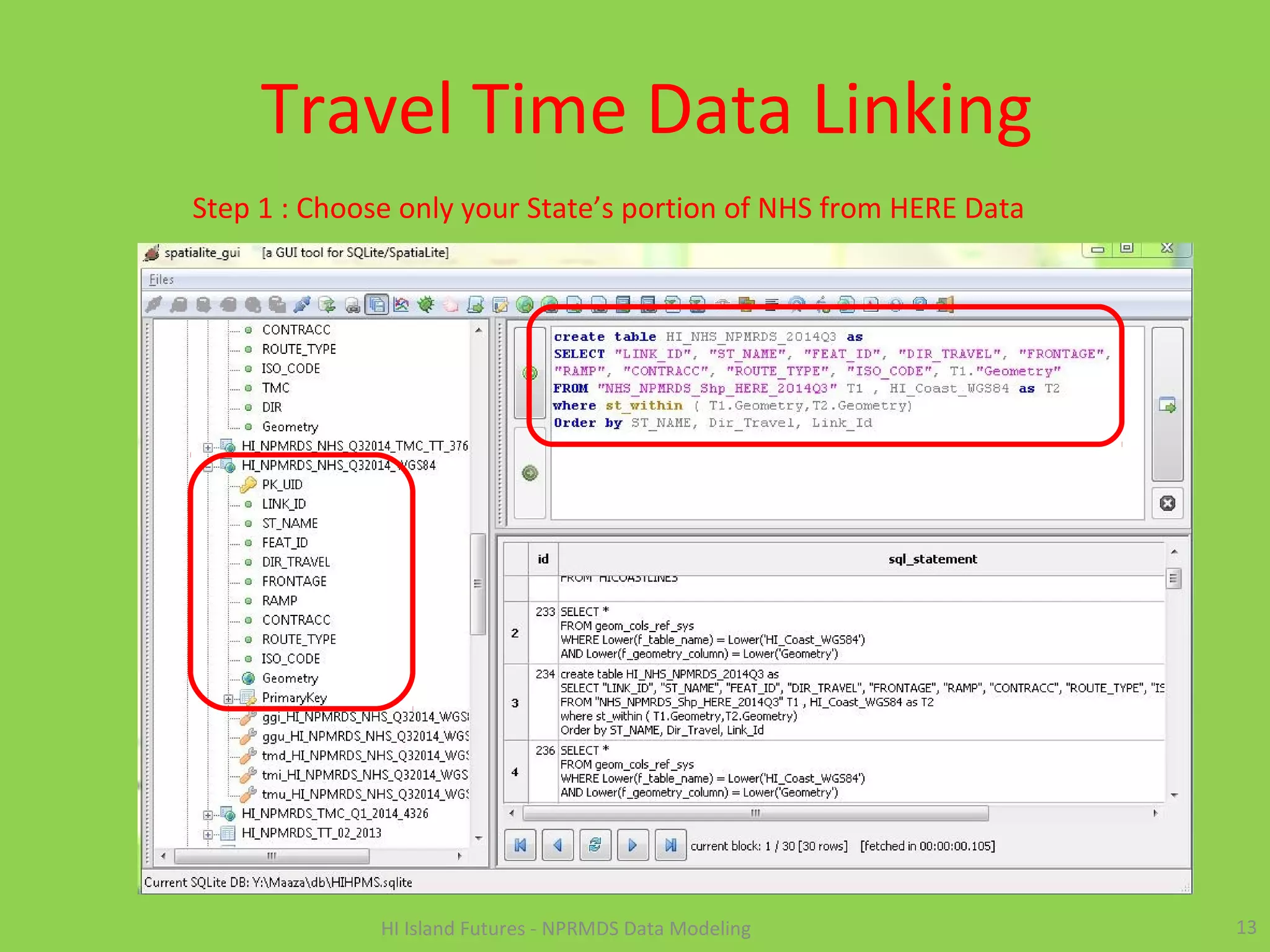

- 13. Travel Time DataLinking 13 Step 1 : Choose only your State’s portion of NHS from HERE Data HI Island Futures - NPRMDS Data Modeling

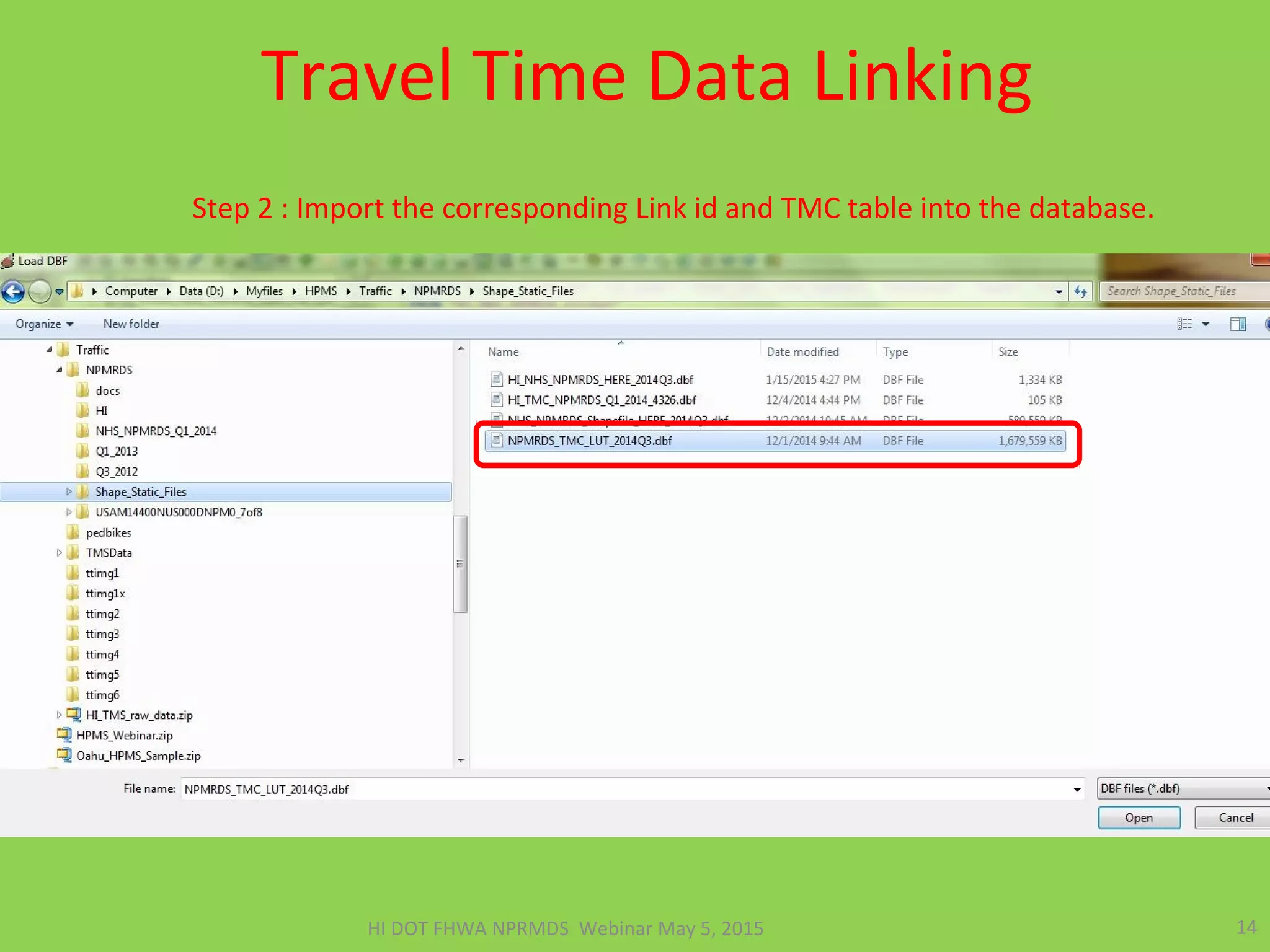

- 14. Travel Time DataLinking 14HI DOT FHWA NPRMDS Webinar May 5, 2015 Step 2 : Import the corresponding Link id and TMC table into the database.

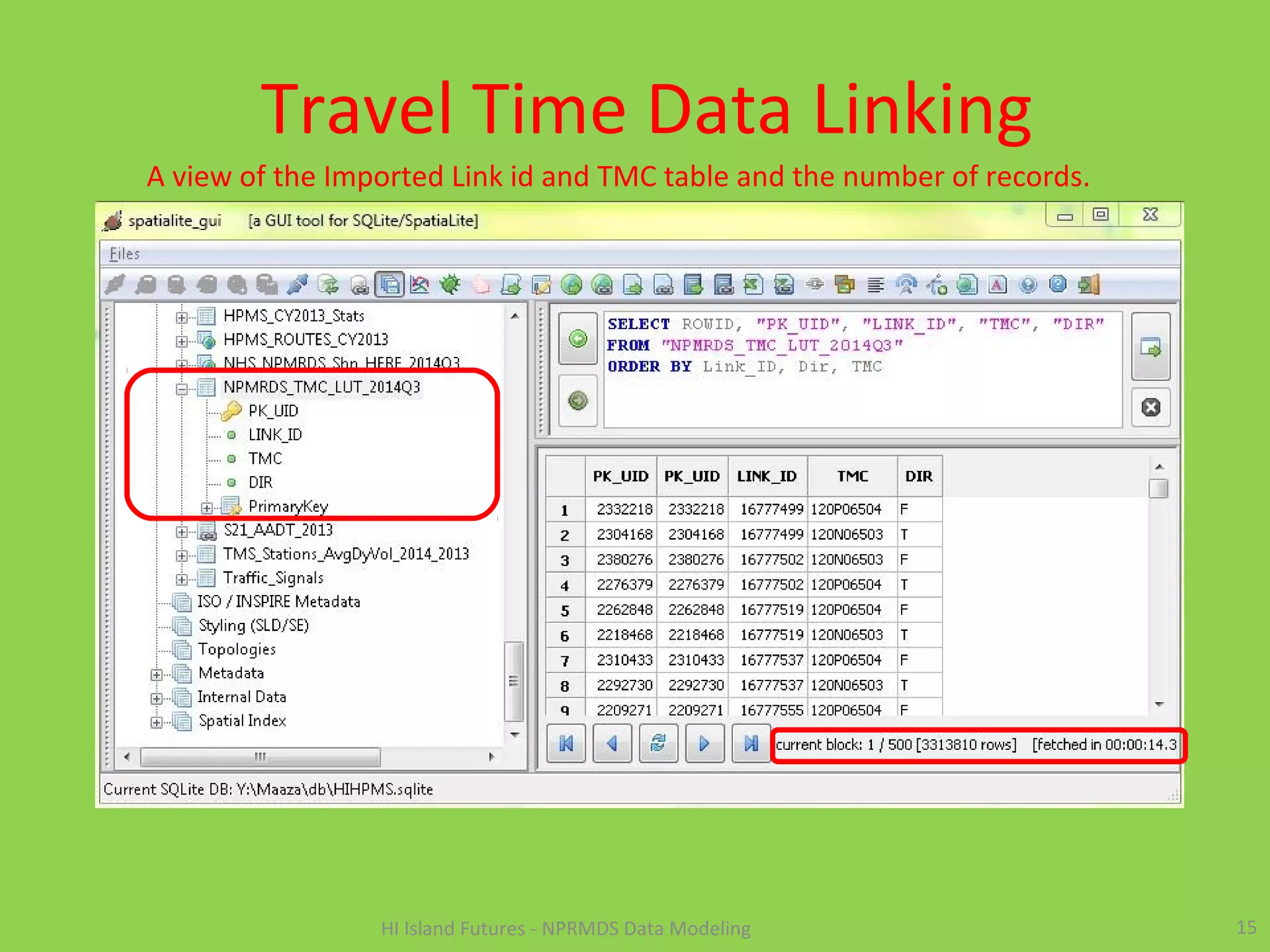

- 15. Travel Time DataLinking 15HI Island Futures - NPRMDS Data Modeling A view of the Imported Link id and TMC table and the number of records.

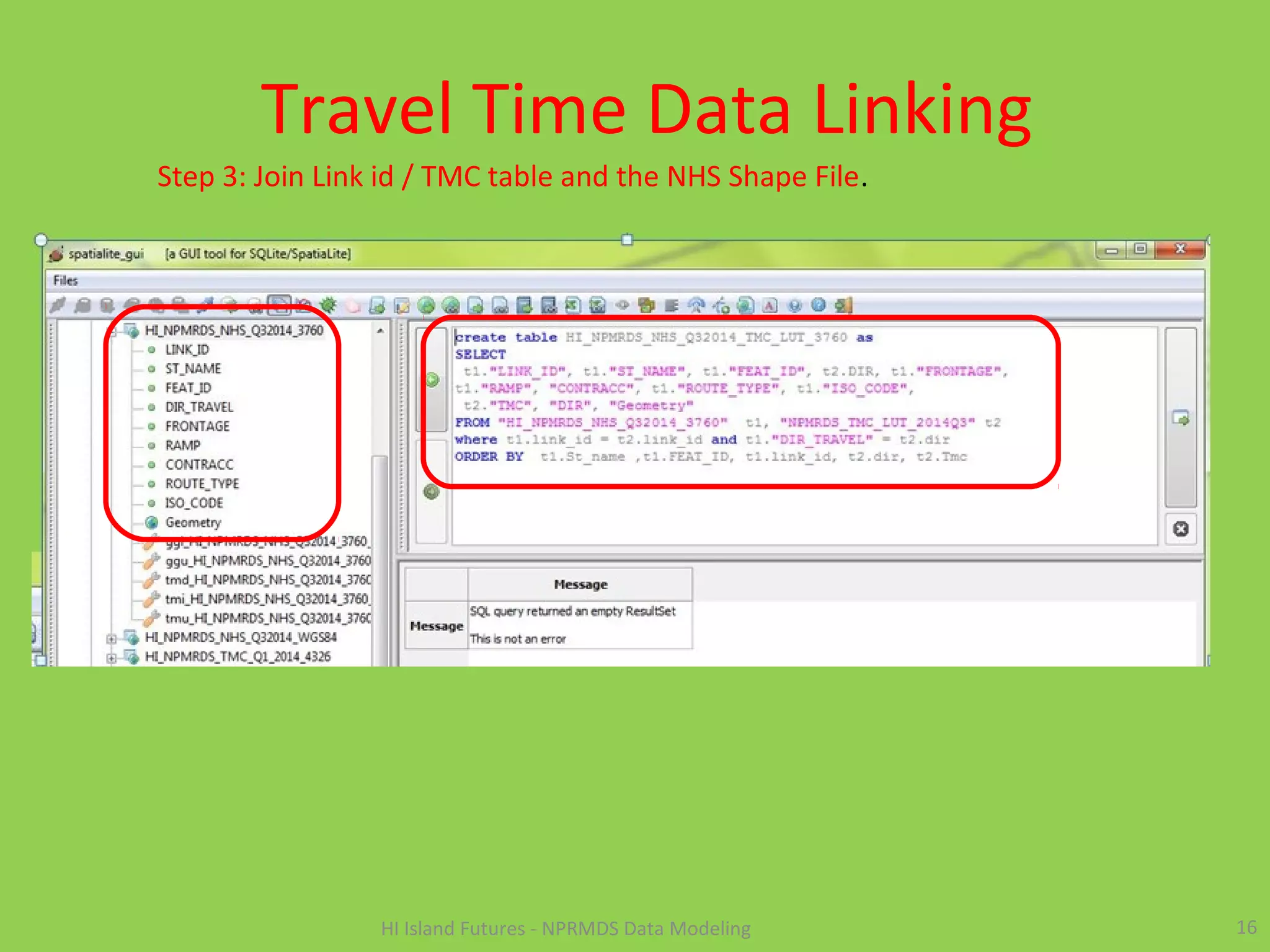

- 16. Travel Time DataLinking 16HI Island Futures - NPRMDS Data Modeling Step 3: Join Link id / TMC table and the NHS Shape File.

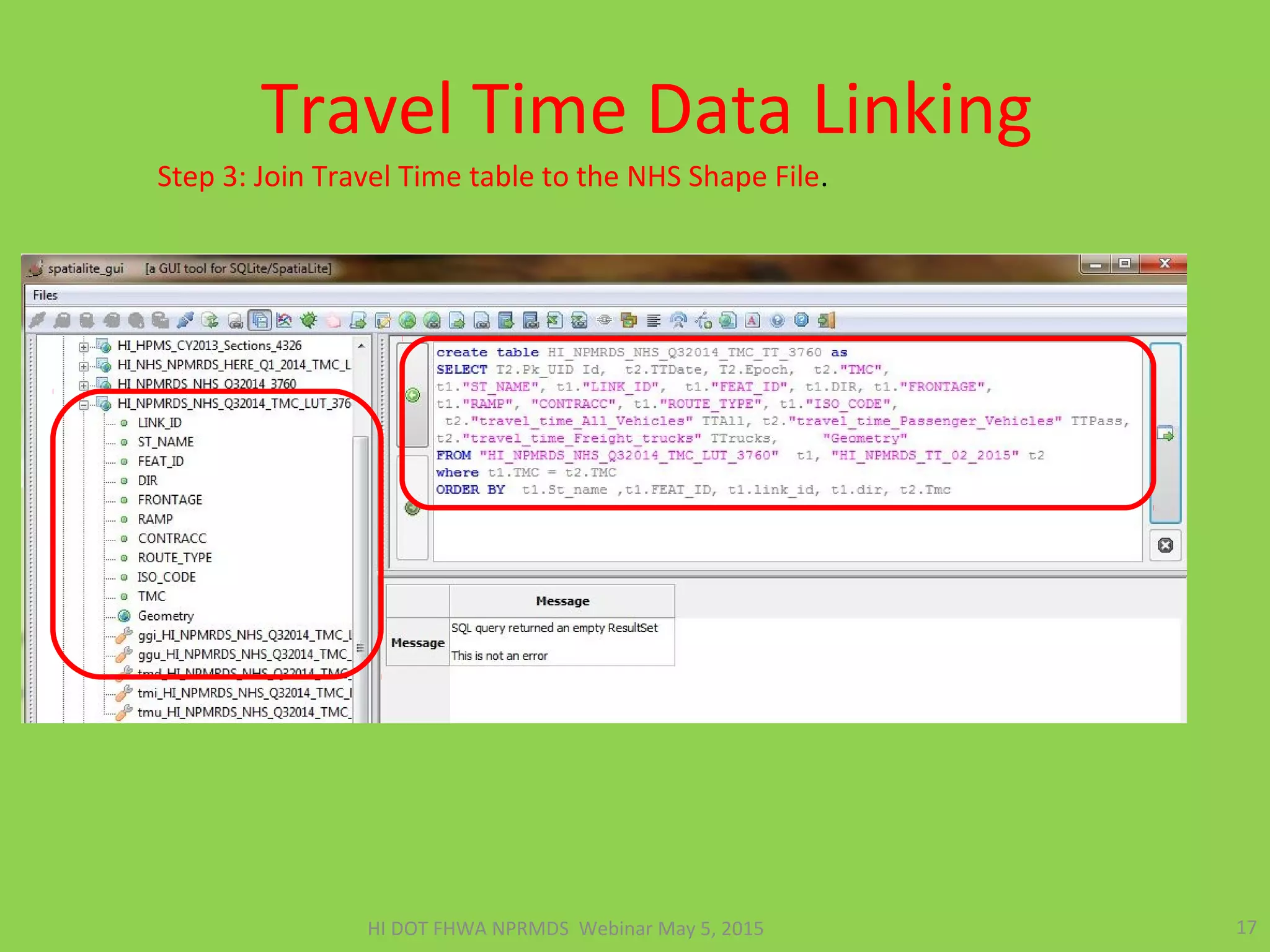

- 17. Travel Time DataLinking 17HI DOT FHWA NPRMDS Webinar May 5, 2015 Step 3: Join Travel Time table to the NHS Shape File.

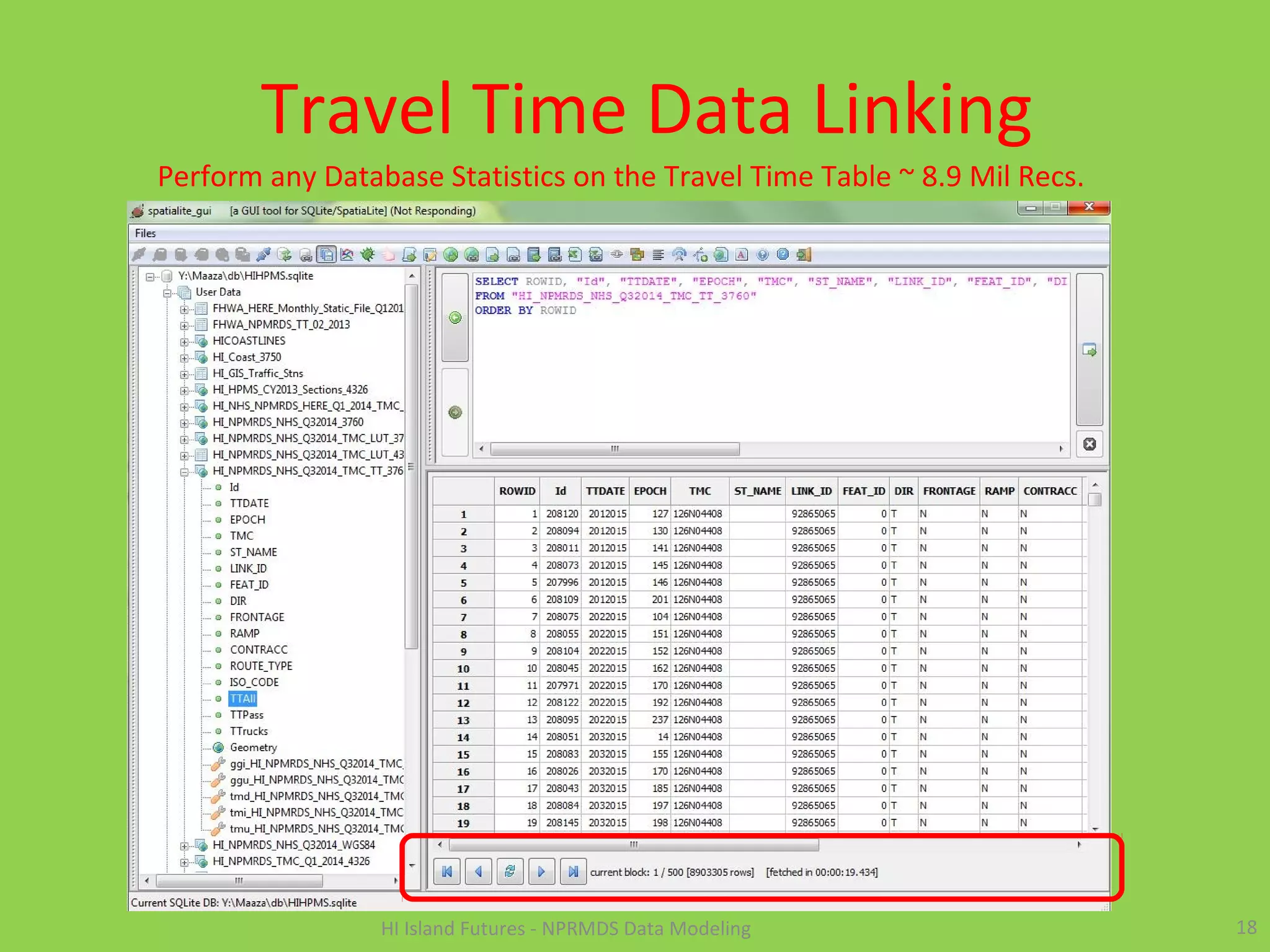

- 18. Travel Time DataLinking 18HI Island Futures - NPRMDS Data Modeling Perform any Database Statistics on the Travel Time Table ~ 8.9 Mil Recs.

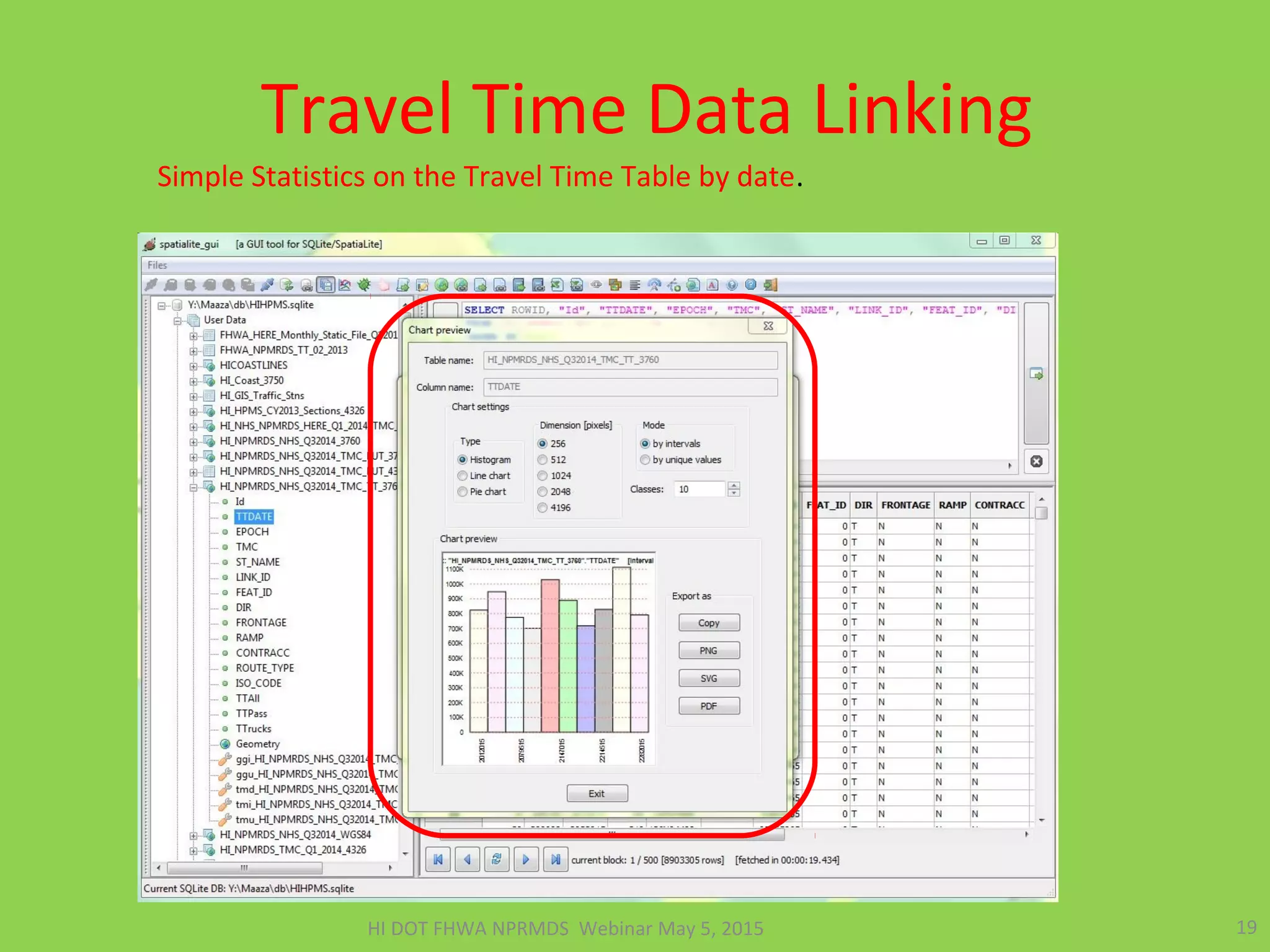

- 19. Travel Time DataLinking 19HI DOT FHWA NPRMDS Webinar May 5, 2015 Simple Statistics on the Travel Time Table by date.

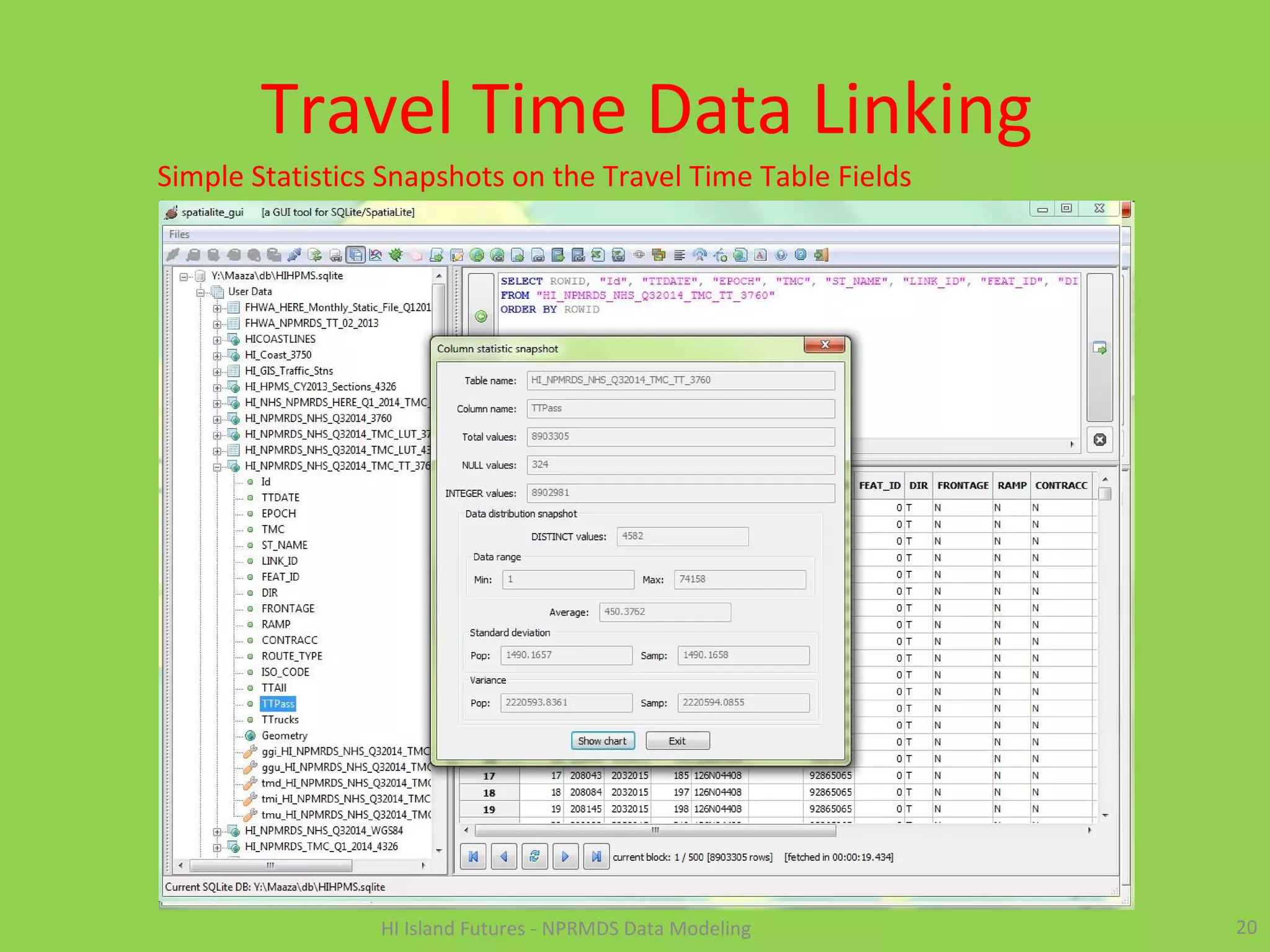

- 20. Travel Time DataLinking 20HI Island Futures - NPRMDS Data Modeling Simple Statistics Snapshots on the Travel Time Table Fields

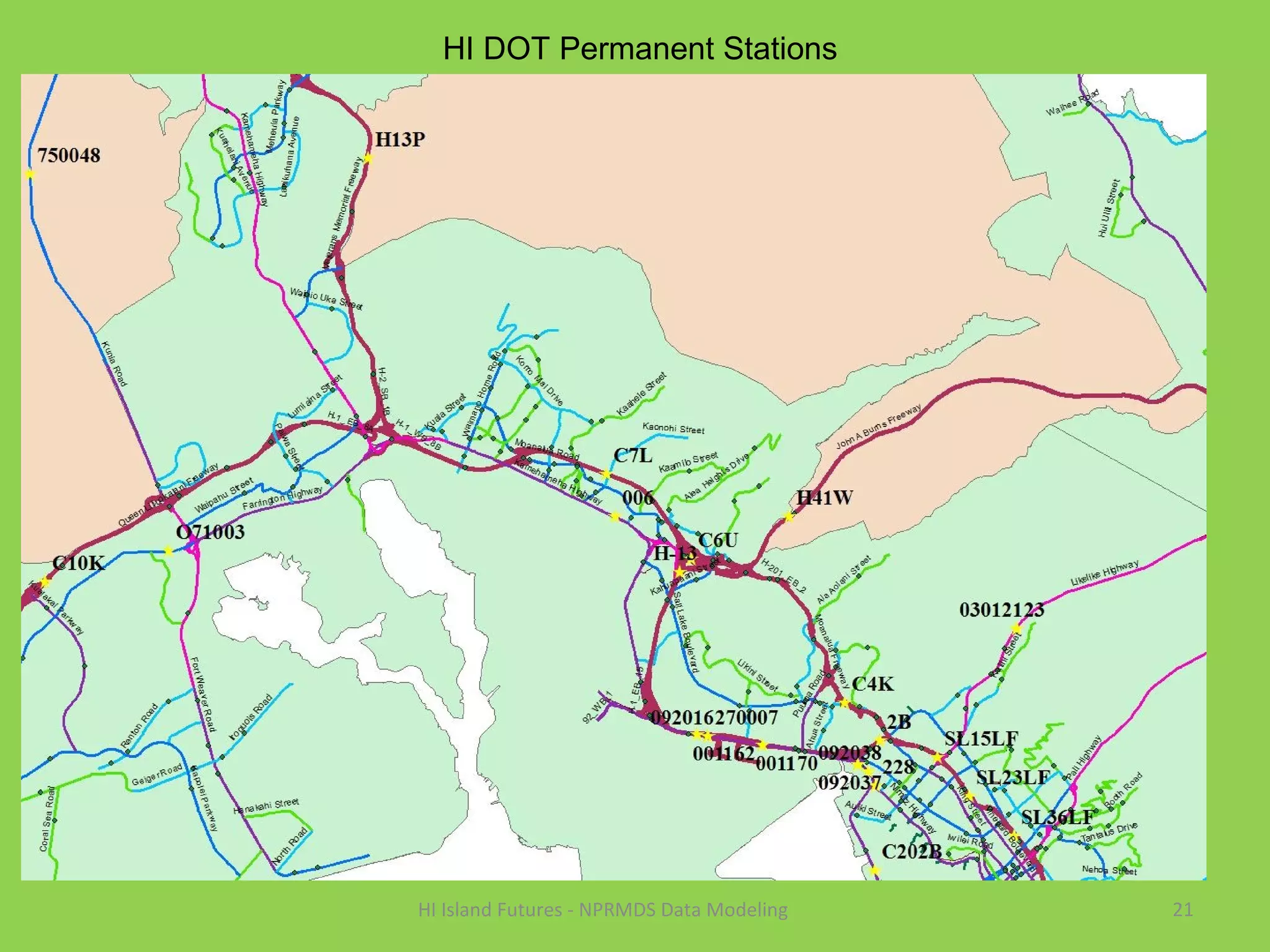

- 21. 21HI Island Futures- NPRMDS Data Modeling HI DOT Permanent Stations

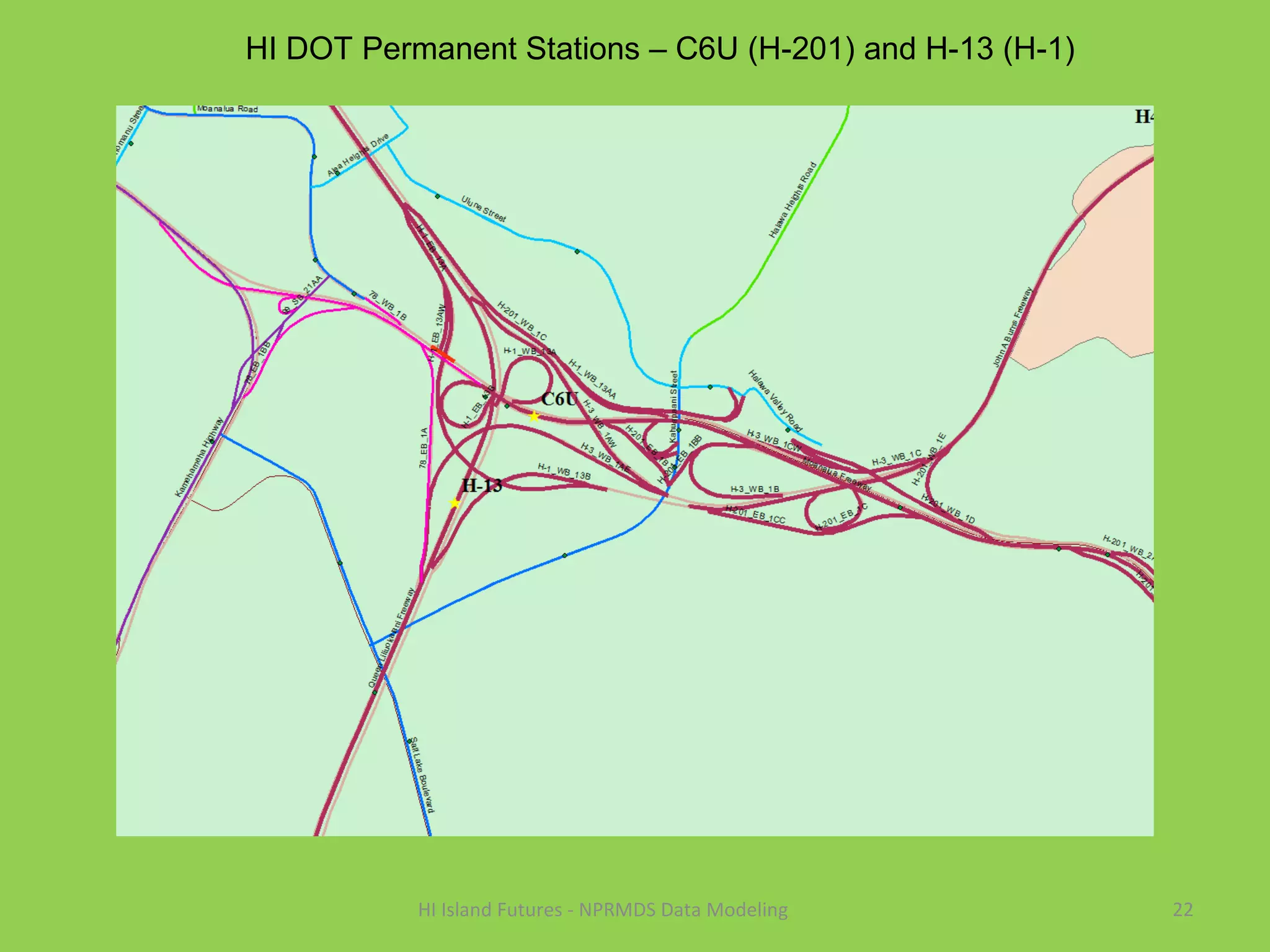

- 22. 22HI Island Futures- NPRMDS Data Modeling HI DOT Permanent Stations – C6U (H-201) and H-13 (H-1)

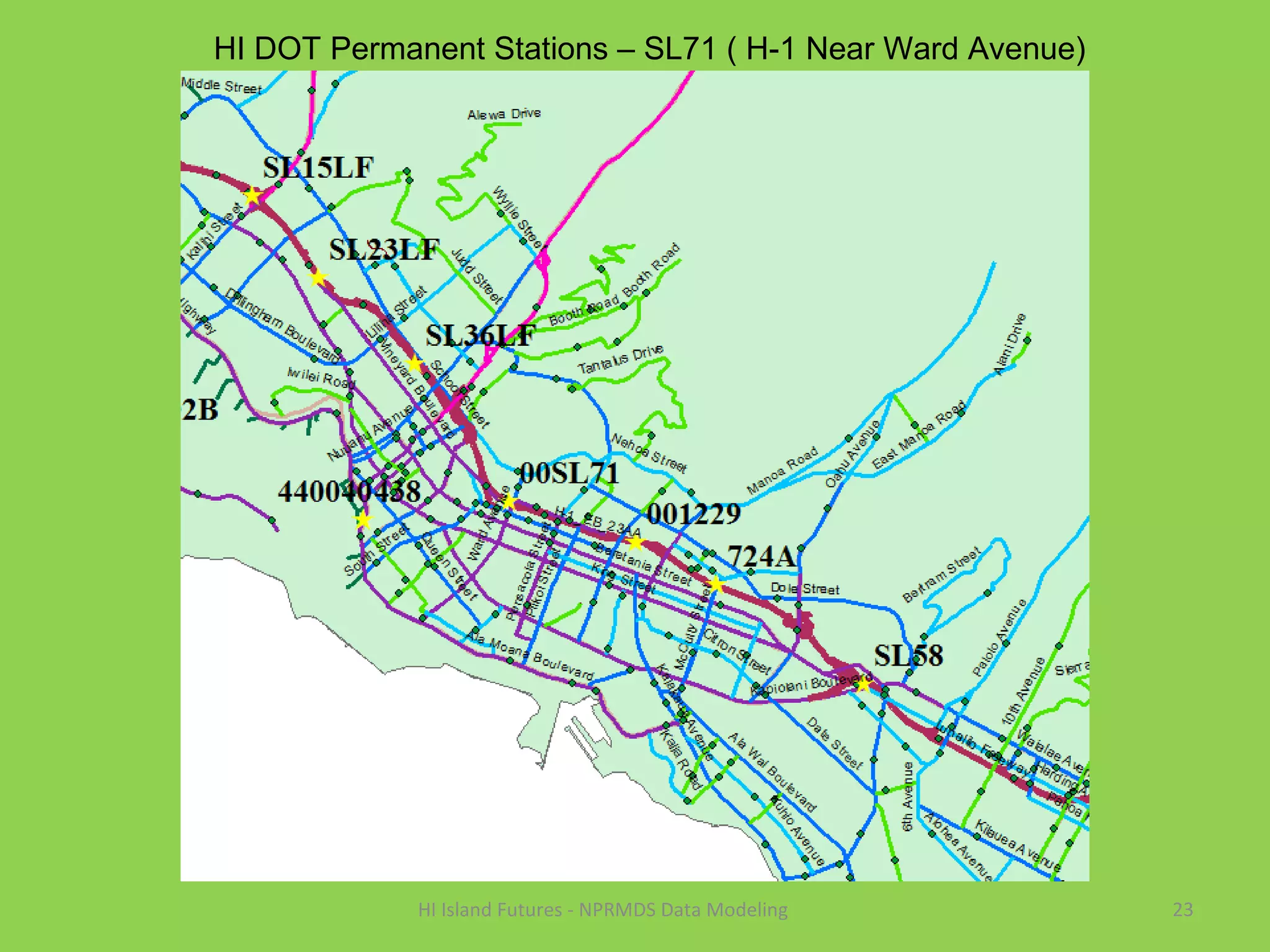

- 23. 23HI Island Futures- NPRMDS Data Modeling HI DOT Permanent Stations – SL71 ( H-1 Near Ward Avenue)

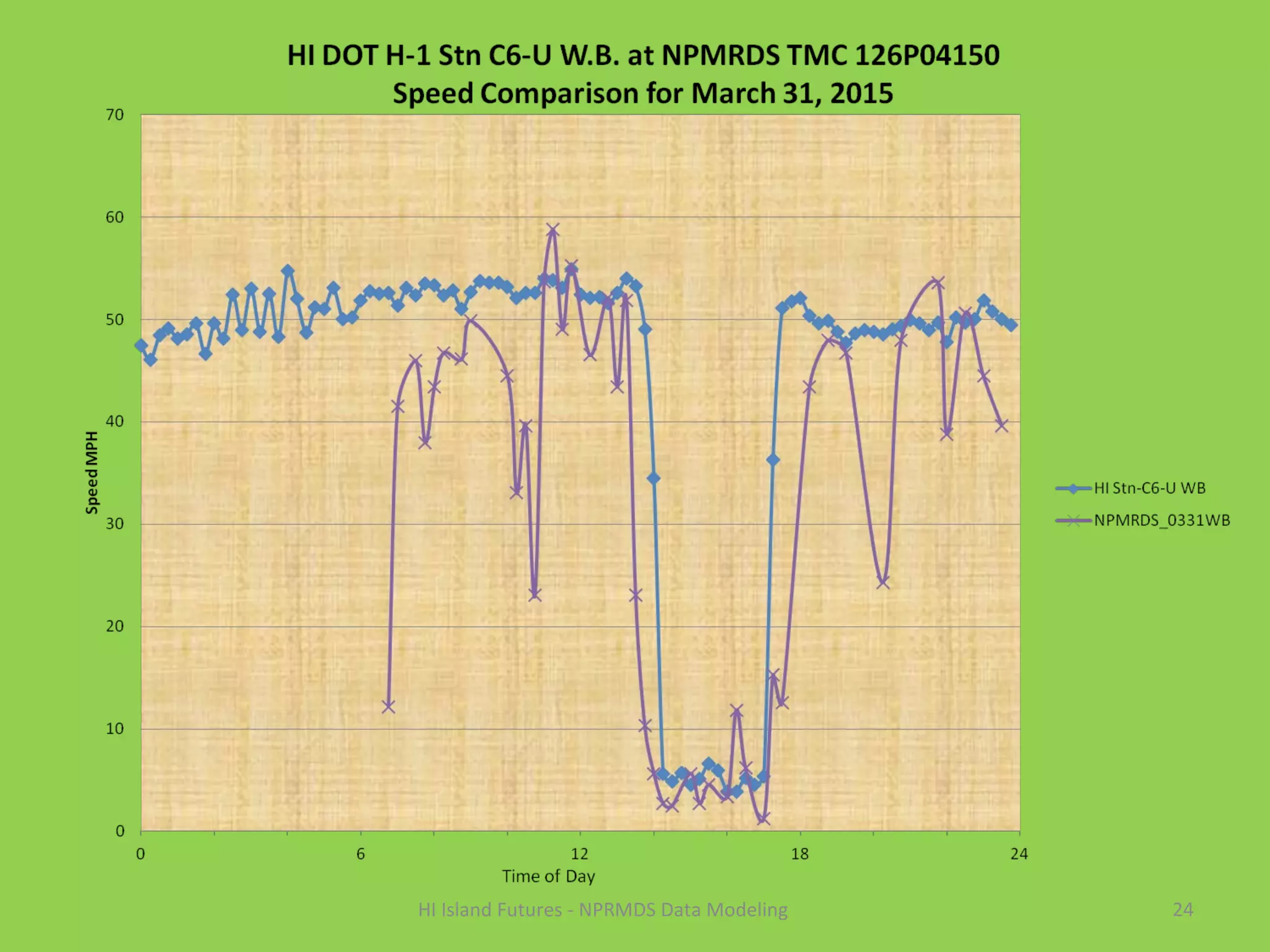

- 24. 24HI Island Futures- NPRMDS Data Modeling

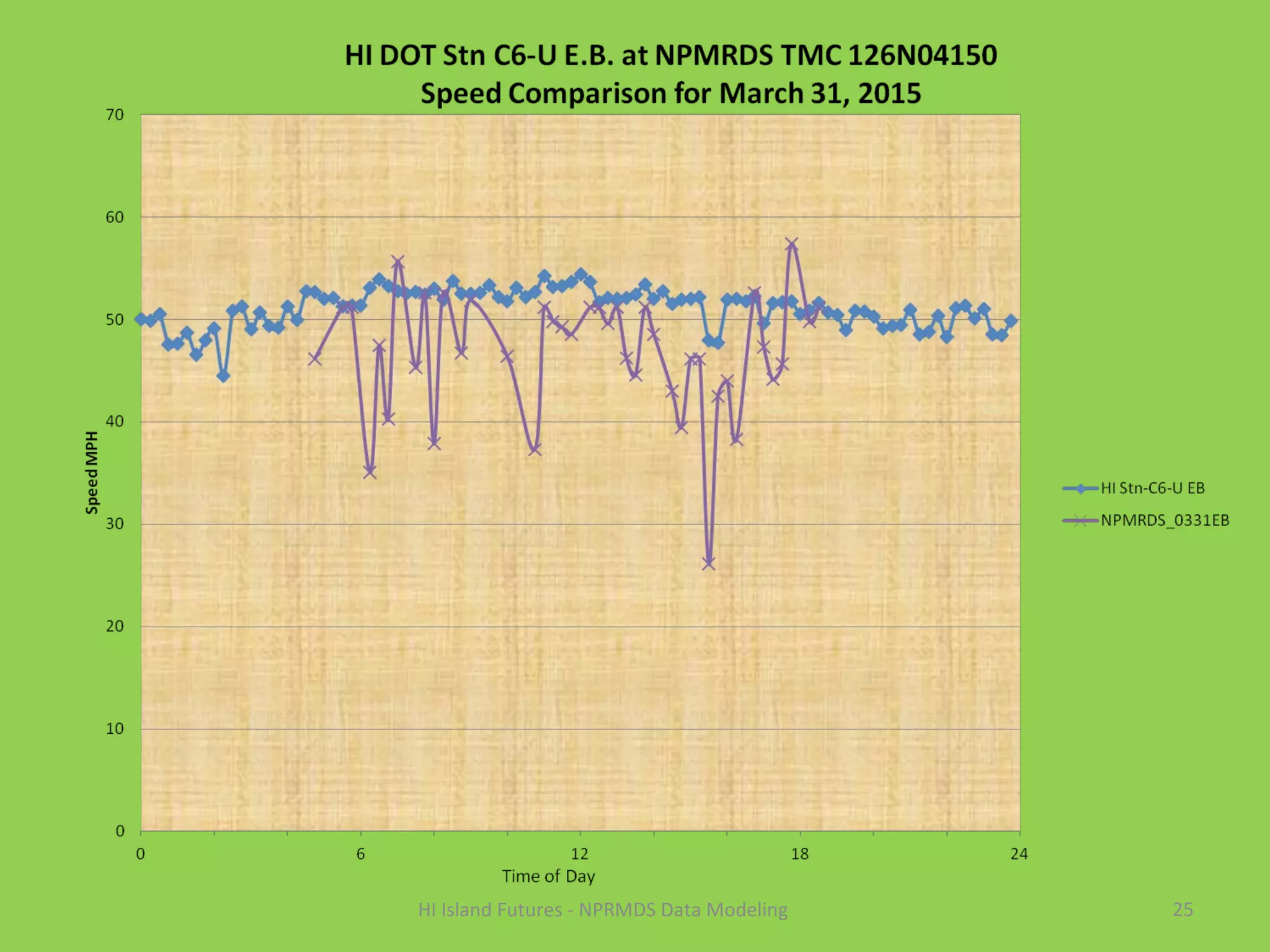

- 25. 25HI Island Futures- NPRMDS Data Modeling

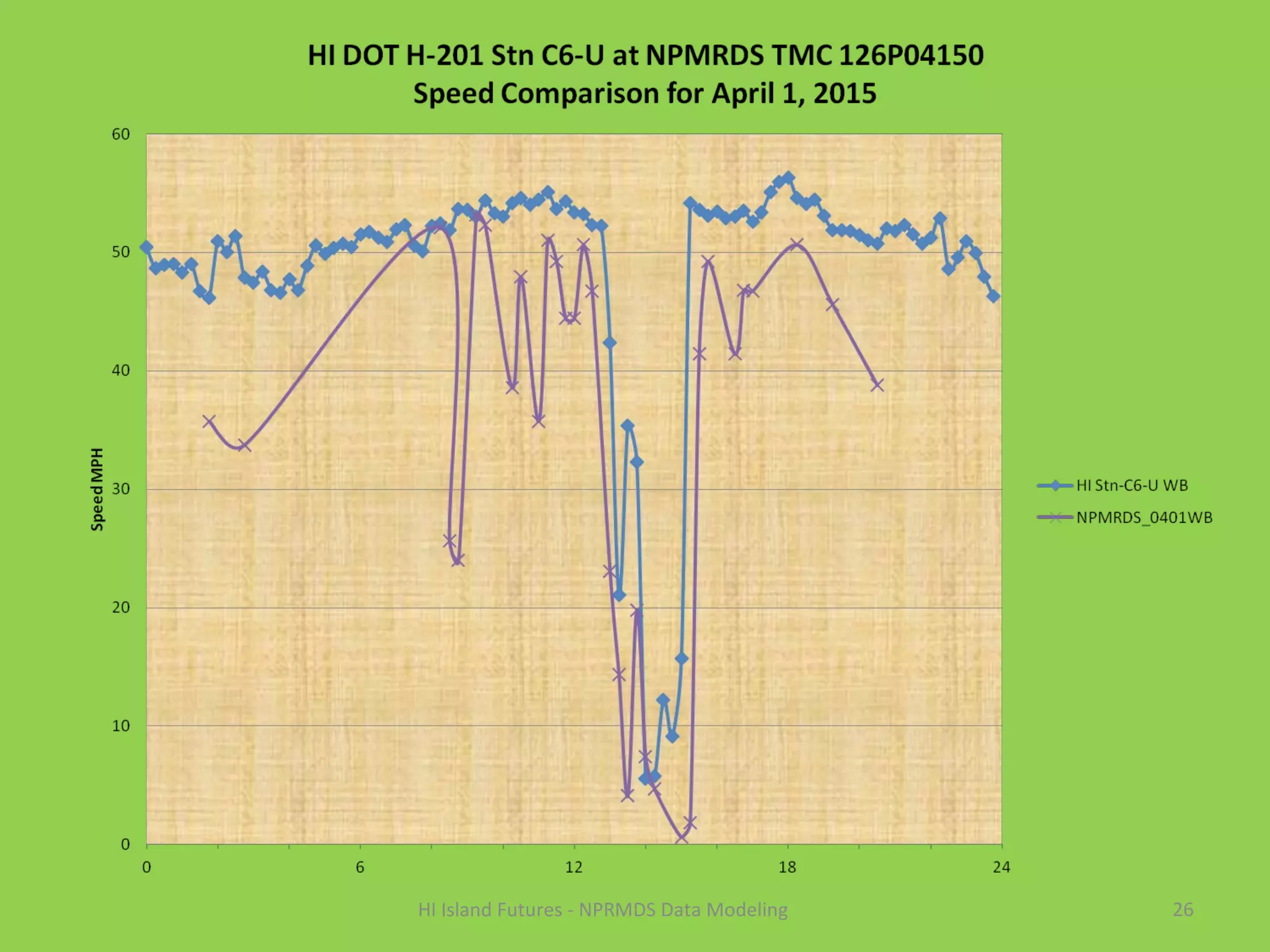

- 26. HI Island Futures- NPRMDS Data Modeling 26

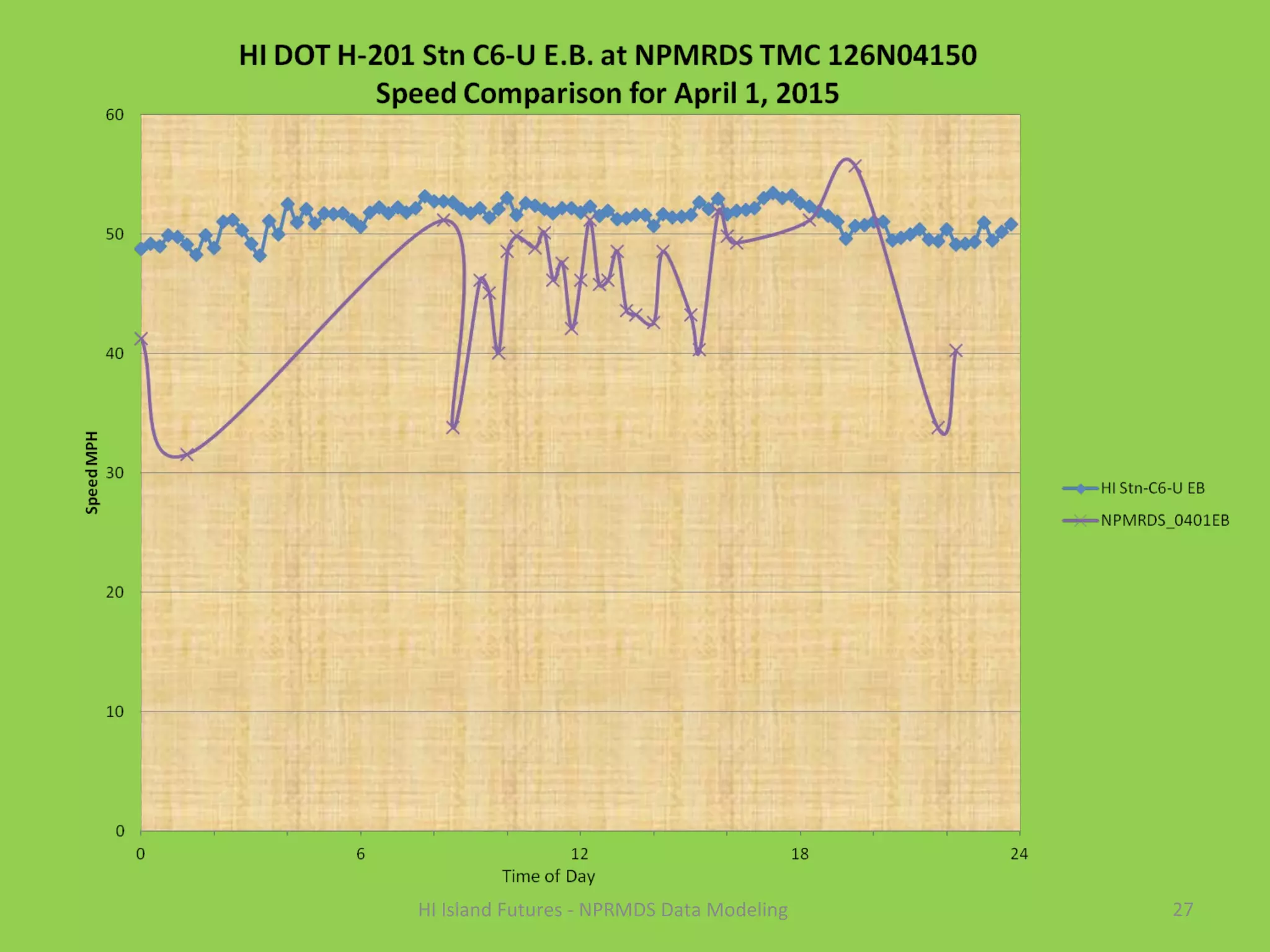

- 27. 27HI Island Futures- NPRMDS Data Modeling

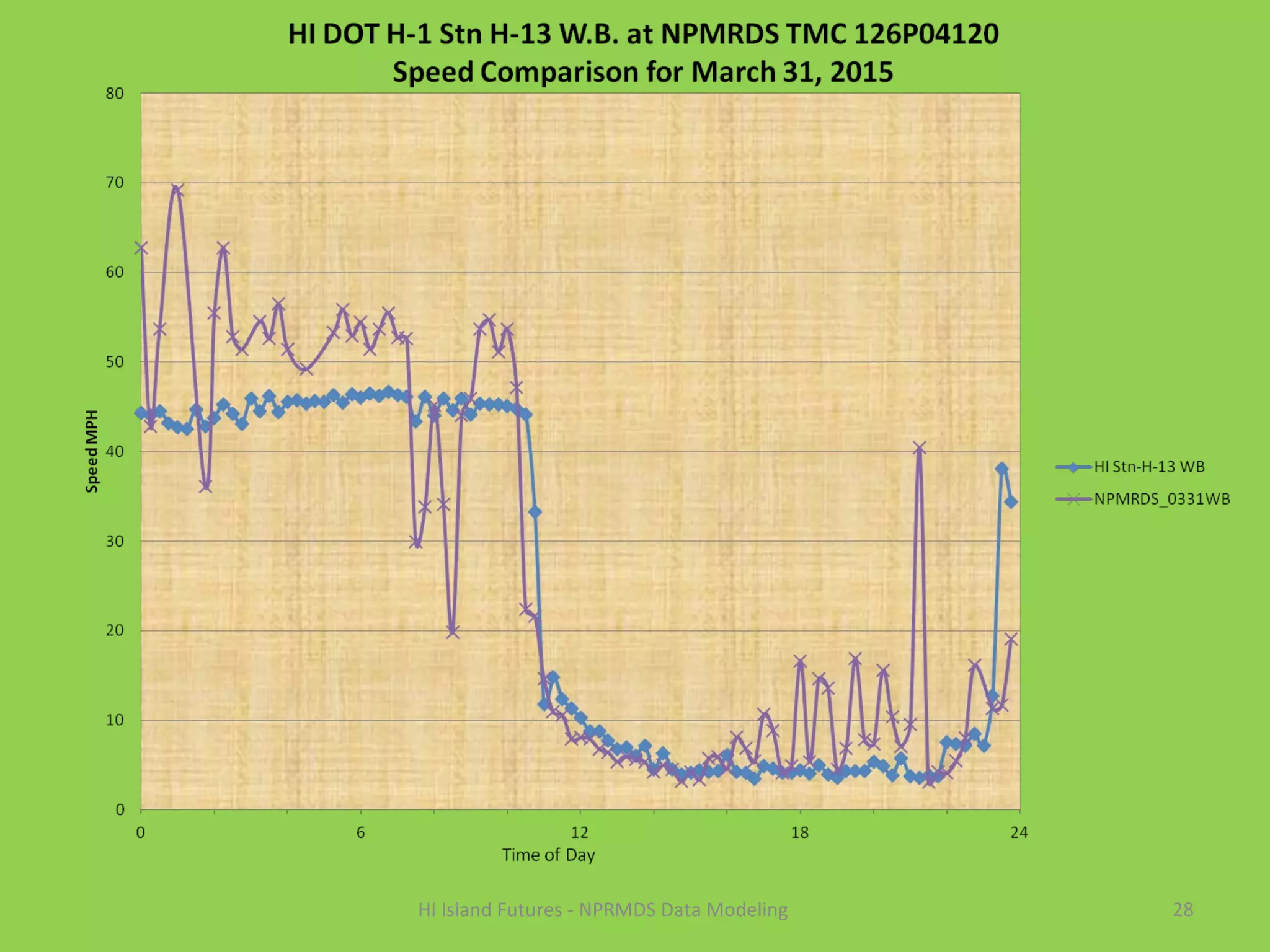

- 28. 28HI Island Futures- NPRMDS Data Modeling

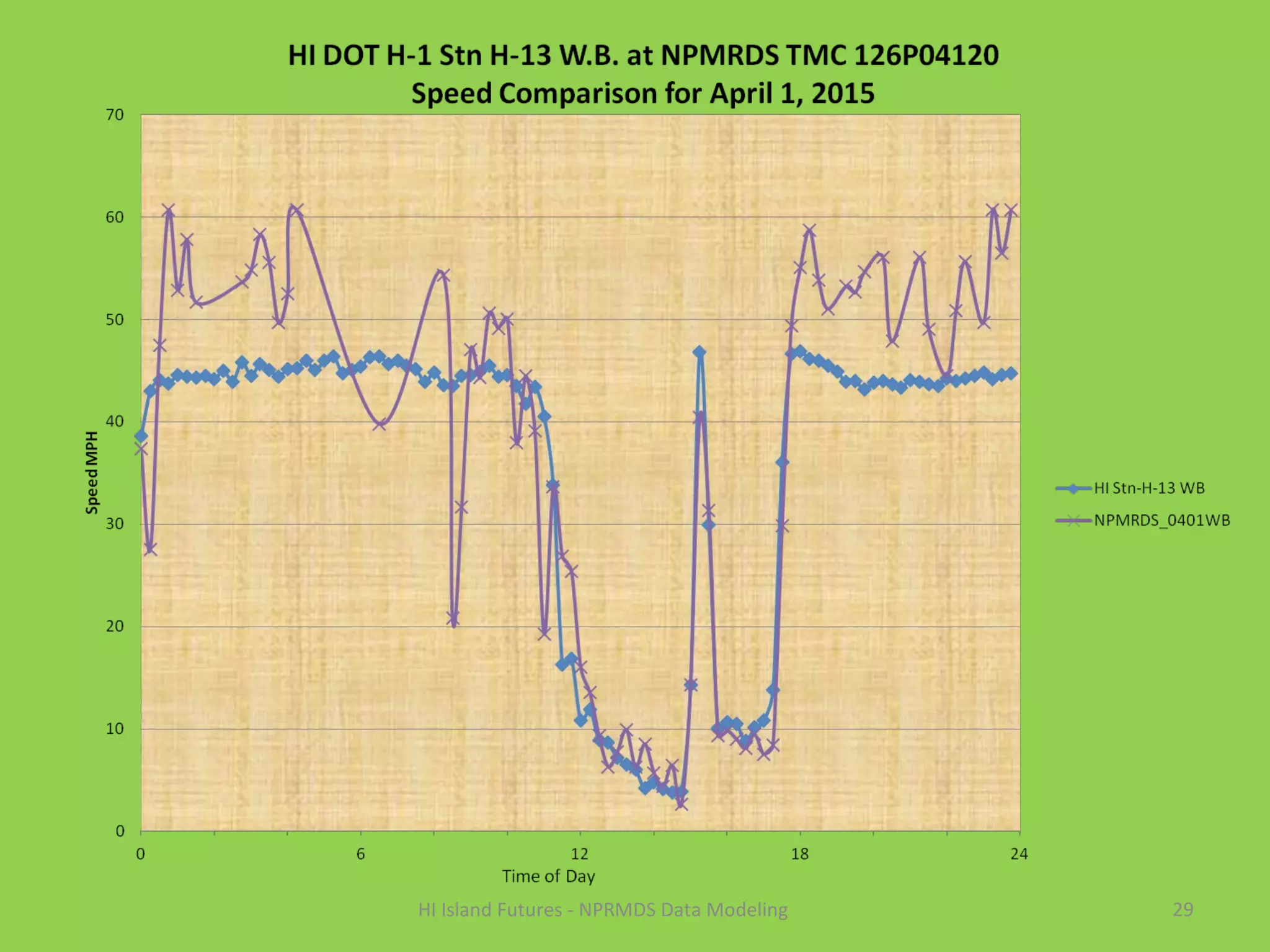

- 29. 29HI Island Futures- NPRMDS Data Modeling

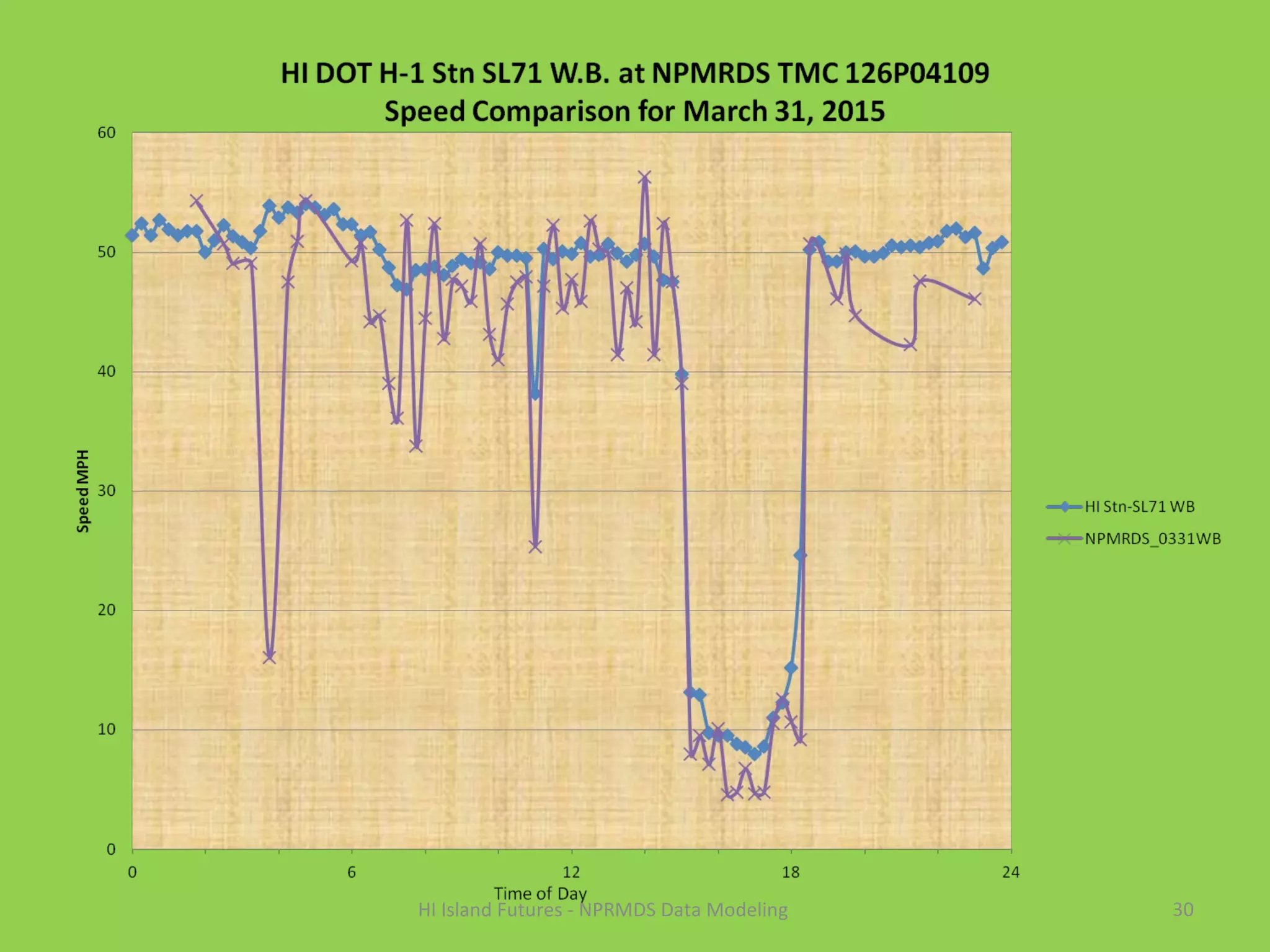

- 30. 30HI Island Futures- NPRMDS Data Modeling

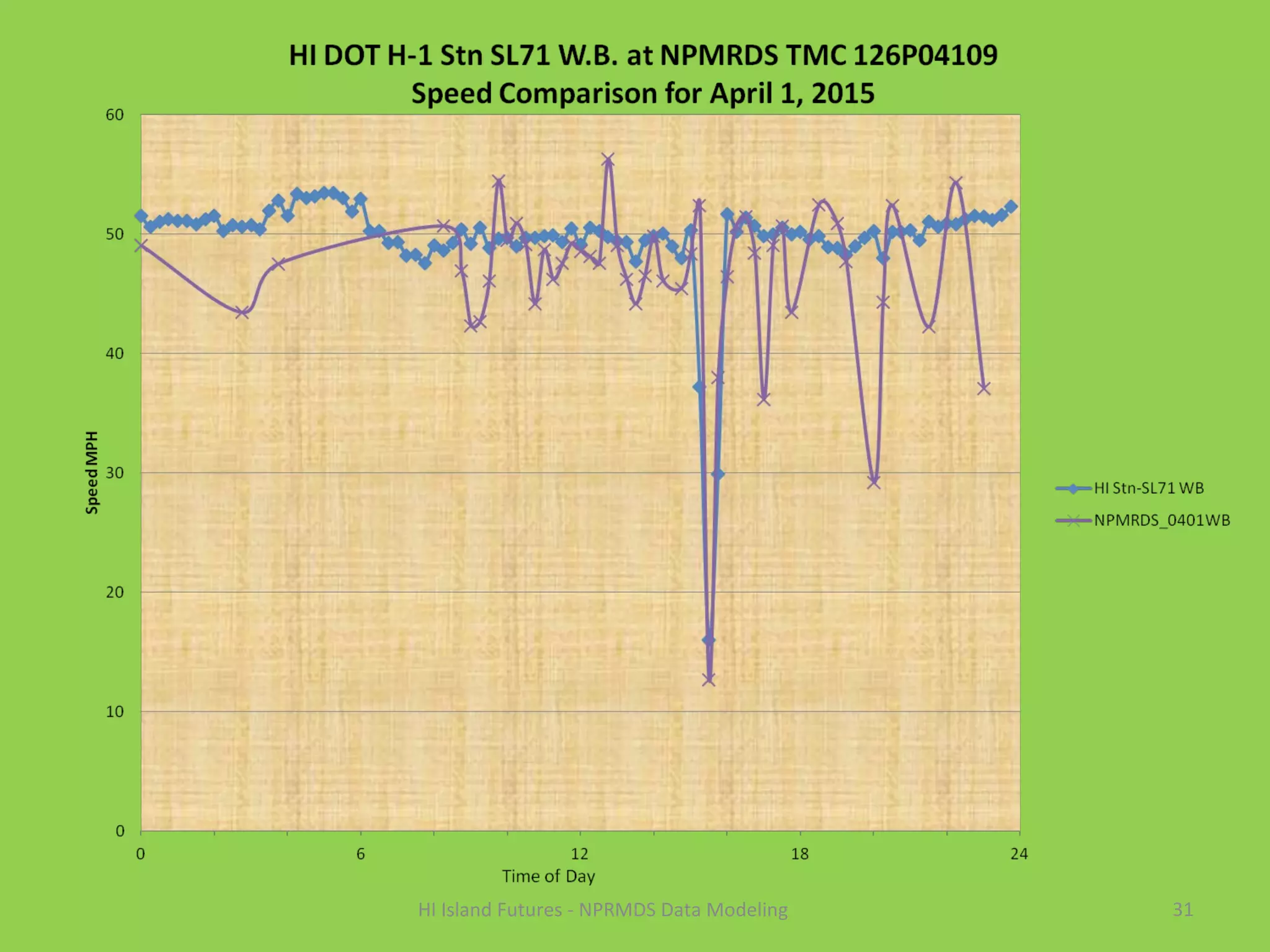

- 31. 31HI Island Futures- NPRMDS Data Modeling

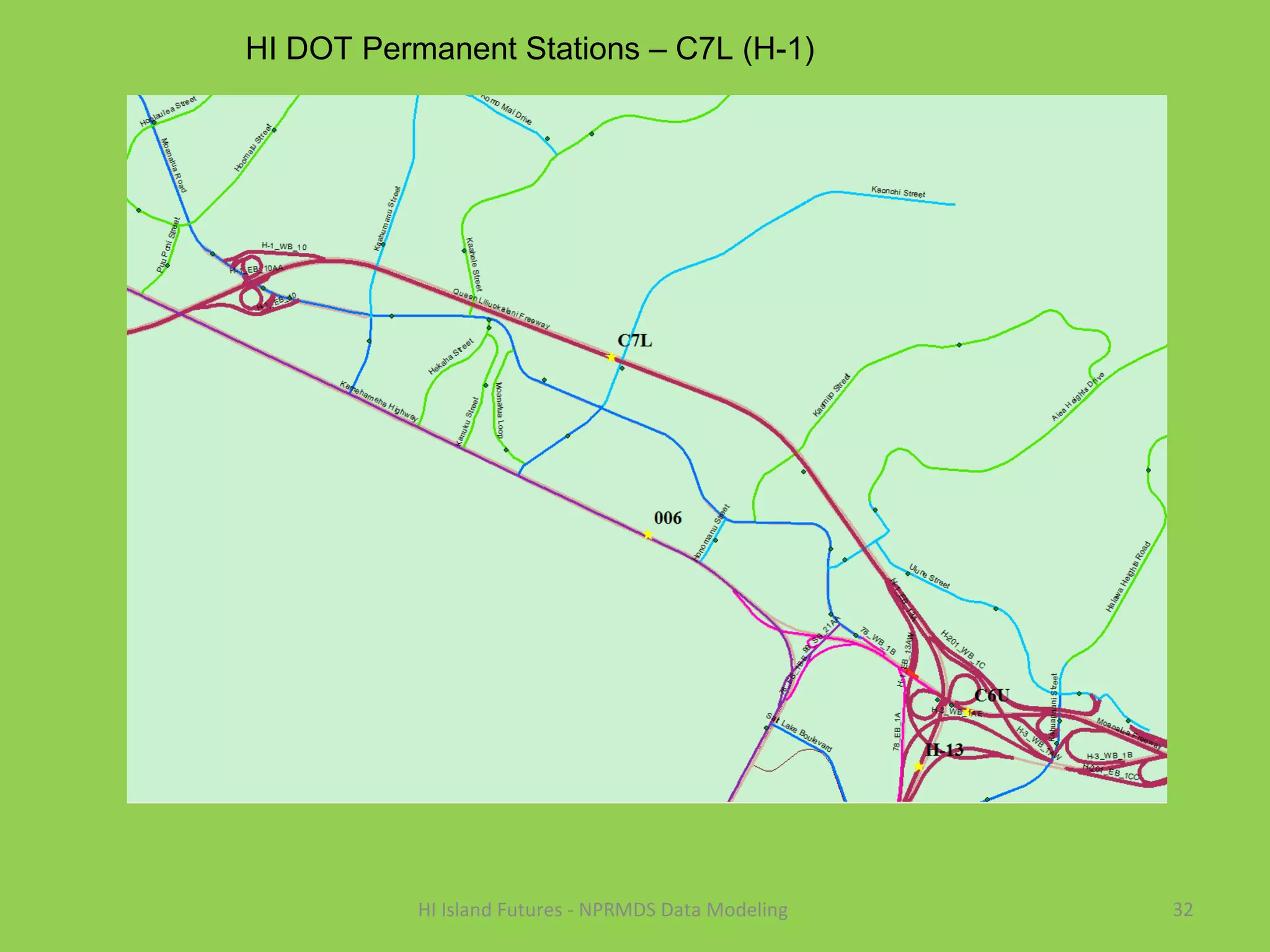

- 32. 32HI Island Futures- NPRMDS Data Modeling HI DOT Permanent Stations – C7L (H-1)

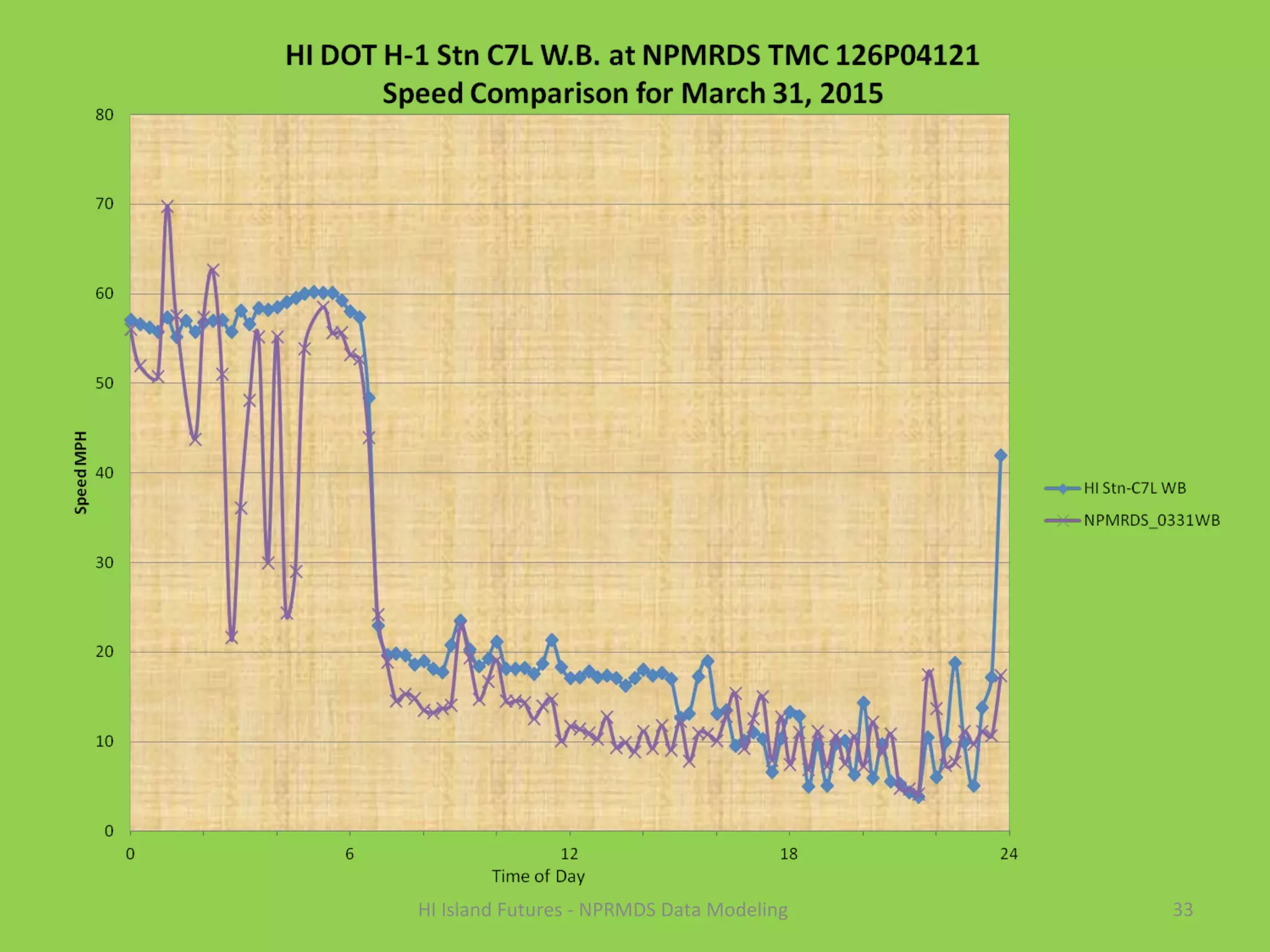

- 33. 33HI Island Futures- NPRMDS Data Modeling

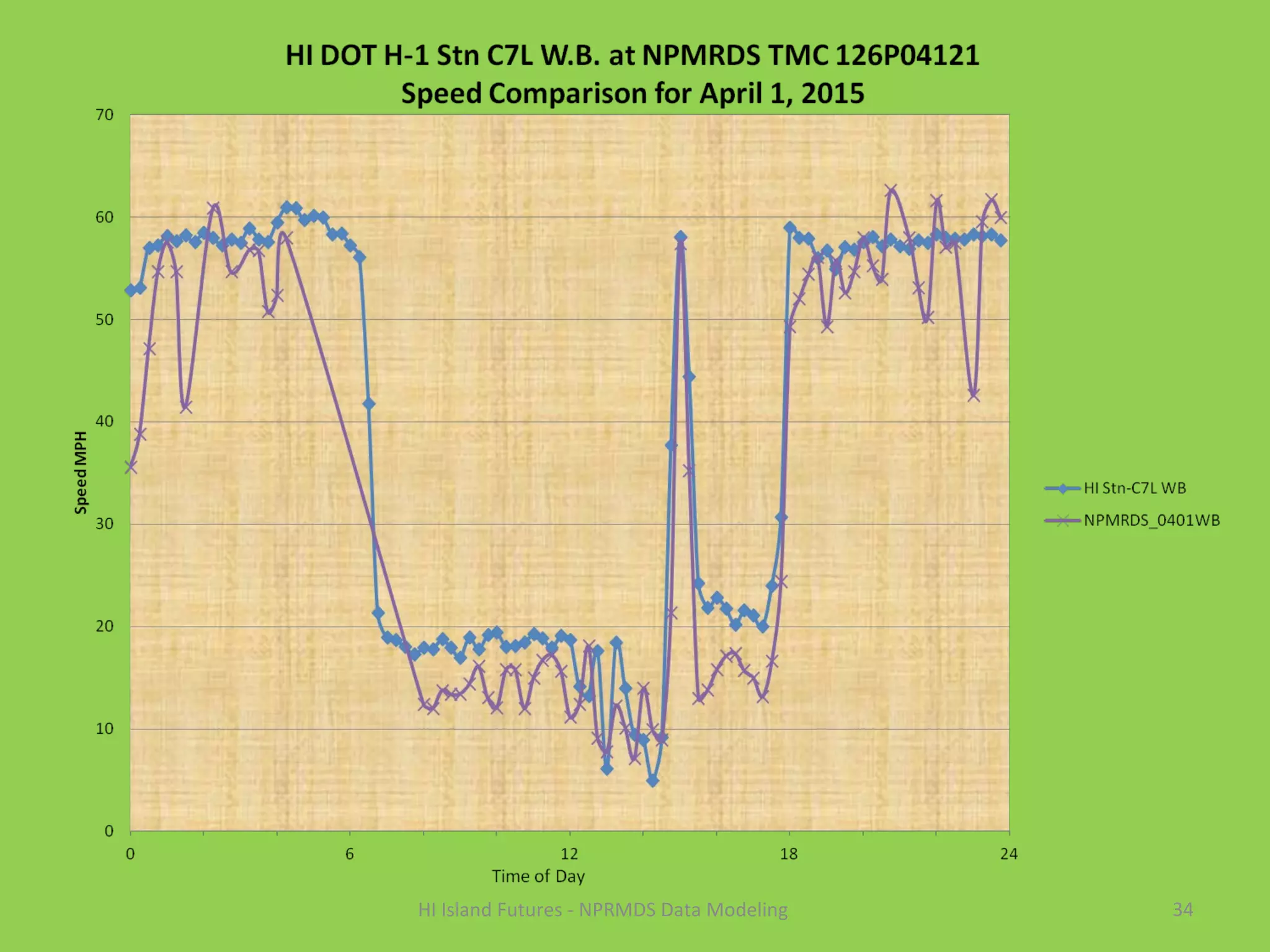

- 34. 34HI Island Futures- NPRMDS Data Modeling

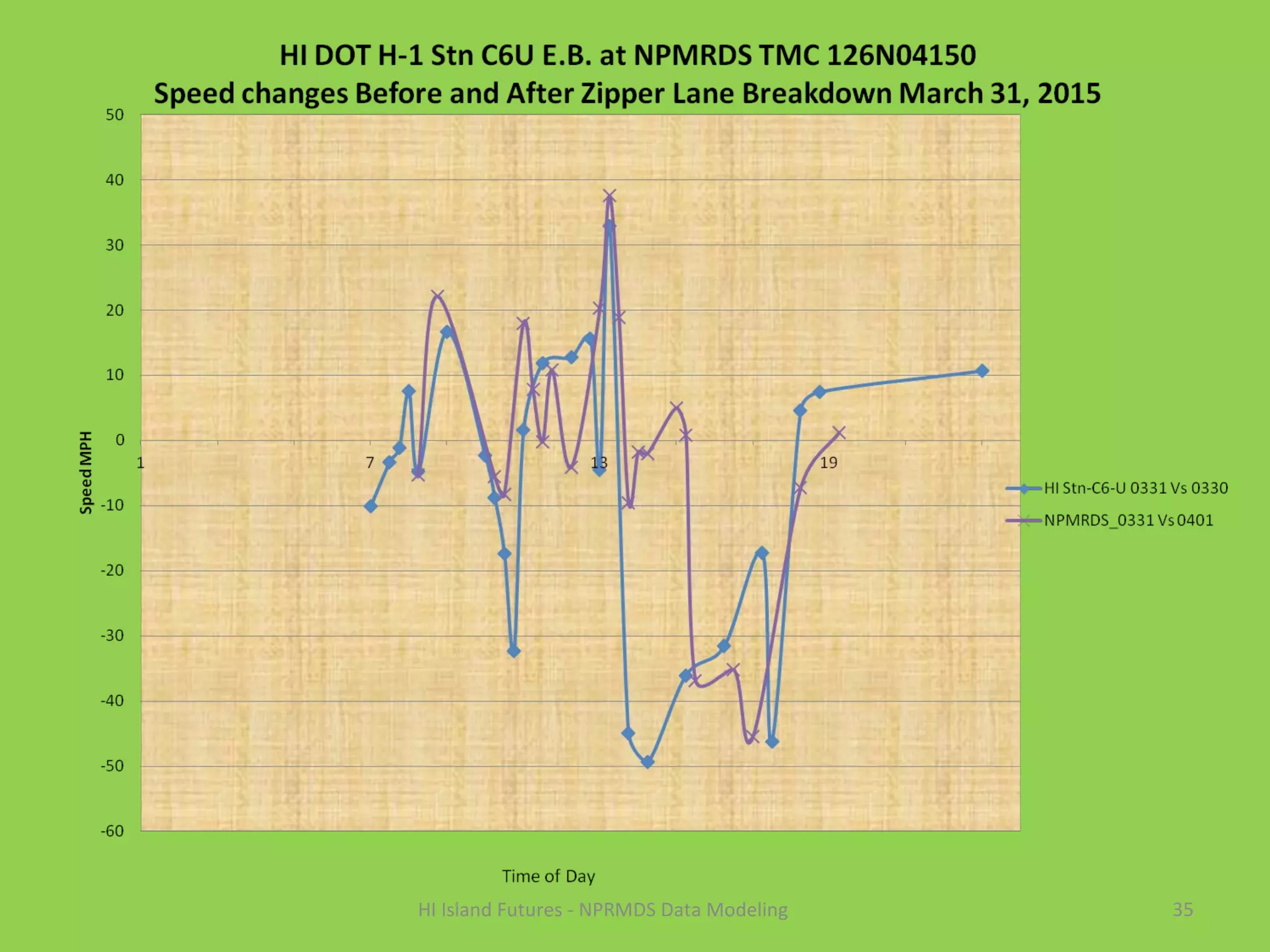

- 35. 35HI Island Futures- NPRMDS Data Modeling

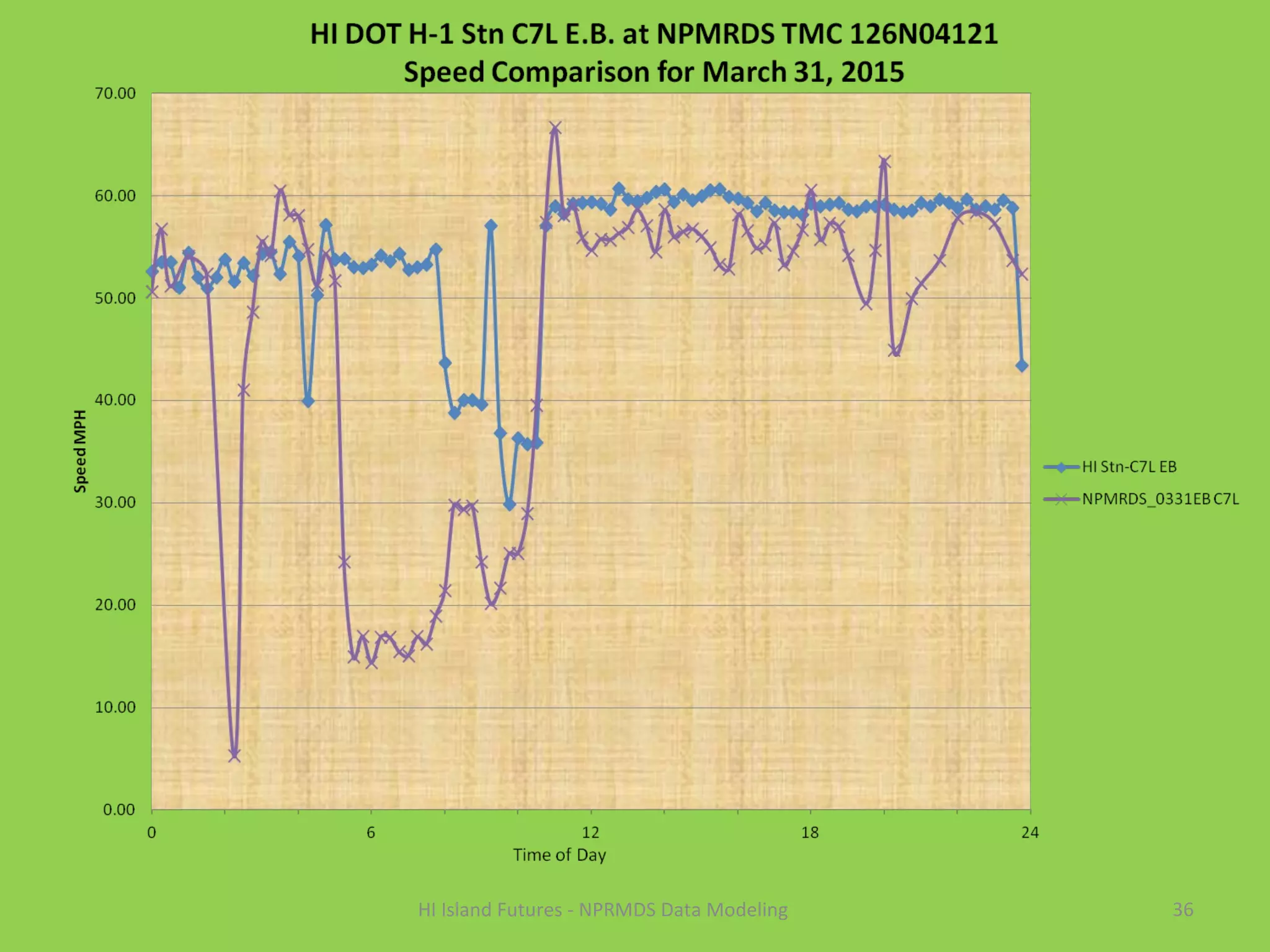

- 36. 36HI Island Futures- NPRMDS Data Modeling

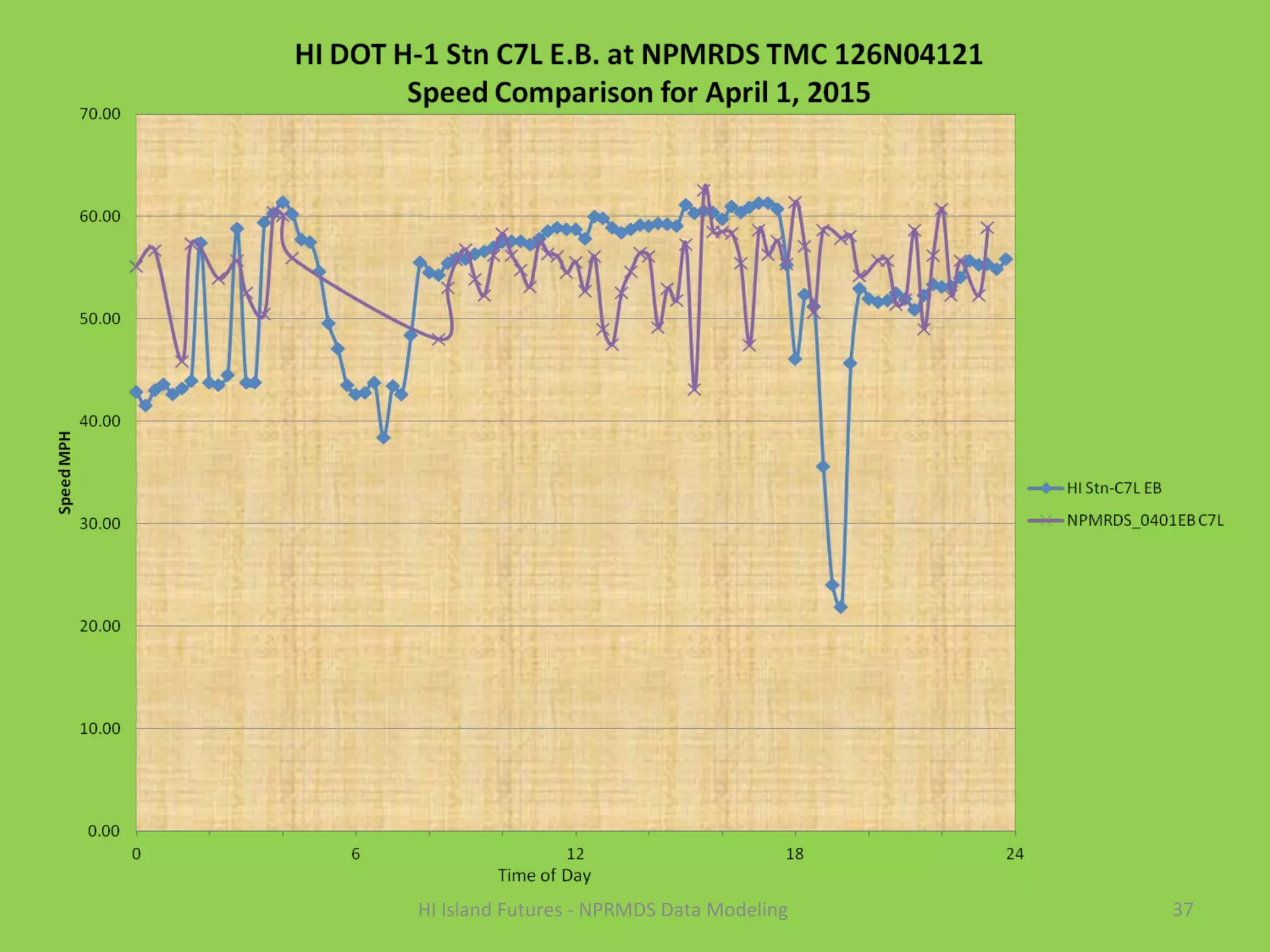

- 37. 37HI Island Futures- NPRMDS Data Modeling

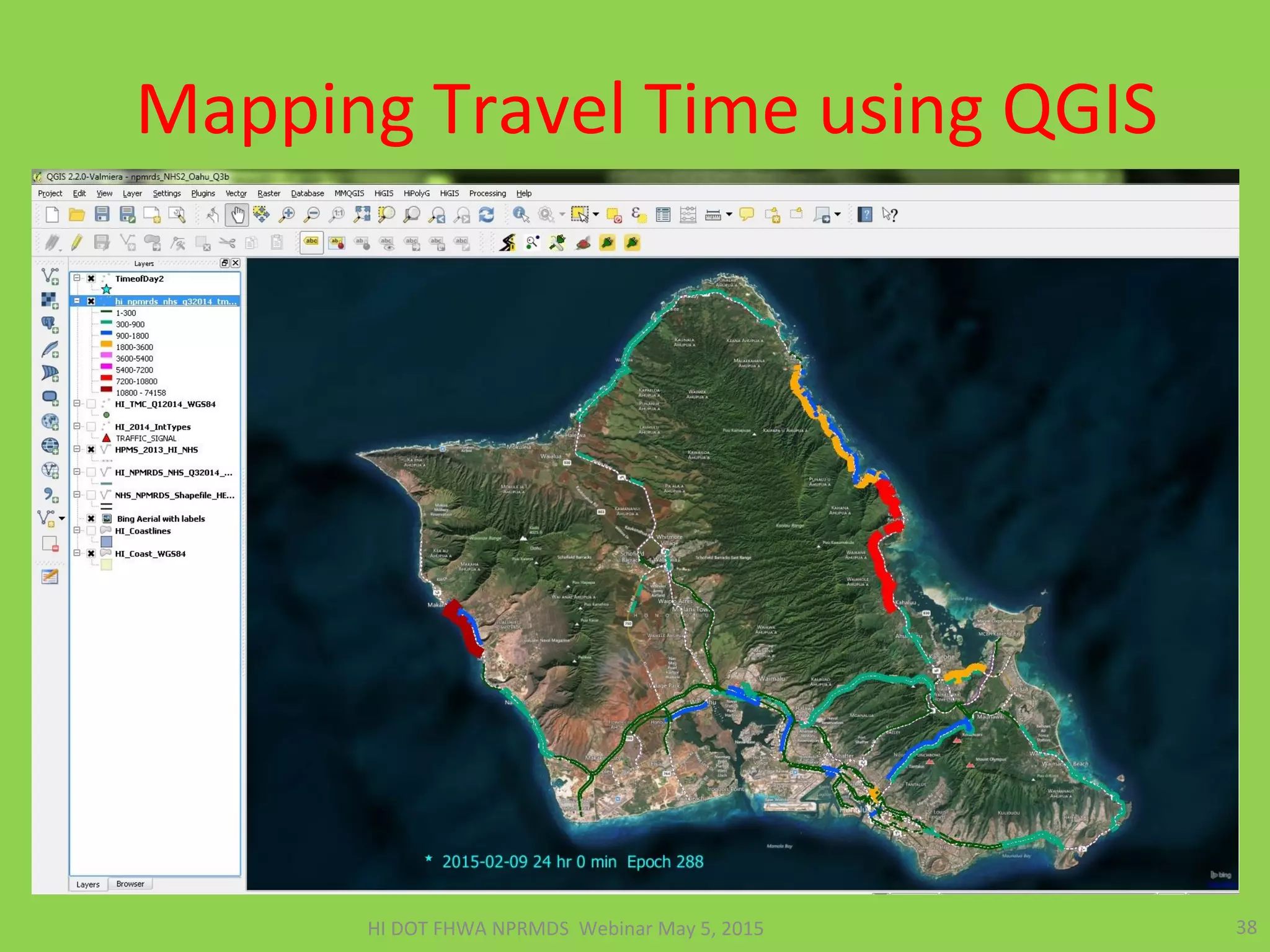

- 38. Mapping Travel Timeusing QGIS 38HI DOT FHWA NPRMDS Webinar May 5, 2015

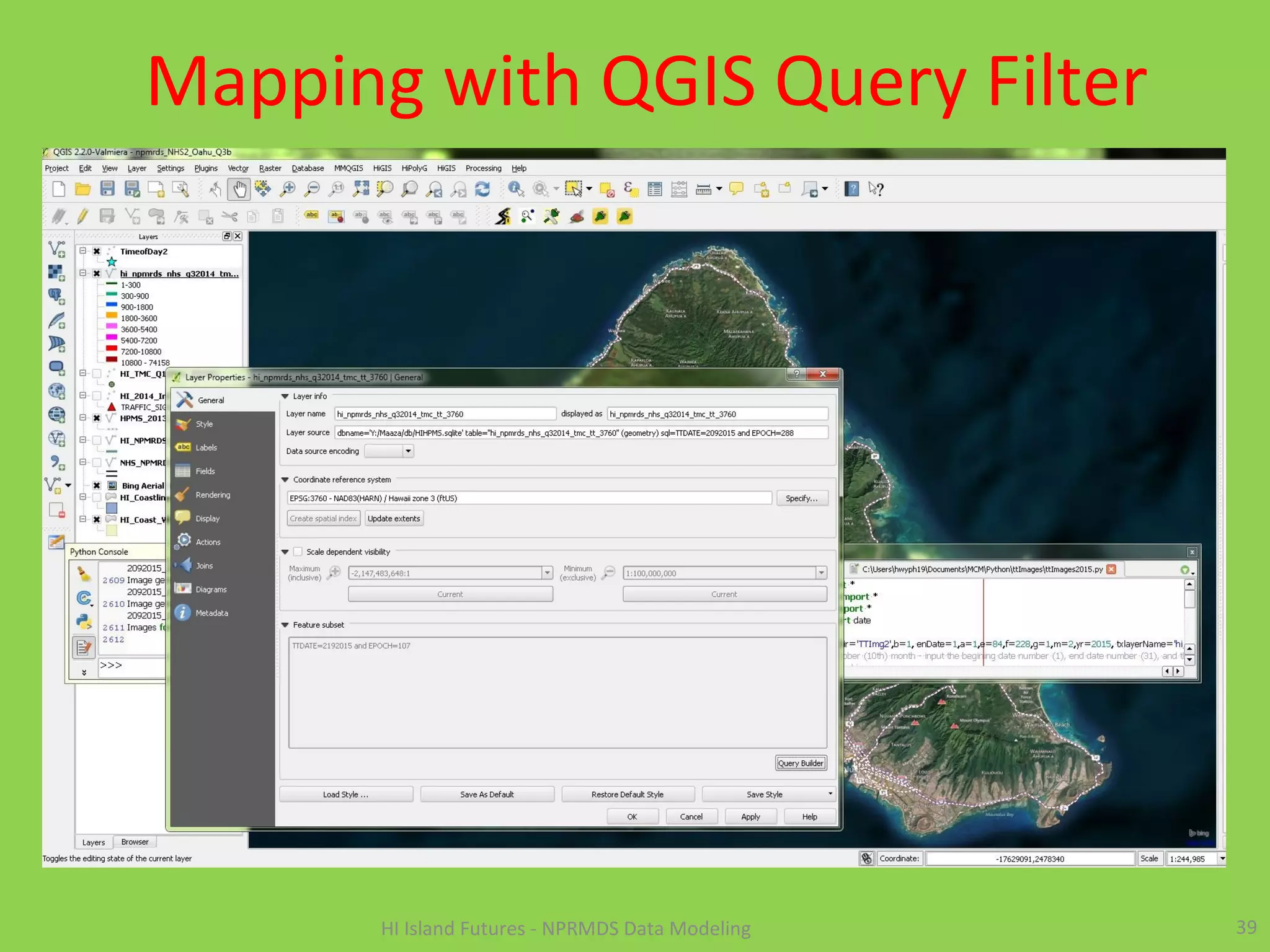

- 39. Mapping with QGISQuery Filter 39HI Island Futures - NPRMDS Data Modeling

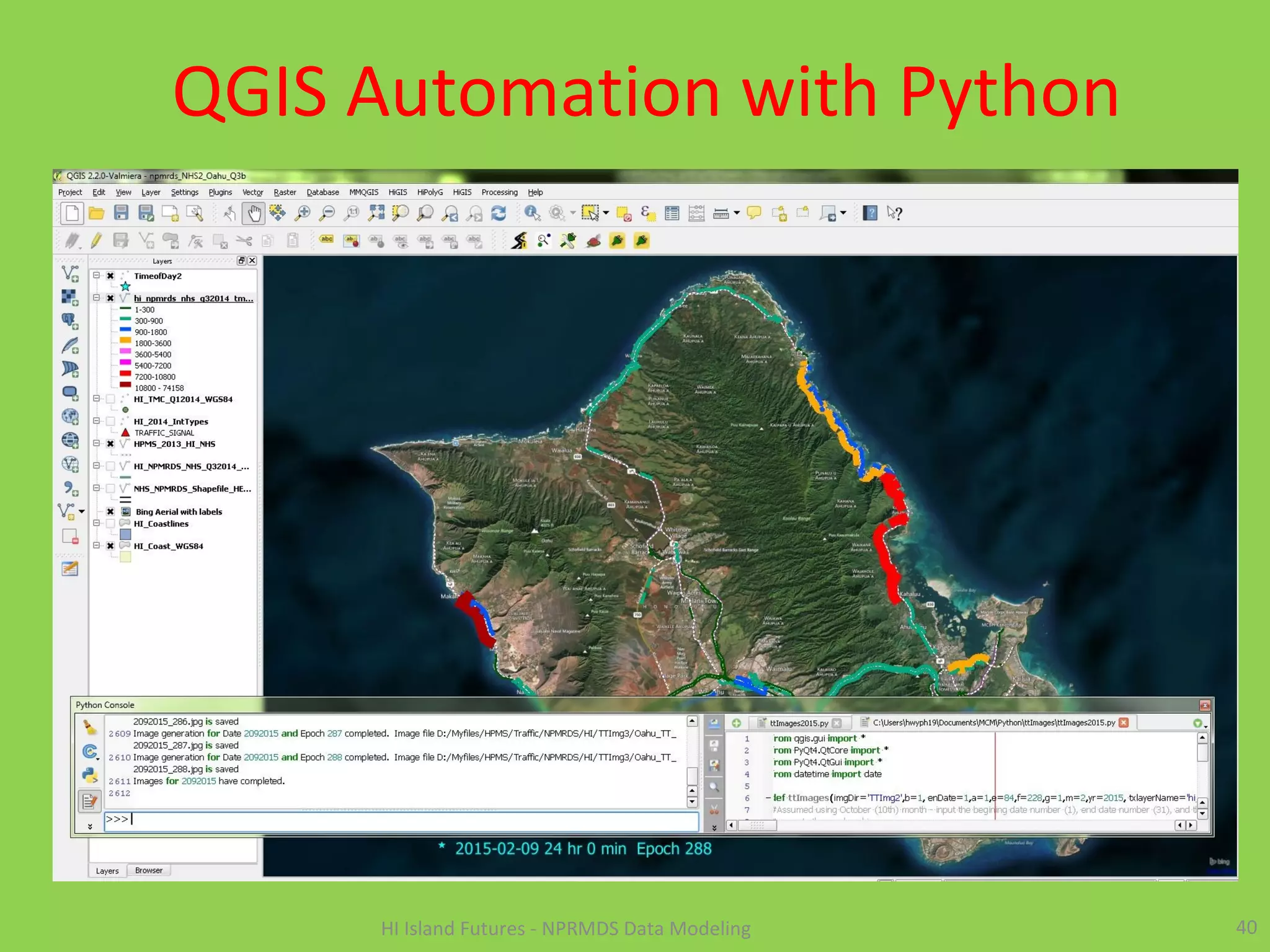

- 40. QGIS Automation withPython 40HI Island Futures - NPRMDS Data Modeling

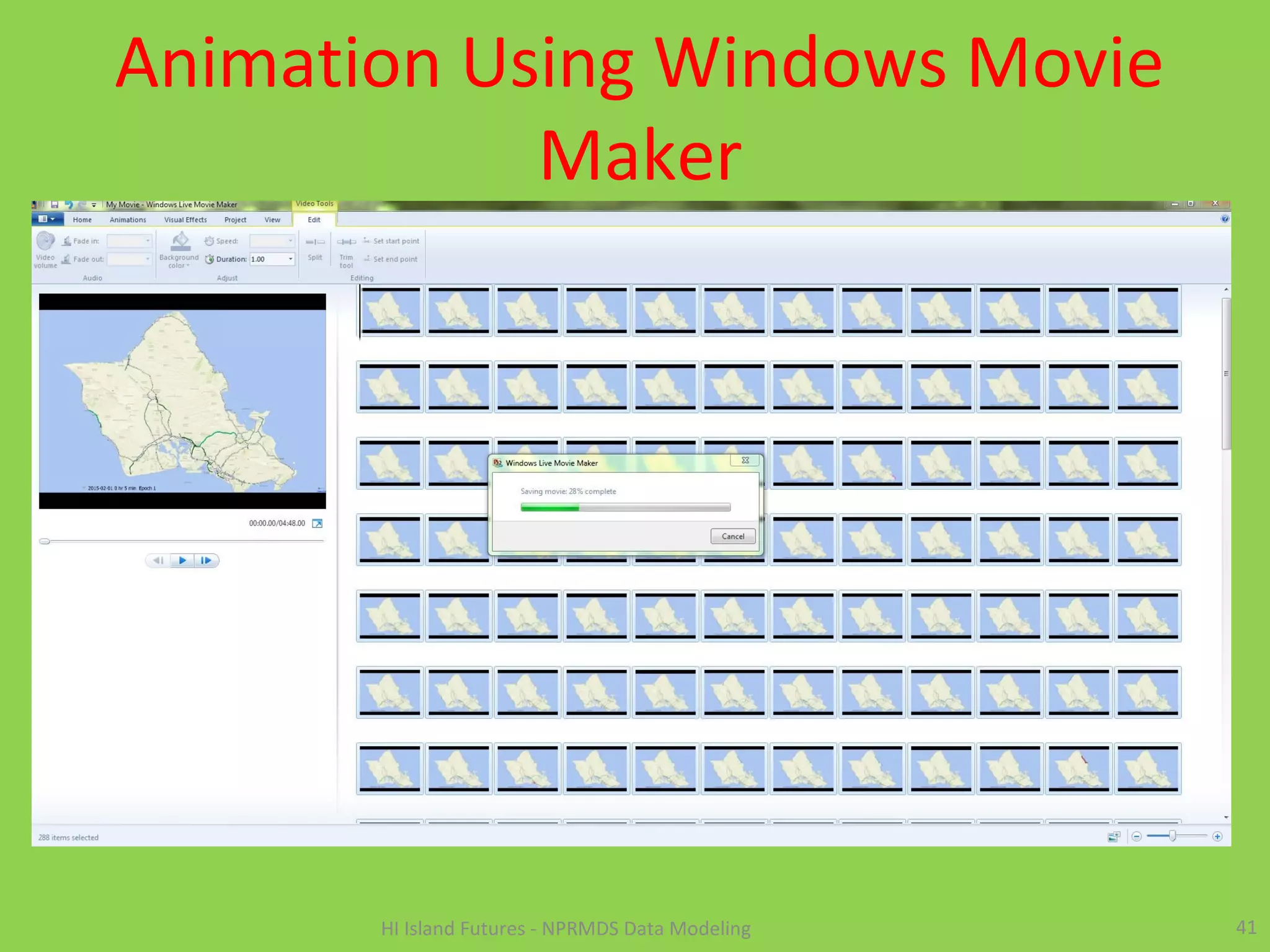

- 41. Animation Using WindowsMovie Maker 41HI Island Futures - NPRMDS Data Modeling

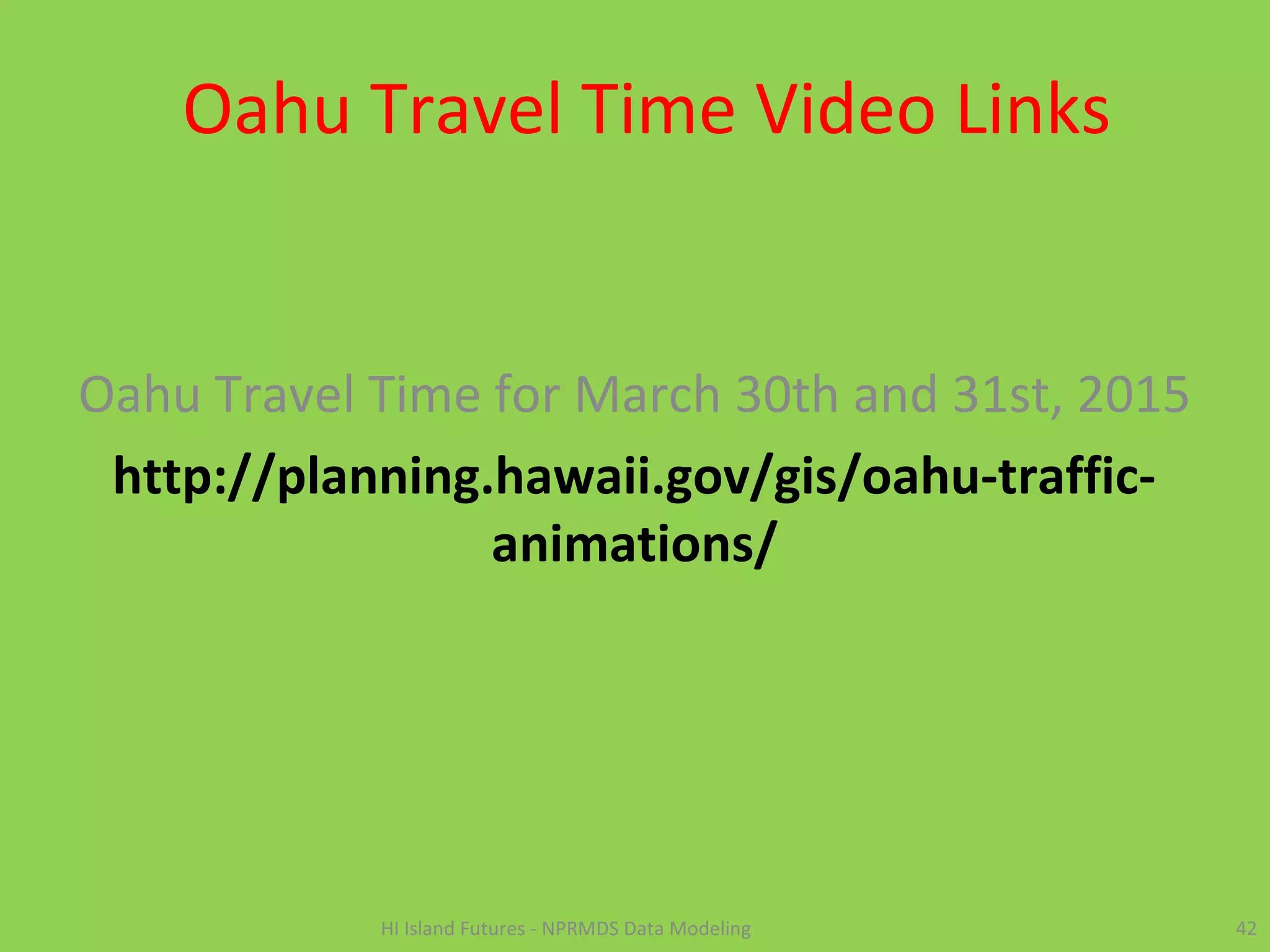

- 42. Oahu Travel TimeVideo Links Oahu Travel Time for March 30th and 31st, 2015 http://planning.hawaii.gov/gis/oahu-traffic- animations/ 42HI Island Futures - NPRMDS Data Modeling
- 43. Open Source ToolsLink QGIS http://www.qgis.org Spatialite Database https://www.gaia-gis.it/gaia-sins/index.html 43HI Island Futures - NPRMDS Data Modeling

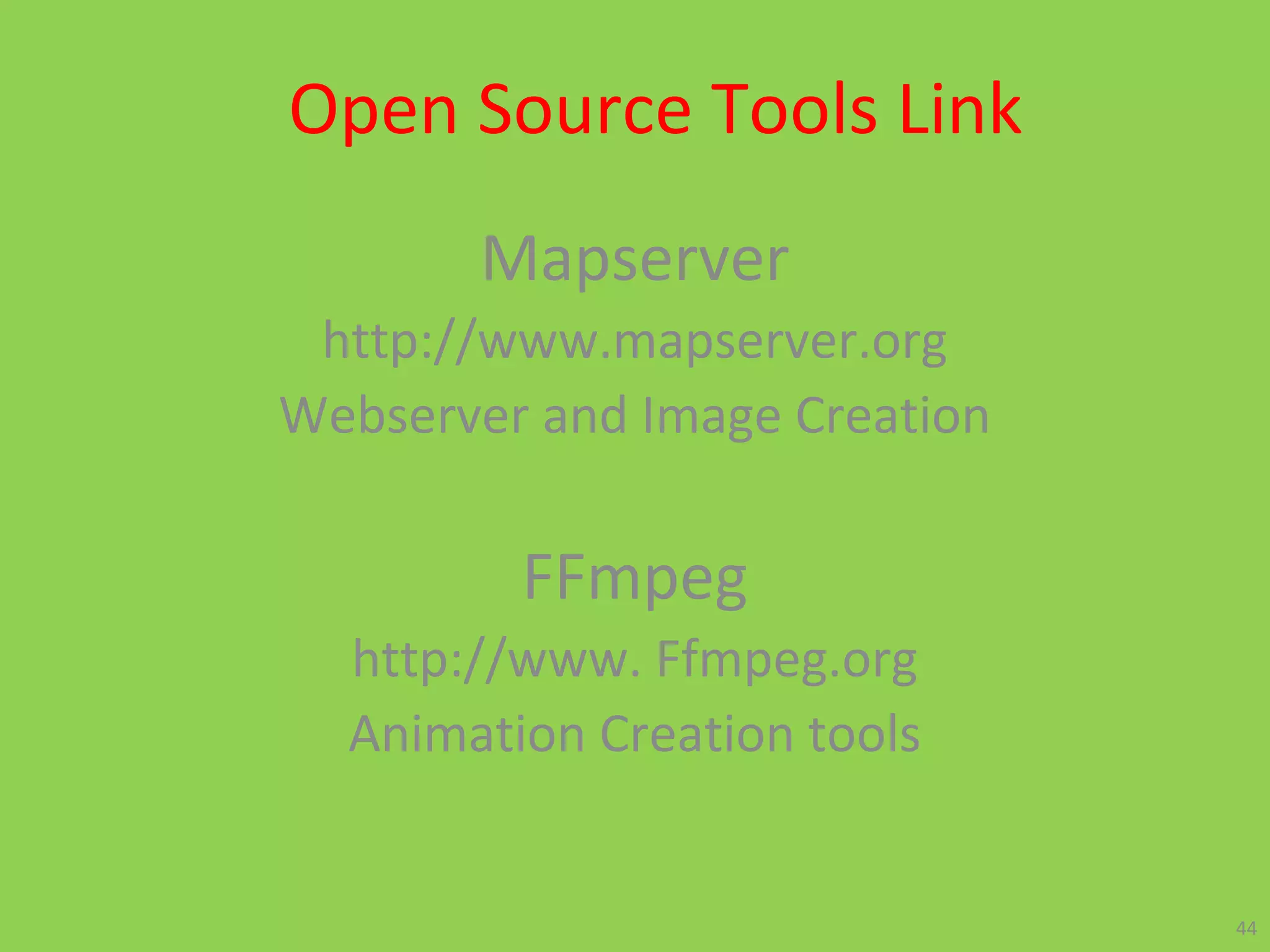

- 44. Open Source ToolsLink Mapserver http://www.mapserver.org Webserver and Image Creation FFmpeg http://www. Ffmpeg.org Animation Creation tools 44

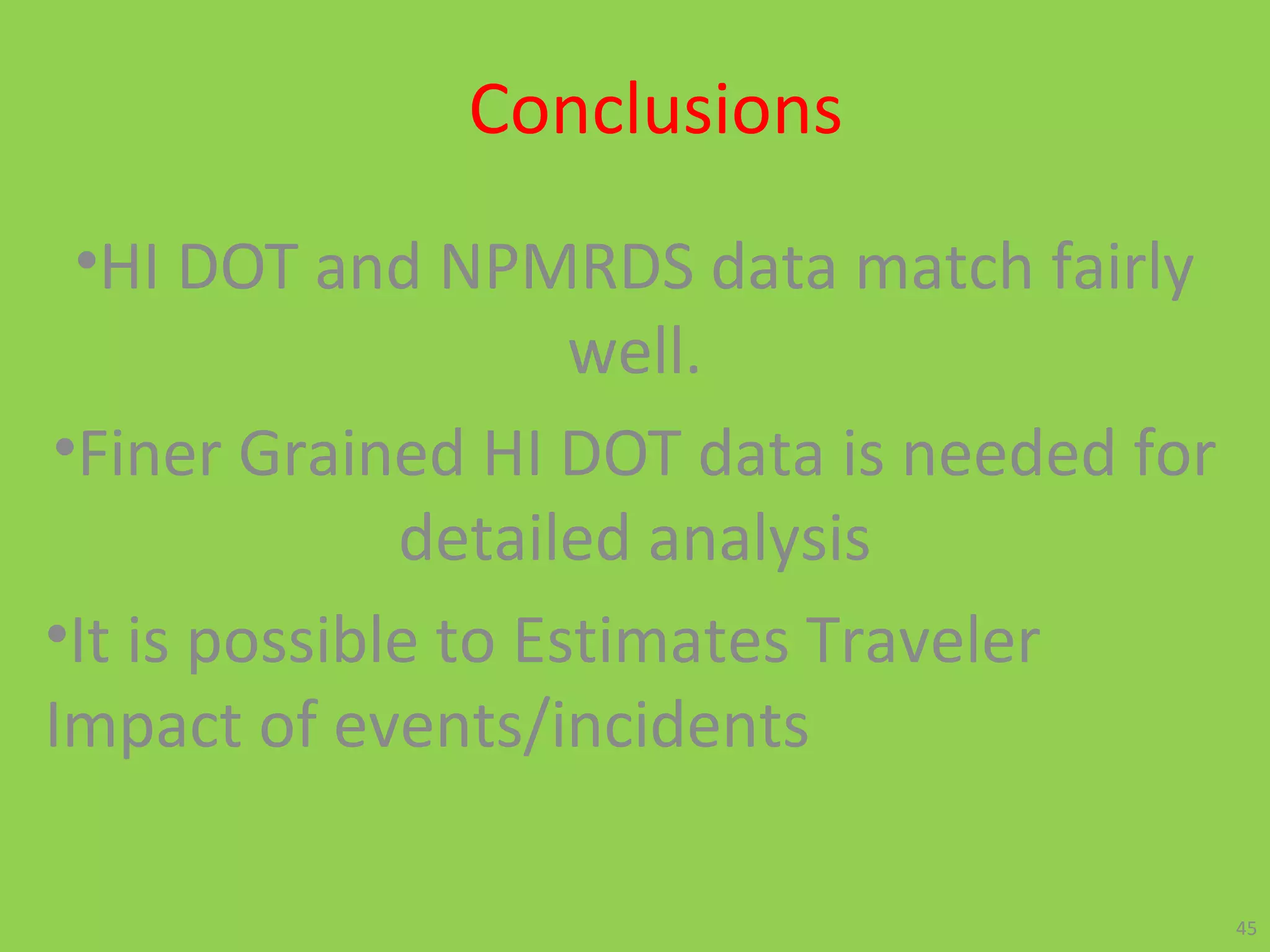

- 45. Conclusions •HI DOT andNPMRDS data match fairly well. •Finer Grained HI DOT data is needed for detailed analysis •It is possible to Estimates Traveler Impact of events/incidents 45
- 46. Contact Information Maaza ChristosMekuria, PhD, PE, PTOE HPMS Coordinator Hawaii Department of Transportation 869 Punchbowl Street, Suite 301 Honolulu, HI 96813 maaza.c.mekuria@hawaii.gov 46HI Island Futures - NPRMDS Data Modeling
