This document provides information on Haotech Group, a Hong Kong-based company established in 2007 that produces and finances new energy products. It has offices and factories in China that produce solar panels, inverters, and LED lamps. The company sells over 200 solar and LED lighting products to over 20 countries worldwide, with annual sales over $100 million. The document then provides details on several solar portable lighting systems and home systems for off-grid power applications.

1. SSolarolar ApplicationApplication
FREE ELECTRICITY
GIVE YOU A TRUE LIFE WITH GREEN
www.hfsolar.net
HAOTECH GROUP

2. HAOTEC ENERGY
COMPANY PROFILE
HAOTECH GROUP established in Hongkong since 2007,mainly for new
energy production producing and financing trading service with speedy
and hearts service, backed up by friendly customer service and a
comprehensive guarantee.
NEW ENERGY DEPARTMENT
------SOLAR PV & LED LIGHTING PRODUCION.
TWO SALES OFFICE in Guangzhou:XIAOBEI and science city.
3 WORKSHOPS:
A.solar panel factory--Jiangshan,China
B.solar inverter factory--Foshan,China
C.led lamp factory--Zhongshan,China
Strongest advantages:
Powerful in resources.
Control the quality and cost easily.
We produce more than 200 kinds of products in solar PV and led
lighting,selling to more than 20 countries and cities all over the
world,the yearly sales amount is more than 100million.
We owe our success to a simple, but effective formula:
Most competitive and acceptable cost
Best and most suitable quality
speedy and heartest service

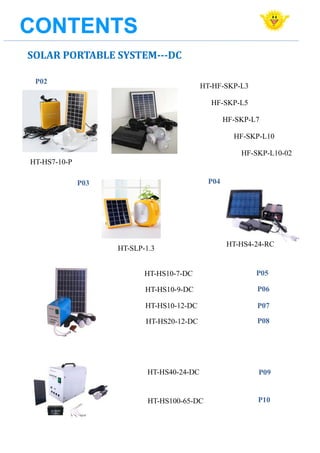

3. CONTENTSCONTENTSCONTENTS
SOLAR PORTABLE SYSTEM---DC
HT-SLP-1.3
HT-HS10-7-DC
HT-HS10-9-DC
HT-HS10-12-DC
HT-HS20-12-DC
HT-HS40-24-DC
P02
P05
P06
P07
P08
P09
HT-HS100-65-DC
HT-HF-SKP-L3
HF-SKP-L5
HF-SKP-L7
HF-SKP-L10
HF-SKP-L10-02
HT-HS7-10-P
P10
P03 P04
HT-HS4-24-RC

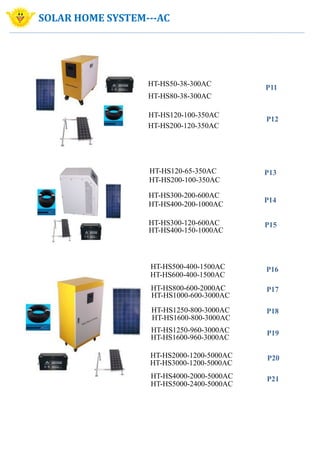

4. HT-HS80-38-300AC
HT-HS50-38-300AC
HT-HS200-120-350AC
HT-HS300-200-600AC
HT-HS120-65-350AC
HT-HS400-200-1000AC
P13
HT-HS120-100-350AC
P11
SOLAR HOME SYSTEM---AC
HT-HS200-100-350AC
HT-HS300-120-600AC
HT-HS400-150-1000AC
P14
P15
HT-HS500-400-1500AC
HT-HS600-400-1500AC
HT-HS800-600-2000AC
HT-HS4000-2000-5000AC
HT-HS1000-600-3000AC
HT-HS1250-800-3000AC
HT-HS1600-800-3000AC
HT-HS1250-960-3000AC
HT-HS1600-960-3000AC
HT-HS2000-1200-5000AC
HT-HS3000-1200-5000AC
P16
P21
P20
P17
P19
P18
P12
HT-HS5000-2400-5000AC

5. HT-HS6000-2400-10KAC
HT-HS7000-3200-10KAC
3KW
5KW
HT-HS8000-3200-15KAC
HT-HS9000-4000-15KAC
1KW
2KW
300W
P24
P25
P22
P23
SOLAR HOME SYSTEM---AC
SOLAR POWER SYSTEM
10KW
500W
HT-HS10000-4800-15KAC
15KW

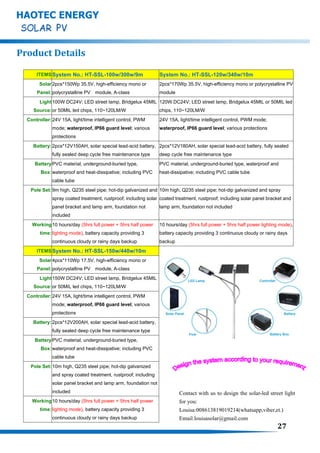

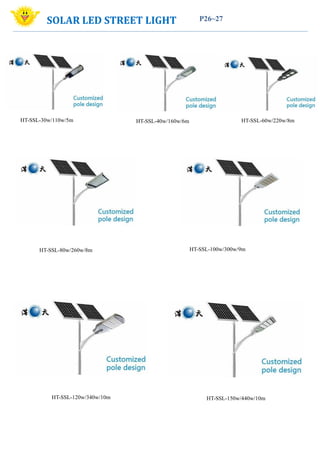

6. SOLAR LED STREET LIGHT
HT-SSL-100w/300w/9m
HT-SSL-30w/110w/5m HT-SSL-40w/160w/6m HT-SSL-60w/220w/8m
HT-SSL-80w/260w/8m
P26~27
HT-SSL-120w/340w/10m HT-SSL-150w/440w/10m

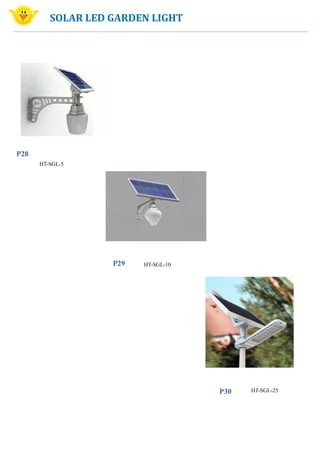

7. P30
HT-SGL-5
HT-SGL-10
HT-SGL-25
P29
SOLAR LED GARDEN LIGHT
P28

8. SOLAR PORTABLE SYSTEM--DC
UTPUT
Features
·Small Home Power Systems
·Commercial Small Power Supply
·Power Supply for Traffic,Security,Gas Industry
·12v and 24v Battery Charging System
·Fishing boat lighting,Mobile charging with USB
·other industrial and commercial applications
Benefits
·Solar energy with electricity free
·Green Energy forever clean
·Package in one box
·Zero maintenance
HAOTEC ENERGY
·Long service life
·High Efficiency Solar Cells
·Advanced Cell Encapsulation
·Lithium Battery for option
·Plastic case with small size for easy taking
Applications

9. 02
HAOTEC ENERGY
Solar Panel : 3W (Mono/Poly)
Lithium battery: 12V/2.3AH
LED lamp power: 12V/2W
LED lamp quantity: 2PCS(standard)
Color: golden/silver
N.W: 1.3kgs
HF-SKP-L3
Solar Panel : 5W / 7W (Mono/Poly)
Lithium battery: 12V/2.3AH
LED lamp power: 12V/3W , 12V / 5W
LED lamp quantity: 2PCS(standard)
Color: golden/silver
N.W: 1.6kgs / 1.8kgs
HF-SKP-L5
HF-SKP-L7
Solar Panel : 10W (Mono/Poly)
Lithium battery: 12V/5AH
LED lamp power: 12V/3W
LED lamp quantity: 2PCS(standard)
Color: golden/silver
N.W: 2kgs
Solar Panel : 10W (Mono/Poly)
Lithium battery: 12V/5AH
LED lamp power: 12V/5W
LED lamp quantity: 2PCS(standard)
Color: golden/silver/black
N.W: 2.1kgs
HF-SKP-L10-02
HF-SKP-L10

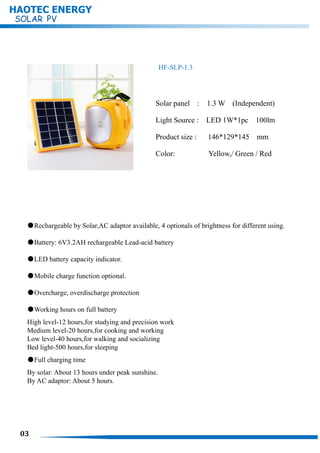

10. 03
HAOTEC ENERGY
HF-SLP-1.3
●Rechargeable by Solar,AC adaptor available, 4 optionals of brightness for different using.
●Battery: 6V3.2AH rechargeable Lead-acid battery
●LED battery capacity indicator.
●Mobile charge function optional.
●Overcharge, overdischarge protection
●Working hours on full battery
High level-12 hours,for studying and precision work
Medium level-20 hours,for cooking and working
Low level-40 hours,for walking and socializing
Bed light-500 hours,for sleeping
●Full charging time
By solar: About 13 hours under peak sunshine.
By AC adaptor: About 5 hours.
Solar panel : 1.3 W (Independent)
Light Source : LED 1W*1pc 100lm
Product size : 146*129*145 mm
Color: Yellow,/ Green / Red

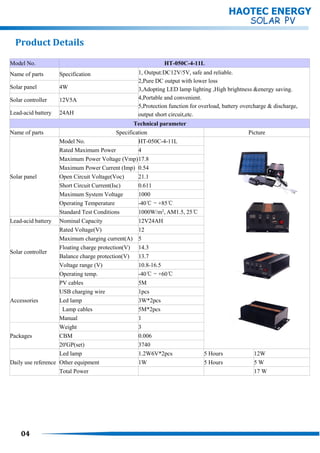

11. 04
Model No. HT-050C-4-11L
Name of parts Specification 1, Output:DC12V/5V, safe and reliable.
2,Pure DC output with lower loss
3,Adopting LED lamp lighting ,High brightness &energy saving.
4,Portable and convenient.
5,Protection function for overload, battery overcharge & discharge,
output short circuit,etc.
Solar panel 4W
Solar controller 12V5A
Lead-acid battery 24AH
Technical parameter
Name of parts Specification Picture
Solar panel
Model No. HT-050C-4-11L
Rated Maximum Power 4
Maximum Power Voltage (Vmp)17.8
Maximum Power Current (Imp) 0.54
Open Circuit Voltage(Voc) 21.1
Short Circuit Current(Isc) 0.611
Maximum System Voltage 1000
Operating Temperature -40℃～+85℃
Standard Test Conditions 1000W/m2
, AM1.5, 25℃
Lead-acid battery Nominal Capacity 12V24AH
Solar controller
Rated Voltage(V) 12
Maximum charging current(A) 5
Floating charge protection(V) 14.3
Balance charge protection(V) 13.7
Voltage range (V) 10.8-16.5
Operating temp. -40℃～+60℃
Accessories
PV cables 5M
USB charging wire 1pcs
Led lamp 3W*2pcs
Lamp cables 5M*2pcs
Manual 1
Packages
Weight 3
CBM 0.006
20'GP(set) 3740
Daily use reference
Led lamp 1.2W6V*2pcs 5 Hours 12W
Other equipment 1W 5 Hours 5 W
Total Power 17 W
HAOTEC ENERGY
Product Details

12. 05
Model No. HT-HS10-7-RC
Name of parts Specification 1, Output:DC12V/5V, safe and reliable.
2,Pure DC output with lower loss
3,Adopting LED lamp lighting ,High brightness &energy saving.
4,Portable and convenient.
5,Protection function for overload, battery overcharge & discharge, output
short circuit,etc.
Solar panel 10W
Solar controller 12V3A
Lead-acid battery 7AH
Technical parameter
Name of parts Specification Picture
Solar panel
Model No. HT-HS10-7-RC
Rated Maximum Power 10
Maximum Power Voltage
(Vmp)
18
Maximum Power Current
(Imp)
0.56
Open Circuit Voltage(Voc) 21.24
Short Circuit Current(Isc) 0.611
Maximum System Voltage 1000
Operating Temperature -40℃～+85℃
Standard Test Conditions 1000W/m2
, AM1.5, 25℃
Lead-acid battery Nominal Capacity 12V7AH
Solar controller
Rated Voltage(V) 12
Maximum charging
current(A)
3
Floating charge protection(V) 14.4
Balance charge protection(V) 13.8
Voltage range (V) 10.8-16.5
Operating temp. -40℃～+60℃
Accessories
PV cables 5M
USB charging wire 1pcs
Led lamp 3W*2pcs
Lamp cables 5M*2pcs
Manual 1
Packages
Weight 5.7
CBM 0.014
20'GP(set) 1670
Daily use reference
Led lamp 3W*2pcs 6 Hours 36 W
Other equipment 1W 5 Hours 5 W
Total Power 41 W
HAOTEC ENERGY
Product Details

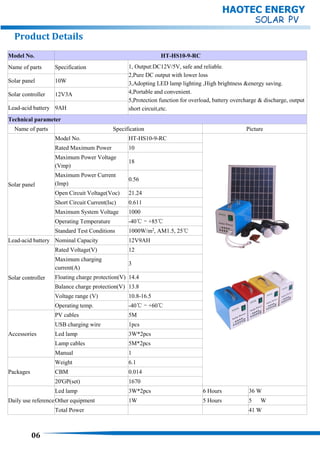

13. 06
Model No. HT-HS10-9-RC
Name of parts Specification 1, Output:DC12V/5V, safe and reliable.
2,Pure DC output with lower loss
3,Adopting LED lamp lighting ,High brightness &energy saving.
4,Portable and convenient.
5,Protection function for overload, battery overcharge & discharge, output
short circuit,etc.
Solar panel 10W
Solar controller 12V3A
Lead-acid battery 9AH
Technical parameter
Name of parts Specification Picture
Solar panel
Model No. HT-HS10-9-RC
Rated Maximum Power 10
Maximum Power Voltage
(Vmp)
18
Maximum Power Current
(Imp)
0.56
Open Circuit Voltage(Voc) 21.24
Short Circuit Current(Isc) 0.611
Maximum System Voltage 1000
Operating Temperature -40℃～+85℃
Standard Test Conditions 1000W/m2
, AM1.5, 25℃
Lead-acid battery Nominal Capacity 12V9AH
Solar controller
Rated Voltage(V) 12
Maximum charging
current(A)
3
Floating charge protection(V) 14.4
Balance charge protection(V) 13.8
Voltage range (V) 10.8-16.5
Operating temp. -40℃～+60℃
Accessories
PV cables 5M
USB charging wire 1pcs
Led lamp 3W*2pcs
Lamp cables 5M*2pcs
Manual 1
Packages
Weight 6.1
CBM 0.014
20'GP(set) 1670
Daily use reference
Led lamp 3W*2pcs 6 Hours 36 W
Other equipment 1W 5 Hours 5 W
Total Power 41 W
HAOTEC ENERGY
Product Details

14. HAOTEC ENERGY

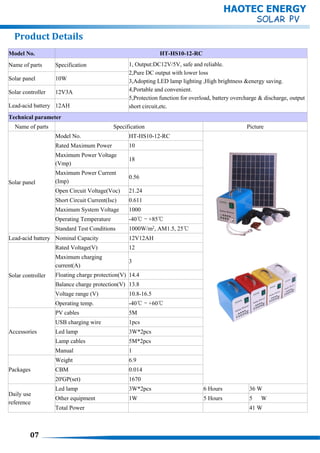

Model No. HT-HS10-12-RC
Name of parts Specification 1, Output:DC12V/5V, safe and reliable.
2,Pure DC output with lower loss
3,Adopting LED lamp lighting ,High brightness &energy saving.
4,Portable and convenient.
5,Protection function for overload, battery overcharge & discharge, output
short circuit,etc.
Solar panel 10W
Solar controller 12V3A
Lead-acid battery 12AH
Technical parameter
Name of parts Specification Picture
Solar panel
Model No. HT-HS10-12-RC
Rated Maximum Power 10
Maximum Power Voltage
(Vmp)
18
Maximum Power Current
(Imp)
0.56
Open Circuit Voltage(Voc) 21.24
Short Circuit Current(Isc) 0.611
Maximum System Voltage 1000
Operating Temperature -40℃～+85℃
Standard Test Conditions 1000W/m2
, AM1.5, 25℃
Lead-acid battery Nominal Capacity 12V12AH
Solar controller
Rated Voltage(V) 12
Maximum charging
current(A)
3
Floating charge protection(V) 14.4
Balance charge protection(V) 13.8
Voltage range (V) 10.8-16.5
Operating temp. -40℃～+60℃
Accessories
PV cables 5M
USB charging wire 1pcs
Led lamp 3W*2pcs
Lamp cables 5M*2pcs
Manual 1
Packages
Weight 6.9
CBM 0.014
20'GP(set) 1670
Daily use
reference
Led lamp 3W*2pcs 6 Hours 36 W
Other equipment 1W 5 Hours 5 W
Total Power 41 W
07
Product Details

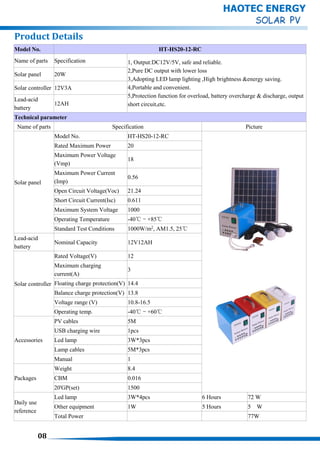

15. HAOTEC ENERGY
Model No. HT-HS20-12-RC
Name of parts Specification 1, Output:DC12V/5V, safe and reliable.
2,Pure DC output with lower loss
3,Adopting LED lamp lighting ,High brightness &energy saving.
4,Portable and convenient.
5,Protection function for overload, battery overcharge & discharge, output
short circuit,etc.
Solar panel 20W
Solar controller 12V3A
Lead-acid
battery
12AH
Technical parameter
Name of parts Specification Picture
Solar panel
Model No. HT-HS20-12-RC
Rated Maximum Power 20
Maximum Power Voltage
(Vmp)
18
Maximum Power Current
(Imp)
0.56
Open Circuit Voltage(Voc) 21.24
Short Circuit Current(Isc) 0.611
Maximum System Voltage 1000
Operating Temperature -40℃～+85℃
Standard Test Conditions 1000W/m2
, AM1.5, 25℃
Lead-acid
battery
Nominal Capacity 12V12AH
Solar controller
Rated Voltage(V) 12
Maximum charging
current(A)
3
Floating charge protection(V) 14.4
Balance charge protection(V) 13.8
Voltage range (V) 10.8-16.5
Operating temp. -40℃～+60℃
Accessories
PV cables 5M
USB charging wire 1pcs
Led lamp 3W*3pcs
Lamp cables 5M*3pcs
Manual 1
Packages
Weight 8.4
CBM 0.016
20'GP(set) 1500
Daily use
reference
Led lamp 3W*4pcs 6 Hours 72 W
Other equipment 1W 5 Hours 5 W
Total Power 77W
Product Details
08

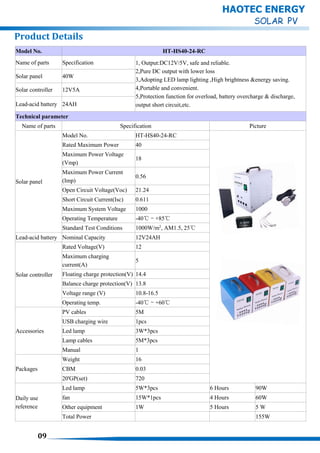

16. Model No. HT-HS40-24-RC
Name of parts Specification 1, Output:DC12V/5V, safe and reliable.
2,Pure DC output with lower loss
3,Adopting LED lamp lighting ,High brightness &energy saving.
4,Portable and convenient.
5,Protection function for overload, battery overcharge & discharge,
output short circuit,etc.
Solar panel 40W
Solar controller 12V5A
Lead-acid battery 24AH
Technical parameter
Name of parts Specification Picture
Solar panel
Model No. HT-HS40-24-RC
Rated Maximum Power 40
Maximum Power Voltage
(Vmp)
18
Maximum Power Current
(Imp)
0.56
Open Circuit Voltage(Voc) 21.24
Short Circuit Current(Isc) 0.611
Maximum System Voltage 1000
Operating Temperature -40℃～+85℃
Standard Test Conditions 1000W/m2
, AM1.5, 25℃
Lead-acid battery Nominal Capacity 12V24AH
Solar controller
Rated Voltage(V) 12
Maximum charging
current(A)
5
Floating charge protection(V) 14.4
Balance charge protection(V) 13.8
Voltage range (V) 10.8-16.5
Operating temp. -40℃～+60℃
Accessories
PV cables 5M
USB charging wire 1pcs
Led lamp 3W*3pcs
Lamp cables 5M*3pcs
Manual 1
Packages
Weight 16
CBM 0.03
20'GP(set) 720
Daily use
reference
Led lamp 5W*3pcs 6 Hours 90W
fan 15W*1pcs 4 Hours 60W
Other equipment 1W 5 Hours 5 W
Total Power 155W
HAOTEC ENERGY
09
Product Details

17. 10

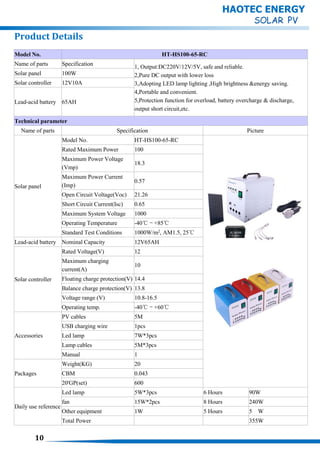

Model No. HT-HS100-65-RC
Name of parts Specification 1, Output:DC220V/12V/5V, safe and reliable.
2,Pure DC output with lower loss
3,Adopting LED lamp lighting ,High brightness &energy saving.
4,Portable and convenient.
5,Protection function for overload, battery overcharge & discharge,
output short circuit,etc.
Solar panel 100W
Solar controller 12V10A
Lead-acid battery 65AH
Technical parameter
Name of parts Specification Picture
Solar panel
Model No. HT-HS100-65-RC
Rated Maximum Power 100
Maximum Power Voltage
(Vmp)
18.3
Maximum Power Current
(Imp)
0.57
Open Circuit Voltage(Voc) 21.26
Short Circuit Current(Isc) 0.65
Maximum System Voltage 1000
Operating Temperature -40℃～+85℃
Standard Test Conditions 1000W/m2
, AM1.5, 25℃
Lead-acid battery Nominal Capacity 12V65AH
Solar controller
Rated Voltage(V) 12
Maximum charging
current(A)
10
Floating charge protection(V) 14.4
Balance charge protection(V) 13.8
Voltage range (V) 10.8-16.5
Operating temp. -40℃～+60℃
Accessories
PV cables 5M
USB charging wire 1pcs
Led lamp 7W*3pcs
Lamp cables 5M*3pcs
Manual 1
Packages
Weight(KG) 20
CBM 0.043
20'GP(set) 600
Daily use reference
Led lamp 5W*3pcs 6 Hours 90W
fan 15W*2pcs 8 Hours 240W
Other equipment 1W 5 Hours 5 W
Total Power 355W
HAOTEC ENERGY
Product Details

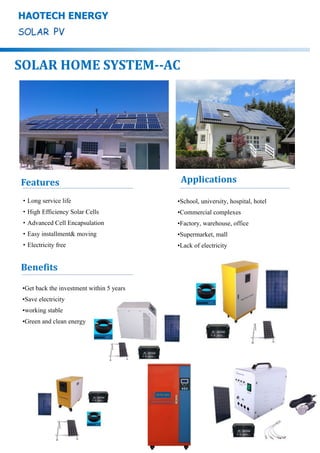

18. •Get back the investment within 5 years
•Save electricity
•working stable
•Green and clean energy
HAOTECH ENERGY
SOLAR HOME SYSTEM--AC
Features
•School, university, hospital, hotel
•Commercial complexes
•Factory, warehouse, office
•Supermarket, mall
•Lack of electricity
Applications
·Long service life
·High Efficiency Solar Cells
·Advanced Cell Encapsulation
·Easy installment& moving
·Electricity free
Benefits

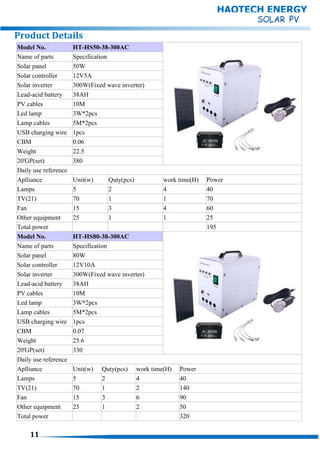

19. Model No. HT-HS50-38-300AC
Name of parts Specification
Solar panel 50W
Solar controller 12V5A
Solar inverter 300W(Fixed wave inverter)
Lead-acid battery 38AH
PV cables 10M
Led lamp 3W*2pcs
Lamp cables 5M*2pcs
USB charging wire 1pcs
CBM 0.06
Weight 22.5
20'GP(set) 380
Daily use reference
Aplliance Unit(w) Quty(pcs) work time(H) Power
Lamps 5 2 4 40
TV(21) 70 1 1 70
Fan 15 3 4 60
Other equipment 25 1 1 25
Total power 195
Model No. HT-HS80-38-300AC
Name of parts Specification
Solar panel 80W
Solar controller 12V10A
Solar inverter 300W(Fixed wave inverter)
Lead-acid battery 38AH
PV cables 10M
Led lamp 3W*2pcs
Lamp cables 5M*2pcs
USB charging wire 1pcs
CBM 0.07
Weight 25.6
20'GP(set) 330
Daily use reference
Aplliance Unit(w) Quty(pcs) work time(H) Power
Lamps 5 2 4 40
TV(21) 70 1 2 140
Fan 15 3 6 90
Other equipment 25 1 2 50
Total power 320
HAOTECH ENERGY
Product Details
11

20. Model No. HT-HS120-100-350AC
Name of parts Specification
Solar panel 120W
Solar controller 12V10A
Solar inverter 350W
Lead-acid battery 100AH
PV cables 20M
Brackets (set) 1
Manual 1
CBM 0.15
Weight 60
20'GP(set) 156
Daily use reference
Appliance Unit(w) Qty(pcs) work time(H) Power
Lamps 11 1 6 66
TV(21) 40 1 4 160
Fan 15 1 4 60
Other equipment 25 1 4 400
Total power 386
Model No. HT-HS200-120-350AC
Name of parts Specification
Solar panel 200W
Solar controller 12V10A
Solar inverter 350W
Lead-acid battery 120AH
PV cables 20M
Brackets (set) 1
Manual 1
CBM 0.21
Weight 74.5
20'GP(set) 116
Daily use reference
Appliance Unit(w) Qty(pcs) work time(H) Power
Lamps 11 1 6 66
TV(21) 40 1 4 160
Fan 15 1 4 60
Other equipment 388
Total power 674
HAOTECH ENERGY
Product Details
12

21. Model No. HT-HS120-65-350AC
Name of parts Specification
Solar panel 120W
Solar controller 12V10A
Solar inverter 350W(high-frequency)
Lead-acid battery 65AH
PV cables 20M
Brackets (set) 1
Manual 1
CBM 0.15
Weight 40
20'GP(set) 156
Daily use reference
Appliance Unit(w) Qty(pcs) work time(H) Power
Lamps 11 1 6 66
TV(21) 40 1 4 160
Fan 15 1 4 60
Other equipment 25 1 4 400
Total power 386
Model No. HT-HS200-100-350AC
Name of parts Specification
Solar panel 200W
Solar controller 12V10A
Solar inverter 350W(high-frequency)
Lead-acid battery 100AH
PV cables 20M
Brackets (set) 1
Manual 1
CBM 0.21
Weight 60
20'GP(set) 115
Daily use reference
Appliance Unit(w) Qty(pcs) work time(H) Power
Lamps 11 1 6 66
TV(21) 40 1 4 160
Fan 15 1 4 60
Other equipment 388
Total power 674
HAOTECH ENERGY
Product Details
13

22. Model No. HT-HS300-200-600AC
Name of parts Specification
Solar panel 300W
Solar controller 24V20A
Solar inverter 600W
Lead-acid battery 100AH*2
PV cables 30M
Brackets (set) 1
Manual 1
CBM 0.31
Weight 121.3
20'GP(set) 78
Daily use reference
Appliance Unit(w) Qty(pcs) work time(H) Power
Lamps 11 1 6 66
TV(21) 40 1 6 240
Fan 40 1 7 280
Other equipment 448
Total power 1034
Model No. HT-HS400-200-1000AC
Name of parts Specification
Solar panel 400W
Solar controller 24V20A
Solar inverter 1000W
Lead-acid battery 100AH*2
PV cables 30M
Brackets (set) 1
Manual 1
CBM 0.34
Weight 128
20'GP(set) 71
Daily use reference
Appliance Unit(w) Qty(pcs) work time(H) Power
Lamps 11 6 6 396
TV(21) 65 1 6 260
Fan 40 1 6 240
Other equipment 428
Total power 1324
HAOTEC ENERGY
Product Details
14

23. Product Details

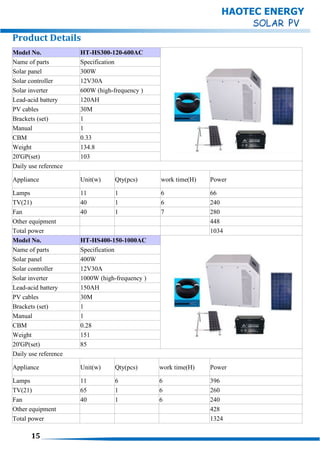

Model No. HT-HS300-120-600AC
Name of parts Specification
Solar panel 300W
Solar controller 12V30A
Solar inverter 600W (high-frequency )
Lead-acid battery 120AH
PV cables 30M
Brackets (set) 1
Manual 1
CBM 0.33
Weight 134.8
20'GP(set) 103
Daily use reference
Appliance Unit(w) Qty(pcs) work time(H) Power
Lamps 11 1 6 66
TV(21) 40 1 6 240
Fan 40 1 7 280
Other equipment 448
Total power 1034
Model No. HT-HS400-150-1000AC
Name of parts Specification
Solar panel 400W
Solar controller 12V30A
Solar inverter 1000W (high-frequency )
Lead-acid battery 150AH
PV cables 30M
Brackets (set) 1
Manual 1
CBM 0.28
Weight 151
20'GP(set) 85
Daily use reference
Appliance Unit(w) Qty(pcs) work time(H) Power
Lamps 11 6 6 396
TV(21) 65 1 6 260
Fan 40 1 6 240
Other equipment 428
Total power 1324
15
HAOTEC ENERGY

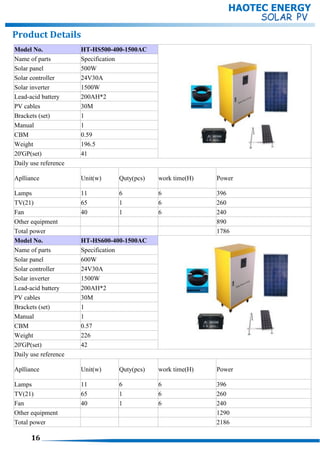

24. HAOTEC ENERGY
Product Details
Model No. HT-HS500-400-1500AC
Name of parts Specification
Solar panel 500W
Solar controller 24V30A
Solar inverter 1500W
Lead-acid battery 200AH*2
PV cables 30M
Brackets (set) 1
Manual 1
CBM 0.59
Weight 196.5
20'GP(set) 41
Daily use reference
Aplliance Unit(w) Quty(pcs) work time(H) Power
Lamps 11 6 6 396
TV(21) 65 1 6 260
Fan 40 1 6 240
Other equipment 890
Total power 1786
Model No. HT-HS600-400-1500AC
Name of parts Specification
Solar panel 600W
Solar controller 24V30A
Solar inverter 1500W
Lead-acid battery 200AH*2
PV cables 30M
Brackets (set) 1
Manual 1
CBM 0.57
Weight 226
20'GP(set) 42
Daily use reference
Aplliance Unit(w) Quty(pcs) work time(H) Power
Lamps 11 6 6 396
TV(21) 65 1 6 260
Fan 40 1 6 240
Other equipment 1290
Total power 2186
16

25. HAOTEC ENERGY
Product Details
Model No. HT-HS800-600-2000AC
Name of parts Specification
Solar panel 800W
Solar controller 24V50A
Solar inverter 2000w
Lead-acid battery 150AH*4
PV cables 40M
Brackets (set) 1
Manual 1
CBM 0.65
Weight 293.5
20'GP(set) 37
Daily use reference
Aplliance Unit(w) Quty(pcs) work time(H) Power
Lamps 11 6 6 396
TV(21) 65 1 6 260
Fan 40 1 6 240
Other equipment 1820
Total power 2716
Model No. HT-HS1000-600-3000AC
Name of parts Specification
Solar panel 1000W
Solar controller 48V30A
Solar inverter 3000w
Lead-acid battery 150AH*4pcs
PV cables 50M
Brackets (set) 1
Manual 1
CBM 0.85
Weight 319
20'GP(set) 28
Daily use reference
Aplliance Unit(w) Quty(pcs) work time(H) Power
Lamps 11 6 6 396
TV(21) 65 1 6 260
Fan 40 1 6 240
Other equipment 2570
Total power 3466
17

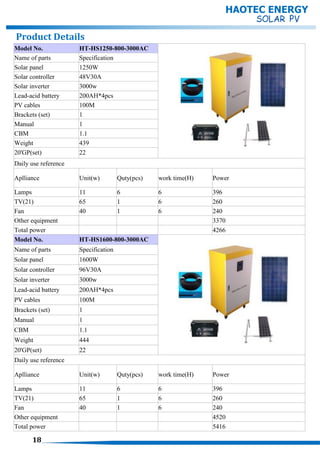

26. Model No. HT-HS1250-800-3000AC
Name of parts Specification
Solar panel 1250W
Solar controller 48V30A
Solar inverter 3000w
Lead-acid battery 200AH*4pcs
PV cables 100M
Brackets (set) 1
Manual 1
CBM 1.1
Weight 439
20'GP(set) 22
Daily use reference
Aplliance Unit(w) Quty(pcs) work time(H) Power
Lamps 11 6 6 396
TV(21) 65 1 6 260
Fan 40 1 6 240
Other equipment 3370
Total power 4266
Model No. HT-HS1600-800-3000AC
Name of parts Specification
Solar panel 1600W
Solar controller 96V30A
Solar inverter 3000w
Lead-acid battery 200AH*4pcs
PV cables 100M
Brackets (set) 1
Manual 1
CBM 1.1
Weight 444
20'GP(set) 22
Daily use reference
Aplliance Unit(w) Quty(pcs) work time(H) Power
Lamps 11 6 6 396
TV(21) 65 1 6 260
Fan 40 1 6 240
Other equipment 4520
Total power 5416
Product Details
HAOTEC ENERGY
18

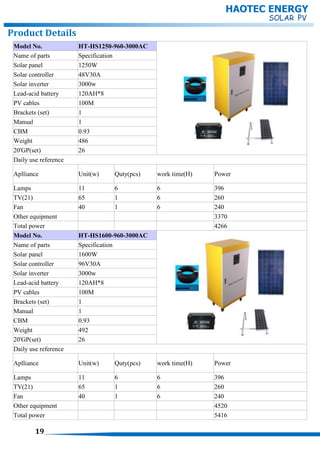

27. Model No. HT-HS1250-960-3000AC
Name of parts Specification
Solar panel 1250W
Solar controller 48V30A
Solar inverter 3000w
Lead-acid battery 120AH*8
PV cables 100M
Brackets (set) 1
Manual 1
CBM 0.93
Weight 486
20'GP(set) 26
Daily use reference
Aplliance Unit(w) Quty(pcs) work time(H) Power
Lamps 11 6 6 396
TV(21) 65 1 6 260
Fan 40 1 6 240
Other equipment 3370
Total power 4266
Model No. HT-HS1600-960-3000AC
Name of parts Specification
Solar panel 1600W
Solar controller 96V30A
Solar inverter 3000w
Lead-acid battery 120AH*8
PV cables 100M
Brackets (set) 1
Manual 1
CBM 0.93
Weight 492
20'GP(set) 26
Daily use reference
Aplliance Unit(w) Quty(pcs) work time(H) Power
Lamps 11 6 6 396
TV(21) 65 1 6 260
Fan 40 1 6 240
Other equipment 4520
Total power 5416
19
HAOTEC ENERGY
Product Details

28. Model No. HT-HS2000-1200-5000AC
Name of parts Specification
Solar panel 2KW
Solar controller 96V30A
Solar inverter 5KW
Lead-acid battery 150AH*8
PV cables 200M
Brackets (set) 1
Manual 1
CBM 1.45
Weight 505.5
20'GP(set) 17
Daily use reference
Aplliance Unit(w) Quty(pcs) work time(H) Power
Lamps 11 6 6 396
TV(21) 65 1 6 260
Fan 40 1 6 240
Other equipment 6020
Total power 6916
Model No. HT-HS3000-1200-5000AC
Name of parts Specification
Solar panel 3KW
Solar controller 96V50A
Solar inverter 5KW
Lead-acid battery 150AH*8
PV cables 200M
Brackets (set) 1
Manual 1
CBM 1.71
Weight 880.5
20'GP(set) 14
Daily use reference
Aplliance Unit(w) Quty(pcs) work time(H) Power
Lamps 11 6 6 396
TV(21) 65 1 6 260
Fan 40 1 6 240
Other equipment 9920
Total power 10816
HAOTEC ENERGY
Product Details
20

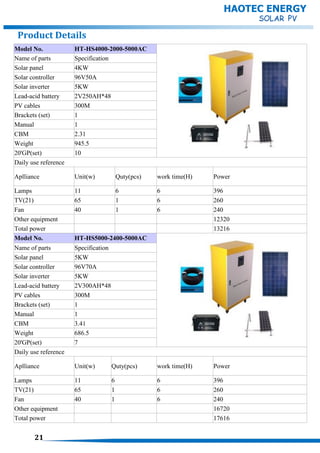

29. Model No. HT-HS4000-2000-5000AC
Name of parts Specification
Solar panel 4KW
Solar controller 96V50A
Solar inverter 5KW
Lead-acid battery 2V250AH*48
PV cables 300M
Brackets (set) 1
Manual 1
CBM 2.31
Weight 945.5
20'GP(set) 10
Daily use reference
Aplliance Unit(w) Quty(pcs) work time(H) Power
Lamps 11 6 6 396
TV(21) 65 1 6 260
Fan 40 1 6 240
Other equipment 12320
Total power 13216
Model No. HT-HS5000-2400-5000AC
Name of parts Specification
Solar panel 5KW
Solar controller 96V70A
Solar inverter 5KW
Lead-acid battery 2V300AH*48
PV cables 300M
Brackets (set) 1
Manual 1
CBM 3.41
Weight 686.5
20'GP(set) 7
Daily use reference
Aplliance Unit(w) Quty(pcs) work time(H) Power
Lamps 11 6 6 396
TV(21) 65 1 6 260
Fan 40 1 6 240
Other equipment 16720
Total power 17616
21
HAOTEC ENERGY
Product Details

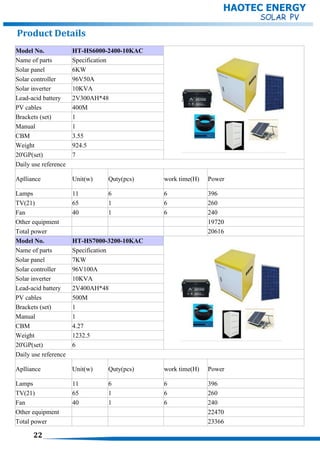

30. Model No. HT-HS6000-2400-10KAC
Name of parts Specification
Solar panel 6KW
Solar controller 96V50A
Solar inverter 10KVA
Lead-acid battery 2V300AH*48
PV cables 400M
Brackets (set) 1
Manual 1
CBM 3.55
Weight 924.5
20'GP(set) 7
Daily use reference
Aplliance Unit(w) Quty(pcs) work time(H) Power
Lamps 11 6 6 396
TV(21) 65 1 6 260
Fan 40 1 6 240
Other equipment 19720
Total power 20616
Model No. HT-HS7000-3200-10KAC
Name of parts Specification
Solar panel 7KW
Solar controller 96V100A
Solar inverter 10KVA
Lead-acid battery 2V400AH*48
PV cables 500M
Brackets (set) 1
Manual 1
CBM 4.27
Weight 1232.5
20'GP(set) 6
Daily use reference
Aplliance Unit(w) Quty(pcs) work time(H) Power
Lamps 11 6 6 396
TV(21) 65 1 6 260
Fan 40 1 6 240
Other equipment 22470
Total power 23366
Product Details
22
HAOTEC ENERGY

31. Model No. HT-HS8000-3200-15KAC
Name of parts Specification
Solar panel 8KW
Solar controller 96V100A
Solar inverter 15KVA
Lead-acid battery 2V400AH*48
PV cables 500M
Brackets (set) 1
Manual 1
CBM 4.02
Weight 1591.5
20'GP(set) 6
Daily use reference
Aplliance Unit(w) Quty(pcs) work time(H) Power
Lamps 11 6 6 396
TV(21) 65 1 6 260
Fan 40 1 6 240
Other equipment 27994
Total power 28890
Model No. HT-HS9000-4000-15KAC
Name of parts Specification
Solar panel 9KW
Solar controller 96V100A
Solar inverter 15KVA
Lead-acid battery 2V500AH*48
PV cables 500M
Brackets (set) 1
Manual 1
CBM 5.37
Weight 2239.5
20'GP(set) 4
Daily use reference
Aplliance Unit(w) Quty(pcs) work time(H) Power
Lamps 11 6 6 396
TV(21) 65 1 6 260
Fan 40 1 6 240
Other equipment 33994
Total power 34890
Product Details
HAOTEC ENERGY
23

32. Model No. HT-HS10000-4800-15KAC
Name of parts Specification
Solar panel 10KW
Solar controller 96V100A
Solar inverter 15KVA
Lead-acid battery 2V500AH*48
PV cables 600M
Brackets (set) 1
Manual 1
CBM 6.41
Weight 2732
20'GP(set) 4
Daily use reference
Aplliance Unit(w) Quty(pcs) work time(H) Power
Lamps 11 6 6 396
TV(21) 65 1 6 260
Fan 40 1 6 240
Other equipment 37994
Total power 38890
Product Details
24
HAOTEC ENERGY

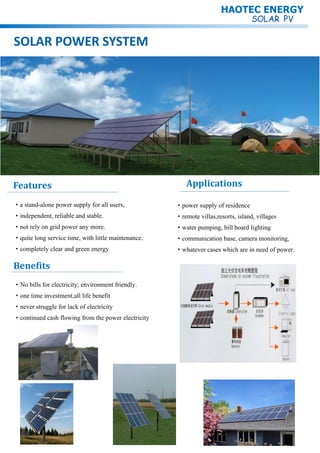

33. SOLAR POWER SYSTEM
Features
·power supply of residence
·remote villas,resorts, island, villages
·water pumping, bill board lighting
·communication base, camera monitoring,
·whatever cases which are in need of power.
Applications
·a stand-alone power supply for all users,
·independent, reliable and stable.
·not rely on grid power any more.
·quite long service time, with little maintenance.
·completely clear and green energy
Benefits
·No bills for electricity; environment friendly.
·one time investment,all life benefit
·never struggle for lack of electricity
·continued cash flowing from the power electricity
HAOTEC ENERGY

34. HAOTEC ENERGY
PLAN TO INSTALL A
SOLAR HOME SYSTEM
The questionnaire
APPLICANT
DISCUSSING
DESIGN
YOUR
SYSTEMSYS
INSTALL
SYSTEM
ELEC FREE
FROM NOW ON
25
CONTACT US WITHOUT ANY
HESITATE:
EMAIL:louisasolar@gmail.com
MOBILE:00861381901921

35. SOLAR LED STREET LIGHT
Features
•Street,town road;
•Road,country road,highway,street;
•Park, Garden Lighting;
•Yard, Square Lighting
Applications
·Intelligent control, automatically turn on or off.
·10-12 hours lighting per day, 2-3 continuous
rainy or cloudy days backup.
·Safe and reliable, strong and stable system
performance.
·Energy saving, saving 50% than the traditional
lights at the same brightness.
·Inner high efficiency (95%) heat protection
system, with the latest high efficiency
constant currency driver, making the products
can work under unstable voltage.
·Long life span, more than 50000 hours,Our
product can using from -40 degree to 50
degree.
·Low installation cost .
HAOTEC ENERGY

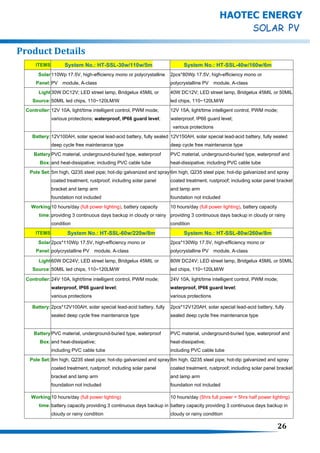

36. ITEMS System No.: HT-SSL-30w/110w/5m System No.: HT-SSL-40w/160w/6m
Solar
Panel:
110Wp 17.5V, high-efficiency mono or polycrystalline
PV module, A-class
2pcs*80Wp 17.5V, high-efficiency mono or
polycrystalline PV module, A-class
Light
Source:
30W DC12V; LED street lamp, Bridgelux 45MIL or
50MIL led chips, 110~120LM/W
40W DC12V; LED street lamp, Bridgelux 45MIL or 50MIL
led chips, 110~120LM/W
Controller:12V 10A, light/time intelligent control, PWM mode;
various protections; waterproof, IP66 guard level;
12V 15A, light/time intelligent control, PWM mode;
waterproof, IP66 guard level;
various protections
Battery: 12V100AH, solar special lead-acid battery, fully sealed
deep cycle free maintenance type
12V150AH, solar special lead-acid battery, fully sealed
deep cycle free maintenance type
Battery
Box:
PVC material, underground-buried type, waterproof
and heat-dissipative; including PVC cable tube
PVC material, underground-buried type, waterproof and
heat-dissipative; including PVC cable tube
Pole Set:5m high, Q235 steel pipe; hot-dip galvanized and spray
coated treatment, rustproof; including solar panel
bracket and lamp arm
foundation not included
6m high, Q235 steel pipe; hot-dip galvanized and spray
coated treatment, rustproof; including solar panel bracket
and lamp arm
foundation not included
Working
time:
10 hours/day (full power lighting), battery capacity
providing 3 continuous days backup in cloudy or rainy
condition
10 hours/day (full power lighting), battery capacity
providing 3 continuous days backup in cloudy or rainy
condition
ITEMS System No.: HT-SSL-60w/220w/8m System No.: HT-SSL-80w/260w/8m
Solar
Panel:
2pcs*110Wp 17.5V, high-efficiency mono or
polycrystalline PV module, A-class
2pcs*130Wp 17.5V, high-efficiency mono or
polycrystalline PV module, A-class
Light
Source:
60W DC24V; LED street lamp, Bridgelux 45MIL or
50MIL led chips, 110~120LM/W
80W DC24V; LED street lamp, Bridgelux 45MIL or 50MIL
led chips, 110~120LM/W
Controller:24V 10A, light/time intelligent control, PWM mode;
waterproof, IP66 guard level;
various protections
24V 10A, light/time intelligent control, PWM mode;
waterproof, IP66 guard level;
various protections
Battery: 2pcs*12V100AH, solar special lead-acid battery, fully
sealed deep cycle free maintenance type
2pcs*12V120AH, solar special lead-acid battery, fully
sealed deep cycle free maintenance type
Battery
Box:
PVC material, underground-buried type, waterproof
and heat-dissipative;
including PVC cable tube
PVC material, underground-buried type, waterproof and
heat-dissipative;
including PVC cable tube
Pole Set:8m high, Q235 steel pipe; hot-dip galvanized and spray
coated treatment, rustproof; including solar panel
bracket and lamp arm
foundation not included
8m high, Q235 steel pipe; hot-dip galvanized and spray
coated treatment, rustproof; including solar panel bracket
and lamp arm
foundation not included
Working
time:
10 hours/day (full power lighting)
battery capacity providing 3 continuous days backup in
cloudy or rainy condition
10 hours/day (5hrs full power + 5hrs half power lighting)
battery capacity providing 3 continuous days backup in
cloudy or rainy condition
Product Details
26
HAOTEC ENERGY

37. ITEMSSystem No.: HT-SSL-100w/300w/9m System No.: HT-SSL-120w/340w/10m
Solar
Panel:
2pcs*150Wp 35.5V, high-efficiency mono or
polycrystalline PV module, A-class
2pcs*170Wp 35.5V, high-efficiency mono or polycrystalline PV
module
Light
Source:
100W DC24V; LED street lamp, Bridgelux 45MIL
or 50MIL led chips, 110~120LM/W
120W DC24V; LED street lamp, Bridgelux 45MIL or 50MIL led
chips, 110~120LM/W
Controller:24V 15A, light/time intelligent control, PWM
mode; waterproof, IP66 guard level; various
protections
24V 15A, light/time intelligent control, PWM mode;
waterproof, IP66 guard level; various protections
Battery: 2pcs*12V150AH, solar special lead-acid battery,
fully sealed deep cycle free maintenance type
2pcs*12V180AH, solar special lead-acid battery, fully sealed
deep cycle free maintenance type
Battery
Box:
PVC material, underground-buried type,
waterproof and heat-dissipative; including PVC
cable tube
PVC material, underground-buried type, waterproof and
heat-dissipative; including PVC cable tube
Pole Set:9m high, Q235 steel pipe; hot-dip galvanized and
spray coated treatment, rustproof; including solar
panel bracket and lamp arm, foundation not
included
10m high, Q235 steel pipe; hot-dip galvanized and spray
coated treatment, rustproof; including solar panel bracket and
lamp arm, foundation not included
Working
time:
10 hours/day (5hrs full power + 5hrs half power
lighting mode), battery capacity providing 3
continuous cloudy or rainy days backup
10 hours/day (5hrs full power + 5hrs half power lighting mode),
battery capacity providing 3 continuous cloudy or rainy days
backup
ITEMSSystem No.: HT-SSL-150w/440w/10m
Solar
Panel:
4pcs*110Wp 17.5V, high-efficiency mono or
polycrystalline PV module, A-class
Light
Source:
150W DC24V; LED street lamp, Bridgelux 45MIL
or 50MIL led chips, 110~120LM/W
Controller:24V 15A, light/time intelligent control, PWM
mode; waterproof, IP66 guard level; various
protections
Battery: 2pcs*12V200AH, solar special lead-acid battery,
fully sealed deep cycle free maintenance type
Battery
Box:
PVC material, underground-buried type,
waterproof and heat-dissipative; including PVC
cable tube
Pole Set:10m high, Q235 steel pipe; hot-dip galvanized
and spray coated treatment, rustproof; including
solar panel bracket and lamp arm, foundation not
included
Working
time:
10 hours/day (5hrs full power + 5hrs half power
lighting mode), battery capacity providing 3
continuous cloudy or rainy days backup
HAOTEC ENERGY
Product Details
Contact with us to design the solar-led street light
for you:
Louisa:008613819019214(whatsapp,viber,et.)
Email:louisasolar@gmail.com
27

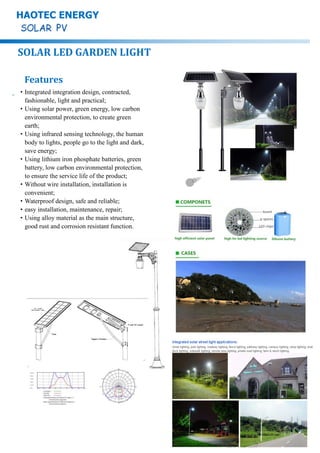

38. SOLAR LED GARDEN LIGHT
HAOTEC ENERGY
Features
·Integrated integration design, contracted,
fashionable, light and practical;
·Using solar power, green energy, low carbon
environmental protection, to create green
earth;
·Using infrared sensing technology, the human
body to lights, people go to the light and dark,
save energy;
·Using lithium iron phosphate batteries, green
battery, low carbon environmental protection,
to ensure the service life of the product;
·Without wire installation, installation is
convenient;
·Waterproof design, safe and reliable;
·easy installation, maintenance, repair;
·Using alloy material as the main structure,
good rust and corrosion resistant function.

39. SOLAR PANEL
PEAK POWER
10watt solar
panel
LIFE TIME 25 years
BATTERY
VOLTAGE/CAPACITY
3V/15AH lithium
battery
LIFE TIME 10years
LIGHTING
POWER 5W,140LM/W
LIFETIME 50,000hours
CONTROLLER METHOD
AND LIGTING TIME
LIGHTING SWITCH,POWER CONTROLLER
AND ALL NIGHT LIGHTING
2HOURS FULL LIGHTING EVEN AFTER
SEVERAL CLOUDY DAY.
LAMP ARM Al-Mg alloy
LAMP COVER
Uv PERVIOUS FOR HIGH LIGHTING
ACRYLIC
SUGGESTED INSTALL
HEIGHT
2M-4M
5~8m for sensing distance
LIFETIME AND
WARRANTY
10YEARS,BATTERY AND WHOLE LIGHT
WARRANTY 3 YEARS
PACKING AND WEIGHT 2 SETS PER CARTON,6.5KG/CTN
PACKING SIZE 200*290*340mm
20GP,40GP,40HQ 1450sets,3020sets,3420sets
26
HAOTEC ENERGY
28
Product Details--Fruit Family--Peach

40. SOLAR PANEL
PEAK POWER 25watt solar panel
LIFE TIME 25 years
BATTERY
VOLTAGE/CAPACITY
3v/25AH lithium
battery
LIFE TIME 10years
LIGHTING
POWER 10W,140LM/W
LIFETIME 50,000hours
CONTROLLER METHOD AND
LIGTING TIME
LIGHTING SWITCH,POWER CONTROLLER AND ALL
NIGHT LIGHTING
2HOURS FULL LIGHTING EVEN AFTER SEVERAL
CLOUDY DAY.
LAMP ARM Al-Mg alloy
LAMP COVER Uv PERVIOUS FOR HIGH LIGHTING ACRYLIC
SUGGESTED INSTALL
HEIGHT
3M-5M
5~8m for sensing distance
LIFETIME AND WARRANTY
10YEARS,BATTERY AND WHOLE LIGHT WARRANTY
3 YEARS
PACKING AND WEIGHT 2 SETS PER CARTON,11KG/CTN
SIZE Packing size:590*280*370mm
20GP,40GP,40HQ 900sets,1880sets,21900sets
29
HAOTEC ENERGY
Product Details--Fruit Family--Apple

41. SOLAR PANEL
PEAK POWER
80watt
solar
panel
LIFE TIME 25 years
BATTERY
VOLTAGE/CAPACITY
2v/120AH
lithium
battery
LIFE TIME 10years
LIGHTING
POWER
25W,Bridg
elux
LIFETIME
50,000hou
rs
SUGGESTED INSTALL HEIGHT
6m~8m
8~10m for sensing distance
LIGHTIG TIME
LIGHTING CONTROLLER,4+X 4 HOURS FULL
POWER,THE LEFT HOURS INTELIGENT
CONTROLL
LAMP COVER Uv PERVIOUS FOR HIGH LIGHTING ACRYLIC
LIFETIME AND WARRANTY
10YEARS,BATTERY AND WHOLE LIGHT
WARRANTY 3 YEARS
PACKING AND WEIGHT 4 SETS PER CARTON,110KG/CTN
SIZE
ONE PC:
PACKING:9008800*950mm
20GP,40GP 12SETS,224SETS
Product Details--Fruit Family--Banana
Pictures after bombed
30
HAOTEC ENERGY

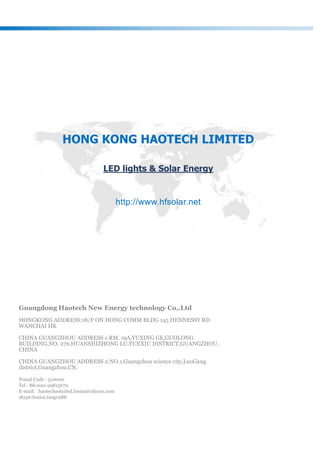

42. Guangdong Haotech New Energy technology Co,.Ltd
HONGKONG ADDRESS:18/F ON HONG COMM BLDG 145 HENNESSY RD
WANCHAI HK
CHINA GUANGZHOU ADDRESS 1:RM. 19A,YUXING GE,GUOLONG
BUILDING,NO. 276,HUANSHIZHONG LU,YUEXIU DISTRICT,GUANGZHOU,
CHINA
CHINA GUANGZHOU ADDRESS 2:NO.1,Guangzhou science city,LuoGang
district,Guangzhou.CN.
Postal Code : 510000
Tel : 86-020-29815670
E-mail: haotechsolarled.louisa@aliyun.com
skype:louisa.tang1988
HONG KONG HAOTECH LIMITED
LED lights & Solar Energy
http://www.hfsolar.net
