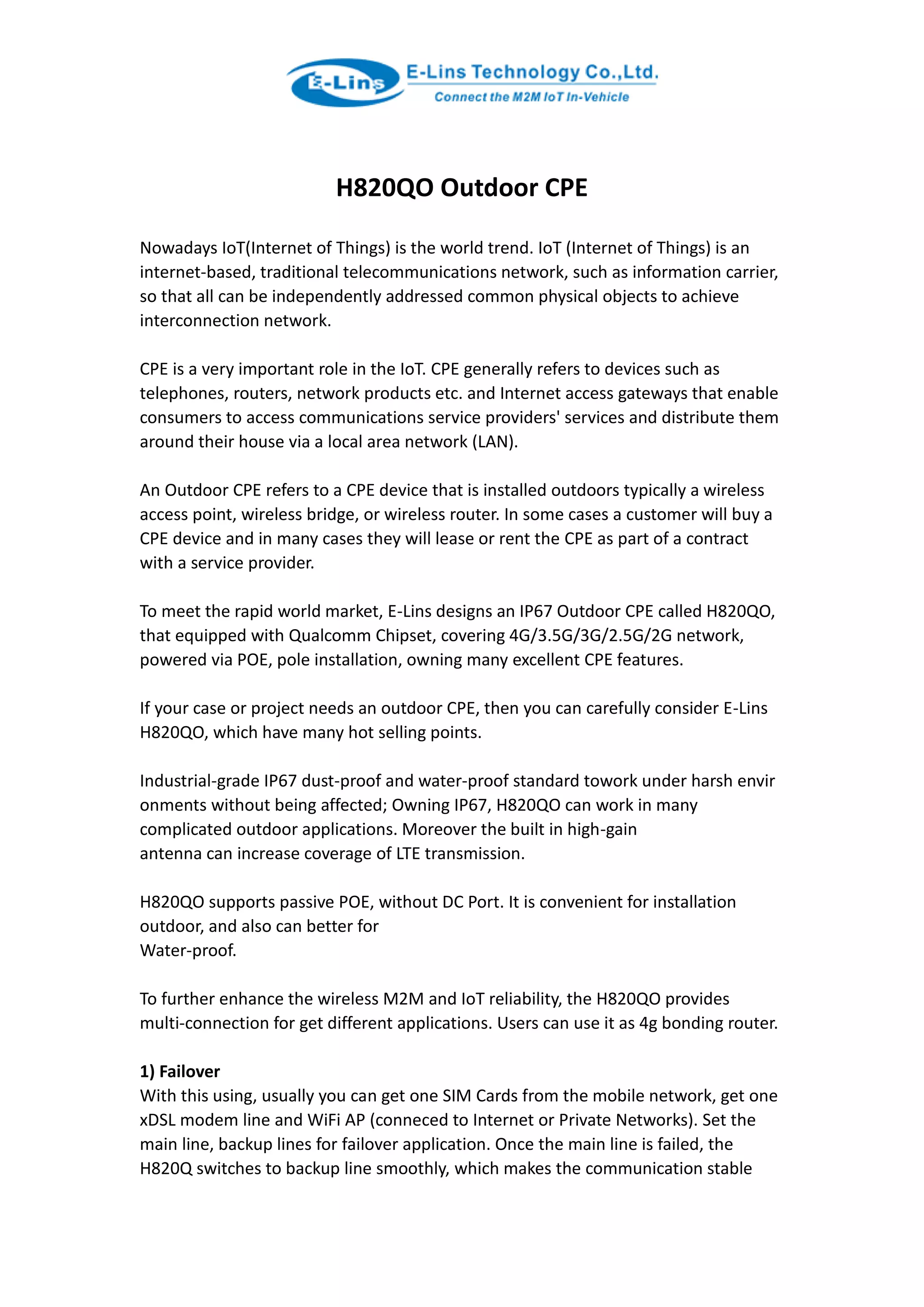

1. H820QO Outdoor CPE
Nowadays IoT(Internet of Things) is the world trend. IoT (Internet of Things) is an
internet-based, traditional telecommunications network, such as information carrier,
so that all can be independently addressed common physical objects to achieve
interconnection network.
CPE is a very important role in the IoT. CPE generally refers to devices such as
telephones, routers, network products etc. and Internet access gateways that enable
consumers to access communications service providers' services and distribute them
around their house via a local area network (LAN).
An Outdoor CPE refers to a CPE device that is installed outdoors typically a wireless
access point, wireless bridge, or wireless router. In some cases a customer will buy a
CPE device and in many cases they will lease or rent the CPE as part of a contract
with a service provider.
To meet the rapid world market, E-Lins designs an IP67 Outdoor CPE called H820QO,
that equipped with Qualcomm Chipset, covering 4G/3.5G/3G/2.5G/2G network,
powered via POE, pole installation, owning many excellent CPE features.
If your case or project needs an outdoor CPE, then you can carefully consider E-Lins
H820QO, which have many hot selling points.
Industrial-grade IP67 dust-proof and water-proof standard towork under harsh envir
onments without being affected; Owning IP67, H820QO can work in many
complicated outdoor applications. Moreover the built in high-gain
antenna can increase coverage of LTE transmission.
H820QO supports passive POE, without DC Port. It is convenient for installation
outdoor, and also can better for
Water-proof.
To further enhance the wireless M2M and IoT reliability, the H820QO provides
multi-connection for get different applications. Users can use it as 4g bonding router.
1) Failover
With this using, usually you can get one SIM Cards from the mobile network, get one
xDSL modem line and WiFi AP (conneced to Internet or Private Networks). Set the
main line, backup lines for failover application. Once the main line is failed, the
H820Q switches to backup line smoothly, which makes the communication stable

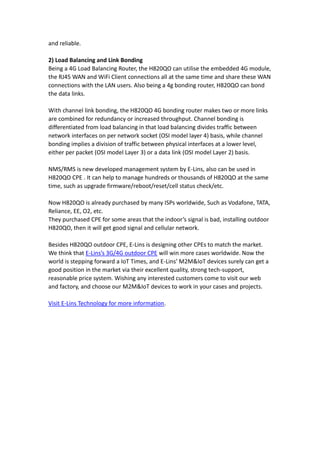

2. and reliable.
2) Load Balancing and Link Bonding
Being a 4G Load Balancing Router, the H820QO can utilise the embedded 4G module,
the RJ45 WAN and WiFi Client connections all at the same time and share these WAN
connections with the LAN users. Also being a 4g bonding router, H820QO can bond
the data links.
With channel link bonding, the H820QO 4G bonding router makes two or more links
are combined for redundancy or increased throughput. Channel bonding is
differentiated from load balancing in that load balancing divides traffic between
network interfaces on per network socket (OSI model layer 4) basis, while channel
bonding implies a division of traffic between physical interfaces at a lower level,
either per packet (OSI model Layer 3) or a data link (OSI model Layer 2) basis.
NMS/RMS is new developed management system by E-Lins, also can be used in
H820QO CPE . It can help to manage hundreds or thousands of H820QO at the same
time, such as upgrade firmware/reboot/reset/cell status check/etc.
Now H820QO is already purchased by many ISPs worldwide, Such as Vodafone, TATA,
Reliance, EE, O2, etc.
They purchased CPE for some areas that the indoor’s signal is bad, installing outdoor
H820QO, then it will get good signal and cellular network.
Besides H820QO outdoor CPE, E-Lins is designing other CPEs to match the market.
We think that E-Lins’s 3G/4G outdoor CPE will win more cases worldwide. Now the
world is stepping forward a IoT Times, and E-Lins’ M2M&IoT devices surely can get a
good position in the market via their excellent quality, strong tech-support,
reasonable price system. Wishing any interested customers come to visit our web
and factory, and choose our M2M&IoT devices to work in your cases and projects.
Visit E-Lins Technology for more information.
