This document provides instructions for performing various diagnostic and programming procedures on Volkswagen vehicles, including:
1. Erasing learned values from the engine ECU
2. Adapting the ECU to the throttle valve and exhaust gas recirculation system
3. Performing basic settings on the automatic transmission and instruments module
4. Resetting the service light and coding new airbag control modules
This document contains a list of component identifiers (CIDs) and their corresponding components for several electronic control modules, including the engine control module, brake ECM, power train ECM, and VIMS. It includes over 150 CIDs and descriptions of sensors, solenoids, switches, and other components monitored by these control modules.
The document summarizes the key features and functions of the Caterpillar 3126 HEUI engine used in buses, including that it uses an electronically controlled fuel injection system. The Electronic Control Module (ECM) controls all engine functions based on sensor inputs, including fuel injection, speed limiting, diagnostics, and more. It also discusses maintenance and troubleshooting of the electronic systems.
This document provides information about PATS (Passive Anti-Theft System) keys and programming procedures for Ford and Lincoln vehicles from 1996-2007. It lists the PATS key type and required minimum keys for each vehicle model year. It also describes PATS control functions, common trouble codes, and procedures for erasing or programming keys using diagnostic tools or existing programmed keys.
The document provides information about a machine monitoring system, including:
1. The monitoring system consists of a monitor panel and switch panel that give warnings of abnormalities and show machine conditions.
2. The monitor panel displays information like engine RPM, temperatures, pressures, and warns of issues. It is controlled by a CPU and selects display modes.
3. Abnormal conditions cause warning lights and buzzers, and errors are recorded to troubleshoot issues. The monitoring system oversees the machine's functions and alerts operators to problems.
The document provides instructions for calibrating and using the SP-1000 SkidWeigh Plus on-board vehicle weighing system. It describes how to enter calibration mode by logging in with a password, then calibrating the system by lifting empty forks and a known weight load above the ground. It explains the user mode, including starting a session by logging in an operator ID, taking weight readings by lifting loaded forks, and totaling weights under waybill IDs. Functions of the control keys for weighing, taring, totaling, printing, and ending a session are also summarized.
This document provides specifications for installing body components on Mack trucks, including:
- Dash switch locations and available switch options
- Instrument cluster components like gauges, indicators, and tell-tales
- Details on individual gauges and what each indicator symbol means
The information is intended to cover body installation but may not include all vehicle variations. Specifications are subject to change.
The document describes the fuel injection system used in Caterpillar 3408E/3412E engines. It contains diagrams and descriptions of the key components of the Hydraulic Electronic Unit Injection (HEUI) system, including the fuel pump, oil cooler, sensors, injectors, and Electronic Control Module (ECM). It also provides details on the synchronization calibration process, injection waveform characteristics, and operating modes like cold start and derate functions.
The document provides information on various BMW engine control units (ECUs) including Bosch Motronic and Siemens MS ECUs. It summarizes the engines and vehicle models that different ECU versions were used in, as well as some of their key features like adding variable valve timing (VANOS) or emissions monitoring capabilities. The document also lists typical diagnostic trouble codes for some common ECUs.
This document contains a list of component identifiers (CIDs) and their corresponding components for several electronic control modules, including the engine control module, brake ECM, power train ECM, and VIMS. It includes over 150 CIDs and descriptions of sensors, solenoids, switches, and other components monitored by these control modules.
The document summarizes the key features and functions of the Caterpillar 3126 HEUI engine used in buses, including that it uses an electronically controlled fuel injection system. The Electronic Control Module (ECM) controls all engine functions based on sensor inputs, including fuel injection, speed limiting, diagnostics, and more. It also discusses maintenance and troubleshooting of the electronic systems.
This document provides information about PATS (Passive Anti-Theft System) keys and programming procedures for Ford and Lincoln vehicles from 1996-2007. It lists the PATS key type and required minimum keys for each vehicle model year. It also describes PATS control functions, common trouble codes, and procedures for erasing or programming keys using diagnostic tools or existing programmed keys.
The document provides information about a machine monitoring system, including:
1. The monitoring system consists of a monitor panel and switch panel that give warnings of abnormalities and show machine conditions.
2. The monitor panel displays information like engine RPM, temperatures, pressures, and warns of issues. It is controlled by a CPU and selects display modes.
3. Abnormal conditions cause warning lights and buzzers, and errors are recorded to troubleshoot issues. The monitoring system oversees the machine's functions and alerts operators to problems.
The document provides instructions for calibrating and using the SP-1000 SkidWeigh Plus on-board vehicle weighing system. It describes how to enter calibration mode by logging in with a password, then calibrating the system by lifting empty forks and a known weight load above the ground. It explains the user mode, including starting a session by logging in an operator ID, taking weight readings by lifting loaded forks, and totaling weights under waybill IDs. Functions of the control keys for weighing, taring, totaling, printing, and ending a session are also summarized.
This document provides specifications for installing body components on Mack trucks, including:
- Dash switch locations and available switch options
- Instrument cluster components like gauges, indicators, and tell-tales
- Details on individual gauges and what each indicator symbol means
The information is intended to cover body installation but may not include all vehicle variations. Specifications are subject to change.
The document describes the fuel injection system used in Caterpillar 3408E/3412E engines. It contains diagrams and descriptions of the key components of the Hydraulic Electronic Unit Injection (HEUI) system, including the fuel pump, oil cooler, sensors, injectors, and Electronic Control Module (ECM). It also provides details on the synchronization calibration process, injection waveform characteristics, and operating modes like cold start and derate functions.
The document provides information on various BMW engine control units (ECUs) including Bosch Motronic and Siemens MS ECUs. It summarizes the engines and vehicle models that different ECU versions were used in, as well as some of their key features like adding variable valve timing (VANOS) or emissions monitoring capabilities. The document also lists typical diagnostic trouble codes for some common ECUs.
Volvo L220F Wheel Loader Service Repair Manual Instant Download.pdftepu22753653
This document provides instructions for removing an engine from a machine. It outlines disconnecting electrical and fluid connections like coolant, oil, transmission oil, and removing components attached to the engine like hoses, pipes, filters. Safety precautions are mentioned for draining fluids and disabling the fire suppression system before removal. Tools required include lifting equipment and drain hoses. The process also refers to other documents for additional details.
Volvo L220F Wheel Loader Service Repair Manual Instant Download.pdffapanhe306271
This document provides instructions for removing an engine from a machine. It outlines disconnecting electrical and fluid connections like coolant, oil, transmission oil, and removing components attached to the engine like hoses, pipes, filters. Safety precautions are mentioned for draining fluids and disabling the fire suppression system before removal. Tools required include lifting equipment and drain hoses. The process also refers to other documents for additional details.
Volvo L220F Wheel Loader Service Repair Manual Instant Download.pdff8ioseoodkmmd
This document provides instructions for removing an engine from a machine. It describes draining fluids like coolant, engine oil, and transmission oil. It lists components that must be disconnected from the engine like hoses, wires, and sensors. Tools needed include lifting equipment and drain hoses. Safety precautions are noted, like placing the machine in service position and disconnecting the fire suppression system. Overall it provides a concise step-by-step process for removing an engine.
Volvo L150F Wheel Loader Service Repair Manual Instant Download.pdftepu22753653
This document provides instructions for removing an engine from a machine. It outlines 18 steps including draining fluids, disconnecting hoses and electrical connections, and removing components attached to the engine like the filter housing. Safety precautions are noted, and references to other documents are provided for additional details on tasks like draining fluids and removing guards. Tools needed include lifting equipment and various hand tools.
Volvo L150F Wheel Loader Service Repair Manual Instant Download.pdff8iosedkdm3e
This document provides instructions for removing an engine from a machine. It outlines 18 steps including draining fluids, disconnecting hoses and electrical connections, and removing components attached to the engine like the filter housing. Safety precautions are noted, and references to other documents are provided for additional details on tasks like draining fluids and removing guards. Tools needed include lifting equipment and various fastener removal tools.
Volvo L150F Wheel Loader Service Repair Manual Instant Download.pdffapanhe306271
This document provides instructions for removing an engine from a machine. It outlines 18 steps including draining fluids, disconnecting hoses and electrical connections, and removing components attached to the engine like the filter housing. Safety precautions are noted, and references to other documents are provided for additional details on tasks like draining fluids and removing parts. Tools needed include lifting equipment and various connectors and fasteners.
Volvo L150F Wheel Loader Service Repair Manual Instant Download.pdffijsekkkdmdm3e
This document provides instructions for removing an engine from a machine. It outlines 18 steps including draining fluids, disconnecting hoses and electrical connections, and removing components attached to the engine like the filter housing. Safety precautions are noted, and references to other documents are provided for additional details on tasks like draining fluids and removing parts. Tools needed include lifting equipment and various fastener removal tools.
This document provides instructions for removing an engine from a machine. It includes preparing the machine by draining fluids like coolant, engine oil, and transmission oil. Components that need to be disconnected from the engine are then listed, such as hoses, pipes, wires, and sensors. Tools needed for the job include a lifting tool, slings, lifting eyes, nuts, and a ratchet block. Safety precautions are mentioned, like placing the machine in service position and turning off the main power.
This document provides instructions for removing an engine from a machine. It includes preparing the machine by draining fluids like coolant, engine oil, and transmission oil. Components that need to be disconnected from the engine are then listed, such as hoses, pipes, wires, and sensors. Tools needed for the job include a lifting tool, slings, lifting eyes, nuts, and a ratchet block. Safety precautions are mentioned, like placing the machine in service position and turning off the main power.
This document provides instructions for removing an engine. It begins by listing the necessary tools. The steps include placing the machine in service position, draining fluids like coolant, oil and transmission oil, disconnecting hoses and wires, and removing plates and guards. Safety precautions are noted, like turning off main power before working. References are provided to other documents for additional details.
This document provides instructions for removing an engine from a machine. It includes preparing the machine by draining fluids like coolant, engine oil, and transmission oil. Components that need to be disconnected from the engine are then listed, such as hoses, pipes, wires, and sensors. Tools needed for the job include a lifting tool, slings, lifting eyes, nuts, and a ratchet block. Safety precautions are mentioned, like placing the machine in service position and turning off the main power.
Volvo L120F Wheel Loader Service Repair Manual Instant Download.pdftepu22753653
The document provides service information for removing the engine from a machine. It outlines the steps to drain fluids like engine oil, transmission oil, and hydraulic oil. Components like the engine hood, mudguards, and side panels are removed to access the engine. Lifting tools like slings and a lifting eye are used to lift the engine out after disconnecting electrical and fuel lines. The document references other sections for fluid capacities and component removal procedures.
Volvo L120F Wheel Loader Service Repair Manual Instant Download.pdffapanhe306271
The document provides service information for removing the engine from a machine. It outlines the steps to drain fluids like engine oil, transmission oil, and hydraulic oil. Components like the engine hood, mudguards, and side panels are also removed to access the engine. Lifting tools like slings and lifting eyes are needed to lift the engine out once it is disconnected from linkages and cables.
Volvo L120F Wheel Loader Service Repair Manual Instant Download.pdfrou774513po
The document provides service information for removing the engine on a Volvo machine. It outlines the steps to drain fluids, disconnect cables, and remove parts to access the engine. These include draining the engine oil, transmission oil, and hydraulic oil, disconnecting power and suppression cables, and removing fender panels and mudguards. Lifting tools such as slings and eyes are listed to lift the engine out once preparatory steps are complete.
Volvo L120F Wheel Loader Service Repair Manual Instant Download.pdff8iosedkdm3e
The document provides a description and specifications of the D7E straight six-cylinder diesel engine, including its common rail fuel system, emissions controls, electronic engine management, engine protection functions, and input/output signals. Key points include:
- The D7E uses technologies like split injection and optimized air handling to reduce emissions without after-treatment. Electronic controls manage all engine functions.
- Engine protection functions monitor components and sensors, warning the operator and limiting engine operation if issues arise. These functions are controlled by the electronic control unit.
- Input signals related to components like oil pressure and temperature trigger warning outputs or reductions in torque/speed based on conditions.
Volvo L120F Wheel Loader Service Repair Manual Instant Download.pdffijsekkkdmdm3e
The document provides service information on removing the engine from a machine. It is a 10 step process that includes draining fluids like engine oil, transmission oil, and hydraulic oil. Safety cables connected to the fire suppression system are then disconnected. Lifting tools like slings and a lifting eye are used to remove the engine, which is lifted out after removing side panels and mudguards. Technical specifications for fluid volumes are also referenced.
Volvo L120F Wheel Loader Service Repair Manual Instant Download.pdflunrizan628
The document provides service information on removing the engine from a machine. It lists the necessary tools and parts and outlines the steps to drain fluids, disconnect cables, and remove panels and guards. The engine is then ready to be lifted out after installing lifting eyes on the cylinder block. Safety precautions and specifications for fluids are referenced.
Volvo L110F Wheel Loader Service Repair Manual Instant Download.pdftepu22753653
The document provides information on removing the engine from a machine. It lists the necessary tools and parts, and outlines the steps to drain fluids, disconnect cables, and remove panels and guards. The engine is then ready to be lifted out after installing lifting eyes on the cylinder block.
Volvo L110F Wheel Loader Service Repair Manual Instant Download.pdffapanhe306271
The document provides information on removing the engine from a machine. It lists the necessary tools and parts, and outlines the steps to drain fluids, disconnect cables, and remove panels and guards. The engine is then ready to be lifted out after installing lifting eyes on the cylinder block.
Volvo L110F Wheel Loader Service Repair Manual Instant Download.pdfrou774513po
The document provides information on removing the engine from a machine. It lists the necessary tools and parts, and outlines the steps to drain fluids, disconnect cables, and remove panels and guards. The engine is then ready to be lifted out after these preparatory tasks are completed.
update BMW icom a2+b+c diagnostic system firmware step-by-step instruction http://www.obdtool.co.uk/wholesale/super-version-bmw-icom-a2-b-c-diagnostic-programming-tool-with-software.html
Getting a datacard from Benz EPCnet onlinebuyobdii
Getting a Datacard for your MB vehicle involves accessing the EPC site with your VIN number, navigating through the site to the Datacard function, and printing the Datacard information to a PDF file. The multi-step process requires creating an account to log into the EPC site, entering your VIN to pull up your vehicle's information, and selecting Print to generate a PDF version of the Datacard.
More Related Content
Similar to Guide for vw_special_function operation
Volvo L220F Wheel Loader Service Repair Manual Instant Download.pdftepu22753653
This document provides instructions for removing an engine from a machine. It outlines disconnecting electrical and fluid connections like coolant, oil, transmission oil, and removing components attached to the engine like hoses, pipes, filters. Safety precautions are mentioned for draining fluids and disabling the fire suppression system before removal. Tools required include lifting equipment and drain hoses. The process also refers to other documents for additional details.
Volvo L220F Wheel Loader Service Repair Manual Instant Download.pdffapanhe306271
This document provides instructions for removing an engine from a machine. It outlines disconnecting electrical and fluid connections like coolant, oil, transmission oil, and removing components attached to the engine like hoses, pipes, filters. Safety precautions are mentioned for draining fluids and disabling the fire suppression system before removal. Tools required include lifting equipment and drain hoses. The process also refers to other documents for additional details.
Volvo L220F Wheel Loader Service Repair Manual Instant Download.pdff8ioseoodkmmd
This document provides instructions for removing an engine from a machine. It describes draining fluids like coolant, engine oil, and transmission oil. It lists components that must be disconnected from the engine like hoses, wires, and sensors. Tools needed include lifting equipment and drain hoses. Safety precautions are noted, like placing the machine in service position and disconnecting the fire suppression system. Overall it provides a concise step-by-step process for removing an engine.
Volvo L150F Wheel Loader Service Repair Manual Instant Download.pdftepu22753653
This document provides instructions for removing an engine from a machine. It outlines 18 steps including draining fluids, disconnecting hoses and electrical connections, and removing components attached to the engine like the filter housing. Safety precautions are noted, and references to other documents are provided for additional details on tasks like draining fluids and removing guards. Tools needed include lifting equipment and various hand tools.
Volvo L150F Wheel Loader Service Repair Manual Instant Download.pdff8iosedkdm3e
This document provides instructions for removing an engine from a machine. It outlines 18 steps including draining fluids, disconnecting hoses and electrical connections, and removing components attached to the engine like the filter housing. Safety precautions are noted, and references to other documents are provided for additional details on tasks like draining fluids and removing guards. Tools needed include lifting equipment and various fastener removal tools.
Volvo L150F Wheel Loader Service Repair Manual Instant Download.pdffapanhe306271
This document provides instructions for removing an engine from a machine. It outlines 18 steps including draining fluids, disconnecting hoses and electrical connections, and removing components attached to the engine like the filter housing. Safety precautions are noted, and references to other documents are provided for additional details on tasks like draining fluids and removing parts. Tools needed include lifting equipment and various connectors and fasteners.
Volvo L150F Wheel Loader Service Repair Manual Instant Download.pdffijsekkkdmdm3e
This document provides instructions for removing an engine from a machine. It outlines 18 steps including draining fluids, disconnecting hoses and electrical connections, and removing components attached to the engine like the filter housing. Safety precautions are noted, and references to other documents are provided for additional details on tasks like draining fluids and removing parts. Tools needed include lifting equipment and various fastener removal tools.
This document provides instructions for removing an engine from a machine. It includes preparing the machine by draining fluids like coolant, engine oil, and transmission oil. Components that need to be disconnected from the engine are then listed, such as hoses, pipes, wires, and sensors. Tools needed for the job include a lifting tool, slings, lifting eyes, nuts, and a ratchet block. Safety precautions are mentioned, like placing the machine in service position and turning off the main power.
This document provides instructions for removing an engine from a machine. It includes preparing the machine by draining fluids like coolant, engine oil, and transmission oil. Components that need to be disconnected from the engine are then listed, such as hoses, pipes, wires, and sensors. Tools needed for the job include a lifting tool, slings, lifting eyes, nuts, and a ratchet block. Safety precautions are mentioned, like placing the machine in service position and turning off the main power.
This document provides instructions for removing an engine. It begins by listing the necessary tools. The steps include placing the machine in service position, draining fluids like coolant, oil and transmission oil, disconnecting hoses and wires, and removing plates and guards. Safety precautions are noted, like turning off main power before working. References are provided to other documents for additional details.
This document provides instructions for removing an engine from a machine. It includes preparing the machine by draining fluids like coolant, engine oil, and transmission oil. Components that need to be disconnected from the engine are then listed, such as hoses, pipes, wires, and sensors. Tools needed for the job include a lifting tool, slings, lifting eyes, nuts, and a ratchet block. Safety precautions are mentioned, like placing the machine in service position and turning off the main power.
Volvo L120F Wheel Loader Service Repair Manual Instant Download.pdftepu22753653
The document provides service information for removing the engine from a machine. It outlines the steps to drain fluids like engine oil, transmission oil, and hydraulic oil. Components like the engine hood, mudguards, and side panels are removed to access the engine. Lifting tools like slings and a lifting eye are used to lift the engine out after disconnecting electrical and fuel lines. The document references other sections for fluid capacities and component removal procedures.
Volvo L120F Wheel Loader Service Repair Manual Instant Download.pdffapanhe306271
The document provides service information for removing the engine from a machine. It outlines the steps to drain fluids like engine oil, transmission oil, and hydraulic oil. Components like the engine hood, mudguards, and side panels are also removed to access the engine. Lifting tools like slings and lifting eyes are needed to lift the engine out once it is disconnected from linkages and cables.
Volvo L120F Wheel Loader Service Repair Manual Instant Download.pdfrou774513po
The document provides service information for removing the engine on a Volvo machine. It outlines the steps to drain fluids, disconnect cables, and remove parts to access the engine. These include draining the engine oil, transmission oil, and hydraulic oil, disconnecting power and suppression cables, and removing fender panels and mudguards. Lifting tools such as slings and eyes are listed to lift the engine out once preparatory steps are complete.
Volvo L120F Wheel Loader Service Repair Manual Instant Download.pdff8iosedkdm3e
The document provides a description and specifications of the D7E straight six-cylinder diesel engine, including its common rail fuel system, emissions controls, electronic engine management, engine protection functions, and input/output signals. Key points include:
- The D7E uses technologies like split injection and optimized air handling to reduce emissions without after-treatment. Electronic controls manage all engine functions.
- Engine protection functions monitor components and sensors, warning the operator and limiting engine operation if issues arise. These functions are controlled by the electronic control unit.
- Input signals related to components like oil pressure and temperature trigger warning outputs or reductions in torque/speed based on conditions.
Volvo L120F Wheel Loader Service Repair Manual Instant Download.pdffijsekkkdmdm3e
The document provides service information on removing the engine from a machine. It is a 10 step process that includes draining fluids like engine oil, transmission oil, and hydraulic oil. Safety cables connected to the fire suppression system are then disconnected. Lifting tools like slings and a lifting eye are used to remove the engine, which is lifted out after removing side panels and mudguards. Technical specifications for fluid volumes are also referenced.
Volvo L120F Wheel Loader Service Repair Manual Instant Download.pdflunrizan628
The document provides service information on removing the engine from a machine. It lists the necessary tools and parts and outlines the steps to drain fluids, disconnect cables, and remove panels and guards. The engine is then ready to be lifted out after installing lifting eyes on the cylinder block. Safety precautions and specifications for fluids are referenced.
Volvo L110F Wheel Loader Service Repair Manual Instant Download.pdftepu22753653
The document provides information on removing the engine from a machine. It lists the necessary tools and parts, and outlines the steps to drain fluids, disconnect cables, and remove panels and guards. The engine is then ready to be lifted out after installing lifting eyes on the cylinder block.
Volvo L110F Wheel Loader Service Repair Manual Instant Download.pdffapanhe306271
The document provides information on removing the engine from a machine. It lists the necessary tools and parts, and outlines the steps to drain fluids, disconnect cables, and remove panels and guards. The engine is then ready to be lifted out after installing lifting eyes on the cylinder block.
Volvo L110F Wheel Loader Service Repair Manual Instant Download.pdfrou774513po
The document provides information on removing the engine from a machine. It lists the necessary tools and parts, and outlines the steps to drain fluids, disconnect cables, and remove panels and guards. The engine is then ready to be lifted out after these preparatory tasks are completed.
Similar to Guide for vw_special_function operation (20)
update BMW icom a2+b+c diagnostic system firmware step-by-step instruction http://www.obdtool.co.uk/wholesale/super-version-bmw-icom-a2-b-c-diagnostic-programming-tool-with-software.html
Getting a datacard from Benz EPCnet onlinebuyobdii
Getting a Datacard for your MB vehicle involves accessing the EPC site with your VIN number, navigating through the site to the Datacard function, and printing the Datacard information to a PDF file. The multi-step process requires creating an account to log into the EPC site, entering your VIN to pull up your vehicle's information, and selecting Print to generate a PDF version of the Datacard.
bmw cip programming with Autel maxisys pro MS908Pbuyobdii
Guide to BM W CIP programming with Autel MaxiSys Pro Wireless diagnostic tool http://www.obdtool.co.uk/wholesale/autel-maxisys-pro-ms908p-diagnostic-system-with-wifi-3737.html
Miracle A7 key cutting machine user manualbuyobdii
The document provides information about the MIRACLE-A7 key cutting machine. It includes cautions for safe use, a checklist for error-free operation, an introduction to the machine's features and capabilities, and descriptions of its parts. The machine can cut both edge and laser keys, communicates with mobile devices via Bluetooth, and supports decoding and cutting keys for many automakers.
This document provides download links for DiagBox software version 7 and its updates, with passwords and instructions for installing patches. It also includes links for support software like an interface checker, driver installer, and programs for fixing PSA codes and TLCD issues. Donation information is provided at the end for those who want to support the author's work.
The document provides information about trademarks, copyright, disclaimers, and safety instructions for an automotive diagnostic device. It states that Autel and other related product names are trademarks. It also includes warnings to take safety precautions when using the device to service vehicles, such as wearing protective equipment, parking the vehicle properly, and avoiding hazardous areas like the engine while it is running.
BMW CIC programming using Autel MaxiSys Probuyobdii
This document provides instructions for programming BMW vehicles using the MaxiSys Pro diagnostic tool. It outlines the steps to enter the CIP (Coding, Individualisation, Programming) main interface, including initial entry for first-time users and re-entry for returning users. From there, it describes how to determine the programming measures plan, perform a complete or selective update of control units, and access the control unit list to program or code individual ECUs. Precautions are provided to ensure stable battery voltage and avoid interrupting the programming process.
This document provides information on using CarProg BMW key programmer software to program immobilizers and generate transponder keys for various BMW models from 1996 to 2004. It supports EWS1, EWS2, EWS3, and EWS3+ immobilizer systems. The software allows users to read and write key and immobilizer data, add new keys, restore lost keys, block or unblock key access, and change settings like VIN and mileage. Instructions are provided on connecting CarProg to different immobilizer types and programming keys by selecting the key number and transponder. Potential issues like erasing EWS3 memory during reading and replacing faulty ELMOS circuits are also noted.
Multi-language JLR Mangoose SDD Pro V142 is affordable OBD2 to USB JLR Mangoose cable, provide you high performance diagnostic and coding service for Land Rover and Jaguar 2005-2014.
Benz Star diagnosis transfer from external hdd to internal hdd buyobdii
This document provides instructions for transferring the software from an external HDD to an internal HDD for a Chinese MB Star Diagnostic System (SDS) to improve convenience. It describes installing a larger internal HDD, partitioning it to allocate space for the original operating system and a new partition for the SDS software. It then explains cloning the external HDD contents to the new internal partition and reconfiguring the virtual machine to run the SDS software from the internal drive rather than an external one.
BMW E90 module parameters generated with BMW ICOM engineering software NCS Dummy
http://www.eobd2.fr/2013-new-bmw-icom-a2-b-c-diagnostic-amp-programming-tool-without-software.html
E90 module parameters coding with NCS Expert buyobdii
here is the BMW E90 coding results with BMW ICOM NCS- expert software
http://www.eobd2.fr/new-super-version-bmw-icom-a2-b-c-diagnostic-amp-programming-tool-with-software.html
Mercedes Benz MB STAR WIS EPC software installation buyobdii
Here is the Benz MB STAR WIS and EPC diagnostic software installation instrcution (2011Version)
http://www.eobd2.fr/mb-sd-connect-compact-4-star-diagnosis-2880.html
ENET (Ethernet to OBD) Interface Cable for BMW E-SYS ICOM Coding F-series. BMW F series , the new 1 Series, 3 Series, 5 Series, 7 Series , GT, X3, brush hidden upscale programming line goes on sale !
http://www.eobd2.fr/bmw-enet-ethernet-to-obd-interface-cable-e-sys-icom-coding-f-series.html
BMW ENET Cable E-sys F-series Coding user manual buyobdii
BMW series single module programming or modules hiding ENET data line. BMW hidden ENET data cable , F series programming cable , the latest ESYS 3.22.5 and V49.4 data. BMW F series , the new 1 Series, 3 Series, 5 Series, 7 Series , GT, X3, brush hidden upscale programming line goes on sale !
Buy our ENET lines are presented E-SYS 3.225 software installation packages and ETOKEN and PIN.
This product uses the international top super-six production lines , shielding interference, signal transmission intensity , really pure copper wire, green insulation , not comparable to other lines .
http://www.eobd2.fr/bmw-enet-ethernet-to-obd-interface-cable-e-sys-icom-coding-f-series.html
X-prog M ECU programmer V5.50 users manualbuyobdii
The XPROG-m supports in-circuit and on-board programming of Motorola 68HC05, 68HC08, 68HC11, 68HC(S)12 family MCU's, Texas Instruments TMS370/TMS374 family MCU's and serial EEPROM's .
All supported devices are divided into "Software authorization" licenses. You can obtain authorization license only for these devices you are interested in.
http://www.eobd2.fr/new-xprog-m-v50-xprog-m-programmer-v50-204.html
Understanding Catalytic Converter Theft:
What is a Catalytic Converter?: Learn about the function of catalytic converters in vehicles and why they are targeted by thieves.
Why are They Stolen?: Discover the valuable metals inside catalytic converters (such as platinum, palladium, and rhodium) that make them attractive to criminals.
Steps to Prevent Catalytic Converter Theft:
Parking Strategies: Tips on where and how to park your vehicle to reduce the risk of theft, such as parking in well-lit areas or secure garages.
Protective Devices: Overview of various anti-theft devices available, including catalytic converter locks, shields, and alarms.
Etching and Marking: The benefits of etching your vehicle’s VIN on the catalytic converter or using a catalytic converter marking kit to make it traceable and less appealing to thieves.
Surveillance and Monitoring: Recommendations for using security cameras and motion-sensor lights to deter thieves.
Statistics and Insights:
Theft Rates by Borough: Analysis of data to determine which borough in NYC experiences the highest rate of catalytic converter thefts.
Recent Trends: Current trends and patterns in catalytic converter thefts to help you stay aware of emerging hotspots and tactics used by thieves.
Benefits of This Presentation:
Awareness: Increase your awareness about catalytic converter theft and its impact on vehicle owners.
Practical Tips: Gain actionable insights and tips to effectively prevent catalytic converter theft.
Local Insights: Understand the specific risks in different NYC boroughs, helping you take targeted preventive measures.
This presentation aims to equip you with the knowledge and tools needed to protect your vehicle from catalytic converter theft, ensuring you are prepared and proactive in safeguarding your property.
Charging and Fueling Infrastructure Grant: Round 2 by Brandt HertensteinForth
Brandt Hertenstein, Program Manager of the Electrification Coalition gave this presentation at the Forth and Electrification Coalition CFI Grant Program - Overview and Technical Assistance webinar on June 12, 2024.
Real-time driver monitoring is one of the easiest ways to make fleet management efficient as well as seamless. Connected vehicle solutions such as fleet GPS trackers and associated software help businesses in several ways. Refer to the post below for more details.
EV Charging at MFH Properties by Whitaker JamiesonForth
Whitaker Jamieson, Senior Specialist at Forth, gave this presentation at the Forth Addressing The Challenges of Charging at Multi-Family Housing webinar on June 11, 2024.
car rentals in nassau bahamas | atv rental nassau bahamasjustinwilson0857
At Dash Auto Sales & Car Rentals, we take pride in providing top-notch automotive services to residents and visitors alike in Nassau, Bahamas. Whether you're looking to purchase a vehicle, rent a car for your vacation, or embark on an exciting ATV adventure, we have you covered with our wide range of options and exceptional customer service.
Website: www.dashrentacarbah.com
Expanding Access to Affordable At-Home EV Charging by Vanessa WarheitForth
Vanessa Warheit, Co-Founder of EV Charging for All, gave this presentation at the Forth Addressing The Challenges of Charging at Multi-Family Housing webinar on June 11, 2024.
Dahua provides a comprehensive guide on how to install their security camera systems. Learn about the different types of cameras and system components, as well as the installation process.
Top-Quality AC Service for Mini Cooper Optimal Cooling PerformanceMotor Haus
Ensure your Mini Cooper stays cool and comfortable with our top-quality AC service. Our expert technicians provide comprehensive maintenance, repairs, and performance optimization, guaranteeing reliable cooling and peak efficiency. Trust us for quick, professional service that keeps your Mini Cooper's air conditioning system in top condition, ensuring a pleasant driving experience year-round.
1. 1

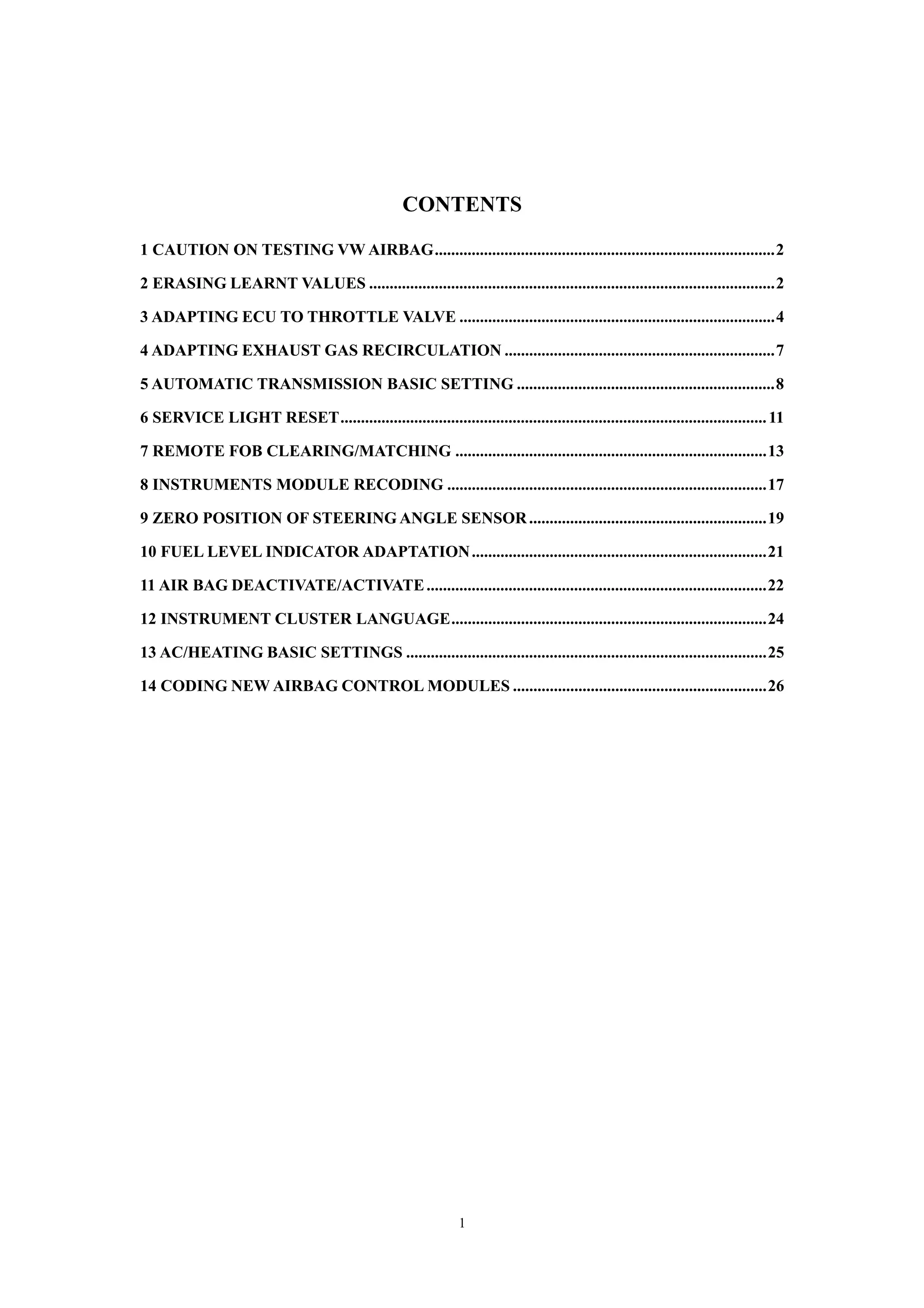

CONTENTS
1 CAUTION ON TESTING VW AIRBAG...................................................................................2
2 ERASING LEARNT VALUES ...................................................................................................2
3 ADAPTING ECU TO THROTTLE VALVE .............................................................................4
4 ADAPTING EXHAUST GAS RECIRCULATION ..................................................................7
5 AUTOMATIC TRANSMISSION BASIC SETTING ...............................................................8
6 SERVICE LIGHT RESET........................................................................................................11
7 REMOTE FOB CLEARING/MATCHING ............................................................................13
8 INSTRUMENTS MODULE RECODING ..............................................................................17
9 ZERO POSITION OF STEERING ANGLE SENSOR..........................................................19
10 FUEL LEVEL INDICATOR ADAPTATION........................................................................21
11 AIR BAG DEACTIVATE/ACTIVATE...................................................................................22
12 INSTRUMENT CLUSTER LANGUAGE.............................................................................24
13 AC/HEATING BASIC SETTINGS ........................................................................................25
14 CODING NEW AIRBAG CONTROL MODULES ..............................................................26
2. 2

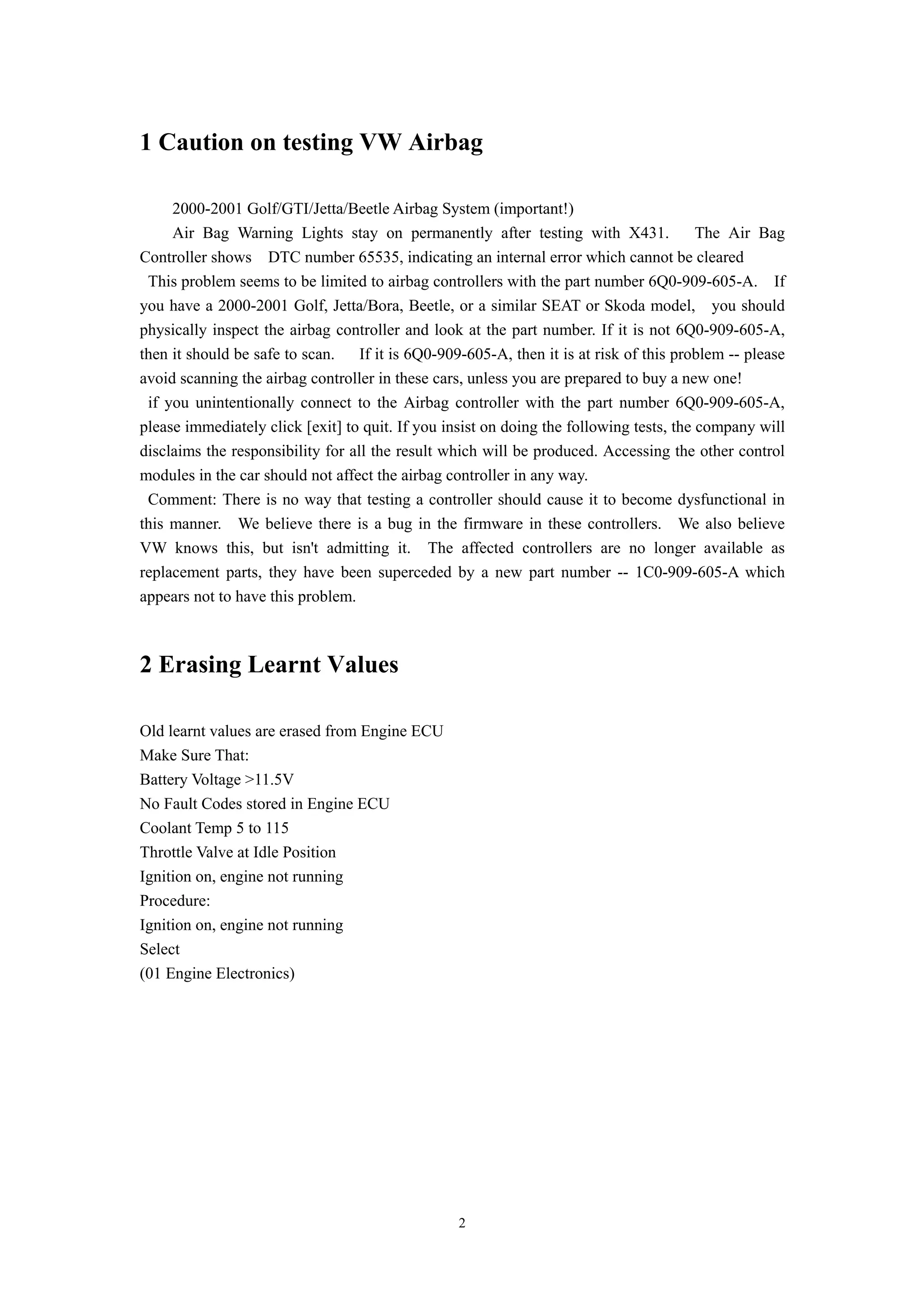

1 Caution on testing VW Airbag
2000-2001 Golf/GTI/Jetta/Beetle Airbag System (important!)
Air Bag Warning Lights stay on permanently after testing with X431. The Air Bag
Controller shows DTC number 65535, indicating an internal error which cannot be cleared
This problem seems to be limited to airbag controllers with the part number 6Q0-909-605-A. If
you have a 2000-2001 Golf, Jetta/Bora, Beetle, or a similar SEAT or Skoda model, you should
physically inspect the airbag controller and look at the part number. If it is not 6Q0-909-605-A,
then it should be safe to scan. If it is 6Q0-909-605-A, then it is at risk of this problem -- please
avoid scanning the airbag controller in these cars, unless you are prepared to buy a new one!
if you unintentionally connect to the Airbag controller with the part number 6Q0-909-605-A,
please immediately click [exit] to quit. If you insist on doing the following tests, the company will
disclaims the responsibility for all the result which will be produced. Accessing the other control
modules in the car should not affect the airbag controller in any way.
Comment: There is no way that testing a controller should cause it to become dysfunctional in
this manner. We believe there is a bug in the firmware in these controllers. We also believe
VW knows this, but isn't admitting it. The affected controllers are no longer available as
replacement parts, they have been superceded by a new part number -- 1C0-909-605-A which
appears not to have this problem.
2 Erasing Learnt Values
Old learnt values are erased from Engine ECU
Make Sure That:
Battery Voltage >11.5V
No Fault Codes stored in Engine ECU
Coolant Temp 5 to 115 ℃
Throttle Valve at Idle Position
Ignition on, engine not running
Procedure:
Ignition on, engine not running
Select
(01 Engine Electronics)
3. 3
(Adaptation)
Enter Channel No. '00'
Press (OK)
X431 Screen will display [Cleared learning code]
Press (OK)
Press (BACK) To Exit from Module
Switch off ignition for at least 20 seconds to store the values.
4. 4
3 Adapting ECU to Throttle Valve
Make Sure That:
Battery Voltage >11.5V
No Fault Codes stored in Engine ECU
Coolant Temp 5 to 115 ℃
Throttle Valve at Idle Position
Ignition on, engine not running
Procedure:
Ignition on, engine not running
Select
(01 Engine Electronics)
(Basic Settings)
5. 5
Enter '098' or '060' on drive by wire systems
Press (OK)
The values will now change, Value 4 the lower right will change from ADP RUN to ADP.OK.
(Note: If No Values are shown you are using the wrong channel number)
This shows the Throttle Body adaptation is being done.
Press (BACK) and (BACK) again to Exit from Module
Switch off ignition for at least 15 seconds to store values
On Older Cars
Make Sure That:
Battery Voltage >11.5V
No Fault Codes stored in Engine ECU
Coolant Temp 5 to 115 ℃
Throttle Valve at Idle Position
6. 6
Ignition on, engine RUNNING
Procedure:
Ignition on, engine RUNNING
Select
(01 Engine Electronics)
(Basic Settings)
Enter '001', Press (OK)
Let engine Idle for at least 30 seconds.
7. 7
4 Adapting Exhaust Gas Recirculation
Procedure:
Select
(01 Engine Electronics)
(Basic Settings)
Enter '074', Press (OK)
8. 8
The values will now change, Value 4 the lower right will change from ADP RUN to ADP.OK.
Press (BACK) And (BACK) again to Exit from Module
Switch off ignition for at least 15 seconds to store values.
5 Automatic Transmission Basic Setting
This relearns the kick-down point
Basic Settings should be performed on an Automatic Transmission after:
Auto Transmission Replacement
Engine replacement
ECU replacement
Throttle Valve adjustment or TPS replacement
Make Sure That:
No Fault Codes are stored
Ignition on, engine NOT running
Procedure:
Select
(01 Engine Electronics)
10. 10
Value 3 and 4 will display Operate Kick Down
Press accelerator pedal all the way to the floor and hold for 5 seconds. Value 3 and 4 should
change from ADP.RUNS to ADP.OK
Press (BACK) And (BACK) again To Exit from Module
Release the Accelerator pedal.
On Older Cars
Procedure:
Select
(02 Transmission Electronics)
(Basic Settings)
11. 11
Enter '000',Press (OK)
Press accelerator pedal all the way to the floor and hold for 5 seconds.
Press (BACK) And (BACK) again To Exit from Module
Release the Accelerator pedal.
6 Service Light Reset
Procedure:
Select
(17 Instrument Cluster)
(Adaptation)
12. 12
Enter '02'
X431 Screen will display
[GROUP: 2]
[Adaptated number: 1]
Press (-) and Adaptated number: will change to 0
Press (OK)
X431 Screen will Display [Adaptation success!]
Press (BACK) To Exit from Module
Service Light has now been Reset.
13. 13
7 Remote Fob Clearing/Matching
Procedure for matching remote control fobs.
To Delete previous Remote fobs
Procedure:
Select
(46 Central Control Module) for VW
(Adaptation)
In channel Enter '00',Press (OK)
X431 Screen will Display [Clear Learned values]
14. 14
To Match new Remote Fobs
VW
Procedure
Select
(46 Cent Control Module)
(Adaptation)
In Channel enter '01',press[OK],
15. 15
Press + to add key Adaptated number will change to 1
Press Remote Fob, X431 Display will change to [Key recognised]
Press (OK)
Exit Control Module and check Remote Fob operation
Audi
Procedure
Select
(46 Cent Control Module) or (35 Central Locking)
(Adaptation)
16. 16
In Channel enter '21'
Display will show [Key learn]
Press + for amount of keys to add [Adaptated number:] will change
Press Remote Fob
Display will change to [Key recognised]
Press OK
Exit Control Module and check Remote
On some later models 99>
Procedure
Turn Ignition on
With Other key lock the driver’s door using the key
Press the unlock button remote
Wait 6 seconds
Press unlock button again
Vehicle horn will sound when remote programmed
On some Modules To Check if remote fob has been programmed in
Go to (Measuring Blocks)
17. 17
In Channel enter '03'
Press remote fob Value 4 should change.
8 Instruments Module Recoding
Recoding
Select
(17 Instruments)
18. 18
(Control Unit Info)
Write down or print current ECU Coding
Press (OK)
Select (Page Down)
Press (Code module)
Enter 5 digit code from below
First two digits of coding is for Optional Equipment
00 No available equipment
01 Brakepad wear sensor warning active
02 Seatbelt warning active
19. 19
04 Washer fluid level warning active
16 Navigation System
Third digit of coding is Country Code
1 Europe(EU) (Changes to Km,24 hour clock)
2 USA (Miles,12 hour clock)
3 Canada (Km,12 hour clock)
4 Great Britain (Miles,24 hour clock)
5 Japan (Km,24 hour clock)
6 Saudi Arabia (Km,24 hour clock)
7 Australia (Km,24 hour clock)
Fourth digit is Number of Cylinders
3 No Service Interval (2002+ models)
4 4 Cylinders
5 5 Cylinders
6 6 Cylinders
Fifth digit is Number of Travel Impulses
0 TDI Engine
1 4358
2 3538
3 4146
4 3648
For example:
9 Zero Position of steering angle sensor
To be done if steering angle sender, control unit or the steering column is replaced.
20. 20
Zero position compensation for steering angle sender must be performed with an accuracy of 5
degrees.
If below faults are Stored also do this Procedure
[00778 Steering Angle Sensor -G85 Mechanical Fault]
[01826 Steering Angle Sensor -G85 Voltage Supply Terminal 30]
Procedure
Start vehicle
Turn steering wheel one turn to the right and one turn to the left then centre.
Do not switch off ignition
Select
(03 Brake Electronics)
(Login)
For (5pin code)
21. 21
enter '40168'
If correct [Login Success] is displayed
If wrong Login code is used [Login failed] is displayed
Go back to main menu
Select (Basic Settings)
Enter '001' or '060' on some models
Using 001 Comp.st.C<down>sen.OK is displayed
Using 060 compens OK 0.00 is displayed
Please note that if '001' is used instead of the correct '060' on some
models this is the procedure to bleed the brakes.
10 Fuel Level Indicator Adaptation
Adjusts the Instrument Cluster Fuel level
Procedure
Enter
(17 Instrument Cluster)
22. 22
(Adaptation)
In Channel enter '030'
use +/- to change value (Note: Fuel level gauge should change as you do this),press 'OK' to save
the new value
X431 will display [Adaptation success].
11 Air Bag Deactivate/Activate
Deactivate or Activate Airbags or Safety Belts
Procedure
23. 23
Enter
(15 Airbags)
(Adaptation)
In Channel enter '01' For Passenger Airbag
or '02' For Drivers Airbag
or '03' For Passenger Side Airbag
or '04' For Drivers Side Airbag
or '05' For Passenger Belt
or '06' For Drivers Belt
Press (+) or (-) on X431 to change Adaptated Number
Change Adaptated Number to 1 to Block (Deactivate)
24. 24
Change Adaptated Number to 0 to Actived (Activate)
Press (OK) to save the new value
X431 will display [Adaptation success]
To tell if a component is disabled(Deactivated) when Ignition is first turned on the Airbag warning
light will come on for 3-4 seconds and will then blink for 15 seconds then go out.
A fault will also be stored if you check fault codes ie [01281 Airbag driver's side switched off].
12 Instrument Cluster Language
Procedure
Enter
(17 Instrument Cluster)
(Adaptation)
25. 25
In Channel enter '04' Using (+) or (-) Change value
1 German
2 English
3 French
4 Italian
5 Spanish
6 Portuguese
Press (OK) to save the new value
X431 will display [Adaptation success].
13 AC/Heating Basic Settings
This relearns all the flap motors etc
Procedure
Enter
(08 AC/Heating electronics)
26. 26
(Basic Settings)
In Channel enter '00'
Values will now change
Wait until all values are [0.00]
Press (BACK) and (BACK) again to Exit.
14 Coding New Airbag Control Modules
First off you need to refit the faulty Airbag Module connect X431 go to ECU。Info and note
down or print the ECU Coding ie 12855 and the ECU Part Numbernie 1CO 959 655。When
27. 27
ordering new Airbag Modules from Main Dealer make sure you only supply。Car Details and
Chassis number for them to order from, sometimes when they order from the Airbag Module part
number they supply the wrong Airbag Modulenand you will not be able to Code this !Make sure
the new Airbag Module has the same part number also if you check the ECU Coding of the new
Airbag Module it should be 00000
Procedure
Enter (15 Airbags)
Press (Page Down) Select (Code Module)
Press (ECU CODE<=32000) Enter ECU Code ie '12855'
Press (OK)nX431 will Display [Can Code control unit].
Press (OK),ECU Coding should now display the new Code Entered。If the Airbag Module Coding
is still 00000 then you have entered the wrong ECU Coding and will need to find the correct
28. 28
Coding to enter.。Sometimes the new Airbag Module supplied has a different ECU part number
and this will have a different ECU Coding。
