Blackmore Plug Trays is Canada's largest supplier of plug trays. They stock a wide variety of plug tray configurations including different sizes, depths, and trim options. Customers can find the right plug tray for their needs and Blackmore will help select the best option. The document then provides a table listing specifications of various plug tray product codes.
1. Visit us on-line: amaplas.com
Blackmore Plug Trays
** Various Trim Options Available: 1/8” Lip / No Lip / No Ramp / Etc.
As Canada’s largest supplier of plug trays, we stock virtually any
configuration needed. We understand the plug business and the
automation process that goes with it; we’ll help you find the right plug tray.
Product Product Qty/ Cases/ Bulk Dimensions Depth Volume/Cell
Code Description Case Skid Qty. L x W (Inches) (Inches) (cc)
028055-01 36 Square 100 16 1,600 21 x 11 2¾ 178
50 Series
028001-01 50 Octagon 100 16 1,600 21 x 11 1½ 55.0
028056-01 50 Square 100 16 1,600 21 x 11 2⅜ 96.0
028002-01 55 Nursery 100 16 1,600 21 x 11 1 9/16 27.0
72 Series
028003-01 72 Octagon 100 16 2,000 21 x 11 2 33.0
028057-01 72 Square 100 16 2,000 21 x 11 2¼ 56.0
72 Star Deep 100 16 2,000 21 x 11 2½ 70.0
028007-01 84 Octagon 100 16 1,600 21 x 11 1½ 24.0
028063-01 98 Square 100 16 1,600 21 x 11 2 35.0
028008-01 105 Vented 100 16 1,600 21 x 11 1⅜ 24.0
128 Series
028010-01 128 Deep - centre rib 100 16 1,600 21 x 11 2 22.7
028011-01 128 Star/Vented - centre rib 100 16 1,600 21 x 11 1½ 14.0
028065-01 128 Square 100 16 1,600 21 x 11 2 28.0
028012-01 144 Octagonal Vented 100 16 1,600 21 x 11 1 1/5 16.0
162 Octagonal Vented 100 16 1,600 21 x 11 1¾ 20.0
200 Series
028015-01 200 Square 100 16 1,760 21 x 11 1¾ 11.0
028016-01 200 Star (Requires Carrier) 100 16 1,760 21 x 11 2 5/16 23.0
028118-01 200 Star/Deep 100 16 1,760 21 x 11 2¼ 20.0
028029-01 209 Vented 100 16 1,760 21 x 11 1⅜ 14.0
028017-01 216 Deep 100 16 1,760 21 x 11 1½ 11.0
242 100 16 1,760 21 x 11 1⅜ 10.0
288 Series
028024-01 288 X CE 100 16 1,760 21 x 11 1 6.0
028021-01 288 X CE Deep 100 16 1,760 21 x 11 1½ 9.4
028025-01 288 Octagonal CE Vented 100 16 1,760 21 x 11 1 6.0
028022-01 288 Medium 100 16 1,760 21 x 11 1¼ 6.4
028020-01 288 Deep 100 16 1,760 21 x 11 1¾ 10.0
028026-01 288 Star 100 16 1,760 21 x 11 2 13.0
028027-01 288T Size 100 16 1,760 20 x 10 1 7.5
338 Series
028033-01 338 Regular 100 16 1,600 21 x 11 1¼ 5.0
028034-01 338 Deep 100 16 1,600 21 x 11 1½ 6.0
338 Star 100 16 1,600 21 x 11 1½ 8.0
Call or e-mail your order... 800-338-1136 • ama@amaplas.com 11
2. Visit us on-line: amaplas.com
Blackmore Plug Trays
** Various Trim Options Available:
1/8” Lip / No Lip / No Ramp / Etc.
Product Product Qty/ Cases/ Bulk Dimensions Depth Volume/Cell
Code Description Case Skid Qty. L x W (Inches) (Inches) (cc)
028035-01 384 Octahedron Vented 100 16 1,600 21 x 11 1 4.2
406 Series
028038-01 406 Square - Rib 100 16 1,600 21 x 11 ¾ 3.2
028039-01 406 Square/Deep - Rib 100 16 1,600 21 x 11 1 4.25
406 Oct. Vented - Rib 100 16 1,600 21 x 11 1 3.2
512 Series
028046-01 512 X CE 100 16 1,600 21 x 11 ⅞ 3.0
028047-01 512 Octagonal CE Vented 100 16 1,600 21 x 11 ⅞ 3.0
028045-01 512 Deep CE 100 16 1,600 21 x 11 1 4.0
028048-01 512T Size 100 16 1,600 20 x 10 1 3.6
028052-01 648 Deep 100 16 1,600 21 x 11 ¾ 1.8
028054-01 800 100 16 1,600 21 x 11 ¾ 2.0
Plug Trays
The punch’n gro system is fast and easy to use, as well as economical.
Growers can transplant hundreds of trays per hour with this system.
The x-cut plug tray is the key. You can sow with automated plate
seeders and transplant with fewer people at a faster pace.
What more could you ask for?
Product Product Qty/ Cases/ Bulk Dimensions Depth Volume/Cell
Code Description Case Skid Qty. L x W (Inches) (Inches) (cc)
028061-01 3x30 PNG 80 16 1,600 22 x 10 ½ 1⅜ 25.0
028125-01 105 PNG 80 16 1,600 21 ½ x 11 1⅜ 25.0
028028-01 162 PNG 80 16 1,600 22 x 10 ½ 1 3/16 17.0
180 PNG 80 16 1,600 22 x 10 ½ 1⅛ 14.0
028105-01 288 PNG 80 16 1,600 21 ½ x 11 1 9.0
028041-01 324 PNG 80 16 1,280 21 1/7 x 9 ¾ ⅞ 5.8
028042-01 324N PNG 100 16 2,000 21 ½ x 8 ¾ ¾ 4.0
360-TX PNG N/A N/A 1,120 17 ¾ x 14 ¼ ⅞ 5.0
028043-01 432T PNG 80 16 1,600 20 x 10 ⅝ 3.0
028044-01 432N PNG 100 16 2,000 21 ½ x 8 ½ ⅝ 2.9
028066-01 432 Deep PNG 80 16 1,600 21 ½ x 11 ¾ 4.2
12 Call or e-mail your order... 800-338-1136 • ama@amaplas.com
3. Visit us on-line: amaplas.com
TRAYS Plug Trays
For Ellepot sizes,
packaging and
growing options
see pages 55 & 56
3 x 26 Strip 105OV 55 Nursery
Product Product Ellepot Qty/ Cases/ Bulk Dimensions Depth Volume/
Code Description Size Case Skid Qty. L x W (Inches) (Inches) Cell (cc)
028029-01 209 20 mm 100 16 1,600 21 ¼ x 11 1⅜ 14.0
028028-01 162 PNG 21.5 mm 80 16 1,600 22 x 10 ½ 1 3/16 17.0
028012-01 144 Octagon/Vented 20 mm 100 16 1,600 21 ¼ x 11 1 1/5 16.0
128 Series
057623-00 DVPT128RD 21.5mm 50 36 1,800 20 ½ x 9 ¾ 1¼ 14.9
028064-01 128 Octagon Ellepot Tray 23/25 mm 100 16 1,440 21 ¼ x 11 1¾
105 Series
028113-01
128112-01
7 x 15 Strip Insert
7 x 15 Carrier Tray
} 25 mm
25 mm
1,760
2,000
21 ¼ x 11
21 ¼ x 11
1⅜
028008-01 105 Vented 25 mm 100 16 1,760 21 1/3 x 11 1⅜ 21.0
028059-01 105 PNG 25 mm 100 20 1,760 22 x 10 ½ 1⅜ 25.0
102 Series
102 Orphan 25 mm 1,600 21 ¼ x 11
028095-01
028096-01
6 x 17 Strip Insert
6 x 17 Carrier Tray
} 25 mm
25 mm
70
100
16
16
1,120
1,600
21 x 10 ¾
21 ¼ x 11
1½
2
028013-01 3 x 34 Strip 25 mm 100 16 1,600 21 ¼ x 11 1½
028060-01 2 x 51 Strip 25 mm 100 16 1,600 21 ¼ x 11 1½
028007-01 84 Octagon 25 mm 100 16 1,600 21 ¼ x 11 1½ 24.0
78 Series
028004-01 3 x 26 Strip 30 mm 100 16 1,600 21 ¼ x 11 2
028053-01 3 x 26T Strip 30 mm 100 16 1,600 20 x 10 1⅝
028123-01
028116-01
6 x 13 Strip Insert
6 x 13 Carrier Tray
} 30 mm
30 mm
1,440
2,000
21 x 10
21 ¼ x 11
1⅝
3 x 25 Strip 30 mm 100 16 1,600 21 ¼ x 11 2
72 Series
028107-01
028108-01
6 x 12 Strip
6 x 12 Carrier Tray
} 30 mm
30 mm
1,760
2,000
21 x 10
21 ¼ x 11
1½
028129-01 8 x 13 Strip Carrier Tray 30 mm 1,320
028058-01 2 x 36 Strip 30 mm 100 16 1,600 21 x 11 2
156271-01 72 Star Deep 30 mm 100 32 21 ¼ x 11
028003-01 72 Octagon - 30mm 30 mm 100 16 1,600 21 ¼ x 11 2 33.0
028078-01 72 Octagon - 35mm 35 mm 100 16 1,600 21 ¼ x 11 2
028201-01 72 Deep 35 mm 1,440 21 ¼ x 11 2½ 70
133001-01 Proptek 72 35 mm 21 ¼ x 11 1¾
Call or e-mail your order... 800-338-1136 • ama@amaplas.com 13
4. Visit us on-line: amaplas.com
Plug Trays TRAYS for
Product Product Ellepot Qty/ Cases/ Bulk Dimensions Depth Volume
Code Description Size Case Skid Qty. L x W (Inches) (Inches) /Cell (cc)
50 Series
028069-01 55 Nursery 40 mm 100 16 1,600 21 ¼ x 11 2⅜
3 x 17 Strip 40 mm 1,600 21 ¼ x 11
028114-01 50 Ellepot 35 mm 100 16 1,600 21 ¼ x 11 1¾
50T Ellepot 35 mm 100 16 1,600 21 ¼ x 11 1⅝
028121-01
028122-01
5 x 10 Strip Insert
5 x 10 Carrier Tray
} 35 mm
35 mm
1,440
1,600
21 x 10
21 ¼ x 11
1 ⅜
1 ⅜
156257-01 50 Star Deep 35 mm 21 ¼ x 11 2⅜ 70.0
028001-01 50 Octagon 40 mm 100 16 1,600 21 ¼ x 11 1½ 55.0
028075-01 50 Octagon Deep 40 mm 100 16 1,600 21 ¼ x 11 2
028068-01 36 - 2 x 18 Strip 40 mm/45 mm 100 16 1,600 21 ¼ x 11
32 Series
156251-01 38 Star Deep 45 mm 25 24 21 ¼ x 11 5 220.1
028098-01 32 Ellepot 45 mm/50 mm 100 16 1,600 21 ¼ x 11 2
028097-01 32 - 2 x 16T Strip 40 mm/45 mm 100 16 1,600 20 x 10 2
028120-01 28T 50 mm 1,620 20 x 10 3
028032-01 32 Deep 50 mm 1,760 21 ¼ x 11
24 Series
064360-01
082055-01
2401 Tray
R12 Carrier
} 60 mm
60 mm
100
50
36
48
3,600
2,400
21 x 10 ½
21 x 11
2¼
2¾
028102-01 24 Ellepot 60 mm 1,050 19 ½ x 12 ¾ 3.07
18 Series
21 Count 65 mm
028103-01 18T Ellepot 65 mm 1,350 20 x 10 3
082080-04 306T Tray (optional handle) 65 mm 3,060 20 x 10 3
082011-01 R18T Tray 65 mm 2,250 20 x 10 3
028087-01 18 Ellepot 70 mm 1,200 21 ¼ x 11 3¼
082418-01 4” x 15 Tray 80 mm 50 40 2,400 20 x 12 ½ 3
028111-01 10 Ellepot 80 mm 1,800 2¾
064055-04 4” x 6 w/handle 80 mm 200 20 2,000 12 ¼ x 8 10
064091-01 EJP - 5” x 8T 100 mm 100 20 2,000 20 x 10 3½
057865-01 CTA558 120 mm 50 28 1,400 22 x 11 4½
For Ellepot sizes,
packaging and Fibre Ellepot
growing options Carriers
see pages 55 & 56
For more information
see page 54
18T Tray 32 Ellepot Tray
14 Call or e-mail your order... 800-338-1136 • ama@amaplas.com
5. Visit us on-line: amaplas.com
Plug Trays
Specialty Tray Standard Tray
GCI 200 E VT DVPT105HX E VT
Standard Tray
Standard Tray DVPT288WL CE
DI 72 E VT
Standard Tray
DI 288 CE E True Tray
TVPT84SQ VT
Product Product Qty/ Cases/ Bulk Dimensions Depth Dry Volume
Code Description Case Skid Qty. L x W (Inches) (Inches) (Cu. Inches)
Injection Molded Plug Trays
True
057579-01 TI 162 37 50 1,300 20 x 10 1 9/16 160.55
057588-01 TI 288 39 40 1,400 20 x 10 1 1/16 124.86
057594-01 TI 512 33 40 1,225 20 x 10 1 119.06
Standard
057574-01 DI 50 30 50 1,250 20 ⅜ x 10 3/16 1¾ 94.00
057576-01 DI 72 29 50 1,190 20 ⅜ x 10 ¼ 1¾ 142.08
057581-01 DI 162 33 50 1,300 20 ⅜ x 10 ¼ 1½ 182.94
057590-01 DI 288 CE 38 50 1,300 20 ⅜ x 10 ¼ 1 147.85
057596-01 DI 512 CE 31 50 1,225 20 ⅜ x 10 ¼ ⅞ 107.76
Specialty
057584-01 GCI 200 30 40 1,190 20 x 10 ¼ 1¼ 95.44
Vacuum-Formed Plug Trays
True
057606-01 TVPT84RD 50 36 2,250 20 x 10 1¾ 111.62
057608-01 TVPT84SQ (w/ Tag Ramp) 50 36 2,250 20 x 10 1¾ 123.74
057625-01 TVPT144RD 50 36 2,250 20 x 10 1⅝ 129.15
057627-01 TVPT144SQ 50 36 2,250 20 x 10 1⅝ 131.16
057637-01 TVPT288SQ 50 36 2,250 20 x 10 1⅛ 111.47
057652-01 TVPT512SQ 50 36 2,250 20 x 10 1 95.54
Standard
057616-01 DVPT105HX E 50 36 2,250 20 ¾ x 10 ¼ 1¾ 128.00
057618-01 DVPT105HX E Heavy Duty 50 36 1,800 20 ¾ x 10 ¼ 1¾ 128.00
057622-01 DVPT128SQ 50 36 2,250 20 ⅜ x 10 ¼ 1 9/16 88.49
057623-01 DVPT128RD 50 36 2,250 20 ⅜ x 10 ¼ 1 9/16 88.49
057639-01 DVPT288CE 50 36 2,250 20 ½ x 10 ¼ 1 1/16 136.00
057642-01 DVPT288WLCE 50 36 2,250 20 ½ x 10 ¼ 1 1/16 136.00
057655-01 DVPT512CE 50 36 2,250 20 ½ x 10 ¼ ⅞ 107.18
057657-01 DVPT512WLCE 50 36 2,250 20 ½ x 10 ¼ ⅞ 107.18
*Not all items are in stock
Call or e-mail your order... 800-338-1136 • ama@amaplas.com 15
6. Visit us on-line: amaplas.com
Plug Trays and Specialty Trays
Product Product Qty/ Cases/ Bulk Dimensions Depth Volume
Code Description Case Skid Qty. L x W (Inches) (Inches) (Cu. Inches)
064002-01 50 Square Vented 100 20 2,160 20 x 10 2⅝ 4.00
064003-01 50 Square Strawberry 100 20 2,560 21 x 11 ⅛ 3 4.66
064005-01 72 Square* 100 36 3,600 20 x 10 2 1.77
064006-01 72 Circular* 100 36 3,600 20 x 10 2 1.0
064007-01 84 Square True* 100 36 3,600 20 x 10 1⅝ 1.22
064009-01 84 Circular* 100 36 3.600 20 x 10 1½ 1.27
064010-01 105 Hex-V 60 32 1,920 21 x 11 ⅛ 1½ 1.5
064012-01 128 Square* 100 24 2,400 20 ⅜ x 10 ⅝ 1⅞ 1.51
064014-01 200 Square Deep* 100 2,720 21 x 11 ⅛ 1¾ 0.89
064015-01 288 Standard 1” 100 20 2,240 21 x 11 ⅛ 1 0.45
064016-01 288 Heavy 1” 100 16 1,920 21 x 11 ⅛ 1 0.45
064017-01 288 Standard 1.25” 100 2,880 21 x 11 ⅛ 1¼ 0.51
064019-01 288 Standard 1.625” 100 1,760 21 x 11 ⅛ 1⅝ 0.59
064020-01 288 Heavy 1.625” 100 1,760 21 x 11 ⅛ 1⅝ 0.59
064026-01 338 Standard* 100 20 2,640 21 x 11 ⅛ 1½ 0.41
064028-01 392 Standard* 100 20 2,240 21 x 11 ⅛ 1 0.30
064031-01 406 Standard 100 20 2,240 21 x 11 ⅛ 1 0.29
064034-01 512 Standard Vented 100 2,240 21 x 11 ⅛ 1 0.22
064035-01 512 Standard Non-vented 100 20 2,240 21 x 11 ⅛ 1 0.29
CE Endless Plug Trays
064024-01 288 CE Non-vented 100 20 2,240 20 ⅜ x 10 ⅝ 1 0.41
064022-01 288 CE Vented Soil Saver 100 20 2,240 20 ⅜ x 10 ⅝ 1 0.38
288 CE Vented Soil Saver
064023-01 100 20 2,240 20 ⅜ x 10 ⅝ 1 0.38
Heavy Duty
064039-01 512 CE Non-vented 100 20 1,920 20 ⅜ x 10 ⅝ 1 0.24
512 CE Vented Soil Saver
064042-01 100 16 1,920 20 ⅜ x 10 ⅝ 1 0.19
Heavy Duty
Germinating Trays
064045-01 AF Germinating Tray 100 24 N/A 21 x 11 1¼
064046-01 20 Row Seedling Tray 100 42 N/A 21 x 11 1¼
*Trays are not in stock. Special order only.
16 Call or e-mail your order... 800-338-1136 • ama@amaplas.com
7. Visit us on-line: amaplas.com
Plug Trays and Specialty Trays
Product Product Qty/ Cases/ Dimensions Depth Volume
Code Description Case Skid L x W (Inches) (Inches) (Cu. Inches)
Standard
156255-01 50 Square—Vented 100 24 21 ½ x 11 2⅜ 6.8
156263-01 72 Square—Vented 100 24 21 ½ x 11 2¼ 3.6
156275-01 98 Square—Vented 100 24 21 ½ x 11 2 2.3
156287-01 128 Square—Vented 100 32 21 ½ x 11 2 1.5
156295-01 162 Square 100 24 21 ½ x 11 1¾ 1.0
056299-01 200 Square 50 48 21 ½ x 11 1½ 0.7
156304-01 200 Square Deep 50 40 21 ½ x 11 1¾ 0.9
156309-01 200 Square Extra Deep 50 40 21 ½ x 11 2⅛ 1.3
156320-01 288 Square 50 48 21 ½ x 11 1¼ 0.4
156323-01 288 Square Deep 50 40 21 ½ x 11 1½ 0.7
156338-01 392 Square—Vented 50 48 21 ½ x 11 1⅛ 0.4
156342-01 406 Square 50 40 21 ½ x 11 1⅛ 0.3
156347-01 CE 512—Vented 50 40 21 ½ x 11 ⅞ 0.2
Star & Hexagon
156245-01 PL 21 Star Deep 50 32 21 ½ x 11 4 14.8
156246-01 PL 32 Star Deep 50 32 21 ½ x 11 4 11
156247-01 36 Star—Vented 50 48 21 ½ x 11 3 7.3
38 Star - 3 50 40 21 ½ x 11 3 8.54
38 Star - 4 50 24 21 ½ x 11 4 10.37
156251-01 38 Star Deep - 5 25 32 21 ½ x 11 5 13.4
156258-01 PL 50 Star - 2.35 50 48 21 ½ x 11 2⅜ 4.3
156257-01 PL 50 Star Deep - 4.5 50 24 21 ½ x 11 4½ 9.0
156259-01 58 Star—Vented 100 32 21 ½ x 11 2⅜ 2.6
156267-01 72 Star—Vented 100 36 21 ½ x 11 2¼ 2.7
156271-01 72 Star Deep—Vented 50 44 21 ½ x 11 3 4.4
156279-01 105 Star—Vented 100 36 21 ½ x 11 1½ 1.3
156283-01 105 Hex—Vented 100 36 21 ½ x 11 1½ 1.5
156353-01 CE 512 Hex—Vented 50 24 21 ½ x 11 1 0.2
Specialty Trays
156810-05 STF 1020 Clear Dome 50 56
156551-01 Germination Tray - No hole 100 36
156502-01 STF 1020 No hole Standard Flat 100 32
*Not all items are in stock.
Call or e-mail your order... 800-338-1136 • ama@amaplas.com 17
8. Visit us on-line: amaplas.com

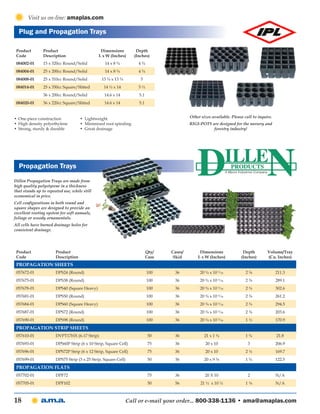

Plug and Propagation Trays
Product Product Dimensions Depth
Code Description L x W (Inches) (Inches)
084002-01 15 x 320cc Round/Solid 14 x 8 ¾ 4¾
084004-01 25 x 200cc Round/Solid 14 x 8 ¾ 4¾
084008-01 25 x 310cc Round/Solid 13 ¾ x 13 ¾ 5
084014-01 25 x 350cc Square/Slitted 14 ½ x 14 5½
36 x 200cc Round/Solid 14.6 x 14 5.1
084020-01 36 x 220cc Square/Slitted 14.6 x 14 5.1
• One-piece construction • Lightweight Other sizes available. Please call to inquire.
• High density polyethylene • Minimized root spiraling RIGI-POTS are designed for the nursery and
• Strong, sturdy & durable • Great drainage forestry industry!
Propagation Trays
Dillen Propagation Trays are made from
high quality polystyrene in a thickness
that stands up to repeated use, while still
economical in price.
Cell configurations in both round and
square shapes are designed to provide an
excellent rooting system for soft annuals,
foliage or woody ornamentals.
All cells have burned drainage holes for
consistent drainage.
Product Product Qty/ Cases/ Dimensions Depth Volume/Tray
Code Description Case Skid L x W (Inches) (Inches) (Cu. Inches)
Propagation Sheets
057672-01 DPS24 (Round) 100 36 20 ¾ x 10 5/16 2⅜ 211.3
057675-01 DPS38 (Round) 100 36 20 ¾ x 10 5/16 2⅜ 289.1
057678-01 DPS40 (Square Heavy) 100 36 20 ¾ x 10 5/16 2¾ 302.6
057681-01 DPS50 (Round) 100 36 20 ¾ x 10 5/16 2⅜ 261.2
057684-01 DPS60 (Square Heavy) 100 36 20 ¾ x 10 5/16 2¾ 294.5
057687-01 DPS72 (Round) 100 36 20 ¾ x 10 5/16 2⅜ 203.6
057690-01 DPS98 (Round) 100 36 20 ¾ x 10 5/16 1½ 170.9
Propagation Strip Sheets
057610-01 DVPT17HX (6-17 Strip) 50 36 21 x 1 ¾ 1¾ 21.8
057693-01 DPS60P Strip (6 x 10 Strip, Square Cell) 75 36 20 x 10 3 206.9
057696-01 DPS72P Strip (6 x 12 Strip, Square Cell) 75 36 20 x 10 2⅛ 169.7
057699-01 DPS75 Strip (3 x 25 Strip, Square Cell) 50 36 20 x 9 ⅜ 1¾ 122.5
Propagation Flats
057702-01 DPF72 75 36 20 X 10 2 N/A
057705-01 DPF102 50 56 21 ½ x 10 ½ 1⅜ N/A
18 Call or e-mail your order... 800-338-1136 • ama@amaplas.com
9. Visit us on-line: amaplas.com
FloraPlast Inc. Flats & Inserts
You can count on
• Rounded corners
• Easy separation Floraplast flats
• Strong ribs for the highest quality
in the business.
Product Product Qty/ Bulk Dimensions Depth
Code Description Case Qty. L x W (Inches) (Inches)
Standard
082047-01 NR Flat—Heavy Flat 50 2,400 21 x 11 2⅞
082048-01 NR Flat—No Drainage Flat 50 2,400 21 x 11 2⅞
082053-01 R8 Flat 50 2,400 21 x 11 2⅞
082055-01 R12 Flat 50 2,400 21 x 11 2⅞
082058-01 R18 Flat 50 2,400 21 x 11 2⅞
082064-01 F32 Flat 50 2,400 21 x 11 2⅞
True
082002-01 NR True Flat 50 2,250 20 x 10 2⅞
082004-01 CRT (Center Rib) Flat 50 2,250 20 x 10 2⅞
082005-01 R6T Flat 50 2,250 20 x 10 2⅞
082007-01 R8T Flat 50 2,250 20 x 10 2⅞
082009-01 R12T Flat 50 2,250 20 x 10 2⅞
R15T Flat 50 2,250 20 x 10 2⅞
082011-01 R18T Flat 50 2,250 20 x 10 2⅞
082012-01 R306T Deep Flat 50 2,250 20 x 10 2⅞
082015-01 R2020T Flat 50 2,250 20 x 10 2⅞
Narrow Series (NS)
082025-01 R6NS Flat 50 3,000 21 x 8 ½ 2⅞
082031-01 R10NS Flat 50 3,500 21 x 8 ½ 2⅞
082040-01 R2020NS Flat 50 3,000 21 x 8 ½ 2⅞
082023-01 R306NS Flat 50 3,000 21 x 8 ½ 2⅞
082022-01 R406NS Flat 50 2,500 21 x 8 ½ 2⅞
Narrow Series—20 (NS-20)
082029-01 R6NS-20 Flat 50 2,500 20 x 8 ½ 2⅞
R8NS-20 Flat 50 2,500 20 x 8 ½ 2⅞
082035-01 R12NS Flat 50 2,500 20 x 8 ½ 2⅞
R306NS-20 Flat 50 2,500 20 x 8 ½ 2⅞
028024-01 R508NS Flat 50 4,000 20 x 8 ½ 2⅞
Narrow Series (NS-8 X 20)
082078-01 R6 8x20 Flat 50 2,200 20 x 8 2⅞
R10 8x20 Flat 50 2,200 20 x 8 2⅞
082020-01 R209-820 Flat 50 2,200 20 x 8 2⅞
Narrow Slim Series (NSS)
082080-01 R6-7.5x20 Flat 50 2,640 20 x 7 ½ 2⅞
Colour Code: 01: Black • Stock colour is black
Custom colours & barcoding available; please inquire. Orders require 6 - 8 weeks advance notice.
Call or e-mail your order... 800-338-1136 • ama@amaplas.com 19
10. Visit us on-line: amaplas.com
Flats & Inserts
FloraPlast Inc.
You can count on
Floraplast flats
for the highest quality
in the business.
Product Product Qty/ Bulk Dimensions Depth
Code Description Case Qty. L x W (Inches) (Inches)
Miscellaneous
PF18 Flat 50 2,700 20 ½ x 10 ½ 2.87
Inserts
Product Product Qty/ Cases/ Bulk Dimensions Depth Compatible
Code Description Case Skid Qty. L x W (Inches) (Inches) Tray
Standard
408 Insert 100 3,200 21 x 11 R8
082263-01 804 Insert 100 48 4,800 21 x 11 2 13/16 R8
082265-01 806 Insert 100 48 4,800 21 x 11 2 13/16 R8
082271-01 1201 Insert 100 48 4,800 21 x 11 2⅝ R12
082277-01 1204 Insert 100 48 4,800 21 x 11 2½ R12
082279-01 1206 Insert 100 48 4,800 21 x 11 2½ R12
082283-01 1801 Insert 100 48 3,200 21 x 11 2½ R18
082286-01 1801-3 Insert 50 48 2,400 21 x 11 3 R18
082289-01 1802 Insert 100 48 3,200 21 x 11 2⅝ R18
028085-01 3201 Insert 150 32 3,200 21 x 11 3 F32
True Series
082107-01 208T Insert 100 27 2,700 20 x 10 3 R8T
028080-03, 04, 64 306T Insert * 50 54 3,000 20 x 10 R18T
082112-01, 03, 04, 64 306T Deep Insert * 100 3,080 20 x 10 3½ R306T
406T Insert 100 5,400 20 x 10 R12T
082115-01 606T Insert 100 36 3,600 20 x 10 3 R6T
6-12-T Insert 100 5,400 20 x 10 R6T
082120-01 804T Insert 100 48 3,600 20 x 10 R8T
082122-01 806T Insert 100 48 5,400 20 x 10 3 R8T
082130-01 1201T Insert 100 48 5,400 20 x 10 3 R12T
082132-01 1202T Insert 100 48 5,400 20 x 10 R12T
082134-01 1203T Insert 100 48 5,400 20 x 10 R12T
082136-01 1204T Insert 100 48 5,400 20 x 10 2 13/16 R12T
082139-01 1206T Insert 100 48 5,400 20 x 10 2 13/16 R12T
082145-01 1801T Insert 100 48 4,500 20 x 10 3 3/16 R18T
082146-01 1801T Deep Insert 100 4,500 20 x 10 3½ R18T
082159-01 2024T Insert * 100 40 3,000 20 x 10 R8T
082165-01 4012T Insert 100 36 3,600 20 x 10 R8T
Custom colours & barcoding available; please inquire. Orders require 6 - 8 weeks advance notice.
20 Call or e-mail your order... 800-338-1136 • ama@amaplas.com
11. Visit us on-line: amaplas.com

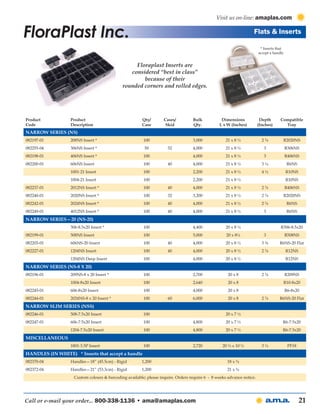

FloraPlast Inc. Flats & Inserts
* Inserts that
accept a handle
Floraplast Inserts are
considered “best in class”
because of their
rounded corners and rolled edges.
Product Product Qty/ Cases/ Bulk Dimensions Depth Compatible
Code Description Case Skid Qty. L x W (Inches) (Inches) Tray
Narrow Series (NS)
082197-01 208NS Insert * 100 3,000 21 x 8 ½ 2⅞ R2020NS
082255-04 306NS Insert * 50 52 4,000 21 x 8 ½ 3 R306NS
082198-01 406NS Insert * 100 4,000 21 x 8 ½ 3 R406NS
082200-01 606NS Insert 100 40 4,000 21 x 8 ½ 3¼ R6NS
1001-21 Insert 100 2,200 21 x 8 ½ 4½ R10NS
1004-21 Insert 100 2,200 21 x 8 ½ R10NS
082237-01 2012NS Insert * 100 40 4,000 21 x 8 ½ 2⅞ R406NS
082240-01 2020NS Insert * 100 32 3,200 21 x 8 ½ 2⅞ R2020NS
082242-01 2024NS Insert * 100 40 4,000 21 x 8 ½ 2⅞ R6NS
082249-01 4012NS Insert * 100 40 4,000 21 x 8 ½ 3 R6NS
Narrow Series—20 (NS-20)
306-8.5x20 Insert * 100 4,400 20 x 8 ½ R306-8.5x20
082199-01 508NS Insert 100 5,000 20 x 8½ 3 R508NS
082203-01 606NS-20 Insert 100 40 4,000 20 x 8 ½ 3⅜ R6NS-20 Flat
082227-01 1204NS Insert 100 40 4,000 20 x 8 ½ 2⅞ R12NS
1204NS Deep Insert 100 4,000 20 x 8 ½ R12NS
Narrow Series (NS-8 X 20)
082196-01 209NS-8 x 20 Insert * 100 2,700 20 x 8 2⅞ R209NS
1004-8x20 Insert 100 2,640 20 x 8 R10-8x20
082245-01 606-8x20 Insert 100 4,000 20 x 8 R6-8x20
082244-01 2024NS-8 x 20 Insert * 100 60 6,000 20 x 8 2⅞ R6NS-20 Flat
Narrow Slim Series (NSS)
082246-01 508-7.5x20 Insert 100 20 x 7 ½
082247-01 606-7.5x20 Insert 100 4,800 20 x 7 ½ R6-7.5x20
1204-7.5x20 Insert 100 4,800 20 x 7 ½ R6-7.5x20
Miscellaneous
1801-3.5P Insert 100 2,720 20 ½ x 10 ½ 3½ PF18
Handles (In White) * Inserts that accept a handle
082370-04 Handles—18” (45.5cm) - Rigid 1,200 18 x ¾
082372-04 Handles—21” (53.3cm) - Rigid 1,200 21 x ¾
Custom colours & barcoding available; please inquire. Orders require 6 - 8 weeks advance notice.
Call or e-mail your order... 800-338-1136 • ama@amaplas.com 21
12. Visit us on-line: amaplas.com

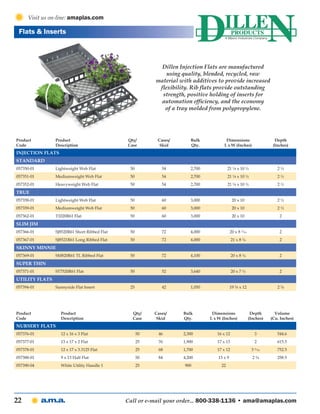

Flats & Inserts
Dillen Injection Flats are manufactured
using quality, blended, recycled, raw
material with additives to provide increased
flexibility. Rib flats provide outstanding
strength, positive holding of inserts for
automation efficiency, and the economy
of a tray molded from polypropylene.
Product Product Qty/ Cases/ Bulk Dimensions Depth
Code Description Case Skid Qty. L x W (Inches) (Inches)
Injection Flats
Standard
057350-01 Lightweight Web Flat 50 54 2,700 21 ⅛ x 10 ½ 2½
057351-01 Mediumweight Web Flat 50 54 2,700 21 ⅛ x 10 ½ 2½
057352-01 Heavyweight Web Flat 50 54 2,700 21 ⅛ x 10 ½ 2½
True
057358-01 Lightweight Web Flat 50 60 3,000 20 x 10 2½
057359-01 Mediumweight Web Flat 50 60 3,000 20 x 10 2½
057362-01 T1020R61 Flat 50 60 3,000 20 x 10 2
Slim Jim
057366-01 SJ8520R61 Short Ribbed Flat 50 72 4,000 20 x 8 3/16 2
057367-01 SJ8521R61 Long Ribbed Flat 50 72 4,000 21 x 8 ¼ 2
Skinny Minnie
057369-01 SM820R61 TL Ribbed Flat 50 72 4,100 20 x 8 ¼ 2
Super Thin
057371-01 ST7520R61 Flat 50 52 3,640 20 x 7 ½ 2
Utility Flats
057394-01 Sunnyside Flat Insert 25 42 1,050 19 ⅜ x 12 2⅞
Product Product Qty/ Cases/ Bulk Dimensions Depth Volume
Code Description Case Skid Qty. L x W (Inches) (Inches) (Cu. Inches)
Nursery Flats
057376-01 12 x 16 x 3 Flat 50 46 2,300 16 x 12 3 544.6
057377-01 13 x 17 x 2 Flat 25 76 1,900 17 x 13 2 615.5
057378-01 12 x 17 x 3.3125 Flat 25 68 1,700 17 x 12 3 5/16 752.5
057388-01 9 x 13 Half Flat 50 84 4,200 13 x 9 2¾ 258.5
057390-04 White Utility Handle 1 25 900 22
22 Call or e-mail your order... 800-338-1136 • ama@amaplas.com
13. Visit us on-line: amaplas.com
Flats & Inserts
Manufactured from a quality blend
of polystyrene, Dillen Vacuum Flats are
of sturdy gauge material and can be ordered
with a variety of rib configurations, depending
on your specific growing requirements.
Product Product Qty/ Cases/ Bulk Dimensions Depth
Code Description Case Skid Qty. L x W (Inches) (Inches)
Vacuum Flats
Standard
058220-01 DVF1020 Open Flat 100 36 3,600 21 x 10 ½ 2⅜
058222-01 DVF1020R Flat 100 36 3,600 21 x 10 ½ 2⅜
058224-01 DVF1020R6 Flat 100 36 3,600 21 x 10 ½ 2⅜
058226-01 DVF1020R8 Flat 100 36 3,600 21 x 10 ½ 2⅜
True
058235-01 TV1020R3 Shallow Flat 100 36 3,600 20 x 10 2
058246-01 TVF1020 Full Depth Open Flat 100 36 3,600 20 x 10 2⅝
058248-01 TVF1020R Full Depth Flat 100 36 3,600 20 x 10 2⅝
058250-01 TVF1020R6 Full Depth Flat 100 36 3,600 20 x 10 2⅝
058252-01 TVF1020R8 Full Depth Flat 100 36 3,600 20 x 10 2⅝
058256-01 TVF1020R12 Full Depth Flat 100 36 3,600 20 x 10 2⅝
Slim Jim
058260-01 SJV8520 Open Flat 100 44 4,400 20 x 8 ½ 2½
058262-01 SJV8520R6 Flat 100 44 4,400 20 x 8 ½ 2½
058264-01 SJV8520R8 Flat 100 44 4,400 20 x 8 ½ 2½
058266-01 SJV8520R12 Flat 100 44 4,400 20 x 8 ½ 2½
Skinny Minnie
058270-01 SMV820 Open Flat 100 44 4,400 20 x 8 2
058272-01 SMV820R2 Flat 100 44 4,400 20 x 8 2
058273-01 SMV820R3 Flat 100 44 4,400 20 x 8 2
058274-01 SMV820R4 Flat 100 44 4,400 20 x 8 2
058276-01 SMV820R20 Flat 100 44 4,400 20 x 8 2
*Stock colour is black
Call or e-mail your order... 800-338-1136 • ama@amaplas.com 23
14. Visit us on-line: amaplas.com
Flats & Inserts
Consistent, ample sheet thickness, coupled with a solid quality
standard for uniformly burned holes and die-cut trim,
places Dillen’s Vacuum Inserts at the high end
of the industry spectrum.
Product Product Qty/ Cases/ Bulk Dimensions Depth Volume
Code Description Case Skid Qty. L x W (Inches) (Inches) (Cu. Inches)
Standard
058303-01 D606 Insert 100 64 7,200 21 x 10 ½ 2¼ 285.2
058304-01 DJ606 (Jumbo) Insert 100 36 3,600 21 x 10 ½ 3¼ 405.6
058307-01 D804 Insert 100 64 7,200 21 x 10 ½ 2¼ 387.6
058309-01 D806 Insert 100 64 7,200 21 x 10 ½ 2¼ 317.3
058310-01 D806R Insert 100 64 7,200 21 x 10 ½ 2¼ 317.3
058311-01 D809 Insert 100 64 7,200 21 x 10 ½ 2¼ 267.4
058314-01 D1202 Insert 100 64 7,200 21 x 10 ½ 2¼ 298.3
058315-01 D1203 Insert 100 64 7,200 21 x 10 ½ 2¼ 310.9
058316-01 D1801 Insert 100 64 7,200 21 x 10 ½ 2¼ 305.4
True
058350-01 T804 Insert 100 72 8,000 20 x 10 2½ 346.5
058352-01 T806 Insert 100 72 8,000 20 x 10 2½ 304.1
058354-01 T806R Insert 100 72 8,000 20 x 10 2½ 304.1
058371-01 T1203 Insert 100 36 5,000 20 x 10 2½ 319.4
058372-01 T1203R Insert 100 72 8,000 20 x 10 2½ 319.4
058347-01 TJ606 (Jumbo) Insert 100 36 4,000 20 x 10 3¼ 422.9
Slim Jim
058400-01 SJ606S (Jumbo) Insert 100 60 6,600 20 x 8 ½ 3⅛ 318.2
058402-01 SJ606L (Jumbo) Insert 100 44 5,500 21 x 8 ½ 3⅛ 350.3
058406-01 SJ806JS (Jumbo) Insert 100 36 4,000 20 x 8 ½ 3¼ 285.8
058410-01 SJ1204JS (Jumbo) Insert 100 44 4,400 20 x 8 ½ 3⅛ 260.9
Skinny Minnie
058428-01 SM306BP Insert 300 42 10,500 8x6½ 3¼ 91.1
058430-01 SMJ606 (Jumbo) Insert 100 44 7,200 20 x 8 ¼ 3⅛ 319.9
Superthin
058452-01 STJ606 (Jumbo) Insert 100 44 7,200 20 x 7 ½ 3½ 246.0
*Stock colour is black
24 Call or e-mail your order... 800-338-1136 • ama@amaplas.com
15. DPS1801
Visit us on-line: amaplas.com
Flats & Inserts
Sheet of Pots
Product Product Qty/ Cases/ Bulk Dimensions Depth Volume
Code Description Case Skid Qty. L x W (Inches) (Inches) (Cu. Inches)
Sheet of Pots
058330-01 AS4510 Insert 50 44 N/A 21 ⅝ X 8 ¼ 4 417.6
058333-01 PS4510 Insert w/ Tag Locator 50 44 N/A 21 ⅝ X 8 ¼ 5 538.1
058380-01 TPS1801 Cut Insert 100 36 N/A 20 x 10 3½ 380.6
058381-01 TPS1801 Uncut Insert 100 36 N/A 20 x 10 3½ 380.6
058324-01 DPS1801 Cut Insert 100 36 N/A 21 X 10 ½ 3½ 437.7
058325-01 DPS1801 Uncut Insert 100 36 N/A 21 x 10 ½ 3½ 437.7
058335-01 PS1501 Deep Insert 50 28 N/A 20 ¾ X 12 ½ 4¾ 681.5
*Stock colour is black
FloraPlast Inc. Flats & Inserts
Product Product Qty/ Cases/ Bulk Dimensions Depth
Code Description Case Skid Qty. L x W (Inches) (Inches)
028085-01 3201 Cut 100 N/A 21 x 11 2⅞
028086-01 3201 Uncut 100 N/A 21 x 11 2⅞
082064-01 F32 Flat 50 32 2,400 21 x 11 2⅞
Watering Trays
You can save a lot of water with the wise use of these watering trays.
Dillen’s self-watering trays provide consistent reservoir watering to
each plant and function as a shipping and display tray for merchandising.
Product Product Qty/ Cases/ Bulk Dimensions Depth
Code Description Case Skid Qty. L x W (Inches) (Inches)
Vacuum Watering Trays
058016-01 DWT410 Watering Tray 50 44 2,750 20 x 8 3⅝
058027-01 DWT66 Watering Tray 50 28 1,800 20 ¼ x 13 ¼ 2¾
058031-01 DWT1GA3 Watering Tray 50 52 4,200 20 x 6 ⅝ 2¾
058032-01 DWT1GA3LL Watering Tray 50 52 4,200 20 x 6 ⅝ 2¾
058033-01 DWT1GAS3 Watering Tray 50 52 4,200 19 ¾ x 6 ½ 2¾
058036-01 DWT1GAS3LL Watering Tray 50 52 4,200 19 ¾ x 6 ½ 2¾
*Stock colour is black
Call or e-mail your order... 800-338-1136 • ama@amaplas.com 25
16. Visit us on-line: amaplas.com
Pots & Carry Trays / Shuttle Trays
Round Pots
Dillen’s Round Pots provide the grower with a
multitude of options in style and colour, as well as
packaging. All round pots are manufactured with
high-grade polypropylene.
Inside Dry
Product Product Qty/ Cases/ Bulk Depth Hanger/Tray
Diam. Volume
Code Description Case Skid Qty. (Inches) Compatibility
(Inches) (Cu. Inches)
TW: Thinwall, TL: Tag locator
Standard
057005- 3.5” Standard TW TL * 1,225 36 46,750 3⅜ 3¼ 17.6 CTR3512
CTR410, CTR415, 4/12/8 IST,
057012- 4” Standard TW * 1,550 28 42,000 3⅞ 3½ 28
4/15/4 IST, 4/10/4 IST
057039- 6” Standard TW 440 32 14,625 6 5¾ 106.9 CTR66
057056- 8” Standard Stock Pot TW 100 30 6,300 8 1/3 7⅛ 262.9 E-10 Hanger or E-10L, 8 Point Cage 1 & 2
057070- 10” Standard Stock Pot TW 72 40 3,500 8⅞ 8¾ 354.3 E-10 Hanger or E-10L, 10 Point Cage
Geranium
057017- 4.25” Geranium TW TL * 680 40 31,500 4⅛ 3 13/16 34.2 CTG42510, CTG4258
CTG4515, 4.5/12/8 IST,
057020- 4.5 Geranium TW * 850 38 34,410 4 5/16 3 13/16 36.9
CTG4512, CTG458
CTG4515, 4.5/12/8 IST,
057021- 4.5 Geranium TW TL * 850 40 34,410 4 5/16 3 13/16 36.9
CTG4512, CTG458
057022- 4.5” Geranium Trad TW 830 40 34,410 4⅜ 3¾ 41.5 CTG4515, 4.5/12/8 IST
Azalea
CTA415, 4/10/4 IST,
057007- 4” Azalea TW * 1,980 98 42,000 3 13/16 2⅞ 22.4
4/12/8 IST, 4/15/4 IST
057025- 5” Azalea TW TL * 792 36 32,400 4⅞ 3⅝ 48.1 CTA58, 5/8/5 IST
CTA556, CTA558, 5.5/8/5.5 IST,
057030- 5.5” Azalea Trad TW(TX600) * 544 32 20,000 5¼ 4 9/16 78.9
5.5/6/5.5L IST
CTA66, CTA66L,
057033- 6” Azalea TW * 560 32 20,000 5 13/16 4¼ 77.9
6/6/10 IST 1 & 2, 6/6/8 IST
CTAJ66, 6/6/8 IST, CTAJ66L,
057037- 6” Azalea Jumbo TW * 528 32 18,200 5⅞ 4 15/16 95.8
6/6/10 IST 1 & 2, 6J/6/10L IST
057042- 6.5” Azalea TW 328 48 15,105 6⅜ 4⅝ 101.5 CTA656, 6.5 Carryall, 1G/6/10 IST, FPGA16
057044- 6.5” Azalea Trad TW 240 48 13,250 6 5/16 4 15/16 115.7 CTAJ656, 6.5 Carryall
057047- 7” Azalea TW 150 66 12,650 6 13/16 5 1/16 127
057050- 7.5” Azalea TW 264 36 N/A 7 5/16 5 7/16 158.6
057053- 8” Azalea TW 138 48 8,960 7⅞ 5 9/16 186.9 CTA84
057062- 8.5” Azalea TW WSLT * 130 60 9,000 8 5/16 5 13/16 222.7 E-10 Hanger or E-10L
057068- 10” Azalea TW 90 40 4,450 9¾ 7½ 359.2
01: Black, 02: Green, 03: Clay/Terracotta, 04: White available.
Custom colours also available - minimum order required.
*Offset printing available
26 Call or e-mail your order... 800-338-1136 • ama@amaplas.com
17. Visit us on-line: amaplas.com
Pots and Carry Trays / Shuttle Trays
Round Pots
Inside Dry
Product Product Qty/ Cases/ Bulk Depth Hanger/Tray
Diam. Volume
Code Description Case Skid Qty. (Inches) Compatibility
(Inches) (Cu. Inches)
Mum Pans
057059- 8” x 5” Mum Pan TW * 150 50 9,000 7¾ 5 1/16 173.7 CTM84
057065- 9” x 6.5” Mum Pan TW * 54 60 5,300 8⅞ 6 9/16 275 N/A
Bulb Pans
057445- 5” Bulb Pan - S 936 36 N/A 4⅞ 2 5/16 32.9 N/A
057447- 6” Bulb Pan - S 400 48 N/A 5 13/16 3⅝ 77.5 N/A
057449- 6.5” Bulb Pan - S 156 48 N/A 6 7/16 3⅞ 93.4 N/A
057451- 7” Bulb Pan - S 78 66 N/A 6 13/16 4 112.9 N/A
057453- 8” Bulb Pan 96 48 N/A 8 4 164.8 N/A
057455- 10” Bulb Pan 96 40 N/A 9⅞ 5 1/16 308.8 N/A
057457- 12” Bulb Pan 58 32 N/A 11 ¾ 6 3/16 540.0 N/A
01: Black, 02: Green, 03: Clay/Terracotta, 04: White available • Custom colours also available - minimum order required.
*Offset print available S - Seasonal Availability
Specialty Round Coir Pots
Round Coir Pots
• Renewable alternative to plastic and peat pots with visibly better, faster plant growth
• Moisture is maintained in the soil
• Easily transplanted into ground, pot and all
• Sustainable resource that will not pull moisture away from the plant
• Higher resistance to mold
• Environmentally-friendly 6 Round
Coir Pot 3 Round
4.5 Round
Coir Pot
Coir Pot
Outside Dry
Product Product Qty/ Cases/ Bulk Height Tray
Diam. Volume
Code Description Case Skid Qty. (Inches) Compatibility
(Inches) (Cu. Inches)
Specialty Round Coir Pots
058502-21 3 Round Coir Pot 1,540 30 N/A 3¼ 3⅛ 15 MPB0635, TRV8515
058504-21 4 Round Coir Pot 1,032 30 N/A 3⅞ 3½ 24.8 TRS1040, TRS1541
TRS1045, TRS1245,
058506-21 4.5 Round Coir Pot 660 40 N/A 4¼ 4 36.6
TRS1545, TRS1546
058507-21 5 Round Coir Pot 320 40 N/A 5 3¾ 51.9
058508-21 6 Round Coir Pot 448 32 N/A 5⅞ 4⅛ 77.5 TRS066E, TRS0615
Short Nursery Pot 264 28 N/A 6¾ 6¼ 148.2 TRS0617, TRI0601, TRPGAL
Call or e-mail your order... 800-338-1136 • ama@amaplas.com 27
18. Visit us on-line: amaplas.com
Pots and Carry Trays / Shuttle Trays
Co-ex Thermoformed
Co-Extruded Thermoformed Round and Square Pots contain your costs – and grow your bottom line!
• Co-extruded with a barrier layer for maximum opacity
• Lightweight design for greater cost efficiency
• Sized to fit existing Dillen Carry Trays for quick compatibility in your system
• North American sizes to fit existing benches, carts, and handling systems for added convenience
Thermoformed Round Pots from Dillen are the latest addition to keep plants beautiful, sales growing,
and profits blooming!
Inside Dry
Product Product Qty/ Cases/ Bulk Height Tray
Diam. Volume
Code Description Case Skid Qty. (Inches) Compatibility
(Inches) (Cu. Inches)
Co-Ex Thermoformed Pots
CTQ8R CX (V),
058802- 01.00 Q per Pot TL Coex 432 33 16,800 4⅛ 5¼ 57.75 CTQ8L CX (V),
CTQ10 CX (V)
058730- 05.00 AZ Short Coex 675 25,200 4⅝ 3¾
058740- 05.00 AZ Tall Coex 600 36 21,600 4⅝ 5¾ 72.19 CTA5T8
CTA558 CX (V),
CTA556L CX (V),
058750- 05.50 AZ Trad Coex 496 32 16,555 5 4½ 73.92
5.5/6/5.5L CX IST (I),
5.5/8/5.5 IST CX (I)
CTA66 CX (V),
058754- 06.00 AZ Coex 864 36 30,000 5⅜ 4¼ 73.92
6/6/10 IST 1 & 2 (I)
058850- M6 SQ Coex 468 36 16,000 4⅝ 5⅜ 86.62 CTS68 (V)
058855- M6 SQ Short Coex 585 36 20,000 4⅝ 4½ 72.19 CTS68 (V)
CTGAS16 CX (V),
FPGA16 (V),
058807- 01.00 T1G Squat Coex 140 48 7,965 5⅞ 6½ 150.15 DWT1GAS3 (V),
1GAS/3/6.5 IST (I),
1GAS/6/10 IST (I)
TRS0615, TRS0661,
058011- 15 CM Euro Short Coex 760 32 30,000 5 12/25 4¼ 79
TRS066E
058013- 15 CM Euro Tall Coex (06.00 AZ JUM) 500 32 20,033 5 13/25 5⅛ 95.7
058007- 17 CM Euro Short Coex (06.50 AZ) 318 32 13,520 6 1/20 5 116 TRS06171
TRI0665, TRI0601,
058014- 17 CM Euro Tall Coex 294 32 13,520 6 1/10 6 149
TRS0617, TRPTGAL
058015- 19 CM Euro Short Coex (JR Mum) 220 36 11,004 6 9/10 5¾ 173.6 19CM/2/10 IST (I)
058018- 19 CM Euro Tall Coex 172 36 896 6 9/10 7⅜ 231.3
058009- 21 CM Euro Short Coex 230 30 10,000 7½ 5 186
058010- 21 CM Euro Tall Coex 190 30 10,000 7½ 7¼ 257
058785- 08.00 x 05.00 Mum Pan Coex 170 50 10,500 7⅜ 5 160.54 CTM84 (V)
058786- 09.00 x 06.25 Mum Pan Coex 90 60 5,300 8¾ 6¼ 277.66
01: Black, 02: Green, 03: Clay/Terracotta
28 Call or e-mail your order... 800-338-1136 • ama@amaplas.com
19. Visit us on-line: amaplas.com
Pots and Carry Trays / Shuttle Trays
Square Pots
Dillen’s square pots provide the grower with a multitude of options in style and color, as well as packaging.
All round pots are manufactured with high-grade polypropylene.
Inside Dry
Product Product Qty/ Cases/ Bulk Depth Tray
Diam. Volume
Code Description Case Skid Qty. (Inches) Compatibility
(Inches) (Cu. Inches)
Thinwall
057080- 3.5” Square Deep Perennial TW TL 832 48 30,000 3¼ 4 29 CTS32512, CTS32518PF
LTWT, MDWT,
057082- 3.5” Square Trad TW 800 45 48,000 3 5/16 3 1/16 24.4 HVYWT Flats,
Jr. Mark Bskt
CTS415, CTS1540,
057085- 4” Square TW TL 846 32 N/A 3⅞ 3⅝ 39.4
4.00 Carryall
CTS415, CTS1540,
057087- 4” Square Trad TW 900 40 N/A 3¾ 3⅜ 33.6 4.00 Carryall,
4.00 Mark Bskt
CTS1545, 4.5 Carryall,
057092- 4.5” Square TW 405 48 16,250 4⅛ 3 13/16 47.3
CTS4510PF
CTS4515, CTS1545,
057096- 4.5” Square Trad TW 765 48 26,000 4 3½ 39.4
4.5 Carryall
CTS4510SR, CTS1545,
057098- 4.5” Square Deep Per. TW TL 441 48 16,250 4⅛ 5 59.5
4.5 Carryall
CTS558,
057102- 5.5” Square Deep Per. TW TL 256 32 12,000 5⅛ 6 117.2
5.5 Square R6 Carryall
057101- 5.5” Square Jumbo TW TL 288 36 10,000 4 15/16 5⅝ 108.6 CTS68, LTWT T, MDWT T
057104- M-6 Square TW 468 36 16,000 4 13/16 4¾ 83.0 CTS68, LTWT T, MDWT T
Vacuum Pots (PF: Press Fit)
DSQVP3PF/D
057754- 800 54 N/A 2 7/16 3½ 17.1 CTS325PF, CTS332PF
3” Square Deep Vac Pot PF
DSQVP3PF/D
057757- 625 45 N/A 2 7/16 3½ 17.1 CTS325PF, CTS332PF
3” Square Deep Vac Pot PF
DSQVP325/D
057760- 1,200 28 N/A 3⅛ 3⅝ 28.1 CTS32518PF, CTS32512
3.25” Square Deep Vac Pot
DSQVP325PF/D
057762- 450 54 N/A 3⅛ 3⅝ 28.1 CTS32518PF, CTS32512
3.25” Square Deep Vac Pot PF
DSQVP4PF/D
057765- 450 54 N/A 3 5/16 3½ 31.1 CTS418PF
4” Square Deep Vac Pot PF
DSQVP45PF CTS4510PF, CTS4512PF,
057769- 375 28 N/A 4 3⅝ 47.6
4.5” Square Vac Pot PF CTS4515PF
DSQVP45PF CTS4510PF, CTS4512PF,
057771- 250 36 N/A 4 3⅝ 47.6
4.5” Square Vac Pot PF CTS4515PF
DSQVP45PF/D
057774- 375 28 N/A 4 5 69.6 CTS4512PF, CTS4515PF
4.5” Square Deep Vac Pot PF
01: Black, 02: Green, 03: Clay/Terracotta, 04: White available • Custom colours also available - minimum order required.
‡ Offset print available
Call or e-mail your order... 800-338-1136 • ama@amaplas.com 29
20. Visit us on-line: amaplas.com
Pots and Carry Trays / Shuttle Trays
Dillen’s carry trays are molded from high-quality recycled
polypropylene. Designed to provide utility in handling specific
sizes of pots, these trays have unique features which contribute
to their popularity.
Product Product Qty/ Cases/ Bulk Dimensions Depth Pot
Code Description Case Skid Qty. L x W (Inches) (Inches) Compatibility
Carryall Trays
4” SQ TW TL, 4” SQ Trad TW,
057395-01 4” Carryall Tray - S 25 84 2,100 16 15/16 x 12 ⅜ 3
4” Az TW, 4” Std TW
4.5” SQ TW, 4.5” SQ Trad TW,
057396-01 4.5” Carryall Tray - S 25 57 1,425 17 ¼ x 13 3
4.5” SQ TW TL
057397-01 5.5” SQ R6 Carryall Tray - S 25 96 2,400 15 ⅝ x 10 1/3 2½ 5.5” SQ Deep Per. TW TL
057398-01 6.5” Carryall Tray - S 25 42 2,100 19 ⅛ x 12 ⅝ 3 6.5” Az TW, 6.5” Az Trad TW
Shuttle Trays (IST: Injection Spacer Tray)
057407-01 4/10/4 IST 25 72 1,800 20 x 8 1⅛ 4” STD TW, 4” Az TW
4” Az TW, 4” STD TW,
057408-01 4/12/8 IST 25 48 1,200 15 ⅛ x 12 ½ 2
4” Ger Trad TW
057410-01 4/15/4 IST 25 32 800 20 x 12 2 4” Az TW, 4” STD TW
057411-01 4.5/8/4.5 IST 25 100 2,400 19 ⅝ x 10 1 3/16 4.5” Ger TW, 4.5” Ger TW TL
4.5” Ger Trad TW, 4.5” Ger TW,
057412-01 4.5/12/8 IST 25 36 900 21 ⅝ x 16 2
4.5” Ger TW TL
057413-01 1Quart/8/5 IST 25 60 1,800 19 ¾ x 9 ¾ 2½ 1 Quart Per Pot TW TL
057414-01 5/8/5 IST 25 80 2,200 19 ¾ x 9 ¾ 2½ 5” Az TW, 5” Az Jumbo TW
5.5” Az Trad TW,
057415-01 5.5/6/5.5L IST 25 60 1,600 19 ¾ x 9 ¾ 1⅝
5.5” Az Trad Coex
5.5” Az Trad TW,
057416-01 5.5/8/5.5 IST 25 48 1,040 21 x 11 1½
5.5” Az Trad Coex
6” Az TW, 6” STD TW,
057418-01 6/6/8 IST 25 42 1,050 18 x 11 ¾ 2½
6” Az Jumbo TW, 6” Az Coex
6” Az TW, 6” STD TW,
057420-01 6/6/10 IST 1 25 56 1,400 21 x 13 ¾ 2½
6” Az Jumbo TW, 6” Az Coex
6” Az TW, 6” STD TW,
057422-01 6/6/10 IST 2 25 56 1,400 21 x 13 ¾ 2½
6” Az Jumbo TW, 6” Az Coex
057423-01 6J/6/10L IST 25 48 1,360 19 ¾ x 11 ⅞ 1½ 6” Az Jumbo TW
057424-01 1G/6/10 IST 25 56 1,400 21 x 13 ¾ 2½ 6.5” Az TW, T1 Gallon TW TL
Standard Round Pot Trays
057925-01 CTR3512 Tray 50 36 2,600 21 ¼ x 7 ⅛ 3½ 3.5” Std TW TL
057929-04 CTR46 Tray (w/ DPC Handle 2) 54 54 6,800 12 x 8 3¾ 4” Std TW
057932-01 CTR410 Tray 50 44 2,750 20 x 8 3⅝ 4” Std TW
057935-01 CTR415 Tray 50 28 2,400 20 ⅜ x 12 ¼ 3½ 4” Std TW
057945-01 CTR66 Tray 50 28 1,600 18 ½ x 12 ⅜ 5 6” Std TW
057948-01 CTQ8 Tray - S 50 36 2,000 19 ½ x 10 4¾ 1 Quart TW TL Per. Pot
057947-01 CTQ8L Tray - S 50 40 2,200 21 ¾ x 8 ¾ 4¾ 1 Quart TW TL Per. Pot
057949-01 CTQ8LL Tray - S 50 36 2,000 19 ½ x 10 4¾ 1 Quart TW TL Per. Pot
057950-01 CTQ12 1 Quart Tray 50 24 1,200 19 ½ x 14 ¾ 4¾ 1 Quart TW TL Per. Pot
057918-01 CTGA16 T1 Gallon Tray 50 28 1,400 20 ⅝ x 13 ⅞ 7⅛ T 1 Gallon TW TL
057917-01 CTGAS16 T1 Gallon Squat Tray 50 28 1,400 20 ⅝ x 13 ⅞ 6¼ T1 Gallon Squat TL SD
S - Seasonal Availability • Stock colour is black
30 Call or e-mail your order... 800-338-1136 • ama@amaplas.com
