11 cubesystem Botnic Metalkraft Nig. Ltd Contact: Biodun Johnson Block C/5 Lagos State small scale Industrial Estate Matori, Lagos Nigeria (M) +234 (80) 56535338 (M) +234 (80) 33278668 (E ) botnicarteferro@gmail.com (E ) botnic99@yahoo.com

1. ®
by

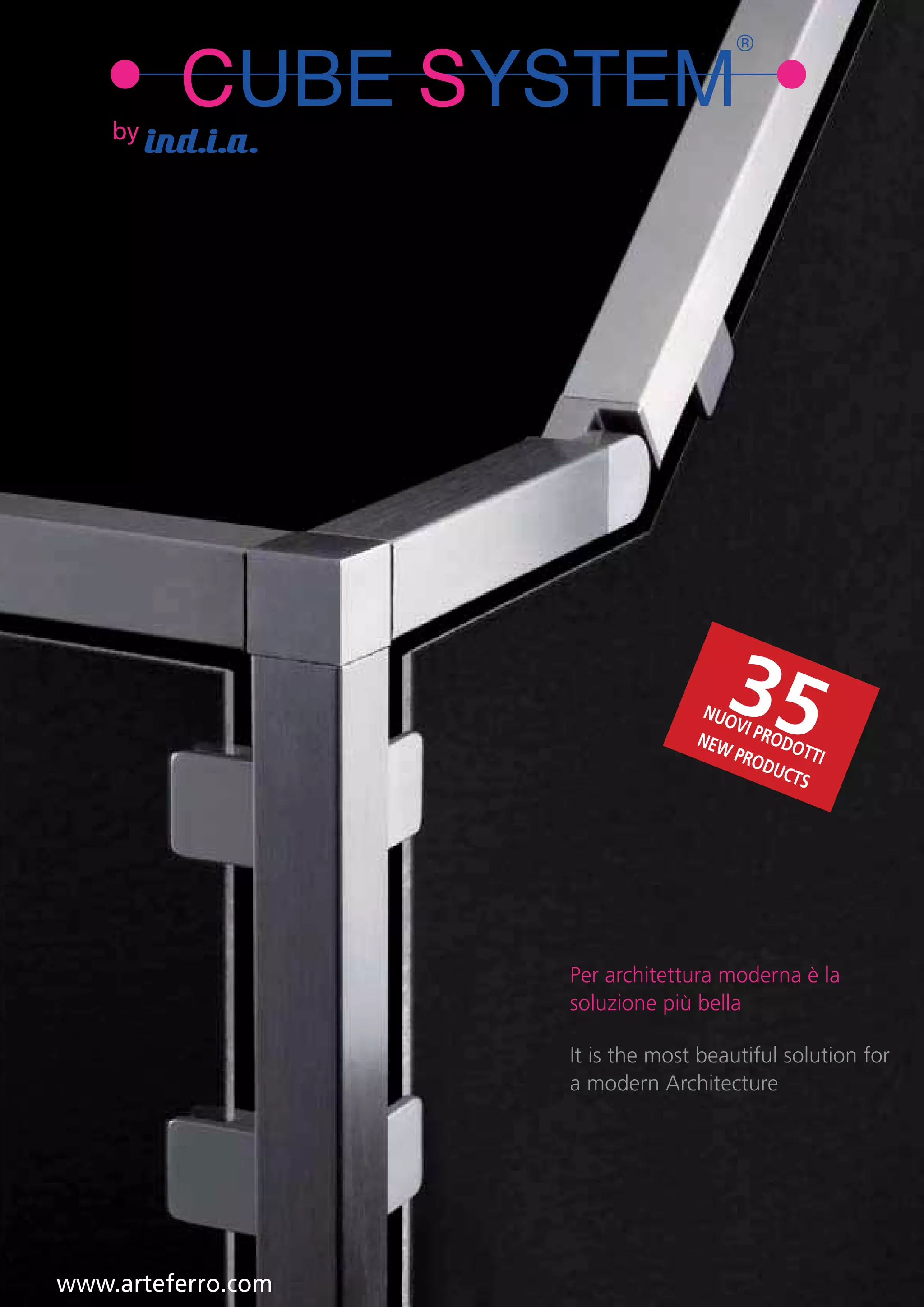

CUBE SYSTEM
35
NUO
VI
NEW PRODO
PRO TT
DUC I
TS
Per architettura moderna è la
soluzione più bella
It is the most beautiful solution for
a modern Architecture
www.arteferro.com

2. Lagos, 06 January 2012
In today's fast changing world, our relentless pursuit of quality and innovation were requisite for the
establishment, growth and existence of our organisation.
"A good product needs no hard sell" and with over two decades of experience, a never-ending quest
for customer satisfaction, boasting the best quality and standards available, we have made a
statement and have set the benchmark in our industry.
For Balustrades, Grilles, Gates, Staircases,
For Wrought Iron and Stainless steel of distinction.
Look no further, come to us.....
Yours faithfully,
Botnic Arteferro
Mr. Biodun Johnson
President

3. CUBE SYSTEM
Tubi Quadrati - Square Tubes
In acciaio inossidabile satinato con grana 240, imbustato individualmente
In stainless steel, satin finish, with grain size 240, individually packed
NEW Cod. art. Dimensioni
AISI 304 Art. no. Dimensions
E00152020 20 x 20 x 1,5 x 6000 mm - 25/32” x 25/32” x 1/16” x 19’- 8”
E00202525 25 x 25 x 2,0 x 6000 mm - 1” x 1” x 5/64” x19’- 8”
E00204040 40 x 40 x 2,0 x 6000 mm - 1 9/16” x 1 9/16” x 5/64” x 19’- 8”
E00205050 50 x 50 x 2,0 x 6000 mm - 2” x 2” x 5/64” x 9’- 10”
E00206060 60 x 60 x 2,0 x 6000 mm - 2 3/8” x 2 3/8” x 5/64” x 19’- 8”
Cod. art. Dimensioni
AISI 316 Art. no. Dimensions
E10152020 20 x 20 x 1,5 x 6000 mm - 25/32” x 25/32” x 1/16” x 19’- 8”
E10202525 25 x 25 x 2,0 x 6000 mm - 1” x 1” x 5/64” x 19’- 8”
E10204040 40 x 40 x 2,0 x 6000 mm - 1 9/16” x 1 9/16” x 5/64” x 19’- 8”
E10205050 50 x 50 x 2,0 x 6000 mm - 2” x 2” x 5/64” x 19’- 8”
E10206060 60 x 60 x 2,0 x 6000 mm - 2 3/8” x 2 3/8” x 5/64” x 19’- 8”
Cod. art. Dimensioni
AISI 316 Art. no. Dimensions
E10203020 30 x 20 x 2,0 x 6000 mm - 1 3/16” x 25/32” x 5/64” x 19’- 8”
E10204020 40 x 20 x 2,0 x 6000 mm - 1 9/16” x 25/32” x 5/64” x 19’- 8”
E10204030 40 x 30 x 2,0 x 6000 mm - 1 9/16” x 1 3/16” x 5/64” x 19’- 8”
E10205030 50 x 30 x 2,0 x 6000 mm - 2” x 1 3/16” x 5/64” x 19’- 8”
E10206040 60 x 40 x 2,0 x 6000 mm - 2 3/8” x 1 9/16” x 5/64” x 19’- 8”
Flange Sagomate - Shaped Flange
B
NEW
Cod. art. Per tubo Dimensioni Fori esterni Spess.
AISI 304 Art. no. For tube A Dimensions B External holes Thk.
E02050 40 x 40 mm 100 x 100 mm 4 x Ø 11 mm 6 mm
A
B
1 9/16” x 1 9/16” 3 15/16” x 3 15/16” 4 x 7/16” dia. 15/64”
A Cod. art. Per tubo Dimensioni Fori esterni Spess.
AISI 316 For tube A Dimensions B
6
Art. no. External holes Thk.
E02050316 40 x 40 mm 100 x 100 mm 4 x Ø 11 mm 6 mm
1 9/16” x 1 9/16” 3 15/16” x 3 15/16” 4 x 7/16” dia. 15/64”
Copriflange Sagomate - Shaped Flange Cover
105 x 105
NEW
H
F
Cod. art. Dimensioni Foro Altezza
AISI 316 Art. no. Dimensions Hole F Height H
E02052316 105 x 105 mm 41 x 41 mm 15 mm
4 1/8” x 4 1/8” 1 39/64” x 1 39/64” 19/32”
41
by
2 www.arteferro.com Riproduzione Vietata Reproduction Prohibited www.arteferro.com

4. CUBE SYSTEM
Copriflangia per Ancoraggio Montante a Piatti - Flange Cover for Square Tube Newel Post
A
NEW
Cod. art. Dimensioni Foro Altezza
AISI 304 Art. no. Dimensions A Hole F Height H
15
E02051 Ø 105 mm 41 x 41 mm 15 mm 41
4 9/64” dia. 1 39/64” x 1 39/64” 19/32”
Cod. art. Dimensioni Foro Altezza
AISI 316
41
Art. no. Dimensions A Hole F Height H
E02051316 Ø 105 mm 41 x 41 mm 15 mm
4 9/64” dia. 1 39/64” x 1 39/64” 19/32”
Ancoraggi Laterali - Lateral Anchorages
A
NEW
Cod. art. Per tubo
AISI 304 Art. no. For tube A
E11440 Superficie piana
Flat face
Ø 11
Cod. art. Per tubo
AISI 316 Art. no. For tube A
E11440316 Superficie piana
Flat face
63
A
NEW
M8
Cod. art. Per tubo
AISI 304 Art. no. For tube A
E11340 Superficie piana
Flat face
Cod. art. Per tubo
AISI 316 Art. no. For tube A
E11340316 Superficie piana 60
Flat face
by
www.arteferro.com Riproduzione Vietata Reproduction Prohibited www.arteferro.com
3

5. CUBE SYSTEM
Elementi di Ancoraggio - Anchorage Elements
Flangia satinata per tubi quadri
Flange for square tube, satin finish A
Cod. art. Per tubo
AISI 316 Art. no. For tube A B C
C
E4700 30 x 30 x 2,0 mm 70 mm 22 mm
1 3/16” x 1 3/16” x 5/64” 2 3/4” 55/64”
E4701 40 x 40 x 2,0 mm 80 mm 18 mm
1 9/16” x 1 9/16” x 5/64” 3 5/32” 45/64”
A
B
E4702 50 x 50 x 2,0 mm 95 mm 18 mm
1 31/32” x 1 31/32” x 5/64” 3 47/64” 45/64”
B E4703 60 x 60 x 2,0 mm 105 mm 18 mm
2 23/64” x 2 23/64” x 5/64” 4 9/64” 45/64”
Reggicorrimano - Handrail Supports
3 pezzi completo di viti
3 pieces complete with screws
NEW AISI 303
Cod. art. Altezza
H
Per corrimano Per tubo quadro
A
Art. no. Height For handrail For square tube
E037100 75 mm Ø 33,7 mm 30 x 30 x 2,0 mm
2 61/64” 1 1/3” dia. 1 3/16” x 1 3/16” x 5/64”
E037200 75 mm Ø 42,4 mm 40 x 40 x 2,0 mm
H
Ø 12 2 61/64” 1 2/3” dia. 1 9/16” x 1 9/16” x 5/64”
Cod. art. Altezza Per corrimano Per tubo quadro
AISI 316 Art. no. Height
H
For handrail For square tube
A
E037110 75 mm Ø 33,7 mm 30 x 30 x 2,0 mm
A A 2 61/64” 1 1/3” dia. 1 3/16” x 1 3/16” x 5/64”
E037210 75 mm Ø 42,4 mm 40 x 40 x 2,0 mm
2 61/64” 1 2/3” dia. 1 9/16” x 1 9/16” x 5/64”
NEW
27 64.5
Cod. art. Altezza Per corrimano Per tubo quadro
AISI 303 Art. no. Height
H
For handrail For square tube
A
E037500 75 mm Ø 33,7 mm 30 x 30 x 2,0 mm
2 61/64” 1 1/3” dia. 1 3/16” x 1 3/16” x 5/64”
E037600 75 mm Ø 42,4 mm 40 x 40 x 2,0 mm
2 61/64” 1 2/3” dia. 1 9/16” x 1 9/16” x 5/64”
Ø 12
H
Cod. art. Altezza Per corrimano Per tubo quadro
AISI 316 Art. no. Height
H
For handrail For square tube
A
E037510 75 mm Ø 33,7 mm 30 x 30 x 2,0 mm
2 61/64” 1 1/3” dia. 1 3/16” x 1 3/16” x 5/64”
E037610 75 mm Ø 42,4 mm 40 x 40 x 2,0 mm
A A 2 61/64” 1 2/3” dia. 1 9/16” x 1 9/16” x 5/64”
by
4 www.arteferro.com Riproduzione Vietata Reproduction Prohibited www.arteferro.com

6. CUBE SYSTEM
Piastre Sella - Mounting Plates
Spessore 4 mm
Thk. 5/32”
Cod. art. Per tubo
NEW
AISI 304 Art. no. For tube
E011976 Superficie piana - Flat face 64 4
27
21 21
Cod. art. Per tubo
AISI 316 Art. no. For tube
E011976316 Superficie piana - Flat face
by
ARTEFERRO www.arteferro.com Riproduzione Vietata Reproduction Prohibited www.arteferro.com
5

7. CUBE SYSTEM
Giunzioni - Fittings
Raccordo a 90° per tubo quadro, satinato
Elbows 90°, for square tube, satin finish
Cod. art. Per tubo
AISI 316 Art. no. For tube A B
A
E4710 20 x 20 x 1,5 mm 20 mm
25/32” x 25/32” x 5/64” 25/32”
B
E4711 25 x 25 x 2,0 mm 20 mm
1” x 1” x 5/64” 25/32”
E4712 30 x 30 x 2,0 mm 25 mm
A B 1 3/16” x 1 3/16” x 5/64” 1”
E4713 40 x 40 x 2,0 mm 25 mm
1 9/16” x 1 9/16” x 5/64” 1”
Raccordo d’angolo per tubo quadro, satinato
3-way corner, for square tube, satin finish
Cod. art. Per tubo
A B AISI 316 Art. no. For tube A B
E4720 20 x 20 x 1,5 mm 20 mm
25/32” x 25/32” x 5/64” 25/32”
E4721 25 x 25 x 2,0 mm 20 mm
A
1” x 1” x 5/64” 25/32”
E4722 30 x 30 x 2,0 mm 25 mm
B
1 3/16” x 1 3/16” x 5/64” 1”
E4723 40 x 40 x 2,0 mm 25 mm
1 9/16” x 1 9/16” x 5/64” 1”
Raccordo a “T” per tubo quadro, satinato
“T” connector, for square tube, satin finish
Cod. art. Per tubo
AISI 316 Art. no. For tube A B
A
E4730 20 x 20 x 1,5 mm 20 mm
25/32” x 25/32” x 5/64” 25/32”
E4731 25 x 25 x 2,0 mm 20 mm
B
1” x 1” x 5/64” 25/32”
E4732 30 x 30 x 2,0 mm 25 mm
1 3/16” x 1 3/16” x 5/64” 1”
B A B E4733 40 x 40 x 2,0 mm 25 mm
1 9/16” x 1 9/16” x 5/64” 1”
by
6 www.arteferro.com Riproduzione Vietata Reproduction Prohibited www.arteferro.com

8. CUBE SYSTEM
Giunzioni - Fittings
Raccordo snodato per tubo quadro, satinato
Pivotable connector for square tube, satin finish
Cod. art. Per tubo
AISI 316 Art. no. For tube
A
E4743 40 x 40 x 2,0 mm
1 9/16” x 1 9/16” x 5/64”
°
90
90
°
A
NEW
Tappi Terminali per Tubo Quadro - End Caps for Square Tube
Per tubo quadro, satinato
For square tube, satin finish
Cod. art. Per tubo
AISI 316 Art. no. For tube
AxA
E4200 20 x 20 x 1,5 mm - 25/32” x 25/32” x 1/16”
E4210 25 x 25 x 2,0 mm - 1” x 1” x 5/64”
A
E4220 30 x 30 x 2,0 mm - 1 3/16” x 1 3/16” x 5/64”
E4230 40 x 40 x 2,0 mm - 1 9/16” x 1 9/16” x 5/64”
E4240 50 x 50 x 2,0 mm - 2” x 2” x 5/64”
E4250 60 x 60 x 2,0 mm - 2 23/64” x 1 9/16” x 5/64”
A
Per tubo rettangolare, satinato
For rectangular tube, satin finish
Cod. art. Per tubo
AISI 316 Art. no. For tube
AxB
E4251 30 x 20 x 2,0 mm - 1 3/16” x 25/32” x 5/64”
E4252 40 x 20 x 2,0 mm - 1 9/16” x 25/32” x 5/64”
A
E4253 40 x 30 x 2,0 mm - 1 9/16” x 1 3/16” x 5/64”
E4254 50 x 30 x 2,0 mm - 2” x 1 3/16” x 5/64”
E4255 60 x 60 x 2,0 mm - 2 23/64” x 1 9/16” x 5/64”
B
by
www.arteferro.com Riproduzione Vietata Reproduction Prohibited www.arteferro.com
7

9. 8 ARTEFERRO

11. 3005/62/03-2010/03-2010/A
INDUSTRIA ITALIANA ARTEFERRO
VIA VICENZA, 6/14
36034 MALO (VICENZA) ITALIA
TELEFONO (+39) 0445 580 580
U.S.A.
FAX (+39) 0445 580 874
E-mail:india@arteferro.com 7947 MESA ROAD - HOUSTON
TEXAS 77028 - U.S.A.
PHONE: (+1) (713) 694-6065 / 1-800-772-4706
FAX: (+1) (713) 694-2055
www.ironews.com - www.ilgrandefabbro.com www.indital.com - forgings@indital.com
www.arteferro.com
U.S.A.
FRANCE
ITALY
ARTEFERRO Miami L.L.C. ARTEFERROSUD S.R.L.
2955 N.W. 75th STREET Z.A.E. LA BAUME RN 113 - 34290 SERVIAN FRANCE
Via Piano Alvanella 83024 MONTEFORTE IRPINO (AV)
MIAMI, FLORIDA 33147 - USA TEL. (+33) (0) 4.67.39.42.81 (lignes groupées)
Tel. (+39) 0825 68 00 81
PHONE: (+1) (305) 836-9232 / 1-877-723-6743 Fax (+33) (0) 4.67.39.20.90
Fax (+39) 0825 68 34 98
FAX: (+1) (305) 836-4113 www.franceindia.com
(Per Campania - Puglia - Calabria - Basilicata - Molise)
www.arteferromiami.com info@arteferromiami.com france.india@wanadoo.fr
www.arteferrosud.it-info@arteferrosud.it
ESPAÑA S.L.
SWEDEN - DENMARK
HRVATSKA
ARTEFERRO Skandinavien ARTEFERRO Dohomont d.o.o.
28500 ARGANDA DEL REY (MADRID) - ESPAÑA
SWEDEN: SJÖTULLSG. 3 - S-602 28 NORRKÖPING SIRKOVISCE bb 40324 GORICAN - HRVATSKA
C/. ABEDUL, 43 - Poligono “EL GUIJAR”
TEL. (+46) (0) 11182323 - FAX (+46) (0) 11182328 PHONE (+385) (0)40 601-222
TEL. (+34) (91) 8701897 - 8700819
DENMARK: HESSELAGER 19 - DK-2605 BRØNDBY Fax PHONE (+385) (0)40 601-600
FAX (+34) (91) 8700820
TEL. +45 4362 2563 - FAX +45 4362 2535 www.arteferro-dohomont.hr
info@arteferro.es www.arteferro.es
www.arteferro.se - info@arteferro.se info@arteferro-dohomont.hr
OOO “ARTEFERRO Russia”
ROMANIA
RUSSIA
UKRAINE
S.A. ARTEFERRO Ukraina
Targoviste - Romania Soseaua Gaesti, (sat Colanu) 5, AVTOPARKOVA, 02660 Kiev - Ukraine
Judetul Dambovita 603092 Nizhny Novgorod (Russia) Tel.: (+38) (044) 4920331
Tel. 004) 0751060204, (004)0745395590 Moskovskoje shosse, 320 B Fax: (+38) (044) 4920332
Fax (004)0745731210 TEL. (+7) (831) 296-19-99 FAX: (+7) (831) 279-28-63 E-mail: arteferroukraina@svitonline.com
E-mail: info@mobilforge.com www.arteferro.ru - www.arteferrorussia.com www.arteferroukraina.com
info@arteferrorussia.com
BRASIL
ARTEFERRO Monterrey
POLAND Sp. z o.o.
MEXICO
S.A. DE C.V.
Av. E. Martínez Lara # 117 Parque Industrial MILIMEX
ul. Gierdziejewskiego 7 Carretera Sta. Rosa Km. 3 Apodaca,
RUA PADRE FEIJÓ, 480 CEP 95190-000
02-495 Warszawa POLAND Nuevo León C.P. 66637
SÃO MARCOS / RS BRASIL
Tel +48 (22) 397-79-40 Teléfono: (81) 1295-5094 / 1295-5095
TEL. - FAX (+55) (0) 54 32911416
Fax +48 (22) 397-21-55 Fax: (81) 1295-5097
www.arteferrobrasil.com.br
info@indiapoland.com - www.indiapoland.com info@arteferromonterrey.com
arteferro@arteferrobrasil.com.br
www.arteferromonterrey.com
ARGENTINA
ARTEFERRO Argentina S.A.
NIGERIA
CHILE
ARTEFERRO Chile S.A. ARTEFERROBOTNIC INTERNATIONAL LTD
Suarez 760 LOS ARRAYANES 250, COMUNA DE COLINA, Block C/5 Lagos State small scale Industrial Estate,
(1162) Capital Federal Buenos Aires SANTIAGO DE CHILE Fatai Atere Way, Matori, Lagos
Republica Argentina Tel. 00234 1 891 4155 - 00234 1 2799 093-4
TEL./Fax (+54) 11 43012637 www.arteferrobotnic.com
info@arteferrobotnic.com
WWW.ARTEFERRO.COM
