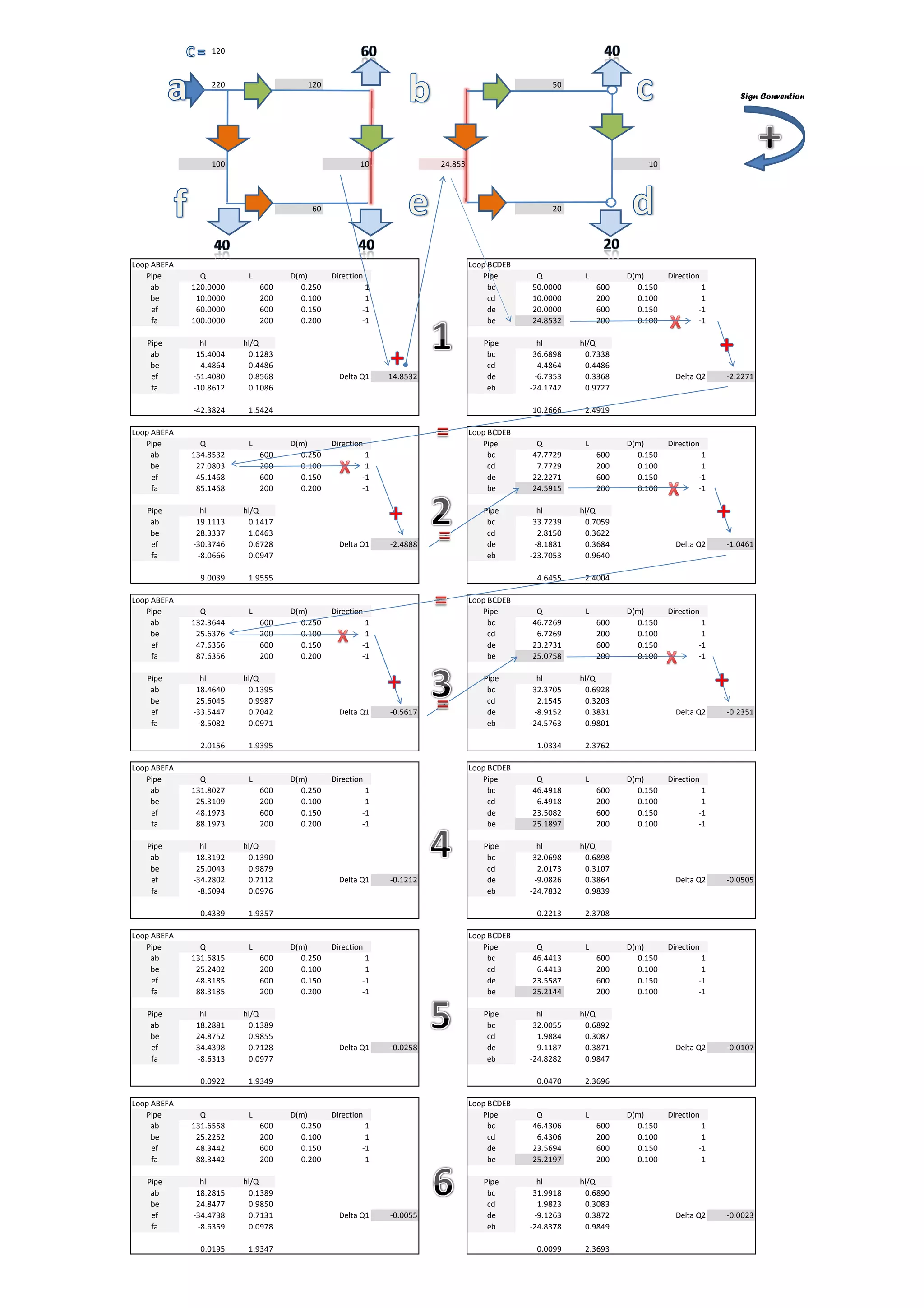

A project for basic hydraulic module, flow calculation in a loop flow.

1. 120
220 120 50
Sign Convention
100 10 24.853 10
60 20
Loop ABEFA Loop BCDEB
Pipe Q L D(m) Direction Pipe Q L D(m) Direction
ab 120.0000 600 0.250 1 bc 50.0000 600 0.150 1
be 10.0000 200 0.100 1 cd 10.0000 200 0.100 1
ef 60.0000 600 0.150 -1 de 20.0000 600 0.150 -1
fa 100.0000 200 0.200 -1 be 24.8532 200 0.100 -1
Pipe hl hl/Q Pipe hl hl/Q
ab 15.4004 0.1283 bc 36.6898 0.7338
be 4.4864 0.4486 cd 4.4864 0.4486
ef -51.4080 0.8568 Delta Q1 14.8532 de -6.7353 0.3368 Delta Q2 -2.2271
fa -10.8612 0.1086 eb -24.1742 0.9727
-42.3824 1.5424 10.2666 2.4919
Loop ABEFA Loop BCDEB
Pipe Q L D(m) Direction Pipe Q L D(m) Direction
ab 134.8532 600 0.250 1 bc 47.7729 600 0.150 1
be 27.0803 200 0.100 1 cd 7.7729 200 0.100 1
ef 45.1468 600 0.150 -1 de 22.2271 600 0.150 -1
fa 85.1468 200 0.200 -1 be 24.5915 200 0.100 -1
Pipe hl hl/Q Pipe hl hl/Q
ab 19.1113 0.1417 bc 33.7239 0.7059
be 28.3337 1.0463 cd 2.8150 0.3622
ef -30.3746 0.6728 Delta Q1 -2.4888 de -8.1881 0.3684 Delta Q2 -1.0461
fa -8.0666 0.0947 eb -23.7053 0.9640
9.0039 1.9555 4.6455 2.4004
Loop ABEFA Loop BCDEB
Pipe Q L D(m) Direction Pipe Q L D(m) Direction
ab 132.3644 600 0.250 1 bc 46.7269 600 0.150 1
be 25.6376 200 0.100 1 cd 6.7269 200 0.100 1
ef 47.6356 600 0.150 -1 de 23.2731 600 0.150 -1
fa 87.6356 200 0.200 -1 be 25.0758 200 0.100 -1
Pipe hl hl/Q Pipe hl hl/Q
ab 18.4640 0.1395 bc 32.3705 0.6928
be 25.6045 0.9987 cd 2.1545 0.3203
ef -33.5447 0.7042 Delta Q1 -0.5617 de -8.9152 0.3831 Delta Q2 -0.2351
fa -8.5082 0.0971 eb -24.5763 0.9801
2.0156 1.9395 1.0334 2.3762
Loop ABEFA Loop BCDEB
Pipe Q L D(m) Direction Pipe Q L D(m) Direction
ab 131.8027 600 0.250 1 bc 46.4918 600 0.150 1
be 25.3109 200 0.100 1 cd 6.4918 200 0.100 1
ef 48.1973 600 0.150 -1 de 23.5082 600 0.150 -1
fa 88.1973 200 0.200 -1 be 25.1897 200 0.100 -1
Pipe hl hl/Q Pipe hl hl/Q
ab 18.3192 0.1390 bc 32.0698 0.6898
be 25.0043 0.9879 cd 2.0173 0.3107
ef -34.2802 0.7112 Delta Q1 -0.1212 de -9.0826 0.3864 Delta Q2 -0.0505
fa -8.6094 0.0976 eb -24.7832 0.9839
0.4339 1.9357 0.2213 2.3708
Loop ABEFA Loop BCDEB
Pipe Q L D(m) Direction Pipe Q L D(m) Direction
ab 131.6815 600 0.250 1 bc 46.4413 600 0.150 1
be 25.2402 200 0.100 1 cd 6.4413 200 0.100 1
ef 48.3185 600 0.150 -1 de 23.5587 600 0.150 -1
fa 88.3185 200 0.200 -1 be 25.2144 200 0.100 -1
Pipe hl hl/Q Pipe hl hl/Q
ab 18.2881 0.1389 bc 32.0055 0.6892
be 24.8752 0.9855 cd 1.9884 0.3087
ef -34.4398 0.7128 Delta Q1 -0.0258 de -9.1187 0.3871 Delta Q2 -0.0107
fa -8.6313 0.0977 eb -24.8282 0.9847
0.0922 1.9349 0.0470 2.3696
Loop ABEFA Loop BCDEB
Pipe Q L D(m) Direction Pipe Q L D(m) Direction
ab 131.6558 600 0.250 1 bc 46.4306 600 0.150 1
be 25.2252 200 0.100 1 cd 6.4306 200 0.100 1
ef 48.3442 600 0.150 -1 de 23.5694 600 0.150 -1
fa 88.3442 200 0.200 -1 be 25.2197 200 0.100 -1
Pipe hl hl/Q Pipe hl hl/Q
ab 18.2815 0.1389 bc 31.9918 0.6890
be 24.8477 0.9850 cd 1.9823 0.3083
ef -34.4738 0.7131 Delta Q1 -0.0055 de -9.1263 0.3872 Delta Q2 -0.0023
fa -8.6359 0.0978 eb -24.8378 0.9849
0.0195 1.9347 0.0099 2.3693

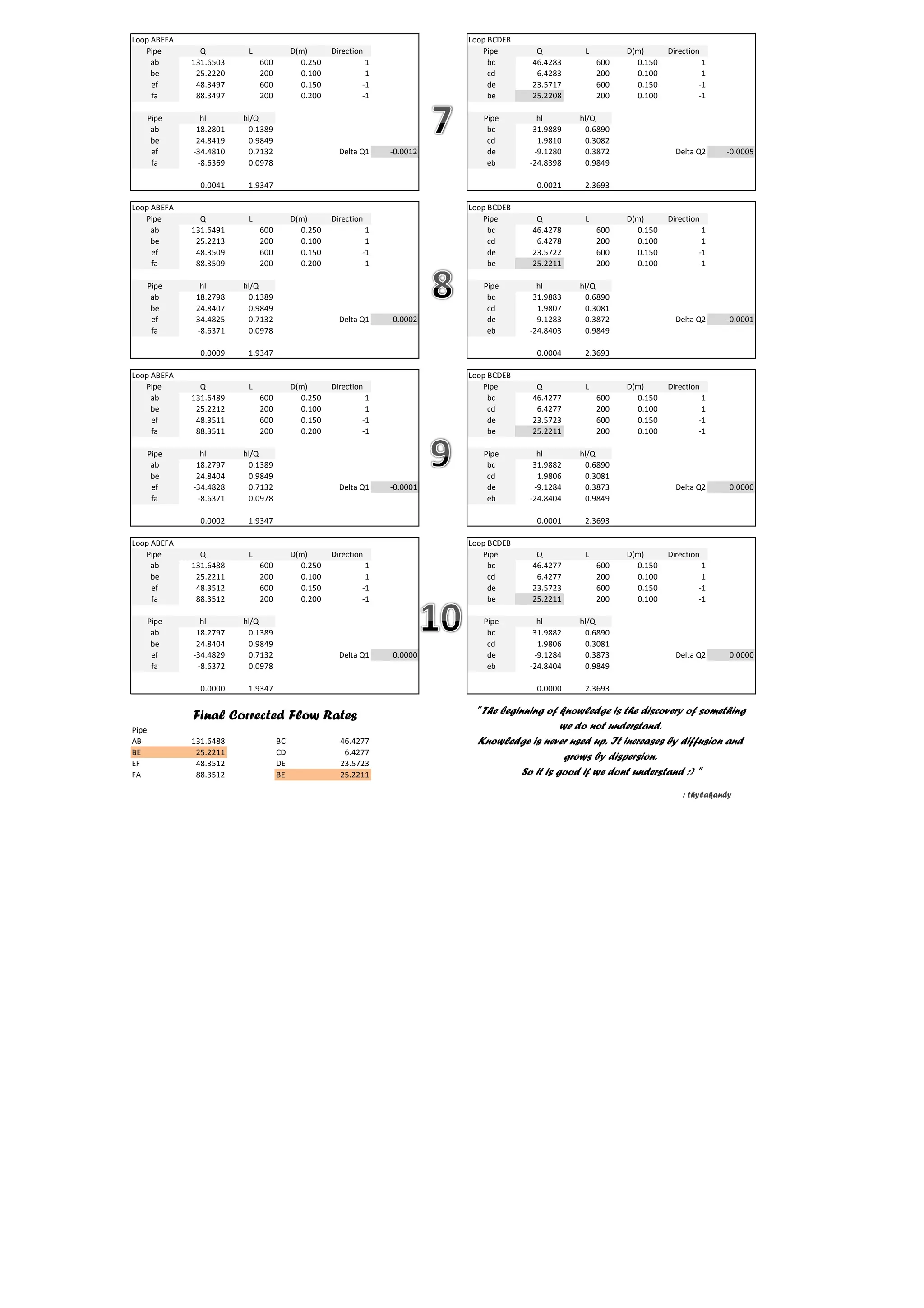

2. Loop ABEFA Loop BCDEB
Pipe Q L D(m) Direction Pipe Q L D(m) Direction
ab 131.6503 600 0.250 1 bc 46.4283 600 0.150 1
be 25.2220 200 0.100 1 cd 6.4283 200 0.100 1
ef 48.3497 600 0.150 -1 de 23.5717 600 0.150 -1
fa 88.3497 200 0.200 -1 be 25.2208 200 0.100 -1
Pipe hl hl/Q Pipe hl hl/Q
ab 18.2801 0.1389 bc 31.9889 0.6890
be 24.8419 0.9849 cd 1.9810 0.3082
ef -34.4810 0.7132 Delta Q1 -0.0012 de -9.1280 0.3872 Delta Q2 -0.0005
fa -8.6369 0.0978 eb -24.8398 0.9849
0.0041 1.9347 0.0021 2.3693
Loop ABEFA Loop BCDEB
Pipe Q L D(m) Direction Pipe Q L D(m) Direction
ab 131.6491 600 0.250 1 bc 46.4278 600 0.150 1
be 25.2213 200 0.100 1 cd 6.4278 200 0.100 1
ef 48.3509 600 0.150 -1 de 23.5722 600 0.150 -1
fa 88.3509 200 0.200 -1 be 25.2211 200 0.100 -1
Pipe hl hl/Q Pipe hl hl/Q
ab 18.2798 0.1389 bc 31.9883 0.6890
be 24.8407 0.9849 cd 1.9807 0.3081
ef -34.4825 0.7132 Delta Q1 -0.0002 de -9.1283 0.3872 Delta Q2 -0.0001
fa -8.6371 0.0978 eb -24.8403 0.9849
0.0009 1.9347 0.0004 2.3693
Loop ABEFA Loop BCDEB
Pipe Q L D(m) Direction Pipe Q L D(m) Direction
ab 131.6489 600 0.250 1 bc 46.4277 600 0.150 1
be 25.2212 200 0.100 1 cd 6.4277 200 0.100 1
ef 48.3511 600 0.150 -1 de 23.5723 600 0.150 -1
fa 88.3511 200 0.200 -1 be 25.2211 200 0.100 -1
Pipe hl hl/Q Pipe hl hl/Q
ab 18.2797 0.1389 bc 31.9882 0.6890
be 24.8404 0.9849 cd 1.9806 0.3081
ef -34.4828 0.7132 Delta Q1 -0.0001 de -9.1284 0.3873 Delta Q2 0.0000
fa -8.6371 0.0978 eb -24.8404 0.9849
0.0002 1.9347 0.0001 2.3693
Loop ABEFA Loop BCDEB
Pipe Q L D(m) Direction Pipe Q L D(m) Direction
ab 131.6488 600 0.250 1 bc 46.4277 600 0.150 1
be 25.2211 200 0.100 1 cd 6.4277 200 0.100 1
ef 48.3512 600 0.150 -1 de 23.5723 600 0.150 -1
fa 88.3512 200 0.200 -1 be 25.2211 200 0.100 -1
Pipe hl hl/Q Pipe hl hl/Q
ab 18.2797 0.1389 bc 31.9882 0.6890
be 24.8404 0.9849 cd 1.9806 0.3081
ef -34.4829 0.7132 Delta Q1 0.0000 de -9.1284 0.3873 Delta Q2 0.0000
fa -8.6372 0.0978 eb -24.8404 0.9849
0.0000 1.9347 0.0000 2.3693
Final Corrected Flow Rates " The beginning of knowledge is the discovery of something
Pipe we do not understand.
AB 131.6488 BC 46.4277 Knowledge is never used up. It increases by diffusion and
BE 25.2211 CD 6.4277
grows by dispersion.
EF 48.3512 DE 23.5723
FA 88.3512 BE 25.2211 So it is good if we dont understand :) "
