The document discusses the shift towards reactive programming with relational databases, highlighting the differences between traditional JDBC and R2DBC APIs for non-blocking, asynchronous data access. It provides examples of reactive streams, backpressure scenarios, and the adoption of R2DBC in various database clients. Additionally, it explores the challenges and limitations of integrating reactive programming within the context of microservices and bounded contexts.

1. Going Reactive
with Relational
Databases
Ivaylo Pashov
20 Feb 2020

2. Reactive 101
What you might have missed so far

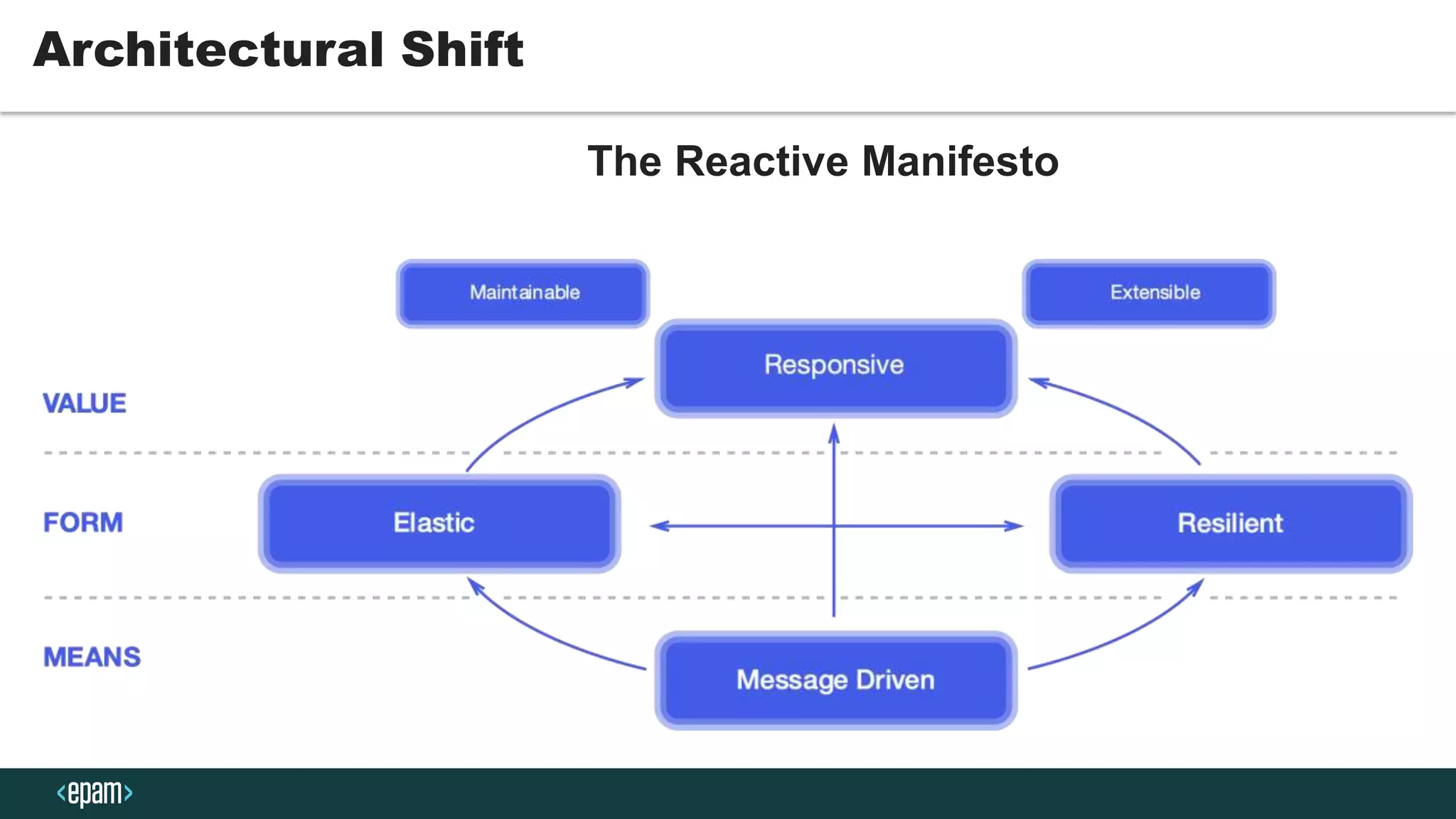

3. Architectural Shift
The Reactive Manifesto

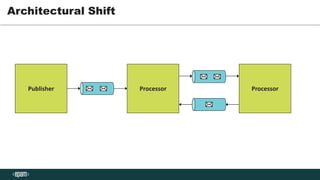

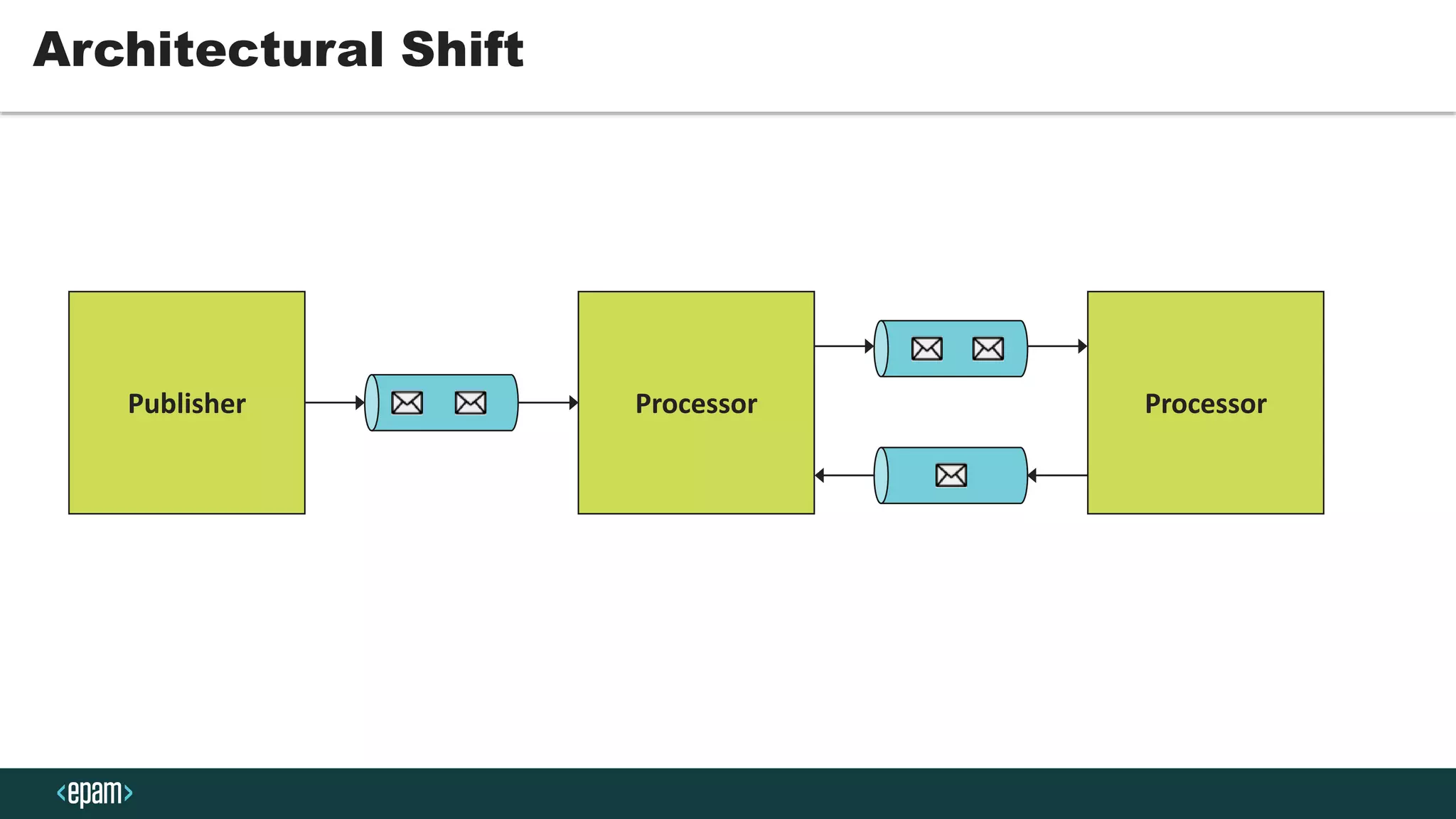

4. Architectural Shift
Processor ProcessorPublisher

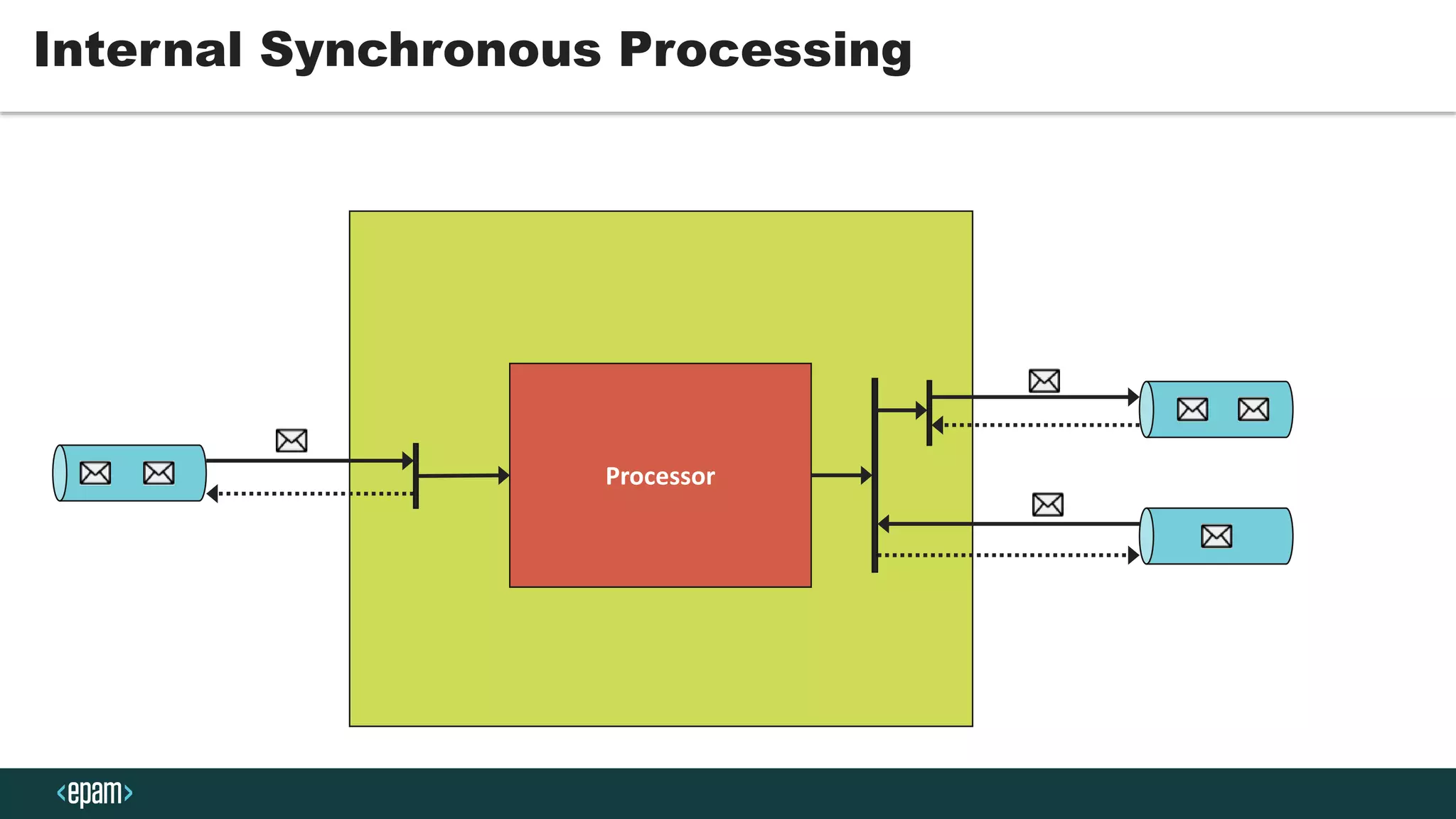

5. Internal Synchronous Processing
Processor

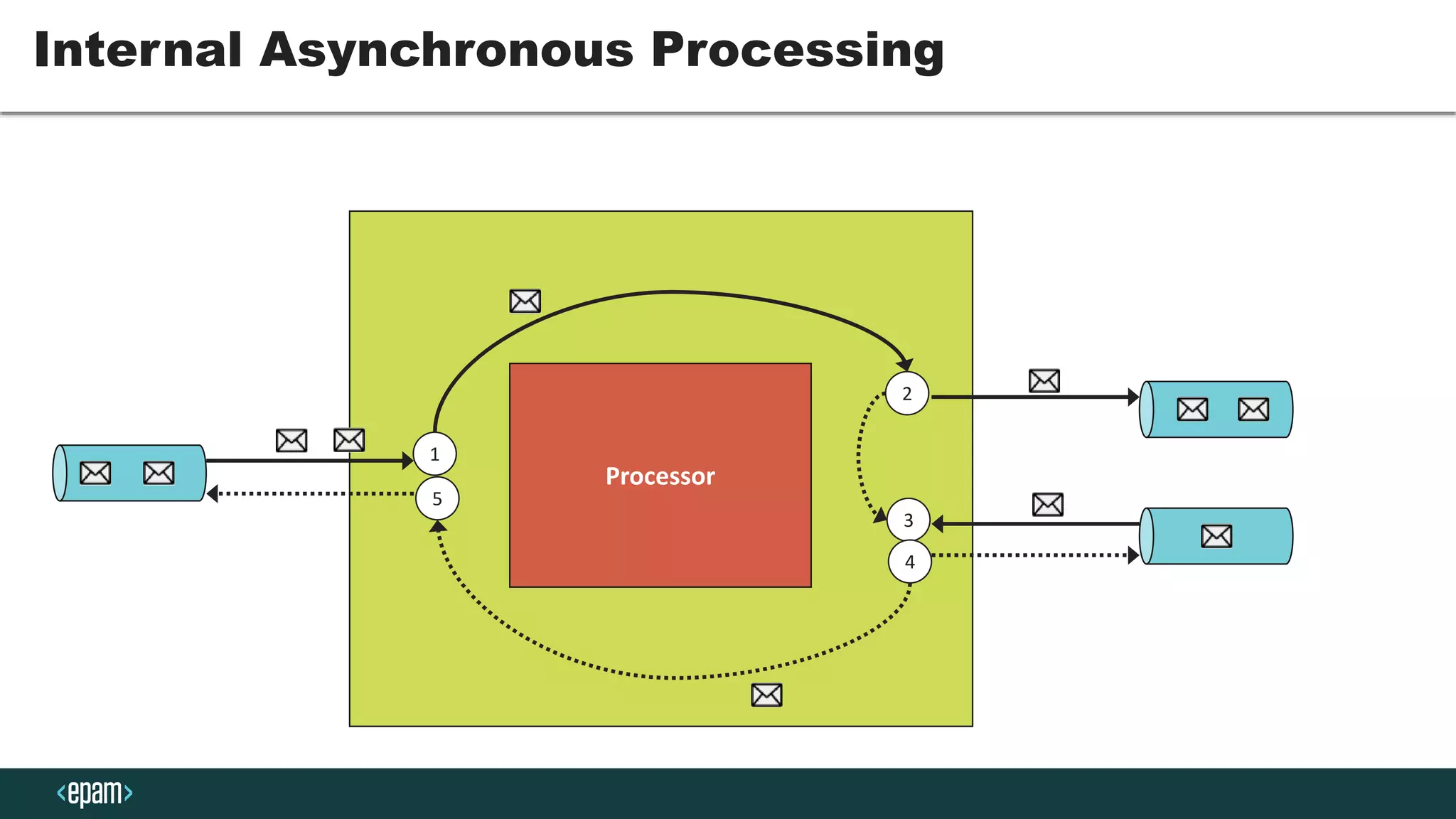

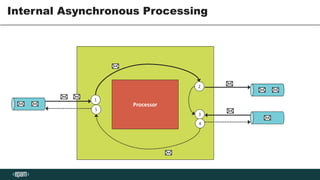

6. Internal ImplementationInternal Asynchronous Processing
Processor
2
1
3
5
4

7. Asynchronous
Programming
is Hard

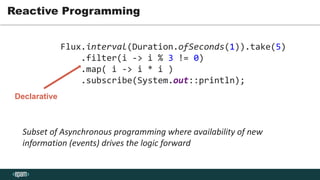

8. Reactive Programming
Flux.interval(Duration.ofSeconds(1)).take(5)
.filter(i -> i % 3 != 0)
.map( i -> i * i )
.subscribe(System.out::println);
Subset of Asynchronous programming where availability of new
information (events) drives the logic forward
Declarative

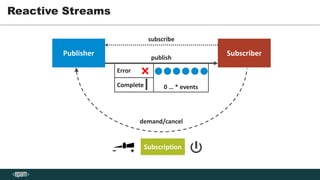

9. Subscription
demand/cancel
Reactive Streams
SubscriberPublisher
subscribe
0 … * events
Error
Complete
publish

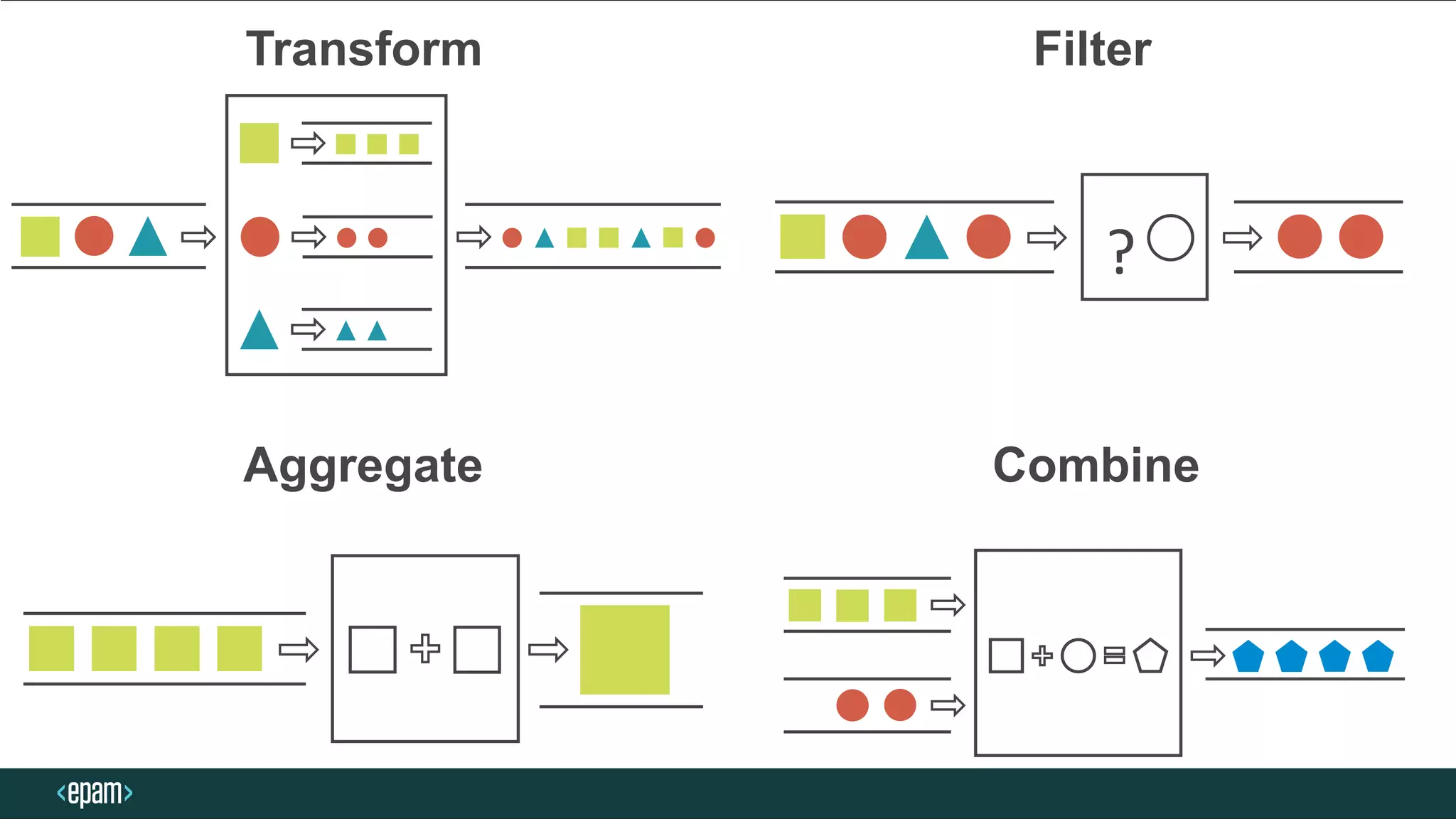

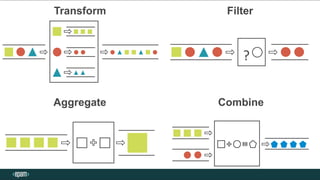

10. Transform Filter
?
Aggregate Combine

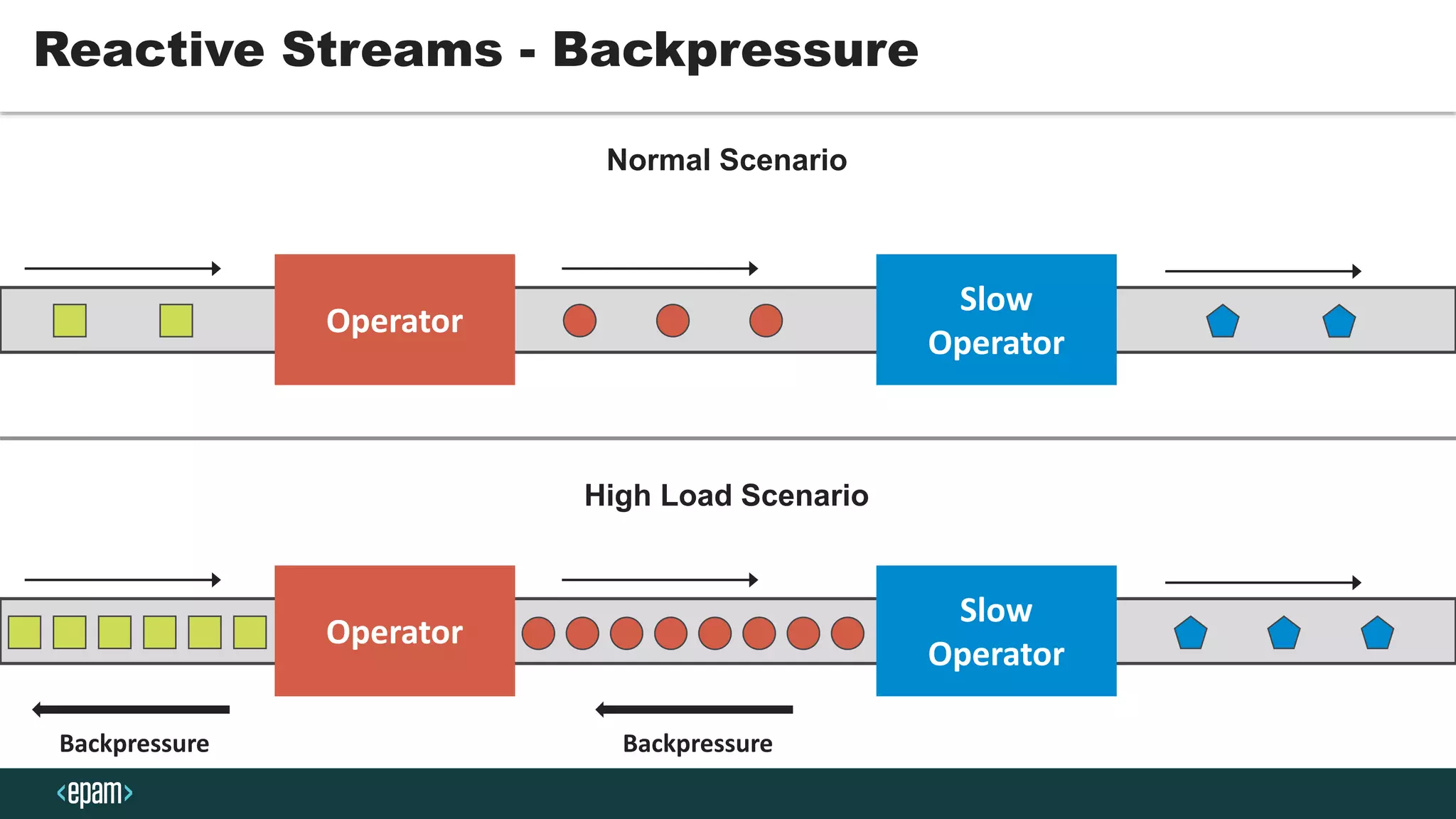

11. Reactive Streams - Backpressure
Slow
Operator
Operator
Slow
Operator
Operator
BackpressureBackpressure
Normal Scenario
High Load Scenario

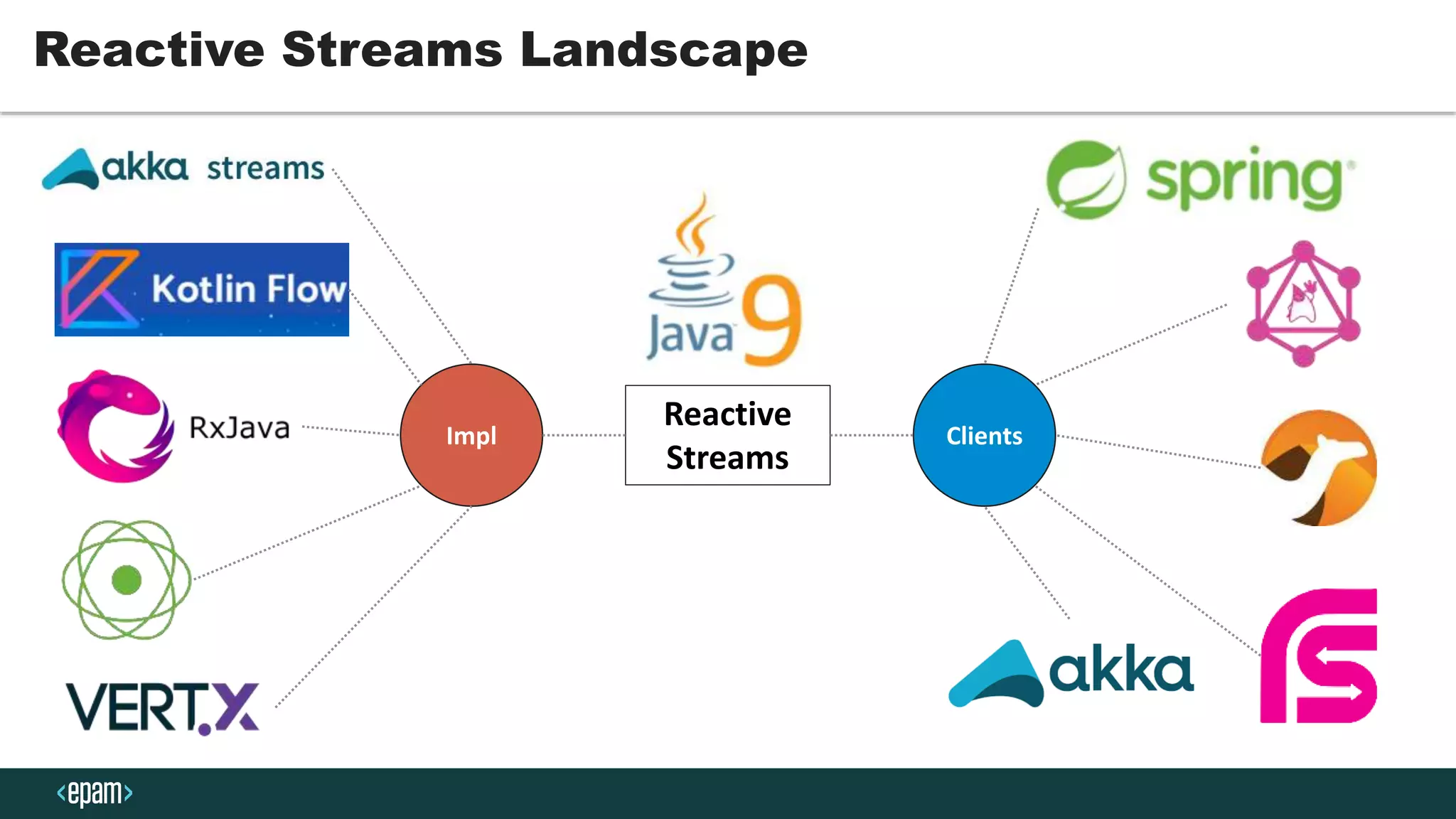

12. Reactive Streams Landscape
Reactive
Streams
ClientsImpl

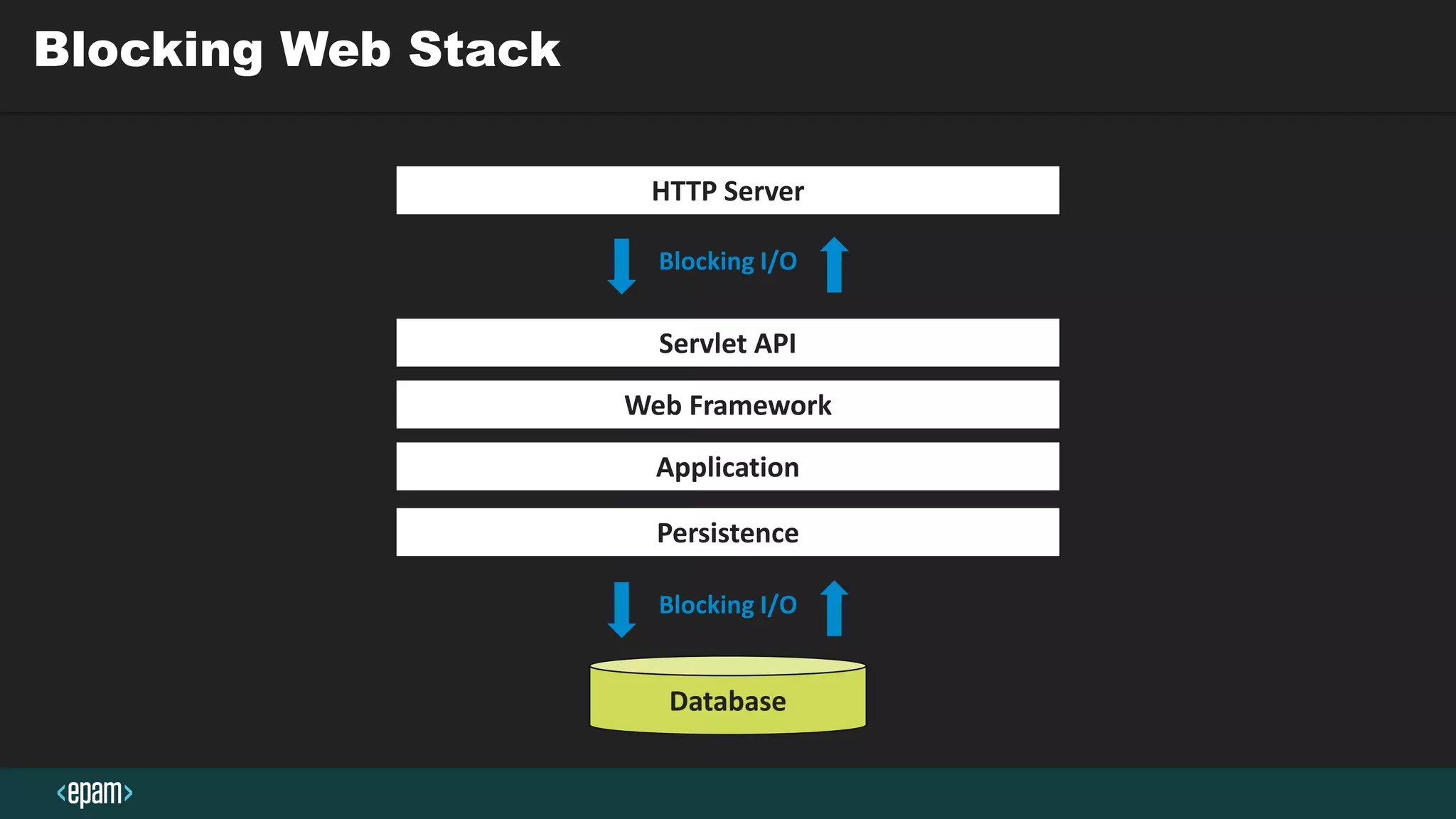

13. Blocking Web Stack
HTTP Server
Servlet API
Web Framework
Application
Persistence
Database
Blocking I/O
Blocking I/O

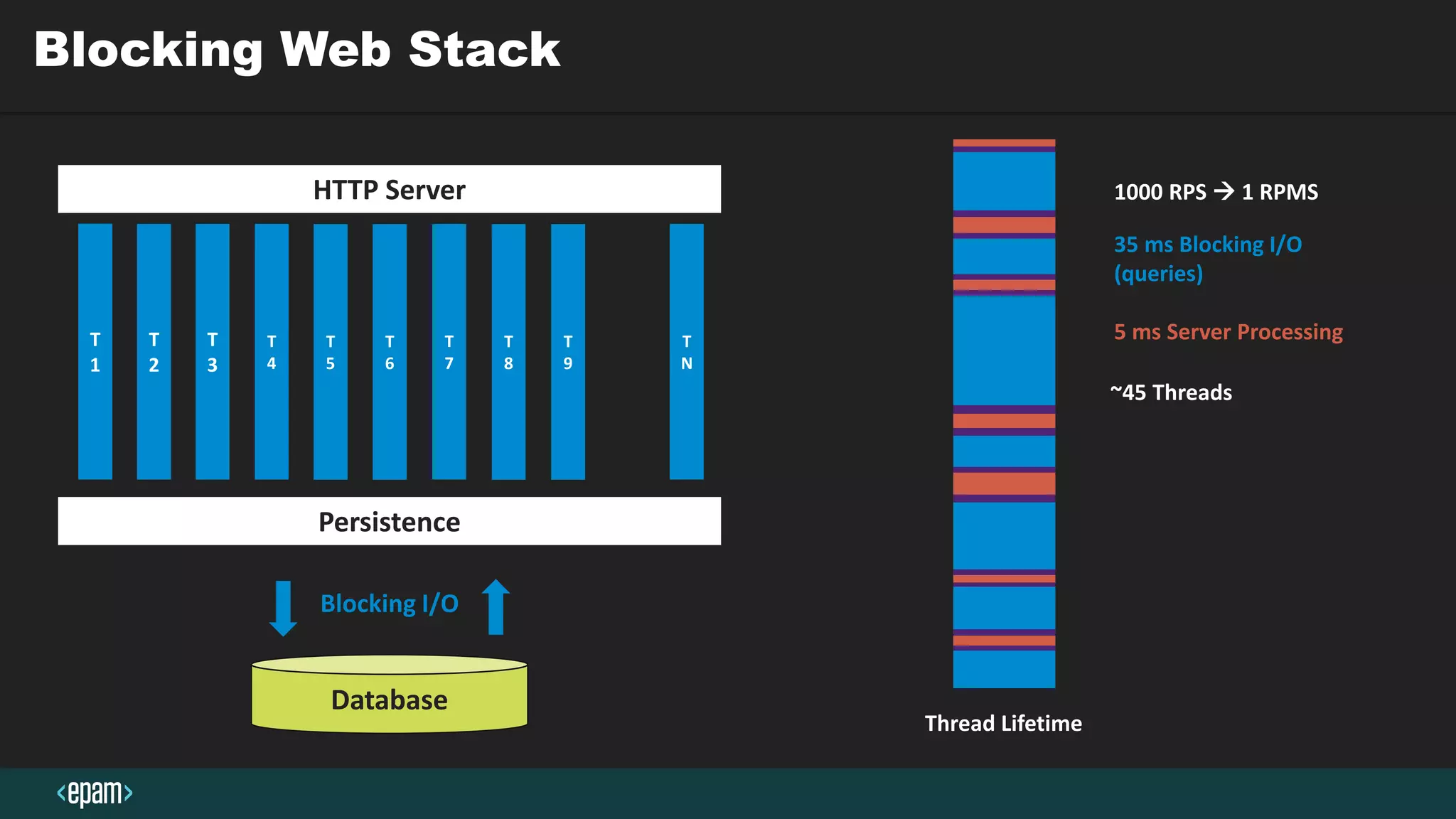

14. Blocking Web Stack
HTTP Server
Persistence
T
1
T
2
T
3
T
4
T
5
T
6
T
7
T
8
T
9
T
N
…
Thread Lifetime
1000 RPS  1 RPMS
Database
Blocking I/O
35 ms Blocking I/O
(queries)
5 ms Server Processing
~45 Threads

15. Blocking I/O

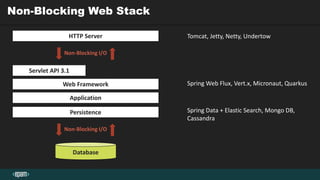

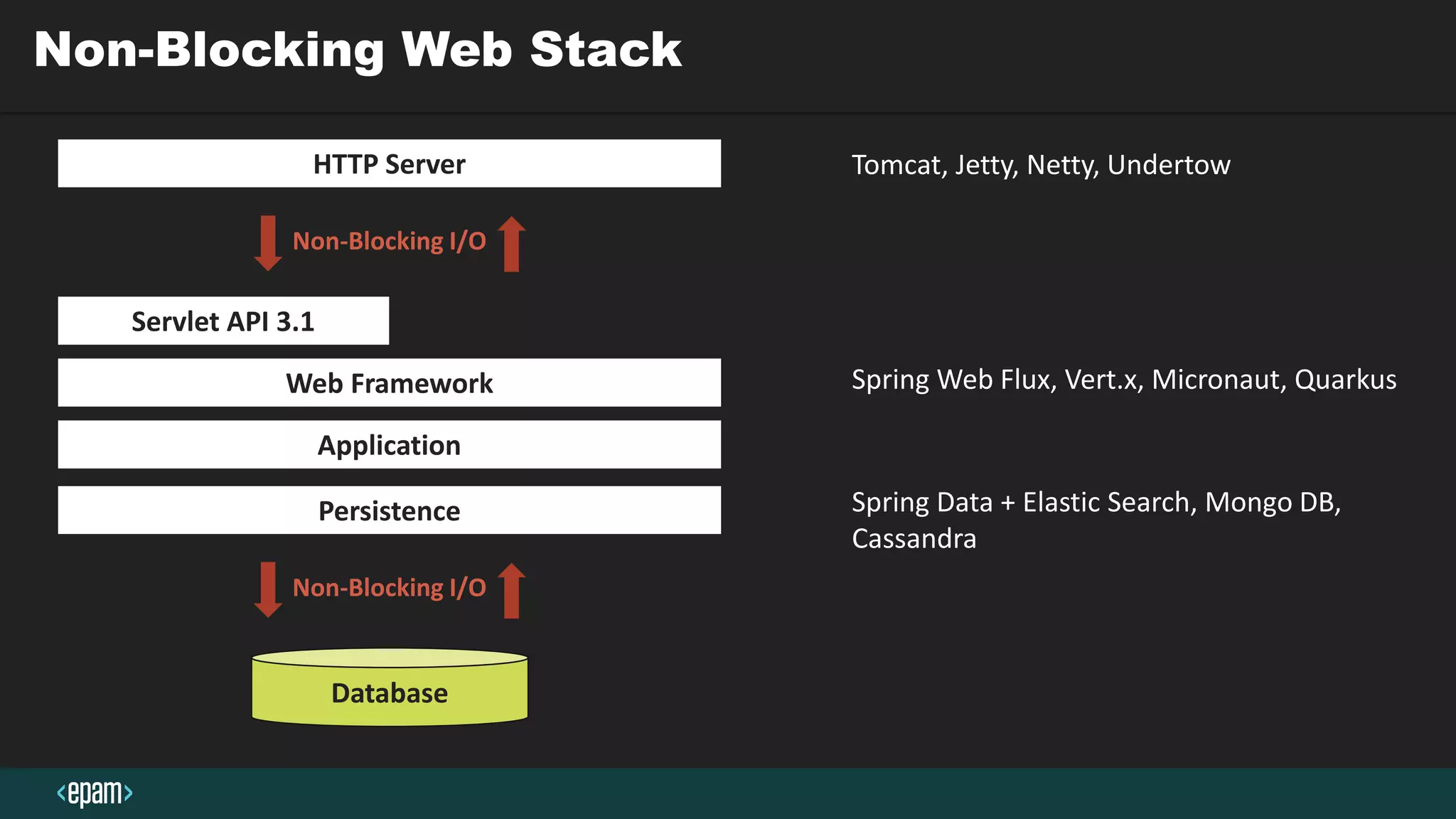

16. Non-Blocking Web Stack
HTTP Server
Servlet API 3.1
Web Framework
Application
Persistence
Tomcat, Jetty, Netty, Undertow
Database
Non-Blocking I/O
Non-Blocking I/O
Spring Web Flux, Vert.x, Micronaut, Quarkus
Spring Data + Elastic Search, Mongo DB,
Cassandra

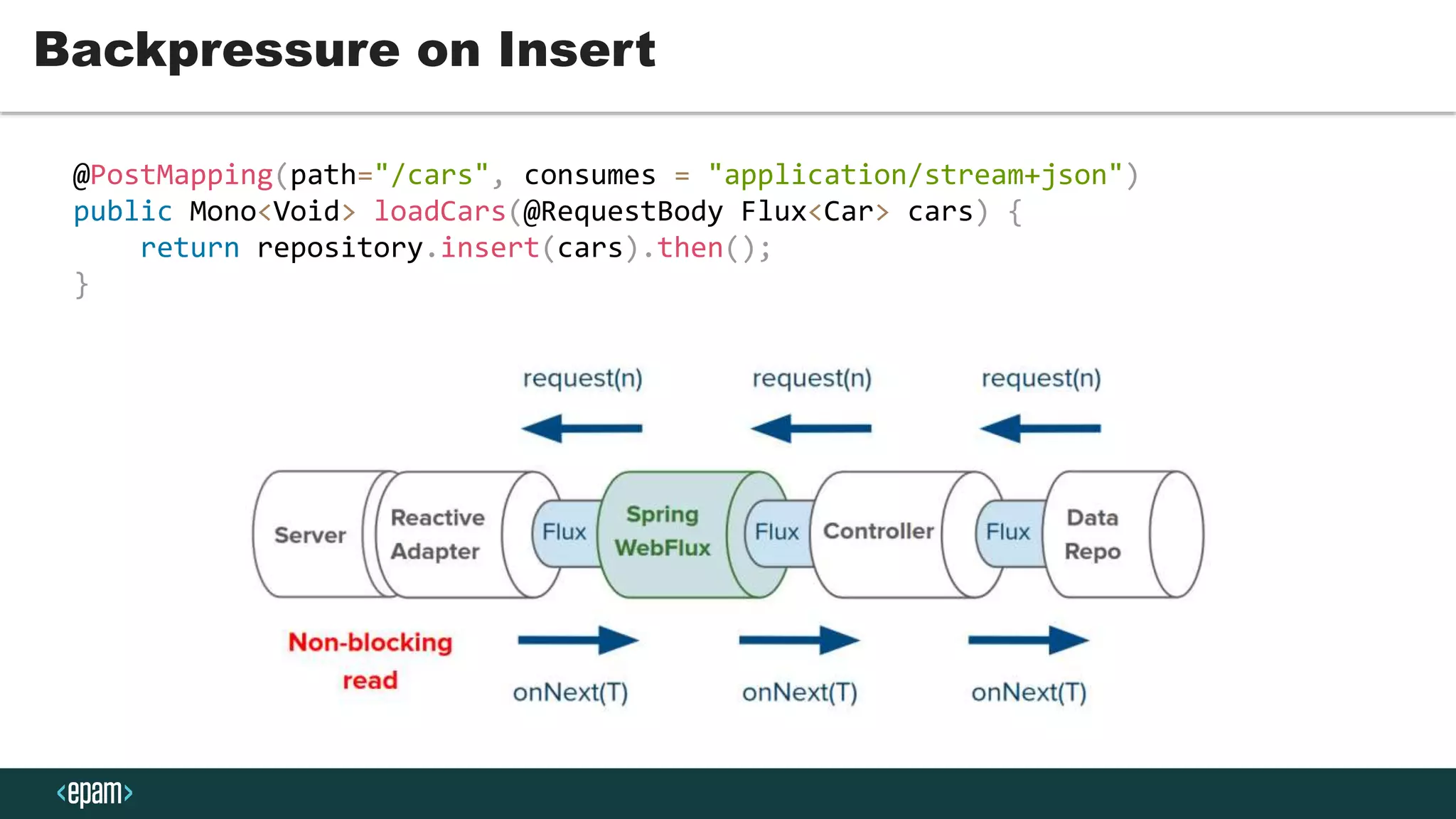

17. Backpressure on Insert
@PostMapping(path="/cars", consumes = "application/stream+json")
public Mono<Void> loadCars(@RequestBody Flux<Car> cars) {
return repository.insert(cars).then();
}

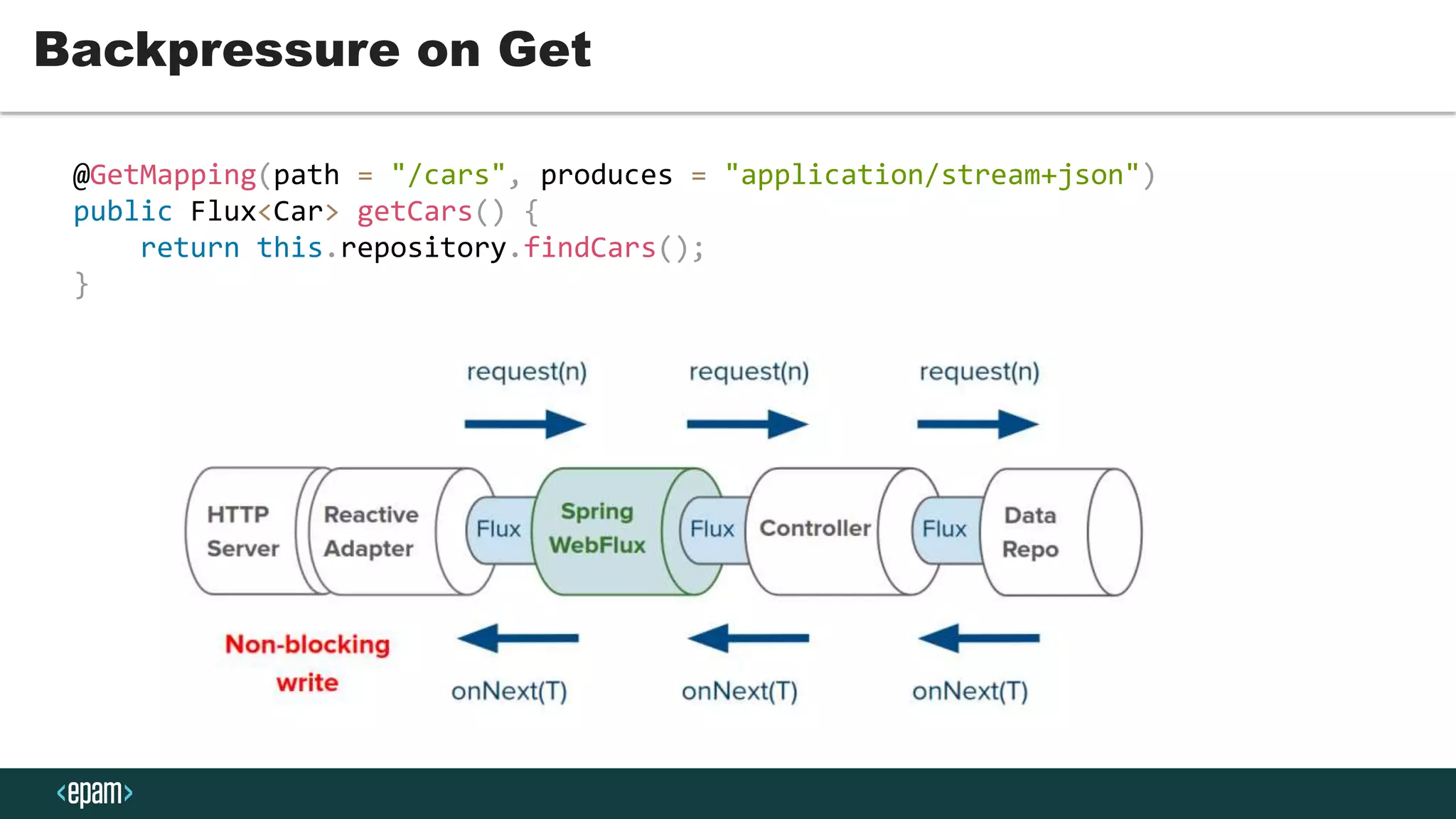

18. Backpressure on Get
@GetMapping(path = "/cars", produces = "application/stream+json")
public Flux<Car> getCars() {
return this.repository.findCars();
}

19. R2DBC
Mind the Gap between
Reactive and Relational
Bridge

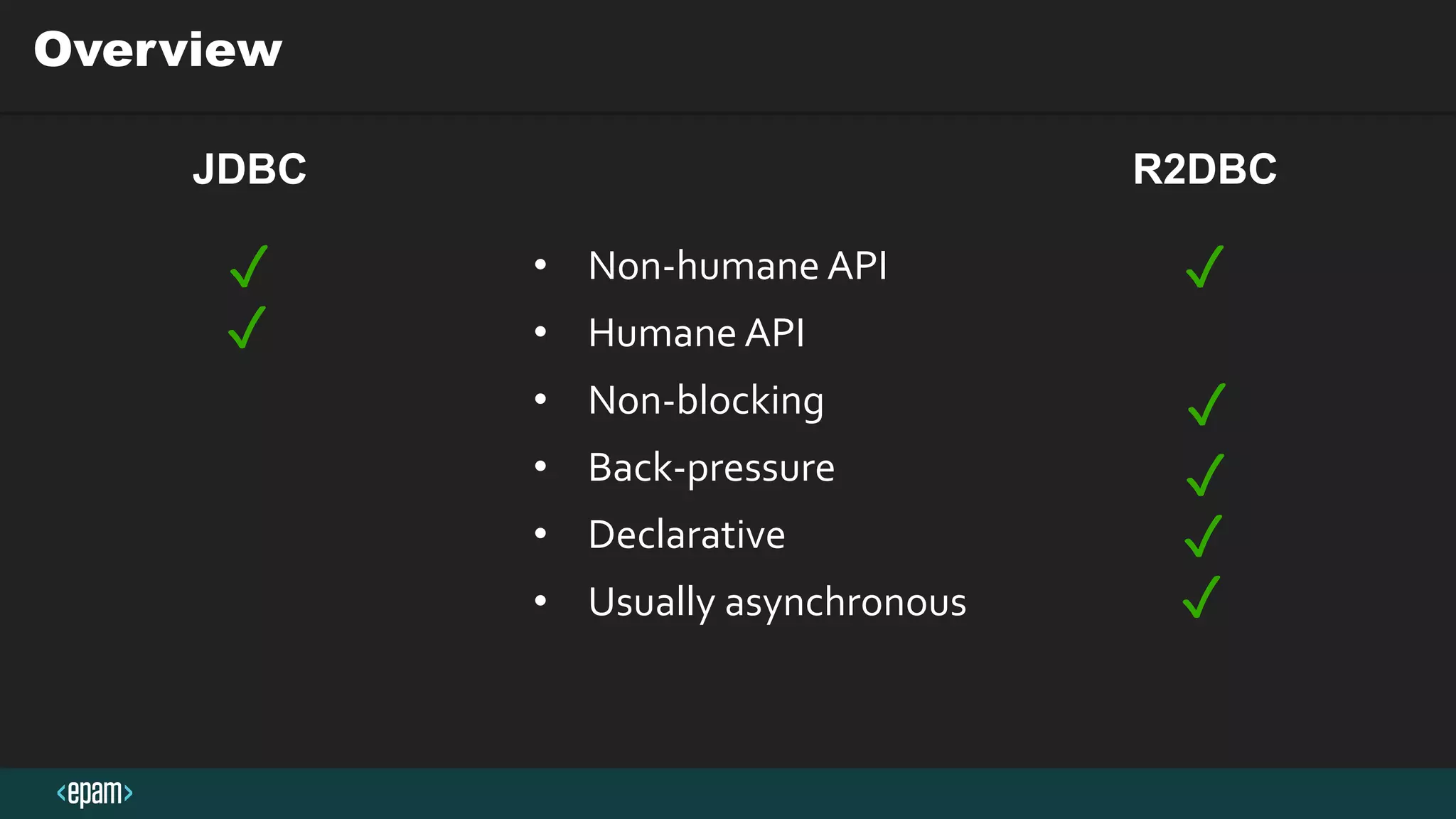

20. Overview
JDBC R2DBC
• Non-humane API
• Humane API
• Non-blocking
• Back-pressure
• Declarative
• Usually asynchronous
✓
✓
✓
✓
✓
✓
❌
❌
❌
❌
❌
✓

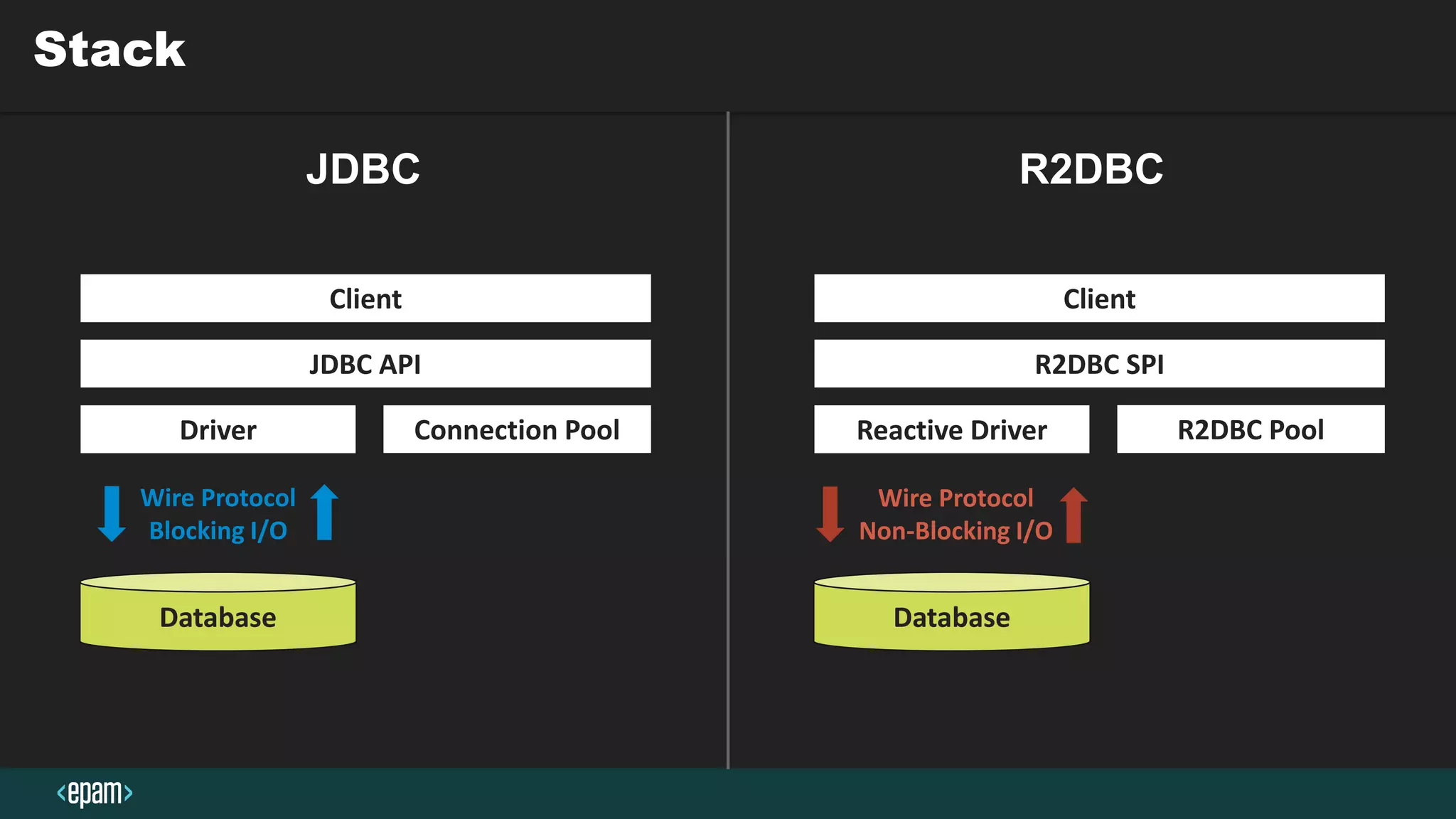

21. Stack
JDBC R2DBC
JDBC API
Driver
Database
Wire Protocol
Blocking I/O
Connection Pool
Client
R2DBC SPI
Reactive Driver
Database
Client
Wire Protocol
Non-Blocking I/O
R2DBC Pool

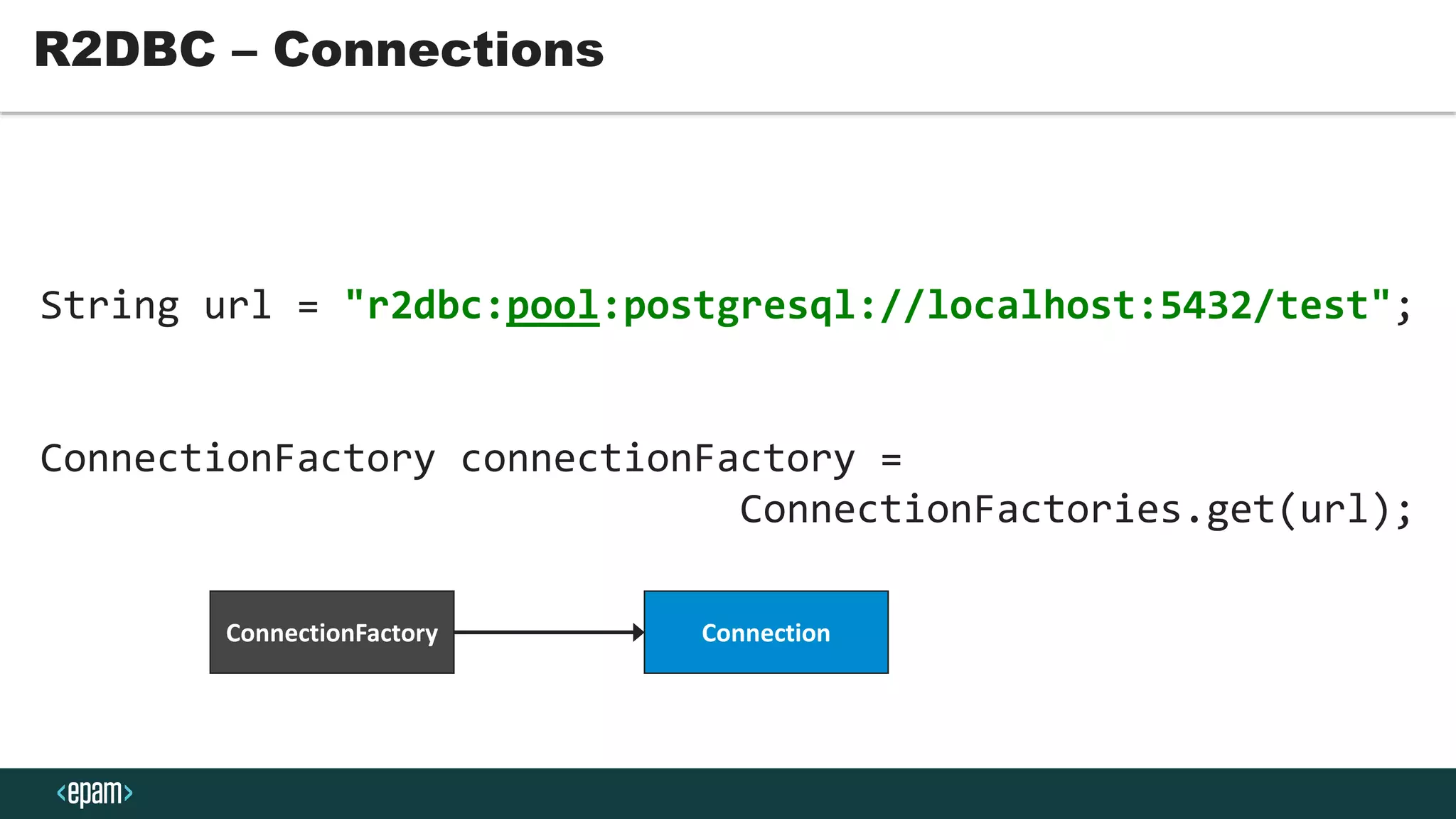

22. R2DBC – Connections
String url = "r2dbc:pool:postgresql://localhost:5432/test";
ConnectionFactory connectionFactory =
ConnectionFactories.get(url);
ConnectionFactory Connection

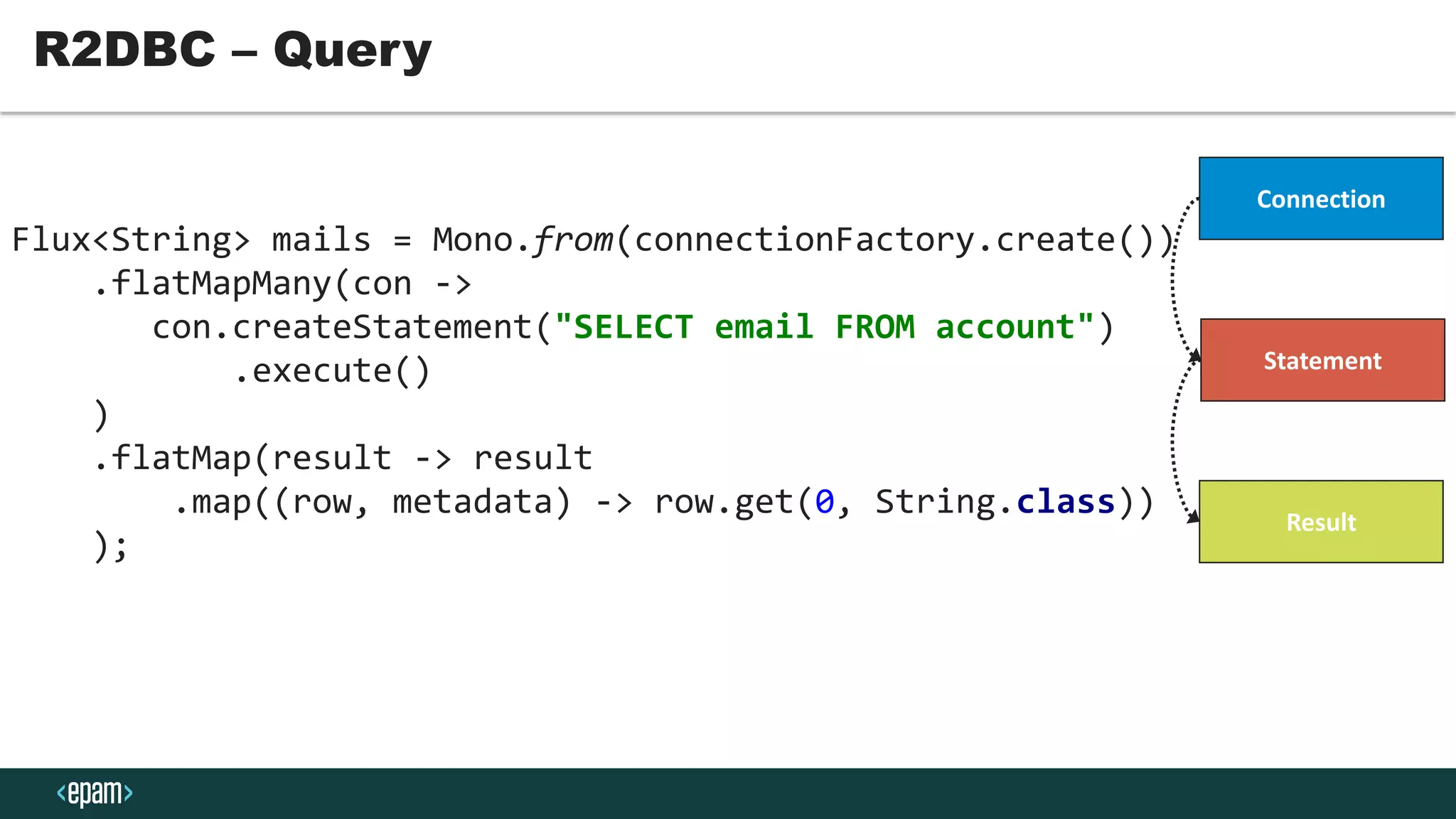

23. R2DBC – Query
Flux<String> mails = Mono.from(connectionFactory.create())
.flatMapMany(con ->
con.createStatement("SELECT email FROM account")
.execute()
)
.flatMap(result -> result
.map((row, metadata) -> row.get(0, String.class))
);
Statement
Connection
Result

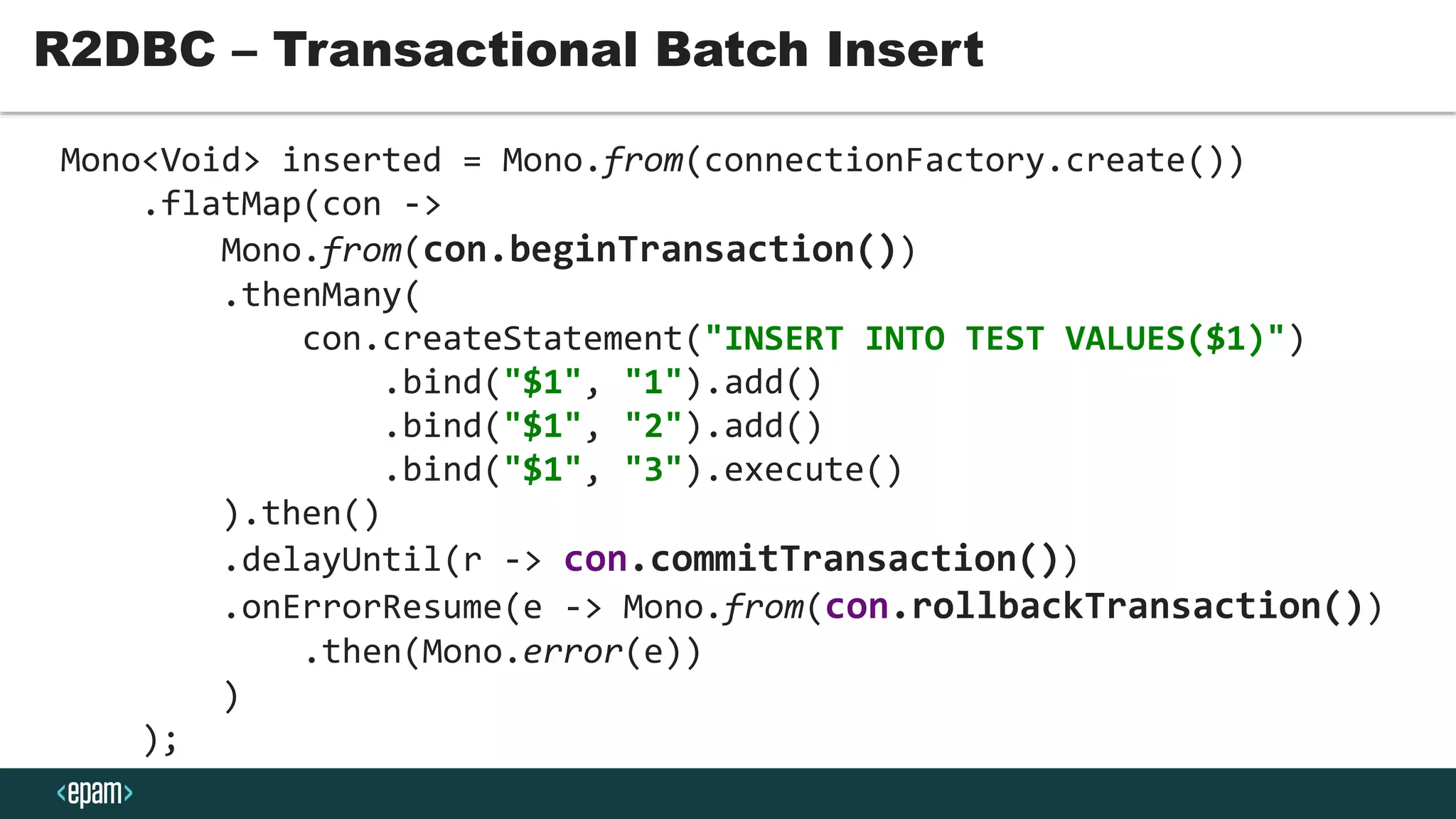

24. R2DBC – Transactional Batch Insert
Mono<Void> inserted = Mono.from(connectionFactory.create())
.flatMap(con ->
Mono.from(con.beginTransaction())
.thenMany(
con.createStatement("INSERT INTO TEST VALUES($1)")
.bind("$1", "1").add()
.bind("$1", "2").add()
.bind("$1", "3").execute()
).then()
.delayUntil(r -> con.commitTransaction())
.onErrorResume(e -> Mono.from(con.rollbackTransaction())
.then(Mono.error(e))
)
);

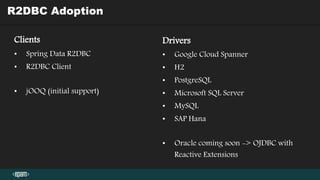

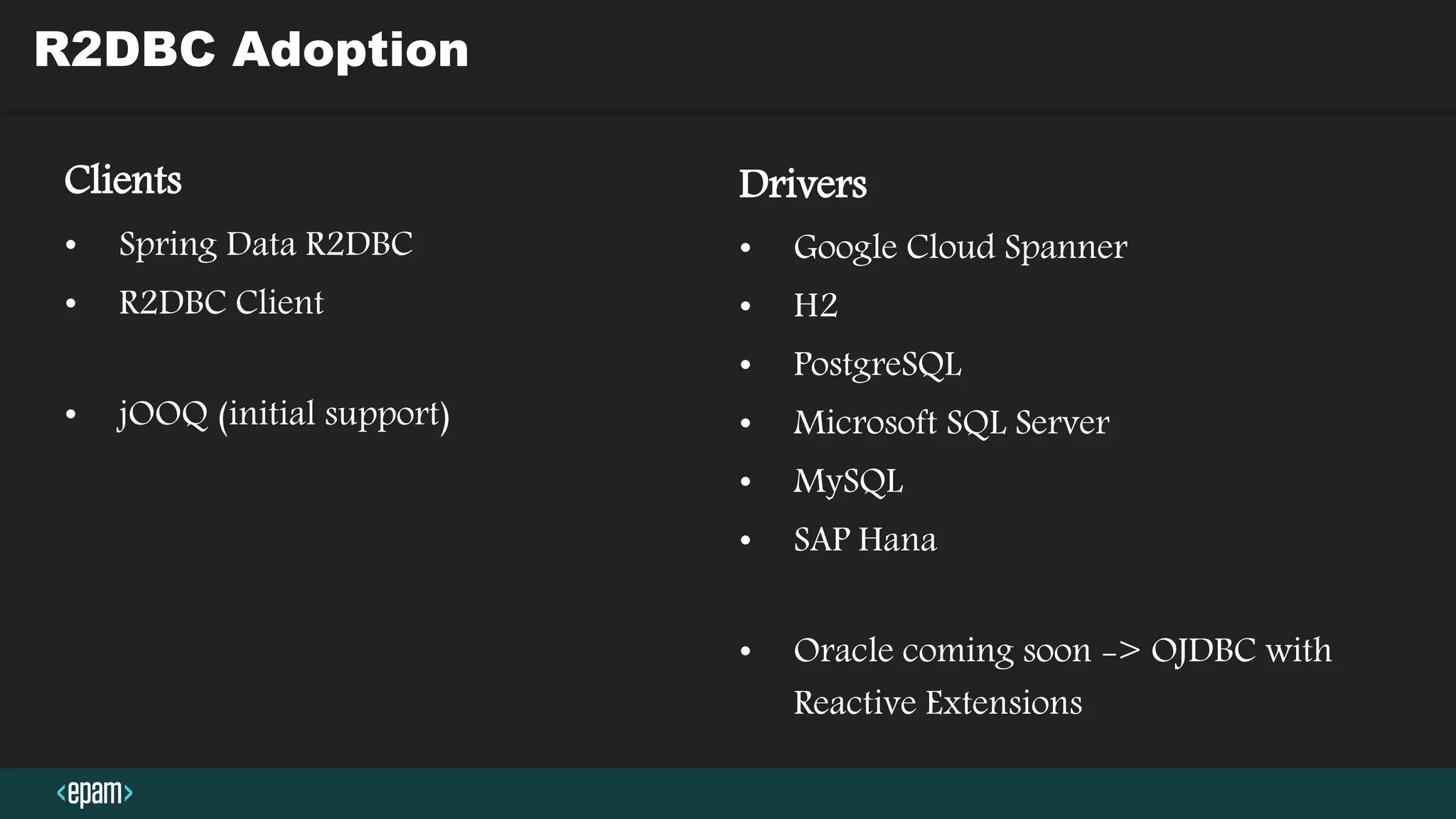

25. R2DBC Adoption
Clients
• Spring Data R2DBC
• R2DBC Client
• jOOQ (initial support)
Drivers
• Google Cloud Spanner
• H2
• PostgreSQL
• Microsoft SQL Server
• MySQL
• SAP Hana
• Oracle coming soon -> OJDBC with
Reactive Extensions

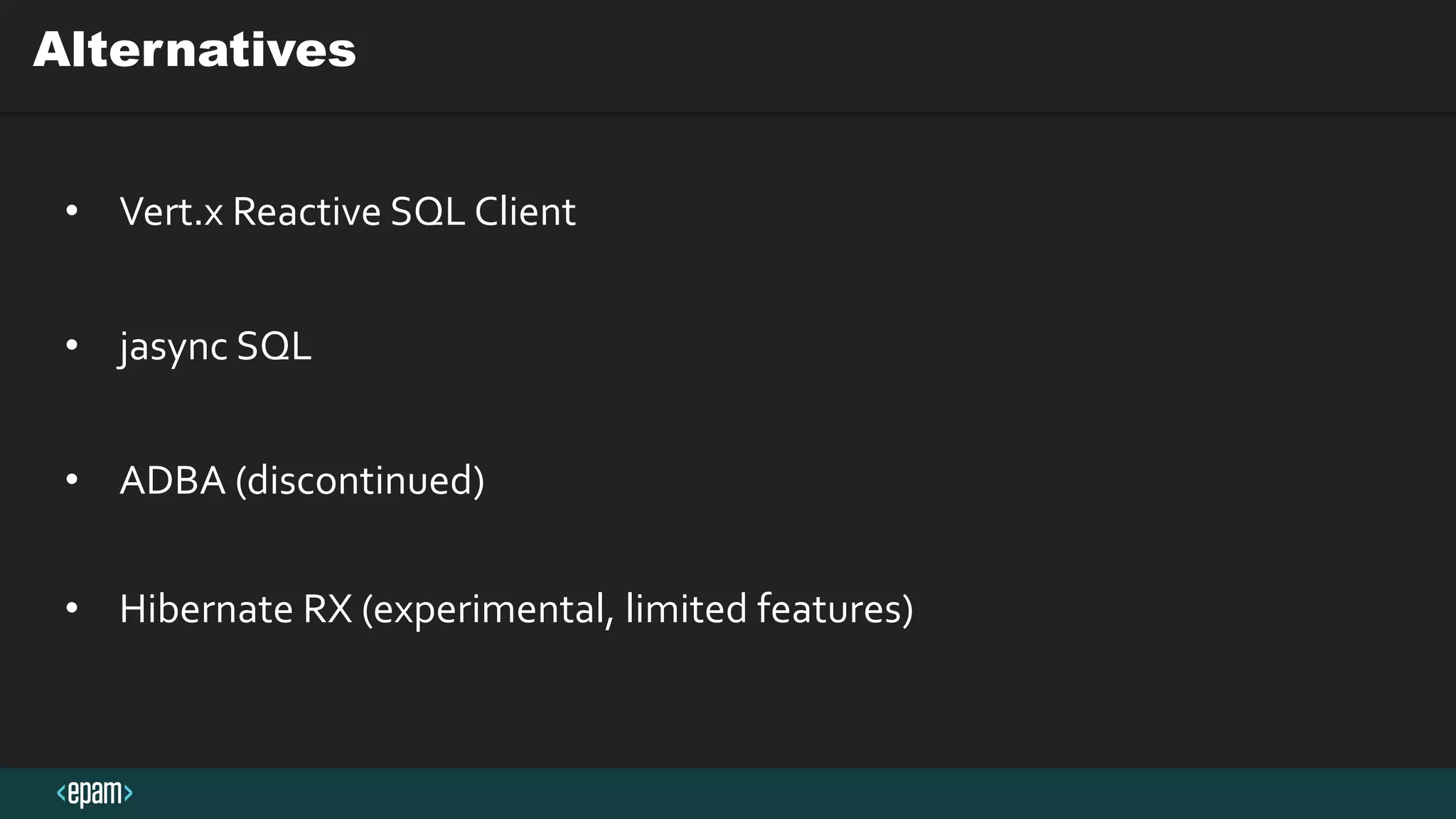

26. Alternatives
• Vert.x Reactive SQL Client
• jasync SQL
• ADBA (discontinued)
• Hibernate RX (experimental, limited features)

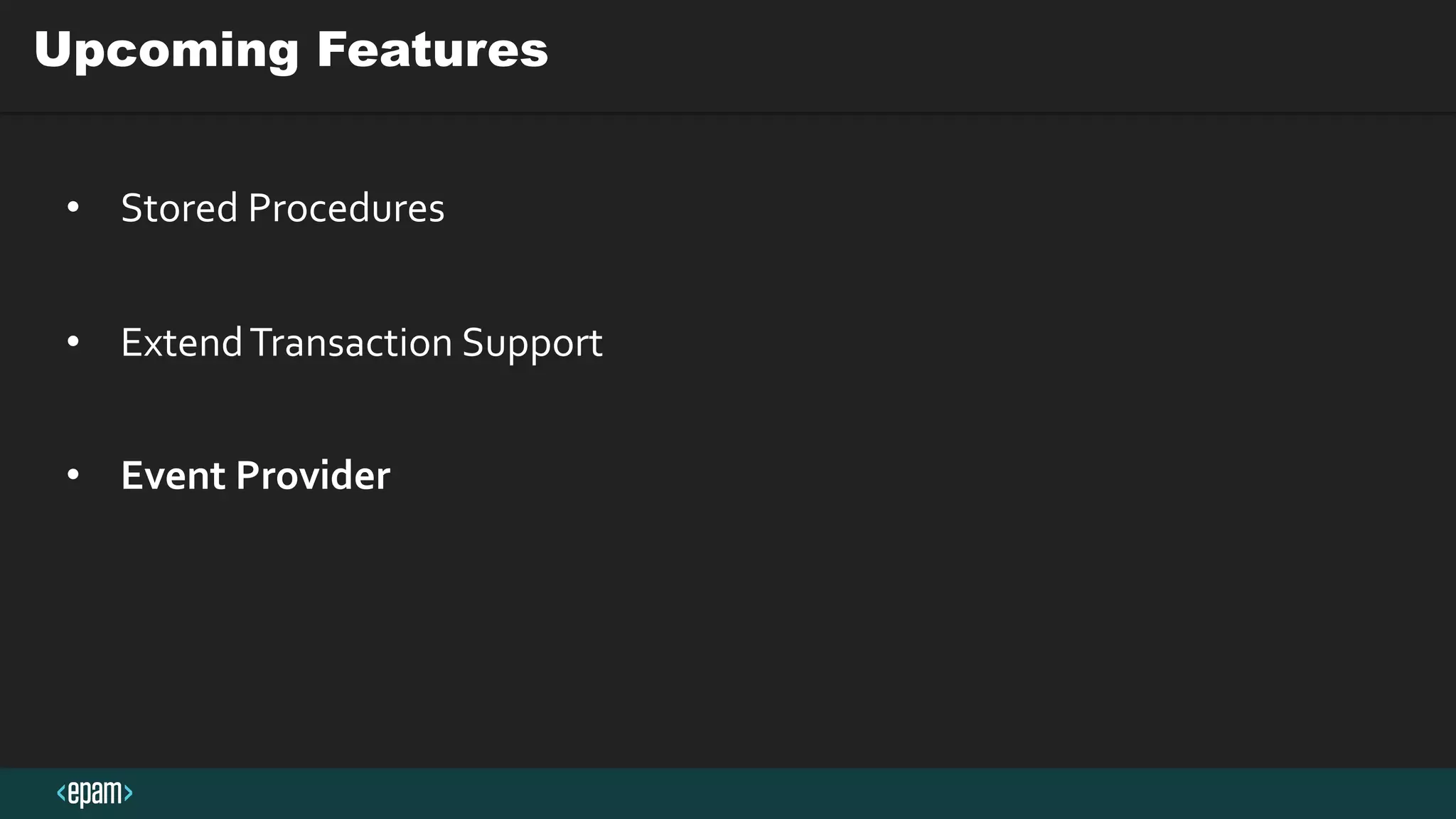

27. Upcoming Features
• Stored Procedures
• ExtendTransaction Support
• Event Provider

28. Spring Data
R2DBC
The Humane API

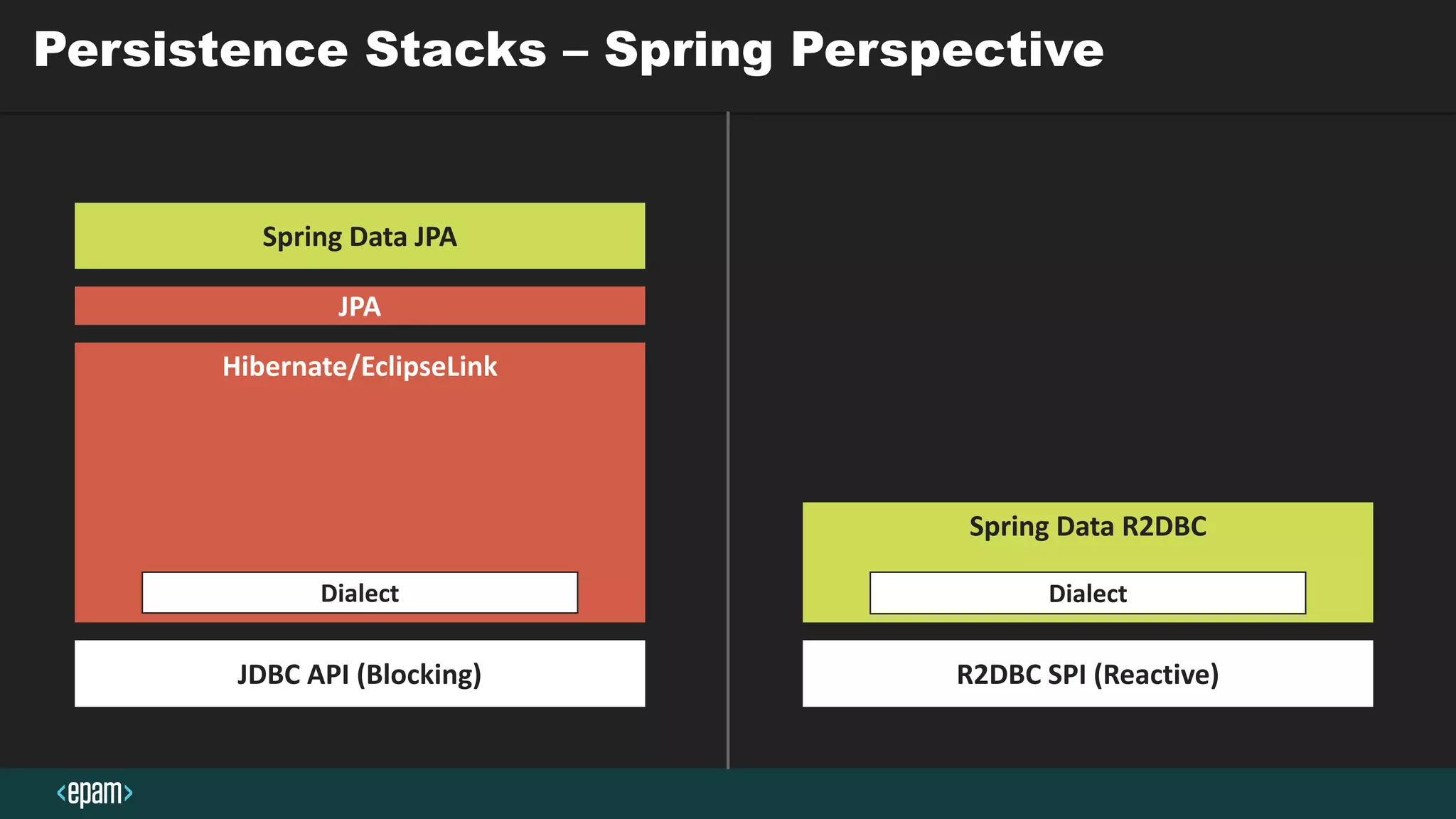

29. Persistence Stacks – Spring Perspective
JDBC API (Blocking)
Hibernate/EclipseLink
R2DBC SPI (Reactive)
Spring Data R2DBC
Spring Data JPA
Dialect
JPA
Dialect

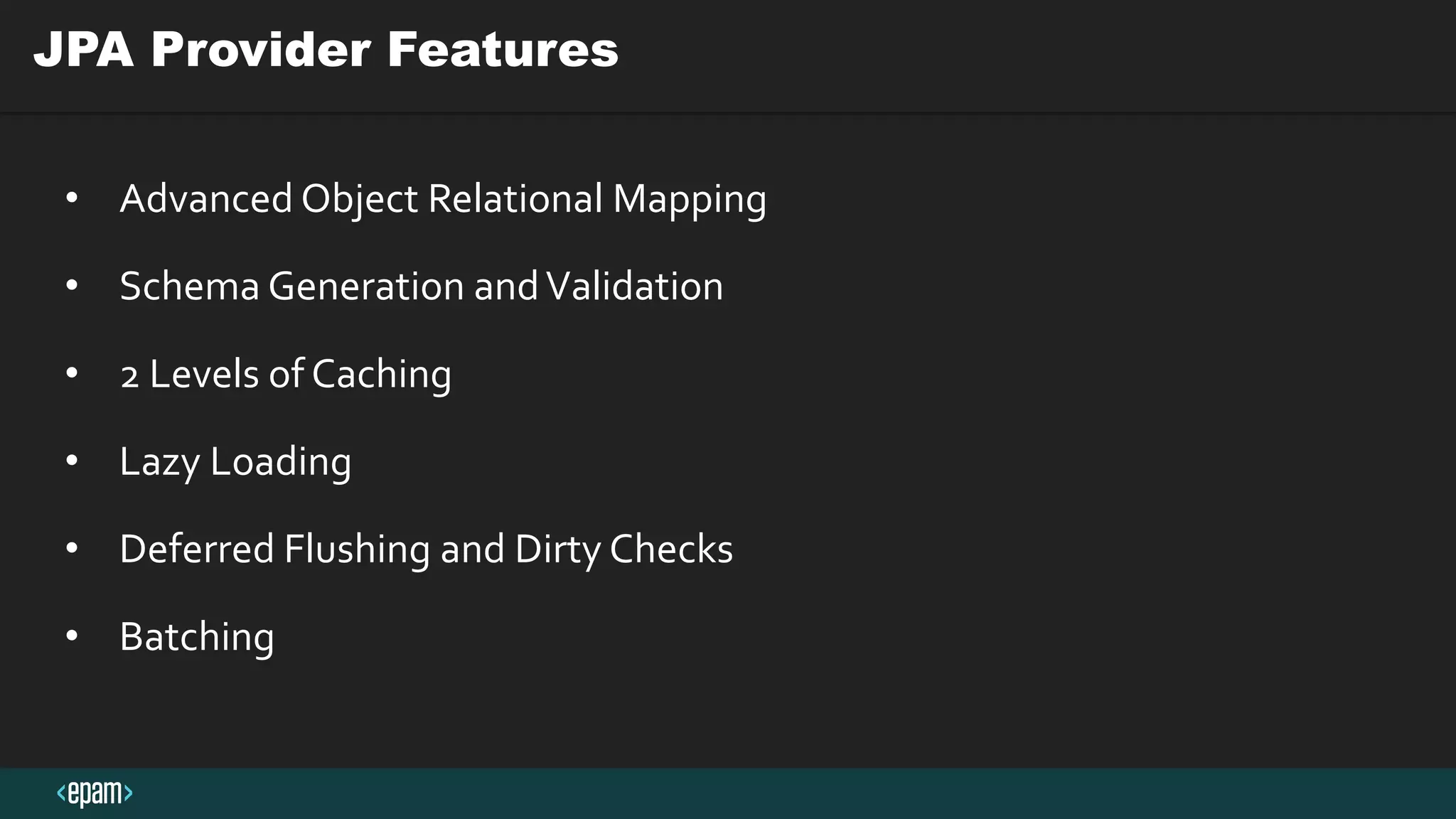

30. JPA Provider Features
• Advanced Object Relational Mapping
• Schema Generation andValidation
• 2 Levels of Caching
• Lazy Loading
• Deferred Flushing and Dirty Checks
• Batching

31. What Queries
Would Be
Executed?

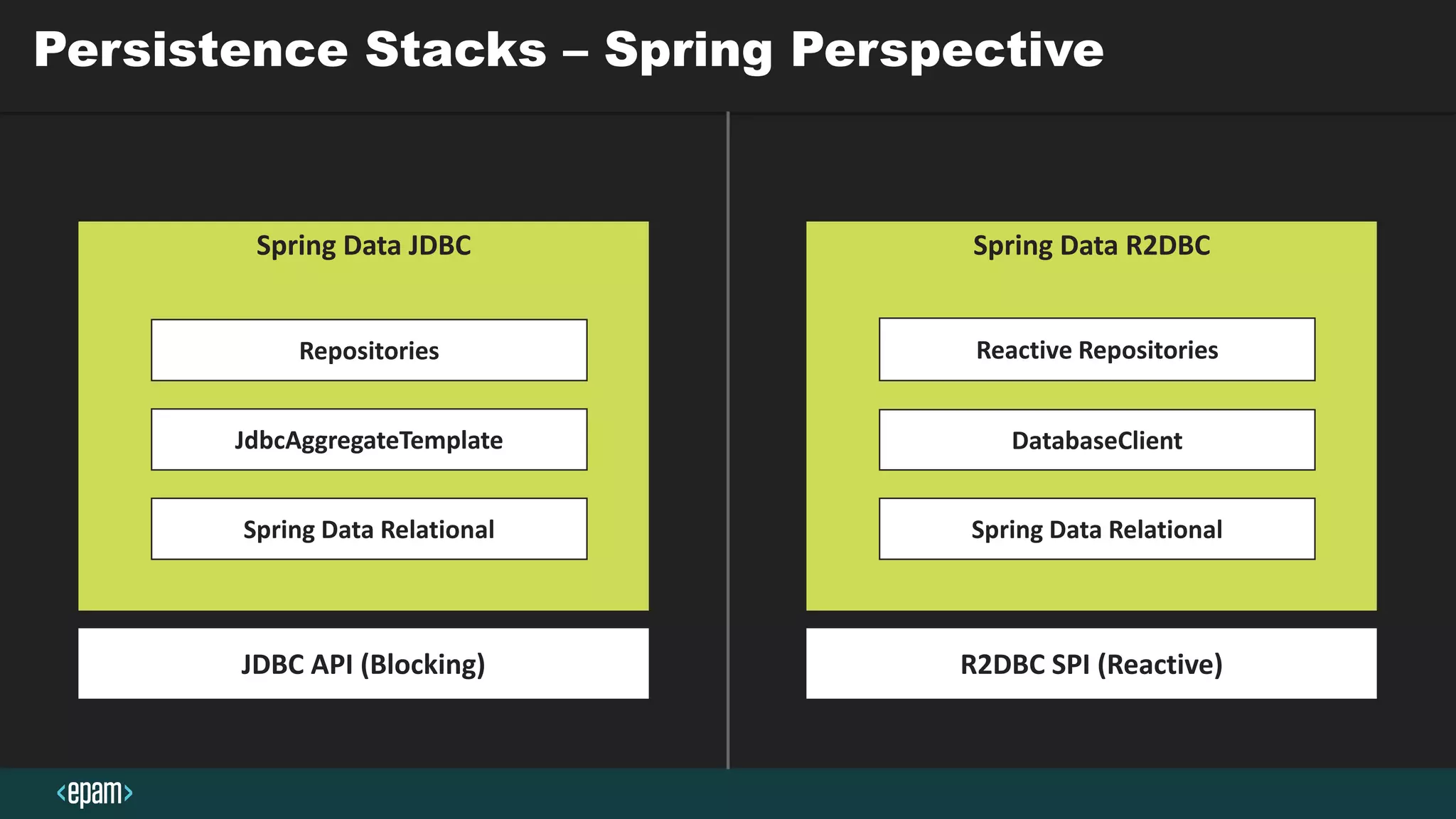

32. Spring Data JDBC
Persistence Stacks – Spring Perspective
JDBC API (Blocking) R2DBC SPI (Reactive)
Spring Data R2DBC
Spring Data Relational Spring Data Relational
JdbcAggregateTemplate
Repositories
DatabaseClient
Reactive Repositories

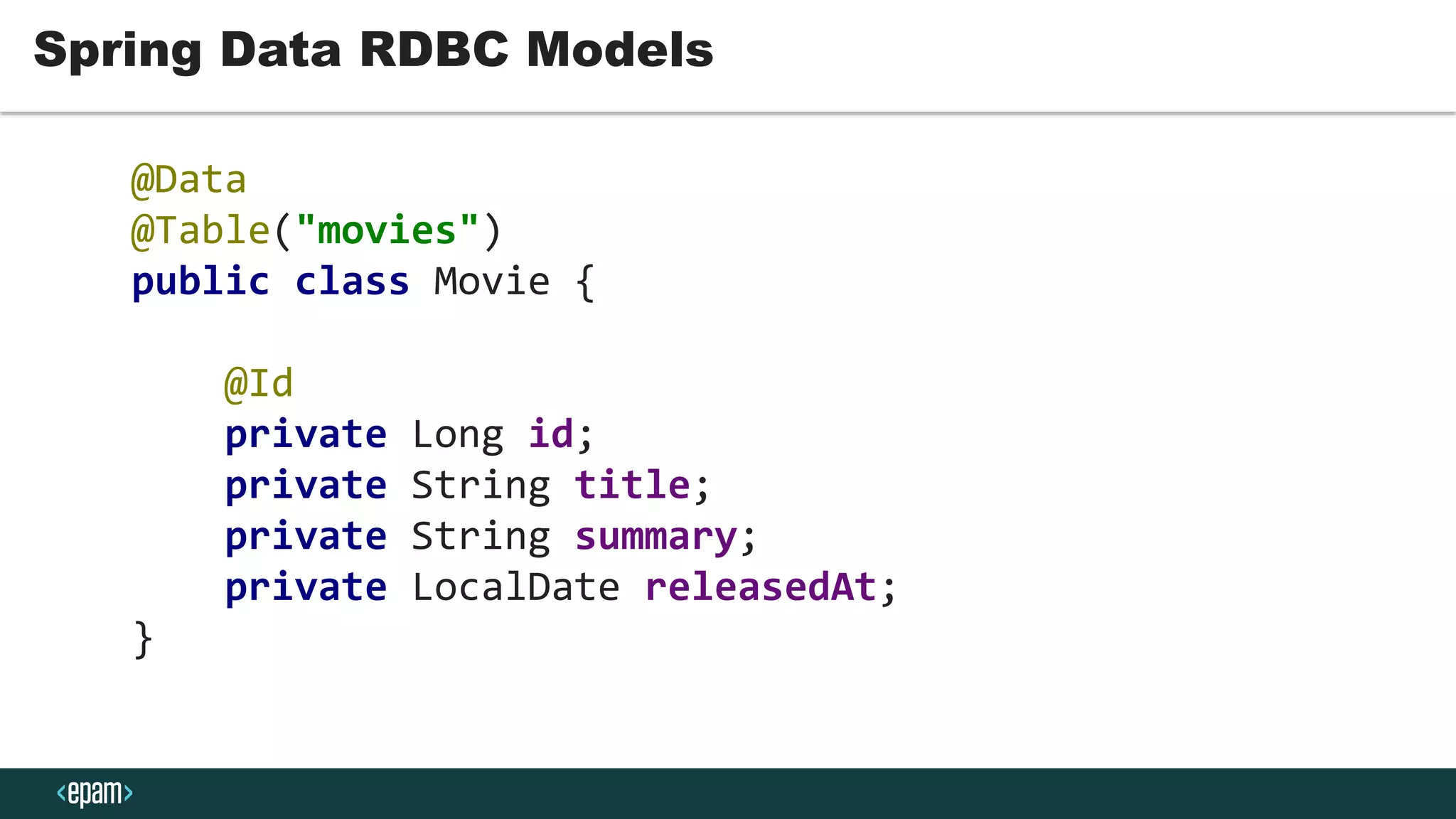

33. Spring Data RDBC Models
@Data
@Table("movies")
public class Movie {
@Id
private Long id;
private String title;
private String summary;
private LocalDate releasedAt;
}

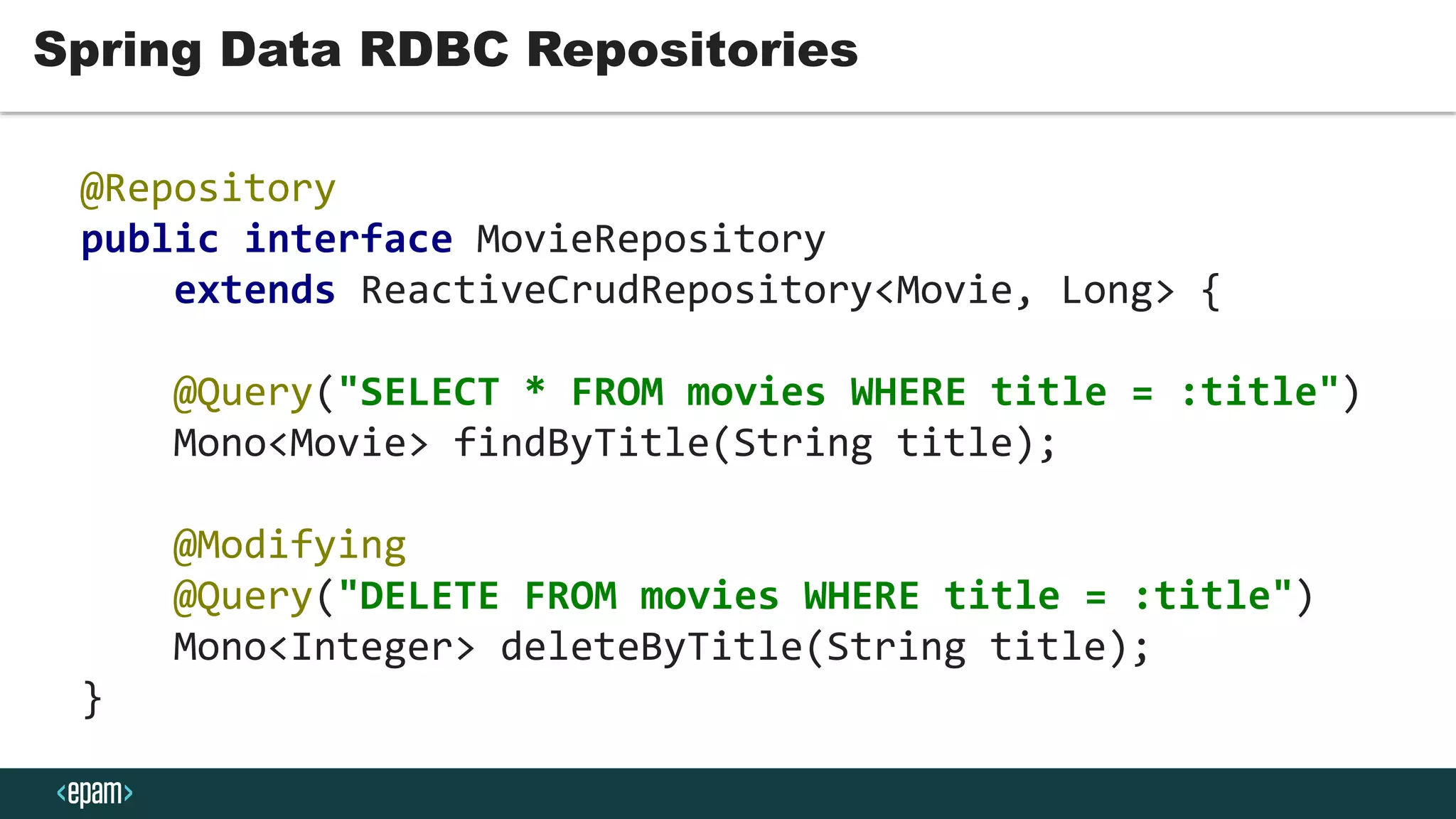

34. Spring Data RDBC Repositories
@Repository
public interface MovieRepository
extends ReactiveCrudRepository<Movie, Long> {
@Query("SELECT * FROM movies WHERE title = :title")
Mono<Movie> findByTitle(String title);
@Modifying
@Query("DELETE FROM movies WHERE title = :title")
Mono<Integer> deleteByTitle(String title);
}

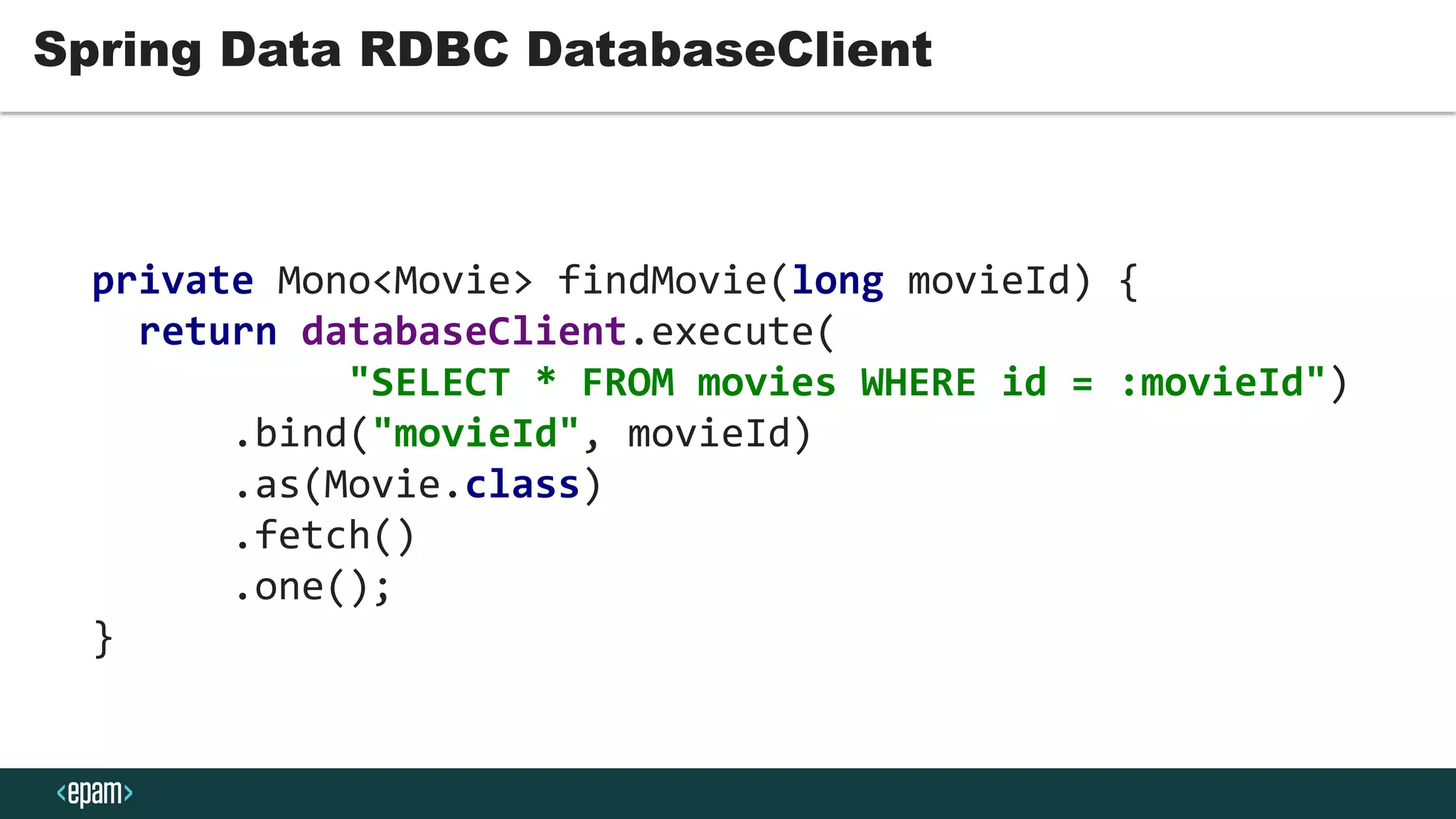

35. Spring Data RDBC DatabaseClient
private Mono<Movie> findMovie(long movieId) {
return databaseClient.execute(
"SELECT * FROM movies WHERE id = :movieId")
.bind("movieId", movieId)
.as(Movie.class)
.fetch()
.one();
}

36. How About
Relations?

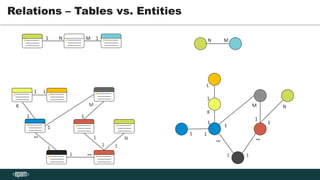

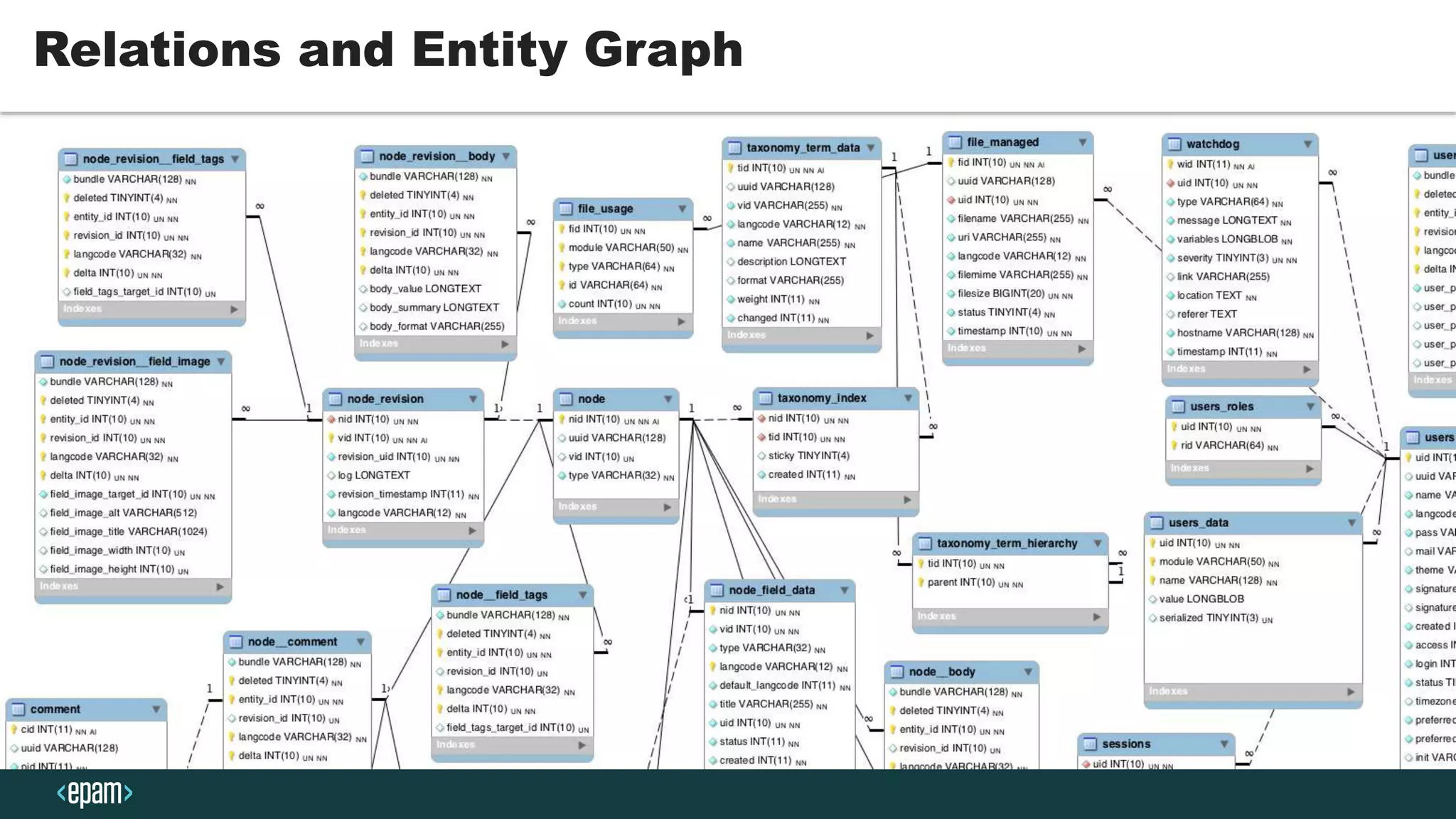

37. Relations and Entity Graph

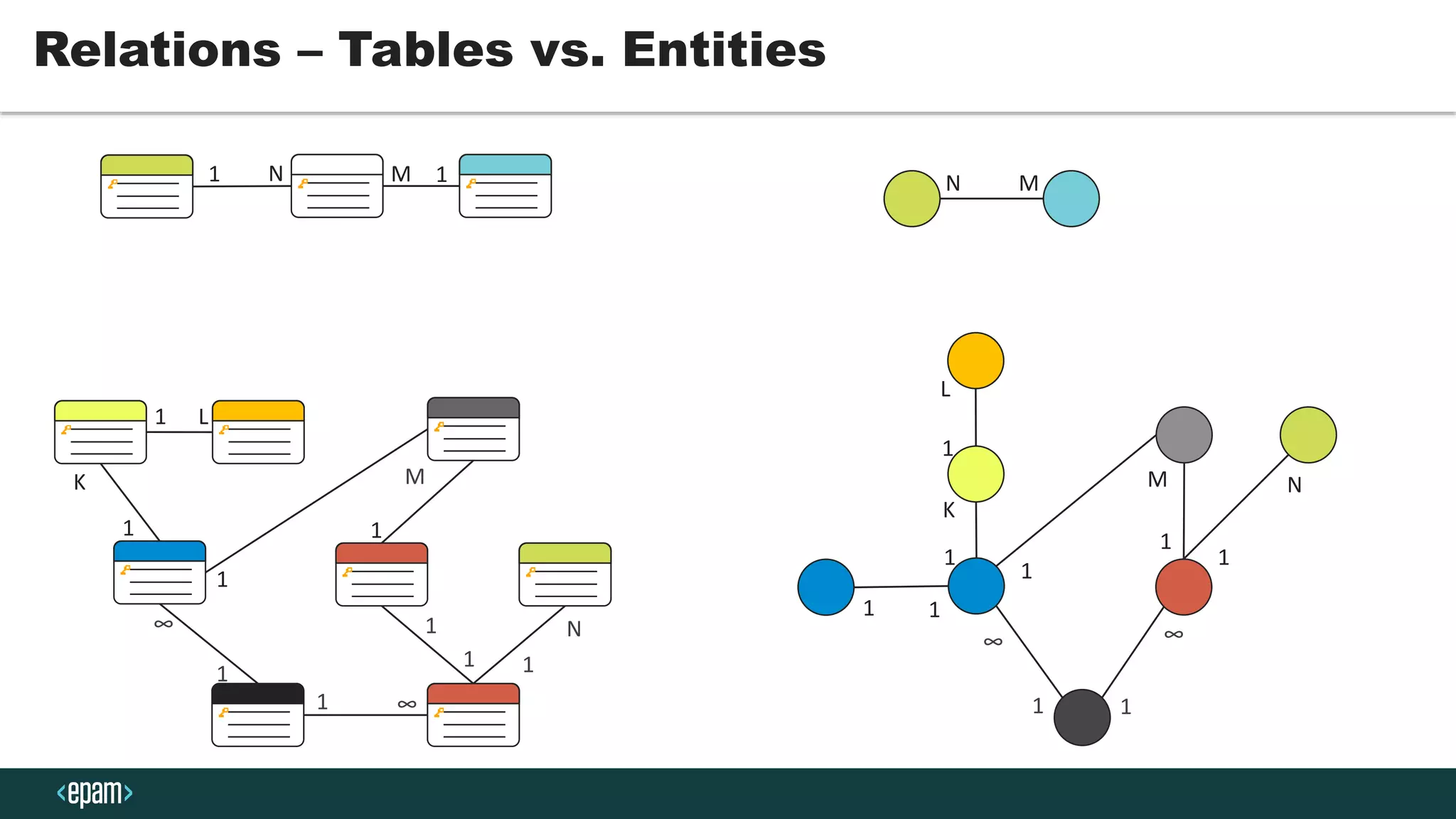

38. Relations – Tables vs. Entities
1 N M 1
∞1
1
∞
N M
1
N
1
1
M
1
M
1
N
1
11
1
K
L
1
1
∞
1
∞
1
K
L1
1
1

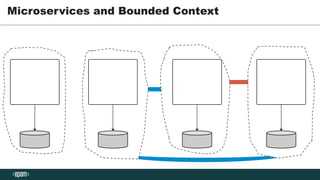

39. Microservices and Bounded Context

40. Aggregates

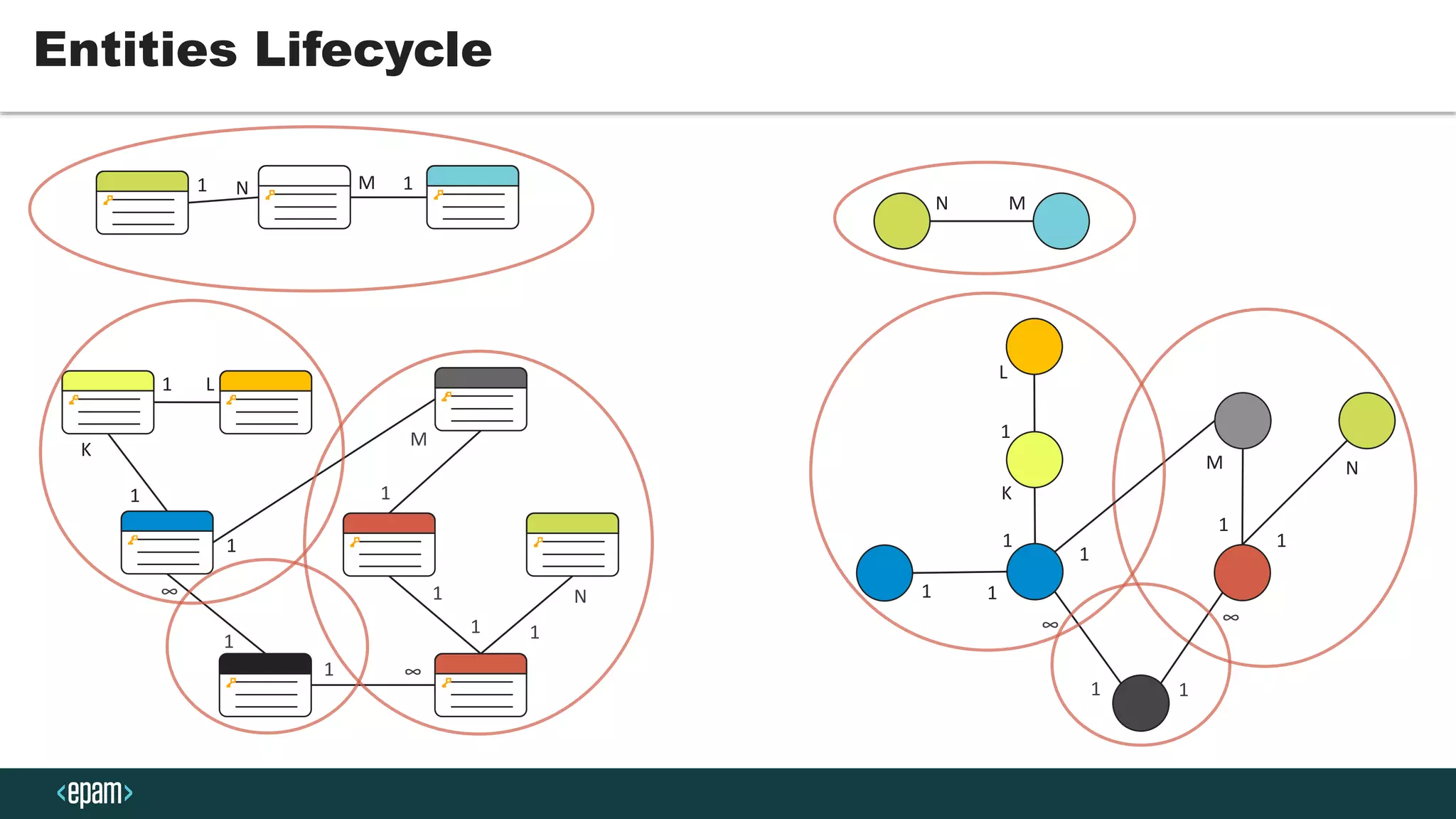

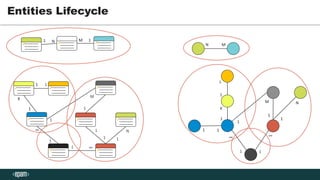

41. Entities Lifecycle
1 N M 1
∞1
1
∞
N M
1
N
1
1
M
1
M
1
N
1
11
1
K
L
1
1
∞
1
∞
1
K
L1
1
1

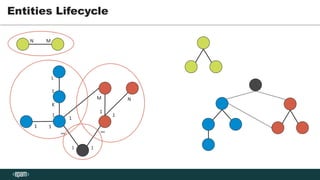

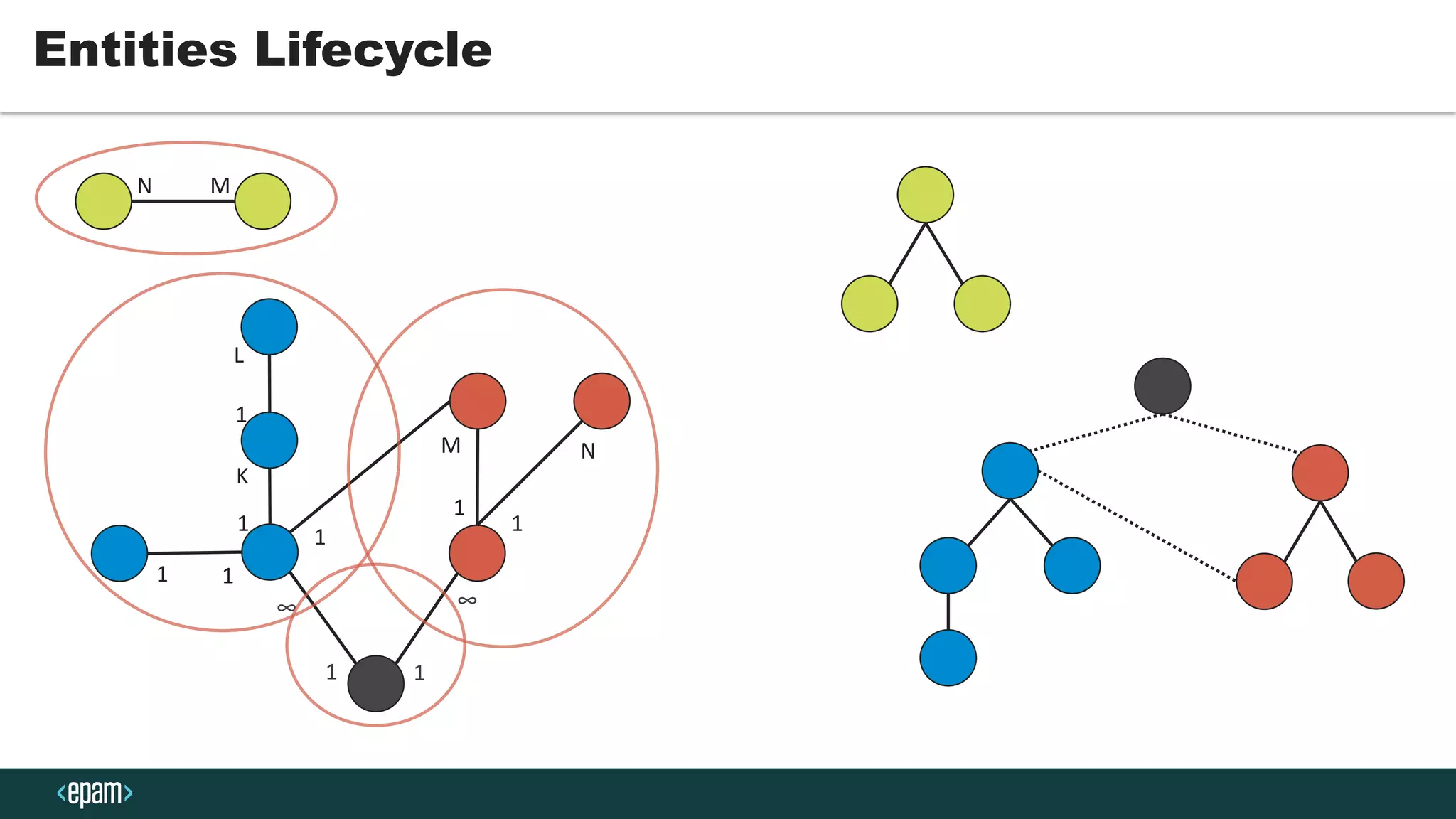

42. Entities Lifecycle
N M
1
M
1
N
1
11
1
K
L
1
1
∞
1
∞

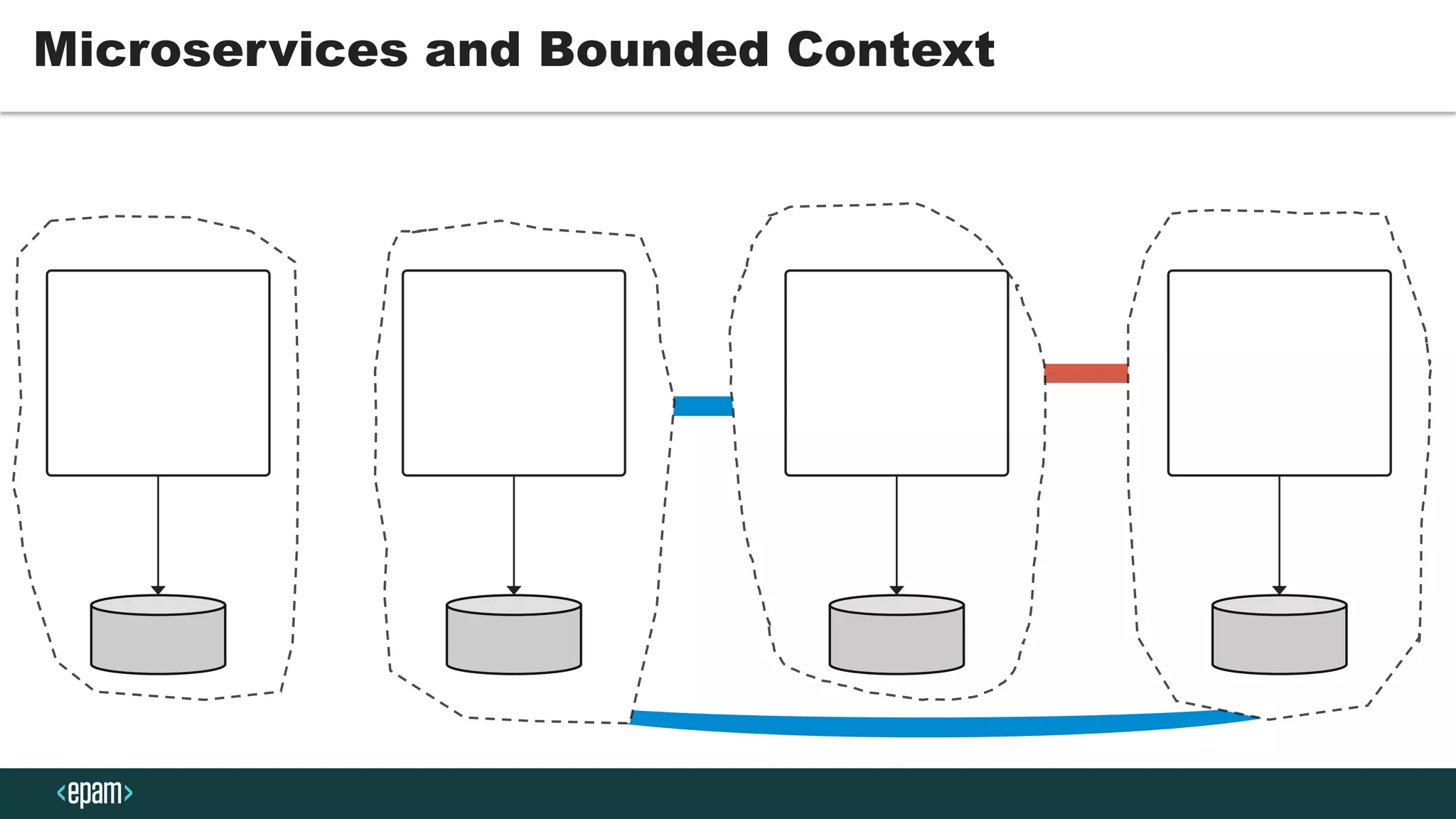

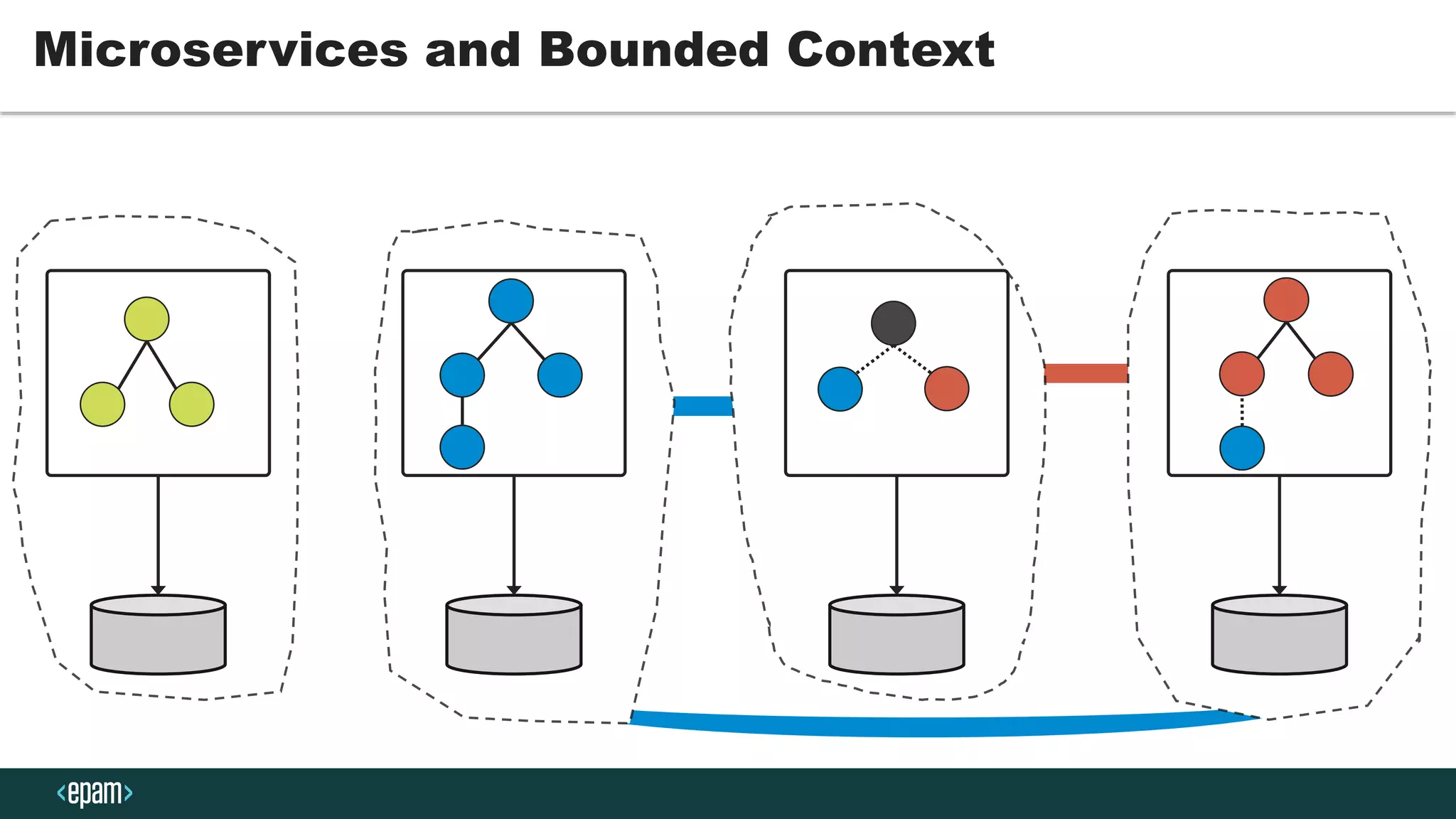

43. Microservices and Bounded Context

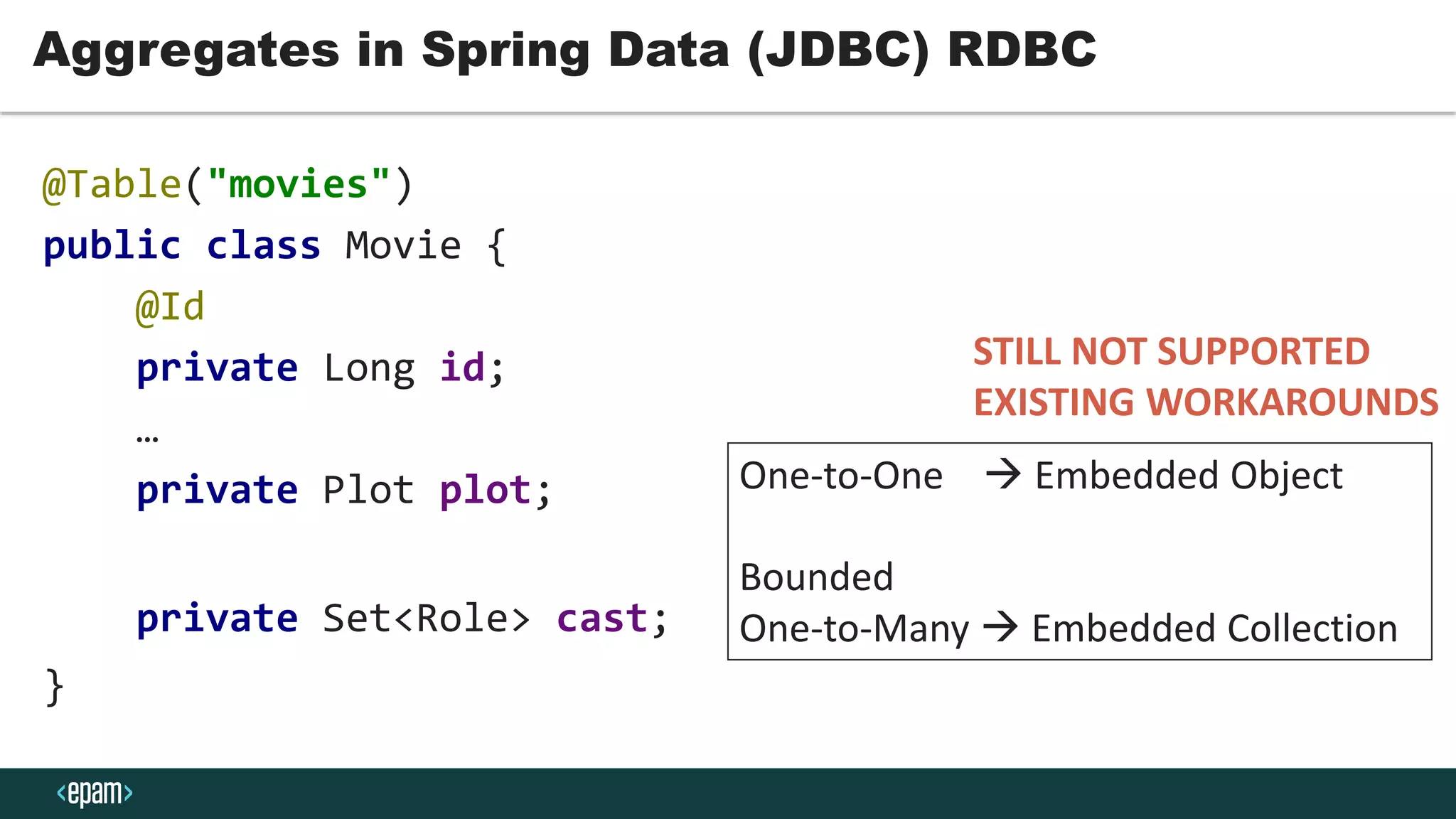

44. Aggregates in Spring Data (JDBC) RDBC
@Table("movies")
public class Movie {
@Id
private Long id;
…
private Plot plot;
private Set<Role> cast;
}
One-to-One  Embedded Object
Bounded
One-to-Many  Embedded Collection
STILL NOT SUPPORTED
EXISTING WORKAROUNDS

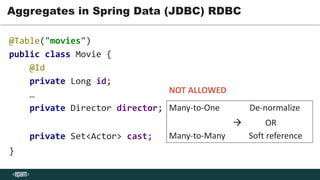

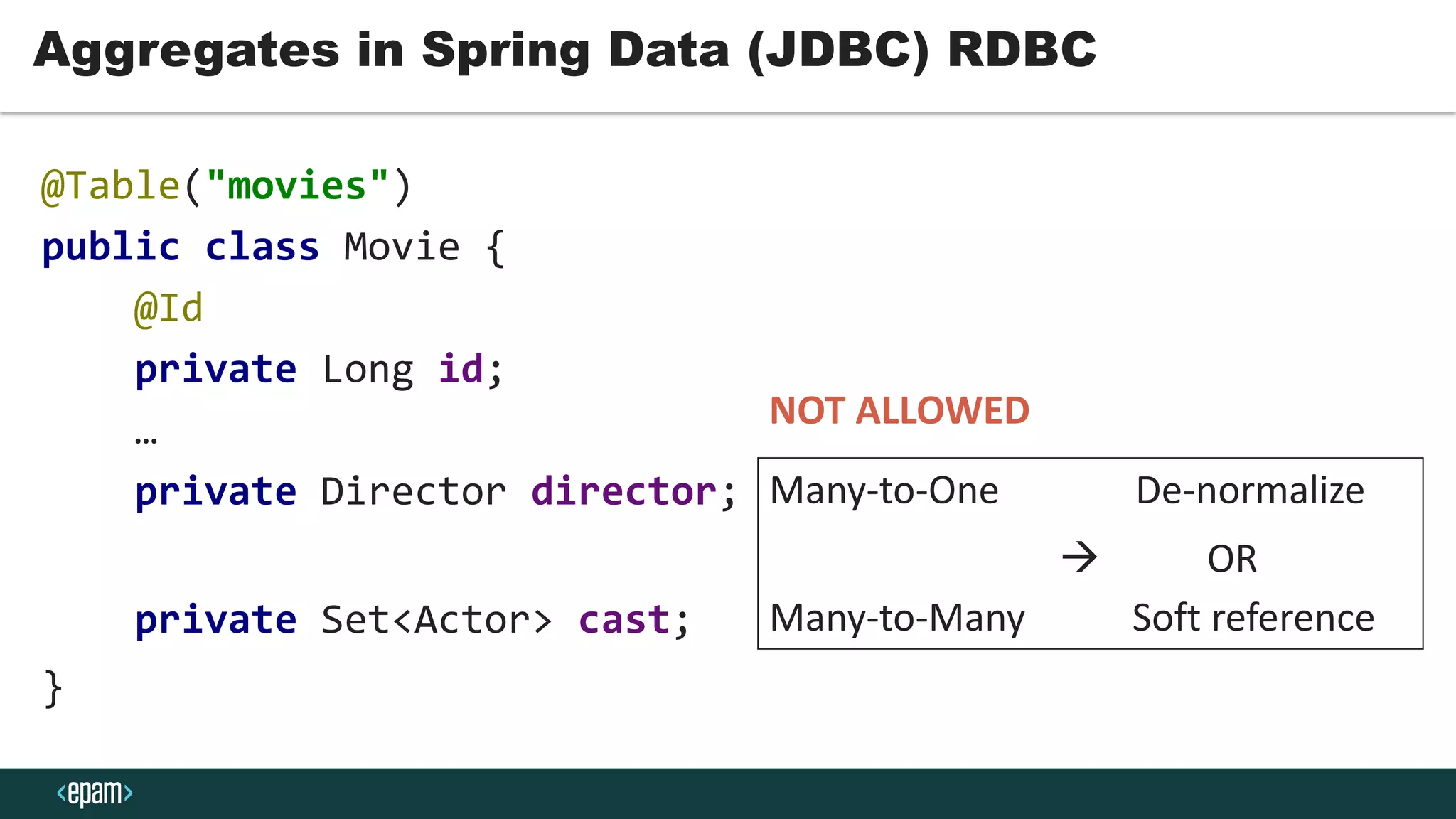

45. Aggregates in Spring Data (JDBC) RDBC
@Table("movies")
public class Movie {
@Id
private Long id;
…
private Director director;
private Set<Actor> cast;
}
Many-to-One De-normalize
 OR
Many-to-Many Soft reference
NOT ALLOWED

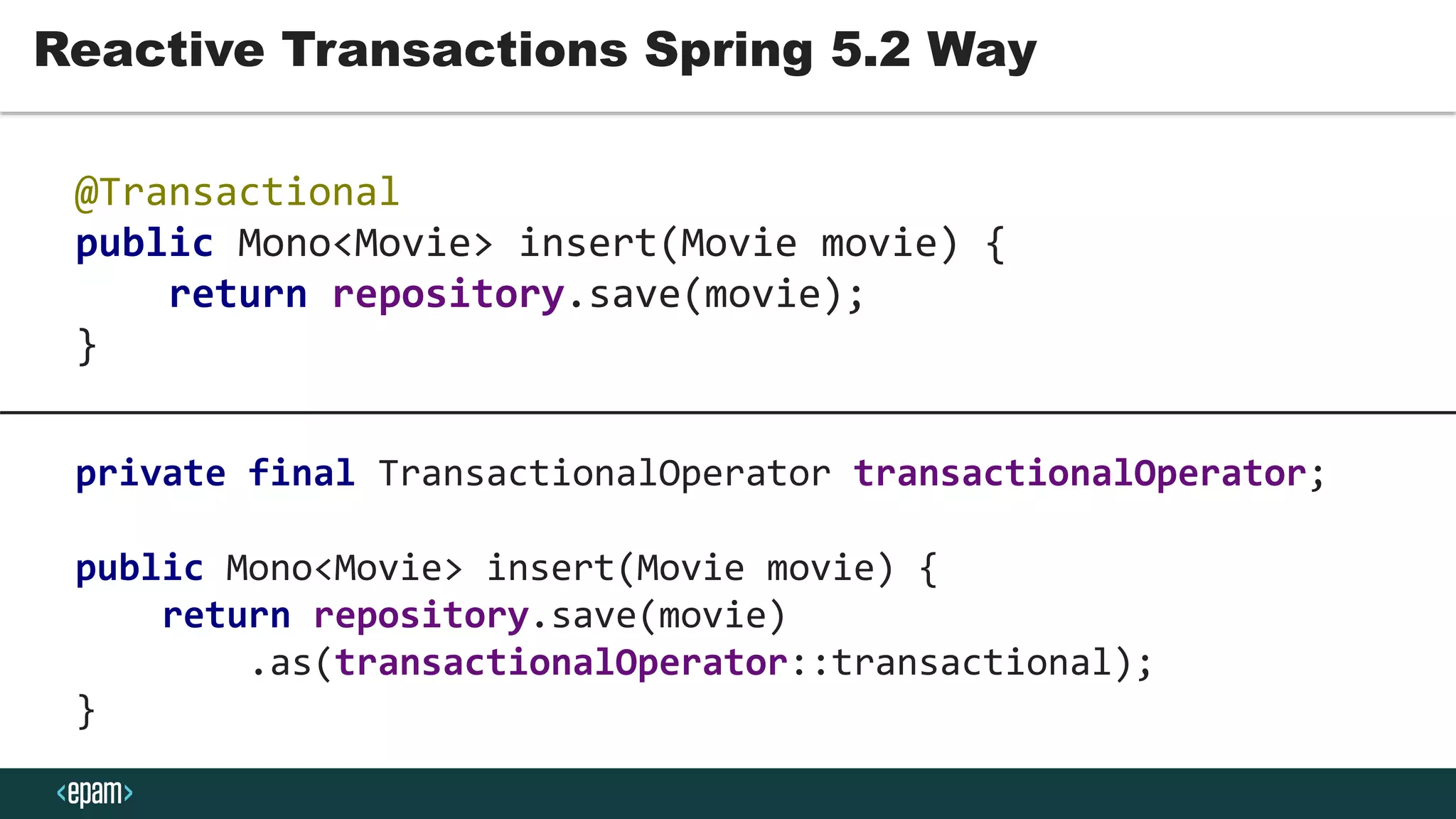

46. Reactive Transactions Spring 5.2 Way
@Transactional
public Mono<Movie> insert(Movie movie) {
return repository.save(movie);
}
private final TransactionalOperator transactionalOperator;
public Mono<Movie> insert(Movie movie) {
return repository.save(movie)
.as(transactionalOperator::transactional);
}

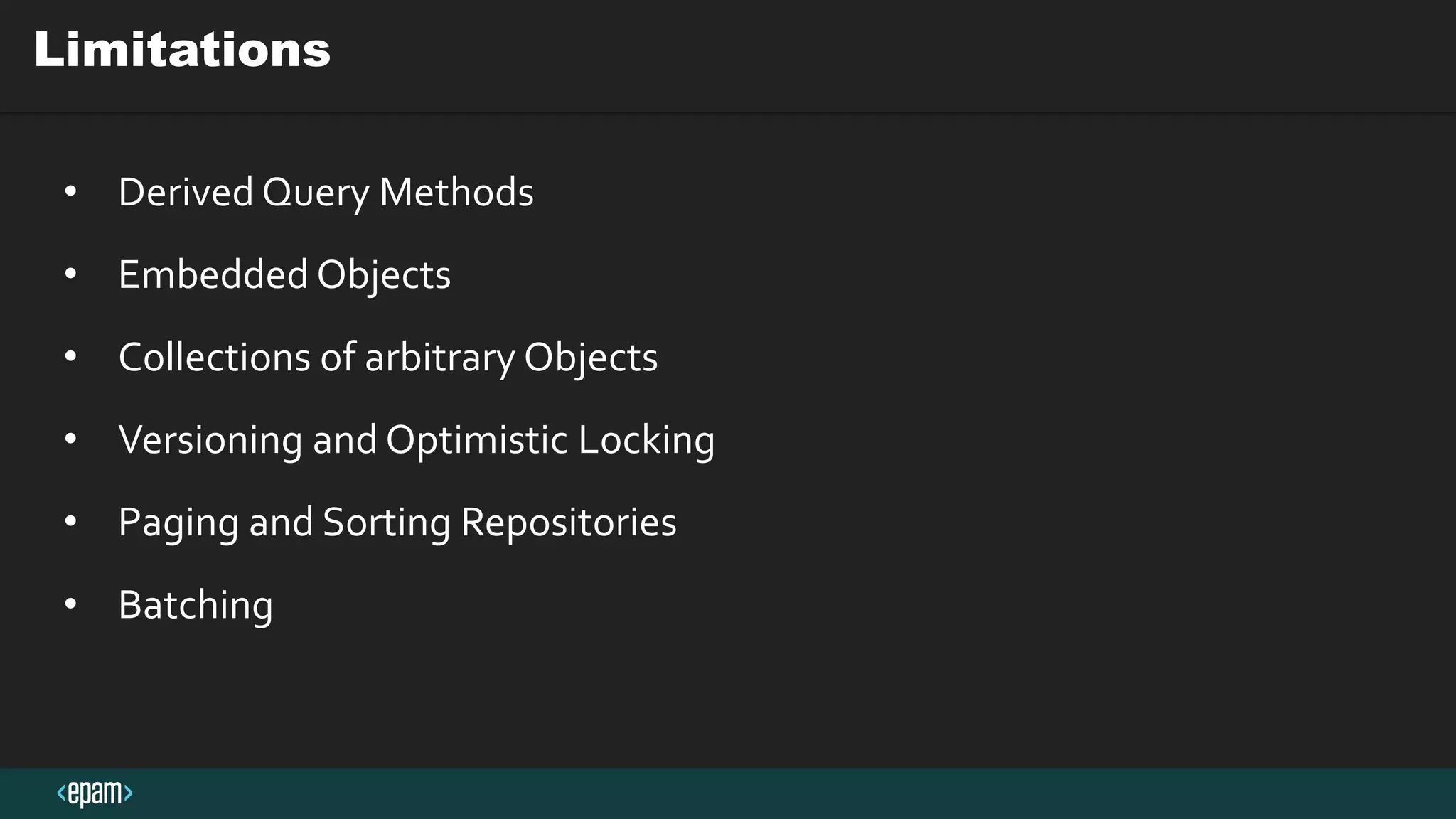

47. Limitations
• Derived Query Methods
• Embedded Objects
• Collections of arbitrary Objects
• Versioning and Optimistic Locking
• Paging and Sorting Repositories
• Batching

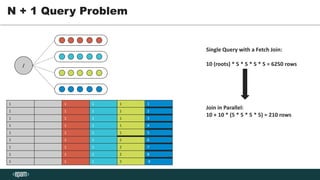

48. N + 1 Query Problem
/
1 1 1 1 1
1 1 1 1 2
1 1 1 1 3
1 1 1 1 4
1 1 1 1 5
1 1 1 2 6
1 1 1 2 7
1 1 1 2 8
1 1 1 2 9
Single Query with a Fetch Join:
10 (roots) * 5 * 5 * 5 * 5 = 6250 rows
Join in Parallel:
10 + 10 * (5 * 5 * 5 * 5) = 210 rows

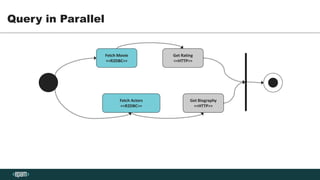

49. Query in Parallel
Fetch Actors
<<R2DBC>>
Fetch Movie
<<R2DBC>>
Get Rating
<<HTTP>>
Get Biography
<<HTTP>>

50. Q/A
Thank You for Your Attention!
