GN02 ADM presentation
- 2.

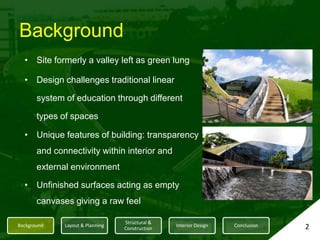

- 3. BackgroundSite formerly avalley left as green lungDesign challenges traditional linear system of education through different types of spacesUnique features of building: transparency and connectivity within interior and external environmentUnfinished surfaces acting as empty canvases giving a raw feel2

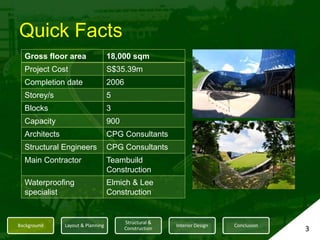

- 4.
- 5. Architect: CPG ConsultantsLeadinginfrastructure, building development and management services provider in Asia-Pacific regionOnly firm in Singapore with an in-house multi-disciplinary group of professionals dedicated solely to developing facilities for educationTreads frontier of infrastructural and architectural design trendsOne of most distinctive design niches is environmentalism4
- 6. Architect: CPG ConsultantsSMUCampus- St Andrews Village, RJC, NUS, NIE, etcSingapore Botanic Gardens- Gardens by the Bay, SungeiBuloh Wetland Reserve, etcEsplanade- SAM, National Art Museum, Asian Civilizations Museum5
- 7. esignShare 2007Award (Honors)One of world’s most widely recognised programs focusing on design of innovative learning environments Program extends beyond architecture, focusing onLearningLearnersHow the built or natural environment provides rich learning opportunities 6
- 8. Challenges Faced Buildingthat symbolizes what an art, design and media school stands forUniquenessCreativityMaking a design that blends in with landscapeConstruction of roof 7
- 9.
- 10.

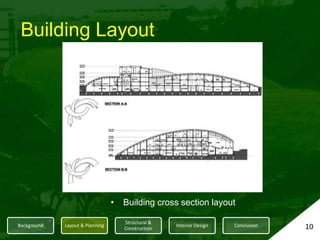

- 11. Building LayoutBuilding crosssection layout10
- 12.

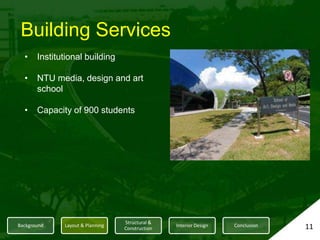

- 13. NTU media, designand art school
- 14. Capacity of 900students11
- 15.
- 16.

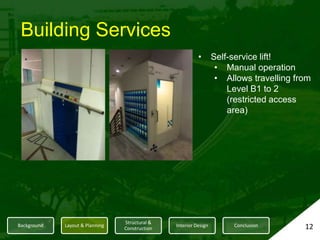

- 17. Allows travelling fromLevel B1 to 2 (restricted access area)12

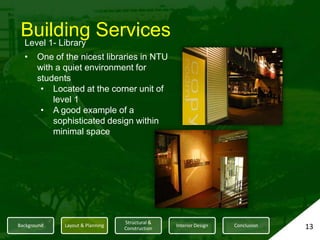

- 18. Building ServicesLevel 1-LibraryOne of the nicest libraries in NTU with a quiet environment for students
- 19. Located at thecorner unit of level 1
- 20. A good exampleof a sophisticated design within minimal space13

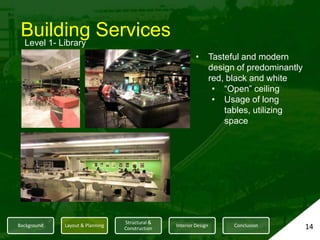

- 21. Building ServicesLevel 1-LibraryTasteful and modern design of predominantly red, black and white
- 22.
- 23. Usage of longtables, utilizing space14

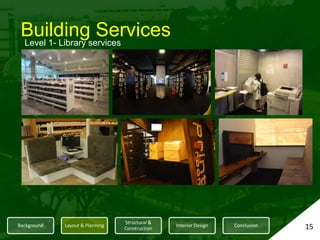

- 24. Building ServicesLevel 1-Library services15

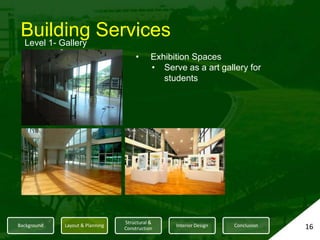

- 25. Building ServicesLevel 1-GalleryExhibition Spaces
- 26. Serve as aart gallery for students16

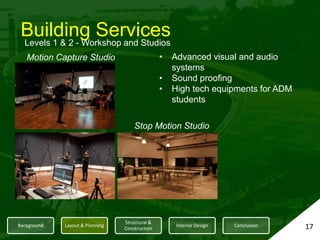

- 27. Building ServicesLevels 1& 2 - Workshop and StudiosAdvanced visual and audio systems
- 28.
- 29. High tech equipmentsfor ADM students Motion Capture StudioStop Motion Studio17
- 30. Building ServicesLevels 1& 2 - Workshop and StudiosPainting StudioDigital Recording StudioAnalog Recording Studio18

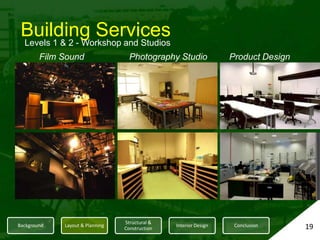

- 31. Building ServicesLevels 1& 2 - Workshop and StudiosFilm Sound StagePhotography StudioProduct Design Studios19

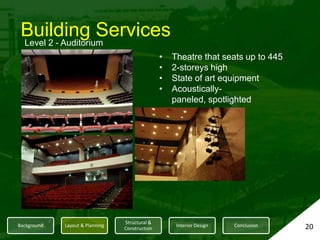

- 32. Building ServicesLevel 2- AuditoriumTheatre that seats up to 445
- 33.
- 34. State of artequipment
- 35.
- 36. Building ServicesLevels B1,1& 2 - Labs4D Foundation LabCG LabsAnimation LabAdvance Digital Photo Lab21

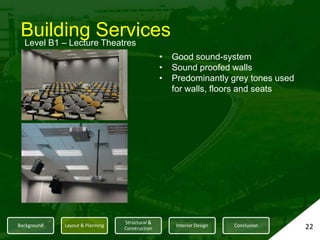

- 37. Building ServicesLevel B1– Lecture TheatresGood sound-system
- 38.
- 39. Predominantly grey tonesused for walls, floors and seats 22

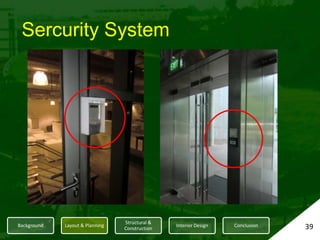

- 40. Building ServicesLevels B1& 1 – Tutorial and Crit RoomsSmall room and class sizes
- 41.

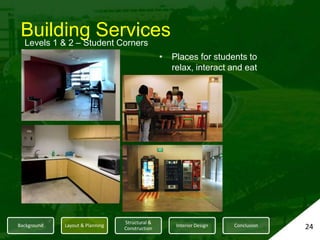

- 42. Building ServicesLevels 1& 2 – Student Corners Places for students to relax, interact and eat 24
- 43. Building ServicesLevels 2,3 & 4 – OfficesHigh ceilings
- 44.
- 45. Small windows tolet in light25

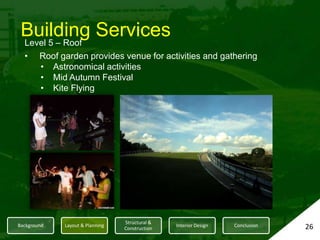

- 46. Building ServicesLevel 5– Roof Roof garden provides venue for activities and gathering
- 47.
- 48.
- 49.

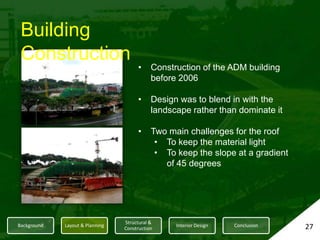

- 50. Building ConstructionConstruction ofthe ADM building before 2006
- 51. Design was toblend in with the landscape rather than dominate it
- 52. Two main challengesfor the roof
- 53. To keep thematerial light
- 54. To keep theslope at a gradient of 45 degrees27
- 55. Building Materials -Steel28

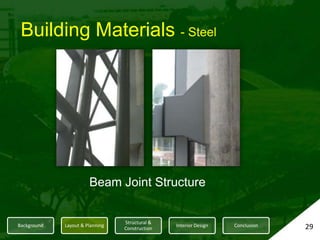

- 56. Building Materials -SteelBeam Joint Structure29

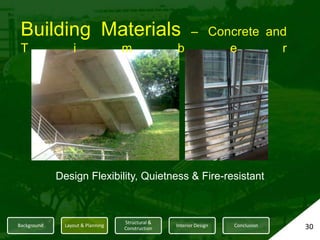

- 57. Building Materials –Concreteand TimberDesign Flexibility, Quietness & Fire-resistant30

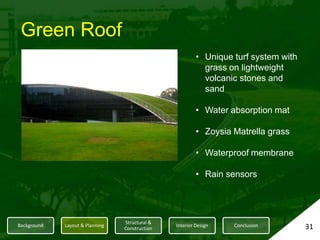

- 58. Green RoofUnique turfsystem with grass on lightweight volcanic stones and sand
- 59.
- 60.
- 61.
- 62.

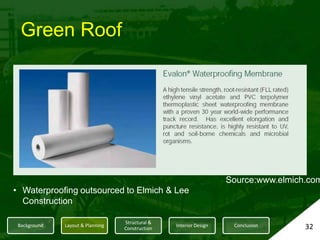

- 63. Green RoofSource:www.elmich.comWaterproofing outsourcedto Elmich & Lee Construction32

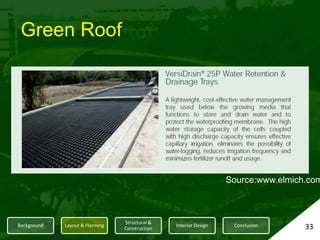

- 64.

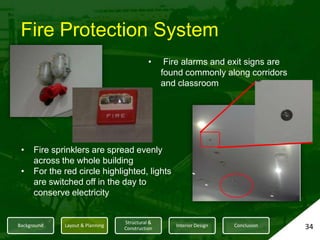

- 65. Fire Protection SystemFire alarms and exit signs are found commonly along corridors and classroom
- 66. Fire sprinklers arespread evenly across the whole building
- 67. For the redcircle highlighted, lights are switched off in the day to conserve electricity34
- 68. Fire Protection SystemHosereelsystem installed to be used in the early stages of a fire.
- 69. Consist of hosereelpumps, fire storage tank, hosereels and valves35
- 70. Fire Protection SystemFireextinguisher and fire reel found at parts of the buildings to be used in case of a fire36

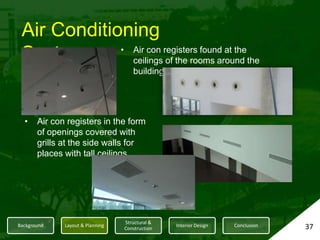

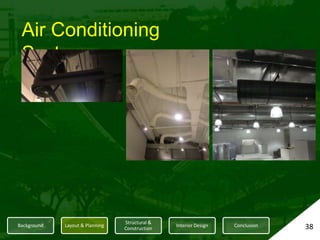

- 71. Air Conditioning SystemAircon registers found at the ceilings of the rooms around the building
- 72. Air con registersin the form of openings covered with grills at the side walls for places with tall ceilings37
- 73.
- 74.

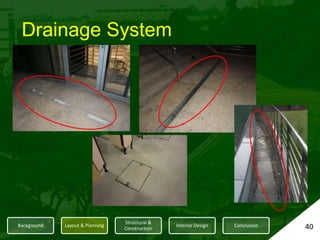

- 75.

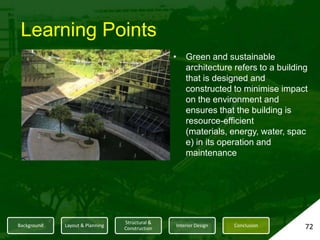

- 76.
- 77.

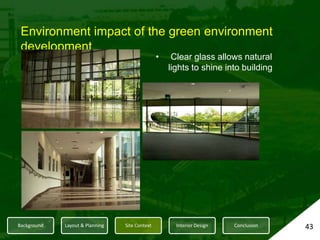

- 78. Environment impact ofthe green environment development Clear glass allows natural lights to shine into building43

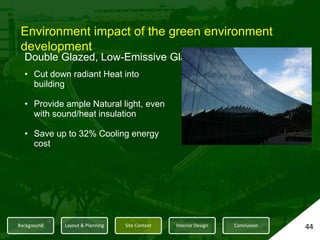

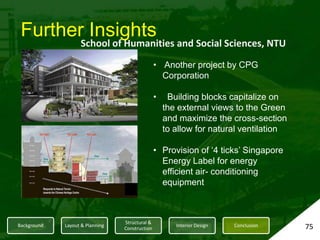

- 79. Environment impact ofthe green environment developmentDouble Glazed, Low-Emissive GlassCut down radiant Heat into building
- 80. Provide ample Naturallight, even with sound/heat insulation
- 81. Save up to32% Cooling energy cost44

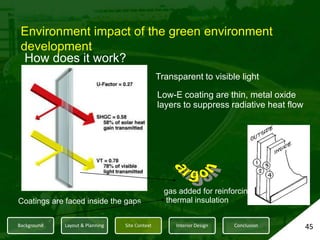

- 82. Environment impact ofthe green environment developmentHow does it work?Transparent to visible lightLow-E coating are thin, metal oxide layers to suppress radiative heat flowargongas added for reinforcingthermal insulationCoatings are faced inside the gaps45

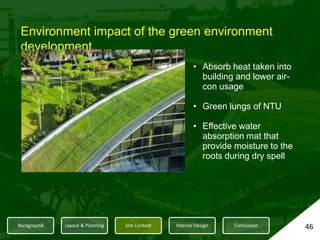

- 83. Environment impact ofthe green environment developmentAbsorb heat taken into building and lower air-con usage

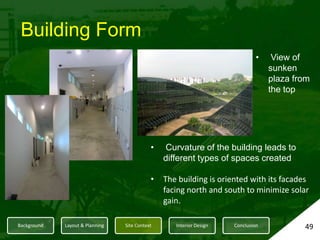

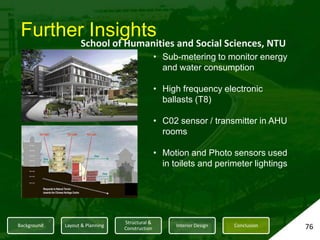

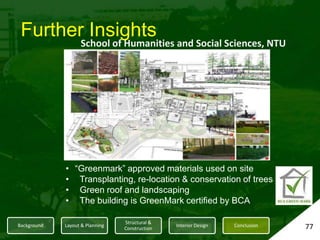

- 84.
Editor's Notes

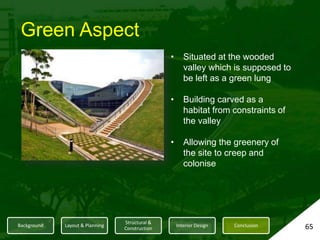

- #4 The site is a wooded valley which was supposed to be left as a green lung in the master plan of the 200-hectare university campus. The designer, however, carved a habitat from the constraints of the valley. And instead of imposing a building onto the landscape, we let the landscape plays a critical role in moulding the building. It allows the original greenery of the site to creep and colonise the building, creating “non-building” in the overall setting.The building design challenges the traditional linear system of education with a clear teacher-student arrangement. Here, we create different types of spaces – from the formal auditorium seating to the more informal studios, lobbies, passageways and breakout lounges. There are also cosy outdoor corners, a sunken plaza formed by the embracing arms of the building and the turfed roofs.Together, these provide a variety of spaces for students to interact, explore and learn as well as display their creative works.A unique feature of the building is its transparency and connectivity – both within the interior spaces and with the external environment. There is a great sense of continuity in the interior – right from the entrance to the main foyer to various spaces inside and right into the turfed roofs. Internal glass walls enhance this visual connectivity and flow, allowing one to see beyond rooms thus promoting interaction and creative exchange.As this is an art school, it was decided to give it a very raw feel. The designers deliberately left a lot of surfaces, both indoors and outdoors, unfinished. These unfinished surfaces as empty canvasses suggest possibilities, where the art students can use them as giant billboards to express their youthful creativities.
- #6 CPG Corporation Pte Ltd is a leading infrastructure & building development and management services provider in the Asia Pacific region. Born out of the corporatisation of the Singapore Public Works Department in 1999, we are one of the key organisations that has helped shape the skyline of Singapore through its years of nation buildingOur full spectrum of services encompasses multi-disciplinary architecture and engineering consultancy, project management, facilities management, construction management and materials testing.CPG Corporation constantly treads the frontier of infrastructural and architectural design trends to meet the needs of modern facilities and their usage. One of our most distinctive design niches is Environmentalism.We are concerned about the impact modern infrastructure has upon the environment and how we can all co-exist with nature in harmony. Efficient use of natural resources is therefore a key aspect to superior design. At CPG Corporation, we pride ourselves on our ingenious ideas for efficient resource consumption and waste minimisation. Be it natural ventilation for the tropical climate, cooling shades against summer sun or passive heating for winters, our creativity and respect for the environment are the core principles of our works. We call this Green Design
- #8 WHAT MAKES THE PROGRAM UNIQUE?This assemblage of projects is not a fashion show showcasing the ‘look’ of the building. This program searches the globe for examples of innovation that remind us why school buildings and campuses exist in the first place: learning! More importantly, we focus how we design for the ever-changing future of learning and larger community connections.Since 2000, the program has been doing this by challenging traditional standards and committing to learner-centered, cost-efficient and sustainable learning environments. It has documented hundreds of innovative school designs from 20 countries — all available online.
- #9 1. The designer was given a challenge to design a building that symbolizes what an art, design and media school stands for; uniqueness and creativity. And that is what the University got; a building which is iconic and one which epitomizes originality. With its bare concrete and glass curtain walls and verdant roof, the building certainly stands apart from the other school buildings within the campus and this has gone down well with the academics and students who, as design practitioners crave for an environment that is conducive for creative exploration and exchange of ideas.2. Making a design that blends in w landscape than dominate it. Being a ADM sch, sch has to have a distinctive architecture 3. Most challenging aspect was construction of roof, approximately 10,000 sqmConventionally a turfed roof requires soil as a growing medium and extent of its coverage would impose heavy loads on building structure and foundations. Architects devised unique turfing system
- #10 School of art design and media

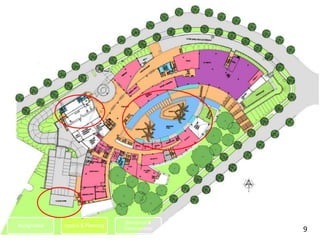

- #11 This is the enlarged master floor plan detailing the building facilities, note the grey area consist of the cooling room, the central area is the sunken plaza, white area is the auditorium. A lot of greenery surrounding the structure, indeed a building that blends into the environment.
- #12 From the building cross section you can see that every space within the building is fully utilized and not restricted by the building form.
- #13 School of art design and media
- #14 The transparency of the glass life allow it to connect with the spaces within the building. Energy can also be reduced on the lighting of the lift as light shines in from outside.
- #18 Gallery with exhibtion and without exhibitionMotion capture studioFilm sound stage
- #19 Gallery with exhibtion and without exhibitionMotion capture studioFilm sound stage
- #20 Gallery with exhibtion and without exhibitionMotion capture studioFilm sound stage
- #21 Gallery with exhibtion and without exhibitionMotion capture studioFilm sound stage
- #22 Gallery with exhibtion and without exhibitionMotion capture studioFilm sound stage
- #23 Gallery with exhibtion and without exhibitionMotion capture studioFilm sound stage
- #24 Gallery with exhibtion and without exhibitionMotion capture studioFilm sound stage
- #25 Gallery with exhibtion and without exhibitionMotion capture studioFilm sound stage
- #26 Gallery with exhibtion and without exhibitionMotion capture studioFilm sound stage
- #27 Gallery with exhibtion and without exhibitionMotion capture studioFilm sound stage
- #28 Kite flying in the day and gathering for fireworks at night
- #30 Steel framing is used to support to glass framing of the building as it is known for its strength and ductility against high wind loads. Steel also has the highest strength-to-weight ratio in order to keep the building as light as possible.
- #31 made of steel membersThe flange, the reinforcing member and the connector are integrally joined together via a connecting fastener member.
- #32 The use of steel, concrete and timbre to fit the building’s concept of ‘flirting with the landscape’. The bar concrete pillars and walls are left bare to allow students to design and decorate their own school. The use on concrete as the building core allows design flexibility for any interior and exterior finishes. This is because concrete can be manipulated to fit any shape or curves. Timbre gives a luxurious effect and it is also resistant to heat and corrosion.
- #33 The entire composite section as thick as 150mm.ZoysiaMatrella grass chosen as it can withstand heavy downpour. It is commonly used for golf courses. The landscapers also used extra bracing on the roofs to prevent shearing of the steep roof. The green roof of ADM is considered the first in Southeast Asia to build a grass roof on a steep slope as much as 45 degrees. Below the grass roof is a preformed single-ply waterproofing membrane to ensure water tightness to the roof. Rain sensors are adopted on green roof to ensure that irrigation ceased when it is raining.
- #39 The air con system are place high up in the building such that the warm air will be cooled faster as warm air rises and cold air sinks. Building operates from a central air conditioning system uses one unit to heat the entire building. The rooms are connected with a series of ducts and individual openings or registers in each room.Type One air con register blah blah (read from the slide)Type Two air con register – openings at the side walls, to reach places with tall ceilings ensure constant cooling effect within the building.
- #45 he glass façade provides a high performance building envelope that reduces solar gain and heat load while allowing the benefits of natural views and daylight into creative spaces. The glass walls provide a visual exchange between indoors and out allowing students and teachers to experience the building, the surrounding landscape and the interior plaza as fluid spaces. Diffused natural daylight is abundant throughout studios and classrooms, filtered through the surrounding foliage.
- #46 he glass façade provides a high performance building envelope that reduces solar gain and heat load while allowing the benefits of natural views and daylight into creative spaces. The glass walls provide a visual exchange between indoors and out allowing students and teachers to experience the building, the surrounding landscape and the interior plaza as fluid spaces. Diffused natural daylight is abundant throughout studios and classrooms, filtered through the surrounding foliage.

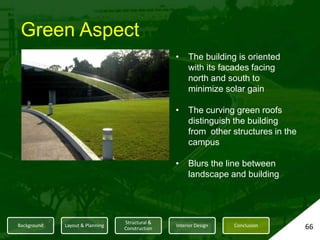

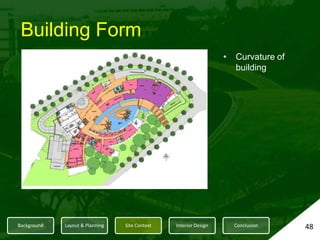

- #48 The curving green roofs distinguish the building from among the other structures on campus but the line between landscape and building is blurred. The roofs serve as informal gathering spaces challenging linear ideas and stirring perception. The roofs create open space, insulate the building, cool the surrounding air and harvest rainwater for landscaping irrigation. Planted grasses mix with native greenery to colonize the building and bond it to the setting.

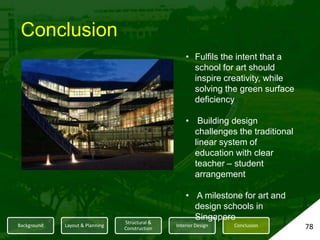

- #51 The building design challenges the traditional linear system of education with a clear teacher-student arrangement. Here, different types of spaces are created – from the formal auditorium seating to the more informal studios, lobbies, passageways and breakout lounges. There are also cosy outdoor corners, a sunken plaza formed by the embracing arms of the building and the turfed roofs.

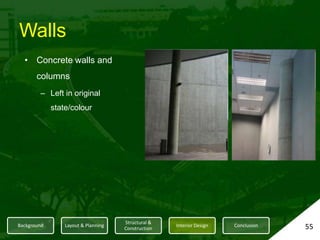

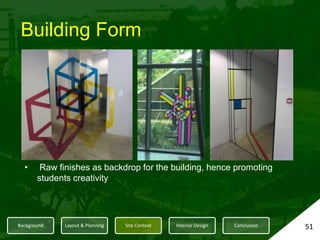

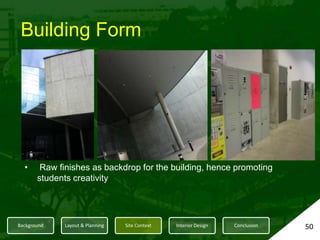

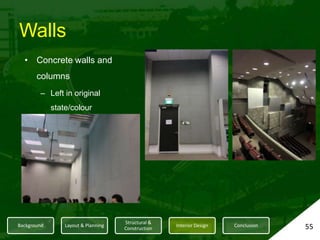

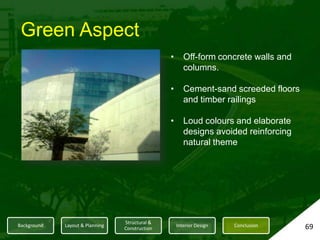

- #52 Finishes are intentionally raw to act as a backdrop for the art, media and design projects. Concrete walls and columns, cement-sand screeded floors, timber railings and a neutral palette define the interior spaces which vary in shape and size. This amazing design seems to offer a new experience at every elevation or perspective fulfilling the intent that a school for art should inspire creativity.
- #53 Finishes are intentionally raw to act as a backdrop for the art, media and design projects. Concrete walls and columns, cement-sand screeded floors, timber railings and a neutral palette define the interior spaces which vary in shape and size. This amazing design seems to offer a new experience at every elevation or perspective fulfilling the intent that a school for art should inspire creativity.
- #55 The unfolding arms of 2 blocks create a welcoming entry court to the school. The double volume entry porch provides a sheltered drop-off for cars which is a necessary feature in this tropical climate. A landscaped round-about in this entry court provides a soft contrast to the predominantly glass and concrete surfaces in this area.
- #56 Adm definitely has many interesting twist that makes it different and unique from other building. It has a very green landscape garden and from here we can see that adm had retain the green characteristic of this site even after the woods had been removed to make way for the schoolThe highlight of the building that will catch the attention of people is the angle green roof that weave in and out from the ground, The roofs serve as informal gathering spaces challenging linear ideas and stirring perception. Last but not least we have the sleek glass curtain wall coupled with off form concrete walls for a natural finish. The design concept was to make adm to integrate to part of the surroundings and not to overwhelm the surrounding. So it makes people think that is it part of the landscape or is it a building, the line between the two is blurred.

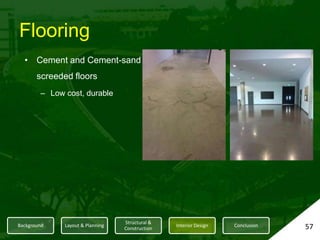

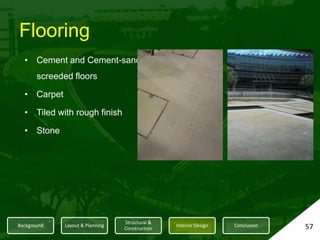

- #57 Finishes are intentionally raw to act as a backdrop for the art, media and design projects. Concrete walls and columns, cement-sand screeded floors, timber railings and a neutral palette define the interior spaces which vary in shape and size. This amazing design seems to offer a new experience at every elevation or perspective fulfilling the intent that a school for art should inspire creativity.To reinforce the natural theme, loud colours and elaborate decoration are avoided. This also means students have been provided with the perfect platform to express themselves by adorning the surfaces of the building with their works thus allowing the building to evolve its own identity.
- #58 Finishes are intentionally raw to act as a backdrop for the art, media and design projects. Concrete walls and columns, cement-sand screeded floors, timber railings and a neutral palette define the interior spaces which vary in shape and size. This amazing design seems to offer a new experience at every elevation or perspective fulfilling the intent that a school for art should inspire creativity.To reinforce the natural theme, loud colours and elaborate decoration are avoided. This also means students have been provided with the perfect platform to express themselves by adorning the surfaces of the building with their works thus allowing the building to evolve its own identity.
- #60 Finishes are intentionally raw to act as a backdrop for the art, media and design projects. Concrete walls and columns, cement-sand screeded floors, timber railings and a neutral palette define the interior spaces which vary in shape and size. This amazing design seems to offer a new experience at every elevation or perspective fulfilling the intent that a school for art should inspire creativity.To reinforce the natural theme, loud colours and elaborate decoration are avoided. This also means students have been provided with the perfect platform to express themselves by adorning the surfaces of the building with their works thus allowing the building to evolve its own identity.
- #61 Finishes are intentionally raw to act as a backdrop for the art, media and design projects. Concrete walls and columns, cement-sand screeded floors, timber railings and a neutral palette define the interior spaces which vary in shape and size. This amazing design seems to offer a new experience at every elevation or perspective fulfilling the intent that a school for art should inspire creativity.To reinforce the natural theme, loud colours and elaborate decoration are avoided. This also means students have been provided with the perfect platform to express themselves by adorning the surfaces of the building with their works thus allowing the building to evolve its own identity.
- #62 Finishes are intentionally raw to act as a backdrop for the art, media and design projects. Concrete walls and columns, cement-sand screeded floors, timber railings and a neutral palette define the interior spaces which vary in shape and size. This amazing design seems to offer a new experience at every elevation or perspective fulfilling the intent that a school for art should inspire creativity.To reinforce the natural theme, loud colours and elaborate decoration are avoided. This also means students have been provided with the perfect platform to express themselves by adorning the surfaces of the building with their works thus allowing the building to evolve its own identity.
- #63 Finishes are intentionally raw to act as a backdrop for the art, media and design projects. Concrete walls and columns, cement-sand screeded floors, timber railings and a neutral palette define the interior spaces which vary in shape and size. This amazing design seems to offer a new experience at every elevation or perspective fulfilling the intent that a school for art should inspire creativity.To reinforce the natural theme, loud colours and elaborate decoration are avoided. This also means students have been provided with the perfect platform to express themselves by adorning the surfaces of the building with their works thus allowing the building to evolve its own identity.
- #64 Finishes are intentionally raw to act as a backdrop for the art, media and design projects. Concrete walls and columns, cement-sand screeded floors, timber railings and a neutral palette define the interior spaces which vary in shape and size. This amazing design seems to offer a new experience at every elevation or perspective fulfilling the intent that a school for art should inspire creativity.To reinforce the natural theme, loud colours and elaborate decoration are avoided. This also means students have been provided with the perfect platform to express themselves by adorning the surfaces of the building with their works thus allowing the building to evolve its own identity.

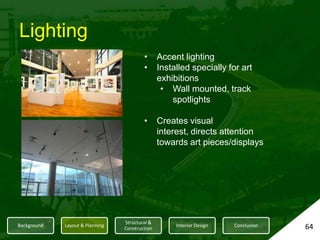

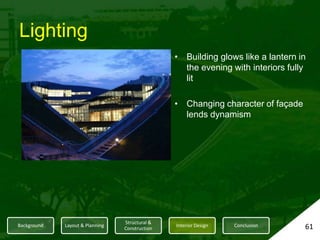

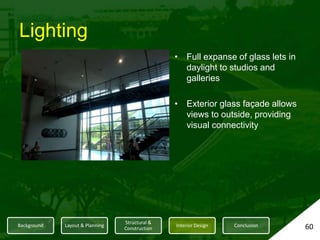

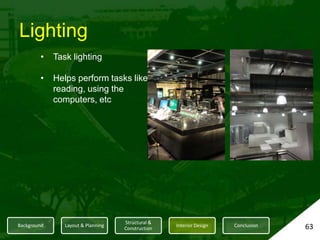

- #65 Lighting plays an important aspect to the building. The full expanse of high performance glass lets in daylight to the studios and galleries while cutting off the tropical heat. In the evening, the building glows like a lantern. The interiors of the building are lit and the activities within are fully exposed to view.The exterior glass façade of the building allows full views to the outside, again providing visual connectivity with the surrounding lush landscape. Lights are incorporated onto the roof to allow students to meet in the evening as well. At night, the building glows like a lantern allowing activities of the school to be observed from the outside. The changing character of the façade lends dynamism, life and interest to the building as day transforms into night.

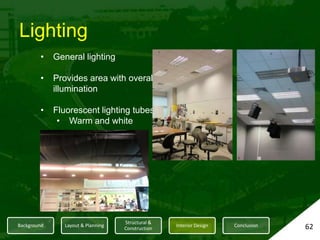

- #66 Lighting plays an important aspect to the building. The full expanse of high performance glass lets in daylight to the studios and galleries while cutting off the tropical heat. In the evening, the building glows like a lantern. The interiors of the building are lit and the activities within are fully exposed to view.The exterior glass façade of the building allows full views to the outside, again providing visual connectivity with the surrounding lush landscape. Lights are incorporated onto the roof to allow students to meet in the evening as well. At night, the building glows like a lantern allowing activities of the school to be observed from the outside. The changing character of the façade lends dynamism, life and interest to the building as day transforms into night.
- #67 Lighting plays an important aspect to the building. The full expanse of high performance glass lets in daylight to the studios and galleries while cutting off the tropical heat. In the evening, the building glows like a lantern. The interiors of the building are lit and the activities within are fully exposed to view.The exterior glass façade of the building allows full views to the outside, again providing visual connectivity with the surrounding lush landscape. Lights are incorporated onto the roof to allow students to meet in the evening as well. At night, the building glows like a lantern allowing activities of the school to be observed from the outside. The changing character of the façade lends dynamism, life and interest to the building as day transforms into night.
- #68 Lighting plays an important aspect to the building. The full expanse of high performance glass lets in daylight to the studios and galleries while cutting off the tropical heat. In the evening, the building glows like a lantern. The interiors of the building are lit and the activities within are fully exposed to view.The exterior glass façade of the building allows full views to the outside, again providing visual connectivity with the surrounding lush landscape. Lights are incorporated onto the roof to allow students to meet in the evening as well. At night, the building glows like a lantern allowing activities of the school to be observed from the outside. The changing character of the façade lends dynamism, life and interest to the building as day transforms into night.
- #69 Gallery with exhibtion and without exhibitionMotion capture studioFilm sound stage
- #70 Troffer ceilings.

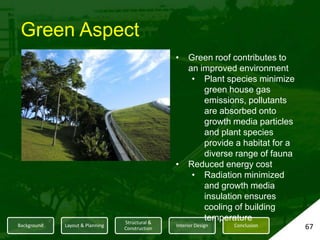

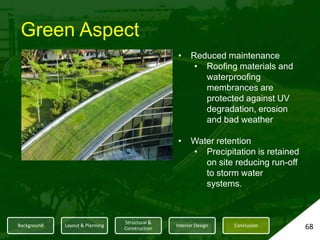

- #72 Green roof lowers both the roof temperature and ambient temperature hence reduce heat gain to the air conditioned building.Roofs create open spaceEntirely turfed with zoysiamatrella grass providing excellent insulationWater retention mat below light weight soil provides a constant supply of moisture for turf growthCool the surrounding airHarvest rainwater for landscaping irrigation
