Atin Mukherjee gave a presentation on GlusterFS at a February 2015 meetup. He discussed GlusterFS's current architecture and roadmap. For version 3.6, he highlighted new features like better SSL support, heterogeneous bricks, erasure coding, and volume snapshots. Version 3.7 plans to improve small file performance, add data classification, enable bit-rot detection, and integrate better with OpenStack. The long term 4.0 vision is for GlusterFS to be the best commodity distributed storage with unified data access across thousands of nodes.

1. Atin Mukherjee
GlusterFS Hacker

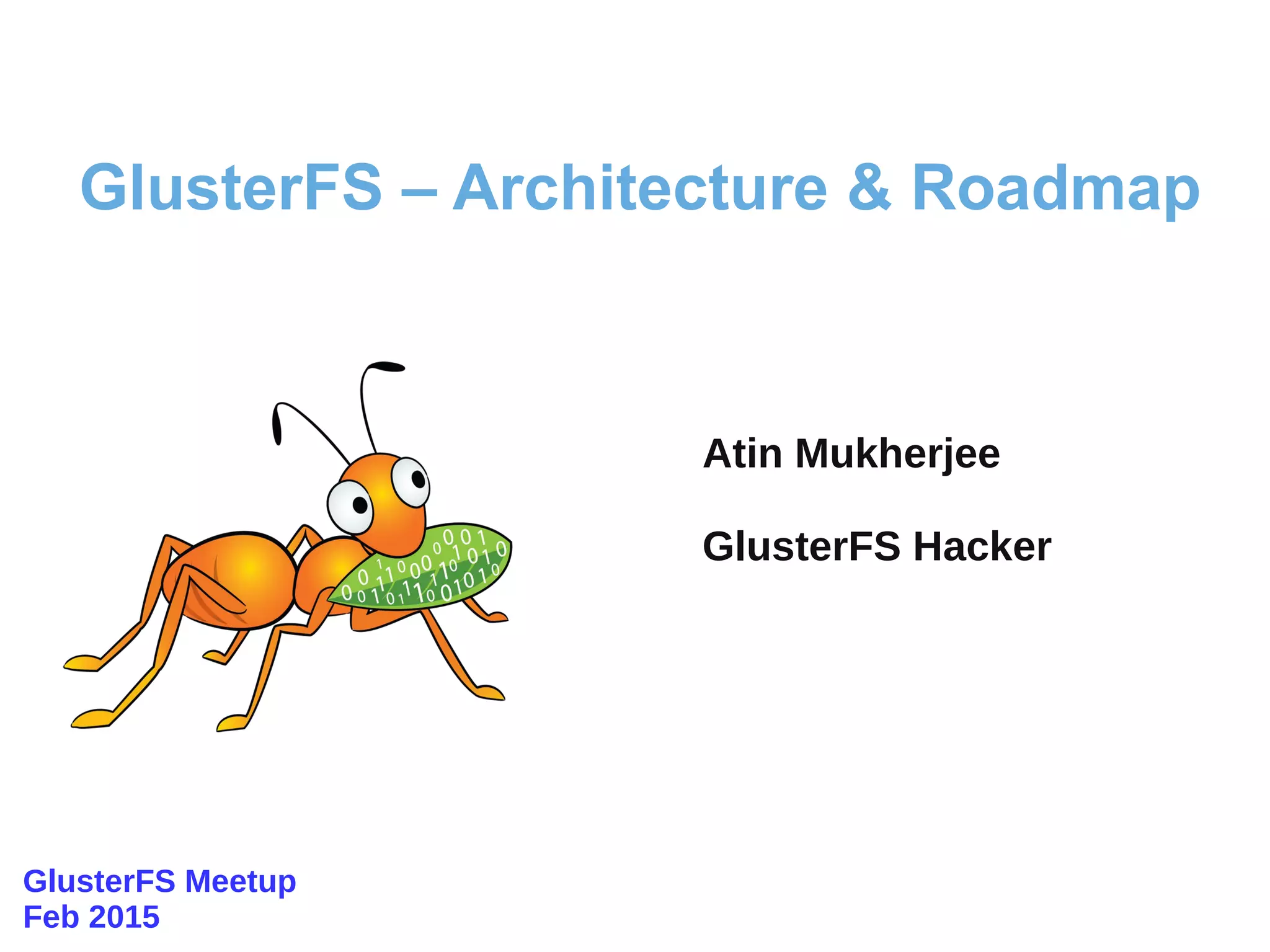

GlusterFS – Architecture & Roadmap
GlusterFS Meetup
Feb 2015

2. 07/02/2015 GlusterFS Meetup
Agenda
● Introduction in the Gluster community
● Current stable releases
● What is GlusterFS?
● Architecture
● GlusterFS 3.6 Features
● GlusterFS 3.7 Features planned
● GlusterFS 4.0 and beyond
● Q&A

3. 07/02/2015 GlusterFS Meetup

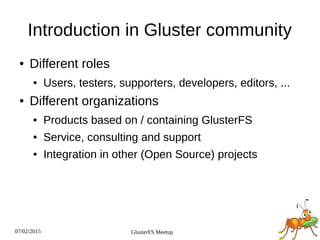

Introduction in Gluster community
● Different roles
● Users, testers, supporters, developers, editors, ...
● Different organizations
● Products based on / containing GlusterFS
● Service, consulting and support
● Integration in other (Open Source) projects

4. 07/02/2015 GlusterFS Meetup
Introduction in Gluster community
● Regular IRC meetings
● Discussions and support over mailinglists and on IRC
● Providing packages (RPMs, DEBs)
● Work with different Linux and BSD distributions to
improve portability and availability
● Infrastructure hosting for Gluster related projects
● Gerrit and Jenkins for code review and testing
● Gluster Forge for git/wiki hosting of projects

5. 07/02/2015 GlusterFS Meetup
Introduction in Gluster community

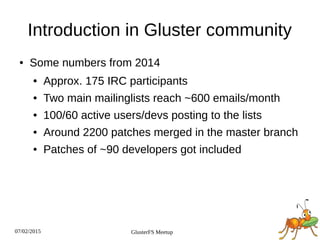

● Some numbers from 2014
● Approx. 175 IRC participants
● Two main mailinglists reach ~600 emails/month
● 100/60 active users/devs posting to the lists
● Around 2200 patches merged in the master branch
● Patches of ~90 developers got included

6. 07/02/2015 GlusterFS Meetup
Current stable releases
● Maintenance of three minor releases
● 3.6, 3.5 and 3.4
● Bugfixes only, non-intrusive features on high demand
● Patches get backported to fix reported bugs

7. 07/02/2015 GlusterFS Meetup

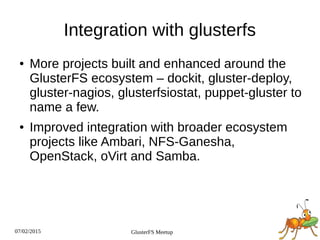

Integration with glusterfs
● More projects built and enhanced around the
GlusterFS ecosystem – dockit, gluster-deploy,
gluster-nagios, glusterfsiostat, puppet-gluster to
name a few.
● Improved integration with broader ecosystem
projects like Ambari, NFS-Ganesha,
OpenStack, oVirt and Samba.

8. 07/02/2015 GlusterFS Meetup
What is GlusterFS?
●
A general purpose scale-out distributed file system.
●
Aggregates storage exports over network interconnect to
provide a single unified namespace.
●
Filesystem is stackable and completely in userspace.
●
Layered on disk file systems that support extended
attributes.

9. 07/02/2015 GlusterFS Meetup
Typical GlusterFS Deployment
Global namespace
Scale-out storage
building blocks
Supports
thousands of clients
Access using
GlusterFS native,
NFS, SMB and HTTP
protocols
Linear performance
scaling

10. 07/02/2015 GlusterFS Meetup
GlusterFS Architecture – Foundations
● Software only, runs on commodity hardware
● No external metadata servers
● Scale-out with Elasticity
● Extensible and modular
● Deployment agnostic
● Unified access
● Largely POSIX compliant

11. 07/02/2015 GlusterFS Meetup

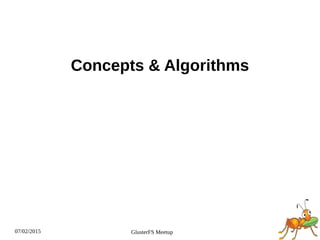

Concepts & Algorithms

12. 07/02/2015 GlusterFS Meetup

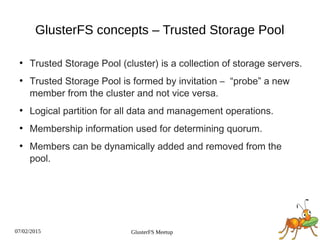

GlusterFS concepts – Trusted Storage Pool
●
Trusted Storage Pool (cluster) is a collection of storage servers.
●
Trusted Storage Pool is formed by invitation – “probe” a new
member from the cluster and not vice versa.
●
Logical partition for all data and management operations.
●
Membership information used for determining quorum.
●
Members can be dynamically added and removed from the
pool.

13. 07/02/2015 GlusterFS Meetup
GlusterFS concepts – Trusted Storage Pool
Node2
Probe
Probe
accepted
Node 1 and Node 2 are peers in a trusted storage pool
Node2Node1
Node1

14. 07/02/2015 GlusterFS Meetup
GlusterFS concepts – Trusted Storage Pool
Node1 Node2 Node3Node2Node1 Trusted Storage Pool
Node3Node2Node1
Detach

15. 07/02/2015 GlusterFS Meetup


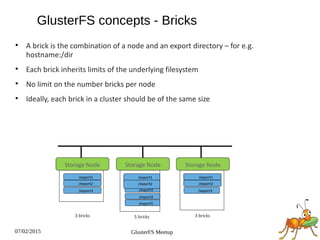

A brick is the combination of a node and an export directory – for e.g.
hostname:/dir

Each brick inherits limits of the underlying filesystem

No limit on the number bricks per node

Ideally, each brick in a cluster should be of the same size
/export3 /export3 /export3
Storage Node
/export1
Storage Node
/export2
/export1
/export2
/export4
/export5
Storage Node
/export1
/export2
3 bricks 5 bricks 3 bricks
GlusterFS concepts - Bricks

16. 07/02/2015 GlusterFS Meetup
GlusterFS concepts - Volumes
● A volume is a logical collection of bricks.
● Volume is identified by an administrator provided name.
● Volume is a mountable entity and the volume name is
provided at the time of mounting.
– mount -t glusterfs server1:/<volname> /my/mnt/point
● Bricks from the same node can be part of different
volumes

17. 07/02/2015 GlusterFS Meetup

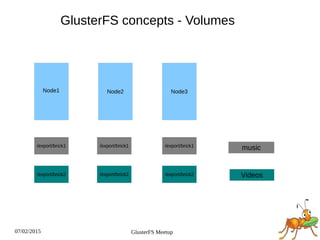

GlusterFS concepts - Volumes
Node2Node1 Node3
/export/brick1
/export/brick2
/export/brick1
/export/brick2
/export/brick1
/export/brick2
music
Videos

18. 07/02/2015 GlusterFS Meetup

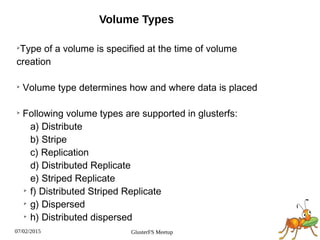

Volume Types
➢
Type of a volume is specified at the time of volume
creation
➢
Volume type determines how and where data is placed
➢
Following volume types are supported in glusterfs:
a) Distribute
b) Stripe
c) Replication
d) Distributed Replicate
e) Striped Replicate
➢
f) Distributed Striped Replicate
➢
g) Dispersed
➢
h) Distributed dispersed

19. 07/02/2015 GlusterFS Meetup
Distributed Replicated Volume

20. 07/02/2015 GlusterFS Meetup
GlusterFS 3.6
● Better SSL support
● Heterogenous bricks
● Erasure coding
● Meta translator
● Volume snapshots and user-servicability

21. 07/02/2015 GlusterFS Meetup

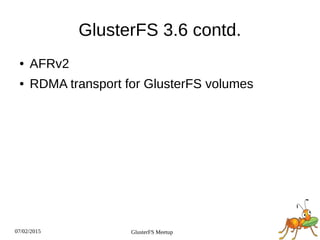

GlusterFS 3.6 contd.
● AFRv2
● RDMA transport for GlusterFS volumes

22. 07/02/2015 GlusterFS Meetup

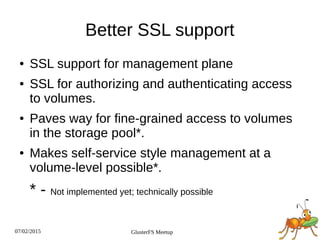

Better SSL support
● SSL support for management plane
● SSL for authorizing and authenticating access
to volumes.
● Paves way for fine-grained access to volumes
in the storage pool*.
● Makes self-service style management at a
volume-level possible*.
* - Not implemented yet; technically possible

23. 07/02/2015 GlusterFS Meetup

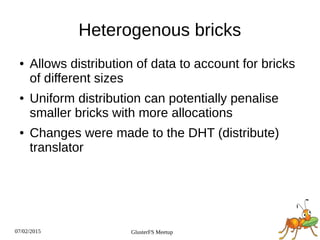

Heterogenous bricks
● Allows distribution of data to account for bricks
of different sizes
● Uniform distribution can potentially penalise
smaller bricks with more allocations
● Changes were made to the DHT (distribute)
translator

24. 07/02/2015 GlusterFS Meetup

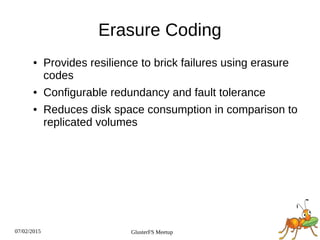

Erasure Coding
● Provides resilience to brick failures using erasure
codes
● Configurable redundancy and fault tolerance
● Reduces disk space consumption in comparison to
replicated volumes

25. 07/02/2015 GlusterFS Meetup

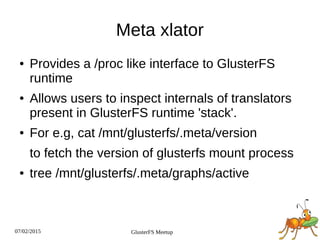

Meta xlator
● Provides a /proc like interface to GlusterFS
runtime
● Allows users to inspect internals of translators
present in GlusterFS runtime 'stack'.
● For e.g, cat /mnt/glusterfs/.meta/version
to fetch the version of glusterfs mount process
● tree /mnt/glusterfs/.meta/graphs/active

26. 07/02/2015 GlusterFS Meetup

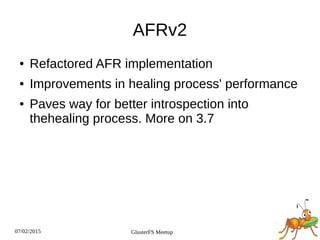

AFRv2
● Refactored AFR implementation
● Improvements in healing process' performance
● Paves way for better introspection into
thehealing process. More on 3.7

27. 07/02/2015 GlusterFS Meetup

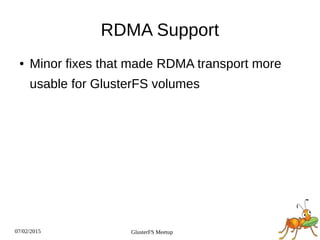

RDMA Support
● Minor fixes that made RDMA transport more
usable for GlusterFS volumes

28. 07/02/2015 GlusterFS Meetup

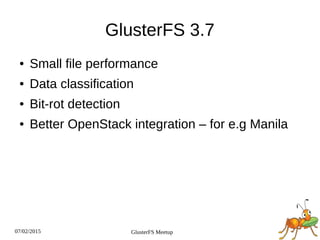

GlusterFS 3.7
● Small file performance
● Data classification
● Bit­rot detection
● Better OpenStack integration – for e.g Manila

29. 07/02/2015 GlusterFS Meetup

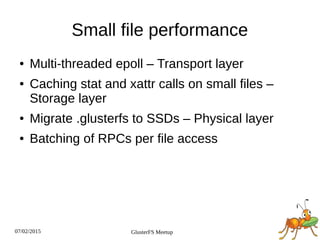

Small file performance
● Multi­threaded epoll – Transport layer
● Caching stat and xattr calls on small files –
Storage layer
● Migrate .glusterfs to SSDs – Physical layer
● Batching of RPCs per file access

30. 07/02/2015 GlusterFS Meetup

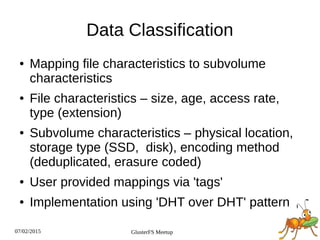

Data Classification
● Mapping file characteristics to subvolume
characteristics
● File characteristics – size, age, access rate,
type (extension)
● Subvolume characteristics – physical location,
storage type (SSD, disk), encoding method
(deduplicated, erasure coded)
● User provided mappings via 'tags'
● Implementation using 'DHT over DHT' pattern

31. 07/02/2015 GlusterFS Meetup

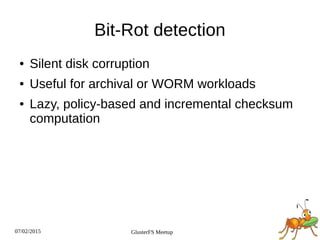

Bit­Rot detection
● Silent disk corruption
● Useful for archival or WORM workloads
● Lazy, policy­based and incremental checksum
computation

32. 07/02/2015 GlusterFS Meetup
Better Openstack integration
● Manila – File share as a service
● Cinder – Block storage as a service
● Swift – Object storage as a service
● Sahara – Hadoop as a service
● For Kilo release

33. 07/02/2015 GlusterFS Meetup

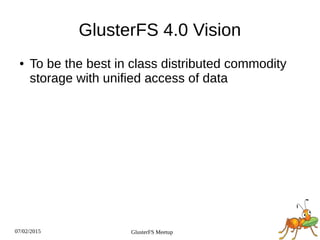

GlusterFS 4.0 Vision
● To be the best in class distributed commodity
storage with unified access of data

34. 07/02/2015 GlusterFS Meetup

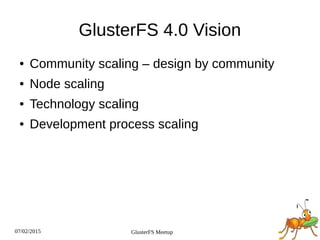

GlusterFS 4.0 Vision
● Community scaling – design by community
● Node scaling
● Technology scaling
● Development process scaling

35. 07/02/2015 GlusterFS Meetup

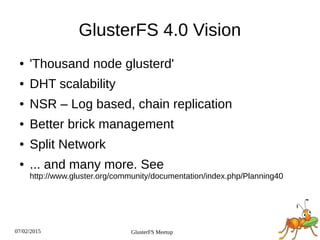

GlusterFS 4.0 Vision
● 'Thousand node glusterd'
● DHT scalability
● NSR – Log based, chain replication
● Better brick management
● Split Network
● ... and many more. See
http://www.gluster.org/community/documentation/index.php/Planning40

36. 07/02/2015 GlusterFS Meetup

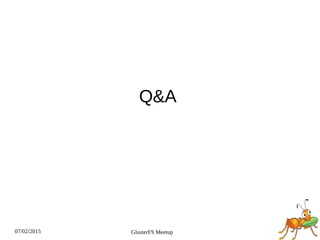

Q&A

37. 07/02/2015 GlusterFS Meetup

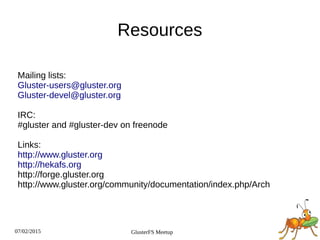

Resources
Mailing lists:
Gluster-users@gluster.org
Gluster-devel@gluster.org
IRC:
#gluster and #gluster-dev on freenode
Links:
http://www.gluster.org
http://hekafs.org
http://forge.gluster.org
http://www.gluster.org/community/documentation/index.php/Arch
