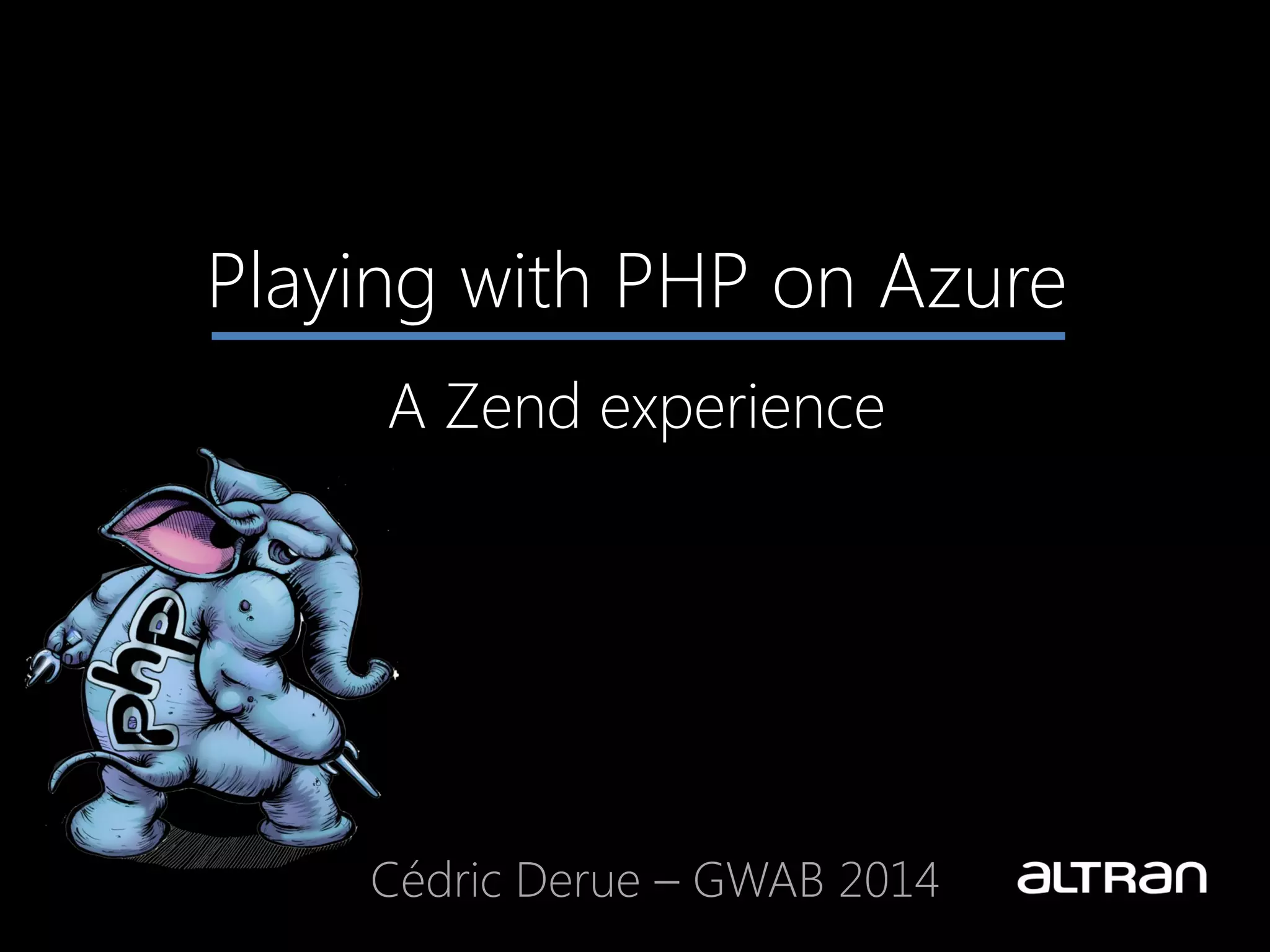

1. Playing with PHP on Azure
A Zend experience
Cédric Derue – GWAB 2014

2.  Web Architect @ Altran
 Skills:
•  Zend Framework 2
•  ASP.NET MVC
•  JavaScript
•  NoSQL
 Twitter: @cderue
Cédric Derue

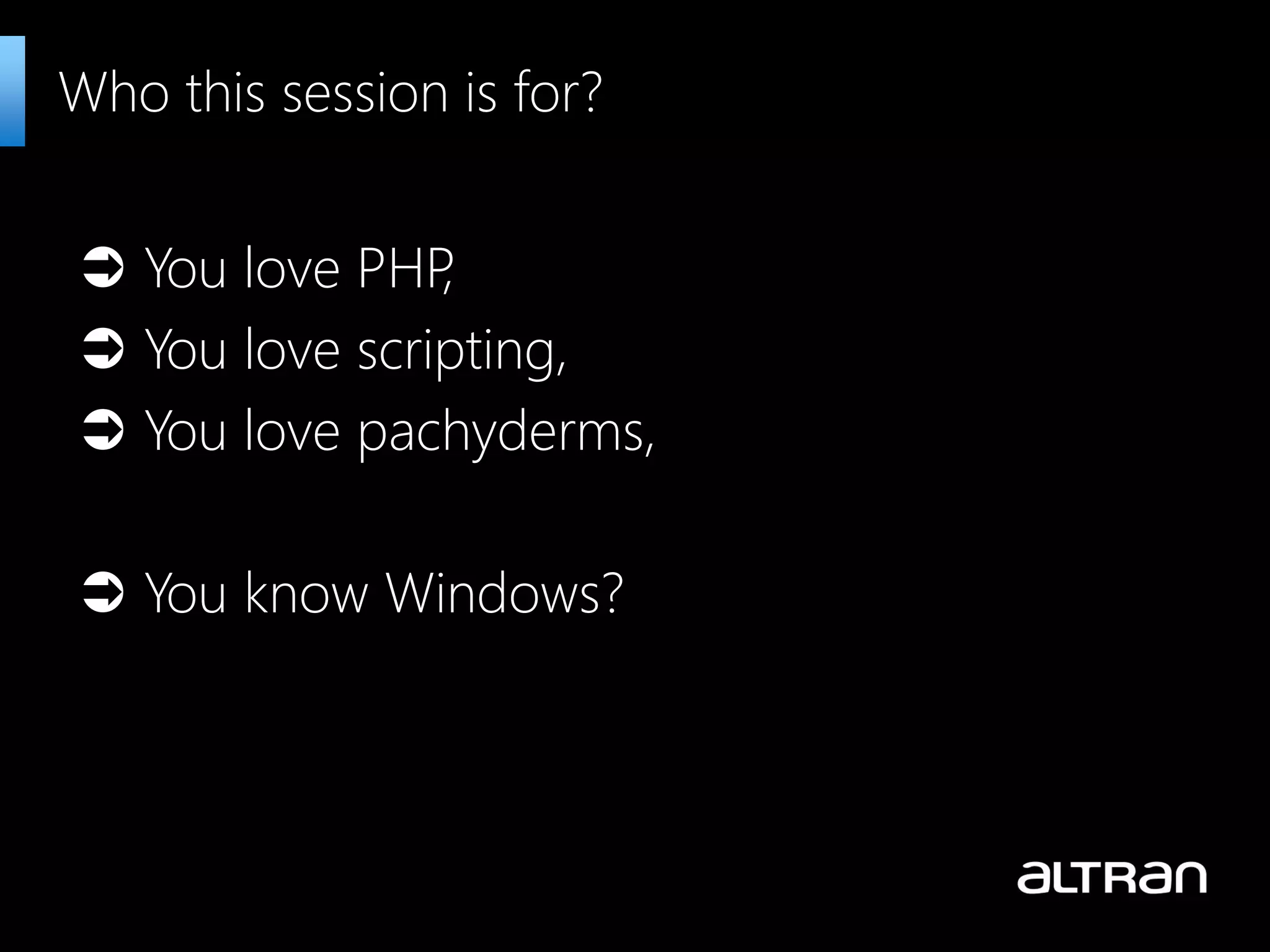

3.  You love PHP,
 You love scripting,
 You love pachyderms,
 You know Windows?
Who this session is for?

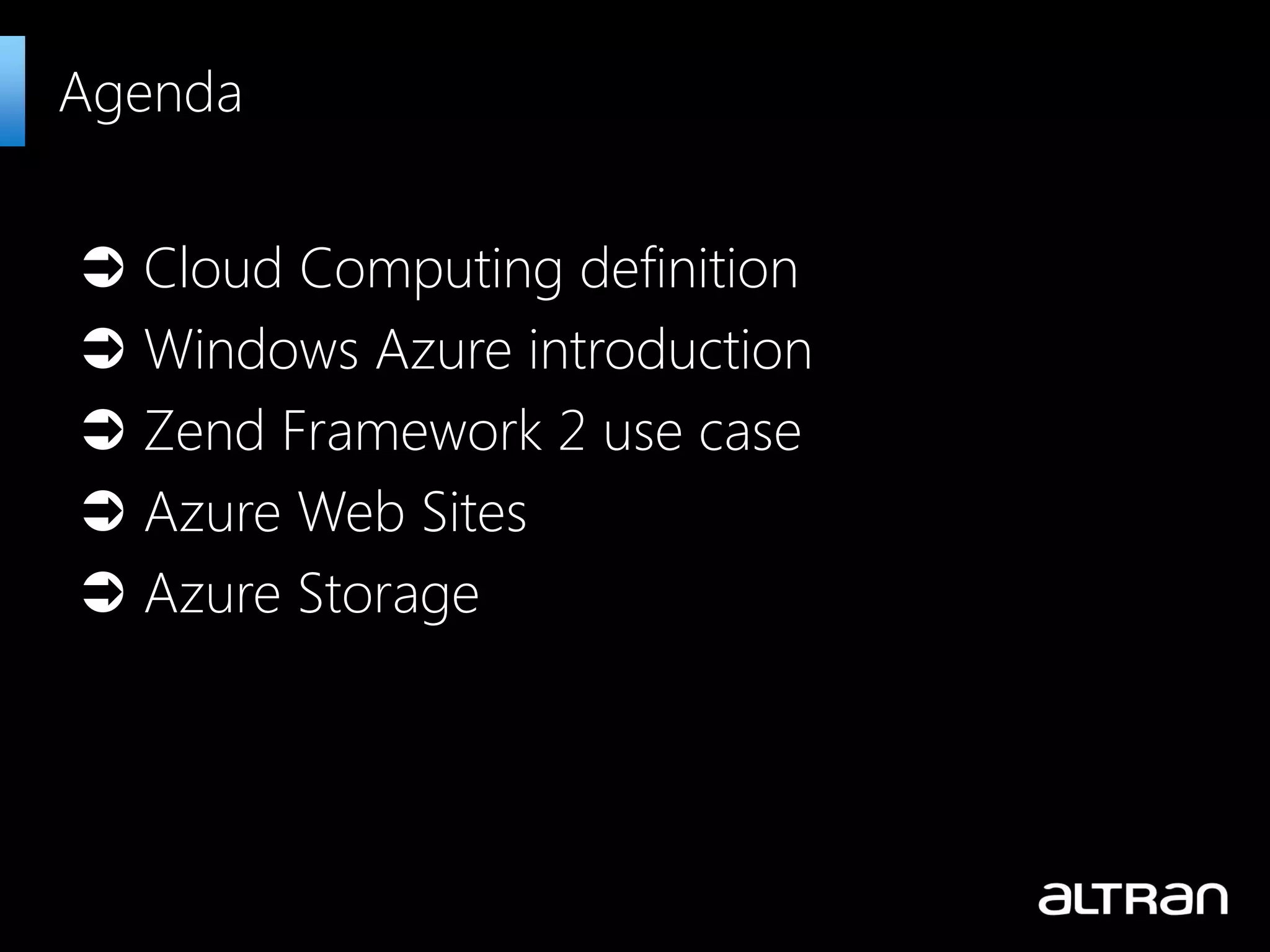

4.  Cloud Computing definition
 Windows Azure introduction
 Zend Framework 2 use case
 Azure Web Sites
 Azure Storage
Agenda

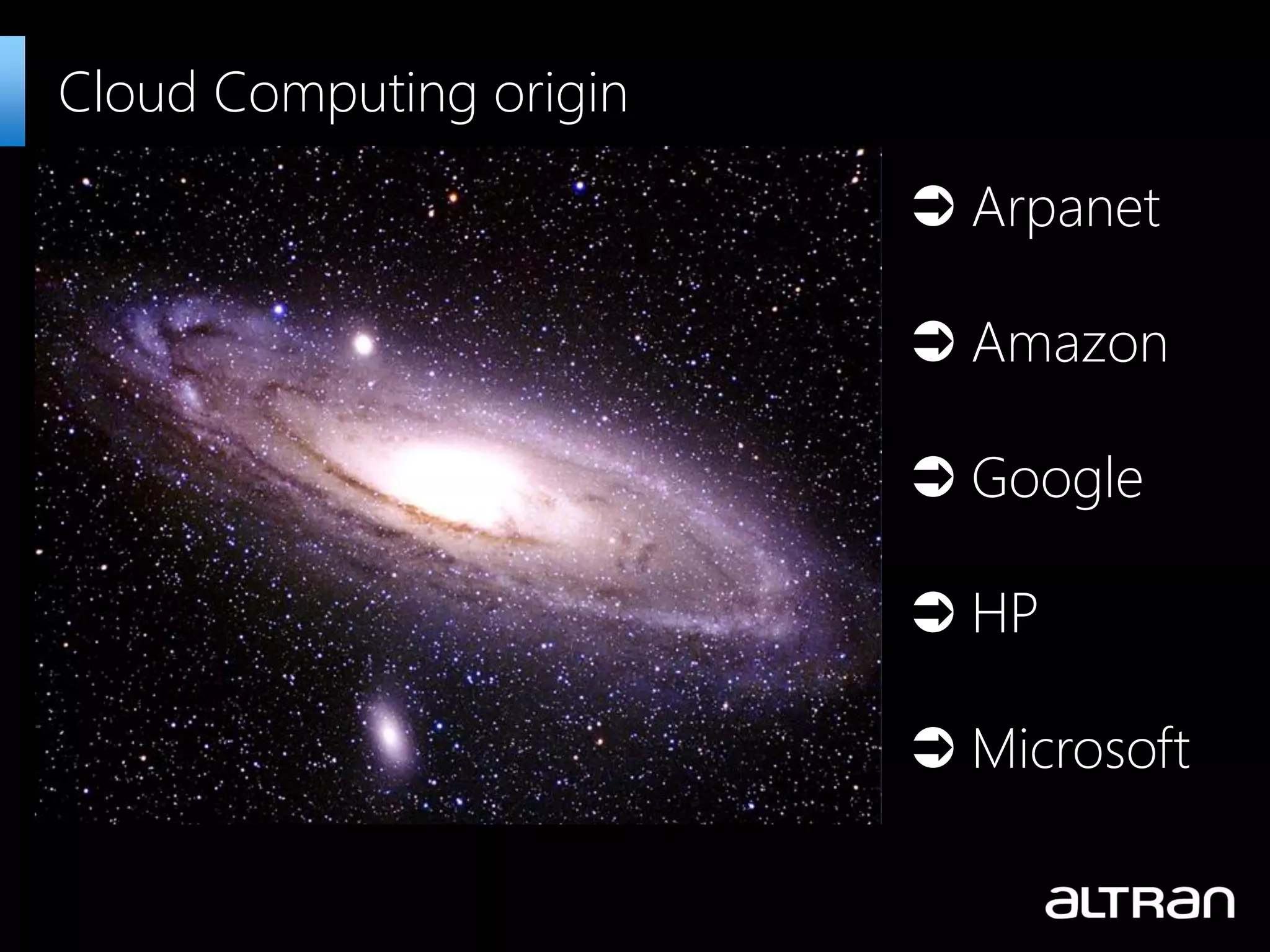

5. Cloud Computing origin
 Arpanet
 Amazon
 Google
 HP
 Microsoft

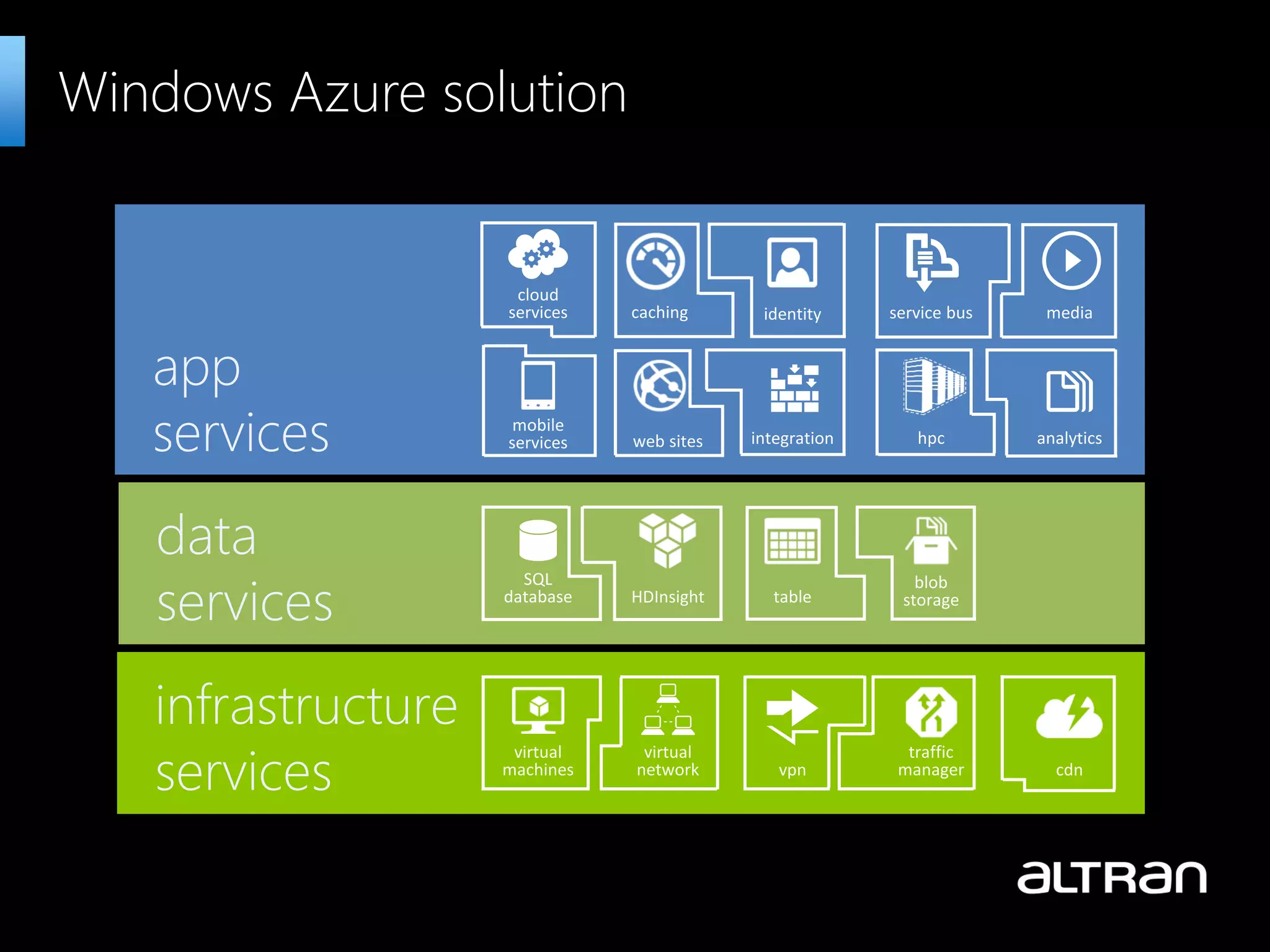

6. Windows Azure solution

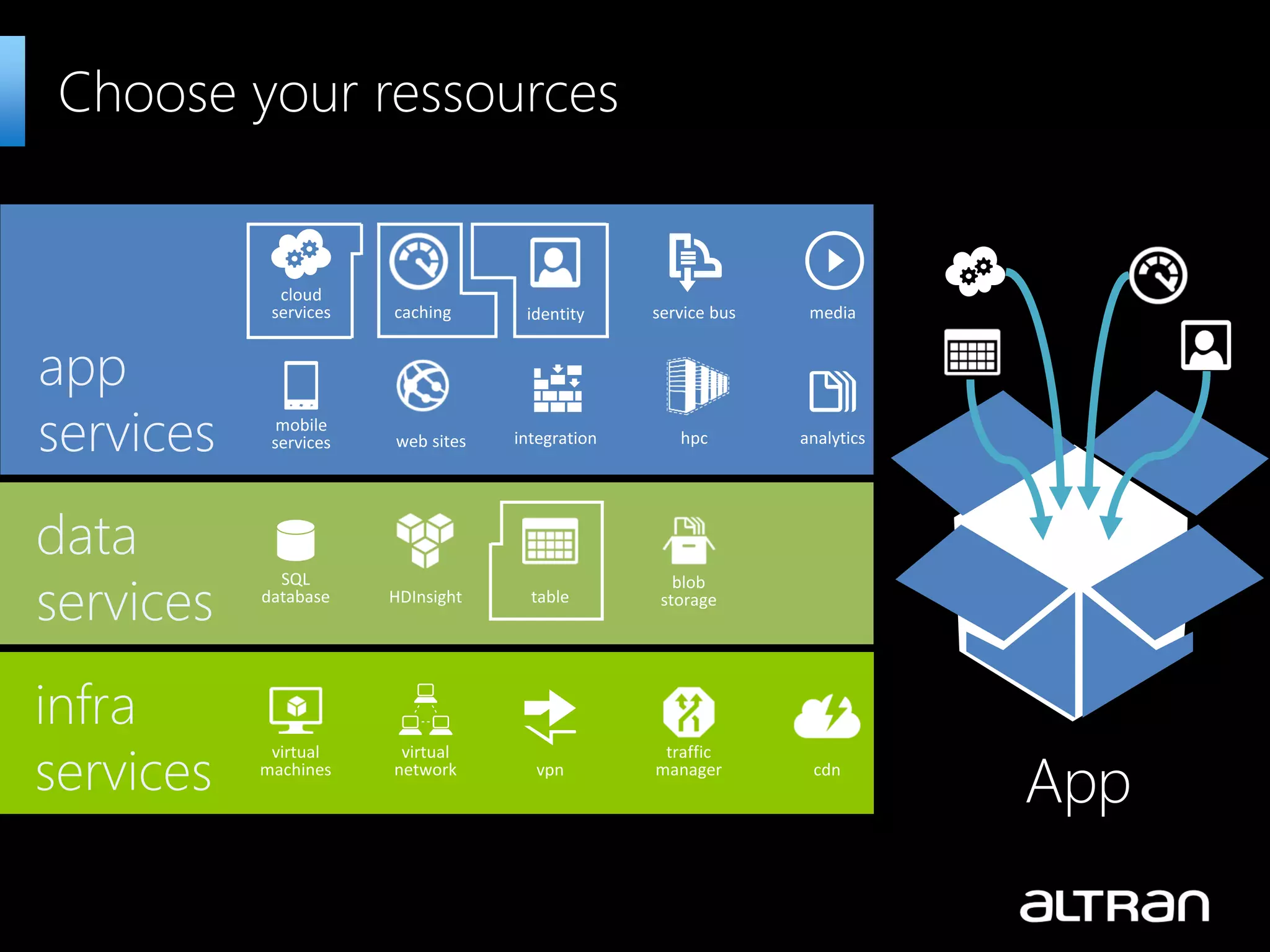

7. Choose your ressources
App

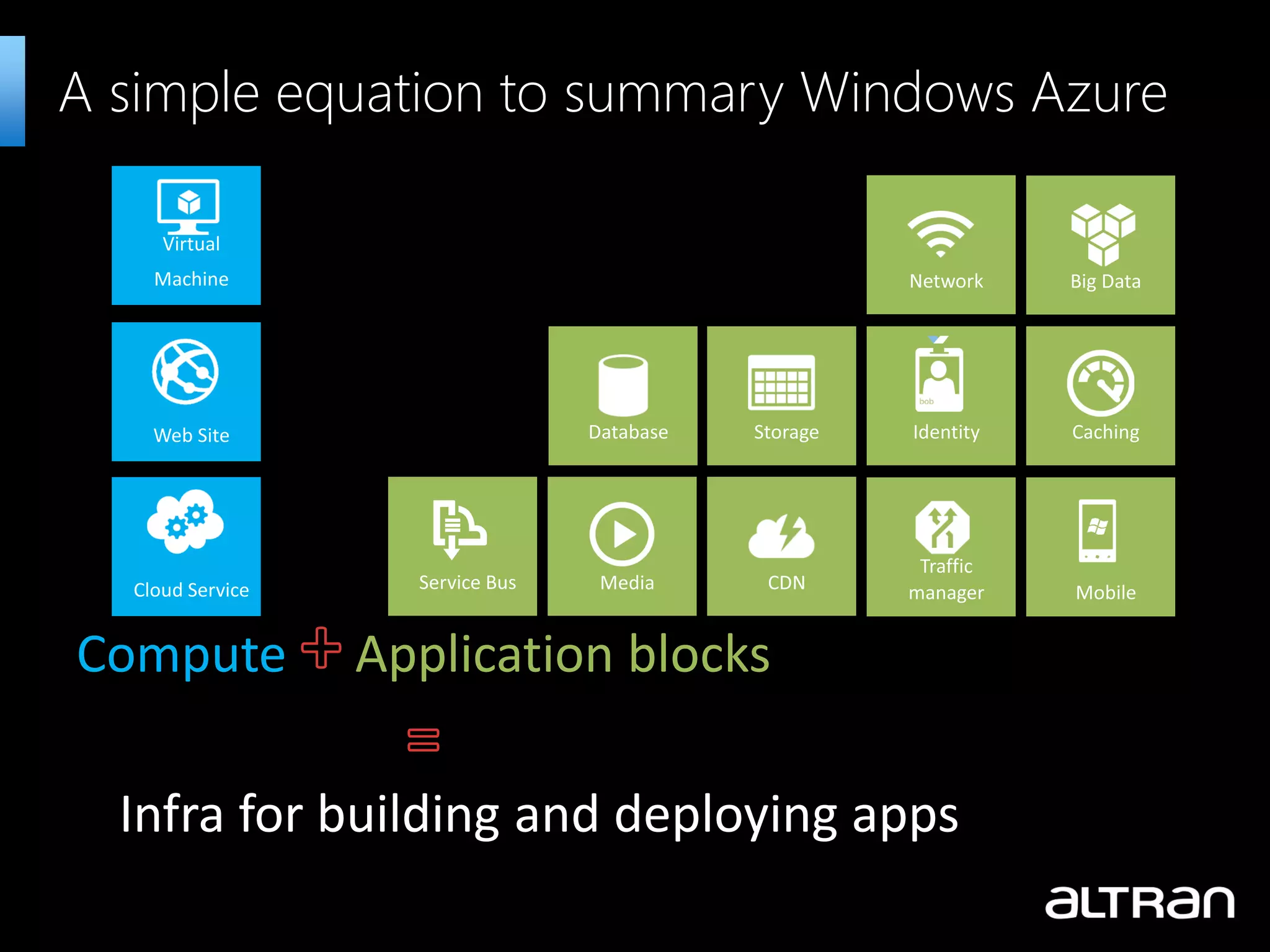

8. A simple equation to summary Windows Azure
Blocs de
construction
applicatif
Compute Application blocks
Infra for building and deploying apps

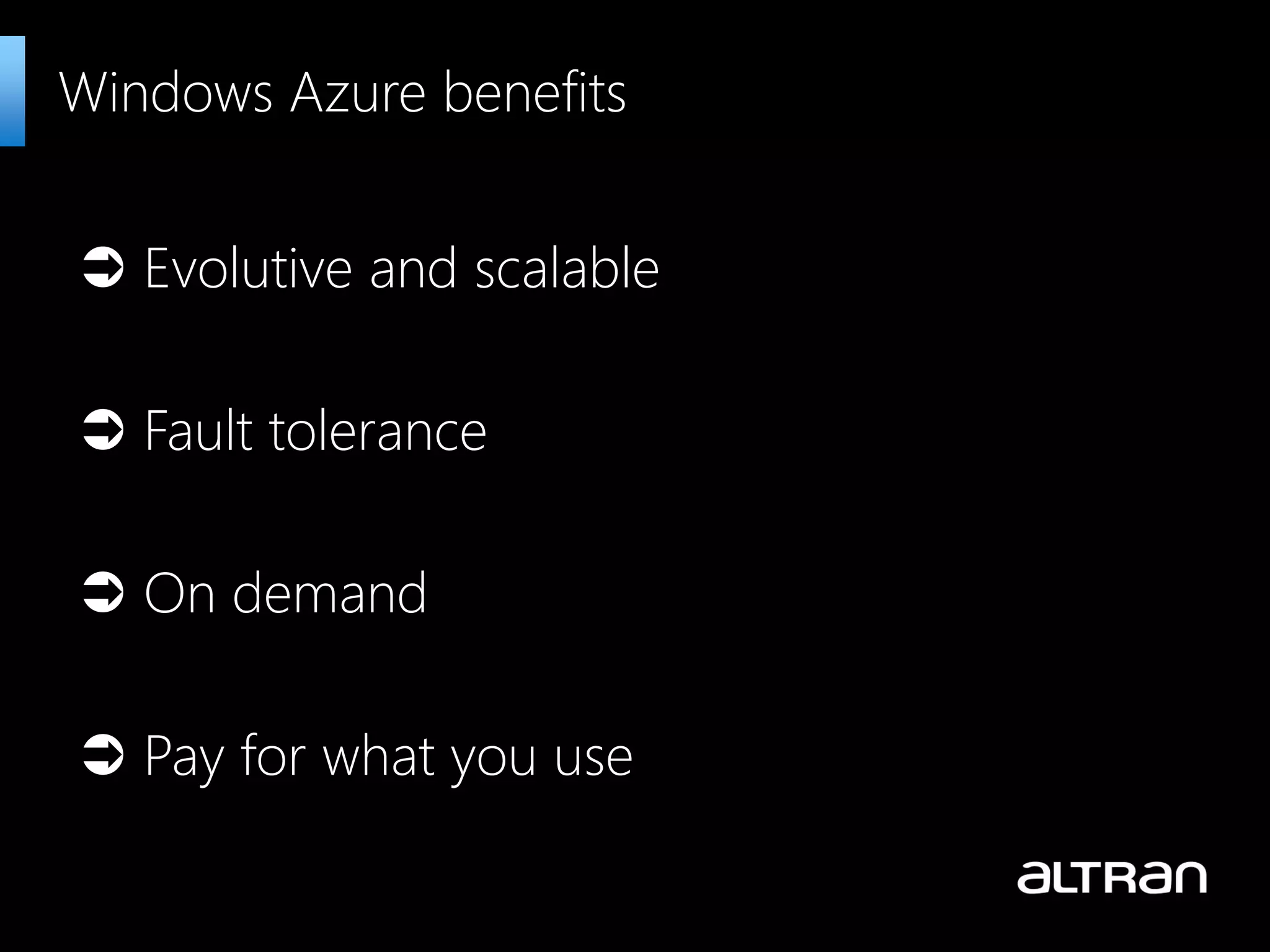

9.  Evolutive and scalable
 Fault tolerance
 On demand
 Pay for what you use
Windows Azure benefits

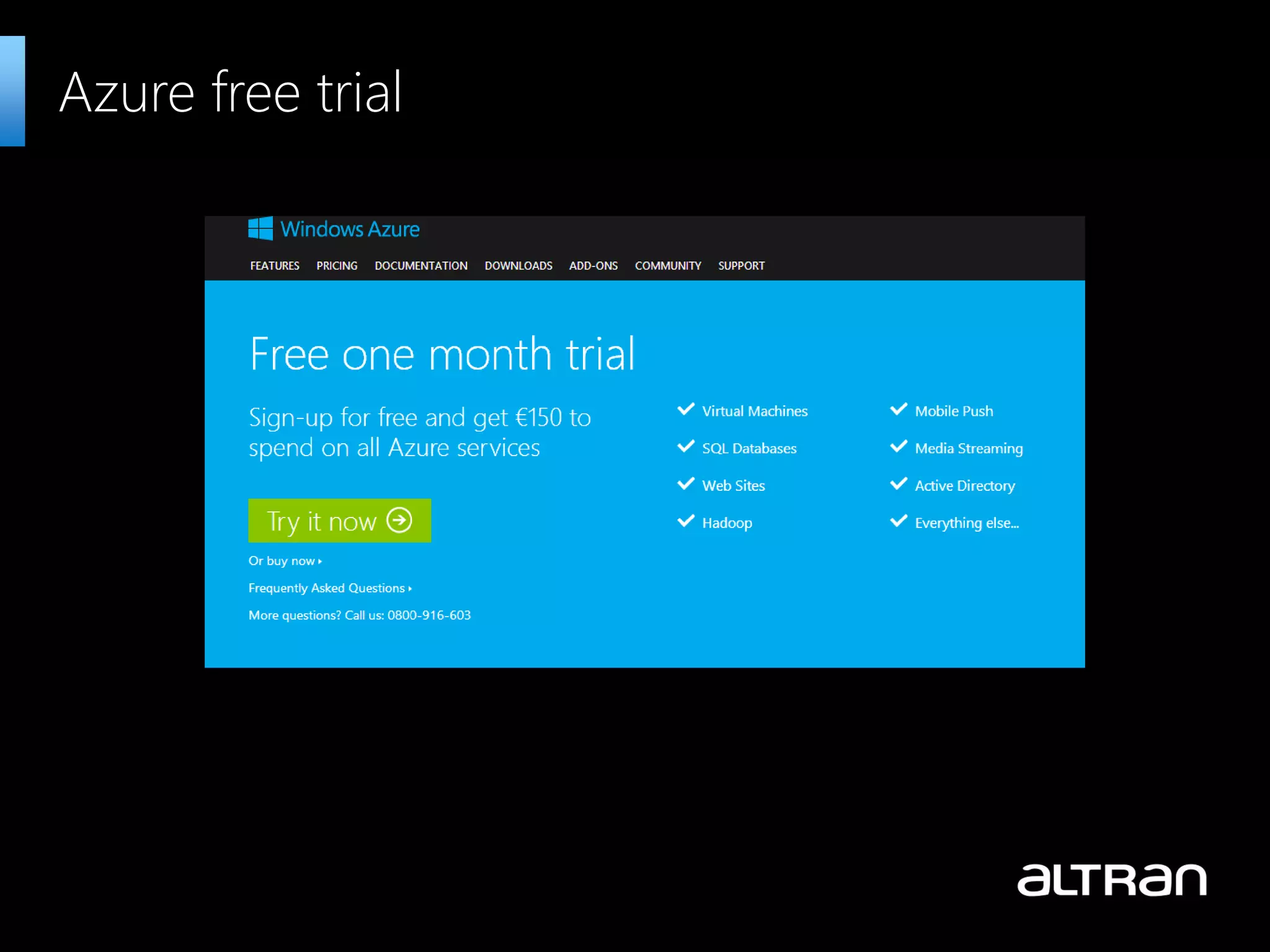

10. Azure free trial

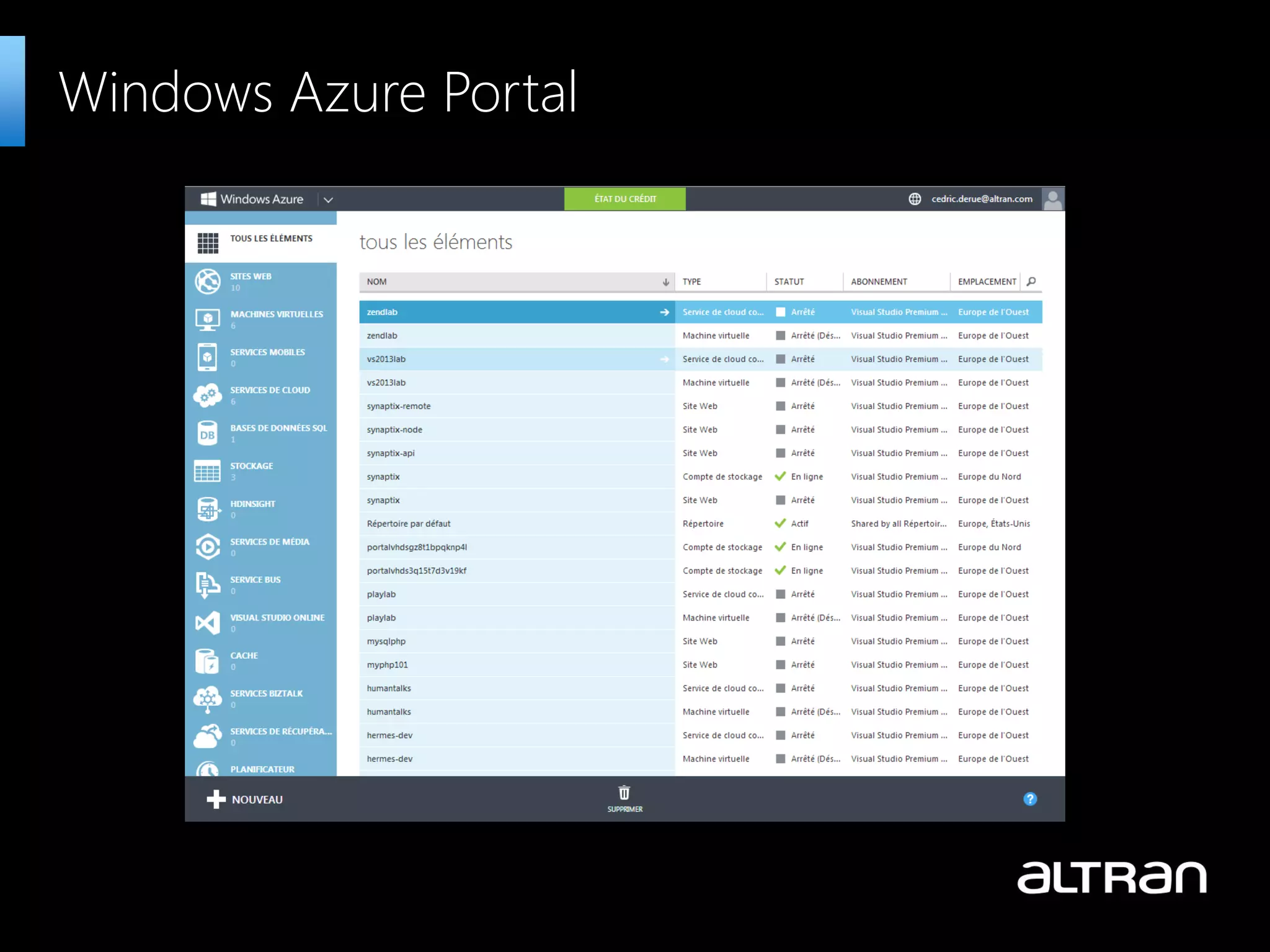

11. Windows Azure Portal

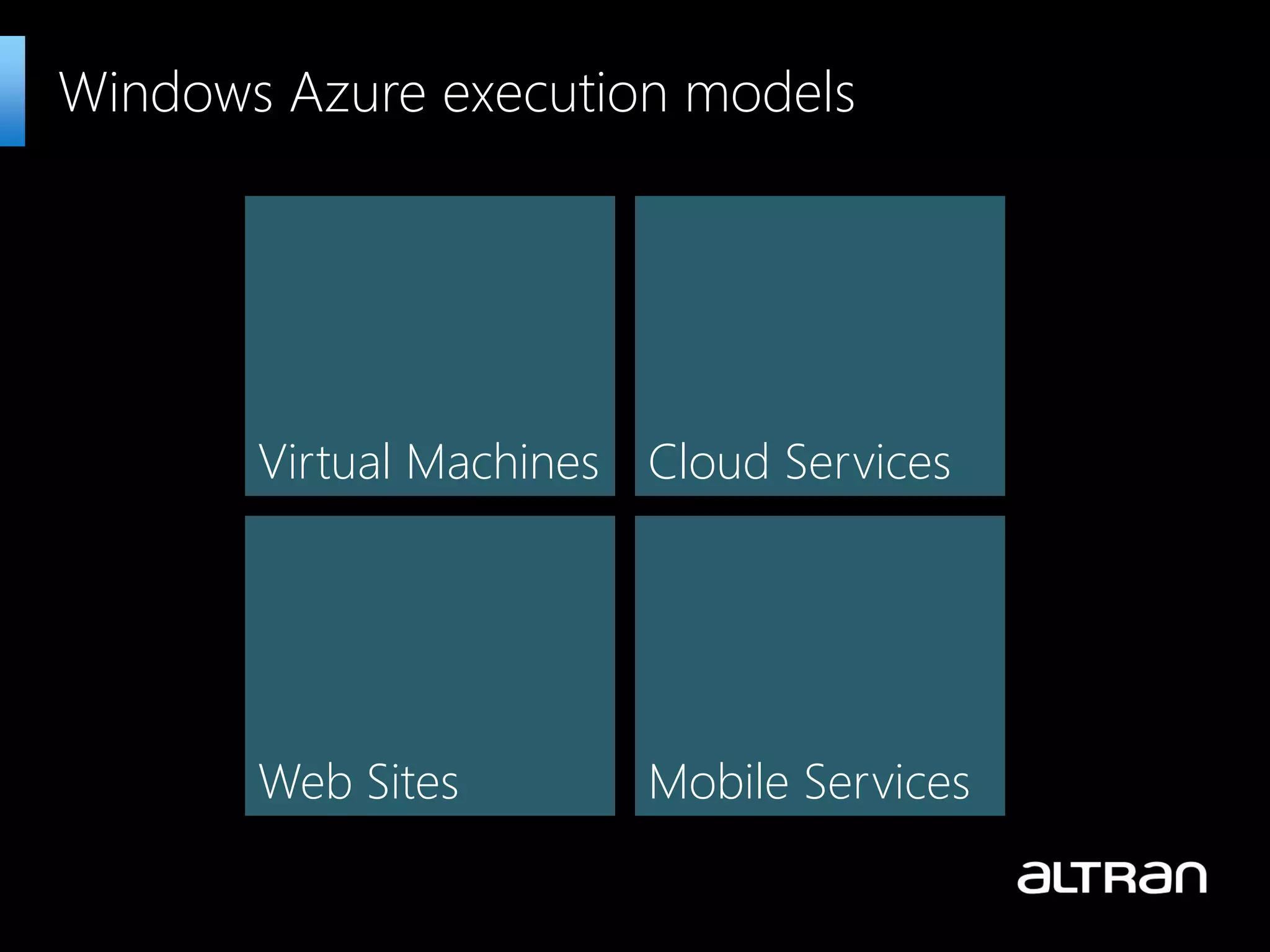

12. Windows Azure execution models
Cloud Services
Mobile Services
Virtual Machines
Web Sites

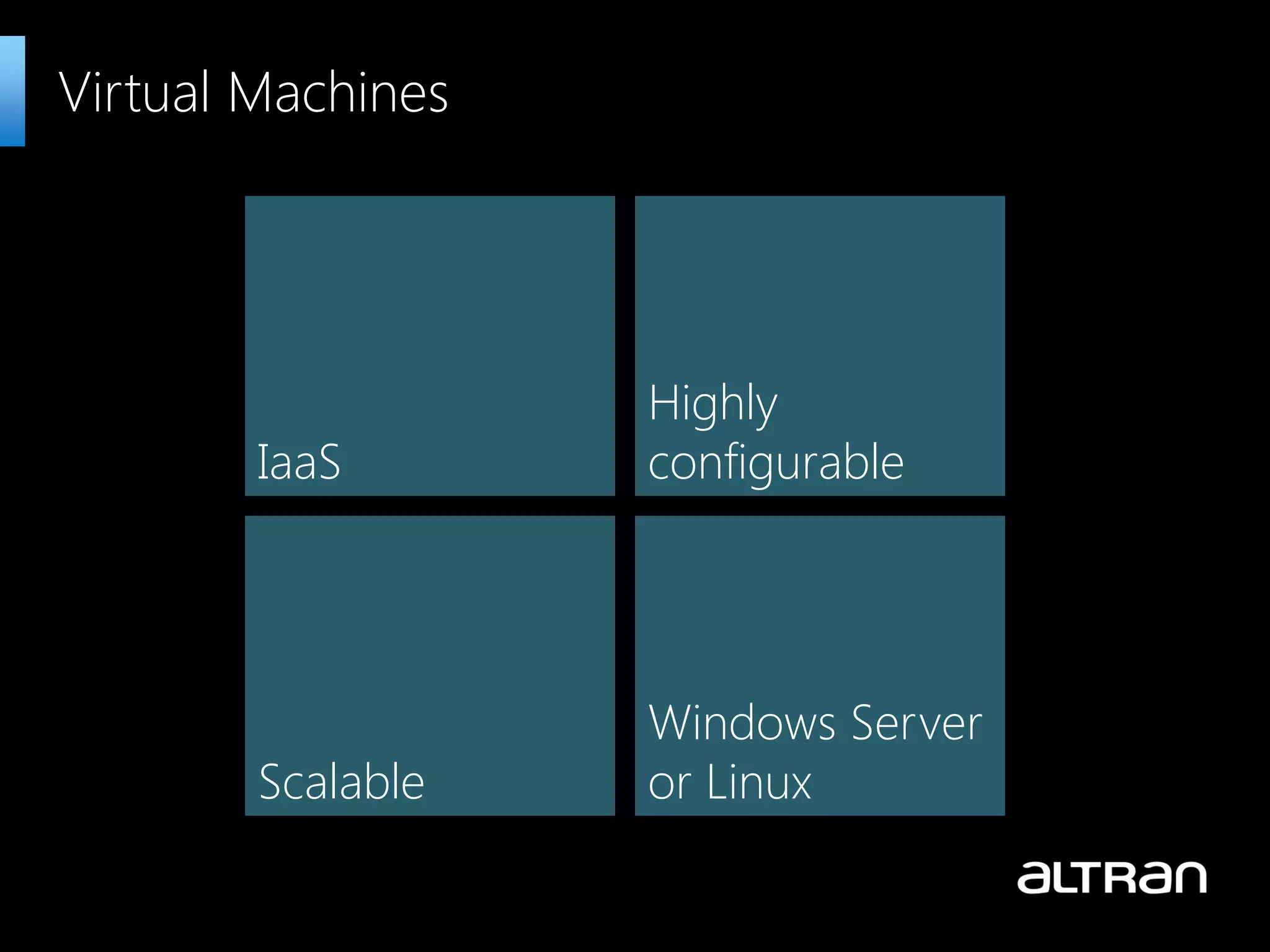

13. Virtual Machines
Highly
configurable
Windows Server
or Linux
IaaS
Scalable

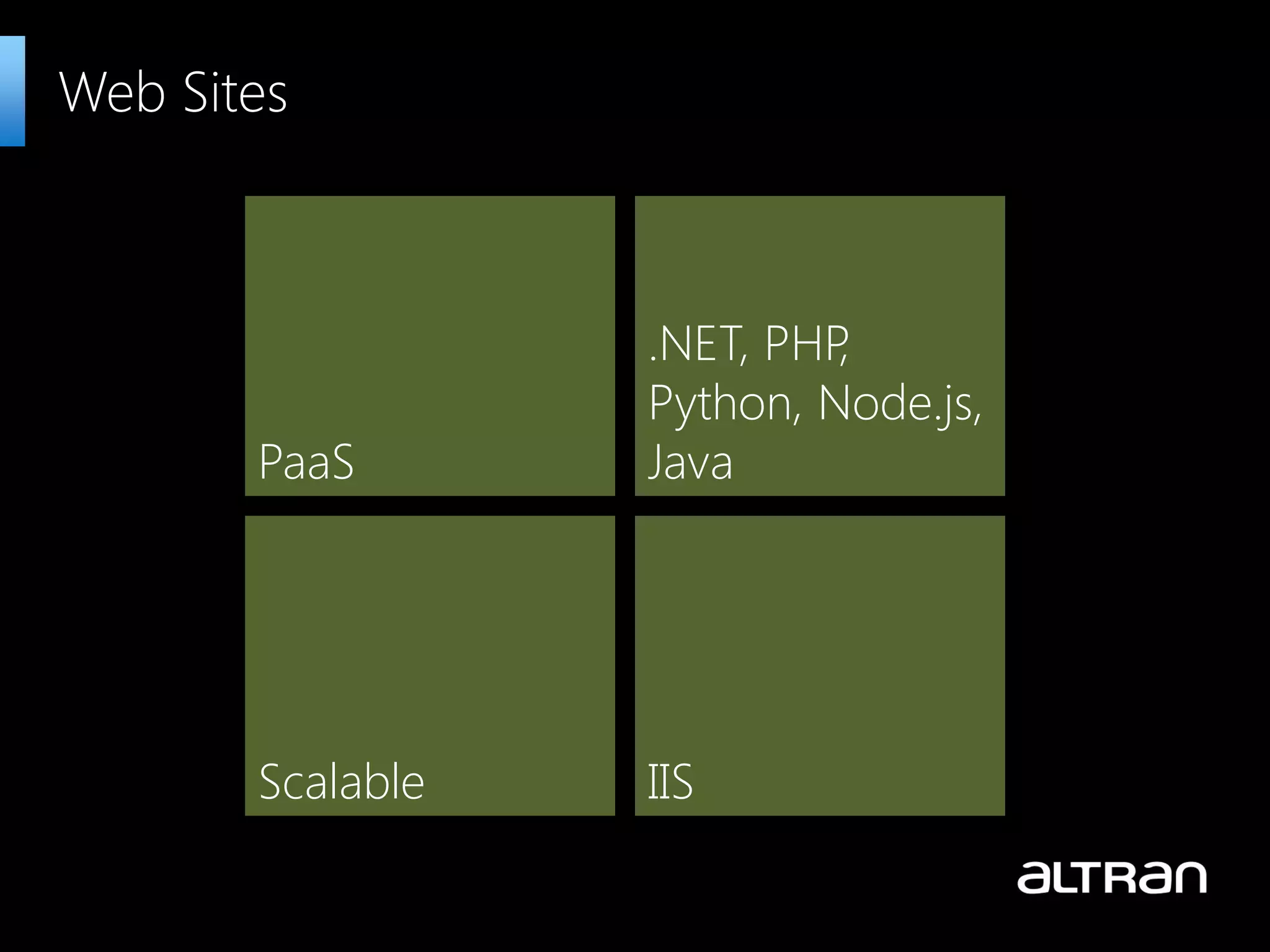

14. Web Sites
.NET, PHP,
Python, Node.js,
Java
IIS
PaaS
Scalable

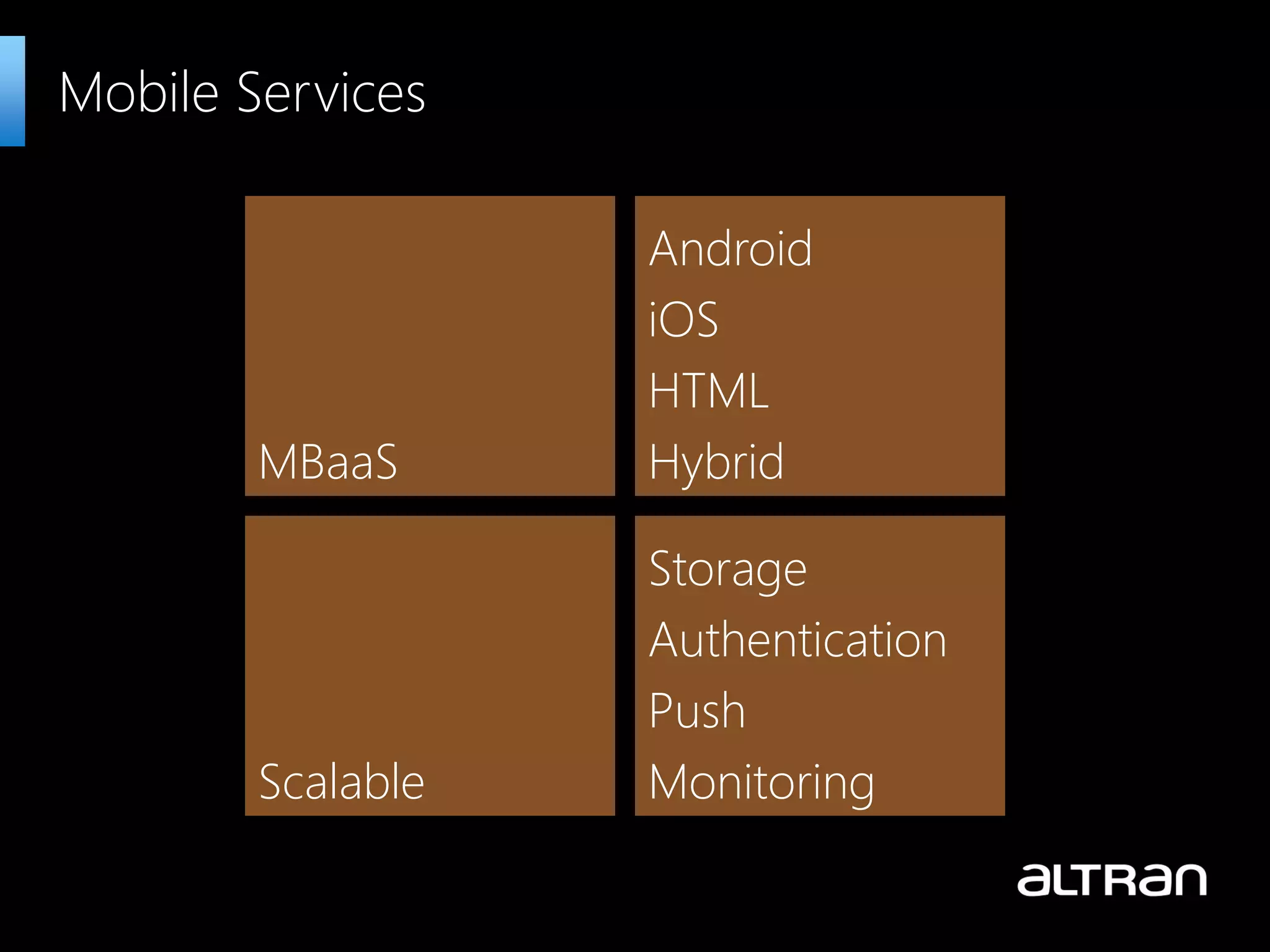

15. Mobile Services
Android
iOS
HTML
Hybrid
Storage
Authentication
Push
Monitoring
MBaaS
Scalable

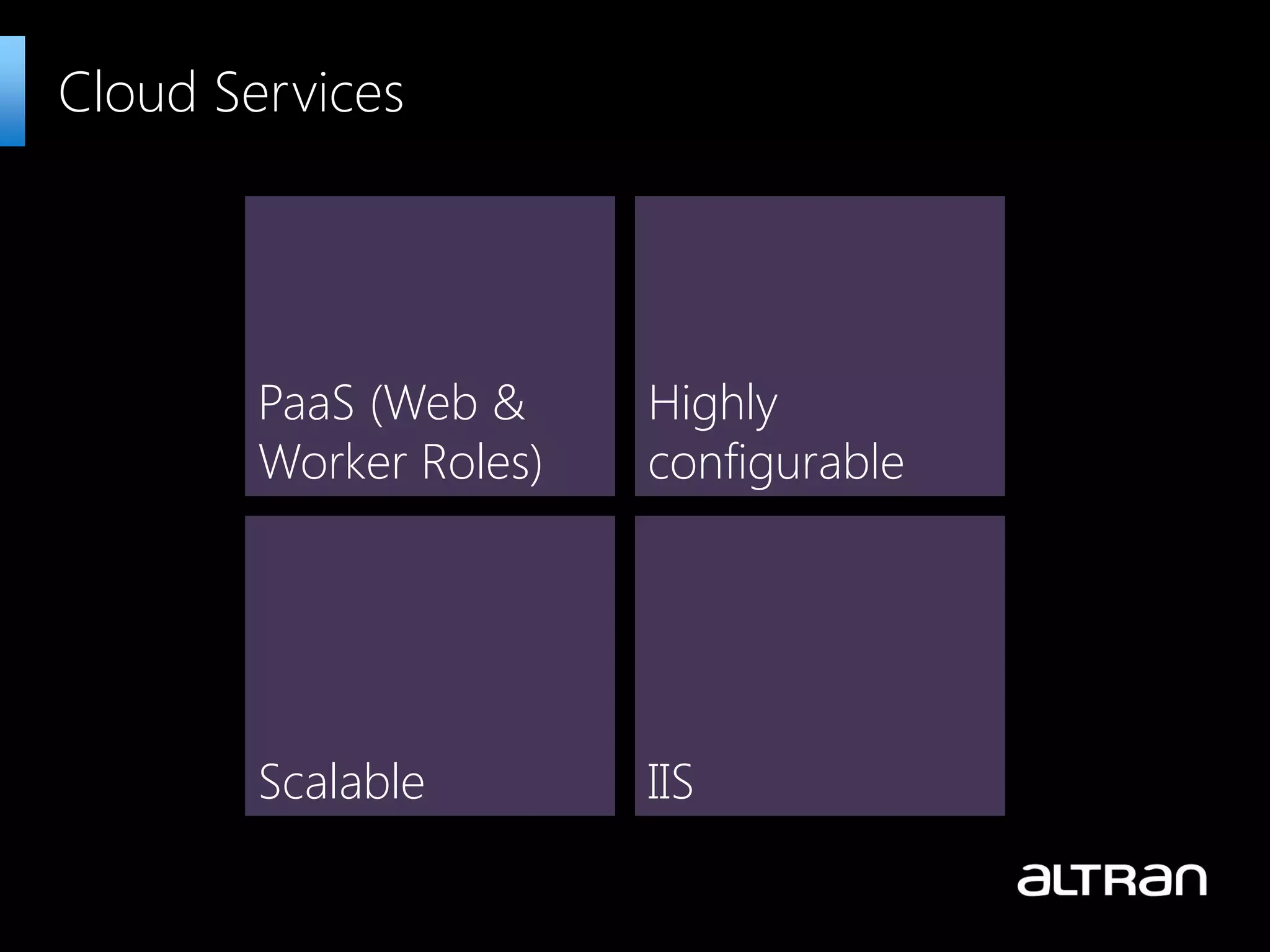

16. Cloud Services
Highly
configurable
IIS
PaaS (Web &
Worker Roles)
Scalable

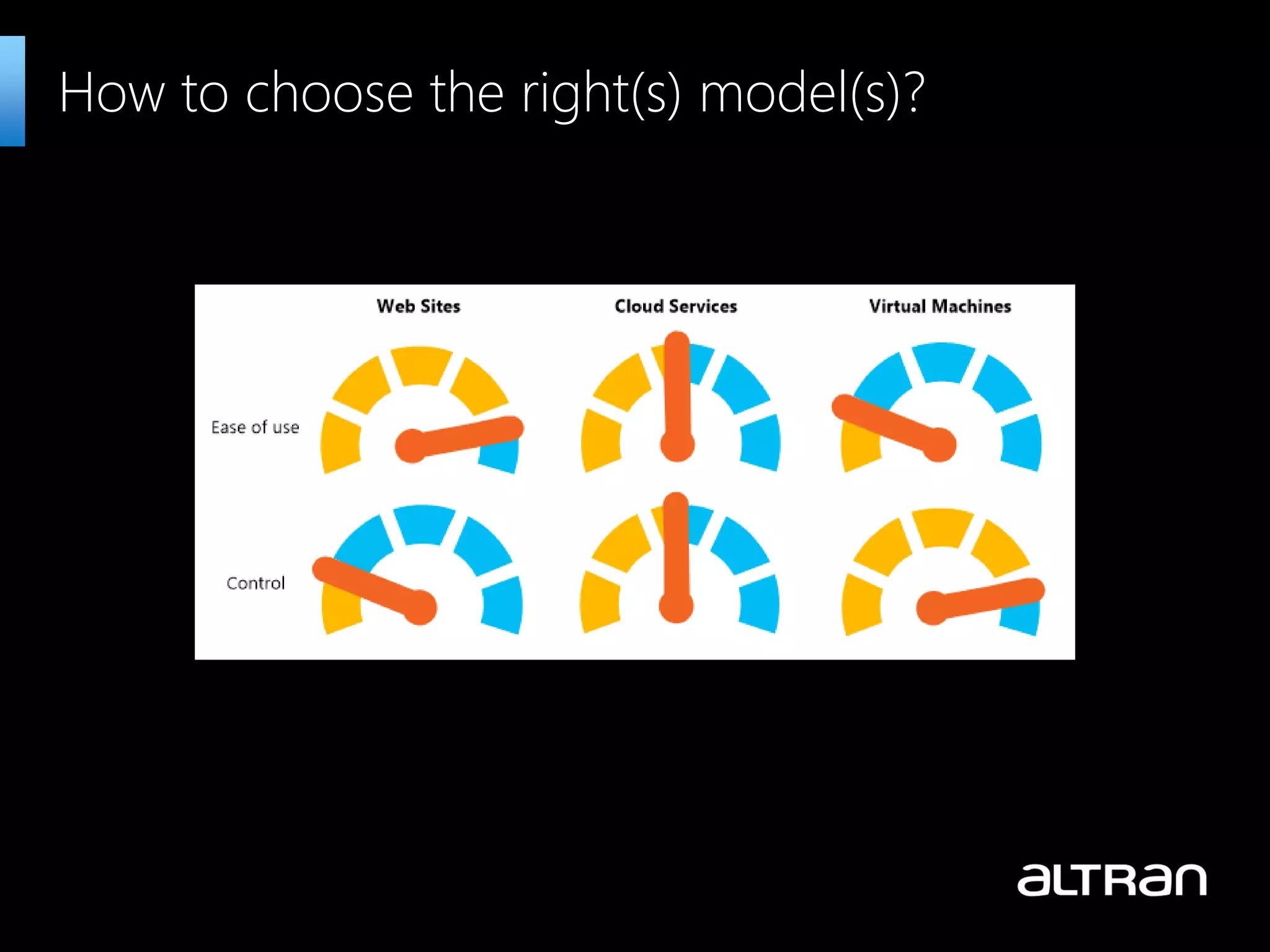

17. How to choose the right(s) model(s)?

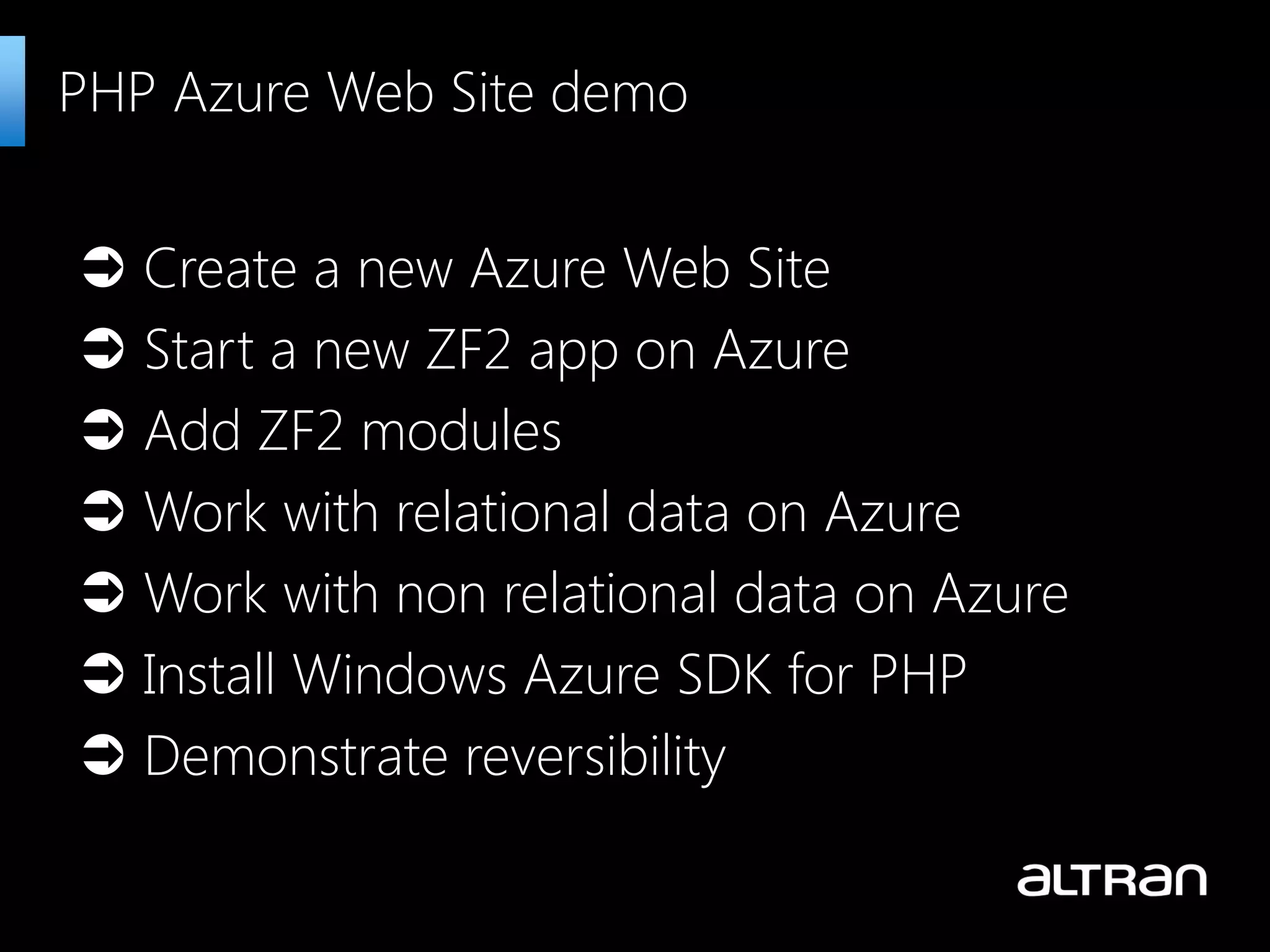

18.  Create a new Azure Web Site
 Start a new ZF2 app on Azure
 Add ZF2 modules
 Work with relational data on Azure
 Work with non relational data on Azure
 Install Windows Azure SDK for PHP
 Demonstrate reversibility
PHP Azure Web Site demo

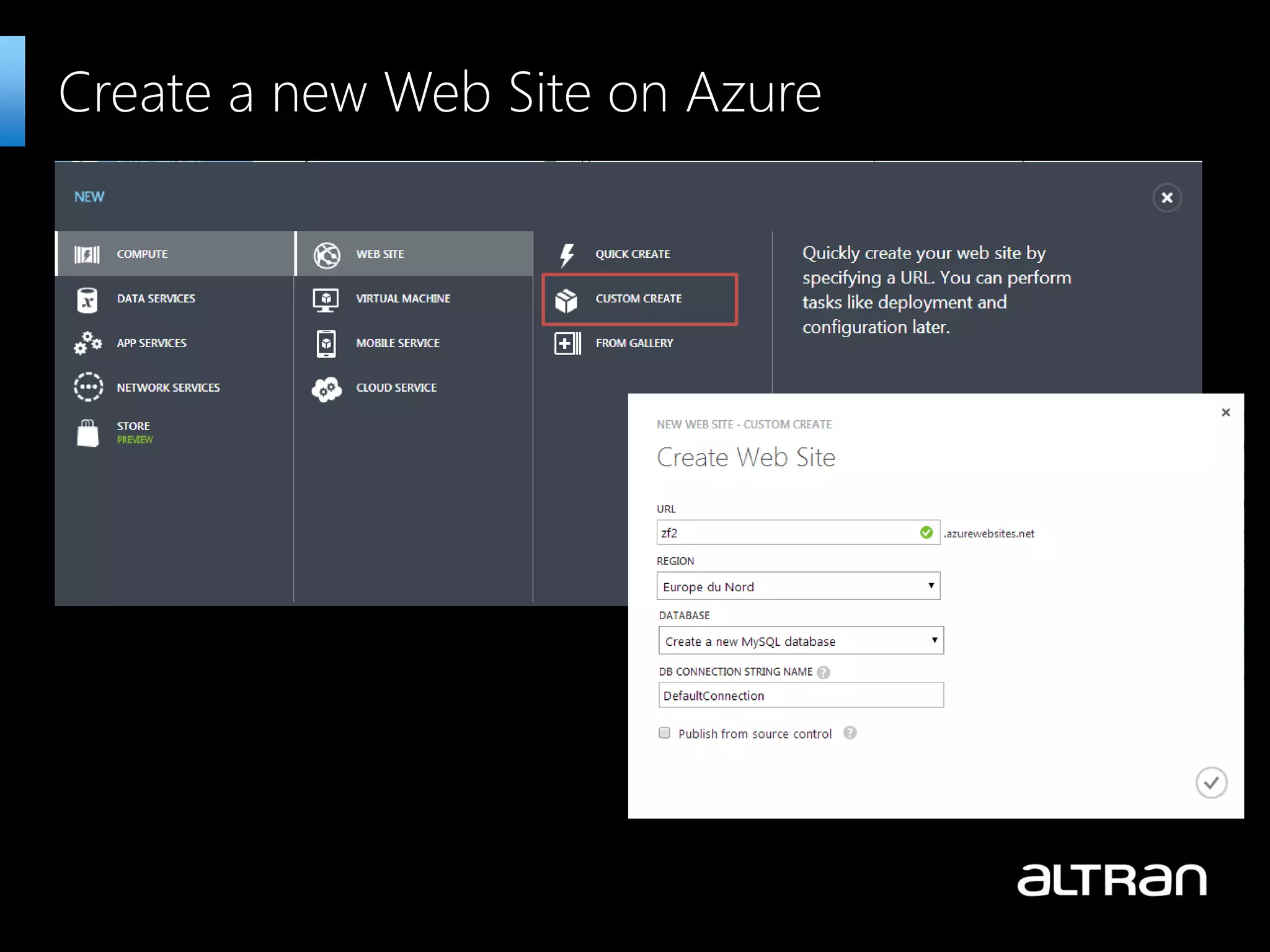

19. Create a new Web Site on Azure

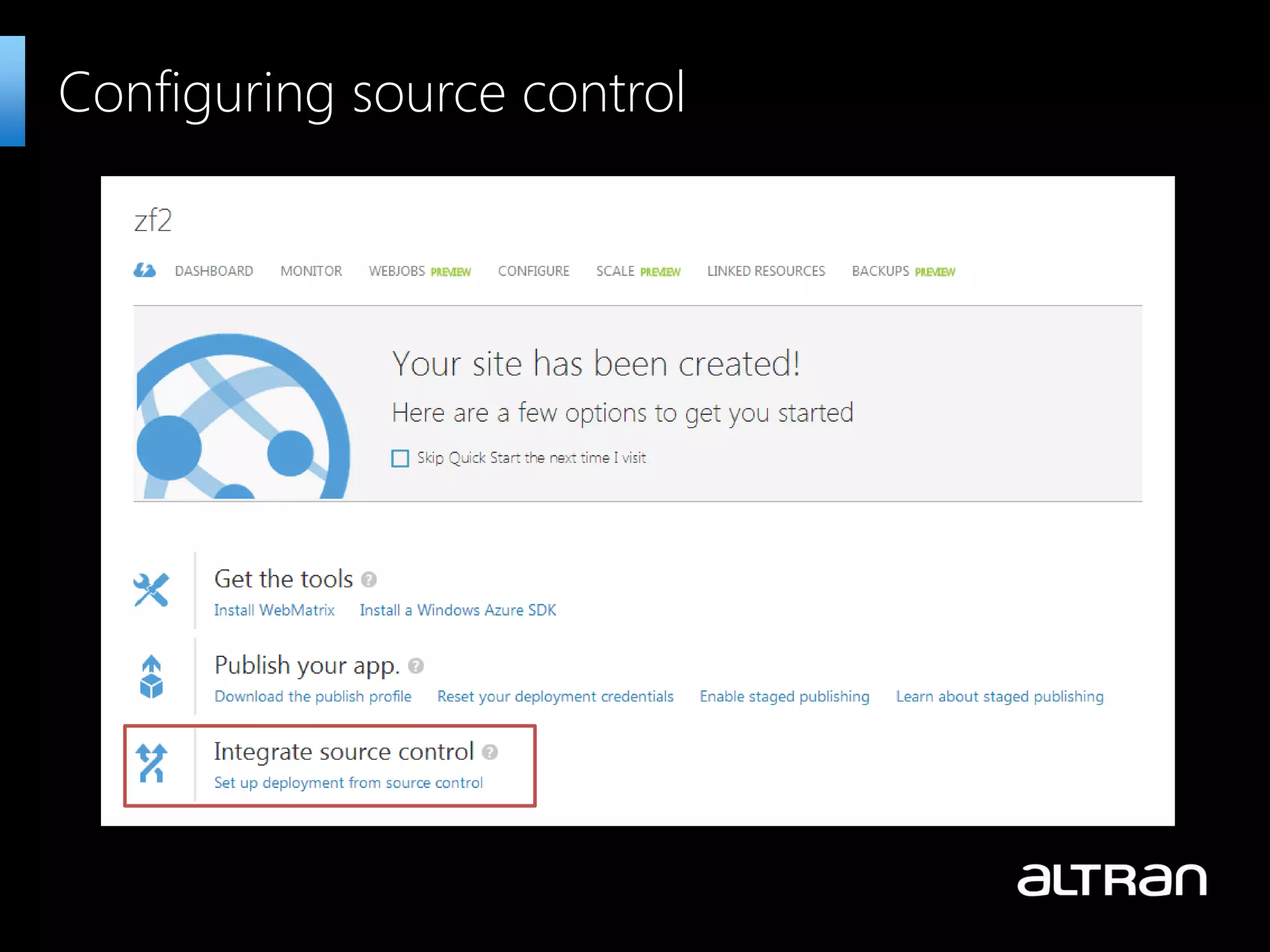

20. Configuring source control

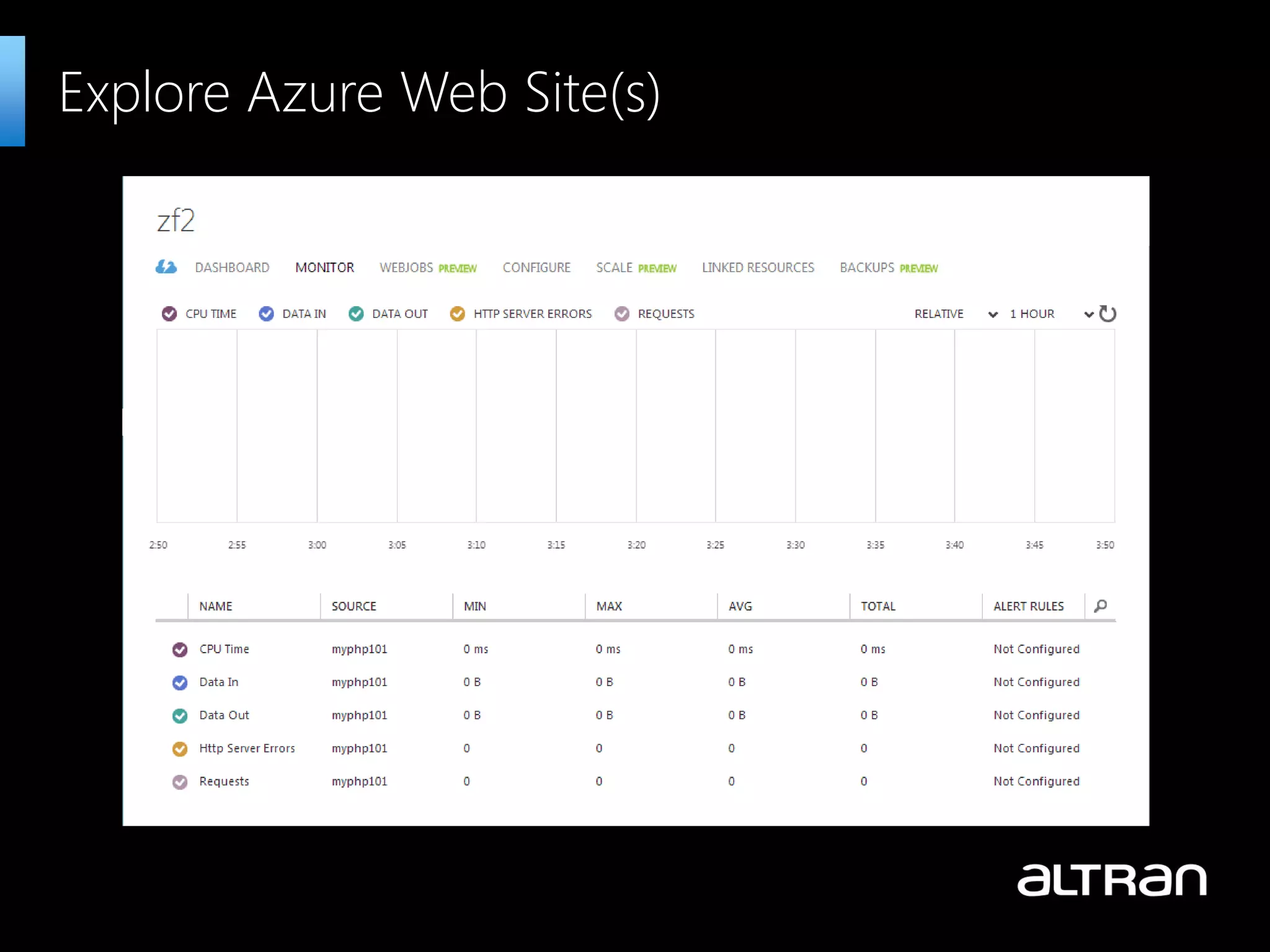

21. Explore Azure Web Site(s)

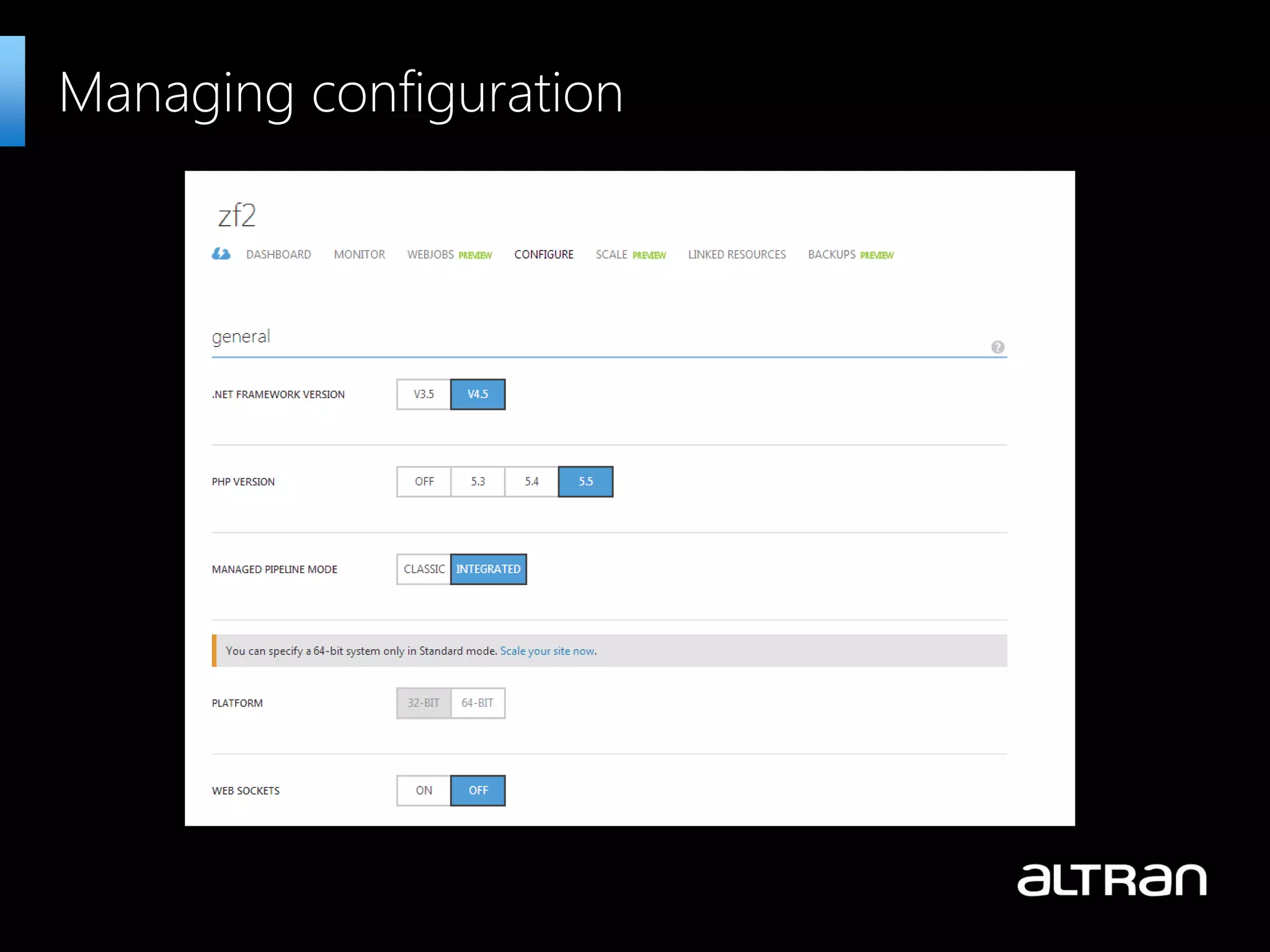

22. Managing configuration

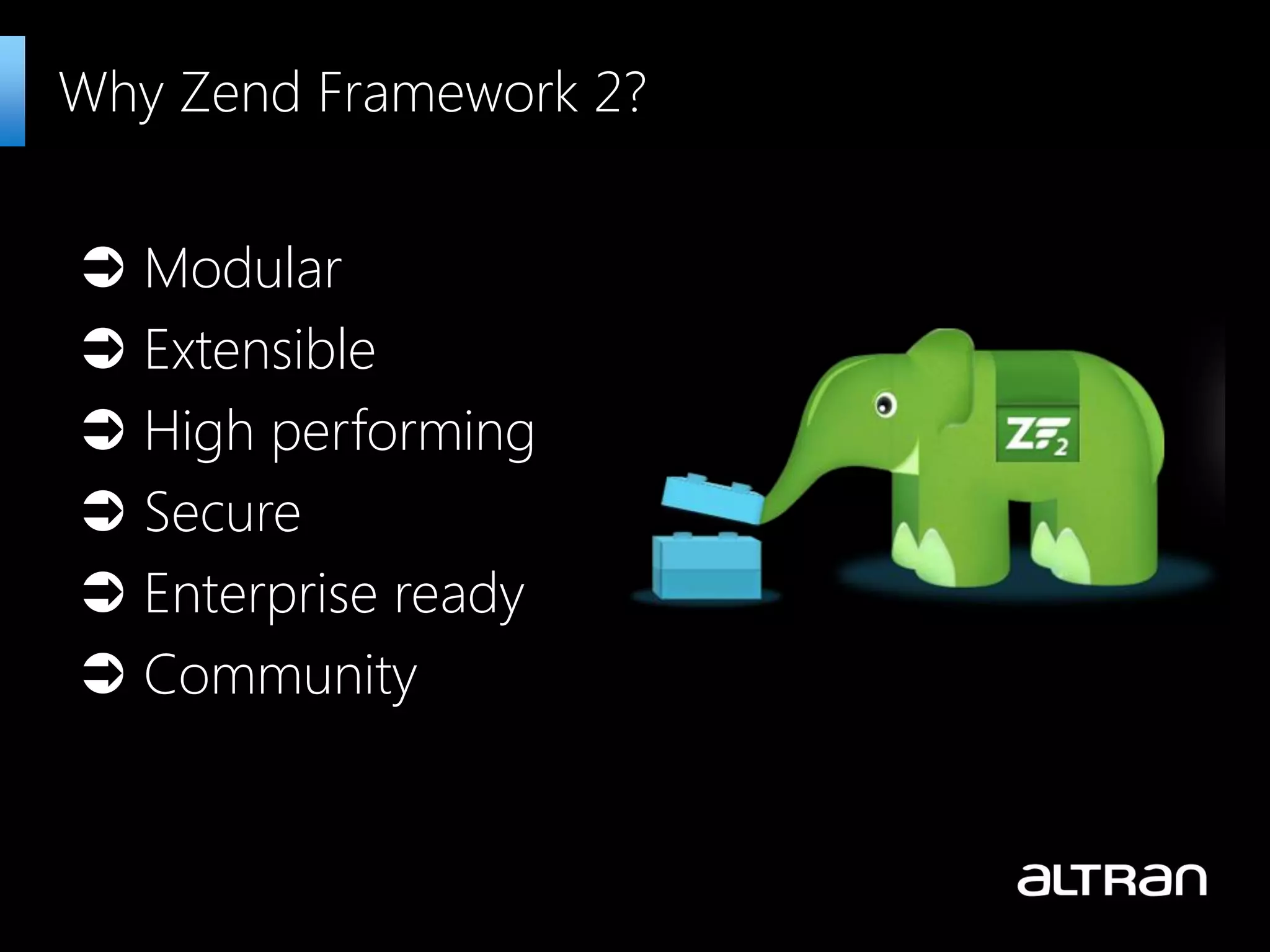

23.  Modular
 Extensible
 High performing
 Secure
 Enterprise ready
 Community
Why Zend Framework 2?

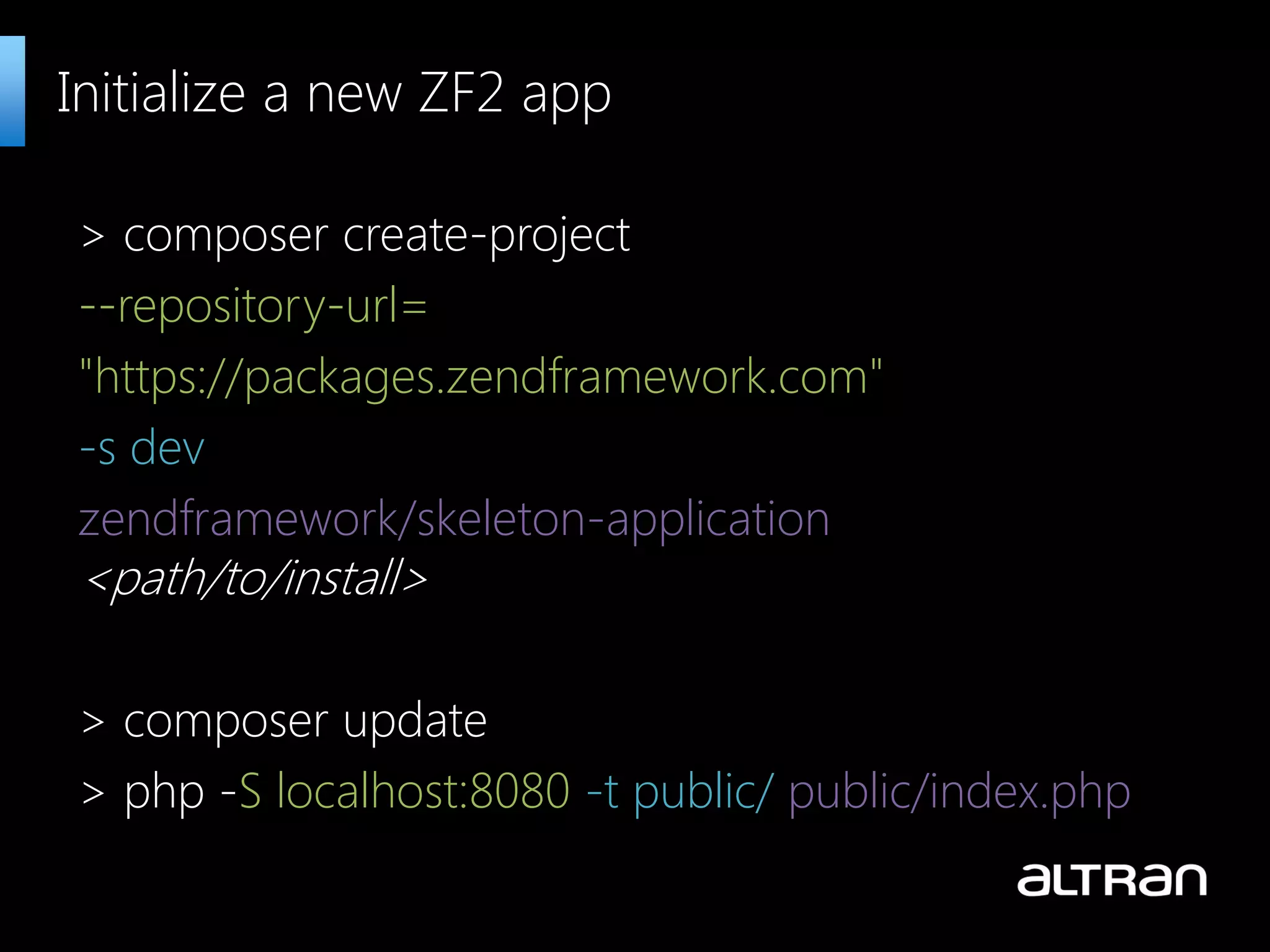

24. > composer create-project
--repository-url=
"https://packages.zendframework.com"
-s dev
zendframework/skeleton-application
<path/to/install>
> composer update
> php -S localhost:8080 -t public/ public/index.php
Initialize a new ZF2 app

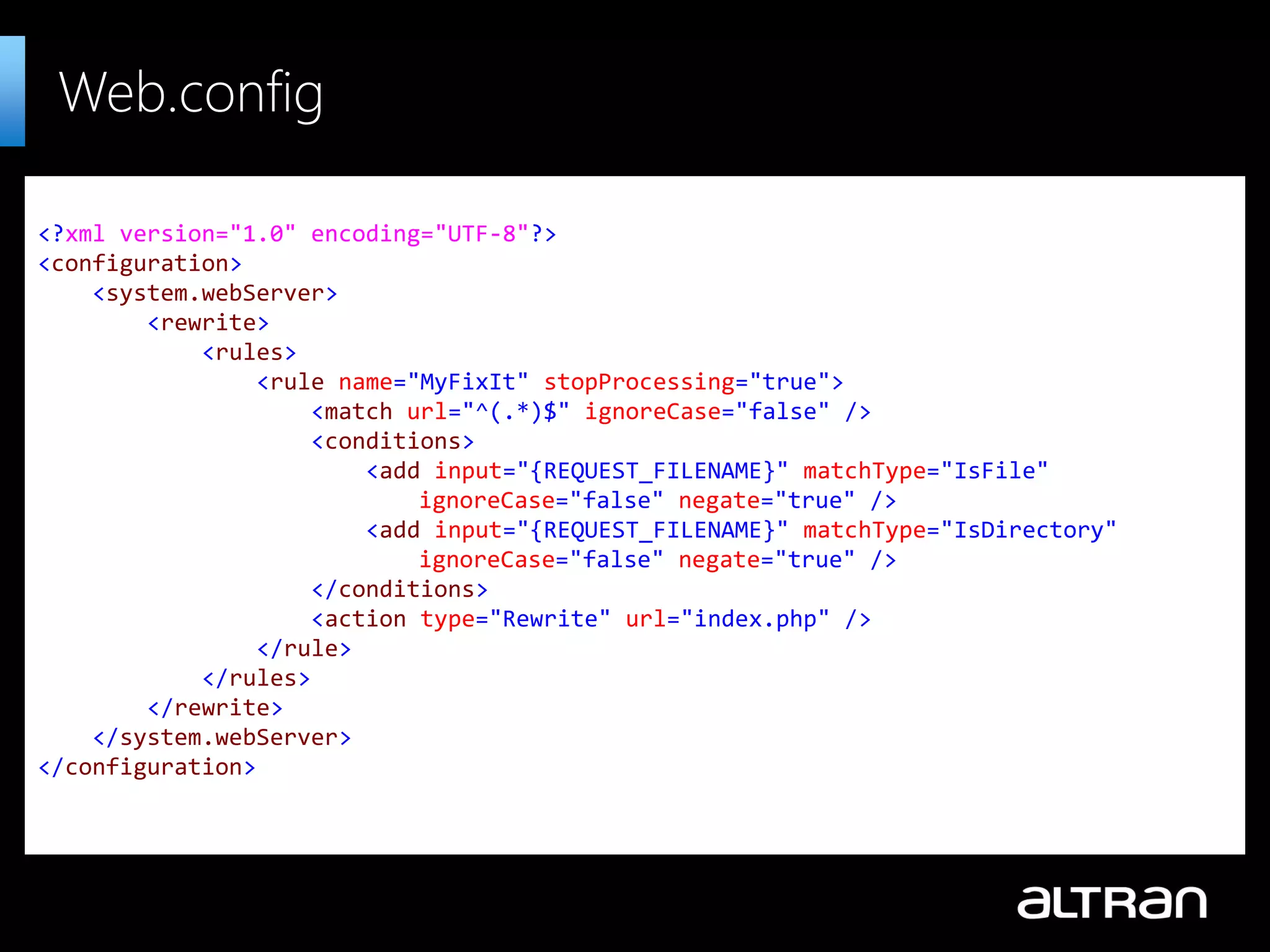

25. <?xml version="1.0" encoding="UTF-8"?>
<configuration>
<system.webServer>
<rewrite>
<rules>
<rule name="MyFixIt" stopProcessing="true">
<match url="^(.*)$" ignoreCase="false" />
<conditions>
<add input="{REQUEST_FILENAME}" matchType="IsFile"
ignoreCase="false" negate="true" />
<add input="{REQUEST_FILENAME}" matchType="IsDirectory"
ignoreCase="false" negate="true" />
</conditions>
<action type="Rewrite" url="index.php" />
</rule>
</rules>
</rewrite>
</system.webServer>
</configuration>
Web.config

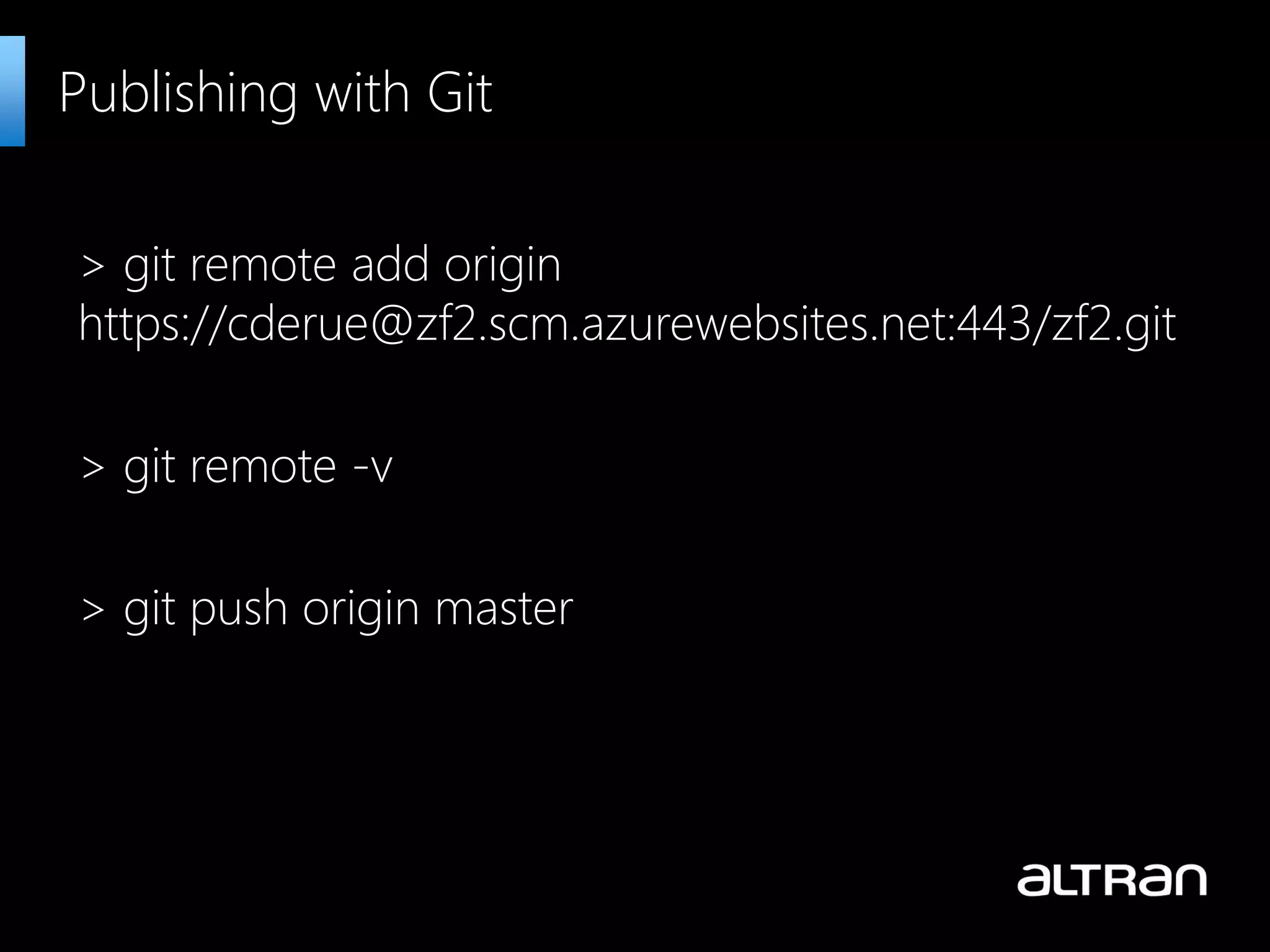

26. > git remote add origin
https://cderue@zf2.scm.azurewebsites.net:443/zf2.git
> git remote -v
> git push origin master
Publishing with Git

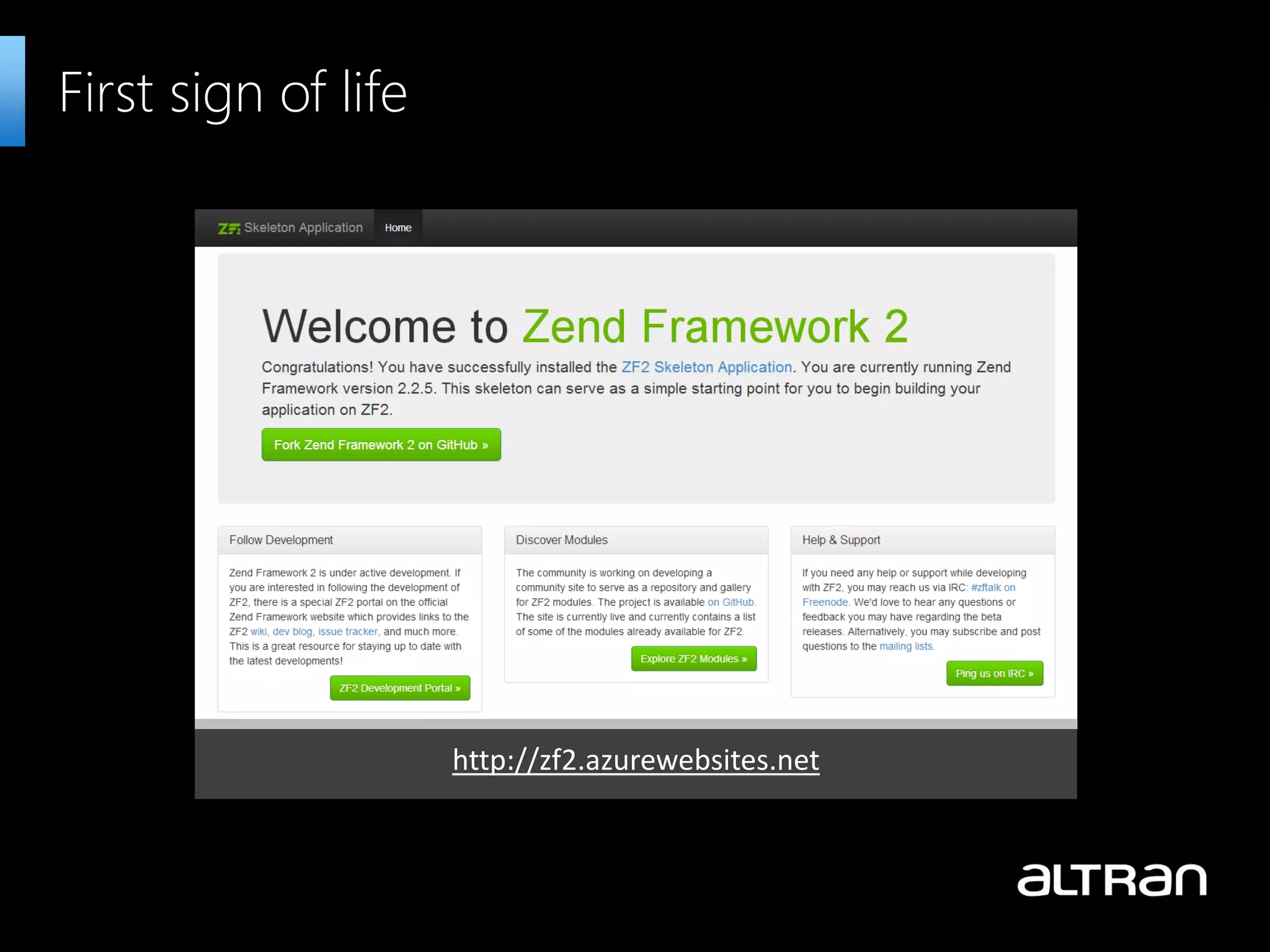

27. First sign of life
http://zf2.azurewebsites.net

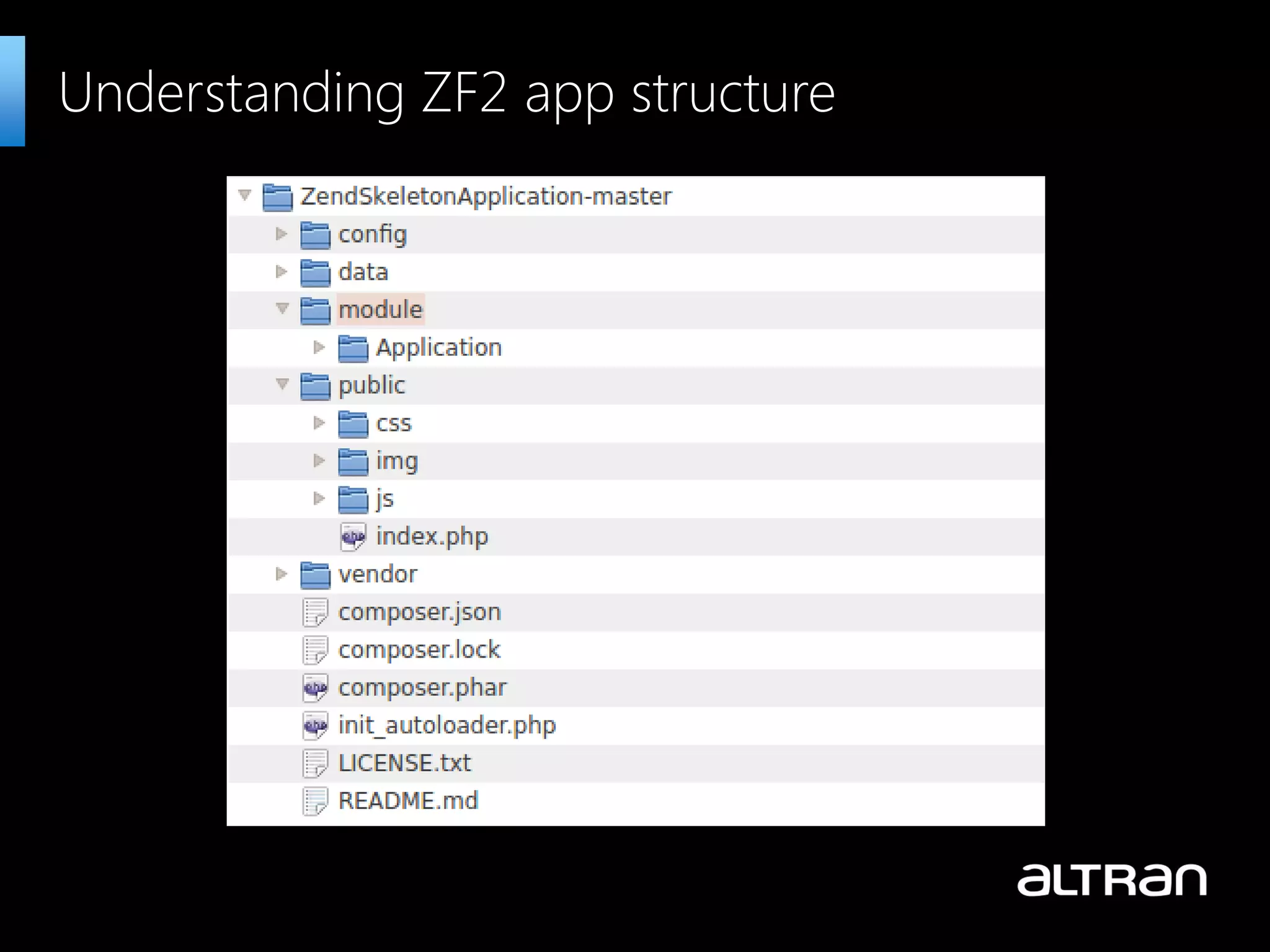

28. Understanding ZF2 app structure

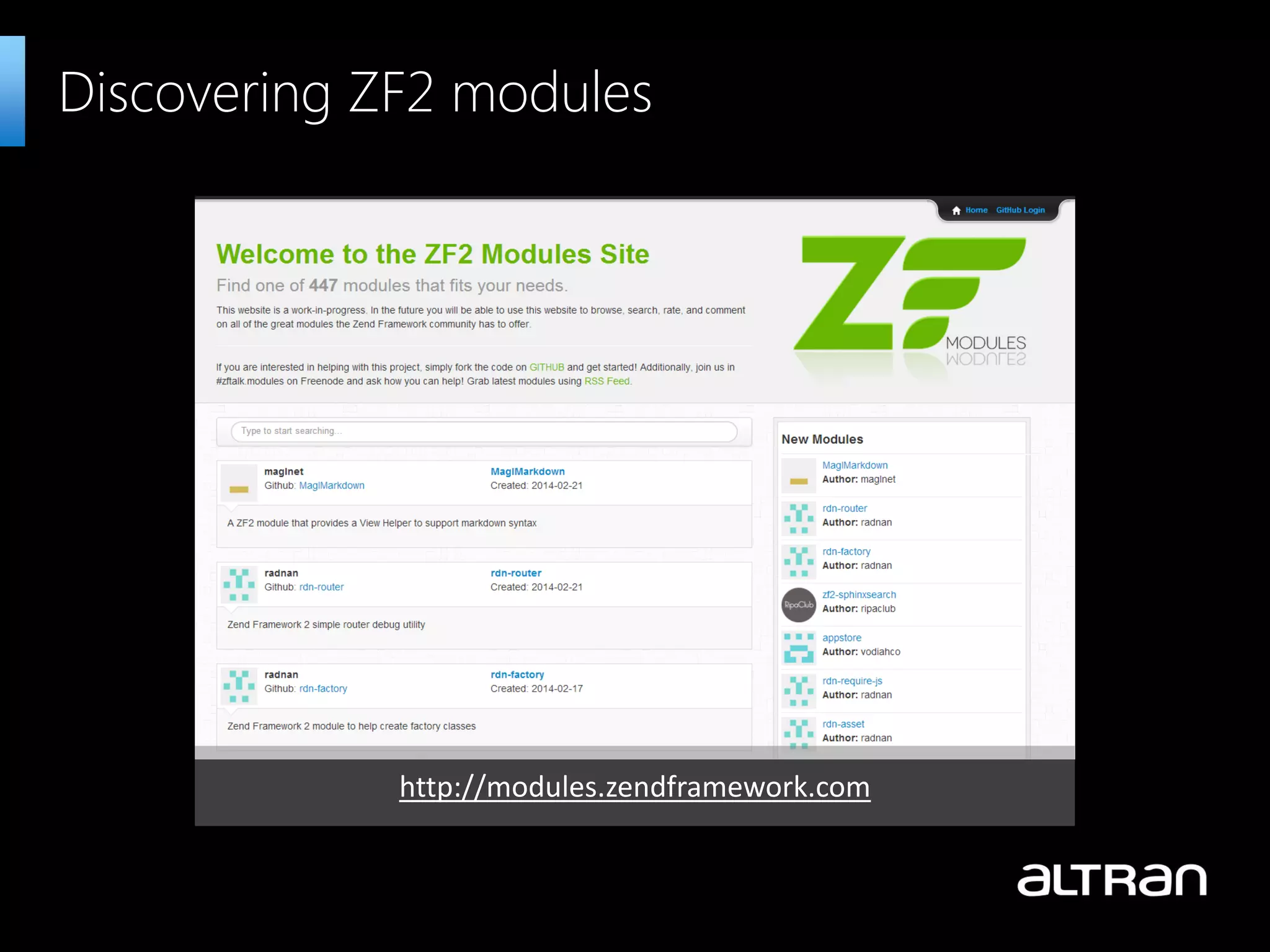

29. Discovering ZF2 modules
http://modules.zendframework.com

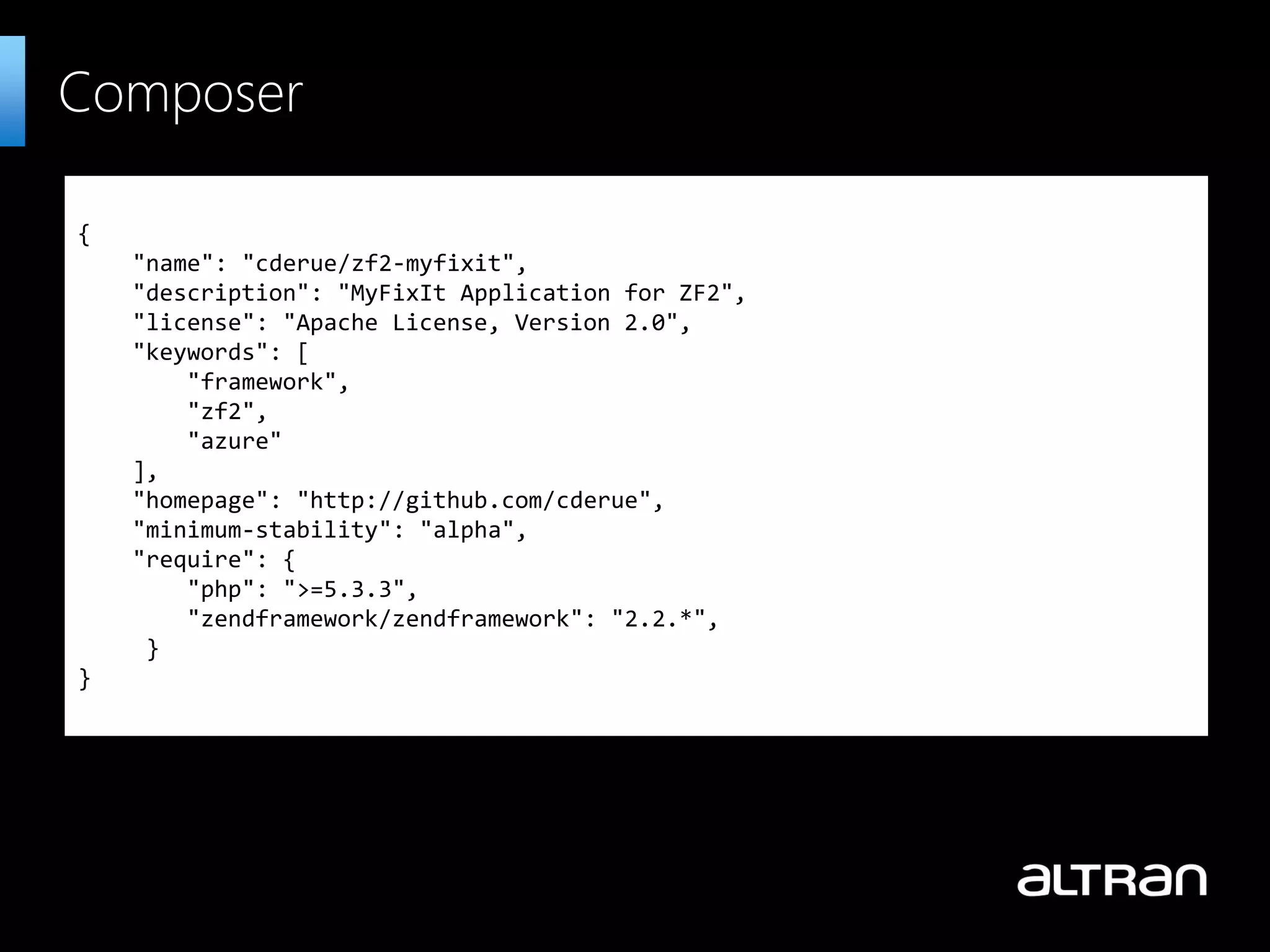

30. {
"name": "cderue/zf2-myfixit",
"description": "MyFixIt Application for ZF2",
"license": "Apache License, Version 2.0",
"keywords": [
"framework",
"zf2",
"azure"
],
"homepage": "http://github.com/cderue",
"minimum-stability": "alpha",
"require": {
"php": ">=5.3.3",
"zendframework/zendframework": "2.2.*",
}
}
Composer

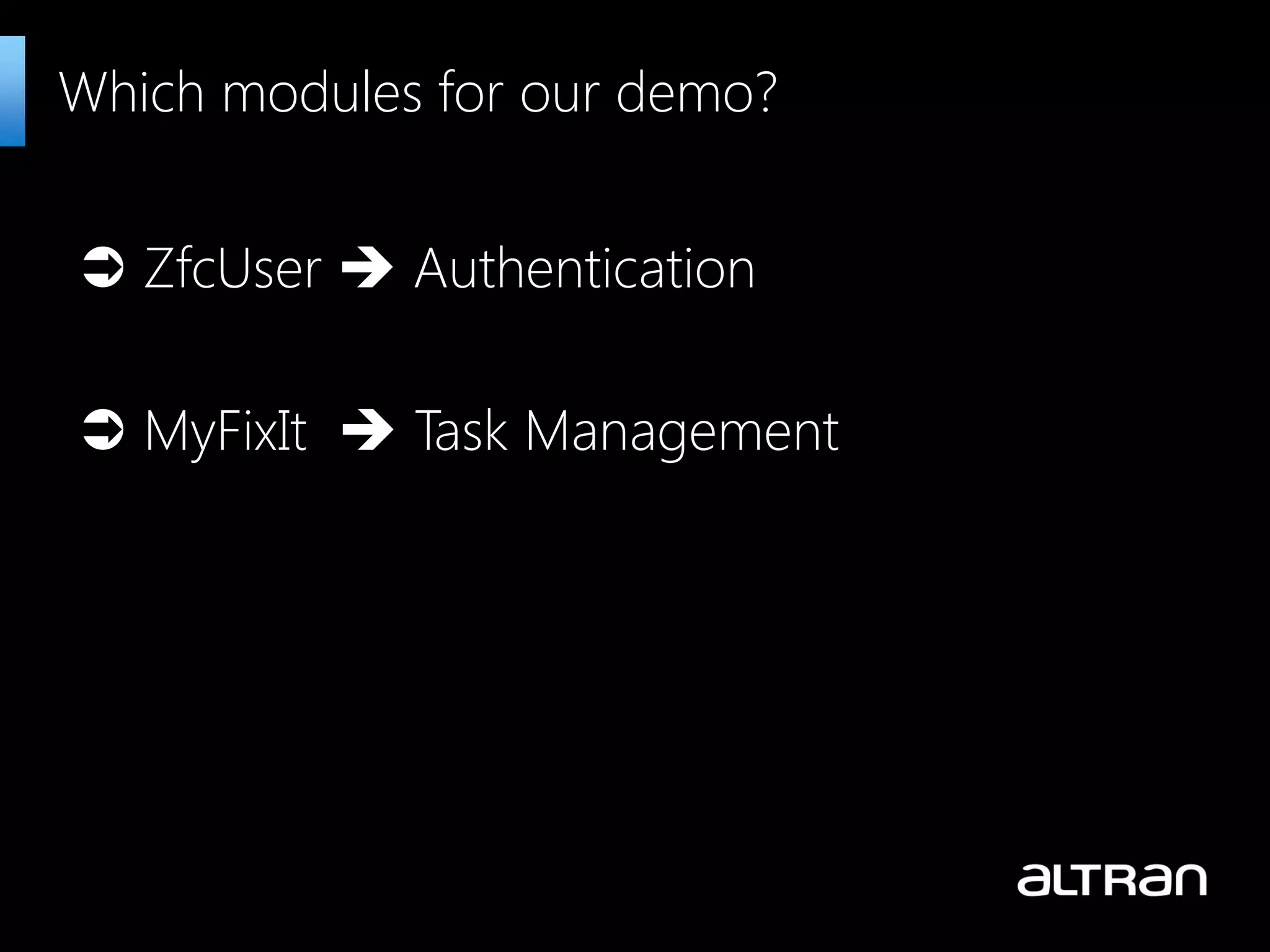

31.  ZfcUser  Authentication
 MyFixIt  Task Management
Which modules for our demo?

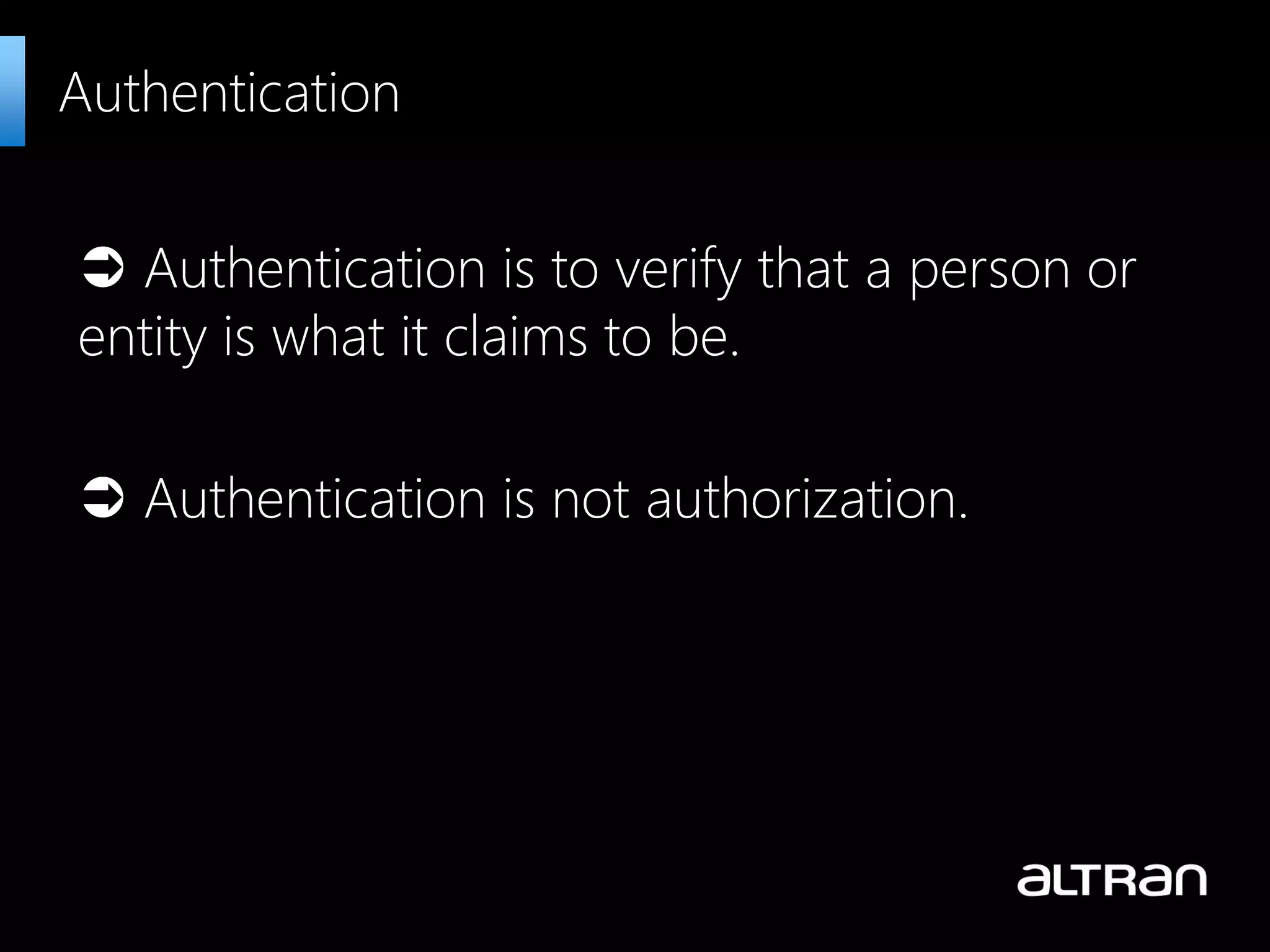

32.  Authentication is to verify that a person or
entity is what it claims to be.
 Authentication is not authorization.
Authentication

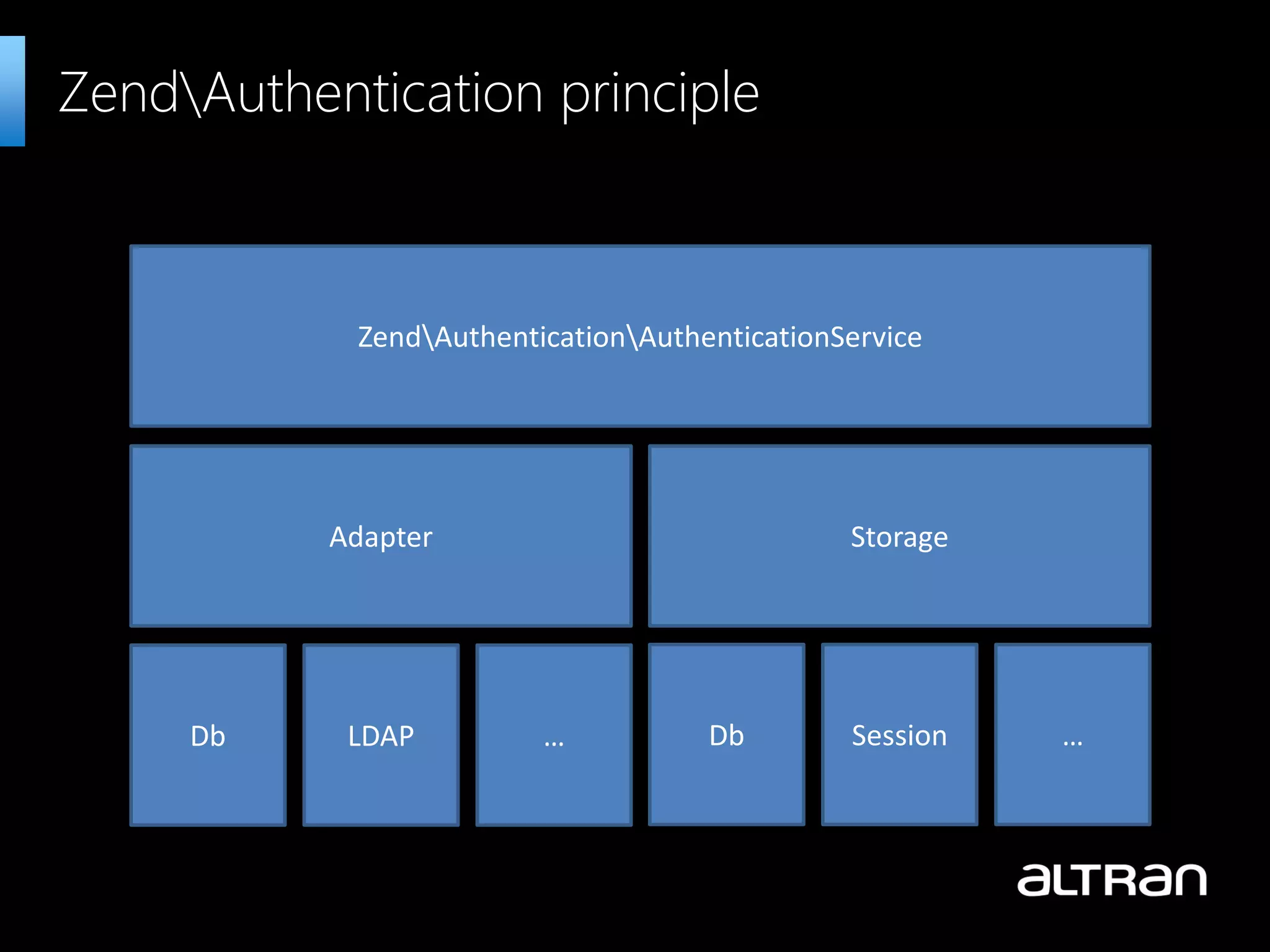

33. ZendAuthentication principle
Storage
ZendAuthenticationAuthenticationService
Adapter
Db LDAP … Db Session …

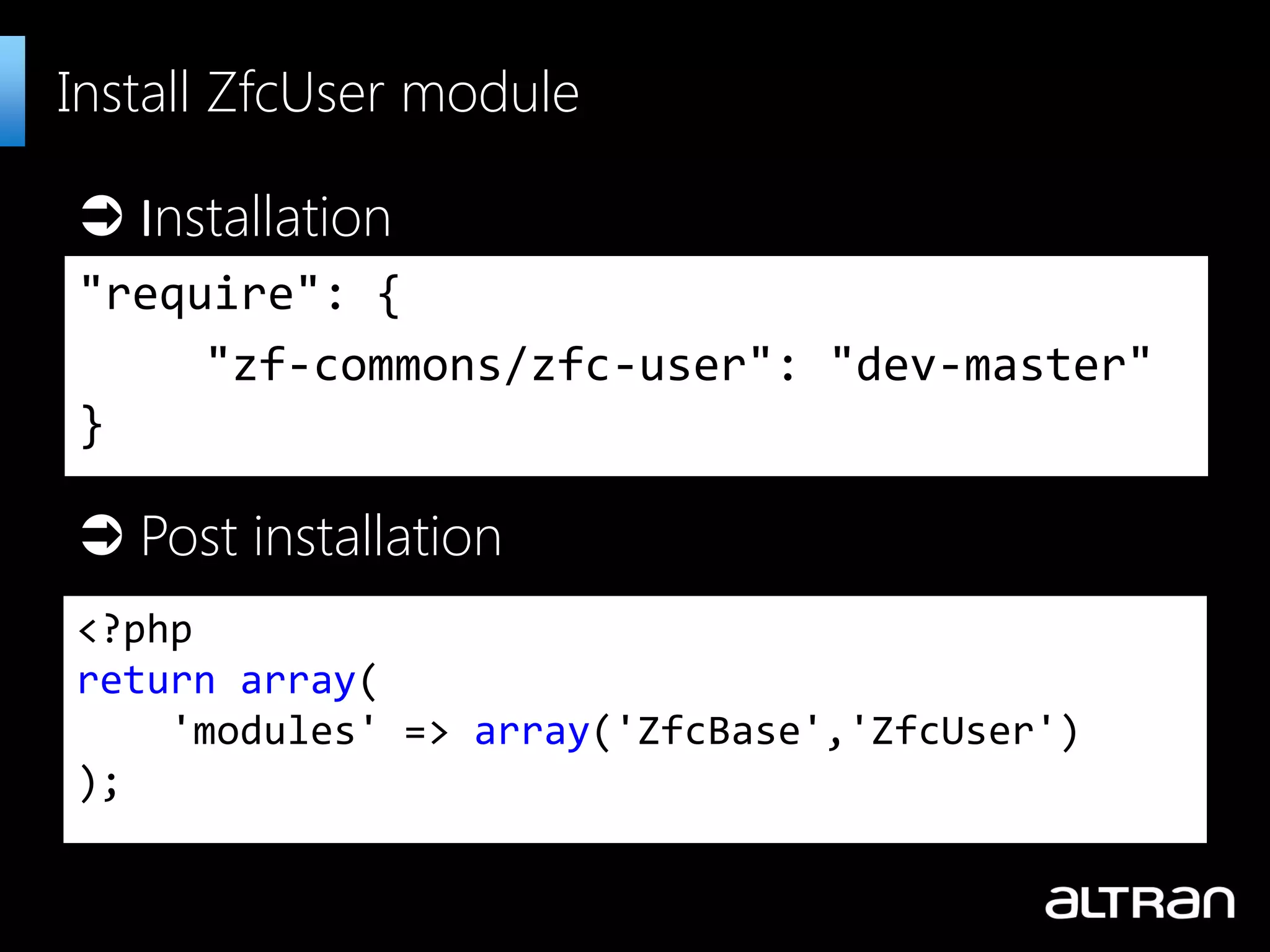

34. "require": {
"zf-commons/zfc-user": "dev-master"
}
Install ZfcUser module
<?php
return array(
'modules' => array('ZfcBase','ZfcUser')
);
 Post installation
 Installation

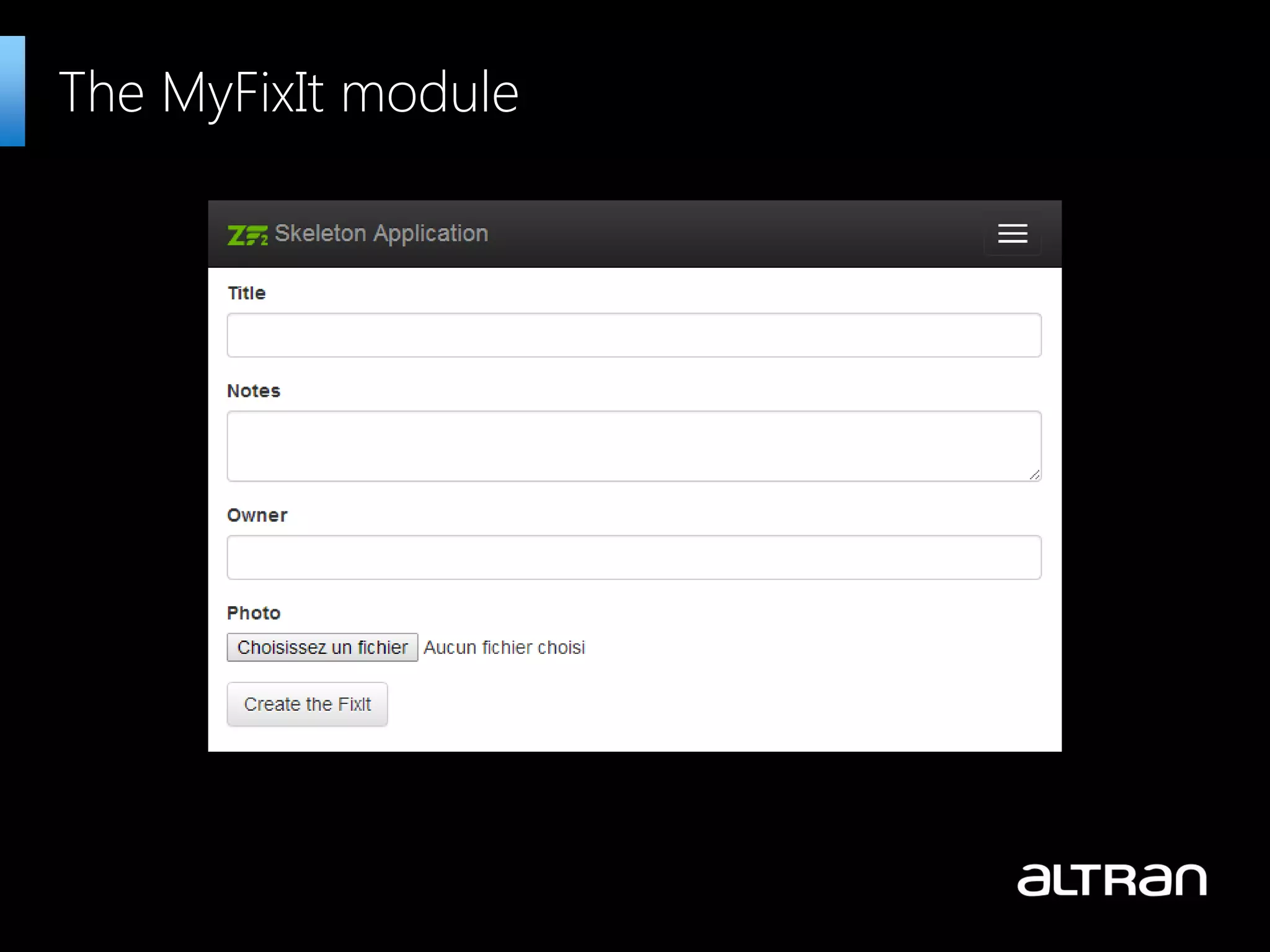

35. The MyFixIt module

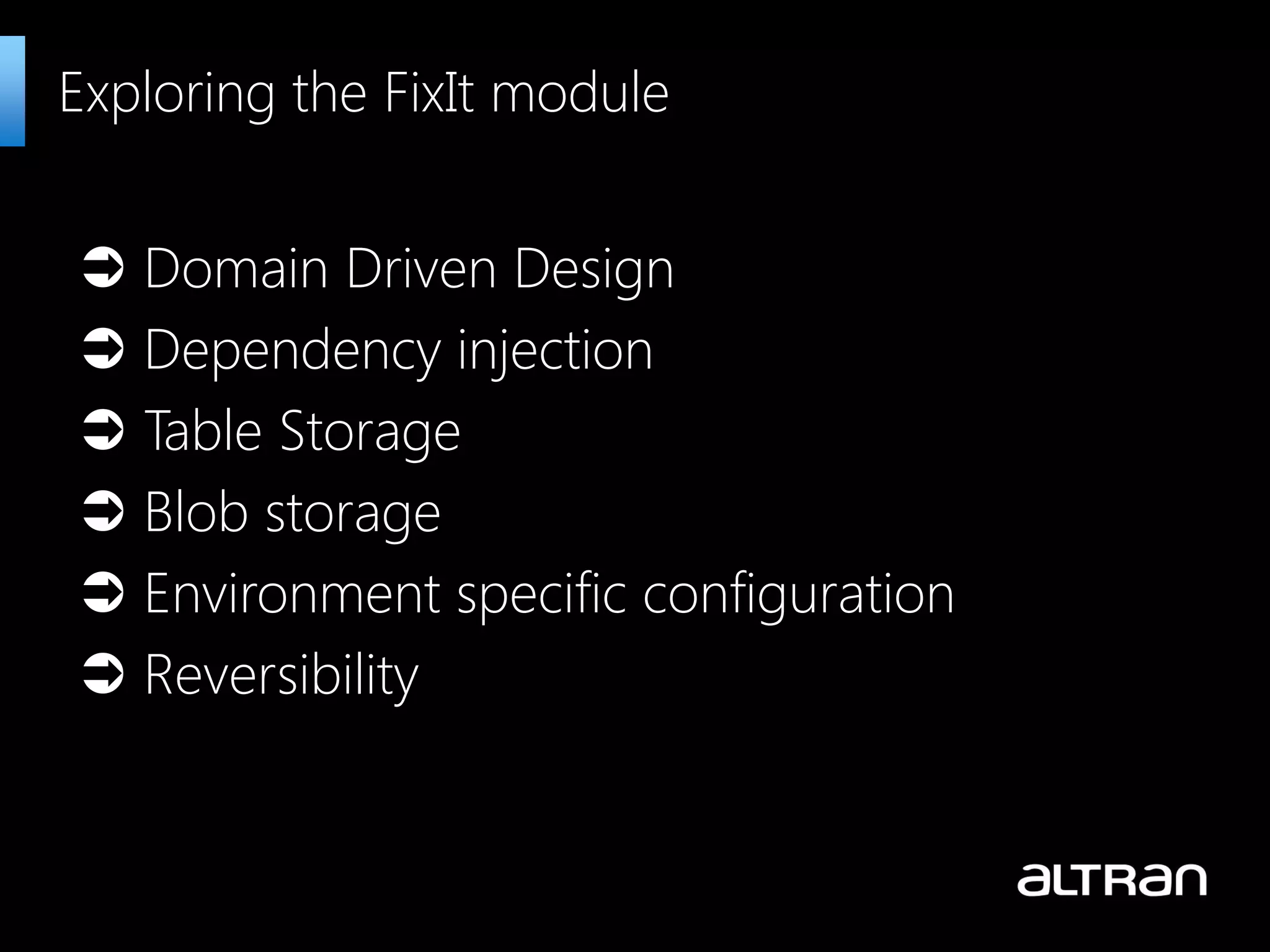

36.  Domain Driven Design
 Dependency injection
 Table Storage
 Blob storage
 Environment specific configuration
 Reversibility
Exploring the FixIt module

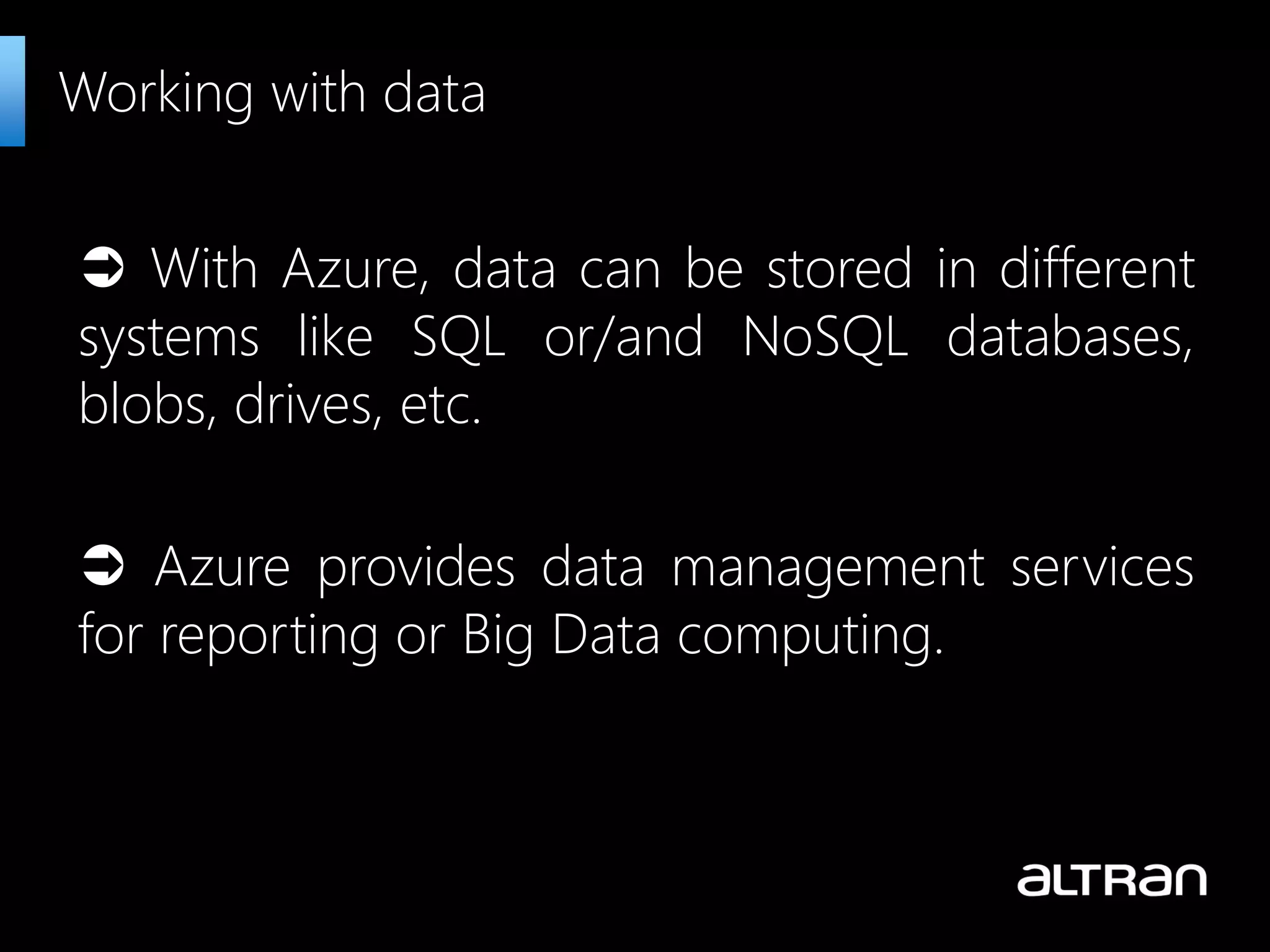

37.  With Azure, data can be stored in different
systems like SQL or/and NoSQL databases,
blobs, drives, etc.
 Azure provides data management services
for reporting or Big Data computing.
Working with data

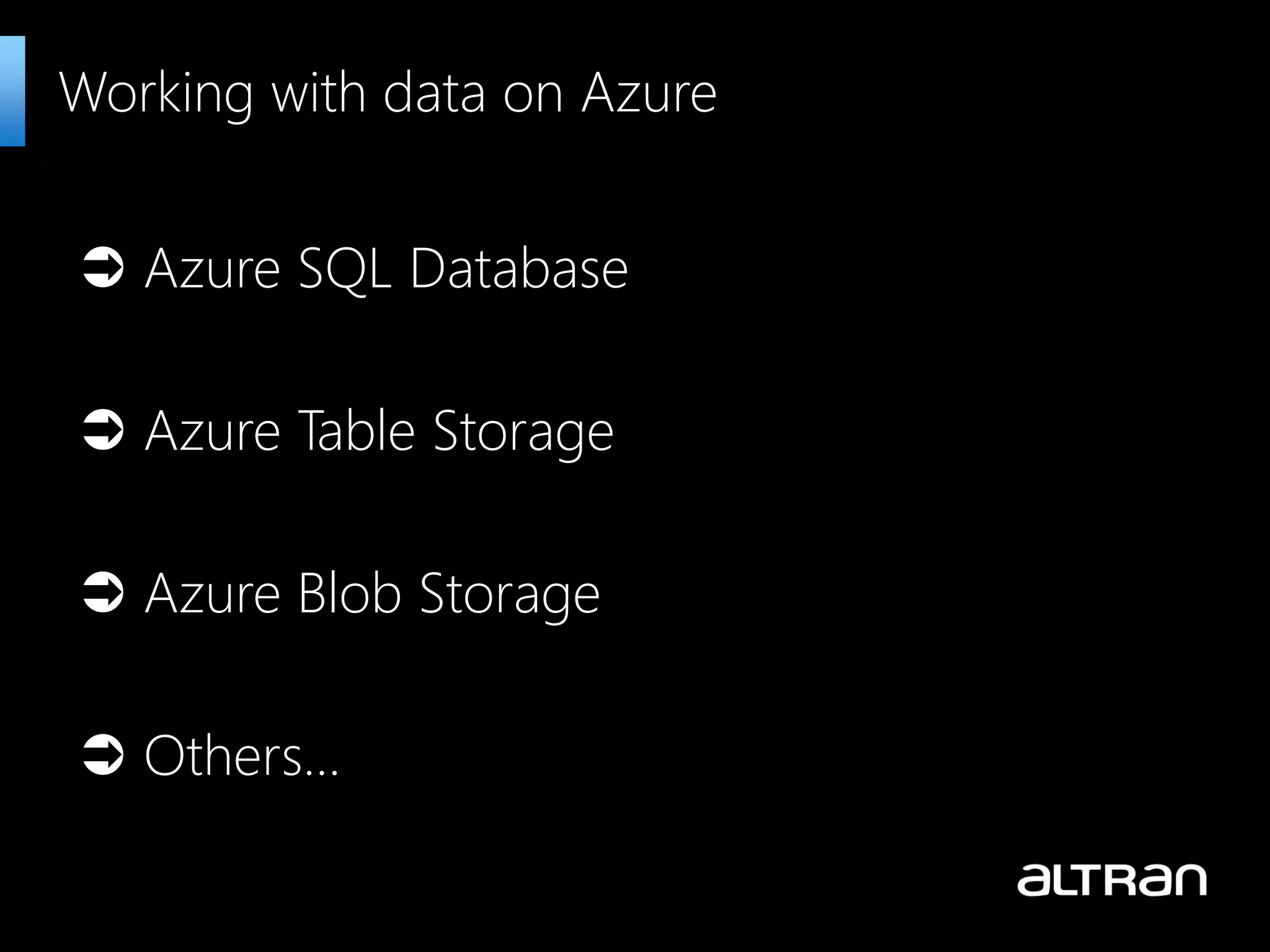

38.  Azure SQL Database
 Azure Table Storage
 Azure Blob Storage
 Others…
Working with data on Azure

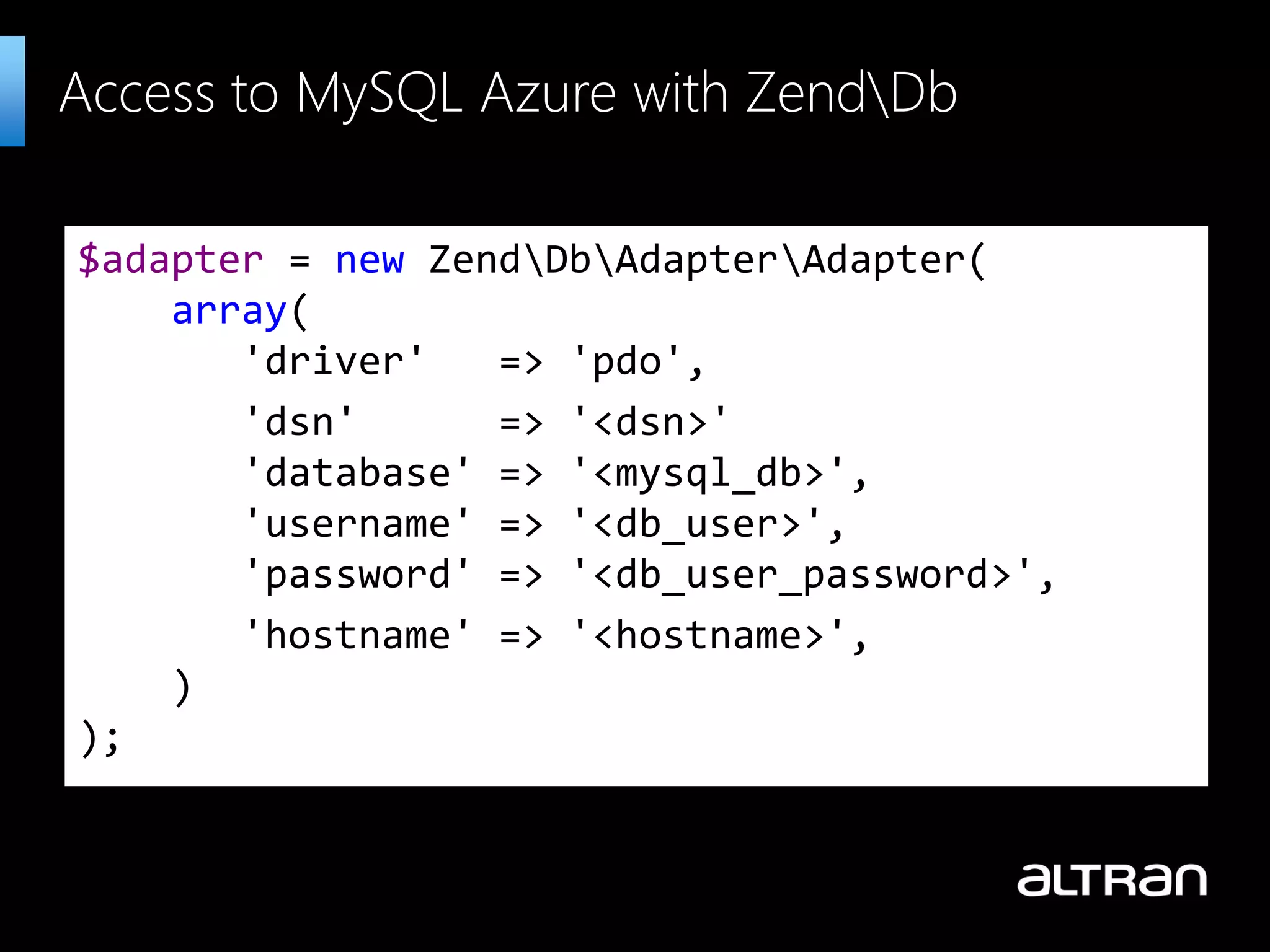

39. $adapter = new ZendDbAdapterAdapter(
array(
'driver' => 'pdo',
'dsn' => '<dsn>'
'database' => '<mysql_db>',
'username' => '<db_user>',
'password' => '<db_user_password>',
'hostname' => '<hostname>',
)
);
Access to MySQL Azure with ZendDb

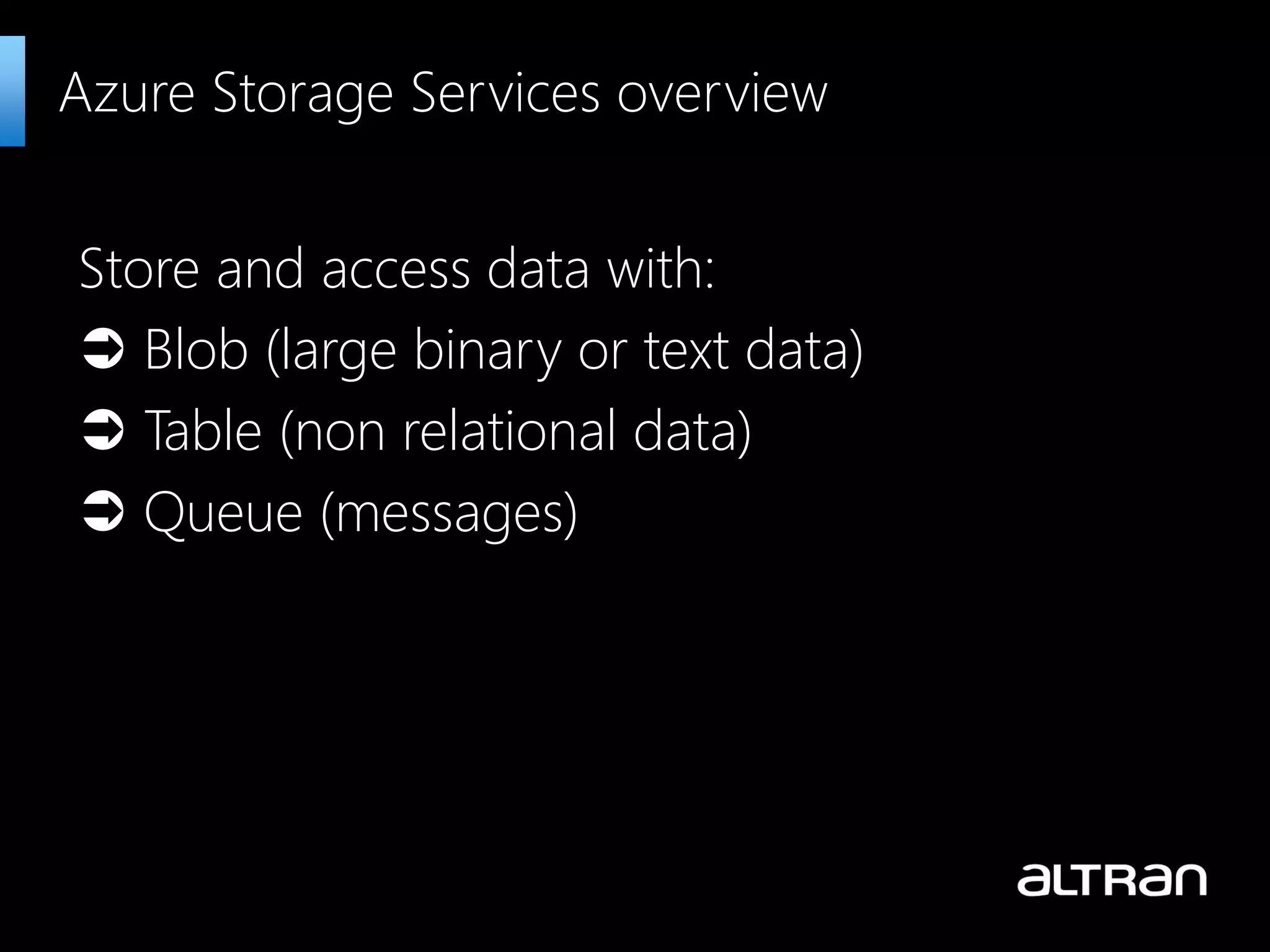

40. Store and access data with:
 Blob (large binary or text data)
 Table (non relational data)
 Queue (messages)
Azure Storage Services overview

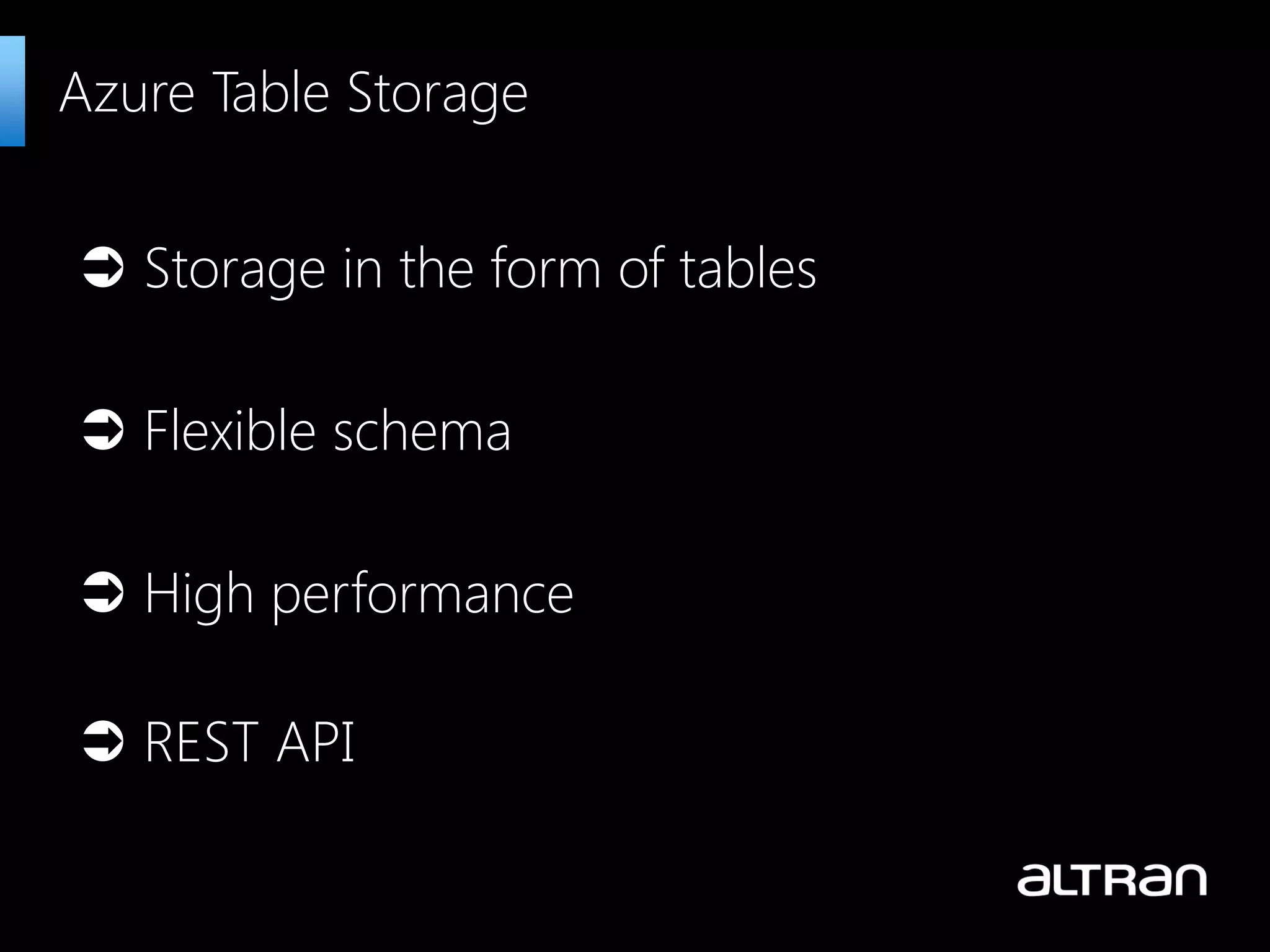

41.  Storage in the form of tables
 Flexible schema
 High performance
 REST API
Azure Table Storage

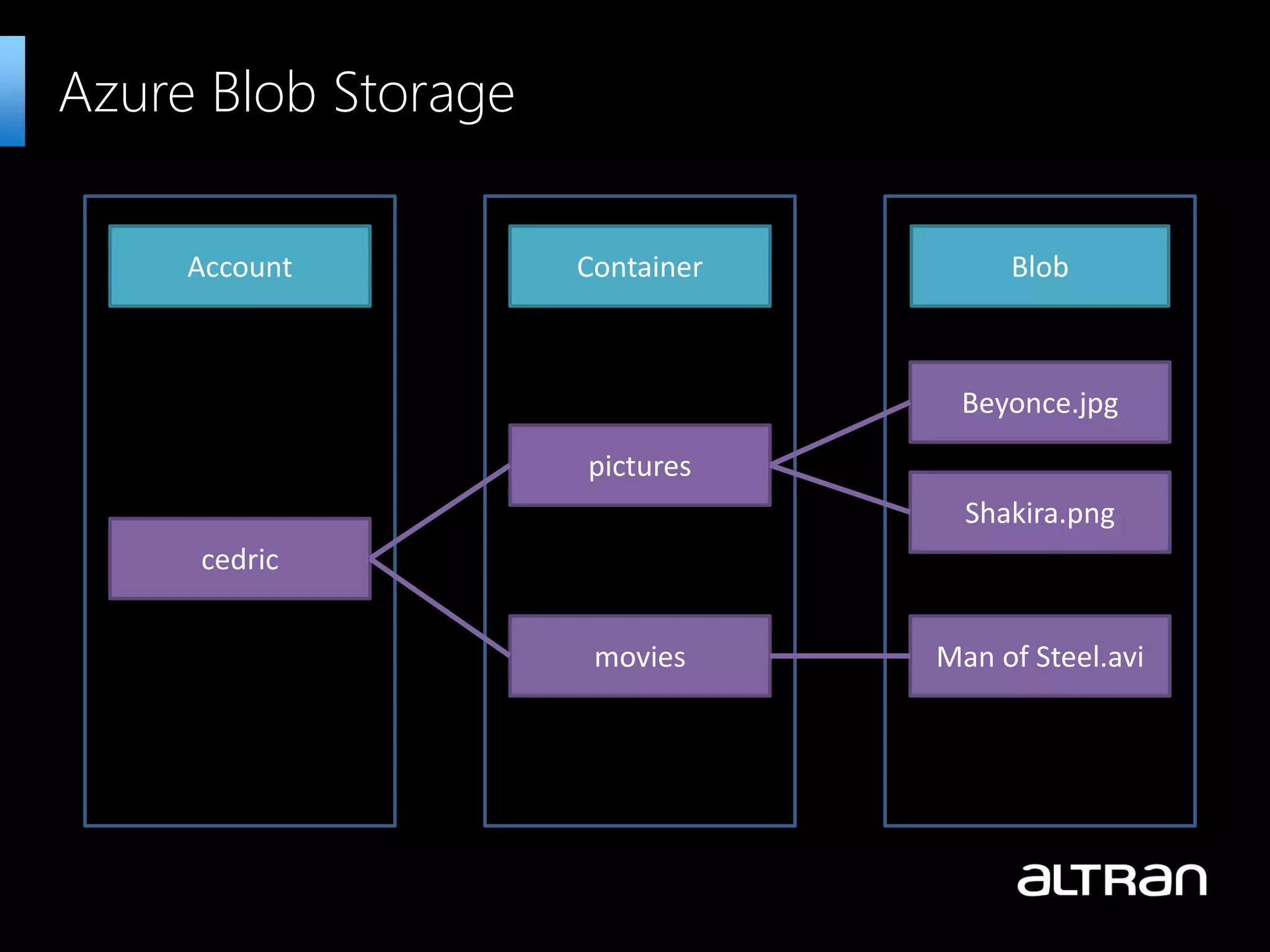

42. Azure Blob Storage
Account Container Blob
cedric
pictures
movies Man of Steel.avi

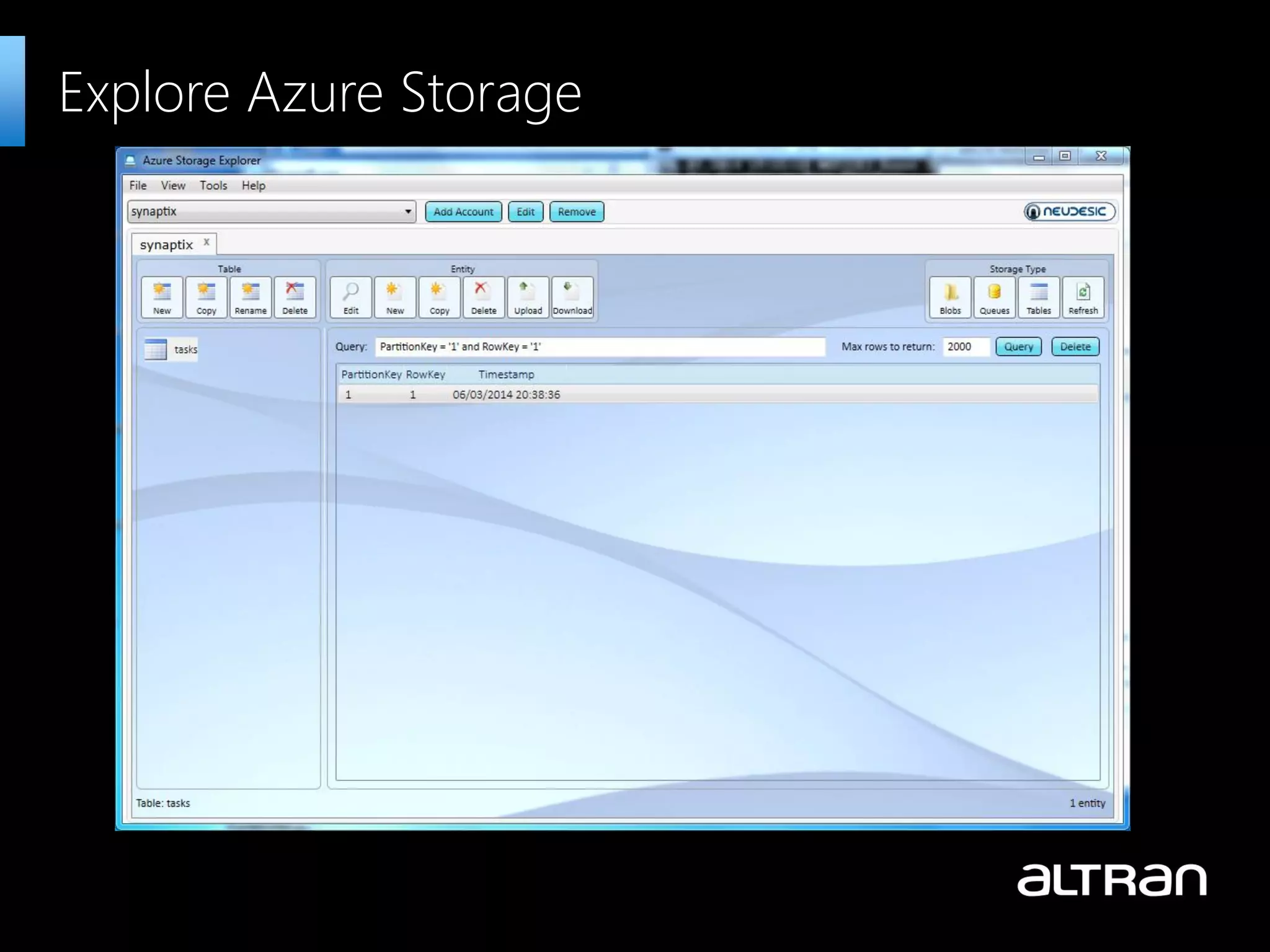

43. Explore Azure Storage

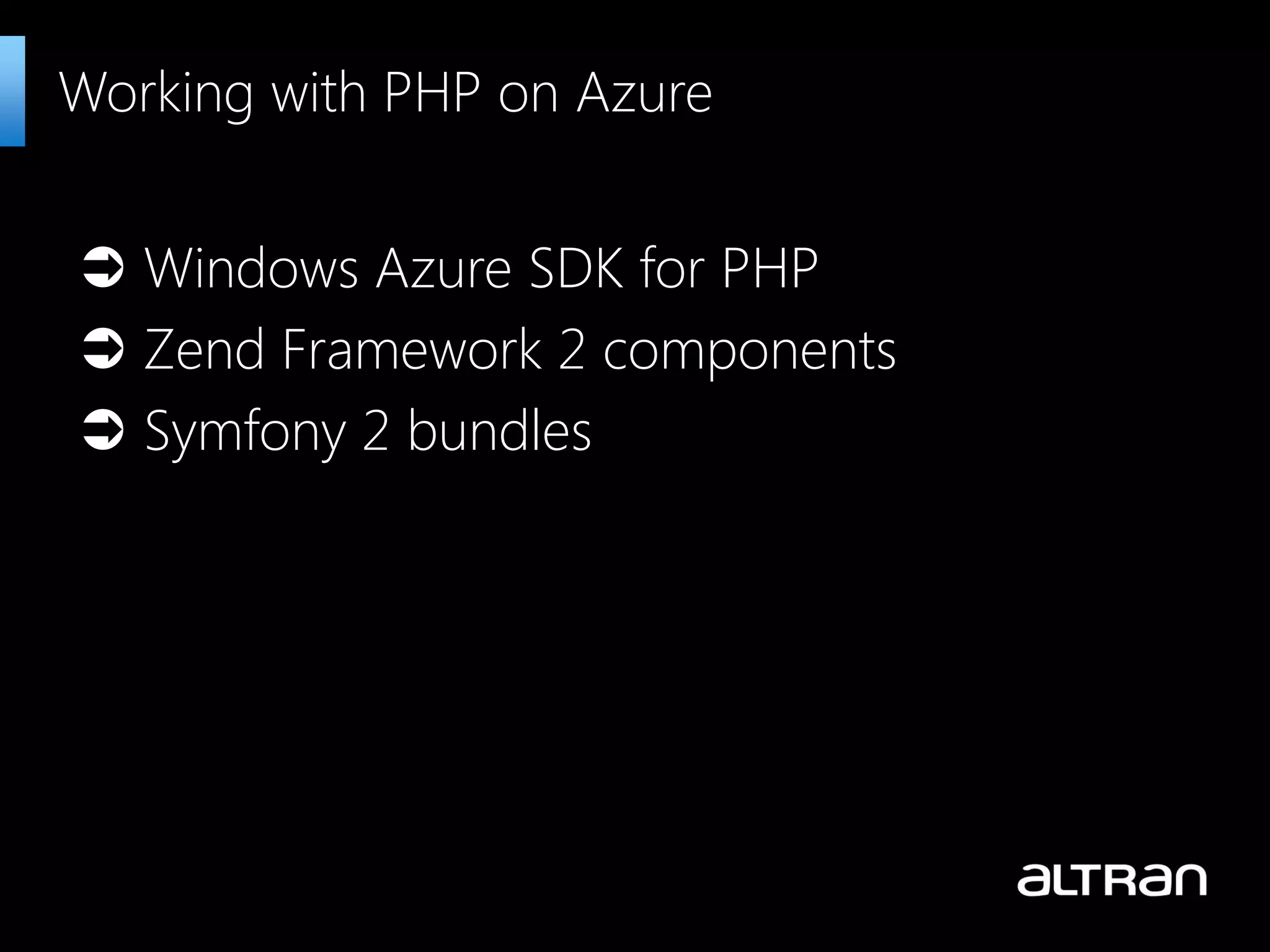

44.  Windows Azure SDK for PHP
 Zend Framework 2 components
 Symfony 2 bundles
Working with PHP on Azure

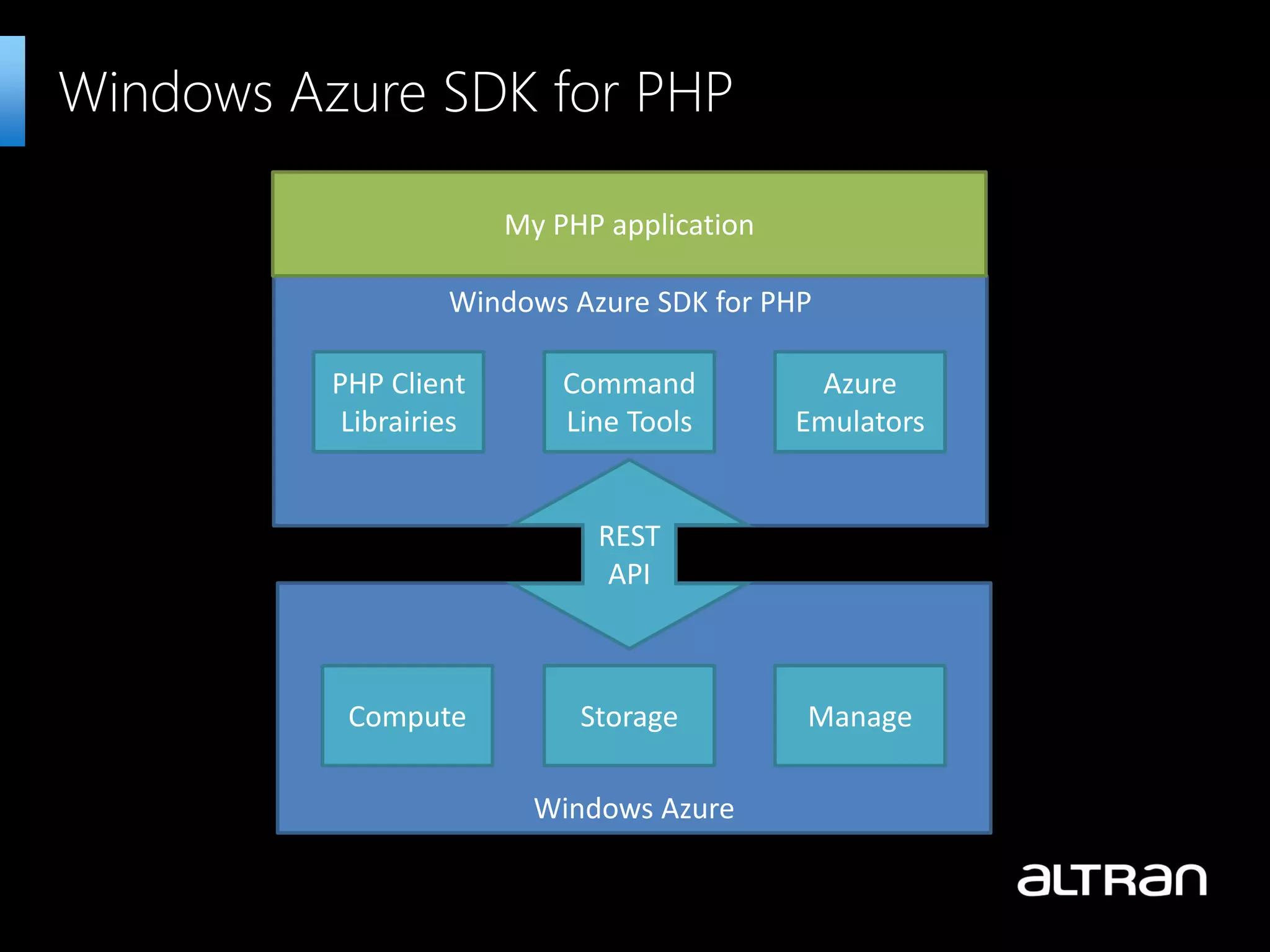

45. Windows Azure SDK for PHP
Windows Azure SDK for PHP
PHP Client
Librairies
Command
Line Tools
Azure
Emulators
Windows Azure
REST
API
Compute Storage Manage
My PHP application

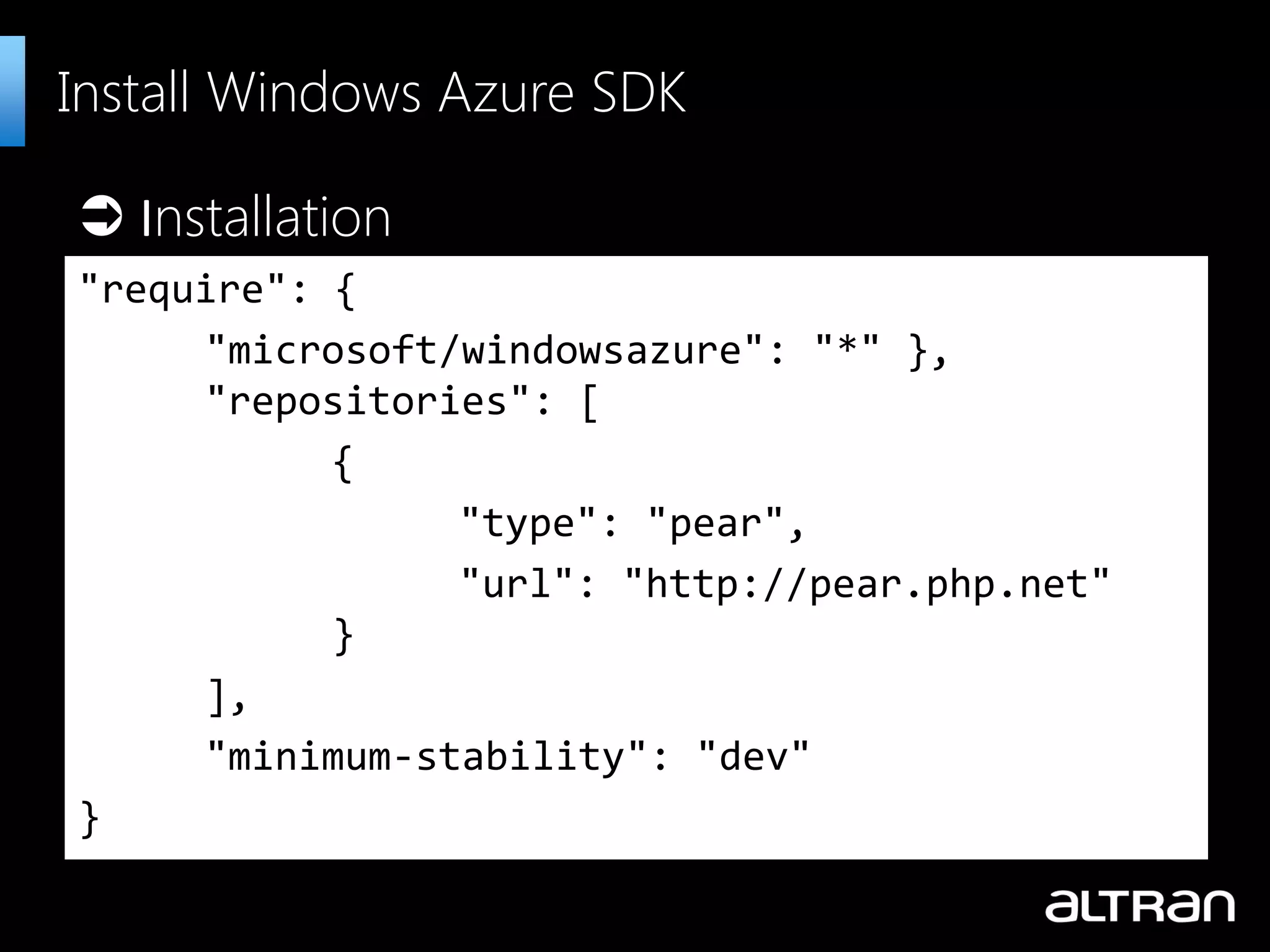

46. Install Windows Azure SDK
"require": {
"microsoft/windowsazure": "*" },
"repositories": [
{
"type": "pear",
"url": "http://pear.php.net"
}
],
"minimum-stability": "dev"
}
 Installation

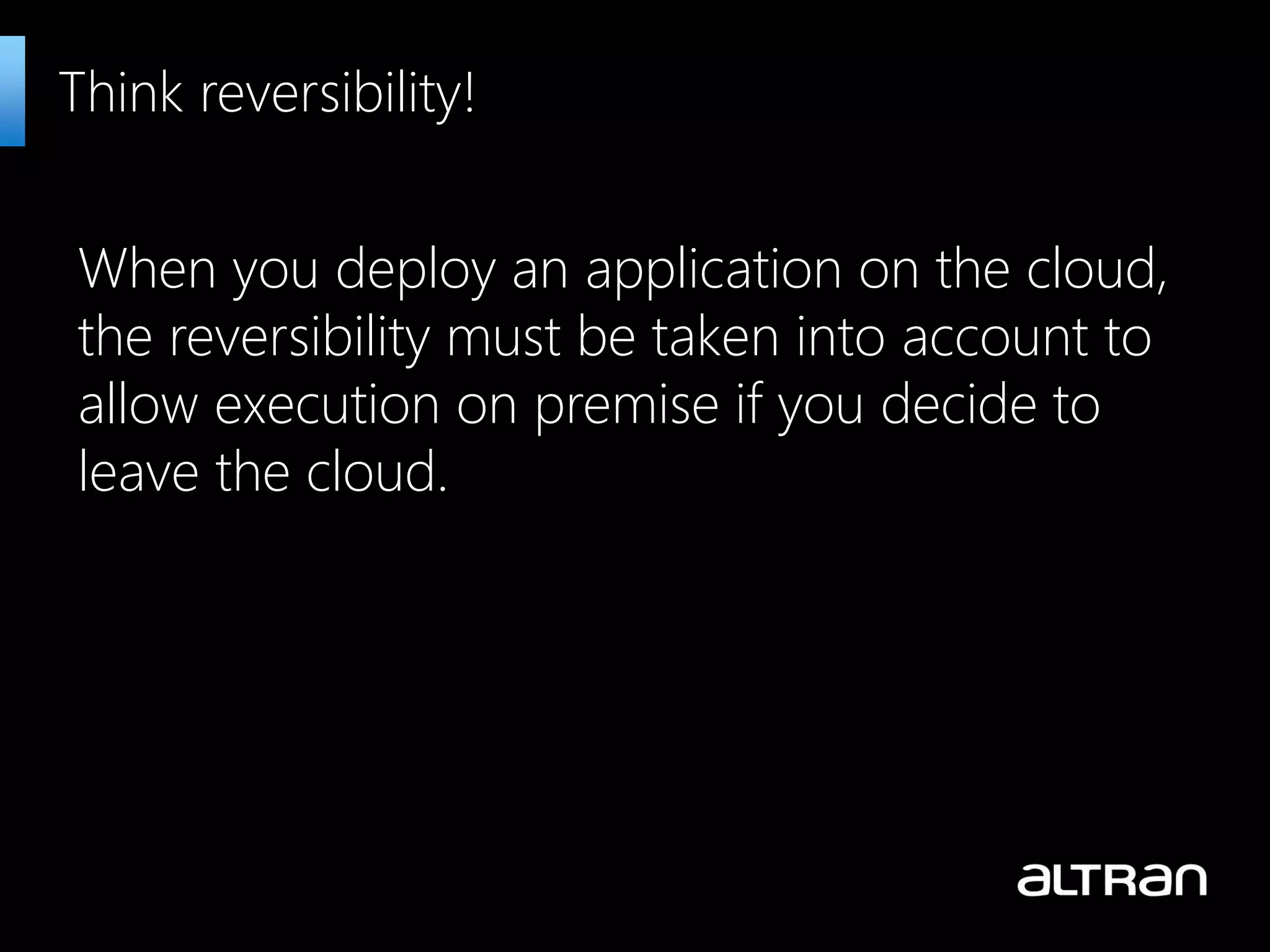

47. When you deploy an application on the cloud,
the reversibility must be taken into account to
allow execution on premise if you decide to
leave the cloud.
Think reversibility!

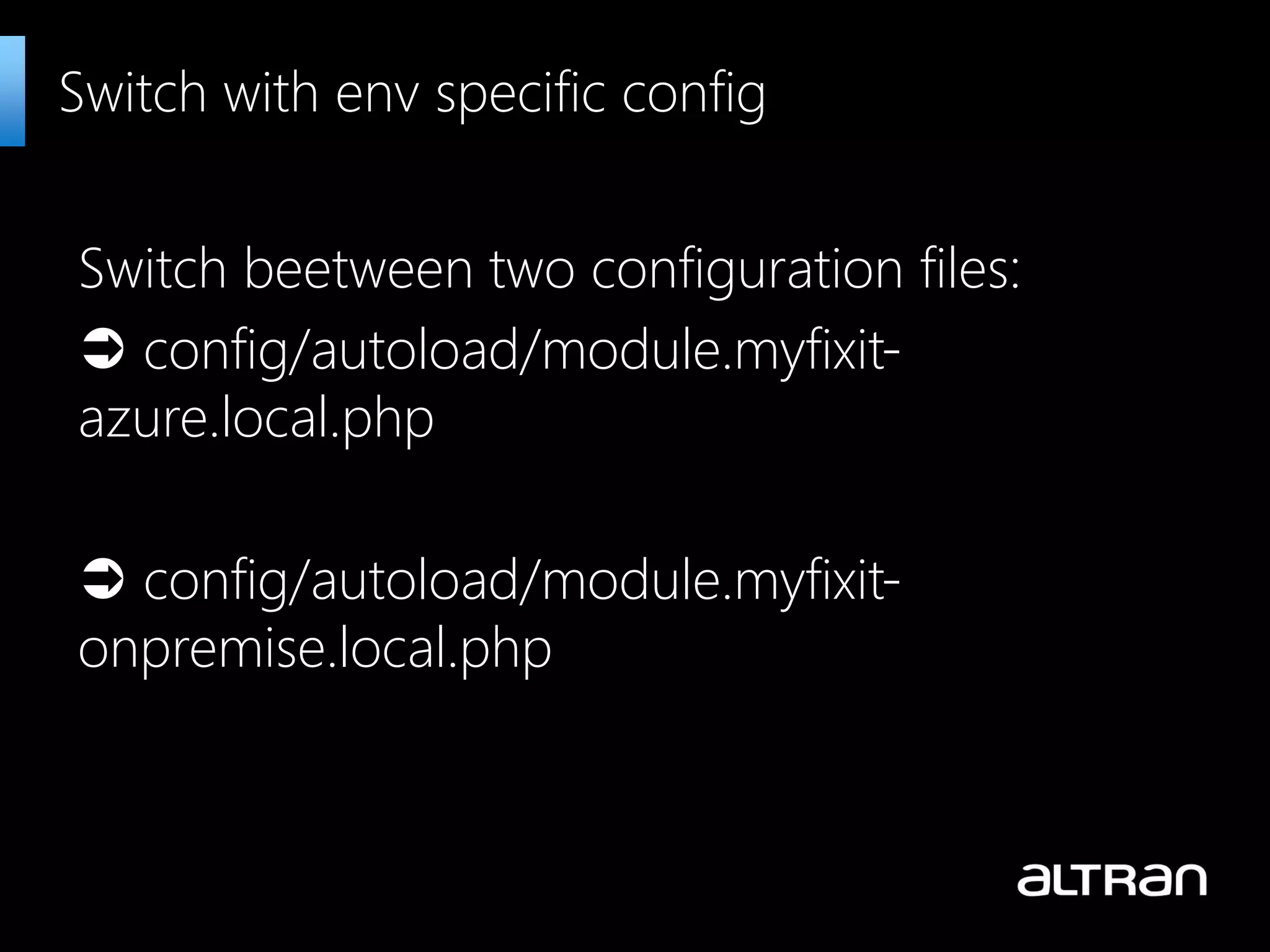

48. Switch beetween two configuration files:
 config/autoload/module.myfixit-
azure.local.php
 config/autoload/module.myfixit-
onpremise.local.php
Switch with env specific config

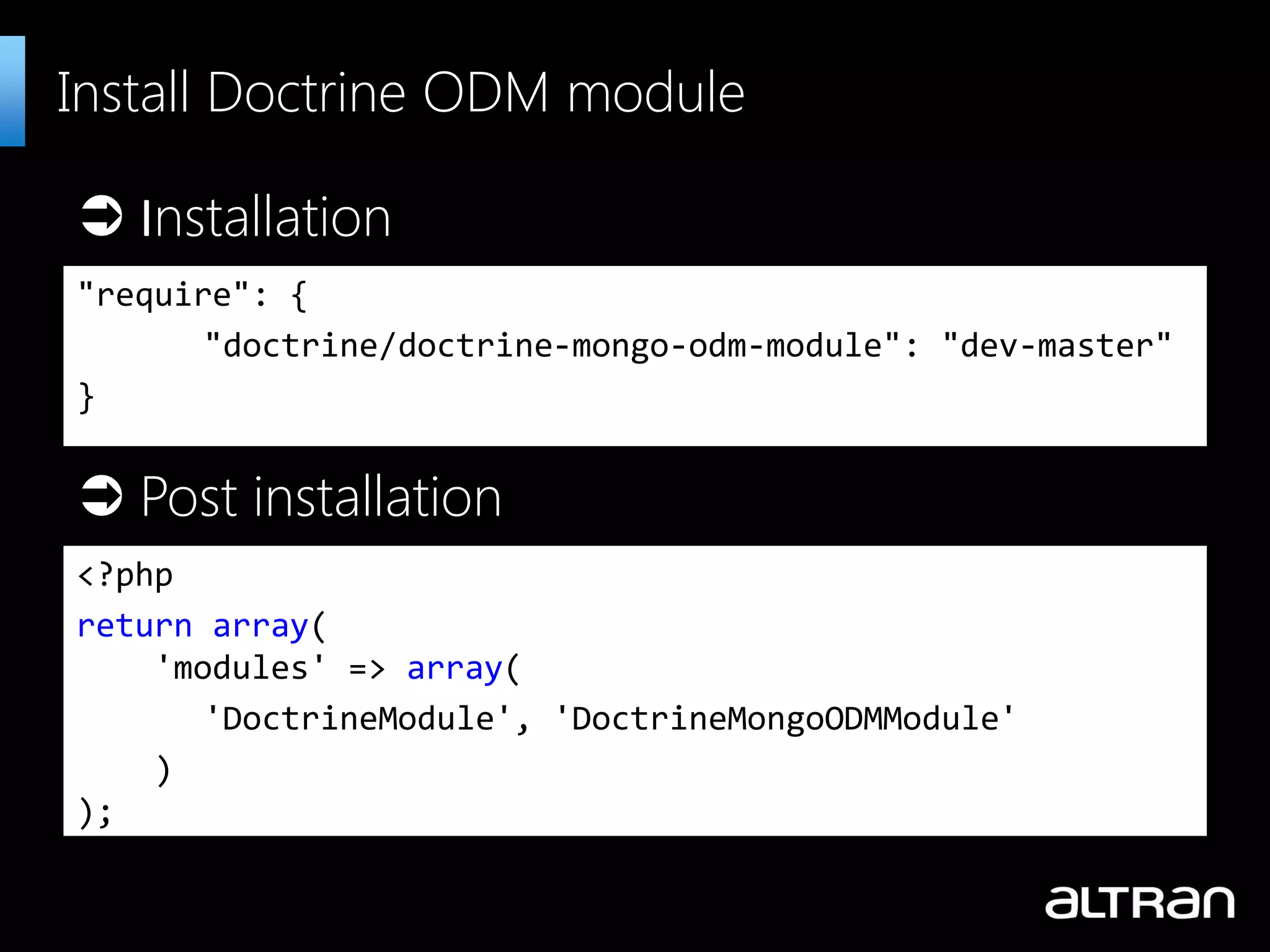

49. "require": {
"doctrine/doctrine-mongo-odm-module": "dev-master"
}
Install Doctrine ODM module
<?php
return array(
'modules' => array(
'DoctrineModule', 'DoctrineMongoODMModule'
)
);
 Installation
 Post installation

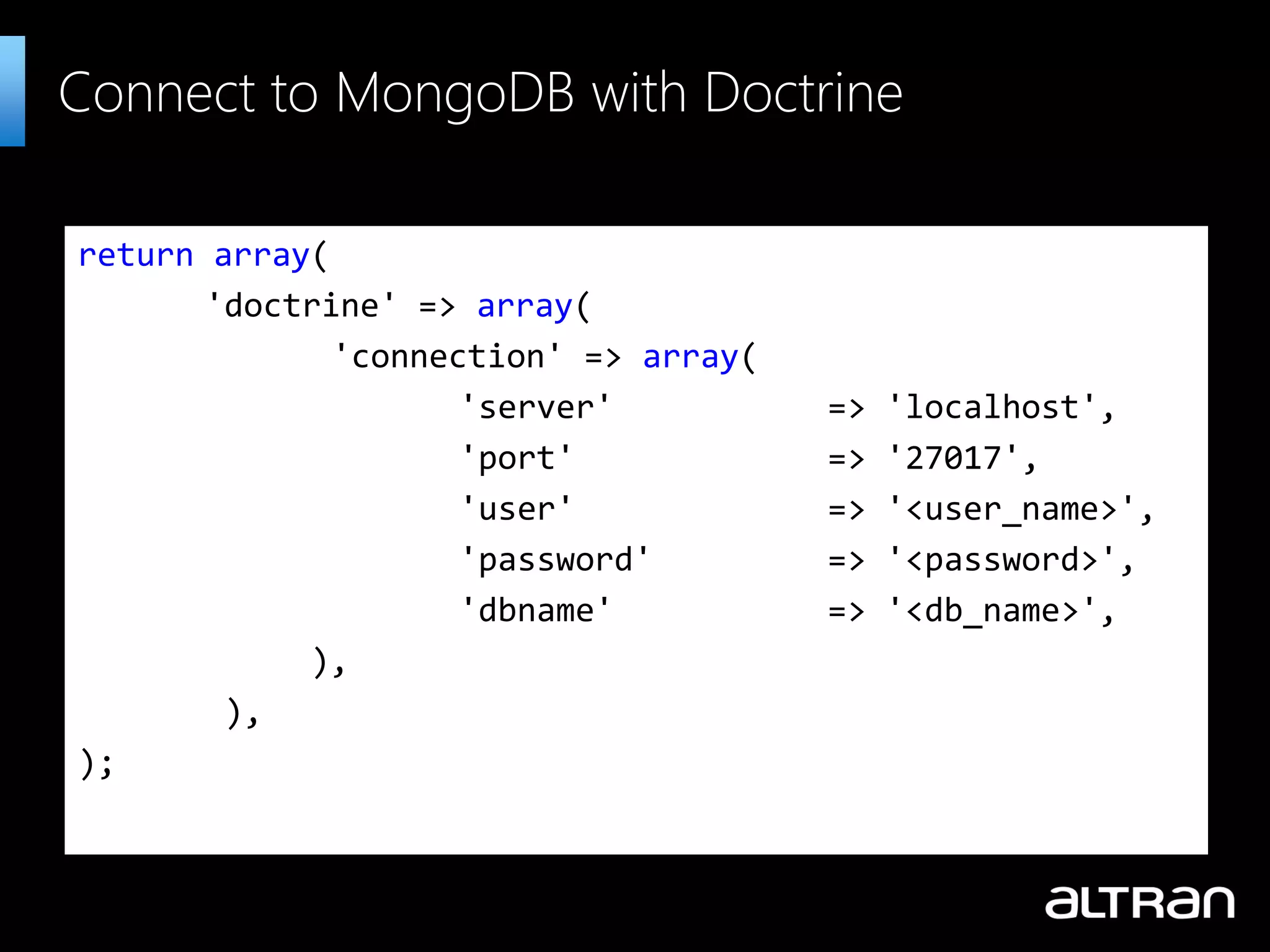

50. return array(
'doctrine' => array(
'connection' => array(
'server' => 'localhost',
'port' => '27017',
'user' => '<user_name>',
'password' => '<password>',
'dbname' => '<db_name>',
),
),
);
Connect to MongoDB with Doctrine

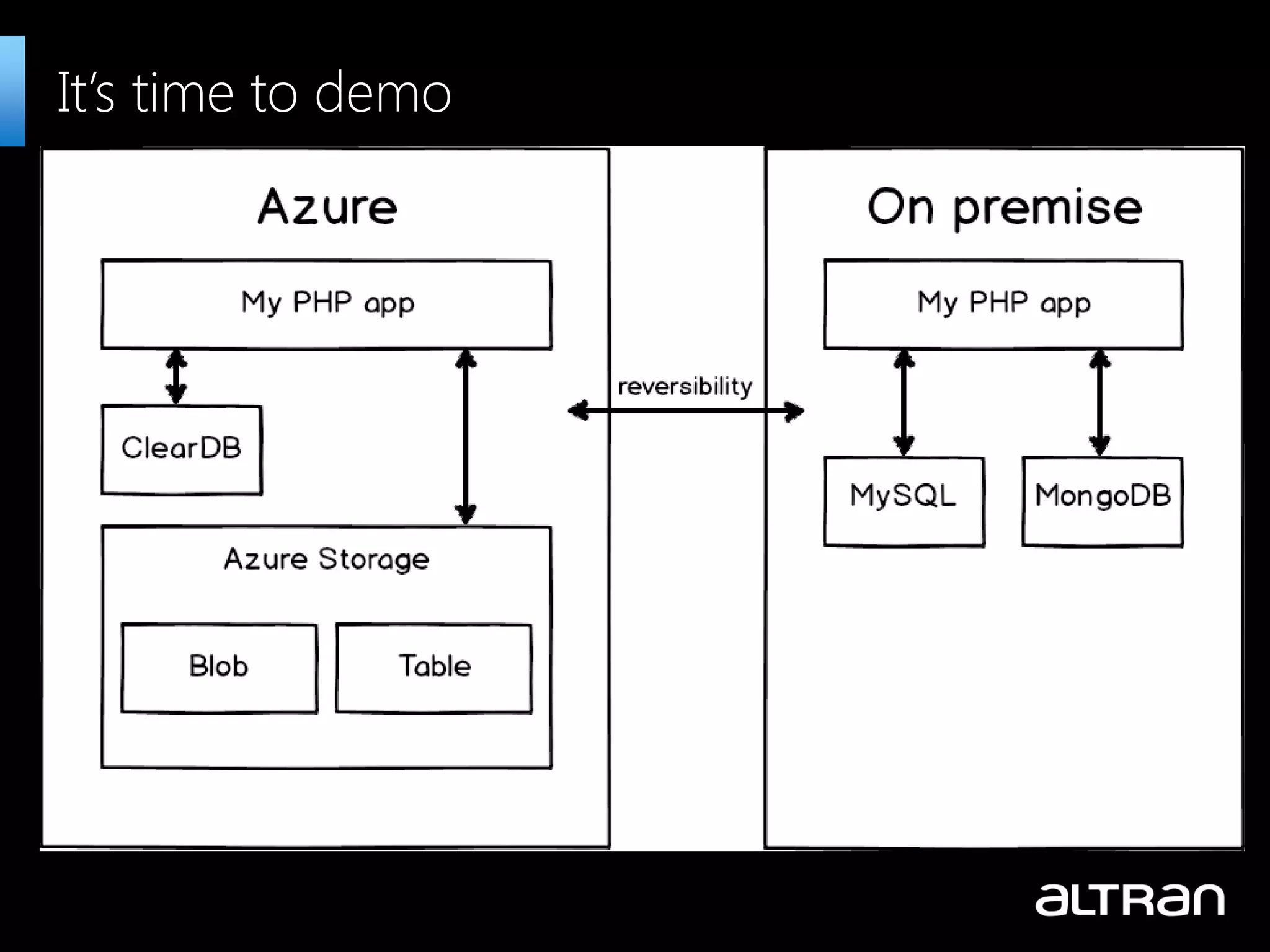

51. It’s time to demo

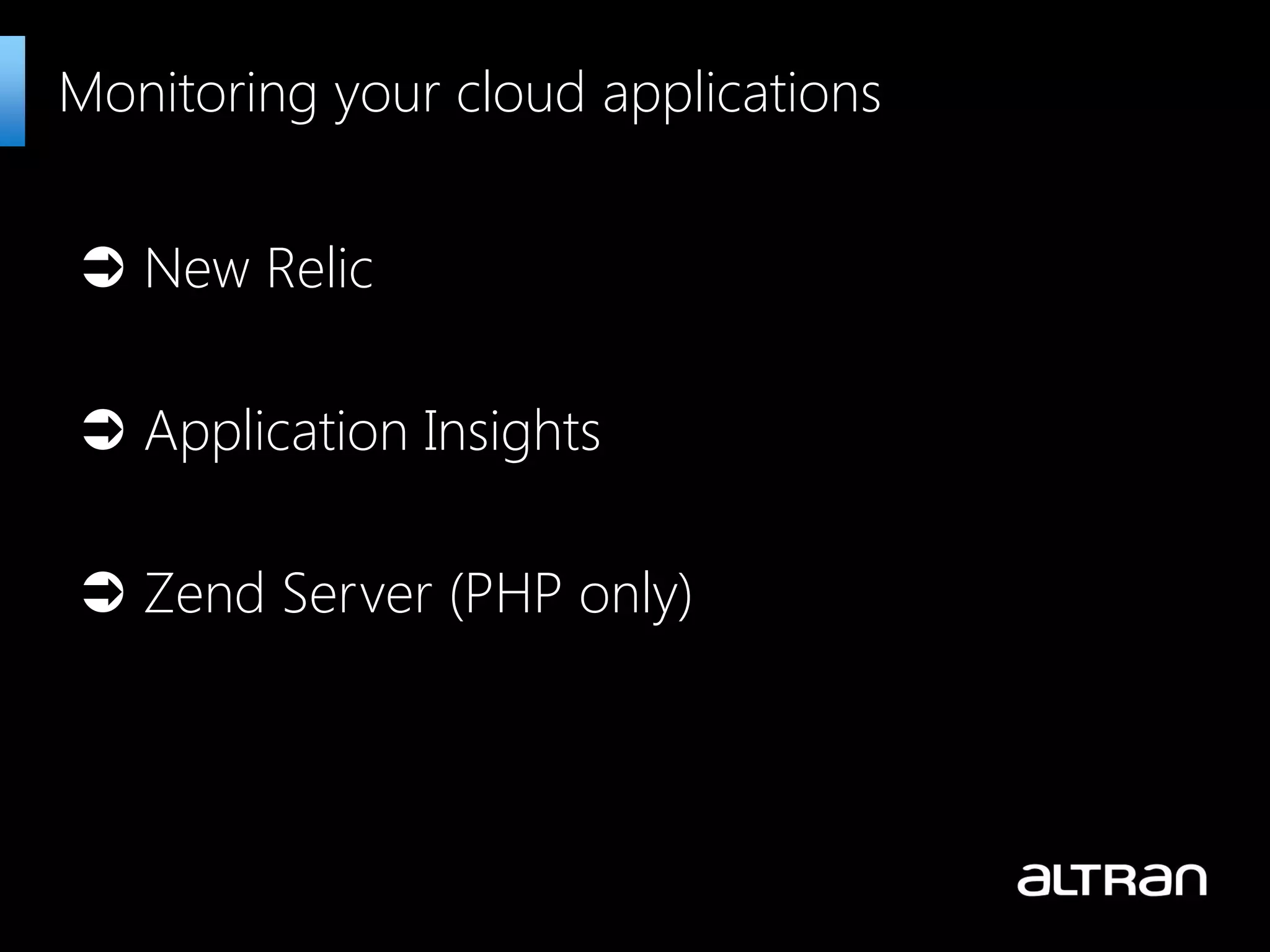

52.  New Relic
 Application Insights
 Zend Server (PHP only)
Monitoring your cloud applications

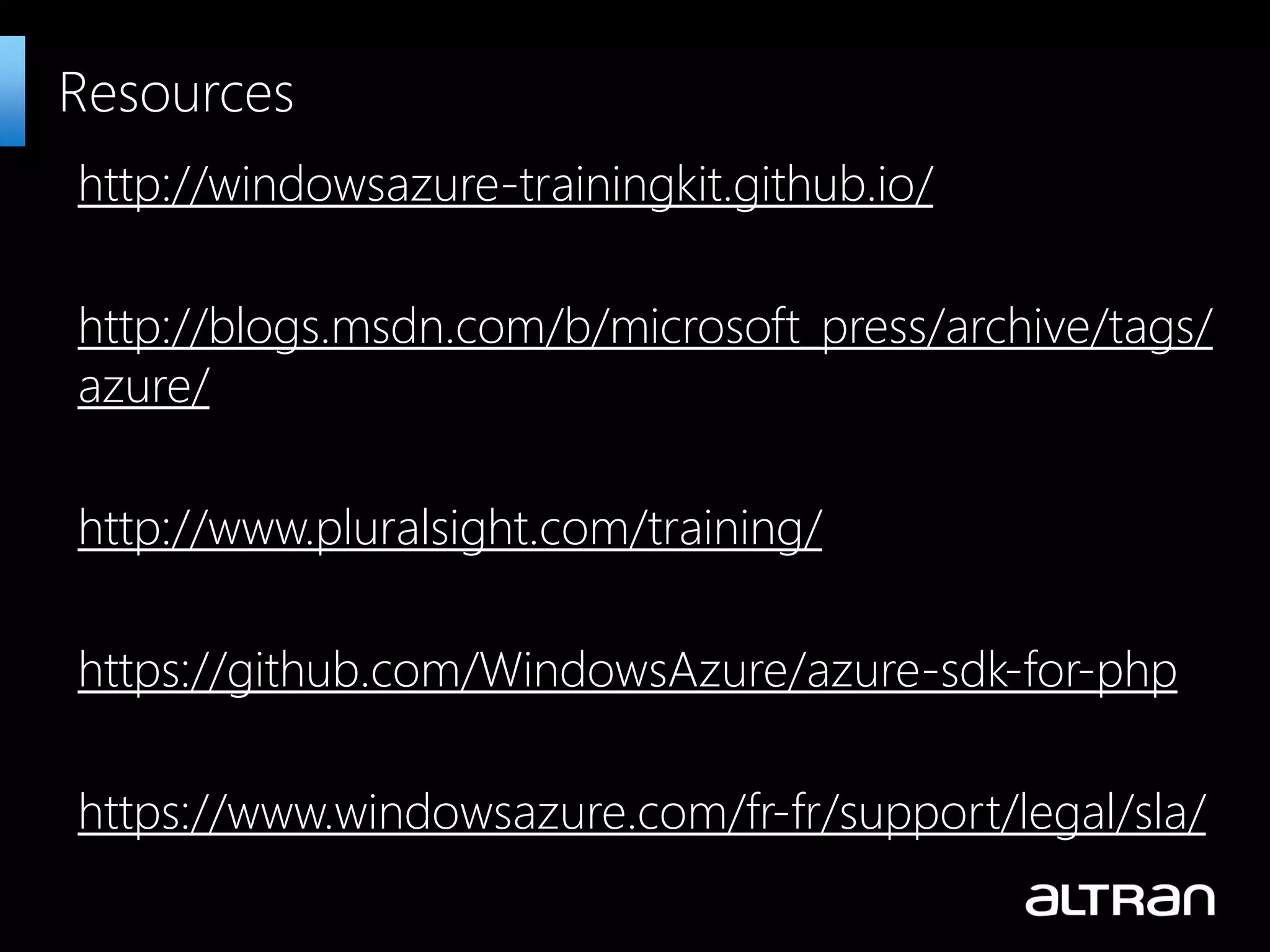

53. http://windowsazure-trainingkit.github.io/
http://blogs.msdn.com/b/microsoft_press/archive/tags/
azure/
http://www.pluralsight.com/training/
https://github.com/WindowsAzure/azure-sdk-for-php
https://www.windowsazure.com/fr-fr/support/legal/sla/
Resources

54. Windows Azure makes all you want …
…except French Kiss!
Summary

55. Thank you!
