QGIS making a development plan

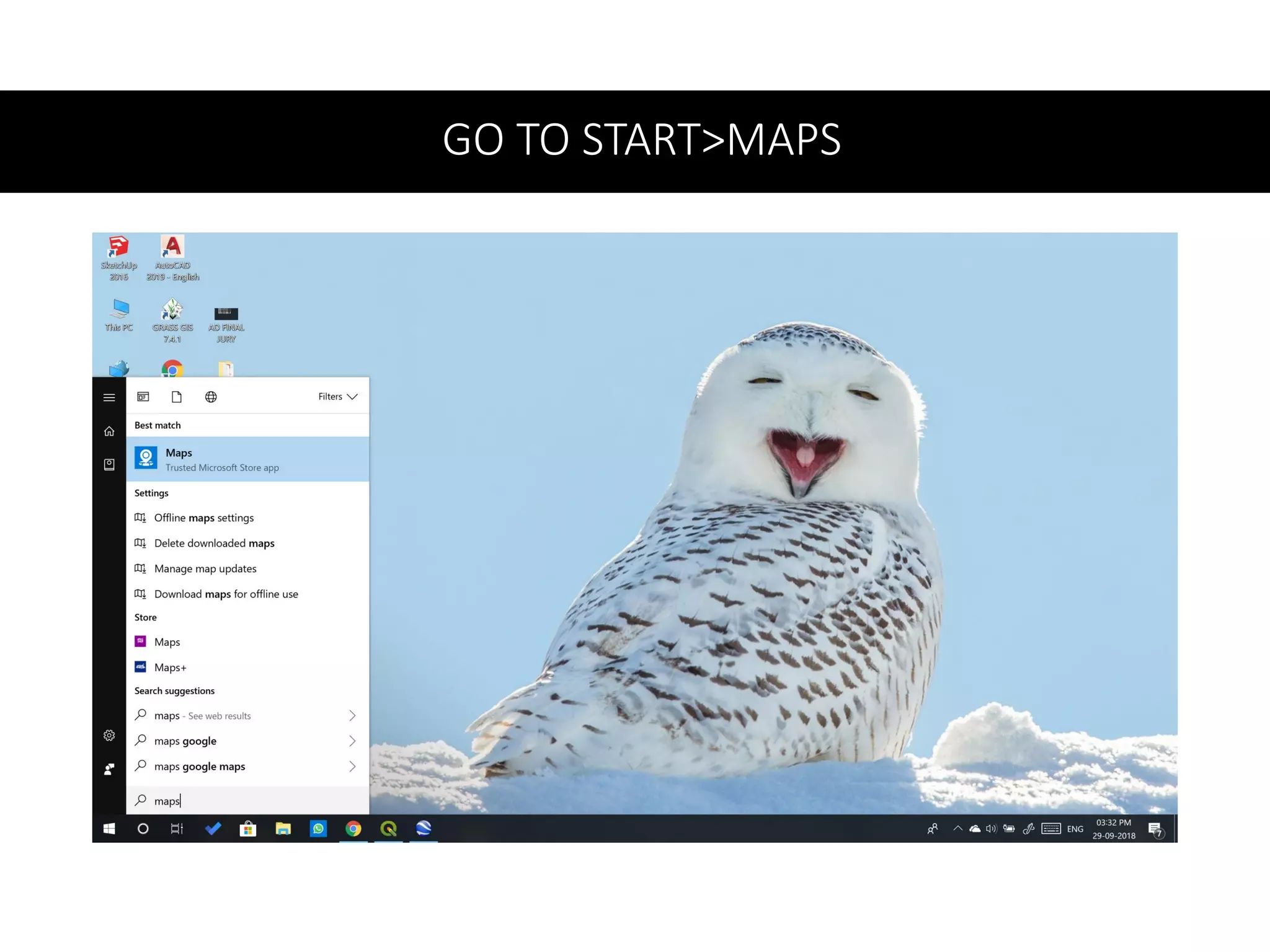

1. GO TO START>MAPS

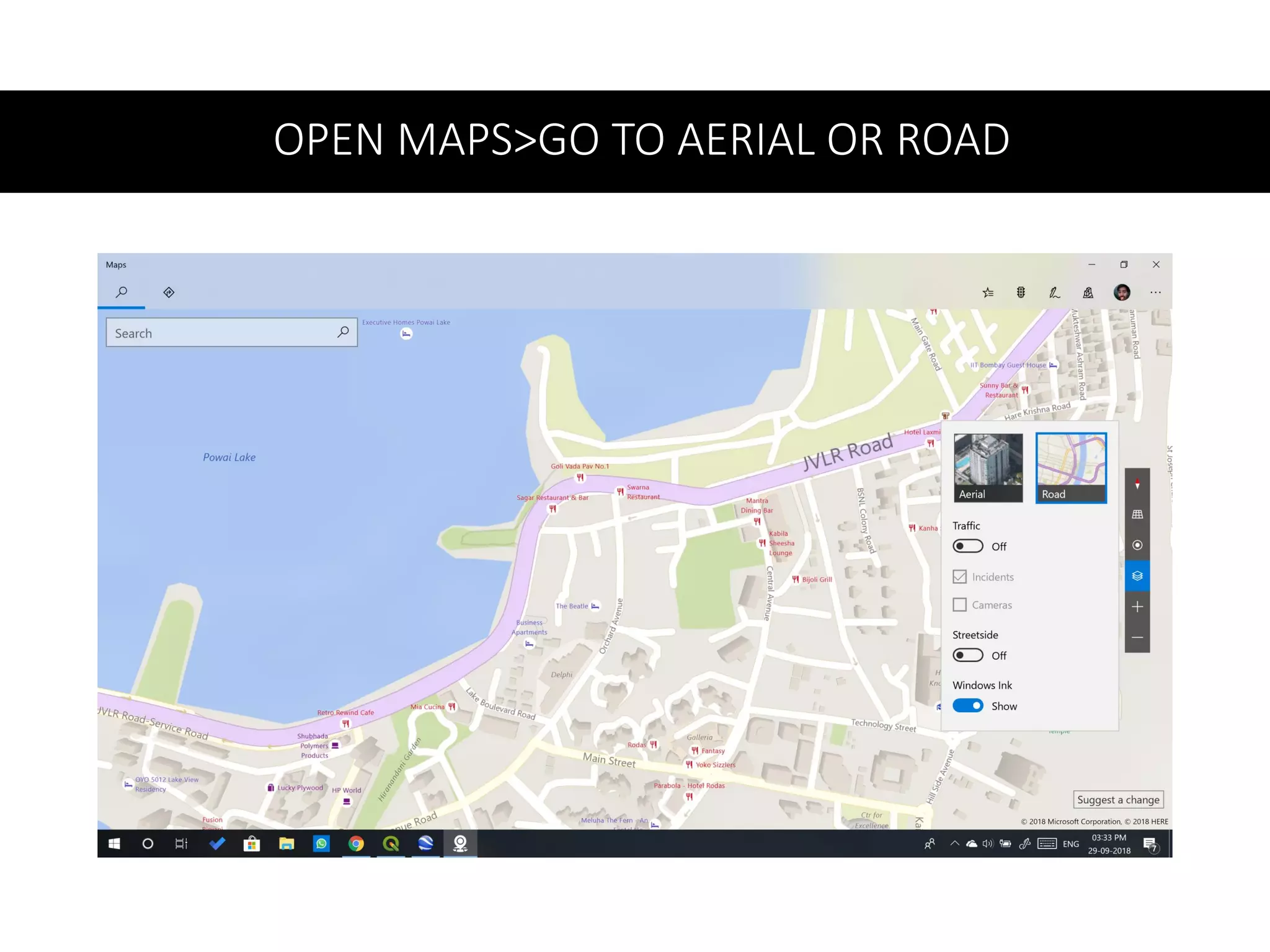

2. OPEN MAPS>GO TO AERIAL OR ROAD

3. SELECT MAP WHATEVER U WANT.
AND MAKE A SCREENSHOT NAD SAVE
ON THE DESKTOP
ROAD MAP AERIAL MAP

4. OPEN AND PUT
OPEN QGIS DESKTOP
INPUT THE MAP FROM
DESKTOP

5. DRAG THE IMAGE AND MOVE TO
LAYERS BOX

6. GO TO MENU TOOLBAR > LAYER

7. LAYER>CREATE LAYER> NEW
SHAPEFILE LAYER

8. THEN MAKE CHANGES IN THE BOX
AS SAME AS DONE BY ME

9. AFTER MAKING CHANGES : GO TO NEW FIELD>NAME : (LAND USE )>ADD
TO FIELD LIST> THEN SEE …U WILL GET LANDUSE WRITTEN BELOW
ID:REFER PREVIOUS IMJ AS WELL

10. THEN SEE U WILL GET A LANDUSE
WRITTEN IN THE LAYER BOX

11. GO TO LAND USE AND >DOUBLE
CLICK UR MOUSE BUTT

12. SELECT CATEGORIZED

13. SELECT LANDUSE (BELOW ID)

14. GO TO ADD

15. BY CLICKING ADD U WILL GET
COLOR BOXES

16. • SYMBOL: THEN CLICK THE COLOR BOX AND SELECT COLOR AS PER LAND USE
VALUE l: 1,2,3 AS PER UR PRIORITY
LEGEND: NAME RESI,INDI,COMM
AND APPLY : OK

17. BY CLICKING OK U WILL GET
SYMBOLS IN THE LAYER BOX

18. GO TO TOGGLE EDITTING

19. CLICK ON ADD POLYGON

20. CLICK ON MAP :
LEFT CLICK : TO RASTER THE IMAGES

21. AFTER GETTING UR SHAPE
RIGHT CLICK UR MOUSE BUTT
AND U WILL GET THIS BOX

22. IN THE LAND USE BOX:
WRITE NUMBERS
FOR EG :LOOK THE PRIORITY SET BY U IN THE LAYER BOX: WRITE THE VALUES U HAD ASSIGNED TO EACH
LEGEND
FOR EG : 1 FOR RESI,2 FOR INDUSTRY, 3 FOR HEALTH CARE ….AND SO ON

23. BY DOING THIS U RASTER THE
FULL MAP

24. THEN GO TO SCREENSHOT 242
AND DOUBLE CLICK

25. TRANSPARENCY > GLOBAL OPACITY
AND ADJUST THE OPACITY OF THE
MAP

26. AFTER ADJUSTING TRANSPARENCY
U WILL GET THIS

27. GO TO > PROJECT> NEW PRINT
LAYOUT

28. FILL THE NAME

29. THIS WINDOW WILL APPEAR

30. CLICK ON ADD A NEW MAP TO
LAYOUT

31. THEN DRAG THE MOUSE ON THE
SHEET AND CLICK TO ADJUST THE
MAP

32. THIS WILL APPEAR

33. ADD A NEW LEGENTD TO LAYOUT

34. LEGEND WILL APPEAR

35. EXPORT AS PDF

36. SAVE UR PDF AND ………….*#$@#*

37. MY WORK
