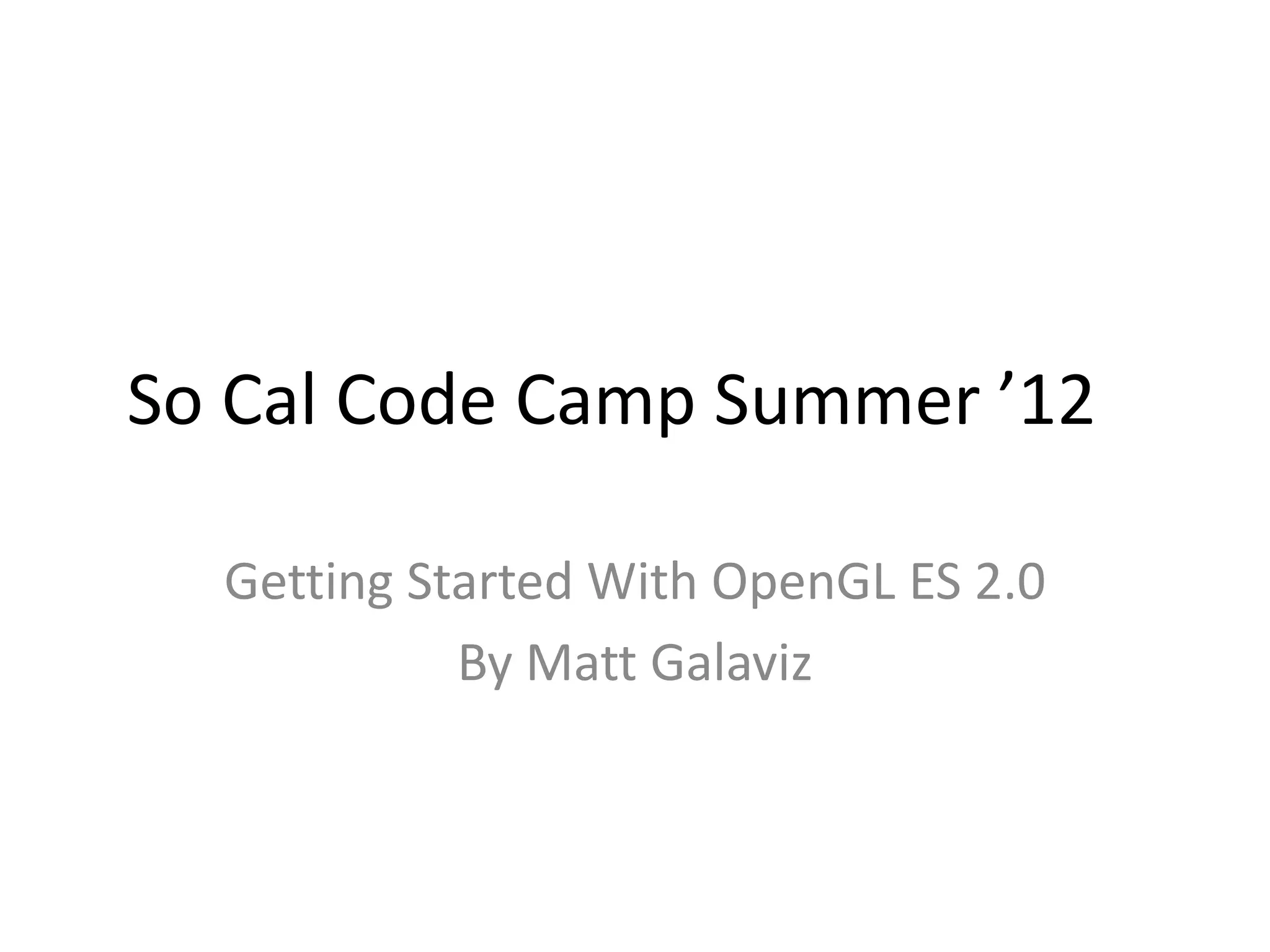

1. So Cal Code Camp Summer ’12
Getting Started With OpenGL ES 2.0
By Matt Galaviz

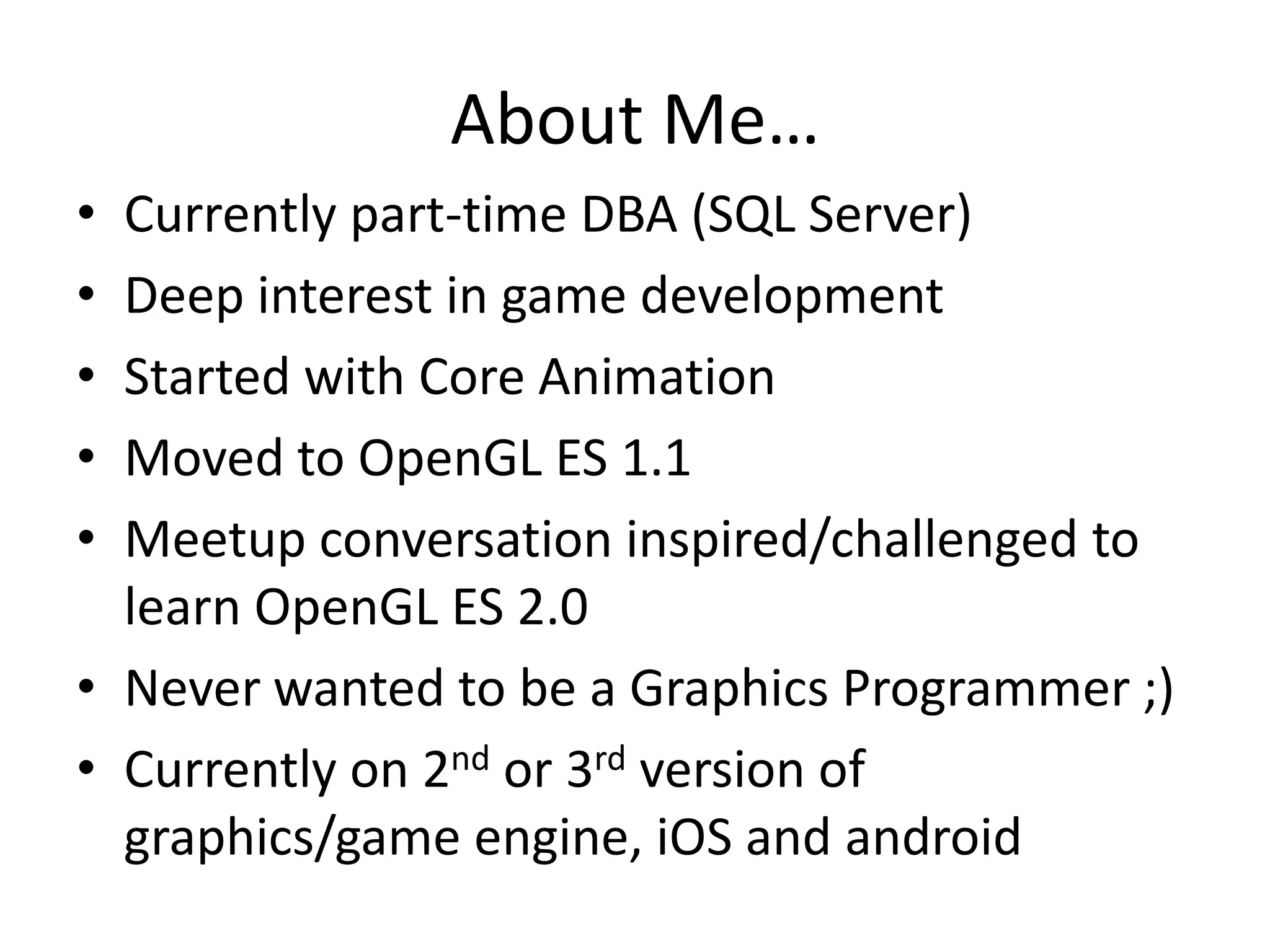

2. About Me…
• Currently part-time DBA (SQL Server)
• Deep interest in game development
• Started with Core Animation
• Moved to OpenGL ES 1.1
• Meetup conversation inspired/challenged to
learn OpenGL ES 2.0
• Never wanted to be a Graphics Programmer ;)
• Currently on 2nd or 3rd version of
graphics/game engine, iOS and android

3. History
• OpenGL Website: http://www.opengl.org
• Introduced in 1992
• 2D/3D graphics API
• Available on many different platforms
• Windows, Unix, Linux, OS X, etc.

4. History Continued
• OpenGL ES Website:
http://www.khronos.org/opengles/
• OpenGL ES 1.1 similar to OpenGL 1.5
• 1.1 = Fixed Function Pipeline
• OpenGL ES 2.0 released circa 2008
• 2.0 = Programmable Pipeline

7. Programmable means more…
• Control – do what you want with shaders
• Responsibility – shaders need data and
programming
• Complexity – shader source, compilation,
VBO’s, MVP matrices, etc.
• Discipline – maintaining shader data,
switching shaders and other things can cause
code to run SLOWER. Best practice adherence
is a must!

8. Differences between 1.1 and 2.0
• Model/View/Projection (MVP)
– 1.1: Can call built in functions (glMatrixMode,
glIdentity, glPushMatrix, glPopMatrix, etc.)
Taken
from
android

9. MVP Differences Continued
– 2.0: Pass MVP matrices to shaders
• Side note: Matrix libraries may not be available on all
platforms and may vary in use
Taken
from
android

10. Shaders
• The programmable piece
• Write in GLSL ES, similar functionality of C
• Vertex Shader: handles vertex data
• Fragment Shader: handles pixel data
• Comprised of attributes, uniforms and varying
with types and variable precision
• See specification for more details (approx. 200
pages)

11. Sample Shaders
Vertex
Fragment

12. Shader Creation
• Create Program
• Create Vertex and Fragment shaders
• Attach Vertex and Fragment shaders
• Compile
• Hope for the best!

13. Shader Creation Example
Taken
from iOS

14. Shader Usage
• Use Program
• Enable VBO’s
– Pass Data
• Attributes
• Uniforms
– Draw Objects
– Repeat data/drawing as needed
• Disable VBO’s

15. Shader Usage Example
Taken
from
android

16. OpenGL ES 2.0 Availability
• Android: 2.2
• iOS: 3.0
• WebGL: 1.0
• Others

17. Getting Started
• Identify goals
– Support ES 1.1 and 2.0
• Rewrite code to support provider/consumer model
• Provider submits only primatives to consumer
• Consumer determines how to handle primatives
• Consumer = ES 1.1 or 2.0

18. Getting Started Continued
– Multi Platform
• Many differences between android/iOS
• Java more similar to C++ in style and look than
Objective-C
• NDK on android possibly even more similar
– Adds another layer of complexity
• Even same platform can vary
– iOS 5 GLKit
• Keep shader source as separate files
• Structure classes as similar as possible

19. Poll
• Do you currently use OpenGL ES?
• Another graphics API?
• What platform do you use?
• Are you planning to support multiple
platforms?
• Preferred platform?

20. My Resources/References
• Delicious:
http://www.delicious.com/mattgalaviz
• Github:
• http://www.github.com/geminileft

21. Other Resources/References
• OpenGL ES 2.0 Specification
http://www.khronos.org/registry/gles/specs/2
.0/es_cm_spec_2.0.24.pdf
• GLSL ES Specification
http://www.khronos.org/registry/gles/specs/2
.0/GLSL_ES_Specification_1.0.17.pdf
• PowerVR developers
http://www.imgtec.com/powervr/insider/pow
ervr-insider.asp

22. The End
• Questions/Comments
• Contact me @ matthew.galaviz@gmail.com
