Getting Comfortable with
    Behavior Driven
      Development
          Alex Sharp
        FrothLogic, Inc.
        ajsharp@frothlogic.com
       http://twitter.com/ajsharp

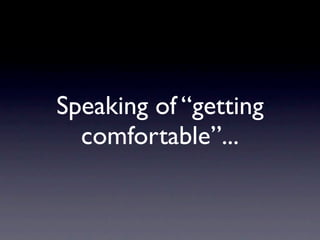

Speaking of “getting
  comfortable”...
I hope you get as comfortable
 with BDD as this guy is with
    EVERYTHING. Boom.
Why are you laughing?
Ok, but seriously.

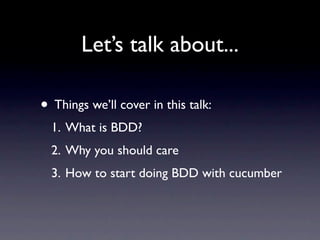

Let’s talk about...

• Things we’ll cover in this talk:
  1. What is BDD?
  2. Why you should care
  3. How to start doing BDD with cucumber

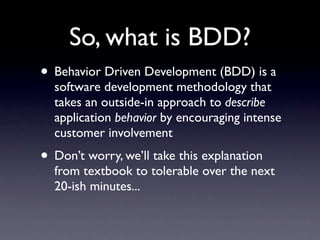

So, what is BDD?

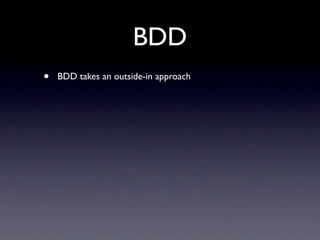

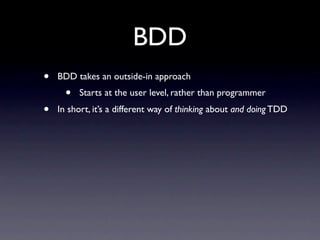

• Behavior Driven Development (BDD) is a
  software development methodology that
  takes an outside-in approach to describe
  application behavior by encouraging intense
  customer involvement
• Don’t worry, we’ll take this explanation
  from textbook to tolerable over the next
  20-ish minutes...
So, what is BDD?

• BDD borrows it’s core concepts,
  workflow and principles from it’s
  predecessor, Test Driven Development
In fact...
In fact...

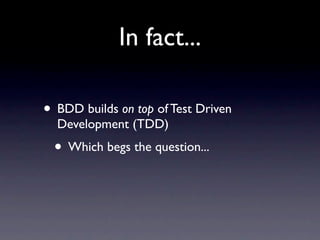

• BDD builds on top of Test Driven
  Development (TDD)

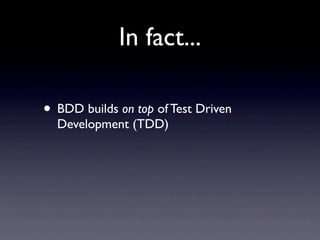

In fact...

• BDD builds on top of Test Driven
  Development (TDD)
 • Which begs the question...

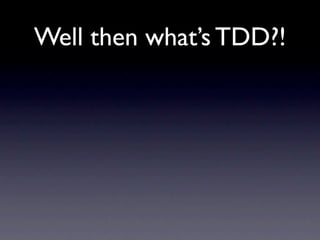

Well then what’s TDD?!

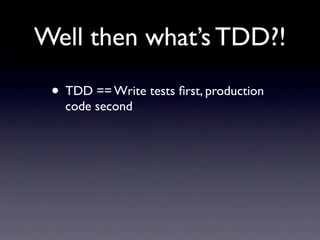

Well then what’s TDD?!

 • TDD == Write tests first, production
   code second

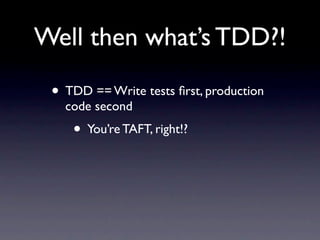

Well then what’s TDD?!

 • TDD == Write tests first, production
   code second
    • You’re TAFT, right!?

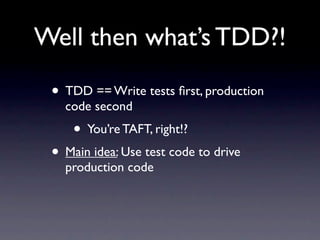

Well then what’s TDD?!

 • TDD == Write tests first, production
   code second
     • You’re TAFT, right!?
 • Main idea: Use test code to drive
   production code

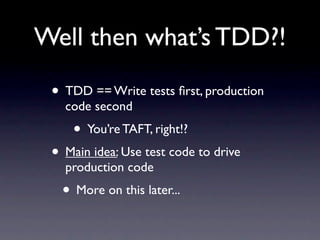

Well then what’s TDD?!

 • TDD == Write tests first, production
   code second
     • You’re TAFT, right!?
 • Main idea: Use test code to drive
   production code
   • More on this later...

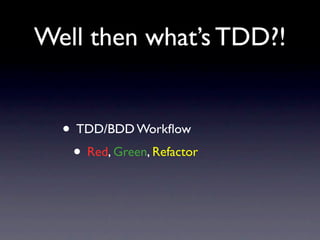

Well then what’s TDD?!


  • TDD/BDD Workflow
   • Red, Green, Refactor

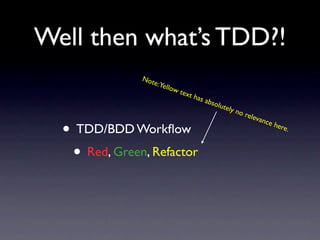

Well then what’s TDD?!
                  Not
                     e:Ye
                            llow
                                   text
                                          has
                                              absol
                                                      utel
                                                          y   no r
                                                                  eleva
                                                                          nce
  •   TDD/BDD Workflow                                                         here.


      • Red, Green, Refactor
Well then what’s TDD?!
Well then what’s TDD?!

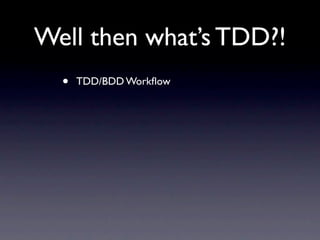

  •   TDD/BDD Workflow

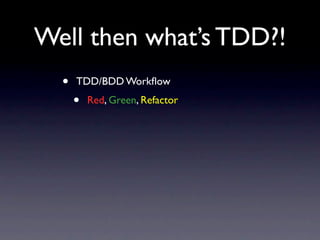

Well then what’s TDD?!
  •   TDD/BDD Workflow
      •   Red, Green, Refactor
Well then what’s TDD?!
  •   TDD/BDD Workflow
      •   Red, Green, Refactor
           1. Write a failing test

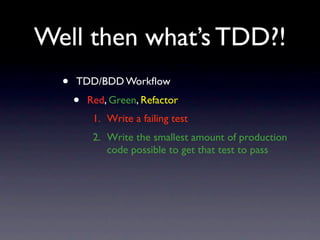

Well then what’s TDD?!
  •   TDD/BDD Workflow
      •   Red, Green, Refactor
           1. Write a failing test
           2. Write the smallest amount of production
              code possible to get that test to pass
Well then what’s TDD?!
  •   TDD/BDD Workflow
      •   Red, Green, Refactor
           1. Write a failing test
           2. Write the smallest amount of production
              code possible to get that test to pass
           3. Refactor

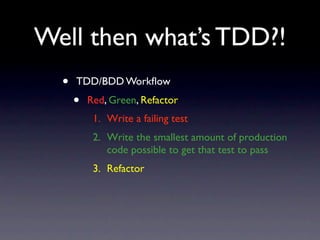

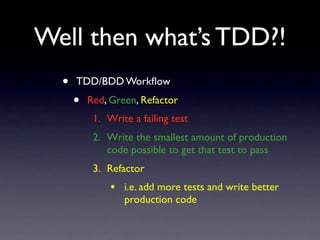

Well then what’s TDD?!
  •   TDD/BDD Workflow
      •   Red, Green, Refactor
           1. Write a failing test
           2. Write the smallest amount of production
              code possible to get that test to pass
           3. Refactor
               • i.e. add more tests and write better
                  production code

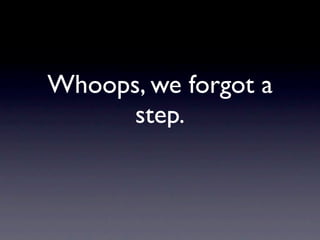

Whoops, we forgot a
      step.
THINK, MAN, THINK!




Don’t forget to think!!

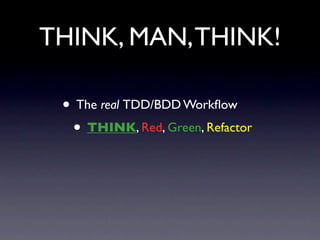

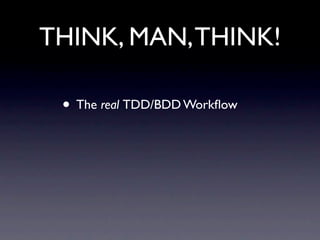

THINK, MAN, THINK!
THINK, MAN, THINK!

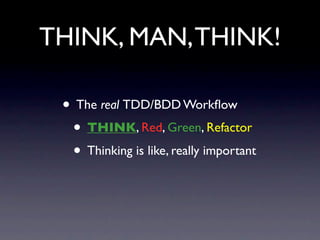

 • The real TDD/BDD Workflow
THINK, MAN, THINK!

 • The real TDD/BDD Workflow
  • THINK, Red, Green, Refactor
THINK, MAN, THINK!

 • The real TDD/BDD Workflow
  • THINK, Red, Green, Refactor
  • Thinking is like, really important
THINK, MAN, THINK!

 • The real TDD/BDD Workflow
  • THINK, Red, Green, Refactor
  • Thinking is like, really important
  • It’s easy to forget to think when you
     can just start hacking L337 c0D3Z

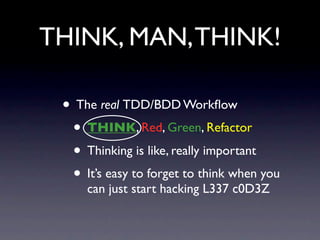

THINK, MAN, THINK!

 • The real TDD/BDD Workflow
  • THINK, Red, Green, Refactor
  • Thinking is like, really important
  • It’s easy to forget to think when you
     can just start hacking L337 c0D3Z

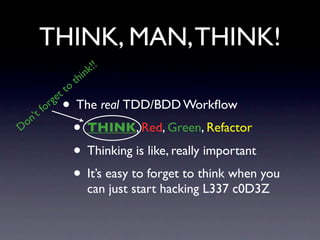

THINK, MAN, THINK!
                         k !!
                     h in
                    t
             t to
           ge
   n ’t
        for     • The real TDD/BDD Workflow
D o
                 • THINK, Red, Green, Refactor
                 • Thinking is like, really important
                 • It’s easy to forget to think when you
                        can just start hacking L337 c0D3Z
THINK, MAN, THINK!
                         k !!
                     h in
                    t
             t to
           ge
   n ’t
        for     • The real TDD/BDD Workflow
D o
                 • THINK, Red, Green, Refactor
                 • Thinking is like, really important
                 • It’s easy to forget to think when you
                        can just start hacking L337 c0D3Z

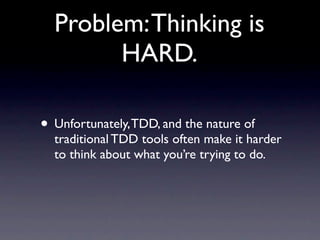

Problem: Thinking is
      HARD.
Problem: Thinking is
        HARD.

• Unfortunately, TDD, and the nature of
  traditional TDD tools often make it harder
  to think about what you’re trying to do.

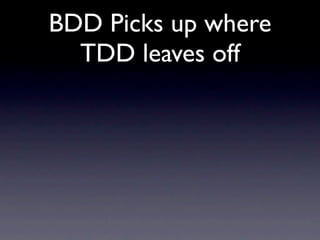

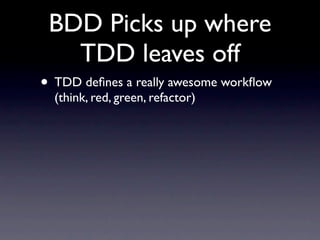

BDD Picks up where
  TDD leaves off
BDD Picks up where
   TDD leaves off
• TDD defines a really awesome workflow
  (think, red, green, refactor)
BDD Picks up where
   TDD leaves off
• TDD defines a really awesome workflow
  (think, red, green, refactor)
• BDD crystallizes some of the things that
  TDD leaves unclear or undefined.

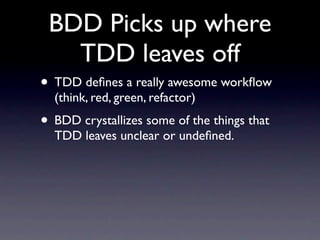

BDD Picks up where
   TDD leaves off
• TDD defines a really awesome workflow
  (think, red, green, refactor)
• BDD crystallizes some of the things that
  TDD leaves unclear or undefined.
    • BDD == TDD 2.0

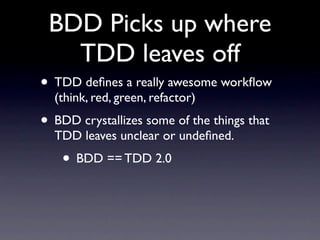

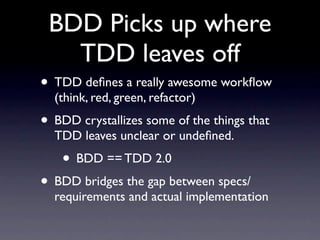

BDD Picks up where
   TDD leaves off
• TDD defines a really awesome workflow
  (think, red, green, refactor)
• BDD crystallizes some of the things that
  TDD leaves unclear or undefined.
    • BDD == TDD 2.0
• BDD bridges the gap between specs/
  requirements and actual implementation
BDD Picks up where
  TDD leaves off

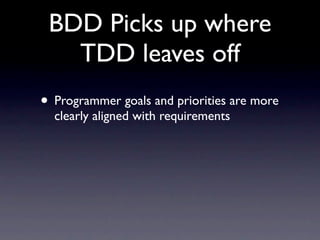

BDD Picks up where
   TDD leaves off
• Programmer goals and priorities are more
  clearly aligned with requirements
BDD Picks up where
   TDD leaves off
• Programmer goals and priorities are more
  clearly aligned with requirements
• Why??
BDD Picks up where
   TDD leaves off
• Programmer goals and priorities are more
  clearly aligned with requirements
• Why??
• BDD is implemented in business language
  not programmer pig latin

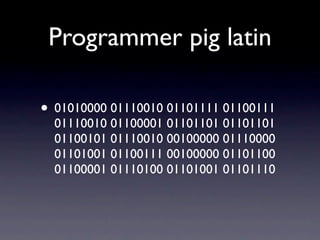

Programmer pig latin
Programmer pig latin

• 01010000 01110010 01101111 01100111
  01110010 01100001 01101101 01101101
  01100101 01110010 00100000 01110000
  01101001 01100111 00100000 01101100
  01100001 01110100 01101001 01101110

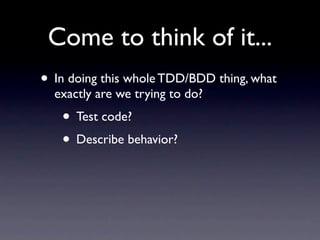

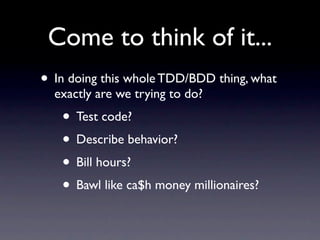

Come to think of it...
Come to think of it...
• In doing this whole TDD/BDD thing, what
  exactly are we trying to do?
Come to think of it...
• In doing this whole TDD/BDD thing, what
  exactly are we trying to do?
   • Test code?
Come to think of it...
• In doing this whole TDD/BDD thing, what
  exactly are we trying to do?
   • Test code?
   • Describe behavior?
Come to think of it...
• In doing this whole TDD/BDD thing, what
  exactly are we trying to do?
   • Test code?
   • Describe behavior?
   • Bill hours?

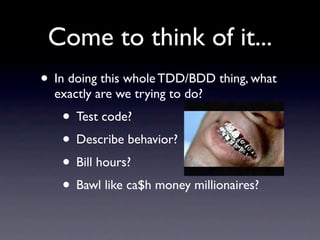

Come to think of it...
• In doing this whole TDD/BDD thing, what
  exactly are we trying to do?
   • Test code?
   • Describe behavior?
   • Bill hours?
   • Bawl like ca$h money millionaires?
Come to think of it...
• In doing this whole TDD/BDD thing, what
  exactly are we trying to do?
   • Test code?
   • Describe behavior?
   • Bill hours?
   • Bawl like ca$h money millionaires?
Come to think of it...
Come to think of it...
• In doing this whole TDD/BDD thing, what
  are we “trying to do?”
   • Test code?
   • Describe behavior?
   • Bill hours?
   • Bawl like ca$h money millionaires?

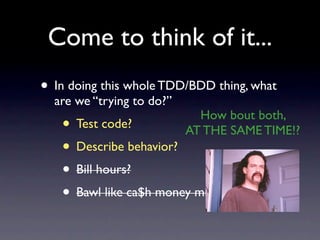

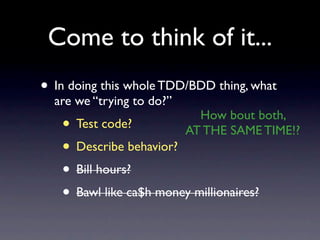

Come to think of it...
• In doing this whole TDD/BDD thing, what
  are we “trying to do?”
                             How bout both,
   • Test code?            AT THE SAME TIME!?
   • Describe behavior?
   • Bill hours?
   • Bawl like ca$h money millionaires?
Come to think of it...
• In doing this whole TDD/BDD thing, what
  are we “trying to do?”
                             How bout both,
   • Test code?            AT THE SAME TIME!?
   • Describe behavior?
   • Bill hours?
   • Bawl like ca$h money millionaires?
Come to think of it...
• In doing this whole TDD/BDD thing, what
  are we “trying to do?”
                             How bout both,
   • Test code?            AT THE SAME TIME!?
   • Describe behavior?
   • Bill hours?
   • Bawl like ca$h money millionaires?

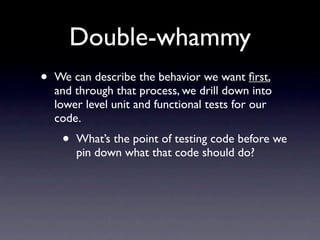

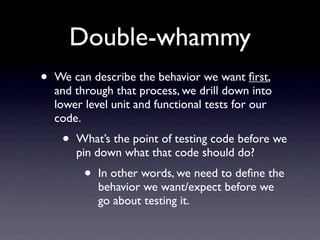

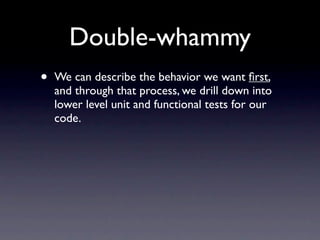

Double-whammy
Double-whammy
•   We can describe the behavior we want first,
    and through that process, we drill down into
    lower level unit and functional tests for our
    code.
Double-whammy
•   We can describe the behavior we want first,
    and through that process, we drill down into
    lower level unit and functional tests for our
    code.
     •   What’s the point of testing code before we
         pin down what that code should do?
Double-whammy
•   We can describe the behavior we want first,
    and through that process, we drill down into
    lower level unit and functional tests for our
    code.
     •   What’s the point of testing code before we
         pin down what that code should do?
          •   In other words, we need to define the
              behavior we want/expect before we
              go about testing it.

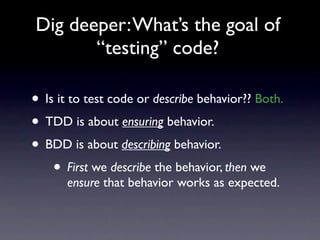

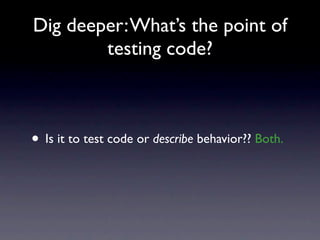

Dig deeper: What’s the goal of
       “testing” code?

• Is it to test code or describe behavior?? Both.
• TDD is about ensuring behavior.
• BDD is about describing behavior.
    • First we describe the behavior, then we
      ensure that behavior works as expected.

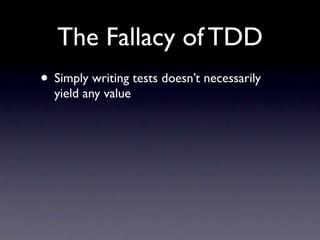

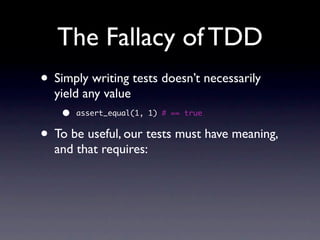

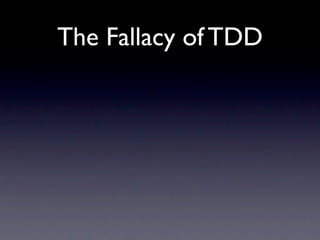

The Fallacy of TDD
The Fallacy of TDD
• Simply writing tests doesn’t necessarily
  yield any value
The Fallacy of TDD
• Simply writing tests doesn’t necessarily
  yield any value
    •   assert_equal(1, 1) # == true

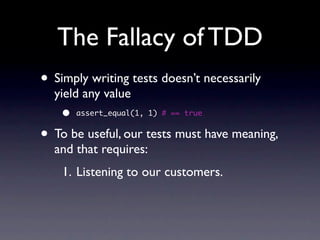

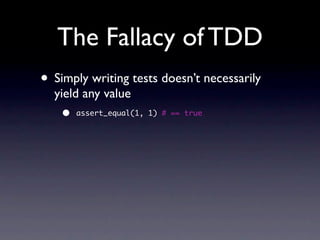

The Fallacy of TDD
• Simply writing tests doesn’t necessarily
  yield any value
    •   assert_equal(1, 1) # == true


• To be useful, our tests must have meaning,
  and that requires:
The Fallacy of TDD
• Simply writing tests doesn’t necessarily
  yield any value
    •   assert_equal(1, 1) # == true


• To be useful, our tests must have meaning,
  and that requires:
    1. Listening to our customers.

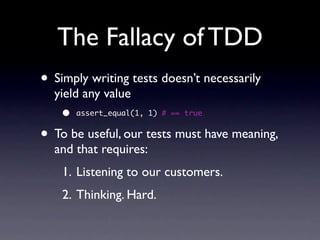

The Fallacy of TDD
• Simply writing tests doesn’t necessarily
  yield any value
    •   assert_equal(1, 1) # == true


• To be useful, our tests must have meaning,
  and that requires:
    1. Listening to our customers.
    2. Thinking. Hard.

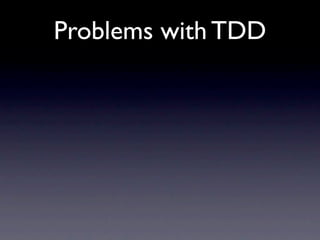

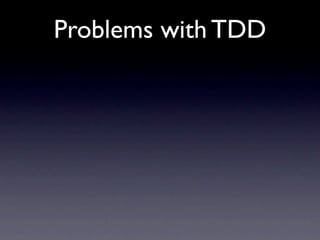

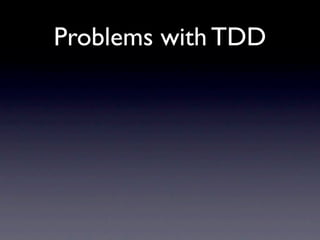

Problems with TDD
Problems with TDD
Problems with TDD

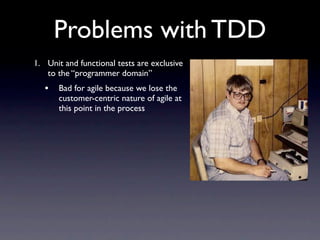

1. Unit and functional tests are exclusive
   to the “programmer domain”
Problems with TDD
1. Unit and functional tests are exclusive
   to the “programmer domain”
   •   Bad for agile because we lose the
       customer-centric nature of agile at
       this point in the process

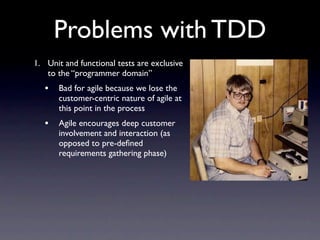

Problems with TDD
1. Unit and functional tests are exclusive
   to the “programmer domain”
   •   Bad for agile because we lose the
       customer-centric nature of agile at
       this point in the process
   •   Agile encourages deep customer
       involvement and interaction (as
       opposed to pre-defined
       requirements gathering phase)

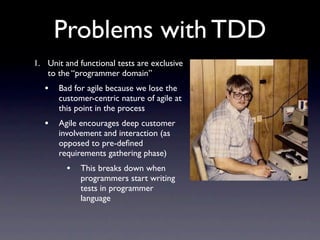

Problems with TDD
1. Unit and functional tests are exclusive
   to the “programmer domain”
   •   Bad for agile because we lose the
       customer-centric nature of agile at
       this point in the process
   •   Agile encourages deep customer
       involvement and interaction (as
       opposed to pre-defined
       requirements gathering phase)
         •   This breaks down when
             programmers start writing
             tests in programmer
             language
Problems with TDD

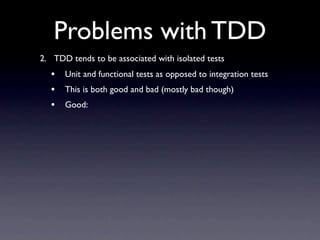

Problems with TDD

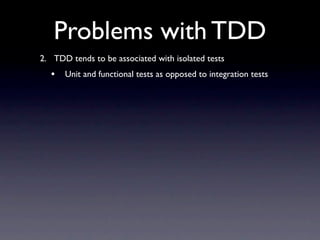

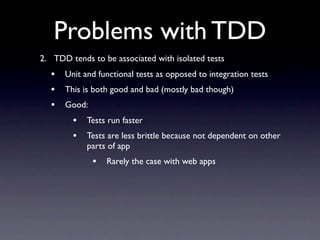

2. TDD tends to be associated with isolated tests
Problems with TDD
2. TDD tends to be associated with isolated tests
  •   Unit and functional tests as opposed to integration tests
Problems with TDD

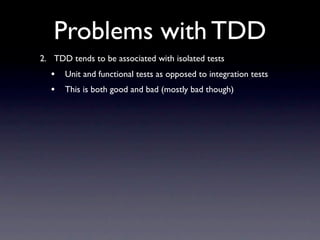

2. TDD tends to be associated with isolated tests
  •   Unit and functional tests as opposed to integration tests
  •   This is both good and bad (mostly bad though)

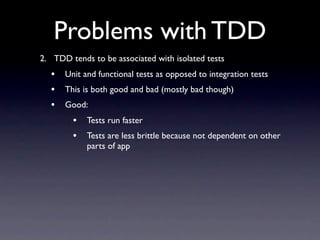

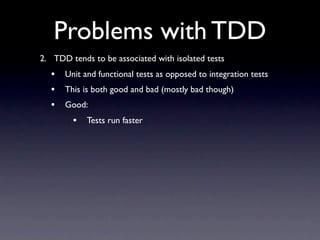

Problems with TDD
2. TDD tends to be associated with isolated tests
  •   Unit and functional tests as opposed to integration tests
  •   This is both good and bad (mostly bad though)
  •   Good:
Problems with TDD
2. TDD tends to be associated with isolated tests
  •   Unit and functional tests as opposed to integration tests
  •   This is both good and bad (mostly bad though)
  •   Good:
        •   Tests run faster
Problems with TDD
2. TDD tends to be associated with isolated tests
  •   Unit and functional tests as opposed to integration tests
  •   This is both good and bad (mostly bad though)
  •   Good:
        •   Tests run faster
        •   Tests are less brittle because not dependent on other
            parts of app
Problems with TDD
2. TDD tends to be associated with isolated tests
  •   Unit and functional tests as opposed to integration tests
  •   This is both good and bad (mostly bad though)
  •   Good:
        •   Tests run faster
        •   Tests are less brittle because not dependent on other
            parts of app
              •   Rarely the case with web apps
Problems with TDD
2. TDD tends to be associated with isolated tests
  •   Unit and functional tests as opposed to integration tests
  •   This is both good and bad (mostly bad though)
  •   Good:
        •    Tests run faster
        •    Tests are less brittle because not dependent on other
             parts of app
              •   Rarely the case with web apps
  •   Bad:
Problems with TDD
2. TDD tends to be associated with isolated tests
  •   Unit and functional tests as opposed to integration tests
  •   This is both good and bad (mostly bad though)
  •   Good:
        •    Tests run faster
        •    Tests are less brittle because not dependent on other
             parts of app
              •   Rarely the case with web apps
  •   Bad:
        •    Tests become brittle due to excessive state setup (see
             next slide)
Problems with TDD
Problems with TDD
3. Writing isolated tests can feel contrived
   (again, especially in web apps), which often
   produces crappy test code, which results in
   crappier production code

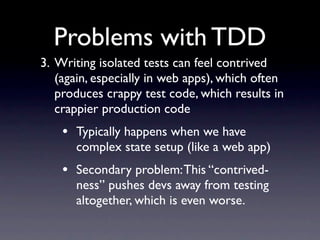

Problems with TDD
3. Writing isolated tests can feel contrived
   (again, especially in web apps), which often
   produces crappy test code, which results in
   crappier production code
    • Typically happens when we have
      complex state setup (like a web app)
Problems with TDD
3. Writing isolated tests can feel contrived
   (again, especially in web apps), which often
   produces crappy test code, which results in
   crappier production code
    • Typically happens when we have
      complex state setup (like a web app)
    • Secondary problem: This “contrived-
      ness” pushes devs away from testing
      altogether, which is even worse.
Problems with TDD
Problems with TDD
4. A lot gets lost in translation due to these
   problems

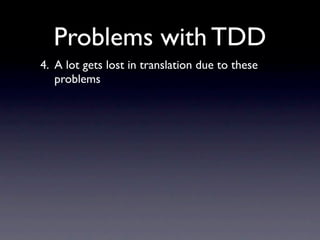

Problems with TDD
4. A lot gets lost in translation due to these
   problems
    • Trying to translate customer
       conversations into test code is hard as it is

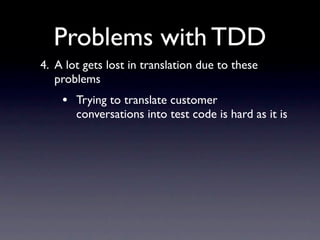

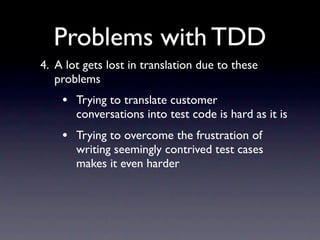

Problems with TDD
4. A lot gets lost in translation due to these
   problems
    • Trying to translate customer
       conversations into test code is hard as it is
    • Trying to overcome the frustration of
       writing seemingly contrived test cases
       makes it even harder

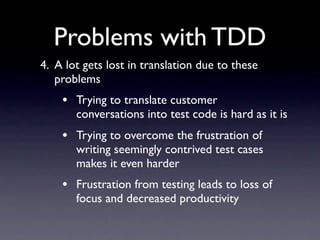

Problems with TDD
4. A lot gets lost in translation due to these
   problems
    • Trying to translate customer
       conversations into test code is hard as it is
    • Trying to overcome the frustration of
       writing seemingly contrived test cases
       makes it even harder
    • Frustration from testing leads to loss of
       focus and decreased productivity

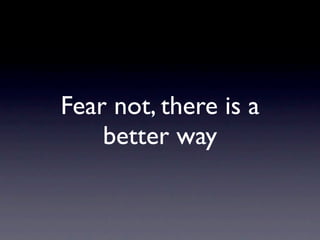

Fear not, there is a
    better way
BDD
BDD
•   BDD takes an outside-in approach

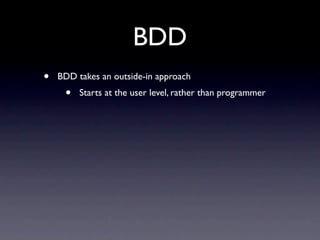

BDD
•   BDD takes an outside-in approach
     •   Starts at the user level, rather than programmer
BDD
•   BDD takes an outside-in approach
      •   Starts at the user level, rather than programmer
•   In short, it’s a different way of thinking about and doing TDD

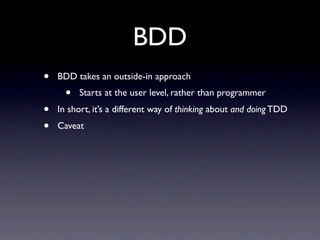

BDD
•   BDD takes an outside-in approach
      •   Starts at the user level, rather than programmer
•   In short, it’s a different way of thinking about and doing TDD
•   Caveat

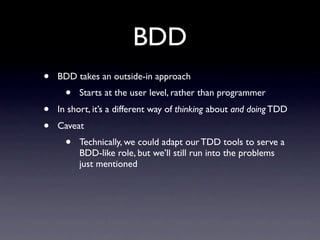

BDD
•   BDD takes an outside-in approach
      •   Starts at the user level, rather than programmer
•   In short, it’s a different way of thinking about and doing TDD
•   Caveat
      •   Technically, we could adapt our TDD tools to serve a
          BDD-like role, but we’ll still run into the problems
          just mentioned

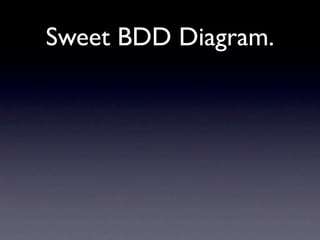

Sweet BDD Diagram.

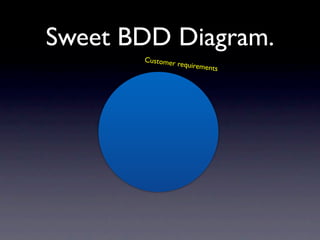

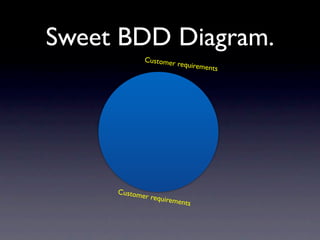

Sweet BDD Diagram.
Sweet BDD Diagram.
       Customer
                  requireme
                            nts

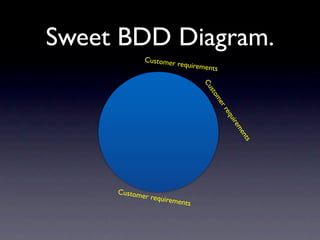

Sweet BDD Diagram.
              Customer
                         requireme
                                   nts




     Custom
           er requi
                   rements
Sweet BDD Diagram.
              Customer
                         requireme
                                   nts




                                 Cu
                                    s
                                   to
                                    me
                                      rr
                                        eq
                                         uir
                                            em
                                             en
                                             ts
     Custom
           er requi
                   rements

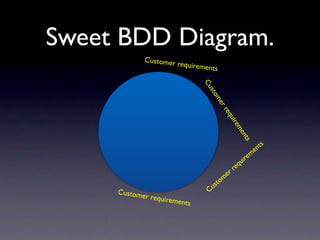

Sweet BDD Diagram.
              Customer
                         requireme
                                   nts




                                 Cu
                                    s
                                   to
                                    me
                                      rr
                                        eq
                                                 uir
                                                    em
                                                     en
                                                          ts
                                                                n ts
                                                               e
                                                          em
                                                      quir
                                                 r re
                                              e
                                             m
                                        s to
     Custom                        Cu
           er requi
                   rements

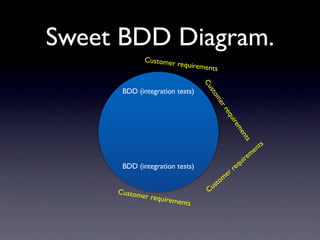

Sweet BDD Diagram.
              Customer
                         requireme
                                   nts




                                 Cu
      BDD (integration tests)




                                    s
                                   to
                                    me
                                      rr
                                        eq
                                                 uir
                                                    em
                                                     en
                                                          ts
                                                                n ts
                                                               e
                                                          em
                                                      quir
                                                 r re
                                              e
                                             m
                                        s to
     Custom                        Cu
            er requi
                    rements
Sweet BDD Diagram.
              Customer
                         requireme
                                   nts




                                 Cu
      BDD (integration tests)




                                    s
                                   to
                                    me
                                      rr
                                        eq
                                                 uir
                                                    em
                                                     en
                                                          ts
                                                                n ts
                                                               e
                                                          em
                                                      quir
      BDD (integration tests)                      re
                                              e  r
                                             m
                                        s to
     Custom                        Cu
            er requi
                    rements

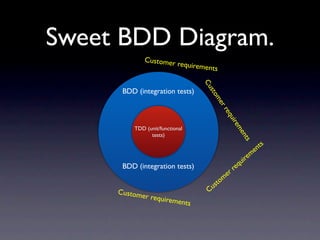

Sweet BDD Diagram.
              Customer
                          requireme
                                    nts




                                  Cu
      BDD (integration tests)




                                     s
                                    to
                                     me
                                       rr
                                         eq
                                                  uir
                                                     em
         TDD (unit/functional




                                                      en
               tests)




                                                           ts
                                                                 n ts
                                                                e
                                                           em
                                                       quir
      BDD (integration tests)                       re
                                               e  r
                                              m
                                         s to
     Custom                         Cu
            er requi
                      rements

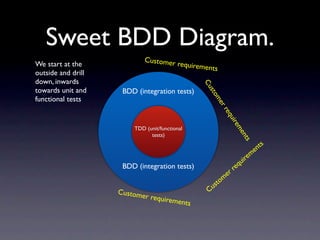

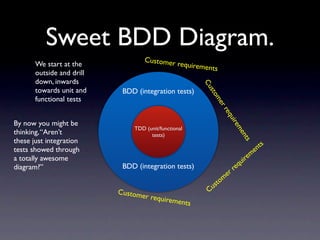

Sweet BDD Diagram.
                             Customer
We start at the                          requireme
                                                   nts
outside and drill
down, inwards




                                                 Cu
towards unit and     BDD (integration tests)




                                                    s
                                                   to
functional tests




                                                    me
                                                      rr
                                                        eq
                                                                 uir
                                                                    em
                        TDD (unit/functional




                                                                     en
                              tests)




                                                                          ts
                                                                                n ts
                                                                               e
                                                                          em
                                                                      quir
                     BDD (integration tests)                       re
                                                              e  r
                                                             m
                                                        s to
                    Custom                         Cu
                           er requi
                                     rements

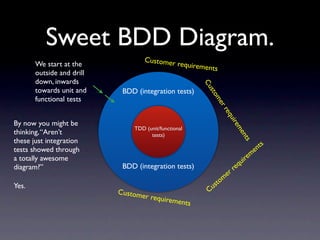

Sweet BDD Diagram.
                                    Customer
       We start at the                          requireme
                                                          nts
       outside and drill
       down, inwards




                                                        Cu
       towards unit and     BDD (integration tests)




                                                           s
                                                          to
       functional tests




                                                           me
                                                             rr
                                                               eq
                                                                        uir
By now you might be




                                                                           em
                               TDD (unit/functional
thinking, “Aren’t




                                                                            en
                                     tests)
these just integration




                                                                                 ts
                                                                                       n ts
tests showed through                                                                  e
                                                                                 em
a totally awesome
                                                                             quir
diagram?”                   BDD (integration tests)                       re
                                                                     e  r
                                                                    m
                                                               s to
                           Custom                         Cu
                                  er requi
                                            rements
Sweet BDD Diagram.
                                    Customer
       We start at the                          requireme
                                                          nts
       outside and drill
       down, inwards




                                                        Cu
       towards unit and     BDD (integration tests)




                                                           s
                                                          to
       functional tests




                                                           me
                                                             rr
                                                               eq
                                                                        uir
By now you might be




                                                                           em
                               TDD (unit/functional
thinking, “Aren’t




                                                                            en
                                     tests)
these just integration




                                                                                 ts
                                                                                       n ts
tests showed through                                                                  e
                                                                                 em
a totally awesome
                                                                             quir
diagram?”                   BDD (integration tests)                       re
                                                                     e  r
                                                                    m
Yes.                                                           s to
                           Custom                         Cu
                                  er requi
                                            rements
Sweet BDD Diagram.
                                    Customer
       We start at the                          requireme
                                                          nts
       outside and drill
       down, inwards




                                                        Cu
       towards unit and     BDD (integration tests)




                                                           s
                                                          to
       functional tests




                                                           me
                                                             rr
                                                               eq
                                                                        uir
By now you might be




                                                                           em
                               TDD (unit/functional
thinking, “Aren’t




                                                                            en
                                     tests)
these just integration




                                                                                 ts
                                                                                       n ts
tests showed through                                                                  e
                                                                                 em
a totally awesome
                                                                             quir
diagram?”                   BDD (integration tests)                       re
                                                                     e  r
                                                                    m
Yes.                                                           s to
                           Custom                         Cu
                                  er requi
                                            rements
Sweet BDD Diagram.
                                    Customer
       We start at the                          requireme
                                                          nts
       outside and drill
       down, inwards




                                                        Cu
       towards unit and     BDD (integration tests)




                                                           s
                                                          to
       functional tests




                                                           me
                                                             rr
                                                               eq
                                                                        uir
By now you might be




                                                                           em
                               TDD (unit/functional
thinking, “Aren’t




                                                                            en
                                     tests)
these just integration




                                                                                 ts
                                                                                       n ts
tests showed through                                                                  e
                                                                                 em
a totally awesome
                                                                             quir
diagram?”                   BDD (integration tests)                       re
                                                                     e  r
                                                                    m
Yes.                                                           s to
                           Custom                         Cu
                                  er requi
                                            rements
Sweet BDD Diagram.
                                    Customer
       We start at the                          requireme
                                                          nts
       outside and drill
       down, inwards




                                                        Cu
       towards unit and     BDD (integration tests)




                                                           s
                                                          to
       functional tests




                                                           me
                                                             rr
                                                               eq
                                                                        uir
By now you might be




                                                                           em
                               TDD (unit/functional
thinking, “Aren’t




                                                                            en
                                     tests)
these just integration




                                                                                 ts
                                                                                       n ts
tests showed through                                                                  e
                                                                                 em
a totally awesome
                                                                             quir
diagram?”                   BDD (integration tests)                       re
                                                                     e  r
                                                                    m
Yes.                                                           s to
                           Custom                         Cu
                                  er requi
                                            rements
Sweet BDD Diagram.
                                    Customer
       We start at the                          requireme
                                                          nts
       outside and drill
       down, inwards




                                                        Cu
       towards unit and     BDD (integration tests)




                                                           s
                                                          to
       functional tests




                                                           me
                                                             rr
                                                               eq
                                                                        uir
By now you might be




                                                                           em
                               TDD (unit/functional
thinking, “Aren’t




                                                                            en
                                     tests)
these just integration




                                                                                 ts
                                                                                       n ts
tests showed through                                                                  e
                                                                                 em
a totally awesome
                                                                             quir
diagram?”                   BDD (integration tests)                       re
                                                                     e  r
                                                                    m
Yes.                                                           s to
                           Custom                         Cu
                                  er requi
                                            rements
Dig deeper: What’s the point of
        testing code?



• Is it to test code or describe behavior??
Dig deeper: What’s the point of
        testing code?



• Is it to test code or describe behavior?? Both.

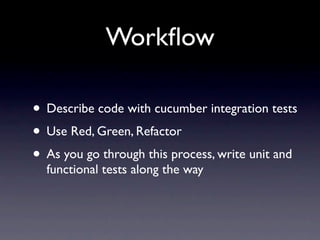

Workflow

• Describe code with cucumber integration tests
• Use Red, Green, Refactor
• As you go through this process, write unit and
  functional tests along the way

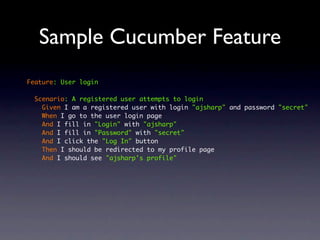

Sample Cucumber Feature
Sample Cucumber Feature
Feature: User login

  Scenario: A registered user attempts to login
    Given I am a registered user with login "ajsharp" and password "secret"
    When I go to the user login page
    And I fill in "Login" with "ajsharp"
    And I fill in "Password" with "secret"
    And I click the "Log In" button
    Then I should be redirected to my profile page
    And I should see "ajsharp's profile"
Sample Cucumber Feature
Sample Cucumber Feature


           BDD Outside-in Workflow
           • Cucumber feature

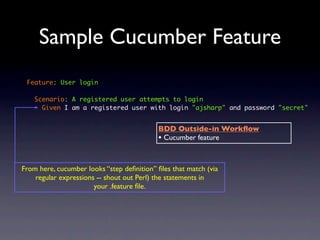

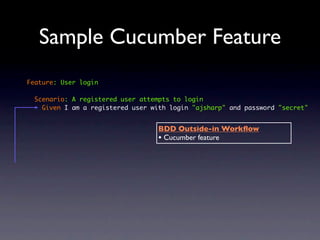

Sample Cucumber Feature
Feature: User login

  Scenario: A registered user attempts to login
    Given I am a registered user with login "ajsharp" and password "secret"


                                   BDD Outside-in Workflow
                                   • Cucumber feature
Sample Cucumber Feature
Feature: User login

  Scenario: A registered user attempts to login
    Given I am a registered user with login "ajsharp" and password "secret"


                                   BDD Outside-in Workflow
                                   • Cucumber feature
Sample Cucumber Feature
Feature: User login

  Scenario: A registered user attempts to login
    Given I am a registered user with login "ajsharp" and password "secret"


                                   BDD Outside-in Workflow
                                   • Cucumber feature
Sample Cucumber Feature
 Feature: User login

    Scenario: A registered user attempts to login
      Given I am a registered user with login "ajsharp" and password "secret"


                                           BDD Outside-in Workflow
                                           • Cucumber feature


From here, cucumber looks “step definition” files that match (via
    regular expressions -- shout out Perl) the statements in
                       your .feature file.
Sample Cucumber Feature


                                           BDD Outside-in Workflow
                                           • Cucumber feature


From here, cucumber looks “step definition” files that match (via
    regular expressions -- shout out Perl) the statements in
                       your .feature file.
Sample Cucumber Feature


                                            BDD Outside-in Workflow
                                            • Cucumber feature


 From here, cucumber looks “step definition” files that match (via
     regular expressions -- shout out Perl) the statements in
                        your .feature file.


Next Step: Write a failing test

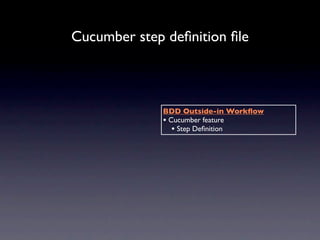

Cucumber step definition file
Cucumber step definition file



             BDD Outside-in Workflow
             • Cucumber feature
                • Step Definition
Cucumber step definition file

Given /^I am a registered user with username "(.+)" and password "(.+)"$/ do |login, pass|
  @user = User.create!(:username => login, :password => pass)
end

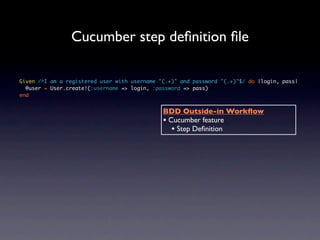

                                              BDD Outside-in Workflow
                                              • Cucumber feature
                                                 • Step Definition
Cucumber step definition file

Given /^I am a registered user with username "(.+)" and password "(.+)"$/ do |login, pass|
  @user = User.create!(:username => login, :password => pass)
end

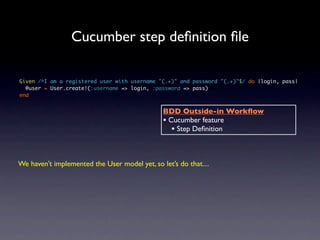

                                               BDD Outside-in Workflow
                                               • Cucumber feature
                                                  • Step Definition


We haven’t implemented the User model yet, so let’s do that....

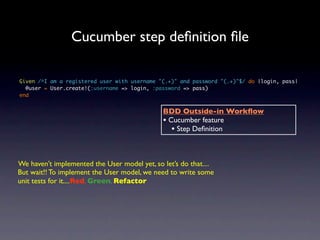

Cucumber step definition file

Given /^I am a registered user with username "(.+)" and password "(.+)"$/ do |login, pass|
  @user = User.create!(:username => login, :password => pass)
end


                                              BDD Outside-in Workflow
                                              • Cucumber feature
                                                 • Step Definition


We haven’t implemented the User model yet, so let’s do that....
But wait!! To implement the User model, we need to write some
unit tests for it....Red, Green, Refactor

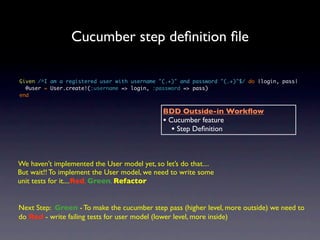

Cucumber step definition file

Given /^I am a registered user with username "(.+)" and password "(.+)"$/ do |login, pass|
  @user = User.create!(:username => login, :password => pass)
end


                                              BDD Outside-in Workflow
                                              • Cucumber feature
                                                 • Step Definition


We haven’t implemented the User model yet, so let’s do that....
But wait!! To implement the User model, we need to write some
unit tests for it....Red, Green, Refactor


Next Step: Green - To make the cucumber step pass (higher level, more outside) we need to
do Red - write failing tests for user model (lower level, more inside)
User Model Unit Test
(or spec, in this case)
User Model Unit Test
                     (or spec, in this case)
describe User do
  it { should validate_presence_of :username }
  it { should validate_presence_of :password }
end
User Model Unit Test
                     (or spec, in this case)
describe User do                                 BDD Outside-in Workflow
  it { should validate_presence_of :username }
  it { should validate_presence_of :password }   • Cucumber feature
end                                                 • Step Definition
                                                       • User model unit test/spec
User Model Unit Test
                     (or spec, in this case)
describe User do                                 BDD Outside-in Workflow
  it { should validate_presence_of :username }
  it { should validate_presence_of :password }   • Cucumber feature
end                                                 • Step Definition
                                                       • User model unit test/spec

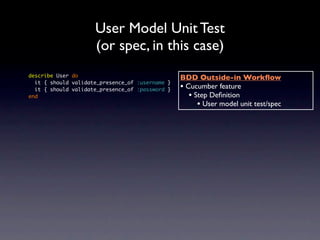

User Model Unit Test
                     (or spec, in this case)
describe User do                                 BDD Outside-in Workflow
  it { should validate_presence_of :username }
  it { should validate_presence_of :password }   • Cucumber feature
end                                                 • Step Definition
                                                       • User model unit test/spec


        This will fail, because we haven’t written any production code yet

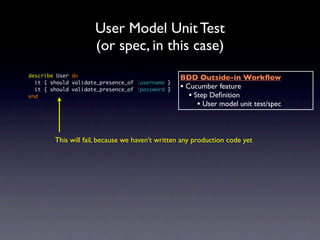

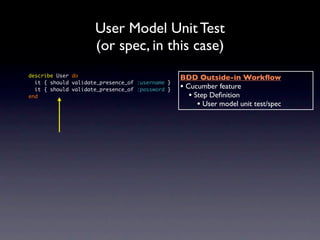

User Model Unit Test
                      (or spec, in this case)
 describe User do                                 BDD Outside-in Workflow
   it { should validate_presence_of :username }
   it { should validate_presence_of :password }   • Cucumber feature
 end                                                 • Step Definition
                                                        • User model unit test/spec


         This will fail, because we haven’t written any production code yet




Next Step: Green - Make our model unit tests
pass by writing some production code

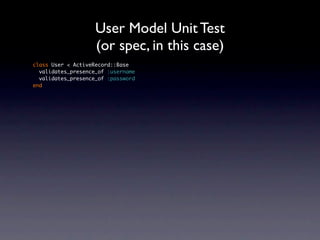

User Model Unit Test
                    (or spec, in this case)
class User < ActiveRecord::Base
  validates_presence_of :username
  validates_presence_of :password
end

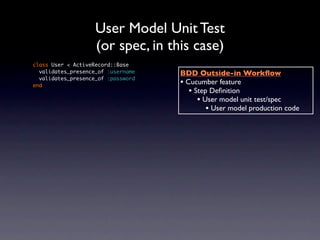

User Model Unit Test
                    (or spec, in this case)
class User < ActiveRecord::Base
  validates_presence_of :username   BDD Outside-in Workflow
  validates_presence_of :password
end                                 • Cucumber feature
                                       • Step Definition
                                          • User model unit test/spec
                                             • User model production code

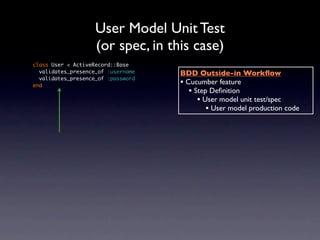

User Model Unit Test
                    (or spec, in this case)
class User < ActiveRecord::Base
  validates_presence_of :username   BDD Outside-in Workflow
  validates_presence_of :password
end                                 • Cucumber feature
                                       • Step Definition
                                          • User model unit test/spec
                                             • User model production code
User Model Unit Test
                    (or spec, in this case)
class User < ActiveRecord::Base
  validates_presence_of :username                  BDD Outside-in Workflow
  validates_presence_of :password
end                                                • Cucumber feature
                                                      • Step Definition
                                                         • User model unit test/spec
                                                            • User model production code


       This will make our unit tests pass. Nice.

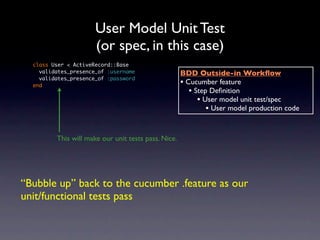

User Model Unit Test
                      (or spec, in this case)
  class User < ActiveRecord::Base
    validates_presence_of :username                  BDD Outside-in Workflow
    validates_presence_of :password
  end                                                • Cucumber feature
                                                        • Step Definition
                                                           • User model unit test/spec
                                                              • User model production code


         This will make our unit tests pass. Nice.




“Bubble up” back to the cucumber .feature as our
unit/functional tests pass
Awesome workflow

• This workflow keeps us focused on building
  business value in our code for our
  customers
   • i.e. customer requirements
Resources
•   BDD
     •   http://behaviour-driven.org/
•   Cucumber
     •   http://cukes.info
     •   http://github.com/aslakhellesoy/cucumber
•   Rspec Beta Book
     •   http://pragprog.com/titles/achbd/the-rspec-
         book

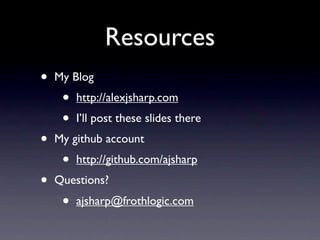

Resources
•   My Blog
     •   http://alexjsharp.com
     •   I’ll post these slides there
•   My github account
     •   http://github.com/ajsharp
•   Questions?
     •   ajsharp@frothlogic.com

Getting Comfortable with BDD

  • 1.
    Getting Comfortable with Behavior Driven Development Alex Sharp FrothLogic, Inc. ajsharp@frothlogic.com http://twitter.com/ajsharp
  • 2.
    Speaking of “getting comfortable”...
  • 3.
    I hope youget as comfortable with BDD as this guy is with EVERYTHING. Boom.
  • 4.
    Why are youlaughing?
  • 6.
  • 8.
    Let’s talk about... •Things we’ll cover in this talk: 1. What is BDD? 2. Why you should care 3. How to start doing BDD with cucumber
  • 9.
    So, what isBDD? • Behavior Driven Development (BDD) is a software development methodology that takes an outside-in approach to describe application behavior by encouraging intense customer involvement • Don’t worry, we’ll take this explanation from textbook to tolerable over the next 20-ish minutes...
  • 10.
    So, what isBDD? • BDD borrows it’s core concepts, workflow and principles from it’s predecessor, Test Driven Development
  • 11.
  • 12.
    In fact... • BDDbuilds on top of Test Driven Development (TDD)
  • 13.
    In fact... • BDDbuilds on top of Test Driven Development (TDD) • Which begs the question...
  • 14.
  • 15.
    Well then what’sTDD?! • TDD == Write tests first, production code second
  • 16.
    Well then what’sTDD?! • TDD == Write tests first, production code second • You’re TAFT, right!?
  • 17.
    Well then what’sTDD?! • TDD == Write tests first, production code second • You’re TAFT, right!? • Main idea: Use test code to drive production code
  • 18.
    Well then what’sTDD?! • TDD == Write tests first, production code second • You’re TAFT, right!? • Main idea: Use test code to drive production code • More on this later...
  • 19.
    Well then what’sTDD?! • TDD/BDD Workflow • Red, Green, Refactor
  • 20.
    Well then what’sTDD?! Not e:Ye llow text has absol utel y no r eleva nce • TDD/BDD Workflow here. • Red, Green, Refactor
  • 21.
  • 22.
    Well then what’sTDD?! • TDD/BDD Workflow
  • 23.
    Well then what’sTDD?! • TDD/BDD Workflow • Red, Green, Refactor
  • 24.
    Well then what’sTDD?! • TDD/BDD Workflow • Red, Green, Refactor 1. Write a failing test
  • 25.
    Well then what’sTDD?! • TDD/BDD Workflow • Red, Green, Refactor 1. Write a failing test 2. Write the smallest amount of production code possible to get that test to pass
  • 26.
    Well then what’sTDD?! • TDD/BDD Workflow • Red, Green, Refactor 1. Write a failing test 2. Write the smallest amount of production code possible to get that test to pass 3. Refactor
  • 27.
    Well then what’sTDD?! • TDD/BDD Workflow • Red, Green, Refactor 1. Write a failing test 2. Write the smallest amount of production code possible to get that test to pass 3. Refactor • i.e. add more tests and write better production code
  • 28.
  • 29.
    THINK, MAN, THINK! Don’tforget to think!!
  • 30.
  • 31.
    THINK, MAN, THINK! • The real TDD/BDD Workflow
  • 32.
    THINK, MAN, THINK! • The real TDD/BDD Workflow • THINK, Red, Green, Refactor
  • 33.
    THINK, MAN, THINK! • The real TDD/BDD Workflow • THINK, Red, Green, Refactor • Thinking is like, really important
  • 34.
    THINK, MAN, THINK! • The real TDD/BDD Workflow • THINK, Red, Green, Refactor • Thinking is like, really important • It’s easy to forget to think when you can just start hacking L337 c0D3Z
  • 35.
    THINK, MAN, THINK! • The real TDD/BDD Workflow • THINK, Red, Green, Refactor • Thinking is like, really important • It’s easy to forget to think when you can just start hacking L337 c0D3Z
  • 36.
    THINK, MAN, THINK! k !! h in t t to ge n ’t for • The real TDD/BDD Workflow D o • THINK, Red, Green, Refactor • Thinking is like, really important • It’s easy to forget to think when you can just start hacking L337 c0D3Z
  • 37.
    THINK, MAN, THINK! k !! h in t t to ge n ’t for • The real TDD/BDD Workflow D o • THINK, Red, Green, Refactor • Thinking is like, really important • It’s easy to forget to think when you can just start hacking L337 c0D3Z
  • 38.
  • 39.
    Problem: Thinking is HARD. • Unfortunately, TDD, and the nature of traditional TDD tools often make it harder to think about what you’re trying to do.
  • 40.
    BDD Picks upwhere TDD leaves off
  • 41.
    BDD Picks upwhere TDD leaves off • TDD defines a really awesome workflow (think, red, green, refactor)
  • 42.
    BDD Picks upwhere TDD leaves off • TDD defines a really awesome workflow (think, red, green, refactor) • BDD crystallizes some of the things that TDD leaves unclear or undefined.
  • 43.
    BDD Picks upwhere TDD leaves off • TDD defines a really awesome workflow (think, red, green, refactor) • BDD crystallizes some of the things that TDD leaves unclear or undefined. • BDD == TDD 2.0
  • 44.
    BDD Picks upwhere TDD leaves off • TDD defines a really awesome workflow (think, red, green, refactor) • BDD crystallizes some of the things that TDD leaves unclear or undefined. • BDD == TDD 2.0 • BDD bridges the gap between specs/ requirements and actual implementation
  • 45.
    BDD Picks upwhere TDD leaves off
  • 46.
    BDD Picks upwhere TDD leaves off • Programmer goals and priorities are more clearly aligned with requirements
  • 47.
    BDD Picks upwhere TDD leaves off • Programmer goals and priorities are more clearly aligned with requirements • Why??
  • 48.
    BDD Picks upwhere TDD leaves off • Programmer goals and priorities are more clearly aligned with requirements • Why?? • BDD is implemented in business language not programmer pig latin
  • 49.
  • 50.
    Programmer pig latin •01010000 01110010 01101111 01100111 01110010 01100001 01101101 01101101 01100101 01110010 00100000 01110000 01101001 01100111 00100000 01101100 01100001 01110100 01101001 01101110
  • 51.
    Come to thinkof it...
  • 52.
    Come to thinkof it... • In doing this whole TDD/BDD thing, what exactly are we trying to do?
  • 53.
    Come to thinkof it... • In doing this whole TDD/BDD thing, what exactly are we trying to do? • Test code?
  • 54.
    Come to thinkof it... • In doing this whole TDD/BDD thing, what exactly are we trying to do? • Test code? • Describe behavior?
  • 55.
    Come to thinkof it... • In doing this whole TDD/BDD thing, what exactly are we trying to do? • Test code? • Describe behavior? • Bill hours?
  • 56.
    Come to thinkof it... • In doing this whole TDD/BDD thing, what exactly are we trying to do? • Test code? • Describe behavior? • Bill hours? • Bawl like ca$h money millionaires?
  • 57.
    Come to thinkof it... • In doing this whole TDD/BDD thing, what exactly are we trying to do? • Test code? • Describe behavior? • Bill hours? • Bawl like ca$h money millionaires?
  • 58.
    Come to thinkof it...
  • 59.
    Come to thinkof it... • In doing this whole TDD/BDD thing, what are we “trying to do?” • Test code? • Describe behavior? • Bill hours? • Bawl like ca$h money millionaires?
  • 60.
    Come to thinkof it... • In doing this whole TDD/BDD thing, what are we “trying to do?” How bout both, • Test code? AT THE SAME TIME!? • Describe behavior? • Bill hours? • Bawl like ca$h money millionaires?
  • 61.
    Come to thinkof it... • In doing this whole TDD/BDD thing, what are we “trying to do?” How bout both, • Test code? AT THE SAME TIME!? • Describe behavior? • Bill hours? • Bawl like ca$h money millionaires?
  • 62.
    Come to thinkof it... • In doing this whole TDD/BDD thing, what are we “trying to do?” How bout both, • Test code? AT THE SAME TIME!? • Describe behavior? • Bill hours? • Bawl like ca$h money millionaires?
  • 63.
  • 64.
    Double-whammy • We can describe the behavior we want first, and through that process, we drill down into lower level unit and functional tests for our code.
  • 65.
    Double-whammy • We can describe the behavior we want first, and through that process, we drill down into lower level unit and functional tests for our code. • What’s the point of testing code before we pin down what that code should do?
  • 66.
    Double-whammy • We can describe the behavior we want first, and through that process, we drill down into lower level unit and functional tests for our code. • What’s the point of testing code before we pin down what that code should do? • In other words, we need to define the behavior we want/expect before we go about testing it.
  • 67.
    Dig deeper: What’sthe goal of “testing” code? • Is it to test code or describe behavior?? Both. • TDD is about ensuring behavior. • BDD is about describing behavior. • First we describe the behavior, then we ensure that behavior works as expected.
  • 68.
  • 69.
    The Fallacy ofTDD • Simply writing tests doesn’t necessarily yield any value
  • 70.
    The Fallacy ofTDD • Simply writing tests doesn’t necessarily yield any value • assert_equal(1, 1) # == true
  • 71.
    The Fallacy ofTDD • Simply writing tests doesn’t necessarily yield any value • assert_equal(1, 1) # == true • To be useful, our tests must have meaning, and that requires:
  • 72.
    The Fallacy ofTDD • Simply writing tests doesn’t necessarily yield any value • assert_equal(1, 1) # == true • To be useful, our tests must have meaning, and that requires: 1. Listening to our customers.
  • 73.
    The Fallacy ofTDD • Simply writing tests doesn’t necessarily yield any value • assert_equal(1, 1) # == true • To be useful, our tests must have meaning, and that requires: 1. Listening to our customers. 2. Thinking. Hard.
  • 74.
  • 75.
  • 76.
    Problems with TDD 1.Unit and functional tests are exclusive to the “programmer domain”
  • 77.
    Problems with TDD 1.Unit and functional tests are exclusive to the “programmer domain” • Bad for agile because we lose the customer-centric nature of agile at this point in the process
  • 78.
    Problems with TDD 1.Unit and functional tests are exclusive to the “programmer domain” • Bad for agile because we lose the customer-centric nature of agile at this point in the process • Agile encourages deep customer involvement and interaction (as opposed to pre-defined requirements gathering phase)
  • 79.
    Problems with TDD 1.Unit and functional tests are exclusive to the “programmer domain” • Bad for agile because we lose the customer-centric nature of agile at this point in the process • Agile encourages deep customer involvement and interaction (as opposed to pre-defined requirements gathering phase) • This breaks down when programmers start writing tests in programmer language
  • 80.
  • 81.
    Problems with TDD 2.TDD tends to be associated with isolated tests
  • 82.
    Problems with TDD 2.TDD tends to be associated with isolated tests • Unit and functional tests as opposed to integration tests
  • 83.
    Problems with TDD 2.TDD tends to be associated with isolated tests • Unit and functional tests as opposed to integration tests • This is both good and bad (mostly bad though)
  • 84.
    Problems with TDD 2.TDD tends to be associated with isolated tests • Unit and functional tests as opposed to integration tests • This is both good and bad (mostly bad though) • Good:
  • 85.
    Problems with TDD 2.TDD tends to be associated with isolated tests • Unit and functional tests as opposed to integration tests • This is both good and bad (mostly bad though) • Good: • Tests run faster
  • 86.
    Problems with TDD 2.TDD tends to be associated with isolated tests • Unit and functional tests as opposed to integration tests • This is both good and bad (mostly bad though) • Good: • Tests run faster • Tests are less brittle because not dependent on other parts of app
  • 87.
    Problems with TDD 2.TDD tends to be associated with isolated tests • Unit and functional tests as opposed to integration tests • This is both good and bad (mostly bad though) • Good: • Tests run faster • Tests are less brittle because not dependent on other parts of app • Rarely the case with web apps
  • 88.
    Problems with TDD 2.TDD tends to be associated with isolated tests • Unit and functional tests as opposed to integration tests • This is both good and bad (mostly bad though) • Good: • Tests run faster • Tests are less brittle because not dependent on other parts of app • Rarely the case with web apps • Bad:
  • 89.
    Problems with TDD 2.TDD tends to be associated with isolated tests • Unit and functional tests as opposed to integration tests • This is both good and bad (mostly bad though) • Good: • Tests run faster • Tests are less brittle because not dependent on other parts of app • Rarely the case with web apps • Bad: • Tests become brittle due to excessive state setup (see next slide)
  • 90.
  • 91.
    Problems with TDD 3.Writing isolated tests can feel contrived (again, especially in web apps), which often produces crappy test code, which results in crappier production code
  • 92.
    Problems with TDD 3.Writing isolated tests can feel contrived (again, especially in web apps), which often produces crappy test code, which results in crappier production code • Typically happens when we have complex state setup (like a web app)
  • 93.
    Problems with TDD 3.Writing isolated tests can feel contrived (again, especially in web apps), which often produces crappy test code, which results in crappier production code • Typically happens when we have complex state setup (like a web app) • Secondary problem: This “contrived- ness” pushes devs away from testing altogether, which is even worse.
  • 94.
  • 95.
    Problems with TDD 4.A lot gets lost in translation due to these problems
  • 96.
    Problems with TDD 4.A lot gets lost in translation due to these problems • Trying to translate customer conversations into test code is hard as it is
  • 97.
    Problems with TDD 4.A lot gets lost in translation due to these problems • Trying to translate customer conversations into test code is hard as it is • Trying to overcome the frustration of writing seemingly contrived test cases makes it even harder
  • 98.
    Problems with TDD 4.A lot gets lost in translation due to these problems • Trying to translate customer conversations into test code is hard as it is • Trying to overcome the frustration of writing seemingly contrived test cases makes it even harder • Frustration from testing leads to loss of focus and decreased productivity
  • 99.
    Fear not, thereis a better way
  • 100.
  • 101.
    BDD • BDD takes an outside-in approach
  • 102.
    BDD • BDD takes an outside-in approach • Starts at the user level, rather than programmer
  • 103.
    BDD • BDD takes an outside-in approach • Starts at the user level, rather than programmer • In short, it’s a different way of thinking about and doing TDD
  • 104.
    BDD • BDD takes an outside-in approach • Starts at the user level, rather than programmer • In short, it’s a different way of thinking about and doing TDD • Caveat
  • 105.
    BDD • BDD takes an outside-in approach • Starts at the user level, rather than programmer • In short, it’s a different way of thinking about and doing TDD • Caveat • Technically, we could adapt our TDD tools to serve a BDD-like role, but we’ll still run into the problems just mentioned
  • 106.
  • 107.
  • 108.
    Sweet BDD Diagram. Customer requireme nts
  • 109.
    Sweet BDD Diagram. Customer requireme nts Custom er requi rements
  • 110.
    Sweet BDD Diagram. Customer requireme nts Cu s to me rr eq uir em en ts Custom er requi rements
  • 111.
    Sweet BDD Diagram. Customer requireme nts Cu s to me rr eq uir em en ts n ts e em quir r re e m s to Custom Cu er requi rements
  • 112.
    Sweet BDD Diagram. Customer requireme nts Cu BDD (integration tests) s to me rr eq uir em en ts n ts e em quir r re e m s to Custom Cu er requi rements
  • 113.
    Sweet BDD Diagram. Customer requireme nts Cu BDD (integration tests) s to me rr eq uir em en ts n ts e em quir BDD (integration tests) re e r m s to Custom Cu er requi rements
  • 114.
    Sweet BDD Diagram. Customer requireme nts Cu BDD (integration tests) s to me rr eq uir em TDD (unit/functional en tests) ts n ts e em quir BDD (integration tests) re e r m s to Custom Cu er requi rements
  • 115.
    Sweet BDD Diagram. Customer We start at the requireme nts outside and drill down, inwards Cu towards unit and BDD (integration tests) s to functional tests me rr eq uir em TDD (unit/functional en tests) ts n ts e em quir BDD (integration tests) re e r m s to Custom Cu er requi rements
  • 116.
    Sweet BDD Diagram. Customer We start at the requireme nts outside and drill down, inwards Cu towards unit and BDD (integration tests) s to functional tests me rr eq uir By now you might be em TDD (unit/functional thinking, “Aren’t en tests) these just integration ts n ts tests showed through e em a totally awesome quir diagram?” BDD (integration tests) re e r m s to Custom Cu er requi rements
  • 117.
    Sweet BDD Diagram. Customer We start at the requireme nts outside and drill down, inwards Cu towards unit and BDD (integration tests) s to functional tests me rr eq uir By now you might be em TDD (unit/functional thinking, “Aren’t en tests) these just integration ts n ts tests showed through e em a totally awesome quir diagram?” BDD (integration tests) re e r m Yes. s to Custom Cu er requi rements
  • 118.
    Sweet BDD Diagram. Customer We start at the requireme nts outside and drill down, inwards Cu towards unit and BDD (integration tests) s to functional tests me rr eq uir By now you might be em TDD (unit/functional thinking, “Aren’t en tests) these just integration ts n ts tests showed through e em a totally awesome quir diagram?” BDD (integration tests) re e r m Yes. s to Custom Cu er requi rements
  • 119.
    Sweet BDD Diagram. Customer We start at the requireme nts outside and drill down, inwards Cu towards unit and BDD (integration tests) s to functional tests me rr eq uir By now you might be em TDD (unit/functional thinking, “Aren’t en tests) these just integration ts n ts tests showed through e em a totally awesome quir diagram?” BDD (integration tests) re e r m Yes. s to Custom Cu er requi rements
  • 120.
    Sweet BDD Diagram. Customer We start at the requireme nts outside and drill down, inwards Cu towards unit and BDD (integration tests) s to functional tests me rr eq uir By now you might be em TDD (unit/functional thinking, “Aren’t en tests) these just integration ts n ts tests showed through e em a totally awesome quir diagram?” BDD (integration tests) re e r m Yes. s to Custom Cu er requi rements
  • 121.
    Sweet BDD Diagram. Customer We start at the requireme nts outside and drill down, inwards Cu towards unit and BDD (integration tests) s to functional tests me rr eq uir By now you might be em TDD (unit/functional thinking, “Aren’t en tests) these just integration ts n ts tests showed through e em a totally awesome quir diagram?” BDD (integration tests) re e r m Yes. s to Custom Cu er requi rements
  • 122.
    Dig deeper: What’sthe point of testing code? • Is it to test code or describe behavior??
  • 123.
    Dig deeper: What’sthe point of testing code? • Is it to test code or describe behavior?? Both.
  • 124.
    Workflow • Describe codewith cucumber integration tests • Use Red, Green, Refactor • As you go through this process, write unit and functional tests along the way
  • 125.
  • 126.
    Sample Cucumber Feature Feature:User login Scenario: A registered user attempts to login Given I am a registered user with login "ajsharp" and password "secret" When I go to the user login page And I fill in "Login" with "ajsharp" And I fill in "Password" with "secret" And I click the "Log In" button Then I should be redirected to my profile page And I should see "ajsharp's profile"
  • 127.
  • 128.
    Sample Cucumber Feature BDD Outside-in Workflow • Cucumber feature
  • 129.
    Sample Cucumber Feature Feature:User login Scenario: A registered user attempts to login Given I am a registered user with login "ajsharp" and password "secret" BDD Outside-in Workflow • Cucumber feature
  • 130.
    Sample Cucumber Feature Feature:User login Scenario: A registered user attempts to login Given I am a registered user with login "ajsharp" and password "secret" BDD Outside-in Workflow • Cucumber feature
  • 131.
    Sample Cucumber Feature Feature:User login Scenario: A registered user attempts to login Given I am a registered user with login "ajsharp" and password "secret" BDD Outside-in Workflow • Cucumber feature
  • 132.
    Sample Cucumber Feature Feature: User login Scenario: A registered user attempts to login Given I am a registered user with login "ajsharp" and password "secret" BDD Outside-in Workflow • Cucumber feature From here, cucumber looks “step definition” files that match (via regular expressions -- shout out Perl) the statements in your .feature file.
  • 133.
    Sample Cucumber Feature BDD Outside-in Workflow • Cucumber feature From here, cucumber looks “step definition” files that match (via regular expressions -- shout out Perl) the statements in your .feature file.
  • 134.
    Sample Cucumber Feature BDD Outside-in Workflow • Cucumber feature From here, cucumber looks “step definition” files that match (via regular expressions -- shout out Perl) the statements in your .feature file. Next Step: Write a failing test
  • 135.
  • 136.
    Cucumber step definitionfile BDD Outside-in Workflow • Cucumber feature • Step Definition
  • 137.
    Cucumber step definitionfile Given /^I am a registered user with username "(.+)" and password "(.+)"$/ do |login, pass| @user = User.create!(:username => login, :password => pass) end BDD Outside-in Workflow • Cucumber feature • Step Definition
  • 138.
    Cucumber step definitionfile Given /^I am a registered user with username "(.+)" and password "(.+)"$/ do |login, pass| @user = User.create!(:username => login, :password => pass) end BDD Outside-in Workflow • Cucumber feature • Step Definition We haven’t implemented the User model yet, so let’s do that....
  • 139.
    Cucumber step definitionfile Given /^I am a registered user with username "(.+)" and password "(.+)"$/ do |login, pass| @user = User.create!(:username => login, :password => pass) end BDD Outside-in Workflow • Cucumber feature • Step Definition We haven’t implemented the User model yet, so let’s do that.... But wait!! To implement the User model, we need to write some unit tests for it....Red, Green, Refactor
  • 140.
    Cucumber step definitionfile Given /^I am a registered user with username "(.+)" and password "(.+)"$/ do |login, pass| @user = User.create!(:username => login, :password => pass) end BDD Outside-in Workflow • Cucumber feature • Step Definition We haven’t implemented the User model yet, so let’s do that.... But wait!! To implement the User model, we need to write some unit tests for it....Red, Green, Refactor Next Step: Green - To make the cucumber step pass (higher level, more outside) we need to do Red - write failing tests for user model (lower level, more inside)
  • 141.
    User Model UnitTest (or spec, in this case)
  • 142.
    User Model UnitTest (or spec, in this case) describe User do it { should validate_presence_of :username } it { should validate_presence_of :password } end
  • 143.
    User Model UnitTest (or spec, in this case) describe User do BDD Outside-in Workflow it { should validate_presence_of :username } it { should validate_presence_of :password } • Cucumber feature end • Step Definition • User model unit test/spec
  • 144.
    User Model UnitTest (or spec, in this case) describe User do BDD Outside-in Workflow it { should validate_presence_of :username } it { should validate_presence_of :password } • Cucumber feature end • Step Definition • User model unit test/spec
  • 145.
    User Model UnitTest (or spec, in this case) describe User do BDD Outside-in Workflow it { should validate_presence_of :username } it { should validate_presence_of :password } • Cucumber feature end • Step Definition • User model unit test/spec This will fail, because we haven’t written any production code yet
  • 146.
    User Model UnitTest (or spec, in this case) describe User do BDD Outside-in Workflow it { should validate_presence_of :username } it { should validate_presence_of :password } • Cucumber feature end • Step Definition • User model unit test/spec This will fail, because we haven’t written any production code yet Next Step: Green - Make our model unit tests pass by writing some production code
  • 147.
    User Model UnitTest (or spec, in this case) class User < ActiveRecord::Base validates_presence_of :username validates_presence_of :password end
  • 148.
    User Model UnitTest (or spec, in this case) class User < ActiveRecord::Base validates_presence_of :username BDD Outside-in Workflow validates_presence_of :password end • Cucumber feature • Step Definition • User model unit test/spec • User model production code
  • 149.
    User Model UnitTest (or spec, in this case) class User < ActiveRecord::Base validates_presence_of :username BDD Outside-in Workflow validates_presence_of :password end • Cucumber feature • Step Definition • User model unit test/spec • User model production code
  • 150.
    User Model UnitTest (or spec, in this case) class User < ActiveRecord::Base validates_presence_of :username BDD Outside-in Workflow validates_presence_of :password end • Cucumber feature • Step Definition • User model unit test/spec • User model production code This will make our unit tests pass. Nice.
  • 151.
    User Model UnitTest (or spec, in this case) class User < ActiveRecord::Base validates_presence_of :username BDD Outside-in Workflow validates_presence_of :password end • Cucumber feature • Step Definition • User model unit test/spec • User model production code This will make our unit tests pass. Nice. “Bubble up” back to the cucumber .feature as our unit/functional tests pass
  • 152.
    Awesome workflow • Thisworkflow keeps us focused on building business value in our code for our customers • i.e. customer requirements
  • 153.
    Resources • BDD • http://behaviour-driven.org/ • Cucumber • http://cukes.info • http://github.com/aslakhellesoy/cucumber • Rspec Beta Book • http://pragprog.com/titles/achbd/the-rspec- book
  • 154.
    Resources • My Blog • http://alexjsharp.com • I’ll post these slides there • My github account • http://github.com/ajsharp • Questions? • ajsharp@frothlogic.com
