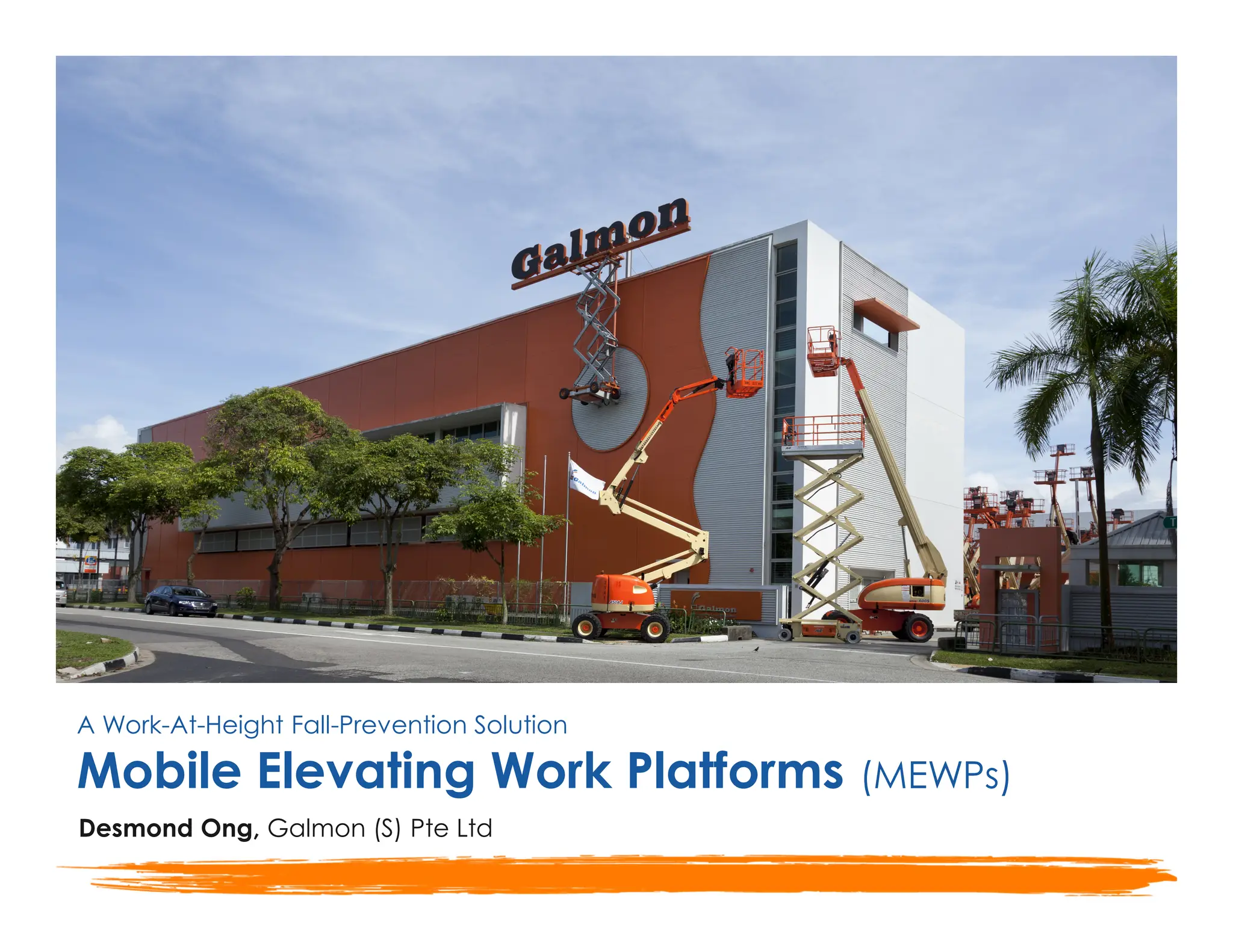

A Work-At-Height Fall-Prevention Solution
Mobile Elevating Work Platforms
Desmond Ong, Galmon (S) Pte Ltd
(MEWPs)

• Established in 1982 and is the pioneer in the use of
Mobile Elevating Work Platforms (MEWP) in Asia Pacific
• Largest distributor for MEWPs in Asia (outside Japan)
• Sell, rent, service, customise and train operators for MEWPs and
aluminium scaffolding systems
About Galmon

Your Safest Way to the Top
Galmon was
founded
Attained
ISO 9001
Attained
• OHSAS 18001
• bizSAFE Star
Galmon
Academy was
established;
attained MOM
accreditation
Attained
• ISO 14001
• bizSAFE
Partner
Winner
bizSAFE Enterprise
Exemplary Award
Opening of new
Galmon Academy
building; becomes an
IPAF training centre
Opening of
Galmon HQ
Galmon
Academy
becomes a
PASMA
training
centre
(first outside Europe)

Mobile Elevating Work Platforms
A Work-At-Heights Fall-Prevention Solution

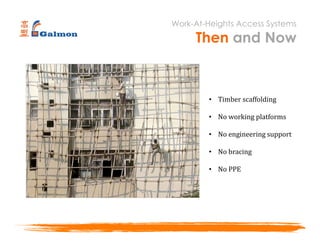

Work-At-Heights Access Systems
Then and Now
• Timber scaffolding
• No working platforms
• No engineering support
• No bracing
• No PPE

Work-At-Heights Access Equipment
Then and Now
Boom Lifts Scissor Lifts
Vertical Personnel Lifts Spider Lifts Aluminium Scaffold Towers Truck-Mounted Lifts

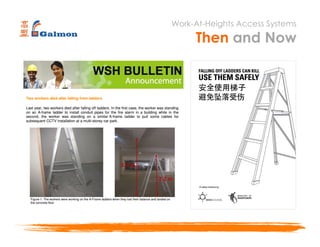

Work-At-Heights Access Systems
Then and Now

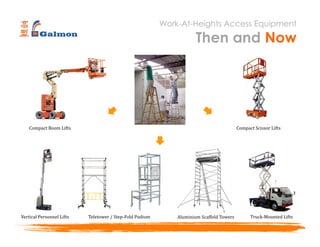

Work-At-Heights Access Equipment
Then and Now
Vertical Personnel Lifts Aluminium Scaffold Towers Truck-Mounted Lifts
Compact Scissor Lifts
Compact Boom Lifts
Teletower / Step-Fold Podium

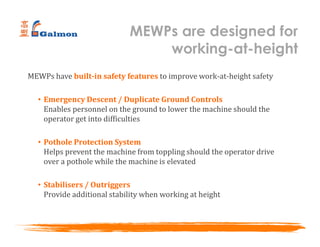

MEWPs have built-in safety features to improve work-at-height safety
• Emergency Descent / Duplicate Ground Controls
Enables personnel on the ground to lower the machine should the
operator get into difficulties
• Pothole Protection System
Helps prevent the machine from toppling should the operator drive
over a pothole while the machine is elevated
• Stabilisers / Outriggers
Provide additional stability when working at height
MEWPs are designed for
working-at-height

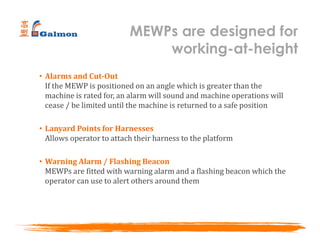

• Alarms and Cut-Out
If the MEWP is positioned on an angle which is greater than the
machine is rated for, an alarm will sound and machine operations will
cease / be limited until the machine is returned to a safe position
• Lanyard Points for Harnesses
Allows operator to attach their harness to the platform
• Warning Alarm / Flashing Beacon
MEWPs are fitted with warning alarm and a flashing beacon which the
operator can use to alert others around them
MEWPs are designed for
working-at-height

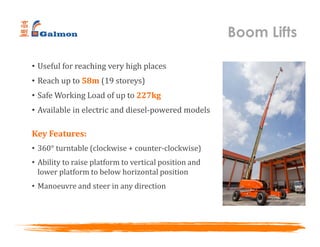

• Useful for reaching very high places
• Reach up to 58m (19 storeys)
• Safe Working Load of up to 227kg
• Available in electric and diesel-powered models
Key Features:
• 360° turntable (clockwise + counter-clockwise)
• Ability to raise platform to vertical position and
lower platform to below horizontal position
• Manoeuvre and steer in any direction
Boom Lifts

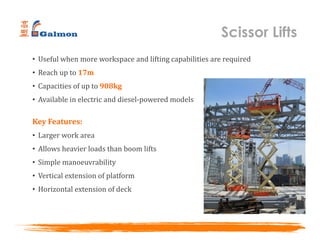

Scissor Lifts
• Useful when more workspace and lifting capabilities are required
• Reach up to 17m
• Capacities of up to 908kg
• Available in electric and diesel-powered models
Key Features:
• Larger work area
• Allows heavier loads than boom lifts
• Simple manoeuvrability
• Vertical extension of platform
• Horizontal extension of deck

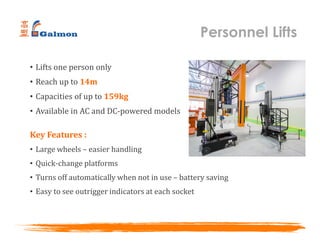

• Lifts one person only
• Reach up to 14m
• Available in AC and DC-powered models
Key Features :
• Large wheels – easier handling
• Quick-change platforms
• Turns off automatically when not in use – battery saving
• Easy to see outrigger indicators at each socket
Personnel Lifts

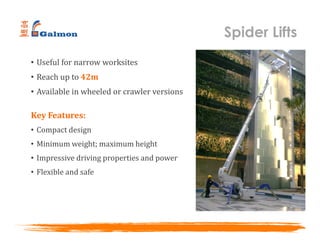

Spider Lifts
• Useful for narrow worksites
• Reach up to 42m
• Available in wheeled or crawler versions
Key Features:
• Compact design
• Minimum weight; maximum height
• Impressive driving properties and power
• Flexible and safe

Truck-Mounted Lifts
• Reach from 24m
• Capacities up to 227kg
• Available in telescopic, articulating,
and over-centre designs
Key Features:
• Vehicle-mounted
• Gasoline engine or 24V DC powered
• Standard air and water lines to platform
• Accessory mounting tray that accommodates
generator, air compressor or pressure washer

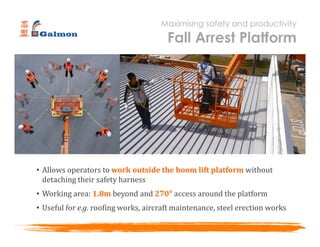

• Allows operators to work outside the boom lift platform without
detaching their safety harness
• Working area: 1.8m beyond and 270° access around the platform
• Useful for e.g. roofing works, aircraft maintenance, steel erection works
Maximising safety and productivity
Fall Arrest Platform

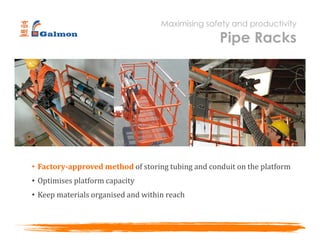

• Factory-approved method of storing tubing and conduit on the platform
• Optimises platform capacity
• Keep materials organised and within reach
Pipe Racks

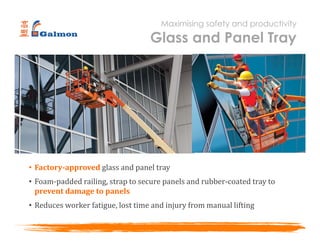

• Factory-approved glass and panel tray
• Foam-padded railing, strap to secure panels and rubber-coated tray to
prevent damage to panels
• Reduces worker fatigue, lost time and injury from manual lifting
Glass and Panel Tray

• Illuminate your work area at night
• Comprises 40-watt lights for the area around the chassis and work site
• Great for low-lit areas such as tunnels and night-time operations
Work Safely at Night

Aluminium Scaffold Tower
• Reach up to 16m
Key Features:
• Safer alternative to ladders
• Can be used as static or mobile towers,
and façade scaffolds
• Multi-purpose, light-weight

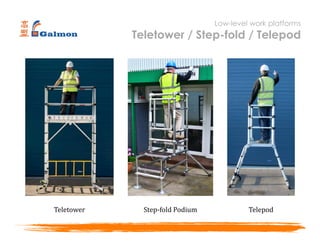

Low-level work platforms
Teletower / Step-fold / Telepod
Teletower Step-fold Podium Telepod

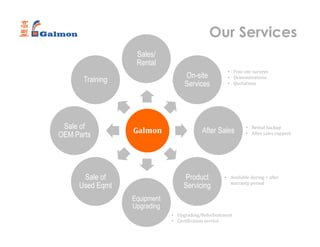

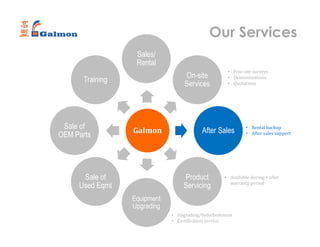

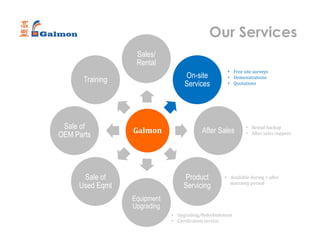

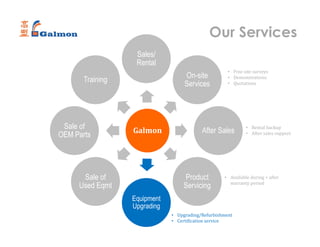

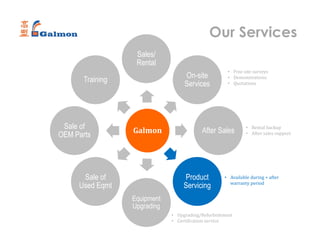

Our Services
Galmon
Sales/
Rental
On-site
Services
After Sales
Product
Servicing
Equipment
Upgrading
Sale of
Used Eqmt
Sale of
OEM Parts
Training
• Free site surveys
• Demonstrations
• Quotations
• Rental backup
• After sales support
• Available during + after
warranty period
• Upgrading/Refurbishment
• Certification service

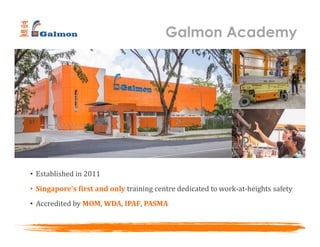

Galmon Academy
• Established in 2011
• Singapore’s first and only training centre dedicated to work-at-heights safety
• Accredited by MOM, WDA, IPAF, PASMA

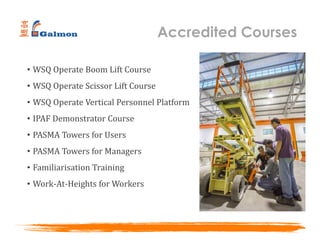

Accredited Courses
• WSQ Operate Boom Lift Course
• WSQ Operate Scissor Lift Course
• WSQ Operate Vertical Personnel Platform
• IPAF Demonstrator Course
• PASMA Towers for Users
• PASMA Towers for Managers
• Familiarisation Training
• Work-At-Heights for Workers
