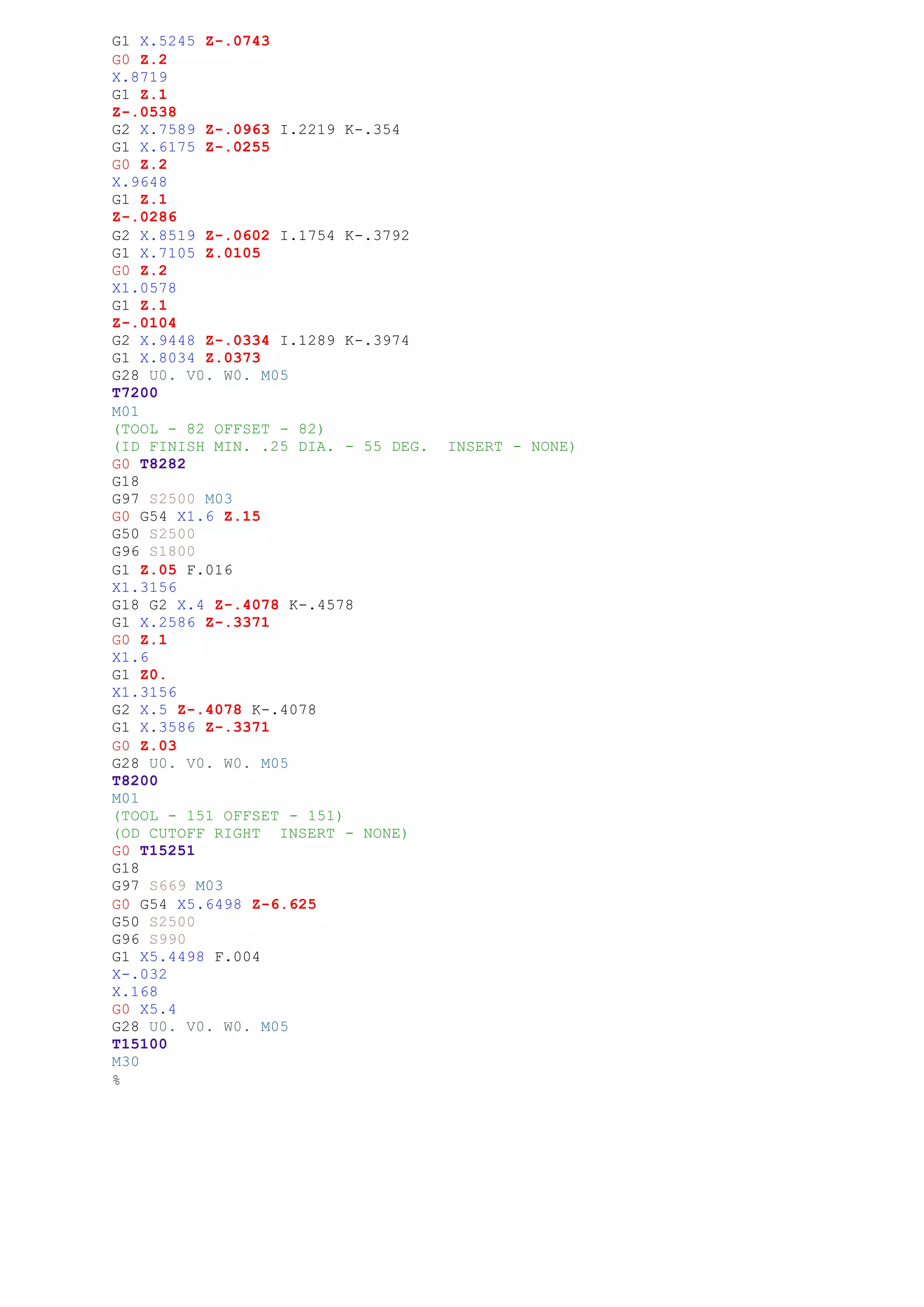

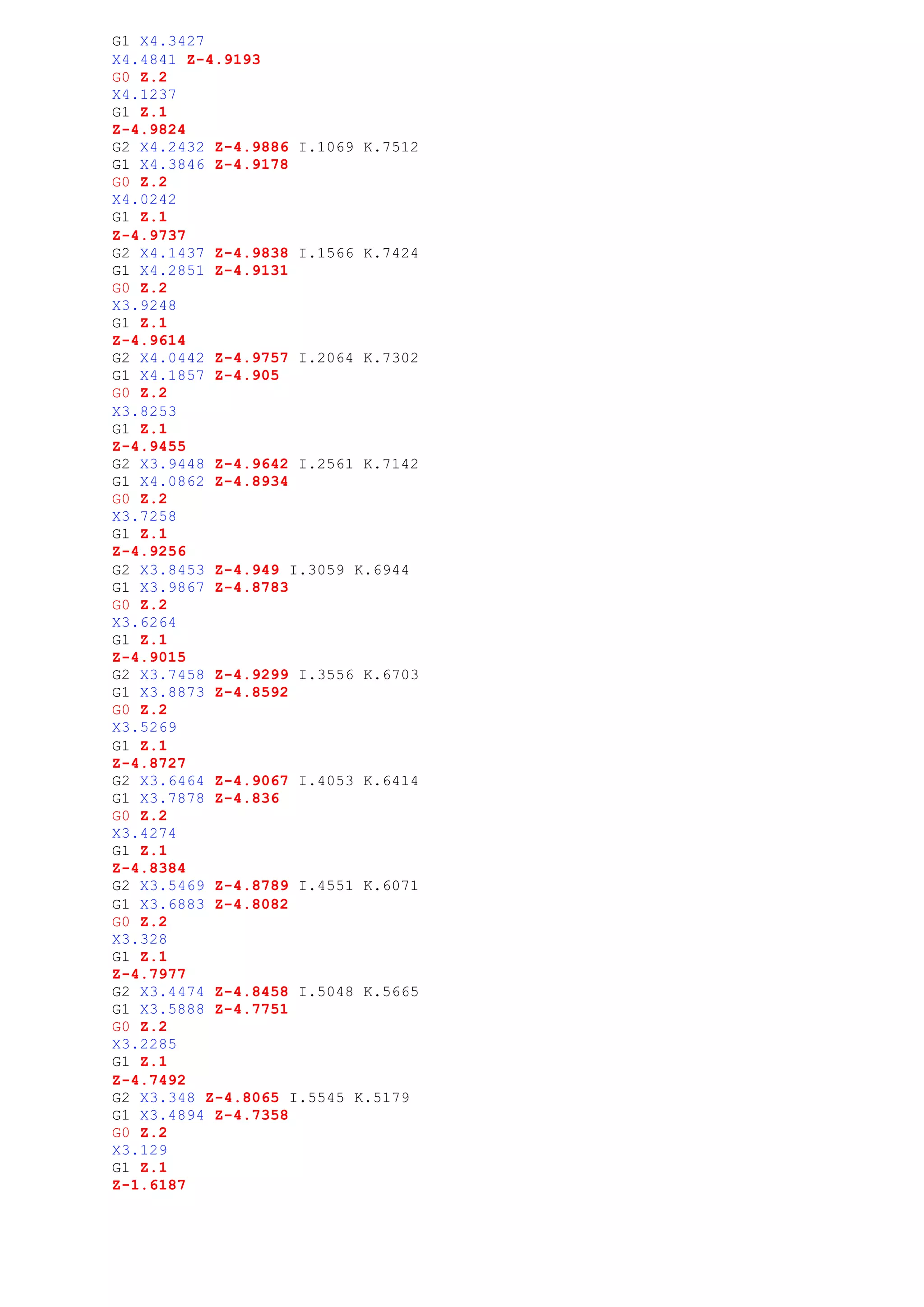

This document contains a program for machining various features on a part, including: 1) Rough facing, OD roughing and finishing, grooving, drilling, and ID roughing and finishing operations. 2) It specifies tools, offsets, speeds, feeds, and cutter paths for each operation. 3) The program machined features such as an OD, grooves, center drills holes, and an ID on the part using different tooling.

1. %
O0000
(PROGRAM NAME - LAT9 WITH BOR)
(DATE=DD-MM-YY - 10-10-15 TIME=HH:MM - 19:36)
(MCX FILE - E:SAVING CAMLAT9 WITH BOR.MCX-7)
(NC FILE - E:SAVING CAMLAT9 WITH BOR.NC)
(MATERIAL - ALUMINUM INCH - 6061)
G20
(TOOL - 31 OFFSET - 31)
(ROUGH FACE RIGHT - 80 DEG. INSERT - NONE)
G0 T3131
G18
G97 S1313 M03
G0 G54 X5.2357 Z0.
G50 S2500
G96 S1800
G99 G1 X-.2268 F.02
G0 Z.1
G28 U0. V0. W0. M05
T3100
M01
(TOOL - 1 OFFSET - 1)
(OD ROUGH RIGHT - 80 DEG. INSERT - CNMG-432)
G0 T0101
G18
G97 S1457 M03
G0 G54 X4.7205 Z.2
G50 S2500
G96 S1800
G1 Z.1 F.02
Z-4.99
X4.7375
G18 G3 X4.82 Z-5.0313 K-.0412
G1 Z-6.5313
X4.9614 Z-6.4605
G0 Z.2
X4.6211
G1 Z.1
Z-4.99
X4.7375
X4.7405
X4.882 Z-4.9193
G0 Z.2
X4.5216
G1 Z.1
Z-4.99
X4.6411
X4.7825 Z-4.9193
G0 Z.2
X4.4221
G1 Z.1
Z-4.99
X4.5416
X4.683 Z-4.9193
G0 Z.2
X4.3227
G1 Z.1
Z-4.99
X4.3375
X4.4421
X4.5835 Z-4.9193
G0 Z.2
X4.2232
G1 Z.1
Z-4.9878
G2 X4.3375 Z-4.99 I.0572 K.7566

2. G1 X4.3427
X4.4841 Z-4.9193
G0 Z.2
X4.1237
G1 Z.1
Z-4.9824
G2 X4.2432 Z-4.9886 I.1069 K.7512
G1 X4.3846 Z-4.9178
G0 Z.2
X4.0242
G1 Z.1
Z-4.9737
G2 X4.1437 Z-4.9838 I.1566 K.7424
G1 X4.2851 Z-4.9131
G0 Z.2
X3.9248
G1 Z.1
Z-4.9614
G2 X4.0442 Z-4.9757 I.2064 K.7302
G1 X4.1857 Z-4.905
G0 Z.2
X3.8253
G1 Z.1
Z-4.9455
G2 X3.9448 Z-4.9642 I.2561 K.7142
G1 X4.0862 Z-4.8934
G0 Z.2
X3.7258
G1 Z.1
Z-4.9256
G2 X3.8453 Z-4.949 I.3059 K.6944
G1 X3.9867 Z-4.8783
G0 Z.2
X3.6264
G1 Z.1
Z-4.9015
G2 X3.7458 Z-4.9299 I.3556 K.6703
G1 X3.8873 Z-4.8592
G0 Z.2
X3.5269
G1 Z.1
Z-4.8727
G2 X3.6464 Z-4.9067 I.4053 K.6414
G1 X3.7878 Z-4.836
G0 Z.2
X3.4274
G1 Z.1
Z-4.8384
G2 X3.5469 Z-4.8789 I.4551 K.6071
G1 X3.6883 Z-4.8082
G0 Z.2
X3.328
G1 Z.1
Z-4.7977
G2 X3.4474 Z-4.8458 I.5048 K.5665
G1 X3.5888 Z-4.7751
G0 Z.2
X3.2285
G1 Z.1
Z-4.7492
G2 X3.348 Z-4.8065 I.5545 K.5179
G1 X3.4894 Z-4.7358
G0 Z.2
X3.129
G1 Z.1
Z-1.6187

3. X3.1958 Z-1.6521
G3 X3.22 Z-1.6812 I-.0292 K-.0292
G1 Z-3.0313
Z-4.7446
G2 X3.2485 Z-4.7596 I.5588 K.5133
G1 X3.3899 Z-4.6889
G0 Z.2
X3.0295
G1 Z.1
Z-1.5689
X3.149 Z-1.6287
X3.2904 Z-1.558
G0 Z.2
X2.9301
G1 Z.1
Z-1.5192
X3.0495 Z-1.5789
X3.191 Z-1.5082
G0 Z.2
X2.8306
G1 Z.1
Z-1.49
X2.8375
G3 X2.8958 Z-1.5021 K-.0413
G1 X2.9501 Z-1.5292
X3.0915 Z-1.4585
G0 Z.2
X2.7311
G1 Z.1
Z-1.49
X2.8375
G3 X2.8506 Z-1.4905 K-.0413
G1 X2.992 Z-1.4198
G0 Z.2
X2.6317
G1 Z.1
Z-1.49
X2.7511
X2.8926 Z-1.4193
G0 Z.2
X2.5322
G1 Z.1
Z-1.49
X2.6517
X2.7931 Z-1.4193
G0 Z.2
X2.4327
G1 Z.1
Z-1.49
X2.5522
X2.6936 Z-1.4193
G0 Z.2
X2.3333
G1 Z.1
Z-.2405
G3 X2.42 Z-.4313 I-.3979 K-.1908
G1 Z-1.49
X2.4527
X2.5941 Z-1.4193
G0 Z.2
X2.2338
G1 Z.1
Z-.1601
G3 X2.3533 Z-.2629 I-.3481 K-.2711
G1 X2.4947 Z-.1922
G0 Z.2

4. X2.1343
G1 Z.1
Z-.1062
G3 X2.2538 Z-.1735 I-.2984 K-.3251
G1 X2.3952 Z-.1028
G0 Z.2
X2.0348
G1 Z.1
Z-.0667
G3 X2.1543 Z-.1157 I-.2487 K-.3645
G1 X2.2957 Z-.045
G0 Z.2
X1.9354
G1 Z.1
Z-.0374
G3 X2.0548 Z-.0737 I-.1989 K-.3939
G1 X2.1963 Z-.0031
G0 Z.2
X1.8359
G1 Z.1
Z-.016
G3 X1.9554 Z-.0426 I-.1492 K-.4153
G1 X2.0968 Z.0281
G0 Z.2
X1.7364
G1 Z.1
Z-.0014
G3 X1.8559 Z-.0197 I-.0994 K-.4299
G1 X1.9973 Z.051
G28 U0. V0. W0. M05
T0100
M01
(TOOL - 45 OFFSET - 45)
(OD GROOVE RIGHT - MEDIUM INSERT - GCP-4250)
G0 T4545
G18
G97 S1106 M03
G0 G54 X3.42 Z-4.125
G50 S2500
G96 S990
G1 X2.81 F.002
X3.42 F.01
G0 Z-4.299
G1 X2.8201 F.004
X2.8897 Z-4.2642
G0 X3.42
Z-3.951
G1 X2.81
X2.8796 Z-3.9858
G0 X3.42
Z-4.473
G1 X2.9007
G18 G3 X2.8201 Z-4.299 I.7396 K.263
G0 X3.42
Z-3.777
G1 X2.81
X2.8796 Z-3.8118
G0 X3.42
Z-4.647
G1 X3.0758
G3 X2.9007 Z-4.473 I.6521 K.437
G0 X3.42
Z-3.603
G1 X2.9219
X2.81 Z-3.7429
Z-3.777

5. G0 X3.42
X3.6103
Z-4.821
G1 X3.3943
G3 X3.0758 Z-4.647 I.4929 K.611
G0 X3.42
Z-3.429
G1 X3.0611
X2.9219 Z-3.603
G0 X3.42
X5.0065
Z-4.995
G1 X4.38
G3 X3.3943 Z-4.821 K.785
G0 X3.6103
Z-3.255
X3.42
G1 X3.2003
X3.0611 Z-3.429
G0 X3.42
G18
G97 S200
X4.9614
Z-5.0707
G1 X4.82 Z-5. F.002
X4.38
G18 G3 X2.8 Z-4.21 K.79
G1 Z-4.125
G0 X4.82
G18
Z-3.1793
X3.3614
G1 X3.22 Z-3.25
X3.1935
X2.8 Z-3.7419
Z-4.125
G0 X4.9614
G28 U0. V0. W0. M05
T4500
M01
(TOOL - 21 OFFSET - 21)
(OD FINISH RIGHT - 35 DEG. INSERT - VNMG-431)
G0 T2121
G18
G97 S2500 M03
G0 G54 X1.5687 Z.15
G50 S2500
G96 S1800
G1 Z.05 F.02
G18 G3 X2.5 Z-.4157 K-.4657
G1 Z-1.45
X2.8687
G3 X2.9616 Z-1.4692 K-.0656
G1 X3.2616 Z-1.6192
G3 X3.3 Z-1.6657 I-.0465 K-.0465
G1 Z-3.0156
G3 X3.2906 Z-3.04 I-.0656
G1 X2.9 Z-3.5283
Z-4.2156
G2 X4.3687 Z-4.95 I.7343
G1 X4.7687
G3 X4.9 Z-5.0156 K-.0656
G1 Z-6.5
X5.0414 Z-6.4293
G0 Z.1
X1.5687

6. G1 Z0.
G3 X2.4 Z-.4157 K-.4157
G1 Z-1.5
X2.8687
G3 X2.8908 Z-1.5046 K-.0156
G1 X3.1908 Z-1.6546
G3 X3.2 Z-1.6657 I-.0111 K-.0111
G1 Z-3.0156
G3 X3.1978 Z-3.0215 I-.0157
G1 X2.8 Z-3.5186
Z-4.2156
G2 X4.3687 Z-5. I.7843
G1 X4.7687
G3 X4.8 Z-5.0156 K-.0156
G1 Z-6.5
X4.9414 Z-6.4293
G28 U0. V0. W0. M05
T2100
M01
(TOOL - 116 OFFSET - 116)
(CENTER DRILL - .5 DIA.)
G0 T11716
G18
G97 S2062 M03
G0 G54 X0. Z.25
Z.1
G1 Z-.35 F.02
G0 Z.25
G28 U0. V0. W0. M05
T11600
M01
(TOOL - 124 OFFSET - 124)
(DRILL .5 DIA.)
G0 T12524
G18
G97 S2062 M03
G0 G54 X0. Z.25
Z.1
G1 Z-3.25 F.008
G0 Z.25
G28 U0. V0. W0. M05
T12400
M01
(TOOL - 72 OFFSET - 72)
(ID ROUGH MIN. .25 DIA. - 75 DEG. INSERT - NONE)
G0 T7272
G18
G97 S2500 M03
G0 G54 X.593 Z.2
G50 S2500
G96 S1800
G1 Z.1 F.016
Z-.198
G18 G2 X.5 Z-.317 I.3613 K-.2097
G1 X.3586 Z-.2462
G0 Z.2
X.6859
G1 Z.1
Z-.1331
G2 X.573 Z-.2163 I.3149 K-.2747
G1 X.4315 Z-.1456
G0 Z.2
X.7789
G1 Z.1
Z-.0876
G2 X.6659 Z-.1451 I.2684 K-.3202

7. G1 X.5245 Z-.0743
G0 Z.2
X.8719
G1 Z.1
Z-.0538
G2 X.7589 Z-.0963 I.2219 K-.354
G1 X.6175 Z-.0255
G0 Z.2
X.9648
G1 Z.1
Z-.0286
G2 X.8519 Z-.0602 I.1754 K-.3792
G1 X.7105 Z.0105
G0 Z.2
X1.0578
G1 Z.1
Z-.0104
G2 X.9448 Z-.0334 I.1289 K-.3974
G1 X.8034 Z.0373
G28 U0. V0. W0. M05
T7200
M01
(TOOL - 82 OFFSET - 82)
(ID FINISH MIN. .25 DIA. - 55 DEG. INSERT - NONE)
G0 T8282
G18
G97 S2500 M03
G0 G54 X1.6 Z.15
G50 S2500
G96 S1800
G1 Z.05 F.016
X1.3156
G18 G2 X.4 Z-.4078 K-.4578
G1 X.2586 Z-.3371
G0 Z.1
X1.6
G1 Z0.
X1.3156
G2 X.5 Z-.4078 K-.4078
G1 X.3586 Z-.3371
G0 Z.03
G28 U0. V0. W0. M05
T8200
M01
(TOOL - 151 OFFSET - 151)
(OD CUTOFF RIGHT INSERT - NONE)
G0 T15251
G18
G97 S669 M03
G0 G54 X5.6498 Z-6.625
G50 S2500
G96 S990
G1 X5.4498 F.004
X-.032
X.168
G0 X5.4
G28 U0. V0. W0. M05
T15100
M30
%
