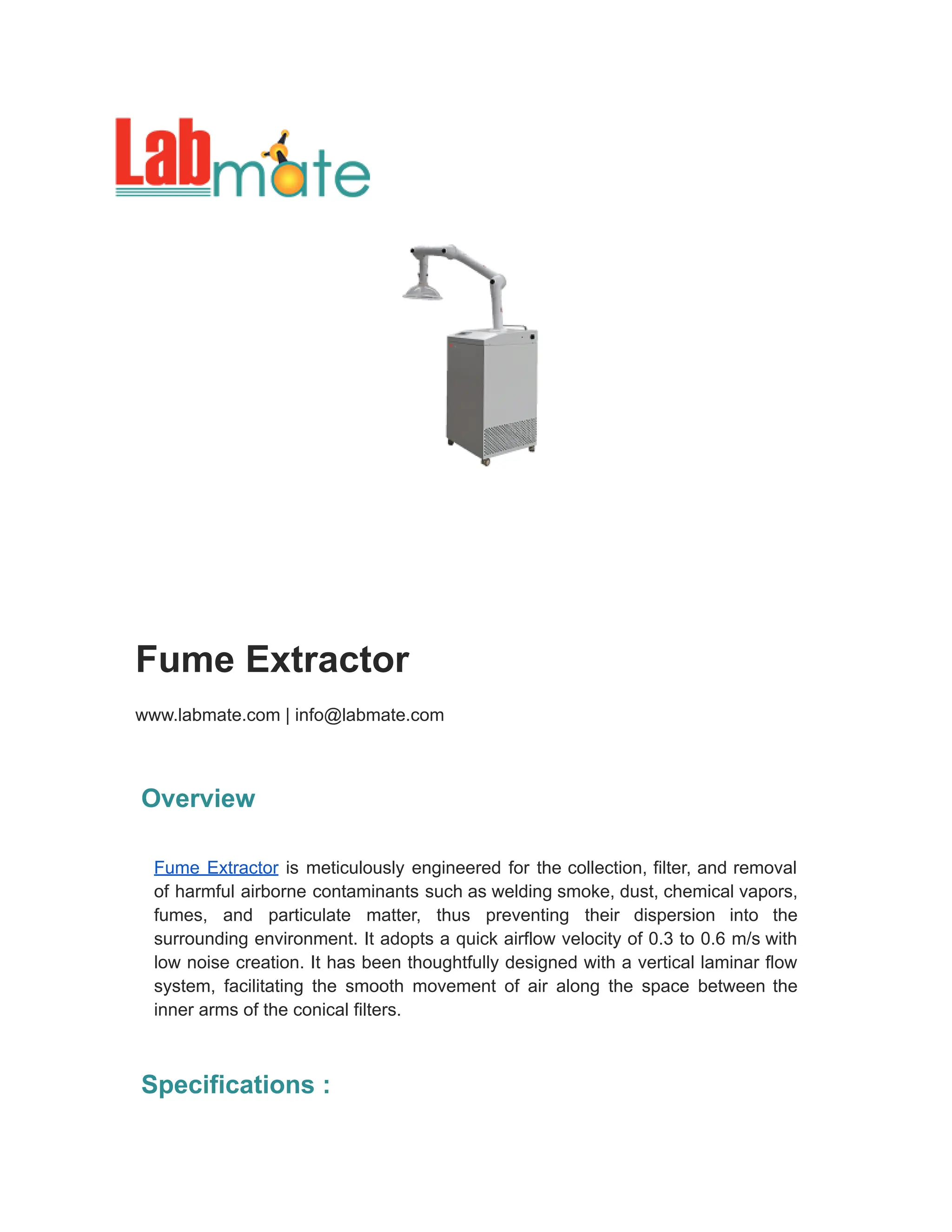

Fume Extractor
1. Fume Extractor
www.labmate.com | info@labmate.com
Overview
Fume Extractor is meticulously engineered for the collection, filter, and removal
of harmful airborne contaminants such as welding smoke, dust, chemical vapors,
fumes, and particulate matter, thus preventing their dispersion into the
surrounding environment. It adopts a quick airflow velocity of 0.3 to 0.6 m/s with
low noise creation. It has been thoughtfully designed with a vertical laminar flow
system, facilitating the smooth movement of air along the space between the
inner arms of the conical filters.
Specifications :
2. Airflow
Velocity
0.3 to 0.6 m/s
Filter
Efficiency
99.999 % efficiency at 0.3 µm
Suction Inlet
Diameter
375 mm
Noise ≤ 75 dB (A)
External
Size
500 × 500 × 980 mm
Package
Size
810 × 510 × 600 mm (Extracting arm) 630 × 630 × 1175 mm
(Purification system)
Power
Supply
AC 110/ 220 V ± 10 %, 50/60 Hz
Power
Rated
180 W
Weight 15 kg (Extracting arm), 61 kg (Purification system)
Features :
- Effortlessly mobile, user-friendly installation and operation
3. - Equipped with an effective airflow system with an exhaust fan, featuring
primary and high-efficiency filters, as well as an activated carbon filter
- High-efficiency particulate air (HEPA) filters are used to trap and remove
airborne contaminants ensuring an impressive 99.999% filtering efficiency
at 0.3 µm
- Employs a universal arm with full 360° mobility
- The motor is equipped with a safeguard against burnout via an overload
protection circuit
Applications :
It finds application in medical research laboratories, precision instrument
environments, bio-pharmaceutical facilities, and microorganism research studies.
