The document describes a magnetic levitation system that uses an electromagnet to levitate a small magnet. A Hall effect sensor measures the vertical position of the levitating magnet and a digital signal controller controls the current in the electromagnet coil through pulse-width modulation to maintain the magnet's level of levitation. The system provides feedback to stabilize the levitating material's position and compensate for disturbances through varying the current in the electromagnet coil.

1. 1/ 98
ABSTRACT
The levitation system controls the magnetic field generated by an electromagnet to levitate a
small magnet in mid-air. The levitation involve the stability of levitating material at a level.
The level can be decided or can be adjusted by using any reference voltages. The position of
material can be influenced by various factors like temperature, air or any other disturbances.
But the stability can be achieved by using sensors. The system accomplish a ferromagnetic
magnet will float in mid-air, which essentially means cancelling the force of gravity that’s
acting upon it. The force of gravity upon any mass is “F=mg” which is a linear function of
mass. So in order to levitate a magnet, one can apply magnetic field on it and try to pull it up
in opposite direction of the gravity. If the force because of the pull is exactly equal to the
force of gravity, the net difference would be zero and the object will therefore not move in
any direction and stay exactly where it is.
The small magnet levitates in the air indefinitely without any disturbance. The vertical
position of the levitating magnet is measured using a linear Hall Effect sensor and the current
in the electromagnet is controlled using a digital signal controller. The system has circuit
which provides a feedback to the PWM generator. The current through the coil is controlled
by the PWM waves. The Variation in position of the levitating material can be sensed and
maintained by varying the current through the coil.

2. P a g e | 2

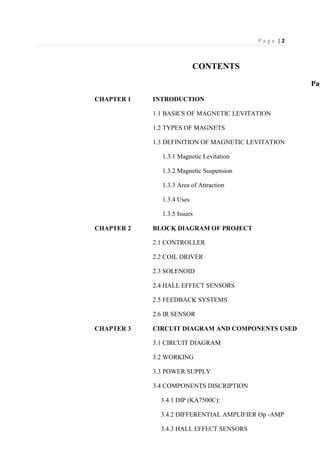

CONTENTS
Pag
CHAPTER 1 INTRODUCTION
1.1 BASICS OF MAGNETIC LEVITATION
1.2 TYPES OF MAGNETS
1.3 DEFINITION OF MAGNETIC LEVITATION
1.3.1 Magnetic Levitation
1.3.2 Magnetic Suspension
1.3.3 Area of Attraction
1.3.4 Uses
1.3.5 Issues
CHAPTER 2 BLOCK DIAGRAM OF PROJECT
2.1 CONTROLLER

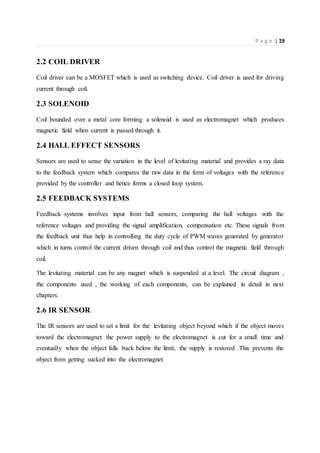

2.2 COIL DRIVER
2.3 SOLENOID
2.4 HALL EFFECT SENSORS
2.5 FEEDBACK SYSTEMS
2.6 IR SENSOR
CHAPTER 3 CIRCUIT DIAGRAM AND COMPONENTS USED
3.1 CIRCUIT DIAGRAM

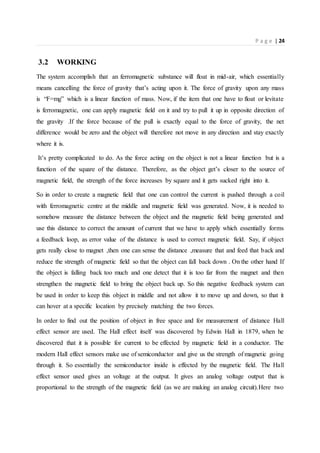

3.2 WORKING

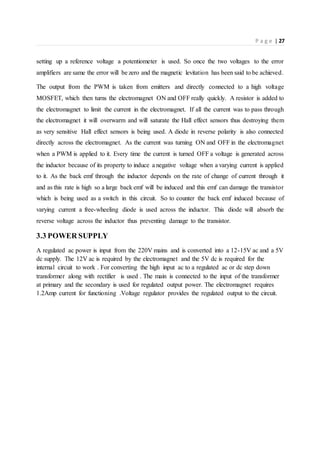

3.3 POWER SUPPLY

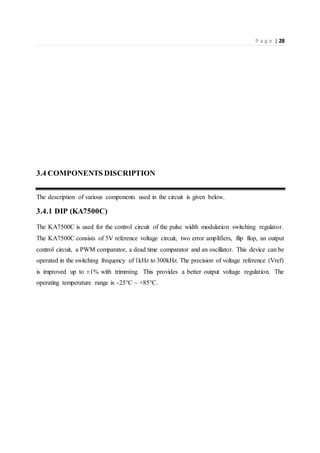

3.4 COMPONENTS DISCRIPTION

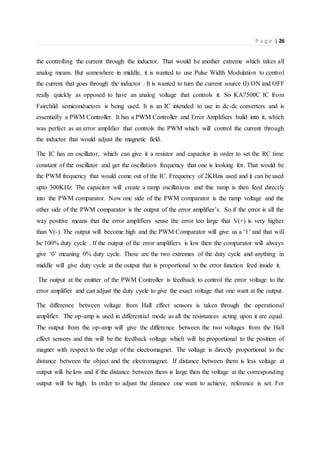

3.4.1 DIP (KA7500C):
3.4.2 DIFFERENTIAL AMPLIFIER Op -AMP

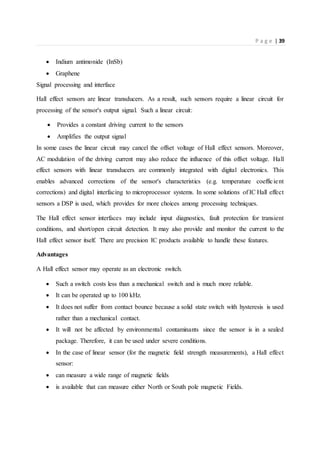

3.4.3 HALL EFFECT SENSORS

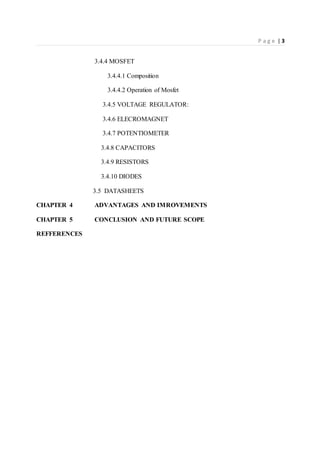

3. P a g e | 3

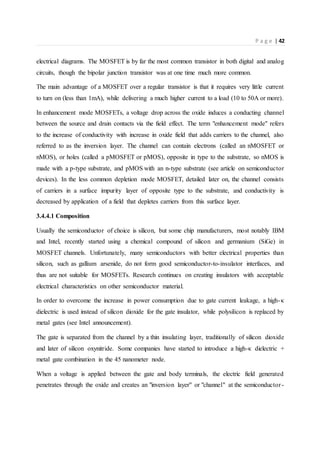

3.4.4 MOSFET
3.4.4.1 Composition

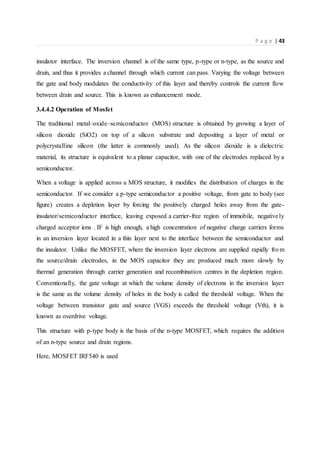

3.4.4.2 Operation of Mosfet
3.4.5 VOLTAGE REGULATOR:
3.4.6 ELECROMAGNET
3.4.7 POTENTIOMETER
3.4.8 CAPACITORS
3.4.9 RESISTORS
3.4.10 DIODES
3.5 DATASHEETS
CHAPTER 4 ADVANTAGES AND IMROVEMENTS

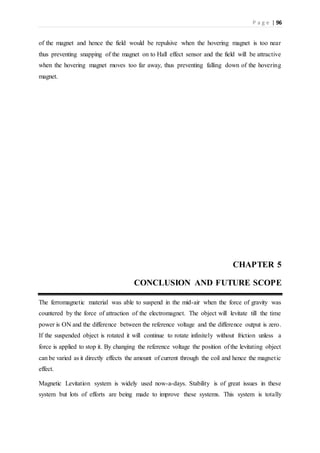

CHAPTER 5 CONCLUSION AND FUTURE SCOPE

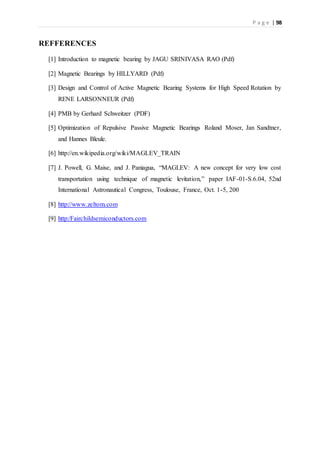

REFFERENCES

4. P a g e | 4

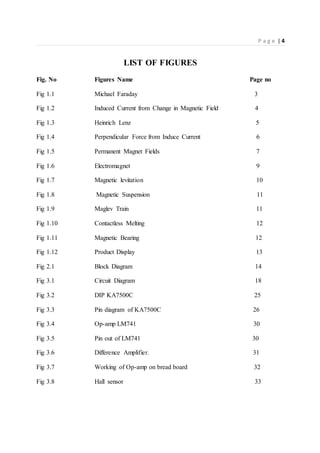

LIST OF FIGURES
Fig. No Figures Name Page no
Fig 1.1 Michael Faraday 3
Fig 1.2 Induced Current from Change in Magnetic Field 4
Fig 1.3 Heinrich Lenz 5
Fig 1.4 Perpendicular Force from Induce Current 6
Fig 1.5 Permanent Magnet Fields 7
Fig 1.6 Electromagnet 9
Fig 1.7 Magnetic levitation 10

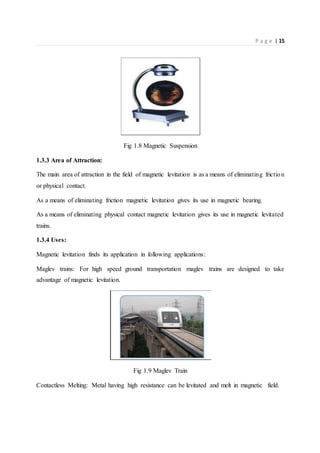

Fig 1.8 Magnetic Suspension 11
Fig 1.9 Maglev Train 11

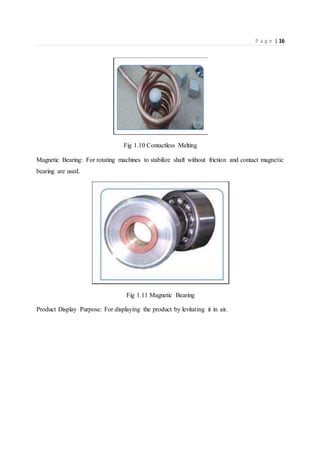

Fig 1.10 Contactless Melting 12
Fig 1.11 Magnetic Bearing 12

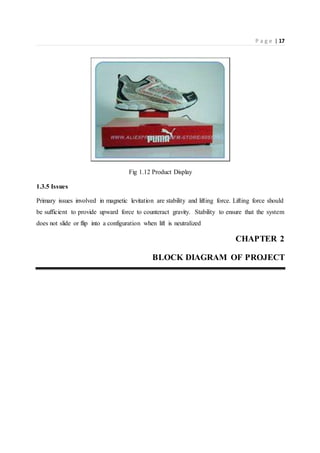

Fig 1.12 Product Display 13

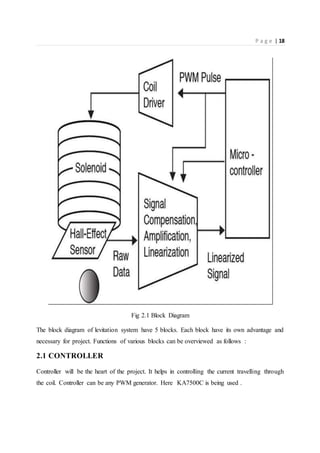

Fig 2.1 Block Diagram 14

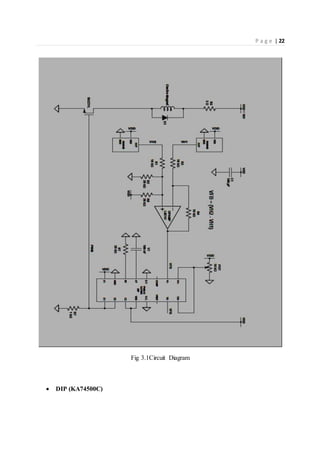

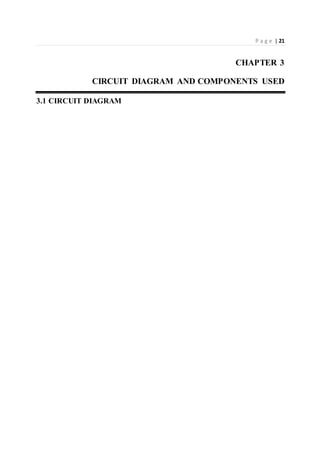

Fig 3.1 Circuit Diagram 18
Fig 3.2 DIP KA7500C 25

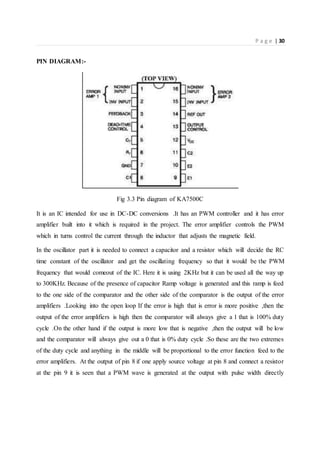

Fig 3.3 Pin diagram of KA7500C 26
Fig 3.4 Op-amp LM741 30
Fig 3.5 Pin out of LM741 30

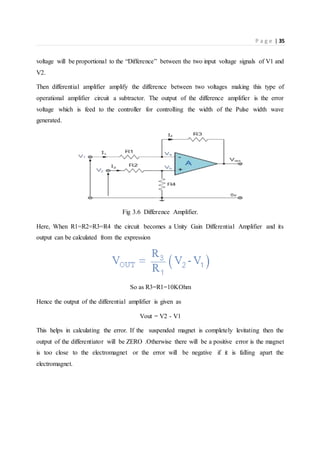

Fig 3.6 Difference Amplifier. 31

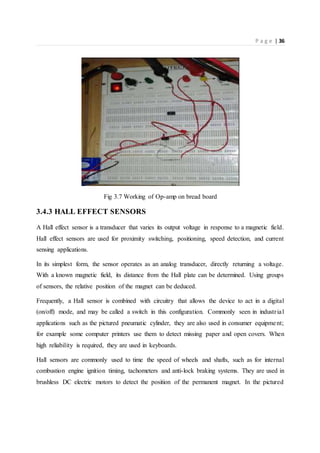

Fig 3.7 Working of Op-amp on bread board 32

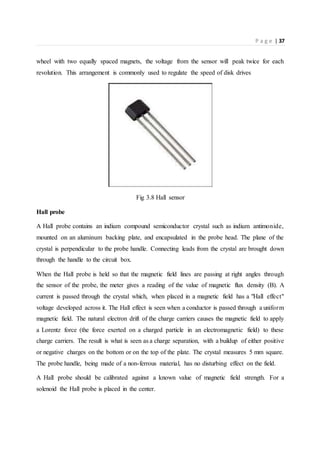

Fig 3.8 Hall sensor 33

5. P a g e | 5

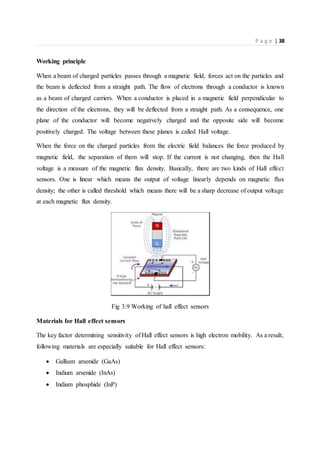

Fig 3.9 Working of hall effect sensors 34

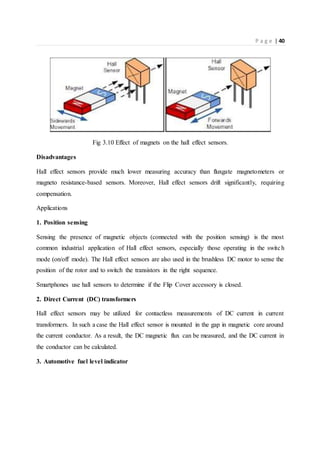

Fig 3.10 Effect of magnets on the hall effect sensors. 36

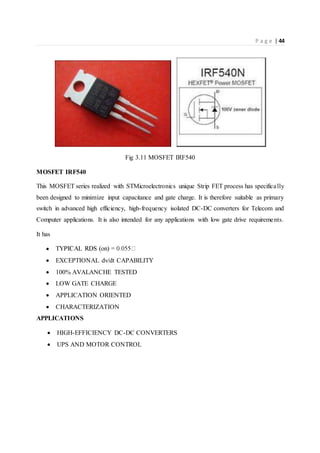

Fig 3.11 MOSFET IRF540 40

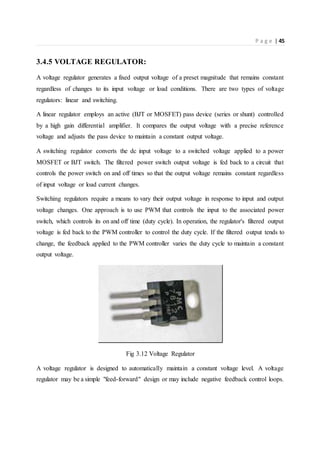

Fig 3.12 Voltage Regulator 41

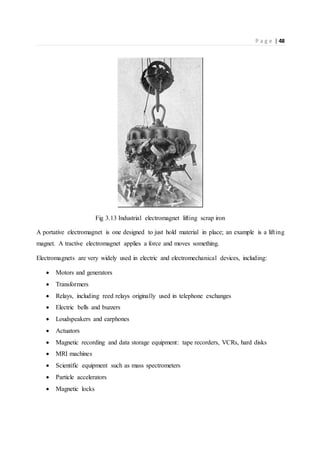

Fig 3.13 Industrial electromagnet lifting scrap iron 44

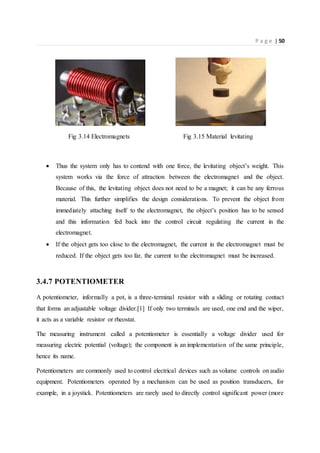

Fig 3.14 Electromagnets 46
Fig 3.15 Material levitating 46
Fig 3.16 Potentiometer 47
Fig 3.17 Diagramatic form of potentiometer 47

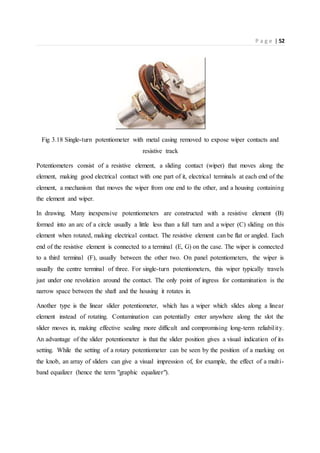

Fig 3.18 Single-turn potentiometer with metal casing removed to
expose wiper contacts and resistive track 48

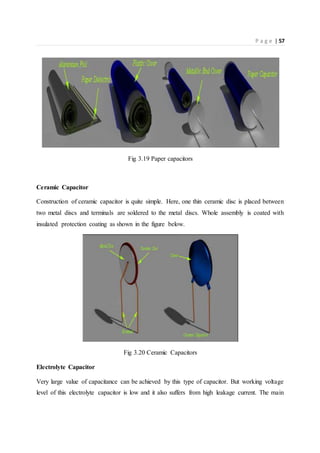

Fig 3.19 Paper capacitors 53
Fig 3.20 Ceramic Capacitors 54

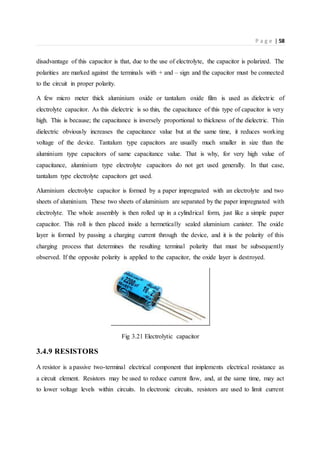

Fig 3.21 Electrolytic capacitor 54
Fig 3.22 Symbol of resistors 55
Fig 3.23 Resistors 55

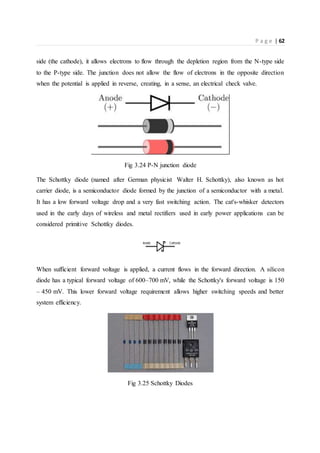

Fig 3.24 P-N junction diode 58
Fig 3.25 Schottky Diodes 59

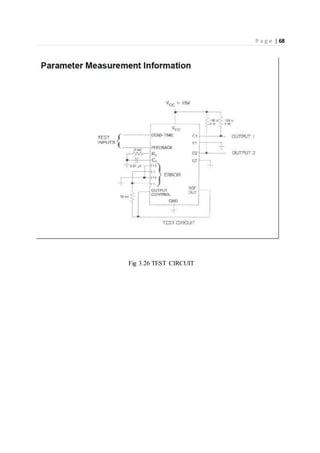

Fig 3.26 Test Circuit 64

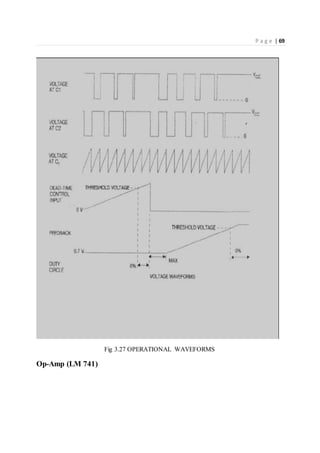

Fig 3.27 Operational Waveforms 65
CHAPTER 1
INTRODUCTION

6. P a g e | 6

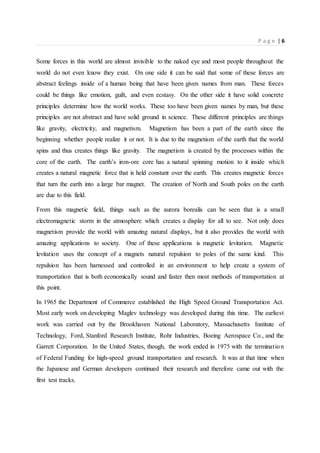

Some forces in this world are almost invisible to the naked eye and most people throughout the
world do not even know they exist. On one side it can be said that some of these forces are
abstract feelings inside of a human being that have been given names from man. These forces
could be things like emotion, guilt, and even ecstasy. On the other side it have solid concrete
principles determine how the world works. These too have been given names by man, but these
principles are not abstract and have solid ground in science. These different principles are things
like gravity, electricity, and magnetism. Magnetism has been a part of the earth since the
beginning whether people realize it or not. It is due to the magnetism of the earth that the world
spins and thus creates things like gravity. The magnetism is created by the processes within the
core of the earth. The earth’s iron-ore core has a natural spinning motion to it inside which
creates a natural magnetic force that is held constant over the earth. This creates magnetic forces
that turn the earth into a large bar magnet. The creation of North and South poles on the earth
are due to this field.
From this magnetic field, things such as the aurora borealis can be seen that is a small
electromagnetic storm in the atmosphere which creates a display for all to see. Not only does
magnetism provide the world with amazing natural displays, but it also provides the world with
amazing applications to society. One of these applications is magnetic levitation. Magnetic
levitation uses the concept of a magnets natural repulsion to poles of the same kind. This
repulsion has been harnessed and controlled in an environment to help create a system of
transportation that is both economically sound and faster then most methods of transportation at
this point.
In 1965 the Department of Commerce established the High Speed Ground Transportation Act.
Most early work on developing Maglev technology was developed during this time. The earliest
work was carried out by the Brookhaven National Laboratory, Massachusetts Institute of
Technology, Ford, Stanford Research Institute, Rohr Industries, Boeing Aerospace Co., and the
Garrett Corporation. In the United States, though, the work ended in 1975 with the termination
of Federal Funding for high-speed ground transportation and research. It was at that time when
the Japanese and German developers continued their research and therefore came out with the
first test tracks.

7. P a g e | 7
1.1 BASICS OF MAGNETIC LEVITATION
Magnetic Fields
The creation of magnetic forces is the basis of all magnetic levitation. The creation of a magnetic
field can be caused by a number of things. The first thing that it can be caused by is a permanent
magnet. These magnets are a solid material in which there is an induced North and South pole.
These will be described further a little later. The second way that a magnetic field can be created
is through an electric field changing linearly with time. The third and final way to create a
magnetic field is through the use of direct current.
There are two basic principles in dealing with the concept of magnetic levitation. The first law
that is applied was created by Michael Faraday. This is commonly known as Faraday’s Law.

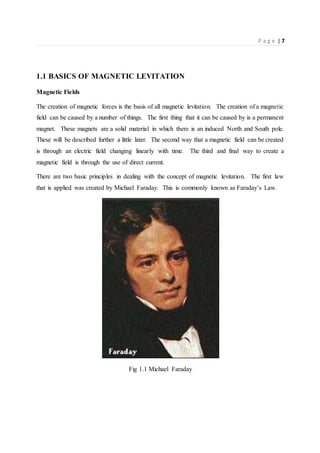

Fig 1.1 Michael Faraday

8. P a g e | 8
This law states that if there is a change in the magnetic field on a coil of wire, there is seen a
change in voltage. Taking that a bit further, it could be said that if there was a change in voltage,
then there would be a change in magnetic field. This occurs in the coil when there is a current
induced as a result of that change in voltage. From Figure 1.2 below it is illustrated that the
change in the magnetic field produces a current.
Fig 1.2 Induced Current from Change in Magnetic Field
For the purposes of magnetic levitation the ability to change the strength of a magnetic field by
just changing the current is powerful. If there is a need for more of a force, then sending more
current through a coil of wires will produce more of a greater magnetic force.
The direction of the forces created by Faraday’s Law was discovered by a man named Heinrich
Lenz. His theory states that “the emf induced in an electric circuit always acts in such a direction
that the current it drives around the circuit opposes the change in the magnetic flux which
produces the emf.” In other words, this is stating that if there was a current that was created in a
coil of wires, then the magnetic field that is being produced will be perpendicular the current
direction.

9. P a g e | 9

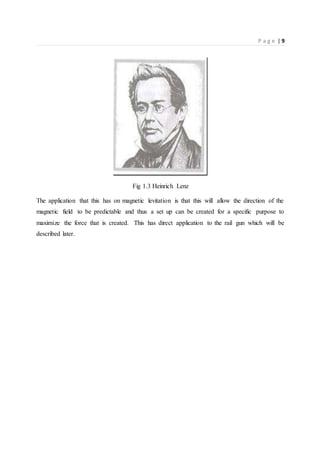

Fig 1.3 Heinrich Lenz
The application that this has on magnetic levitation is that this will allow the direction of the
magnetic field to be predictable and thus a set up can be created for a specific purpose to
maximize the force that is created. This has direct application to the rail gun which will be
described later.

10. P a g e | 10

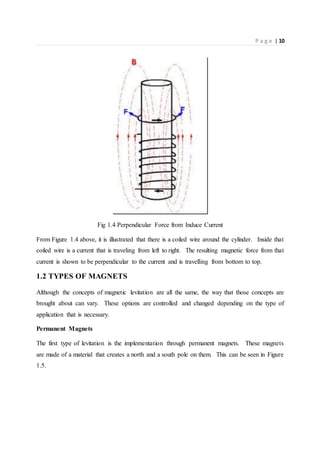

Fig 1.4 Perpendicular Force from Induce Current
From Figure 1.4 above, it is illustrated that there is a coiled wire around the cylinder. Inside that
coiled wire is a current that is traveling from left to right. The resulting magnetic force from that
current is shown to be perpendicular to the current and is travelling from bottom to top.
1.2 TYPES OF MAGNETS
Although the concepts of magnetic levitation are all the same, the way that those concepts are
brought about can vary. These options are controlled and changed depending on the type of
application that is necessary.
Permanent Magnets
The first type of levitation is the implementation through permanent magnets. These magnets
are made of a material that creates a north and a south pole on them. This can be seen in Figure
1.5.

11. P a g e | 11

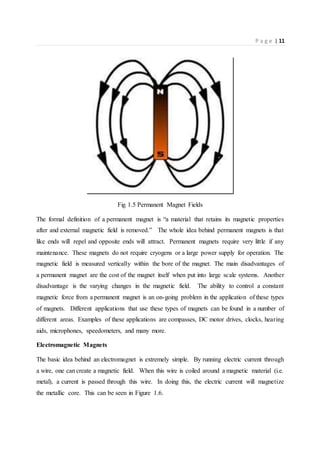

Fig 1.5 Permanent Magnet Fields
The formal definition of a permanent magnet is “a material that retains its magnetic properties
after and external magnetic field is removed.” The whole idea behind permanent magnets is that
like ends will repel and opposite ends will attract. Permanent magnets require very little if any
maintenance. These magnets do not require cryogens or a large power supply for operation. The
magnetic field is measured vertically within the bore of the magnet. The main disadvantages of
a permanent magnet are the cost of the magnet itself when put into large scale systems. Another
disadvantage is the varying changes in the magnetic field. The ability to control a constant
magnetic force from a permanent magnet is an on-going problem in the application of these types
of magnets. Different applications that use these types of magnets can be found in a number of
different areas. Examples of these applications are compasses, DC motor drives, clocks, hearing
aids, microphones, speedometers, and many more.
Electromagnetic Magnets
The basic idea behind an electromagnet is extremely simple. By running electric current through
a wire, one can create a magnetic field. When this wire is coiled around a magnetic material (i.e.
metal), a current is passed through this wire. In doing this, the electric current will magnetize
the metallic core. This can be seen in Figure 1.6.

12. P a g e | 12

13. P a g e | 13

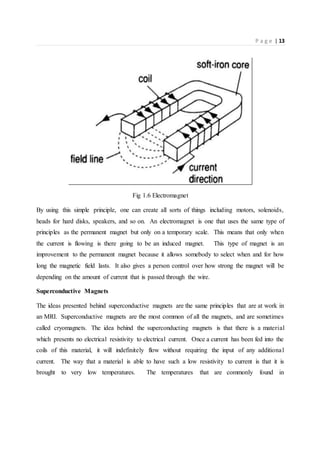

Fig 1.6 Electromagnet
By using this simple principle, one can create all sorts of things including motors, solenoids,
heads for hard disks, speakers, and so on. An electromagnet is one that uses the same type of
principles as the permanent magnet but only on a temporary scale. This means that only when
the current is flowing is there going to be an induced magnet. This type of magnet is an
improvement to the permanent magnet because it allows somebody to select when and for how
long the magnetic field lasts. It also gives a person control over how strong the magnet will be
depending on the amount of current that is passed through the wire.
Superconductive Magnets
The ideas presented behind superconductive magnets are the same principles that are at work in
an MRI. Superconductive magnets are the most common of all the magnets, and are sometimes
called cryomagnets. The idea behind the superconducting magnets is that there is a material
which presents no electrical resistivity to electrical current. Once a current has been fed into the
coils of this material, it will indefinitely flow without requiring the input of any additional
current. The way that a material is able to have such a low resistivity to current is that it is
brought to very low temperatures. The temperatures that are commonly found in

14. P a g e | 14
superconducting magnets are around -258*C. This is done by immersing the coils that are
holding the current into liquid Helium; this also helps in maintaining a homogenous
In 1990, legislative action directed the U.S. Army Corps of Engineers to implement and prepare
a plan for a National Maglev program. The Department of Transportation (DOT), Department
of Energy (DOE), and the Army Corp developed what is know as the National Maglev Initiative
which was a two year 25 million dollar program to assess the engineering, economic,
environmental and safety aspects of Maglev.
1.3 DEFINITION OF MAGNETIC LEVITATION
Magnetic levitation, maglev or magnetic suspension is a method by which an object is suspended
with no support other than magnetic fields. Magnetic force is used to counteract the effect of
gravitational force.
The Difference between levitation and suspension
1.3.1 Magnetic Levitation:
If an object is kept in air using the force of repulsion given from the bottom of the object then it
is known as magnetic levitation.

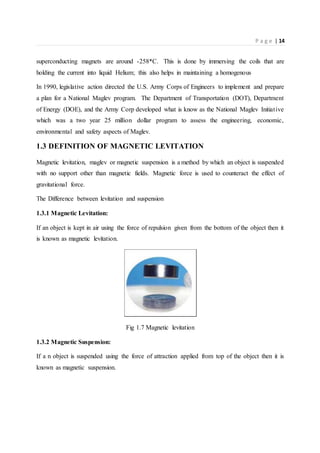

Fig 1.7 Magnetic levitation
1.3.2 Magnetic Suspension:
If a n object is suspended using the force of attraction applied from top of the object then it is
known as magnetic suspension.

15. P a g e | 15
Fig 1.8 Magnetic Suspension
1.3.3 Area of Attraction:
The main area of attraction in the field of magnetic levitation is as a means of eliminating friction
or physical contact.
As a means of eliminating friction magnetic levitation gives its use in magnetic bearing.
As a means of eliminating physical contact magnetic levitation gives its use in magnetic levitated
trains.
1.3.4 Uses:
Magnetic levitation finds its application in following applications:
Maglev trains: For high speed ground transportation maglev trains are designed to take
advantage of magnetic levitation.
Fig 1.9 Maglev Train
Contactless Melting: Metal having high resistance can be levitated and melt in magnetic field.

16. P a g e | 16
Fig 1.10 Contactless Melting
Magnetic Bearing: For rotating machines to stabilize shaft without friction and contact magnetic
bearing are used.
Fig 1.11 Magnetic Bearing
Product Display Purpose: For displaying the product by levitating it in air.

17. P a g e | 17
Fig 1.12 Product Display
1.3.5 Issues
Primary issues involved in magnetic levitation are stability and lifting force. Lifting force should
be sufficient to provide upward force to counteract gravity. Stability to ensure that the system
does not slide or flip into a configuration when lift is neutralized
CHAPTER 2
BLOCK DIAGRAM OF PROJECT

18. P a g e | 18
Fig 2.1 Block Diagram
The block diagram of levitation system have 5 blocks. Each block have its own advantage and
necessary for project. Functions of various blocks can be overviewed as follows :
2.1 CONTROLLER
Controller will be the heart of the project. It helps in controlling the current travelling through
the coil. Controller can be any PWM generator. Here KA7500C is being used .

19. P a g e | 19
2.2 COIL DRIVER
Coil driver can be a MOSFET which is used as switching device. Coil driver is used for driving
current through coil.
2.3 SOLENOID
Coil bounded over a metal core forming a solenoid is used as electromagnet which produces
magnetic field when current is passed through it.
2.4 HALL EFFECT SENSORS
Sensors are used to sense the variation in the level of levitating material and provides a ray data
to the feedback system which compares the raw data in the form of voltages with the reference
provided by the controller and hence forms a closed loop system.
2.5 FEEDBACK SYSTEMS
Feedback systems involves input from hall sensors, comparing the hall voltages with the
reference voltages and providing the signal amplification, compensation etc. These signals from
the feedback unit thus help in controlling the duty cycle of PWM waves generated by generator
which in turns control the current driven through coil and thus control the magnetic field through
coil.
The levitating material can be any magnet which is suspended at a level. The circuit diagram ,
the components used , the working of each components, can be explained in detail in next
chapters.
2.6 IR SENSOR
The IR sensors are used to set a limit for the levitating object beyond which if the object moves
toward the electromagnet the power supply to the electromagnet is cut for a small time and
eventually when the object falls back below the limit, the supply is restored .This prevents the
object from getting sucked into the electromagnet.

20. P a g e | 20

21. P a g e | 21
CHAPTER 3
CIRCUIT DIAGRAM AND COMPONENTS USED
3.1 CIRCUIT DIAGRAM

22. P a g e | 22
Fig 3.1Circuit Diagram
 DIP (KA74500C)

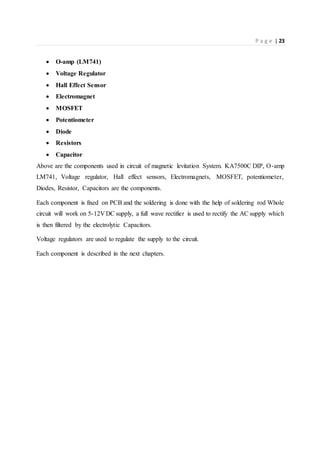

23. P a g e | 23
 O-amp (LM741)
 Voltage Regulator
 Hall Effect Sensor
 Electromagnet
 MOSFET
 Potentiometer
 Diode
 Resistors
 Capacitor
Above are the components used in circuit of magnetic levitation System. KA7500C DIP, O-amp
LM741, Voltage regulator, Hall effect sensors, Electromagnets, MOSFET, potentiometer,
Diodes, Resistor, Capacitors are the components.
Each component is fixed on PCB and the soldering is done with the help of soldering rod Whole
circuit will work on 5-12V DC supply, a full wave rectifier is used to rectify the AC supply which
is then filtered by the electrolytic Capacitors.
Voltage regulators are used to regulate the supply to the circuit.
Each component is described in the next chapters.

24. P a g e | 24
3.2 WORKING
The system accomplish that an ferromagnetic substance will float in mid-air, which essentially
means cancelling the force of gravity that’s acting upon it. The force of gravity upon any mass
is “F=mg” which is a linear function of mass. Now, if the item that one have to float or levitate
is ferromagnetic, one can apply magnetic field on it and try to pull it up in opposite direction of
the gravity .If the force because of the pull is exactly equal to the force of gravity, the net
difference would be zero and the object will therefore not move in any direction and stay exactly
where it is.
It’s pretty complicated to do. As the force acting on the object is not a linear function but is a
function of the square of the distance. Therefore, as the object get’s closer to the source of
magnetic field, the strength of the force increases by square and it gets sucked right into it.
So in order to create a magnetic field that one can control the current is pushed through a coil
with ferromagnetic centre at the middle and magnetic field was generated. Now, it is needed to
somehow measure the distance between the object and the magnetic field being generated and
use this distance to correct the amount of current that we have to apply which essentially forms
a feedback loop, as error value of the distance is used to correct magnetic field. Say, if object
gets really close to magnet ,then one can sense the distance ,measure that and feed that back and
reduce the strength of magnetic field so that the object can fall back down . On the other hand If
the object is falling back too much and one detect that it is too far from the magnet and then
strengthen the magnetic field to bring the object back up. So this negative feedback system can
be used in order to keep this object in middle and not allow it to move up and down, so that it
can hover at a specific location by precisely matching the two forces.
In order to find out the position of object in free space and for measurement of distance Hall
effect sensor are used. The Hall effect itself was discovered by Edwin Hall in 1879, when he
discovered that it is possible for current to be effected by magnetic field in a conductor. The
modern Hall effect sensors make use of semiconductor and give us the strength of magnetic going
through it. So essentially the semiconductor inside is effected by the magnetic field. The Hall
effect sensor used gives an voltage at the output. It gives an analog voltage output that is
proportional to the strength of the magnetic field (as we are making an analog circuit).Here two

25. P a g e | 25

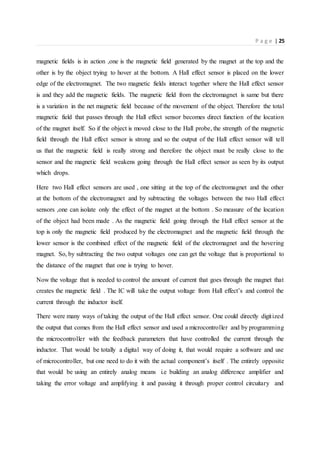

magnetic fields is in action ,one is the magnetic field generated by the magnet at the top and the
other is by the object trying to hover at the bottom. A Hall effect sensor is placed on the lower
edge of the electromagnet. The two magnetic fields interact together where the Hall effect sensor
is and they add the magnetic fields. The magnetic field from the electromagnet is same but there
is a variation in the net magnetic field because of the movement of the object. Therefore the total
magnetic field that passes through the Hall effect sensor becomes direct function of the location
of the magnet itself. So if the object is moved close to the Hall probe, the strength of the magnetic
field through the Hall effect sensor is strong and so the output of the Hall effect sensor will tell
us that the magnetic field is really strong and therefore the object must be really close to the
sensor and the magnetic field weakens going through the Hall effect sensor as seen by its output
which drops.
Here two Hall effect sensors are used , one sitting at the top of the electromagnet and the other
at the bottom of the electromagnet and by subtracting the voltages between the two Hall effect
sensors ,one can isolate only the effect of the magnet at the bottom . So measure of the location
of the object had been made . As the magnetic field going through the Hall effect sensor at the
top is only the magnetic field produced by the electromagnet and the magnetic field through the
lower sensor is the combined effect of the magnetic field of the electromagnet and the hovering
magnet. So, by subtracting the two output voltages one can get the voltage that is proportional to
the distance of the magnet that one is trying to hover.
Now the voltage that is needed to control the amount of current that goes through the magnet that
creates the magnetic field . The IC will take the output voltage from Hall effect’s and control the
current through the inductor itself.
There were many ways of taking the output of the Hall effect sensor. One could directly digitized
the output that comes from the Hall effect sensor and used a microcontroller and by programming
the microcontroller with the feedback parameters that have controlled the current through the
inductor. That would be totally a digital way of doing it, that would require a software and use
of microcontroller, but one need to do it with the actual component’s itself . The entirely opposite
that would be using an entirely analog means i.e building an analog difference amplifier and
taking the error voltage and amplifying it and passing it through proper control circuitary and

26. P a g e | 26
the controlling the current through the inductor. That would be another extreme which takes all
analog means. But somewhere in middle, it is wanted to use Pulse Width Modulation to control
the current that goes through the inductor . It is wanted to turn the current source (I) ON and OFF
really quickly as opposed to have an analog voltage that controls it. So KA7500C IC from
Fairchild semiconductors is being used. It is an IC intended to use in dc-dc converters and is
essentially a PWM Controller. It has a PWM Controller and Error Amplifiers build into it, which
was perfect as an error amplifier that controls the PWM which will control the current through
the inductor that would adjust the magnetic field.
The IC has an oscillator, which can give it a resistor and capacitor in order to set the RC time
constant of the oscillator and get the oscillation frequency that one is looking for. That would be
the PWM frequency that would come out of the IC. Frequency of 2KHzis used and it can be used
upto 300KHz. The capacitor will create a ramp oscillations and this ramp is then feed directly
into the PWM comparator. Now one side of the PWM comparator is the ramp voltage and the
other side of the PWM comparator is the output of the error amplifier’s. So if the error is all the
way positive means that the error amplifiers sense the error too large that V(+) is very higher
than V(-). The output will become high and the PWM Comparator will give us a ‘1’ and that will
be 100% duty cycle . If the output of the error amplifiers is low then the comparator will always
give ‘0’ meaning 0% duty cycle. These are the two extremes of the duty cycle and anything in
middle will give duty cycle at the output that is proportional to the error function feed inside it.
The output at the emitter of the PWM Controller is feedback to control the error voltage to the
error amplifier and can adjust the duty cycle to give the exact voltage that one want at the output.
The difference between voltage from Hall effect sensors is taken through the operational
amplifier. The op-amp is used in differential mode as all the resistances acting upon it are equal.
The output from the op-amp will give the difference between the two voltages from the Hall
effect sensors and this will be the feedback voltage which will be proportional to the position of
magnet with respect to the edge of the electromagnet. The voltage is directly proportional to the
distance between the object and the electromagnet. If distance between them is less voltage at
output will be low and if the distance between them is large then the voltage at the corresponding
output will be high. In order to adjust the distance one want to achieve, reference is set. For

27. P a g e | 27
setting up a reference voltage a potentiometer is used. So once the two voltages to the error
amplifiers are same the error will be zero and the magnetic levitation has been said to be achieved.
The output from the PWM is taken from emitters and directly connected to a high voltage
MOSFET, which then turns the electromagnet ON and OFF really quickly. A resistor is added to
the electromagnet to limit the current in the electromagnet. If all the current was to pass through
the electromagnet it will overwarm and will saturate the Hall effect sensors thus destroying them
as very sensitive Hall effect sensors is being used. A diode in reverse polarity is also connected
directly across the electromagnet. As the current was turning ON and OFF in the electromagnet
when a PWM is applied to it. Every time the current is turned OFF a voltage is generated across
the inductor because of its property to induce a negative voltage when a varying current is applied
to it. As the back emf through the inductor depends on the rate of change of current through it
and as this rate is high so a large back emf will be induced and this emf can damage the transistor
which is being used as a switch in this circuit. So to counter the back emf induced because of
varying current a free-wheeling diode is used across the inductor. This diode will absorb the
reverse voltage across the inductor thus preventing damage to the transistor.
3.3 POWER SUPPLY
A regulated ac power is input from the 220V mains and is converted into a 12-15V ac and a 5V
dc supply. The 12V ac is required by the electromagnet and the 5V dc is required for the
internal circuit to work . For converting the high input ac to a regulated ac or dc step down
transformer along with rectifier is used . The main is connected to the input of the transformer
at primary and the secondary is used for regulated output power. The electromagnet requires
1.2Amp current for functioning .Voltage regulator provides the regulated output to the circuit.

28. P a g e | 28
3.4 COMPONENTS DISCRIPTION
The description of various components used in the circuit is given below.
3.4.1 DIP (KA7500C)
The KA7500C is used for the control circuit of the pulse width modulation switching regulator.
The KA7500C consists of 5V reference voltage circuit, two error amplifiers, flip flop, an output
control circuit, a PWM comparator, a dead time comparator and an oscillator. This device can be
operated in the switching frequency of 1kHz to 300kHz. The precision of voltage reference (Vref)
is improved up to ±1% with trimming. This provides a better output voltage regulation. The
operating temperature range is -25°C ~ +85°C.

29. P a g e | 29
Fig 3.2 DIP KA7500C
FEATURES:-
• Complete PWM Power Control Circuitry
• Uncommitted Outputs for 200mA Sink or Source Current
• Output Control Selects Single-Ended or Push-Pull Operation
• Internal Circuitry Prohibits Double Pulse at Either Output
• Variable Dead-Time Provides Control over Total Range
• Internal Regulator Provides a Stable 5-V Reference Supply
• Circuit Architecture Allows Easy Synchronization

30. P a g e | 30
PIN DIAGRAM:-
Fig 3.3 Pin diagram of KA7500C
It is an IC intended for use in DC-DC conversions .It has an PWM controller and it has error
amplifier built into it which is required in the project. The error amplifier controls the PWM
which in turns control the current through the inductor that adjusts the magnetic field.
In the oscillator part it is needed to connect a capacitor and a resistor which will decide the RC
time constant of the oscillator and get the oscillating frequency so that it would be the PWM
frequency that would comeout of the IC. Here it is using 2KHz but it can be used all the way up
to 300KHz. Because of the presence of capacitor Ramp voltage is generated and this ramp is feed
to the one side of the comparator and the other side of the comparator is the output of the error
amplifiers .Looking into the open loop If the error is high that is error is more positive ,then the
output of the error amplifiers is high then the comparator will always give a 1 that is 100% duty
cycle .On the other hand if the output is more low that is negative ,then the output will be low
and the comparator will always give out a 0 that is 0% duty cycle .So these are the two extremes
of the duty cycle and anything in the middle will be proportional to the error function feed to the
error amplifiers. At the output of pin 8 if one apply source voltage at pin 8 and connect a resistor
at the pin 9 it is seen that a PWM wave is generated at the output with pulse width directly

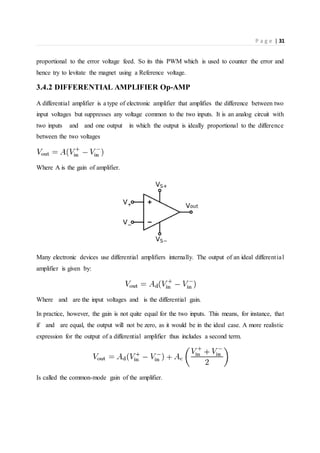

31. P a g e | 31
proportional to the error voltage feed. So its this PWM which is used to counter the error and
hence try to levitate the magnet using a Reference voltage.
3.4.2 DIFFERENTIAL AMPLIFIER Op-AMP
A differential amplifier is a type of electronic amplifier that amplifies the difference between two
input voltages but suppresses any voltage common to the two inputs. It is an analog circuit with
two inputs and and one output in which the output is ideally proportional to the difference
between the two voltages
Where A is the gain of amplifier.
Many electronic devices use differential amplifiers internally. The output of an ideal differential
amplifier is given by:
Where and are the input voltages and is the differential gain.
In practice, however, the gain is not quite equal for the two inputs. This means, for instance, that
if and are equal, the output will not be zero, as it would be in the ideal case. A more realistic
expression for the output of a differential amplifier thus includes a second term.
Is called the common-mode gain of the amplifier.

32. P a g e | 32

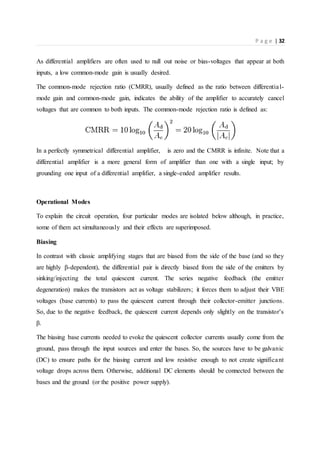

As differential amplifiers are often used to null out noise or bias-voltages that appear at both
inputs, a low common-mode gain is usually desired.
The common-mode rejection ratio (CMRR), usually defined as the ratio between differential-
mode gain and common-mode gain, indicates the ability of the amplifier to accurately cancel
voltages that are common to both inputs. The common-mode rejection ratio is defined as:
In a perfectly symmetrical differential amplifier, is zero and the CMRR is infinite. Note that a
differential amplifier is a more general form of amplifier than one with a single input; by
grounding one input of a differential amplifier, a single-ended amplifier results.
Operational Modes
To explain the circuit operation, four particular modes are isolated below although, in practice,
some of them act simultaneously and their effects are superimposed.
Biasing
In contrast with classic amplifying stages that are biased from the side of the base (and so they
are highly β-dependent), the differential pair is directly biased from the side of the emitters by
sinking/injecting the total quiescent current. The series negative feedback (the emitter
degeneration) makes the transistors act as voltage stabilizers; it forces them to adjust their VBE
voltages (base currents) to pass the quiescent current through their collector-emitter junctions.
So, due to the negative feedback, the quiescent current depends only slightly on the transistor's
β.
The biasing base currents needed to evoke the quiescent collector currents usually come from the
ground, pass through the input sources and enter the bases. So, the sources have to be galvanic
(DC) to ensure paths for the biasing current and low resistive enough to not create significant
voltage drops across them. Otherwise, additional DC elements should be connected between the
bases and the ground (or the positive power supply).

33. P a g e | 33

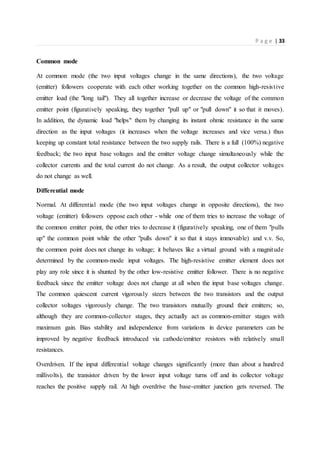

Common mode
At common mode (the two input voltages change in the same directions), the two voltage
(emitter) followers cooperate with each other working together on the common high-resistive
emitter load (the "long tail"). They all together increase or decrease the voltage of the common
emitter point (figuratively speaking, they together "pull up" or "pull down" it so that it moves).
In addition, the dynamic load "helps" them by changing its instant ohmic resistance in the same
direction as the input voltages (it increases when the voltage increases and vice versa.) thus
keeping up constant total resistance between the two supply rails. There is a full (100%) negative
feedback; the two input base voltages and the emitter voltage change simultaneously while the
collector currents and the total current do not change. As a result, the output collector voltages
do not change as well.
Differential mode
Normal. At differential mode (the two input voltages change in opposite directions), the two
voltage (emitter) followers oppose each other - while one of them tries to increase the voltage of
the common emitter point, the other tries to decrease it (figuratively speaking, one of them "pulls
up" the common point while the other "pulls down" it so that it stays immovable) and v.v. So,
the common point does not change its voltage; it behaves like a virtual ground with a magnitude
determined by the common-mode input voltages. The high-resistive emitter element does not
play any role since it is shunted by the other low-resistive emitter follower. There is no negative
feedback since the emitter voltage does not change at all when the input base voltages change.
Тhe common quiescent current vigorously steers between the two transistors and the output
collector voltages vigorously change. The two transistors mutually ground their emitters; so,
although they are common-collector stages, they actually act as common-emitter stages with
maximum gain. Bias stability and independence from variations in device parameters can be
improved by negative feedback introduced via cathode/emitter resistors with relatively small
resistances.
Overdriven. If the input differential voltage changes significantly (more than about a hundred
millivolts), the transistor driven by the lower input voltage turns off and its collector voltage
reaches the positive supply rail. At high overdrive the base-emitter junction gets reversed. The

34. P a g e | 34

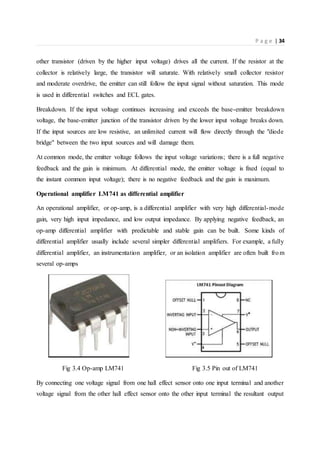

other transistor (driven by the higher input voltage) drives all the current. If the resistor at the
collector is relatively large, the transistor will saturate. With relatively small collector resistor
and moderate overdrive, the emitter can still follow the input signal without saturation. This mode
is used in differential switches and ECL gates.
Breakdown. If the input voltage continues increasing and exceeds the base-emitter breakdown
voltage, the base-emitter junction of the transistor driven by the lower input voltage breaks down.
If the input sources are low resistive, an unlimited current will flow directly through the "diode
bridge" between the two input sources and will damage them.
At common mode, the emitter voltage follows the input voltage variations; there is a full negative
feedback and the gain is minimum. At differential mode, the emitter voltage is fixed (equal to
the instant common input voltage); there is no negative feedback and the gain is maximum.
Operational amplifier LM741 as differential amplifier
An operational amplifier, or op-amp, is a differential amplifier with very high differential-mode
gain, very high input impedance, and low output impedance. By applying negative feedback, an
op-amp differential amplifier with predictable and stable gain can be built. Some kinds of
differential amplifier usually include several simpler differential amplifiers. For example, a fully
differential amplifier, an instrumentation amplifier, or an isolation amplifier are often built from
several op-amps
Fig 3.4 Op-amp LM741 Fig 3.5 Pin out of LM741
By connecting one voltage signal from one hall effect sensor onto one input terminal and another
voltage signal from the other hall effect sensor onto the other input terminal the resultant output

35. P a g e | 35
voltage will be proportional to the “Difference” between the two input voltage signals of V1 and
V2.
Then differential amplifier amplify the difference between two voltages making this type of
operational amplifier circuit a subtractor. The output of the difference amplifier is the error
voltage which is feed to the controller for controlling the width of the Pulse width wave
generated.
Fig 3.6 Difference Amplifier.
Here, When R1=R2=R3=R4 the circuit becomes a Unity Gain Differential Amplifier and its
output can be calculated from the expression
So as R3=R1=10KOhm
Hence the output of the differential amplifier is given as
Vout = V2 - V1
This helps in calculating the error. If the suspended magnet is completely levitating then the
output of the differentiator will be ZERO .Otherwise there will be a positive error is the magnet
is too close to the electromagnet or the error will be negative if it is falling apart the
electromagnet.

36. P a g e | 36
Fig 3.7 Working of Op-amp on bread board
3.4.3 HALL EFFECT SENSORS
A Hall effect sensor is a transducer that varies its output voltage in response to a magnetic field.
Hall effect sensors are used for proximity switching, positioning, speed detection, and current
sensing applications.
In its simplest form, the sensor operates as an analog transducer, directly returning a voltage.
With a known magnetic field, its distance from the Hall plate can be determined. Using groups
of sensors, the relative position of the magnet can be deduced.
Frequently, a Hall sensor is combined with circuitry that allows the device to act in a digital
(on/off) mode, and may be called a switch in this configuration. Commonly seen in industrial
applications such as the pictured pneumatic cylinder, they are also used in consumer equipment;
for example some computer printers use them to detect missing paper and open covers. When
high reliability is required, they are used in keyboards.
Hall sensors are commonly used to time the speed of wheels and shafts, such as for internal
combustion engine ignition timing, tachometers and anti-lock braking systems. They are used in
brushless DC electric motors to detect the position of the permanent magnet. In the pictured

37. P a g e | 37
wheel with two equally spaced magnets, the voltage from the sensor will peak twice for each
revolution. This arrangement is commonly used to regulate the speed of disk drives
Fig 3.8 Hall sensor
Hall probe
A Hall probe contains an indium compound semiconductor crystal such as indium antimonide,
mounted on an aluminum backing plate, and encapsulated in the probe head. The plane of the
crystal is perpendicular to the probe handle. Connecting leads from the crystal are brought down
through the handle to the circuit box.
When the Hall probe is held so that the magnetic field lines are passing at right angles through
the sensor of the probe, the meter gives a reading of the value of magnetic flux density (B). A
current is passed through the crystal which, when placed in a magnetic field has a "Hall effect"
voltage developed across it. The Hall effect is seen when a conductor is passed through a uniform
magnetic field. The natural electron drift of the charge carriers causes the magnetic field to apply
a Lorentz force (the force exerted on a charged particle in an electromagnetic field) to these
charge carriers. The result is what is seen as a charge separation, with a buildup of either positive
or negative charges on the bottom or on the top of the plate. The crystal measures 5 mm square.
The probe handle, being made of a non-ferrous material, has no disturbing effect on the field.
A Hall probe should be calibrated against a known value of magnetic field strength. For a
solenoid the Hall probe is placed in the center.

38. P a g e | 38
Working principle
When a beam of charged particles passes through a magnetic field, forces act on the particles and
the beam is deflected from a straight path. The flow of electrons through a conductor is known
as a beam of charged carriers. When a conductor is placed in a magnetic field perpendicular to
the direction of the electrons, they will be deflected from a straight path. As a consequence, one
plane of the conductor will become negatively charged and the opposite side will become
positively charged. The voltage between these planes is called Hall voltage.
When the force on the charged particles from the electric field balances the force produced by
magnetic field, the separation of them will stop. If the current is not changing, then the Hall
voltage is a measure of the magnetic flux density. Basically, there are two kinds of Hall effect
sensors. One is linear which means the output of voltage linearly depends on magnetic flux
density; the other is called threshold which means there will be a sharp decrease of output voltage
at each magnetic flux density.
Fig 3.9 Working of hall effect sensors
Materials for Hall effect sensors
The key factor determining sensitivity of Hall effect sensors is high electron mobility. As a result,
following materials are especially suitable for Hall effect sensors:
 Gallium arsenide (GaAs)
 Indium arsenide (InAs)
 Indium phosphide (InP)

39. P a g e | 39
 Indium antimonide (InSb)
 Graphene
Signal processing and interface
Hall effect sensors are linear transducers. As a result, such sensors require a linear circuit for
processing of the sensor's output signal. Such a linear circuit:
 Provides a constant driving current to the sensors
 Amplifies the output signal
In some cases the linear circuit may cancel the offset voltage of Hall effect sensors. Moreover,
AC modulation of the driving current may also reduce the influence of this offset voltage. Hall
effect sensors with linear transducers are commonly integrated with digital electronics. This
enables advanced corrections of the sensor's characteristics (e.g. temperature coefficient
corrections) and digital interfacing to microprocessor systems. In some solutions of IC Hall effect
sensors a DSP is used, which provides for more choices among processing techniques.
The Hall effect sensor interfaces may include input diagnostics, fault protection for transient
conditions, and short/open circuit detection. It may also provide and monitor the current to the
Hall effect sensor itself. There are precision IC products available to handle these features.
Advantages
A Hall effect sensor may operate as an electronic switch.
 Such a switch costs less than a mechanical switch and is much more reliable.
 It can be operated up to 100 kHz.
 It does not suffer from contact bounce because a solid state switch with hysteresis is used
rather than a mechanical contact.
 It will not be affected by environmental contaminants since the sensor is in a sealed
package. Therefore, it can be used under severe conditions.
 In the case of linear sensor (for the magnetic field strength measurements), a Hall effect
sensor:
 can measure a wide range of magnetic fields
 is available that can measure either North or South pole magnetic Fields.

40. P a g e | 40
Fig 3.10 Effect of magnets on the hall effect sensors.
Disadvantages
Hall effect sensors provide much lower measuring accuracy than fluxgate magnetometers or
magneto resistance-based sensors. Moreover, Hall effect sensors drift significantly, requiring
compensation.
Applications
1. Position sensing
Sensing the presence of magnetic objects (connected with the position sensing) is the most
common industrial application of Hall effect sensors, especially those operating in the switch
mode (on/off mode). The Hall effect sensors are also used in the brushless DC motor to sense the
position of the rotor and to switch the transistors in the right sequence.
Smartphones use hall sensors to determine if the Flip Cover accessory is closed.
2. Direct Current (DC) transformers
Hall effect sensors may be utilized for contactless measurements of DC current in current
transformers. In such a case the Hall effect sensor is mounted in the gap in magnetic core around
the current conductor. As a result, the DC magnetic flux can be measured, and the DC current in
the conductor can be calculated.
3. Automotive fuel level indicator

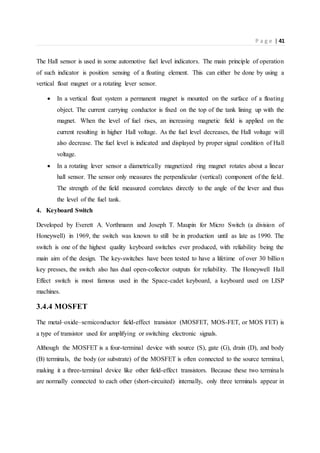

41. P a g e | 41
The Hall sensor is used in some automotive fuel level indicators. The main principle of operation
of such indicator is position sensing of a floating element. This can either be done by using a
vertical float magnet or a rotating lever sensor.
 In a vertical float system a permanent magnet is mounted on the surface of a floating
object. The current carrying conductor is fixed on the top of the tank lining up with the
magnet. When the level of fuel rises, an increasing magnetic field is applied on the
current resulting in higher Hall voltage. As the fuel level decreases, the Hall voltage will
also decrease. The fuel level is indicated and displayed by proper signal condition of Hall
voltage.
 In a rotating lever sensor a diametrically magnetized ring magnet rotates about a linear
hall sensor. The sensor only measures the perpendicular (vertical) component of the field.
The strength of the field measured correlates directly to the angle of the lever and thus
the level of the fuel tank.
4. Keyboard Switch
Developed by Everett A. Vorthmann and Joseph T. Maupin for Micro Switch (a division of
Honeywell) in 1969, the switch was known to still be in production until as late as 1990. The
switch is one of the highest quality keyboard switches ever produced, with reliability being the
main aim of the design. The key-switches have been tested to have a lifetime of over 30 billion
key presses, the switch also has dual open-collector outputs for reliability. The Honeywell Hall
Effect switch is most famous used in the Space-cadet keyboard, a keyboard used on LISP
machines.
3.4.4 MOSFET
The metal–oxide–semiconductor field-effect transistor (MOSFET, MOS-FET, or MOS FET) is
a type of transistor used for amplifying or switching electronic signals.
Although the MOSFET is a four-terminal device with source (S), gate (G), drain (D), and body
(B) terminals, the body (or substrate) of the MOSFET is often connected to the source terminal,
making it a three-terminal device like other field-effect transistors. Because these two terminals
are normally connected to each other (short-circuited) internally, only three terminals appear in

42. P a g e | 42
electrical diagrams. The MOSFET is by far the most common transistor in both digital and analog
circuits, though the bipolar junction transistor was at one time much more common.
The main advantage of a MOSFET over a regular transistor is that it requires very little current
to turn on (less than 1mA), while delivering a much higher current to a load (10 to 50A or more).
In enhancement mode MOSFETs, a voltage drop across the oxide induces a conducting channel
between the source and drain contacts via the field effect. The term "enhancement mode" refers
to the increase of conductivity with increase in oxide field that adds carriers to the channel, also
referred to as the inversion layer. The channel can contain electrons (called an nMOSFET or
nMOS), or holes (called a pMOSFET or pMOS), opposite in type to the substrate, so nMOS is
made with a p-type substrate, and pMOS with an n-type substrate (see article on semiconductor
devices). In the less common depletion mode MOSFET, detailed later on, the channel consists
of carriers in a surface impurity layer of opposite type to the substrate, and conductivity is
decreased by application of a field that depletes carriers from this surface layer.
3.4.4.1 Composition
Usually the semiconductor of choice is silicon, but some chip manufacturers, most notably IBM
and Intel, recently started using a chemical compound of silicon and germanium (SiGe) in
MOSFET channels. Unfortunately, many semiconductors with better electrical properties than
silicon, such as gallium arsenide, do not form good semiconductor-to-insulator interfaces, and
thus are not suitable for MOSFETs. Research continues on creating insulators with acceptable
electrical characteristics on other semiconductor material.
In order to overcome the increase in power consumption due to gate current leakage, a high-κ
dielectric is used instead of silicon dioxide for the gate insulator, while polysilicon is replaced by
metal gates (see Intel announcement).
The gate is separated from the channel by a thin insulating layer, traditionally of silicon dioxide
and later of silicon oxynitride. Some companies have started to introduce a high-κ dielectric +
metal gate combination in the 45 nanometer node.
When a voltage is applied between the gate and body terminals, the electric field generated
penetrates through the oxide and creates an "inversion layer" or "channel" at the semiconductor-

43. P a g e | 43
insulator interface. The inversion channel is of the same type, p-type or n-type, as the source and
drain, and thus it provides a channel through which current can pass. Varying the voltage between
the gate and body modulates the conductivity of this layer and thereby controls the current flow
between drain and source. This is known as enhancement mode.
3.4.4.2 Operation of Mosfet
The traditional metal–oxide–semiconductor (MOS) structure is obtained by growing a layer of
silicon dioxide (SiO2) on top of a silicon substrate and depositing a layer of metal or
polycrystalline silicon (the latter is commonly used). As the silicon dioxide is a dielectric
material, its structure is equivalent to a planar capacitor, with one of the electrodes replaced by a
semiconductor.
When a voltage is applied across a MOS structure, it modifies the distribution of charges in the
semiconductor. If we consider a p-type semiconductor a positive voltage, from gate to body (see
figure) creates a depletion layer by forcing the positively charged holes away from the gate-
insulator/semiconductor interface, leaving exposed a carrier-free region of immobile, negatively
charged acceptor ions . IF is high enough, a high concentration of negative charge carriers forms
in an inversion layer located in a thin layer next to the interface between the semiconductor and
the insulator. Unlike the MOSFET, where the inversion layer electrons are supplied rapidly from
the source/drain electrodes, in the MOS capacitor they are produced much more slowly by
thermal generation through carrier generation and recombination centres in the depletion region.
Conventionally, the gate voltage at which the volume density of electrons in the inversion layer
is the same as the volume density of holes in the body is called the threshold voltage. When the
voltage between transistor gate and source (VGS) exceeds the threshold voltage (Vth), it is
known as overdrive voltage.
This structure with p-type body is the basis of the n-type MOSFET, which requires the addition
of an n-type source and drain regions.
Here, MOSFET IRF540 is used

44. P a g e | 44
Fig 3.11 MOSFET IRF540

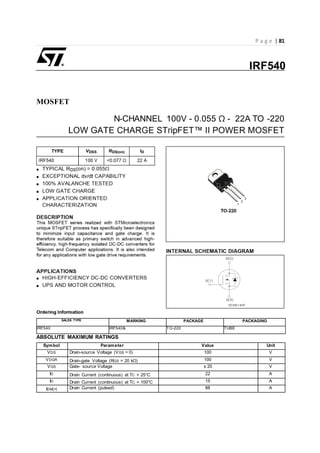

MOSFET IRF540
This MOSFET series realized with STMicroelectronics unique Strip FET process has specifically
been designed to minimize input capacitance and gate charge. It is therefore suitable as primary
switch in advanced high efficiency, high-frequency isolated DC-DC converters for Telecom and
Computer applications. It is also intended for any applications with low gate drive requirements.
It has

 EXCEPTIONAL dv/dt CAPABILITY
 100% AVALANCHE TESTED
 LOW GATE CHARGE
 APPLICATION ORIENTED
 CHARACTERIZATION
APPLICATIONS
 HIGH-EFFICIENCY DC-DC CONVERTERS
 UPS AND MOTOR CONTROL

45. P a g e | 45
3.4.5 VOLTAGE REGULATOR:
A voltage regulator generates a fixed output voltage of a preset magnitude that remains constant
regardless of changes to its input voltage or load conditions. There are two types of voltage
regulators: linear and switching.
A linear regulator employs an active (BJT or MOSFET) pass device (series or shunt) controlled
by a high gain differential amplifier. It compares the output voltage with a precise reference
voltage and adjusts the pass device to maintain a constant output voltage.
A switching regulator converts the dc input voltage to a switched voltage applied to a power
MOSFET or BJT switch. The filtered power switch output voltage is fed back to a circuit that
controls the power switch on and off times so that the output voltage remains constant regardless
of input voltage or load current changes.
Switching regulators require a means to vary their output voltage in response to input and output
voltage changes. One approach is to use PWM that controls the input to the associated power
switch, which controls its on and off time (duty cycle). In operation, the regulator's filtered output
voltage is fed back to the PWM controller to control the duty cycle. If the filtered output tends to
change, the feedback applied to the PWM controller varies the duty cycle to maintain a constant
output voltage.
Fig 3.12 Voltage Regulator
A voltage regulator is designed to automatically maintain a constant voltage level. A voltage
regulator may be a simple "feed-forward" design or may include negative feedback control loops.

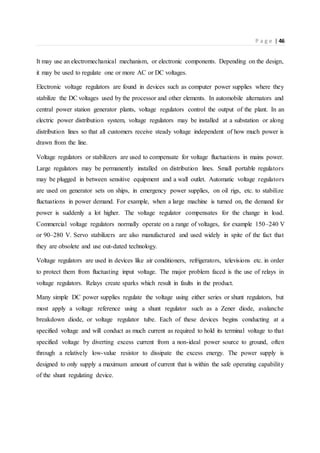

46. P a g e | 46
It may use an electromechanical mechanism, or electronic components. Depending on the design,
it may be used to regulate one or more AC or DC voltages.
Electronic voltage regulators are found in devices such as computer power supplies where they
stabilize the DC voltages used by the processor and other elements. In automobile alternators and
central power station generator plants, voltage regulators control the output of the plant. In an
electric power distribution system, voltage regulators may be installed at a substation or along
distribution lines so that all customers receive steady voltage independent of how much power is
drawn from the line.
Voltage regulators or stabilizers are used to compensate for voltage fluctuations in mains power.
Large regulators may be permanently installed on distribution lines. Small portable regulators
may be plugged in between sensitive equipment and a wall outlet. Automatic voltage regulators
are used on generator sets on ships, in emergency power supplies, on oil rigs, etc. to stabilize
fluctuations in power demand. For example, when a large machine is turned on, the demand for
power is suddenly a lot higher. The voltage regulator compensates for the change in load.
Commercial voltage regulators normally operate on a range of voltages, for example 150–240 V
or 90–280 V. Servo stabilizers are also manufactured and used widely in spite of the fact that
they are obsolete and use out-dated technology.
Voltage regulators are used in devices like air conditioners, refrigerators, televisions etc. in order
to protect them from fluctuating input voltage. The major problem faced is the use of relays in
voltage regulators. Relays create sparks which result in faults in the product.
Many simple DC power supplies regulate the voltage using either series or shunt regulators, but
most apply a voltage reference using a shunt regulator such as a Zener diode, avalanche
breakdown diode, or voltage regulator tube. Each of these devices begins conducting at a
specified voltage and will conduct as much current as required to hold its terminal voltage to that
specified voltage by diverting excess current from a non-ideal power source to ground, often
through a relatively low-value resistor to dissipate the excess energy. The power supply is
designed to only supply a maximum amount of current that is within the safe operating capability
of the shunt regulating device.

47. P a g e | 47
If the stabilizer must provide more power, the shunt regulator output is only used to provide the
standard voltage reference for the electronic device, known as the voltage stabilizer. The voltage
stabilizer is the electronic device, able to deliver much larger currents on demand.
Here the voltage regulators are used to provide a regulated supply to the circuit. A constant
voltage is provided and hence it work as a voltage stabilizer. Voltage stabilizer is used to stabilize
the input voltage to a required level.
3.4.6 ELECROMAGNET
An electromagnet is a type of magnet in which the magnetic field is produced by an electric
current. The magnetic field disappears when the current is turned off. Electromagnets usually
consist of a large number of closely spaced turns of wire that create the magnetic field. The wire
turns are often wound around a magnetic core made from a ferromagnetic or ferrimagnetic
material such as iron; the magnetic core concentrates the magnetic flux and makes a more
powerful magnet.
The main advantage of an electromagnet over a permanent magnet is that the magnetic field can
be quickly changed by controlling the amount of electric current in the winding. However, unlike
a permanent magnet that needs no power, an electromagnet requires a continuous supply of
current to maintain the magnetic field.
Electromagnets are widely used as components of other electrical devices, such as motors,
generators, relays, loudspeakers, hard discs, MRI machines, scientific instruments, and magnetic
separation equipment. Electromagnets are also employed in industry for picking up and moving
heavy iron objects such as scrap iron and steel.
Uses of electromagnets

48. P a g e | 48
Fig 3.13 Industrial electromagnet lifting scrap iron
A portative electromagnet is one designed to just hold material in place; an example is a lifting
magnet. A tractive electromagnet applies a force and moves something.
Electromagnets are very widely used in electric and electromechanical devices, including:
 Motors and generators
 Transformers
 Relays, including reed relays originally used in telephone exchanges
 Electric bells and buzzers
 Loudspeakers and earphones
 Actuators
 Magnetic recording and data storage equipment: tape recorders, VCRs, hard disks
 MRI machines
 Scientific equipment such as mass spectrometers
 Particle accelerators
 Magnetic locks

49. P a g e | 49

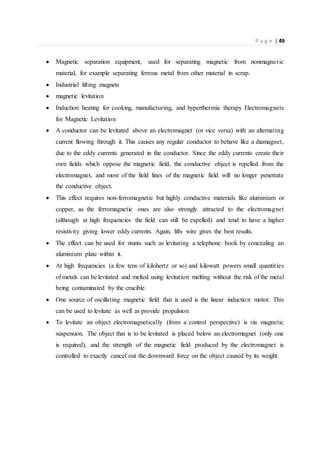

 Magnetic separation equipment, used for separating magnetic from nonmagnetic
material, for example separating ferrous metal from other material in scrap.
 Industrial lifting magnets
 magnetic levitation
 Induction heating for cooking, manufacturing, and hyperthermia therapy Electromagnets
for Magnetic Levitation
 A conductor can be levitated above an electromagnet (or vice versa) with an alternating
current flowing through it. This causes any regular conductor to behave like a diamagnet,
due to the eddy currents generated in the conductor. Since the eddy currents create their
own fields which oppose the magnetic field, the conductive object is repelled from the
electromagnet, and most of the field lines of the magnetic field will no longer penetrate
the conductive object.
 This effect requires non-ferromagnetic but highly conductive materials like aluminium or
copper, as the ferromagnetic ones are also strongly attracted to the electromagnet
(although at high frequencies the field can still be expelled) and tend to have a higher
resistivity giving lower eddy currents. Again, lifts wire gives the best results.
 The effect can be used for stunts such as levitating a telephone book by concealing an
aluminium plate within it.
 At high frequencies (a few tens of kilohertz or so) and kilowatt powers small quantities
of metals can be levitated and melted using levitation melting without the risk of the metal
being contaminated by the crucible.
 One source of oscillating magnetic field that is used is the linear induction motor. This
can be used to levitate as well as provide propulsion
 To levitate an object electromagnetically (from a control perspective) is via magnetic
suspension. The object that is to be levitated is placed below an electromagnet (only one
is required), and the strength of the magnetic field produced by the electromagnet is
controlled to exactly cancel out the downward force on the object caused by its weight.

50. P a g e | 50
Fig 3.14 Electromagnets Fig 3.15 Material levitating
 Thus the system only has to contend with one force, the levitating object’s weight. This
system works via the force of attraction between the electromagnet and the object.
Because of this, the levitating object does not need to be a magnet; it can be any ferrous
material. This further simplifies the design considerations. To prevent the object from
immediately attaching itself to the electromagnet, the object’s position has to be sensed
and this information fed back into the control circuit regulating the current in the
electromagnet.
 If the object gets too close to the electromagnet, the current in the electromagnet must be
reduced. If the object gets too far, the current to the electromagnet must be increased.
3.4.7 POTENTIOMETER
A potentiometer, informally a pot, is a three-terminal resistor with a sliding or rotating contact
that forms an adjustable voltage divider.[1] If only two terminals are used, one end and the wiper,
it acts as a variable resistor or rheostat.
The measuring instrument called a potentiometer is essentially a voltage divider used for
measuring electric potential (voltage); the component is an implementation of the same principle,
hence its name.
Potentiometers are commonly used to control electrical devices such as volume controls on audio
equipment. Potentiometers operated by a mechanism can be used as position transducers, for
example, in a joystick. Potentiometers are rarely used to directly control significant power (more

51. P a g e | 51
than a watt), since the power dissipated in the potentiometer would be comparable to the power
in the controlled load.
Fig 3.16 Potentiometer
Potentiometer construction
Fig 3.17 Diagramatic form of potentiometer
Drawing of potentiometer with case cut away, showing parts: (A) shaft, (B) stationary carbon
composition resistance element, (C) phosphor bronze wiper, (D) shaft attached to wiper, (E, G)
terminals connected to ends of resistance element, (F) terminal connected to wiper.

52. P a g e | 52
Fig 3.18 Single-turn potentiometer with metal casing removed to expose wiper contacts and
resistive track
Potentiometers consist of a resistive element, a sliding contact (wiper) that moves along the
element, making good electrical contact with one part of it, electrical terminals at each end of the
element, a mechanism that moves the wiper from one end to the other, and a housing containing
the element and wiper.
In drawing. Many inexpensive potentiometers are constructed with a resistive element (B)
formed into an arc of a circle usually a little less than a full turn and a wiper (C) sliding on this
element when rotated, making electrical contact. The resistive element can be flat or angled. Each
end of the resistive element is connected to a terminal (E, G) on the case. The wiper is connected
to a third terminal (F), usually between the other two. On panel potentiometers, the wiper is
usually the centre terminal of three. For single-turn potentiometers, this wiper typically travels
just under one revolution around the contact. The only point of ingress for contamination is the
narrow space between the shaft and the housing it rotates in.
Another type is the linear slider potentiometer, which has a wiper which slides along a linear
element instead of rotating. Contamination can potentially enter anywhere along the slot the
slider moves in, making effective sealing more difficult and compromising long-term reliability.
An advantage of the slider potentiometer is that the slider position gives a visual indication of its
setting. While the setting of a rotary potentiometer can be seen by the position of a marking on
the knob, an array of sliders can give a visual impression of, for example, the effect of a multi-
band equalizer (hence the term "graphic equalizer").

53. P a g e | 53

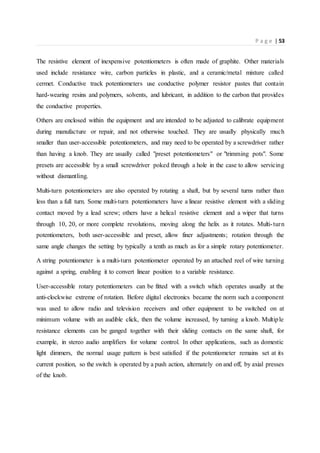

The resistive element of inexpensive potentiometers is often made of graphite. Other materials
used include resistance wire, carbon particles in plastic, and a ceramic/metal mixture called
cermet. Conductive track potentiometers use conductive polymer resistor pastes that contain
hard-wearing resins and polymers, solvents, and lubricant, in addition to the carbon that provides
the conductive properties.
Others are enclosed within the equipment and are intended to be adjusted to calibrate equipment
during manufacture or repair, and not otherwise touched. They are usually physically much
smaller than user-accessible potentiometers, and may need to be operated by a screwdriver rather
than having a knob. They are usually called "preset potentiometers" or "trimming pots". Some
presets are accessible by a small screwdriver poked through a hole in the case to allow servicing
without dismantling.
Multi-turn potentiometers are also operated by rotating a shaft, but by several turns rather than
less than a full turn. Some multi-turn potentiometers have a linear resistive element with a sliding
contact moved by a lead screw; others have a helical resistive element and a wiper that turns
through 10, 20, or more complete revolutions, moving along the helix as it rotates. Multi-turn
potentiometers, both user-accessible and preset, allow finer adjustments; rotation through the
same angle changes the setting by typically a tenth as much as for a simple rotary potentiometer.
A string potentiometer is a multi-turn potentiometer operated by an attached reel of wire turning
against a spring, enabling it to convert linear position to a variable resistance.
User-accessible rotary potentiometers can be fitted with a switch which operates usually at the
anti-clockwise extreme of rotation. Before digital electronics became the norm such a component
was used to allow radio and television receivers and other equipment to be switched on at
minimum volume with an audible click, then the volume increased, by turning a knob. Multiple
resistance elements can be ganged together with their sliding contacts on the same shaft, for
example, in stereo audio amplifiers for volume control. In other applications, such as domestic
light dimmers, the normal usage pattern is best satisfied if the potentiometer remains set at its
current position, so the switch is operated by a push action, alternately on and off, by axial presses
of the knob.

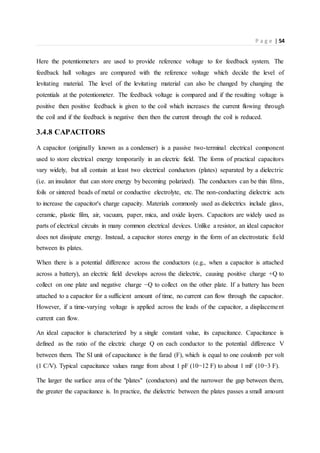

54. P a g e | 54
Here the potentiometers are used to provide reference voltage to for feedback system. The
feedback hall voltages are compared with the reference voltage which decide the level of
levitating material. The level of the levitating material can also be changed by changing the
potentials at the potentiometer. The feedback voltage is compared and if the resulting voltage is
positive then positive feedback is given to the coil which increases the current flowing through
the coil and if the feedback is negative then then the current through the coil is reduced.
3.4.8 CAPACITORS
A capacitor (originally known as a condenser) is a passive two-terminal electrical component
used to store electrical energy temporarily in an electric field. The forms of practical capacitors
vary widely, but all contain at least two electrical conductors (plates) separated by a dielectric
(i.e. an insulator that can store energy by becoming polarized). The conductors can be thin films,
foils or sintered beads of metal or conductive electrolyte, etc. The non-conducting dielectric acts
to increase the capacitor's charge capacity. Materials commonly used as dielectrics include glass,
ceramic, plastic film, air, vacuum, paper, mica, and oxide layers. Capacitors are widely used as
parts of electrical circuits in many common electrical devices. Unlike a resistor, an ideal capacitor
does not dissipate energy. Instead, a capacitor stores energy in the form of an electrostatic field
between its plates.
When there is a potential difference across the conductors (e.g., when a capacitor is attached
across a battery), an electric field develops across the dielectric, causing positive charge +Q to
collect on one plate and negative charge −Q to collect on the other plate. If a battery has been
attached to a capacitor for a sufficient amount of time, no current can flow through the capacitor.
However, if a time-varying voltage is applied across the leads of the capacitor, a displacement
current can flow.
An ideal capacitor is characterized by a single constant value, its capacitance. Capacitance is
defined as the ratio of the electric charge Q on each conductor to the potential difference V
between them. The SI unit of capacitance is the farad (F), which is equal to one coulomb per volt
(1 C/V). Typical capacitance values range from about 1 pF (10−12 F) to about 1 mF (10−3 F).
The larger the surface area of the "plates" (conductors) and the narrower the gap between them,
the greater the capacitance is. In practice, the dielectric between the plates passes a small amount

55. P a g e | 55

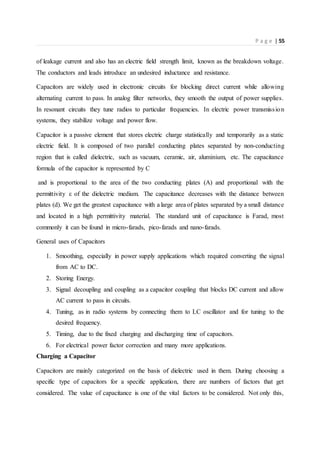

of leakage current and also has an electric field strength limit, known as the breakdown voltage.
The conductors and leads introduce an undesired inductance and resistance.
Capacitors are widely used in electronic circuits for blocking direct current while allowing
alternating current to pass. In analog filter networks, they smooth the output of power supplies.
In resonant circuits they tune radios to particular frequencies. In electric power transmission
systems, they stabilize voltage and power flow.
Capacitor is a passive element that stores electric charge statistically and temporarily as a static
electric field. It is composed of two parallel conducting plates separated by non-conducting
region that is called dielectric, such as vacuum, ceramic, air, aluminium, etc. The capacitance
formula of the capacitor is represented by C
and is proportional to the area of the two conducting plates (A) and proportional with the
permittivity ε of the dielectric medium. The capacitance decreases with the distance between
plates (d). We get the greatest capacitance with a large area of plates separated by a small distance
and located in a high permittivity material. The standard unit of capacitance is Farad, most
commonly it can be found in micro-farads, pico-farads and nano-farads.
General uses of Capacitors
1. Smoothing, especially in power supply applications which required converting the signal
from AC to DC.
2. Storing Energy.
3. Signal decoupling and coupling as a capacitor coupling that blocks DC current and allow
AC current to pass in circuits.
4. Tuning, as in radio systems by connecting them to LC oscillator and for tuning to the
desired frequency.
5. Timing, due to the fixed charging and discharging time of capacitors.
6. For electrical power factor correction and many more applications.
Charging a Capacitor
Capacitors are mainly categorized on the basis of dielectric used in them. During choosing a
specific type of capacitors for a specific application, there are numbers of factors that get
considered. The value of capacitance is one of the vital factors to be considered. Not only this,

56. P a g e | 56

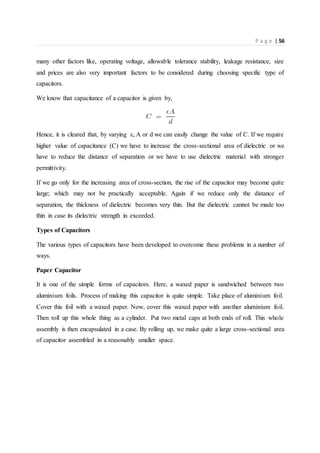

many other factors like, operating voltage, allowable tolerance stability, leakage resistance, size
and prices are also very important factors to be considered during choosing specific type of
capacitors.
We know that capacitance of a capacitor is given by,
Hence, it is cleared that, by varying ε, A or d we can easily change the value of C. If we require
higher value of capacitance (C) we have to increase the cross-sectional area of dielectric or we
have to reduce the distance of separation or we have to use dielectric material with stronger
permittivity.
If we go only for the increasing area of cross-section, the rise of the capacitor may become quite
large; which may not be practically acceptable. Again if we reduce only the distance of
separation, the thickness of dielectric becomes very thin. But the dielectric cannot be made too
thin in case its dielectric strength in exceeded.
Types of Capacitors
The various types of capacitors have been developed to overcome these problems in a number of
ways.
Paper Capacitor
It is one of the simple forms of capacitors. Here, a waxed paper is sandwiched between two
aluminium foils. Process of making this capacitor is quite simple. Take place of aluminium foil.
Cover this foil with a waxed paper. Now, cover this waxed paper with another aluminium foil.
Then roll up this whole thing as a cylinder. Put two metal caps at both ends of roll. This whole
assembly is then encapsulated in a case. By rolling up, we make quite a large cross-sectional area
of capacitor assembled in a reasonably smaller space.

57. P a g e | 57
Fig 3.19 Paper capacitors
Ceramic Capacitor
Construction of ceramic capacitor is quite simple. Here, one thin ceramic disc is placed between
two metal discs and terminals are soldered to the metal discs. Whole assembly is coated with
insulated protection coating as shown in the figure below.
Fig 3.20 Ceramic Capacitors
Electrolyte Capacitor
Very large value of capacitance can be achieved by this type of capacitor. But working voltage
level of this electrolyte capacitor is low and it also suffers from high leakage current. The main

58. P a g e | 58
disadvantage of this capacitor is that, due to the use of electrolyte, the capacitor is polarized. The
polarities are marked against the terminals with + and – sign and the capacitor must be connected
to the circuit in proper polarity.
A few micro meter thick aluminium oxide or tantalum oxide film is used as dielectric of
electrolyte capacitor. As this dielectric is so thin, the capacitance of this type of capacitor is very
high. This is because; the capacitance is inversely proportional to thickness of the dielectric. Thin
dielectric obviously increases the capacitance value but at the same time, it reduces working
voltage of the device. Tantalum type capacitors are usually much smaller in size than the
aluminium type capacitors of same capacitance value. That is why, for very high value of
capacitance, aluminium type electrolyte capacitors do not get used generally. In that case,
tantalum type electrolyte capacitors get used.
Aluminium electrolyte capacitor is formed by a paper impregnated with an electrolyte and two
sheets of aluminium. These two sheets of aluminium are separated by the paper impregnated with
electrolyte. The whole assembly is then rolled up in a cylindrical form, just like a simple paper
capacitor. This roll is then placed inside a hermetically sealed aluminium canister. The oxide
layer is formed by passing a charging current through the device, and it is the polarity of this
charging process that determines the resulting terminal polarity that must be subsequently
observed. If the opposite polarity is applied to the capacitor, the oxide layer is destroyed.
Fig 3.21 Electrolytic capacitor
3.4.9 RESISTORS
A resistor is a passive two-terminal electrical component that implements electrical resistance as
a circuit element. Resistors may be used to reduce current flow, and, at the same time, may act
to lower voltage levels within circuits. In electronic circuits, resistors are used to limit current

59. P a g e | 59
flow, to adjust signal levels, bias active elements, and terminate transmission lines among other
uses. High-power resistors, that can dissipate many watts of electrical power as heat, may be used
as part of motor controls, in power distribution systems, or as test loads for generators. Fixed
resistors have resistances that only change slightly with temperature, time or operating voltage.
Variable resistors can be used to adjust circuit elements (such as a volume control or a lamp
dimmer), or as sensing devices for heat, light, humidity, force, or chemical activity.
Fig 3.22 Symbol of resistors
Resistors are common elements of electrical networks and electronic circuits and are ubiquitous
in electronic equipment. Practical resistors as discrete components can be composed of various
compounds and forms. Resistors are also implemented within integrated circuits.
The electrical function of a resistor is specified by its resistance: common commercial resistors
are manufactured over a range of more than nine orders of magnitude. The nominal value of the
resistance will fall within a manufacturing tolerance.
Fig 3.23 Resistors
Most axial resistors use a pattern of coloured stripes to indicate resistance, which also indicate
tolerance, and may also be extended to show temperature coefficient and reliability class. Cases

60. P a g e | 60

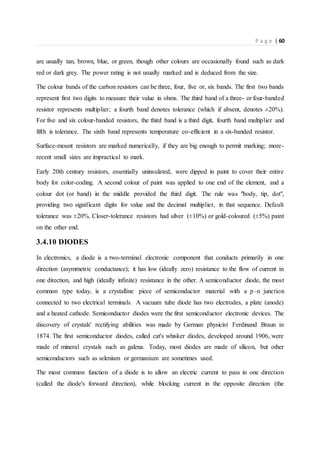

are usually tan, brown, blue, or green, though other colours are occasionally found such as dark
red or dark grey. The power rating is not usually marked and is deduced from the size.
The colour bands of the carbon resistors can be three, four, five or, six bands. The first two bands
represent first two digits to measure their value in ohms. The third band of a three- or four-banded
resistor represents multiplier; a fourth band denotes tolerance (which if absent, denotes ±20%).
For five and six colour-banded resistors, the third band is a third digit, fourth band multiplier and
fifth is tolerance. The sixth band represents temperature co-efficient in a six-banded resistor.
Surface-mount resistors are marked numerically, if they are big enough to permit marking; more-
recent small sizes are impractical to mark.
Early 20th century resistors, essentially uninsulated, were dipped in paint to cover their entire
body for color-coding. A second colour of paint was applied to one end of the element, and a
colour dot (or band) in the middle provided the third digit. The rule was "body, tip, dot",
providing two significant digits for value and the decimal multiplier, in that sequence. Default
tolerance was ±20%. Closer-tolerance resistors had silver (±10%) or gold-coloured (±5%) paint
on the other end.
3.4.10 DIODES
In electronics, a diode is a two-terminal electronic component that conducts primarily in one
direction (asymmetric conductance); it has low (ideally zero) resistance to the flow of current in
one direction, and high (ideally infinite) resistance in the other. A semiconductor diode, the most
common type today, is a crystalline piece of semiconductor material with a p–n junction
connected to two electrical terminals. A vacuum tube diode has two electrodes, a plate (anode)
and a heated cathode. Semiconductor diodes were the first semiconductor electronic devices. The
discovery of crystals' rectifying abilities was made by German physicist Ferdinand Braun in
1874. The first semiconductor diodes, called cat's whisker diodes, developed around 1906, were
made of mineral crystals such as galena. Today, most diodes are made of silicon, but other
semiconductors such as selenium or germanium are sometimes used.
The most common function of a diode is to allow an electric current to pass in one direction
(called the diode's forward direction), while blocking current in the opposite direction (the

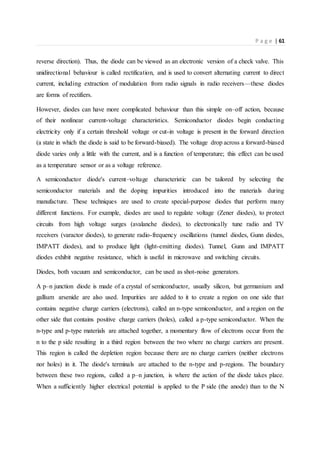

61. P a g e | 61
reverse direction). Thus, the diode can be viewed as an electronic version of a check valve. This
unidirectional behaviour is called rectification, and is used to convert alternating current to direct
current, including extraction of modulation from radio signals in radio receivers—these diodes
are forms of rectifiers.
However, diodes can have more complicated behaviour than this simple on–off action, because
of their nonlinear current-voltage characteristics. Semiconductor diodes begin conducting
electricity only if a certain threshold voltage or cut-in voltage is present in the forward direction
(a state in which the diode is said to be forward-biased). The voltage drop across a forward-biased
diode varies only a little with the current, and is a function of temperature; this effect can be used
as a temperature sensor or as a voltage reference.
A semiconductor diode's current–voltage characteristic can be tailored by selecting the
semiconductor materials and the doping impurities introduced into the materials during
manufacture. These techniques are used to create special-purpose diodes that perform many
different functions. For example, diodes are used to regulate voltage (Zener diodes), to protect
circuits from high voltage surges (avalanche diodes), to electronically tune radio and TV
receivers (varactor diodes), to generate radio-frequency oscillations (tunnel diodes, Gunn diodes,
IMPATT diodes), and to produce light (light-emitting diodes). Tunnel, Gunn and IMPATT
diodes exhibit negative resistance, which is useful in microwave and switching circuits.
Diodes, both vacuum and semiconductor, can be used as shot-noise generators.
A p–n junction diode is made of a crystal of semiconductor, usually silicon, but germanium and
gallium arsenide are also used. Impurities are added to it to create a region on one side that
contains negative charge carriers (electrons), called an n-type semiconductor, and a region on the
other side that contains positive charge carriers (holes), called a p-type semiconductor. When the
n-type and p-type materials are attached together, a momentary flow of electrons occur from the
n to the p side resulting in a third region between the two where no charge carriers are present.
This region is called the depletion region because there are no charge carriers (neither electrons
nor holes) in it. The diode's terminals are attached to the n-type and p-regions. The boundary
between these two regions, called a p–n junction, is where the action of the diode takes place.
When a sufficiently higher electrical potential is applied to the P side (the anode) than to the N

62. P a g e | 62
side (the cathode), it allows electrons to flow through the depletion region from the N-type side
to the P-type side. The junction does not allow the flow of electrons in the opposite direction
when the potential is applied in reverse, creating, in a sense, an electrical check valve.
Fig 3.24 P-N junction diode
The Schottky diode (named after German physicist Walter H. Schottky), also known as hot
carrier diode, is a semiconductor diode formed by the junction of a semiconductor with a metal.
It has a low forward voltage drop and a very fast switching action. The cat's-whisker detectors
used in the early days of wireless and metal rectifiers used in early power applications can be
considered primitive Schottky diodes.
When sufficient forward voltage is applied, a current flows in the forward direction. A silicon
diode has a typical forward voltage of 600–700 mV, while the Schottky's forward voltage is 150
– 450 mV. This lower forward voltage requirement allows higher switching speeds and better
system efficiency.
Fig 3.25 Schottky Diodes

63. P a g e | 63

64. P a g e | 64
3.5 DATASHEETS
CONTROLLER(KA7500C)

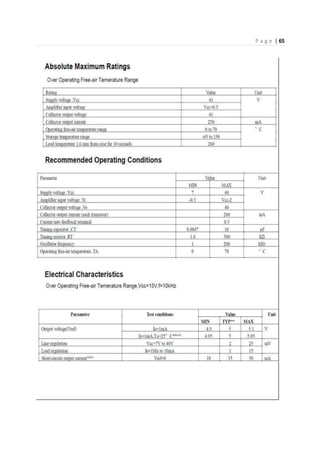

65. P a g e | 65

66. P a g e | 66

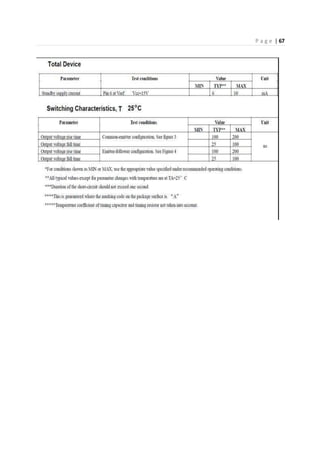

67. P a g e | 67

68. P a g e | 68
Fig 3.26 TEST CIRCUIT

69. P a g e | 69
Fig 3.27 OPERATIONAL WAVEFORMS
Op-Amp (LM 741)

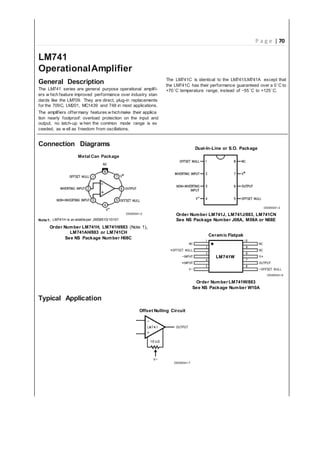

70. P a g e | 70
LM741
AmplifierOperational
DescriptionGeneral
general purpose operational amplifi-The LM741 series are
performance over stanindustryers w hich feature improved
plug-indirect, replacementsaredards like the LM709. They
applications.in748andMC1439LM201,C,709thefor most
theirw hichmany features applicaThe amplifiers offer make
andoverload protection on the inputnearly foolproof:tion
output, no latch-up w hen the common mode range is ex
ceeded, as w ell as freedom from oscillations.
The thatexceptLM741/LM741AthetoidenticalisLM741C
the to0aoverguaranteedperformancetheirhas ˚CLM741C
of −55˚C to +125˚C.˚C+70 temperature range, instead
Connection Diagrams
ApplicationTypical
PackageMetal Can
DS009341-2
Note1: LM741H is av ailableper JM38510/10101
LM741H,NumberOrder LM741H/883 1)Note( ,
LM741CHorLM741AH/883
See NS Package Number H08C
Dual-In-Line or S.O. Package
DS009341-3
Order Number LM741J, LM741CNLM741J/883,
N08ENumberPackageSee M08AJ08A, orNS
FlatpakCeramic
DS009341-6
Number LM741W/883Order
See NS Package Number W10A
Offset Nulling Circuit
DS009341-7

71. P a g e | 71
Absolute Maximum Ratings (Note 2)
If Military/Aerospace specified devices are required, please contact the National Semiconductor Sales Office/
Distributors for availability and specifications.
(Note 7)
LM741A LM741 LM741C
Supply Voltage ±22V ±22V ±18 V
Pow er Dissipation (Note 3) 500 mW 500 mW 500 mW
Differential Input Voltage ±30V ±30V ±30 V
Input Voltage (Note 4) ±15V ±15V ±15 V
Output Short Circuit Duration Continuous Continuous Continuous
Operating Temperature Range −55˚C to +125˚C −55˚C to +125˚C 0˚C to +70 ˚C
Storage Temperature Range −65˚C to +150˚C −65˚C to +150˚C −65˚C to +150
˚C
Junction Temperature
Soldering Information
150˚C 150˚C 100 ˚C
N-Package (10 seconds) 260˚C 260˚C 260 ˚C
J- or H-Package (10 seconds)
M-Package
300˚C 300˚C 300 ˚C
Vapor Phase (60 seconds) 215˚C 215˚C 215 ˚C
Infrared (15 seconds) 215˚C 215˚C 215 ˚C
See AN-450 “Surface Mounting Methods and Their Effect on Product Reliability” for other methods of soldering
surface mount devices.
ESD Tolerance (Note 8) 400V 400V 400 V
Parameter Conditions LM741A LM741 LM741C Units
Min Typ Max Min Typ Max Min Typ Max
Input Offset Voltage TA = 25 ˚C
RS ≤ 10 kΩ 1.0 5.0 2.0 6.0 mV
RS ≤ 50Ω 0.8 3.0 mV
TAMIN ≤ TA ≤ TAMAX
RS ≤ 50Ω 4.0 mV
RS ≤ 10 kΩ 6.0 7.5 mV
Average Input Offset
Voltage Drift
15 µV/˚C
Input Offset Voltage
Adjustment Range
TA = 25˚C, VS = ±20V ±10 ±15 ±15 mV
Input Offset Current TA = 25˚C 3.0 30 20 200 20 200 nA
TAMIN ≤ TA ≤ TAMAX 70 85 500 300 nA
Average Input Offset
Current Drift
0.5 nA/˚C
Input Bias Current TA = 25˚C 30 80 80 500 80 500 nA
TAMIN ≤ TA ≤ TAMAX 0.210 1.5 0.8 µA
Input Resistance TA = 25˚C, VS = ±20V 1.0 6.0 0.3 2.0 0.3 2.0 MΩ
TAMIN ≤ TA ≤ TAMAX,
VS = ±20 V
0.5 MΩ

72. P a g e | 72
Input Voltage Range TA = 25˚C ±12 ±13 V
TAMIN ≤ TA ≤ TAMAX ±12 ±13 V
Electrical Characteristics (Note 5)

73. P a g e | 73

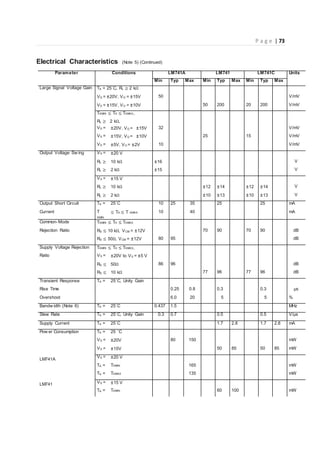

Electrical Characteristics (Note 5) (Continued)
Parameter Conditions LM741A LM741 LM741C Units
Min Typ Max Min Typ Max Min Typ Max
Large Signal Voltage Gain TA = 25˚C, RL ≥ 2 kΩ
VS = ±20V, VO = ±15V 50 V/mV
VS = ±15V, VO = ±10V 50 200 20 200 V/mV
TAMIN ≤ TA ≤ TAMAX,
RL ≥ 2 kΩ,
VS = ±20V, VO = ±15V 32 V/mV
VS = ±15V, VO = ±10V 25 15 V/mV
VS = ±5V, VO = ±2V 10 V/mV
Output Voltage Sw ing VS = ±20 V
RL ≥ 10 kΩ ±16 V
RL ≥ 2 kΩ ±15 V
VS = ±15 V
RL ≥ 10 kΩ ±12 ±14 ±12 ±14 V
RL ≥ 2 kΩ ±10 ±13 ±10 ±13 V
Output Short Circuit TA = 25˚C 10 25 35 25 25 mA
Current T
AMIN
≤ TA ≤ T AMAX 10 40 mA
Common-Mode TAMIN ≤ TA ≤ TAMAX
Rejection Ratio RS ≤ 10 kΩ, VCM = ±12V 70 90 70 90 dB
RS ≤ 50Ω, VCM = ±12V 80 95 dB
Supply Voltage Rejection TAMIN ≤ TA ≤ TAMAX,
Ratio VS = ±20V to VS = ±5 V
RS ≤ 50Ω 86 96 dB
RS ≤ 10 kΩ 77 96 77 96 dB
Transient Response TA = 25˚C, Unity Gain
Rise Time 0.25 0.8 0.3 0.3 µs
Overshoot 6.0 20 5 5 %
Bandw idth (Note 6) TA = 25˚C 0.437 1.5 MHz
Slew Rate TA = 25˚C, Unity Gain 0.3 0.7 0.5 0.5 V/µs
Supply Current TA = 25˚C 1.7 2.8 1.7 2.8 mA
Pow er Consumption TA = 25 ˚C
VS = ±20V 80 150 mW
LM741A
VS = ±15V 50 85 50 85 mW
VS = ±20 V
TA = TAMIN 165 mW
LM741
TA = TAMAX 135 mW
VS = ±15 V
TA = TAMIN 60 100 mW

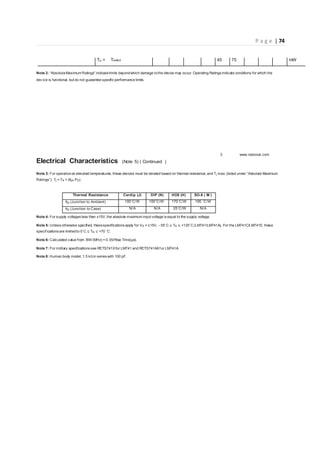

74. P a g e | 74
TA = TAMAX 45 75 mW
Note 2: “AbsoluteMaximum Ratings” indicatelimits beyondwhich damage tothe device may occur. Operating Ratings indicate conditions for which the
dev ice is functional, but do not guarantee specific performance limits.
3 www.national.com
Electrical Characteristics (Note 5) ( Continued )
Note 3: For operationat elevated temperatures, these devices must be derated based on thermal resistance, and Tj max. (listed under “Absolute Maximum
Ratings”). Tj = TA + (θjA PD).
Thermal Resistance Cerdip (J) DIP (N) HO8 (H) SO-8 ( M )
θjA (Junction to Ambient) 100˚C/W 100˚C/W 170˚C/W 195 ˚C/W
θjC (Junction to Case) N/A N/A 25˚C/W N/A
Note 4: For supply voltages less than ±15V, the absolute maximum input voltage is equal to the supply voltage.
Note 5: Unless otherwise specified, thesespecifications apply for VS = ±15V, −55˚C ≤ TA ≤ +125˚C (LM741/LM741A). For the LM741C/LM741E, these
specif ications are limitedto 0˚C ≤ TA ≤ +70 ˚C.
Note 6: Calculated value from: BW (MHz) = 0.35/Rise Time(µs).
Note 7: For military specifications see RETS741Xfor LM741 and RETS741AXf or LM741A.
Note 8: Human body model, 1.5 kΩin series with 100 pF.

75. P a g e | 75

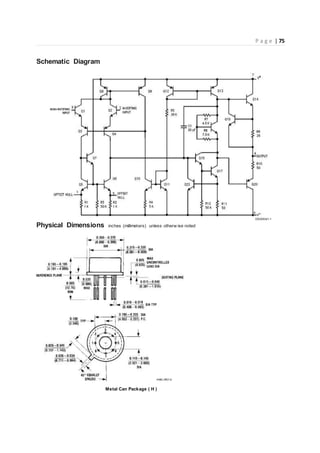

Schematic Diagram
DS009341-1
Physical Dimensions inches (millimeters) unless otherw ise noted
Metal Can Package ( H )

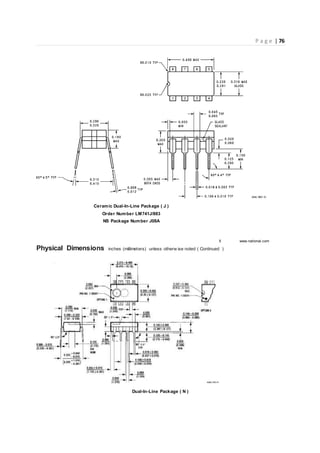

76. P a g e | 76
Ceramic Dual-In-Line Package ( J )
Order Number LM741J/883
NS Package Number J08A
5 www.national.com
Physical Dimensions inches (millimeters) unless otherw ise noted ( Continued )
Dual-In-Line Package ( N )

77. P a g e | 77

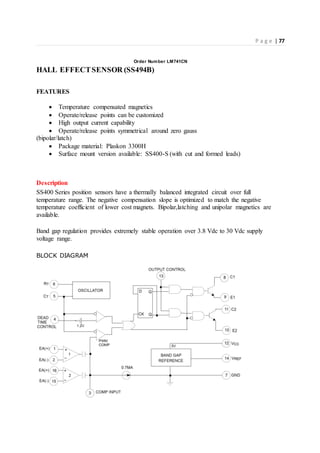

Order Number LM741CN
HALL EFFECTSENSOR (SS494B)
FEATURES
 Temperature compensated magnetics
 Operate/release points can be customized
 High output current capability
 Operate/release points symmetrical around zero gauss
(bipolar/latch)
 Package material: Plaskon 3300H
 Surface mount version available: SS400-S (with cut and formed leads)
Description
SS400 Series position sensors have a thermally balanced integrated circuit over full
temperature range. The negative compensation slope is optimized to match the negative
temperature coefficient of lower cost magnets. Bipolar,latching and unipolar magnetics are
available.
Band gap regulation provides extremely stable operation over 3.8 Vdc to 30 Vdc supply
voltage range.
BLOCK DIAGRAM

78. P a g e | 78
INTERNALBLOCK DIAGRAMOFKA7500C

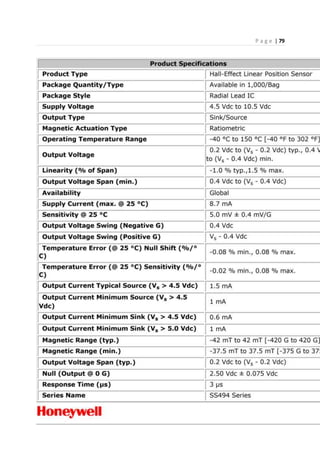

79. P a g e | 79

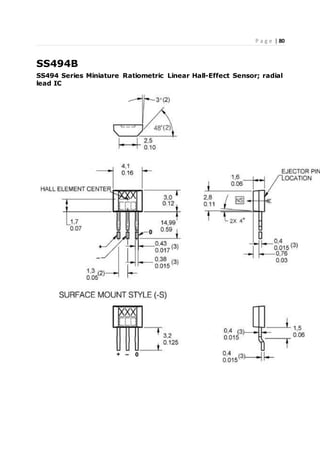

80. P a g e | 80
SS494B
SS494 Series Miniature Ratiometric Linear Hall-Effect Sensor; radial
lead IC

81. P a g e | 81
MOSFET
N-CHANNEL 100V - 0.055 Ω - 22A TO -220
SALES TYPE MARKING PACKAGE PACKAGING
IRF540 IRF540& TO-220 TUBE
ABSOLUTE MAXIMUM RATINGS
Symbol Parameter Value Unit
VDS Drain-source Voltage (VGS = 0) 100 V
VDGR Drain-gate Voltage (RGS = 20 kΩ) 100 V
VGS Gate- source Voltage ± 20 V
ID Drain Current (continuous) at TC = 25°C 22 A
ID Drain Current (continuous) at TC = 100°C 15 A
IDM(•) Drain Current (pulsed) 88 A
IRF540

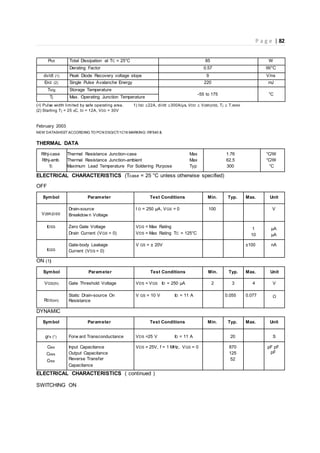

82. P a g e | 82
Ptot Total Dissipation at TC = 25°C 85 W
Derating Factor 0.57 W/°C
dv/dt (1) Peak Diode Recovery voltage slope 9 V/ns
EAS (2) Single Pulse Avalanche Energy 220 mJ
Tstg Storage Temperature
-55 to 175 °C
Tj Max. Operating Junction Temperature
(•) Pulse width limited by safe operating area. 1) ISD ≤22A, di/dt ≤300A/µs, VDD ≤ V(BR)DSS, Tj ≤ TJMAX
(2) Starting Tj = 25 oC, ID = 12A, VDD = 30V
February 2003
NEW DATASHEET ACCORDING TO PCN DSG/CT/1C16 MARKING: IRF540 &
THERMAL DATA
Rthj-case
Rthj-amb
Tl
Thermal Resistance Junction-case
Thermal Resistance Junction-ambient
Maximum Lead Temperature For Soldering Purpose
Max
Max
Typ
1.76
62.5
300
°C/W
°C/W
°C
ELECTRICAL CHARACTERISTICS (Tcase = 25 °C unless otherwise specified)
OFF
Symbol Parameter Test Conditions Min. Typ. Max. Unit
V(BR)DSS
Drain-source
Breakdow n Voltage
I D = 250 µA, VGS = 0 100 V
IDSS Zero Gate Voltage
Drain Current (VGS = 0)
VDS = Max Rating
VDS = Max Rating TC = 125°C
1
10
µA
µA
IGSS
Gate-body Leakage
Current (VDS = 0)
V GS = ± 20V ±100 nA
ON (1)
Symbol Parameter Test Conditions Min. Typ. Max. Unit
VGS(th) Gate Threshold Voltage VDS = VGS ID = 250 µA 2 3 4 V
RDS(on)
Static Drain-source On
Resistance
V GS = 10 V ID = 11 A 0.055 0.077 Ω
DYNAMIC
Symbol Parameter Test Conditions Min. Typ. Max. Unit
gf s (*) Forw ard Transconductance VDS =25 V ID = 11 A 20 S
Ciss
Coss
Crss
Input Capacitance
Output Capacitance
Reverse Transfer
Capacitance
VDS = 25V, f = 1 MHz, VGS = 0 870
125
52
pF pF
pF
ELECTRICAL CHARACTERISTICS ( continued )
SWITCHING ON

83. P a g e | 83

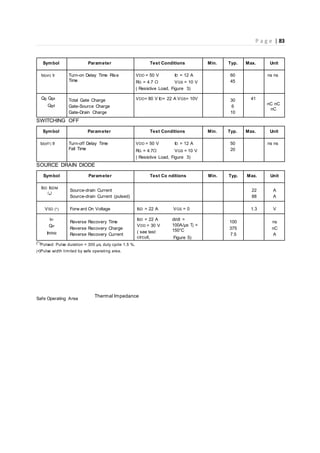

Symbol Parameter Test Conditions Min. Typ. Max. Unit
td(on) tr Turn-on Delay Time Rise
Time
VDD = 50 V ID = 12 A
RG = 4.7 Ω VGS = 10 V
( Resistive Load, Figure 3)
60
45
ns ns
Qg Qgs
Qgd
Total Gate Charge
Gate-Source Charge
Gate-Drain Charge
VDD= 80 V ID= 22 A VGS= 10V 30
6
10
41
nC nC
nC
SWITCHING OFF
Symbol Parameter Test Conditions Min. Typ. Max. Unit
td(of f ) tf Turn-off Delay Time
Fall Time
VDD = 50 V ID = 12 A
RG = 4.7Ω VGS = 10 V
( Resistive Load, Figure 3)
50
20
ns ns
SOURCE DRAIN DIODE
Symbol Parameter Test Co nditions Min. Typ. Max. Unit
ISD ISDM
(•)
Source-drain Current
Source-drain Current (pulsed)
22
88
A
A
VSD (*) Forw ard On Voltage ISD = 22 A VGS = 0 1.3 V
trr
Qrr
IRRM
Reverse Recovery Time
Reverse Recovery Charge
Reverse Recovery Current
ISD = 22 A
VDD = 30 V
( see test
circuit,
di/dt =
100A/µs Tj =
150°C
Figure 5)
100
375
7.5
ns
nC
A
(*)Pulsed: Pulse duration = 300 µs, duty cycle 1.5 %.
(•)Pulse width limited by safe operating area.

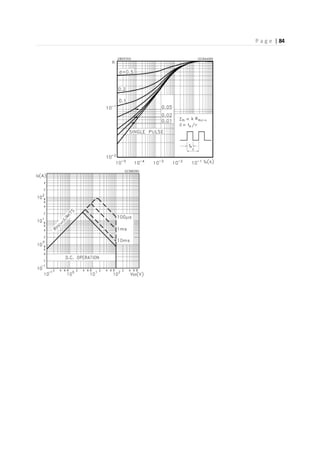

Safe Operating Area
Thermal Impedance

84. P a g e | 84

85. Output Characteristics Transfer Characteristics Normalized Gate Threshold Voltage vs Temperature

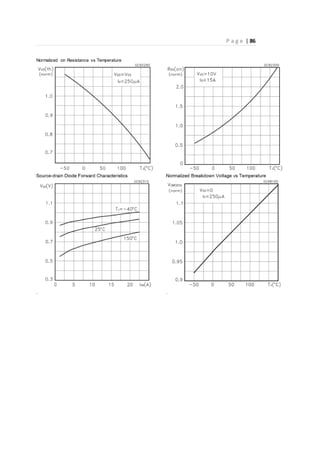

86. P a g e | 86
Normalized on Resistance vs Temperature

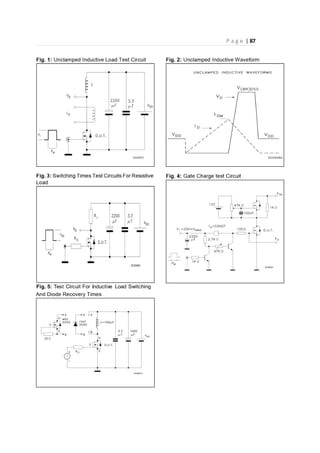

87. P a g e | 87
Fig. 5: Test Circuit For Inductive Load Switching

88. P a g e | 88
TO-220 MECHANICAL DATA
DIM.
mm. inch.
MIN. TYP. MAX. MIN. TYP. TYP.
A 4.4 4.6 0.173 0.181
C 1.23 1.32 0.048 0.051
D 2.40 2.72 0.094 0.107
E 0.49 0.70 0.019 0.027
F 0.61 0.88 0.024 0.034
F1 1.14 1.70 0.044 0.067
F2 1.14 1.70 0.044 0.067
G 4.95 5.15 0.194 0.203
G1 2.40 2.70 0.094 0.106
H2 10 10.40 0.393 0.409
L2 16.40 0.645
L3 28.90 1.137
L4 13 14 0.511 0.551
L5 2.65 2.95 0.104 0.116
L6 15.25 15.75 0.600 0.620
L7 6.20 6.60 0.244 0.260
L9 3.50 3.93 0.137 0.154
DIA 3.75 3.85 0.147 0.151

89. P a g e | 89

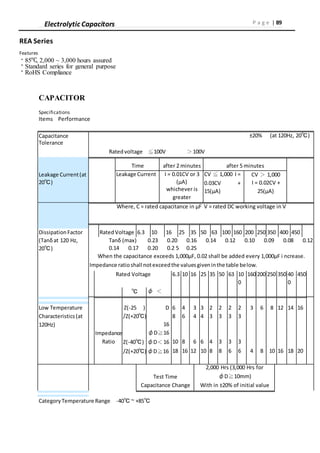

CAPACITOR
Specifications
Items Performance
CategoryTemperature Range -40℃ ~ +85℃
Capacitance
Tolerance
±20% (at 120Hz, 20℃)
Ratedvoltage ≦100V ＞100V
Leakage Current(at
20℃)
Time after 2 minutes after 5 minutes
Leakage Current I = 0.01CV or 3
(μA)
whichever is
greater
CV ≦ 1,000 I =
0.03CV +
15(μA)
CV ＞ 1,000
I = 0.02CV +
25(μA)
Where, C = rated capacitance in μF V = rated DC working voltage in V
DissipationFactor RatedVoltage 6.3 10 16 25 35 50 63 100 160 200 250 350 400 450
(Tanδat 120 Hz,
20℃)
Tanδ (max) 0.23 0.20 0.16 0.14 0.12 0.10 0.09 0.08 0.12
0.14 0.17 0.20 0.2 5 0.25
When the capacitance exceeds 1,000μF, 0.02 shall be added every 1,000μF i ncrease.
Impedance ratioshall notexceedthe valuesgiveninthe table below.
Rated Voltage 6.3 10 16 25 35 50 63 10
0
160 200 250 350 40
0
450
℃ φ ＜
Low Temperature
Characteristics(at
120Hz)
Impedance
Z(-25 )
/Z(+20℃)
D
16
φD≧16
6
8
4
6
3
4
3
4
2
3
2
3
2
3
2
3
3 6 8 12 14 16
Ratio Z(-40℃) φD＜16 10 8 6 6 4 3 3 3
/Z(+20℃) φD≧16 18 16 12 10 8 8 6 6 4 8 10 16 18 20
Test Time
2,000 Hrs (3,000 Hrs for
φD≧10mm)
Capacitance Change With in ±20% of initial value
Electrolytic Capacitors
REA Series
Features
‧85℃, 2,000 ~ 3,000 hours assured
‧Standard series for general purpose
‧RoHS Compliance

90. P a g e | 90

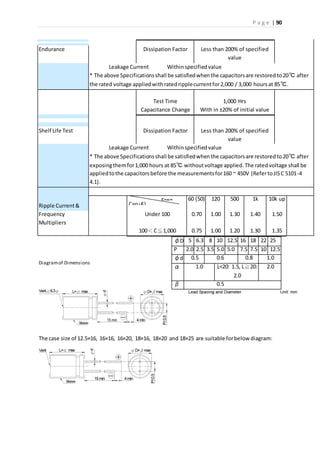

Diagramof Dimensions
The case size of 12.5×16, 16×16, 16×20, 18×16, 18×20 and 18×25 are suitable forbelow diagram:
Endurance Dissipation Factor Less than 200% of specified
value
Leakage Current Withinspecifiedvalue
* The above Specificationsshall be satisfiedwhenthe capacitorsare restoredto20℃ after
the rated voltage appliedwithratedripplecurrentfor2,000 / 3,000 hoursat 85℃.
Test Time 1,000 Hrs
Capacitance Change With in ±20% of initial value
Shelf Life Test Dissipation Factor Less than 200% of specified
value
Leakage Current Withinspecifiedvalue
* The above Specificationsshall be satisfiedwhenthe capacitorsare restoredto20℃ after
exposingthemfor1,000 hours at 85℃ withoutvoltage applied.The ratedvoltage shall be
appliedtothe capacitorsbefore the measurementsfor160 ~ 450V (RefertoJISC 5101-4
4.1).
Ripple Current&
60 (50) 120 500 1k 10k up
Frequency
Multipliers
Under 100 0.70 1.00 1.30 1.40 1.50
100＜C≦1,000 0.75 1.00 1.20 1.30 1.35
φD 5 6.3 8 10 12.5 16 18 22 25
P 2.0 2.5 3.5 5.0 5.0 7.5 7.5 10 12.5
φd 0.5 0.6 0.8 1.0
α 1.0 L<20: 1.5, L≧20:
2.0
2.0
β 0.5
Freq.
Cap.μF)

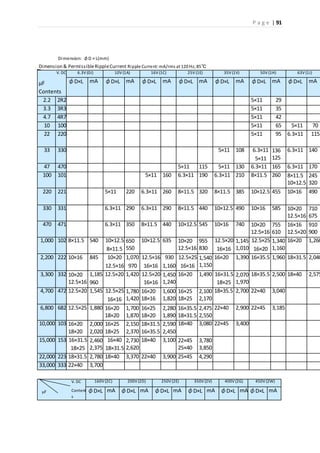

91. P a g e | 91
Dimension: φD × L(mm)
Dimension & PermissibleRippleCurrent Ripple Current:mA/rms at 120 Hz, 85℃
V. DC
μF
Contents
6.3V (0J) 10V (1A) 16V (1C) 25V (1E) 35V (1V) 50V (1H) 63V (1J)
φD×L mA φD×L mA φD×L mA φD×L mA φD×L mA φD×L mA φD×L mA
2.2 2R2 5×11 29
3.3 3R3 5×11 35
4.7 4R7 5×11 42
10 100 5×11 65 5×11 70
22 220 5×11 95 6.3×11 115
33 330 5×11 108 6.3×11
5×11
136
125
6.3×11 140
47 470 5×11 115 5×11 130 6.3×11 165 6.3×11 170
100 101 5×11 160 6.3×11 190 6.3×11 210 8×11.5 260 8×11.5
10×12.5
245
320
220 221 5×11 220 6.3×11 260 8×11.5 320 8×11.5 385 10×12.5 455 10×16 490
330 331 6.3×11 290 6.3×11 290 8×11.5 440 10×12.5 490 10×16 585 10×20
12.5×16
710
675
470 471 6.3×11 350 8×11.5 440 10×12.5 545 10×16 740 10×20
12.5×16
755
610
16×16
12.5×20
910
900
1,000 102 8×11.5 540 10×12.5
8×11.5
650
550
10×12.5 635 10×20
12.5×16
955
830
12.5×20
16×16
1,145
1,010
12.5×25
16×20
1,340
1,160
16×20 1,260
2,200 222 10×16 845 10×20
12.5×16
1,070
970
12.5×16
16×16
930
1,160
12.5×25
16×16
1,540
1,150
16×20 1,390 16×35.5 1,960 18×31.5 2,040
3,300 332 10×20
12.5×16
1,185
960
12.5×20 1,420 12.5×20
16×16
1,450
1,240
16×20 1,490 16×31.5
18×25
2,070
1,970
18×35.5 2,500 18×40 2,575
4,700 472 12.5×20 1,545 12.5×25
16×16
1,780
1,420
16×20
18×16
1,600
1,820
16×25
18×25
2,100
2,170
18×35.5 2,700 22×40 3,040
6,800 682 12.5×25 1,880 16×20
18×20
1,700
1,870
16×25
18×20
2,280
1,890
16×35.5
18×31.5
2,475
2,550
22×40 2,900 22×45 3,185
10,000 103 16×20
18×20
2,000
2,020
16×25
18×25
2,150
2,370
18×31.5
16×35.5
2,590
2,450
18×40 3,080 22×45 3,400
15,000 153 16×31.5
18×25
2,460
2,375
16×40
18×31.5
2,730
2,620
18×40 3,100 22×45
25×40
3,780
3,850
22,000 223 18×31.5 2,780 18×40 3,370 22×40 3,900 25×45 4,290
33,000 333 22×40 3,700
V. DC
Content
s
160V (2C) 200V (2D) 250V (2E) 350V (2V) 400V (2G) 450V (2W)
φD×L mA φD×L mA φD×L mA φD×L mA φD×L mA φD×L mAμF

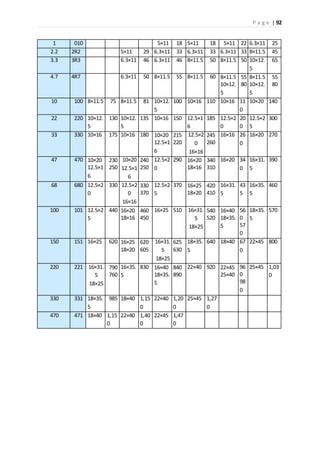

92. P a g e | 92
1 010 5×11 18 5×11 18 5×11 22 6.3×11 25
2.2 2R2 5×11 29 6.3×11 33 6.3×11 33 6.3×11 33 8×11.5 45
3.3 3R3 6.3×11 46 6.3×11 46 8×11.5 50 8×11.5 50 10×12.
5
65
4.7 4R7 6.3×11 50 8×11.5 55 8×11.5 60 8×11.5
10×12.
5
55
80
8×11.5
10×12.
5
55
80
10 100 8×11.5 75 8×11.5 81 10×12.
5
100 10×16 110 10×16 11
0
10×20 140
22 220 10×12.
5
130 10×12.
5
135 10×16 150 12.5×1
6
185 12.5×2
0
20
0
12.5×2
5
300
33 330 10×16 175 10×16 180 10×20
12.5×1
6
215
220
12.5×2
0
16×16
245
260
16×16 26
0
16×20 270
47 470 10×20
12.5×1
6
230
250
10×20
12.5×1
6
240
250
12.5×2
0
290 16×20
18×16
340
310
16×20 34
0
16×31.
5
390
68 680 12.5×2
0
330 12.5×2
0
16×16
330
370
12.5×2
5
370 16×25
18×20
420
410
16×31.
5
43
5
16×35.
5
460
100 101 12.5×2
5
440 16×20
18×16
460
450
16×25 510 16×31.
5
18×25
540
520
16×40
18×35.
5
56
0
57
0
18×35.
5
570
150 151 16×25 620 16×25
18×20
620
605
16×31.
5
18×25
625
630
18×35.
5
640 18×40 67
0
22×45 800
220 221 16×31.
5
18×25
790
760
16×35.
5
830 16×40
18×35.
5
840
890
22×40 920 22×45
25×40
96
0
98
0
25×45 1,03
0
330 331 18×35.
5
985 18×40 1,15
0
22×40 1,20
0
25×45 1,27
0
470 471 18×40 1,15
0
22×40 1,40
0
22×45 1,47
0

93. P a g e | 93

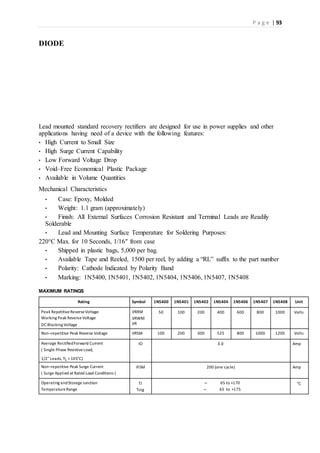

DIODE
Lead mounted standard recovery rectifiers are designed for use in power supplies and other
applications having need of a device with the following features:
• High Current to Small Size
• High Surge Current Capability
• Low Forward Voltage Drop
• Void–Free Economical Plastic Package
• Available in Volume Quantities
Mechanical Characteristics
• Case: Epoxy, Molded
• Weight: 1.1 gram (approximately)
• Finish: All External Surfaces Corrosion Resistant and Terminal Leads are Readily
Solderable
• Lead and Mounting Surface Temperature for Soldering Purposes:
220°C Max. for 10 Seconds, 1/16″ from case
• Shipped in plastic bags, 5,000 per bag.
• Available Tape and Reeled, 1500 per reel, by adding a “RL” suffix to the part number
• Polarity: Cathode Indicated by Polarity Band
• Marking: 1N5400, 1N5401, 1N5402, 1N5404, 1N5406, 1N5407, 1N5408
MAXIMUM RATINGS
Rating Symbol 1N5400 1N5401 1N5402 1N5404 1N5406 1N5407 1N5408 Unit
Peak Repetitive ReverseVoltage
Working Peak ReverseVoltage
DC Blocking Voltage
VRRM
VRWM
VR
50 100 200 400 600 800 1000 Volts
Non–repetitive Peak Reverse Voltage VRSM 100 200 300 525 800 1000 1200 Volts
Average RectifiedForward Current
( Single Phase ResistiveLoad,
1/2″ Leads, TL =105°C)
IO 3.0 Amp
Non–repetitive Peak Surge Current
( Surge Applied at Rated Load Conditions )
IFSM 200 (one cycle) Amp
Operating andStorageJunction
TemperatureRange
TJ
Tstg
– 65 to +170
– 65 to +175
°C

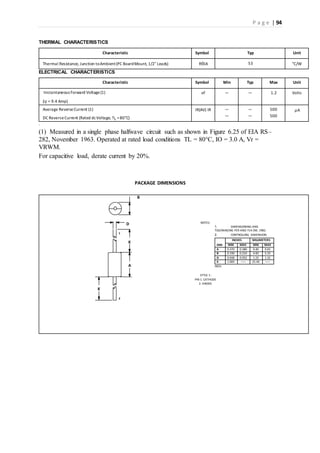

94. P a g e | 94
THERMAL CHARACTERISTICS
Characteristic Symbol Typ Unit
Thermal Resistance, Junction toAmbient(PC BoardMount, 1/2″ Leads) RθJA 53 °C/W
ELECTRICAL CHARACTERISTICS
Characteristic Symbol Min Typ Max Unit
Instantaneous Forward Voltage(1)
(iF = 9.4 Amp)
vF — — 1.2 Volts
Average ReverseCurrent (1)
DC ReverseCurrent (Rated dcVoltage, TL =80°C)
IR(AV) IR —
—
—
—
500
500
µA
.
(1) Measured in a single phase halfwave circuit such as shown in Figure 6.25 of EIA RS–
282, November 1963. Operated at rated load conditions TL = 80°C, IO = 3.0 A, Vr =
VRWM.
For capacitive load, derate current by 20%.
PACKAGE DIMENSIONS
B
NOTES:
1. DIMENSIONING AND
TOLERANCING PER ANSI Y14.5M, 1982.
2. CONTROLLING DIMENSION:
INCH.
STYLE 1:
PIN 1. CATHODE
2. ANODE
DIM
INCHES MILLIMETERS
MIN MAX MIN MAX
A 0.370 0.380 9.40 9.65
B 0.190 0.210 4.83 5.33
D 0.048 0.052 1.22 1.32
K 1.000 ––– 25.40 –––
1
2
K
A
K
D

95. P a g e | 95
CHAPTER 4
ADVANTAGES AND IMROVEMENTS
The system created is a simple system and is a stable one , Though, the control system can be
modified for a specific response that could remove the effect of external disturbances keeping
the magnet hovering for longer duration of time. Also as the electromagnet has a steel core so
the magnetic effect of steel comes into play when the hovering magnet gets too close to the
electromagnet and this can’t be prevented by this system as the current through the
electromagnet is having the same polarity always ,this can be improved by using another
MOSFET in the circuit which can reverse the polarity of the current through the electromagnet
when the hovering magnet comes too close to the electromagnet ,Thus by using another
MOSFET in the circuit ,range of hovering magnet can be increased . Earlier our electromagnet
could only attract as current was in one direction and hence the produced magnetic field, but
with one more MOSFET the current can be made to reverse polarity according to the position

96. P a g e | 96
of the magnet and hence the field would be repulsive when the hovering magnet is too near
thus preventing snapping of the magnet on to Hall effect sensor and the field will be attractive
when the hovering magnet moves too far away, thus preventing falling down of the hovering
magnet.
CHAPTER 5
CONCLUSION AND FUTURE SCOPE
The ferromagnetic material was able to suspend in the mid-air when the force of gravity was
countered by the force of attraction of the electromagnet. The object will levitate till the time
power is ON and the difference between the reference voltage and the difference output is zero.
If the suspended object is rotated it will continue to rotate infinitely without friction unless a
force is applied to stop it. By changing the reference voltage the position of the levitating object
can be varied as it directly effects the amount of current through the coil and hence the magnetic
effect.
Magnetic Levitation system is widely used now-a-days. Stability is of great issues in these
system but lots of efforts are being made to improve these systems. This system is totally

97. P a g e | 97

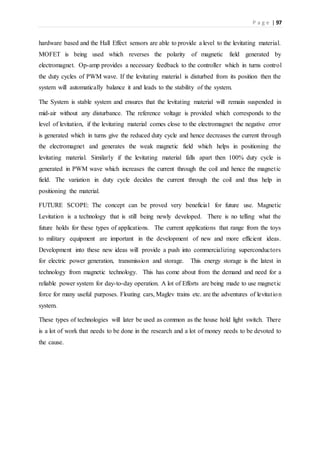

hardware based and the Hall Effect sensors are able to provide a level to the levitating material.
MOFET is being used which reverses the polarity of magnetic field generated by
electromagnet. Op-amp provides a necessary feedback to the controller which in turns control
the duty cycles of PWM wave. If the levitating material is disturbed from its position then the
system will automatically balance it and leads to the stability of the system.
The System is stable system and ensures that the levitating material will remain suspended in
mid-air without any disturbance. The reference voltage is provided which corresponds to the
level of levitation, if the levitating material comes close to the electromagnet the negative error
is generated which in turns give the reduced duty cycle and hence decreases the current through
the electromagnet and generates the weak magnetic field which helps in positioning the
levitating material. Similarly if the levitating material falls apart then 100% duty cycle is
generated in PWM wave which increases the current through the coil and hence the magnetic
field. The variation in duty cycle decides the current through the coil and thus help in
positioning the material.
FUTURE SCOPE: The concept can be proved very beneficial for future use. Magnetic
Levitation is a technology that is still being newly developed. There is no telling what the
future holds for these types of applications. The current applications that range from the toys
to military equipment are important in the development of new and more efficient ideas.
Development into these new ideas will provide a push into commercializing superconductors
for electric power generation, transmission and storage. This energy storage is the latest in
technology from magnetic technology. This has come about from the demand and need for a
reliable power system for day-to-day operation. A lot of Efforts are being made to use magnetic
force for many useful purposes. Floating cars, Maglev trains etc. are the adventures of levitation
system.
These types of technologies will later be used as common as the house hold light switch. There
is a lot of work that needs to be done in the research and a lot of money needs to be devoted to
the cause.

98. P a g e | 98
REFFERENCES
[1] Introduction to magnetic bearing by JAGU SRINIVASA RAO (Pdf)
[2] Magnetic Bearings by HILLYARD (Pdf)
[3] Design and Control of Active Magnetic Bearing Systems for High Speed Rotation by
RENE LARSONNEUR (Pdf)
[4] PMB by Gerhard Schweitzer (PDF)
[5] Optimization of Repulsive Passive Magnetic Bearings Roland Moser, Jan Sandtner,
and Hannes Bleule.
[6] http://en.wikipedia.org/wiki/MAGLEV_TRAIN
[7] J. Powell, G. Maise, and J. Paniagua, “MAGLEV: A new concept for very low cost
transportation using technique of magnetic levitation,” paper IAF-01-S.6.04, 52nd
International Astronautical Congress, Toulouse, France, Oct. 1-5, 200
[8] http://www.zeltom.com
[9] http:/Fairchildsemiconductors.com
