The FSP Hydro series power supplies are designed for gamers and provide affordable performance. They feature 80 Plus bronze efficiency of up to 88%, a single +12V rail for stable power delivery, ribbon cables for neat installation, and silent operation even at high temperatures. The series includes 500W, 600W, and 700W models with full protections.

1. Introduction
Features
FSP Hydro series is designed for the need of general gamers who need good performance at affordable prices.
No compromise is what FSP looks for electronic performance even in mainstream product range.
By 230V 80Plus bronze certification, its efficiency can be reached up to 88% at typical loading.
The powerful single +12V rail design provides stable power to your hungry graphic cards while you play games.
Gamers are easy to install all cables to all system components through motherboard tray in the back of chassis
by ribbon cable design.
With advanced air-flow design, PC system is running in silent operation at full loading even the inside ambient
temperature of PC chassis is at 40°C.
FSP Hydro series offers three models which are 500W, 600W, and 700W.
With full protections, gamers don’t need to worry about dynamic and unstable usage when PC is at heavy
loading. Wide input AC mains range is also a benefit to gamers as well.
Wide Input AC Range
A reliable design for any unstable
voltage condition
500W / 600W / 700W
HYDRO Series
© 2015 FSP Group. All Rights Reserved. All trademarks are registered to their respective owners.
Ribbon Cable
Give any systems a neat and polished look
(Black-sleeved cable for 20+4 pin)
•Unique product ID with stylish side sticker
•Advanced air-flow design in silent operation
•Complies with newest ATX12V & EPS12V standards
•Wide input AC range from 160Vac to 280Vac
•230V 80PLUS® Bronze certification
•Efficiency ≧88%
•Powerful single +12V rail design
•Ribbon cables for the need of enthusiasts and gamers
•SLI and Crossfire ready
•Full protections: OCP, OVP, SCP, OPP
•Global safety approved
2 3 0 V E U
33
3
YEAR WARRAN
TY
3
YEAR WARRAN
TY
+12V Single Rail Design
Provide strong power to any overloading
conditions

2. Product Overview
500W / 600W / 700W
HYDRO Series
© 2015 FSP Group. All Rights Reserved. All trademarks are registered to their respective owners.
Wide input AC range
Input AC range from
160Vac to 280Vac, a
reliable design for any
unstable voltage
condition.
280V
160V
AC Input
Time

3. Product Overview
500W / 600W / 700W
HYDRO Series
© 2015 FSP Group. All Rights Reserved. All trademarks are registered to their respective owners.
Low noise
120mm fan and special vent
–hole design to spin quietly and
keep cooling under maximum
operation.
Intelligent fan control
An advanced fan control design
to detect heat and adjust fan
speed for optimal cooling perfor-
mance.
Sophisticated design
Ribbon cables give any systems
a neat and polished look.
Easy Installation
20+4 pin comes with length of
450mm to connect MB easily, and
ribbon cables give you a hand to
face mess cables in rear panel.
Low power consumption, high
energy efficiency
Special design to place the bridge
diodes among two EMI filters for
low energy loss in Standby mode.

4. 500W / 600W / 700W
HYDRO Series
Rating
© 2015 FSP Group. All Rights Reserved. All trademarks are registered to their respective owners.
700W 200-240Vac~ 6A 50-60Hz
120W
+3.3V
22A
+5V
22A
-12V
0.5A
6W
+5Vsb
2.5A
12.5W
700W
+12V
54A
648W
AC Input
DC Output
Max Output Current
Max Combined Power
Total Power
直流輸出
交流輸入
額定功率
最大電流
最大功率
600W 200-240Vac~ 5A 50-60Hz
120W
+3.3V
22A
+5V
22A
-12V
0.5A
6W
+5Vsb
2.5A
12.5W
600W
+12V
46A
552W
AC Input
DC Output
Max Output Current
Max Combined Power
Total Power
直流輸出
交流輸入
額定功率
最大電流
最大功率
500W 200-240Vac~ 6A 50-60Hz
110W
+3.3V
20A
+5V
20A
-12V
0.5A
6W
+5Vsb
2.5A
12.5W
500W
+12V
38A
456W
AC Input
DC Output
Max Output Current
Max Combined Power
Total Power
直流輸出
交流輸入
額定功率
最大電流
最大功率

5. Specifications
Model
Type
PFC
Input Voltage
Input Current
Input Frequency
Output Capacity
Max. Output Power
Fan Type
Efficiency
MTBF
Protection
Weight
Dimension(L×W×H)
500W / 600W / 700W
HYDRO Series
© 2015 FSP Group. All Rights Reserved. All trademarks are registered to their respective owners.
500W
HD500
ATX
Active PFC
200V-240V
4A
50-60Hz
500W
500W
Sleeve Fan, 120mm
88%
100,000 Hrs
OCP, OVP,
SCP, OPP
1.7 kg
150 × 150 × 86 mm
600W
HD600
ATX
Active PFC
200V-240V
5A
50-60Hz
600W
600W
Sleeve Fan, 120mm
88%
100,000 Hrs
OCP, OVP,
SCP, OPP
1.7 kg
150 × 150 × 86 mm
700W
HD700
ATX
Active PFC
200V-240V
6A
50-60Hz
700W
700W
Sleeve Fan, 120mm
88%
100,000 Hrs
OCP, OVP,
SCP, OPP
1.7 kg
150 × 150 × 86 mm

6. Connectors
20+4 PIN
4+4 PIN
6+2 PIN
SATA
MOLEX
FLOPPY
500W
1
1
2
7
3
1
1
1
4
11
6
2
1
1
4
11
6
2
600W 700W
500W / 600W / 700W
HYDRO Series
© 2015 FSP Group. All Rights Reserved. All trademarks are registered to their respective owners.

7. 500W
500W / 600W / 700W
HYDRO Series
© 2015 FSP Group. All Rights Reserved. All trademarks are registered to their respective owners.
Cable Length
20+4 PIN
450mm
4+4 PIN
600mm
PCI-E 6+2 PIN
400mm
150mm
SATA/MOLEX
500mm 155mm 155mm 100mm
SATA/MOLEX/
FLOPPY
450mm 155mm 155mm 100mm
SATA
450mm 155mm 155mm

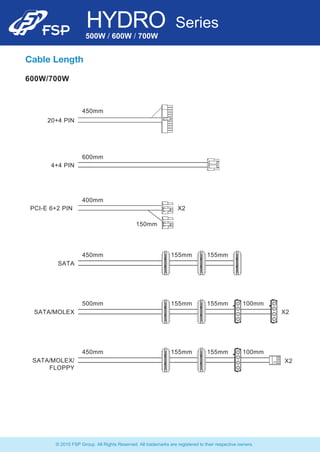

8. 600W/700W
500W / 600W / 700W
HYDRO Series
© 2015 FSP Group. All Rights Reserved. All trademarks are registered to their respective owners.
Cable Length
20+4 PIN
450mm
4+4 PIN
600mm
PCI-E 6+2 PIN
400mm
150mm
SATA/MOLEX
500mm 155mm 155mm 100mm
SATA/MOLEX/
FLOPPY
450mm 155mm 155mm 100mm
SATA
450mm 155mm 155mm
X2
X2
X2

9. Package Information
Model
EAN Code
UPC Code
Shipping Dimensions
(L×W×H)
Shipping Weights
Master Pack Dimension
(L×W×H)
Master Pack Quantity
Master Pack Weight
Pallet Quantity
Country of Origin
Warranty
Additional Information
HD500
471114048973 5
84568500779 7
HD600
471114048974 2
84568500780 3
China
3 Years
HD700
471114048975 9
84568500781 0
