1. Cable Management PSU

2. Why Uses Cable Management PSU?
Better cable
management
Lower temperature Space saving Easy PSU removal
To keep your
Workstation/Server
interiorly neat and
atheistically-pleasing.
With less power cables,
the air flow inside your
computer is much better
off.
Once you need replace the PSU
or remove it for checking or
cleaning, you do not need
unplug all of power connectors
from all internal components
(MB, HDD, ODD, Graphic cards
etc.).
A smaller form factor
computer case could be
possible due to less
cables & less space.

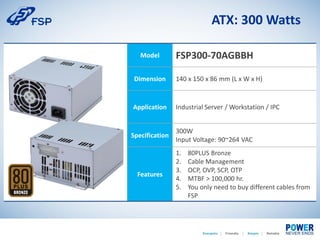

3. ATX: 300 Watts
Model FSP300-70AGBBH
Dimension 140 x 150 x 86 mm (L x W x H)
Application Industrial Server / Workstation / IPC
Specification
300W
Input Voltage: 90~264 VAC
Features
1. 80PLUS Bronze
2. Cable Management
3. OCP, OVP, SCP, OTP
4. MTBF > 100,000 hr.
5. You only need to buy different cables from
FSP

4. Detailed Specifications
The FSP300-70AGBBH features with
 80 Plus Bronze (Efficiency 85% 230VAC)
 PS2/ATX Compatible Form Factor Power Supply
 Fit into PC Tower or 2U Rack Chassis without extra bracket at rear window side
 Built-in Active PFC function (90-264VAC)
 Support OTP, OVP, OCP, SCP and FFP protection
 100% burn-in under high ambient temperature (500C)
 Operation up to 5000 meters Altitude
 Optional Cable Connected (Cable Management)
 MTBF > 100K hours at 25oC, nominal input
 100% Hi-pot tested

5. Drawing & Output Rating
FSP Model Max out
Output Rating Output
Method
Dimension
(LxWxH)+3.3V +5V +12V1 +12V2 -12V +5VSB -%V
FSP300-70AGBBH 300W 19A 16A 17A 17A 0.3A 2.5A 0.3A Wire harness
140 x 150 x 86
mm

6. Cable Management PSU – 1200W
Model FSP1200-50AAG
Dimension 190 x 150 x 86 mm (L x W x H)
Application Industrial Server / Workstation / IPC
Specification
1200W (850W/1000W Also Available)
Input : 90 - 264 VAC
Features
1. 80PLUS Gold
2. Cable Management
3. OCP, OVP, SCP, OTP protection
4. MTBF > 100,000 hours

7. Detailed Specifications
The FSP1200-50AAG features with
 PS2 with extended length form factor (150*86*190 mm W*H*L)
 1200W high performance to fulfill high power requirement
 80+ Gold - high efficiency industrial power supply
 Modular design with detachable cables
 Safety Certified: UL, cUL, CE, CCC, TÜV, CB, FCC
 Protection: Over Current (OCP), Over Voltage (OVP), Short-Circuit
 Premium Industrial Grade Components (Capacitor, Transformer, Digital IC) to fulfill
high efficiency, maintenance-free, 24-7 continuous running operation
 13.5 cm Ball Bearing, Thermal-controlled FAN, providing optimal airflo
 Temperature: Operating 0~500C (24 hours running); Storage -20~800C
 Reliability: MTBF > 200,000 hours at 250C, nominal input

8. Output Cables
FSP1200-50AAG (Modular Power Supply)
1* ATX 24pin Port
2* EPS12V 8pin CPU Port
4* 6+2pin PCI-E Port
4* 4Pin Molex Power Port
3* Sata Power Port
Detachable Cables
1* ATX 24pin (650mm)
2* 12V 4+4pin CPU (650mm)
4* 6+2pin PCI-E (650mm)
4* (1->4) 4Pin Molex Power (500+100mm)
3* (1->4) Sata Power (500+100mm)

9. Application Fields
Server & Storage Applications
(Data Center Server, Broadcasting Server…etc.)
Tower Workstation Applications
(Standard & Advanced Office Tower Server &
Workstation)
Industrial PC Applications
(Automation, Process Control,
Instruments…etc.)
High-end Graphics & Gaming
Applications
( CAD/CAM, Academic Research, Gaming…etc.)

10. A Brand of FSP Group

11. Question 1: Why uses FSP1000-50AAG?
Answer: When you require an industrial level PSU with 1000W to fulfill your industrial
application, FSP1000-50AAG is absolutely an ideal solution. Its 80+ Gold design could
reduce the heat consumption and your electricity cost to a great extent. And its higher
MTBF insures higher reliability & longer product life span.
Question 2: Why does FSP offer FSP300-70AGBBH?
Answer: in order to fulfill the market requirement to fit industrial tower workstation or
modular rackmount level solution – FSP offers standard ATX 300W cable management
PSU with standard PS2/ATX form factor, also with flexible connectors and less cables
solution to the industrial market.
Question 3: Are there any other wattages with same design
architecture?
Answer: In addition to 300W & 1000W cable management PSU, FSP offers FSP850-
50AAG (850W) and FSP1200-50AAG (1200W) cable management PSU; other wattages
cable management PSU (i.e. 400~700W) will be into the market soon.
