The document discusses Flexible Single Master Operation (FSMO) roles in Active Directory. There are 5 FSMO roles: Schema Master, Domain Naming Master, RID Master, PDC Emulator, and Infrastructure Master. Each role is held by a single domain controller and is responsible for specific updates and operations in the forest or domain. The document provides steps to transfer each FSMO role from one domain controller to another to load balance the roles across multiple servers.

1. fsmo roles active directory

2. FSMOROLES
Stands for Flexible Single Master Operation
There are 5 types of FSMO roles :
• Schema master
Forest Wide role
• Domain Naming master
• RID master
• PDC emulator Domain Wide Role
• Infrastructure master

3. SCHEMAMASTERFSMOROLE
• The schema master FSMO role holder is the DC responsible for performing
updates to the directory schema .
• This DC is the only one that can process updates to the directory schema.
• Once the Schema update is complete, it is replicated from the schema master
to all other DCs in the directory.
• There is only one schema master per forest.

4. DOMAINNAMINGMASTERFSMOROLE
• The domain naming master FSMO role holder is the DC responsible for making
changes to the forest-wide domain name space of the directory.
• This DC is the only one that can add or remove a domain from the directory.
• It can also add or remove cross references to domains in external directories.

5. PDCEMULATORFSMOROLE
• The PDC emulator is necessary to synchronize time in an enterprise.
• Responsible for Password changes performed by other DCs in the domain .
• Account lockout is processed on the PDC emulator.

6. INFRASTRUCTUREFSMOROLE
• When an object in one domain is referenced by another object in another
domain, it represents the reference by the GUID
• The infrastructure FSMO role holder is the DC responsible for updating an
object's SID and distinguished name in a cross-domain object reference.
• The Infrastructure Master (IM) role should be held by a domain controller that is
not a Global Catalog server(GC).
• If the Infrastructure Master runs on a Global Catalog server it will stop updating
object information because it does not contain any references to objects that it
does not hold.

7. TRANSFERINGFSMOROLES
• Schema master Active Directory Schema
• Domain Naming master Active Directory Domain and trust
• RID master
• PDC emulator Active Directory Users and computer
• Infrastructure master

8. STEP1: TRANSFERDOMAINNAMINGMASTERROLE
1. Click on Server Manager > Tools > Active Directory Domains and
Trusts

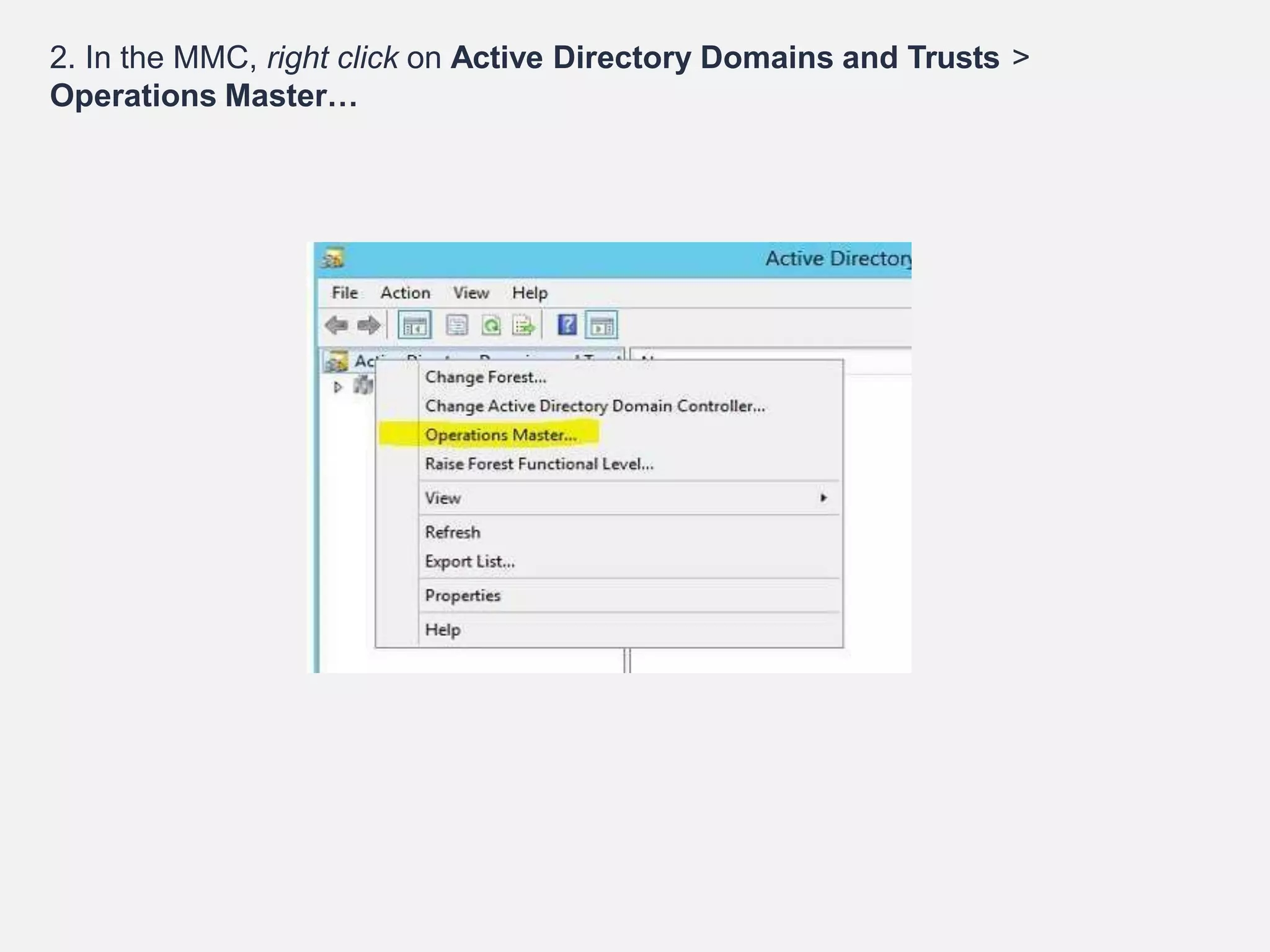

9. 2. In the MMC, right click on Active Directory Domains and Trusts >
Operations Master…

10. 3. In here it shows the current domain naming master role holder
(networkingbit.networkingbit.com) and its asking if we need to move it to
windows server 2012 R2 (server2.networkingbit.com). Click on change to
move the role over

11. 4. Click Yes to continue. Once its confirm about task completion we can
see current domain naming master is windows server 2012 R2
(server2.networkingbit.com)

12. STEP2:TRANSFERRINGTHERIDMASTER,PDCEMULATOR
ANDINFRASTRUCTUREMASTERROLES
As the first step let’s look how we can transfer these 3 roles over to new server.
1. Log in to the windows 2012 R2 server as domain administrator
2. Click on Server Manager > Tools > Active Directory Users and
Computers

13. 3. In MMC, right click on the domain name then click on Change Domain
controller

14. 4. Change your domain controller which server do you want transfer.

15. 5. In MMC, right click on the domain name then click on Operation Masters

16. 6. In next window it will show the 3 FSMO roles. The default is PDC. In there it
shows the current PDC holder. Then it is asking if need to change it to new
windows 2012 r2 server click on Change.

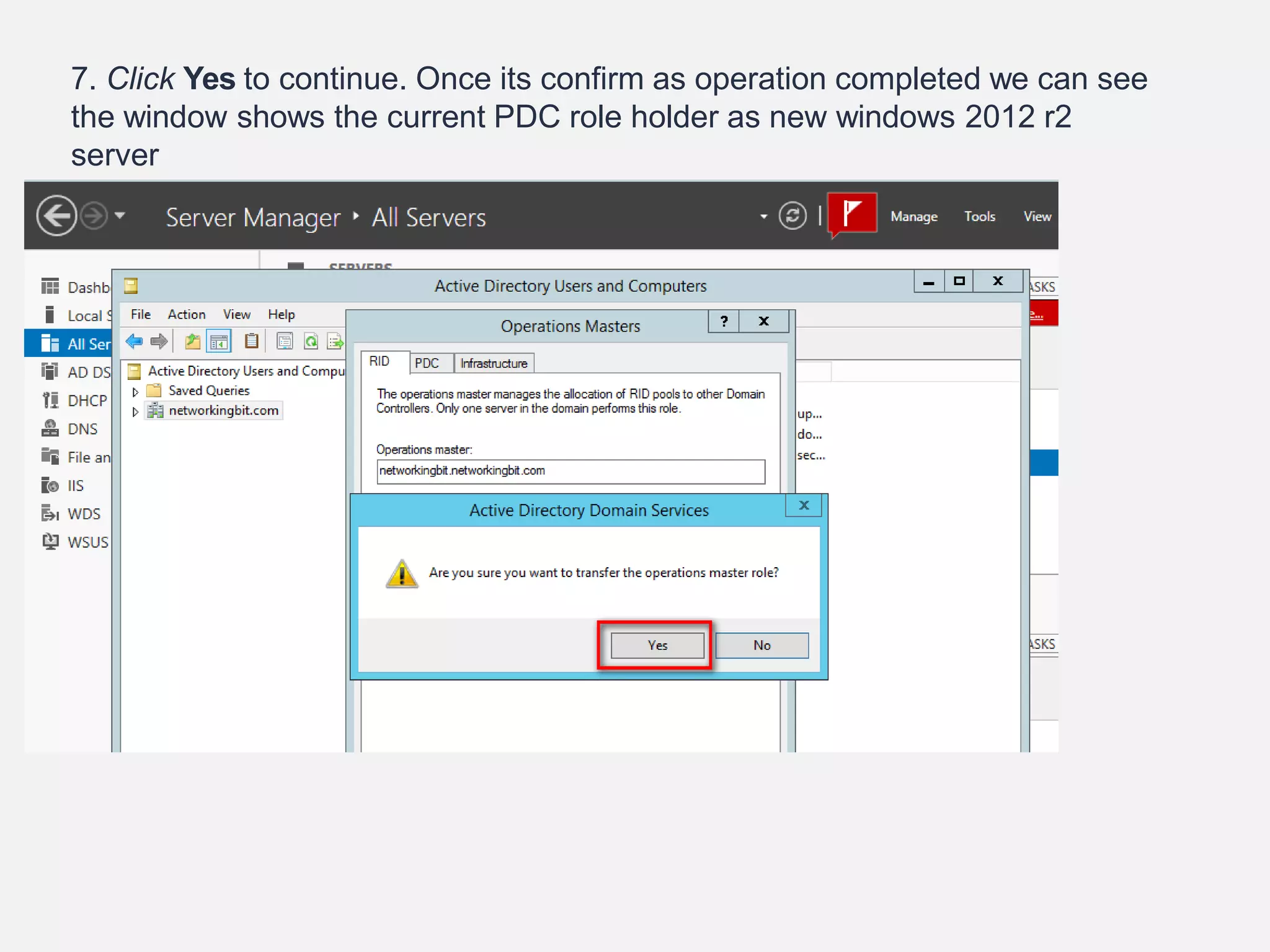

17. 7. Click Yes to continue. Once its confirm as operation completed we can see
the window shows the current PDC role holder as new windows 2012 r2
server

18. PLEASE REPEAT THE SAME
STEPS TO TRANSFER THE
RID MASTER AND
INFRASTRUCTURE MASTER
ROLES

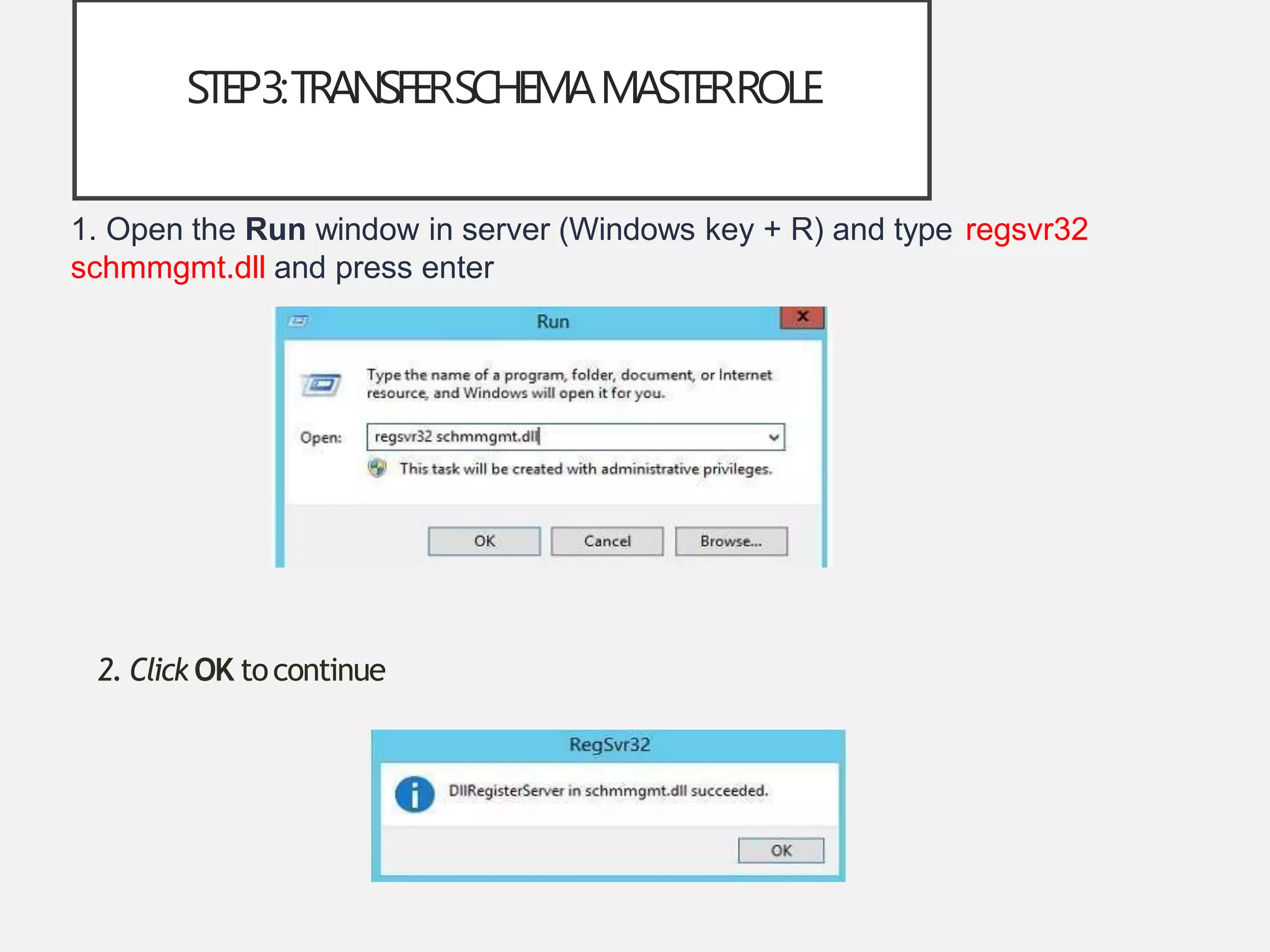

19. STEP3:TRANSFERSCHEMAMASTERROLE
1. Open the Run window in server (Windows key + R) and type regsvr32
schmmgmt.dll and press enter
2. Click OK tocontinue

20. 3. OPEN THE RUN WINDOW AGAIN, TYPE MMC
AND CLICK OK
4.Then in mmc window click on File> Add-Remove Snap-in…

21. 5. Then from snap in select Active Directory Schema and click on the Add
button

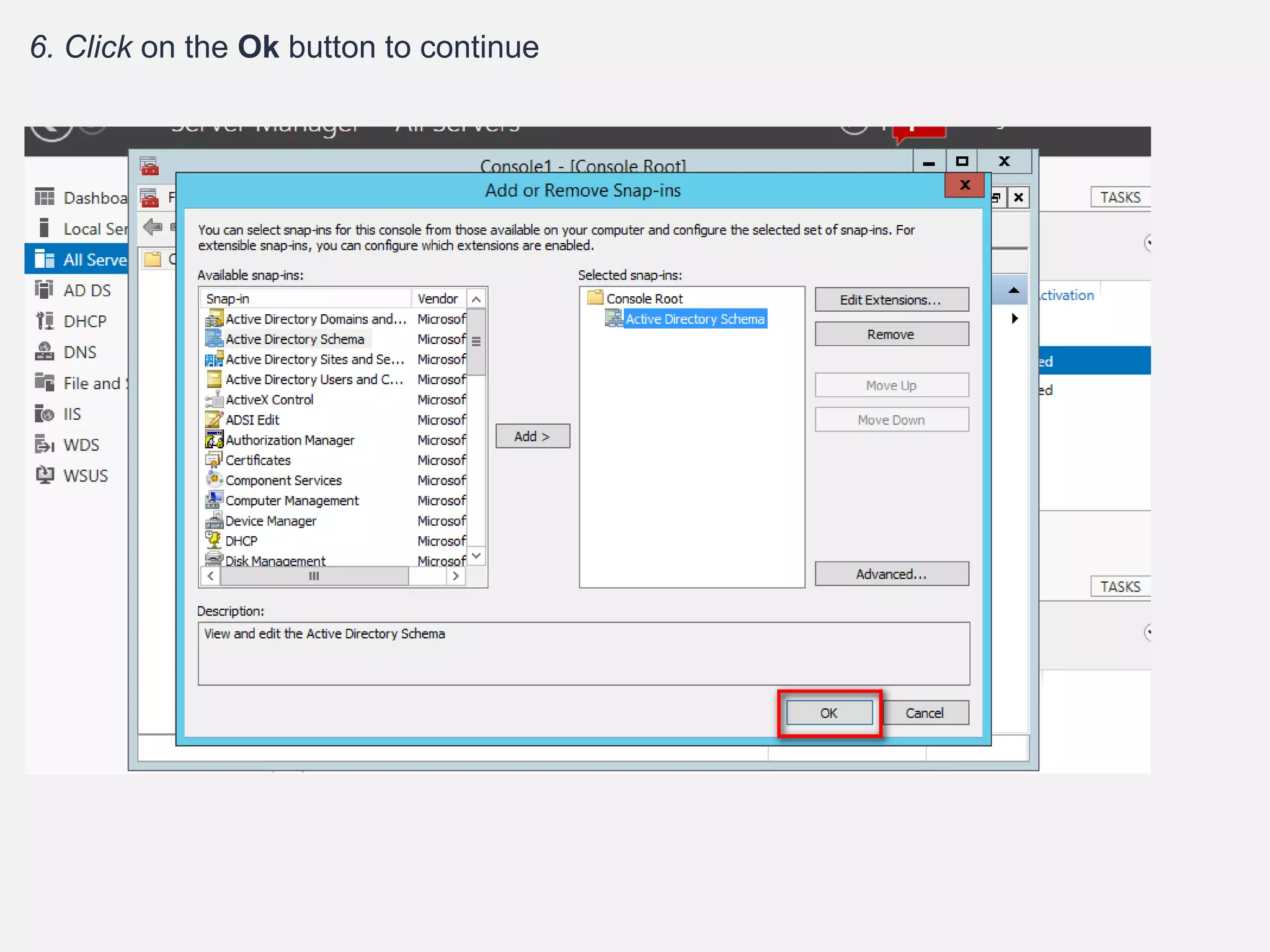

22. 6. Click on the Ok button to continue

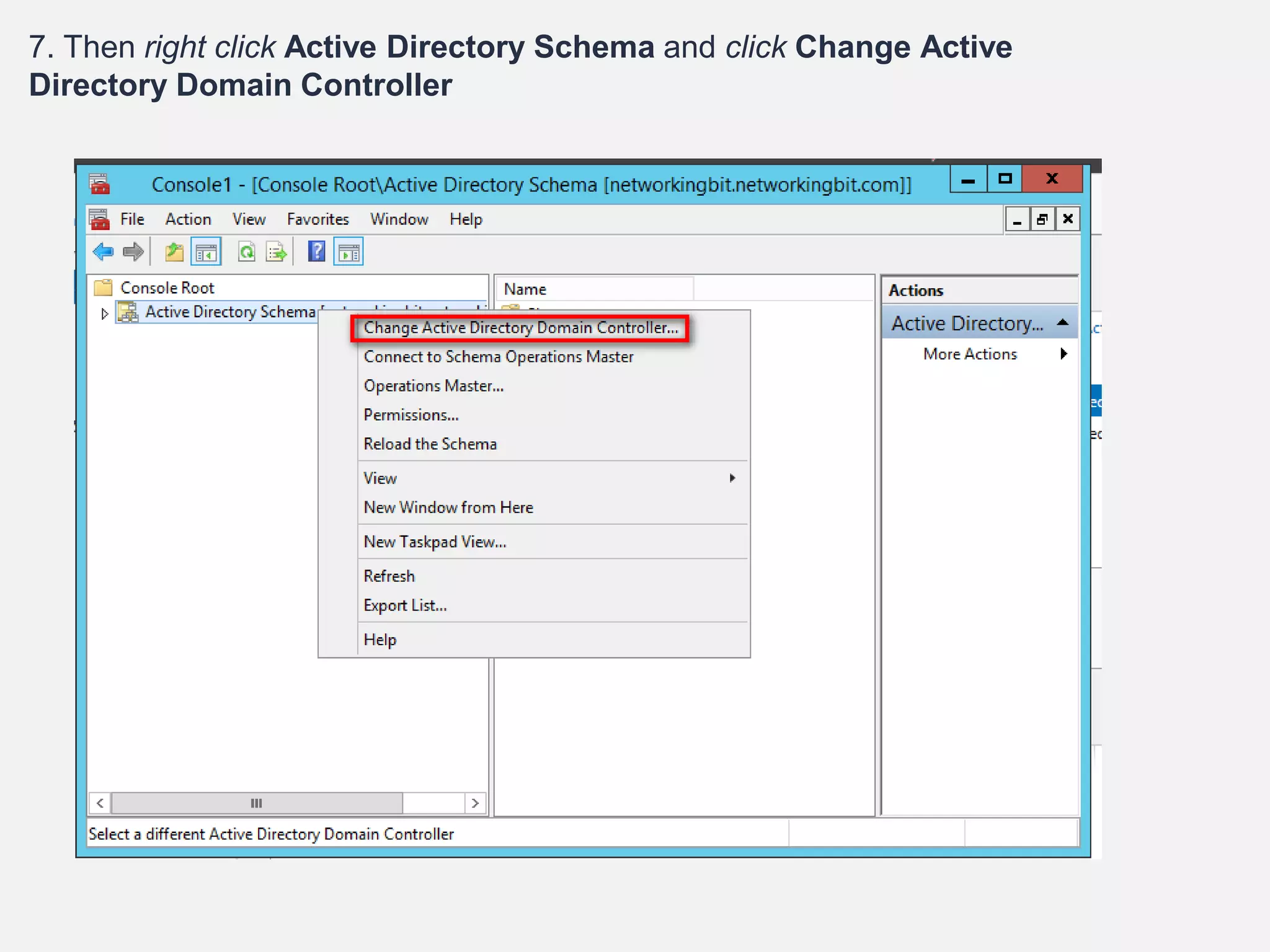

23. 7. Then right click Active Directory Schema and click Change Active
Directory Domain Controller

24. 8. In Next window select the windows server 2012 R2 DC
(server2.networkingbit.com) and click ok

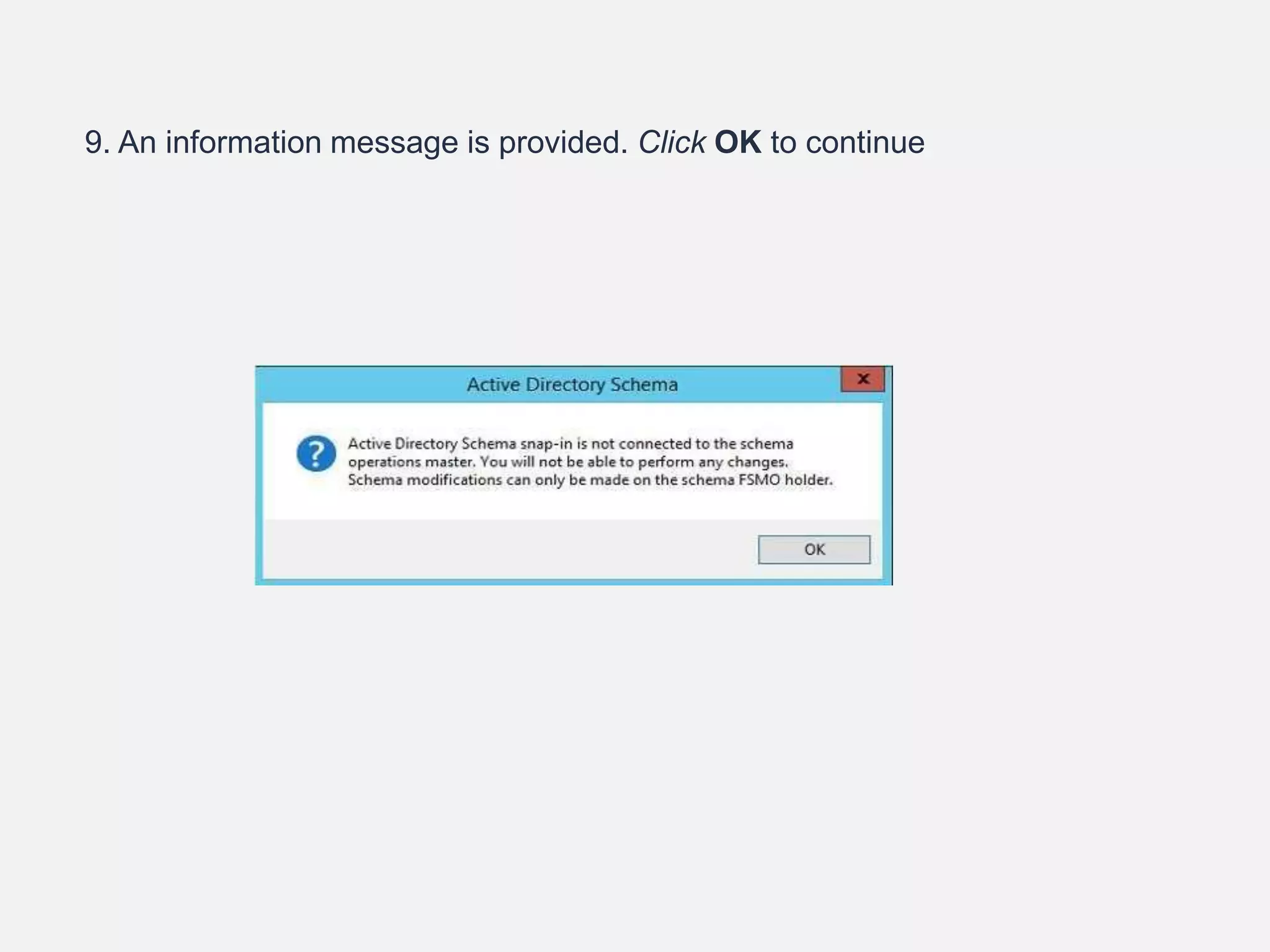

25. 9. An information message is provided. Click OK to continue

26. 10. Right click Active Directory Schema > Operation Master> In
here it shows the current schema master role holder
(networkingbit.networkingbit.com) and its asking if we need to move it
to windows server 2012 R2 (server2.networkingbit.com). Click
Change to move the role over

27. 11. CLICK YES TO
CONTINUE
12. Once it’s confirmed, the current schema master will now display windows
server 2012 R2(server2.networkingbit.com)

28. 13. Now we successfully move all . To confirm all 5 FSMO roles have been
moved over to the new windows server 2012 R2, open command prompt in said
server and type command “get-addomain” “Get-ADForest” and press enter.
