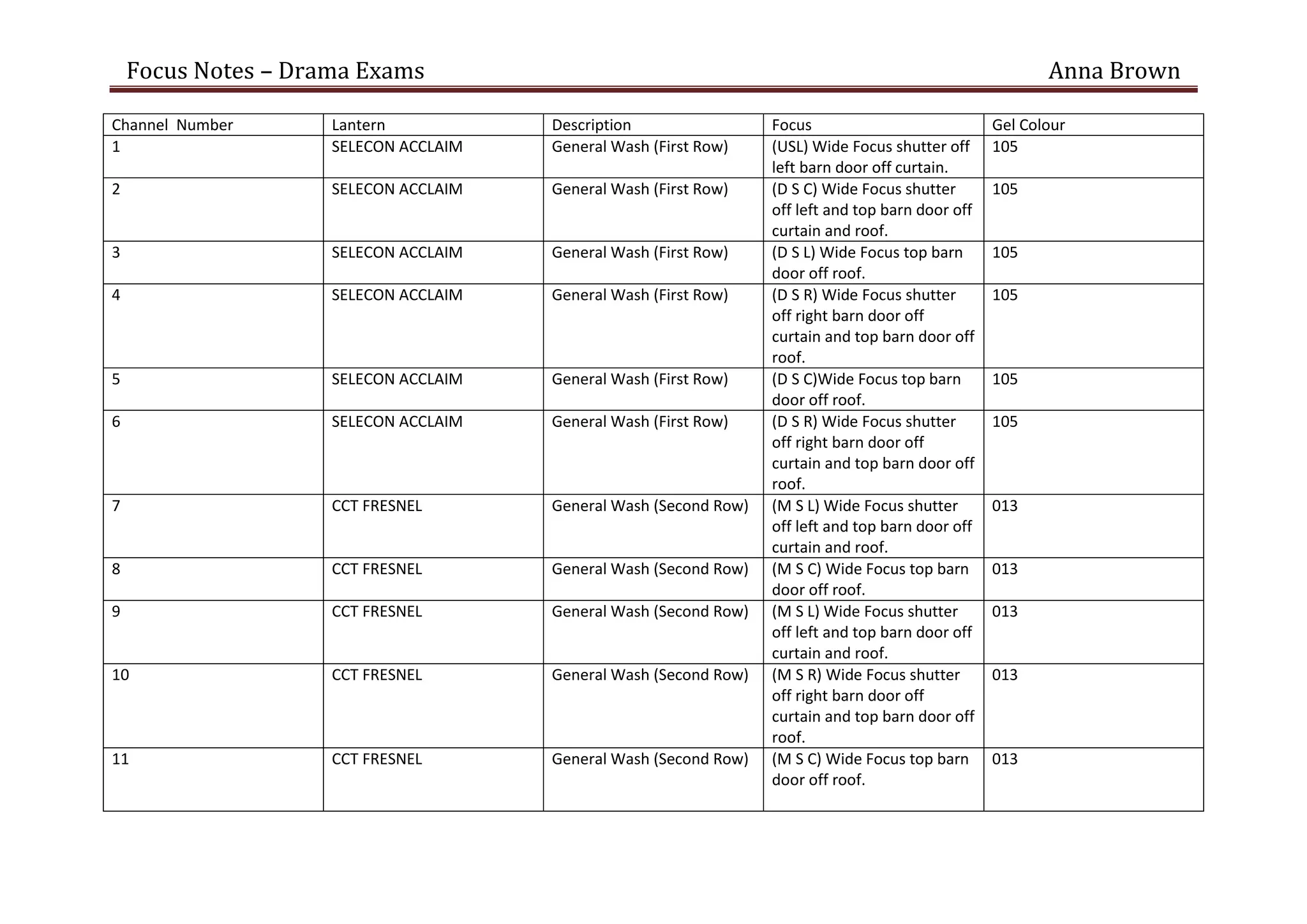

1. Focus Notes – Drama Exams Anna Brown
Channel Number Lantern Description Focus Gel Colour
1 SELECON ACCLAIM General Wash (First Row) (USL) Wide Focus shutter off
left barn door off curtain.
105
2 SELECON ACCLAIM General Wash (First Row) (D S C) Wide Focus shutter
off left and top barn door off
curtain and roof.
105
3 SELECON ACCLAIM General Wash (First Row) (D S L) Wide Focus top barn
door off roof.
105
4 SELECON ACCLAIM General Wash (First Row) (D S R) Wide Focus shutter
off right barn door off
curtain and top barn door off
roof.
105
5 SELECON ACCLAIM General Wash (First Row) (D S C)Wide Focus top barn
door off roof.
105
6 SELECON ACCLAIM General Wash (First Row) (D S R) Wide Focus shutter
off right barn door off
curtain and top barn door off
roof.
105
7 CCT FRESNEL General Wash (Second Row) (M S L) Wide Focus shutter
off left and top barn door off
curtain and roof.
013
8 CCT FRESNEL General Wash (Second Row) (M S C) Wide Focus top barn
door off roof.
013
9 CCT FRESNEL General Wash (Second Row) (M S L) Wide Focus shutter
off left and top barn door off
curtain and roof.
013
10 CCT FRESNEL General Wash (Second Row) (M S R) Wide Focus shutter
off right barn door off
curtain and top barn door off
roof.
013
11 CCT FRESNEL General Wash (Second Row) (M S C) Wide Focus top barn
door off roof.
013

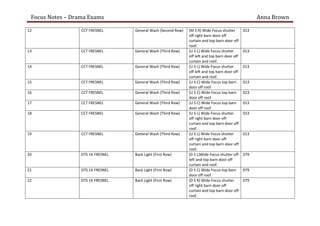

2. Focus Notes – Drama Exams Anna Brown
12 CCT FRESNEL General Wash (Second Row) (M S R) Wide Focus shutter
off right barn door off
curtain and top barn door off
roof.
013
13 CCT FRESNEL General Wash (Third Row) (U S L) Wide Focus shutter
off left and top barn door off
curtain and roof.
013
14 CCT FRESNEL General Wash (Third Row) (U S L) Wide Focus shutter
off left and top barn door off
curtain and roof.
013
15 CCT FRESNEL General Wash (Third Row) (U S C) Wide Focus top barn
door off roof.
013
16 CCT FRESNEL General Wash (Third Row) (U S C) Wide Focus top barn
door off roof.
013
17 CCT FRESNEL General Wash (Third Row) (U S C) Wide Focus top barn
door off roof.
013
18 CCT FRESNEL General Wash (Third Row) (U S L) Wide Focus shutter
off right barn door off
curtain and top barn door off
roof.
013
19 CCT FRESNEL General Wash (Third Row) (U S L) Wide Focus shutter
off right barn door off
curtain and top barn door off
roof.
013
20 DTS 1K FRESNEL Back Light (First Row) (D S L)Wide Focus shutter off
left and top barn door off
curtain and roof.
079
21 DTS 1K FRESNEL Back Light (First Row) (D S C) Wide Focus top barn
door off roof.
079
22 DTS 1K FRESNEL Back Light (First Row) (D S R) Wide Focus shutter
off right barn door off
curtain and top barn door off
roof.
079

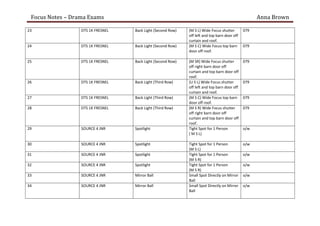

3. Focus Notes – Drama Exams Anna Brown
23 DTS 1K FRESNEL Back Light (Second Row) (M S L) Wide Focus shutter
off left and top barn door off
curtain and roof.
079
24 DTS 1K FRESNEL Back Light (Second Row) (M S C) Wide Focus top barn
door off roof.
079
25 DTS 1K FRESNEL Back Light (Second Row) (M SR) Wide Focus shutter
off right barn door off
curtain and top barn door off
roof.
079
26 DTS 1K FRESNEL Back Light (Third Row) (U S L) Wide Focus shutter
off left and top barn door off
curtain and roof.
079
27 DTS 1K FRESNEL Back Light (Third Row) (M S C) Wide Focus top barn
door off roof.
079
28 DTS 1K FRESNEL Back Light (Third Row) (M S R) Wide Focus shutter
off right barn door off
curtain and top barn door off
roof.
079
29 SOURCE 4 JNR Spotlight Tight Spot for 1 Person
( M S L)
o/w
30 SOURCE 4 JNR Spotlight Tight Spot for 1 Person
(M S L)
o/w
31 SOURCE 4 JNR Spotlight Tight Spot for 1 Person
(M S R)
o/w
32 SOURCE 4 JNR Spotlight Tight Spot for 1 Person
(M S R)
o/w
33 SOURCE 4 JNR Mirror Ball Small Spot Directly on Mirror
Ball
o/w
34 SOURCE 4 JNR Mirror Ball Small Spot Directly on Mirror
Ball
o/w

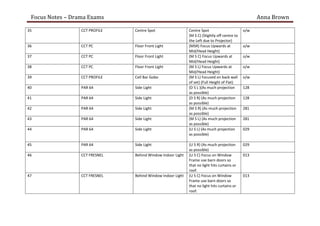

4. Focus Notes – Drama Exams Anna Brown
35 CCT PROFILE Centre Spot Centre Spot
(M S C) (Slightly off centre to
the Left due to Projector)
o/w
36 CCT PC Floor Front Light (MSR) Focus Upwards at
Mid/Head Height)
o/w
37 CCT PC Floor Front Light (M S C) Focus Upwards at
Mid/Head Height)
o/w
38 CCT PC Floor Front Light (M S L) Focus Upwards at
Mid/Head Height)
o/w
39 CCT PROFILE Cell Bar Gobo (M S L) Focused on back wall
of set) (Full Height of Flat)
o/w
40 PAR 64 Side Light (D S L )(As much projection
as possible)
128
41 PAR 64 Side Light (D S R) (As much projection
as possible)
128
42 PAR 64 Side Light (M S R) (As much projection
as possible)
281
43 PAR 64 Side Light (M S L) (As much projection
as possible)
281
44 PAR 64 Side Light (U S L) (As much projection
as possible)
029
45 PAR 64 Side Light (U S R) (As much projection
as possible)
029
46 CCT FRESNEL Behind Window Indoor Light (U S C) Focus on Window
Frame use barn doors so
that no light hits curtains or
roof.
013
47 CCT FRESNEL Behind Window Indoor Light (U S C) Focus on Window
Frame use barn doors so
that no light hits curtains or
roof.
013

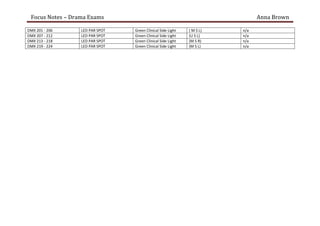

5. Focus Notes – Drama Exams Anna Brown
DMX 201 - 206 LED PAR SPOT Green Clinical Side Light ( M S L) n/a
DMX 207 - 212 LED PAR SPOT Green Clinical Side Light (U S L) n/a
DMX 213 - 218 LED PAR SPOT Green Clinical Side Light (M S R) n/a
DMX 219 - 224 LED PAR SPOT Green Clinical Side Light (M S L) n/a
