1. {

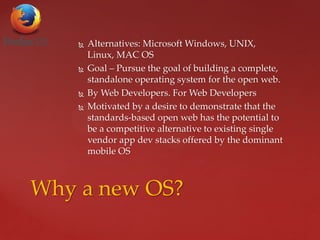

2.  Alternatives: Microsoft Windows, UNIX,
Linux, MAC OS
 Goal – Pursue the goal of building a complete,
standalone operating system for the open web.
 By Web Developers. For Web Developers
 Motivated by a desire to demonstrate that the
standards-based open web has the potential to
be a competitive alternative to existing single
vendor app dev stacks offered by the dominant
mobile OS
Why a new OS?

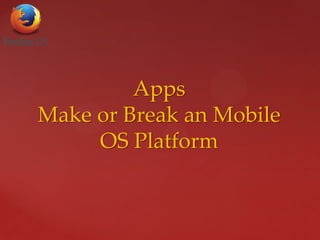

3. Apps
Make or Break an Mobile
OS Platform

4.  Code Name – Boot 2 Gecko (B2G)
 For Smartphones and Tablet Computers (as of
now)
 Uses completely open standards and there’s no
proprietary software or tech involved
 Active development forums and community.
A new Revolution
Introduction

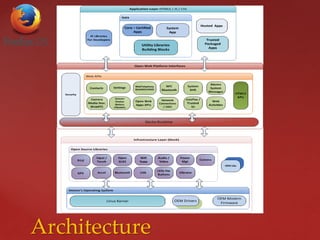

5. Architecture

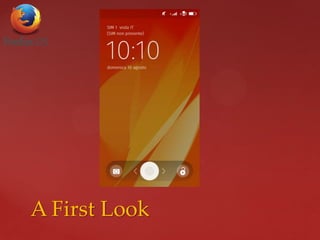

6. A First Look

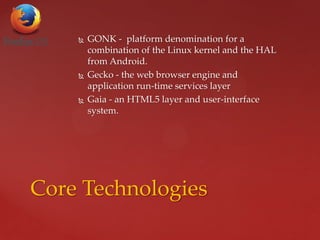

7.  GONK - platform denomination for a
combination of the Linux kernel and the HAL
from Android.
 Gecko - the web browser engine and
application run-time services layer
 Gaia - an HTML5 layer and user-interface
system.
Core Technologies

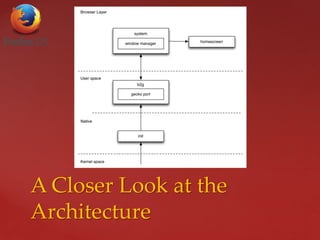

8. A Closer Look at the
Architecture

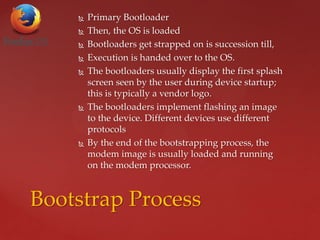

9.  Primary Bootloader
 Then, the OS is loaded
 Bootloaders get strapped on is succession till,
 Execution is handed over to the OS.
 The bootloaders usually display the first splash
screen seen by the user during device startup;
this is typically a vendor logo.
 The bootloaders implement flashing an image
to the device. Different devices use different
protocols
 By the end of the bootstrapping process, the
modem image is usually loaded and running
on the modem processor.
Bootstrap Process

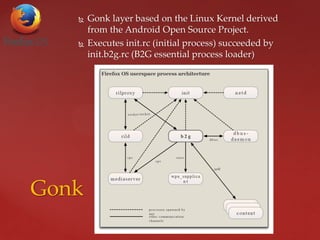

10.  Gonk layer based on the Linux Kernel derived
from the Android Open Source Project.
 Executes init.rc (initial process) succeeded by
init.b2g.rc (B2G essential process loader)
Gonk

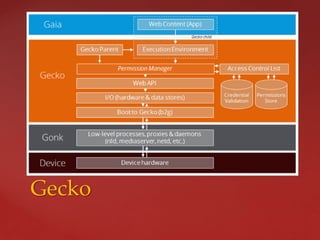

11. Gecko

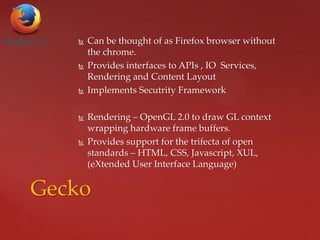

12.  Can be thought of as Firefox browser without
the chrome.
 Provides interfaces to APIs , IO Services,
Rendering and Content Layout
 Implements Secutrity Framework
 Rendering – OpenGL 2.0 to draw GL context
wrapping hardware frame buffers.
 Provides support for the trifecta of open
standards – HTML, CSS, Javascript, XUL,
(eXtended User Interface Language)
Gecko

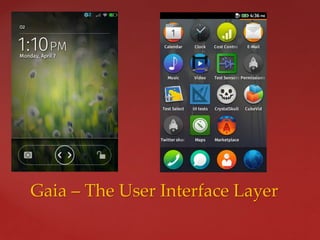

13. Gaia – The User Interface Layer

14.  Set of applications that run locally on a B2G
Device.
 Its only interface to the underlying operating
system and hardware is through standard Web
APIs, which are implemented by Gecko.
 Gaia be run on Firefox OS devices, but also on
other operating systems and in other web
browsers! – Write once … Run Everywhere
 Basic Apps – Browser, Calendar, Calculator,
Camera, Email, Radio, Gallery
Gaia

15.  All Device makers except Google has inked a
deal with it to protect themselves against the
possible patent infringement suits.
 Moreover, some members of the Android
ecosystem are more equal than others.
 Google has “preferred” partners who get a
“sneak peak” at Android during development
modifying the “level” playing field.
 Our Beloved Firefox OS has NONE of that.
Why Again??

16.  Get the Codebase from https://github.com/mozilla
 Study the Codebase with help from Mozilla MDN -
https://developer.mozilla.org/en-US/Firefox_OS
 Follow Bugs on Mozilla’s BugZilla (Issue Tracker) -
https://bugzilla.mozilla.org/describecomponents.cgi?product=Firefox
%20OS
 Easy Beginner Bugs - http://www.joshmatthews.net/bugsahoy/
 Do QA by Testing Bugs reported on BugZilla and earn rewards!
Starting Development

17. {

18. Apps
Make or Break an Mobile
OS Platform

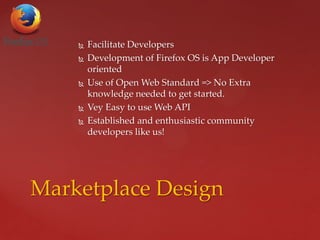

19.  Facilitate Developers
 Development of Firefox OS is App Developer
oriented
 Use of Open Web Standard => No Extra
knowledge needed to get started.
 Vey Easy to use Web API
 Established and enthusiastic community
developers like us!
Marketplace Design

20. IDEA MATTERS!

21.  HTML / HTML5
 CSS / CSS3
 Javascript
 Idea
Pre-requisites

22.  Firefox OS – Emulator
 Firefox OS Simulator
 Text Editor
Development Tools

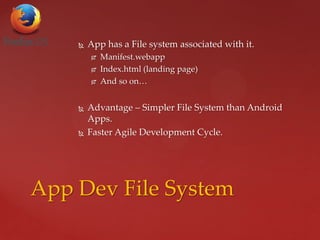

23.  App has a File system associated with it.
 Manifest.webapp
 Index.html (landing page)
 And so on…
 Advantage – Simpler File System than Android
Apps.
 Faster Agile Development Cycle.
App Dev File System

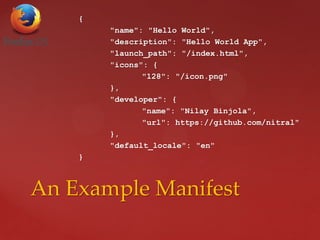

24. {
"name": "Hello World",
"description": "Hello World App",
"launch_path": "/index.html",
"icons": {
"128": "/icon.png"
},
"developer": {
"name": "Nilay Binjola",
"url": https://github.com/nitral"
},
"default_locale": "en"
}
An Example Manifest

25. <html>
<body>
<h1>Hello World!</h1>
<button id="alertButton">Make an
Alert!</button>
<script src="./alert.js"></script>
</body>
</html>
Simple Hello World Markup

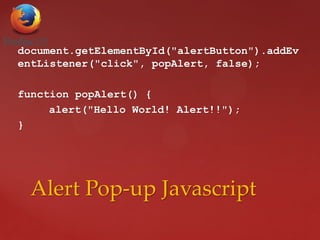

26. document.getElementById("alertButton").addEv
entListener("click", popAlert, false);
function popAlert() {
alert("Hello World! Alert!!");
}
Alert Pop-up Javascript

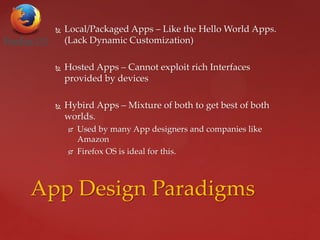

27.  Local/Packaged Apps – Like the Hello World Apps.
(Lack Dynamic Customization)
 Hosted Apps – Cannot exploit rich Interfaces
provided by devices
 Hybird Apps – Mixture of both to get best of both
worlds.
 Used by many App designers and companies like
Amazon
 Firefox OS is ideal for this.
App Design Paradigms

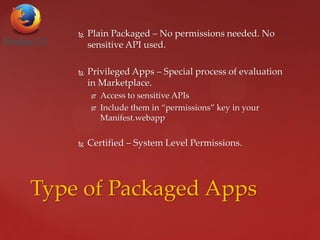

28.  Plain Packaged – No permissions needed. No
sensitive API used.
 Privileged Apps – Special process of evaluation
in Marketplace.
 Access to sensitive APIs
 Include them in “permissions” key in your
Manifest.webapp
 Certified – System Level Permissions.
Type of Packaged Apps

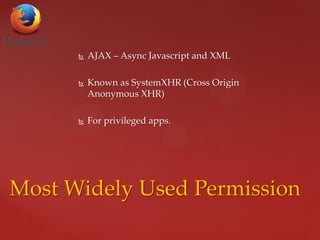

29.  AJAX – Async Javascript and XML
 Known as SystemXHR (Cross Origin
Anonymous XHR)
 For privileged apps.
Most Widely Used Permission

30. IDEA MATTERS!

31. Let the Hacking Begin!
