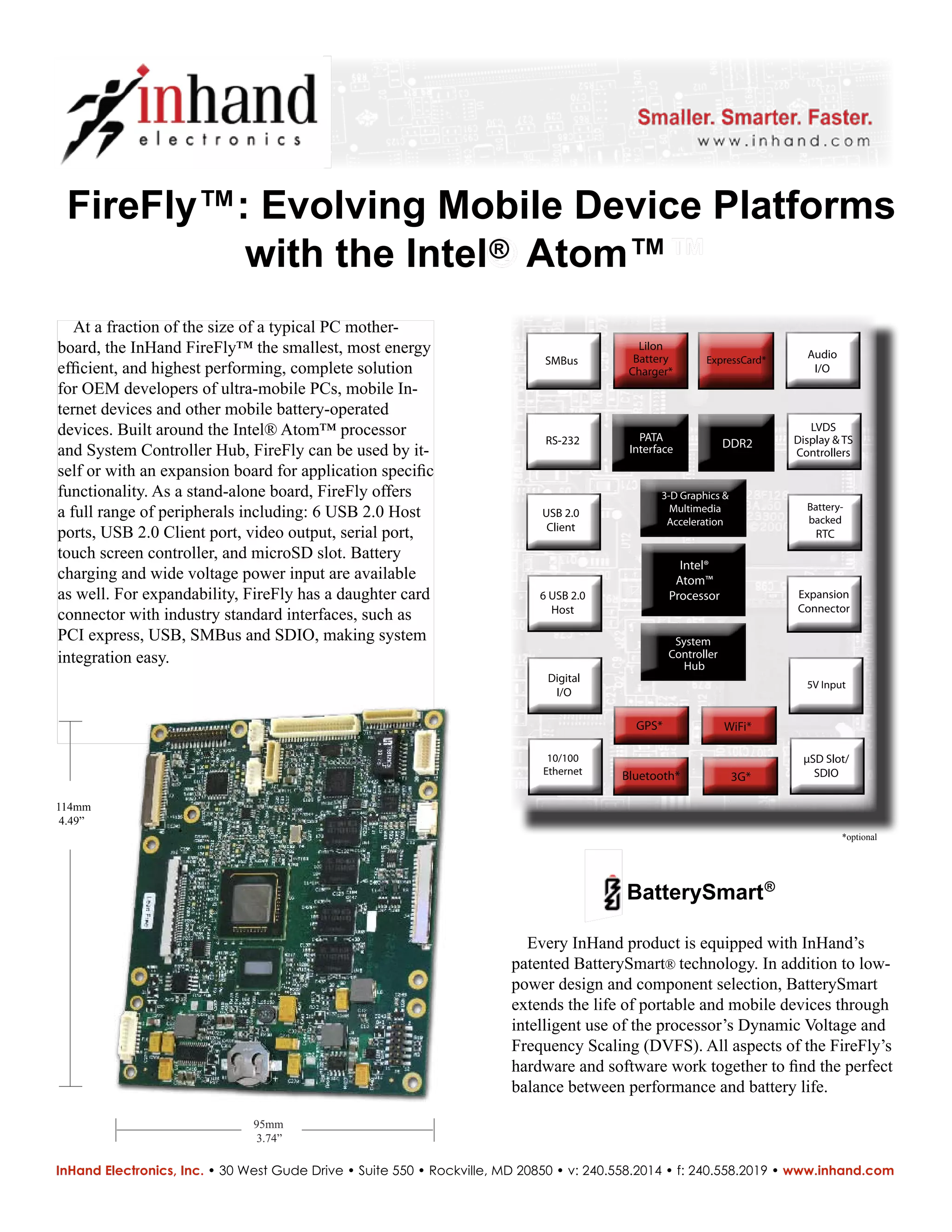

1. SMBus
RS-232
USB 2.0
Client
6 USB 2.0
Host
Digital
I/O
µSD Slot/
SDIO
Expansion
Connector
Battery-
backed
RTC
LVDS
Display & TS
Controllers
Audio
I/O
Intel®
Atom™
Processor
LiIon
Battery
Charger*
DDR2
PATA
Interface
GPS* WiFi*
Bluetooth*
10/100
Ethernet
3-D Graphics &
Multimedia
Acceleration
System
Controller
Hub
5V Input
ExpressCard*
3G*
At a fraction of the size of a typical PC mother-
board, the InHand FireFly™ the smallest, most energy
efficient, and highest performing, complete solution
for OEM developers of ultra-mobile PCs, mobile In-
ternet devices and other mobile battery-operated
devices. Built around the Intel® Atom™ processor
and System Controller Hub, FireFly can be used by it-
self or with an expansion board for application specific
functionality. As a stand-alone board, FireFly offers
a full range of peripherals including: 6 USB 2.0 Host
ports, USB 2.0 Client port, video output, serial port,
touch screen controller, and microSD slot. Battery
charging and wide voltage power input are available
as well. For expandability, FireFly has a daughter card
connector with industry standard interfaces, such as
PCI express, USB, SMBus and SDIO, making system
integration easy.
InHand Electronics, Inc. • 30 West Gude Drive • Suite 550 • Rockville, MD 20850 • v: 240.558.2014 • f: 240.558.2019 • www.inhand.com
BatterySmart®
Every InHand product is equipped with InHand’s
patented BatterySmart® technology. In addition to low-
power design and component selection, BatterySmart
extends the life of portable and mobile devices through
intelligent use of the processor’s Dynamic Voltage and
Frequency Scaling (DVFS). All aspects of the FireFly’s
hardware and software work together to find the perfect
balance between performance and battery life.
FireFly™: Evolving Mobile Device Platforms
with the Intel® Atom™™®
114mm
4.49”
95mm
3.74”
*optional

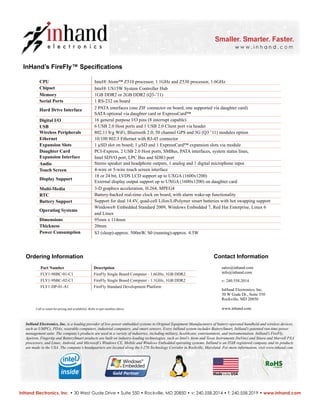

2. InHand’s FireFly™ Specifications
InHand Electronics, Inc. • 30 West Gude Drive • Suite 550 • Rockville, MD 20850 • v: 240.558.2014 • f: 240.558.2019 • www.inhand.com
Contact Information
sales@inhand.com
info@inhand.com
v: 240.558.2014
InHand Electronics, Inc.
30 W Gude Dr., Suite 550
Rockville, MD 20850
www.inhand.com
CPU
Chipset
Memory
Serial Ports
Hard Drive Interface
Digital I/O
USB
Wireless Peripherals
Ethernet
Expansion Slots
Daughter Card
Expansion Interface
Audio
Touch Screen
Display Support
Multi-Media
RTC
Battery Support
Operating Systems
Dimensions
Thickness
Power Consumption
Intel® Atom™ Z510 processor, 1.1GHz and Z530 processor, 1.6GHz
Intel® US15W System Controller Hub
1GB DDR2 or 2GB DDR2 (Q3-’11)
1 RS-232 on board
2 PATA interfaces (one ZIF connector on board, one supported via daughter card)
SATA optional via daughter card or ExpressCard™
16 general purpose I/O pins (8 interrupt capable)
6 USB 2.0 Host ports and 1 USB 2.0 Client port via header
802.11 b/g WiFi, Bluetooth 2.0, 50 channel GPS and 3G (Q3 ’11) modules option
10/100 802.3 Ethernet with RJ-45 connector
1 µSD slot on board; 1 µSD and 1 ExpressCard™ expansion slots via module
PCI-Express, 2 USB 2.0 Host ports, SMBus, PATA interfaces, system status lines,
Intel SDVO port, LPC Bus and SDIO port
Stereo speaker and headphone outputs, 1 analog and 1 digital microphone input
4-wire or 5-wire touch screen interface
18 or 24 bit, LVDS LCD support up to UXGA (1600x1200)
External display output support up to UXGA (1600x1200) on daughter card
3-D graphics acceleration, H.264, MPEG4
Battery-backed real-time clock on board, with alarm wake-up functionality
Support for dual 14.4V, quad-cell LiIon/LiPolymer smart batteries with hot swapping support
Windows® Embedded Standard 2009, Windows Embedded 7, Red Hat Enterprise, Linux 6
and Linux
95mm x 114mm
20mm
S3 (sleep)-approx. 500mW, S0 (running)-approx. 4.5W
Ordering Information
Part Number
FLY1-9SBC-01-C1
FLY1-9SBC-02-C1
FLY1-DP-01-A1
Description
FireFly Single Board Computer - 1.6GHz, 1GB DDR2
FireFly Single Board Computer - 1.1GHz, 1GB DDR2
FireFly Standard Development Platform
Call or email for pricing and availability. Refer to part numbers above.
v.3.11
InHand Electronics, Inc. is a leading provider of low-power embedded systems to Original Equipment Manufacturers of battery-operated handheld and wireless devices,
such as UMPCs, PDAs, wearable computers, industrial computers, and smart sensors. Every InHand system includes BatterySmart, InHand’s patented run-time power
management suite. The company’s products are used in a variety of industries, including military, healthcare, entertainment, and instrumentation. InHand’s FireFly,
Apeiron, Fingertip and BatterySmart products are built on industry-leading technologies, such as Intel’s Atom and Texas Instruments DaVinci and Sitara and Marvell PXA
processors, and Linux, Android, and Microsoft’s Windows CE, Mobile and Windows Embedded operating systems. InHand is an ITAR registered company and its products
are made in the USA. The company’s headquarters are located along the I-270 Technology Corridor in Rockville, Maryland. For more information, visit www.inhand.com.
