Fibre optic lighting by Roblon - Denmark
Fibre optic lighting uses fibre optic cables to transmit light from a remote light source to precise locations without heat, infrared radiation, or the need for electricity in the fittings. It offers high light quality, colour rendering, and consistency between fittings. The system consists of a light generator, fibre harness, and optional fittings, and it provides easy maintenance, configuration, and integration. Roblon's fibre optic solutions are meticulously documented online for features, photometric data, and more.
Fibre optic lighting by Roblon - Denmark
- 1. Fibre optic lightingby Roblon The interesting part is what you don’t see
- 2. Fibre optic lightingby Roblon Extremely high, documented light quality Extremely high, documented colour rendering Consistent light from spot to spot and fitting to fitting Tiny fittings Sublime design, finishes, forms Highly configurative Ease of integration No end-user expertise required Easy to change to meet new lighting requirements Meticulously documented features and photometric data
- 3. Fibre optic lightingby Roblon Dramatically precise light spot No heat No infrared radiation & effectively no UV rays No electricity in the fittings Especially easy maintenance One single lamp Light source hidden and remote from light output With lenses, without lenses, without fittings
- 4. Fibre optics -it’s this simple A fibre optic system consists of two or three parts: Light generator Fibre harness Common End Fibre Termination Fitting (optional)
- 5. Light generators Indoor -IP 20 Outdoor - IP 45 Halogen, 20 watt to 100 watt Metal halide, 150 watt to 250 watt LED, 2 watt, 13 and 25 watt Warm and cold white light Colour wheel or twinkle wheel DMX control of colour shift and dimming
- 6.
- 7. Custom Harnesses Roblon PMMAEndlight Roblon Glass Endlight Roblon Sidelight and decorative fibres Ø9/Ø28 mm Common End Glass fibres PMMA fibres
- 8.
- 9. Custom Harnesses White lightchanges colour over distance 0m 5m 10m 15m Glass fibres 0m 5m 10m 15m PMMA fibres
- 10. Terminations Cut fibres Crimped brass Gluedaluminium Glued anodised aluminium Glued stainless steel
- 11. Fittings Fitting open, justholding the fibre, fixed beam angle Fitting with plain glass, fixed beam angle Fitting with lens, fixed beam angle Fitting with plain glass, adjustable beam direction Fitting with lens, adjustable beam angle and direction Special fittings Fittings for a myriad of applications Indoor architectural, wet location, swimming pool, embedded, showcase, etc
- 12. Special fittings Fittings forspecial applications, decorative and functional Crystal systems Starpoint fibre end terminations Step lighting Asymmetric systems Framing spots Gobo spots
- 13. Light intensity Big fibrediameter, more light (lumen) Fewer fibres in one common end, more light (lumen) With fitting without optics - big beam angle, low lux value With fitting with optics - narrow beam angle, high lux value With fitting with optics and small fibre diameter – extremely narrow beam
- 14. Roblon Lux Calculator Customiselighting solutions Calculate precise lux values, beam angles, beam diameters, quickly Save calculations as IES files compatible with light planning and 3D programmes including DIALux and Visual Download Roblon Lux Calculator free at www.roblonlighting.com
- 15.
- 16.
- 17.
- 18.

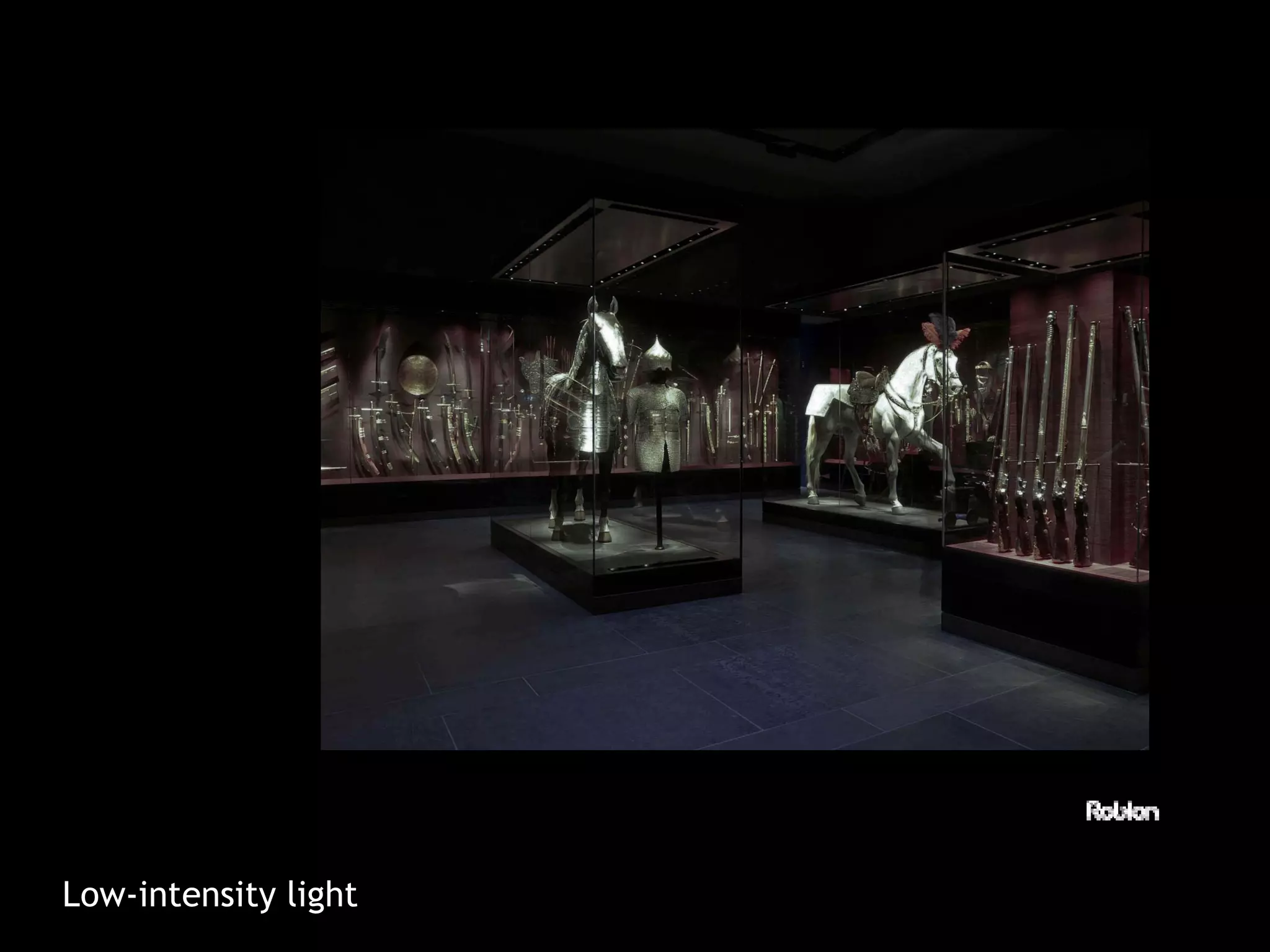

- 19. Low-intensity light Dresden Royal Palace Low-intensity light
- 20.
- 21.
- 22.
- 23.
- 24.
- 25.
- 26.
- 27.
- 28. Roblon product informationand documentation Functionality Product features Dimension sketches IES files Beam angles Mounting instructions User manuals Compatible accessories Spare parts Product photos Data sheets Photometric data Lux Calculator Always available, always up-to-date at www.roblonlighting.com
- 29. Roblon Roblon A/S Lighting Division Nordhavnsvej1 Tel: +45 9620 3366 PO Box 120 Fax: +45 9620 3396 9900 Frederikshavn info@roblon.com Denmark www.roblonlighting.com Thank you for taking the time to hear about lighting from Roblon
