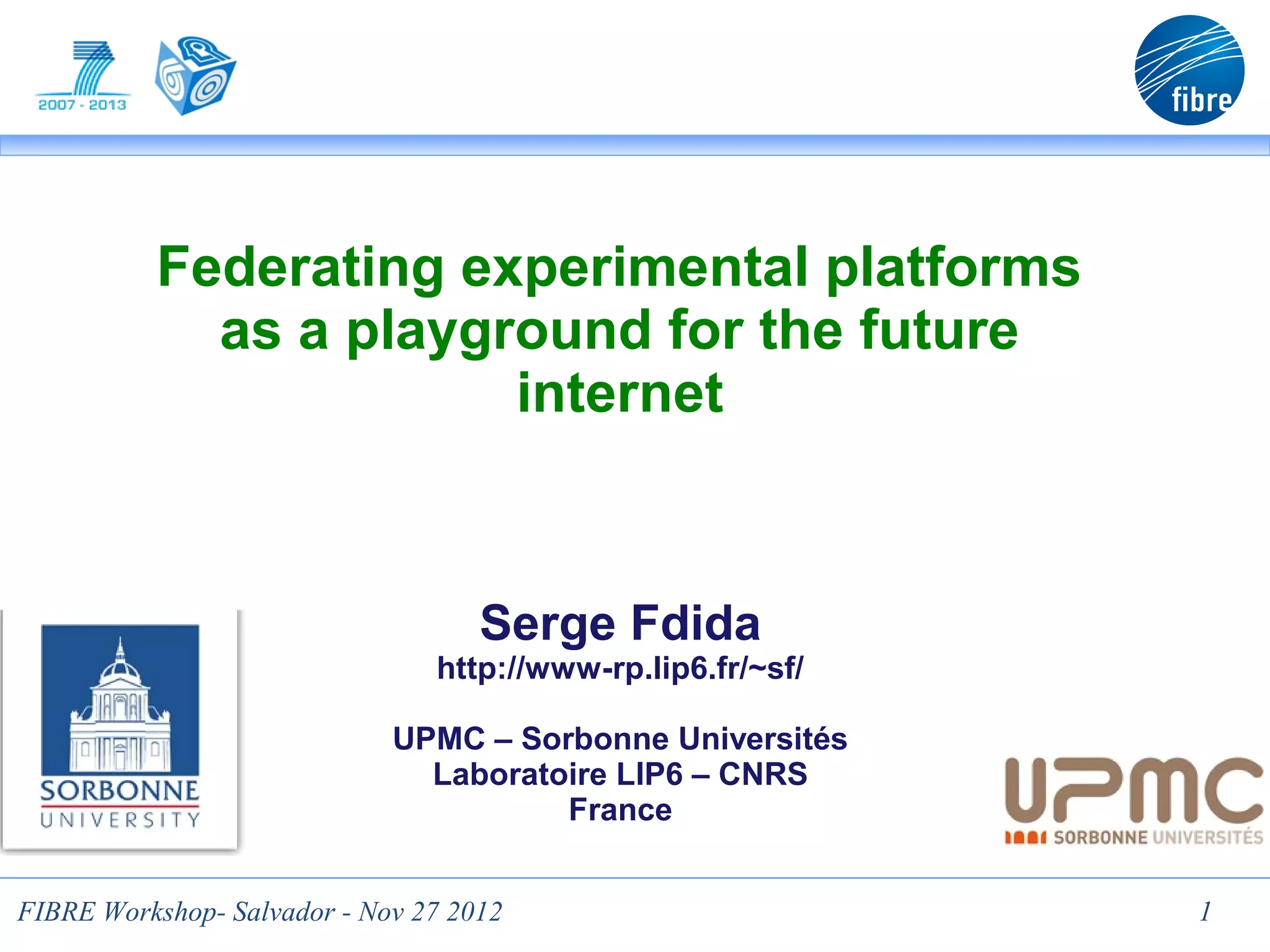

- 1. Federating experimental platforms as a playground for the future internet Serge Fdida http://www-rp.lip6.fr/~sf/ UPMC – Sorbonne Universités Laboratoire LIP6 – CNRS France FIBRE Workshop- Salvador - Nov 27 2012 1

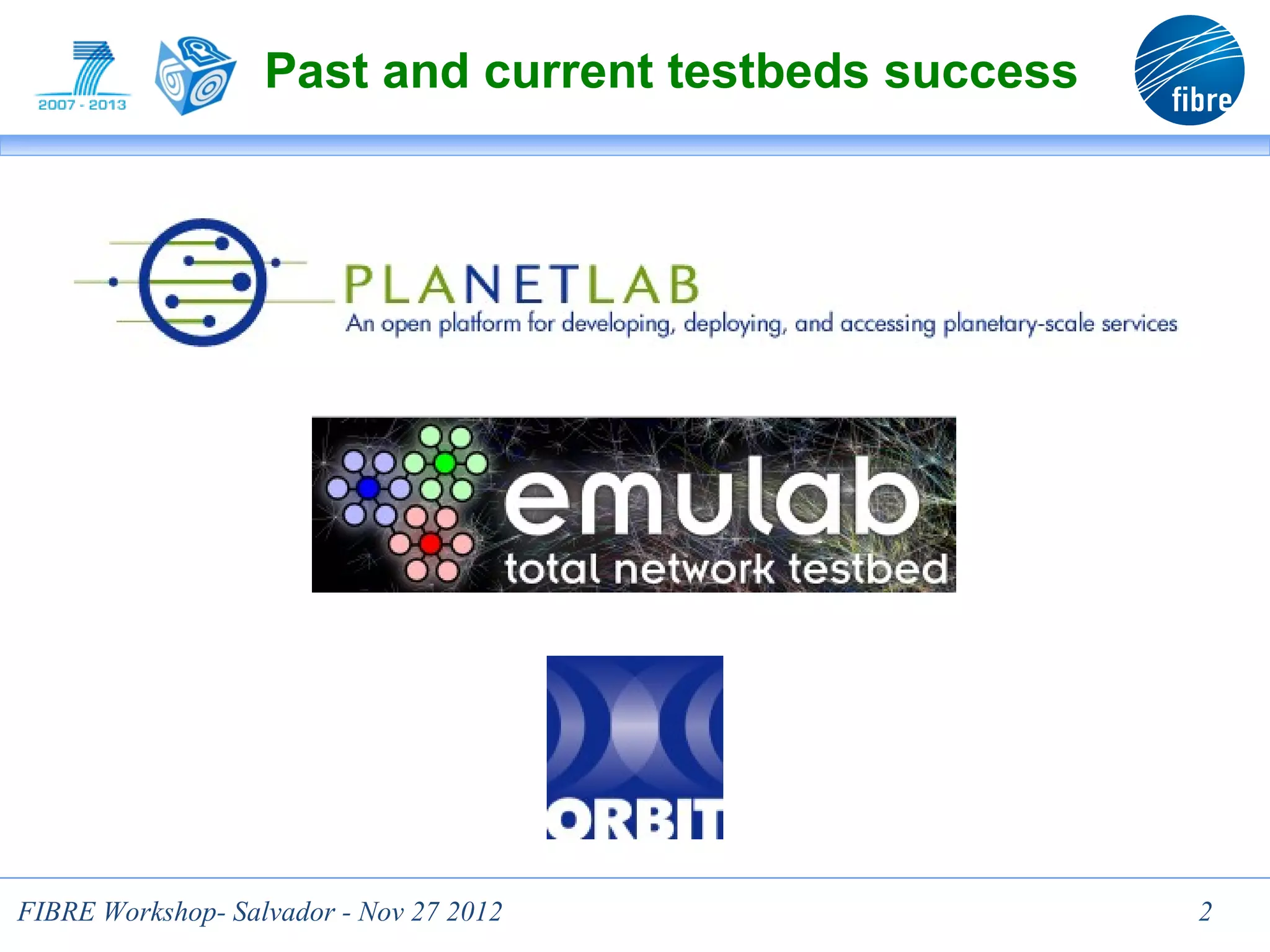

- 2. Past and currenttestbeds success FIBRE Workshop- Salvador - Nov 27 2012 2

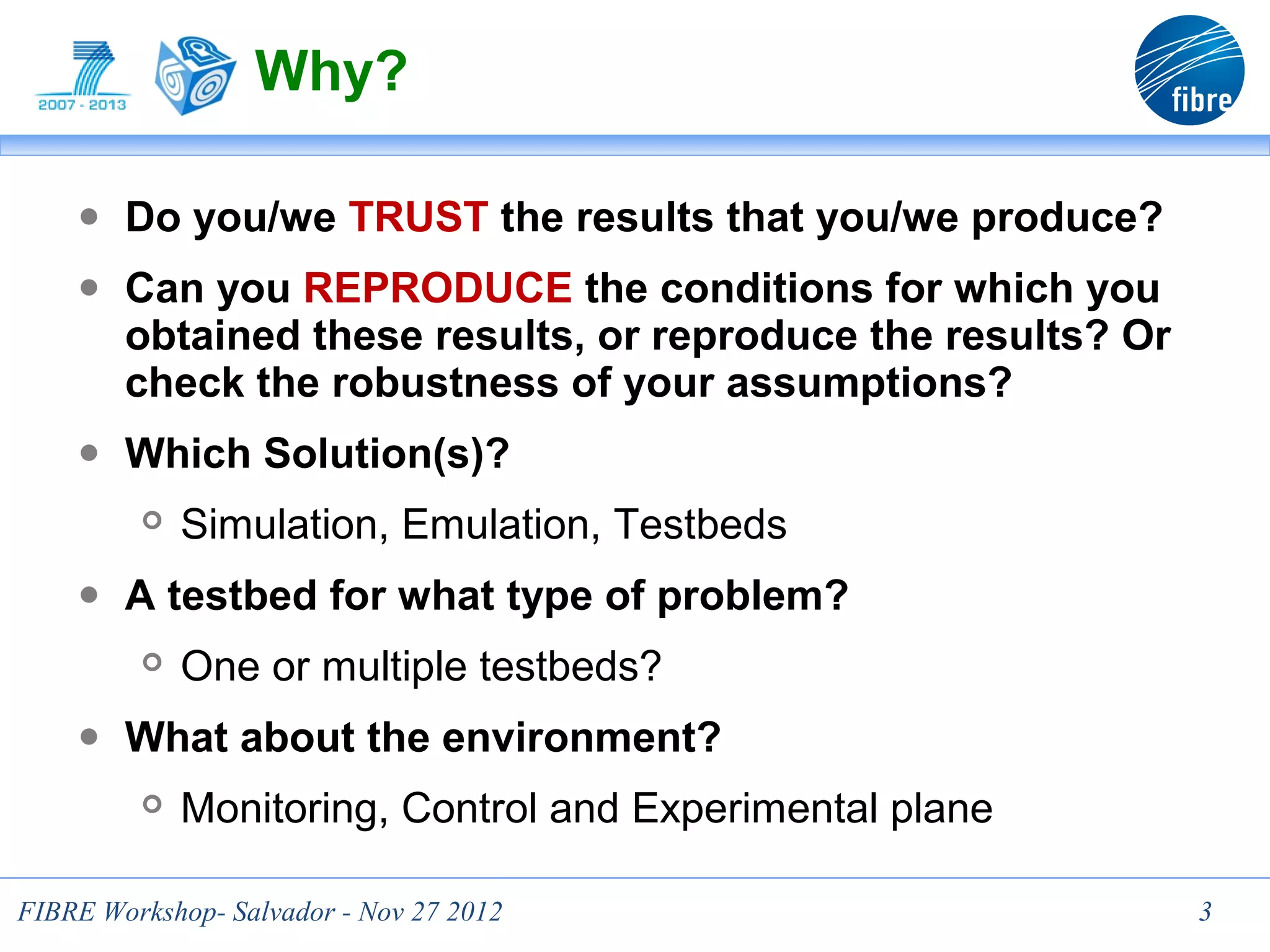

- 3. Why? ● Do you/we TRUST the results that you/we produce? ● Can you REPRODUCE the conditions for which you obtained these results, or reproduce the results? Or check the robustness of your assumptions? ● Which Solution(s)? Simulation, Emulation, Testbeds ● A testbed for what type of problem? One or multiple testbeds? ● What about the environment? Monitoring, Control and Experimental plane FIBRE Workshop- Salvador - Nov 27 2012 3

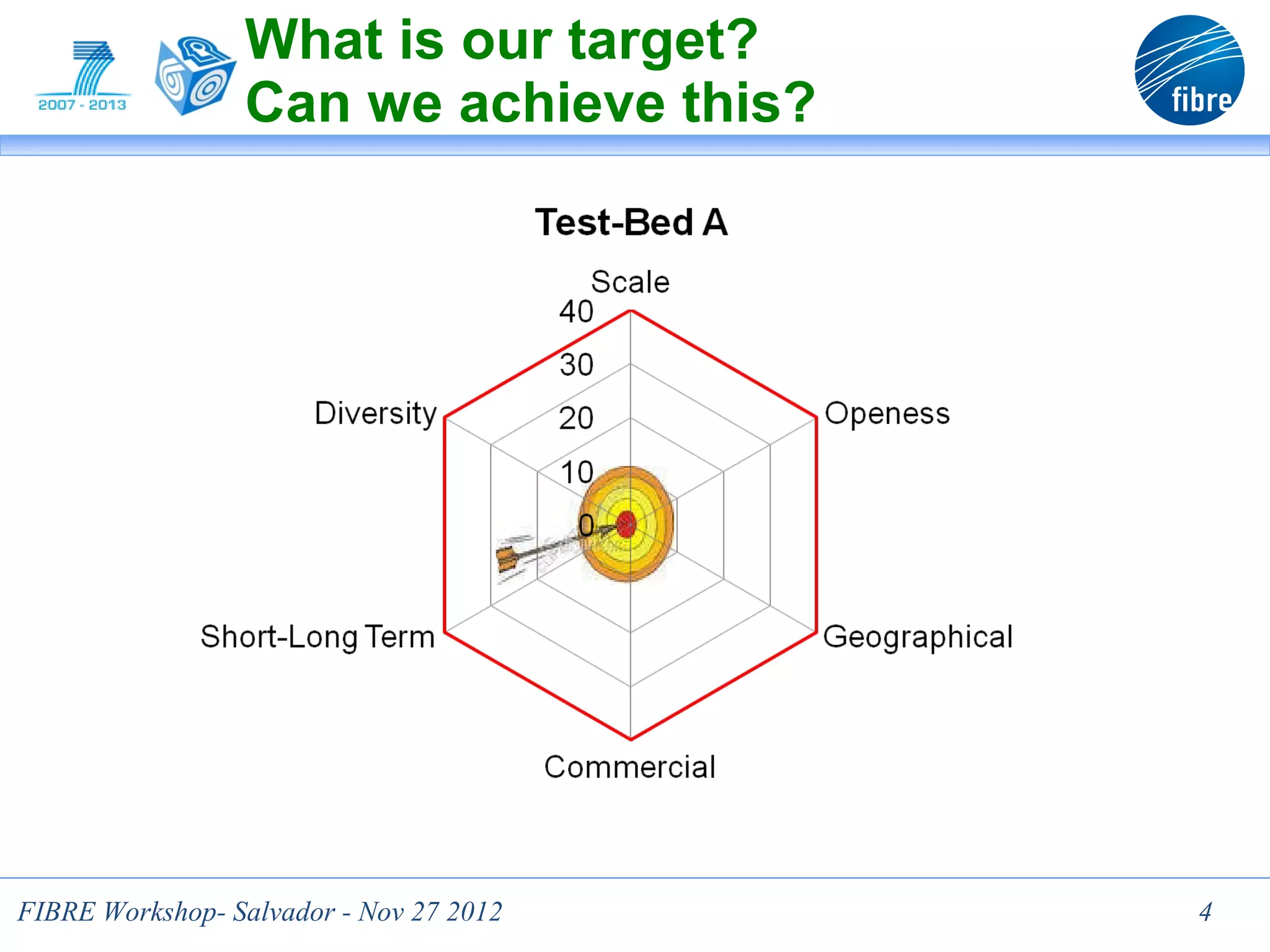

- 4. What is ourtarget? Can we achieve this? FIBRE Workshop- Salvador - Nov 27 2012 4

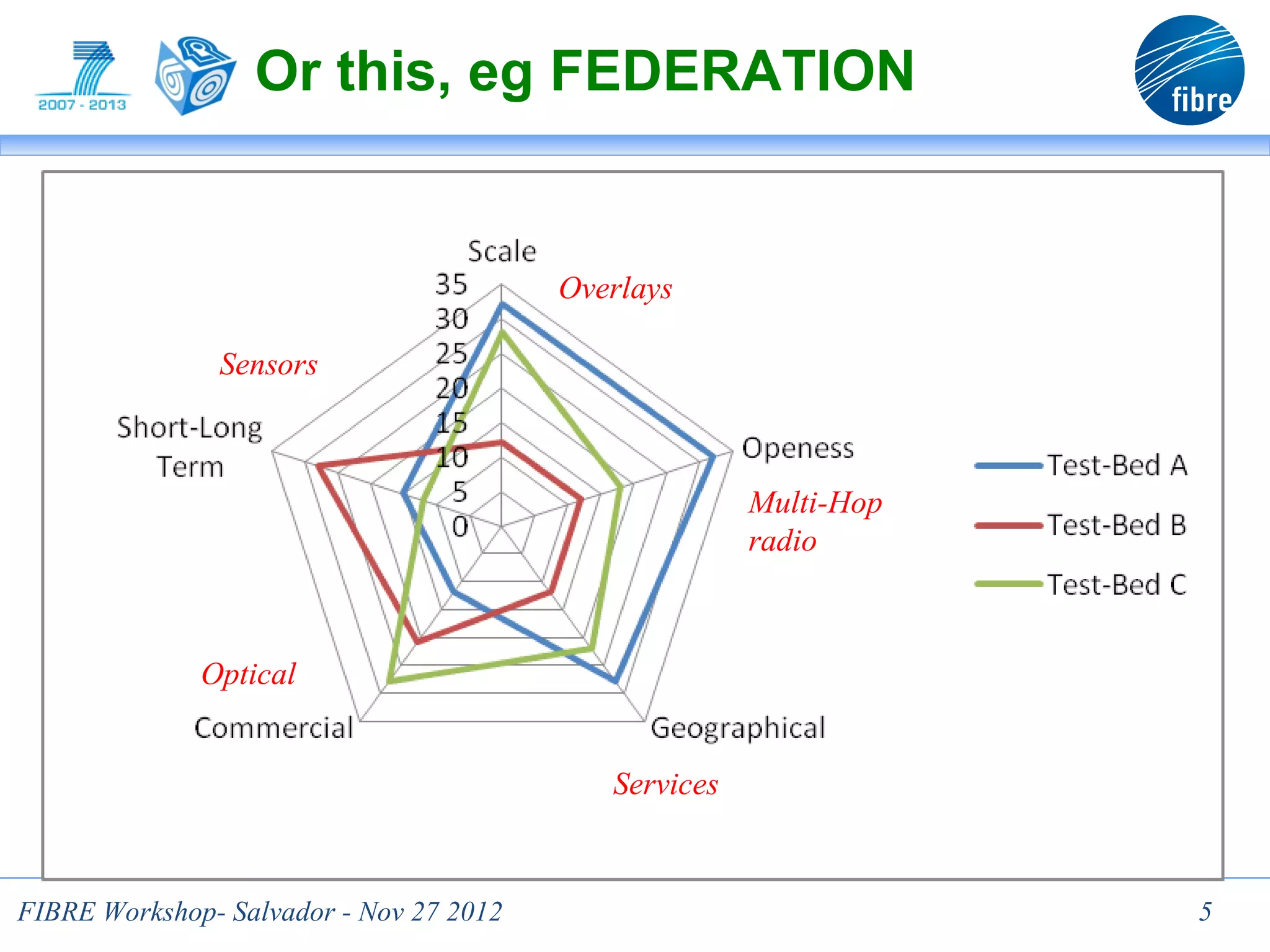

- 5. Or this, egFEDERATION Overlays Sensors Multi-Hop radio Optical Services FIBRE Workshop- Salvador - Nov 27 2012 5
- 6. Some possible scenario…. FIBRE Workshop- Salvador - Nov 27 2012 6

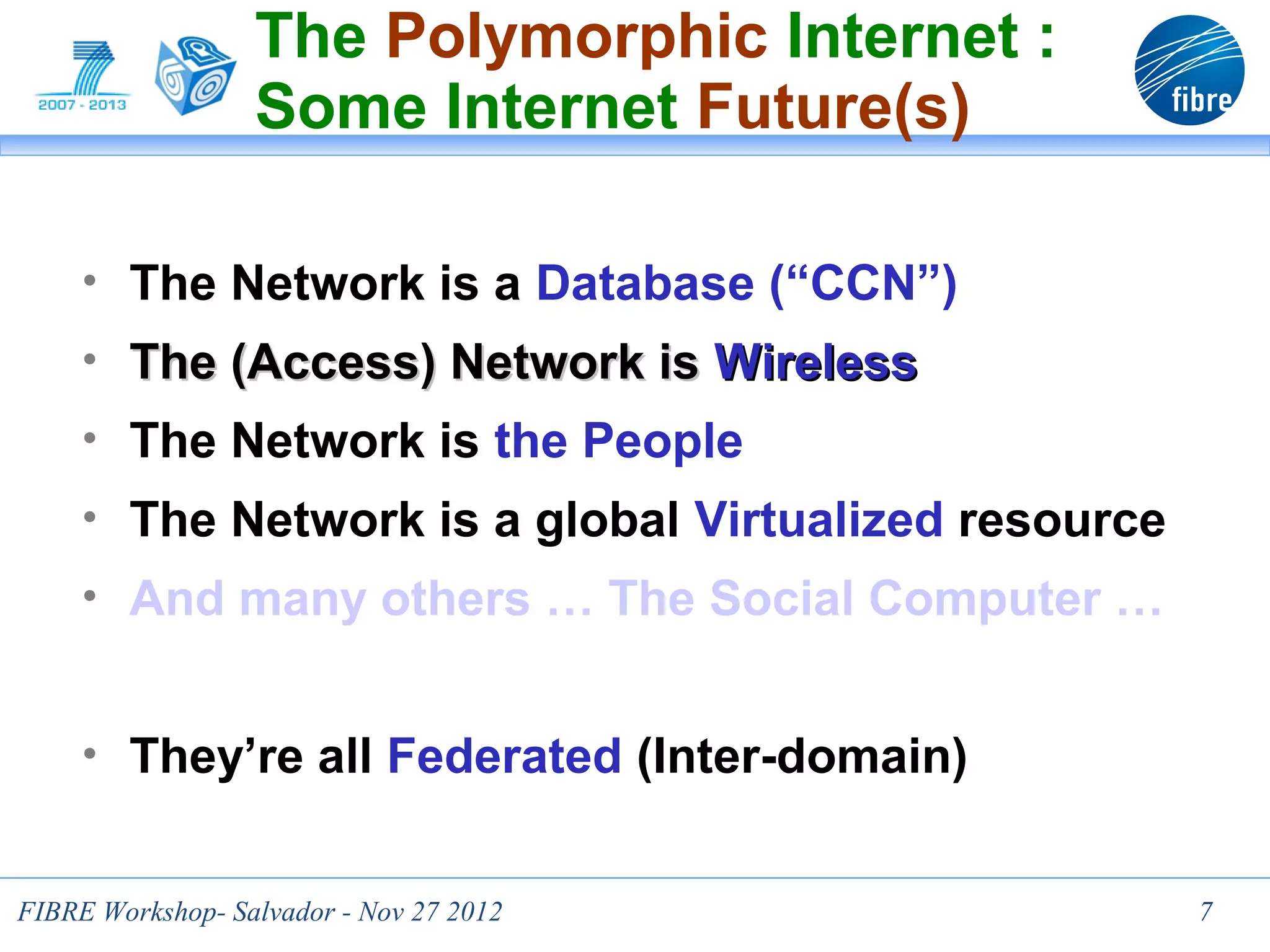

- 7. The Polymorphic Internet: Some Internet Future(s) • The Network is a Database (“CCN”) • The (Access) Network is Wireless • The Network is the People • The Network is a global Virtualized resource • And many others … The Social Computer … • They’re all Federated (Inter-domain) FIBRE Workshop- Salvador - Nov 27 2012 7

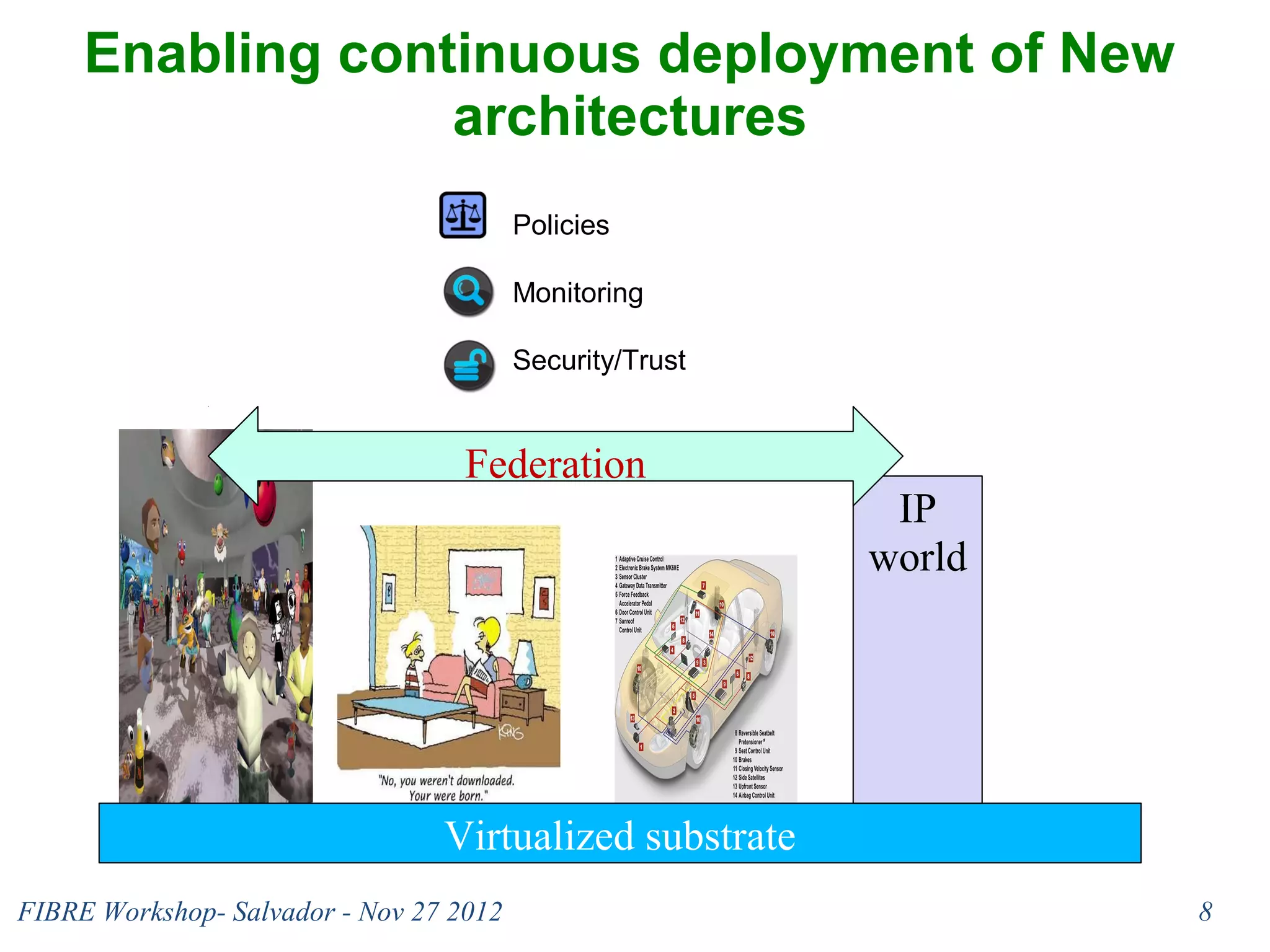

- 8. Enabling continuous deploymentof New architectures Policies Monitoring Security/Trust Federation IP world Virtualized substrate FIBRE Workshop- Salvador - Nov 27 2012 8
- 9. The Federation Concept! FIBREWorkshop- Salvador - Nov 27 2012 9
- 10. Federation (dictionary definition!) A federation is a union comprising a number of partially self-governing regions united by a central ("federal") government under a common set of objectives. FIBRE Workshop- Salvador - Nov 27 2012 10

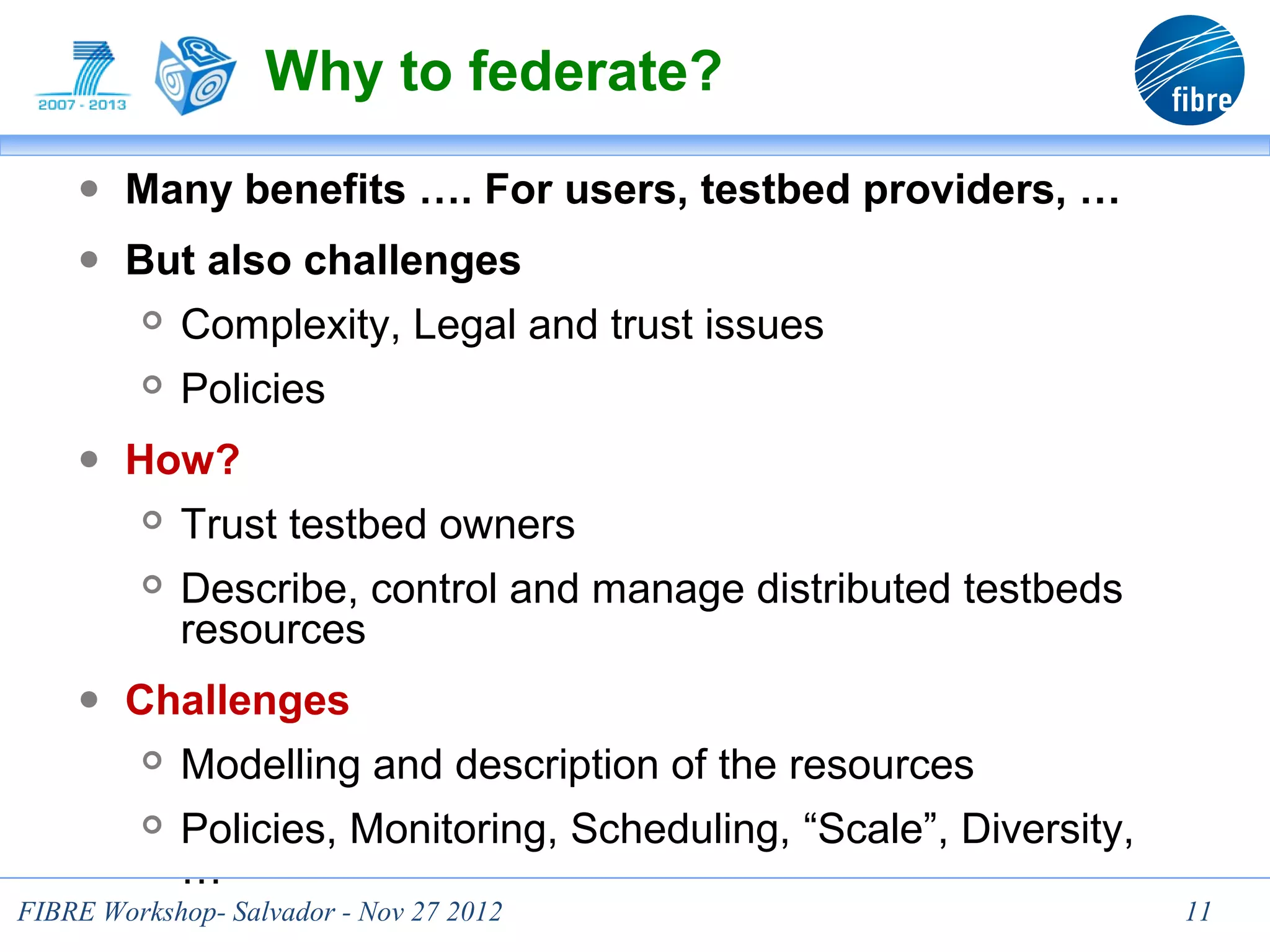

- 11. Why to federate? ● Many benefits …. For users, testbed providers, … ● But also challenges Complexity, Legal and trust issues Policies ● How? Trust testbed owners Describe, control and manage distributed testbeds resources ● Challenges Modelling and description of the resources Policies, Monitoring, Scheduling, “Scale”, Diversity, … FIBRE Workshop- Salvador - Nov 27 2012 11

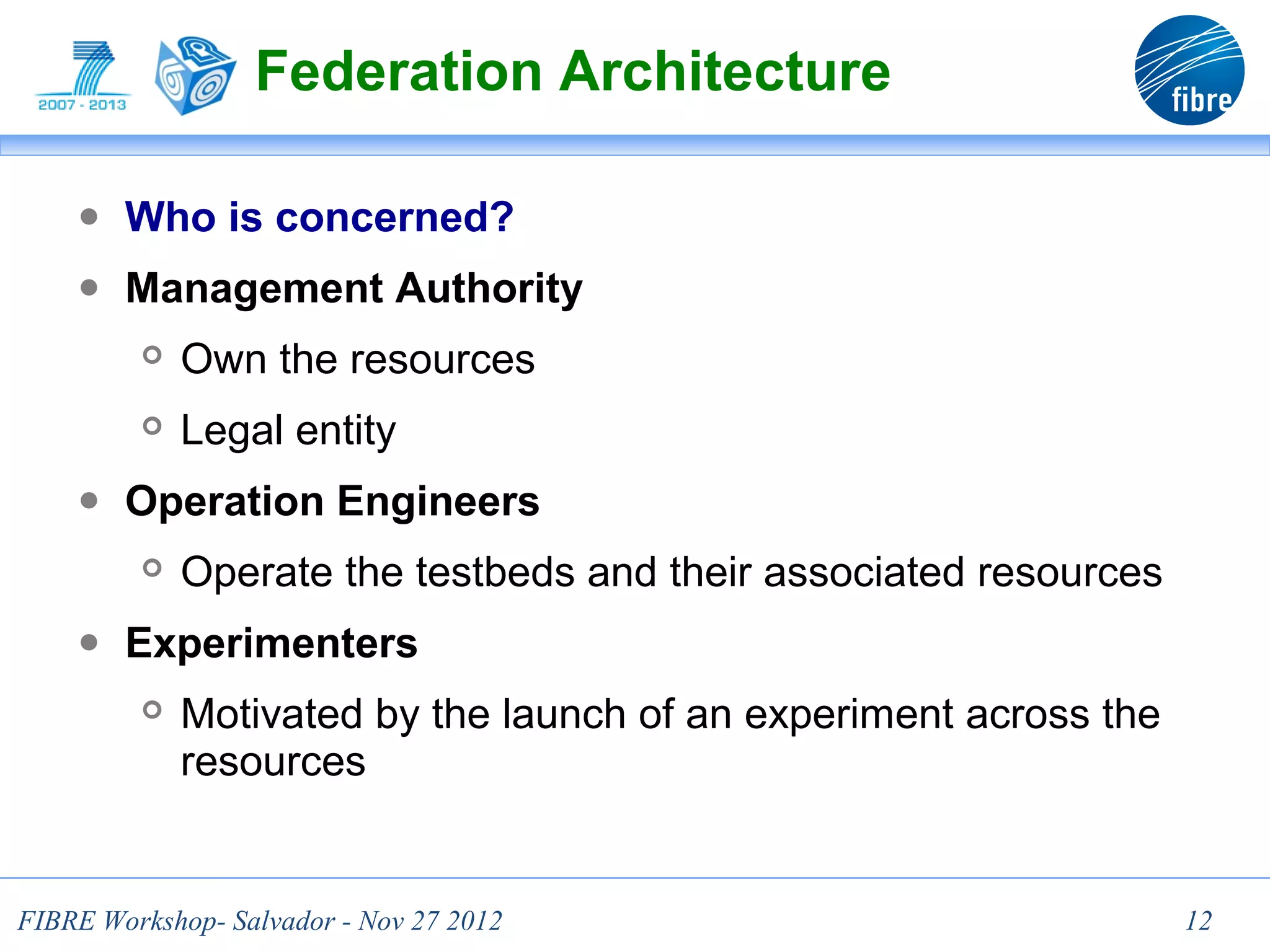

- 12. Federation Architecture ● Who is concerned? ● Management Authority Own the resources Legal entity ● Operation Engineers Operate the testbeds and their associated resources ● Experimenters Motivated by the launch of an experiment across the resources FIBRE Workshop- Salvador - Nov 27 2012 12

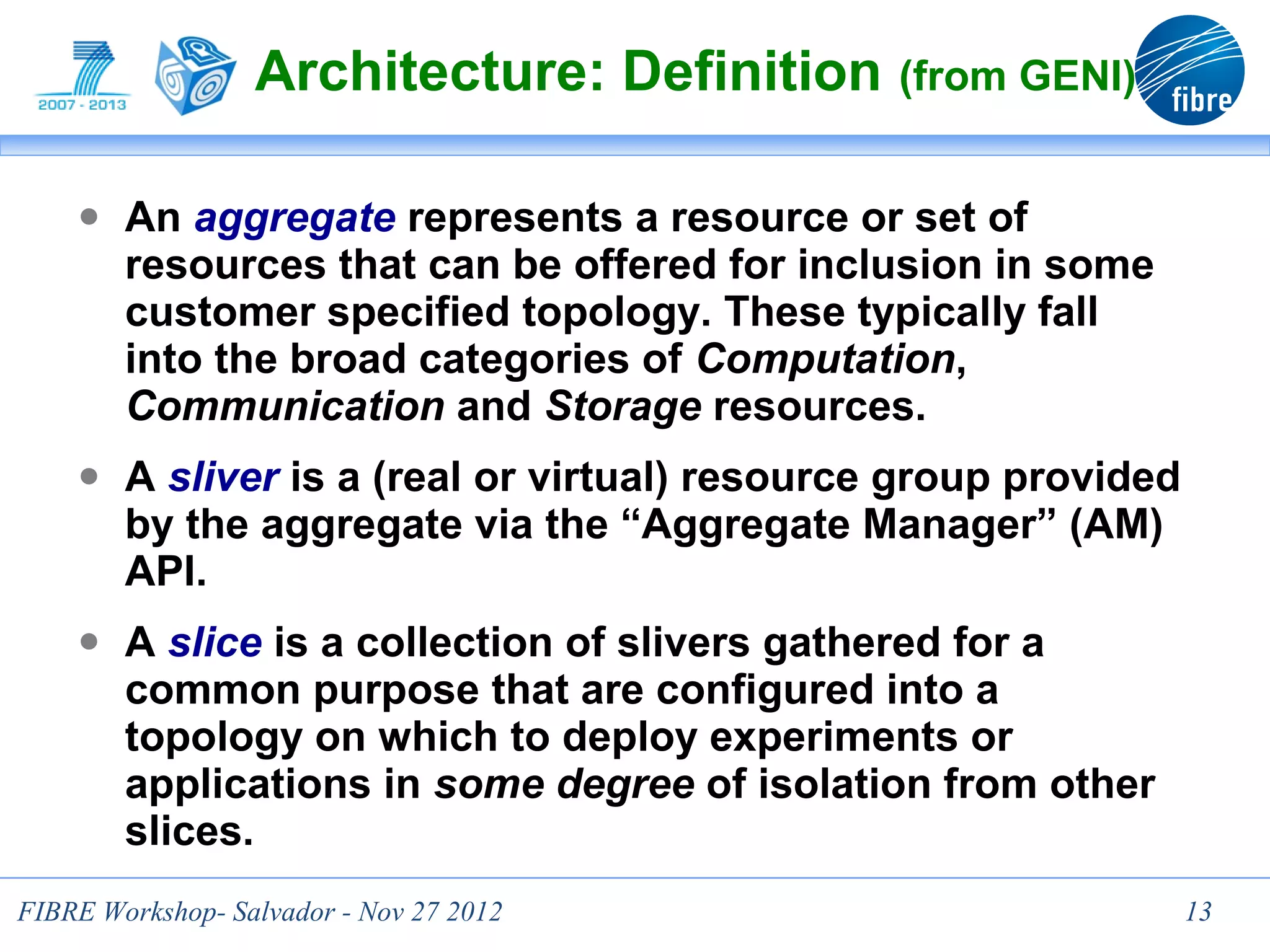

- 13. Architecture: Definition (fromGENI) ● An aggregate represents a resource or set of resources that can be offered for inclusion in some customer specified topology. These typically fall into the broad categories of Computation, Communication and Storage resources. ● A sliver is a (real or virtual) resource group provided by the aggregate via the “Aggregate Manager” (AM) API. ● A slice is a collection of slivers gathered for a common purpose that are configured into a topology on which to deploy experiments or applications in some degree of isolation from other slices. FIBRE Workshop- Salvador - Nov 27 2012 13

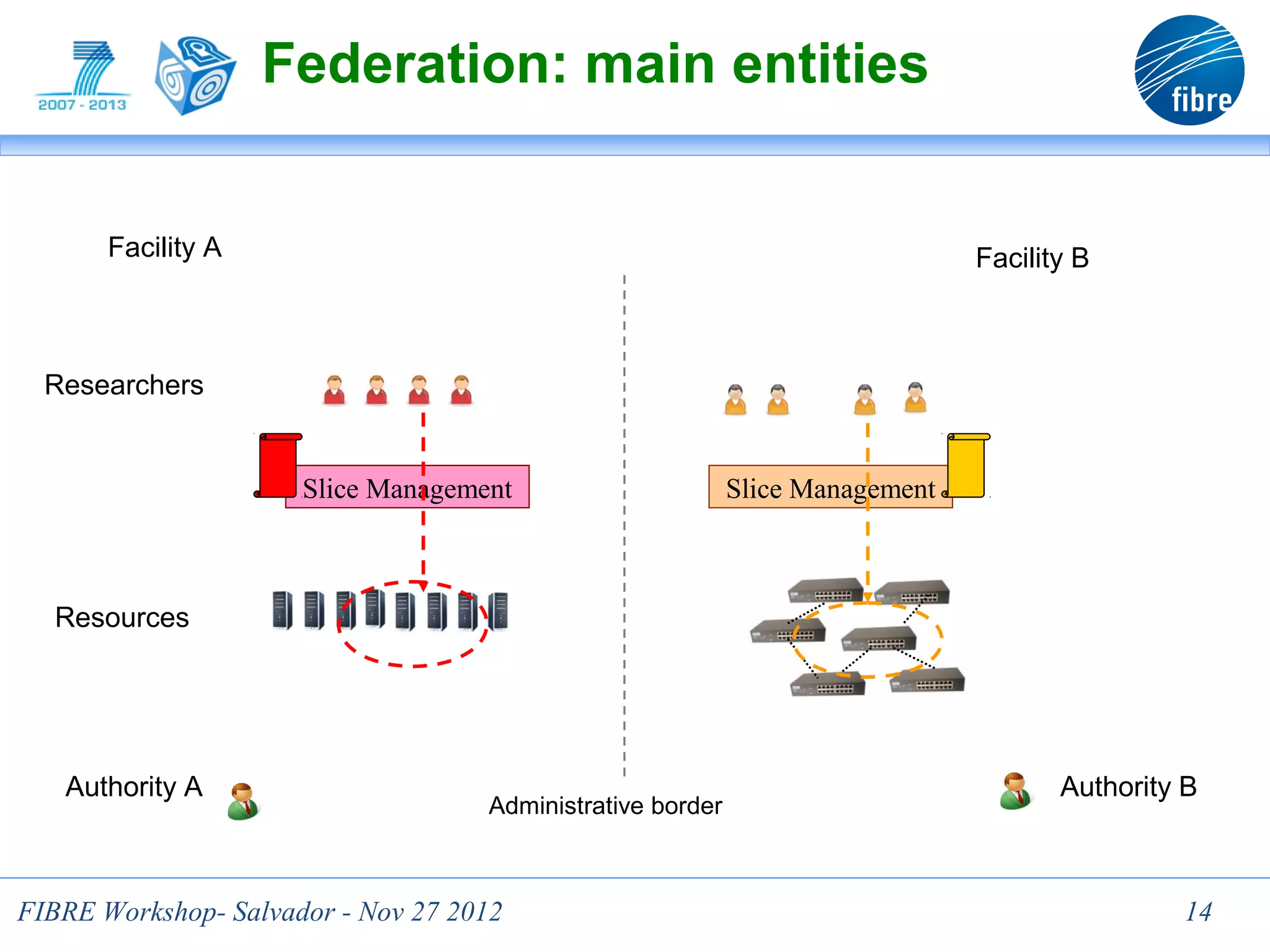

- 14. Federation: main entities Facility A Facility B Researchers Slice Management Slice Management Resources Authority A Authority B Administrative border FIBRE Workshop- Salvador - Nov 27 2012 14

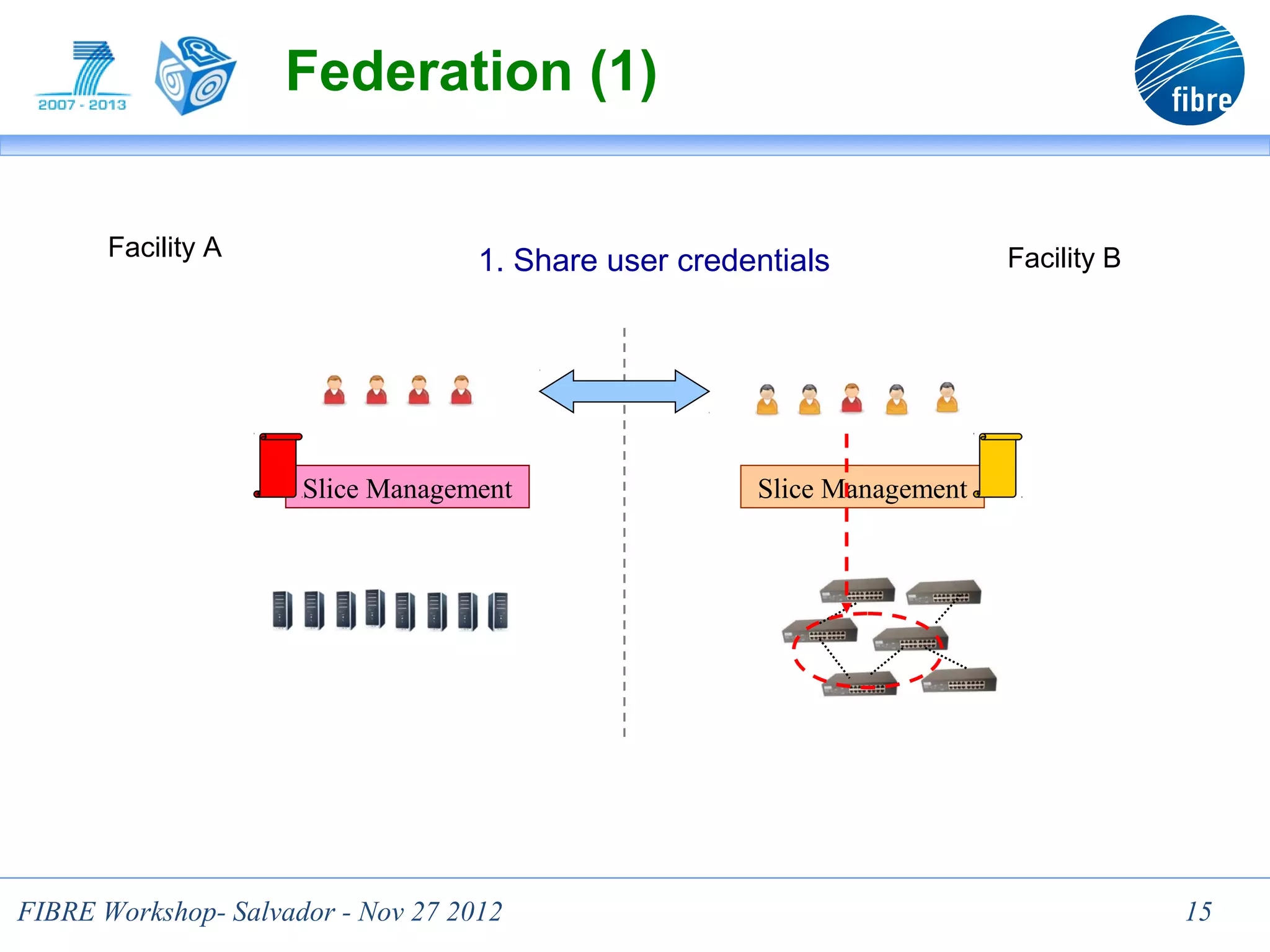

- 15. Federation (1) Facility A Facility B 1. Share user credentials Slice Management Slice Management FIBRE Workshop- Salvador - Nov 27 2012 15

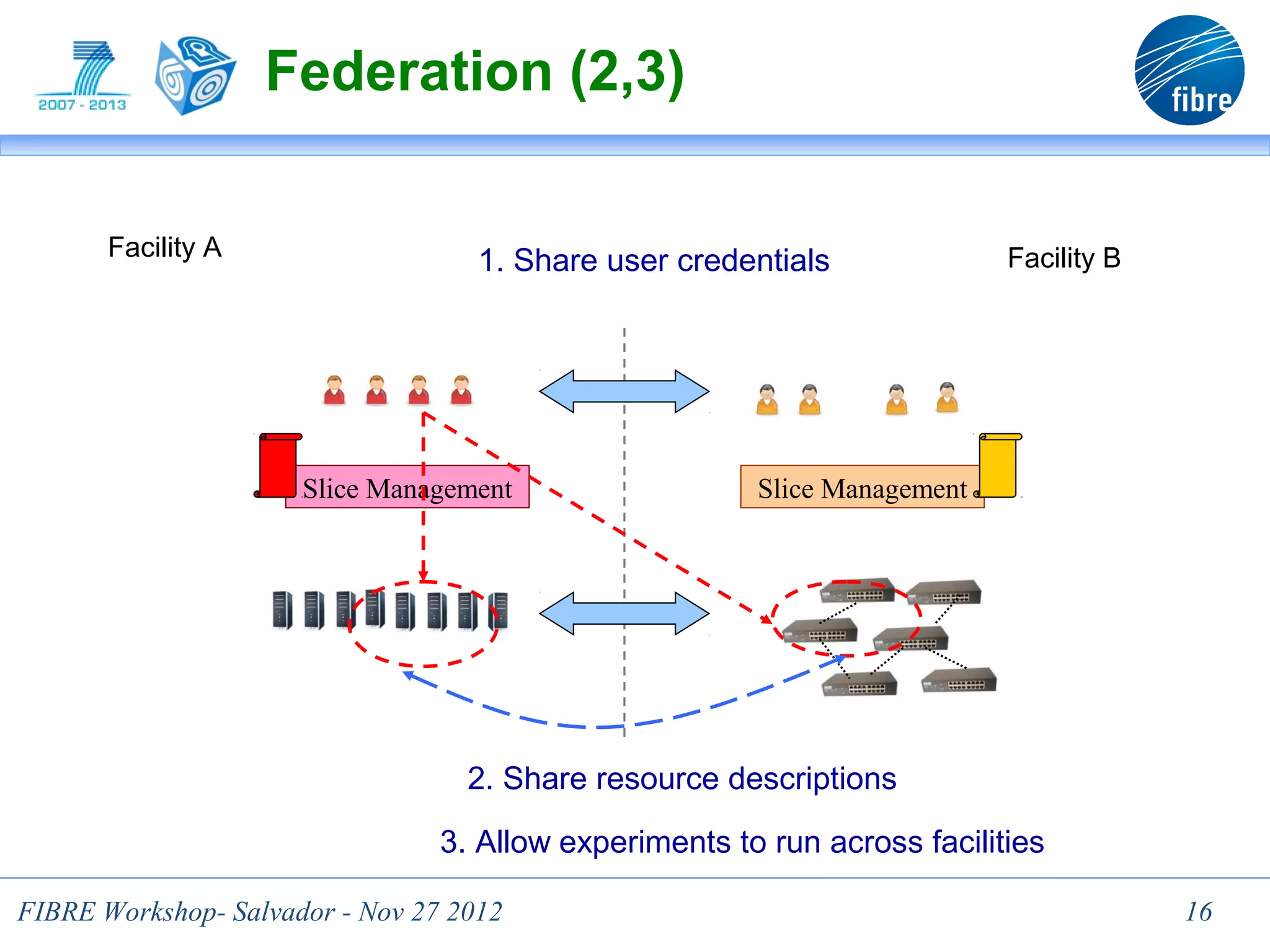

- 16. Federation (2,3) Facility A Facility B 1. Share user credentials Slice Management Slice Management 2. Share resource descriptions 3. Allow experiments to run across facilities FIBRE Workshop- Salvador - Nov 27 2012 16

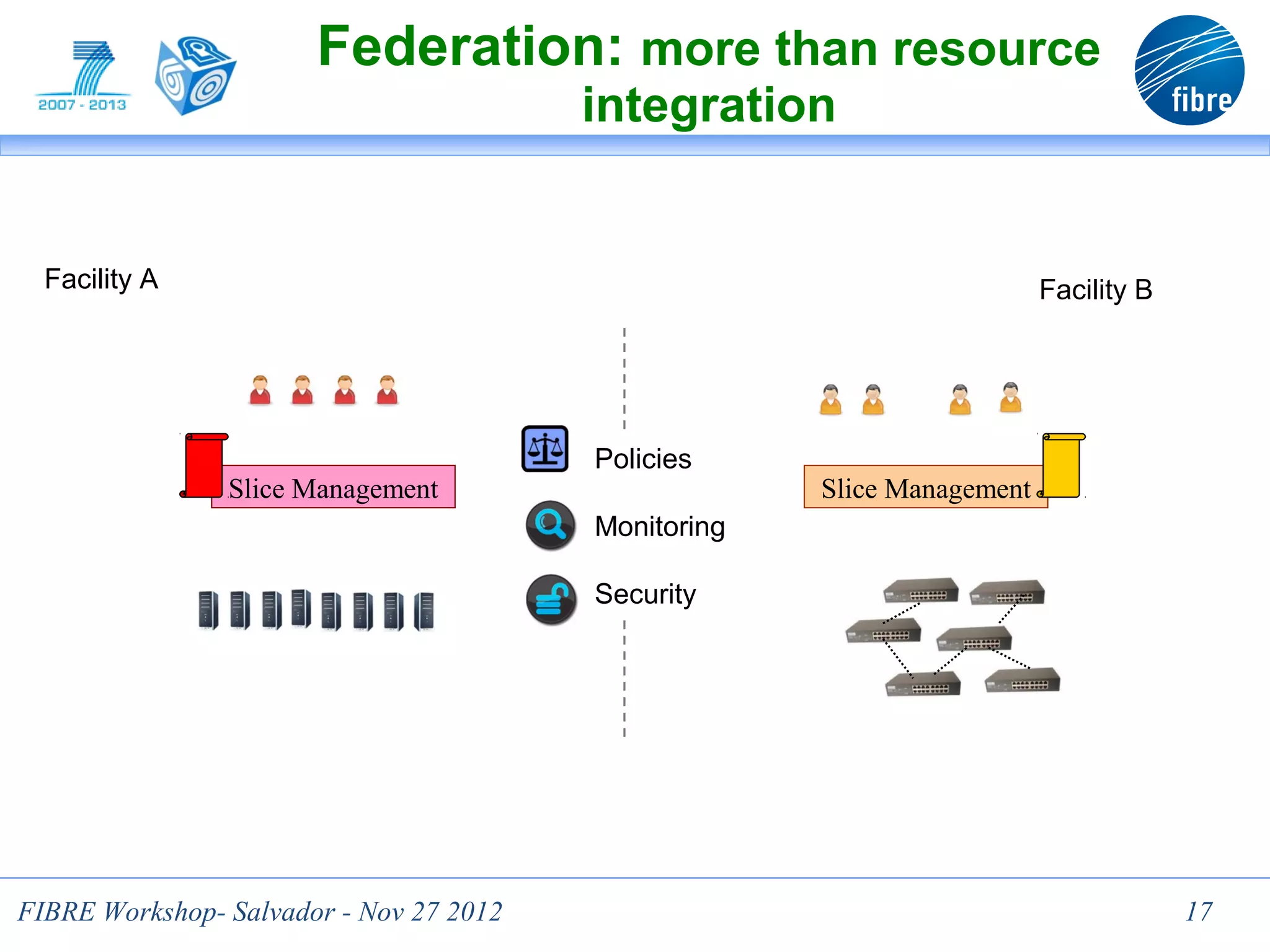

- 17. Federation: more thanresource integration Facility A Facility B Policies Slice Management Slice Management Monitoring Security FIBRE Workshop- Salvador - Nov 27 2012 17

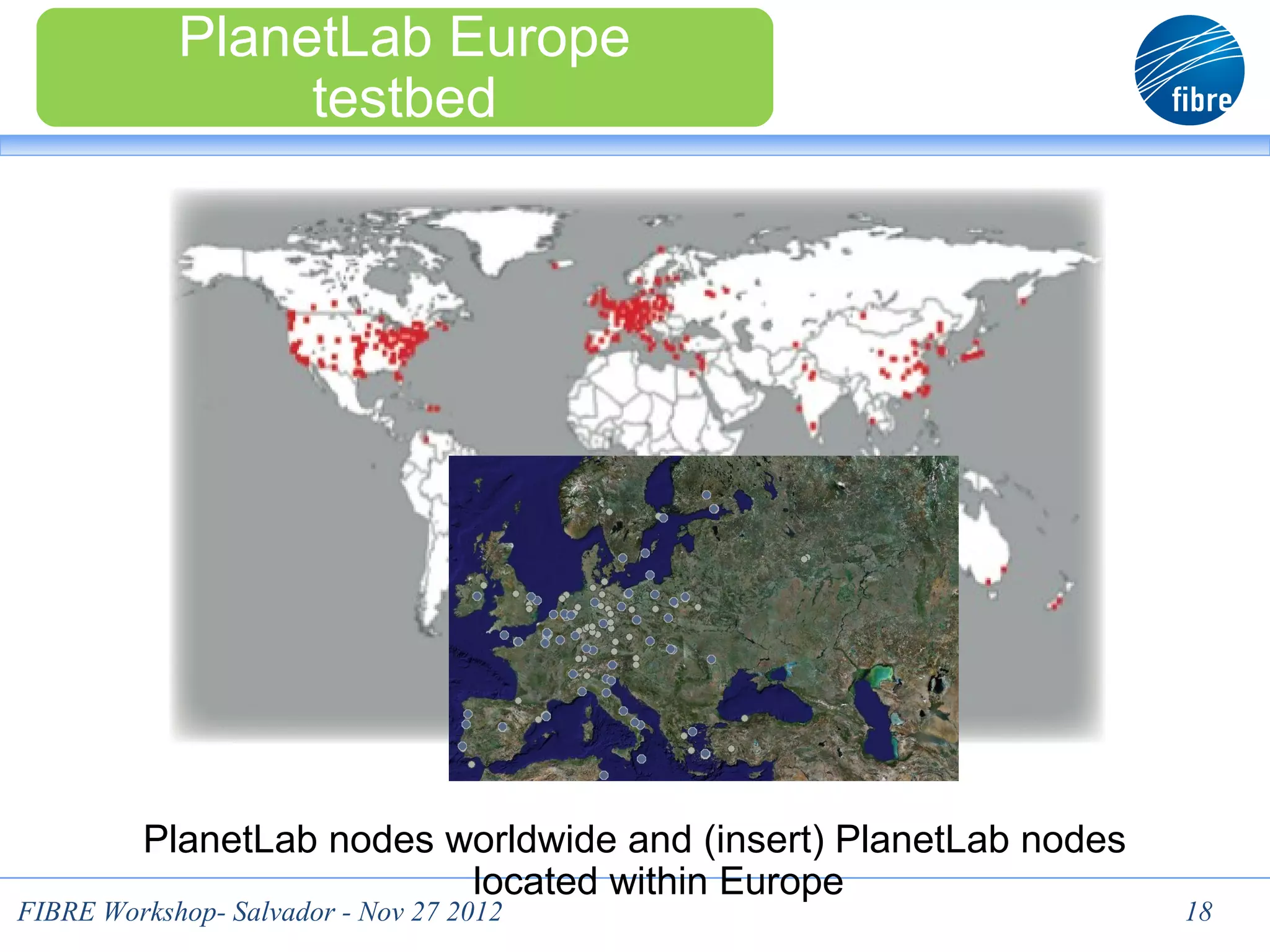

- 18. PlanetLab Europe testbed PlanetLab nodes worldwide and (insert) PlanetLab nodes located within Europe FIBRE Workshop- Salvador - Nov 27 2012 18

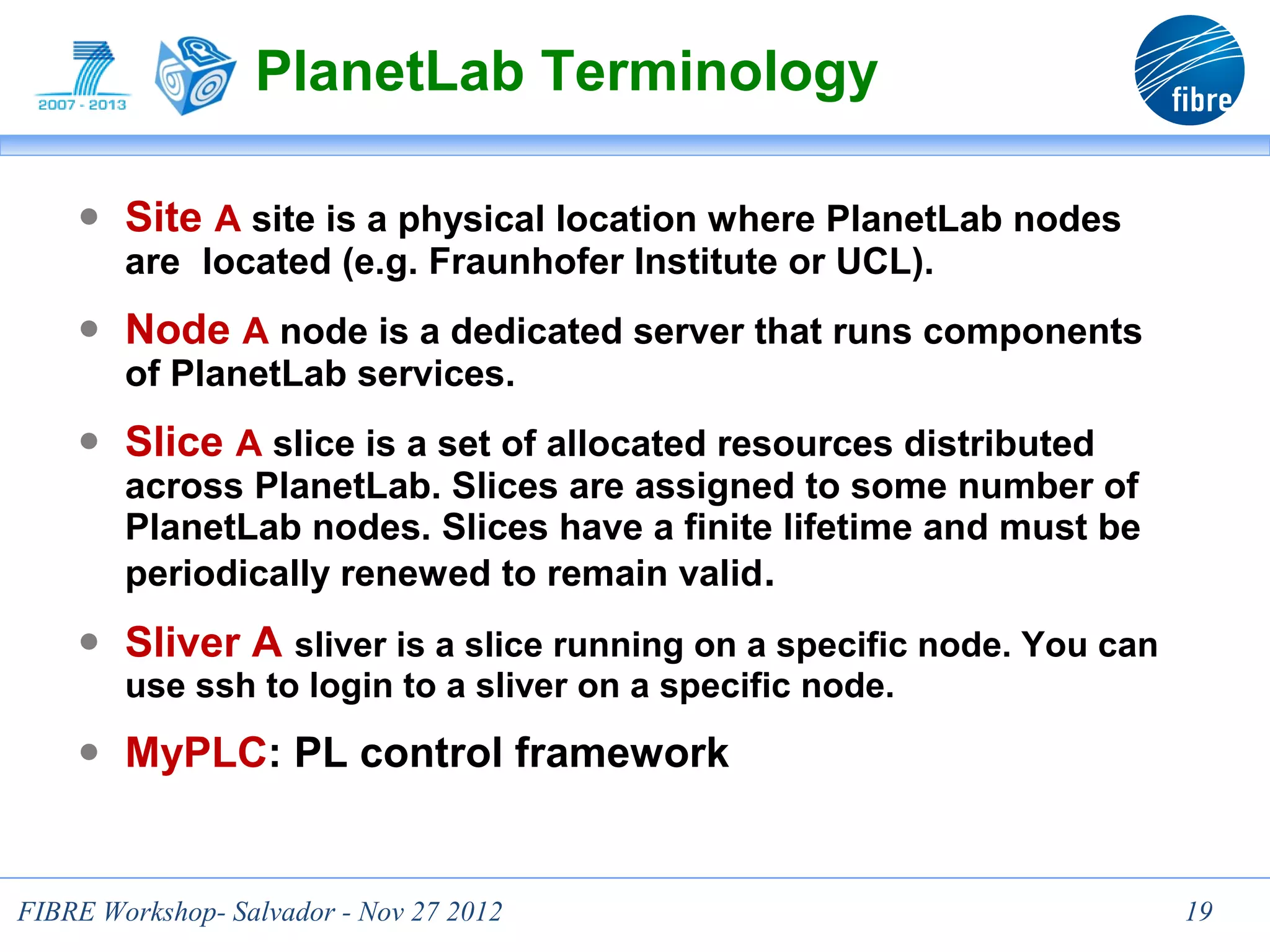

- 19. PlanetLab Terminology ● Site A site is a physical location where PlanetLab nodes are located (e.g. Fraunhofer Institute or UCL). ● Node A node is a dedicated server that runs components of PlanetLab services. ● Slice A slice is a set of allocated resources distributed across PlanetLab. Slices are assigned to some number of PlanetLab nodes. Slices have a finite lifetime and must be periodically renewed to remain valid. ● Sliver A sliver is a slice running on a specific node. You can use ssh to login to a sliver on a specific node. ● MyPLC: PL control framework 19 FIBRE Workshop- Salvador - Nov 27 2012 19

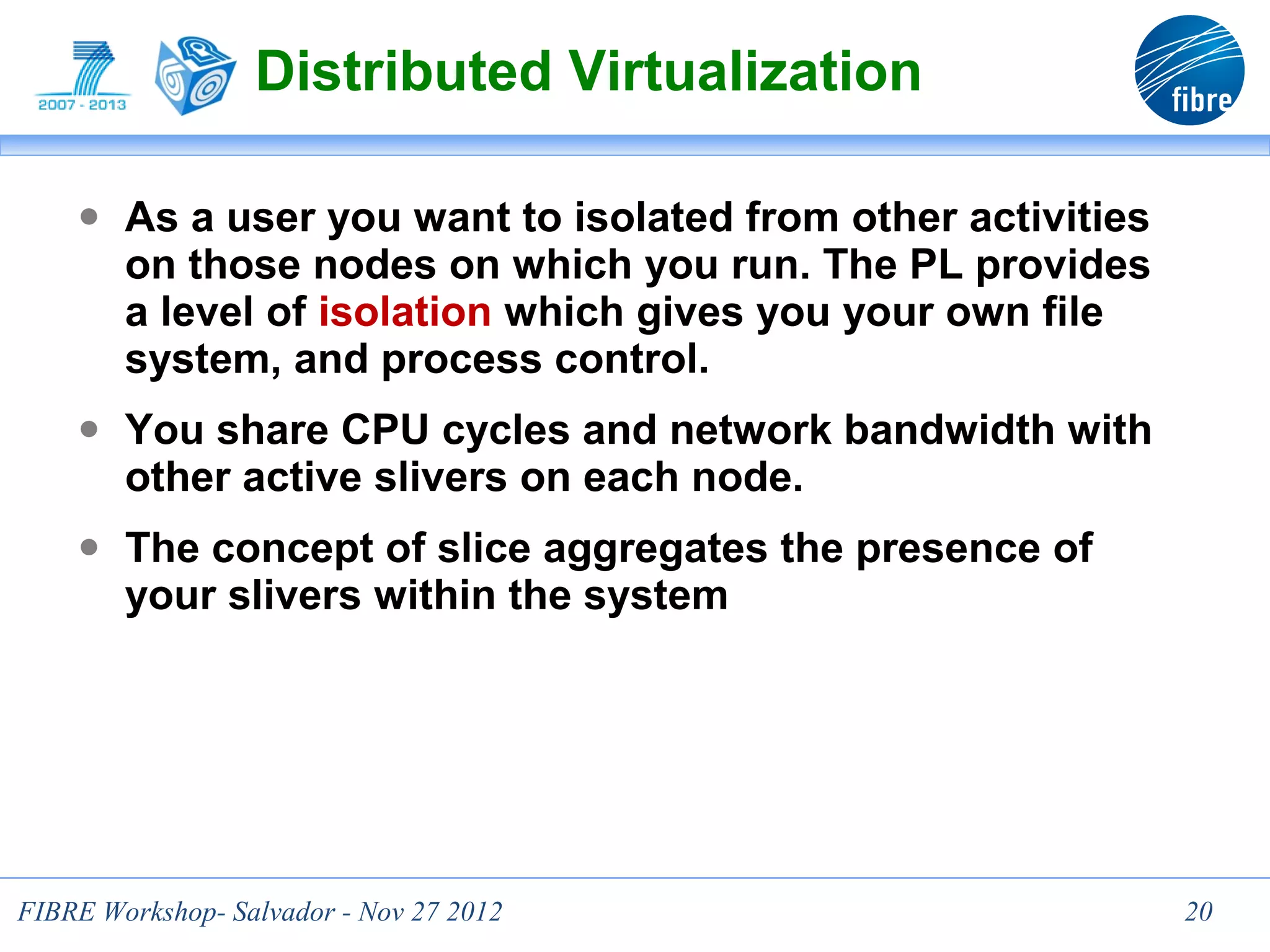

- 20. Distributed Virtualization ● As a user you want to isolated from other activities on those nodes on which you run. The PL provides a level of isolation which gives you your own file system, and process control. ● You share CPU cycles and network bandwidth with other active slivers on each node. ● The concept of slice aggregates the presence of your slivers within the system 20 FIBRE Workshop- Salvador - Nov 27 2012 20

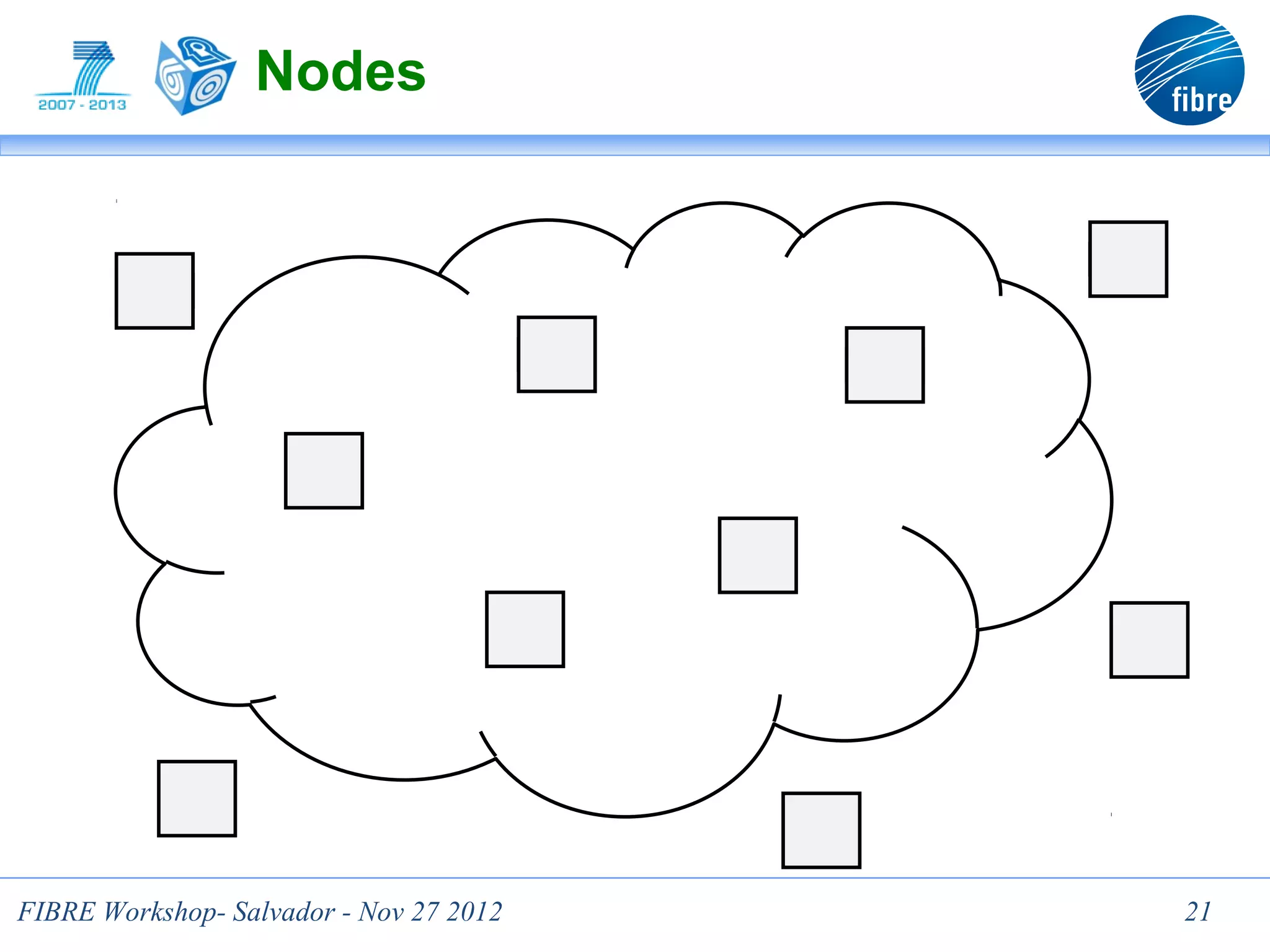

- 21. Nodes 21 FIBRE Workshop- Salvador - Nov 27 2012 21

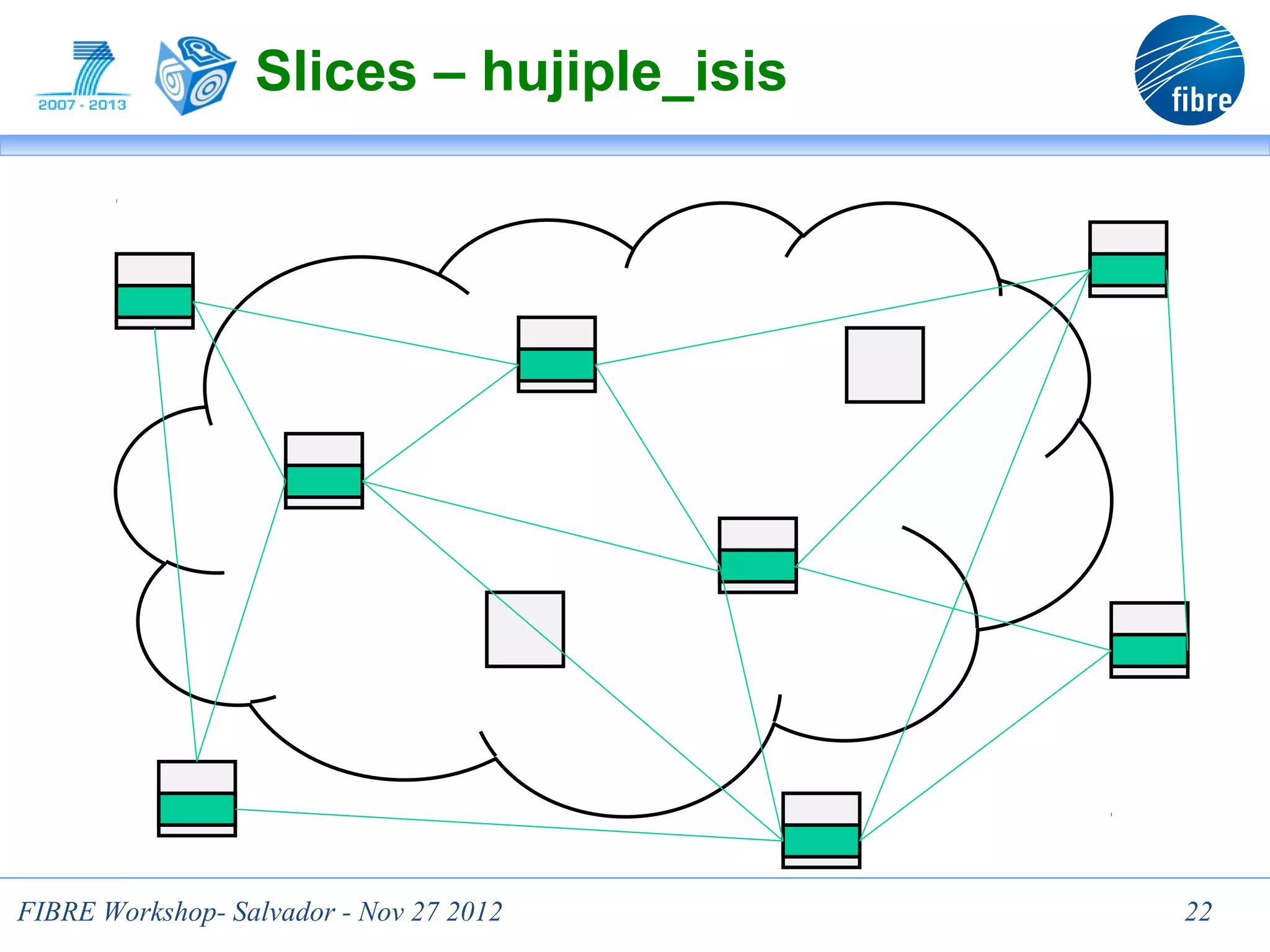

- 22. Slices – hujiple_isis 22 FIBRE Workshop- Salvador - Nov 27 2012 22

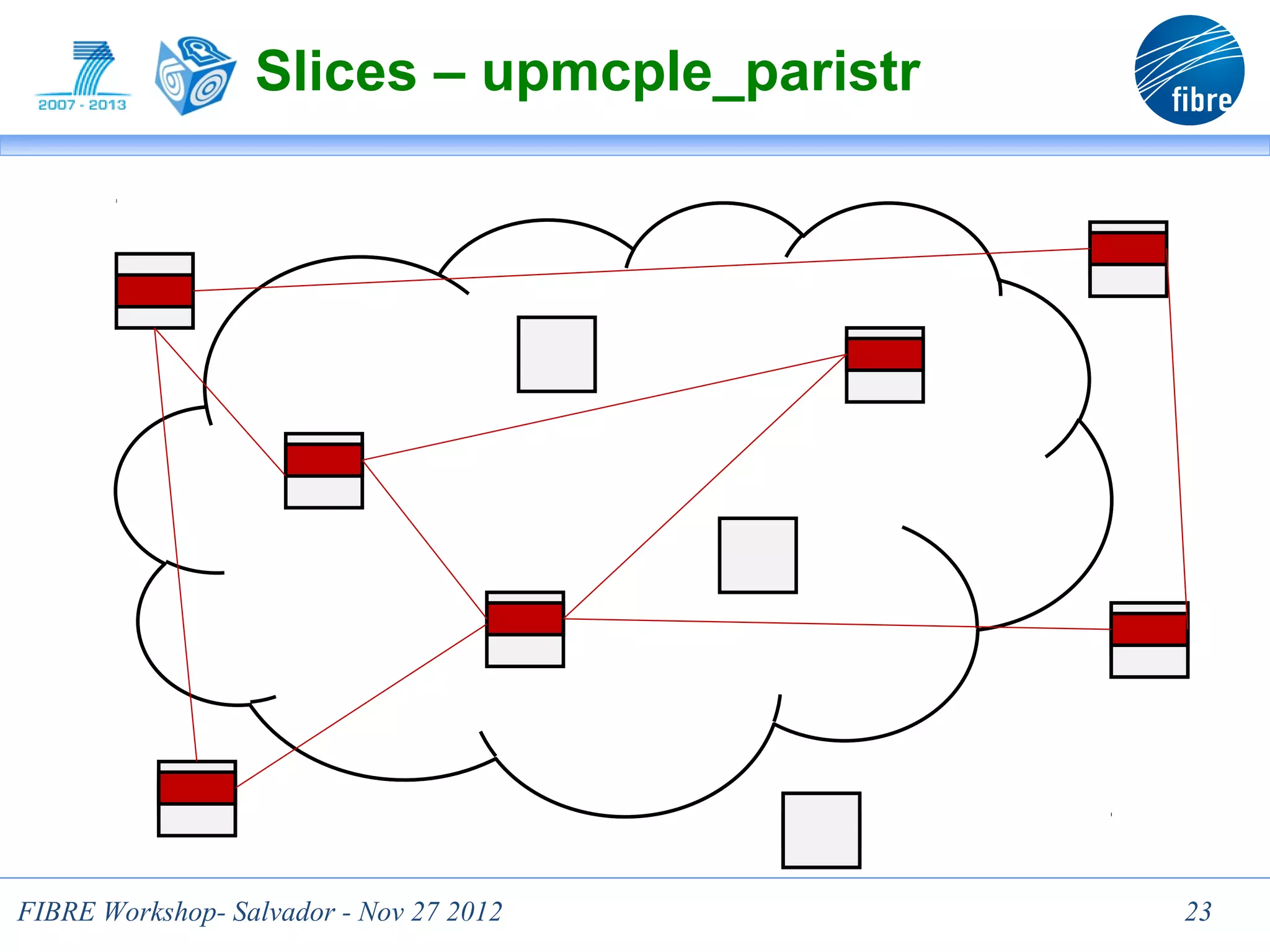

- 23. Slices – upmcple_paristr 23 FIBRE Workshop- Salvador - Nov 27 2012 23

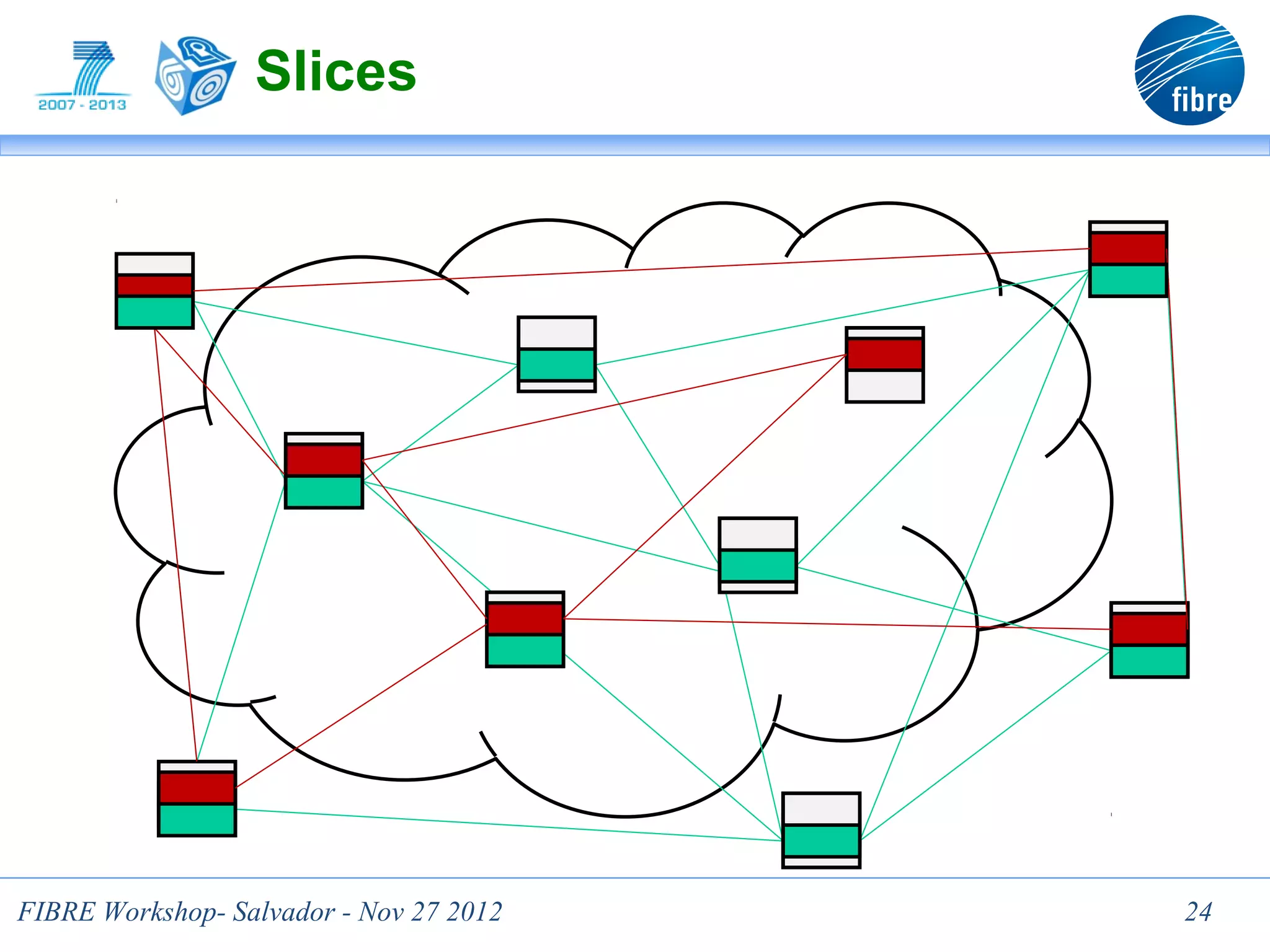

- 24. Slices 24 FIBRE Workshop- Salvador - Nov 27 2012 24

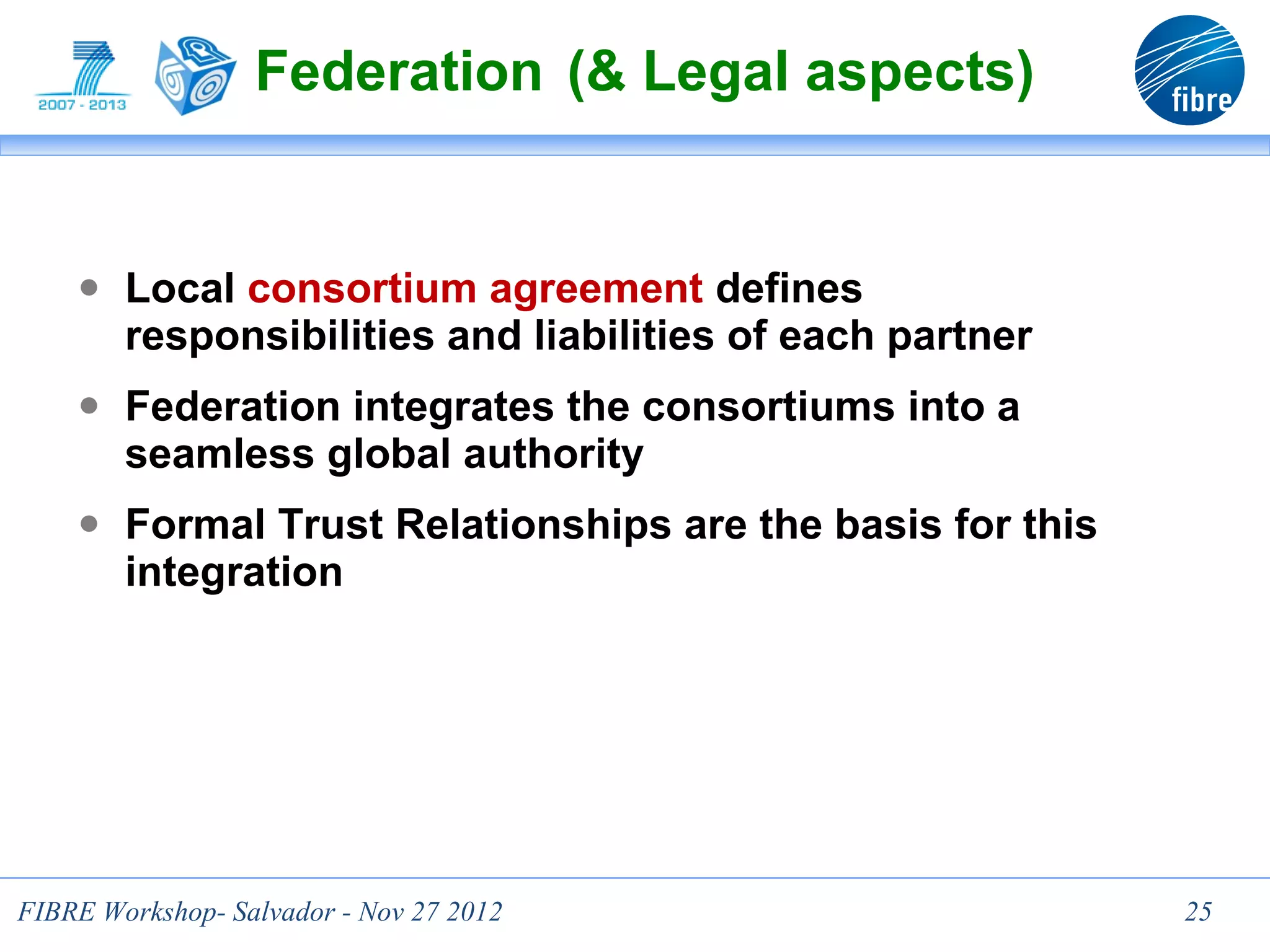

- 25. Federation (& Legalaspects) ● Local consortium agreement defines responsibilities and liabilities of each partner ● Federation integrates the consortiums into a seamless global authority ● Formal Trust Relationships are the basis for this integration 25 FIBRE Workshop- Salvador - Nov 27 2012 25

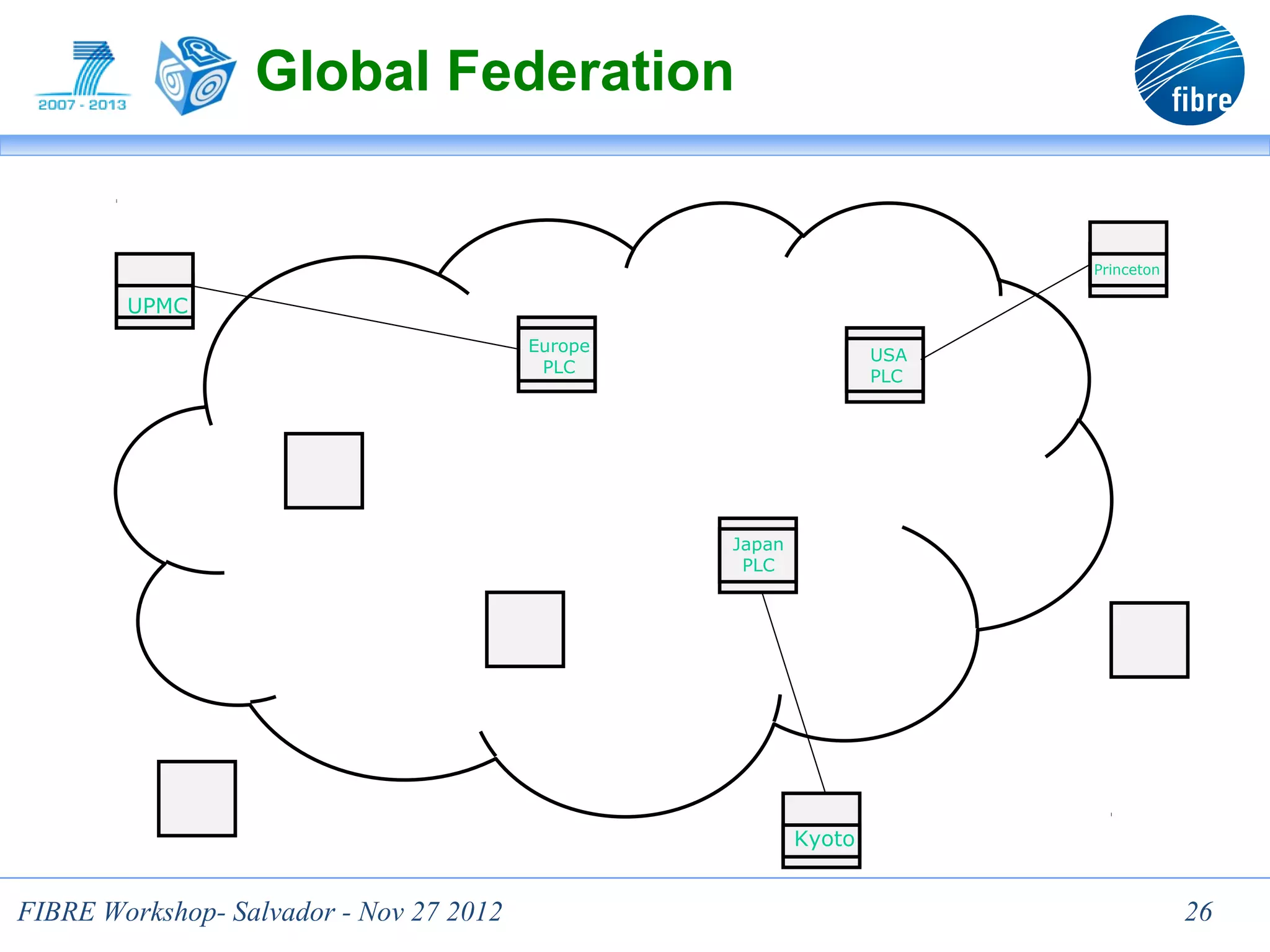

- 26. Global Federation Princeton UPMC Europe USA PLC PLC Japan PLC Kyoto 26 FIBRE Workshop- Salvador - Nov 27 2012 26
- 27. In Practice … What is SFA, OMF, MySlice, … FIBRE Workshop- Salvador - Nov 27 2012 27
- 28.

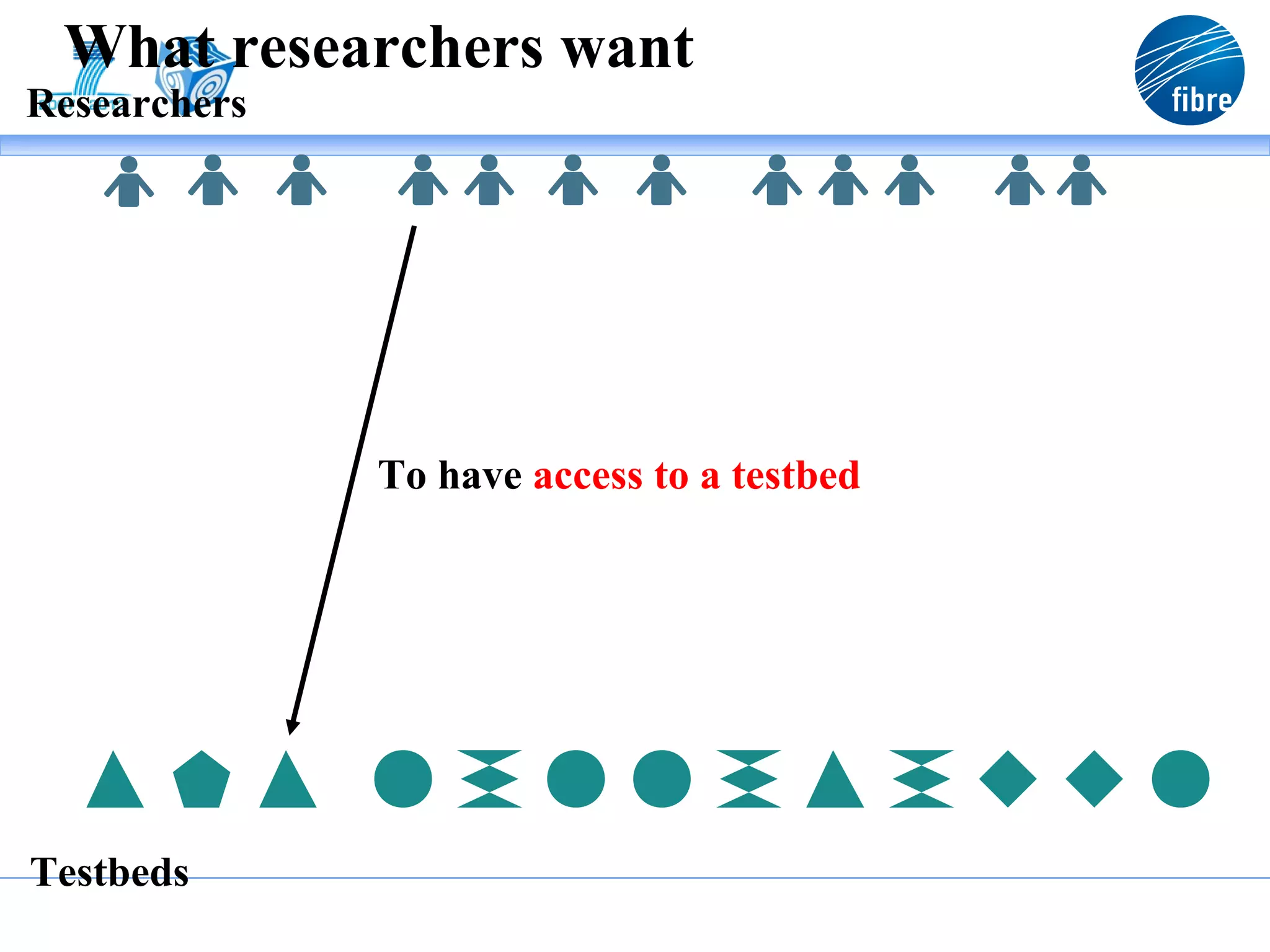

- 29. What researchers want Researchers To have access to a testbed Testbeds
- 30. What researchers want Researchers To access many instances of the same type of testbed / resource Testbeds

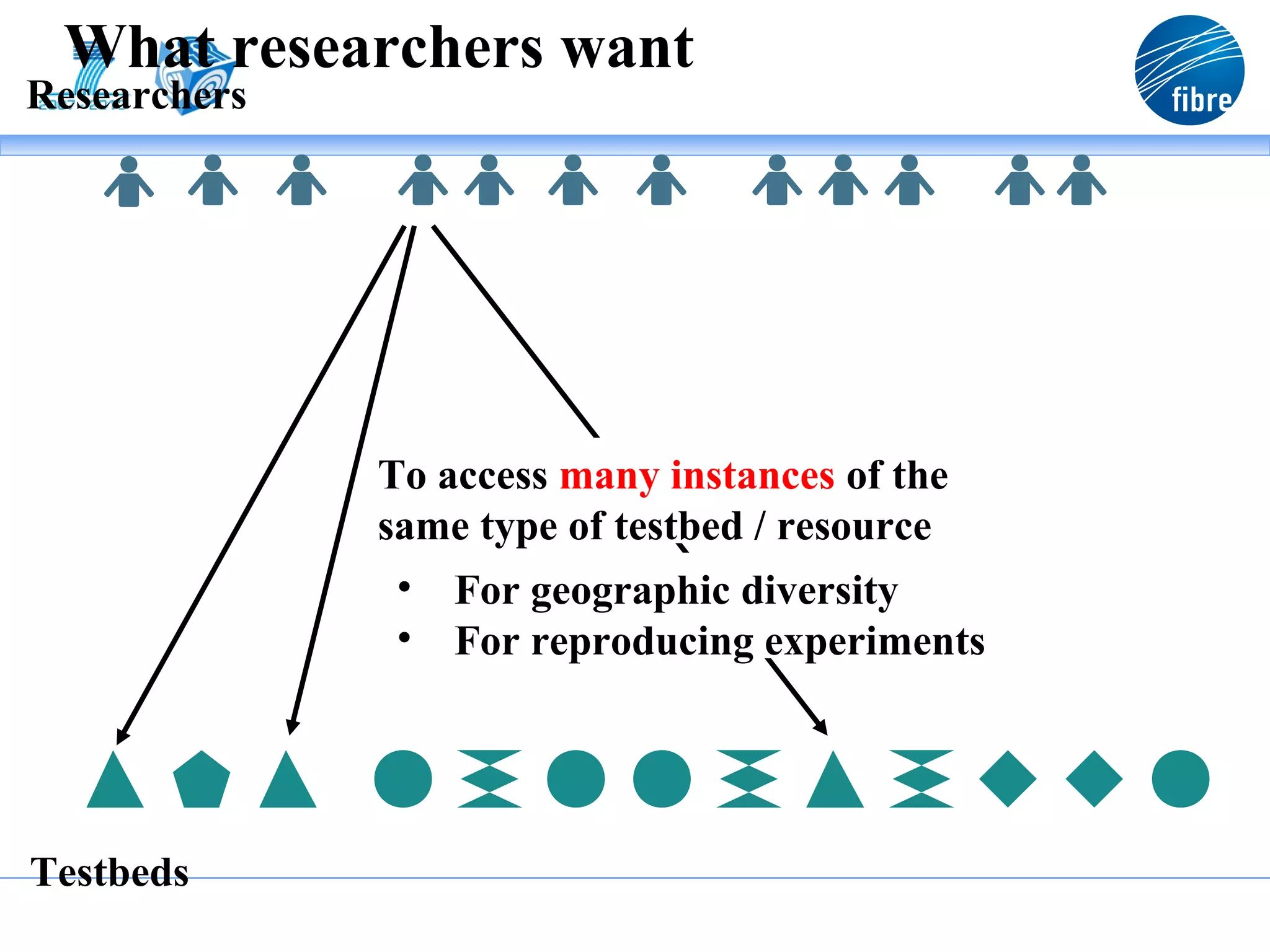

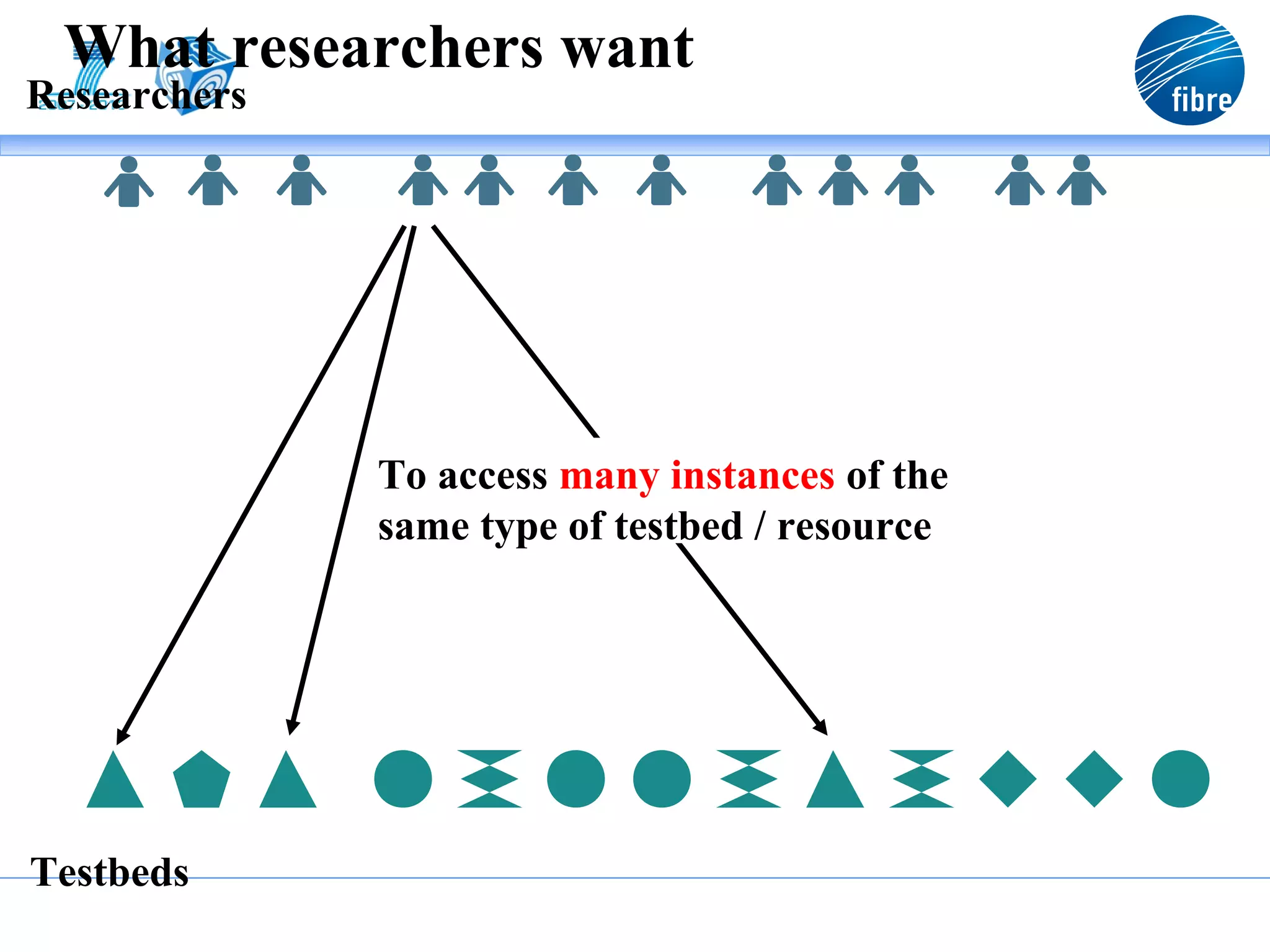

- 31. What researchers want Researchers To access many instances of the same type of testbed / resource • For geographic diversity • For reproducing experiments Testbeds

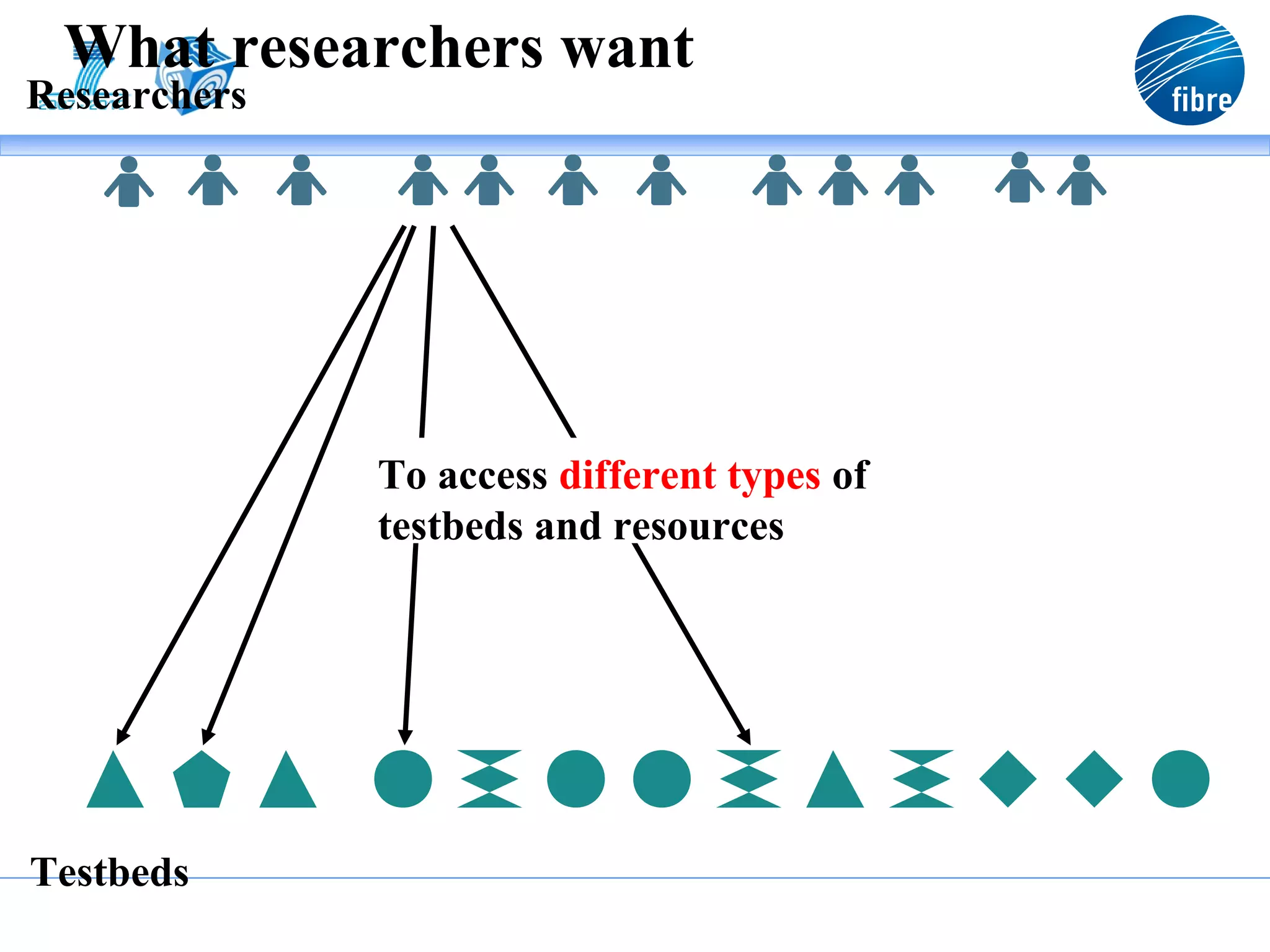

- 32. What researchers want Researchers To access different types of testbeds and resources Testbeds

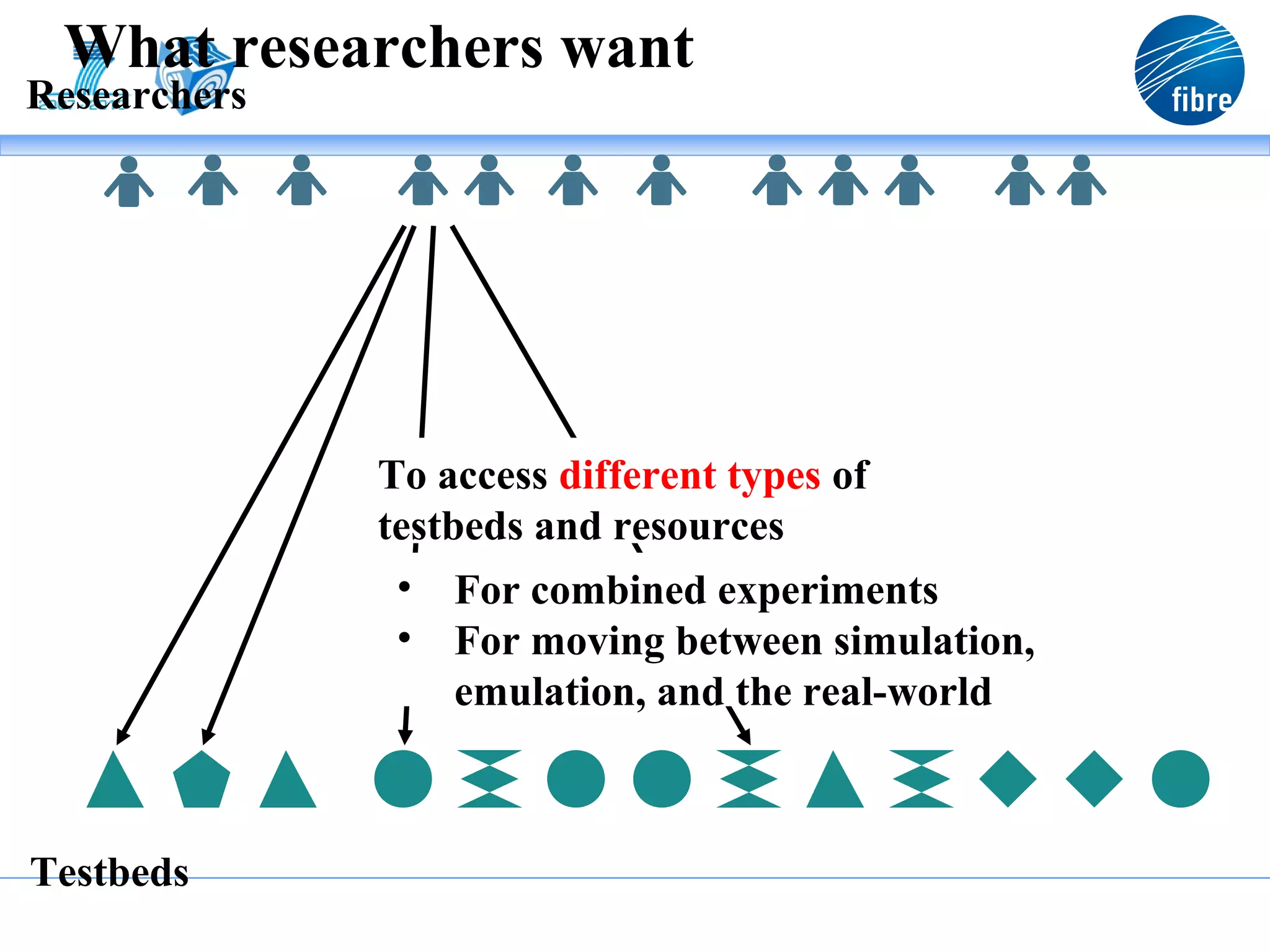

- 33. What researchers want Researchers To access different types of testbeds and resources • For combined experiments • For moving between simulation, emulation, and the real-world Testbeds

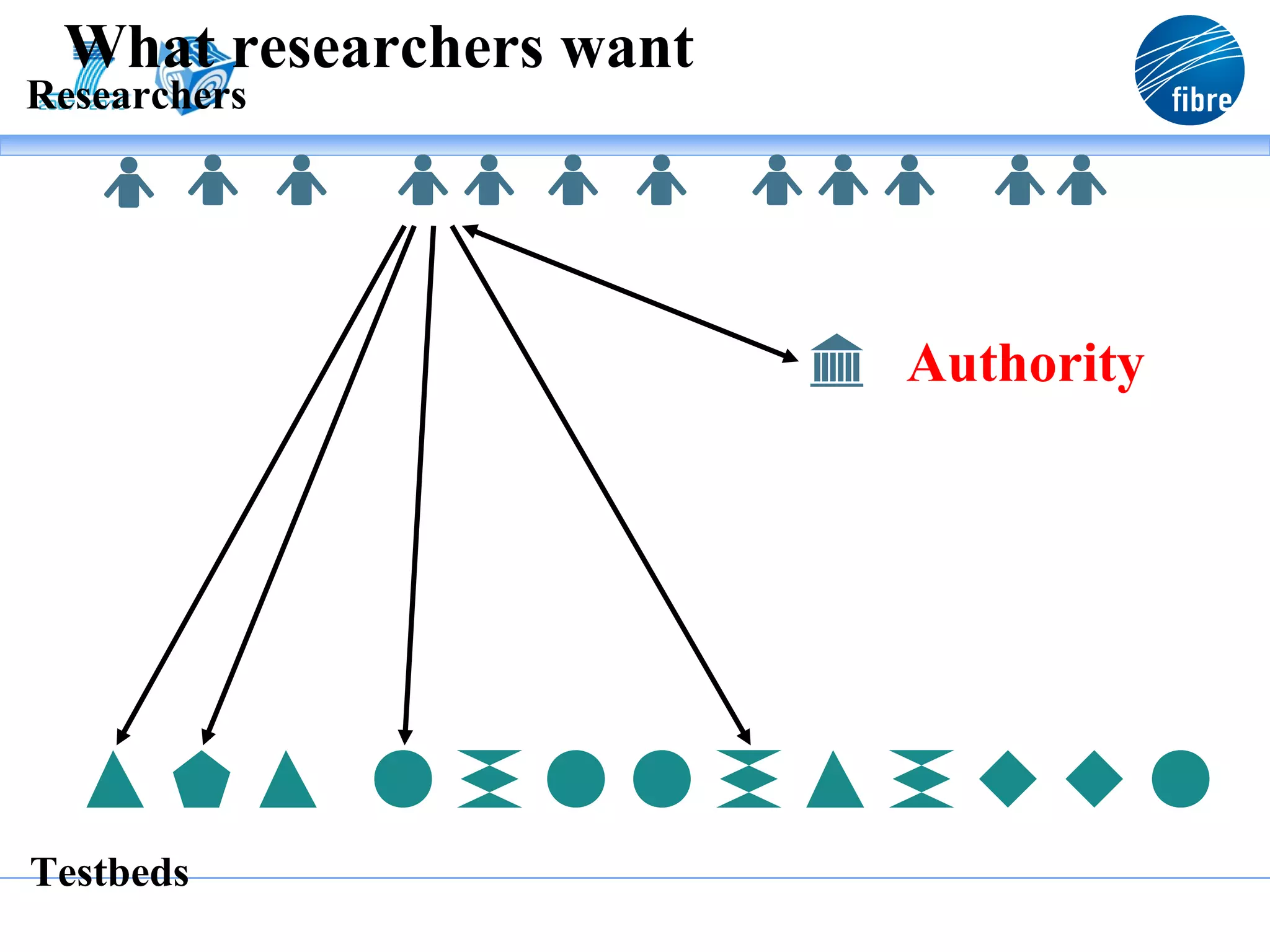

- 34. What researchers want Researchers Authority Testbeds

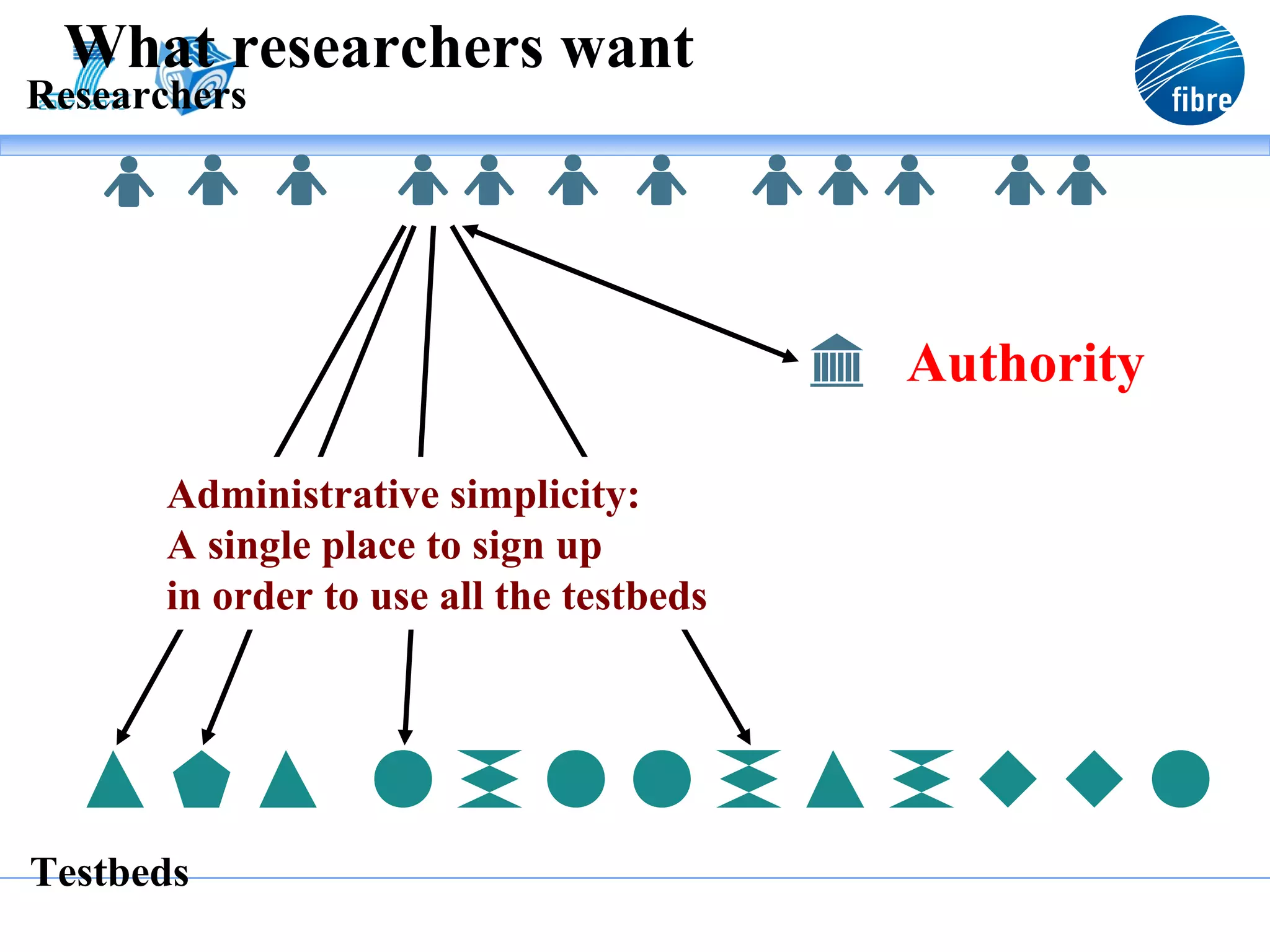

- 35. What researchers want Researchers Authority Administrative simplicity: A single place to sign up in order to use all the testbeds Testbeds

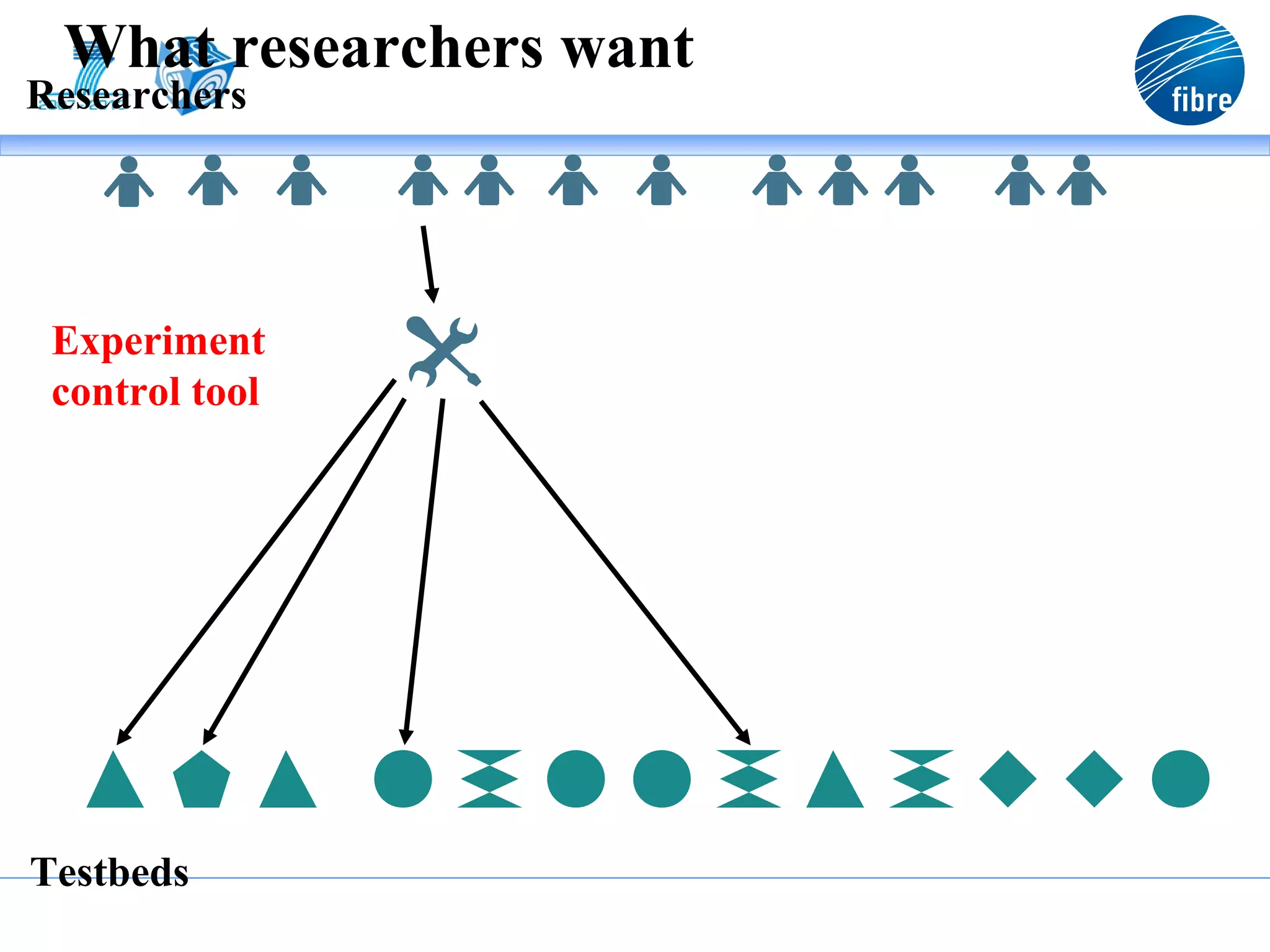

- 36. What researchers want Researchers Experiment control tool Testbeds

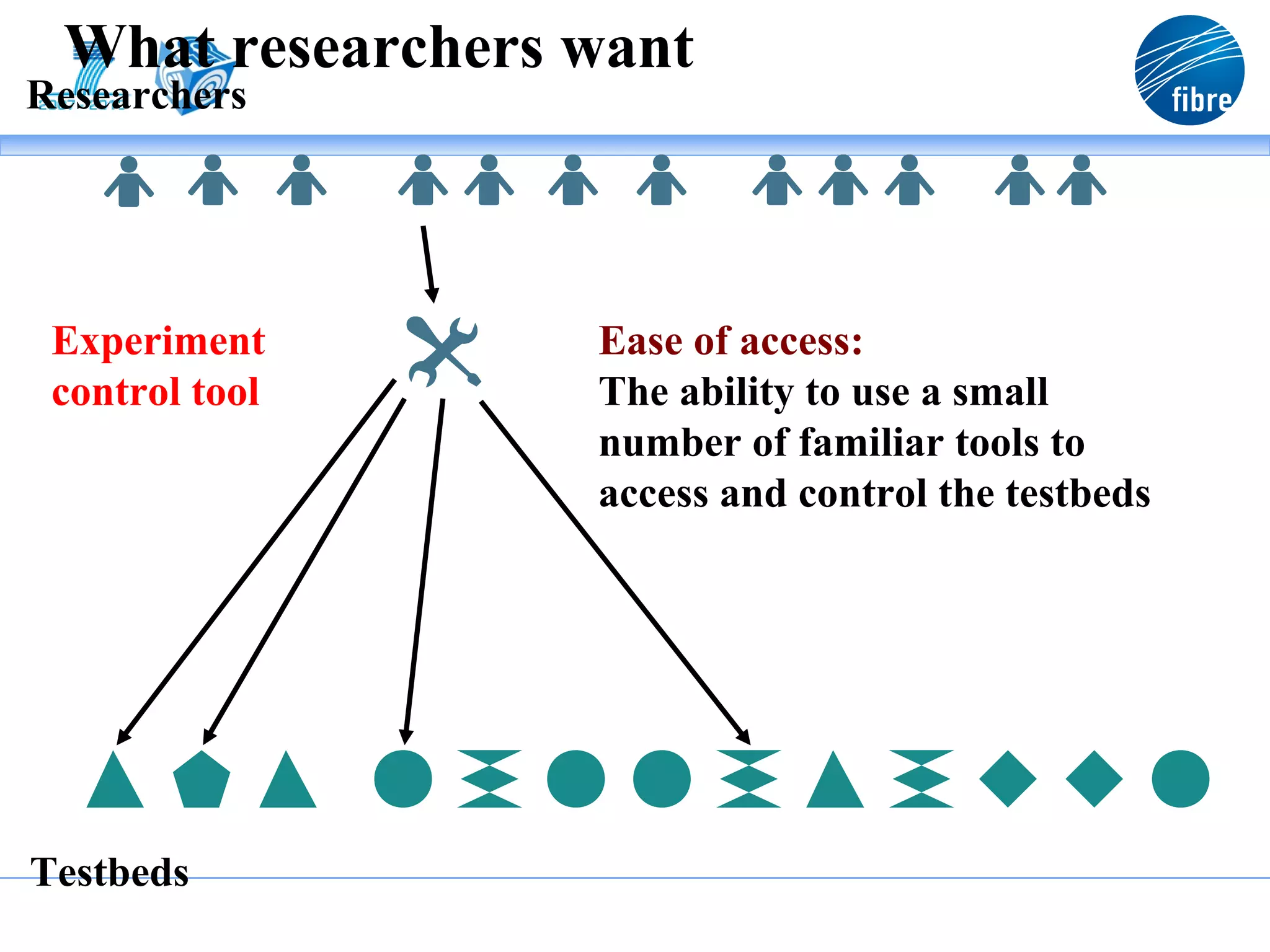

- 37. What researchers want Researchers Experiment Ease of access: control tool The ability to use a small number of familiar tools to access and control the testbeds Testbeds

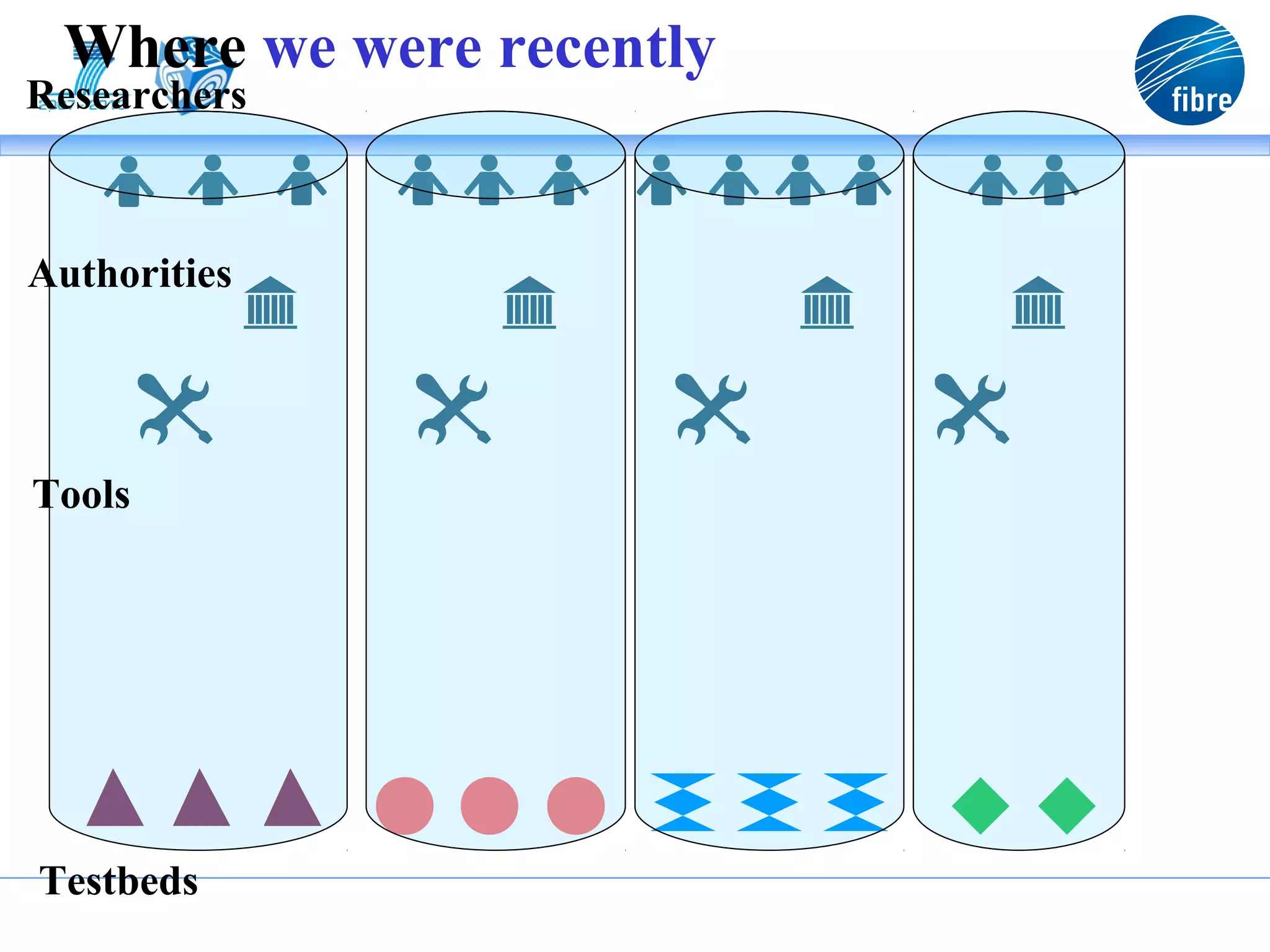

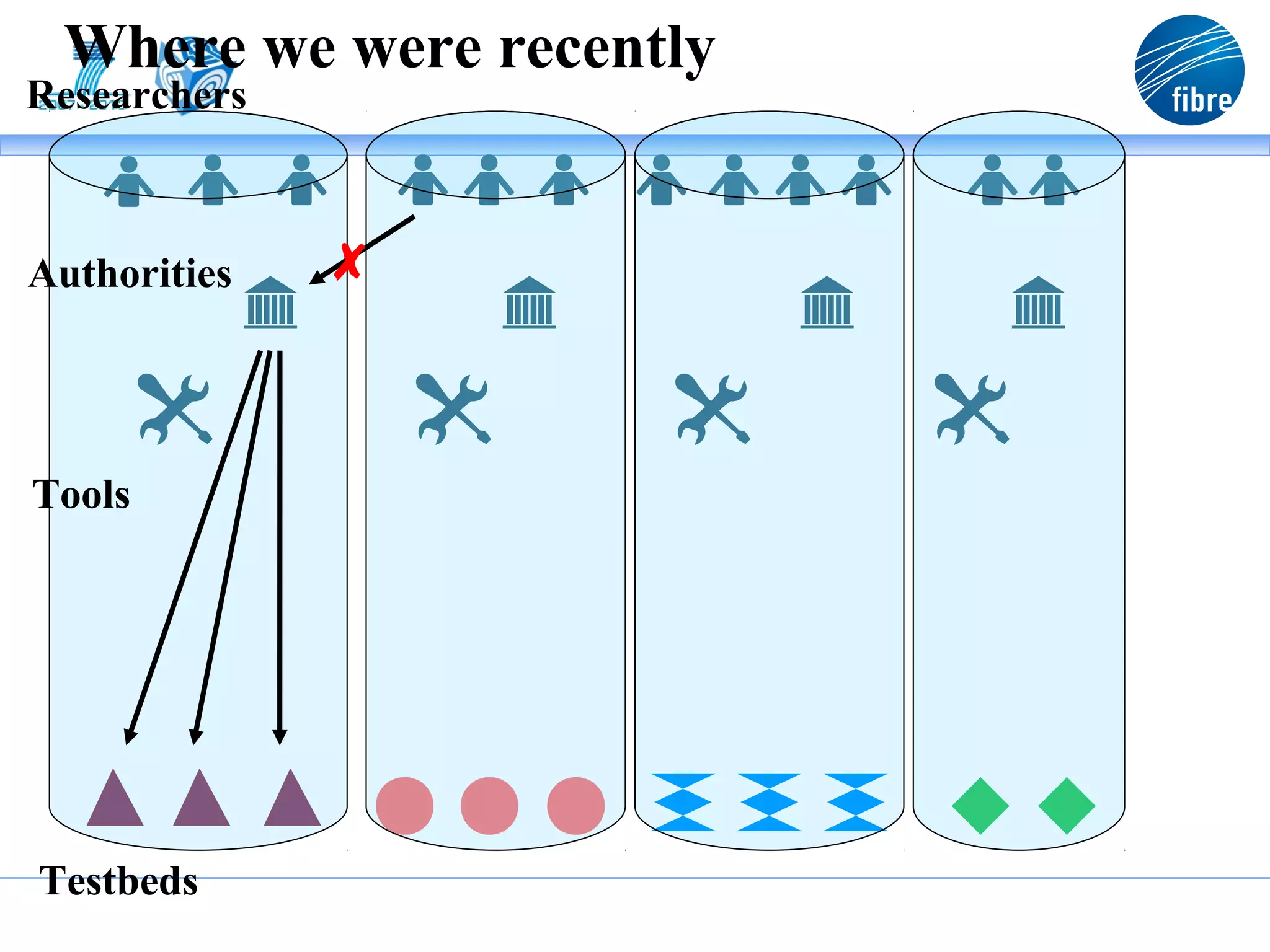

- 38. Where we wererecently Researchers Authorities Tools Testbeds
- 39. Where we wererecently Researchers Authorities ✗ Tools Testbeds

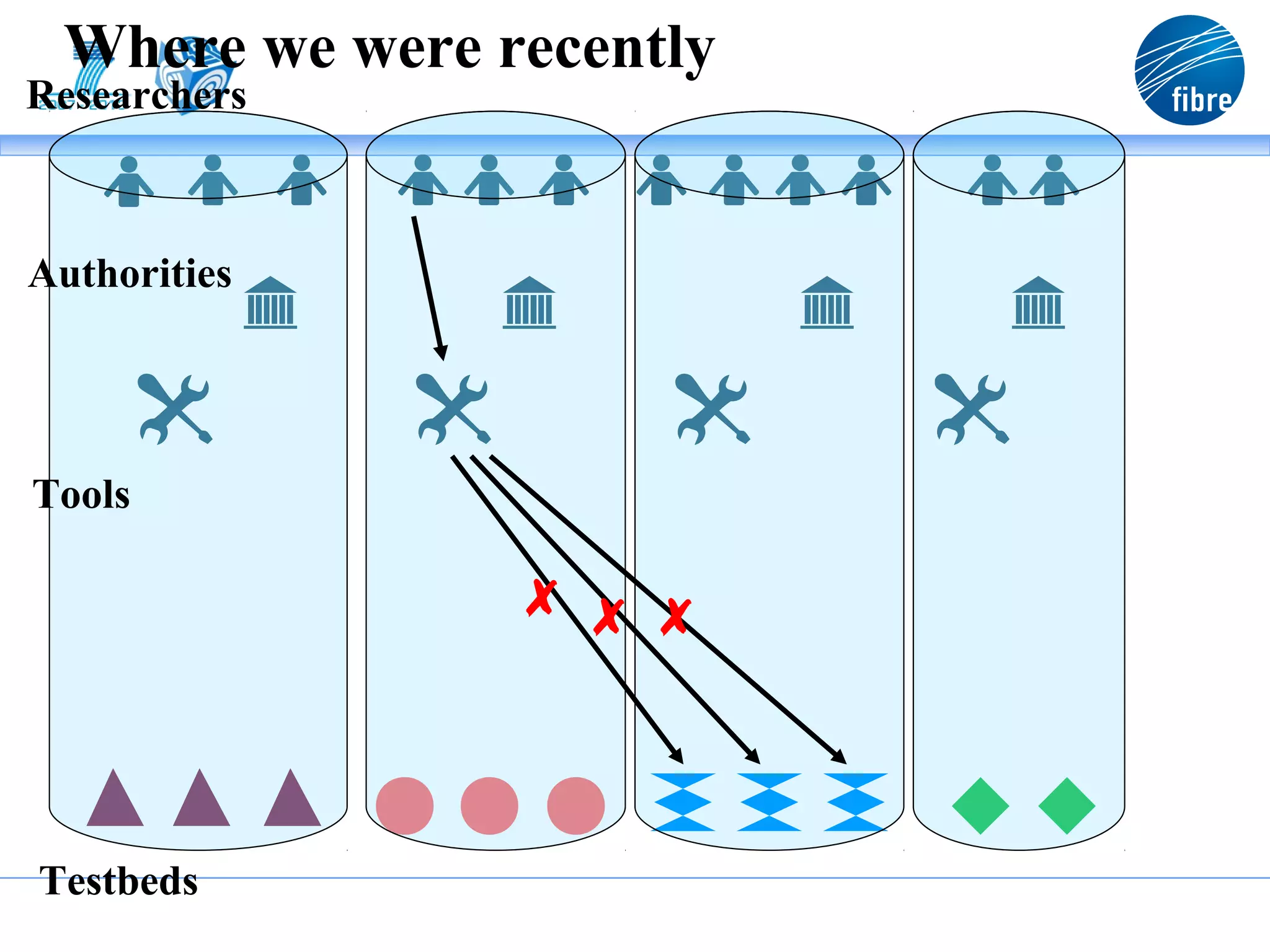

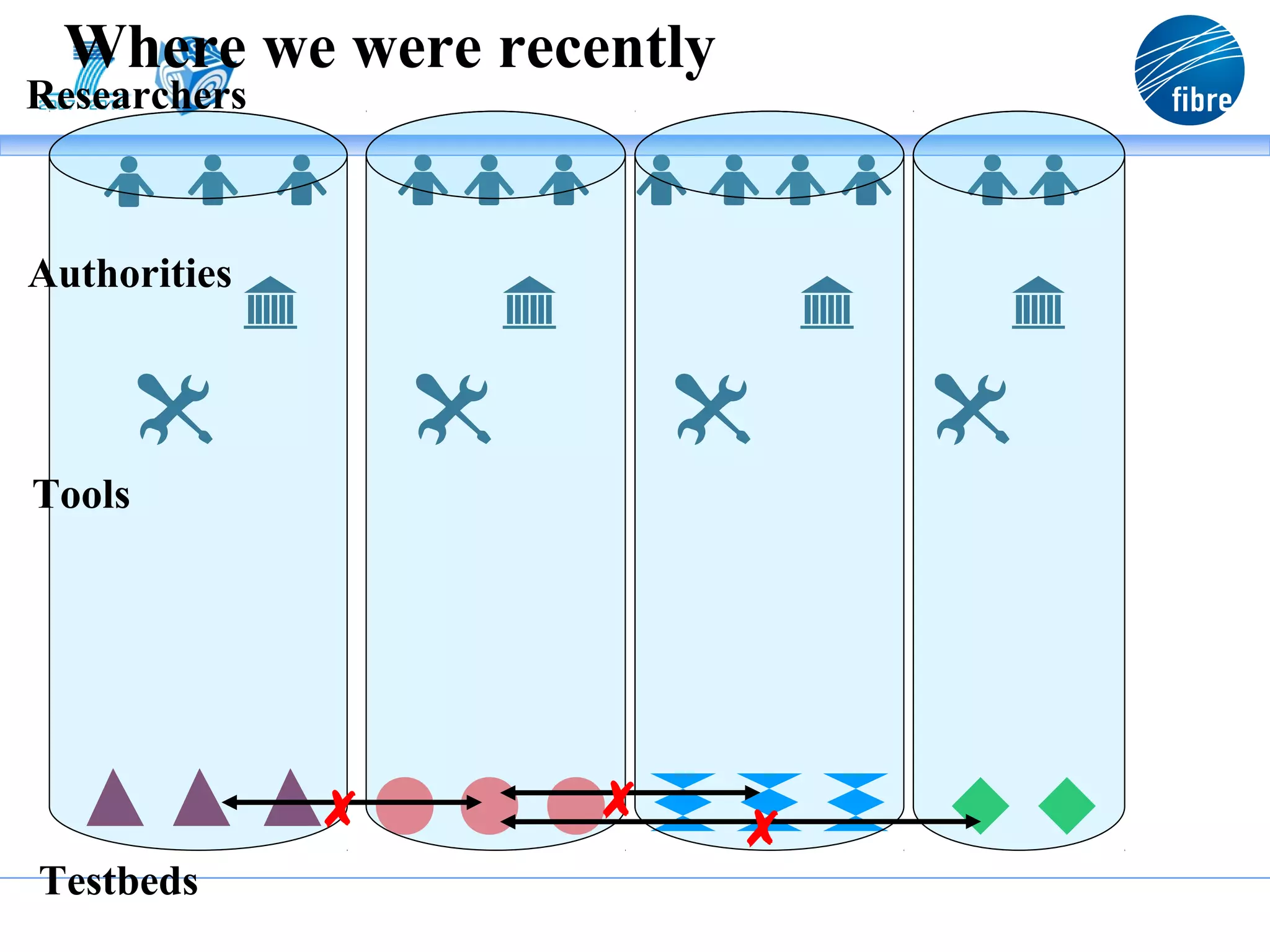

- 40. Where we wererecently Researchers Authorities Tools ✗ ✗ ✗ Testbeds
- 41. Where we wererecently Researchers Authorities Tools ✗ ✗ ✗ Testbeds

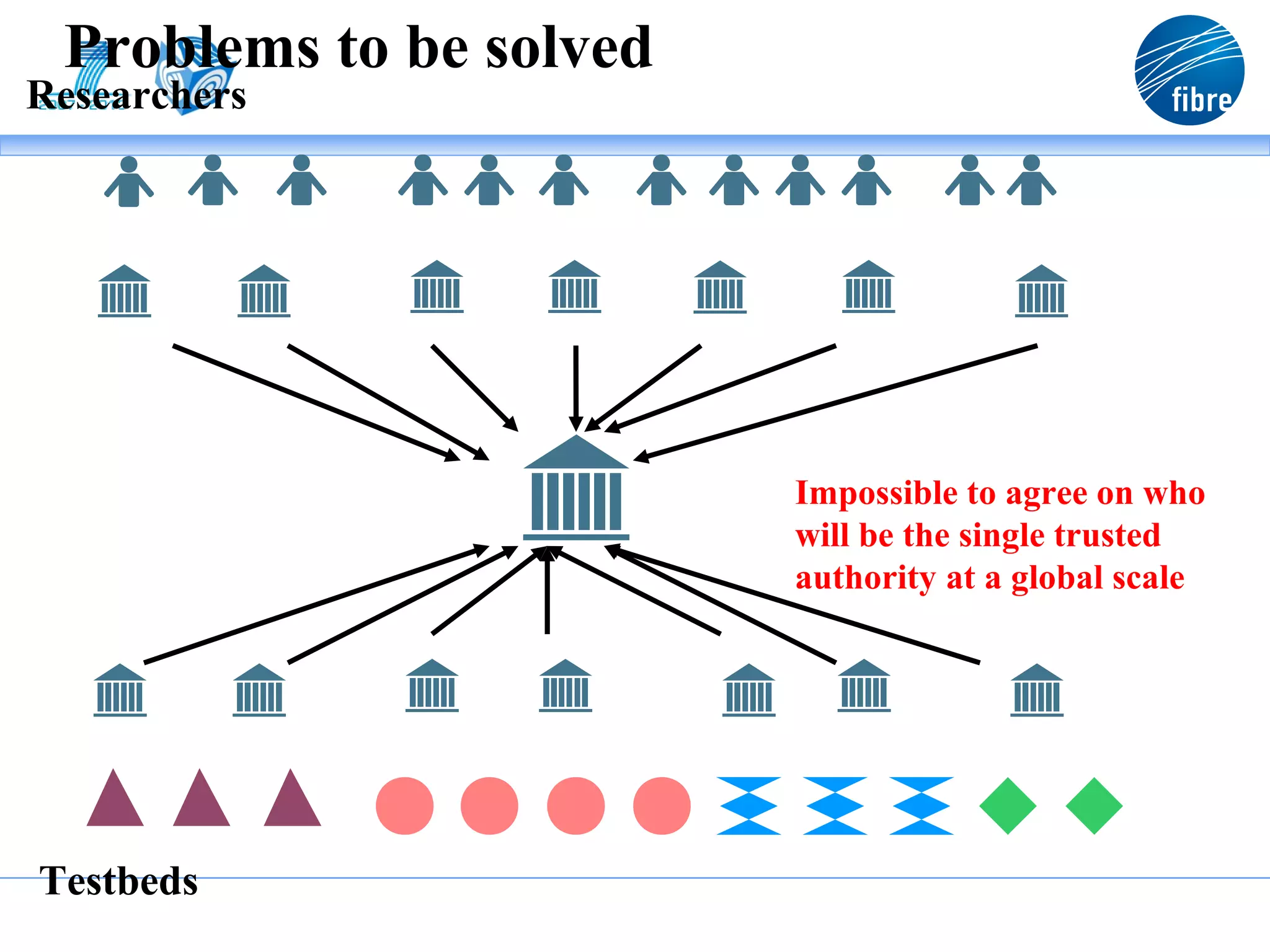

- 42. Problems to besolved Researchers Impossible to agree on who will be the single trusted authority at a global scale Testbeds

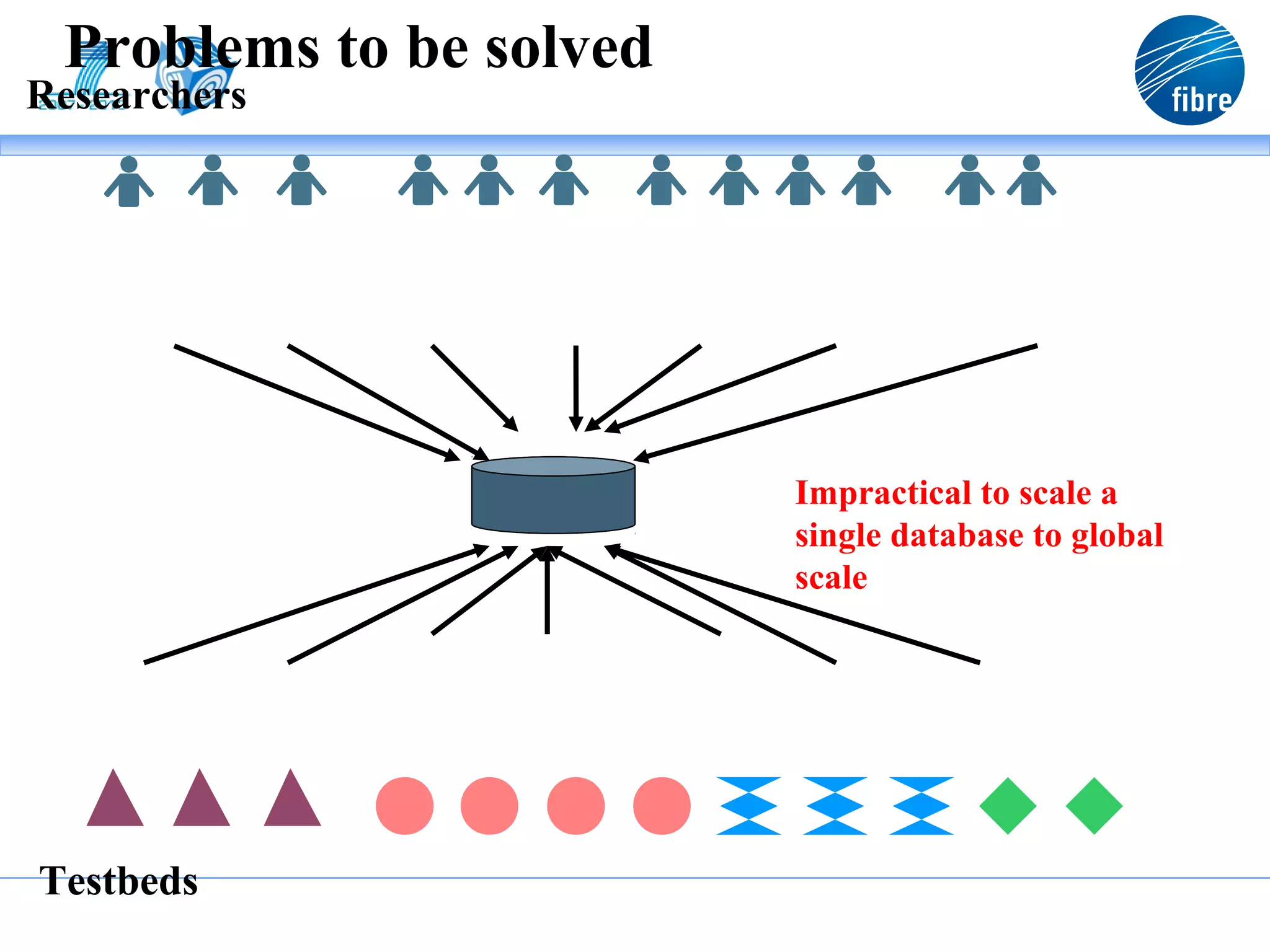

- 43. Problems to besolved Researchers Impractical to scale a single database to global scale Testbeds

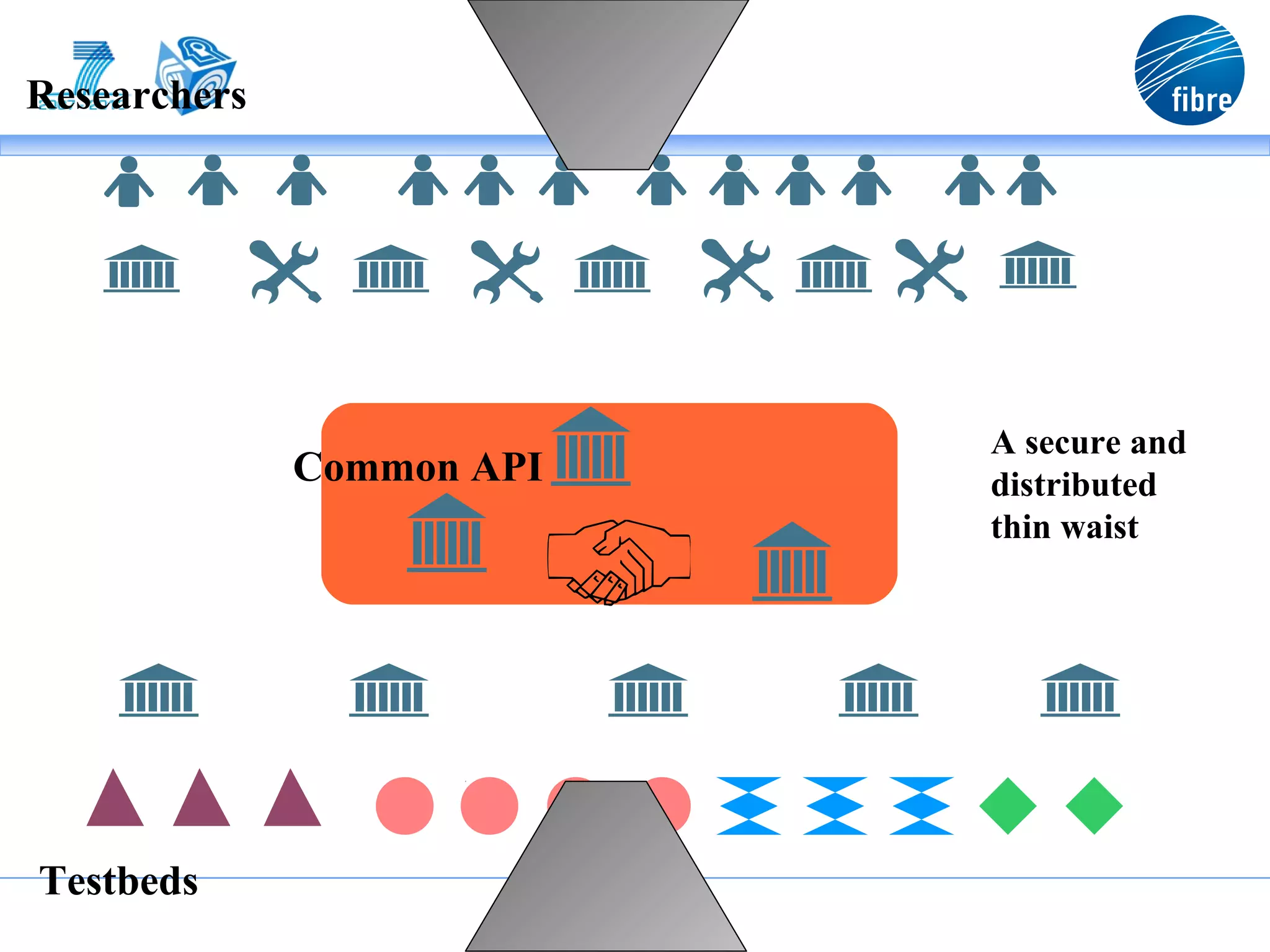

- 44. Researchers A secure and Common API distributed thin waist Testbeds

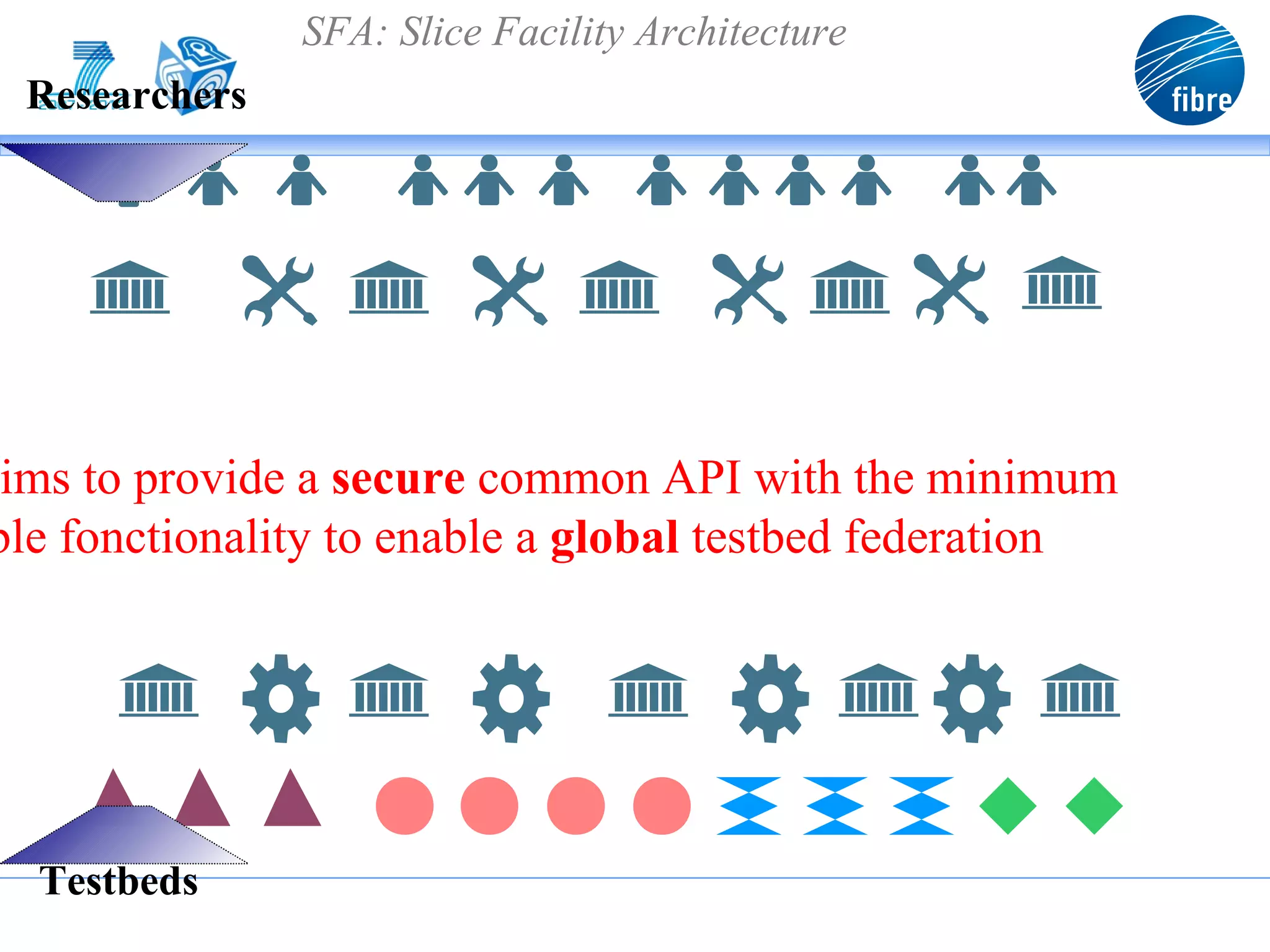

- 45. SFA: Slice FacilityArchitecture Researchers ims to provide a secure common API with the minimum ble fonctionality to enable a global testbed federation Testbeds

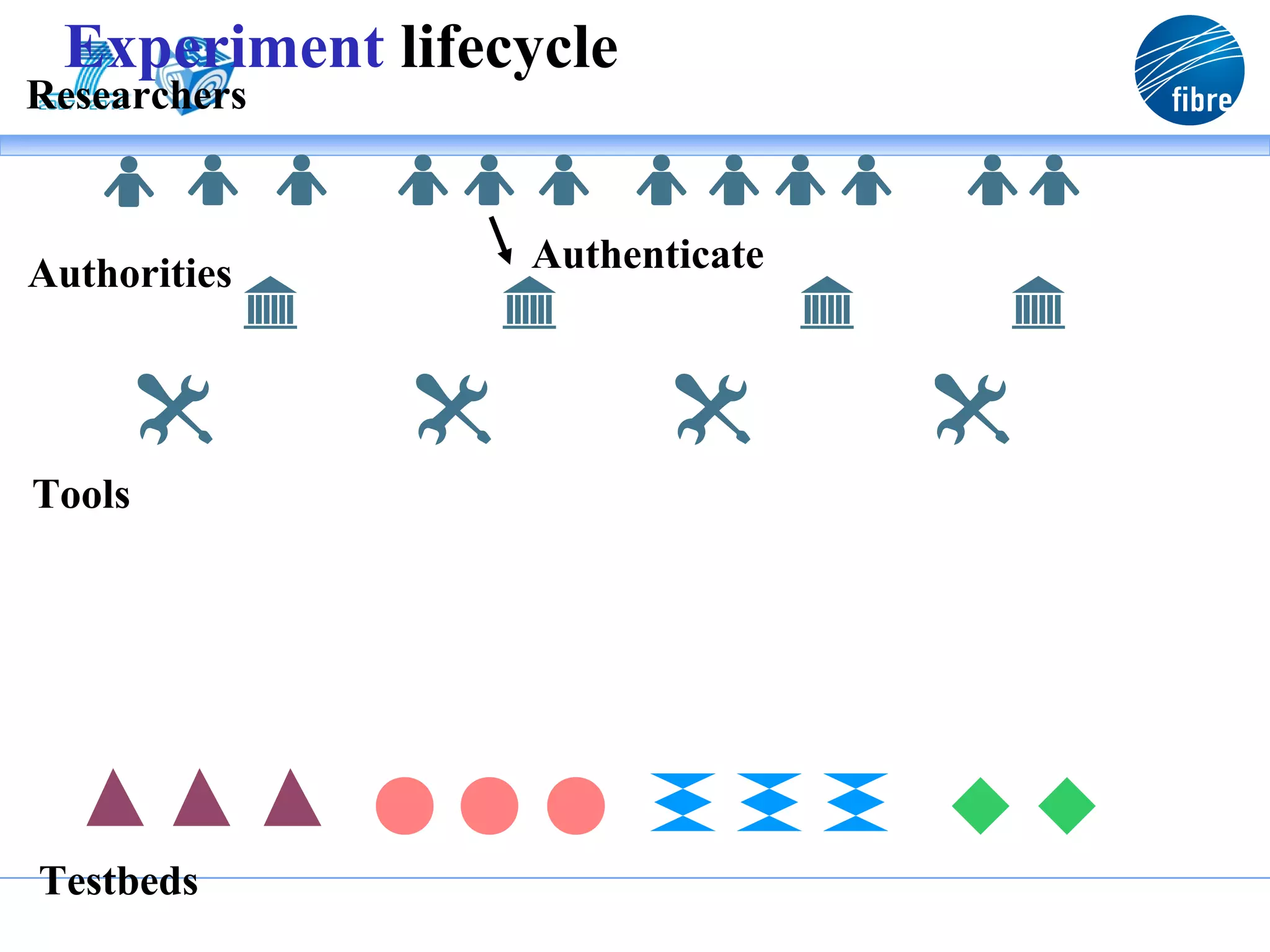

- 46. Experiment lifecycle Researchers Authorities Authenticate Tools Testbeds

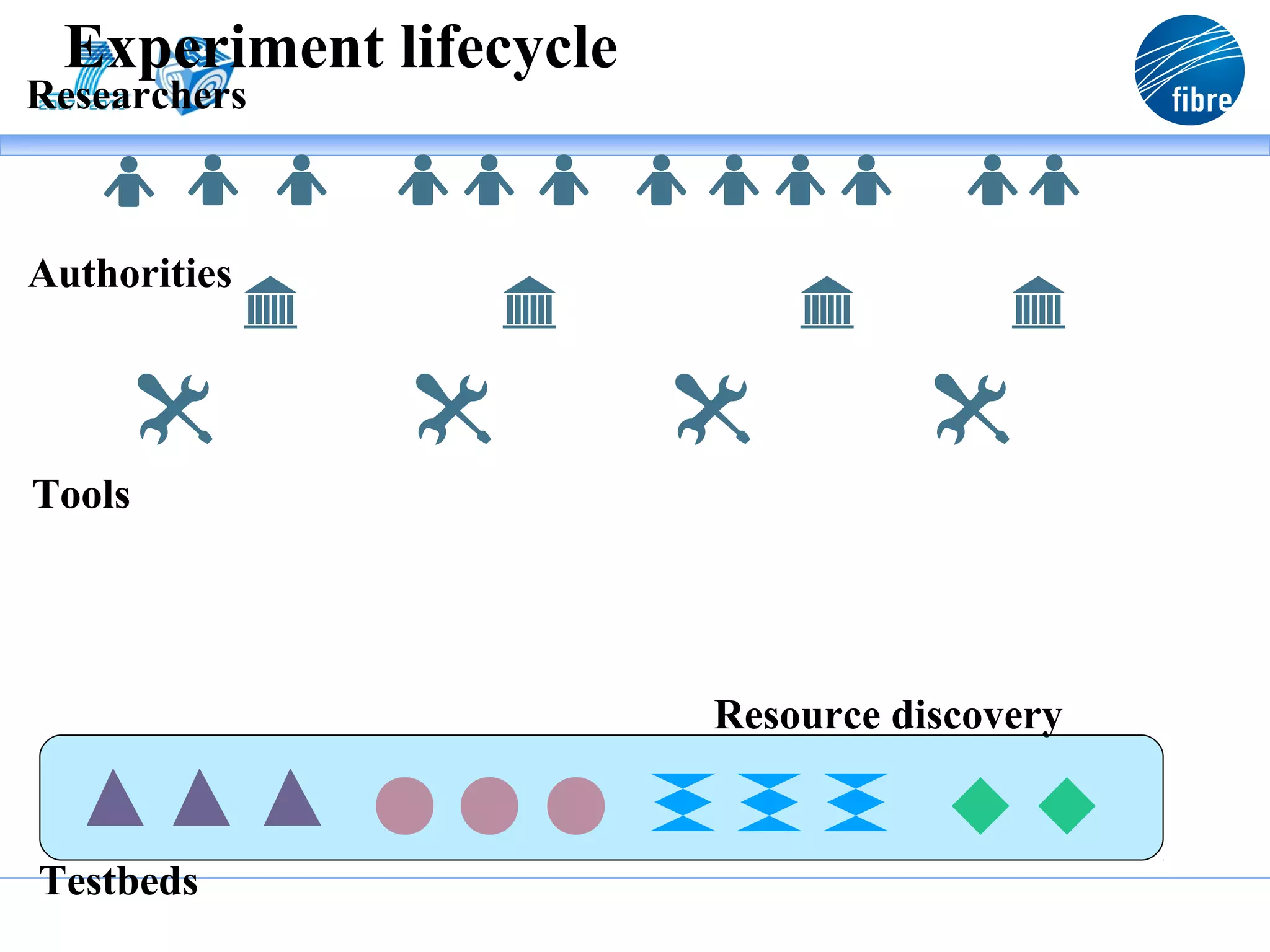

- 47. Experiment lifecycle Researchers Authorities Tools Resource discovery Testbeds

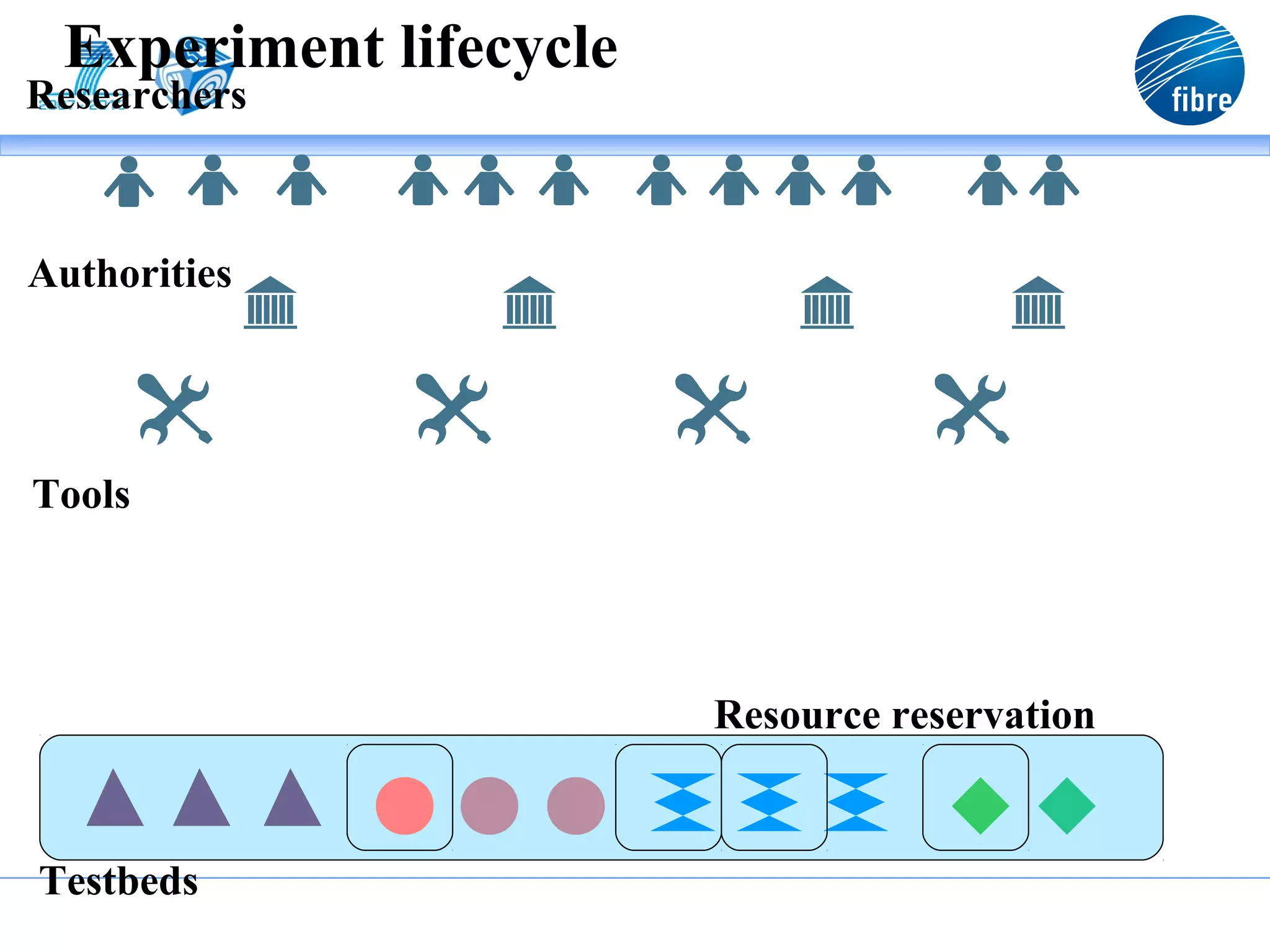

- 48. Experiment lifecycle Researchers Authorities Tools Resource reservation Testbeds

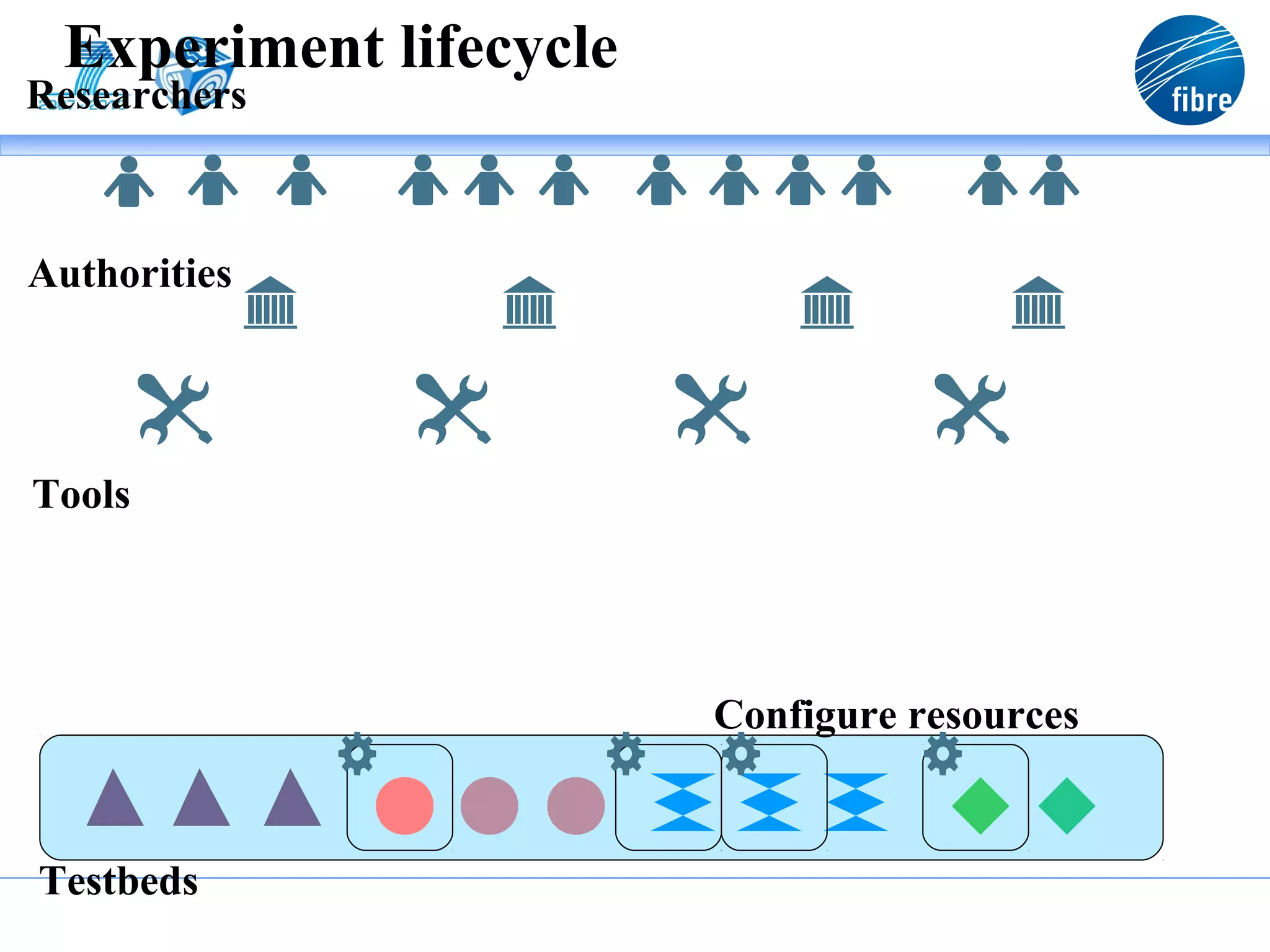

- 49. Experiment lifecycle Researchers Authorities Tools Configure resources Testbeds

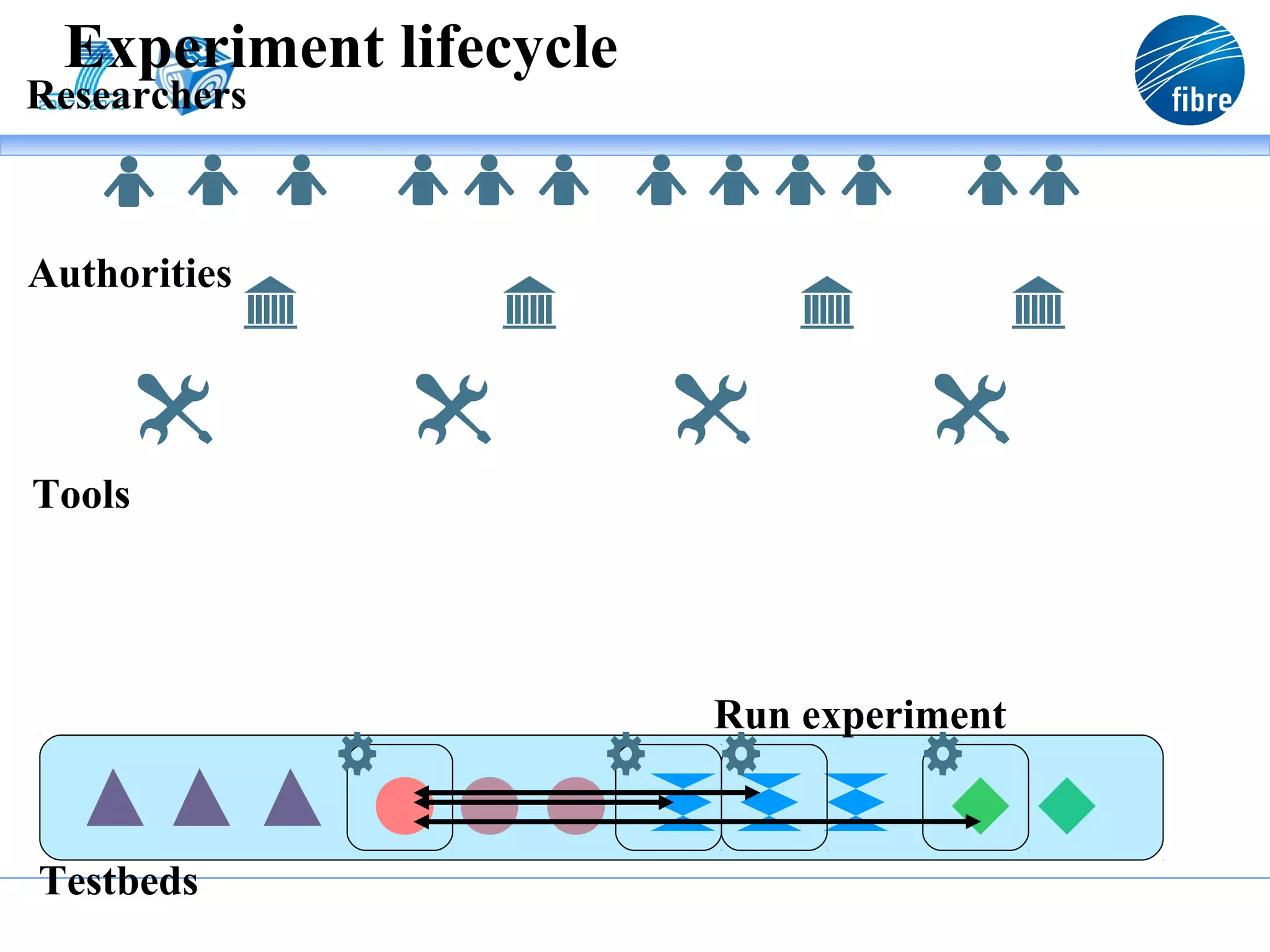

- 50. Experiment lifecycle Researchers Authorities Tools Run experiment Testbeds

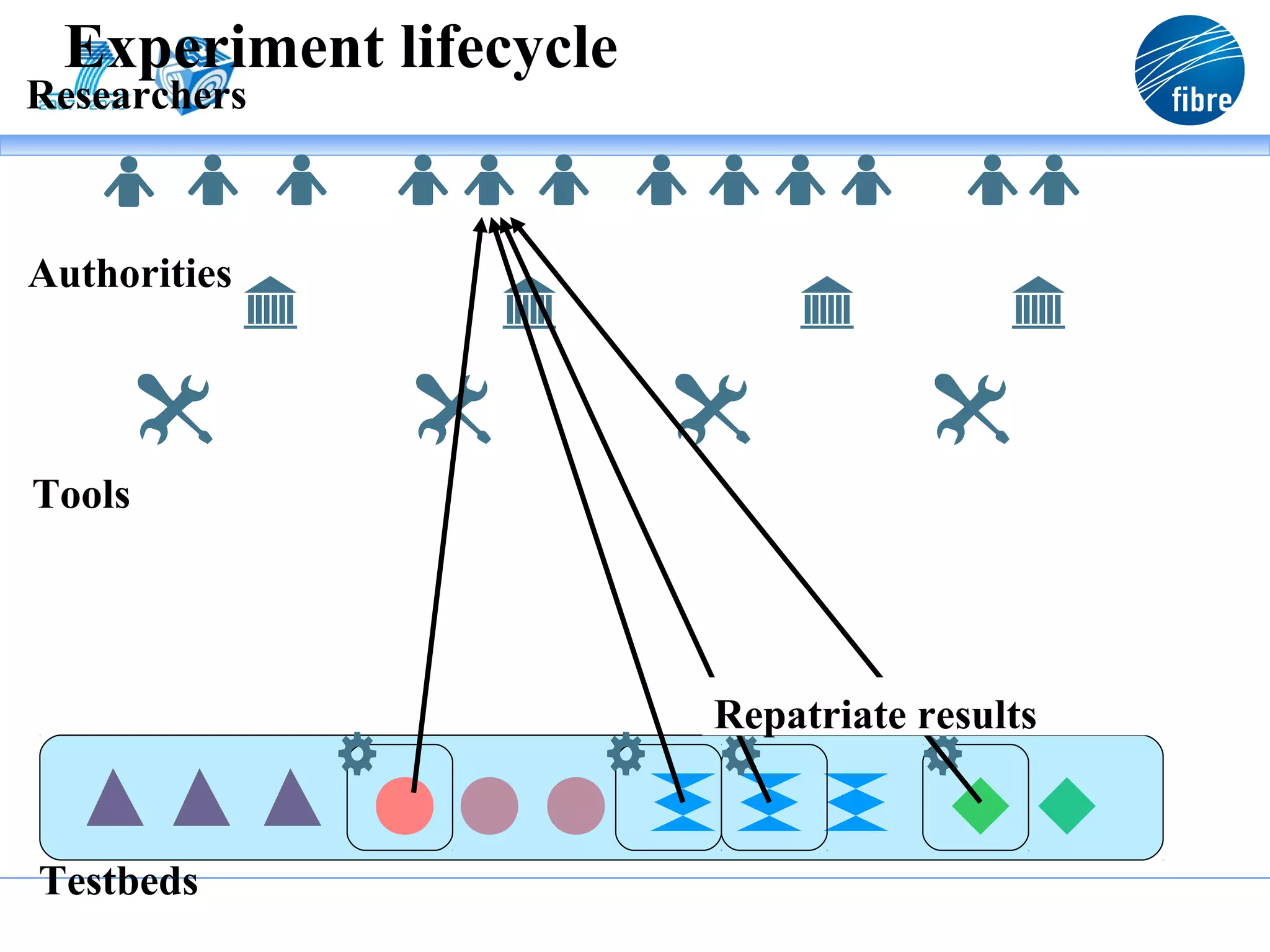

- 51. Experiment lifecycle Researchers Authorities Tools Repatriate results Testbeds

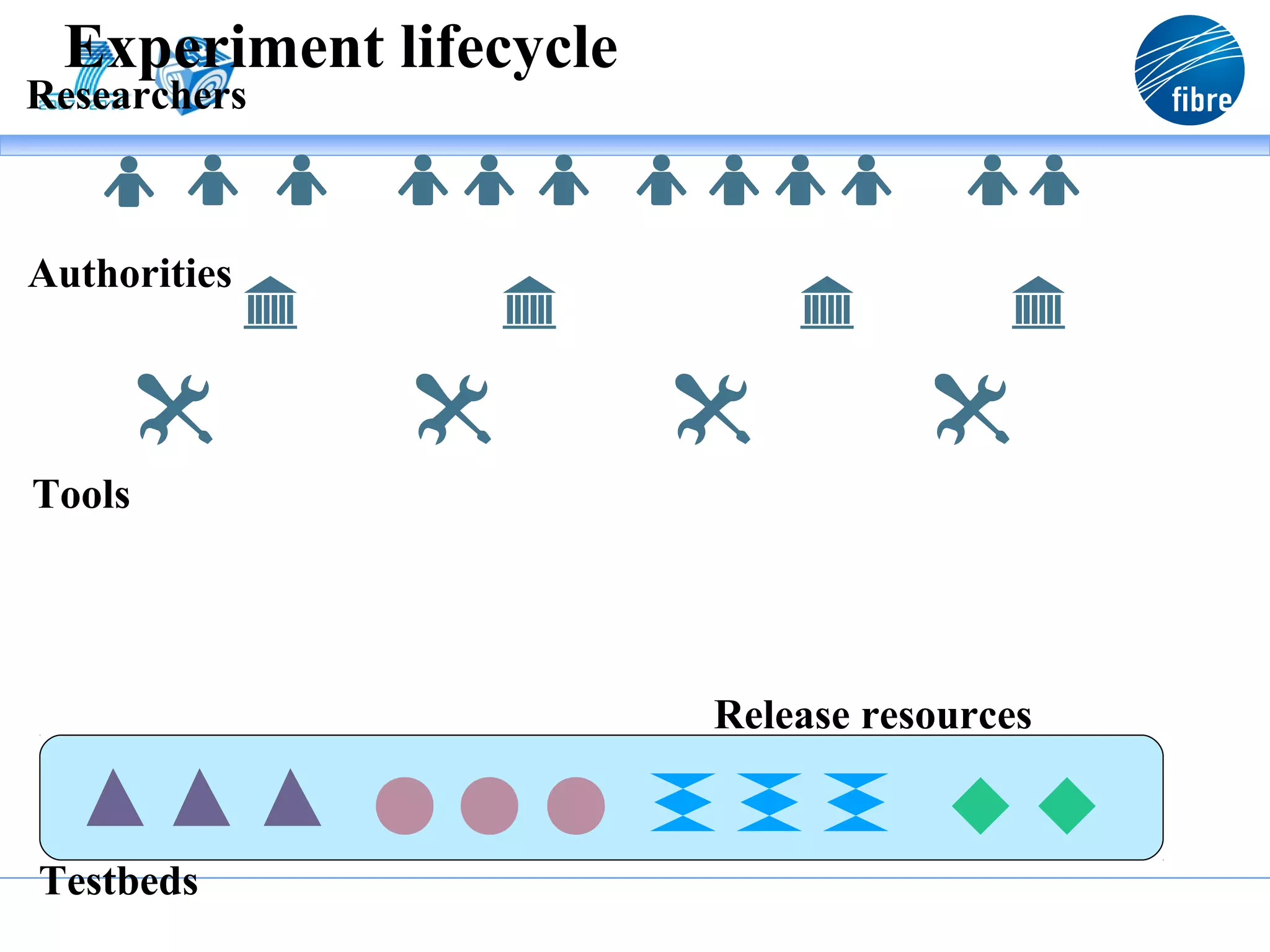

- 52. Experiment lifecycle Researchers Authorities Tools Release resources Testbeds

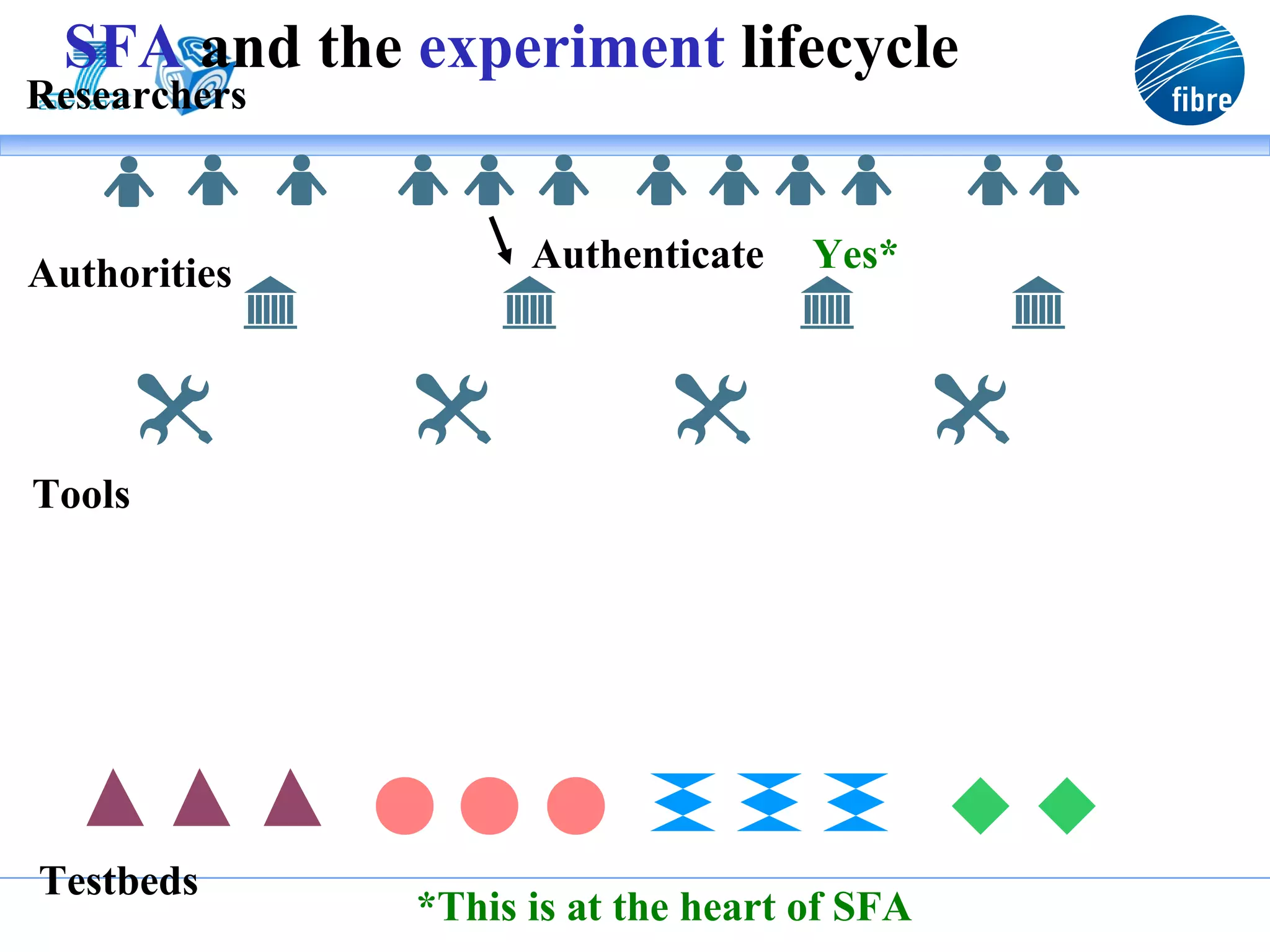

- 53. SFA and theexperiment lifecycle Researchers Authorities Authenticate Yes* Tools Testbeds *This is at the heart of SFA

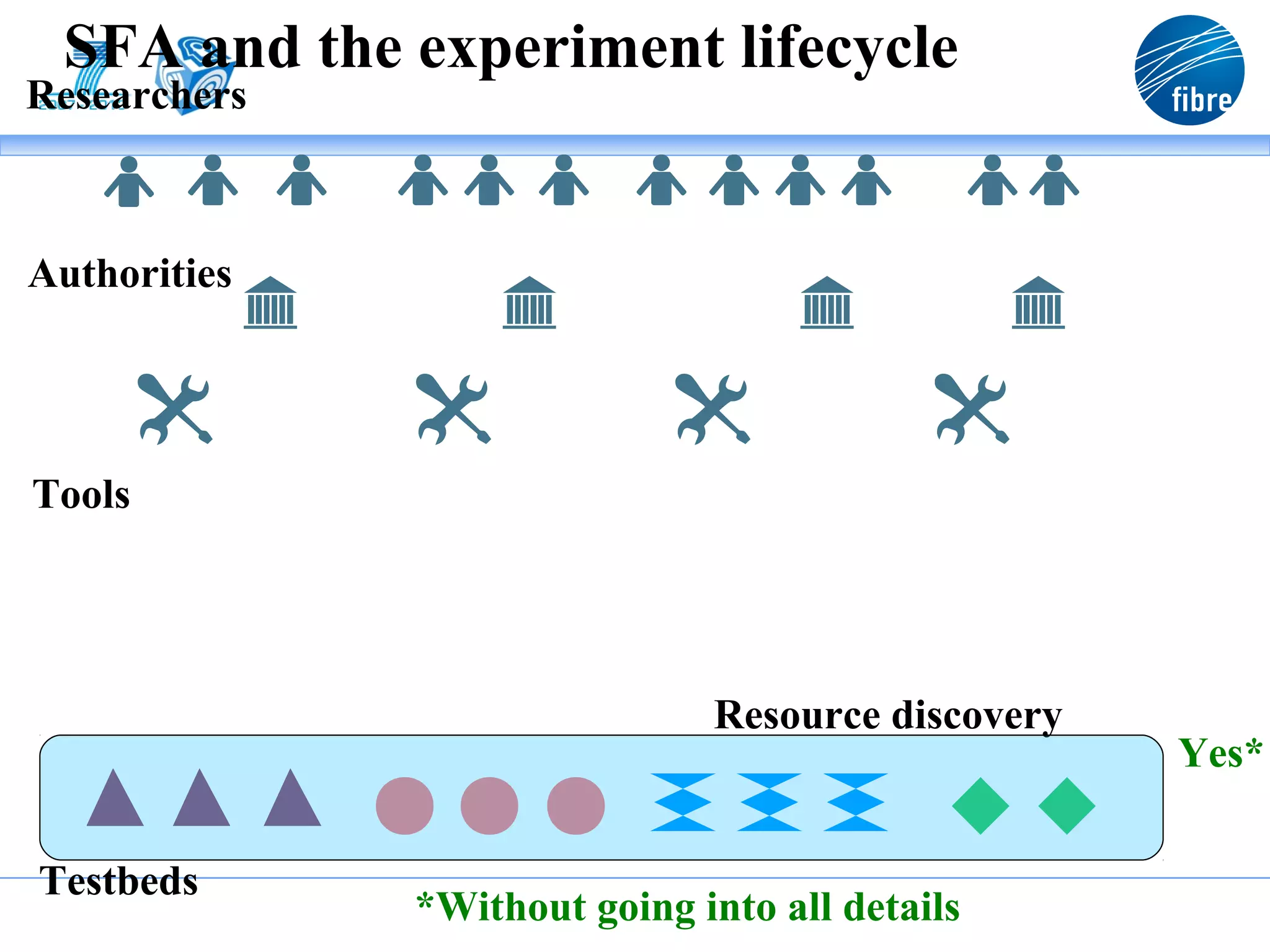

- 54. SFA and theexperiment lifecycle Researchers Authorities Tools Resource discovery Yes* Testbeds *Without going into all details

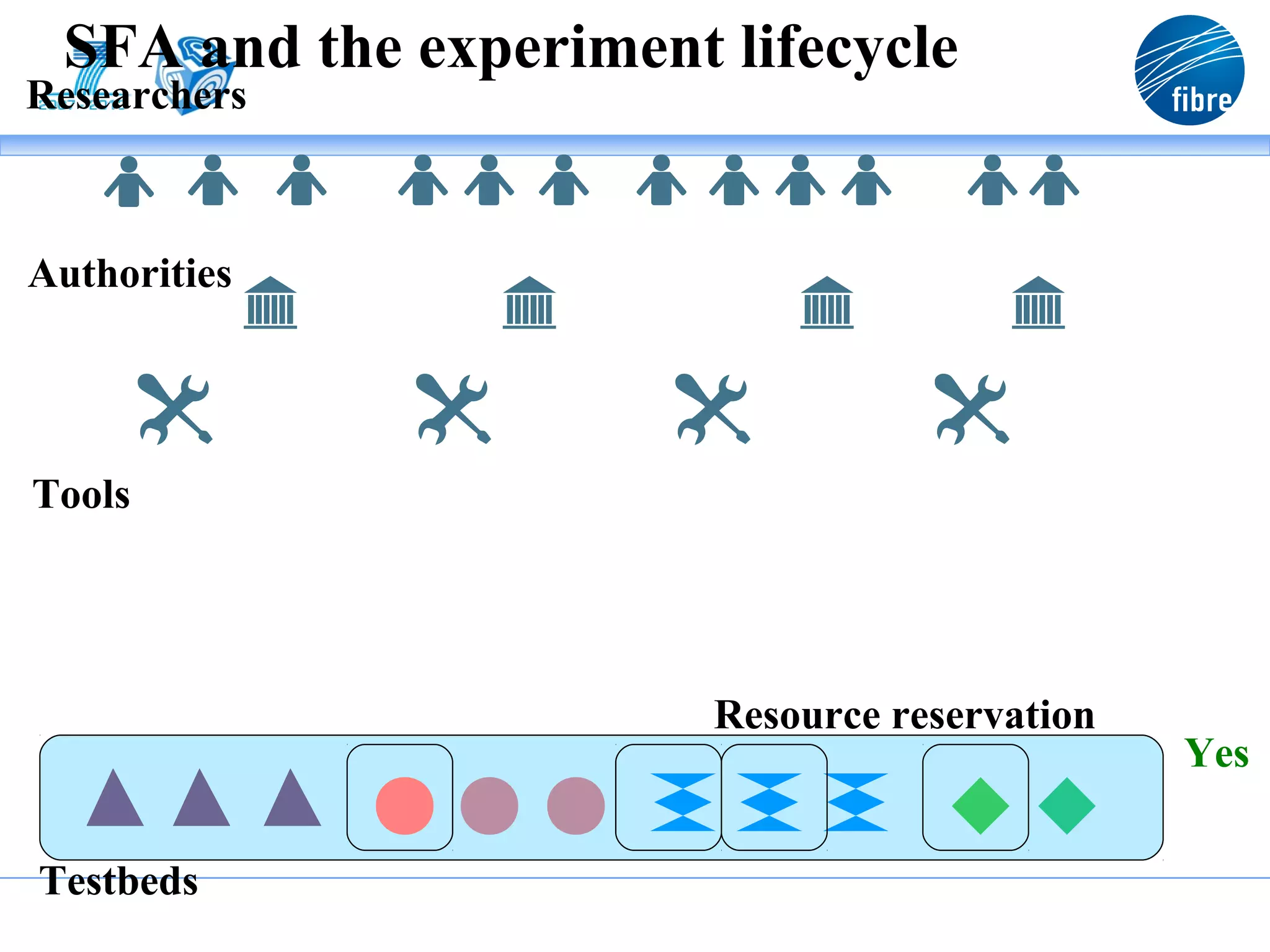

- 55. SFA and theexperiment lifecycle Researchers Authorities Tools Resource reservation Yes Testbeds

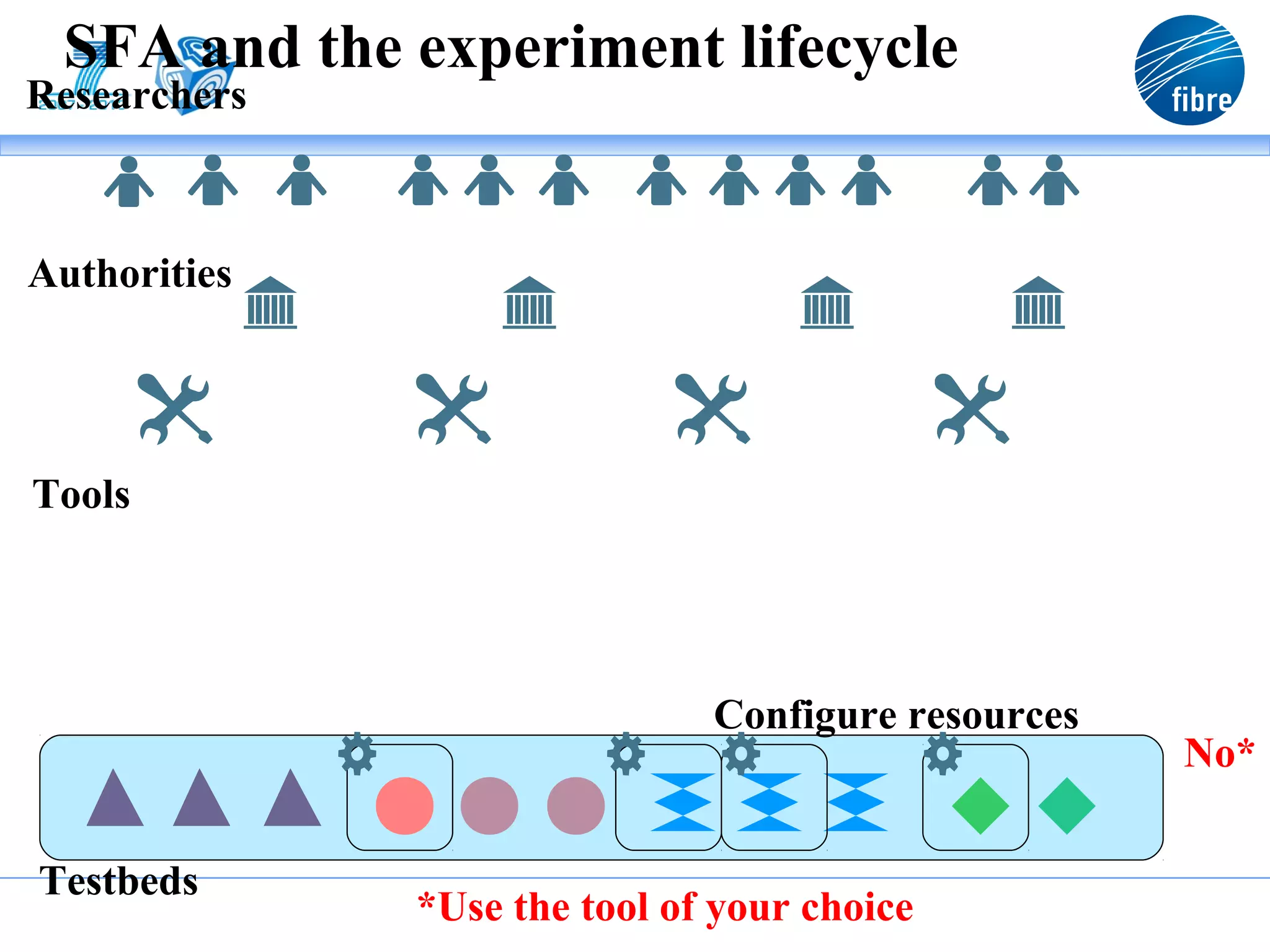

- 56. SFA and theexperiment lifecycle Researchers Authorities Tools Configure resources No* Testbeds *Use the tool of your choice

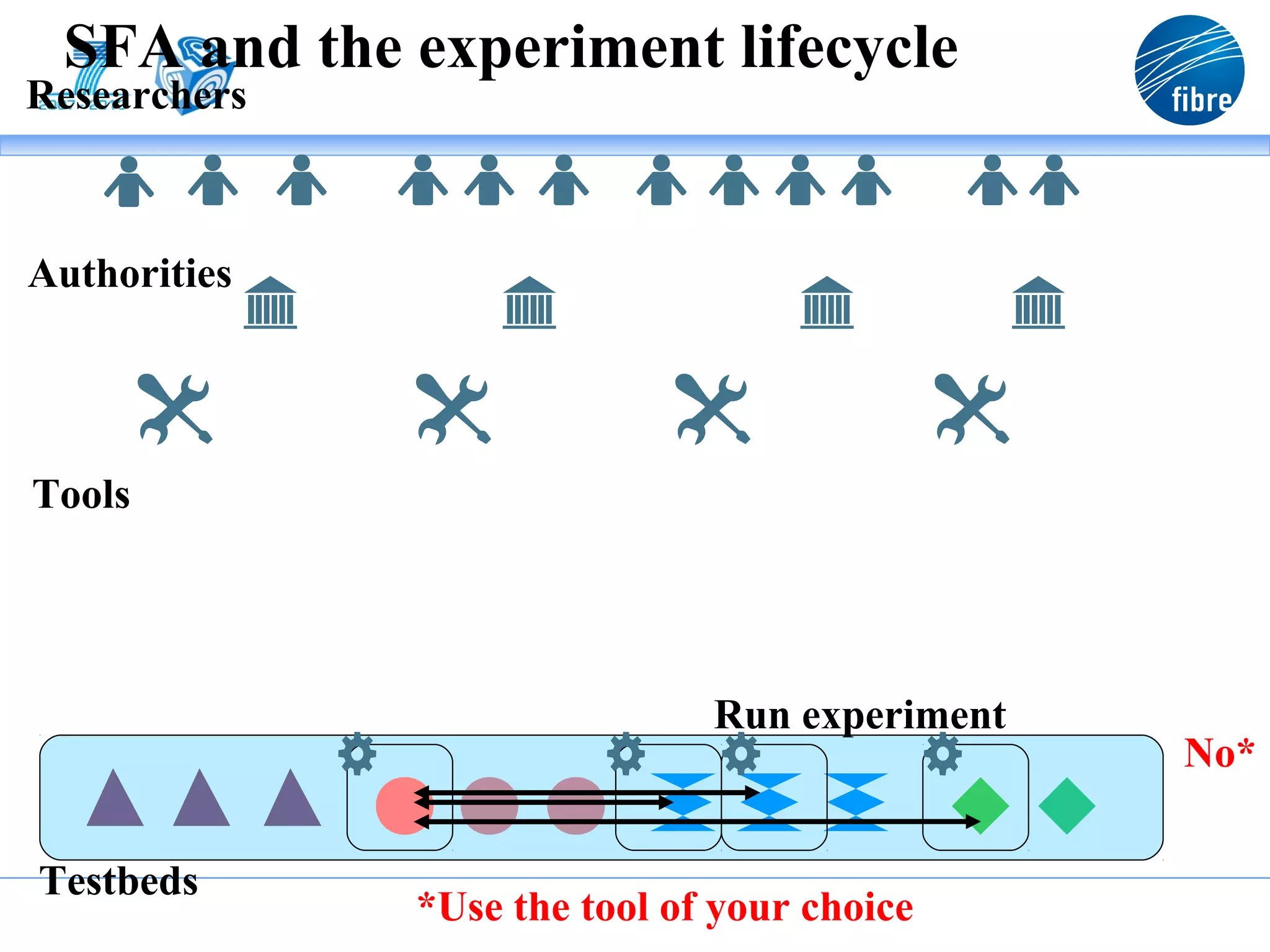

- 57. SFA and theexperiment lifecycle Researchers Authorities Tools Run experiment No* Testbeds *Use the tool of your choice

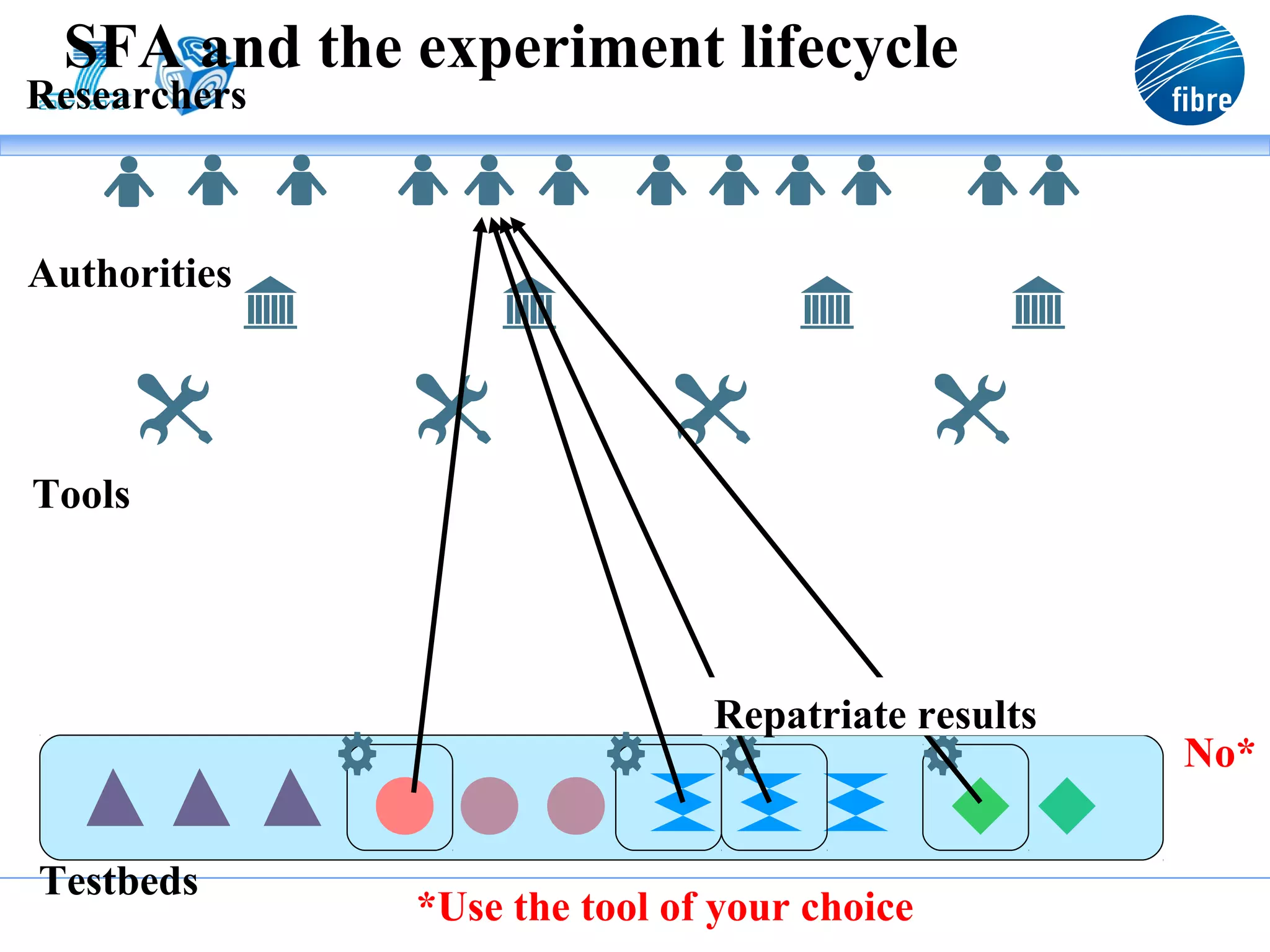

- 58. SFA and theexperiment lifecycle Researchers Authorities Tools Repatriate results No* Testbeds *Use the tool of your choice

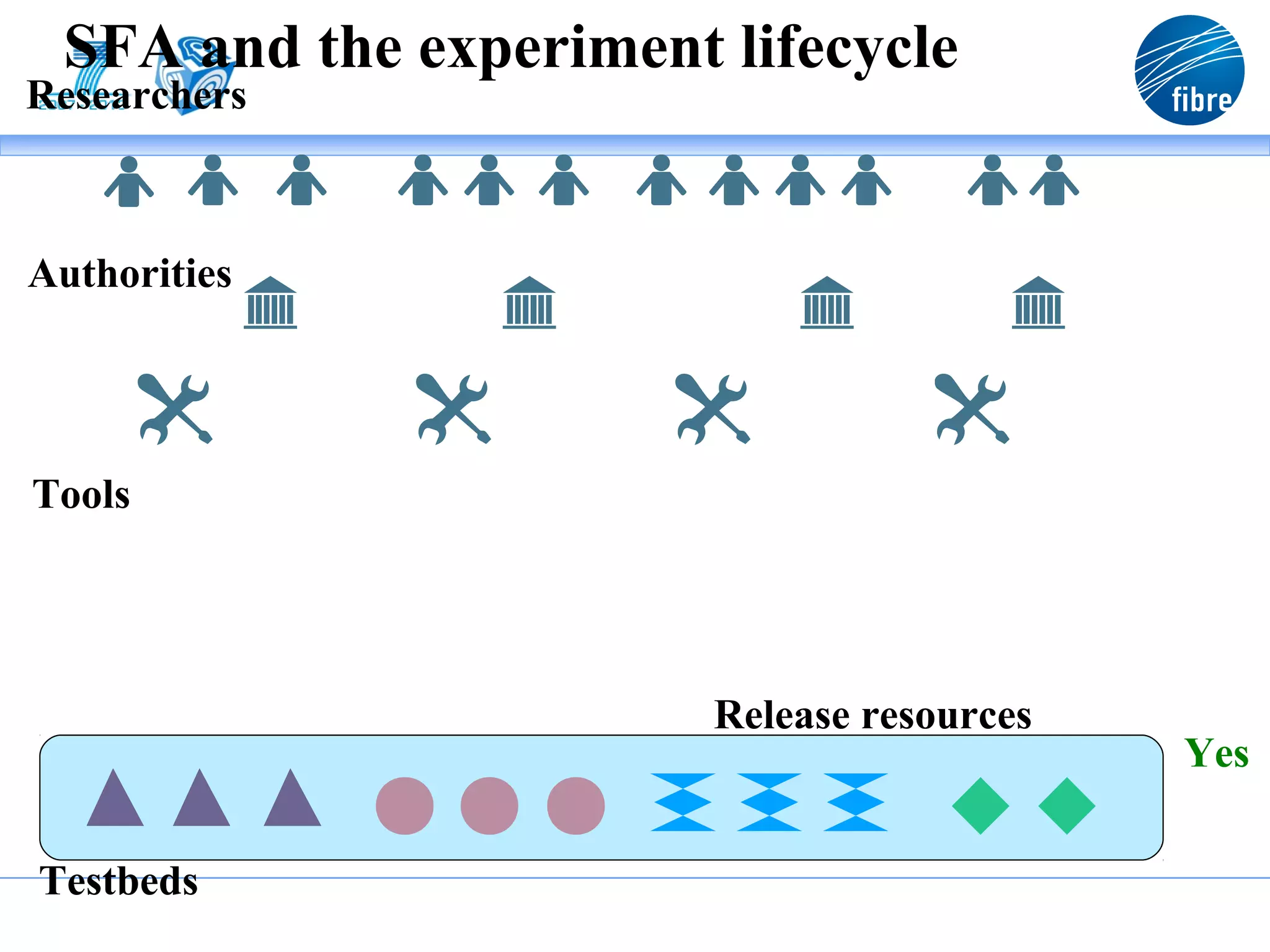

- 59. SFA and theexperiment lifecycle Researchers Authorities Tools Release resources Yes Testbeds

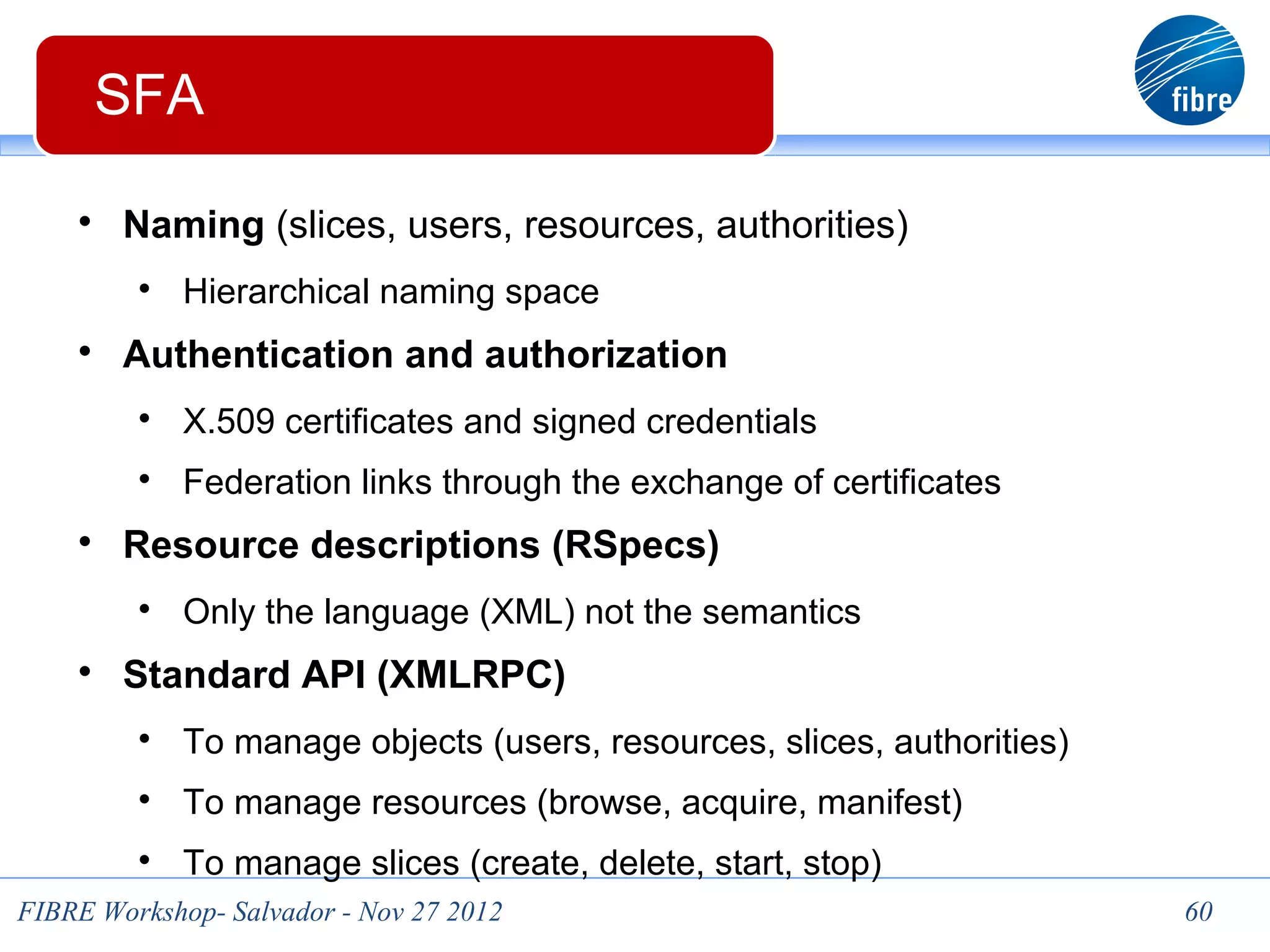

- 60. 60 SFA Naming (slices, users, resources, authorities) Hierarchical naming space Authentication and authorization X.509 certificates and signed credentials Federation links through the exchange of certificates Resource descriptions (RSpecs) Only the language (XML) not the semantics Standard API (XMLRPC) To manage objects (users, resources, slices, authorities) To manage resources (browse, acquire, manifest) To manage slices (create, delete, start, stop) FIBRE Workshop- Salvador - Nov 27 2012 60

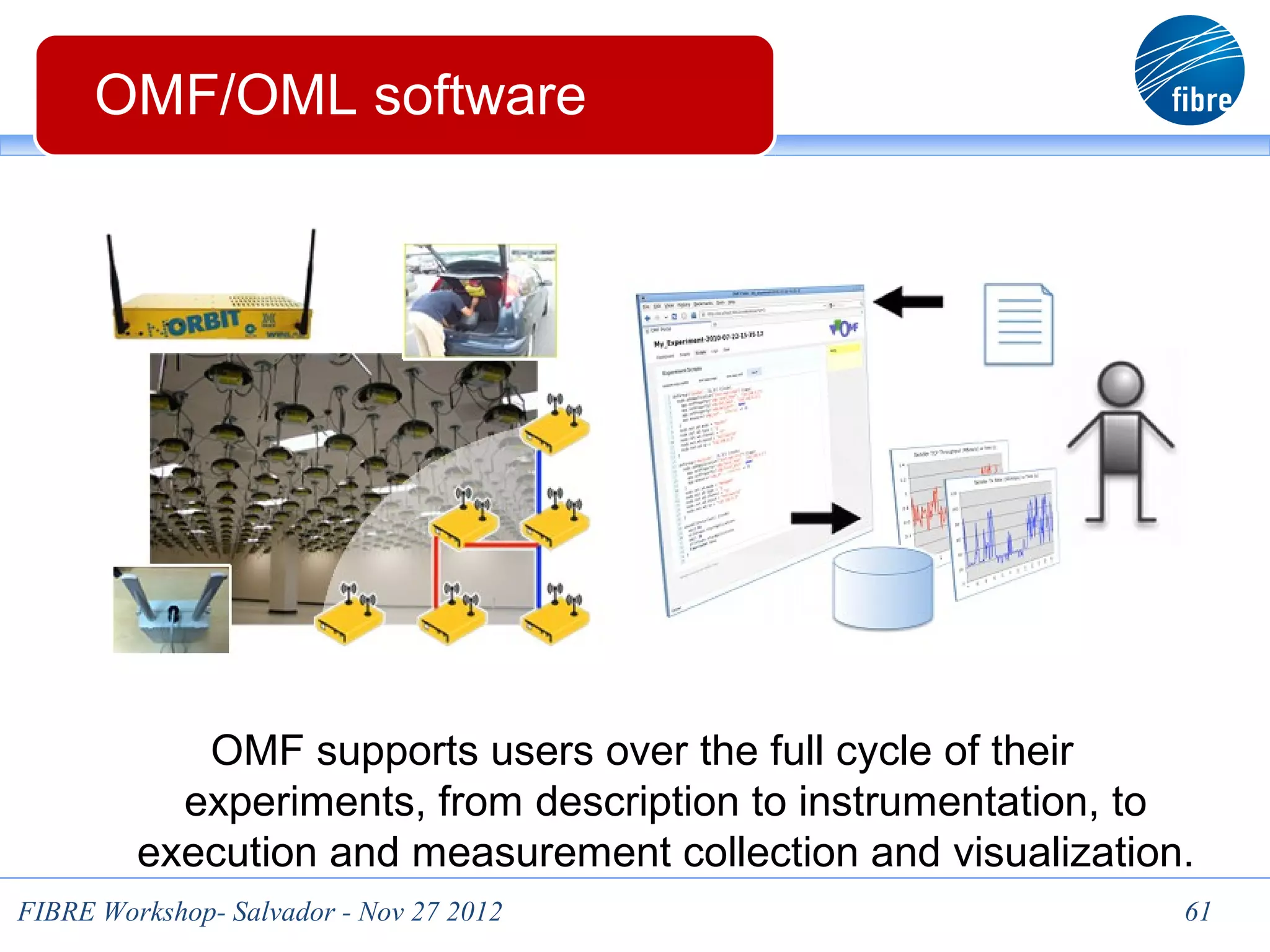

- 61. OMF/OML software OMF supports users over the full cycle of their experiments, from description to instrumentation, to execution and measurement collection and visualization. FIBRE Workshop- Salvador - Nov 27 2012 61

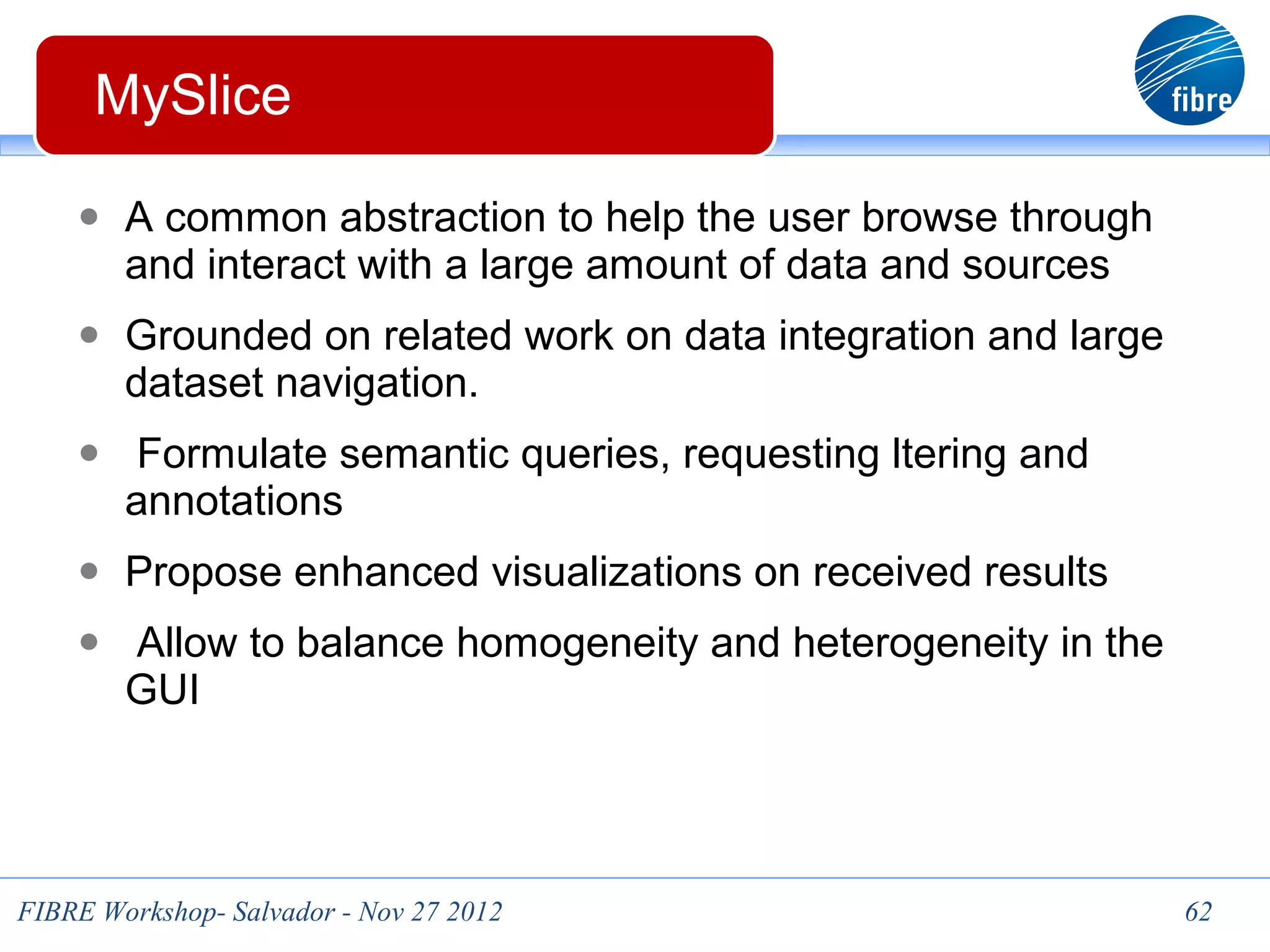

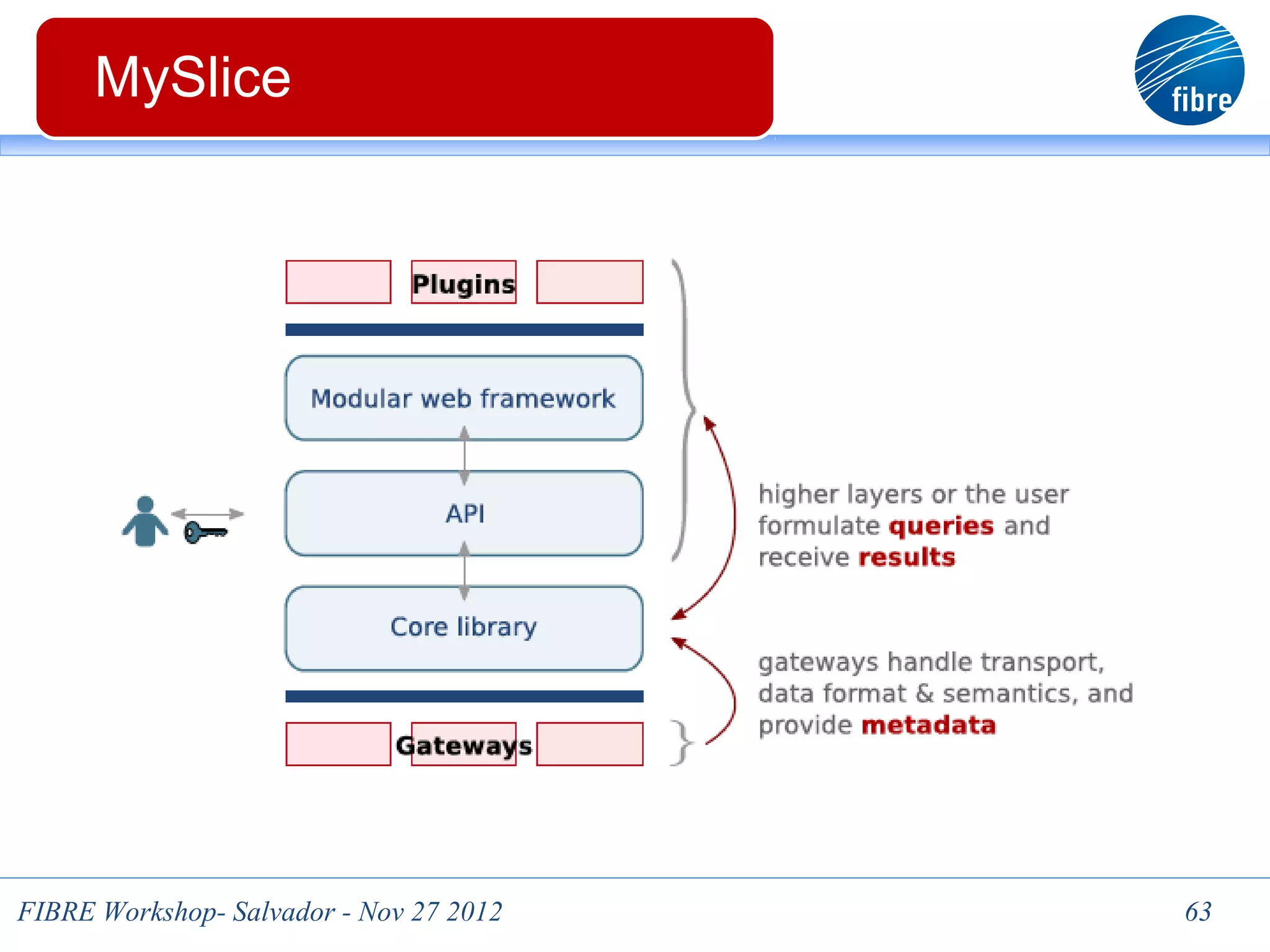

- 62. MySlice ● A common abstraction to help the user browse through and interact with a large amount of data and sources ● Grounded on related work on data integration and large dataset navigation. ● Formulate semantic queries, requesting ltering and annotations ● Propose enhanced visualizations on received results ● Allow to balance homogeneity and heterogeneity in the GUI FIBRE Workshop- Salvador - Nov 27 2012 62
- 63. MySlice FIBRE Workshop- Salvador- Nov 27 2012 63

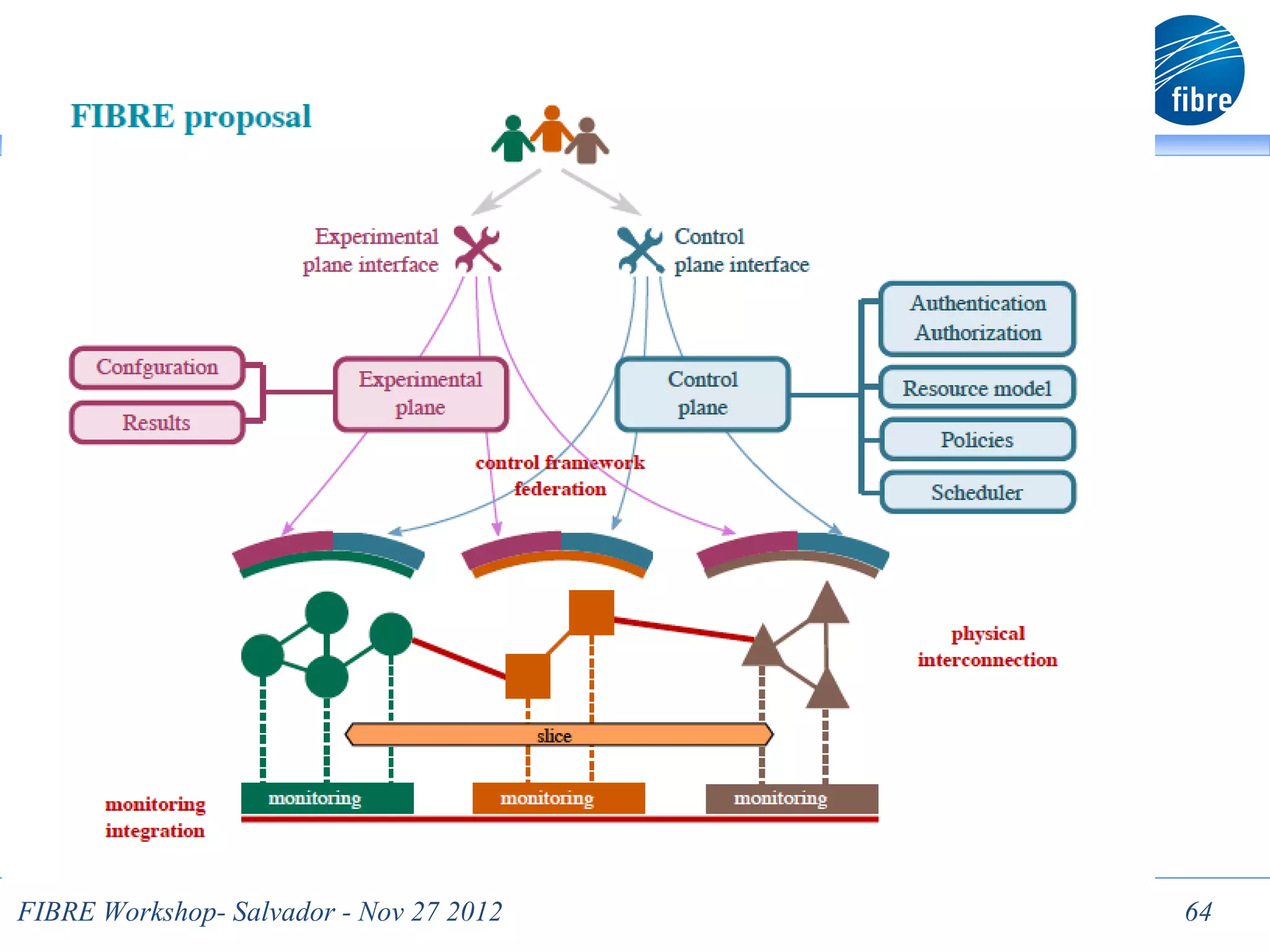

- 64. FIBRE Workshop- Salvador- Nov 27 2012 64
- 65. FIBRE Workshop- Salvador- Nov 27 2012 65
Editor's Notes
- #11 Devolution
- #12 Global research community: exchange of experiences between researchers, credibility and comparability of experiments. Networking experiments benefit always for more resources, without finishing earlier (as computing ones)
- #15 Less optimistic « federation » scenario could be one that allows researchers to access resources belonging to different facilities (but not allowing them to directly communicate). Also sharing of experiment data (input, output).
- #16 Less optimistic « federation » scenario could be one that allows researchers to access resources belonging to different facilities (but not allowing them to directly communicate). Also sharing of experiment data (input, output).
- #17 Less optimistic « federation » scenario could be one that allows researchers to access resources belonging to different facilities (but not allowing them to directly communicate). Also sharing of experiment data (input, output).
- #18 Less optimistic « federation » scenario could be one that allows researchers to access resources belonging to different facilities (but not allowing them to directly communicate). Also sharing of experiment data (input, output).
