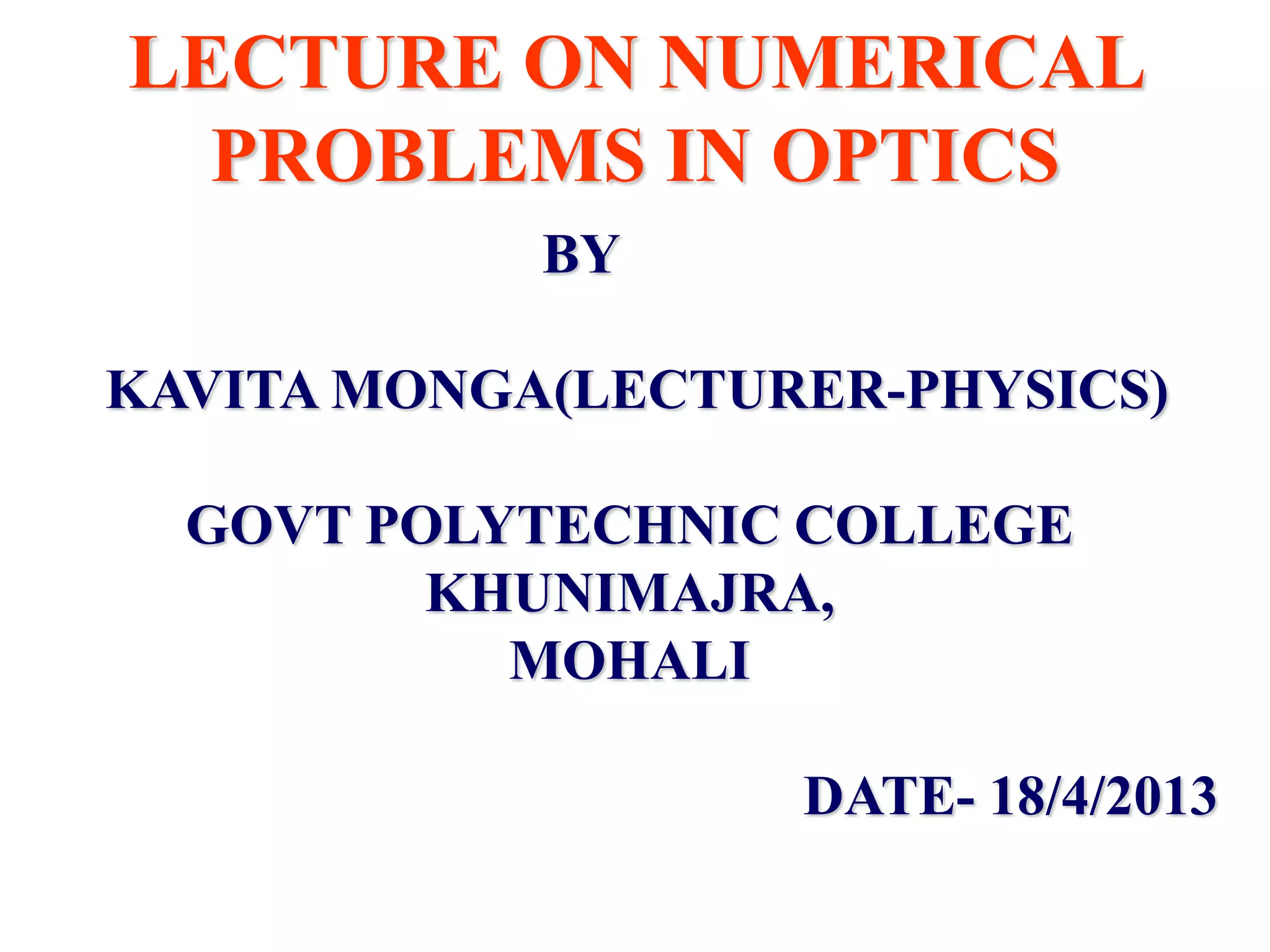

LECTURE ON NUMERICAL
PROBLEMS IN OPTICS
BY
KAVITA MONGA(LECTURER-PHYSICS)
GOVT POLYTECHNIC COLLEGE
KHUNIMAJRA,
MOHALI
DATE- 18/4/2013

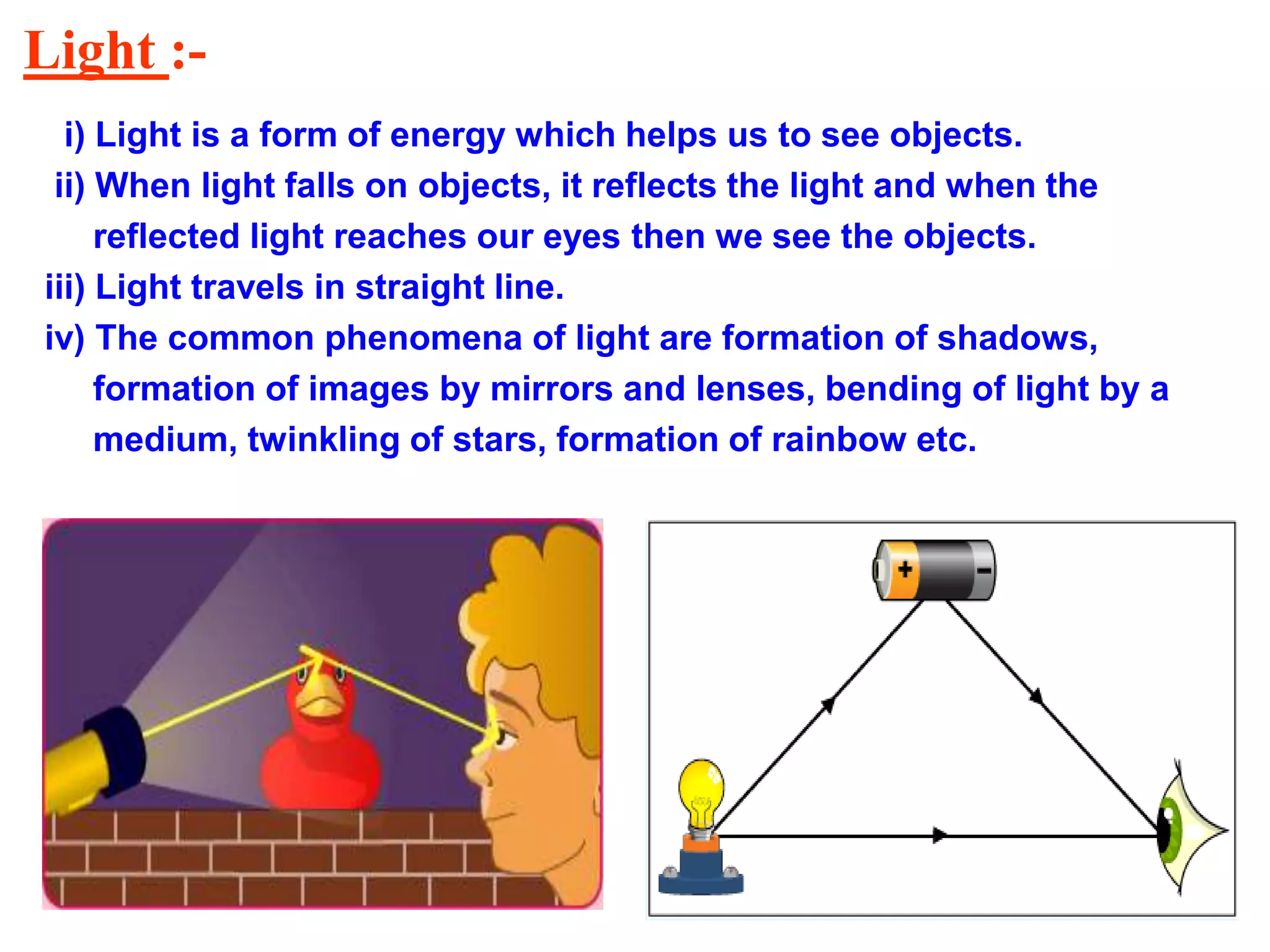

Light :-
i) Light is a form of energy which helps us to see objects.
ii) When light falls on objects, it reflects the light and when the
reflected light reaches our eyes then we see the objects.
iii) Light travels in straight line.
iv) The common phenomena of light are formation of shadows,
formation of images by mirrors and lenses, bending of light by a
medium, twinkling of stars, formation of rainbow etc.
• The overall study of how light behaves is called
optics.
• The branch of optics that focuses on the creation
of images is called geometric optics, because it
is based on relationships between angles and
lines that describe light rays.
Some Definitions
• Absorption
– When light passes through an object the intensity is reduced
depending upon the color absorbed. Thus the selective
absorption of white light produces colored light.
• Refraction
– Direction change of a ray of light passing from one
transparent medium to another with different optical density.
A ray from less to more dense medium is bent perpendicular
to the surface, with greater deviation for shorter wavelengths
• Diffraction
– Light rays bend around edges - new wavefronts are
generated at sharp edges - the smaller the aperture the
lower the definition
• Dispersion
– Separation of light into its constituent wavelengths when
entering a transparent medium - the change of refractive
index with wavelength, such as the spectrum produced by a
prism or a rainbow
Absorption
Absorption
Control
No blue/green light
red filter
• A lens is an optical
device that is used to
bend light in a specific
way.
• A converging lens
bends light so that the
light rays come
together to a point.
• A diverging lens bends
light so it spreads light
apart instead of
coming together.
• Mirrors reflect light and allow us to see ourselves.
• A prism is another optical device that can cause
light to change directions.
• A prism is a solid piece of glass with flat polished
surfaces.
• An optical system is a collection of mirrors, lenses,
prisms, or other optical elements that performs a
useful function with light.
• Characteristics of optical systems are:
– The location, type, and magnification of the
image.
– The amount of light that is collected.
– The accuracy of the image in terms of
sharpness, color, and distortion.
– The ability to change the image, like a telephoto
lens on a camera.
– The ability to record the image on film or
electronically.
Optical Systems
Reflection
• Images appear in mirrors
because of how light is
reflected by mirrors.
• The incident ray follows
the light falling onto the
mirror.
• The reflected ray follows
the light bouncing off the
mirror.
Reflection
• In specular reflection each incident ray bounces
off in a single direction.
• A surface that is not shiny creates diffuse
reflection.
• In diffuse reflection, a single ray of light scatters
into many directions.
Law of Reflection
The angle of
incidence equals
the angle of
reflection.
The incident ray
strikes the mirror.
The reflected ray
bounces off.
Law of reflection
• A light ray is incident on a plane mirror with a 30
degree angle of incidence.
• Sketch the incident and reflected rays and
determine the angle of reflection.
30o 30o
Mirror
A dentist uses a mirror to
look at the back of a second
molar (A). Next, she wishes
to look at the back of a
lateral incisor (B), which is
90° away. By what angle
should she rotate her mirror?
A. 90°
B. 45°
C. 180°
A
B
Specular vs. Diffuse Reflection
Specular Reflection
•The surface is flat at distance scales near
or above the wavelength of light
•It looks “shiny”, like a mirror.
Specular vs. Diffuse Reflection
Diffuse Reflection
•The surface is rough at distance scales
near or above the wavelength of light
•Almost all surfaces reflect in this way!
Two plane mirrors form a right angle.
How many images of the ball can you
see in the mirrors?
A. 1
B. 2
C. 3
D. 4
Refraction
• Light rays may bend as
they cross a boundary
from one material to
another, like from air to
water.
• This bending of light rays
is known as refraction.
• The light rays from the
straw are refracted (or
bent) when they cross
from water back into air
before reaching your
eyes.
Refraction
When a ray of light crosses from one material to
another, the amount it bends depends on the
difference in index of refraction between the two
materials.
Refraction
Water
Air
Refraction is the
bending of light as it
passes from one
medium into another.
refraction
N
qw
qA
Note: the angle of
incidence qA in air
and the angle of
refraction qA in water
are each measured
with the normal N.
The incident and refracted
rays lie in the same plane
and are reversible.
Calculate the angle of refraction
• A ray of light traveling through air is incident on a
smooth surface of water at an angle of 30° to the
normal.
• Calculate the angle of refraction for the ray as it
enters the water.
solution
• 1) You are asked for the angle of refraction.
• 2) You are told the ray goes from air into water at
30 degrees.
• 3) Snell’s law:
ni sin(θi) = nr sin(θr)
ni = 1.00 (air), nr = 1.33 (water)
• 4) Apply Snell’s law to find θr.
1.00sin(30°) = 1.33 sin(θr)
sin(θr) = 0.5 ÷ 1.33 = 0.376
• Use the inverse sine function to find the angle that has
a sine of 0.376.
• θr = sin-1(0.376) = 22°
Refraction Distorts Vision
Water
Air
Water
Air
The eye, believing that light travels in straight
lines, sees objects closer to the surface due to
refraction. Such distortions are common.
Refraction
But it is really here!!
He sees the
fish here….
Depth perception
Apparent Depth
A fish swims below the surface of the water.
An observer sees the fish at:
A. a greater depth than it really is.
B. its true depth.
C. a smaller depth than it really is.
air
water
Virtual
of Fish
A fish swims directly below the surface of
the water. An observer sees the fish at:
A. a greater depth than it really is.
B. its true depth.
C. a smaller depth than it really is.
air
water
The Index of Refraction
The index of refraction for a material is the ratio
of the velocity of light in a vacuum (3 x 108 m/s)
to the velocity through the material.
c
v
c
n
v

Index of refraction
c
n
v

Examples: Air n= 1; glass n = 1.5; Water n = 1.33
Index of Refraction
n
c
vmedium 
• vmedium is the speed of light in a
transparent medium.
• c is the speed of light in a vacuum
(c=3.00×108 m/s)
• n is a dimensionless constant: n≥1
• n=1 in a vacuum
Index of refraction
The ability of a material to bend rays of light is
described by the index of refraction (n).
Example 1. Light travels from air (n = 1) into glass,
where its velocity reduces to only 2 x 108 m/s.
What is the index of refraction for glass?
8
8
3 x 10 m/s
2 x 10 m/s
c
n
v
 
vair = c
vG = 2 x 108 m/s
Glass
Air
For glass: n = 1.50
If the medium were water: nW = 1.33. Then
you should show that the velocity in water
would be reduced from c to 2.26 x 108 m/s.
Analogy for Refraction
Sand
Pavement
Air
Glass
Light bends into glass then returns along
original path much as a rolling axle would
when encountering a strip of mud.
3 x 108 m/s
3 x 108 m/s
2 x 108
m/s
vs < vp
Snell's law of refraction
• Snell’s law is the relationship between the angles
of incidence and refraction and the index of
refraction of both materials.
ni sin Qi = nr sin Qr
Index of
refraction of
refractive
material
Angle of incidence
(degrees)
Angle of refraction
(degrees)
Index of
refraction of
incident
material
Snell’s Law of Refraction
2
2
1
1 sin
sin q
q n
n 
Snell’s Law
q1
q2
Medium 1
Medium 2
The ratio of the sine of the
angle of incidence q1 to the
sine of the angle of refraction
q2 is equal to the ratio of the
incident velocity v1 to the
refracted velocity v2 .
Snell’s
Law:
1 1
2 2
sin
sin
v
v
q
q

v1
v2
Example 2: A laser beam in a darkened room
strikes the surface of water at an angle of 300.
The velocity in water is 2.26 x 108 m/s. What is
the angle of refraction?
The incident angle is:
qA = 900 – 300 = 600
sin
sin
A A
W W
v
v
q
q

8 0
8
sin (2 x 10 m/s)sin60
sin
3 x 10 m/s
W A
W
A
v
v
q
q   qW = 35.30
Air
H2O
300
qW
qA
Snell’s Law and Refractive
Index
Another form of Snell’s law can be derived from
the definition of the index of refraction:
from which
c c
n v
v n
 
1 1 2
1
2 2 1
2
;
c
v v n
n
c
v v n
n
 
1 1 2
2 2 1
sin
sin
v n
v n
q
q
 
Snell’s law for
velocities and indices:
Medium 1
q1
q2
Medium 2
A Simplified Form of the Law
1 1 2
2 2 1
sin
sin
v n
v n
q
q
 
Since the indices of refraction for many common
substances are usually available, Snell’s law is
often written in the following manner:
1 1 2 2
sin sin
n n
q q

The product of the index of refraction and the
sine of the angle is the same in the refracted
medium as for the incident medium.
Example 3. Light travels through a block of glass,
then remerges into air. Find angle of emergence
for given information.
Glass
Air
Air
n=1.5
First find qG inside glass:
sin sin
A A G G
n n
q q

500
qG
q
0
sin (1.0)sin50
sin
1.50
A A
G
G
n
n
q
q  
qG = 30.70
From geometry, note
angle qG same for
next interface.
qG sin sin sin
A G G A
A A
n n n
q
q q
 
Apply to each interface:
qe = 500
Same as entrance angle!
Wavelength and Refraction
The energy of light is determined by the frequency
of the EM waves, which remains constant as light
passes into and out of a medium. (Recall v = fl.)
Glass
Air n=1
n=1.5
lA
lG
fA= fG
lG < lA
;
A A A G G G
v f v f
l l
 
; ;
A A A A
G G G G
v f v
v f v
l l
l l
 
1 1 1
2 2 2
sin
sin
v
v
q l
q l
 
The Many Forms of Snell’s
Law:
Refraction is affected by the index of refraction,
the velocity, and the wavelength. In general:
1 2 1 1
2 1 2 2
sin
sin
n v
n v
q l
q l
  
All the ratios are equal. It is helpful to recognize
that only the index n differs in the ratio order.
Snell’s
Law:
Example 4: A helium neon laser emits a beam
of wavelength 632 nm in air (nA = 1). What is
the wavelength inside a slab of glass (nG =
1.5)?
nG = 1.5; lA = 632 nm
;
G
A A A
G
G A G
n n
n n
l l
l
l
 
(1.0)(632 nm)
1.5
421 nm
G
l  
Note that the light, if seen inside the glass, would
be blue. Of course it still appears red because it
returns to air before striking the eye.
Glass
Air
Air
n=1.5
q
qG
q
qG
Total Internal Reflection
Water
Air
light
The critical angle qc is the
limiting angle of incidence
in a denser medium that
results in an angle of
refraction equal to 900.
When light passes at an angle from a medium of
higher index to one of lower index, the emerging
ray bends away from the normal.
When the angle reaches a
certain maximum, it will be
reflected internally.
i = r
Critical
angle
qc
900
Total Internal Reflection
• Occurs when n2<n1
• θc = critical angle.
• When θ1 ≥ θc, no light is transmitted
through the boundary; 100%
reflection
1
2
sin
n
n
c 
q
Example 5. Find the critical angle of
incidence from water to air.
For critical angle, qA = 900
nA = 1.0; nW = 1.33
sin sin
W C A A
n n
q q

0
sin90 (1)(1)
sin
1.33
A
C
w
n
n
q  
Critical angle: qc = 48.80 Water
Air
qc
900
Critical angle
In general, for media where
n1 > n2 we find that:
1
2
sin C
n
n
q 
Refraction & Dispersion
Light is “bent” and the resultant colors separate (dispersion).
Red is least refracted, violet most refracted.
Short wavelengths are “bent”
more than long wavelengths
rac
Dispersion by a Prism
Red
Orange
Yellow
Green
Blue
Indigo
Violet
Dispersion is the separation of white light into
its various spectral components. The colors
are refracted at different angles due to the
different indexes of refraction.
Dispersion and prisms
• When white light passes through a glass
prism, blue is bent more than red.
• Colors between blue and red are bent
proportional to their position in the
spectrum.
Dispersion and prisms
• The variation in
refractive index with
color is called
dispersion.
• A rainbow is an example
of dispersion in nature.
• Tiny rain droplets act as
prisms separating the
colors in the white light
rays from the sun.
a) Lens formula for spherical lenses :-
The lens formula for spherical lenses is the relationship between the
object distance (u), image distance (v) and focal length (f).
The lens formula is expressed as :-
1 1 1
=
v u f
b) Magnification produced by spherical lenses :-
Magnification for spherical lens is the ratio of the height of the
image to the height of the object.
Height of the image hi
Magnification = m =
Height of the object ho
The magnification is also related to the object distance and image
distance. It can be expressed as :-
hi v
Magnification m = =
ho u
Power of a lens :-
The power of a lens is the reciprocal of its focal length
(in metres).
I 1
P = or f =
f (m) P
The SI unit of power is dioptre (D).
1 dioptre is the power of a lens whose focal length is 1
metre.
The power of a convex lens is positive ( + ve ) and the
power of a concave lens is negative ( - ve ).
Thin Lens Equation
We can mathematically determine
where an image will be formed in
relation to the optical centre using the
thin lens equation.
The Thin Lens Equation
1 = 1 + 1
f di do
Where:
f represents the focal length
do represents from the object to the lens
di represents from the image to the lens
F
F’ 2F
2F’
Focal
length
f
do
di
The Thin Lens Equation – Example 1
• A converging lens has a focal length of 17
cm. A candle is located 48 cm from the
lens. What type of image will be formed,
and where will it be located?
example 1 (cont'd)
G: f =
d0 =
U: di = ?
17 cm
48 cm
example 1
1 = 1 + 1
f di do
1 = 1 - 1
di f d0
E:
Rearrange equation:
example 1…almost there!
S:
1 = 1 - 1
di 17 cm 48 cm
1 = 0.03799cm-1
di
di = 1 / 0.03799cm-1
di = 26.327165 cm = 26 cm
The image of the candle is real and
will be about 26 cm from the lens
(opposite the object).
S:
S:
example – last step!
Sketch the ray diagram for this problem.
Example 2: Thin Lens Equation and
Diverging Lenses
• A diverging Lens has a focal length of 29
cm. A virtual image of a marble is
located 13 cm in front of the lens. Where
is the marble (the object) located?
• Follow the same steps as before, but be
careful with the signs! Refer to your
RULES for sign conventions.
Example 2: Ray Diagram
Sketch
• Sketch:
Example 2:
G: f = - 29 cm
di = -13 cm
d0 = ?
1 = 1 + 1
f do di
1 = 1 - 1
d0 f di
1 = 1 - 1
d0 -29cm -13cm
1 = 0.042444 cm-1
d0
d0 = 23.560456 cm = 24 cm
The marble is located 24
cm from the lens on the
same side as the image.
U
:
E:
S:
S:
S:
Magnification Equation
M = hi = - di
ho do
Where:
M stands for magnification
hi stands for height of the image
ho stands for height of the object
F
F’ 2F
2F’
h
o
h
i
Magnification Signs and Measurements
• Magnification (M) has no units
• M is POSITIVE for an UPRIGHT image
• M is NEGATIVE for an INVERTED image
If M is…. Then the image is…
• GREATER THAN 1 LARGER than the
object
• BETWEEN 0 AND 1 SMALLER than the
object
• EQUAL TO 1 SAME SIZE as the object
Example 3: Finding the Magnification of a
CONVERGING lens
• A toy of height 8.4 cm is balanced in front
of a converging lens. An inverted, real
image of height 23 cm is noticed on the
other side of the lens. What is the
magnification of the lens?
– Follow the same steps as ex 1 & 2 to solve
the problem (just use the magnification
equation)
Sketch
Example 3:
h0 = 8.4 cm
hi = -23 cm
M = ?
M = hi
ho
M = -23 cm
8.4 cm
M = -2.738095238 = -2.7
The lens has a
magnification of -2.7,
which means the image is
inverted.
G:
U:
E:
S:
S:
S
:
Example 4: Magnification of a
Diverging Lens
• A coin of height 2.4 cm is placed in front of
a diverging lens. An upright, virtual
image of height 1.7 cm is noticed on the
same side of the lens as the coin. What is
the magnification of the lens?
Sketch
Example 4:
h0 = 2.4 cm
hi = 1.7 cm
M = ?
M = hi
ho
M = 1.7 cm
2.4 cm
M = 0.708333 = 0.71
The lens has a
magnification of 0.71,
which means the image
is upright.
G:
U:
E:
S:
S:
S:
Drawing ray diagrams
• A ray diagram is the best way to understand what
type of image is formed by a lens, and whether
the image is magnified or inverted.
• These three rays follow the rules for how light
rays are bent by the lens:
1. A light ray passing through the center of the lens is not
deflected at all (A).
2. A light ray parallel to the axis passes through the far
focal point (B).
3. A light ray passing through the near focal point emerges
parallel to the axis (C).
Reflection of light :-
When light falls on a highly polished surface like a mirror most of
the light is sent back into the same medium. This process is called
reflection of light.
Laws of reflection of light :-
i) The angle of incidence is equal to the angle of reflection.
ii) The incident ray, the reflected ray and the normal to the mirror at
the point of incidence all lie in the same plane.
Image formed by a plane mirror :-
i) The image is erect.
ii) The image is same size as the object.
iii) The image is at the same distance from the mirror as the object is in
front of it.
iv) The image is virtual (cannot be obtained on a screen).
v) The image is laterally inverted.
Spherical mirrors :-
Spherical mirror is a curved mirror which is a part of a hollow
sphere. Spherical mirrors are of two types. They are concave mirror
and convex mirror.
i) Concave mirror :- is a spherical mirror whose reflecting surface is
curved inwards. Rays of light parallel to the principal axis after
reflection from a concave mirror meet at a point (converge) on the
principal axis.
ii) Convex mirror :- is a spherical mirror whose reflecting surface is
curved inwards. Rays of light parallel to the principal axis after
reflection from a convex mirror get diverged and appear to come from a
point behind the mirror.
F
F
Terms used in the study of spherical mirrors :-
i) Center of curvature :- is the centre of the sphere of which the mirror
is a part (C).
ii) Radius of curvature :- is the radius of the sphere of which the mirror
is a part (CP).
iii) Pole :- is the centre of the spherical mirror (P).
iv) Principal axis :- is the straight line passing through the centre of
curvature and the pole (X-Y).
v) Principal focus :-
In a concave mirror, rays of light parallel to the principal axis after
reflection meet at a point on the principal axis called principal
focus(F).
In a convex mirror, rays of light parallel to the principal axis after
reflection get diverged and appear to come from a point on the
principal axis behind the mirror called principal focus (F).
vi) Focal length :- is the distance between the pole and principal focus
(f). In a spherical mirror the radius of curvature is twice the focal
length.
R = 2f or f = R
2
X C F P Y
C – centre of curvature CP – radius of curvature
P – pole XY – principal axis
F – principal focus PF – focal length
Reflection by spherical mirrors :-
i) In a concave mirror a ray of light parallel to the principal
axis after reflection passes through the focus.
In a convex mirror a ray of light parallel to the principal
axis after reflection appears to diverge from the focus.
C F P P F C
ii) In a concave mirror a ray of light passing through the
focus after reflection goes parallel to the principal axis.
In a convex mirror a ray of light directed towards the
focus after reflection goes parallel to the principal axis.
C F P P F C
iii) In a concave mirror a ray of light passing through the
centre of curvature after reflection is reflected back along
the same direction.
In a convex mirror a ray of light directed towards the
centre of curvature after reflection is reflected back along
the same direction.
C F P P F C
iv) In a concave or a convex mirror a ray of light directed
obliquely at the pole is reflected obliquely making equal
angles with the principal axis.
C F i P i P F C
r r
Images formed by concave mirror :-
i) When the object is at infinity the image is formed at the
focus, it is highly diminished, real and inverted.
C F P
ii) When the object is beyond C, the image is formed
between C and F, it is diminished, real and inverted.
C F P
iii) When the object is at C, the image is formed at C, it is
same size as the object, real and inverted.
C F P
iv) When the object is between C and F, the image is
formed beyond C, it is enlarged, real and inverted.
C F P
v) When the object is at F, the image is formed at infinity, it
is highly enlarged, real and inverted.
C F P
vi) When the object is between F and P, the image is formed
behind the mirror, it is enlarged, virtual and erect.
C F P
Images formed by convex mirror :-
i) When the object is at infinity, the image is formed at F
behind the mirror, it is highly diminished, virtual and erect.
P F
ii) When the object is between infinity and pole, the image
is formed behind the mirror, it is diminished, virtual and
erect.
P F C
Uses of spherical mirrors :-
a) Concave mirrors :-
Concave mirrors are used in torches, search lights and head lights of
vehicles to get parallel beams of light.
They are used as shaving mirrors to see larger image of the face.
They are used by dentists to see larger images of the teeth.
Large concave mirrors are used to concentrate sunlight to produce
heat in solar furnaces.
b) Convex mirrors :-
Convex mirrors are used as rear-view mirrors in vehicles. Convex
mirrors give erect diminished images of objects. They also have a
wider field of view than plane mirrors.
New Cartesian sign convention for spherical mirrors :-
i) The object is always placed on the left of the mirror and light from the
object falls from the left to the right.
ii) All distances parallel to the principal axis are measured from the pole.
iii) All distances measured to the right of the pole are taken as + ve.
iv) All distances measured to the left of the pole are taken as – ve.
v) The height measured upwards perpendicular to the principal axis is
taken as + ve.
vi) The height measured downwards perpendicular to the principal axis
is taken as – ve.
Direction of incident light
Distance towards the left ( - ve
)
Distance towards the right ( + ve )
Height
downwards ( - ve )
Height
upwards ( + ve )
Concave mirror
Object
Mirror formula for spherical mirrors :-
The mirror formula for spherical mirrors is the relationship between
the object distance (u), image distance (v) and focal length (f).
The mirror formula is expressed as :-
1 1 1
+ =
v u f
Magnification for spherical mirrors :-
Magnification for spherical mirrors is the ratio of the height of the
image to the height of the object.
Height of the image hi
Magnification = m =
Height of the object ho
The magnification is also related to the object distance and image
distance. It is expressed as :-
hi v
Magnification m = =
ho u
Refraction of light :-
When light travels obliquely from one transparent medium into
another it gets bent. This bending of light is called refraction of light.
When light travels from a rarer medium to a denser medium, it bends
towards the normal.
When light travels from a denser medium to a rarer medium to a
rarer medium, it bends away from the normal.
Denser medium Rarer medium
Rarer medium Denser medium
Normal Normal
Refraction of light through a rectangular glass
slab :-
When a ray of light passes through a rectangular glass slab, it gets
bent twice at the air- glass interface and at the glass- air interface.
The emergent ray is parallel to the incident ray and is displaced
through a distance.
i
e
Normal
Incident ray
Emergent ray
Refracted ray
Glass
Air
Normal
r
Glass
Air
Rectangular glass slab
displacement
Angle of emergence
Angle of incidence
Angle of refraction
c) Laws of refraction of light :-
i) The incident ray, the refracted ray and the normal to the interface of
two transparent media at the point of incidence, all lie in the same
plane.
II) The ratio of the sine of angle of incidence to the sine of angle of
refraction is a constant, for the light of a given colour and for the
given pair of media.( This law is also known as Snell`s law of
refraction.) sine i
= constant
sine r
d)Refractive index :-
The absolute refractive index of a medium is the ratio of the speed
light in air or vacuum to the speed of light in medium.
Speed of light in air or vacuum c
Refractive index = n =
Speed of light in the medium v
The relative refractive index of a medium 2 with respect to a
medium 1 is the ratio of the speed of light in medium 1 to the
speed of light in medium 2.
n
21
= Speed of light in medium 1 n 21
= v
1 / v2
Speed of light in medium 2
Spherical lenses :-
A spherical lens is a transparent material bounded by two surfaces
one or both of which are spherical.
Spherical lenses are of two main types. They are convex and concave
lenses.
i) Convex lens :- is thicker in the middle and thinner at the edges.
Rays of light parallel to the principal axis after refraction through a
convex lens meet at a point (converge) on the principal axis.
ii) Concave lens :- is thinner in the middle and thicker at the edges.
Rays of light parallel to the principal axis after refraction get diverged
and appear o come from a point on the principal axis on the same side
of the lens.
F F
Refraction by spherical lenses :-
i) In a convex lens a ray of light parallel to the principal
axis after refraction passes through the focus on the other
side of the lens. In a concave lens it appears to diverge
from the focus on the same side of the lens.
2F1 F1 O F2 2F2 2F1 F1 O F2 2F2
ii) In a convex lens a ray of light passing through the focus
after refraction goes parallel to the principal axis. In a
concave lens a ray of light directed towards the focus after
refraction goes parallel to the principal axis.
2F1 F1 O F2 2F2 2F1 F1 O F2 2F2
iii) In a convex lens and concave lens a ray of light passing
through the optical centre goes without any deviation.
2F1 F1 O F2 2F2 2F1 F1 O F2 2F2
Images formed by convex lens :-
i) When the object is at infinity the image is formed at the
focus F2, it is highly diminished, real and inverted.
2F1 F1 O F2 2F2
ii) When the object is beyond 2F1, the image is formed
between F2 and 2F2, it if diminished, real and inverted.
2F1 F1 O F2 2F2
iii) When the object is at 2F1, the image is formed at 2F2, it
is the same size as the object, real and inverted.
2F1 F1 O F2 2F2
iv) When the object is between 2F1 and F1, the image is
formed beyond 2F2, it is enlarged, real and inverted.
2F1 F1 O F2 2F2
v) When the object is at F1 the image is formed at infinity, it
is highly enlarged, real and inverted.
2F1 F1 O F2 2F2
vi) When the object is between F1 and O, the image is
formed on the same side of the lens, it is enlarged, virtual
and erect.
2F1 F1 O F2 2F2
Images formed by concave lens :-
i) When the object is at infinity, the image is formed at the
focus F1 on the same side of the lens, it is highly
diminished, virtual and erect.
F1 O
ii) When the object is between infinity and F1, the image is
formed between F1 and O on the same side of the lens, it is
diminished, virtual and erect.
FI O
Sign convention for spherical lenses :-
The sign convention for spherical lenses is the same as in
spherical mirrors except that the distances are measured from the
optical centre (O).
The focal length of a convex lens is positive ( + ve ) and the focal
length of a concave lens is negative ( - ve ).
O
Direction of incident light
Distance towards the left (- ve )
Height
downwards ( - ve )
Height
upwards ( + ve )
Convex lens
Object
Distance towards the right ( + ve )
fdocuments.net_lecture-on-numerical-problems-in-optics.ppt

More Related Content

Similar to fdocuments.net_lecture-on-numerical-problems-in-optics.ppt

Lecture 1.new optics
Lecture 1.new opticsLecture 1.new optics
Lecture 1.new optics
nkwon123


Similar to fdocuments.net_lecture-on-numerical-problems-in-optics.ppt (20)

slm on Refraction class 8th
slm on Refraction class 8th slm on Refraction class 8th
slm on Refraction class 8th

Optics mirrors & lenses
Optics mirrors & lensesOptics mirrors & lenses
Optics mirrors & lenses

Class x chapter 3 light topic 3.5 ppt 5
Class x chapter 3 light topic 3.5 ppt 5Class x chapter 3 light topic 3.5 ppt 5
Class x chapter 3 light topic 3.5 ppt 5

Refraction - Ray Optics - Physics - Light chapter - class 7 and 8
Refraction - Ray Optics - Physics - Light chapter - class 7 and 8Refraction - Ray Optics - Physics - Light chapter - class 7 and 8
Refraction - Ray Optics - Physics - Light chapter - class 7 and 8

presentation phys.pptx
presentation phys.pptxpresentation phys.pptx
presentation phys.pptx

3.2 form 4 light
3.2 form 4 light3.2 form 4 light
3.2 form 4 light

4.4
4.44.4
4.4

The nature and propagation of light
The nature and propagation of lightThe nature and propagation of light
The nature and propagation of light

4.4
4.44.4
4.4

Light - Reflection or Refraction
Light - Reflection or RefractionLight - Reflection or Refraction
Light - Reflection or Refraction

CLASS XI - Chapter 9 optics (MAHARASHRA STATE BOARD)
CLASS XI - Chapter 9   optics  (MAHARASHRA STATE BOARD)CLASS XI - Chapter 9   optics  (MAHARASHRA STATE BOARD)
CLASS XI - Chapter 9 optics (MAHARASHRA STATE BOARD)

light
lightlight
light

Reflection And Refraction Of Light
Reflection And Refraction Of LightReflection And Refraction Of Light
Reflection And Refraction Of Light

Light
LightLight
Light

geometrical Optics
geometrical Opticsgeometrical Optics
geometrical Optics

Light - Reflection and Refraction, Class X, CBSE, Science
Light - Reflection and Refraction, Class X, CBSE, ScienceLight - Reflection and Refraction, Class X, CBSE, Science
Light - Reflection and Refraction, Class X, CBSE, Science

Lecture 1.new optics
Lecture 1.new opticsLecture 1.new optics
Lecture 1.new optics

Introduction Of Ray Optics and Optical Instruments | Physics
Introduction Of Ray Optics and Optical Instruments | PhysicsIntroduction Of Ray Optics and Optical Instruments | Physics
Introduction Of Ray Optics and Optical Instruments | Physics

Reflection And Refraction
Reflection And RefractionReflection And Refraction
Reflection And Refraction

Lecture 33 reflection and refraction
Lecture 33   reflection and refractionLecture 33   reflection and refraction
Lecture 33 reflection and refraction


More from PedramMaghsoudi4 (8)

81849f5c7048c7d3289b02cffddb5e21_MIT2_71S09_lec01.pdf
81849f5c7048c7d3289b02cffddb5e21_MIT2_71S09_lec01.pdf81849f5c7048c7d3289b02cffddb5e21_MIT2_71S09_lec01.pdf
81849f5c7048c7d3289b02cffddb5e21_MIT2_71S09_lec01.pdf

01-2-Frederick_Bordry.pptx
01-2-Frederick_Bordry.pptx01-2-Frederick_Bordry.pptx
01-2-Frederick_Bordry.pptx

12113745.ppt
12113745.ppt12113745.ppt
12113745.ppt

LEReC_RHIC_Retreat_2019.pptx
LEReC_RHIC_Retreat_2019.pptxLEReC_RHIC_Retreat_2019.pptx
LEReC_RHIC_Retreat_2019.pptx

fdocuments.net_optics-lecture-2-book-chapter-3435.ppt
fdocuments.net_optics-lecture-2-book-chapter-3435.pptfdocuments.net_optics-lecture-2-book-chapter-3435.ppt
fdocuments.net_optics-lecture-2-book-chapter-3435.ppt

05_optics.ppt
05_optics.ppt05_optics.ppt
05_optics.ppt

Ion Beam Lithography.pptx
Ion Beam Lithography.pptxIon Beam Lithography.pptx
Ion Beam Lithography.pptx

0708_optics_mirrors_and_lenses.ppt
0708_optics_mirrors_and_lenses.ppt0708_optics_mirrors_and_lenses.ppt
0708_optics_mirrors_and_lenses.ppt


Recently uploaded

DeepFakes presentation : brief idea of DeepFakes
DeepFakes presentation : brief idea of DeepFakesDeepFakes presentation : brief idea of DeepFakes
DeepFakes presentation : brief idea of DeepFakes
MayuraD1

Call Girls in South Ex (delhi) call me [🔝9953056974🔝] escort service 24X7
Call Girls in South Ex (delhi) call me [🔝9953056974🔝] escort service 24X7Call Girls in South Ex (delhi) call me [🔝9953056974🔝] escort service 24X7
Call Girls in South Ex (delhi) call me [🔝9953056974🔝] escort service 24X7
9953056974 Low Rate Call Girls In Saket, Delhi NCR

XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX
XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX
XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX
ssuser89054b

1_Introduction + EAM Vocabulary + how to navigate in EAM.pdf
1_Introduction + EAM Vocabulary + how to navigate in EAM.pdf1_Introduction + EAM Vocabulary + how to navigate in EAM.pdf
1_Introduction + EAM Vocabulary + how to navigate in EAM.pdf
AldoGarca30


Recently uploaded (20)

DeepFakes presentation : brief idea of DeepFakes
DeepFakes presentation : brief idea of DeepFakesDeepFakes presentation : brief idea of DeepFakes
DeepFakes presentation : brief idea of DeepFakes

Online food ordering system project report.pdf
Online food ordering system project report.pdfOnline food ordering system project report.pdf
Online food ordering system project report.pdf

Jaipur ❤CALL GIRL 0000000000❤CALL GIRLS IN Jaipur ESCORT SERVICE❤CALL GIRL IN...
Jaipur ❤CALL GIRL 0000000000❤CALL GIRLS IN Jaipur ESCORT SERVICE❤CALL GIRL IN...Jaipur ❤CALL GIRL 0000000000❤CALL GIRLS IN Jaipur ESCORT SERVICE❤CALL GIRL IN...
Jaipur ❤CALL GIRL 0000000000❤CALL GIRLS IN Jaipur ESCORT SERVICE❤CALL GIRL IN...

Computer Networks Basics of Network Devices
Computer Networks  Basics of Network DevicesComputer Networks  Basics of Network Devices
Computer Networks Basics of Network Devices

Call Girls in South Ex (delhi) call me [🔝9953056974🔝] escort service 24X7
Call Girls in South Ex (delhi) call me [🔝9953056974🔝] escort service 24X7Call Girls in South Ex (delhi) call me [🔝9953056974🔝] escort service 24X7
Call Girls in South Ex (delhi) call me [🔝9953056974🔝] escort service 24X7

Ground Improvement Technique: Earth Reinforcement
Ground Improvement Technique: Earth ReinforcementGround Improvement Technique: Earth Reinforcement
Ground Improvement Technique: Earth Reinforcement

Double Revolving field theory-how the rotor develops torque
Double Revolving field theory-how the rotor develops torqueDouble Revolving field theory-how the rotor develops torque
Double Revolving field theory-how the rotor develops torque

Max. shear stress theory-Maximum Shear Stress Theory ​ Maximum Distortional ...
Max. shear stress theory-Maximum Shear Stress Theory ​  Maximum Distortional ...Max. shear stress theory-Maximum Shear Stress Theory ​  Maximum Distortional ...
Max. shear stress theory-Maximum Shear Stress Theory ​ Maximum Distortional ...

Introduction to Serverless with AWS Lambda
Introduction to Serverless with AWS LambdaIntroduction to Serverless with AWS Lambda
Introduction to Serverless with AWS Lambda

XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX
XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX
XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX

HOA1&2 - Module 3 - PREHISTORCI ARCHITECTURE OF KERALA.pptx
HOA1&2 - Module 3 - PREHISTORCI ARCHITECTURE OF KERALA.pptxHOA1&2 - Module 3 - PREHISTORCI ARCHITECTURE OF KERALA.pptx
HOA1&2 - Module 3 - PREHISTORCI ARCHITECTURE OF KERALA.pptx

COST-EFFETIVE and Energy Efficient BUILDINGS ptx
COST-EFFETIVE  and Energy Efficient BUILDINGS ptxCOST-EFFETIVE  and Energy Efficient BUILDINGS ptx
COST-EFFETIVE and Energy Efficient BUILDINGS ptx

Orlando’s Arnold Palmer Hospital Layout Strategy-1.pptx
Orlando’s Arnold Palmer Hospital Layout Strategy-1.pptxOrlando’s Arnold Palmer Hospital Layout Strategy-1.pptx
Orlando’s Arnold Palmer Hospital Layout Strategy-1.pptx

Navigating Complexity: The Role of Trusted Partners and VIAS3D in Dassault Sy...
Navigating Complexity: The Role of Trusted Partners and VIAS3D in Dassault Sy...Navigating Complexity: The Role of Trusted Partners and VIAS3D in Dassault Sy...
Navigating Complexity: The Role of Trusted Partners and VIAS3D in Dassault Sy...

Computer Graphics Introduction To Curves
Computer Graphics Introduction To CurvesComputer Graphics Introduction To Curves
Computer Graphics Introduction To Curves

A Study of Urban Area Plan for Pabna Municipality
A Study of Urban Area Plan for Pabna MunicipalityA Study of Urban Area Plan for Pabna Municipality
A Study of Urban Area Plan for Pabna Municipality

1_Introduction + EAM Vocabulary + how to navigate in EAM.pdf
1_Introduction + EAM Vocabulary + how to navigate in EAM.pdf1_Introduction + EAM Vocabulary + how to navigate in EAM.pdf
1_Introduction + EAM Vocabulary + how to navigate in EAM.pdf

FEA Based Level 3 Assessment of Deformed Tanks with Fluid Induced Loads
FEA Based Level 3 Assessment of Deformed Tanks with Fluid Induced LoadsFEA Based Level 3 Assessment of Deformed Tanks with Fluid Induced Loads
FEA Based Level 3 Assessment of Deformed Tanks with Fluid Induced Loads

NO1 Top No1 Amil Baba In Azad Kashmir, Kashmir Black Magic Specialist Expert ...
NO1 Top No1 Amil Baba In Azad Kashmir, Kashmir Black Magic Specialist Expert ...NO1 Top No1 Amil Baba In Azad Kashmir, Kashmir Black Magic Specialist Expert ...
NO1 Top No1 Amil Baba In Azad Kashmir, Kashmir Black Magic Specialist Expert ...

457503602-5-Gas-Well-Testing-and-Analysis-pptx.pptx
457503602-5-Gas-Well-Testing-and-Analysis-pptx.pptx457503602-5-Gas-Well-Testing-and-Analysis-pptx.pptx
457503602-5-Gas-Well-Testing-and-Analysis-pptx.pptx


fdocuments.net_lecture-on-numerical-problems-in-optics.ppt

  • 1. LECTURE ON NUMERICAL PROBLEMS IN OPTICS BY KAVITA MONGA(LECTURER-PHYSICS) GOVT POLYTECHNIC COLLEGE KHUNIMAJRA, MOHALI DATE- 18/4/2013
  • 2. Light :- i) Light is a form of energy which helps us to see objects. ii) When light falls on objects, it reflects the light and when the reflected light reaches our eyes then we see the objects. iii) Light travels in straight line. iv) The common phenomena of light are formation of shadows, formation of images by mirrors and lenses, bending of light by a medium, twinkling of stars, formation of rainbow etc.
  • 3.
  • 4. • The overall study of how light behaves is called optics. • The branch of optics that focuses on the creation of images is called geometric optics, because it is based on relationships between angles and lines that describe light rays.
  • 5. Some Definitions • Absorption – When light passes through an object the intensity is reduced depending upon the color absorbed. Thus the selective absorption of white light produces colored light. • Refraction – Direction change of a ray of light passing from one transparent medium to another with different optical density. A ray from less to more dense medium is bent perpendicular to the surface, with greater deviation for shorter wavelengths • Diffraction – Light rays bend around edges - new wavefronts are generated at sharp edges - the smaller the aperture the lower the definition • Dispersion – Separation of light into its constituent wavelengths when entering a transparent medium - the change of refractive index with wavelength, such as the spectrum produced by a prism or a rainbow
  • 7. • A lens is an optical device that is used to bend light in a specific way. • A converging lens bends light so that the light rays come together to a point. • A diverging lens bends light so it spreads light apart instead of coming together.
  • 8. • Mirrors reflect light and allow us to see ourselves. • A prism is another optical device that can cause light to change directions. • A prism is a solid piece of glass with flat polished surfaces.
  • 9. • An optical system is a collection of mirrors, lenses, prisms, or other optical elements that performs a useful function with light. • Characteristics of optical systems are: – The location, type, and magnification of the image. – The amount of light that is collected. – The accuracy of the image in terms of sharpness, color, and distortion. – The ability to change the image, like a telephoto lens on a camera. – The ability to record the image on film or electronically. Optical Systems
  • 10. Reflection • Images appear in mirrors because of how light is reflected by mirrors. • The incident ray follows the light falling onto the mirror. • The reflected ray follows the light bouncing off the mirror.
  • 11. Reflection • In specular reflection each incident ray bounces off in a single direction. • A surface that is not shiny creates diffuse reflection. • In diffuse reflection, a single ray of light scatters into many directions.
  • 12. Law of Reflection The angle of incidence equals the angle of reflection. The incident ray strikes the mirror. The reflected ray bounces off.
  • 13. Law of reflection • A light ray is incident on a plane mirror with a 30 degree angle of incidence. • Sketch the incident and reflected rays and determine the angle of reflection. 30o 30o
  • 14. Mirror A dentist uses a mirror to look at the back of a second molar (A). Next, she wishes to look at the back of a lateral incisor (B), which is 90° away. By what angle should she rotate her mirror? A. 90° B. 45° C. 180° A B
  • 15. Specular vs. Diffuse Reflection Specular Reflection •The surface is flat at distance scales near or above the wavelength of light •It looks “shiny”, like a mirror.
  • 16. Specular vs. Diffuse Reflection Diffuse Reflection •The surface is rough at distance scales near or above the wavelength of light •Almost all surfaces reflect in this way!
  • 17. Two plane mirrors form a right angle. How many images of the ball can you see in the mirrors? A. 1 B. 2 C. 3 D. 4
  • 18. Refraction • Light rays may bend as they cross a boundary from one material to another, like from air to water. • This bending of light rays is known as refraction. • The light rays from the straw are refracted (or bent) when they cross from water back into air before reaching your eyes.
  • 19. Refraction When a ray of light crosses from one material to another, the amount it bends depends on the difference in index of refraction between the two materials.
  • 20. Refraction Water Air Refraction is the bending of light as it passes from one medium into another. refraction N qw qA Note: the angle of incidence qA in air and the angle of refraction qA in water are each measured with the normal N. The incident and refracted rays lie in the same plane and are reversible.
  • 21.
  • 22. Calculate the angle of refraction • A ray of light traveling through air is incident on a smooth surface of water at an angle of 30° to the normal. • Calculate the angle of refraction for the ray as it enters the water.
  • 23. solution • 1) You are asked for the angle of refraction. • 2) You are told the ray goes from air into water at 30 degrees. • 3) Snell’s law: ni sin(θi) = nr sin(θr) ni = 1.00 (air), nr = 1.33 (water) • 4) Apply Snell’s law to find θr. 1.00sin(30°) = 1.33 sin(θr) sin(θr) = 0.5 ÷ 1.33 = 0.376 • Use the inverse sine function to find the angle that has a sine of 0.376. • θr = sin-1(0.376) = 22°
  • 24. Refraction Distorts Vision Water Air Water Air The eye, believing that light travels in straight lines, sees objects closer to the surface due to refraction. Such distortions are common.
  • 25. Refraction But it is really here!! He sees the fish here….
  • 28. A fish swims below the surface of the water. An observer sees the fish at: A. a greater depth than it really is. B. its true depth. C. a smaller depth than it really is. air water Virtual Image of Fish
  • 29. A fish swims directly below the surface of the water. An observer sees the fish at: A. a greater depth than it really is. B. its true depth. C. a smaller depth than it really is. air water
  • 30. The Index of Refraction The index of refraction for a material is the ratio of the velocity of light in a vacuum (3 x 108 m/s) to the velocity through the material. c v c n v  Index of refraction c n v  Examples: Air n= 1; glass n = 1.5; Water n = 1.33
  • 31. Index of Refraction n c vmedium  • vmedium is the speed of light in a transparent medium. • c is the speed of light in a vacuum (c=3.00×108 m/s) • n is a dimensionless constant: n≥1 • n=1 in a vacuum
  • 32. Index of refraction The ability of a material to bend rays of light is described by the index of refraction (n).
  • 33. Example 1. Light travels from air (n = 1) into glass, where its velocity reduces to only 2 x 108 m/s. What is the index of refraction for glass? 8 8 3 x 10 m/s 2 x 10 m/s c n v   vair = c vG = 2 x 108 m/s Glass Air For glass: n = 1.50 If the medium were water: nW = 1.33. Then you should show that the velocity in water would be reduced from c to 2.26 x 108 m/s.
  • 34. Analogy for Refraction Sand Pavement Air Glass Light bends into glass then returns along original path much as a rolling axle would when encountering a strip of mud. 3 x 108 m/s 3 x 108 m/s 2 x 108 m/s vs < vp
  • 35. Snell's law of refraction • Snell’s law is the relationship between the angles of incidence and refraction and the index of refraction of both materials. ni sin Qi = nr sin Qr Index of refraction of refractive material Angle of incidence (degrees) Angle of refraction (degrees) Index of refraction of incident material
  • 36. Snell’s Law of Refraction 2 2 1 1 sin sin q q n n 
  • 37. Snell’s Law q1 q2 Medium 1 Medium 2 The ratio of the sine of the angle of incidence q1 to the sine of the angle of refraction q2 is equal to the ratio of the incident velocity v1 to the refracted velocity v2 . Snell’s Law: 1 1 2 2 sin sin v v q q  v1 v2
  • 38. Example 2: A laser beam in a darkened room strikes the surface of water at an angle of 300. The velocity in water is 2.26 x 108 m/s. What is the angle of refraction? The incident angle is: qA = 900 – 300 = 600 sin sin A A W W v v q q  8 0 8 sin (2 x 10 m/s)sin60 sin 3 x 10 m/s W A W A v v q q   qW = 35.30 Air H2O 300 qW qA
  • 39. Snell’s Law and Refractive Index Another form of Snell’s law can be derived from the definition of the index of refraction: from which c c n v v n   1 1 2 1 2 2 1 2 ; c v v n n c v v n n   1 1 2 2 2 1 sin sin v n v n q q   Snell’s law for velocities and indices: Medium 1 q1 q2 Medium 2
  • 40. A Simplified Form of the Law 1 1 2 2 2 1 sin sin v n v n q q   Since the indices of refraction for many common substances are usually available, Snell’s law is often written in the following manner: 1 1 2 2 sin sin n n q q  The product of the index of refraction and the sine of the angle is the same in the refracted medium as for the incident medium.
  • 41. Example 3. Light travels through a block of glass, then remerges into air. Find angle of emergence for given information. Glass Air Air n=1.5 First find qG inside glass: sin sin A A G G n n q q  500 qG q 0 sin (1.0)sin50 sin 1.50 A A G G n n q q   qG = 30.70 From geometry, note angle qG same for next interface. qG sin sin sin A G G A A A n n n q q q   Apply to each interface: qe = 500 Same as entrance angle!
  • 42. Wavelength and Refraction The energy of light is determined by the frequency of the EM waves, which remains constant as light passes into and out of a medium. (Recall v = fl.) Glass Air n=1 n=1.5 lA lG fA= fG lG < lA ; A A A G G G v f v f l l   ; ; A A A A G G G G v f v v f v l l l l   1 1 1 2 2 2 sin sin v v q l q l  
  • 43. The Many Forms of Snell’s Law: Refraction is affected by the index of refraction, the velocity, and the wavelength. In general: 1 2 1 1 2 1 2 2 sin sin n v n v q l q l    All the ratios are equal. It is helpful to recognize that only the index n differs in the ratio order. Snell’s Law:
  • 44. Example 4: A helium neon laser emits a beam of wavelength 632 nm in air (nA = 1). What is the wavelength inside a slab of glass (nG = 1.5)? nG = 1.5; lA = 632 nm ; G A A A G G A G n n n n l l l l   (1.0)(632 nm) 1.5 421 nm G l   Note that the light, if seen inside the glass, would be blue. Of course it still appears red because it returns to air before striking the eye. Glass Air Air n=1.5 q qG q qG
  • 45. Total Internal Reflection Water Air light The critical angle qc is the limiting angle of incidence in a denser medium that results in an angle of refraction equal to 900. When light passes at an angle from a medium of higher index to one of lower index, the emerging ray bends away from the normal. When the angle reaches a certain maximum, it will be reflected internally. i = r Critical angle qc 900
  • 46.
  • 47. Total Internal Reflection • Occurs when n2<n1 • θc = critical angle. • When θ1 ≥ θc, no light is transmitted through the boundary; 100% reflection 1 2 sin n n c  q
  • 48. Example 5. Find the critical angle of incidence from water to air. For critical angle, qA = 900 nA = 1.0; nW = 1.33 sin sin W C A A n n q q  0 sin90 (1)(1) sin 1.33 A C w n n q   Critical angle: qc = 48.80 Water Air qc 900 Critical angle In general, for media where n1 > n2 we find that: 1 2 sin C n n q 
  • 49. Refraction & Dispersion Light is “bent” and the resultant colors separate (dispersion). Red is least refracted, violet most refracted. Short wavelengths are “bent” more than long wavelengths rac
  • 50. Dispersion by a Prism Red Orange Yellow Green Blue Indigo Violet Dispersion is the separation of white light into its various spectral components. The colors are refracted at different angles due to the different indexes of refraction.
  • 51. Dispersion and prisms • When white light passes through a glass prism, blue is bent more than red. • Colors between blue and red are bent proportional to their position in the spectrum.
  • 52. Dispersion and prisms • The variation in refractive index with color is called dispersion. • A rainbow is an example of dispersion in nature. • Tiny rain droplets act as prisms separating the colors in the white light rays from the sun.
  • 53. a) Lens formula for spherical lenses :- The lens formula for spherical lenses is the relationship between the object distance (u), image distance (v) and focal length (f). The lens formula is expressed as :- 1 1 1 = v u f b) Magnification produced by spherical lenses :- Magnification for spherical lens is the ratio of the height of the image to the height of the object. Height of the image hi Magnification = m = Height of the object ho The magnification is also related to the object distance and image distance. It can be expressed as :- hi v Magnification m = = ho u
  • 54. Power of a lens :- The power of a lens is the reciprocal of its focal length (in metres). I 1 P = or f = f (m) P The SI unit of power is dioptre (D). 1 dioptre is the power of a lens whose focal length is 1 metre. The power of a convex lens is positive ( + ve ) and the power of a concave lens is negative ( - ve ).
  • 55. Thin Lens Equation We can mathematically determine where an image will be formed in relation to the optical centre using the thin lens equation.
  • 56. The Thin Lens Equation 1 = 1 + 1 f di do Where: f represents the focal length do represents from the object to the lens di represents from the image to the lens F F’ 2F 2F’ Focal length f do di
  • 57. The Thin Lens Equation – Example 1 • A converging lens has a focal length of 17 cm. A candle is located 48 cm from the lens. What type of image will be formed, and where will it be located?
  • 58. example 1 (cont'd) G: f = d0 = U: di = ? 17 cm 48 cm
  • 59. example 1 1 = 1 + 1 f di do 1 = 1 - 1 di f d0 E: Rearrange equation:
  • 60. example 1…almost there! S: 1 = 1 - 1 di 17 cm 48 cm 1 = 0.03799cm-1 di di = 1 / 0.03799cm-1 di = 26.327165 cm = 26 cm The image of the candle is real and will be about 26 cm from the lens (opposite the object). S: S:
  • 61. example – last step! Sketch the ray diagram for this problem.
  • 62. Example 2: Thin Lens Equation and Diverging Lenses • A diverging Lens has a focal length of 29 cm. A virtual image of a marble is located 13 cm in front of the lens. Where is the marble (the object) located? • Follow the same steps as before, but be careful with the signs! Refer to your RULES for sign conventions.
  • 63. Example 2: Ray Diagram Sketch • Sketch:
  • 64. Example 2: G: f = - 29 cm di = -13 cm d0 = ? 1 = 1 + 1 f do di 1 = 1 - 1 d0 f di 1 = 1 - 1 d0 -29cm -13cm 1 = 0.042444 cm-1 d0 d0 = 23.560456 cm = 24 cm The marble is located 24 cm from the lens on the same side as the image. U : E: S: S: S:
  • 65. Magnification Equation M = hi = - di ho do Where: M stands for magnification hi stands for height of the image ho stands for height of the object F F’ 2F 2F’ h o h i
  • 66. Magnification Signs and Measurements • Magnification (M) has no units • M is POSITIVE for an UPRIGHT image • M is NEGATIVE for an INVERTED image If M is…. Then the image is… • GREATER THAN 1 LARGER than the object • BETWEEN 0 AND 1 SMALLER than the object • EQUAL TO 1 SAME SIZE as the object
  • 67. Example 3: Finding the Magnification of a CONVERGING lens • A toy of height 8.4 cm is balanced in front of a converging lens. An inverted, real image of height 23 cm is noticed on the other side of the lens. What is the magnification of the lens? – Follow the same steps as ex 1 & 2 to solve the problem (just use the magnification equation)
  • 69. Example 3: h0 = 8.4 cm hi = -23 cm M = ? M = hi ho M = -23 cm 8.4 cm M = -2.738095238 = -2.7 The lens has a magnification of -2.7, which means the image is inverted. G: U: E: S: S: S :
  • 70. Example 4: Magnification of a Diverging Lens • A coin of height 2.4 cm is placed in front of a diverging lens. An upright, virtual image of height 1.7 cm is noticed on the same side of the lens as the coin. What is the magnification of the lens?
  • 72. Example 4: h0 = 2.4 cm hi = 1.7 cm M = ? M = hi ho M = 1.7 cm 2.4 cm M = 0.708333 = 0.71 The lens has a magnification of 0.71, which means the image is upright. G: U: E: S: S: S:
  • 73. Drawing ray diagrams • A ray diagram is the best way to understand what type of image is formed by a lens, and whether the image is magnified or inverted. • These three rays follow the rules for how light rays are bent by the lens: 1. A light ray passing through the center of the lens is not deflected at all (A). 2. A light ray parallel to the axis passes through the far focal point (B). 3. A light ray passing through the near focal point emerges parallel to the axis (C).
  • 74.
  • 75.
  • 76. Reflection of light :- When light falls on a highly polished surface like a mirror most of the light is sent back into the same medium. This process is called reflection of light. Laws of reflection of light :- i) The angle of incidence is equal to the angle of reflection. ii) The incident ray, the reflected ray and the normal to the mirror at the point of incidence all lie in the same plane.
  • 77. Image formed by a plane mirror :- i) The image is erect. ii) The image is same size as the object. iii) The image is at the same distance from the mirror as the object is in front of it. iv) The image is virtual (cannot be obtained on a screen). v) The image is laterally inverted.
  • 78. Spherical mirrors :- Spherical mirror is a curved mirror which is a part of a hollow sphere. Spherical mirrors are of two types. They are concave mirror and convex mirror. i) Concave mirror :- is a spherical mirror whose reflecting surface is curved inwards. Rays of light parallel to the principal axis after reflection from a concave mirror meet at a point (converge) on the principal axis. ii) Convex mirror :- is a spherical mirror whose reflecting surface is curved inwards. Rays of light parallel to the principal axis after reflection from a convex mirror get diverged and appear to come from a point behind the mirror. F F
  • 79. Terms used in the study of spherical mirrors :- i) Center of curvature :- is the centre of the sphere of which the mirror is a part (C). ii) Radius of curvature :- is the radius of the sphere of which the mirror is a part (CP). iii) Pole :- is the centre of the spherical mirror (P). iv) Principal axis :- is the straight line passing through the centre of curvature and the pole (X-Y). v) Principal focus :- In a concave mirror, rays of light parallel to the principal axis after reflection meet at a point on the principal axis called principal focus(F). In a convex mirror, rays of light parallel to the principal axis after reflection get diverged and appear to come from a point on the principal axis behind the mirror called principal focus (F). vi) Focal length :- is the distance between the pole and principal focus (f). In a spherical mirror the radius of curvature is twice the focal length. R = 2f or f = R 2
  • 80. X C F P Y C – centre of curvature CP – radius of curvature P – pole XY – principal axis F – principal focus PF – focal length
  • 81. Reflection by spherical mirrors :- i) In a concave mirror a ray of light parallel to the principal axis after reflection passes through the focus. In a convex mirror a ray of light parallel to the principal axis after reflection appears to diverge from the focus. C F P P F C
  • 82. ii) In a concave mirror a ray of light passing through the focus after reflection goes parallel to the principal axis. In a convex mirror a ray of light directed towards the focus after reflection goes parallel to the principal axis. C F P P F C
  • 83. iii) In a concave mirror a ray of light passing through the centre of curvature after reflection is reflected back along the same direction. In a convex mirror a ray of light directed towards the centre of curvature after reflection is reflected back along the same direction. C F P P F C
  • 84. iv) In a concave or a convex mirror a ray of light directed obliquely at the pole is reflected obliquely making equal angles with the principal axis. C F i P i P F C r r
  • 85. Images formed by concave mirror :- i) When the object is at infinity the image is formed at the focus, it is highly diminished, real and inverted. C F P
  • 86. ii) When the object is beyond C, the image is formed between C and F, it is diminished, real and inverted. C F P
  • 87. iii) When the object is at C, the image is formed at C, it is same size as the object, real and inverted. C F P
  • 88. iv) When the object is between C and F, the image is formed beyond C, it is enlarged, real and inverted. C F P
  • 89. v) When the object is at F, the image is formed at infinity, it is highly enlarged, real and inverted. C F P
  • 90. vi) When the object is between F and P, the image is formed behind the mirror, it is enlarged, virtual and erect. C F P
  • 91. Images formed by convex mirror :- i) When the object is at infinity, the image is formed at F behind the mirror, it is highly diminished, virtual and erect. P F
  • 92. ii) When the object is between infinity and pole, the image is formed behind the mirror, it is diminished, virtual and erect. P F C
  • 93. Uses of spherical mirrors :- a) Concave mirrors :- Concave mirrors are used in torches, search lights and head lights of vehicles to get parallel beams of light. They are used as shaving mirrors to see larger image of the face. They are used by dentists to see larger images of the teeth. Large concave mirrors are used to concentrate sunlight to produce heat in solar furnaces.
  • 94. b) Convex mirrors :- Convex mirrors are used as rear-view mirrors in vehicles. Convex mirrors give erect diminished images of objects. They also have a wider field of view than plane mirrors.
  • 95. New Cartesian sign convention for spherical mirrors :- i) The object is always placed on the left of the mirror and light from the object falls from the left to the right. ii) All distances parallel to the principal axis are measured from the pole. iii) All distances measured to the right of the pole are taken as + ve. iv) All distances measured to the left of the pole are taken as – ve. v) The height measured upwards perpendicular to the principal axis is taken as + ve. vi) The height measured downwards perpendicular to the principal axis is taken as – ve. Direction of incident light Distance towards the left ( - ve ) Distance towards the right ( + ve ) Height downwards ( - ve ) Height upwards ( + ve ) Concave mirror Object Image
  • 96. Mirror formula for spherical mirrors :- The mirror formula for spherical mirrors is the relationship between the object distance (u), image distance (v) and focal length (f). The mirror formula is expressed as :- 1 1 1 + = v u f Magnification for spherical mirrors :- Magnification for spherical mirrors is the ratio of the height of the image to the height of the object. Height of the image hi Magnification = m = Height of the object ho The magnification is also related to the object distance and image distance. It is expressed as :- hi v Magnification m = = ho u
  • 97. Refraction of light :- When light travels obliquely from one transparent medium into another it gets bent. This bending of light is called refraction of light. When light travels from a rarer medium to a denser medium, it bends towards the normal. When light travels from a denser medium to a rarer medium to a rarer medium, it bends away from the normal. Denser medium Rarer medium Rarer medium Denser medium Normal Normal
  • 98. Refraction of light through a rectangular glass slab :- When a ray of light passes through a rectangular glass slab, it gets bent twice at the air- glass interface and at the glass- air interface. The emergent ray is parallel to the incident ray and is displaced through a distance. i e Normal Incident ray Emergent ray Refracted ray Glass Air Normal r Glass Air Rectangular glass slab displacement Angle of emergence Angle of incidence Angle of refraction
  • 99. c) Laws of refraction of light :- i) The incident ray, the refracted ray and the normal to the interface of two transparent media at the point of incidence, all lie in the same plane. II) The ratio of the sine of angle of incidence to the sine of angle of refraction is a constant, for the light of a given colour and for the given pair of media.( This law is also known as Snell`s law of refraction.) sine i = constant sine r d)Refractive index :- The absolute refractive index of a medium is the ratio of the speed light in air or vacuum to the speed of light in medium. Speed of light in air or vacuum c Refractive index = n = Speed of light in the medium v The relative refractive index of a medium 2 with respect to a medium 1 is the ratio of the speed of light in medium 1 to the speed of light in medium 2. n 21 = Speed of light in medium 1 n 21 = v 1 / v2 Speed of light in medium 2
  • 100. Spherical lenses :- A spherical lens is a transparent material bounded by two surfaces one or both of which are spherical. Spherical lenses are of two main types. They are convex and concave lenses. i) Convex lens :- is thicker in the middle and thinner at the edges. Rays of light parallel to the principal axis after refraction through a convex lens meet at a point (converge) on the principal axis. ii) Concave lens :- is thinner in the middle and thicker at the edges. Rays of light parallel to the principal axis after refraction get diverged and appear o come from a point on the principal axis on the same side of the lens. F F
  • 101. Refraction by spherical lenses :- i) In a convex lens a ray of light parallel to the principal axis after refraction passes through the focus on the other side of the lens. In a concave lens it appears to diverge from the focus on the same side of the lens. 2F1 F1 O F2 2F2 2F1 F1 O F2 2F2
  • 102. ii) In a convex lens a ray of light passing through the focus after refraction goes parallel to the principal axis. In a concave lens a ray of light directed towards the focus after refraction goes parallel to the principal axis. 2F1 F1 O F2 2F2 2F1 F1 O F2 2F2
  • 103. iii) In a convex lens and concave lens a ray of light passing through the optical centre goes without any deviation. 2F1 F1 O F2 2F2 2F1 F1 O F2 2F2
  • 104. Images formed by convex lens :- i) When the object is at infinity the image is formed at the focus F2, it is highly diminished, real and inverted. 2F1 F1 O F2 2F2
  • 105. ii) When the object is beyond 2F1, the image is formed between F2 and 2F2, it if diminished, real and inverted. 2F1 F1 O F2 2F2
  • 106. iii) When the object is at 2F1, the image is formed at 2F2, it is the same size as the object, real and inverted. 2F1 F1 O F2 2F2
  • 107. iv) When the object is between 2F1 and F1, the image is formed beyond 2F2, it is enlarged, real and inverted. 2F1 F1 O F2 2F2
  • 108. v) When the object is at F1 the image is formed at infinity, it is highly enlarged, real and inverted. 2F1 F1 O F2 2F2
  • 109. vi) When the object is between F1 and O, the image is formed on the same side of the lens, it is enlarged, virtual and erect. 2F1 F1 O F2 2F2
  • 110. Images formed by concave lens :- i) When the object is at infinity, the image is formed at the focus F1 on the same side of the lens, it is highly diminished, virtual and erect. F1 O
  • 111. ii) When the object is between infinity and F1, the image is formed between F1 and O on the same side of the lens, it is diminished, virtual and erect. FI O
  • 112. Sign convention for spherical lenses :- The sign convention for spherical lenses is the same as in spherical mirrors except that the distances are measured from the optical centre (O). The focal length of a convex lens is positive ( + ve ) and the focal length of a concave lens is negative ( - ve ). O Direction of incident light Distance towards the left (- ve ) Height downwards ( - ve ) Height upwards ( + ve ) Convex lens Object Image Distance towards the right ( + ve )
