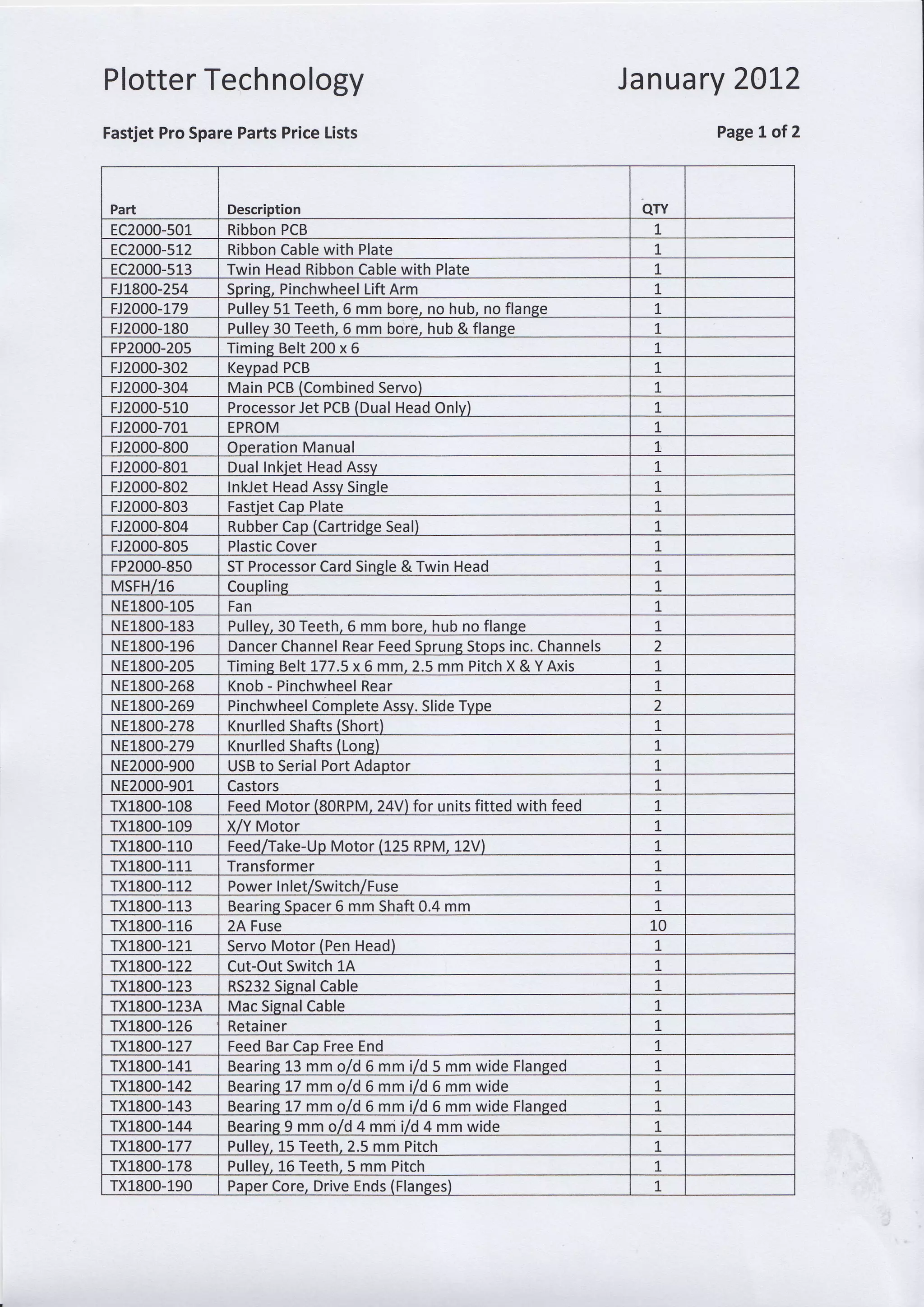

1. Plotter Tech nology
Fastjet Pro Spare Parts Price Lists
January 2012
Page 1 of 2
Part Description QTY
EC2000-s01 Ribbon PCB t
EC2000-512 Ribbon Cable with Plate 1.
EC2000-51_3 Twin Head Ribbon Cable with Plate 1
FJ1800-254 Sprine. Pinchwheel Lift Arm 1
FJ2000-L79 Pullev 5L Teeth. 6 mm bore. no hub. no flanee I
FJ2000-180 Pullev 30 Teeth, 6 mm bore, hub & flange '1.
FP2000-205 Timine Belt 200 x 6 1
FJ2000-302 Kevpad PCB T
FJ2000-304 Main PCB {Combined Servo) 1,
FJ2000-510 Processor Jet PCB {Dual Head Onlv) t
FJ2000-701 EPROM 1
FJ2000-800 Ooeration Manual T
FJ2000-801 Dual lnkiet Head Assv 1
FJ2000-802 lnkJet Head Assv Sinele 1
FJ2000-803 Fastiet Cap Plate 1
FJ2000-804 Rubber Cao (Cartridse Seal) 1
FJ2000-80s Plastic Cover 1
FP2000-850 ST Processor Card Sinele & Twin Head L
MSFH/15 Couplins T
NE1800-105 Fan 1
NE1800-183 Pullev. 30 Teeth. 6 mm bore. hub no flanee 1.
NE1800-196 Dancer Channel Rear Feed Sprung Stops inc. Channels 2
NE1800-205 Timine Belt 177.5 x 6 mm.2.5 mm Pitch X & Y Axis 1
NE1800-268 Knob - Pinchwheel Rear L
NE1800-269 Pinchwheel Complete Assv. Slide Tvpe 2
NE1800-278 Knurlled Shafts (Short) 1.
NE1800-279 Knurlled Shafts (Lonp) 1.
NE2000-900 USB to Serial Port Adaptor I
NE2000-901 Castors 1
TX1800-108 Feed Motor (80RPM, 24V) for units fitted with feed 7
TX1800-109 X/Y Motor t
TX1800-L10 Feed/Take-Up Motor (125 RPM. 12V) 1.
TXl_800-11L Transformer 1
TX1800-L12 Power I nlet/Switch/Fuse 1,
TX1800-113 Bearins Soacer 6 mm Shaft 0.4 mm 3"
TX1800-116 2A Fuse 10
TX1800-121 Servo Motor (Pen Head) 1
TX1800-L22 Cut-Out Switch L4 1
TX1800-123 RS232 Sienal Cable T
TX1800-123A Mac SienalCable L
TX1800-125 Retainer L
TX1800-127 Feed Bar Cap Free End L
TX1800-141 Bearins 13 mm o/d 6 mm i/d 5 mm wide Flaneed t
TX1800-142 Bearins L7 mm o/d 6 mm i/d 6 mm wide T
TX1800-143 Bearine L7 mm o/d 6 mm i/d 6 mm wide Flaneed I
TX1800-144 Bearine 9 mm o/d 4 mm i/d 4 mm wide 1,
TX1800-177 Pullev. 15 Teeth. 2.5 mm Pitch t
TX1800-178 Pullev. 16 Teeth. 5 mm Pitch I
TX1800-190 Paper Core, Drive Ends (Flanees) 1.

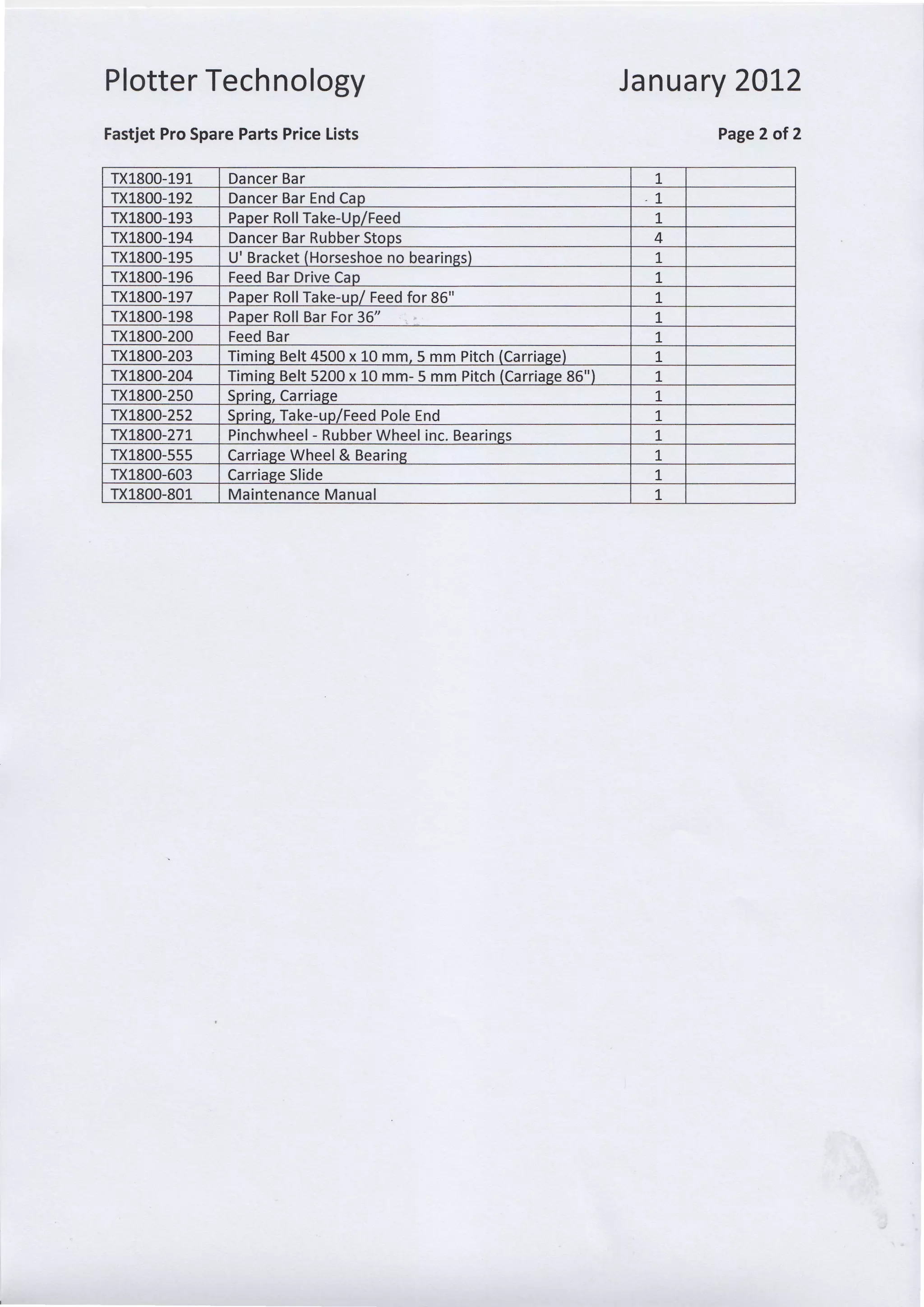

2. Plotter Technology
Fastjet Pro Spare Parts Price Lists
January 2OL2
Page 2 of 2
TX1800-191 Dancer Bar 1
TX1800-192 Dancer Bar End Cao 1:
TX1800-193 Paoer Roll Take-Uo/Feed 1,
TX1800-194 Dancer Bar Rubber Stops 4
TX1800-195 U' Bracket (Horseshoe no bearines) 1
TX1800-196 Feed Bar Drive Cao 1
TX1800-L97 Paper Roll Take-up/ Feed for 86" 7
TX1800-198 Paper Roll Bar For 36" 1
TX1800-200 Feed Bar 1_
TX1800-203 Timine Belt 4500 x L0 mm.5 mm Pitch (Carriase) L
TX1800-204 Timins Belt 5200 x l-O mm- 5 mm Pitch (Carriaee 86") 1
TX1800-2s0 Sorine. Carriase 1.
TX1800-2s2 Sprins, Take-up/Feed Pole End 1.
TX1800-271 Pinchwheel - Rubber Wheel inc. Bearinss L
TX1800-555 Carriaee Wheel & Bearine 1.
TX1800-603 Carriaee Slide 1
TX1800-801 Maintenance Manual 7
