The document describes the DUET high tech card cutting table. It can cut pattern card templates for industries like apparel, furniture, and automotive. It has a dual tool head with a carbide steel blade and pen for annotation. It can cut materials up to 0.6mm thick at a speed of 56cm/s. Key features include a flat-bed design for easy material loading using vacuum, a resilient cutting surface that doesn't require backing sheets, and versatile blade pressure settings. It is available in two sizes suitable for materials up to 40" or 71.5" wide.

1. Products with Proven Worldwide Quality & Reliability
PATTERN CARD CUTTER
Low-cost blade replacement / Includes ‘SHOW-IT’ control software / Dual tool head
for knife & pen Sacrificial cutting surface / Pen adaptor for using low cost writing
pens / Optional tilt & angle stand

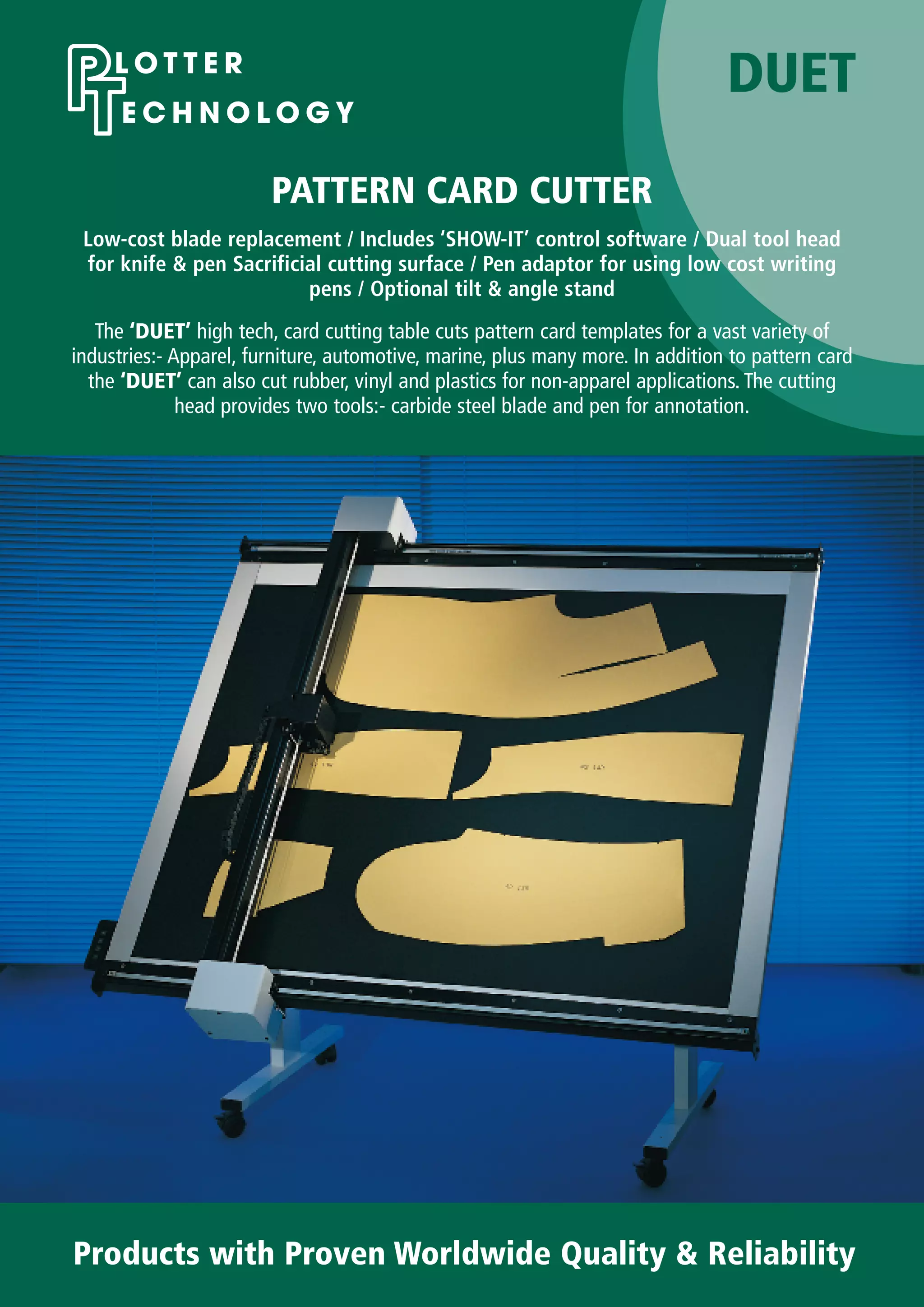

The ‘DUET’ high tech, card cutting table cuts pattern card templates for a vast variety of
industries:- Apparel, furniture, automotive, marine, plus many more. In addition to pattern card
the ‘DUET’ can also cut rubber, vinyl and plastics for non-apparel applications. The cutting
head provides two tools:- carbide steel blade and pen for annotation.
DUETL O T T E R
E C H N O L O G Y

2. Cutting Thickness Card up to 0.6mm (245 GSM)
Speed 56cm/s (40cm/s on axis)
Tools as standard Carbide steel blade and pen
Language HP - GL, DM - PL and AP300 Gerber
Electrical Requirements 240/115 VAC 50/60 HZ ~ 100 VA Max.
Addressable Resolution 0.025mm
Accuracy 0.1% (User Calibration to 0.01% possible)
Repeatability 0.1mm
Pen Type Biro, Bic Type, H.P. and others
Operating Temp. 0 - 40 Degree (32 - 104F)
Operating Humidity 35% - 80% non-condensing
Vacuum Pump 1000w - 2000w (not Included)
Unit 5, Broadfield Close, Croydon, Surrey CR0 4XR, England
Telephone: 020 8667 9966
Fax: 020 8667 9977
e-mail: sales@plottertech.com
Technical Specifications
General Specifications for both Duet Models
DUET
**Gerber recognised trademark
QUICK & EASY
Flat-bed design enables materials to be laid on
the cutting surface and the material held in
place with a vacuum system. The material is
then quickly and simply vacuumed in place and
the carbide steel tipped blade glides over the
tables surface cutting and closing shapes for
clean instant removal.
EFFICIENT
A resilient cutting surface means that
‘protective backing sheets’ to the material are
not required.
VERSATILE
A wide range of blade pressure settings provide
versatile cutting ability.
COMPACT
An Optional ‘tilt and angle’ stand provides a
neat and compact solution. The table can also
be mounted onto a standard drawing
office/digitiser stand.
SIZE
The size 1 ‘DUET’ is ideal for 40” wide
materials, however, larger sized table size 2 is
also available.
COMPATIBILITY
The ‘DUET’ can be directly driven from most
software packages and includes our ‘SHOW-
IT’ file conversion/control software.
Models Size 1 Size 2
Cutting Area 1200 x 990mm (47”x 39”) 1820 x 1016mm (71.5”x 40”)
Table Size (Tilt stand option) 1422 x 1346mm (56”x 53”) (Fixed stand option) 2038 x 1371mm (80”x 54”)
Max Card Size 1080mm x roll length or 1422mm (56”) 1106mm x roll length or 2038mm (80”)
L O T T E R
E C H N O L O G Y
