A new brochure focused on the Facom tools range available from ERIKS.

1. Facom
NEXT IS NOW

2. 2
Facom are specialists in
the field of high quality
tools. A team of over 200
R&D personnel keep the
company at the cutting
edge of the tool industry,
honing their products’
ergonomics & boosting the
potential productivity of
their demanding customer
base of professionals
& tradesmen. A lifetime
guarantee on all of the
products produced by
Facom means that you
know their tools are
designed to get the job
done time & time again.
Facom Tools
Included in the Facom ranges,
available via ERIKS UK, are Hand
Tools, Electricians Tools, Spanners
and Wrenches all designed to provide
the maximum level of safety while
working. Their high quality Bespoke
Tool Control and Storage Solutions
are also a firm favourite within a
number of industries.
For the tools and solutions you can
count on when it matters most,
the choice is Facom – the name
synonymous with strength, durability
and quality.
introduction
Contents
Sockets
Torque Tools
Wrenches
Screwdriver
Pliers
Saws
Storage

3. 3
The Facom Field Sales Team – Here to Help
n Carry out site visits and product demonstrations
n Specify tooling, storage & tool control requirements
n Provide on-site product training
n Answer technical questions
For more information please telephone 0800 0 223 114
or email enquiries@facom.com to discuss your requirements
Neil MacDougall
SCOTLAND
+44 (0) 7814 787940
Stuart Mitchell
NORTH ENGLAND
+ 44 (0) 7891 678319
Martin Edwards
NORTH MIDLANDS
+ 44 (0) 7972 659969
Jeremy Francis
SOUTH MIDLANDS
+ 44 (0) 7814 140238
Richard Roy
SOUTH ENGLAND
+ 353 (0) 7814 140245
Mary-Louise Blake
IRELAND
+ 353 (0) 86 0224547
Dedicatedand
experienced…

4. Rachets
Palm Control
Ratchets
n Dust proof. Maintenance free
mechanism
n 72 teeth mechanism for 5°
increments
n Reversible
n Palm control system - allows the operator to
press down on the head avoiding risk of accidental reverse
1/4 120 x 19 x 25 W31A-60428
3/8 175 x 25 x 32 W31A-58282
1/2 250 x 31 x 43 W31A-60757
Drive (inch) Size (mm) Part Number
Pear Head
Ratchets
n Ultra-resistant and sealed head for a
longer lifetime
n Maintenance free
n 72 teeth mechanism for 5°
increments
n Reversible
1/4 121 x 22 x 22 W31A-63337
3/8 211 x 29 x 29 W31A-63159
1/2 263 x 37 x 41 W31A-63355
Drive (inch) Size (mm) Part Number
Rotator
Ratchets
n Convenient drive direction switch
allows use in both left and right
directions
n Ratchet head can be pressed for more
powerful (un)tightening
n Sockets secured firmly in place until the
quick release button is activated
n 60 teeth mechanism
1/4 120 x 21 x 29 W31A-63328
3/8 233 x 37 x 39 W31A-62995
1/2 251 x 37 x 41 W31A-63344
Drive (inch) Size (mm) Part Number
1/2” Extendable
Ratchet
n High durability dustproof maintenance
free head mechanism
n 72 teeth mechanism for 5° increments
n One hand adjustment. The ratchet
is locked at the desired length by a
ball mechanism
n Large plastic handle for large hands or 2 hands
1/2 37 x 34 x 264 - 397 W31A-65223
Drive (inch) Size (mm) Part Number
1/2” Flexi Extendable
Ratchet
n High durability dustproof maintenance
free head mechanism
n 72 teeth mechanism for 5°
increments
n One hand adjustment. The ratchet
is locked at the desired length by a ball mechanism
n Large plastic handle for large hands or 2 hands
1/4 40 x 34 x 304 - 437 W31A-65224
Drive (inch) Size (mm) Part Number
1/2” Extendable
Swivel handle
n One hand adjustment. Locked
at the desired length by a ball
mechanism
n Large plastic handle for large hand or
2 hands
1/4 54 x 34 x 246 - 379 W31A-65225
Drive (inch) Size (mm) Part Number
4
Sockets

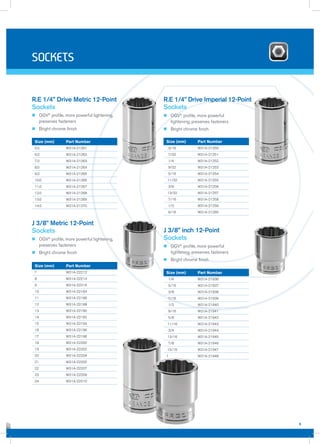

5. 5
sockets
R.E 1/4” Drive Metric 12-Point
Sockets
n OGV®
profile, more powerful tightening,
preserves fasteners
n Bright chrome finish
5.5 W31A-21261
6.0 W31A-21262
7.0 W31A-21263
8.0 W31A-21264
9.0 W31A-21265
10.0 W31A-21266
11.0 W31A-21267
12.0 W31A-21268
13.0 W31A-21269
14.0 W31A-21270
Size (mm) Part Number
R.E 1/4” Drive Imperial 12-Point
Sockets
n OGV®
profile, more powerful
tightening, preserves fasteners
n Bright chrome finish
J 3/8” Metric 12-Point
Sockets
n OGV®
profile, more powerful tightening,
preserves fasteners
n Bright chrome finish
3/16 W31A-21250
7/32 W31A-21251
1/4 W31A-21252
9/32 W31A-21253
5/16 W31A-21254
11/32 W31A-21255
3/8 W31A-21256
13/32 W31A-21257
7/16 W31A-21258
1/2 W31A-21259
9/16 W31A-21260
Size (mm) Part Number
7 W31A-22212
8 W31A-22214
9 W31A-22216
10 W31A-22184
11 W31A-22186
12 W31A-22188
13 W31A-22190
14 W31A-22192
15 W31A-22194
16 W31A-22196
17 W31A-22198
18 W31A-22200
19 W31A-22202
20 W31A-22204
21 W31A-22205
22 W31A-22207
23 W31A-22209
24 W31A-22210
Size (mm) Part Number
J 3/8” inch 12-Point
Sockets
n OGV®
profile, more powerful
tightening, preserves fasteners
n Bright chrome finish
1/4 W31A-21936
5/16 W31A-21937
3/8 W31A-21938
7/16 W31A-21939
1/2 W31A-21940
9/16 W31A-21941
5/8 W31A-21942
11/16 W31A-21943
3/4 W31A-21944
13/16 W31A-21945
7/8 W31A-21946
15/16 W31A-21947
1 W31A-21948
Size (mm) Part Number

6. 6
Sockets
S 1/2” Metric 12-Point
Sockets
n Chrome vanadium
n OGV®
profile, more powerful tightening,
preserves fasteners
8 W31A-22081
9 W31A-22082
10 W31A-22083
11 W31A-22084
12 W31A-22085
13 W31A-22086
14 W31A-22087
15 W31A-22088
16 W31A-22089
17 W31A-22090
18 W31A-22091
19 W31A-22092
20 W31A-22093
21 W31A-22094
22 W31A-22095
23 W31A-22096
24 W31A-22097
25 W31A-22098
26 W31A-22099
27 W31A-22100
28 W31A-22101
29 W31A-22102
30 W31A-22103
31 W31A-22157
32 W31A-22104
34 W31A-22105
Size (mm) Part Number
S 1/2” inch 12-Point
Sockets
n Chrome vanadium
n OGV®
profile, more powerful tightening,
preserves fasteners
3/8 W31A-22038
7/16 W31A-22039
1/2 W31A-22040
9/16 W31A-22041
19/32 W31A-22042
5/8 W31A-22043
21/32 W31A-22044
11/16 W31A-22045
3/4 W31A-22046
25/32 W31A-22047
13/16 W31A-22048
7/8 W31A-22049
15/16 W31A-22050
31/32 W31A-22155
1 W31A-60687
1 1/16 W31A-22052
1 1/8 W31A-22053
1 3/16 W31A-22054
1 1/4 W31A-22055
Size (mm) Part Number
W31A-22719
Part Number
n Set Contains:
n 1/4” nut spinner
n Bit holder
n Ratchet
n 2 x extensions 55mm,
100mm, 1 x universal joint
n 5.5, 6, 7, 8, 9, 10, 11, 12, 13, 14mm sockets
n 10. 15, 20, 25, 27, 30, 40 security bits
n 3, 4, 5, 6, 7mm hex bits
n PH1, PH2, PH3, 4.5, 6.5, 8mm slotted1/4” bit holder
R 2NANO 5.5- 14mm 1/4”
Socket Set
W31A-63154
Part Number
n Missing tool detection
allows instant inventory
checks even when the
box is closed
n Easy to store and can be
used as a roller cabinet
module
n Set contains:
n JL.161 Ratchet,
n 125, 250mm extensions,
n J.240 universal joint
n 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 21,
22mm 6-point sockets
JL DBOX1 3/8” Metric ‘Detection Box’
Socket Set

7. 7
sockets
W31A-62996
Part Number
n Missing tool detection
allows instant inventory
checks even when the
box is closed
n Easy to store and
can be used as a
roller cabinet module
n Set contains:
n JL.360 Ratchet
n 125, 250mm
extensions
n J.240 universal joint
n 8, 9, 10, 11, 12, 13, 14,
15, 16, 17, 18, 19, 21,
22mm 12-point sockets
J 360DBOX1 3/8” Metric ‘Detection Box’
Socket Set
FACJ.360PACK
Part Number
n The twist handle design
allows operation even in
the most confined spaces
allowing the operator to
work in the tightest of
spaces, only having to
move their wrist slightly
to rotate the handle.
n Set contains:
n J360 ratchet,
n Extension bar
n 8, 10,12, 13, 14, 17mm
sockets
J 360PACK 3/8” 8pc Rotator
Ratchet Set
W31A-63351
Part Number
n Missing tool detection
allows instant inventory
checks even when the
box is closed
n Easy to store and can be
used as a roller cabinet
module
n Set contains:
n SL161 Ratchet
n 210, 250mm
extensions
n S.240A universal
joint
n 8, 9, 10, 11, 12, 13, 14,
15, 16, 17, 18, 19, 21,
22, 24, 27, 30, 32mm
6-point sockets
SL DBOX112 1/2” ‘Detection Box’
Socket Set

8. 8
Torque Tools
R - J - S Click Torque Wrenches
with Fixed Ratchet
n Accuracy ± 4%
n Reliability of mechanism 25, 000 cycles
n Ratchet with 72 teeth 5° increment for use
with sockets
n One way wrenches
n Sensitive and sound click when reching
torque
n Automatic reset
n Supplied with ISO 6789 calibration
certificate
5 - 25 1/4 300 W31A-60441
10 - 50 1/2 357 W31A-58321
20 - 100 1/2 416 W31A-60796
40 - 200 1/2 479 W31A-60800
60 -340 1/2 632 W31A-60804
Capacity (N.m) Drive (inch) Length (mm) Part Number
E316A - Electronic Torque Wrenches
with Ratchet
n Accuracy ± 2% between 20% and 100%
wrench capacity
n Measuring mode: peak or follower
n Measuring unit; N.m, lbf.ft, lbf.in and kg.cm.
n Supplied with a ISO 6789 calibration
certificate
n Presetting possible of 9 torque and/or angle
values
n Memory 250 values with PC USB link
n Supplied in plastic case with foam interior
1.5 - 30 1/4 390 W31A-62962
6.7 - 135 3/8 415 W31A-62963
6.7 - 135 3/8 415 W31A-62964
10 - 200 1/2 530 W31A-62965
17 - 340 1/2 650 W31A-62966
Capacity (N.m) Drive (inch) Length (mm) Part Number
E 306A - Electronic Torque / Angle Wrenches
with Ratchet
n Accuracy ± 2% between 20% and 100%
wrench capacity
n Measuring mode: peak or follower
n Measuring unit; N.m, lbf.ft, lbf.in, kg.cm, and
deg.
n Presetting possible of 9 torque and/or angle
values
n Supplied with a ISO 6789 calibration
certificate
n Memory 250 values with PC USB link
n Supplied in plastic case with foam interior
1.5 - 30 1/4 390 W31A-62970
6.7 - 135 3/8 415 W31A-62971
6.7 - 135 3/8 415 W31A-62972
10 - 200 1/2 530 W31A-62973
17 - 340 1/2 650 W31A-62974
Capacity (N.m) Drive (inch) Length (mm) Part Number
E506 - Electronic Torque /
Angle Adapter
n Accuracy ± 3% between 20% and
100% wrench capacity
n Measuring mode: peak or follower
n Cycle counter
n Measuring unit; N.m, lbf.ft, lbf.in, kg.cm,
and deg.
n Presetting possible of 9 torque and/or angle values
n Memory 50 values
n Supplied in plastic case with calibration certificate
0.1 1/2 17 - 340 W31A-62978
Resolution Drive (inch) Capacity (N.m) Part Number

9. 9
Wrenches
n Standard wrench for all current
applications
n More comfortable due to the
variable handle cross section which
doubles the surface area in contact
with the hand allowing painless
torque application
n High mechanical strength combined
with compact sizes meeting
aeronautical standards
n Satin chrome finish
n Ring head - Ring open end designed for better
access to series or embedded screws
n Ring head angled at 15°
n Open end head - angled at 15°
n Open end head-handle geometry optimised for increased access
4 W31A-52825
5 W31A-52829
5.5 W31A-52826
6 W31A-52830
7 W31A-52831
8 W31A-52834
9 W31A-52835
10 W31A-52791
11 W31A-52792
12 W31A-52795
13 W31A-52796
14 W31A-52798
15 W31A-52799
16 W31A-52801
17 W31A-52802
18 W31A-52803
19 W31A-52804
20 W31A-52805
21 W31A-52806
22 W31A-52807
23 W31A-52808
24 W31A-52809
25 W31A-52810
26 W31A-52811
27 W31A-52812
28 W31A-52813
29 W31A-52814
30 W31A-52817
32 W31A-52818
33 W31A-52819
34 W31A-52820
35 W31A-52821
36 W31A-52822
38 W31A-52823
41 W31A-52824
Size (mm) Part Number
440 Metric Combination
Wrenches
n Standard wrench for all current
applications
n More comfortable due to the
variable handle cross section which
doubles the surface area in contact
with the hand allowing painless
torque application
n High mechanical strength combined
with compact sizes meeting aeronautical
standards
n Satin chrome finish
n Ring head - Ring open end designed for better
access to series or embedded screws
n Ring head angled at 15°
n Open end head - angled at 15°
n Open end head-handle geometry optimised for increased access
1/4 W31A-52790
5/16 W31A-52827
11/32 W31A-52794
3/8 W31A-52816
7/16 W31A-52832
1/2 W31A-52789
9/16 W31A-52836
5/8 W31A-52828
11/16 W31A-52793
3/4 W31A-52815
13/16 W31A-52797
7/8 W31A-52833
15/16 W31A-52800
1. W31A-23379
1.1/16 W31A-52783
1.1/8 W31A-52785
1.1/4 W31A-23380
1.5/16 W31A-52787
1.3/8 W31A-52786
1.7/16 W31A-52788
1.1/2 W31A-52784
Size (mm) Part Number
440 Inch Combination
Wrenches

10. 10
Wrenches
n Standard wrench for all current applications
n More comfortable due to the variable handle cross section
which doubles the surface area in contact with the hand
allowing painless torque application
n High mechanical strength combined with compact sizes
meeting aeronautical standards
n Satin chrome finish
n Ring head - Ring open end designed for better access to
series or embedded screws
n Ring head angled at 15°
n Open end head - angled at 15°
n Open end head-handle geometry
optimised for increased access
8, 10, 11, 12,
13, 16, 17, 18,
19mm
W31A-23058
7, 8, 10, 11, 12,
13, 16, 17, 18,
19, 22, 24mm
W31A-52845
7, 8, 10, 11, 12,
13, 14, 15, 16,
17, 18, 19, 22,
24mm
W31A-63540
Set Contains Part Number
440 Combination
Wrench Sets
n Standard ratchet combination wrenches for all current
applications
n Reversible compact ratchet incorporated within ring head
n Fine ratchet system allowing a 5° working arc
n Open end angle 15°
n ISO 1711-1
6 W31A-23160
7 W31A-23044
8 W31A-23043
9 W31A-23042
10 W31A-23155
11 W31A-23055
12 W31A-23054
13 W31A-23053
14 W31A-23156
15 W31A-23052
16 W31A-23051
17 W31A-23050
18 W31A-23157
19 W31A-23049
21 W31A-23048
22 W31A-23047
24 W31A-23159
27 W31A-23046
30 W31A-23158
32 W31A-23045
Size (mm) Part Number
467 Metric Combination
Ratchet Wrenches
n Standard ratchet combination wrenches for all current applications
n Reversible compact ratchet incorporated within ring head
n Fine ratchet system allowing a 5° working arc
n Open end angle 15°
n ISO 1711-1
8, 10, 11, 12,
13, 14, 16, 17,
18, 19mm
W31A-63563
Set Contains Part Number
467 Metric Combination
Ratchet Wrench Set
n Standard ratchet combination wrenches for all current applications
n Reversible compact ratchet incorporated within ring head
n Fine ratchet system allowing a 5° working arc
n Open end angle 15°
n ISO 1711-1
8 W31A-23165
9 W31A-23033
10 W31A-23040
11 W31A-23039
12 W31A-23162
13 W31A-23038
14 W31A-23037
15 W31A-23036
16 W31A-23163
17 W31A-23035
18 W31A-23164
19 W31A-23034
Size (mm) Part Number
467F Metric Hinged Jointed Combination
Ratchet Wrenches

11. 11
n Hinged jointed ratchet combination
wrenches for all current applications
n Reversible compact ratchet incorporated
within ring head
n Fine ratchet system allowing a 5°
working arc
n Open end angle 15°
n ISO 1711-1
8, 10, 11, 12, 13,
14, 16, 17, 18,
19mm
W31A-63573
Set Contains Part Number
467F Metric Hinged Jointed Combination
Ratchet Wrench Set
n Heads hinged at 15°
n Satin chrome finish
3.2x5.5 W31A-52768
4x5 W31A-21496
6x7 W31A-21497
8x9 W31A-21498
8x10 W31A-21499
10x11 W31A-21500
10x13 W31A-21501
12x13 W31A-21503
14x15 W31A-21505
13x17 W31A-21506
16x17 W31A-21507
17x19 W31A-21509
18x19 W31A-21510
20x22 W31A-21511
21x23 W31A-21512
22x24 W31A-21513
24x27 W31A-21514
25x28 W31A-21515
26x28 W31A-21516
27x29 W31A-21517
27x30 W31A-21518
30x32 W31A-21520
34x36 W31A-21522
36x41 W31A-21523
38x42 W31A-21524
Size (mm) Part Number
44 Open End
Wrenches
Wrenches
n Heads hinged at 15°
n Satin chrome finish
8x9, 10x11,
12x13, 14x15,
16x17, 18x19,
21x23,
22x24mm
W31A-22413
1/4x5/16,
3/8x7/16,
1/2x9/16,
5/8x11/16.
3/4x13/16,
78x15/16"
W31A-22337
Set Contains Part Number
44 Open End
Wrench Set
n Ideal for spaces with low
access in height. The extra-flat
wrench is 3 times slimmer than
a traditional ratchet + socket
system
n Compact ratchet mechanism with
reversible lever
n 5° increment
n 9 reducer bushes 8, 9, 10, 11,
12, 13, 15, 16 and 17mm
464 J 11 IN 1 Ratcheting
Wrench Set
W31A-63543
Part Number

12. 12
n Set contains:
n 3, 4, 5, 6, 8mm
Hex keys
84TC JE5 5pc Metric T Spinner
Hex Key Set
W31A-54159
Part Number
n Set contains:
n 2, 2.5, 3, 4, 5, 6, 8
10mm Hex Keys
84TC J8 8pc Metric T Spinner
Hex Key Set
W31A-64897
Part Number
Wrenches
n Set contains:
n 1.5, 2, 2.5, 3, 4, 5, 6, 8,
10mm Hex keys
83SH JP9A 9pc Metric
Spherical Head Hex Key Set
W31A-64895
Part Number
n Set contains:
n 3/32, 1/8, 5/32, 3/16, 7/32,
1/4, 5/16, 3/8” Hex keys
83SH.JP8AU 8pc Imperial
Spherical Head Hex Key Set
W31A-64767
Part Number
n Set contains:
n 1.5, 2, 2.5, 3, 4, 5, 6, 8,
10mm Hex keys
83S JP9AL 9pc Extra Long Metric
Hex Key Set
W31A-63446
Part Number
n Set contains:
n T10, T15, T20, T25, T30,
T40 Keys
89R JP6 6pc Metric Short
Torx Hex Key Set
W31A-54381
Part Number

13. 13
screwdrivers
n Polyurethane handles with polyamide core for ultra secure handle
– blade bond and impact and chemical resistance
n Silicon steel round and hex blades for extra strength and bend
resistance
n Set Contains:
n Slotted tips 2.5, 3.5, 5.5, 6.5 & 8mm,
n Phillips®
tips PH1&2 and Pozidriv®
tips PZ0, 1 & 2
n Precision machined black tips for improved dimensional
accuracy
ANW J10 10pc
Screwdriver Set
W31A-55330
Part Number
n Polyurethane handles with polyamide core for ultra secure handle
– blade bond and impact and chemical resistance
n Silicon steel round and hex blades for extra strength and bend
resistance
n Set Contains:
n Slotted tips 3.5, 4.0, 5.5, 6.5
n Pozi PZ1, PZ2
AND J6 6pc
Screwdriver Set
W31A-55290
Part Number
n Polyurethane handles with polyamide core for ultra secure handle
– blade bond and impact and chemical resistance
n Silicon steel round and hex blades for extra strength and bend
resistance
n Set Contains:
n Slotted tips 3.5, 4.0, 5.5, 6.5
n Phillips PH1, PH2
ANP J6 6pc
Screwdriver Set
W31A-64769
Part Number
n Each screwdriver tested individually at 10,000 Volts for 10
seconds, at the end of each machining cycle
n Set Contains:
n Slotted: 3.0, 4.0, 5.5mm
n PZ 1, PZ2 screwdrivers
AD J5VE VDE 5pc
Screwdriver Set
W31A-22938
Part Number

14. n Cutting edges designed to cut all
types of wire: piano wire, soft wires
and modern materials
n Long lever arm, offset pivot for
minimum cutting effort
n High durability chrome-molybdenum-vanadium steel. Very
hard cutting edges 61/63 HRc
n Ergonomic grips resistant to chemical agents
187 CPE
Combination Pliers
165 W31A-50674
205 W31A-50686
Length (mm) Part Number
n All pliers are tested to 10,000 Volt
for 10 seconds, at the end of the
manufacturing cycle
n Cutting edges designed to cut all
types of wire: piano wire, soft wires
and modern materials.
n Long lever arm, offset pivot for minimum cutting effort
n High durability chrome-molybdenum-vanadium steel. Very
hard cutting edges 61/63 HRc
n Ergonomic grips resistant to chemical agents
187 VE VDE
Combination Pliers
195 W31A-50678
225 W31A-50684
Length (mm) Part Number
n Cutting edge designed to cleanly cut
piano wire, hard and soft wire
n Long lever arm, offset pivot for
minimum cutting effort
n High durability Chrome-Molybdenum-
Vanadium steel, very hard cutting edges 61/63 HRc
192 CPE High Performance
Diagonal Cutters
160 W31A-50752
200 W31A-50763
Length (mm) Part Number
n All pliers are tested to 10,000 Volt
for 10 seconds, at the end of the
manufacturing cycle
n Cutting edge designed to cleanly cut
piano wire, hard and soft wire
n Long lever arm, offset pivot for minimum cutting effort
n High durability Chrome-Molybdenum-Vanadium steel, very
hard cutting edges 61/63 HRc
192 VE VDE High Performance
Diagonal Cutters
160 W31A-50756
180 W31A-50762
Length (mm) Part Number
14
pliers

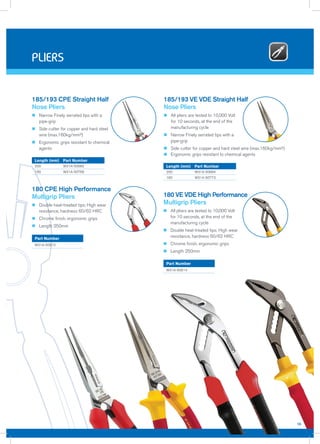

15. n Narrow Finely serrated tips with a
pipe-grip
n Side cutter for copper and hard steel
wire (max.160kg/mm²)
n Ergonomic grips resistant to chemical
agents
185/193 CPE Straight Half
Nose Pliers
200 W31A-50660
160 W31A-50769
Length (mm) Part Number
n Double heat-treated tips; High wear
resistance, hardness 60/62 HRC
n Chrome finish, ergonomic grips
n Length 250mm
180 CPE High Performance
Multigrip Pliers
W31A-50612
Part Number
n All pliers are tested to 10,000 Volt
for 10 seconds, at the end of the
manufacturing cycle
n Narrow Finely serrated tips with a
pipe-grip
n Side cutter for copper and hard steel wire (max.160kg/mm²)
n Ergonomic grips resistant to chemical agents
185/193 VE VDE Straight Half
Nose Pliers
200 W31A-50664
160 W31A-50773
Length (mm) Part Number
n All pliers are tested to 10,000 Volt
for 10 seconds, at the end of the
manufacturing cycle
n Double heat-treated tips; High wear
resistance, hardness 60/62 HRC
n Chrome finish, ergonomic grips
n Length 250mm
180 VE VDE High Performance
Multigrip Pliers
W31A-50614
Part Number
15
pliers

16. 16
n Interchangeable tips for:
n dia. 8 - > 63mm for inside circlips
n dia. 3 - > 63mm for outside circlips
n Set contains:
n 469.PA for inside circlips
n 467.PA for outside circlips
n Set of 18 removable tips
n Supplied in plastic case
470 Inside and Outside Circlip
Plier Set
n Ergonomic set of bi-material pliers offering high performance
at realistic cost
n Extended contact area and asymmetric handle profile fit
naturally in hand, improving comfort and power
n Spring wedges the handles between fingers, for comfort and
accuracy
n Set Contains
n 170mm combination pliers
n 190mm diagonal cutters
n 196mm long nose pliers
n 240mm multi grip pliers
CPE.1 4pc
Pliers Set
W31A-52934
Part Number
W31A-23229
Part Number
n Suitable for industrial and automotive
production and maintenance applications
n Automatically adjusts the jaws to the
component, regardless of size with
the same pressure
n Forged in Chrome Molybdenum steel: with treated jaws for
longer working life
n Non-slip chequered handle
n One-hand unlocking by internal opening lever
n Finish: chromed, burnished mechanism
580 Multi-Purpose Angle
Nose Lock-Grip Pliers
150 W31A-53257
250 W31A-53255
Length (mm) Part Number
SAWS
n 980 Straight blade
n 980C Angled blade
n Comfortable: non slip grips
n Ideal for everyday cutting applications
cardboard, rubber, PVA, leather 5mm
thick
n Thin sheet steel 0.5mm thick, aluminium sheet up to 1mm thick
n Electric cables up to 2.5mm dia
980 Multi Purpose
Shears
n Optimum and durable automatic blade tension control at 110kg
n Aluminium bow for maximum stiffness
n Ergonomic handle for maximum comfort
n Ultra-fast blade changing
n Takes 300mm Blade
603F High Performance
Hacksaw Frame
W31A-64739
Part Number
n Impact-resistant steel/resin construction
compact and lightweight
n Blade Tension 80kg
n 2 blade positions 45° and 90°
n Takes 300mm Blade
601 Compact
Hacksaw Frame
W31A-53281
Part Number
205 Straight W31A-22965
205 Angled W31A-22964
Length (mm) Blade Part Number

17. storage
17
n Tool bag in strong 1200 x 1200 - denier material with rigid
and waterproof compartment and aluminium handle
n Equipped with a handle with leather trim, a cushioned shoulder
strap and a cover with a soft top
n Elasticated strap to hold tools in place, special screwdriver
compartment, easy access to the compartment, many side
pockets, strap to hold the top back
BS T14 Fabric
Tool Bag
420 x 240 x 340 W31A-64772
Size (mm) Part Number
n Textile tool bag in highly resistant fabric with rigid, waterproof
compartment
n Aluminium handle with leather trim
n Cushioned shoulder strap and closure with soft top
n Elasticated strap to hold tools in place
n Easy access to the compartment, many side pockets
BS T20 Fabric
Tool Bag
480 x 220 x 350 W31A-55915
Size (mm) Part Number
n 3 carrying solutions, 90mm wheels and extendable
handle
n Textile tool bag in highly resistant fabric with rigid, waterproof
compartment
n Aluminium handle with leather trim
n Cushioned shoulder strap and closure with soft top
n Elasticated strap to hold tools in place
n Easy access to the compartment, many side pockets
BS R20 Rolling Fabric
Tool Bag
480 x 220 x 350 W31A-62808
Size (mm) Part Number
n Interior: 14 pockets, 2 straps for pliers, wrenches and
screwdrivers, 1 tape measure hook
n 1 padded pocket for your laptop PC (15” max), tablet or
A4 documents
n Exterior: 2 lateral pockets (one closed, one open net pocket)
n Full access when the bag is completely open
n Fast access by opening the front pocket
n By hand with the soft grip handle.
n On the shoulder, with the adjustable s-trap, comfortable
reinforcement pad.
n Heavy duty in 1200-denier fabric
BS.TLB Heavy Duty Tool & Laptop
Storage Bag
480 x 220 x 350 W31A-62808
Size (mm) Part Number

18. 18
n 9 drawers = 27 modules distributed in the 60 and 130mm
drawers
n 8 drawers 60mm wall = 24 modules
n 1 drawer 130mm wall = 3 modules
n The 200 and 270mm drawers can also be fitted with
modules
n Supplied with 10 partitions for drawers 60mm wall
n Total load capacity 185kg
n Overall dimensions 774 x 546 x 971mm
n Available in 2 colours: Red and Black
JET 9 Drawer Roller Cabinets -
3 Modules per Drawer
Red W31A-23414
Black W31A-23443
Colour Part Number
n 6 drawers = 15 modules distributed in the 60 and 130mm
drawers
n 2 drawers 60mm wall = 6 modules
n 2 drawers 130mm wall = 6 modules
n 1 drawer 270mm wall
n The 200 and 270mm drawers can also be fitted with
modules
n Supplied with 4 partitions for 60mm drawers and 4 partitions
for 130mm drawers
n 125kg total load
n Overall dimensions 774 x 546 x 971mm
n Available in 2 colours: Red and Black
JET 6 Drawer Roller Cabinets -
3 Modules per Drawer
Red W31A-23411
Black W31A-23440
Colour Part Number
storage

19. 2D Viewing
3D Viewing
Your list of products
Configurator
Download the JetLine+ 3D configurator (windows version)
from facom.com to create your bespoke workspace
Full products range
Design & create the perfect workspace
Scan this QR
code to visit the
JetLine+ microsite
FlexibleA bespoke modular workshop system
tailored to your specific needs
Optimised
Aesthetically pleasing and functional
workshop solution
Organised
Systematically arrange tools for easy and
efficient access to improve productivity
Tidy
Create a productive workplace
to prevent hazards & contamination
wOrkshOp managemenT sysTem

20. ERIKS UK
Amber Way, Halesowen,
West Midlands, B62 8WG
www.eriks.co.uk
Call 0845 006 6000
EBXXX/MMYY©ERIKSIndistrialServices,allrightsreserved.
CBP000123043003151723
