STRIKING
EFFICIENCY
MEETS
INNOVATIVE
TOOLS
www.gearwrench.com

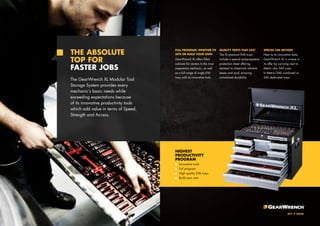

THE ABSOLUTE
TOP FOR
FASTER JOBS
The GearWrench XL Modular Tool
Storage System provides every
mechanic’s basic needs while
exceeding expectations because
of its innovative productivity tools
which add value in terms of Speed,
Strength and Access.
FULL PROGRAM, WHETHER ITS
SETS OR BUILD YOUR OWN
GearWrench XL offers filled
cabinets for starters to the most
experience mechanic, as well
as a full range of single EVA
trays with its innovative tools.
QUALITY TRAYS THAT LAST
The XL premium EVA trays
include a special polypropylene
protection sheet offering
resistant to chemicals solvents
bases and acid, ensuring
unmatched durability.
SPECIAL SAE SECTION
Next to its innovative tools,
GearWrench XL is unique in
its offer by carrying next to
Metric also SAE sizes.
In Metric/SAE combined or
SAE dedicated trays.
HIGHEST
PRODUCTIVITY
PROGRAM
Innovative tools
Full program
High quality EVA trays
Build your own

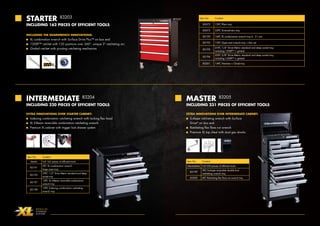

INCLUDING THE GEARWRENCH INNOVATIONS:
XL combination wrench with Surface Drive Plus™ on box end
120XP™ ratchet with 120 positions over 360°, unique 3° ratcheting arc
Gimbal ratchet with pivoting ratcheting mechanism
Item No. Content
83072 12PC Pliers tray
83073 52PC Screwdrivers tray
83190 16PC XL combination wrench tray 6 - 21 mm
83192 15PC Open end wrench tray + Hex set
83193
31PC 1/4" Drive Metric standard and deep socket tray,
including 120XPTM + gimbal
83194
22PC 3/8" Drive Metric standard and deep socket tray,
including 120XPTM + gimbal
83201 14PC Hammer + Chisel tray
STARTER 83203
INCLUDING 162 PIECES OF EFFICIENT TOOLS
INTERMEDIATE 83204
INCLUDING 220 PIECES OF EFFICIENT TOOLS
MASTER 83205
INCLUDING 231 PIECES OF EFFICIENT TOOLS
EXTRA INNOVATIONS OVER STARTER CABINET:
Indexing combination ratcheting wrench with locking flex head
XL X-Beam reversible combination ratcheting wrench
Premium XL cabinet with trigger lock drawer system
EXTRA INNOVATIONS OVER INTERMEDIATE CABINET:
S-shape ratcheting wrench with Surface
Drive® on box end
Ratcheting flex flare nut wrench
Premium XL top chest with dual gas shocks
Item No. Content
Starter Full 162 pieces of efficient tools
83191
5PC XL combination wrench -
large sizes tray
83195
29PC 1/2" Drive Metric standard and deep
socket tray
83197
12PC XL X-Beam reversible combination
wrench tray
83198
12PC Indexing combination ratcheting
wrench tray
Item No. Content
Intermediate Full 220 pieces of efficient tools
83199
5PC S-shape reversible double box
ratcheting wrench tray
83200 6PC Ratcheting flex flare nut wrench tray

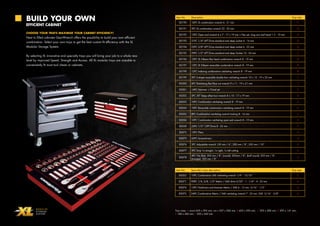

BUILD YOUR OWN
EFFICIENT CABINET
CHOOSE YOUR TRAYS MAXIMISE YOUR CABINET EFFICIENCY!
Next to filled cabinets GearWrench offers the possibility to build your own efficient
combination. Select your own trays to get the best custom fit efficiency with the XL
Modular Storage System.
By selecting XL innovative and specialty trays you will bring your job to a whole new
level by improved Speed, Strength and Access. All XL modular trays are sizeable to
conveniently fit most tool chests or cabinets.
Item No. Description Tray size
83190 16PC XL combination wrench 6 - 21 mm C
83191 5PC XL combination wrench 22 - 32 mm B
83192 15PC Open end wrench 6 x 7 - 17 x 19 mm + Hex set, long arm ball head 1.5 - 10 mm D
83193 31PC 1/4" 6PT Drive standard and deep socket 4 - 14 mm D
83194 22PC 3/8" 6PT Drive standard and deep socket 6 - 22 mm D
83195 29PC 1/2" 6PT Drive standard and deep Socket 10 - 24 mm C
83196 12PC XL X-Beam flex head combination wrench 8 - 19 mm B
83197 12PC XL X-Beam reversible combination wrench 8 - 19 mm B
83198 12PC Indexing combination ratcheting wrench 8 - 19 mm B
83199 5PC S-shape reversible double box ratcheting wrench 10 x 12 - 19 x 22 mm C
83200 6PC Ratcheting flex flare nut wrench 9 x 11 - 19 x 21 mm C
83201 14PC Hammer + Chisel set C
83202 5PC 30° Deep offset box wrench 8 x 10 - 17 x 19 mm D
83052 10PC Combination ratcheting wrench 8 - 19 mm E
83054 10PC Reversible combination ratcheting wrench 8 - 19 mm E
83055 8PC Combination ratcheting wrench locking 8 - 16 mm E
83056 10PC Combination ratcheting open end wrench 8 - 19 mm E
83058 23PC 1/2" 12PT Drive 8 - 32 mm F
83072 12PC Pliers A
83073 52PC Screwdrivers A
83076 3PC Adjustable wrench 150 mm / 6”, 200 mm / 8”, 250 mm / 10” E
83077 3PC Snip 1x straight, 1x right, 1x left cutting E
83078
4PC File (flat): 203 mm / 8”, (round): 203mm / 8”, (half round): 203 mm / 8”,
(triangle): 203 mm / 8”
E
Item No. Specialty’s trays description Tray size
83053 10PC Combination SAE ratcheting wrench 1/4” - 13/16” E
83071 90PC 1/4, 3/8, 1/2" Metric / SAE drive 5/32" - 1 - 1/4" - 4 - 32 mm A
83074 15PC Nutdrivers and hammer Metric / SAE 6 - 12 mm, 3/16” - 1/2” A
83075 24PC Combination Metric / SAE ratcheting wrench 7 - 22 mm, SAE: 5/16” - 3/8” A
Tray sizes; A uncut 655 x 395 mm, cut = 557 x 360 mm, B 423 x 395 mm, C 395 x 282 mm, D 395 x 141 mm,
E 168 x 360 mm, F 250 x 242 mm

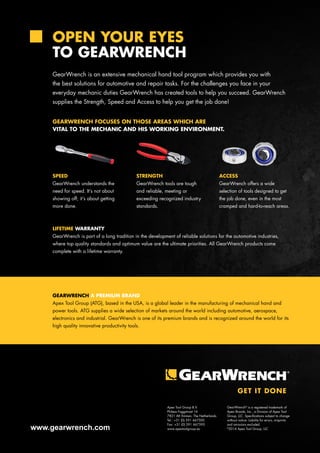

OPEN YOUR EYES
TO GEARWRENCH
GearWrench is an extensive mechanical hand tool program which provides you with
the best solutions for automotive and repair tasks. For the challenges you face in your
everyday mechanic duties GearWrench has created tools to help you succeed. GearWrench
supplies the Strength, Speed and Access to help you get the job done!
GEARWRENCH FOCUSES ON THOSE AREAS WHICH ARE
VITAL TO THE MECHANIC AND HIS WORKING ENVIRONMENT.
SPEED
GearWrench understands the
need for speed. It’s not about
showing off; it’s about getting
more done.
GEARWRENCH A PREMIUM BRAND
Apex Tool Group (ATG), based in the USA, is a global leader in the manufacturing of mechanical hand and
power tools. ATG supplies a wide selection of markets around the world including automotive, aerospace,
electronics and industrial. GearWrench is one of its premium brands and is recognized around the world for its
high quality innovative productivity tools.
www.gearwrench.com
STRENGTH
GearWrench tools are tough
and reliable, meeting or
exceeding recognized industry
standards.
ACCESS
GearWrench offers a wide
selection of tools designed to get
the job done, even in the most
cramped and hard-to-reach areas.
LIFETIME WARRANTY
GearWrench is part of a long tradition in the development of reliable solutions for the automotive industries,
where top quality standards and optimum value are the ultimate priorities. All GearWrench products come
complete with a lifetime warranty.
Apex Tool Group B.V.
Phileas Foggstraat 16
7821 AK Emmen, The Netherlands
Tel.: +31 (0) 591 667500
Fax: +31 (0) 591 667595
www.apextoolgroup.eu
GearWrench® is a registered trademark of
Apex Brands, Inc., a Division of Apex Tool
Group, LLC. Specifications subject to change
without notice. Liability for errors, misprints
and omissions excluded.
©2014 Apex Tool Group, LLC
