This document describes REEL Tech's safety lifting systems for facility maintenance. The lifting systems allow maintenance to be done from the ground level using remote controls rather than requiring workers to use ladders or lifting equipment. This reduces costs and the risk of falls. The lifting systems can be used for CCTV cameras, lighting, and fire/smoke detectors, allowing single workers to perform maintenance quickly and easily. REEL Tech has been in business since 2002 and supplies these lifting systems to over 50 countries.

1. www.reeltech.co.kr

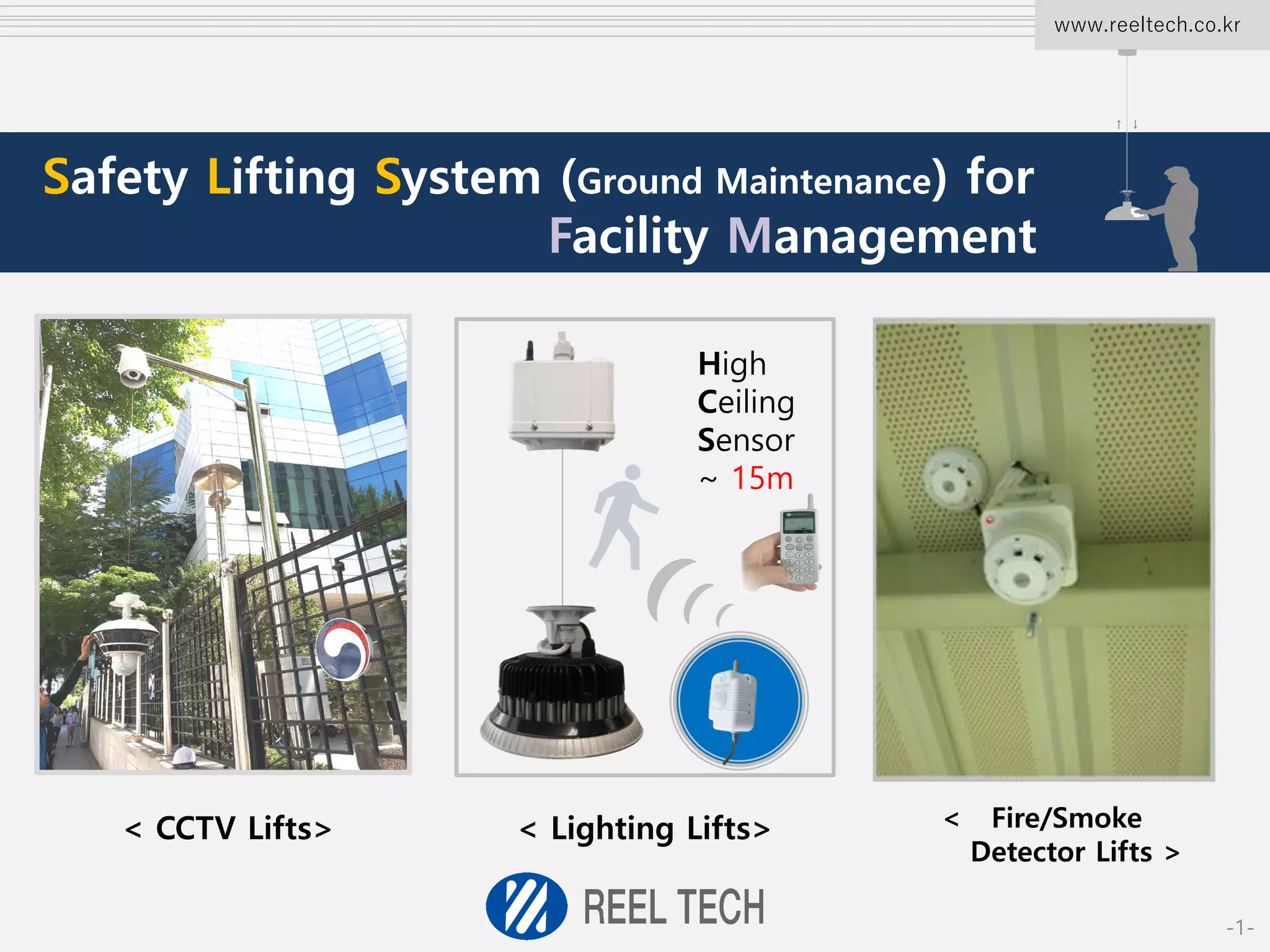

Safety Lifting System (Ground Maintenance) for
Facility Management
< CCTV Lifts> < Lighting Lifts> < Fire/Smoke
Detector Lifts >
High
Ceiling
Sensor
~ 15m
-1-

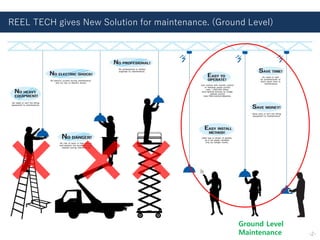

2. REEL TECH gives New Solution for maintenance. (Ground Level)
-2-
Ground Level
Maintenance

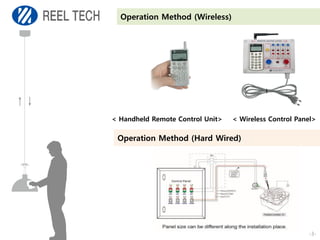

3. Operation Method (Wireless)
< Handheld Remote Control Unit> < Wireless Control Panel>
Operation Method (Hard Wired)
-3-

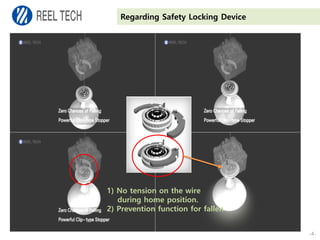

4. 1) No tension on the wire
during home position.
2) Prevention function for fallen
Regarding Safety Locking Device
-4-

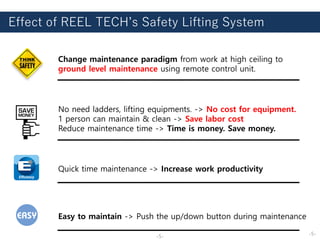

5. Effect of REEL TECH’s Safety Lifting System
Change maintenance paradigm from work at high ceiling to
ground level maintenance using remote control unit.
Easy to maintain -> Push the up/down button during maintenance
No need ladders, lifting equipments. -> No cost for equipment.
1 person can maintain & clean -> Save labor cost
Reduce maintenance time -> Time is money. Save money.
Quick time maintenance -> Increase work productivity
-5- -5-

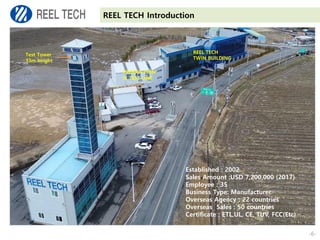

6. REEL TECH Introduction
Test Tower
33m height
REEL TECH
TWIN BUILDING
PRODUCTION
& TEST LINE
Established : 2002
Sales Amount :USD 7,200,000 (2017)
Employee : 35
Business Type: Manufacturer
Overseas Agency : 22 countries
Overseas Sales : 50 countries
Certificate : ETL,UL, CE, TUV, FCC(Etc)
-6-

7. CCTV Lifts ( Basic Internal configuration)
*CCTV & Wall bracket is out of scope
< Housing Assembly >< CCTV with Lifts>
-7-

8. CCTV Lifts ( Multi-Contact Functions)
-9- -8-

9. Reference photos (CCTV Lifts)
Ministry of Foreign
Affairs
HSI-15C(15KG,15M)
Curling Stadium
CSI-7C(7KG,15M)
France Security Exp
with Hanhwa Techwin
HSI-7C(15KG,15M)
-9-

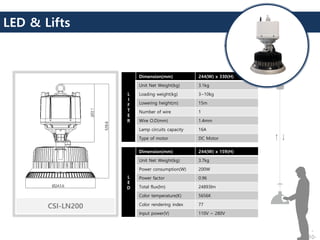

10. LED & Lifts
L
E
D
Dimension(mm) 244(W) x 159(H)
Unit Net Weight(kg) 3.7kg
Power consumption(W) 200W
Power factor 0.96
Total flux(lm) 24893lm
Color temperature(K) 5656K
Color rendering index 77
Input power(V) 110V ~ 280V
L
I
F
T
E
R
Dimension(mm) 244(W) x 330(H)
Unit Net Weight(kg) 3.1kg
Loading weight(kg) 3~10kg
Lowering height(m) 15m
Number of wire 1
Wire O.D(mm) 1.4mm
Lamp circuits capacity 16A
Type of motor DC Motor
CSI-LN200
-
10-

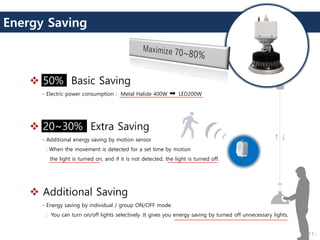

11. Energy Saving
❖ 50% Basic Saving
- Electric power consumption : Metal Halide 400W LED200W
❖ 20~30% Extra Saving
- Additional energy saving by motion sensor
: When the movement is detected for a set time by motion
the light is turned on, and if it is not detected, the light is turned off.
❖ Additional Saving
- Energy saving by individual / group ON/OFF mode.
: You can turn on/off lights selectively .It gives you energy saving by turned off unnecessary lights.
-11-

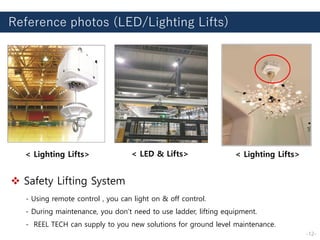

12. Reference photos (LED/Lighting Lifts)
< Lighting Lifts> < LED & Lifts> < Lighting Lifts>
❖ Safety Lifting System
- Using remote control , you can light on & off control.
- During maintenance, you don’t need to use ladder, lifting equipment.
- REEL TECH can supply to you new solutions for ground level maintenance.
-12-

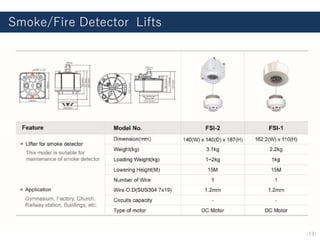

13. Smoke/Fire Detector Lifts
-13-

14. Installation Method
-14-

15. Reference photos (Smoke / Fire detectors Lifts)
❖ Through easy
maintenance method
improvement, regular
inspection rate
should be increased.
❖ The value of
safety can not be
compromised.
❖ Purchasing to
prevent accidents is
an investment, not a
cost.
< Smoke/ Fire Detector Lifts>
-15-

16. Smart Facility Management
Recently, building management continues to develop through IOT.
However, the maintenance methods of lighting, CCTV, Smoke/fire
detectors are the way it used to be. ( Dangerous, High-cost)
Maintenance 3.0 (REEL TECH)
Please clean & maintain lights using
Remote lighting lifts on the ground level !!
- Thank you -
Contact Point : Steve Lee , steve@reeltech.co.kr , What’s app(Cell) : +82-10-4017-1117 -16-
