The document summarizes a presentation by Frank La Vigne on practical ink analysis. It discusses digital ink basics, limitations of word recognition, moving from strings to documents using the InkAnalyzer API, improving recognition results through hints and factoids, detecting relationships in ink using ContextLinks, and shape recognition. The presentation aims to provide practical solutions for developers working with digital ink.

2. Frank La Vigne, Tablet PC MVP Lead Designer Applied Information Systems Reston, VA APP329 Practical Ink Analysis

3. Who Is Frank La Vigne? 14 years of professional experience Started career writing Microsoft Visual Basic 3 applications Microsoft MVP: Tablet PC User Group & Code Camp speaker President Emeritus of Richmond.NET User Group Assistant Vice President of Technology for INETA North America Lead Designer @ Applied Information Sciences Blog: http://www.franksworld.com Corporate: http://www.appliedis.com

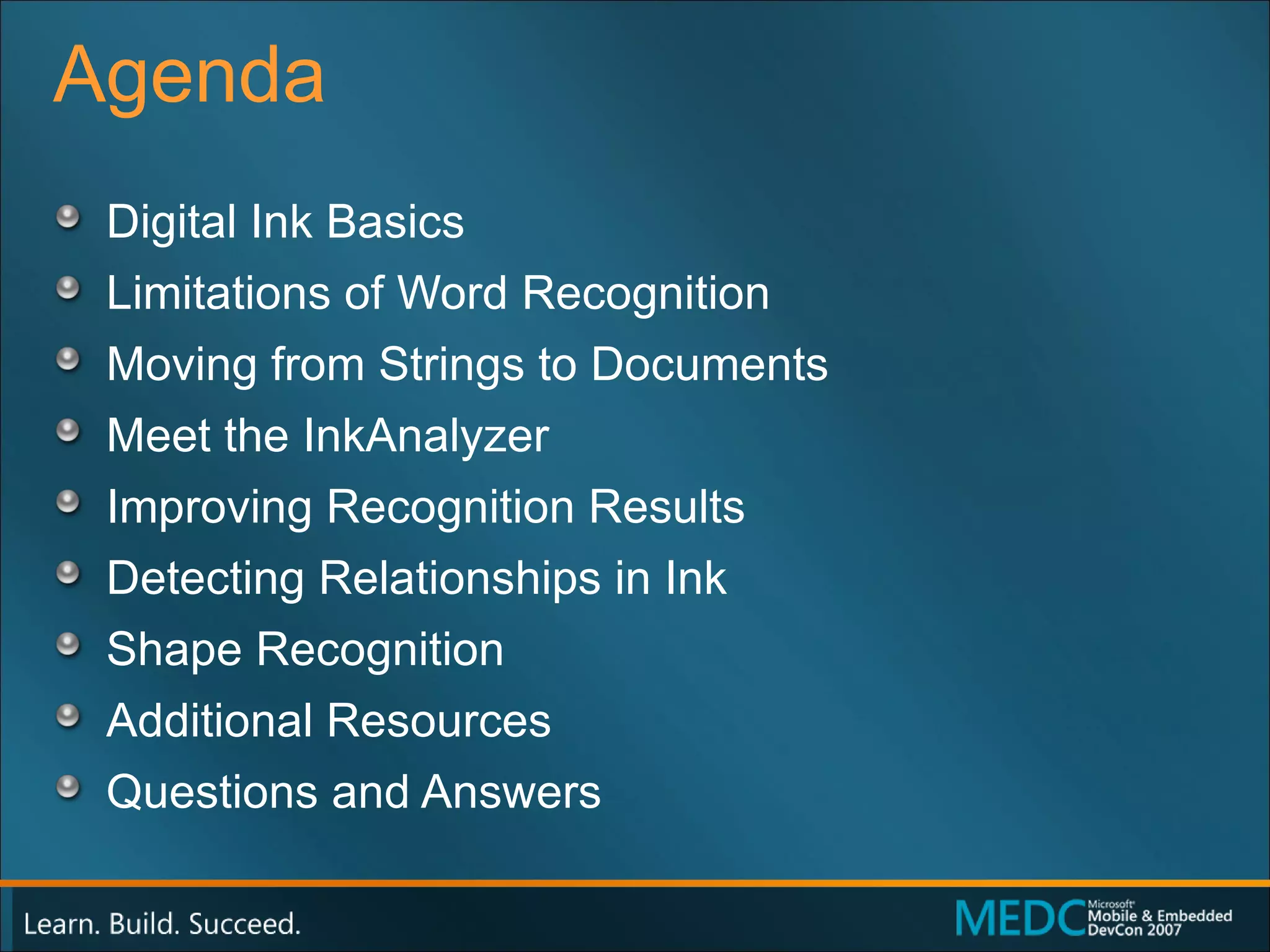

4. Agenda Digital Ink Basics Limitations of Word Recognition Moving from Strings to Documents Meet the InkAnalyzer Improving Recognition Results Detecting Relationships in Ink Shape Recognition Additional Resources Questions and Answers

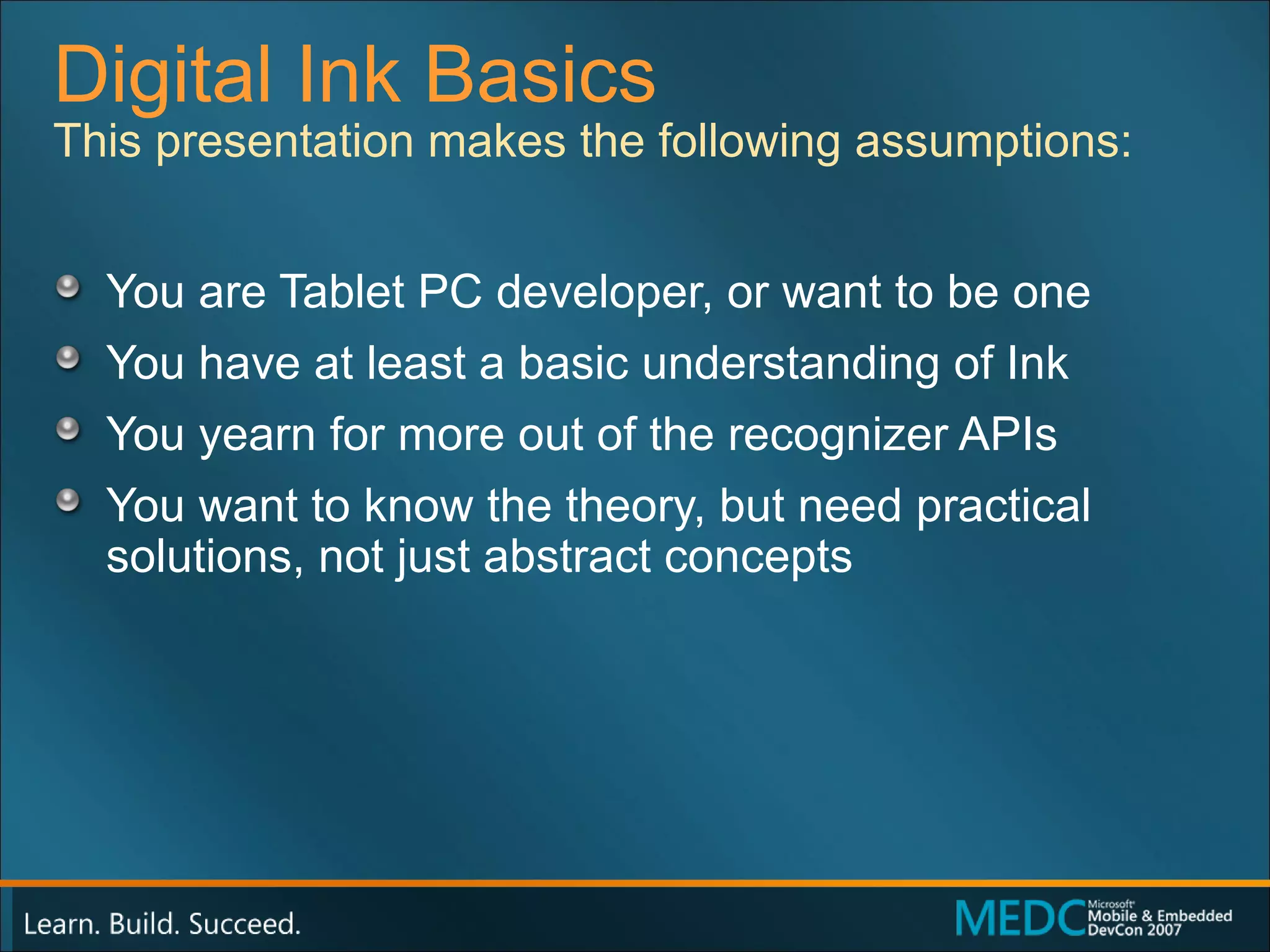

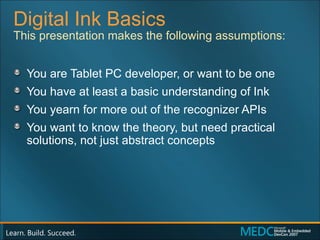

5. Digital Ink Basics You are Tablet PC developer, or want to be one You have at least a basic understanding of Ink You yearn for more out of the recognizer APIs You want to know the theory, but need practical solutions, not just abstract concepts This presentation makes the following assumptions:

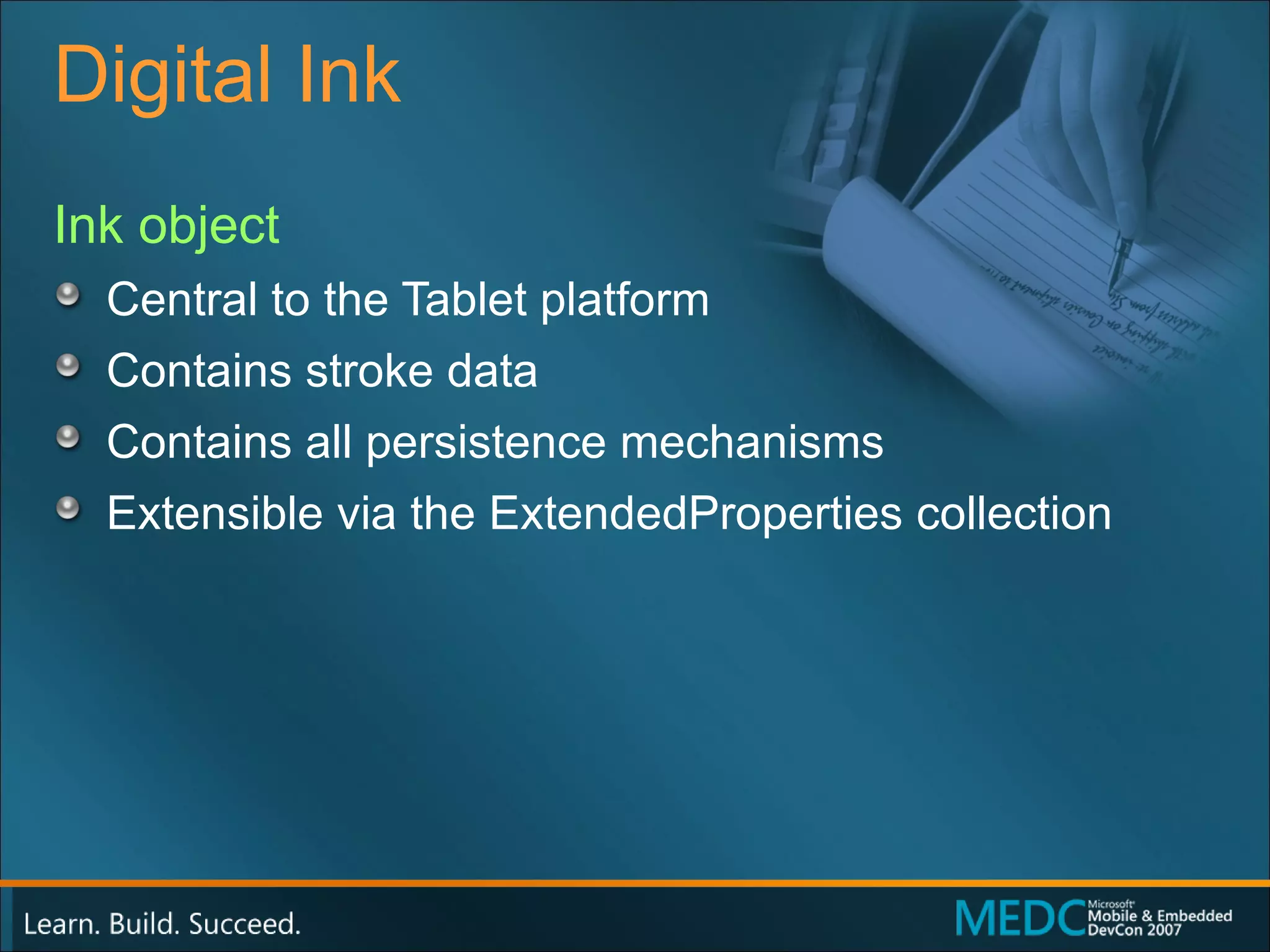

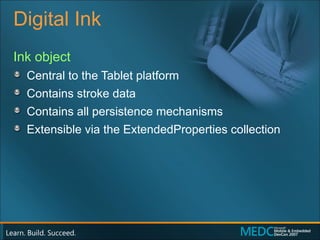

6. Digital Ink Ink object Central to the Tablet platform Contains stroke data Contains all persistence mechanisms Extensible via the ExtendedProperties collection

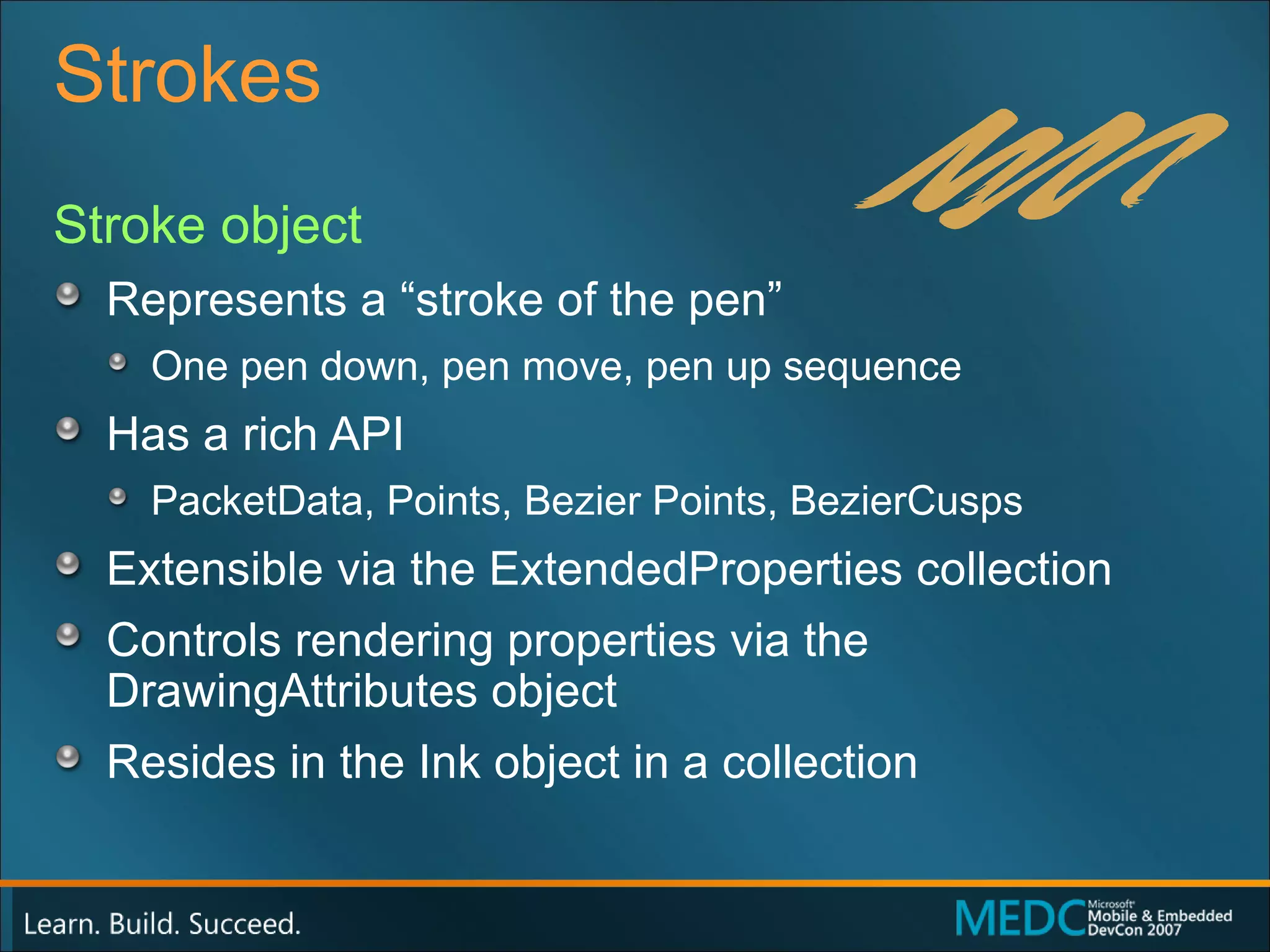

7. Strokes Stroke object Represents a “stroke of the pen” One pen down, pen move, pen up sequence Has a rich API PacketData, Points, Bezier Points, BezierCusps Extensible via the ExtendedProperties collection Controls rendering properties via the DrawingAttributes object Resides in the Ink object in a collection

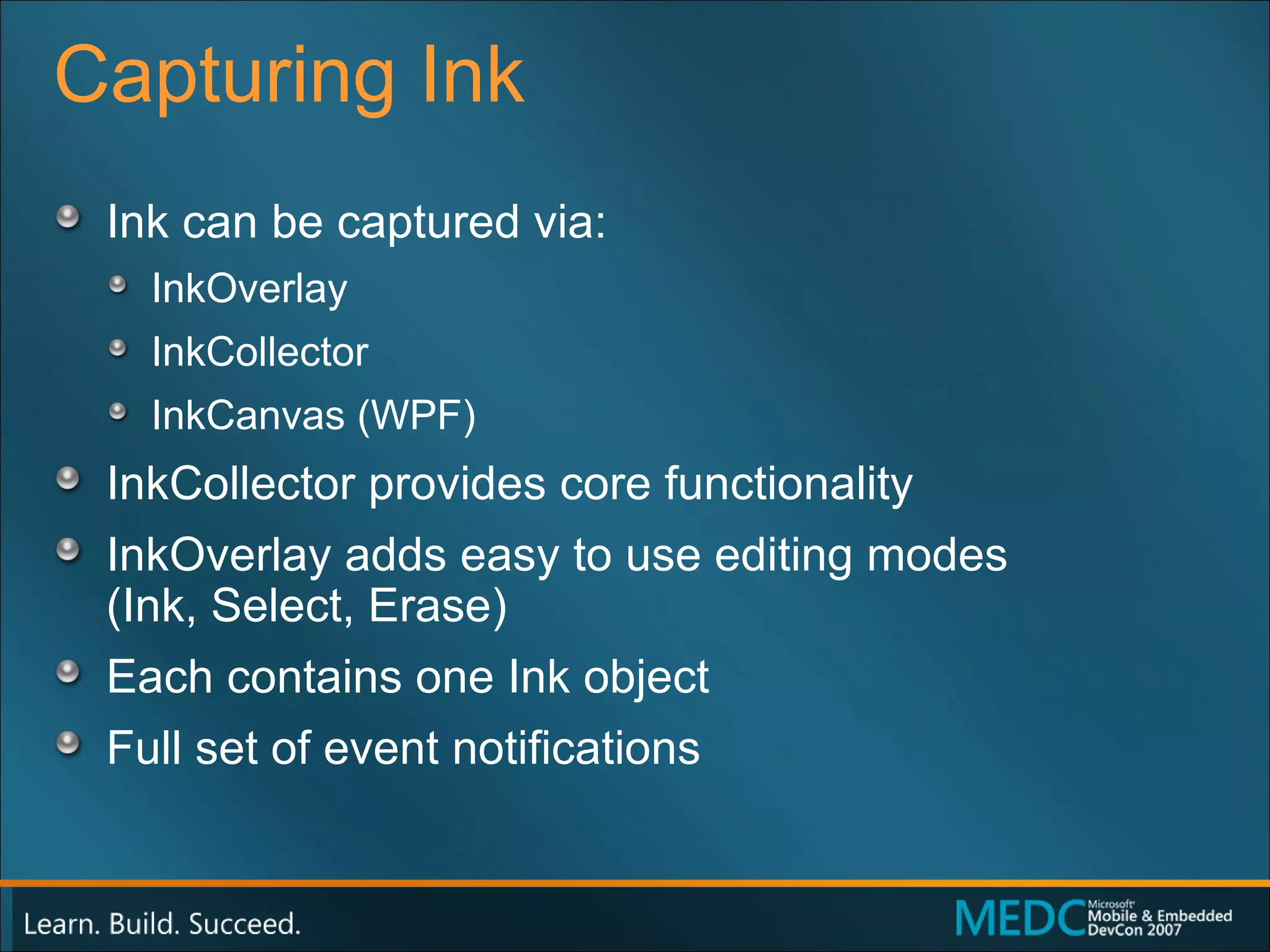

8. Capturing Ink Ink can be captured via: InkOverlay InkCollector InkCanvas (WPF) InkCollector provides core functionality InkOverlay adds easy to use editing modes (Ink, Select, Erase) Each contains one Ink object Full set of event notifications

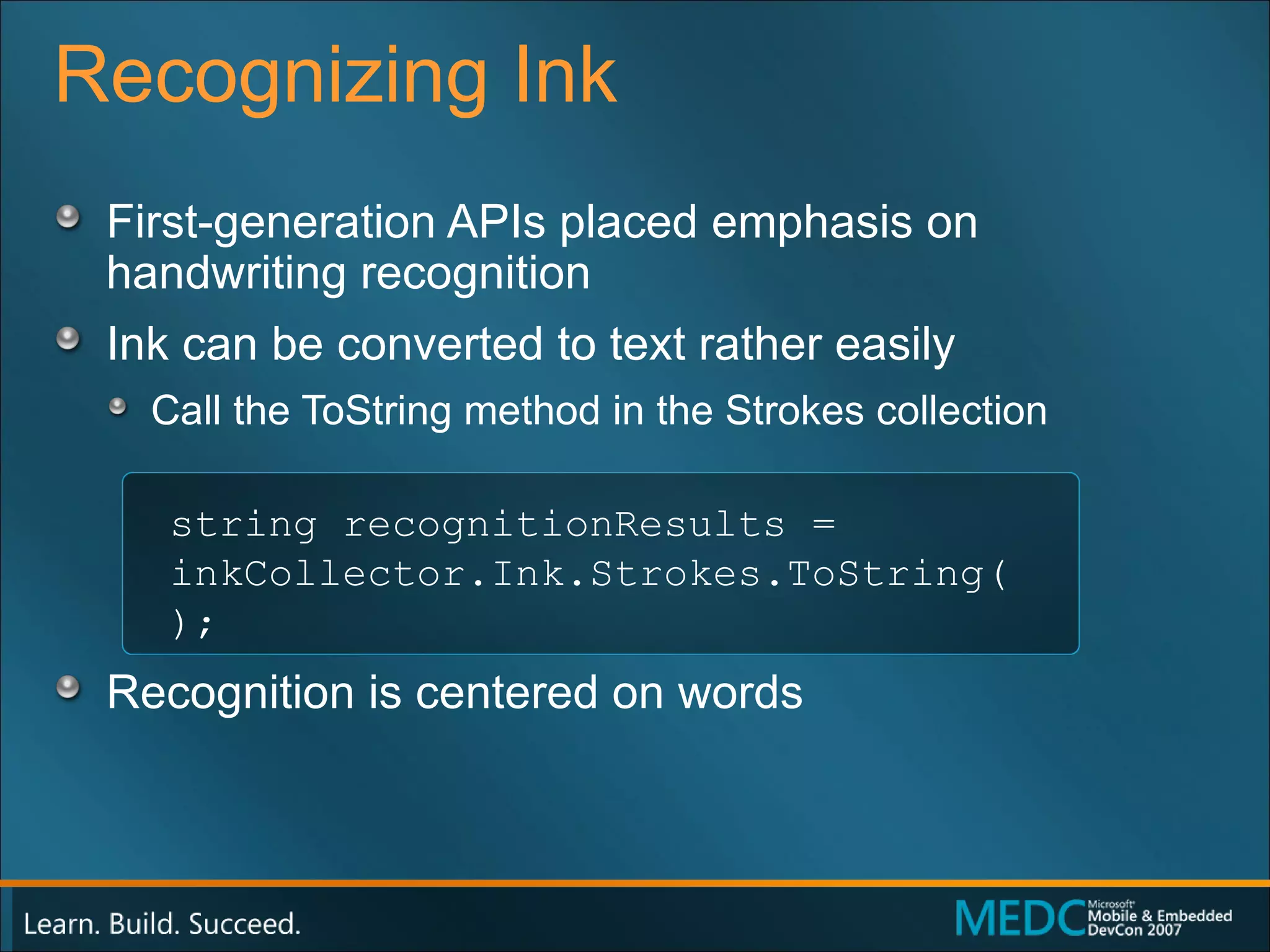

9. Recognizing Ink First-generation APIs placed emphasis on handwriting recognition Ink can be converted to text rather easily Call the ToString method in the Strokes collection Recognition is centered on words string recognitionResults = inkCollector.Ink.Strokes.ToString();

10. Digital Ink Basics

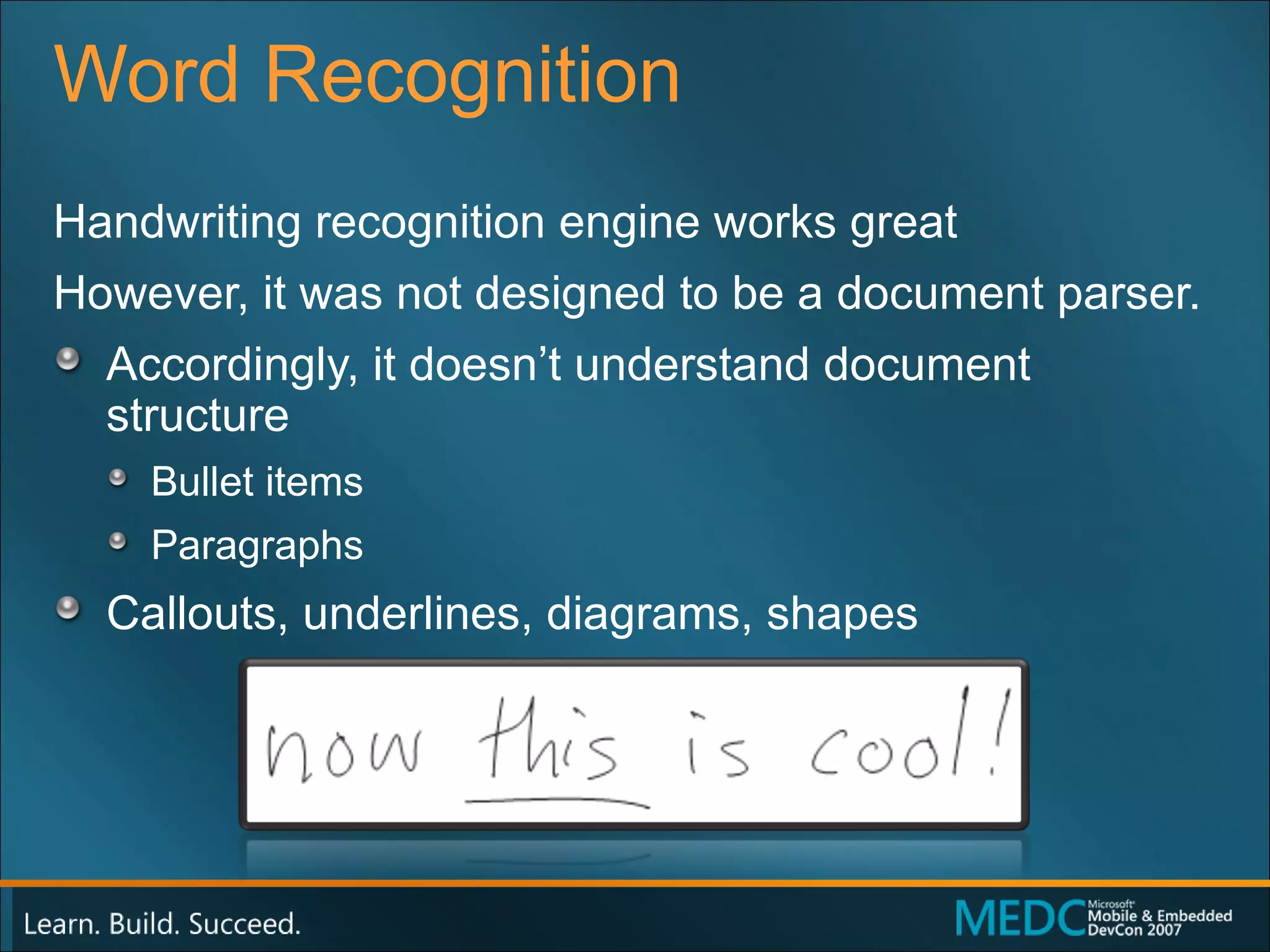

11. Word Recognition Handwriting recognition engine works great However, it was not designed to be a document parser. Accordingly, it doesn’t understand document structure Bullet items Paragraphs Callouts, underlines, diagrams, shapes

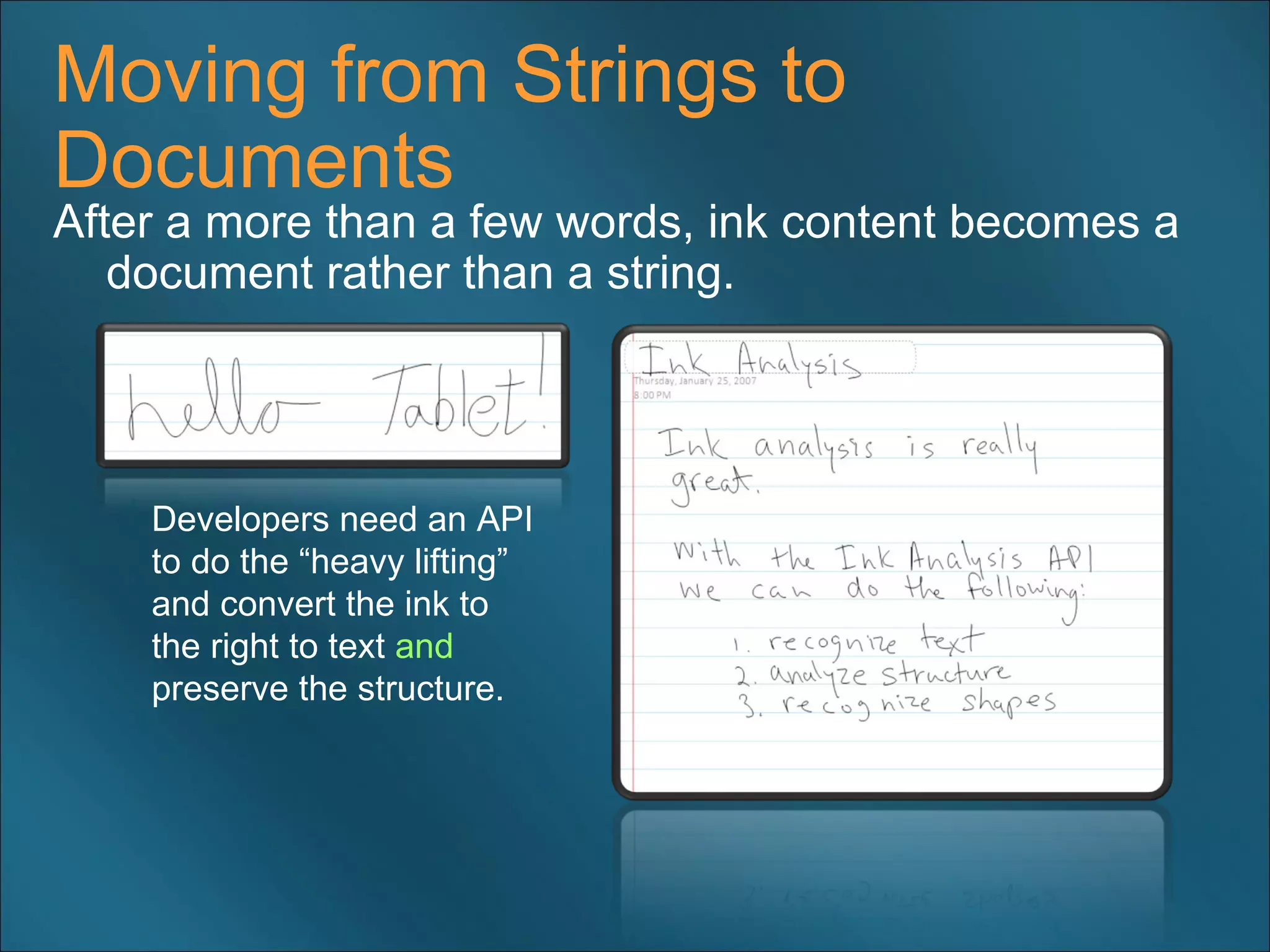

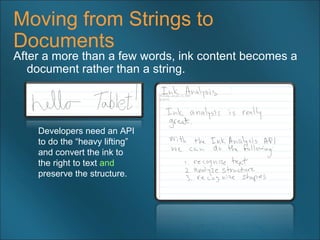

12. Moving from Strings to Documents After a more than a few words, ink content becomes a document rather than a string. Developers need an API to do the “heavy lifting” and convert the ink to the right to text and preserve the structure.

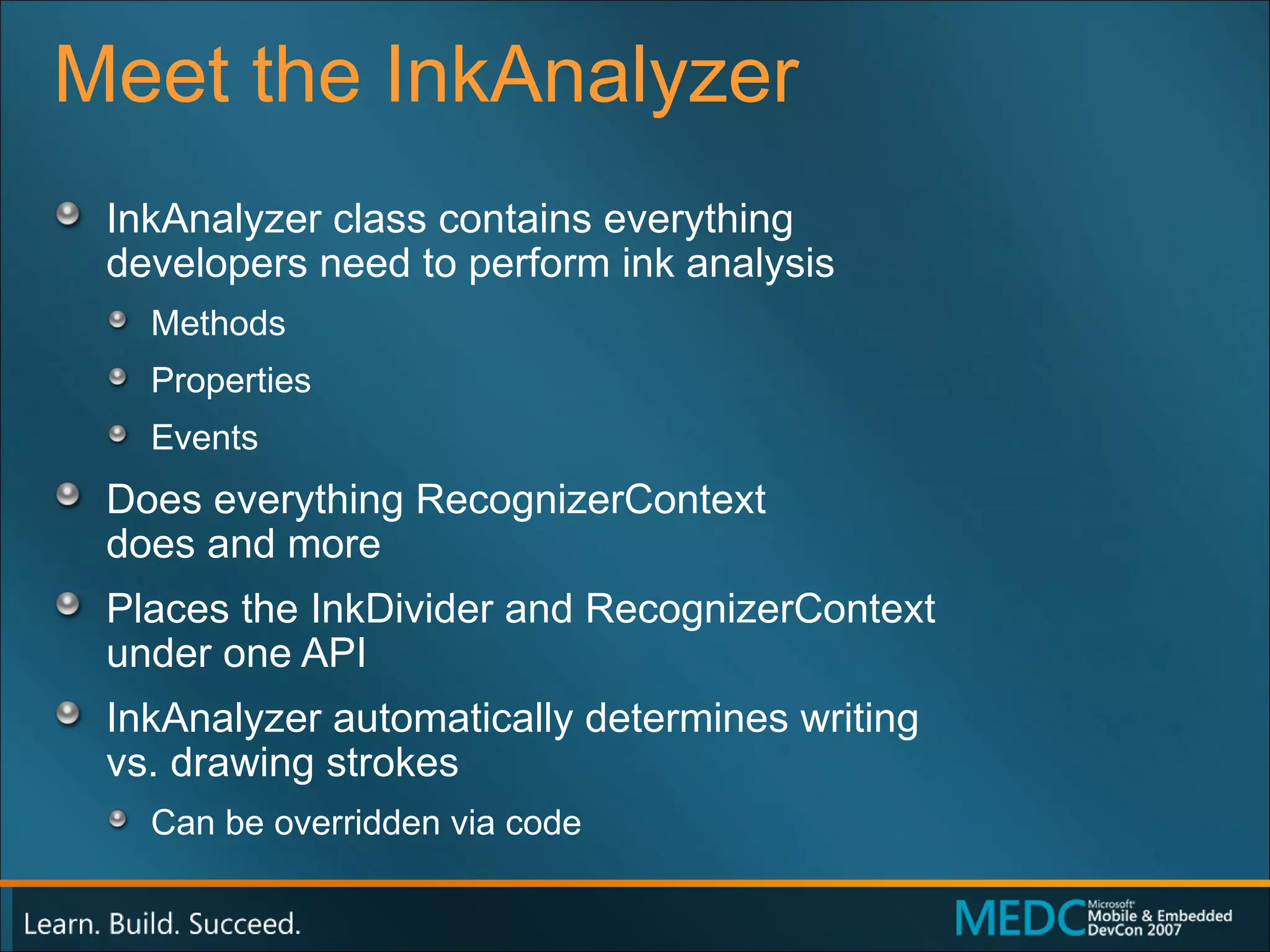

13. Meet the InkAnalyzer InkAnalyzer class contains everything developers need to perform ink analysis Methods Properties Events Does everything RecognizerContext does and more Places the InkDivider and RecognizerContext under one API InkAnalyzer automatically determines writing vs. drawing strokes Can be overridden via code

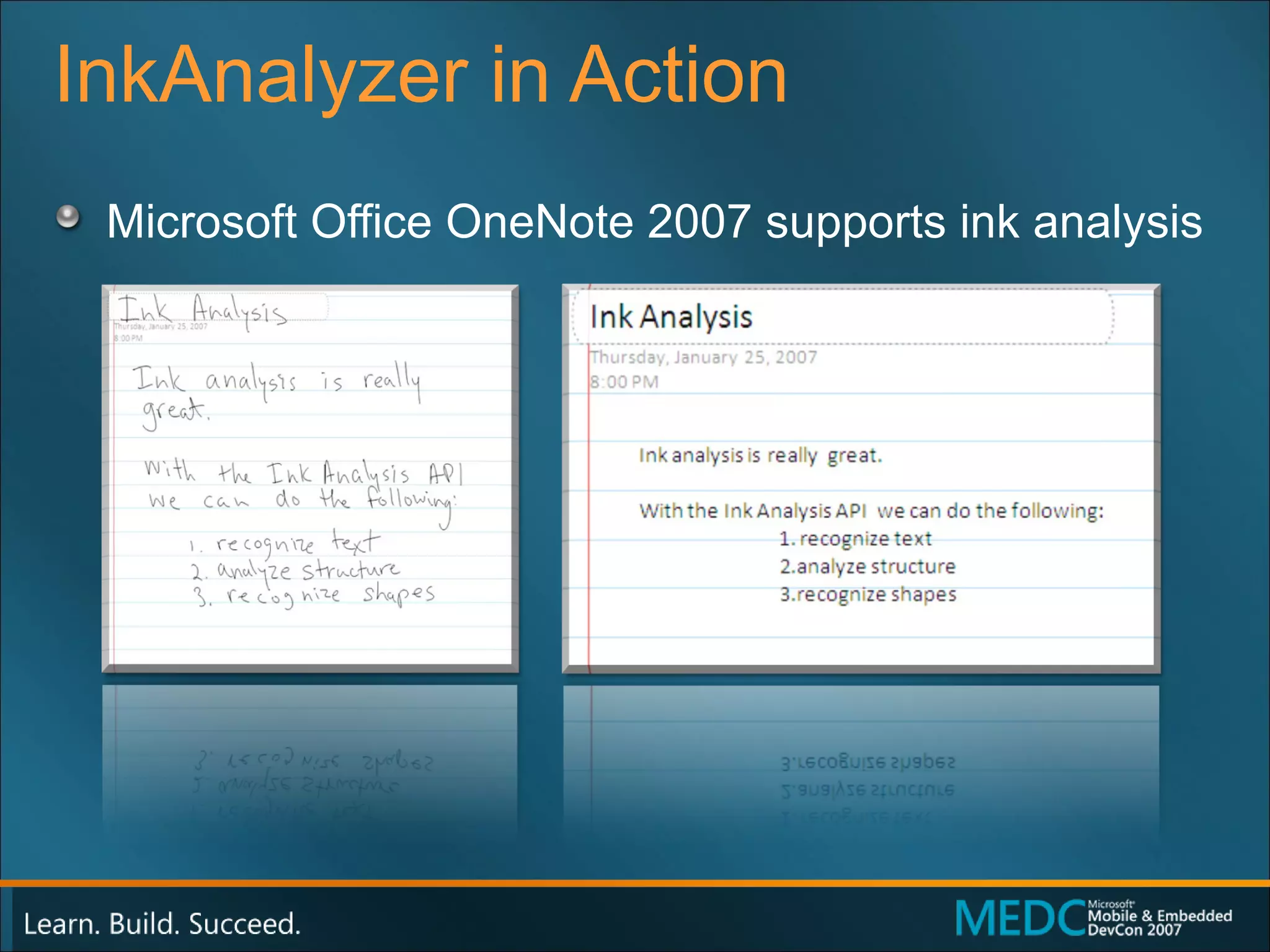

14. InkAnalyzer in Action Microsoft Office OneNote 2007 supports ink analysis

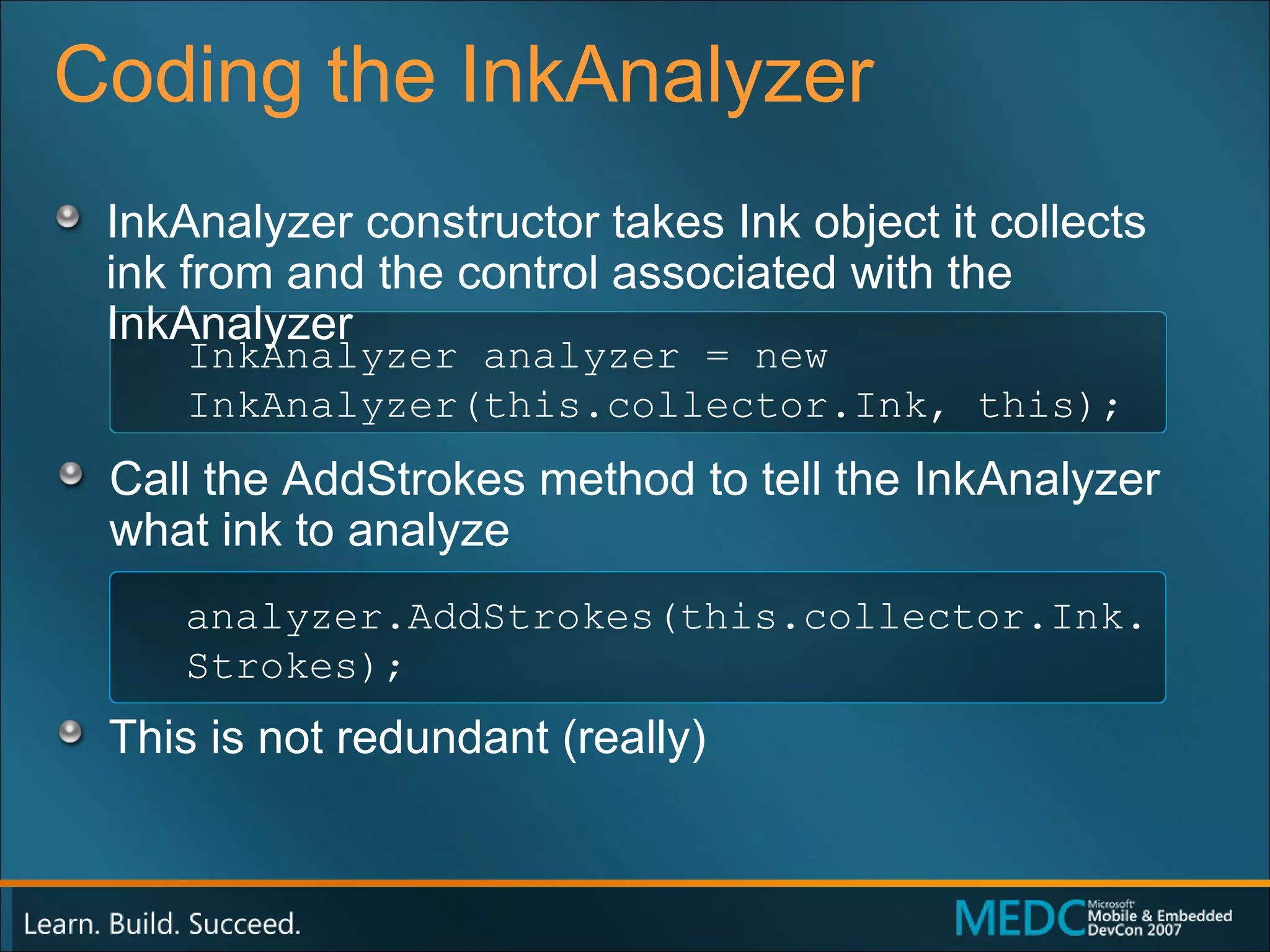

15. Coding the InkAnalyzer InkAnalyzer constructor takes Ink object it collects ink from and the control associated with the InkAnalyzer Call the AddStrokes method to tell the InkAnalyzer what ink to analyze This is not redundant (really) InkAnalyzer analyzer = new InkAnalyzer(this.collector.Ink, this); analyzer.AddStrokes(this.collector.Ink.Strokes);

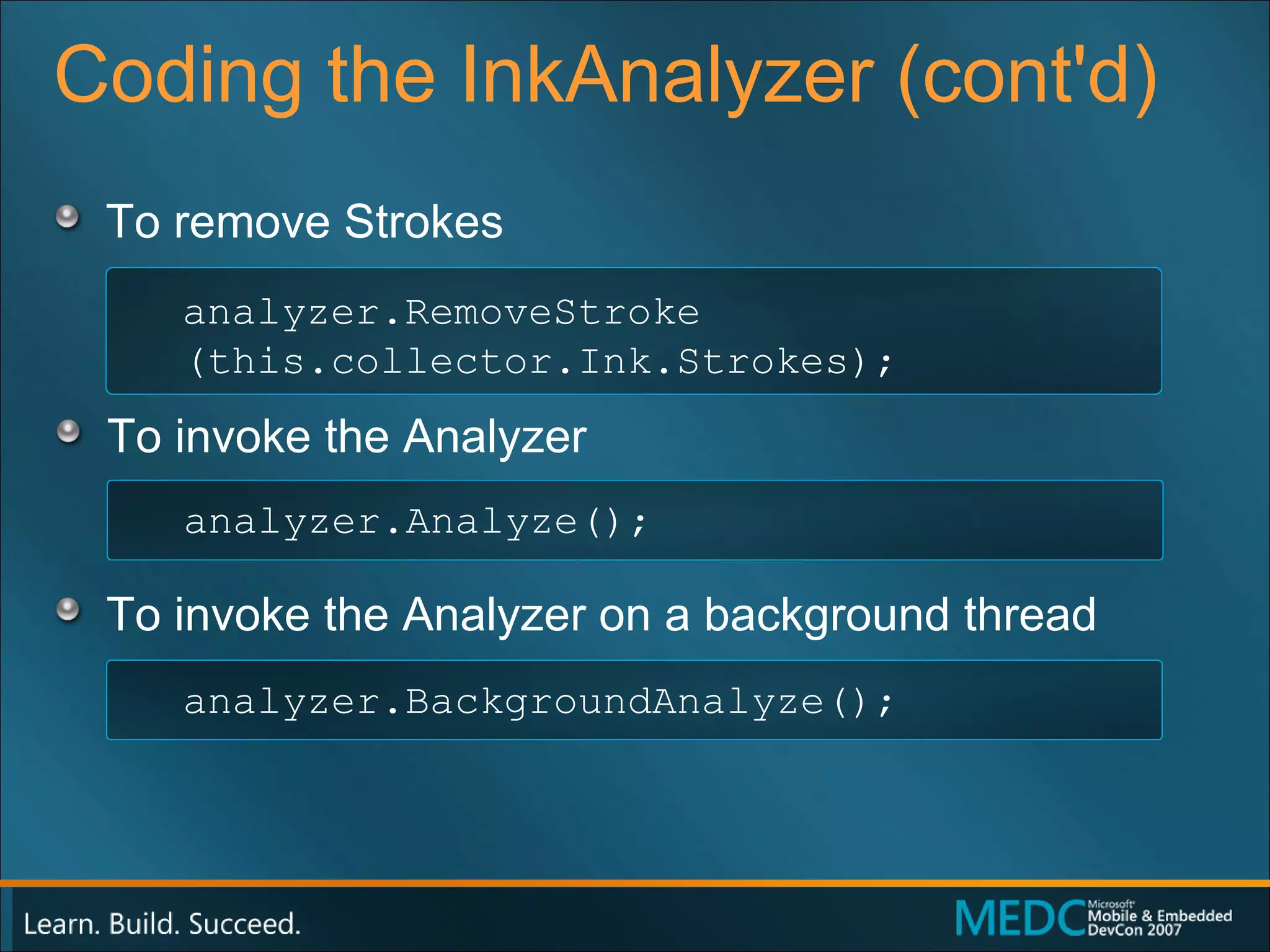

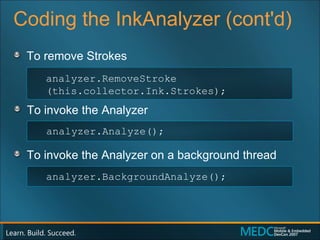

16. Coding the InkAnalyzer (cont'd) To remove Strokes To invoke the Analyzer To invoke the Analyzer on a background thread analyzer.RemoveStroke (this.collector.Ink.Strokes); analyzer.Analyze(); analyzer.BackgroundAnalyze();

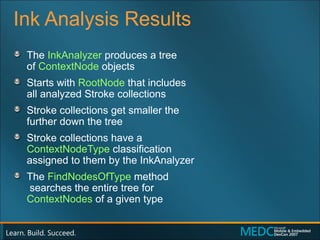

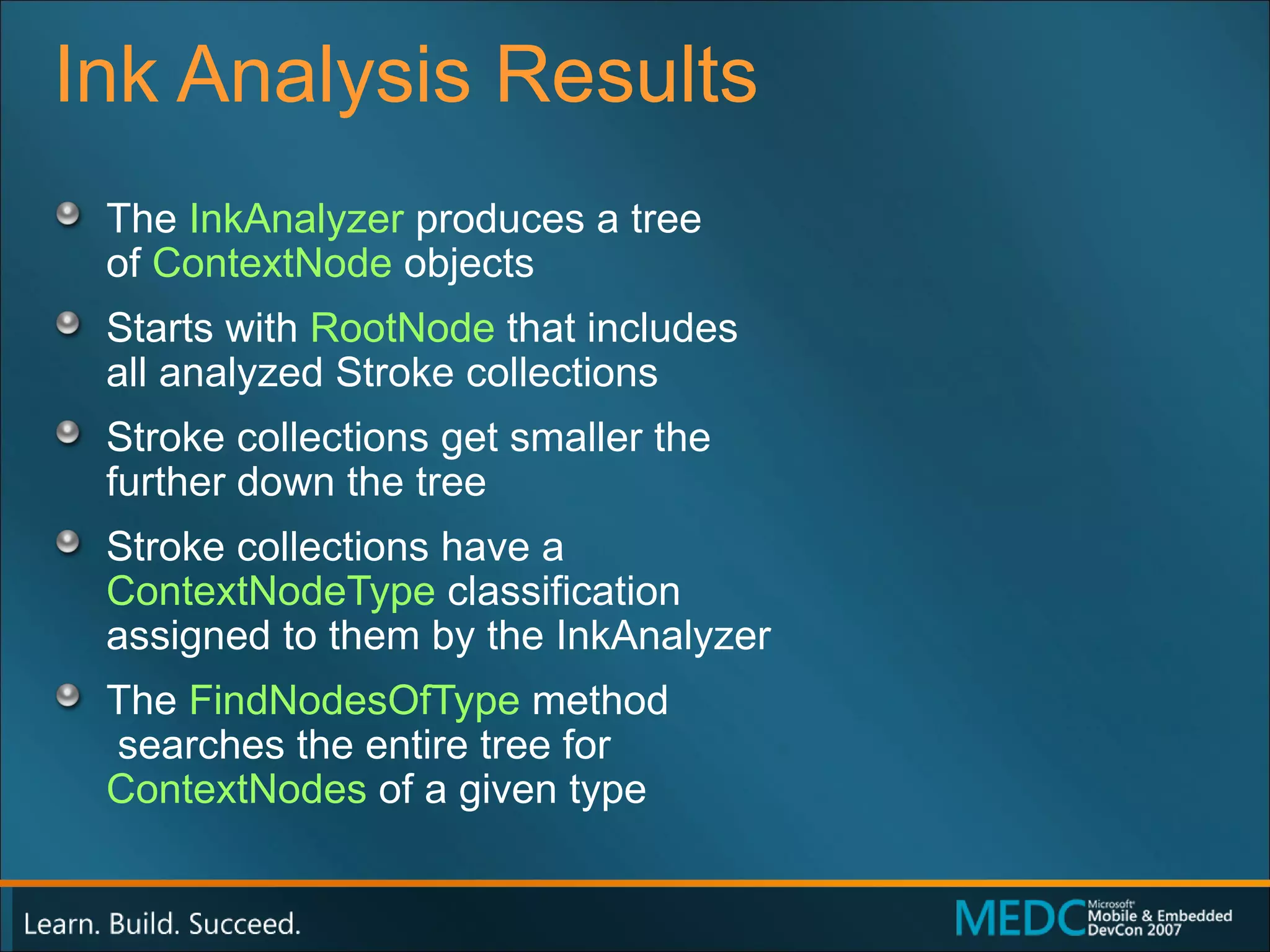

17. Ink Analysis Results The InkAnalyzer produces a tree of ContextNode objects Starts with RootNode that includes all analyzed Stroke collections Stroke collections get smaller the further down the tree Stroke collections have a ContextNodeType classification assigned to them by the InkAnalyzer The FindNodesOfType method searches the entire tree for ContextNodes of a given type

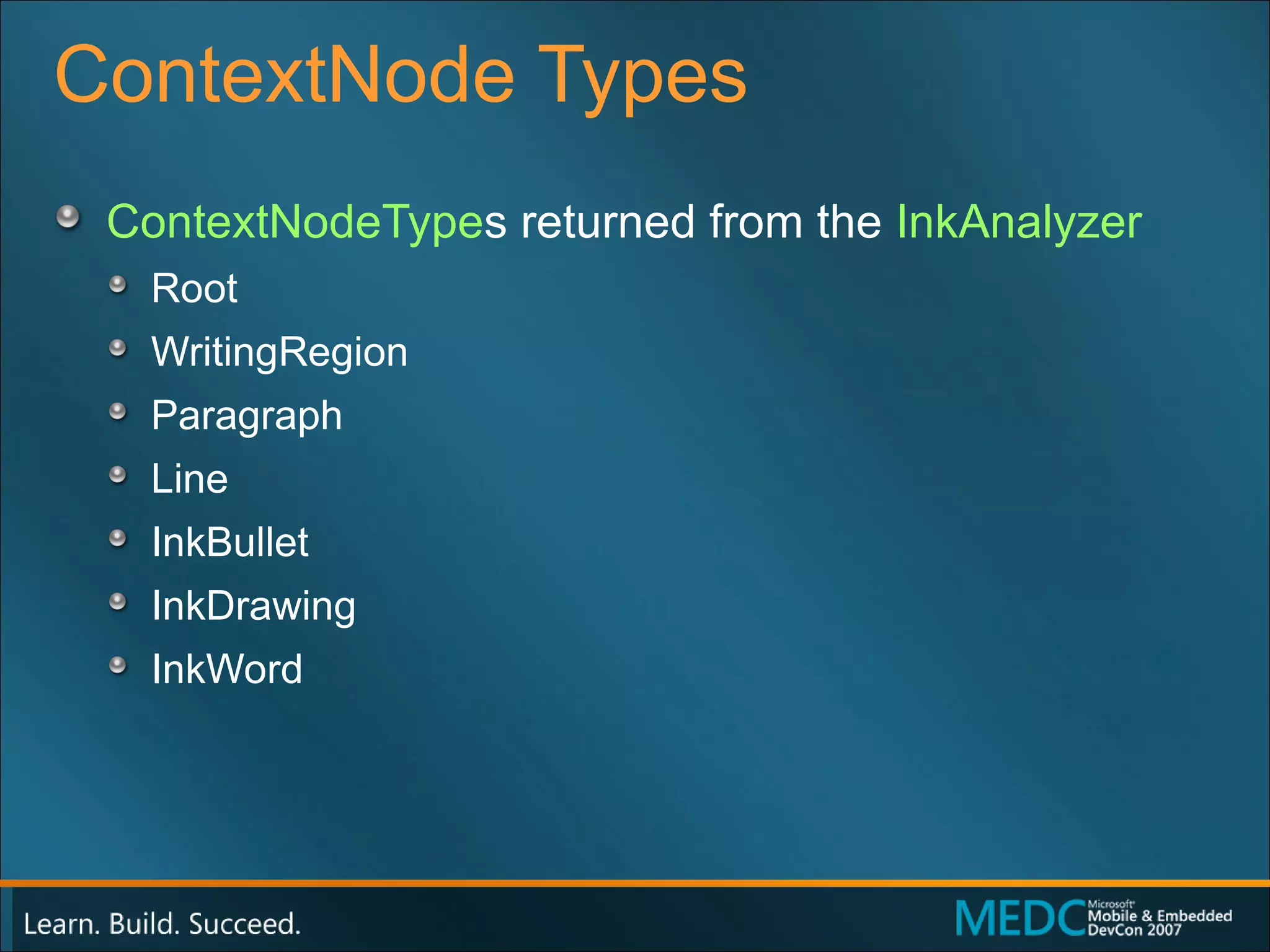

18. ContextNode Types ContextNodeType s returned from the InkAnalyzer Root WritingRegion Paragraph Line InkBullet InkDrawing InkWord

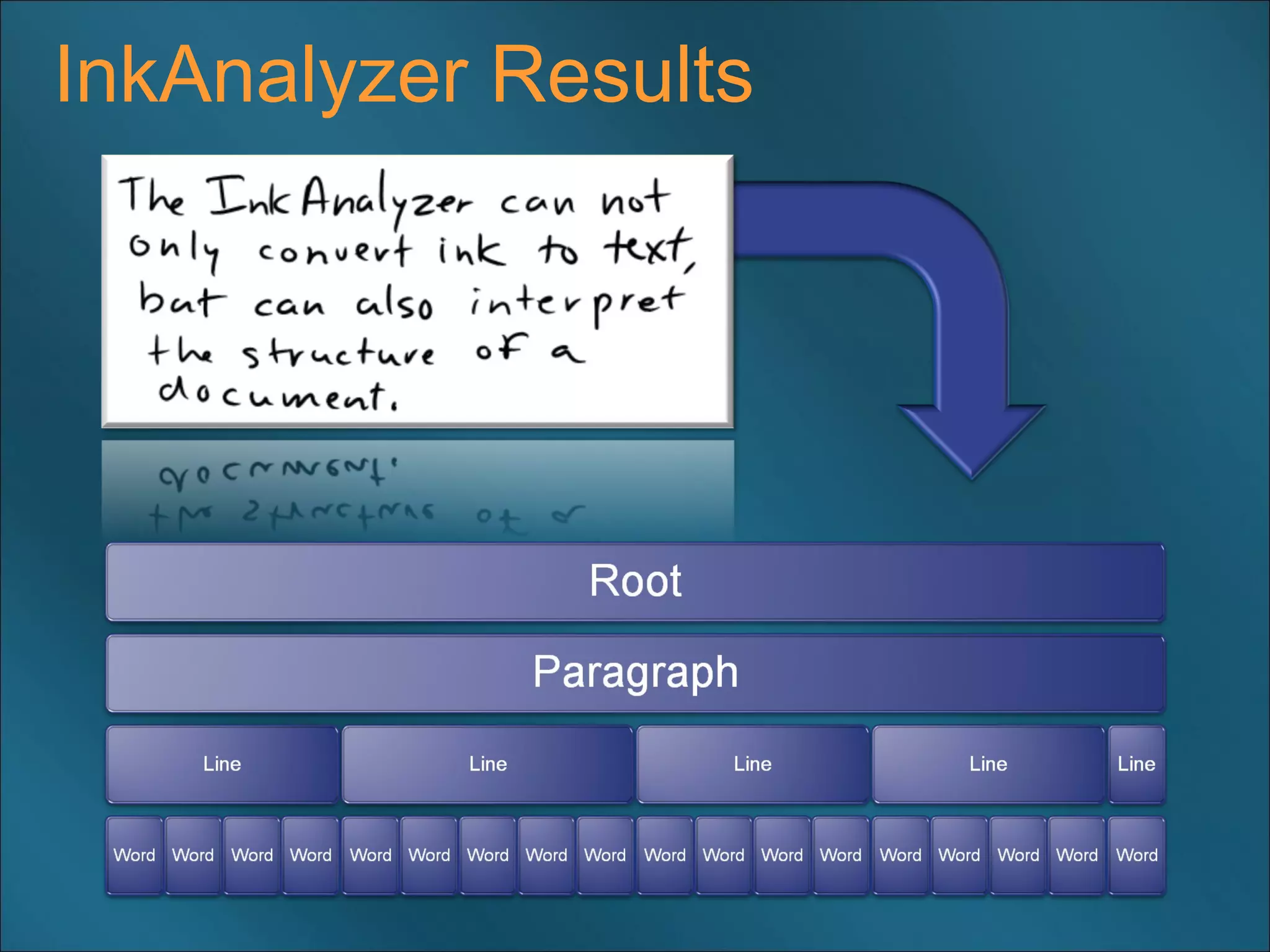

19. InkAnalyzer Results

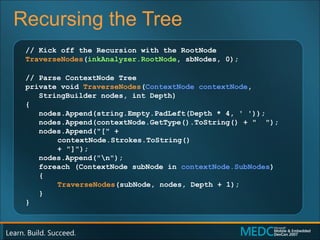

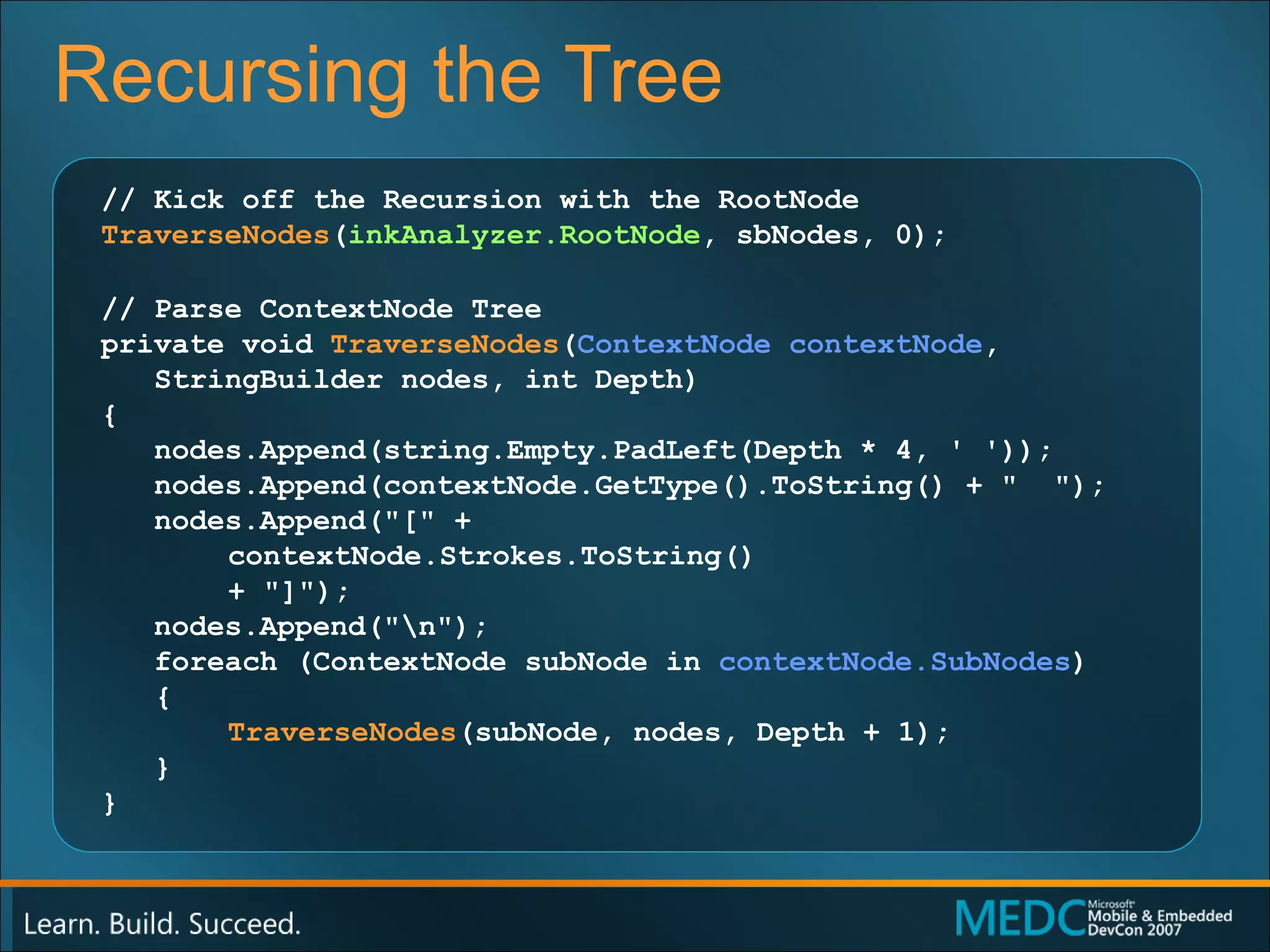

20. Recursing the Tree // Kick off the Recursion with the RootNode TraverseNodes ( inkAnalyzer.RootNode , sbNodes, 0); // Parse ContextNode Tree private void TraverseNodes ( ContextNode contextNode , StringBuilder nodes, int Depth) { nodes.Append(string.Empty.PadLeft(Depth * 4, ' ')); nodes.Append(contextNode.GetType().ToString() + " "); nodes.Append("[" + contextNode.Strokes.ToString() + "]"); nodes.Append("\n"); foreach (ContextNode subNode in contextNode.SubNodes ) { TraverseNodes (subNode, nodes, Depth + 1); } }

21. InkAnalysis Sample App

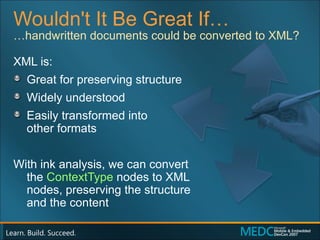

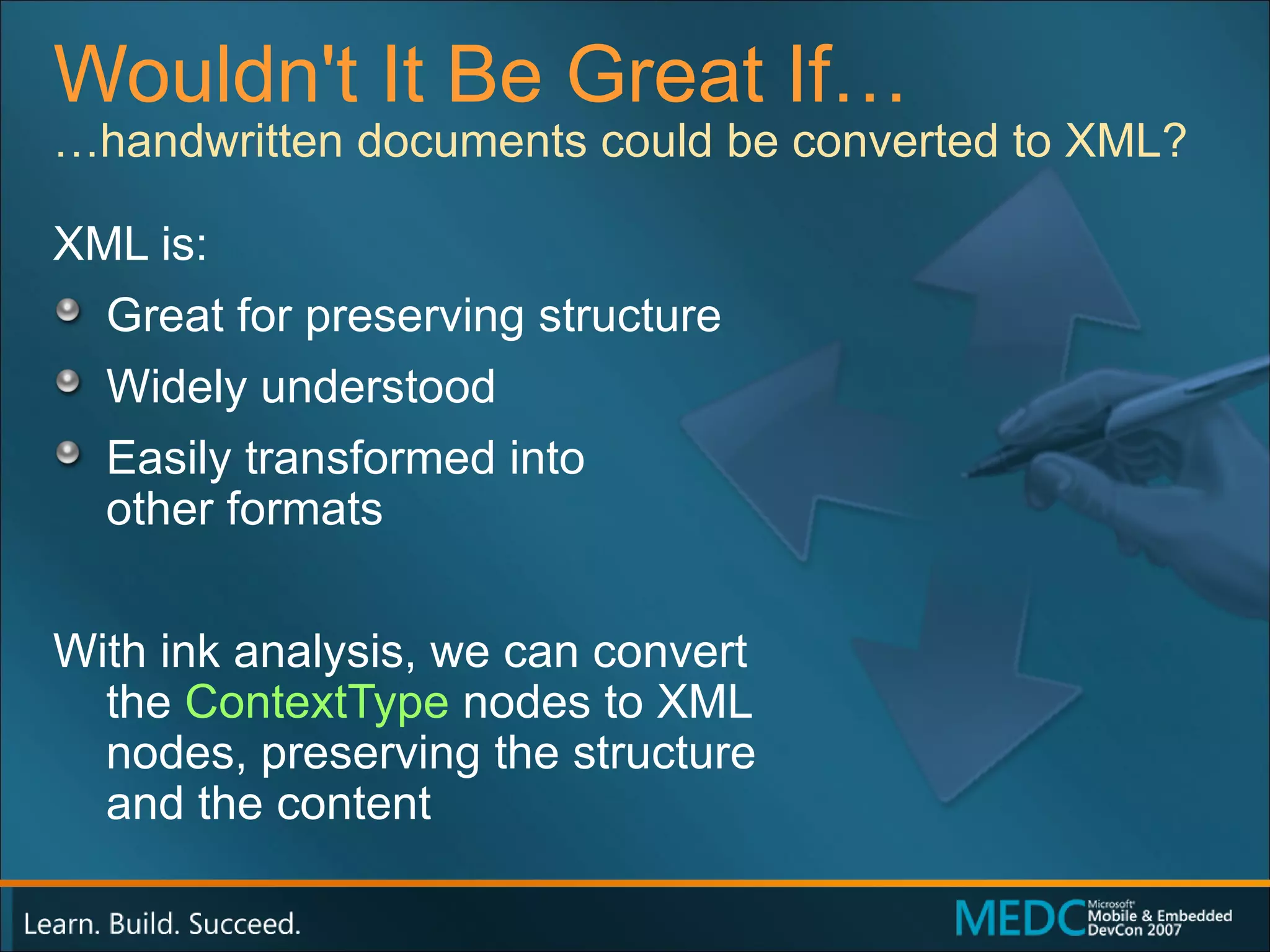

22. Wouldn't It Be Great If… XML is: Great for preserving structure Widely understood Easily transformed into other formats With ink analysis, we can convert the ContextType nodes to XML nodes, preserving the structure and the content … handwritten documents could be converted to XML?

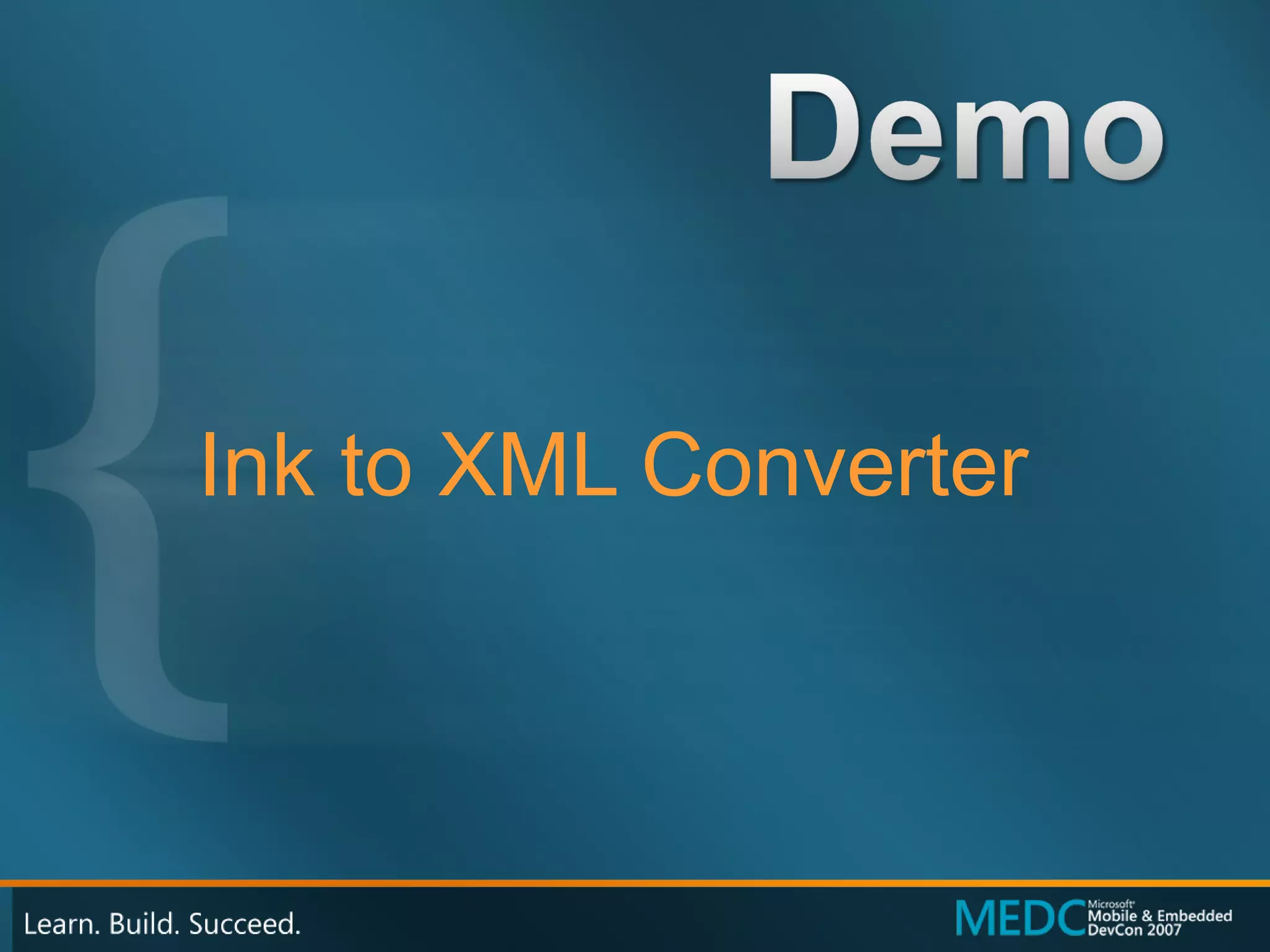

23. Ink to XML Converter

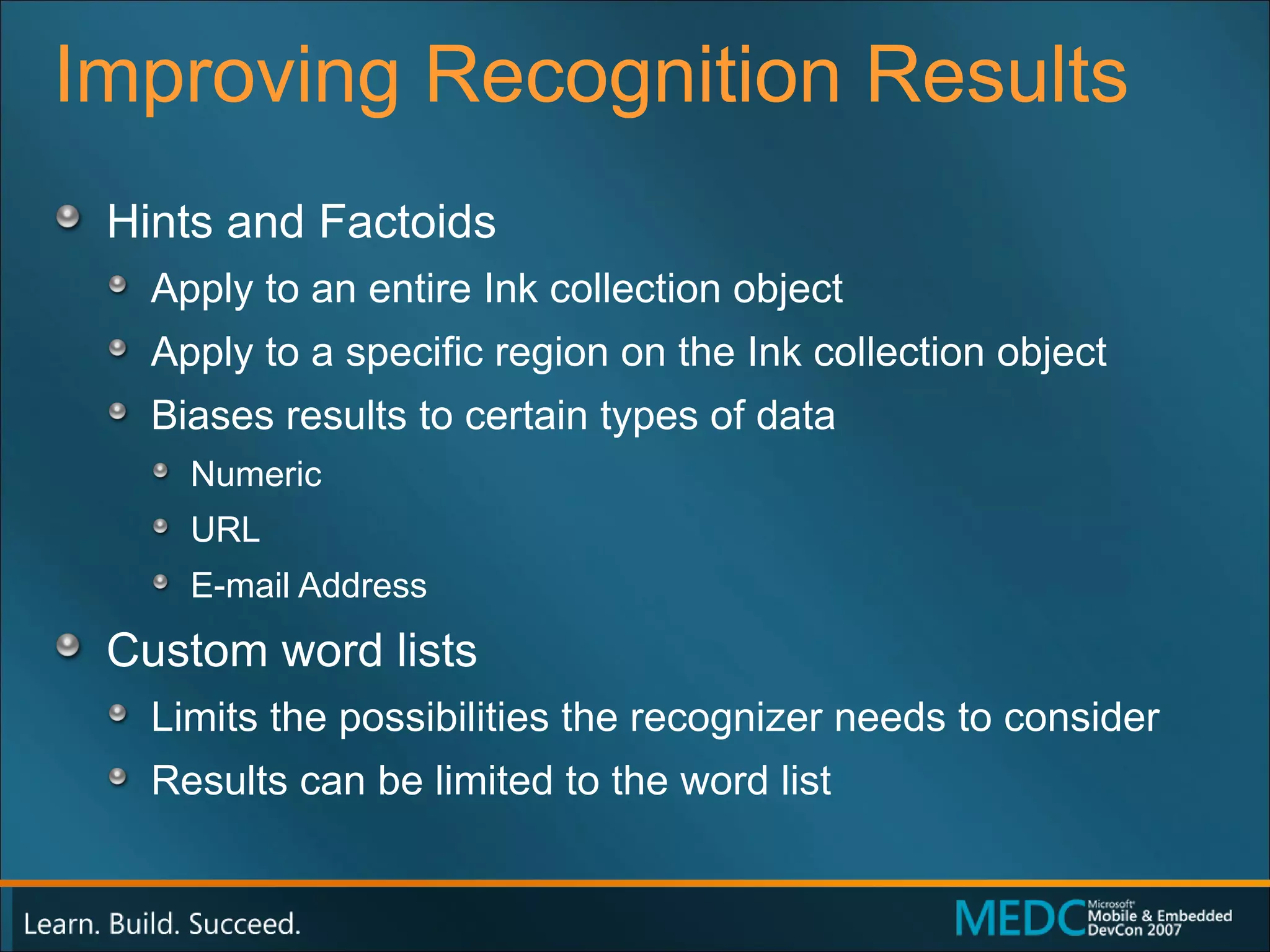

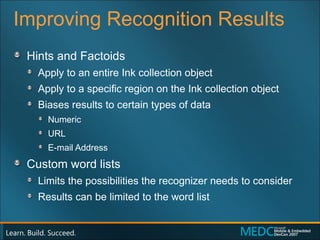

24. Improving Recognition Results Hints and Factoids Apply to an entire Ink collection object Apply to a specific region on the Ink collection object Biases results to certain types of data Numeric URL E-mail Address Custom word lists Limits the possibilities the recognizer needs to consider Results can be limited to the word list

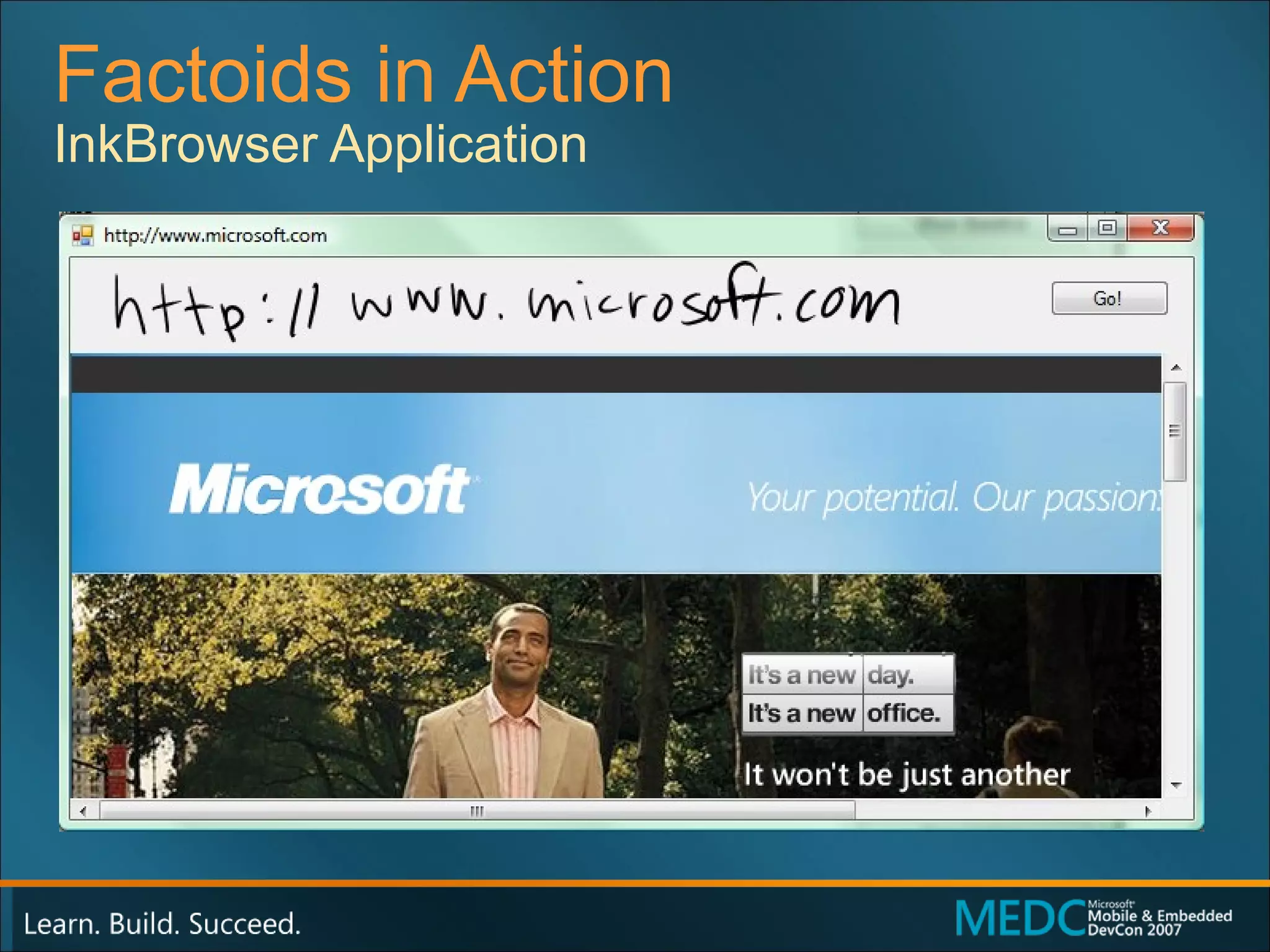

25. Factoids in Action InkBrowser Application

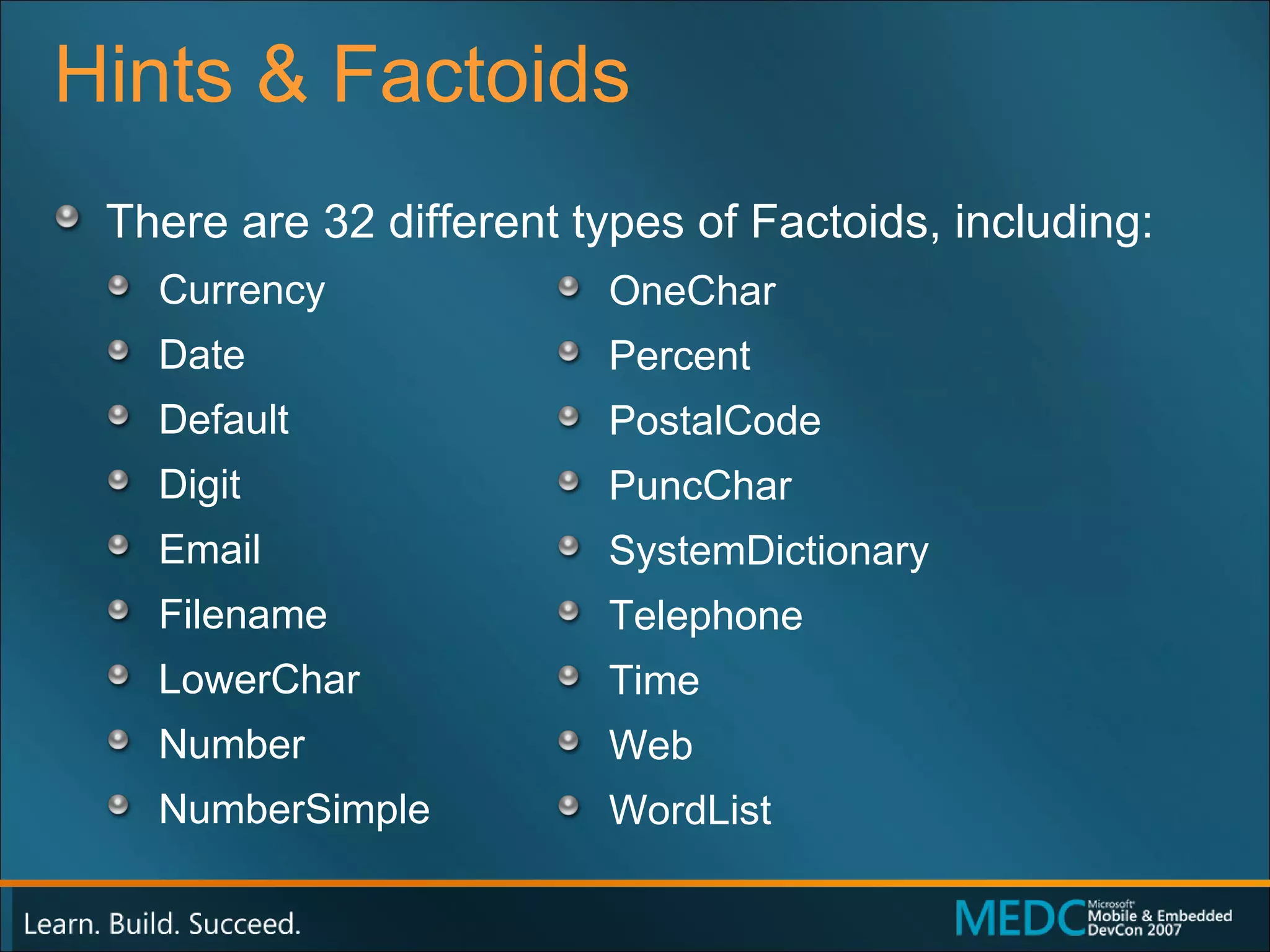

26. Hints & Factoids There are 32 different types of Factoids, including: Currency Date Default Digit Email Filename LowerChar Number NumberSimple OneChar Percent PostalCode PuncChar SystemDictionary Telephone Time Web WordList

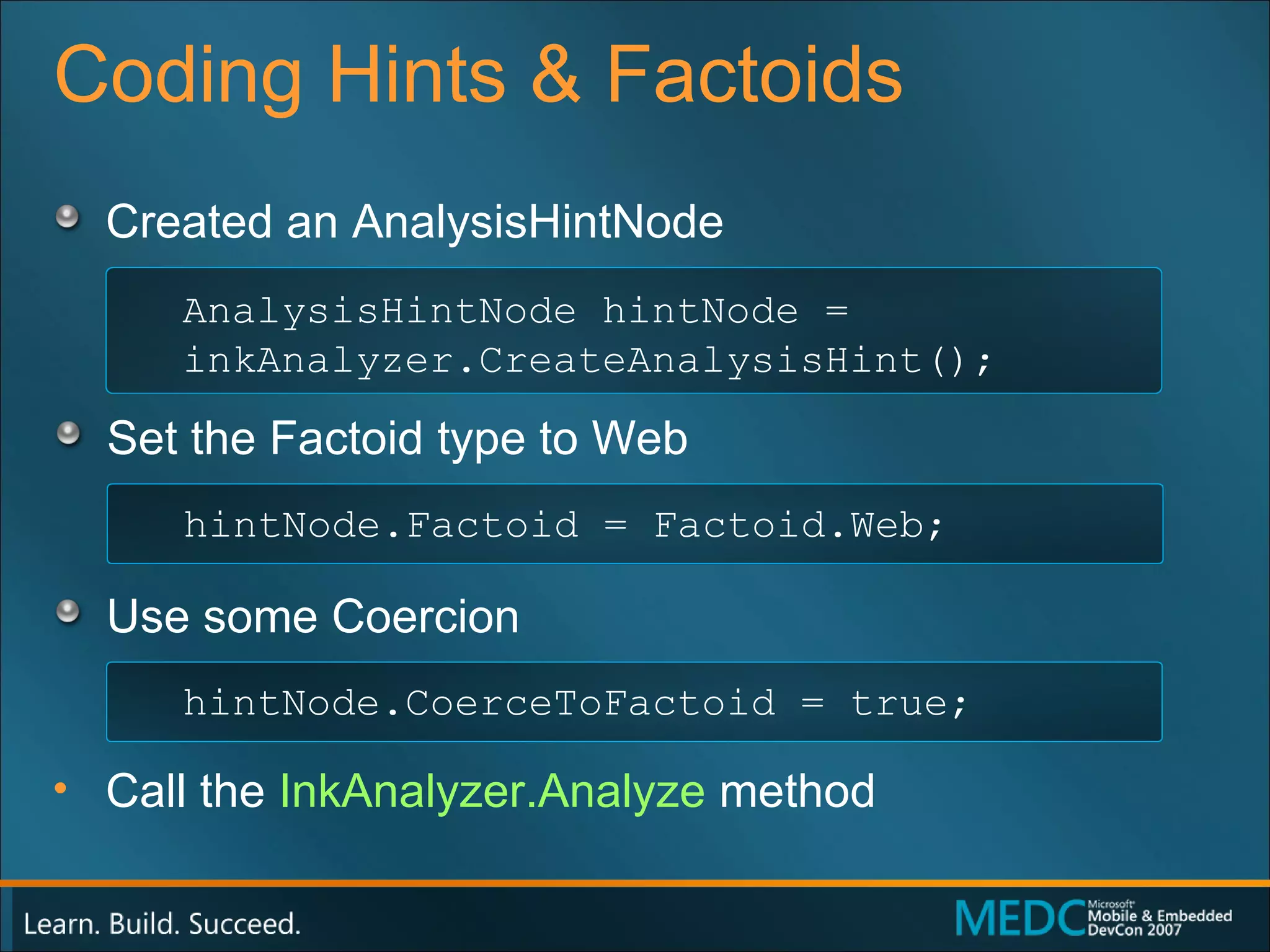

27. Coding Hints & Factoids Created an AnalysisHintNode Set the Factoid type to Web Use some Coercion Call the InkAnalyzer.Analyze method AnalysisHintNode hintNode = inkAnalyzer.CreateAnalysisHint(); hintNode.Factoid = Factoid.Web; hintNode.CoerceToFactoid = true;

28. InkWeb Browser

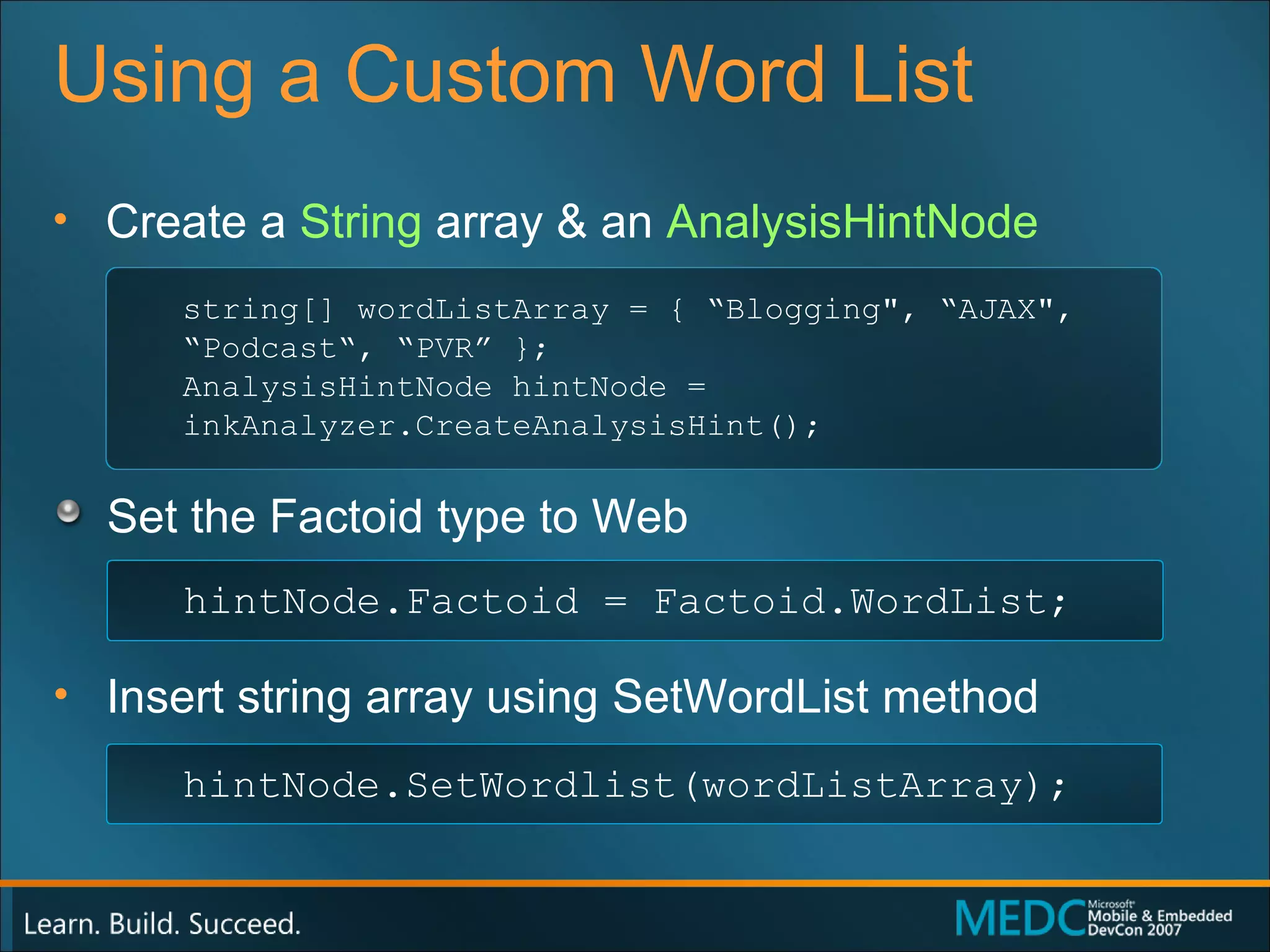

29. Using a Custom Word List Create a String array & an AnalysisHintNode Set the Factoid type to Web Insert string array using SetWordList method string[] wordListArray = { “Blogging", “AJAX", “Podcast“, “PVR” }; AnalysisHintNode hintNode = inkAnalyzer.CreateAnalysisHint(); hintNode.Factoid = Factoid.WordList; hintNode.SetWordlist(wordListArray);

30. Ink to Blog Application

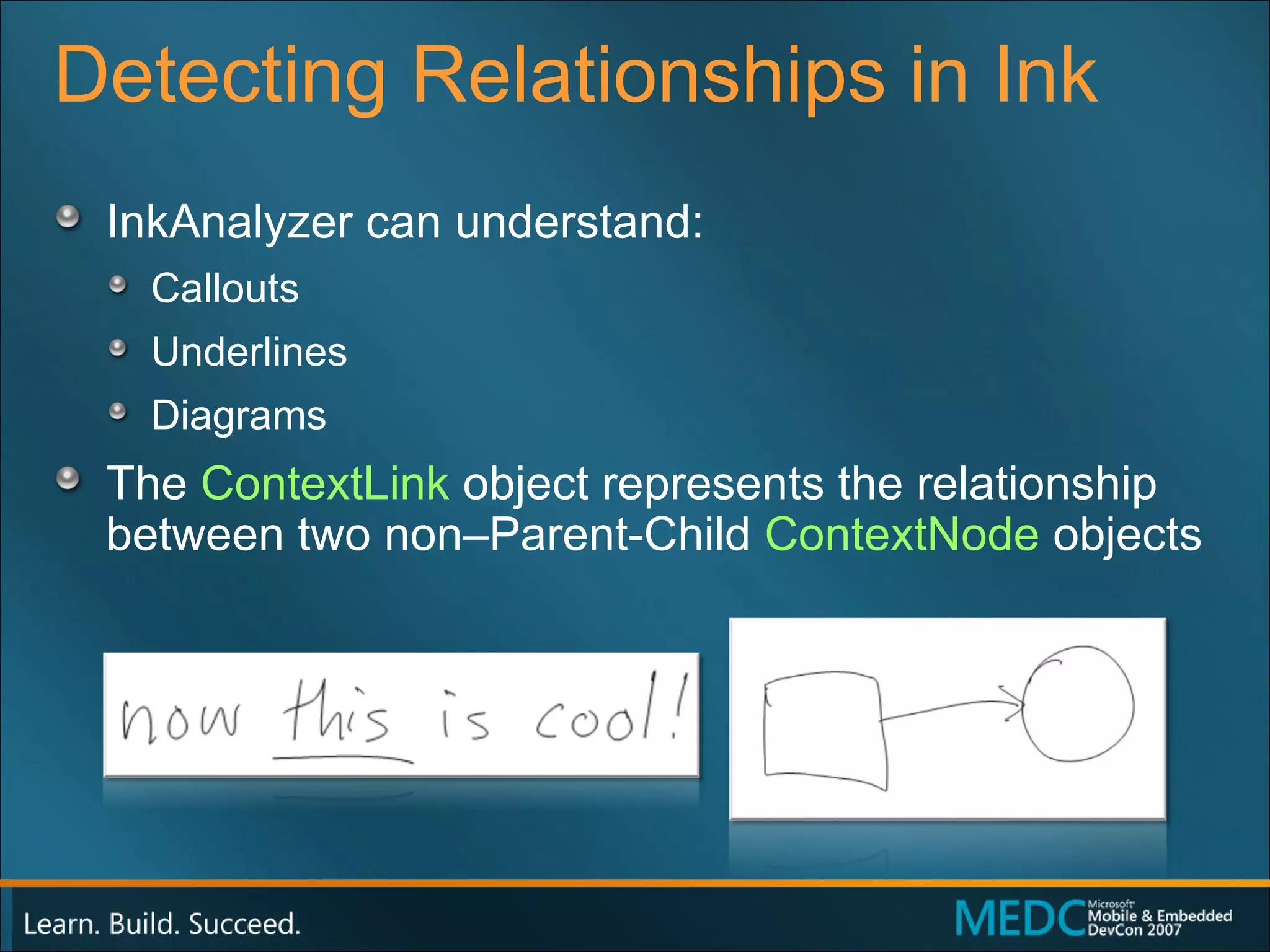

31. Detecting Relationships in Ink InkAnalyzer can understand: Callouts Underlines Diagrams The ContextLink object represents the relationship between two non–Parent-Child ContextNode objects

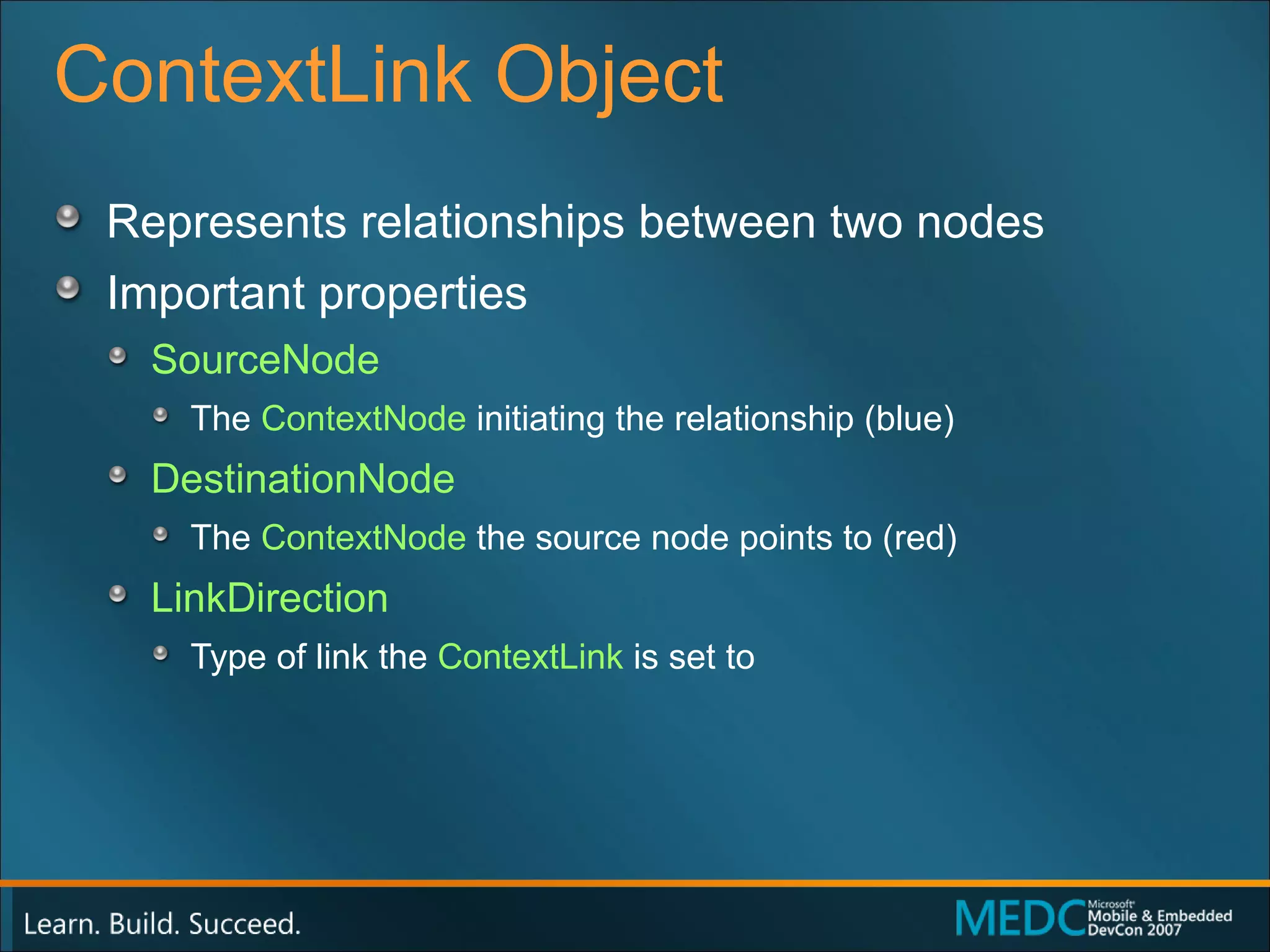

32. ContextLink Object Represents relationships between two nodes Important properties SourceNode The ContextNode initiating the relationship (blue) DestinationNode The ContextNode the source node points to (red) LinkDirection Type of link the ContextLink is set to

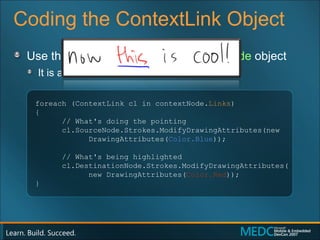

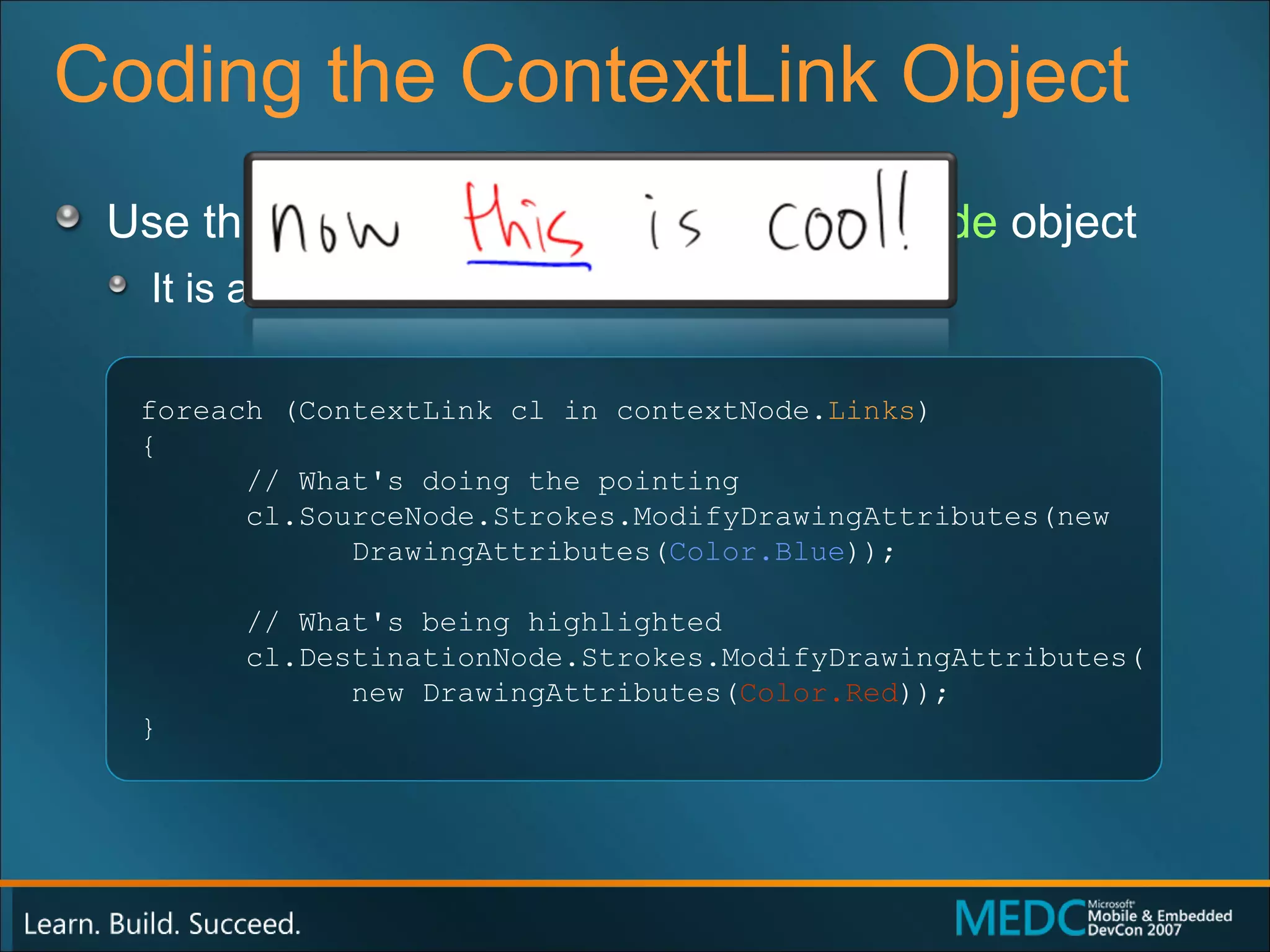

33. Coding the ContextLink Object Use the Links property of the ContextNode object It is a ContextLink collection foreach (ContextLink cl in contextNode. Links ) { // What's doing the pointing cl.SourceNode.Strokes.ModifyDrawingAttributes(new DrawingAttributes( Color.Blue )); // What's being highlighted cl.DestinationNode.Strokes.ModifyDrawingAttributes( new DrawingAttributes( Color.Red )); }

34. Finding Context Links

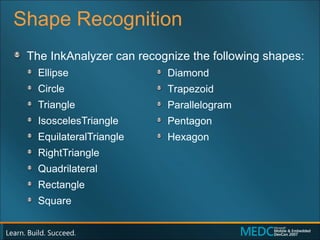

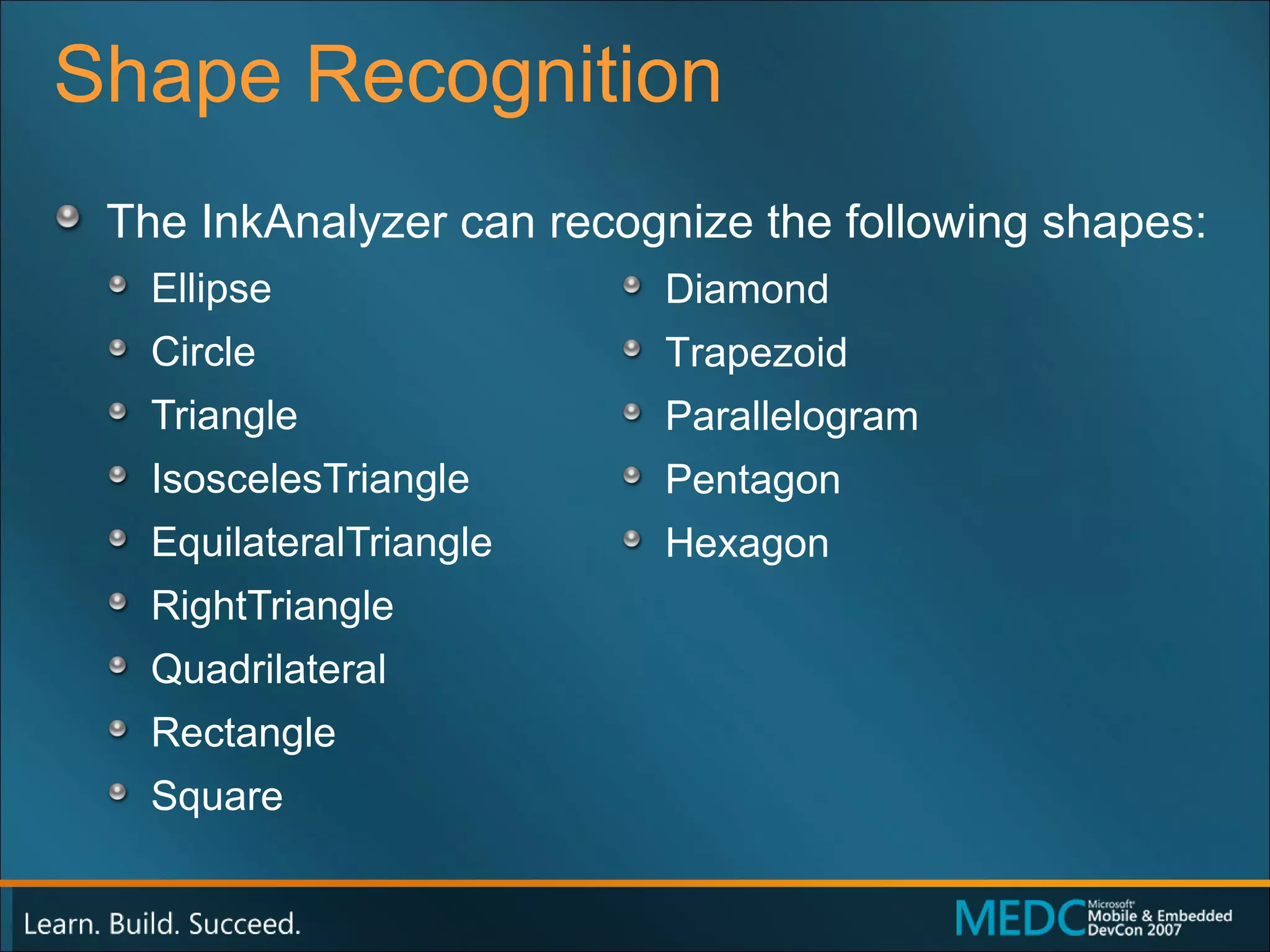

35. Shape Recognition The InkAnalyzer can recognize the following shapes: Ellipse Circle Triangle IsoscelesTriangle EquilateralTriangle RightTriangle Quadrilateral Rectangle Square Diamond Trapezoid Parallelogram Pentagon Hexagon

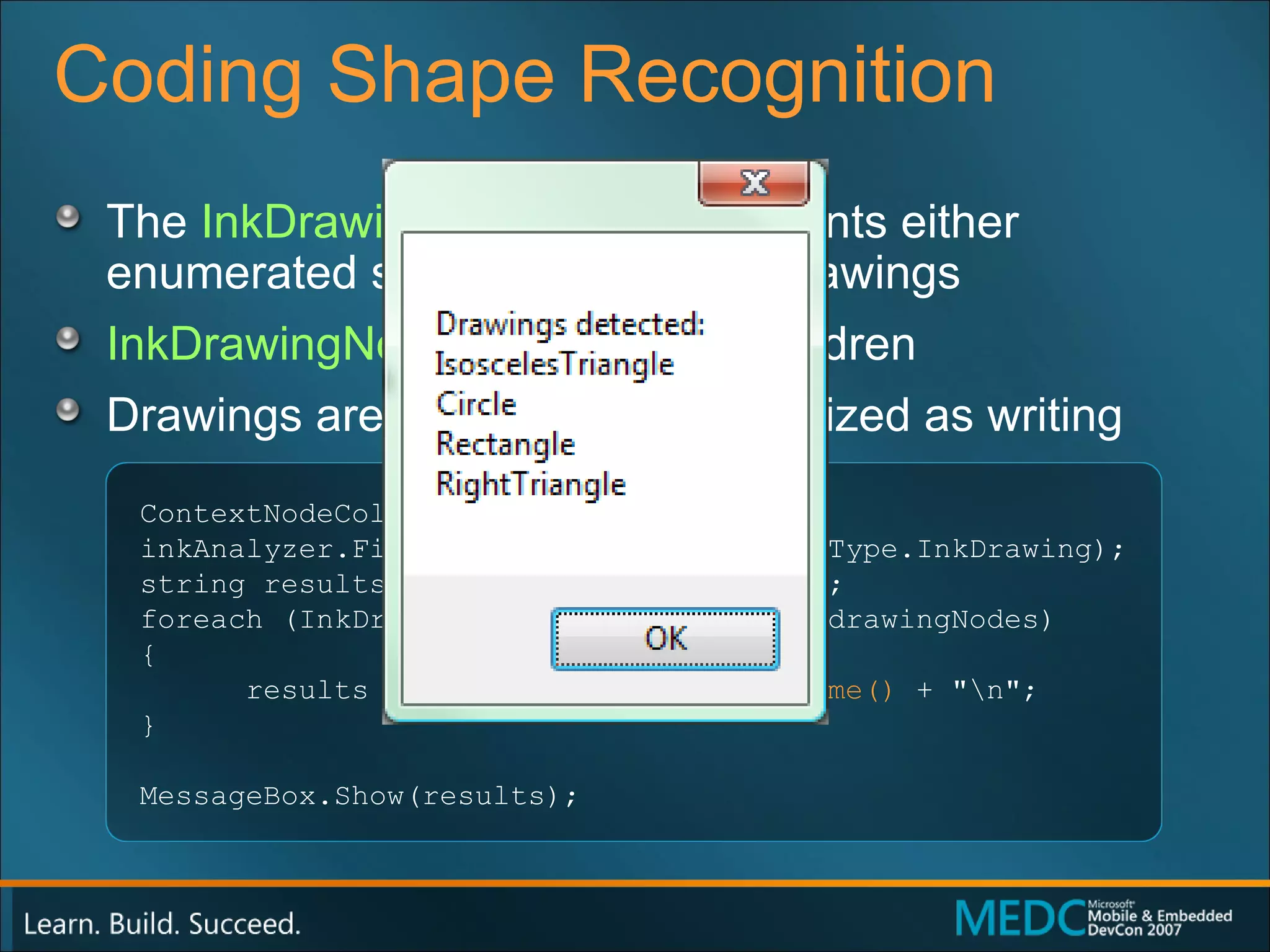

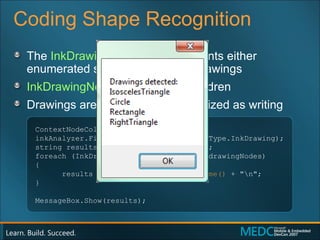

36. Coding Shape Recognition The InkDrawingNode type represents either enumerated shapes or abstract drawings InkDrawingNode s do not have children Drawings are generally not recognized as writing ContextNodeCollection drawingNodes = inkAnalyzer.FindNodesOfType(ContextNodeType.InkDrawing); string results = "Drawings detected:\n"; foreach (InkDrawingNode drawingNode in drawingNodes) { results += drawingNode. GetShapeName() + "\n"; } MessageBox.Show(results);

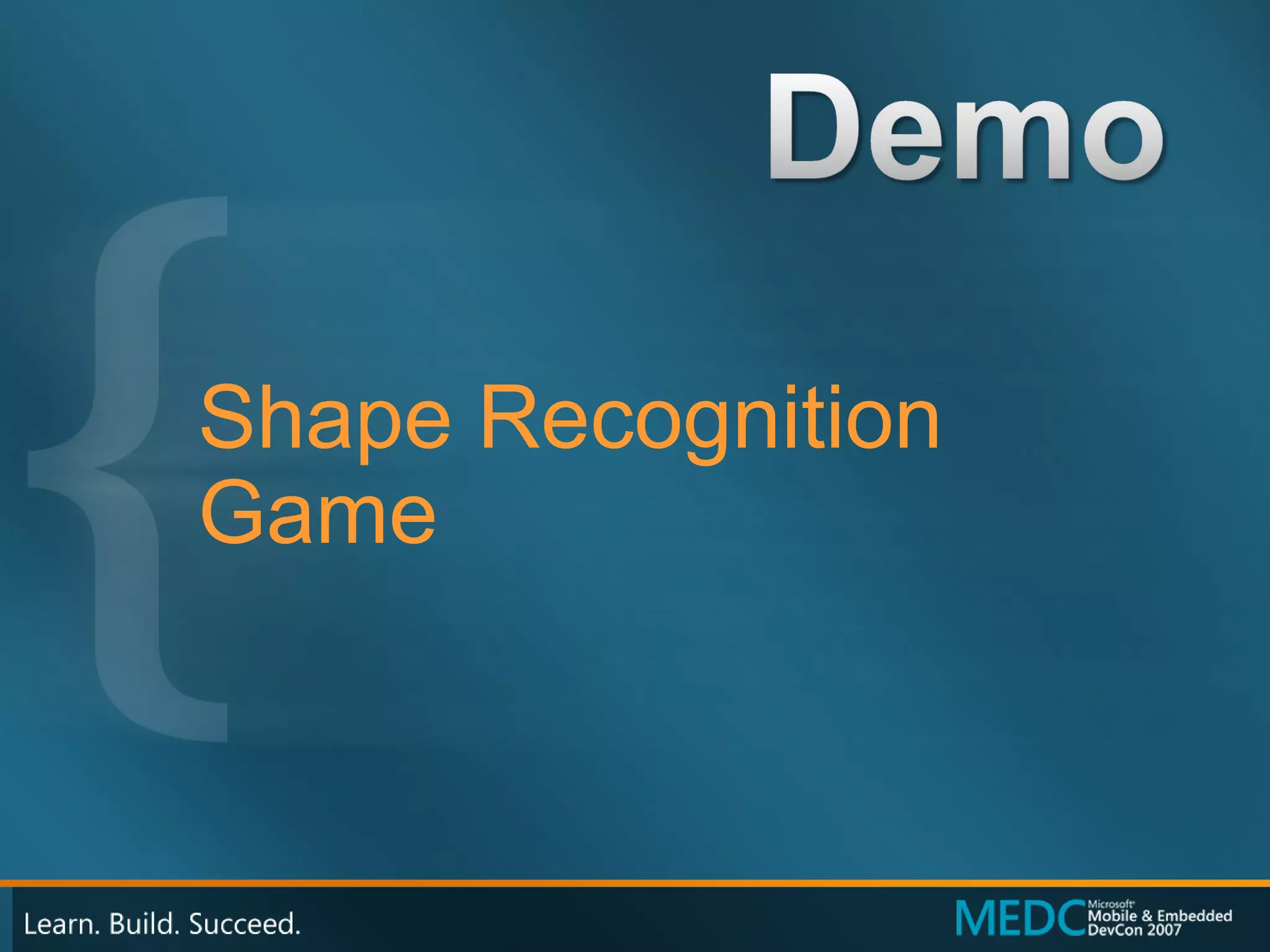

37. Shape Recognition Game

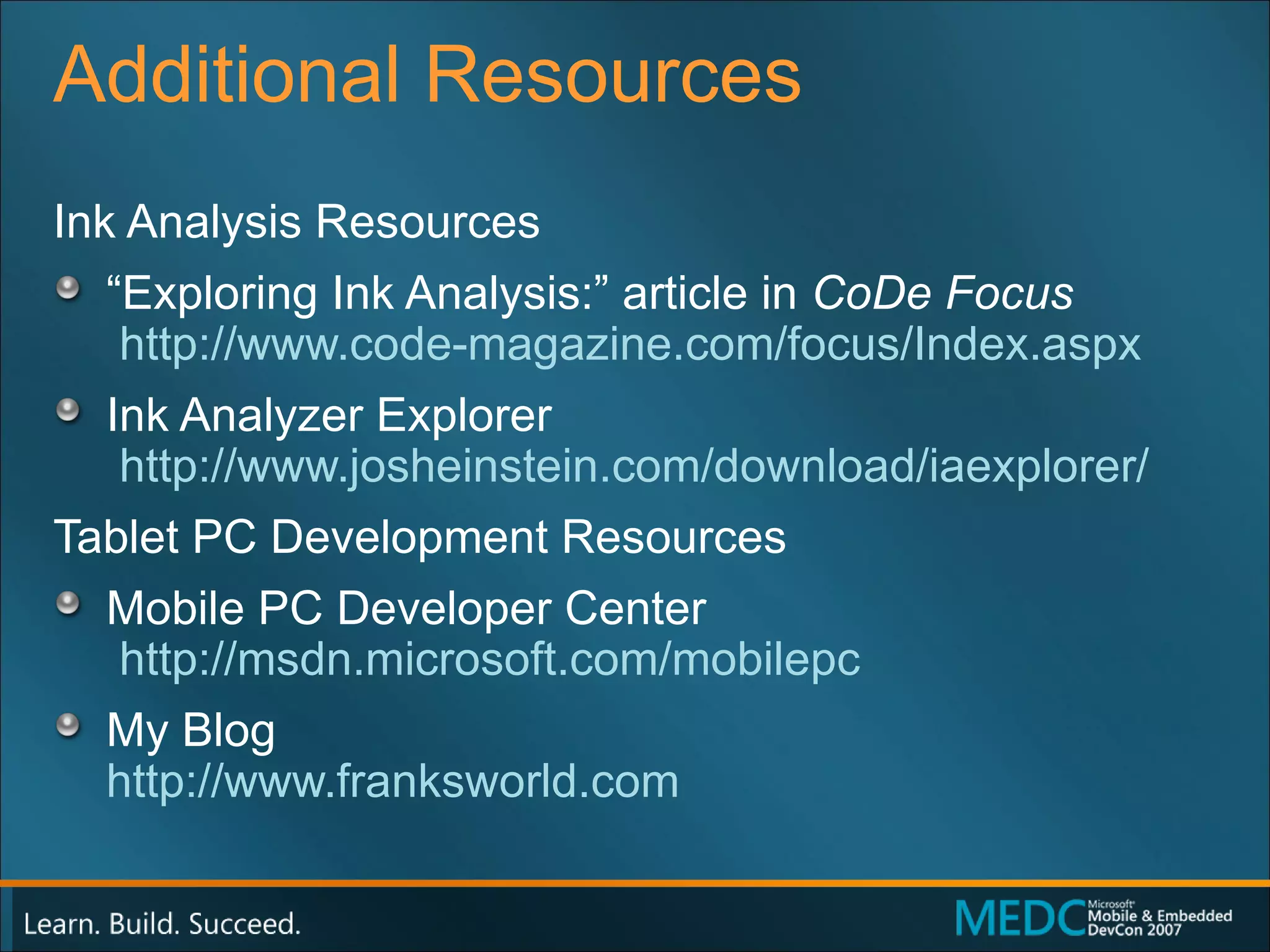

38. Additional Resources Ink Analysis Resources “ Exploring Ink Analysis:” article in CoDe Focus http://www.code-magazine.com/focus/Index.aspx Ink Analyzer Explorer http://www.josheinstein.com/download/iaexplorer/ Tablet PC Development Resources Mobile PC Developer Center http://msdn.microsoft.com/mobilepc My Blog http://www.franksworld.com

39. Questions & Answers
