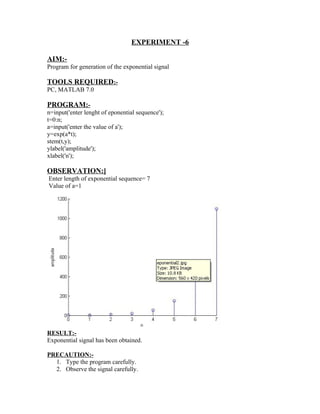

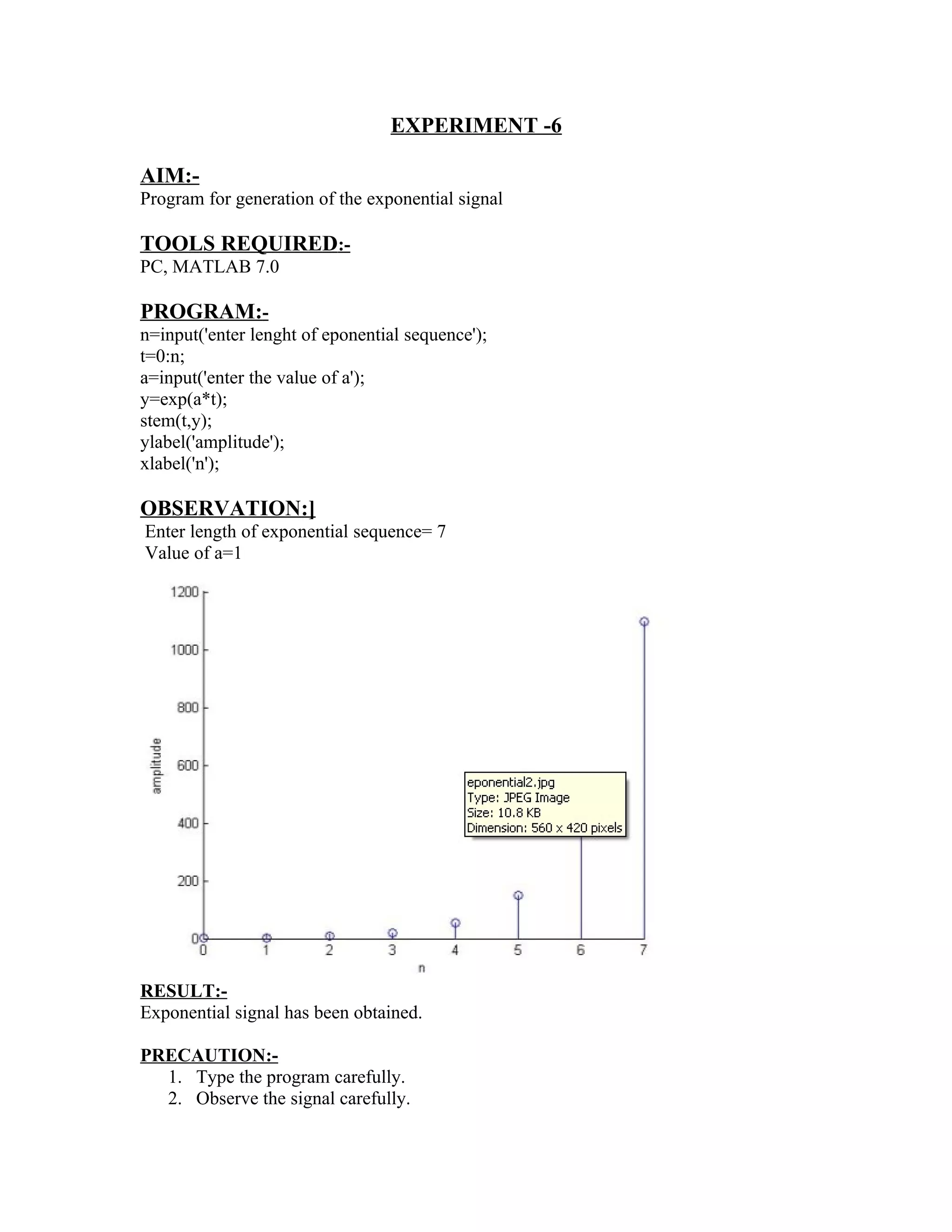

![EXPERIMENT -6
AIM:-
Program for generation of the exponential signal
TOOLS REQUIRED:-
PC, MATLAB 7.0
PROGRAM:-
n=input('enter lenght of eponential sequence');
t=0:n;
a=input('enter the value of a');
y=exp(a*t);
stem(t,y);
ylabel('amplitude');
xlabel('n');
OBSERVATION:]
Enter length of exponential sequence= 7
Value of a=1
RESULT:-
Exponential signal has been obtained.
PRECAUTION:-
1. Type the program carefully.
2. Observe the signal carefully.](https://image.slidesharecdn.com/experiment6matlab-111002085335-phpapp01/85/Experiment6matlab-1-320.jpg)
