1. Rationale, Technique and
Tips
Moby Parsons, MD

3. Disclosure
Consulting and royalties
from EXACTECH© for the EQUINOXE℗ program

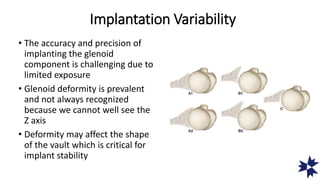

4. Implantation Variability
• The accuracy and precision of
implanting the glenoid
component is challenging due to
limited exposure
• Glenoid deformity is prevalent
and not always recognized
because we cannot well see the
Z axis
• Deformity may affect the shape
of the vault which is critical for
implant stability

5. Risk of too much glenoid retroversion?
• Studies have demonstrated that
forces in the cement, glenoid
prosthesis, and glenoid bone
increase when the prosthesis is
implanted in too much
retroversion

6. Increased Retroversion = Increased Glenoid
Micromotion

7. Increased Retroversion = Increased
Glenohumeral Translations

8. Reverse Prosthesis Biomechanics
• Position and orientation of the
glenosphere affect
• Impingement free range of motion
• Scapular notching
• Implant stability
Predictors of scapular notching in patients managed
with the Delta III reverse total shoulder replacement
Simovitch et al. JBJS 2007;89:588-600
Effects of glenosphere positioning on impingement-
free internal and external rotation after reverse total
shoulder arthroplasty Li et al. JSES 2013;22:807:813

9. Anatomic Reconstruction
• More accurate reproduction of
glenohumeral anatomy is the
primary design goal in shoulder
arthroplasty; this has recently
been associated with improved
aTSA clinical outcomes.

10. • With the technology available today, are our surgical
techniques as good as they can be?
• Have we set the bar too low?
• How often do we get it right?

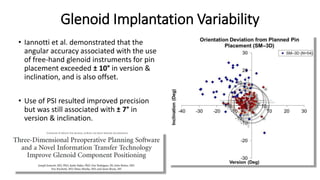

11. Glenoid Implantation Variability
• Iannotti et al. demonstrated that the
angular accuracy associated with the use
of free-hand glenoid instruments for pin
placement exceeded ± 10° in version &
inclination, and is also offset.
• Use of PSI resulted improved precision
but was still associated with ± 7° in
version & inclination.

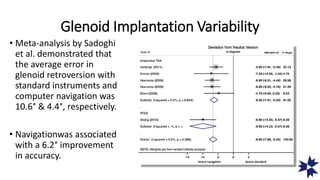

12. Glenoid Implantation Variability
• Meta-analysis by Sadoghi
et al. demonstrated that
the average error in
glenoid retroversion with
standard instruments and
computer navigation was
10.6° & 4.4°, respectively.
• Navigationwas associated
with a 6.2° improvement
in accuracy.

13. We don’t even know what we think we know!
Expert shoulder surgeons
freehanding baseplate
placement relative to
preoperative plan compared to
navigation

14. With the technology available today…..
• Advanced
computing/processing
power
• Ubiquitous chips and
sensors
• Artificial intelligence
• Machine Learning

15. Rationale for GPS
• Optimal position of implant to ensure best fixation in bone
• Optimal implant selection to restore glenoid version with minimal
glenoid reaming
• Reproducibility of good results particularly in complex cases

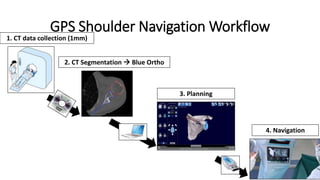

16. GPS Shoulder Navigation Workflow
1. CT data collection (1mm)
2. CT Segmentation  Blue Ortho
3. Planning
4. Navigation

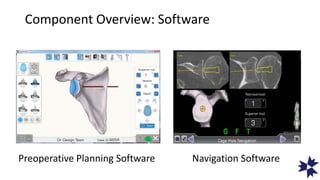

17. Component Overview: Software
Preoperative Planning Software Navigation Software

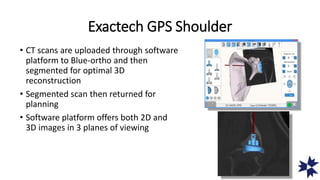

18. Exactech GPS Shoulder
• CT scans are uploaded through software
platform to Blue-ortho and then
segmented for optimal 3D
reconstruction
• Segmented scan then returned for
planning
• Software platform offers both 2D and
3D images in 3 planes of viewing

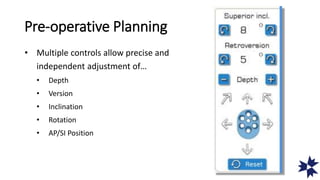

19. Pre-operative Planning
• Multiple controls allow precise and
independent adjustment of…
• Depth
• Version
• Inclination
• Rotation
• AP/SI Position

20. Pre-operative Planning
• High resolution image can be freely rotated to view in any plane
• Both RTSA and ATSA can be planned allowing surgeons to choose
the best implant to deal with glenoid anatomy and any wear
complex wear patterns.
• User-controlled positioning permits selection of the ideal prosthesis
for that patient and enables the surgeon to position it to maximize
implant seating, minimize bone removal, and orient it in the desired
version, inclination, and overhang. And then set plan.
• Visualization is most useful in cases of glenoid deformation where
glenoid version may have gone unnoticed and/or small anatomies
which may have otherwise been non-ideally positioned in the vault
and resulted in cortical perforation.

21. Pre-operative Planning
• 2D slices can be very useful in
cases of small glenoids or glenoid
wear to determine optimal cage
position to maximize purchase in
vault and minimize cage
perforation.

22. Plan Transfer
Plan transferred by USB drive to GPS system allowing surgeons
to navigate starting point for drill, orientation of depth of
glenoid reaming, and reverse screw placement

23. Component Overview: Reusable
ExactechGPS® Station V2
with arm J00020
Camera/Screen
and Bed Mount
Probe and
Trackers
Coracoid
Tracker
Mount
Instrument
Navigation

24. Component Overview: Disposables
Batteries for Trackers
Drape Pack for Screen

25. Positioning
• Screen opposite surgeon and
between hip and foot of table so
patient head does not interfere
with line of site between camera
and trackers

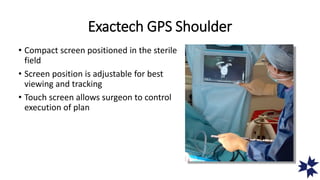

26. Exactech GPS Shoulder
• Compact screen positioned in the sterile
field
• Screen position is adjustable for best
viewing and tracking
• Touch screen allows surgeon to control
execution of plan

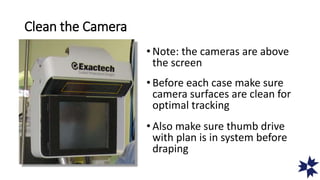

27. Clean the Camera
• Note: the cameras are above
the screen
• Before each case make sure
camera surfaces are clean for
optimal tracking
• Also make sure thumb drive
with plan is in system before
draping

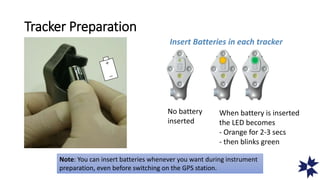

28. Insert Batteries in each tracker
Note: You can insert batteries whenever you want during instrument
preparation, even before switching on the GPS station.
No battery
inserted
When battery is inserted
the LED becomes
- Orange for 2-3 secs
- then blinks green
Tracker Preparation

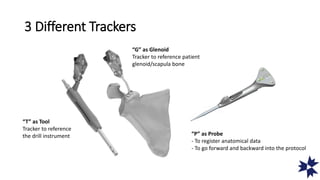

29. “P” as Probe
- To register anatomical data
- To go forward and backward into the protocol
“T” as Tool
Tracker to reference
the drill instrument
“G” as Glenoid
Tracker to reference patient
glenoid/scapula bone
3 Different Trackers

30. Tracker Calibration
• All three (Probe, Tool, Glenoid)
need to be calibrated to camera
• Tool and Glenoid need to be
calibrated to Probe

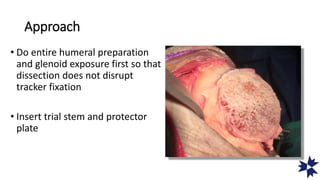

31. Approach
• Do entire humeral preparation
and glenoid exposure first so that
dissection does not disrupt
tracker fixation
• Insert trial stem and protector
plate

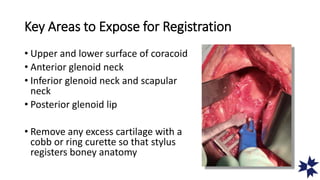

32. Key Areas to Expose for Registration
• Upper and lower surface of coracoid
• Anterior glenoid neck
• Inferior glenoid neck and scapular
neck
• Posterior glenoid lip
• Remove any excess cartilage with a
cobb or ring curette so that stylus
registers boney anatomy

33. Glenoid Tracker Placement
• Place sharp Hohman behind coracoid
base to fully expose
• Use cautery to remove tissue from
superior surface
• Place tracker center/center
• Sequentially tighten screws

34. Exactech GPS Shoulder
• Acquisition of anatomic landmarks registers
the CT scan and plan to the patients anatomy.
• Registration is simple & takes ~2 minutes.

35. Data Point Acquisition
• Use two hands on probe for
optimal accuracy
• Keep probe on bone for
each acquisition step until
sufficient points captures
(beep)
• Do not move anterior
retractor or else risk tracker
loosening

36. Data Quality Determination
• Green points = good
• Yellow points = fair
• Red points = poor
• Can go back and recapture too
much yellow or red

37. Exactech GPS Shoulder
• Adjustment of the plan based on intra-op assessment
• Step-by-step guidance through the case, including images
of the appropriate instrument for the step
• Plan is indicated in blue.
• System constantly informs surgeon of the deviation from
plan, the Friedman axis for version, and also inclination.

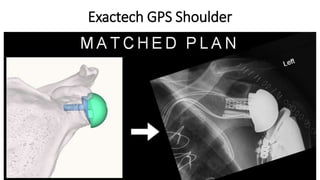

39. Exactech GPS Shoulder

40. Advantage in Challenging Cases
• Case example of baseplate implantation in eroded glenoid:

41. Advantage in revision cases?
• CT reconstruction, preop plan, & navigation can occur w/ existing implant:

42. Accuracy & Precision
• Results of 9 cadavers demonstrate that the GPS
computer navigation system is accurate within 2°
version/inclination and 2mm in A/P and S/I
implant placement
Retroversion
(degrees)
Inclination
(degrees)
AP
Placement
(mm)
SI Placement
(mm)
Average (abs) 1.6 1.0 1.0 0.7
Average -0.3 0.5 0.8 0.3
Standard
Deviation
1.88 1.15 1.12 0.86

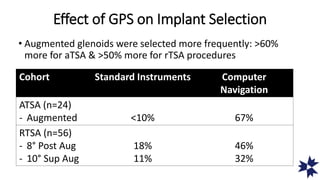

43. Effect of GPS on Implant Selection
• Augmented glenoids were selected more frequently: >60%
more for aTSA & >50% more for rTSA procedures
Cohort Standard Instruments Computer
Navigation
ATSA (n=24)
- Augmented <10% 67%
RTSA (n=56)
- 8° Post Aug
- 10° Sup Aug
18%
11%
46%
32%
