1. "
GARAGE MUD ROOM
INSULATION BAFFLES
UNFINISHED BASEMENT
FAMILY DINING
BEDROOM #2
FAMILY ROOM
BEDROOM #1
ASPHALT SHINGLES
FIRE WALL
R19 BATT
TYP
TOP PLATE
GARAGE
9'-2 5/8"
GROUND
R30 BATT INSULATION
TOP PLATE SECOND FLOOR
8'-1 1/8"
SECOND FLOOR
10'-11 1/8"
FIRST LOOR
1'-9 3/8"
GROUND
9'-258
1/2" GYP BD
7'-71
2" 1'-4" 9'-71
8" 1'-4" 8'-11
8"
BASEMENT FLOOR
0'-0"
0'-0"
0'-0"

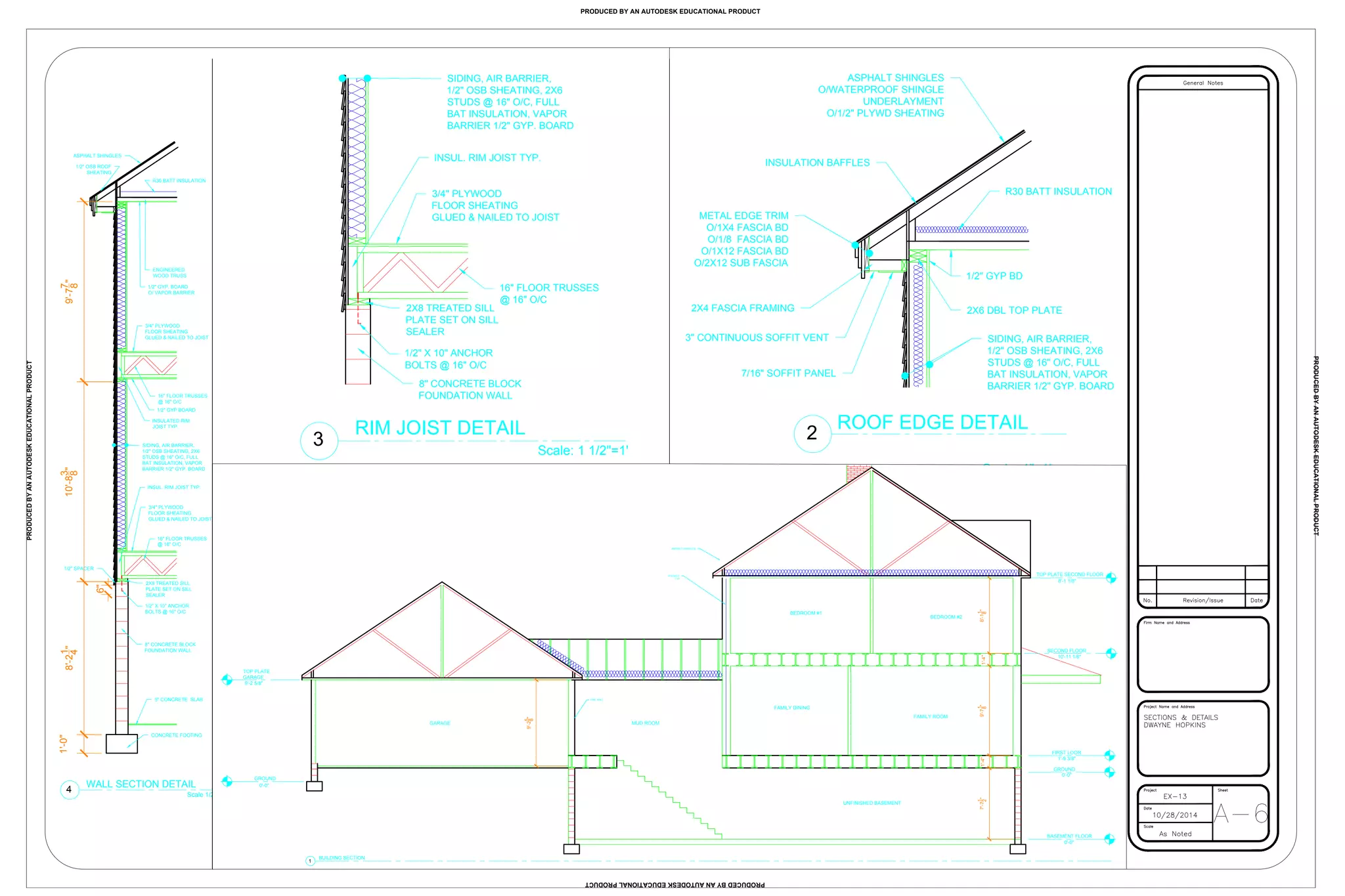

1 BUILDING SECTION
ASPHALT SHINGLES
1/2" OSB ROOF
SHEATING
R30 BATT INSULATION
ENGINEERED
WOOD TRUSS
1/2" GYP. BOARD
O/ VAPOR BARRIER
3/4" PLYWOOD
FLOOR SHEATING
GLUED & NAILED TO JOIST
16" FLOOR TRUSSES
@ 16" O/C
1/2" GYP BOARD
INSULATED RIM
JOIST TYP.
SIDING, AIR BARRIER,
1/2" OSB SHEATING, 2X6
STUDS @ 16" O/C, FULL
BAT INSULATION, VAPOR
BARRIER 1/2" GYP. BOARD
INSUL. RIM JOIST TYP.
3/4" PLYWOOD
FLOOR SHEATING
GLUED & NAILED TO JOIST
16" FLOOR TRUSSES
@ 16" O/C
2X8 TREATED SILL
PLATE SET ON SILL
SEALER
1/2" X 10" ANCHOR
BOLTS @ 16" O/C
8" CONCRETE BLOCK
FOUNDATION WALL
5" CONCRETE SLAB
CONCRETE FOOTING
"
" 9'-778
4" 10'-838
1/2" SPACER
1'-0" 8'-21
6"
WALL SECTION DETAIL
Scale 1/2"=1' 4
SIDING, AIR BARRIER,
1/2" OSB SHEATING, 2X6
STUDS @ 16" O/C, FULL
BAT INSULATION, VAPOR
BARRIER 1/2" GYP. BOARD
INSUL. RIM JOIST TYP.
3/4" PLYWOOD
FLOOR SHEATING
GLUED & NAILED TO JOIST
16" FLOOR TRUSSES
@ 16" O/C
2X8 TREATED SILL
PLATE SET ON SILL
SEALER
1/2" X 10" ANCHOR
BOLTS @ 16" O/C
8" CONCRETE BLOCK
FOUNDATION WALL
RIM JOIST DETAIL
Scale: 1 1/2"=1' 3
SIDING, AIR BARRIER,
1/2" OSB SHEATING, 2X6
STUDS @ 16" O/C, FULL
BAT INSULATION, VAPOR
BARRIER 1/2" GYP. BOARD
ASPHALT SHINGLES
O/WATERPROOF SHINGLE
UNDERLAYMENT
O/1/2" PLYWD SHEATING
METAL EDGE TRIM
O/1X4 FASCIA BD
O/1/8 FASCIA BD
O/1X12 FASCIA BD
O/2X12 SUB FASCIA
2X4 FASCIA FRAMING
3" CONTINUOUS SOFFIT VENT
7/16" SOFFIT PANEL
2X6 DBL TOP PLATE
ROOF EDGE DETAIL
Scale: 1"=1'
2
