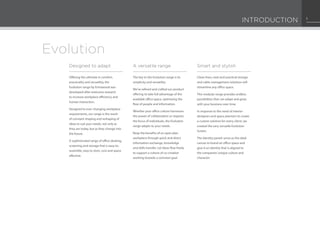

2. Evolution
Clean lines, neat and practical storage
and cable management solutions will
streamline any office space.
This modular range provides endless
possibilities that can adapt and grow
with your business over time.
In response to the need of interior
designers and space planners to create
a custom solution for every client, we
created the very versatile Evolution
Screen.
The Identity panels serve as the ideal
canvas to brand an office space and
give it an identity that is aligned to
the companies’unique culture and
character.
Offering the ultimate in comfort,
practicality and versatility, the
Evolution range by Entrawood was
developed after extensive research
to increase workplace efficiency and
human interaction.
Designed to ever-changing workplace
requirements, our range is the result
of constant shaping and reshaping of
ideas to suit your needs, not only as
they are today, but as they change into
the future.
A sophisticated range of office desking,
screening and storage that is easy-to-
assemble, easy to store, cost and space
effective.
The key to the Evolution range is its
simplicity and versatility.
We’ve refined and crafted our product
offering to take full advantage of the
available office space, optimising the
flow of people and information.
Whether your office culture harnesses
the power of collaboration or requires
the focus of individuals, the Evolution
range adapts to your needs.
Reap the benefits of an open plan
workplace through quick and direct
information exchange, knowledge
and skills transfer. Let ideas flow freely
to support a culture of co-creation
working towards a common goal.
A versatile rangeDesigned to adapt Smart and stylish
INTRODUCTION 1

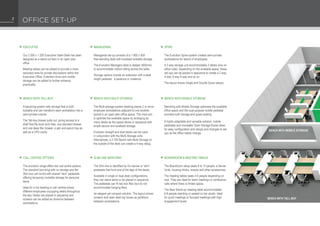

3. OFFICE SET-UP2

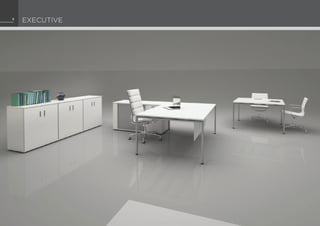

Executive
Our 2 000 x 1 200 Executive Steel Desk has been
designed as a stand out item in an open plan
office.
Meeting tables can be added to provide a more
secluded area for private discussions within the
Executive Office. Extention Arms and mobile
storage can be added to further enhance
practicality.

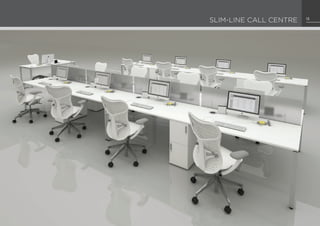

Call Centre options
The evolution range offers two call centre options:
The standard benching with no storage and the
Slim-line call centre with shared “slim” pedestals
offering temporary lockable storage for personal
items.
Ideal for a hot desking or call centres where
different employees occupying desks throughout
the day. Desks are placed in sequence and
screens can be added as divisions between
workstations.

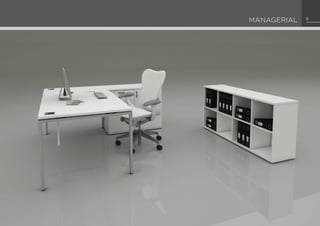

Managerial
Managerial set-up consists of a 1 800 x 900
free-standing desk with localised lockable storage.
The Evolution Managers desk is deeper (900mm)
to accommodate visitors sitting across the table.
Storage options include an extension with a desk
height pedestal, a pedenza or credenza.

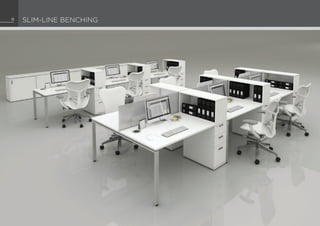

Slim-line Benching
The Slim-line is identified by it’s narrow or “slim”
pedestals that form one of the legs of the desks.
Available in single or dual desk configurations,
they can stand alone or be placed in sequence.
The pedestals can fit two box files (but do not
accommodate hanging files).
An elegant yet compact solution. The layout shows
screens and open desk top boxes as partitions
between workstations.

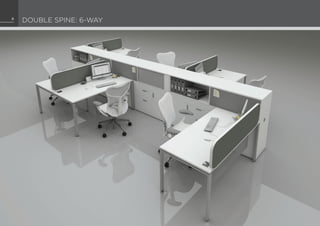

Spine
The Evolution Spine system creates semi-private
workstations for teams of employees.
A 2-way storage unit accommodates 2 desks (one on
either side). Depending on the available space, these
set-ups can be placed in sequence to create a 2 way,
4 way, 6 way 8 way and so on
The layout shows Single and Double Spine setups.

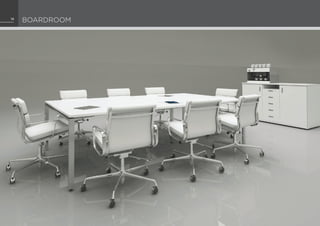

Boardroom & meeting tables
The Boardroom setup seats 8 to 10 people, a Server
Units, housing drinks, snacks and other accessories.
The meeting tables seats 4-6 people depending on
size. They are ideal for team meetings or conference
calls where there is limited space.
The New Stand-up meeting table accommodates
6-8 people standing or seated on bar stools. Ideal
for quick meetings or focused meetings with high
engagement levels.

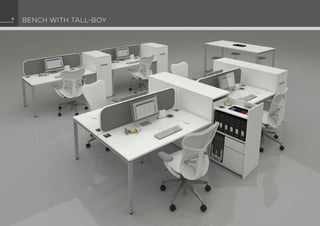

Bench with Tall-boy
A benching system with storage that is both
lockable and can transform each workstation into a
semi-private cubicle.
The Tall-boy drawer pulls out, giving access to a
shelf that fits lever arch files, one standard drawer
and one deep filer drawer, a pen and pencil tray as
well as a CPU cavity.

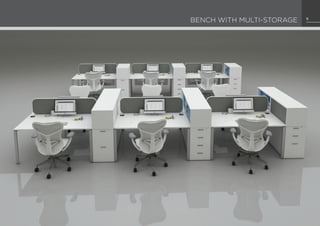

Bench with Multi Storage
The Multi-storage system desking places 2 or more
employee workstations adjacent to one another,
typical in an open plan office space. The main aim
is optimise the available space by arranging as
many desks as the space allows in sequence with
ample secure and localised storage.
Evolution straight and dual desks can be used
in conjunction with the Multi-Storage units.
Alternatively, a 2 700 Bench with Multi-Storage on
the outside of the desk can create a 4-way setup.

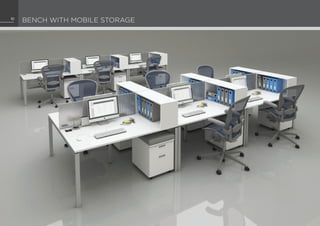

Bench with Mobile Storage
Benching with Mobile Storage optimises the available
office space and the dual purpose mobile pedestal
provides both storage and guest seating.
A highly adaptable and versatile solution, mobile
pedestals and moveable Open Storage Boxes allow
for easy configuration and setups and changes to set-
ups as the office needs change.
Bench with Tall-boy
Bench with mobile storage

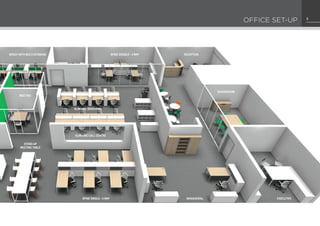

4. OFFICE SET-UP 3
Slim-line call centre
Slim-line Benching
Managerial ExecutiveSpine Single - 6 way
Spine double - 4 way Reception
Boardroom
Meeting
bench with Multi-storage
Stand-up
meeting table

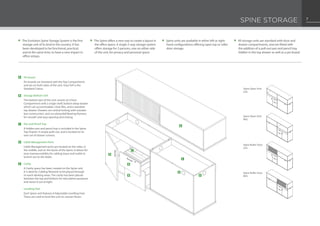

8. SPINE STORAGE
The Evolution Spine Storage System is the first
storage unit of its kind in the country. It has
been developed to be functional, practical,
and at the same time, to have a new impact in
office setups.
The Spine offers a new way to create a layout in
the office space. A single 2-way storage system
offers storage for 2 persons, one on either side
of the unit, for privacy and personal space.
Spine units are available in either left or right-
hand configurations offering open top or roller
door storage.
All storage units are standard with door and
drawer compartments, and are fitted with
the addition of a pull-out pen and pencil tray
hidden in the top drawer as well as a pin board.
Pin board
Pin boards are Standard with the Top Compartment
and are on both sides of the unit. Grey Felt is the
Standard Colour.
Storage Bottom Unit
The bottom part of the unit consits of a Door
Compartment with a single shelf, bottom deep drawer
which can accommodate 2 box files, and a standard
top drawer. Drawers are central locking with wooden
box construction, and run along Ball Bearing Runners
for smooth and easy opening and closing.
Pen and Pencil Tray
A hidden pen and pencil tray is included in the Spine
Top Drawer. It simply pulls out, and is located on its
own set of drawer runners.
Cable Management Ports
Cable Management ports are located on the sides, in
the middle, and on the backs of the Spine. It allows for
easy manoeuvrability for cabling input and outlet to
branch out to the desks.
Cavity
A Cavity space has been created on the Spine unit.
It is ideal for Cabling Network to be placed through
to reach desking areas. The cavity has been placed
between the top and bottom for reticulation purposes
and stows it out of sight.
Levelling Feet
Each Spine unit features 8 Adjustable Levelling Feet.
These are used to level the unit on uneven floors.
A
B
C
D
E
A
B
C
B
B
D
D
E
7
Spine Open Unit
LHS
Spine Open Unit
RHS
Spine Roller Door
LHS
Spine Roller Door
RHS

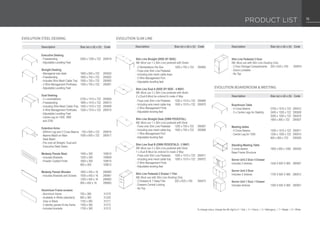

16. EVOLUTION STEEL DESKING
Description Size (w) x (d) x (h) Code
Executive Desking
- Freestanding 2000 x 1200 x 722 295918
- Adjustable Levelling Feet
Straight Desking
- Managerial size desk: 1800 x 900 x 722 295925
- Freestanding 1800 x 750 x 722 295902
- Includes Wire Mesh Cable Tray 1500 x 750 x 722 295900
- 2 Wire Management Portholes 1200 x 750 x 722 295901
- Adjustable Levelling Feet
Dual Desking
- 2 x workstations 2700 x 1510 x 722 295908
- Freestanding 1800 x 1510 x 722 295913
- Including Wire Mesh Cable Tray 1500 x 1510 x 722 295909
- 4 Wire Management Portholes 1200 x 1510 x 722 295910
- Adjustable Levelling Feet
- Centre Leg on 1500, 1800
and 2700
Extention Arms
- 600mm Leg and 2 Cross Beams 750 x 600 x 722 295916
- Beams Attach on Main 1050 x 600 x 722 295917
Desk Beam
- Fits onto all Straight, Dual and
Executive Steel Desks
Modesty Panels Steel 1400 x 300 109610
- Includes Brackets 1200 x 300 109609
- Powder Coated Finish 1600 x 300 109615
900 x 300 109612
Modesty Panels Wooden 1800 x 450 x 16 296960
- Includes Brackets and Screws 1500 x 450 x 16 296961
1200 x 450 x 16 296962
900 x 450 x 16 296963
Aluminium Frame screens
- Aluminium frame 700 x 360 51210
- Available in White (standard), 850 x 360 51220
Grey or Black 1150 x 360 51211
- 2 identity panels fit into frame 1450 x 360 51212
- Includes brackets 1750 x 360 51213 To change colour, change the 4th digit to 0 = Oak | 3 = Cherry | 5 = Mahogany | 7 = Maple | 9 = White
PRODUCT LIST 15
Slim Line Straight (SIDE BY SIDE)
NB: Must use 1 x Slim Line pedestal with Desks
- 2 Workstations Per Box 1200 x 750 x 722 295965
- Fixes onto Slim Line Pedestal
- Including wire mesh cable trays
- 2 Wire Management Port
- Adjustable levelling feet
Slim Line Dual A (SIDE BY SIDE - 4 WAY)
NB: Must use 2 x Slim Line pedestal with desks
2 x Dual A Must be ordered to make 4 Way
- Fixes onto Slim Line Pedestal 1200 x 1510 x 722 295969
- Including wire mesh cable tray 1500 x 1510 x 722 295970
- 2 Wire Management Ports
- Adjustable leveling feet
Slim Line Straight Desk (OWN PEDESTAL)
NB: Must use 1 x Slim Line pedestal with Desk
- Fixes onto Slim Line Pedestal 1200 x 750 x 722 295967
- Including wire mesh cable tray 1500 x 750 x 722 295968
- 1 Wire Management Port
- Adjustable leveling feet
Slim Line Dual B (OWN PEDESTALS - 2 WAY)
NB: Must use 2 x Slim Line pedestal with Desk
1 x Dual B Must be ordered to make 2 Way
- Fixes onto Slim Line Pedestal 1200 x 1510 x 722 295971
- Including wire mesh cable tray 1500 x 1510 x 722 295972
- 2 Wire Management Ports
- Adjustable leveling feet
Slim Line Pedestal 2 Drawer 1 Filer
NB: Must use with Slim Line Desking Only
- 2 Drawers & 1 Deep Filer 320 x 620 x 700 295973
- Drawers Central Locking
- No Top
Slim Line Pedestal 2 Door
NB: Must use with Slim Line Desking Only
- 2 Door Storage Compartments 320 x 620 x 700 295974
- Doors Lockable
- No Top
Boardroom Table
- 4 Cross Beams 2700 x 1510 x 722 295912
- 2 x Centre Legs for Stability 2400 x 1200 x 722 295928
2000 x 1200 x 722 295918
1800 x 900 x 722 295927
Meeting tables
- 4 Cross Beams 1500 x 1510 x 722 295911
- Centre Leg for 1500 1200 x 1200 x 722 295915
900 x 900 x 722 295929
Standing Meeting Table
2 cross beams 1800 x 900 x 1082 295930
Base Frame Structure
Server Unit 2 Door 5 Drawer
Includes 2 shelves 1550 X 600 X 960 280907
Server Unit 3 Door
Includes 3 shelves 1700 X 600 X 960 280912
Server Unit 1 Door 1 Drawer
Includes shelves 1000 X 600 X 960 280901
Description Size (w) x (d) x (h) Code
EVOLUTION Slim Line
Description Size (w) x (d) x (h) Code
Description Size (w) x (d) x (h) Code
EVOLUTION boardroom & meeting
17. PRODUCT LIST16
EVOLUTION STorage
Description Size (w) x (d) x (h) Code
Multi-Storage Tall Boy
Left Hand Side 450 x 755 x 1082 296937
Right Hand Side 450 x 755 x 1082 296938
- Pull out Storage Unit
- 2 x Drawers
- Pen and Pencil Area
- Lever Arch Filling
- Lockable
- Wire management portholes
- Adjustable leveling feet
- CPU Compartment
2-Filer Multi-Storage
- No Top 420 x 755 x 700 296940
- Central Locking
- Floating Pen and Pencil Tray
in Top Drawer
2 Drawer 1 Filer Multi Storage
- No Top 420 x 755 x 700 296941
- Central Locking
- Floating Pen and Pencil Tray
in Top Drawer
4-Drawer Multi-Storage
- No Top 420 x 755 x 700 296942
- Top Locking Only
- Floating Pen and Pencil Tray
in Top Drawer
Multi-Storage Top Open 2 Way
Fits on top if Multi Storage Units 1510 x 420 x 360 296959
22mm top and bottom
Multi-Storage Top Roller Door 2 Way
Fits on top if Multi Storage Units 1510 x 420 x 360 296958
22mm top and bottom
3-Drawer Mobile Pedestal
- Top Lock 420 x 516 x 540 290928
- Floating Pen and Pencil Tray
1-Drawer 1-Filer Mobile Pedestal
- Central Locking 420 x 516 x 540 290922
- Floating Pen and Pencil Tray
- Stabalising wheel
Open Storage Boxes
- Fits on Top of Desk 750 x 300 x 360 296944
- Non-Slip Rubber Feet
Sliding Door Storage cabinet
- 4 x 22mm Shelves Included 1510 x 420 x 1082 296945
- 2 x 22mm Shelves Included 1510 x 420 x 722 296957
- Locakable
Pigeon End Unit 8 Div
- 22mm top and bottom 1510 x 420 x 722 296956
- Fits Lever Arch Files
Spine Universal Top Unit
- Single Way Storage Unit 1650 x 450 x 382 296952
- Open and Closed Storage
Spine Hinge Door Pedenza
A DR LHS 900 x 450 x 722 296953
B DR RHS 900 x 450 x 722 296954
2 Std Dwrs & 1 Deep Filler DwrDrawers Central Locking +
Door Lock
Power Management Outlets
Spine Bookcase Unit
2 Tier Storage 750 x 450 x 722 296955
Used with Hinge Door Pedenza & Universal Top
Power Management Outlets
Spine Unit Open Top
Left Hand Side 1800 x 450 x 1082 296948
Right Hand Side 1800 x 450 x 1082 296949
- 2-Way Storage Unit
- Cavity Between Top and Bottom
for Reticulation
- Hidden Pen and Pencil Tray
- Central Locking Drawers
Spine Unit Roller Door Top
Left Hand Side 1800 x 450 x 1082 296950
Right Hand Side 1800 x 450 x 1082 296951
- 2-Way Storage Unit
- Cavity Between Top and Bottom
for Reticulation
- Hidden Pen and Pencil Tray
- Central Locking Drawers
Wall Unit Base
Includes 1 shelf 800 x 450 x 825 280900
Wall unit top with glass doors
No lock
2 adjustable 22mm shelves 800 x 315 x 1140 280920
Wall Unit Top Open
2 adjustable 2mm shelves 800 x 315 x 1140 280919
Poly Carbon Screens
- Opal in Colour 1800 x 360 51013
- Aluminium Capping Finish 1500 x 360 51012
- Can be used on Straight 1200 x 360 51011
and Dual 750 x 360 51010
Brackets for Screens
- Aluminium Grey Finish 100 x 60 x 3 51015
- 100 x 60 for Straight
Screen Connectors 100 x 100 x 10 51016
100 x 50 x 10 51017
Description Size (w) x (d) x (h) Code Description Size (w) x (d) x (h) Code
To change colour, change the 4th digit to 0 = Oak | 3 = Cherry | 5 = Mahogany | 7 = Maple | 9 = White
