Event-based API Patterns and Practices - AsyncAPI Online Conference
This document discusses API design patterns for event-based APIs. It begins with an introduction to the author and overview of popular API styles. It then covers several options for asynchronous API design like webhooks, server-sent events, websockets, and streaming protocols. The remainder discusses specific patterns for event payload design including thin notifications, hypermedia links, schema evolution, and separating internal and external events. It emphasizes putting careful design into event formats as they form a contract like an API.
In this document
Powered by AI
Overview of the presentation topic on Event-Based API Patterns and Practices by James Higginbotham, highlighting his background across various industries.
API design is presented as a critical architectural concern involving business, product, and engineering aspects.

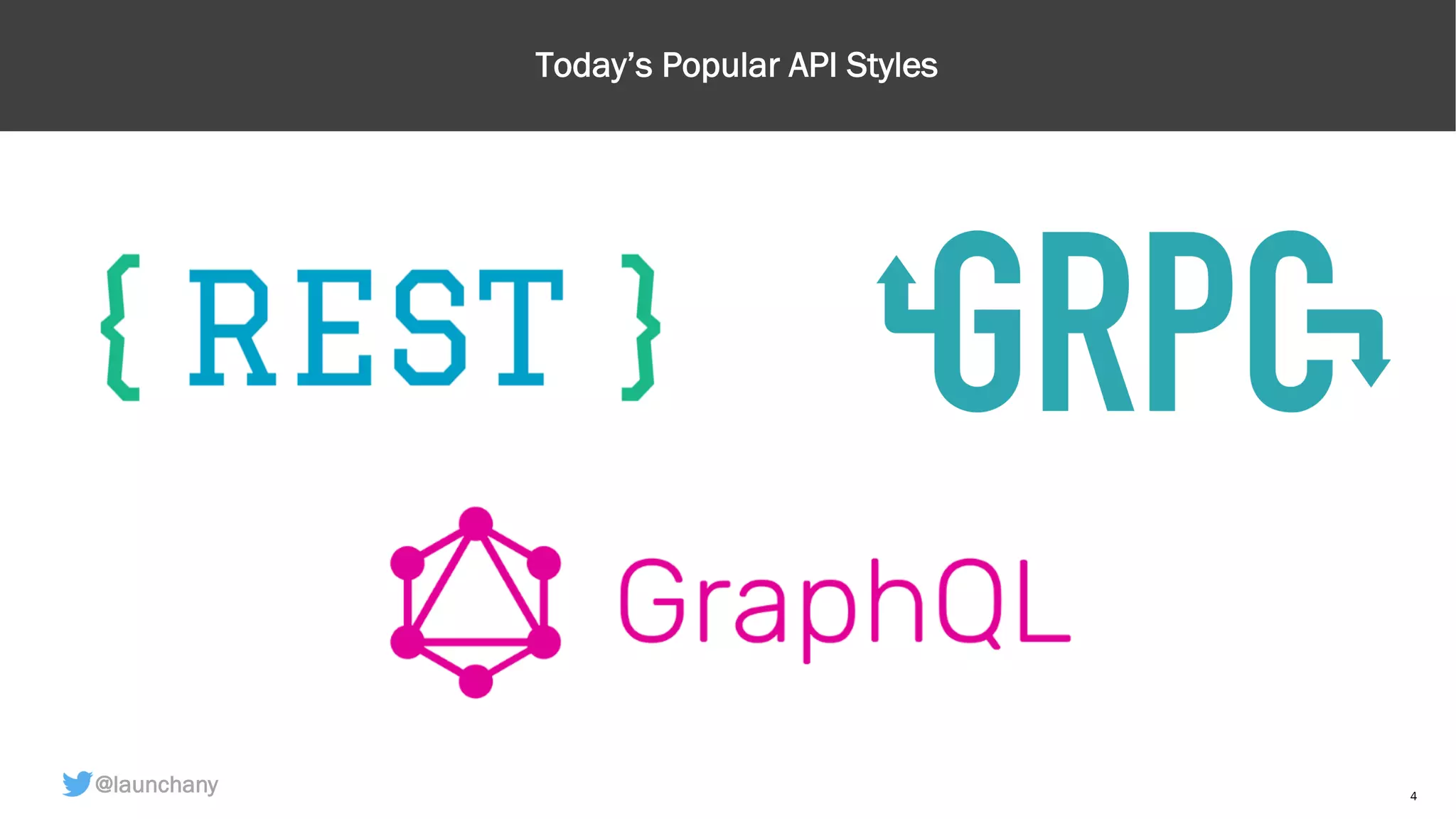

Discussion on popular API styles used today, setting the stage for deeper dives into specifics.
Key considerations in Async API design, focusing on essential questions about event occurrences and comparing API Polling with API Eventing.
Explains traditional message brokers including point-to-point messaging and distributed logs with examples like Apache Kafka.
Visual representation of various Async API styles, emphasizing their relevance to modern API design.
Overview of uni-directional and bi-directional webhooks including dispatcher workflow examples.

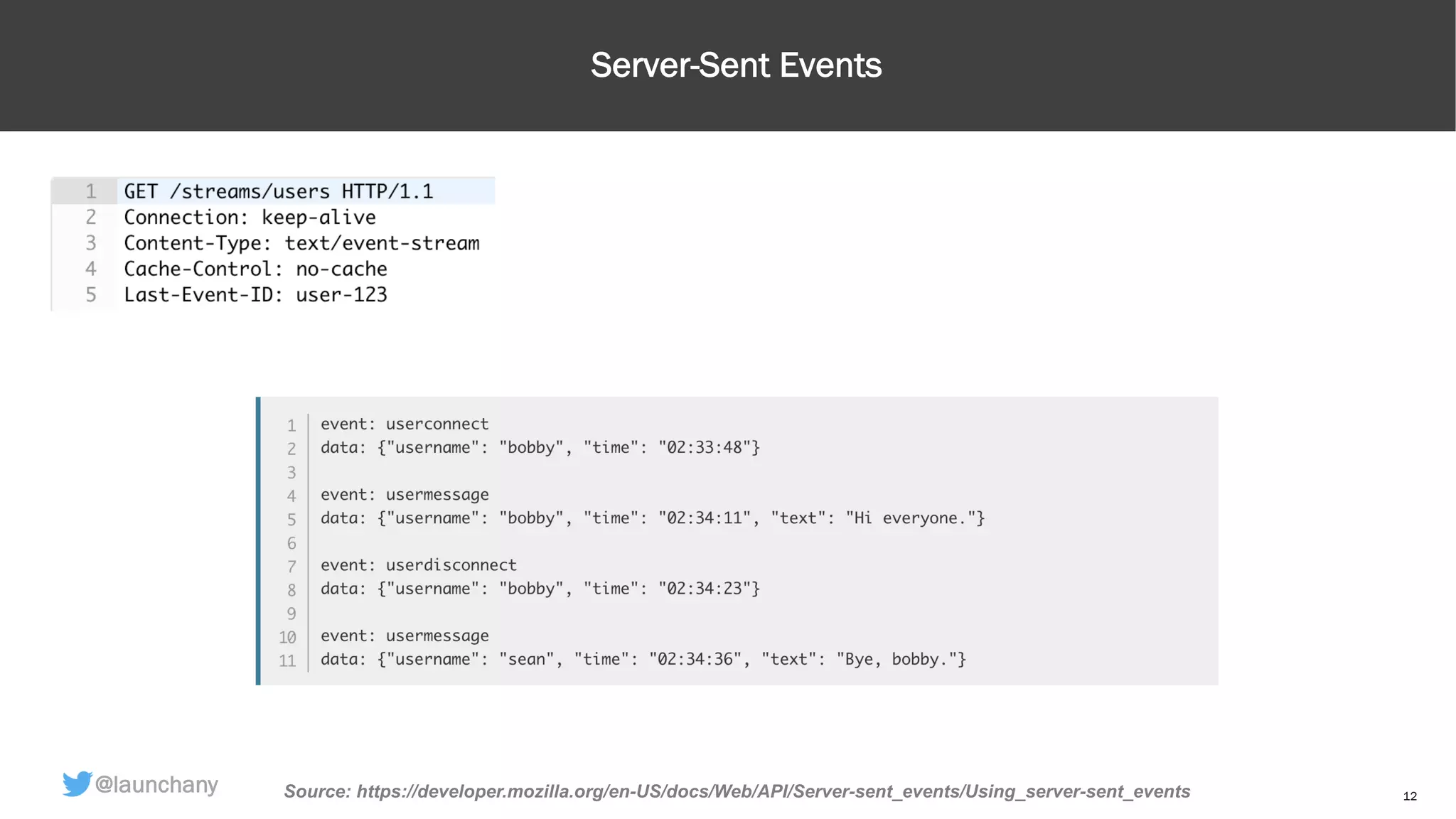

Technical aspects of Server-Sent Events and Websockets, including different formats like SOAP.

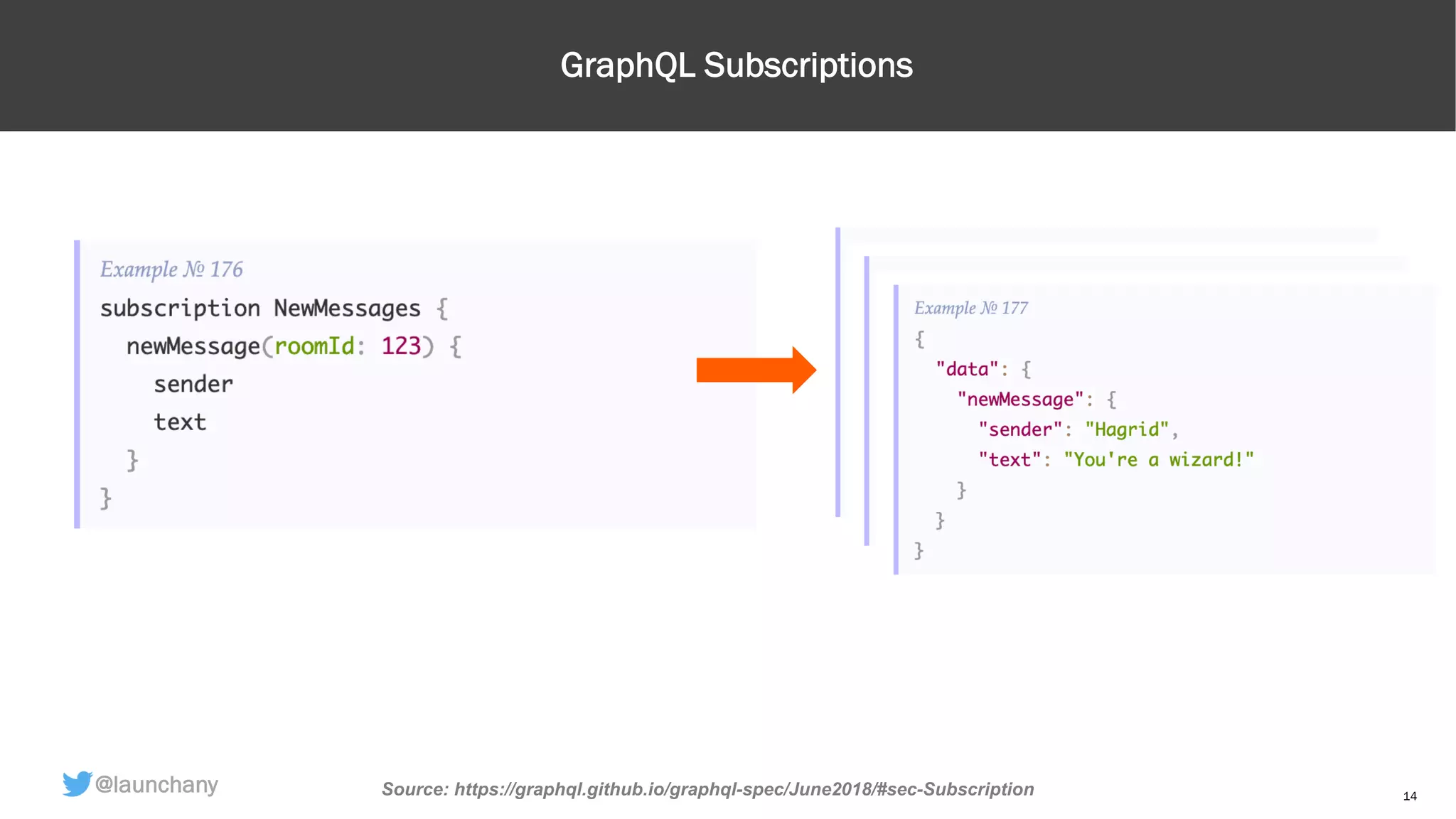

Introduction to GraphQL subscriptions and gRPC client/server streaming capabilities.

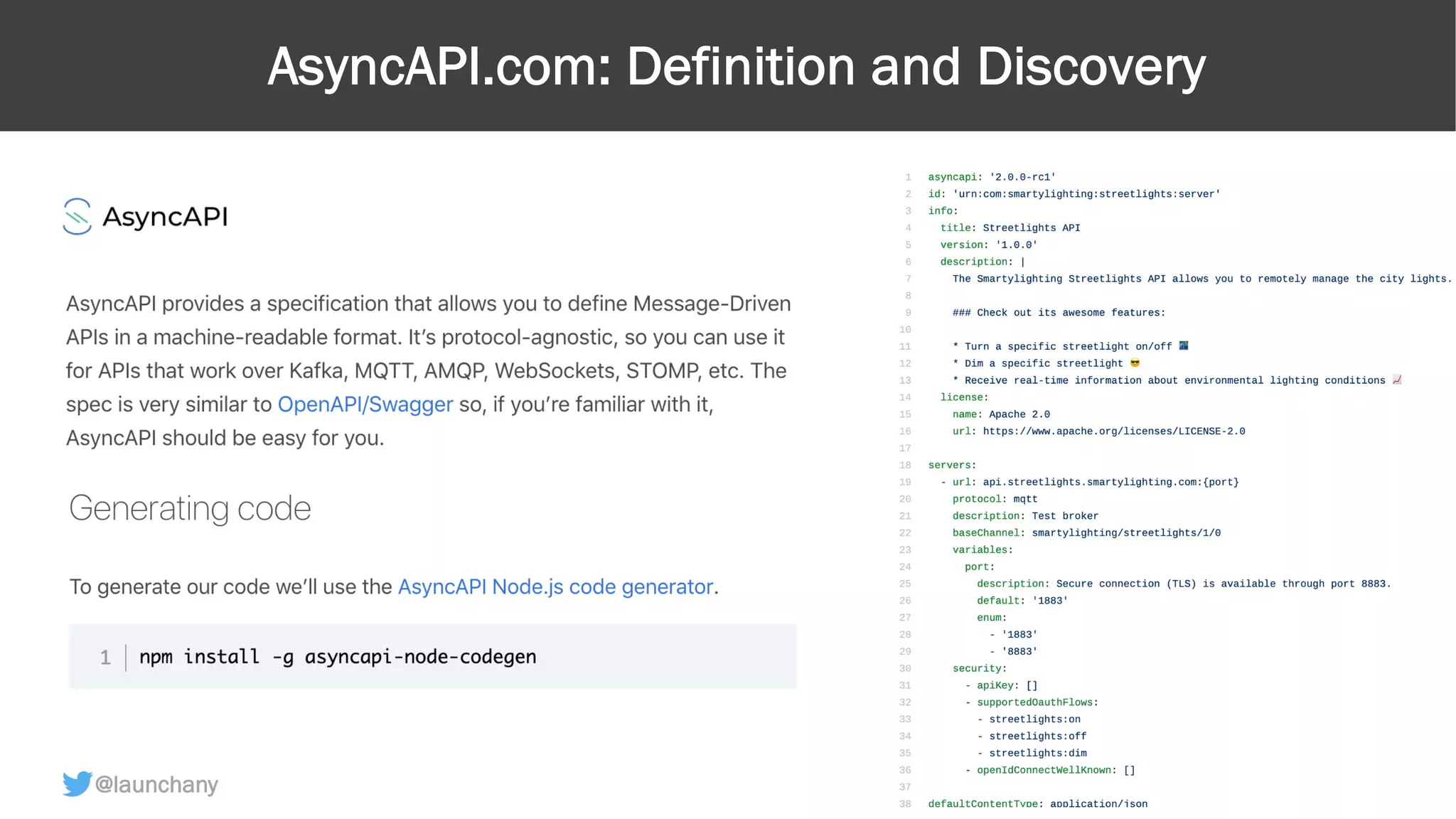

Overview of AsyncAPI.com and the importance of careful event design quoted from Tim Bray.
Introduction to Async API design patterns, starting with Thin Event Notification.
Details on Thin Events, emphasizing minimal data broadcasting and requirement for data fetching by subscribers.
Explains Hypermedia-Driven Events focusing on leveraging hypermedia links to enhance API integration.
Details the Event-Carried State Transfer pattern which broadcasts data states at the time of events.
Structured Event Payloads defined to enhance data organization and ensure clarity in complex event data.
Guidelines for maintaining an Evolutionary Event Schema to avoid breaking changes while adapting events.
Discusses patterns for Offline and Error Recovery Support to ensure consumers can catch up on events.
Outlines the importance of separating internal and external events for implementation clarity.
Focus on how streaming and eventing enhance API capabilities in enterprise platforms and integration methods.
Wrap-up of the presentation with contact details for further engagement.
More Related Content
Similar to Event-based API Patterns and Practices - AsyncAPI Online Conference
Event-based API Patterns and Practices - AsyncAPI Online Conference
- 1. Event-Based API Patternsand Practices James Higginbotham @launchany Photo by Ambitious Creative Co. - Rick Barrett on Unsplash
- 2. 2 @launchany Brief Introduction •API Architect •APIstrategy and execution •Based in Colorado Springs •Across multiple verticals: – Commercial Insurance – Healthcare – Hospitality – Finance and Banking – Travel – Airline Photo by Ian Baldwin on Unsplash

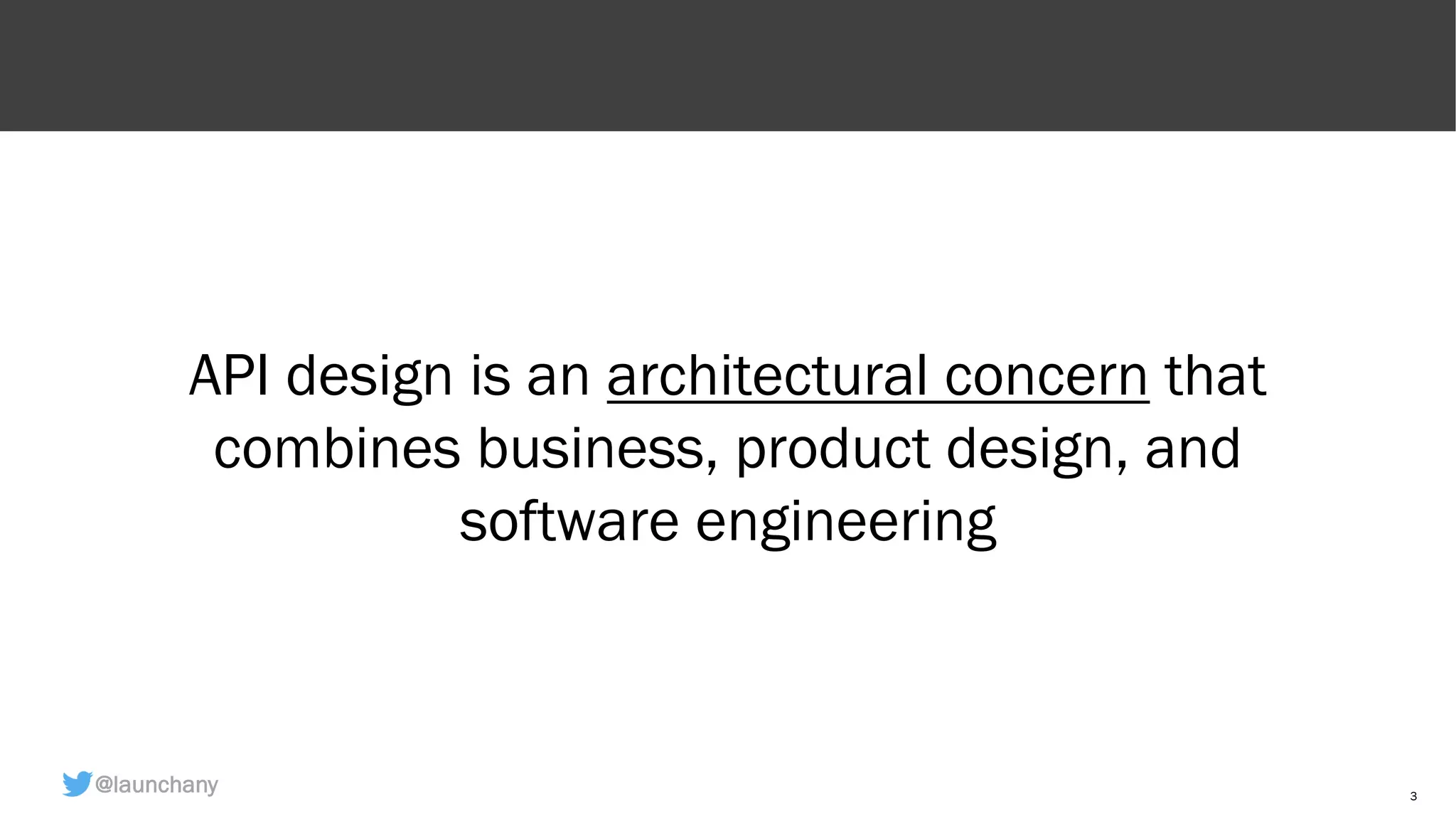

- 3. 3 @launchany API design isan architectural concern that combines business, product design, and software engineering
- 4.

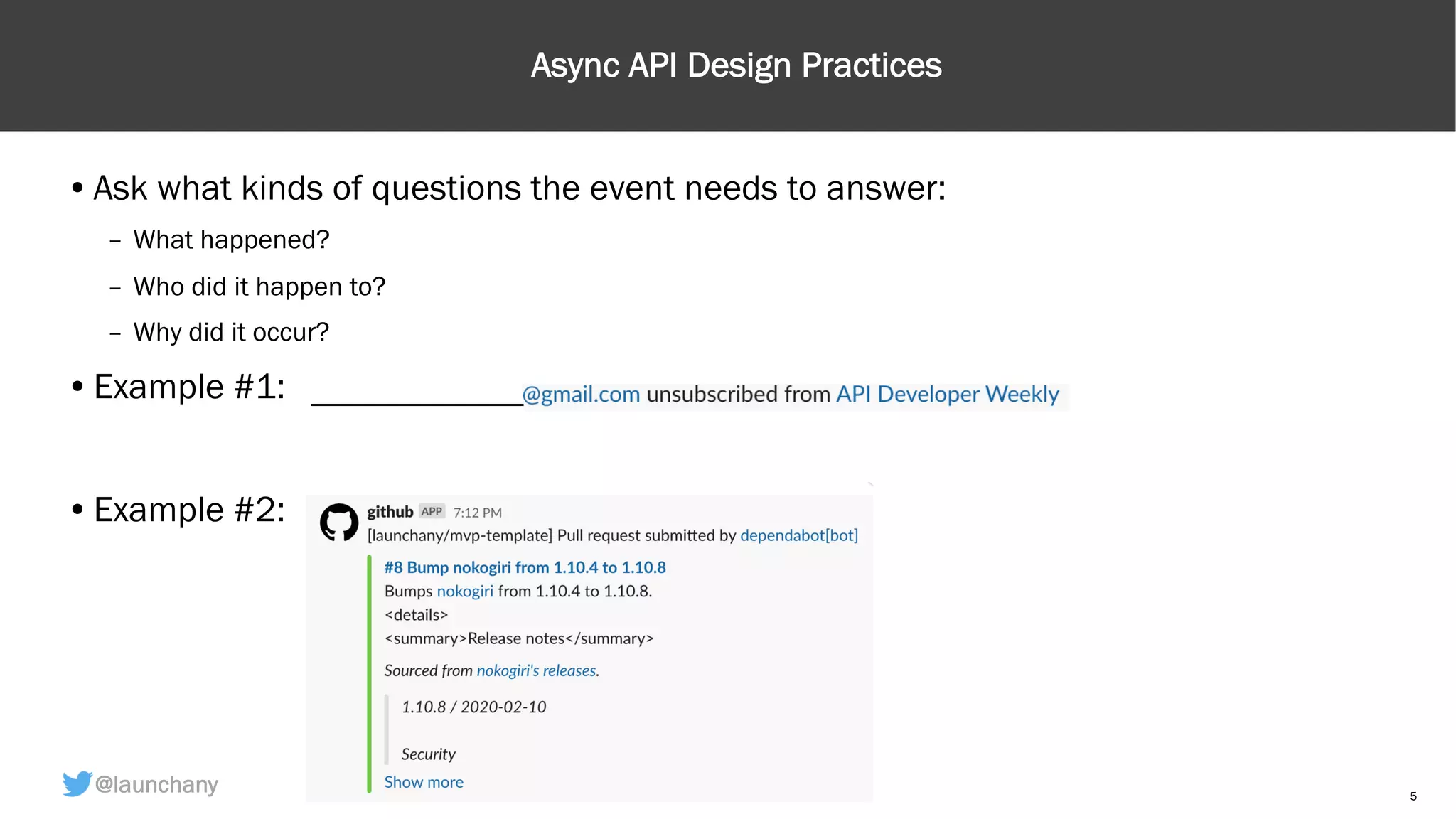

- 5. 5 @launchany Async API DesignPractices •Ask what kinds of questions the event needs to answer: – What happened? – Who did it happen to? – Why did it occur? •Example #1: •Example #2: __________________

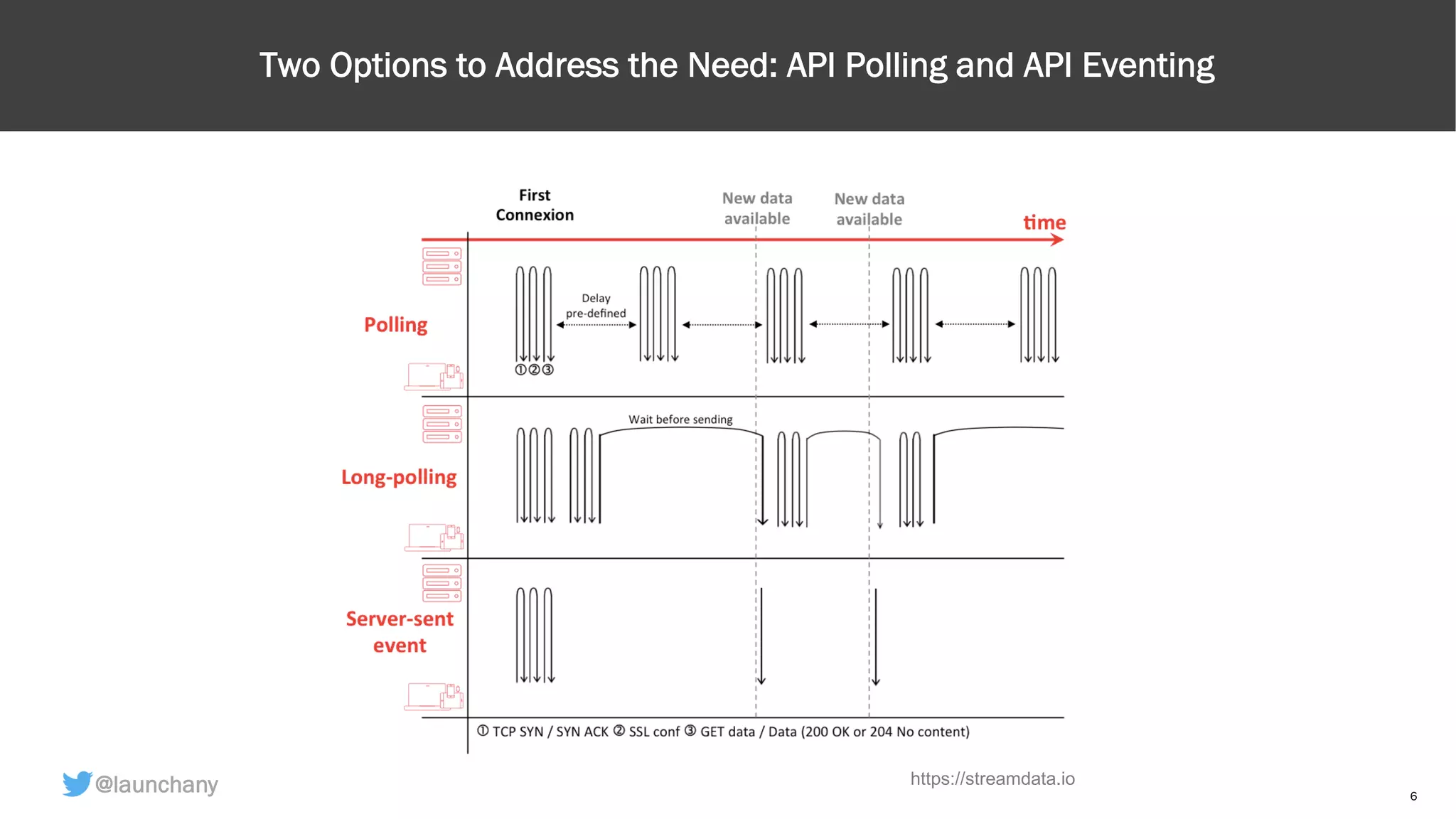

- 6. 6 @launchany Two Options toAddress the Need: API Polling and API Eventing https://streamdata.io

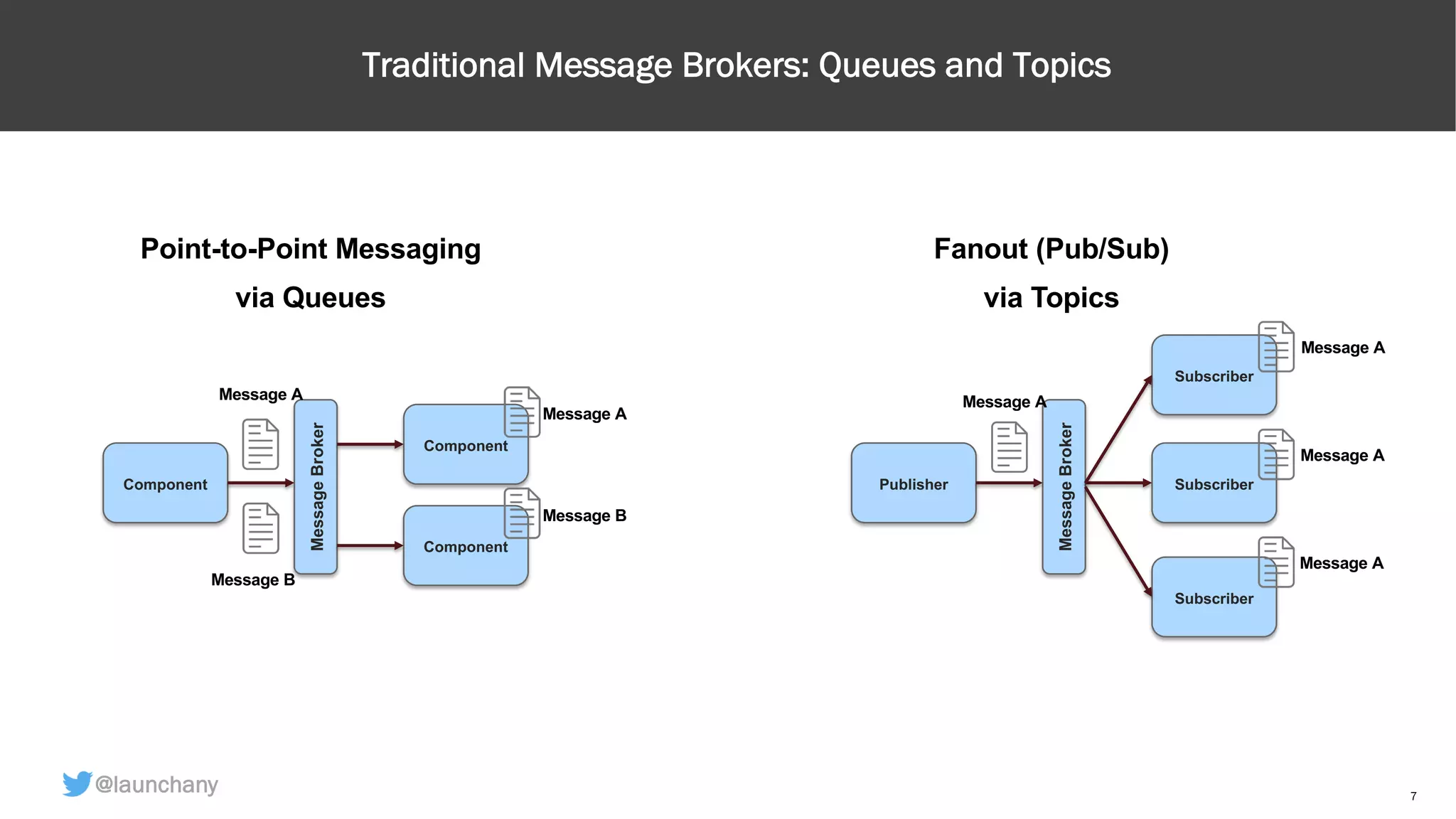

- 7. 7 @launchany Traditional Message Brokers:Queues and Topics Point-to-Point Messaging via Queues Fanout (Pub/Sub) via Topics Component MessageBroker Component Publisher MessageBroker Subscriber Subscriber Subscriber Component Message B Message A Message A Message B Message A Message A Message A Message A

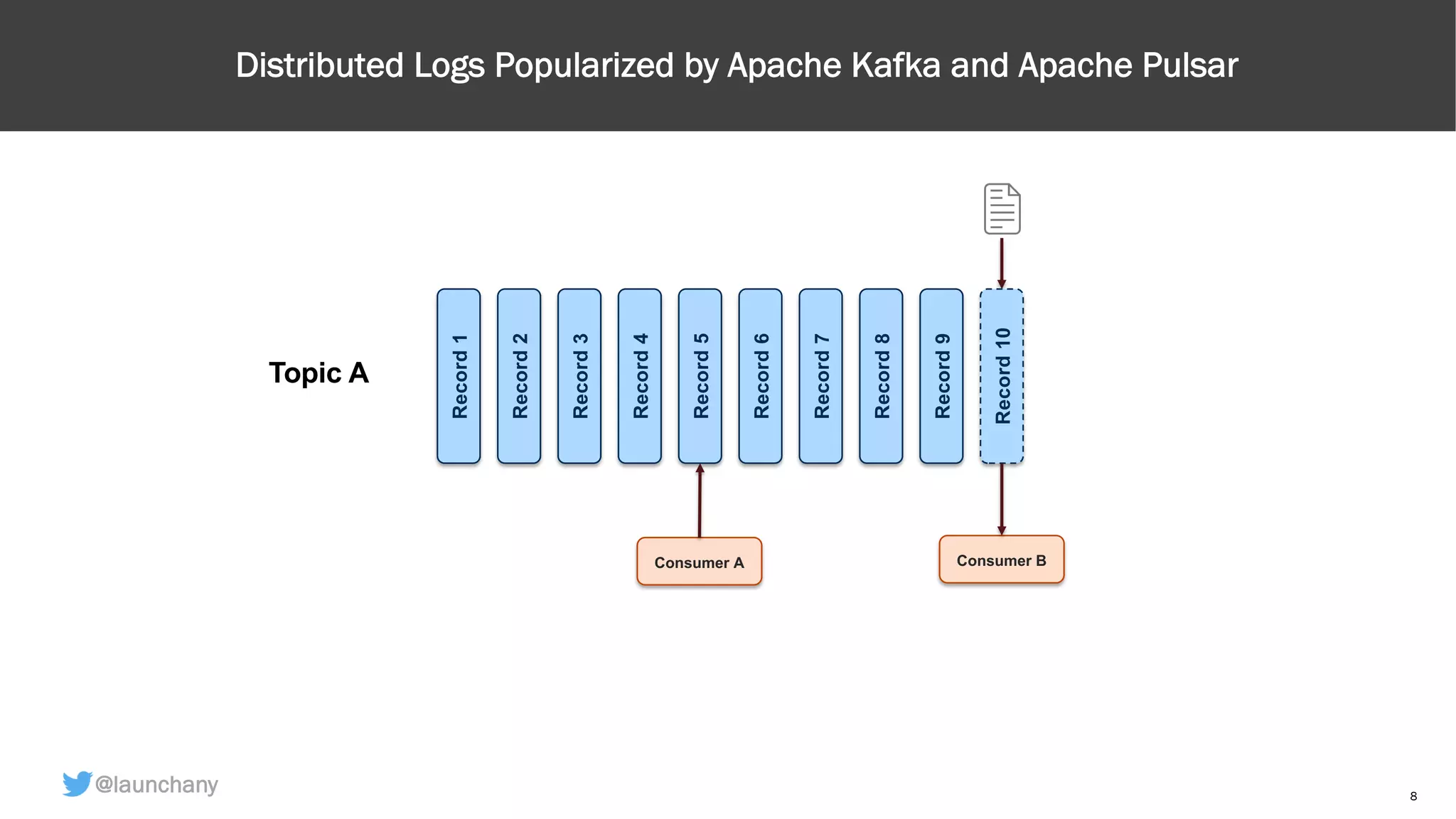

- 8. 8 @launchany Distributed Logs Popularizedby Apache Kafka and Apache Pulsar Topic A Record1 Record2 Record3 Record4 Record5 Record6 Record7 Record8 Record9 Record10 Consumer BConsumer A
- 9. 9 @launchany Async API Styles Photoby Efe Kurnaz on Unsplash

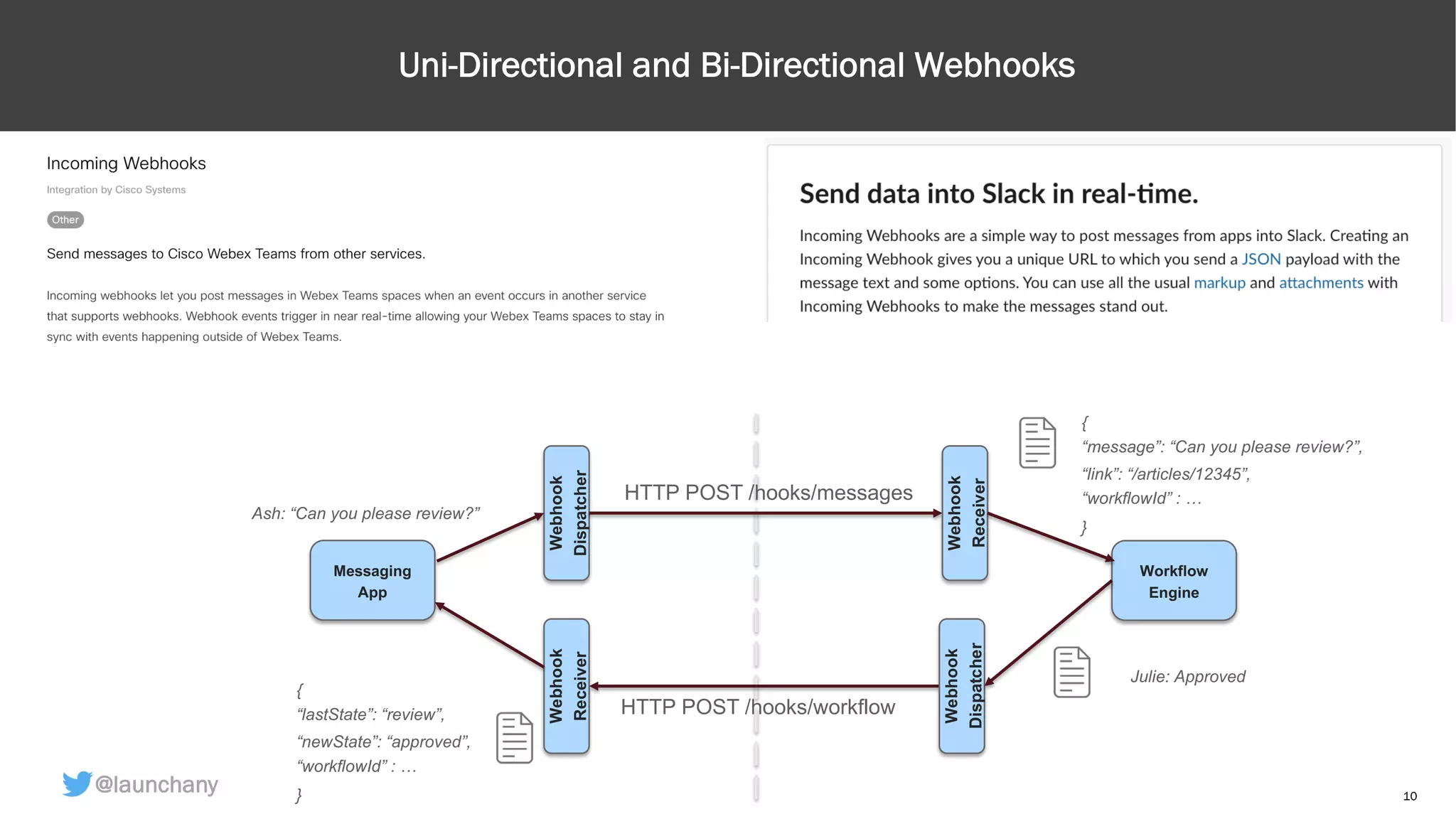

- 10. 10 @launchany Uni-Directional and Bi-DirectionalWebhooks Webhook Dispatcher Workflow Engine Messaging App Webhook Receiver Webhook Receiver Webhook Dispatcher HTTP POST /hooks/messages HTTP POST /hooks/workflow { “lastState”: “review”, “newState”: “approved”, “workflowId” : … } { “message”: “Can you please review?”, “link”: “/articles/12345”, “workflowId” : … } Ash: “Can you please review?” Julie: Approved
- 11.

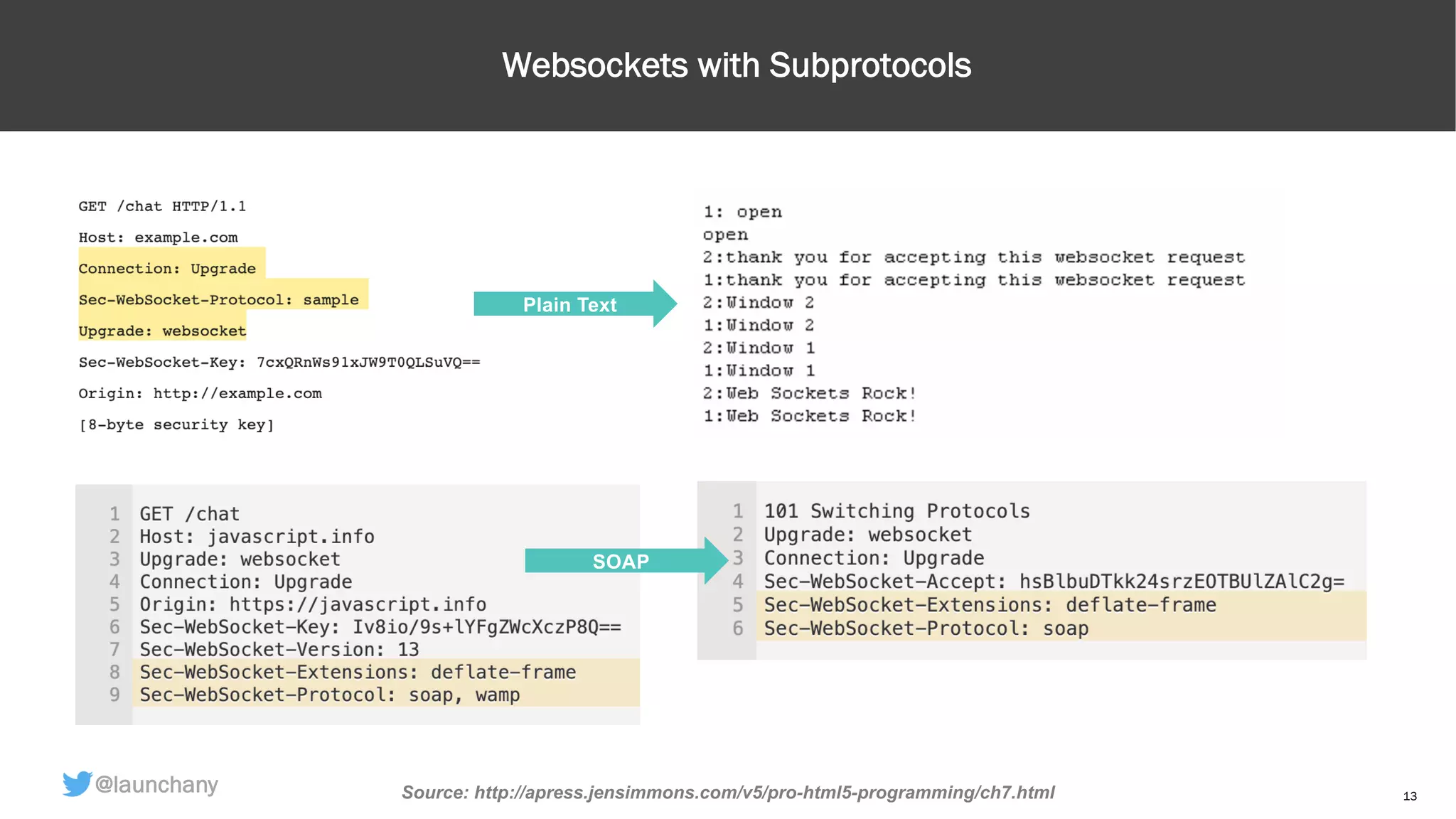

- 12. 13 @launchany Websockets with Subprotocols Source:http://apress.jensimmons.com/v5/pro-html5-programming/ch7.html Plain Text SOAP
- 13.

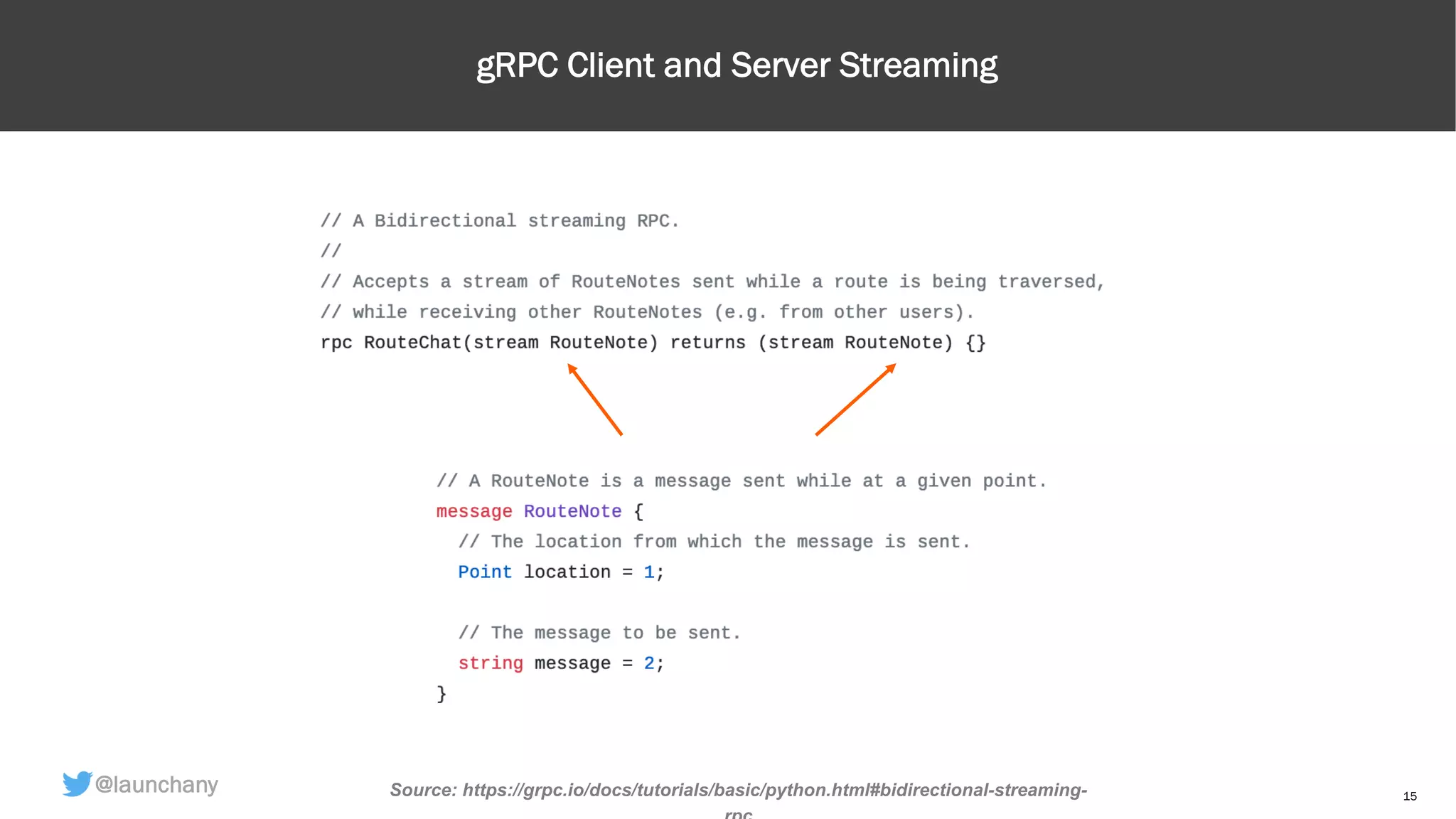

- 14. 15 @launchany gRPC Client andServer Streaming Source: https://grpc.io/docs/tutorials/basic/python.html#bidirectional-streaming-
- 15. 16 @launchany Async API DesignPatterns Photo by Massimo Virgilio on Unsplash

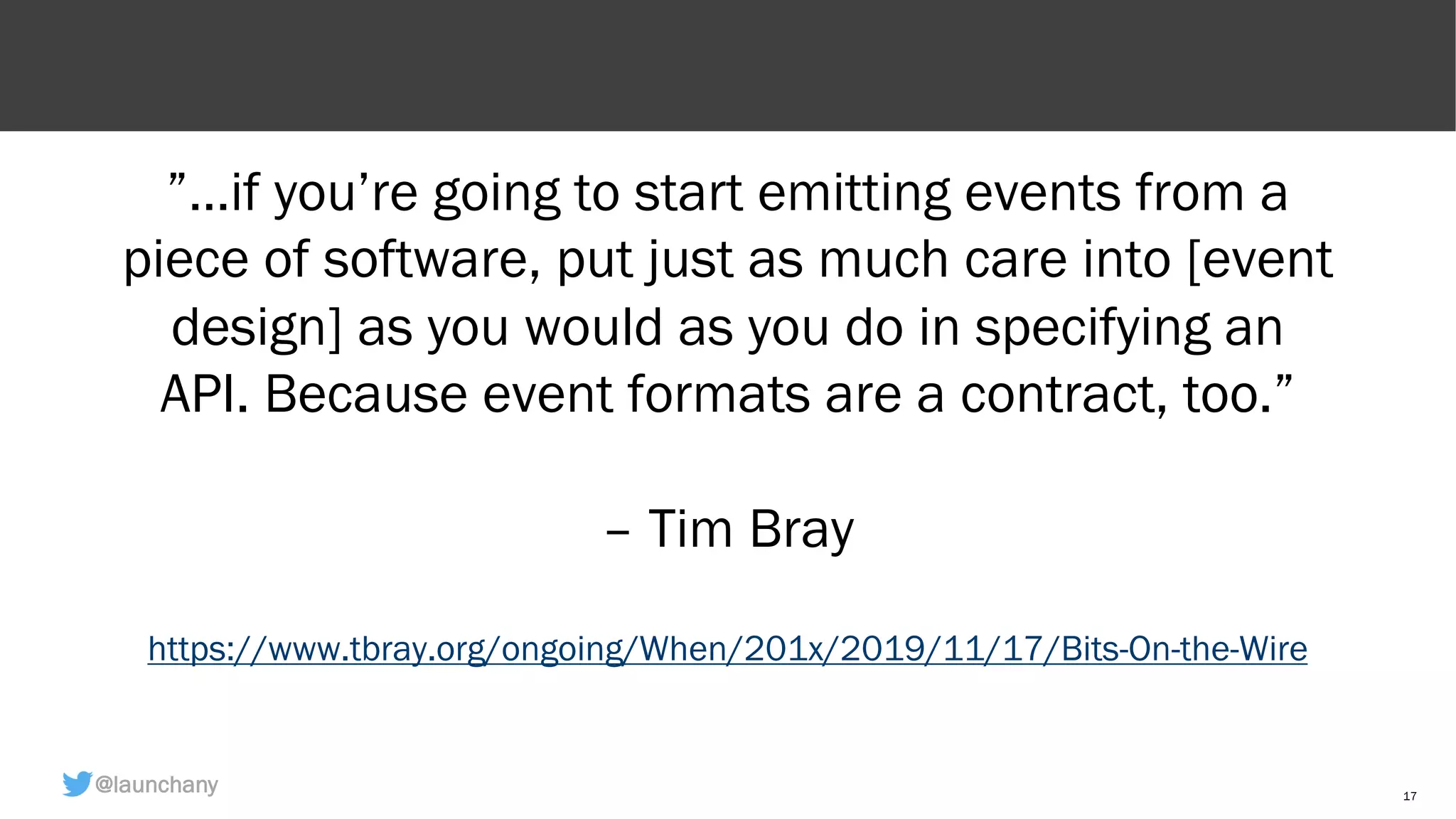

- 16. 17 @launchany ”…if you’re goingto start emitting events from a piece of software, put just as much care into [event design] as you would as you do in specifying an API. Because event formats are a contract, too.” – Tim Bray https://www.tbray.org/ongoing/When/201x/2019/11/17/Bits-On-the-Wire
- 17.

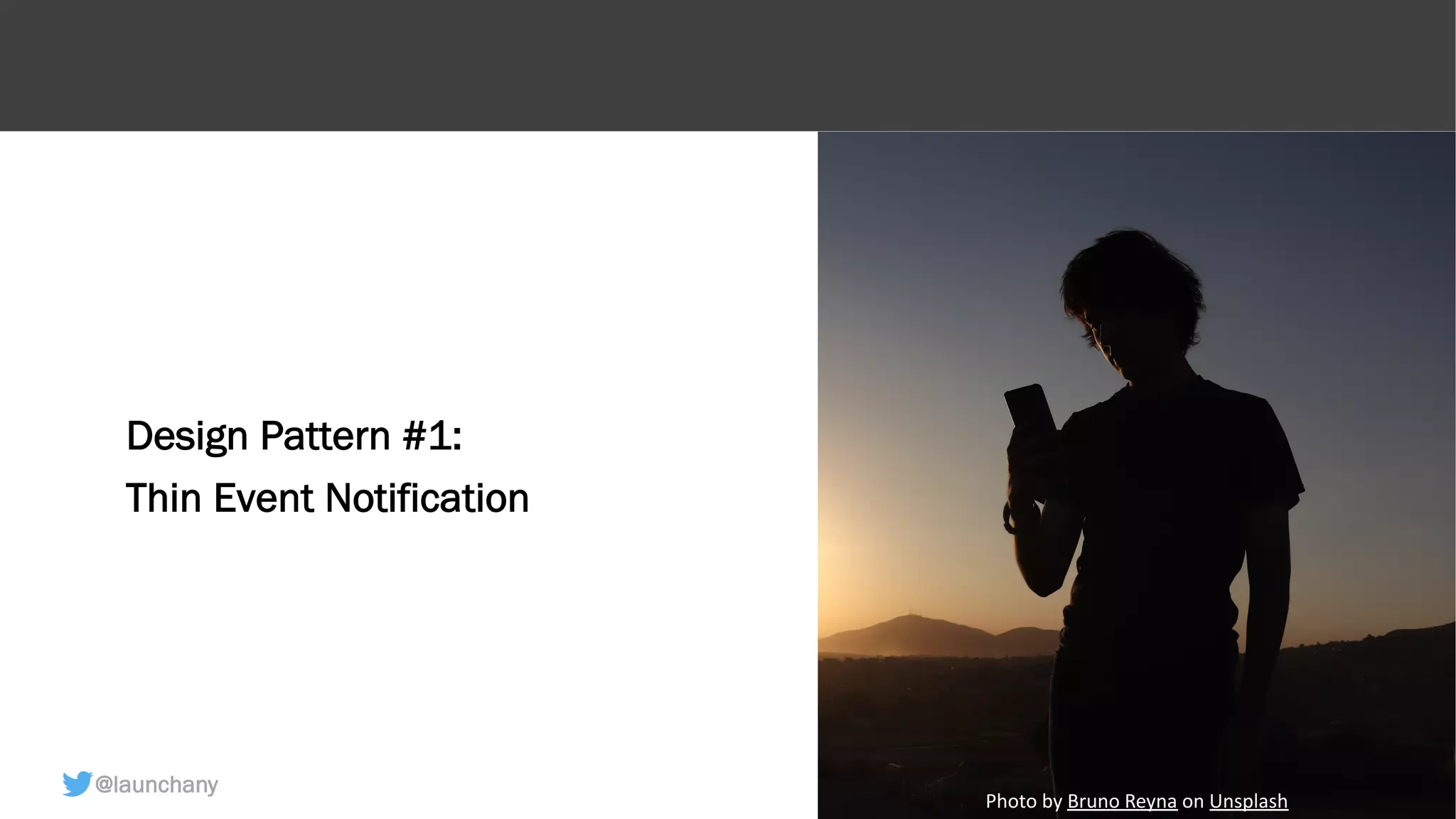

- 18. 19 @launchany Design Pattern #1: ThinEvent Notification Photo by Bruno Reyna on Unsplash

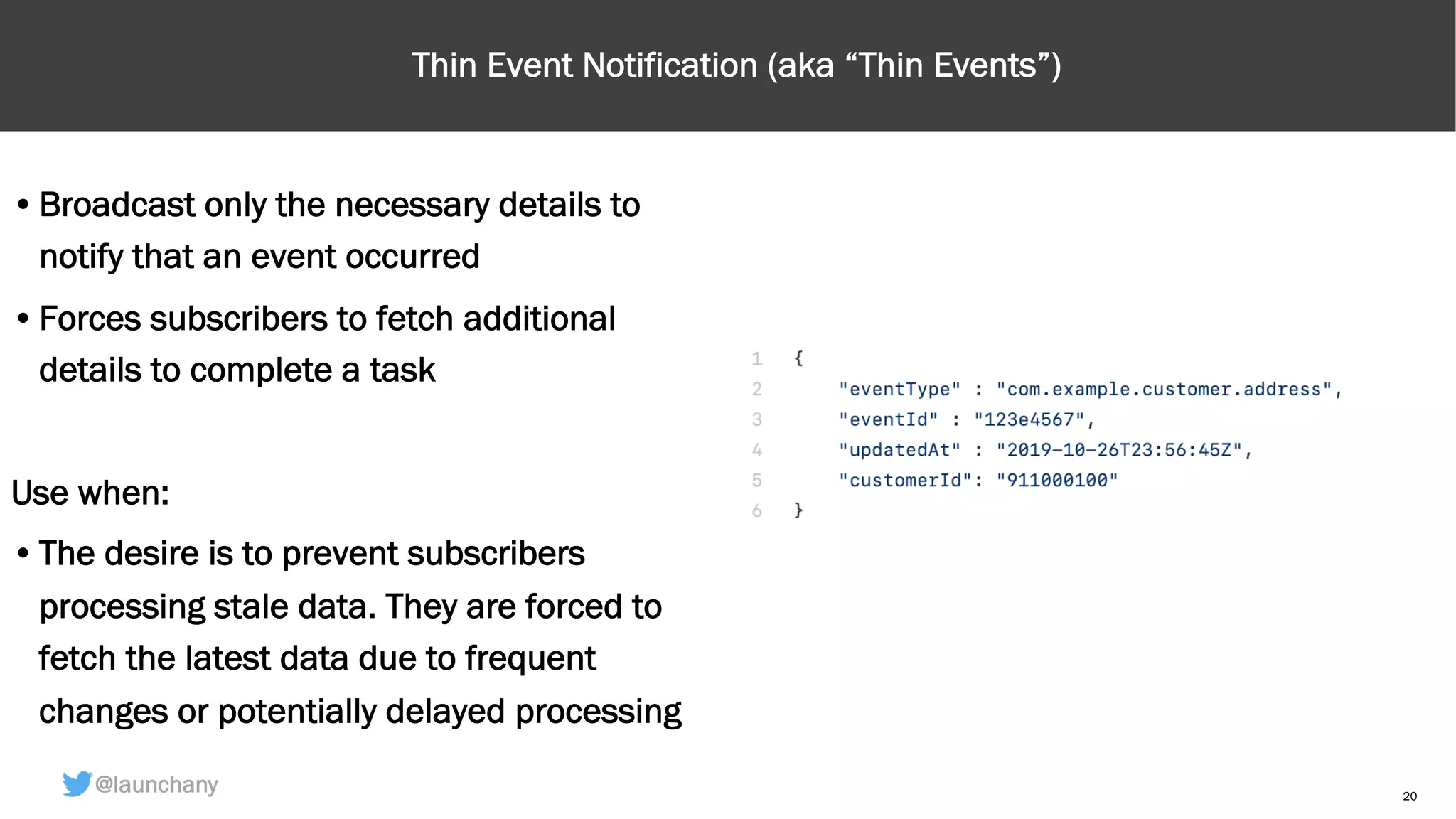

- 19. 20 @launchany Thin Event Notification(aka “Thin Events”) •Broadcast only the necessary details to notify that an event occurred •Forces subscribers to fetch additional details to complete a task Use when: •The desire is to prevent subscribers processing stale data. They are forced to fetch the latest data due to frequent changes or potentially delayed processing
- 20. 21 @launchany Design Pattern #2: Hypermedia-DrivenEvents Photo by Greg Rosenke on Unsplash

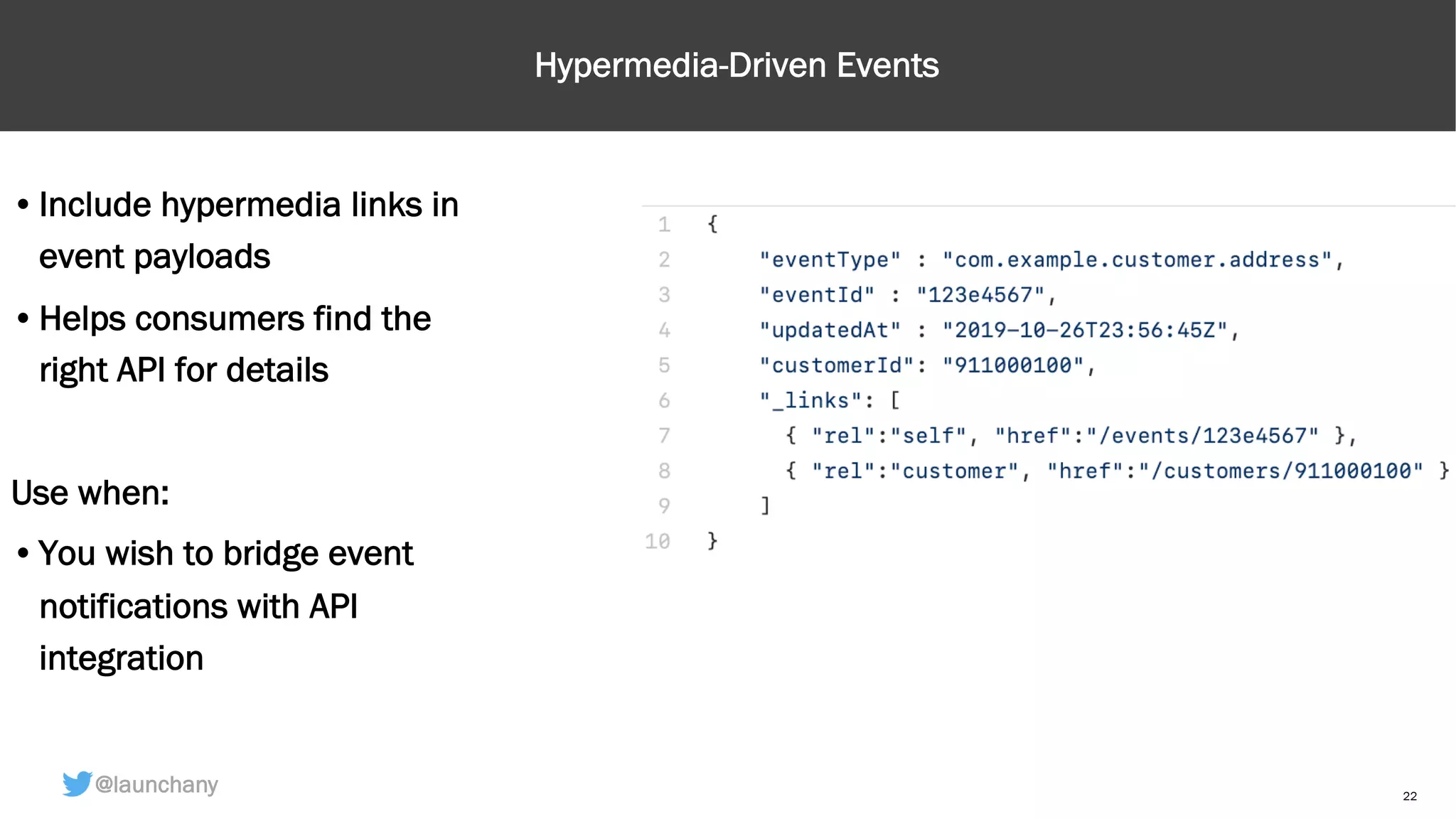

- 21. 22 @launchany Hypermedia-Driven Events •Include hypermedialinks in event payloads •Helps consumers find the right API for details Use when: •You wish to bridge event notifications with API integration
- 22. 23 @launchany Design Pattern #3: Event-CarriedState Transfer Photo by Priscilla Du Preez on Unsplash

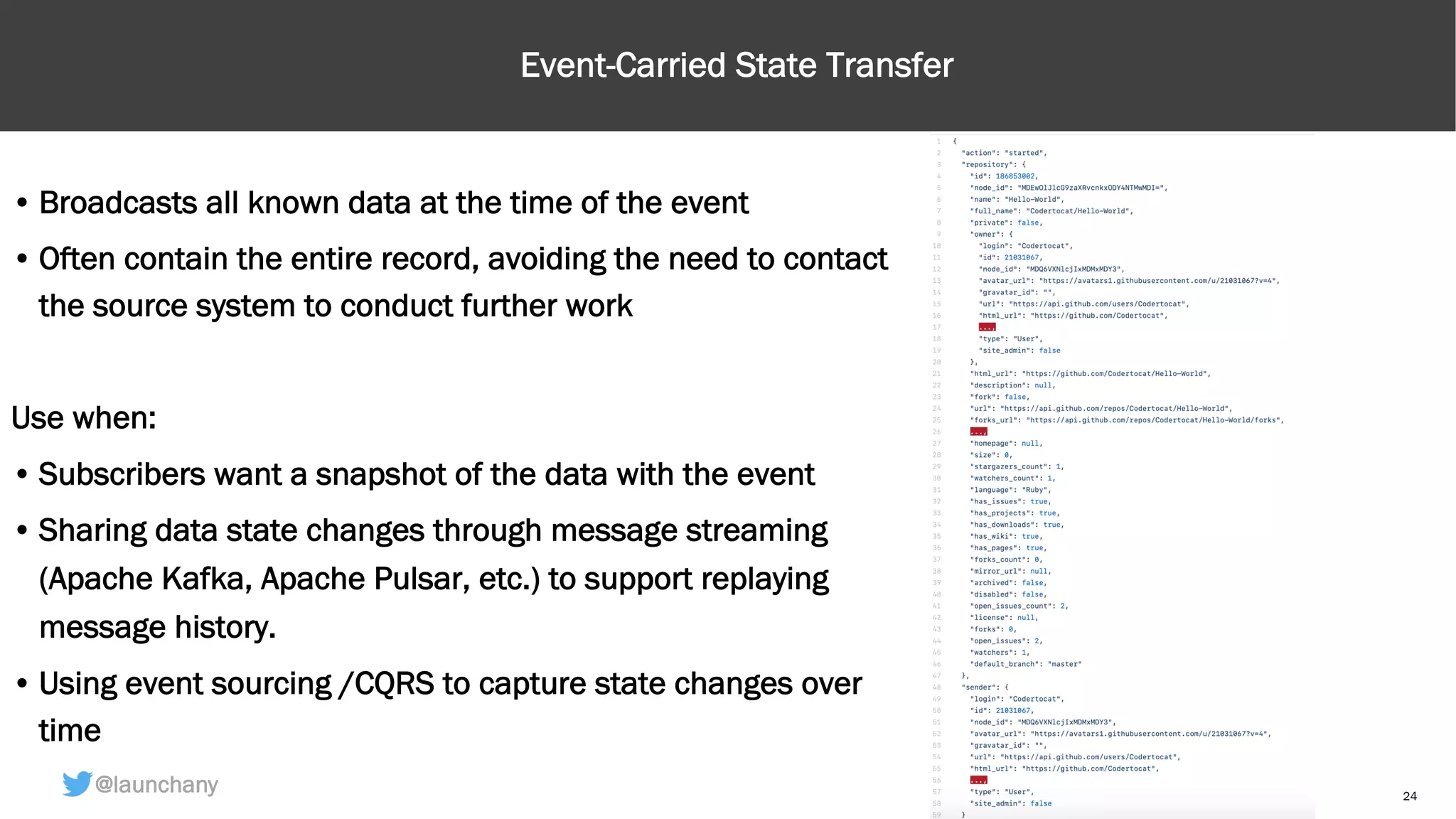

- 23. 24 @launchany Event-Carried State Transfer •Broadcasts all known data at the time of the event • Often contain the entire record, avoiding the need to contact the source system to conduct further work Use when: • Subscribers want a snapshot of the data with the event • Sharing data state changes through message streaming (Apache Kafka, Apache Pulsar, etc.) to support replaying message history. • Using event sourcing /CQRS to capture state changes over time
- 24. 25 @launchany Design Pattern #4: StructuredEvent Payloads Photo by Ricardo Gomez Angel on Unsplash

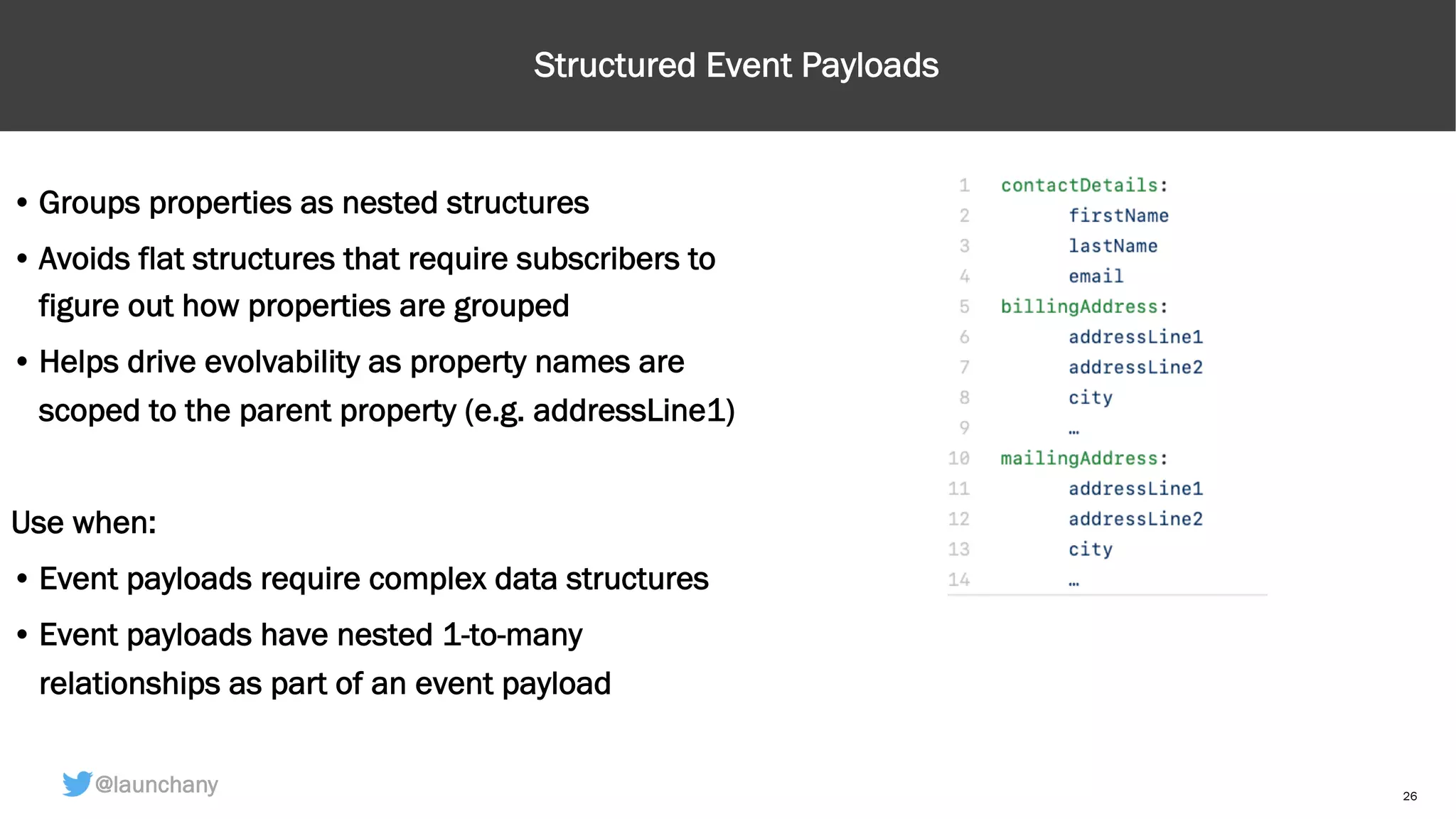

- 25. 26 @launchany Structured Event Payloads •Groups properties as nested structures • Avoids flat structures that require subscribers to figure out how properties are grouped • Helps drive evolvability as property names are scoped to the parent property (e.g. addressLine1) Use when: • Event payloads require complex data structures • Event payloads have nested 1-to-many relationships as part of an event payload
- 26. 27 @launchany Design Pattern #5: EvolutionaryEvent Schema Photo by Cenk Batuhan Özaltun on Unsplash

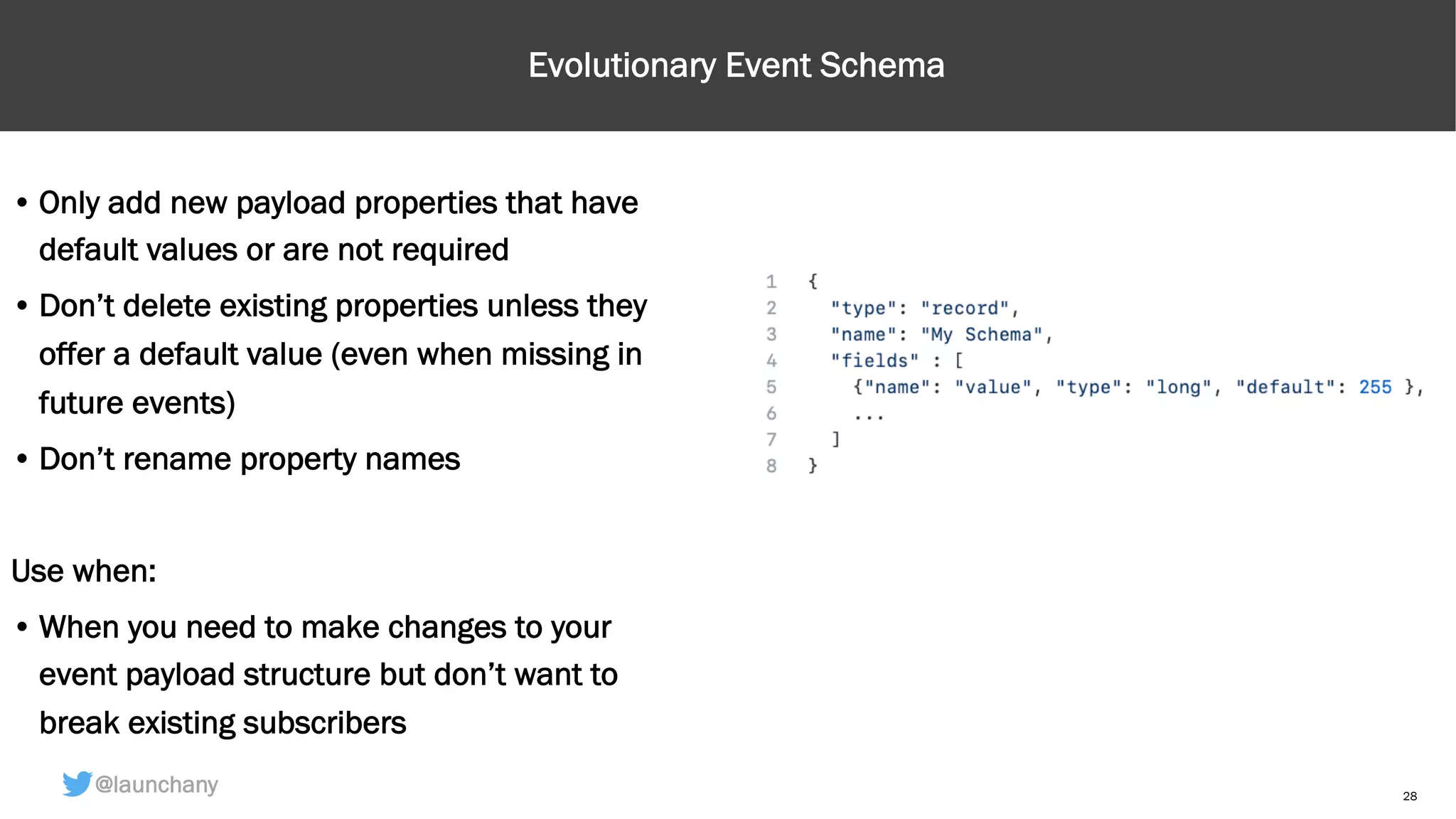

- 27. 28 @launchany Evolutionary Event Schema •Only add new payload properties that have default values or are not required • Don’t delete existing properties unless they offer a default value (even when missing in future events) • Don’t rename property names Use when: • When you need to make changes to your event payload structure but don’t want to break existing subscribers
- 28. 29 @launchany Design Pattern #6: Offlineand Error Recovery Support

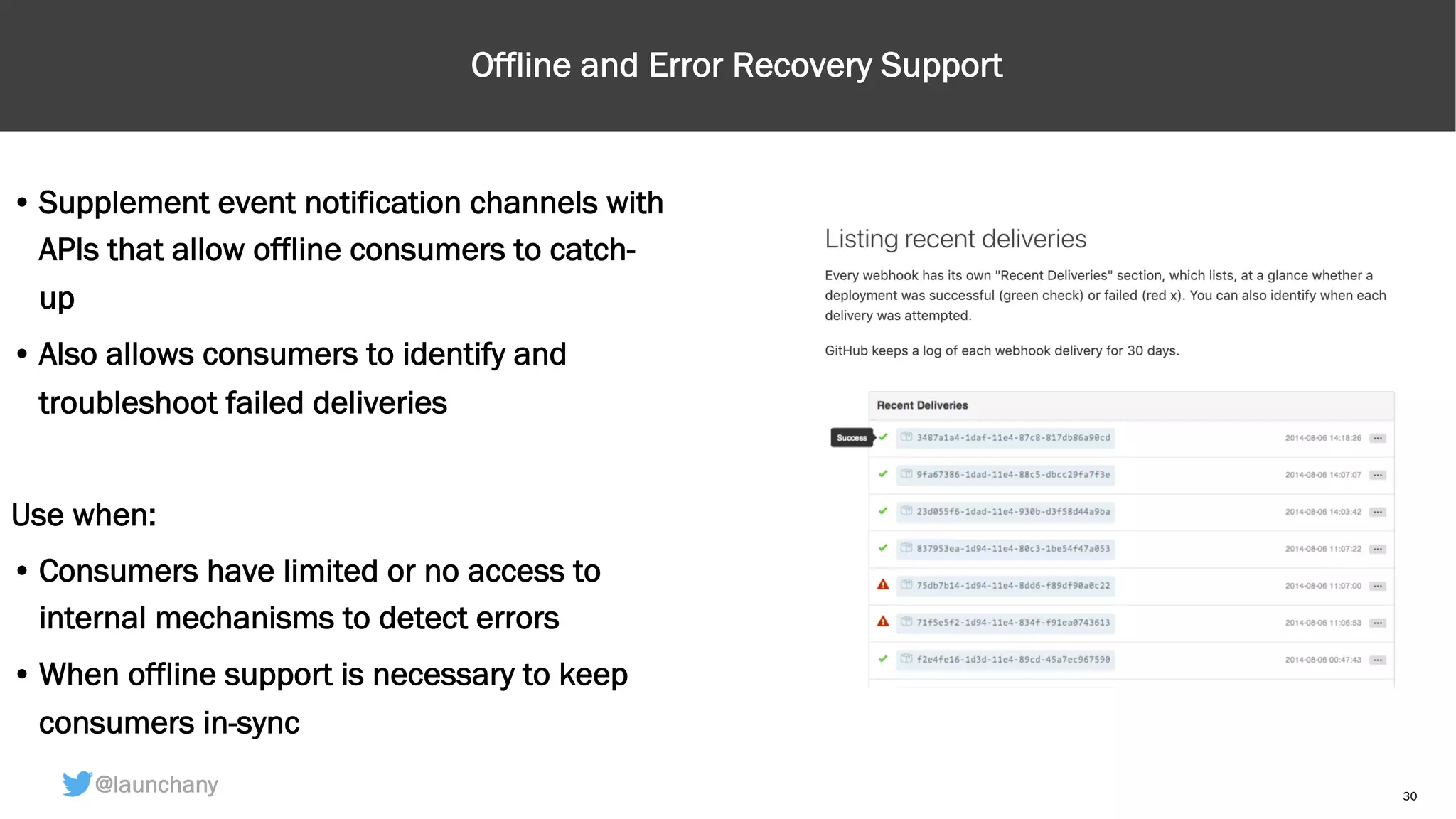

- 29. 30 @launchany Offline and ErrorRecovery Support • Supplement event notification channels with APIs that allow offline consumers to catch- up • Also allows consumers to identify and troubleshoot failed deliveries Use when: • Consumers have limited or no access to internal mechanisms to detect errors • When offline support is necessary to keep consumers in-sync

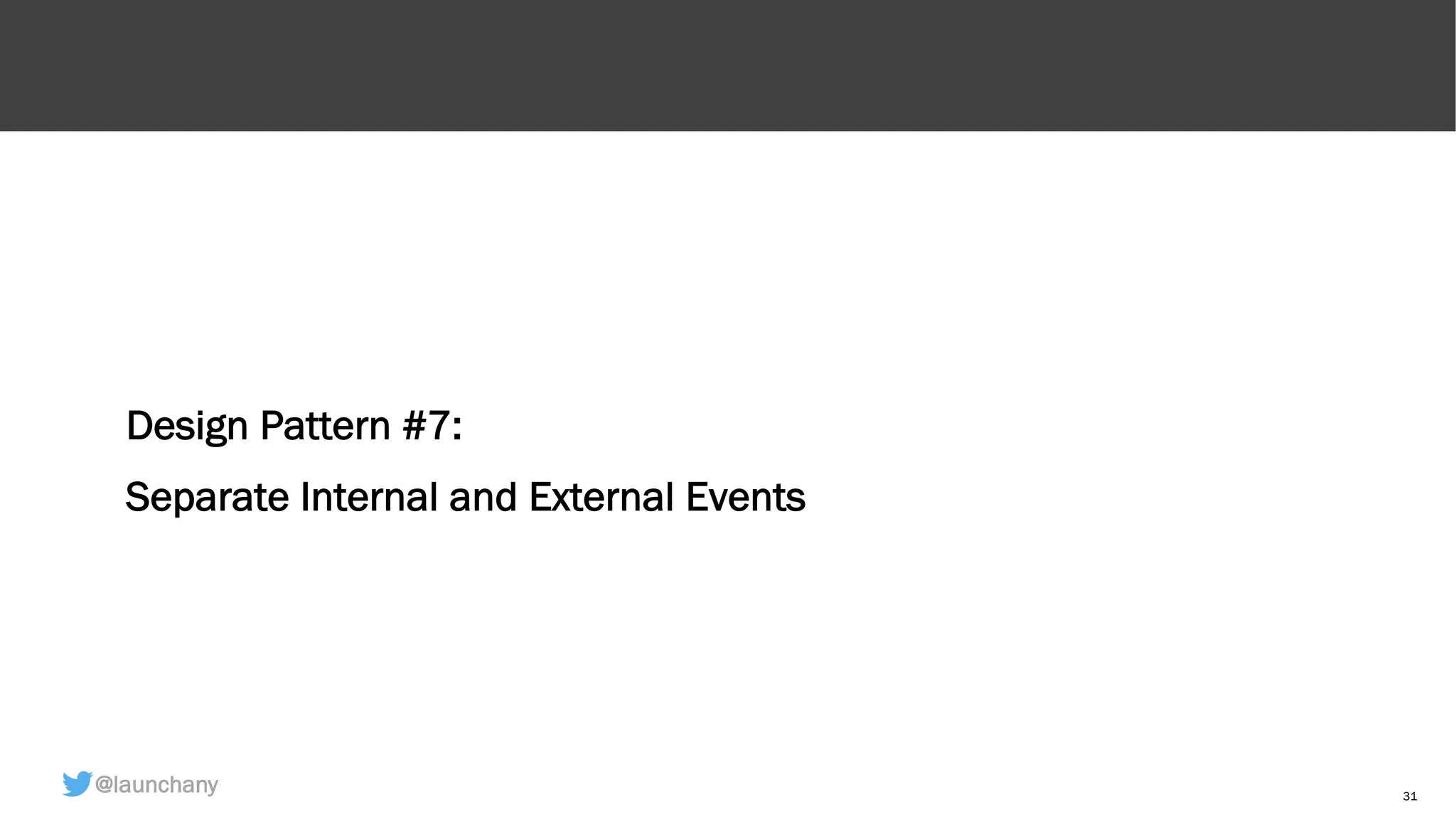

- 30. 31 @launchany Design Pattern #7: SeparateInternal and External Events

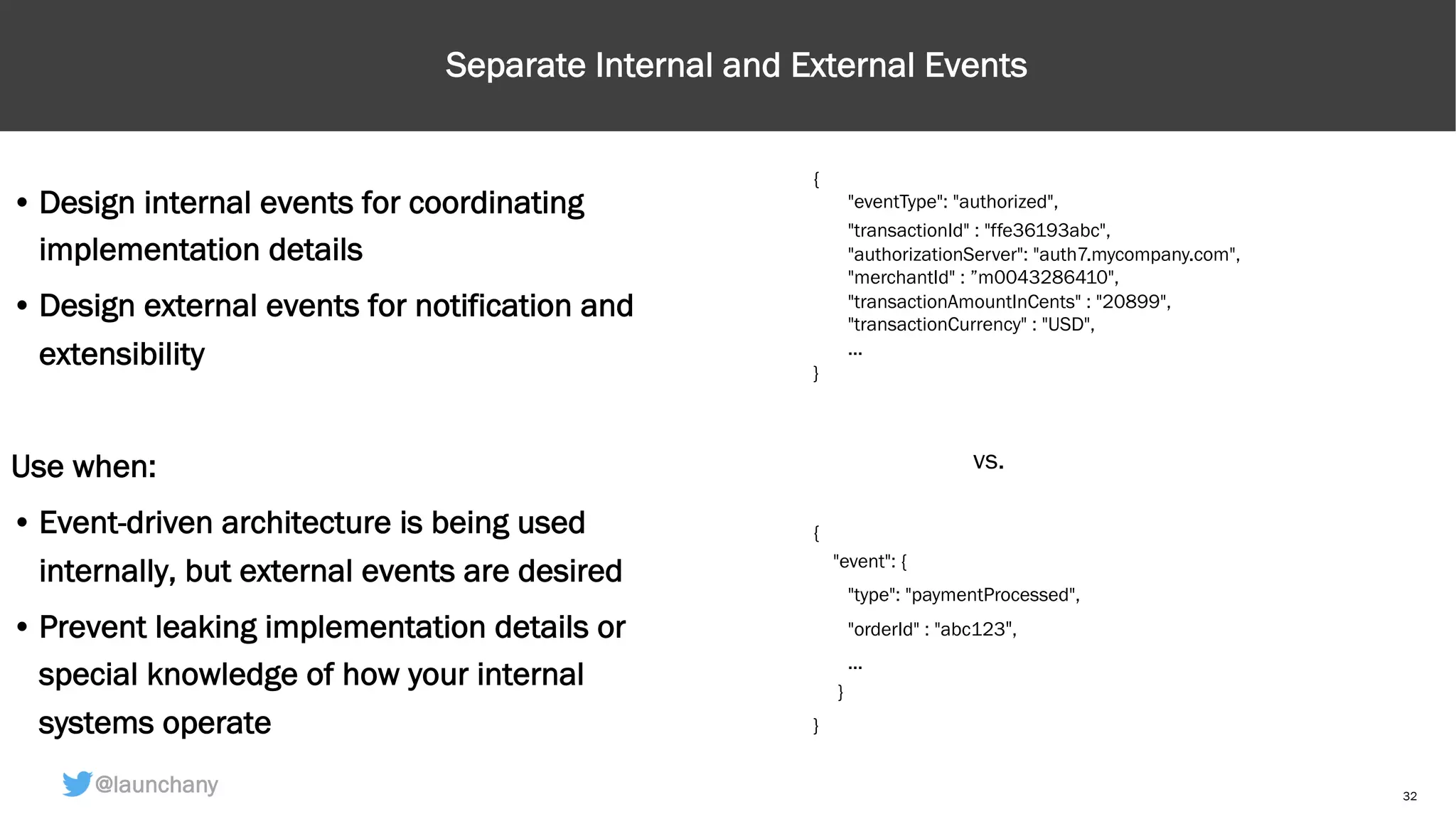

- 31. 32 @launchany Separate Internal andExternal Events • Design internal events for coordinating implementation details • Design external events for notification and extensibility Use when: • Event-driven architecture is being used internally, but external events are desired • Prevent leaking implementation details or special knowledge of how your internal systems operate { "event": { "type": "paymentProcessed", "orderId" : "abc123", ... } } { "eventType": "authorized", "transactionId" : "ffe36193abc", "authorizationServer": "auth7.mycompany.com", "merchantId" : ”m0043286410", "transactionAmountInCents" : "20899", "transactionCurrency" : "USD", ... } vs.

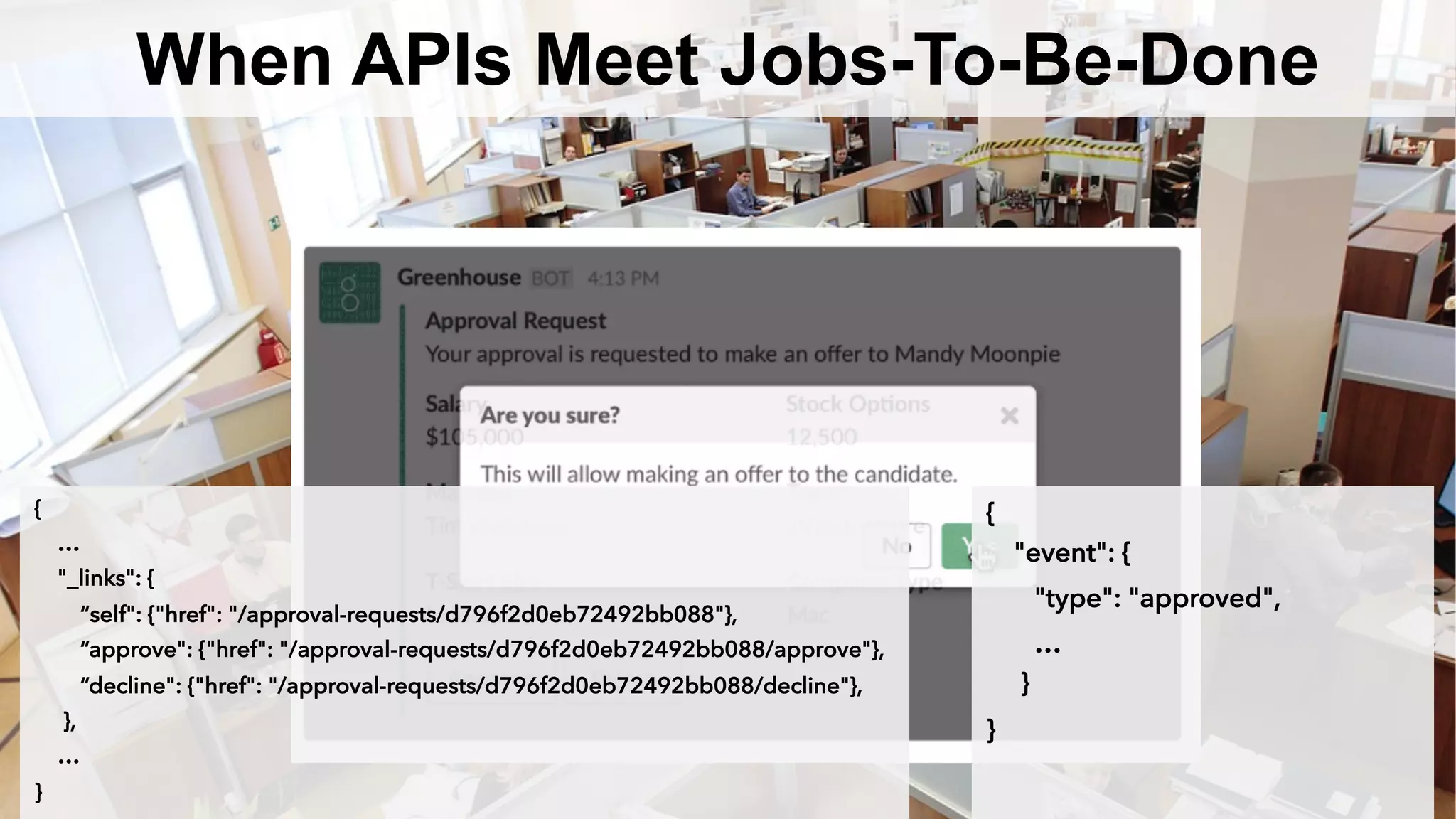

- 32. When APIs MeetJobs-To-Be-Done { … "_links": { “self": {"href": "/approval-requests/d796f2d0eb72492bb088"}, “approve": {"href": "/approval-requests/d796f2d0eb72492bb088/approve"}, “decline": {"href": "/approval-requests/d796f2d0eb72492bb088/decline"}, }, … } { "event": { "type": "approved", … } }
- 33.

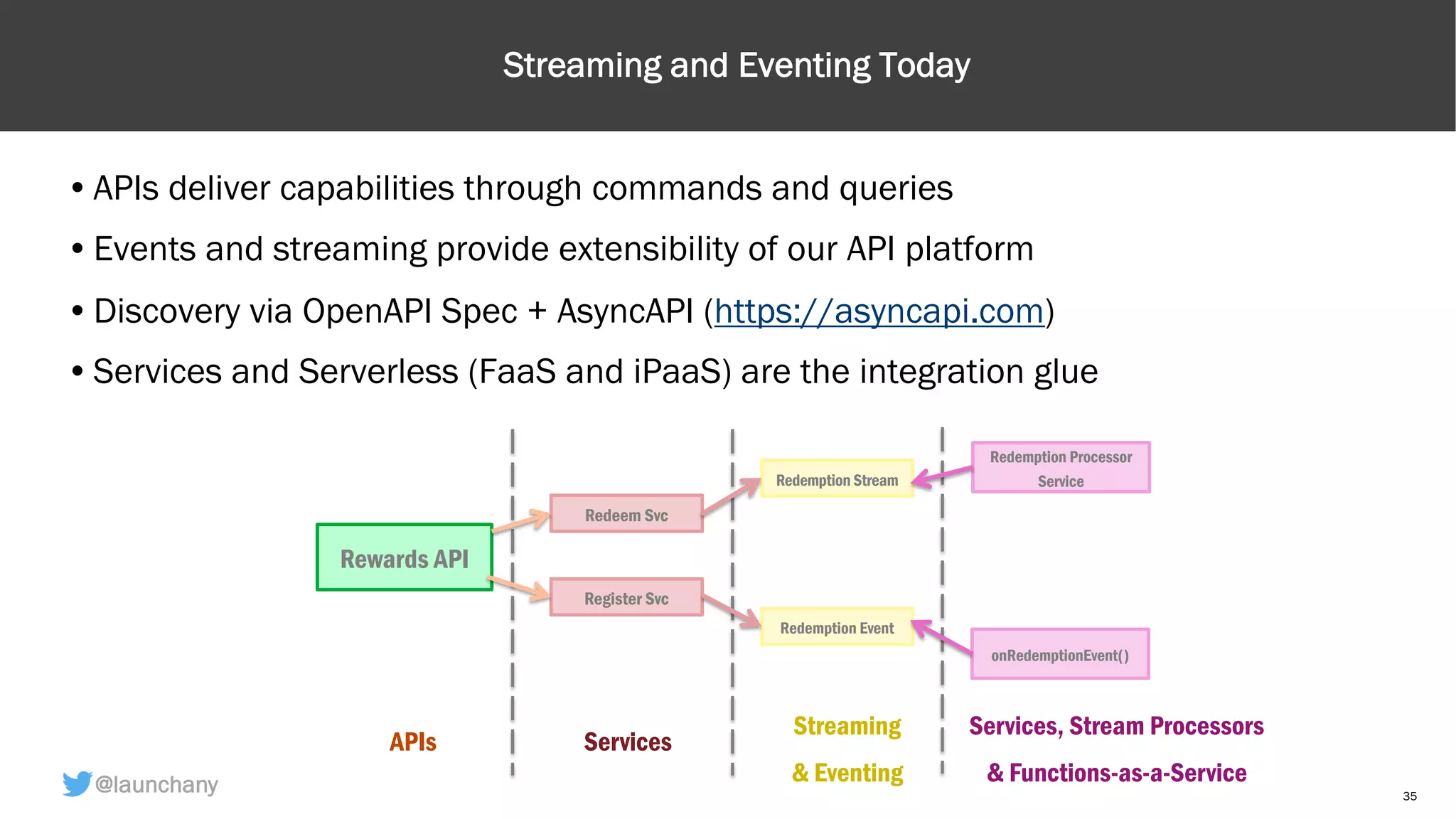

- 34. 35 @launchany Streaming and EventingToday •APIs deliver capabilities through commands and queries •Events and streaming provide extensibility of our API platform •Discovery via OpenAPI Spec + AsyncAPI (https://asyncapi.com) •Services and Serverless (FaaS and iPaaS) are the integration glue Rewards API Redeem Svc Register Svc Redemption Stream Redemption Event onRedemptionEvent() APIs Services Streaming & Eventing Services, Stream Processors & Functions-as-a-Service Redemption Processor Service
