1. ETrax Groups Pvt Ltd Copyrights@ 2013

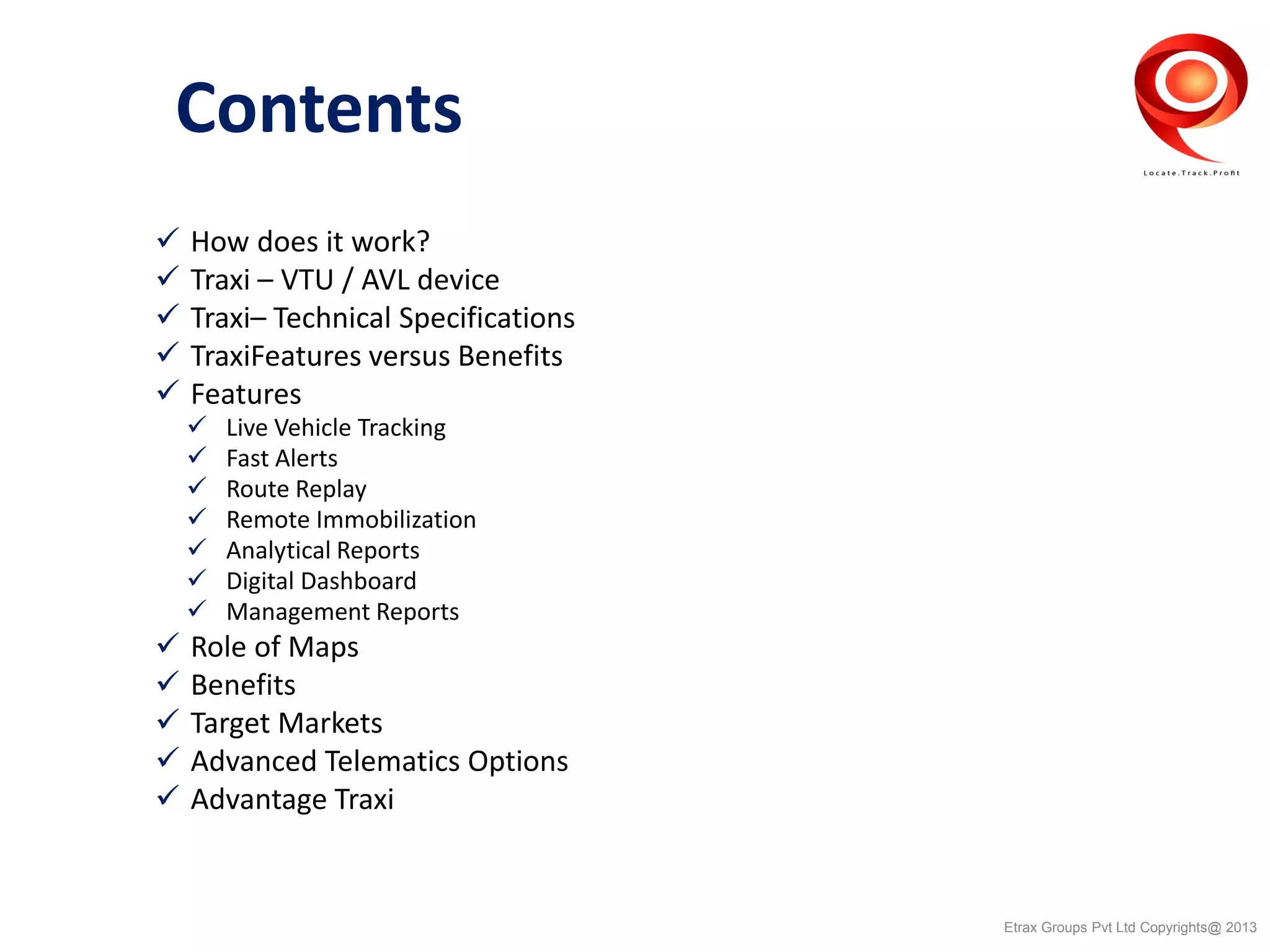

2. Contents
 How does it work?
 Traxi – VTU / AVL device

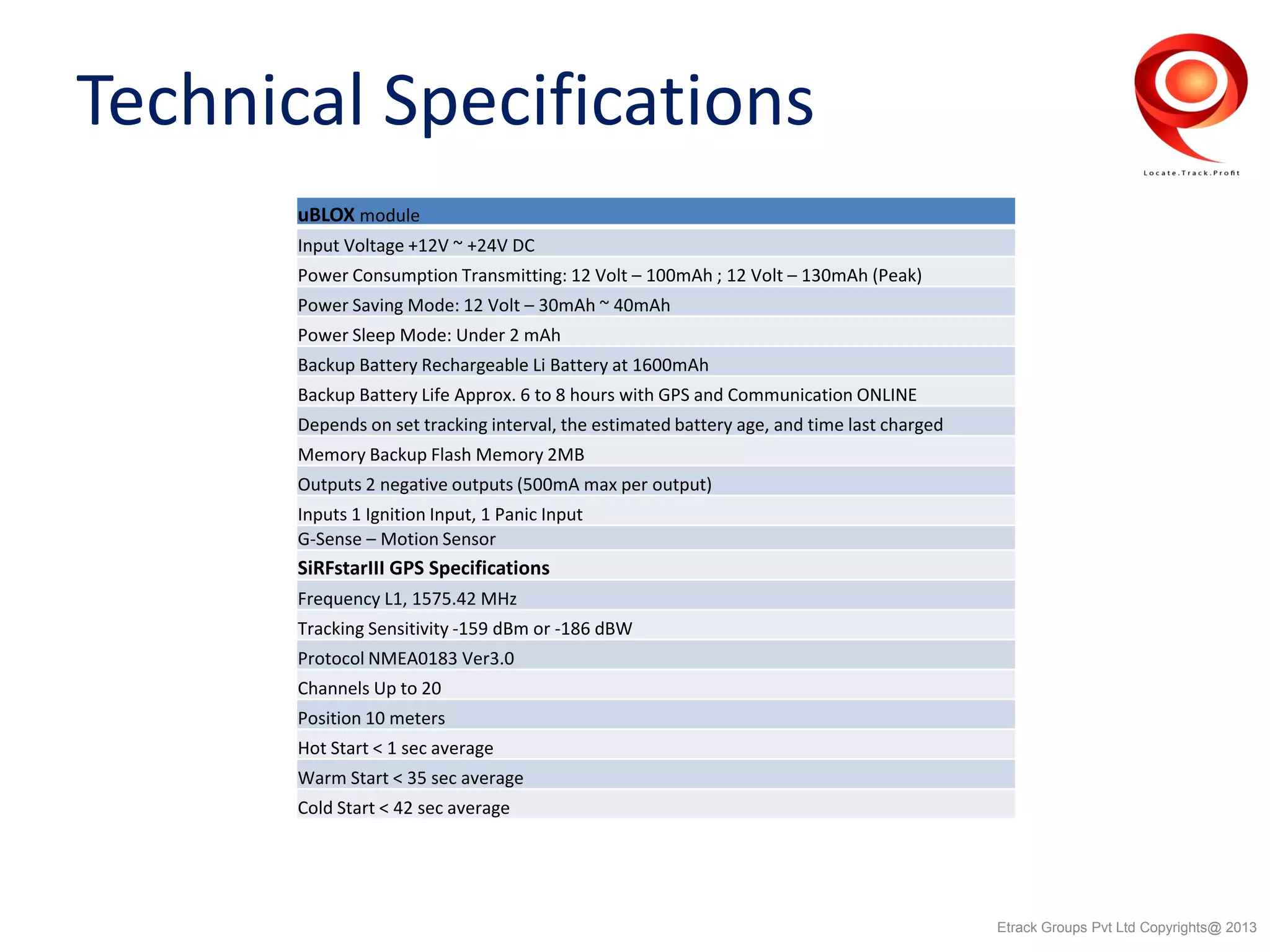

 Traxi– Technical Specifications
 TraxiFeatures versus Benefits
 Features
 Live Vehicle Tracking
 Fast Alerts
 Route Replay
 Remote Immobilization
 Analytical Reports
 Digital Dashboard
 Management Reports
 Role of Maps
 Benefits

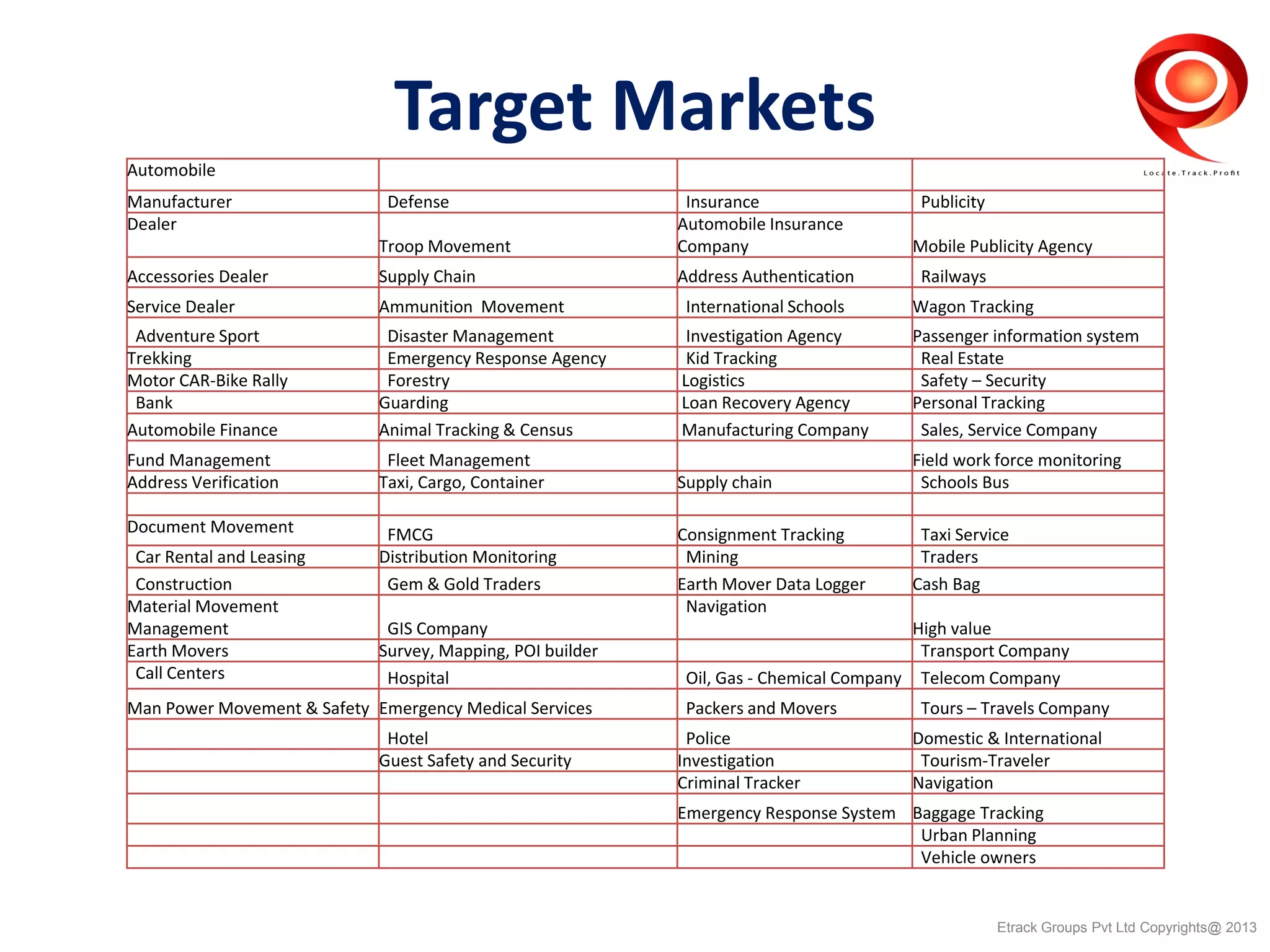

 Target Markets

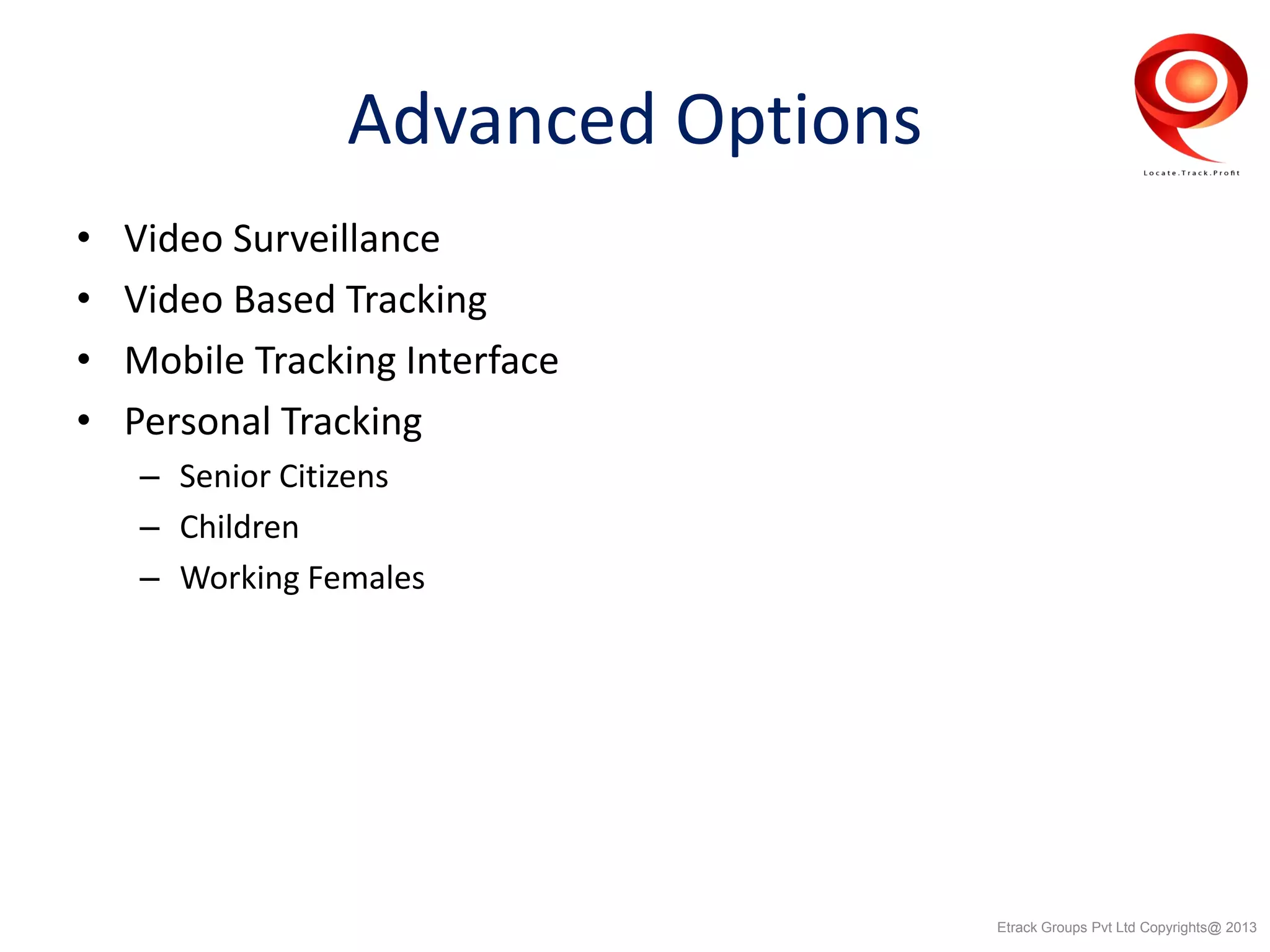

 Advanced Telematics Options
 Advantage Traxi
Etrax Groups Pvt Ltd Copyrights@ 2013

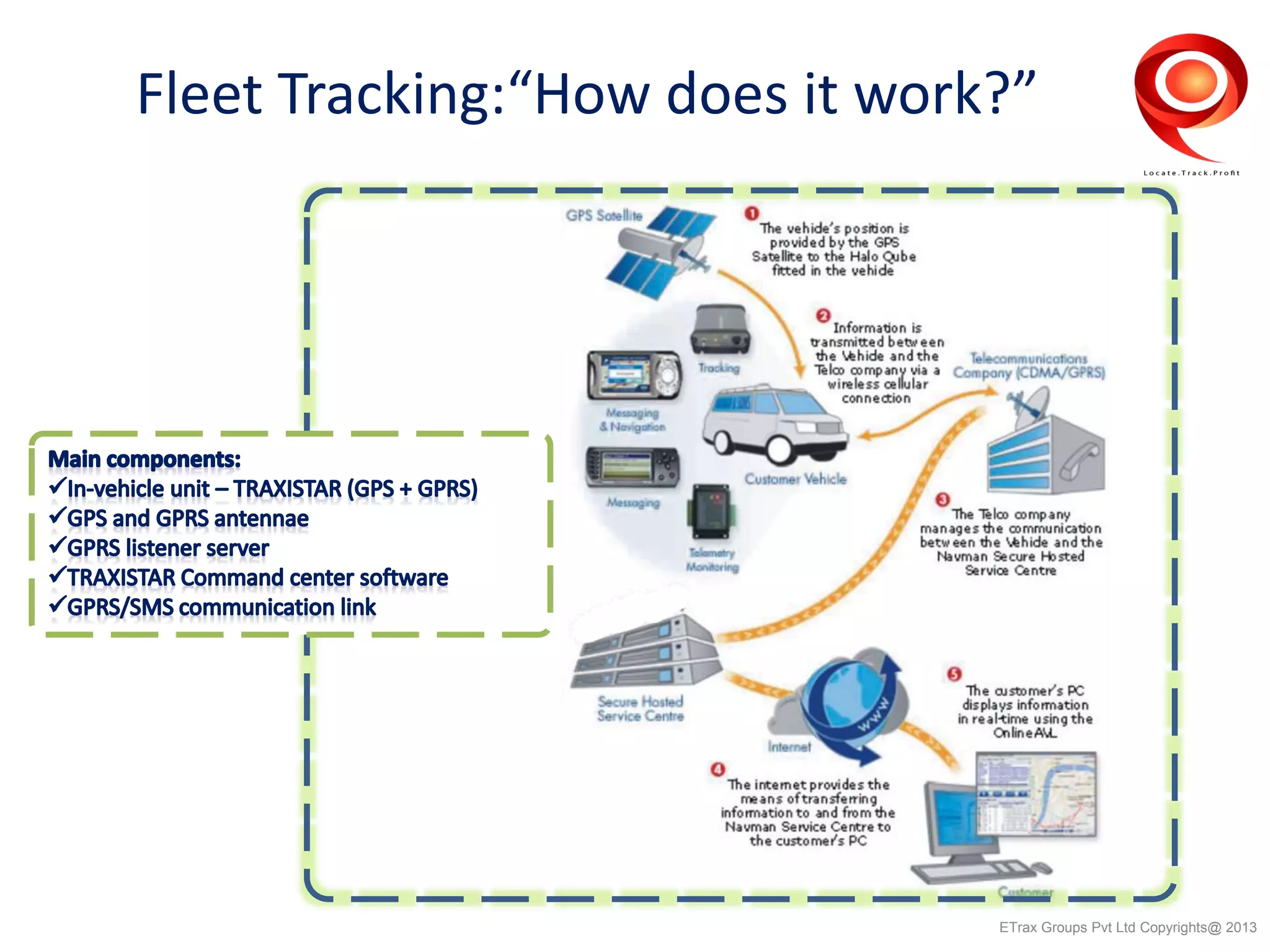

3. Fleet Tracking:“How does it work?”
ETrax Groups Pvt Ltd Copyrights@ 2013

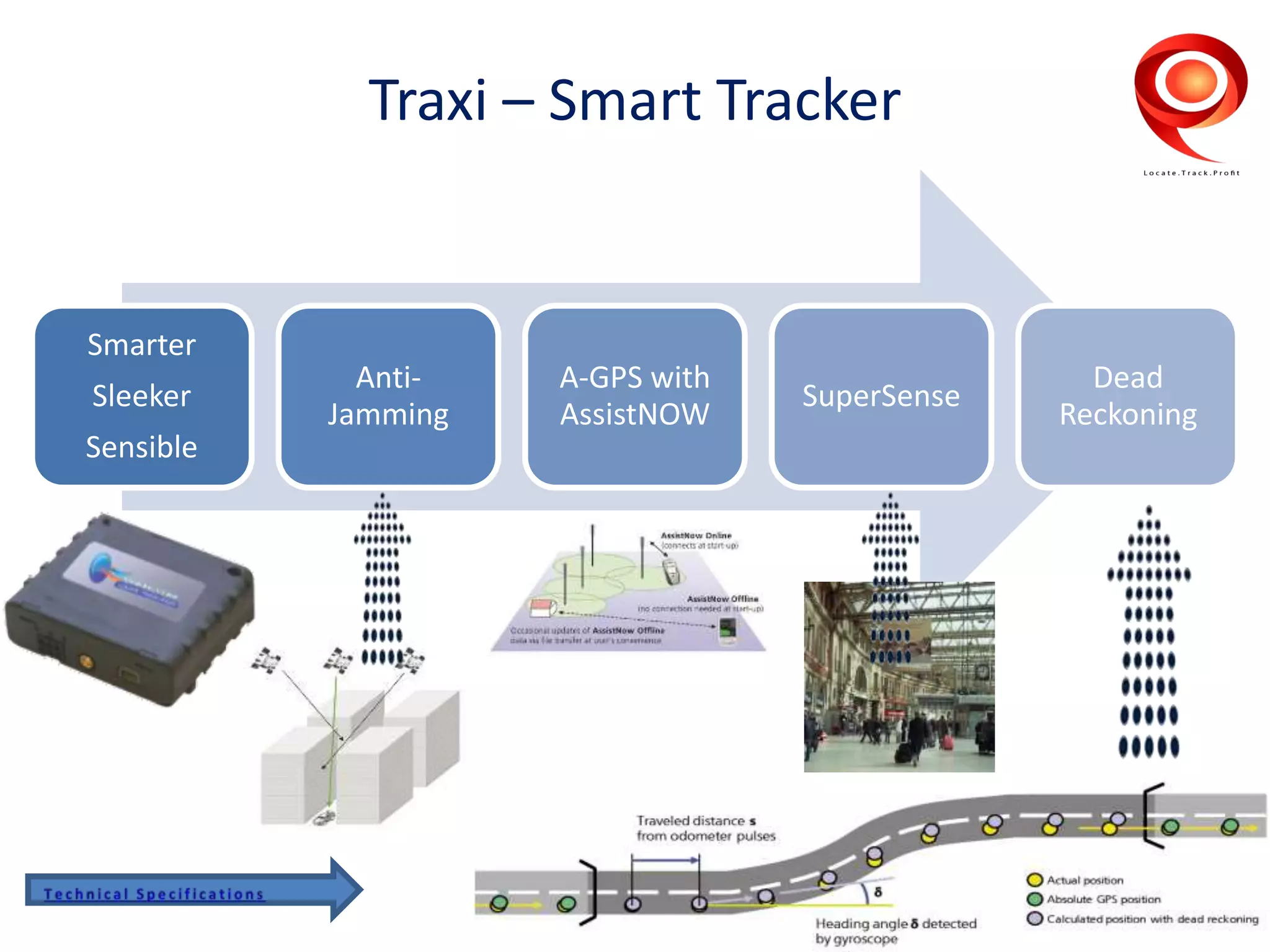

4. Traxi – Smart Tracker
Smarter
Sleeker
Sensible
Anti-
Jamming
A-GPS with
AssistNOW
SuperSense
Dead
Reckoning

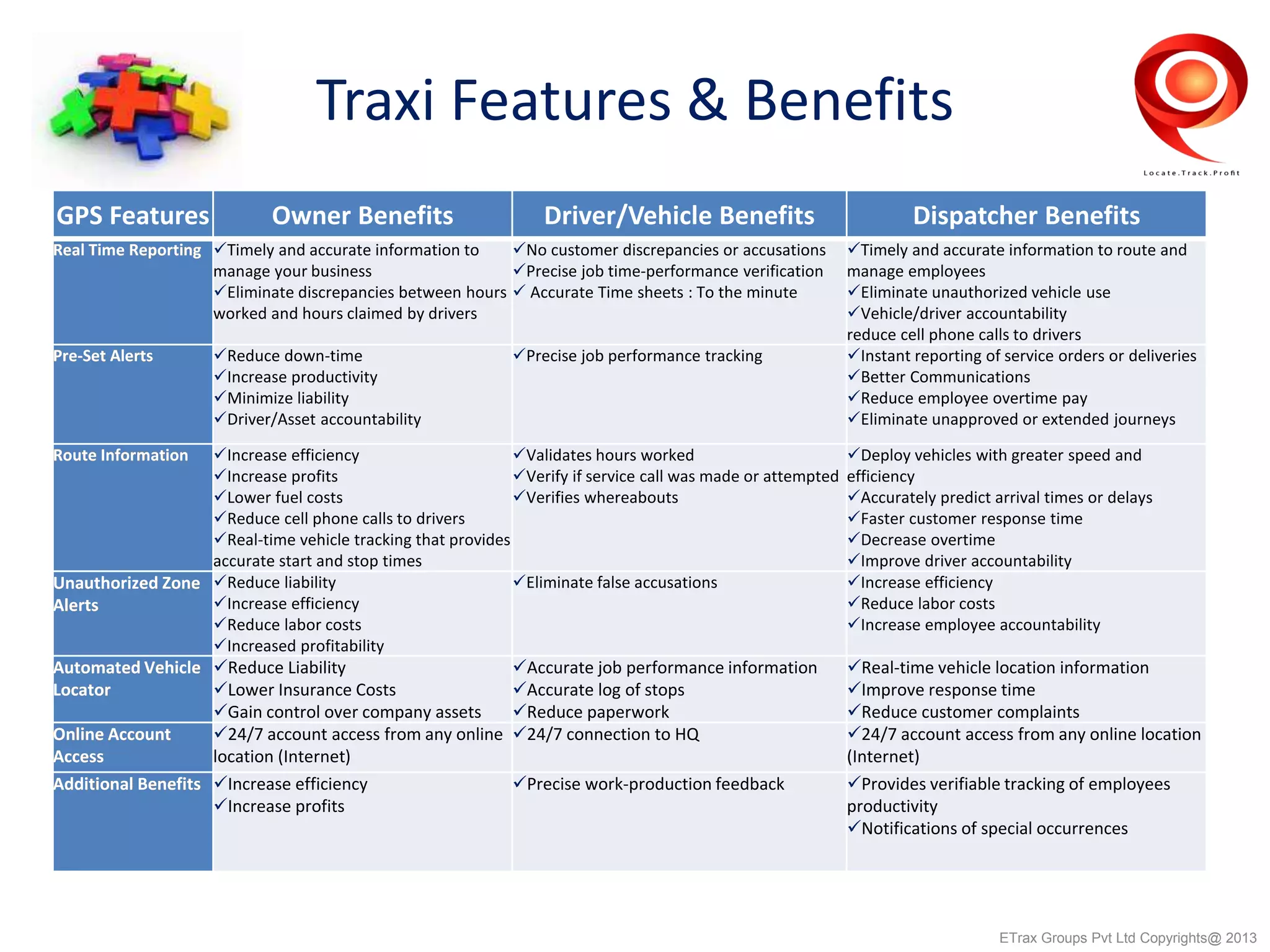

5. Traxi Features & Benefits
GPS Features Owner Benefits Driver/Vehicle Benefits Dispatcher Benefits
Real Time Reporting Timely and accurate information to
manage your business
Eliminate discrepancies between hours
worked and hours claimed by drivers
No customer discrepancies or accusations
Precise job time-performance verification
 Accurate Time sheets : To the minute
Timely and accurate information to route and
manage employees
Eliminate unauthorized vehicle use
Vehicle/driver accountability
reduce cell phone calls to drivers
Pre-Set Alerts Reduce down-time
Increase productivity
Minimize liability
Driver/Asset accountability
Precise job performance tracking Instant reporting of service orders or deliveries
Better Communications
Reduce employee overtime pay
Eliminate unapproved or extended journeys
Route Information Increase efficiency
Increase profits
Lower fuel costs
Reduce cell phone calls to drivers
Real-time vehicle tracking that provides
accurate start and stop times
Validates hours worked
Verify if service call was made or attempted
Verifies whereabouts
Deploy vehicles with greater speed and
efficiency
Accurately predict arrival times or delays
Faster customer response time
Decrease overtime
Improve driver accountability
Unauthorized Zone
Alerts
Reduce liability
Increase efficiency
Reduce labor costs
Increased profitability
Eliminate false accusations Increase efficiency
Reduce labor costs
Increase employee accountability
Automated Vehicle
Locator
Reduce Liability
Lower Insurance Costs
Gain control over company assets
Accurate job performance information
Accurate log of stops
Reduce paperwork
Real-time vehicle location information
Improve response time
Reduce customer complaints
Online Account
Access
24/7 account access from any online
location (Internet)
24/7 connection to HQ 24/7 account access from any online location
(Internet)
Additional Benefits Increase efficiency
Increase profits
Precise work-production feedback Provides verifiable tracking of employees
productivity
Notifications of special occurrences
ETrax Groups Pvt Ltd Copyrights@ 2013

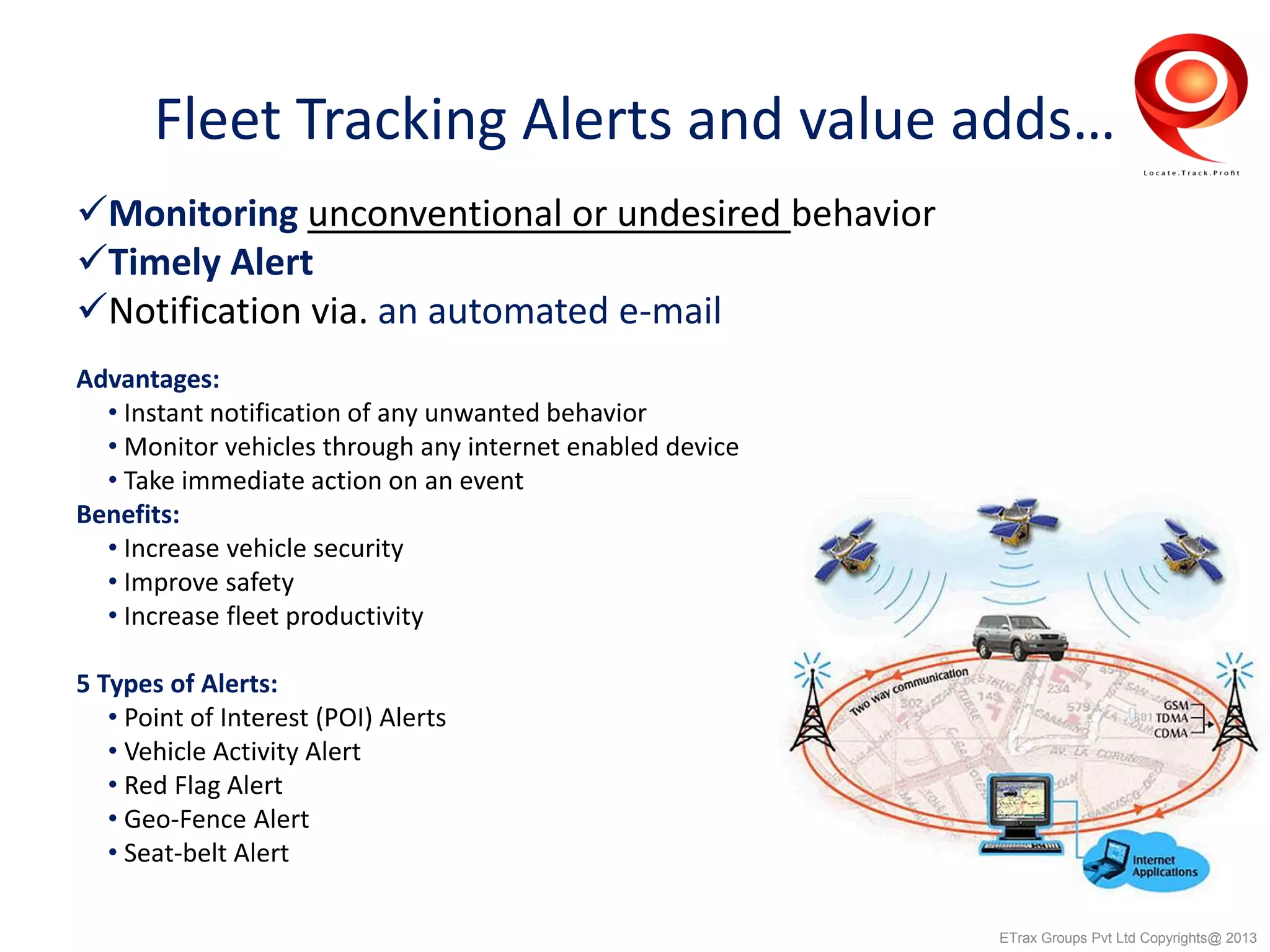

6. Fleet Tracking Alerts and value adds…
Monitoring unconventional or undesired behavior
Timely Alert
Notification via. an automated e-mail
Advantages:
• Instant notification of any unwanted behavior
• Monitor vehicles through any internet enabled device
• Take immediate action on an event
Benefits:
• Increase vehicle security
• Improve safety
• Increase fleet productivity
5 Types of Alerts:
• Point of Interest (POI) Alerts
• Vehicle Activity Alert
• Red Flag Alert
• Geo-Fence Alert
• Seat-belt Alert
ETrax Groups Pvt Ltd Copyrights@ 2013

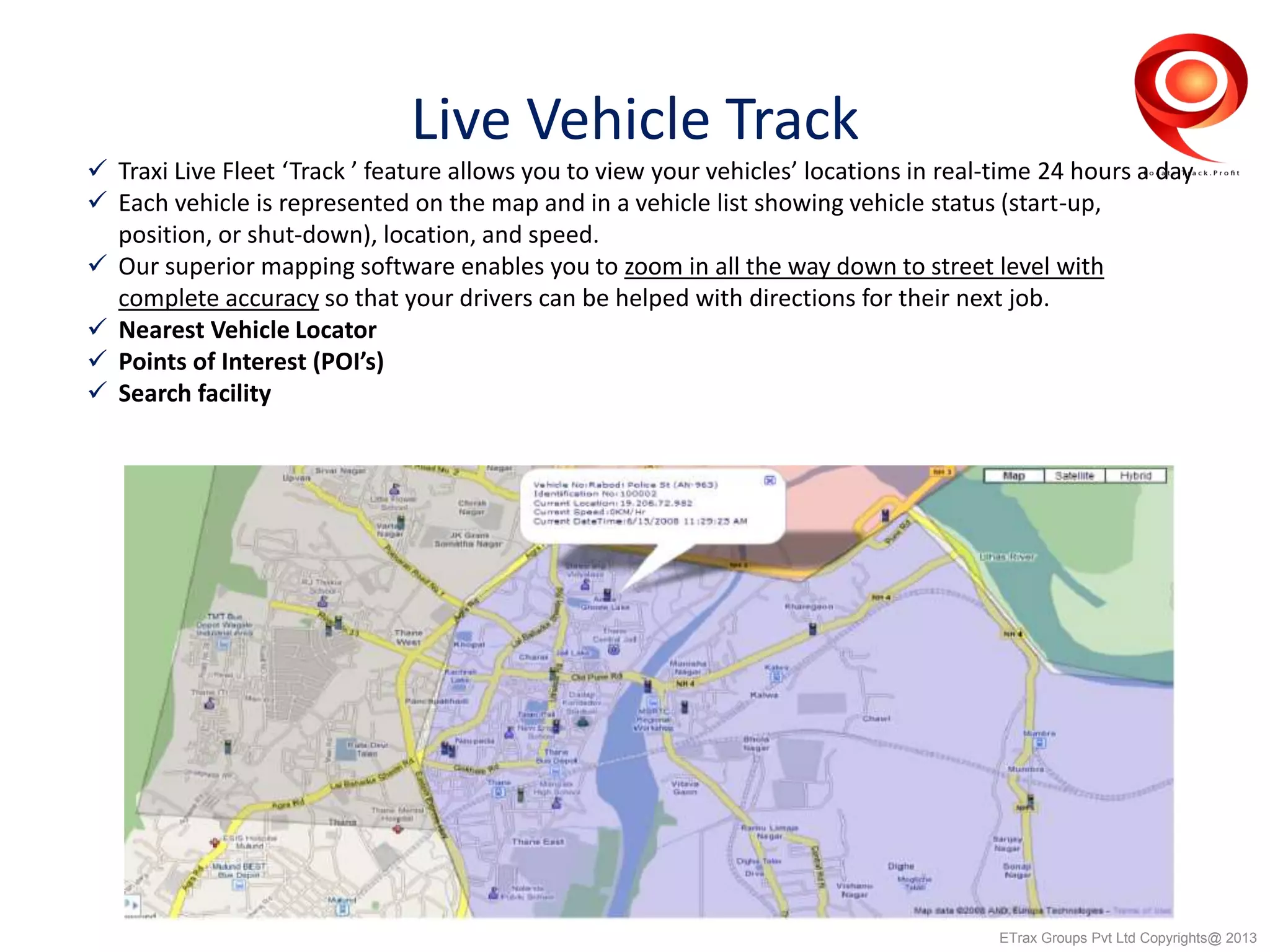

7. Live Vehicle Track
 Traxi Live Fleet ‘Track ’ feature allows you to view your vehicles’ locations in real-time 24 hours a day
 Each vehicle is represented on the map and in a vehicle list showing vehicle status (start-up,
position, or shut-down), location, and speed.
 Our superior mapping software enables you to zoom in all the way down to street level with
complete accuracy so that your drivers can be helped with directions for their next job.
 Nearest Vehicle Locator
 Points of Interest (POI’s)
 Search facility
ETrax Groups Pvt Ltd Copyrights@ 2013

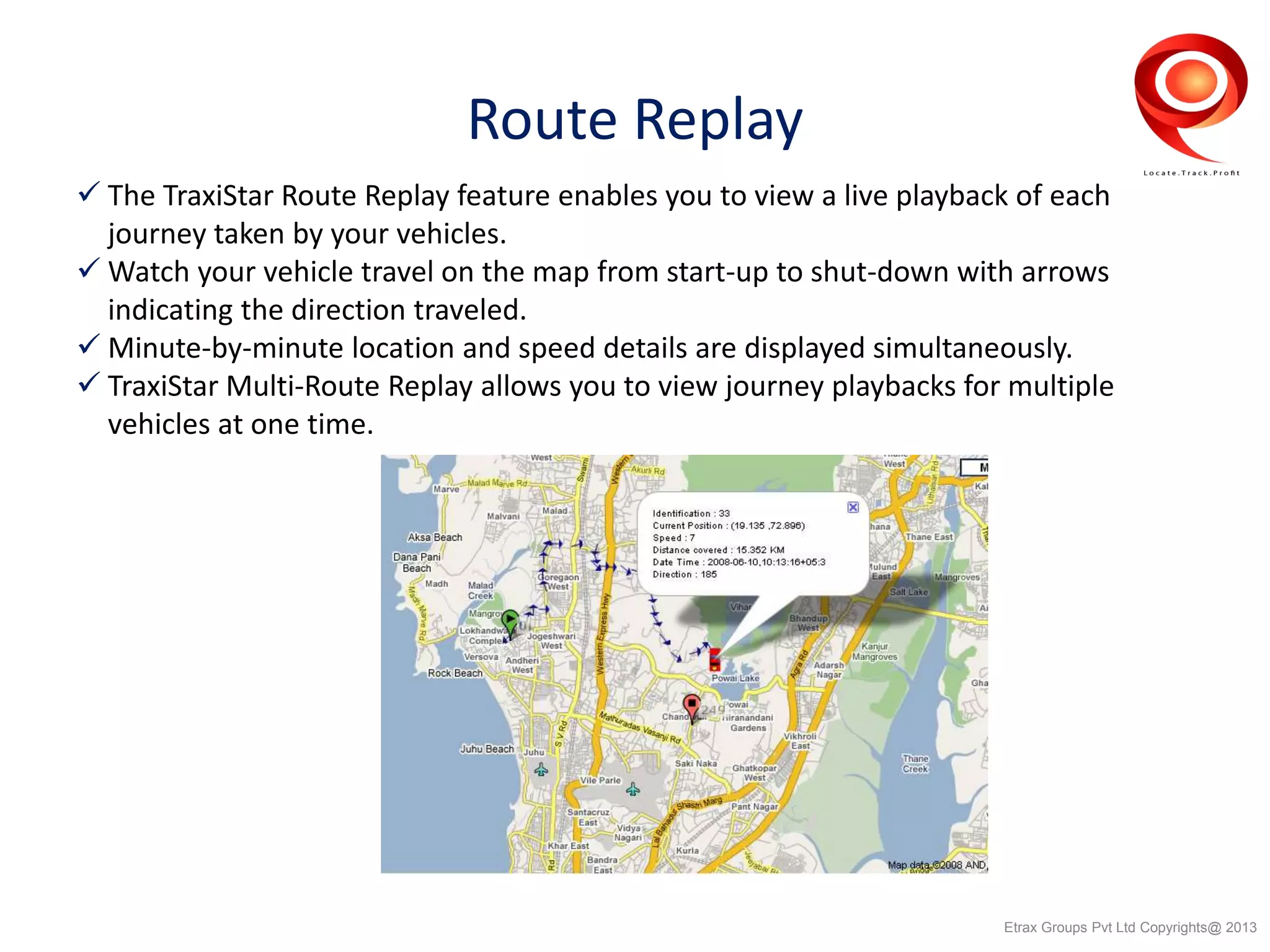

8. Route Replay
 The TraxiStar Route Replay feature enables you to view a live playback of each
journey taken by your vehicles.
 Watch your vehicle travel on the map from start-up to shut-down with arrows
indicating the direction traveled.
 Minute-by-minute location and speed details are displayed simultaneously.
 TraxiStar Multi-Route Replay allows you to view journey playbacks for multiple
vehicles at one time.
Etrax Groups Pvt Ltd Copyrights@ 2013

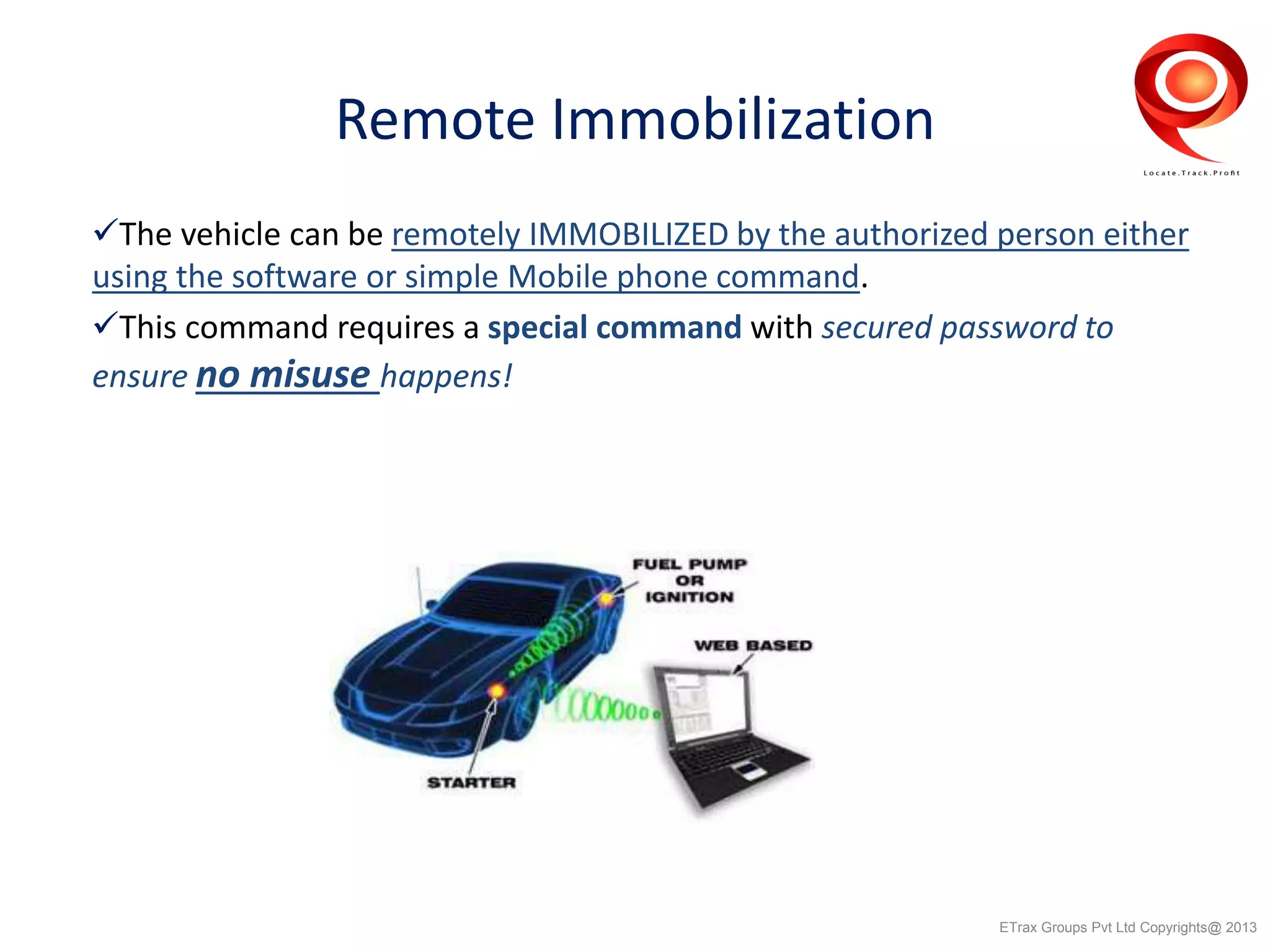

9. Remote Immobilization
The vehicle can be remotely IMMOBILIZED by the authorized person either
using the software or simple Mobile phone command.
This command requires a special command with secured password to
ensure no misuse happens!
ETrax Groups Pvt Ltd Copyrights@ 2013

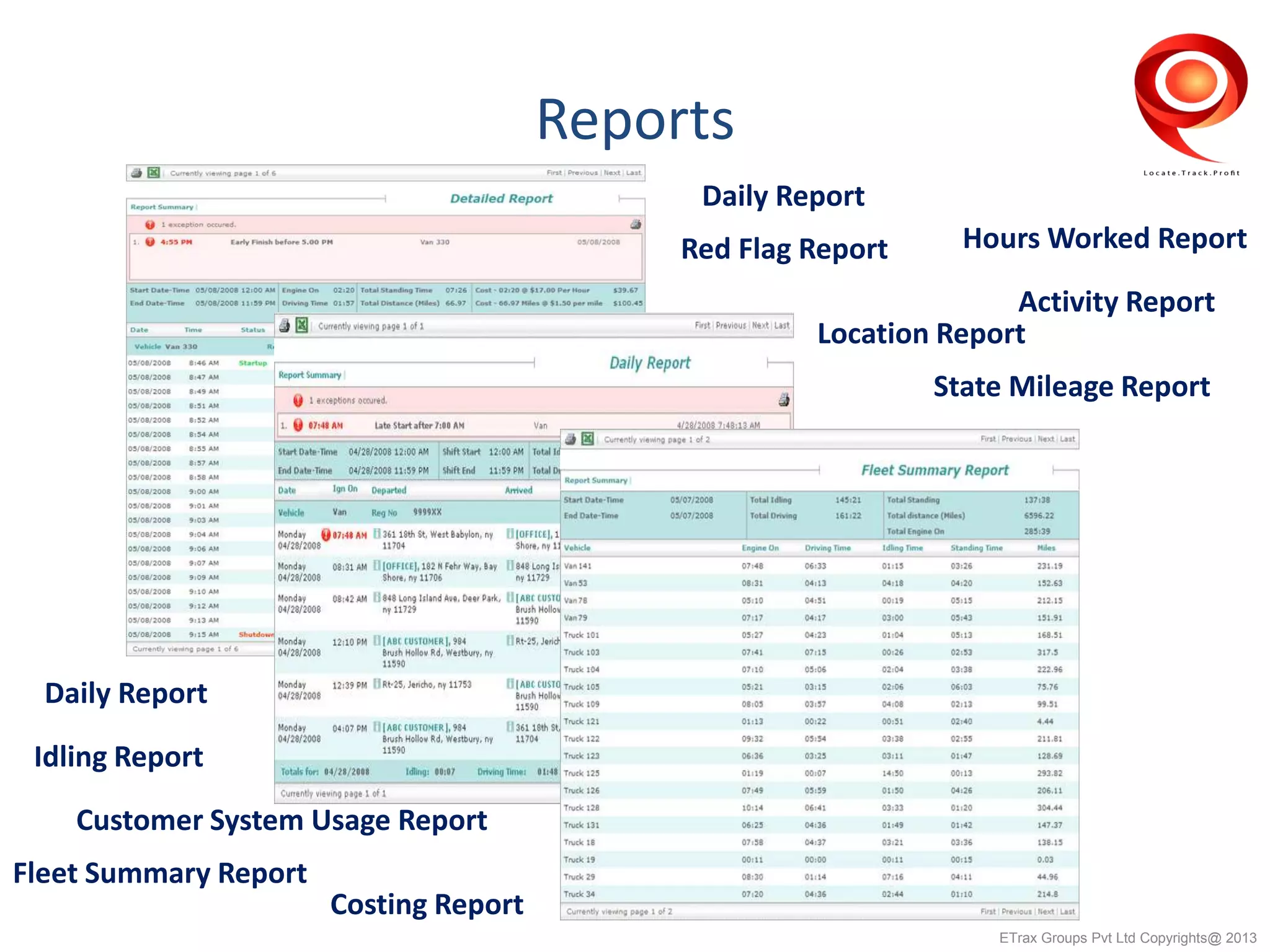

10. Reports
Daily Report
Daily Report
Idling Report
Hours Worked ReportRed Flag Report
Location Report
State Mileage Report
Activity Report
Customer System Usage Report
Fleet Summary Report
Costing Report
ETrax Groups Pvt Ltd Copyrights@ 2013

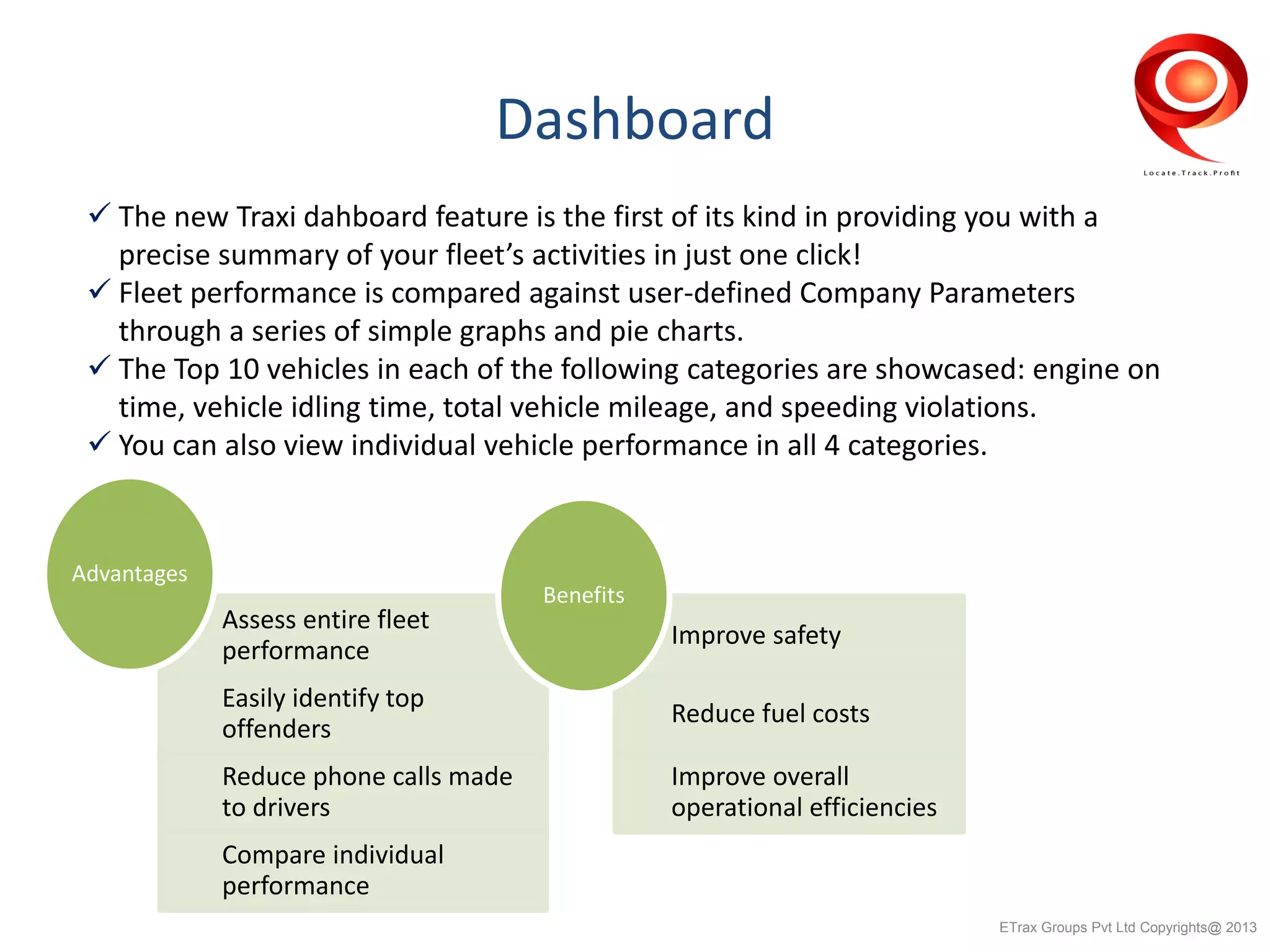

11. Dashboard
 The new Traxi dahboard feature is the first of its kind in providing you with a
precise summary of your fleet’s activities in just one click!
 Fleet performance is compared against user-defined Company Parameters
through a series of simple graphs and pie charts.
 The Top 10 vehicles in each of the following categories are showcased: engine on
time, vehicle idling time, total vehicle mileage, and speeding violations.
 You can also view individual vehicle performance in all 4 categories.
Assess entire fleet
performance
Easily identify top
offenders
Reduce phone calls made
to drivers
Compare individual
performance
Advantages
Improve safety
Reduce fuel costs
Improve overall
operational efficiencies
Benefits
ETrax Groups Pvt Ltd Copyrights@ 2013

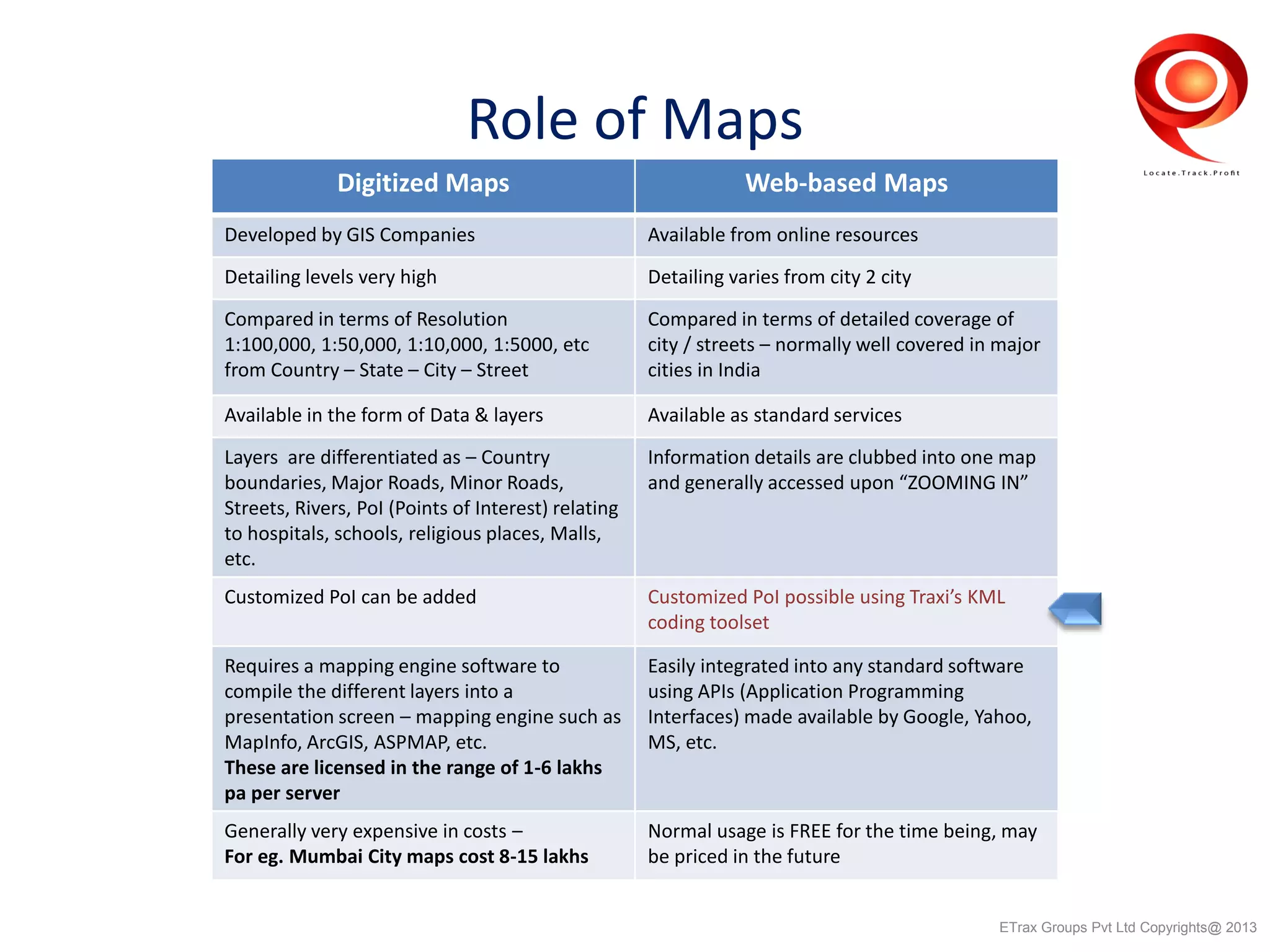

12. Role of Maps
Digitized Maps Web-based Maps
Developed by GIS Companies Available from online resources
Detailing levels very high Detailing varies from city 2 city
Compared in terms of Resolution
1:100,000, 1:50,000, 1:10,000, 1:5000, etc
from Country – State – City – Street
Compared in terms of detailed coverage of
city / streets – normally well covered in major
cities in India
Available in the form of Data & layers Available as standard services
Layers are differentiated as – Country
boundaries, Major Roads, Minor Roads,
Streets, Rivers, PoI (Points of Interest) relating
to hospitals, schools, religious places, Malls,
etc.
Information details are clubbed into one map
and generally accessed upon “ZOOMING IN”
Customized PoI can be added Customized PoI possible using Traxi’s KML
coding toolset
Requires a mapping engine software to
compile the different layers into a
presentation screen – mapping engine such as
MapInfo, ArcGIS, ASPMAP, etc.
These are licensed in the range of 1-6 lakhs
pa per server
Easily integrated into any standard software
using APIs (Application Programming
Interfaces) made available by Google, Yahoo,
MS, etc.
Generally very expensive in costs –
For eg. Mumbai City maps cost 8-15 lakhs
Normal usage is FREE for the time being, may
be priced in the future
ETrax Groups Pvt Ltd Copyrights@ 2013

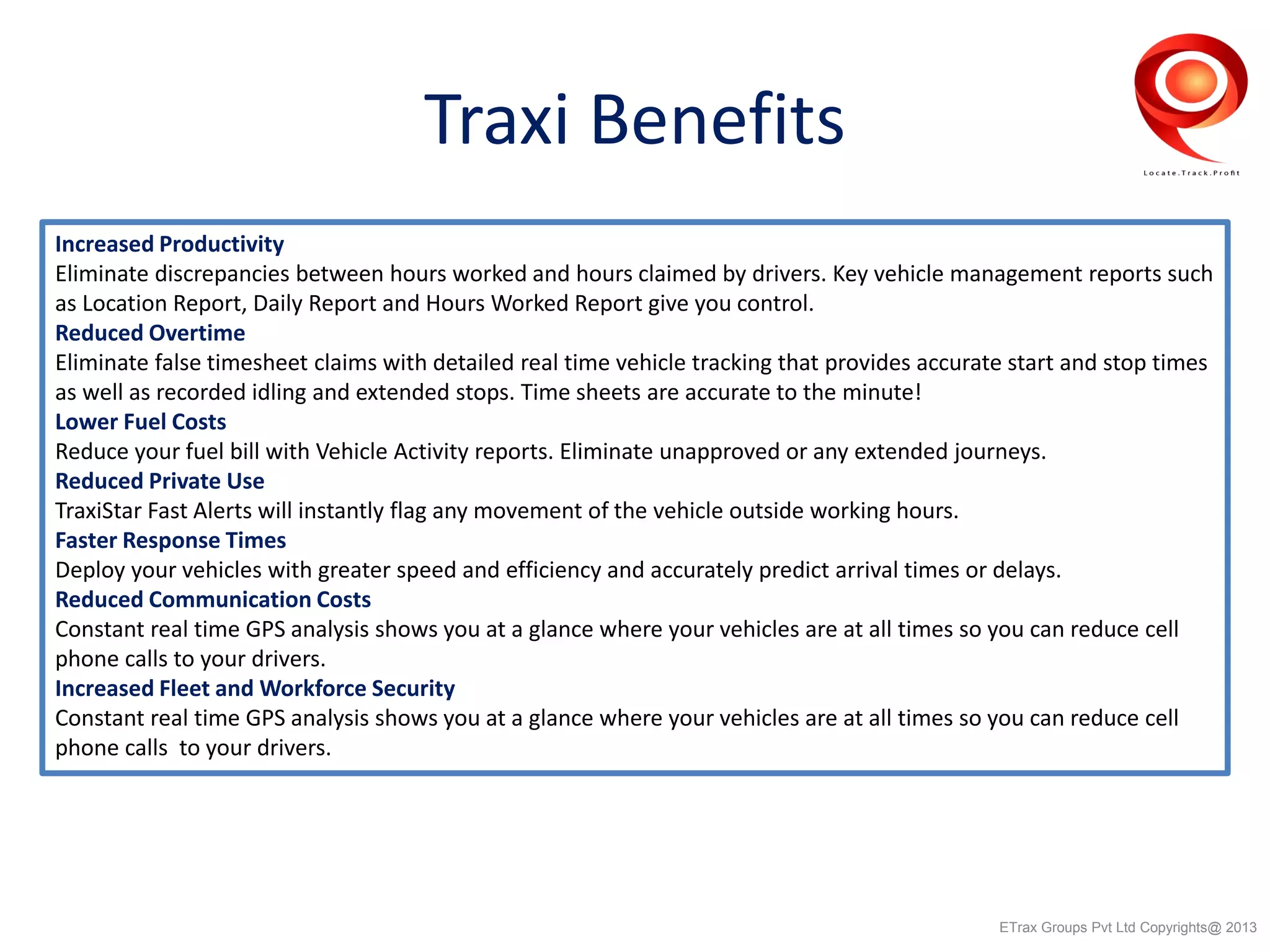

13. Traxi Benefits
Increased Productivity
Eliminate discrepancies between hours worked and hours claimed by drivers. Key vehicle management reports such
as Location Report, Daily Report and Hours Worked Report give you control.
Reduced Overtime
Eliminate false timesheet claims with detailed real time vehicle tracking that provides accurate start and stop times
as well as recorded idling and extended stops. Time sheets are accurate to the minute!
Lower Fuel Costs
Reduce your fuel bill with Vehicle Activity reports. Eliminate unapproved or any extended journeys.
Reduced Private Use
TraxiStar Fast Alerts will instantly flag any movement of the vehicle outside working hours.
Faster Response Times
Deploy your vehicles with greater speed and efficiency and accurately predict arrival times or delays.
Reduced Communication Costs
Constant real time GPS analysis shows you at a glance where your vehicles are at all times so you can reduce cell
phone calls to your drivers.
Increased Fleet and Workforce Security
Constant real time GPS analysis shows you at a glance where your vehicles are at all times so you can reduce cell
phone calls to your drivers.
ETrax Groups Pvt Ltd Copyrights@ 2013

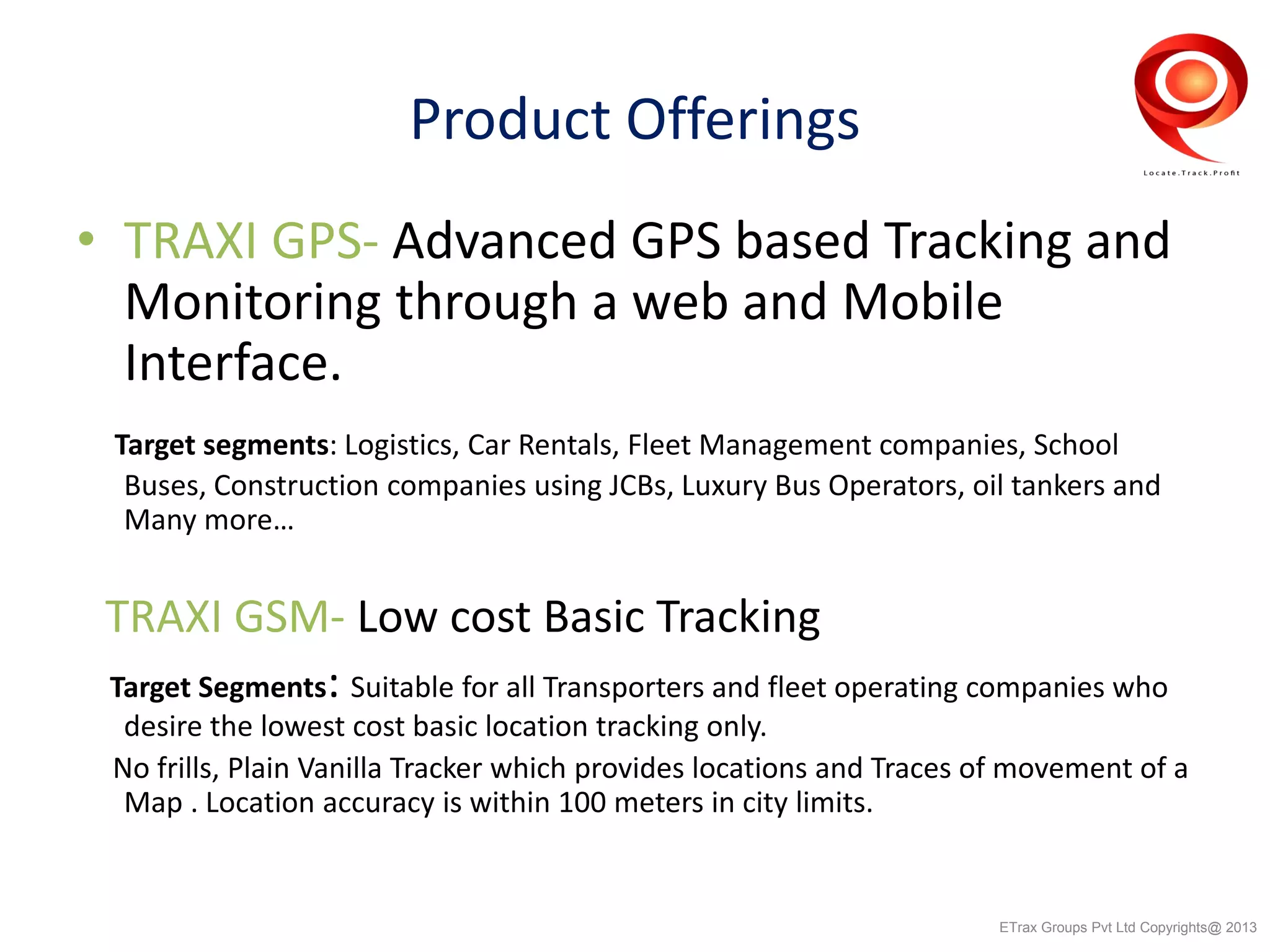

14. Product Offerings
• TRAXI GPS- Advanced GPS based Tracking and
Monitoring through a web and Mobile
Interface.
Target segments: Logistics, Car Rentals, Fleet Management companies, School
Buses, Construction companies using JCBs, Luxury Bus Operators, oil tankers and
Many more…
TRAXI GSM- Low cost Basic Tracking
Target Segments: Suitable for all Transporters and fleet operating companies who
desire the lowest cost basic location tracking only.
No frills, Plain Vanilla Tracker which provides locations and Traces of movement of a
Map . Location accuracy is within 100 meters in city limits.
ETrax Groups Pvt Ltd Copyrights@ 2013

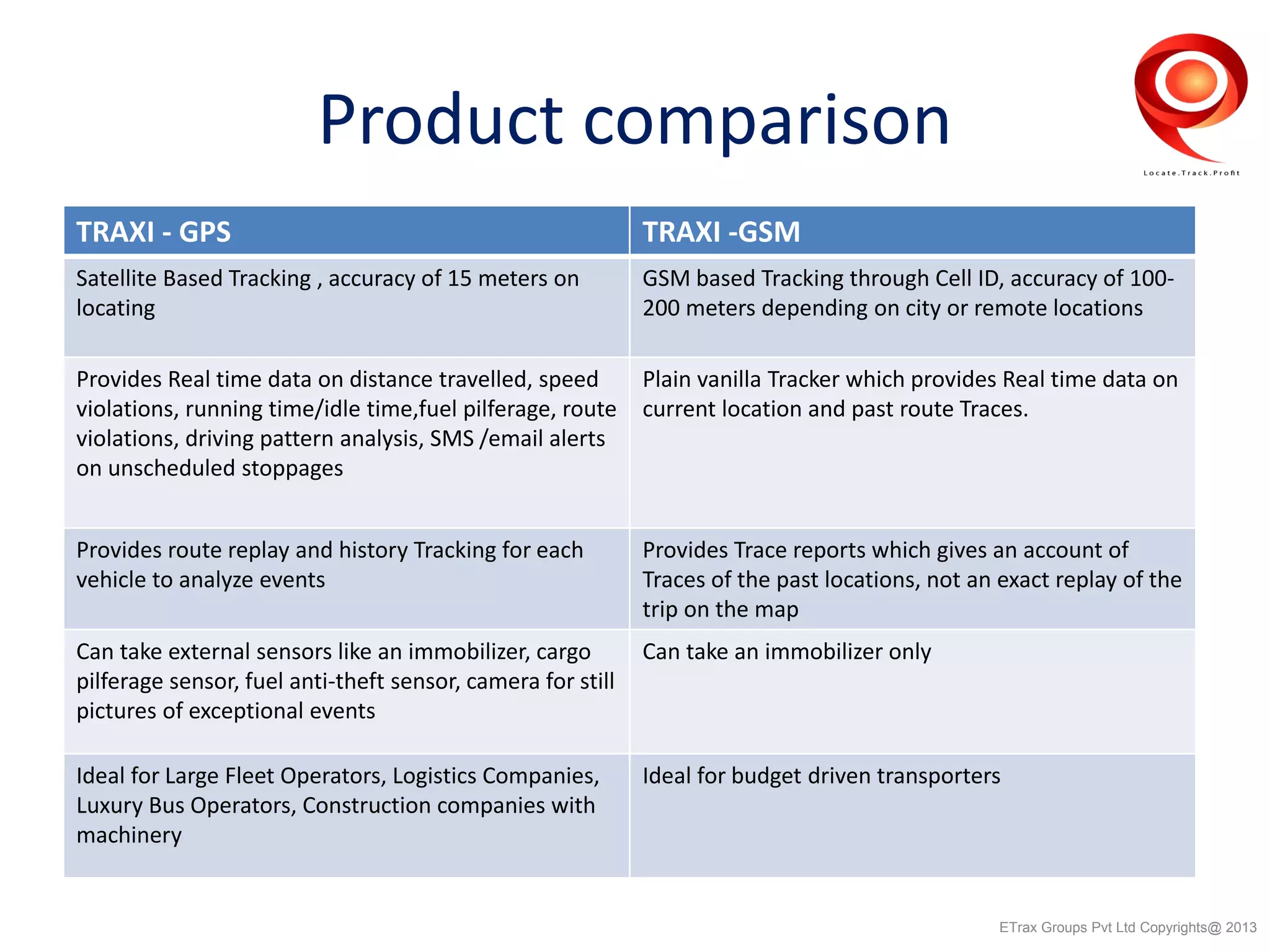

15. Product comparison
TRAXI - GPS TRAXI -GSM
Satellite Based Tracking , accuracy of 15 meters on
locating
GSM based Tracking through Cell ID, accuracy of 100-
200 meters depending on city or remote locations
Provides Real time data on distance travelled, speed
violations, running time/idle time,fuel pilferage, route
violations, driving pattern analysis, SMS /email alerts
on unscheduled stoppages
Plain vanilla Tracker which provides Real time data on
current location and past route Traces.
Provides route replay and history Tracking for each
vehicle to analyze events
Provides Trace reports which gives an account of
Traces of the past locations, not an exact replay of the
trip on the map
Can take external sensors like an immobilizer, cargo
pilferage sensor, fuel anti-theft sensor, camera for still
pictures of exceptional events
Can take an immobilizer only
Ideal for Large Fleet Operators, Logistics Companies,
Luxury Bus Operators, Construction companies with
machinery
Ideal for budget driven transporters
ETrax Groups Pvt Ltd Copyrights@ 2013

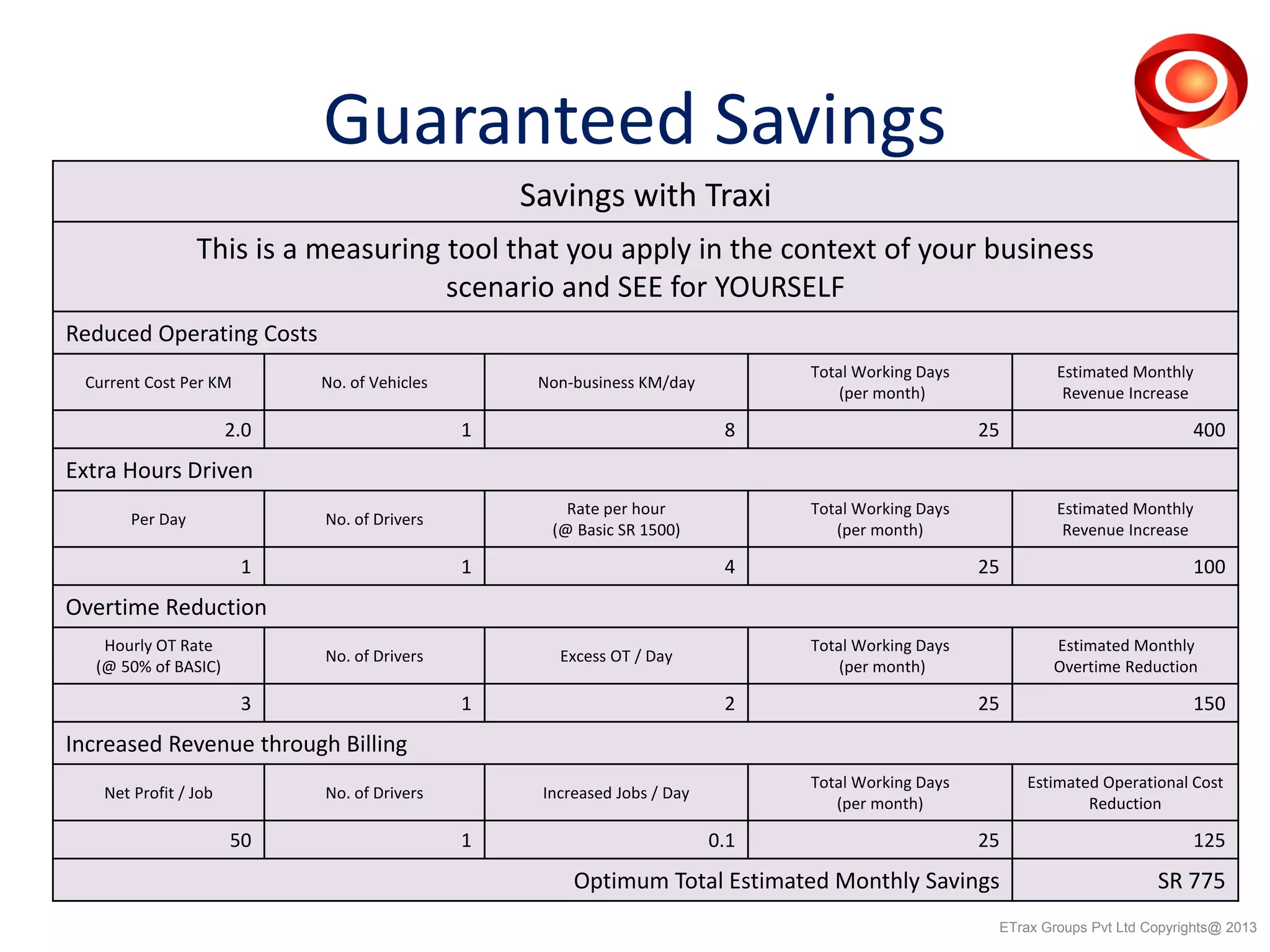

16. Guaranteed Savings
Savings with Traxi
This is a measuring tool that you apply in the context of your business
scenario and SEE for YOURSELF
Reduced Operating Costs
Current Cost Per KM No. of Vehicles Non-business KM/day
Total Working Days
(per month)
Estimated Monthly
Revenue Increase
2.0 1 8 25 400
Extra Hours Driven
Per Day No. of Drivers
Rate per hour
(@ Basic SR 1500)
Total Working Days
(per month)
Estimated Monthly
Revenue Increase
1 1 4 25 100
Overtime Reduction
Hourly OT Rate
(@ 50% of BASIC)
No. of Drivers Excess OT / Day
Total Working Days
(per month)
Estimated Monthly
Overtime Reduction
3 1 2 25 150
Increased Revenue through Billing
Net Profit / Job No. of Drivers Increased Jobs / Day
Total Working Days
(per month)
Estimated Operational Cost
Reduction
50 1 0.1 25 125
Optimum Total Estimated Monthly Savings SR 775
ETrax Groups Pvt Ltd Copyrights@ 2013

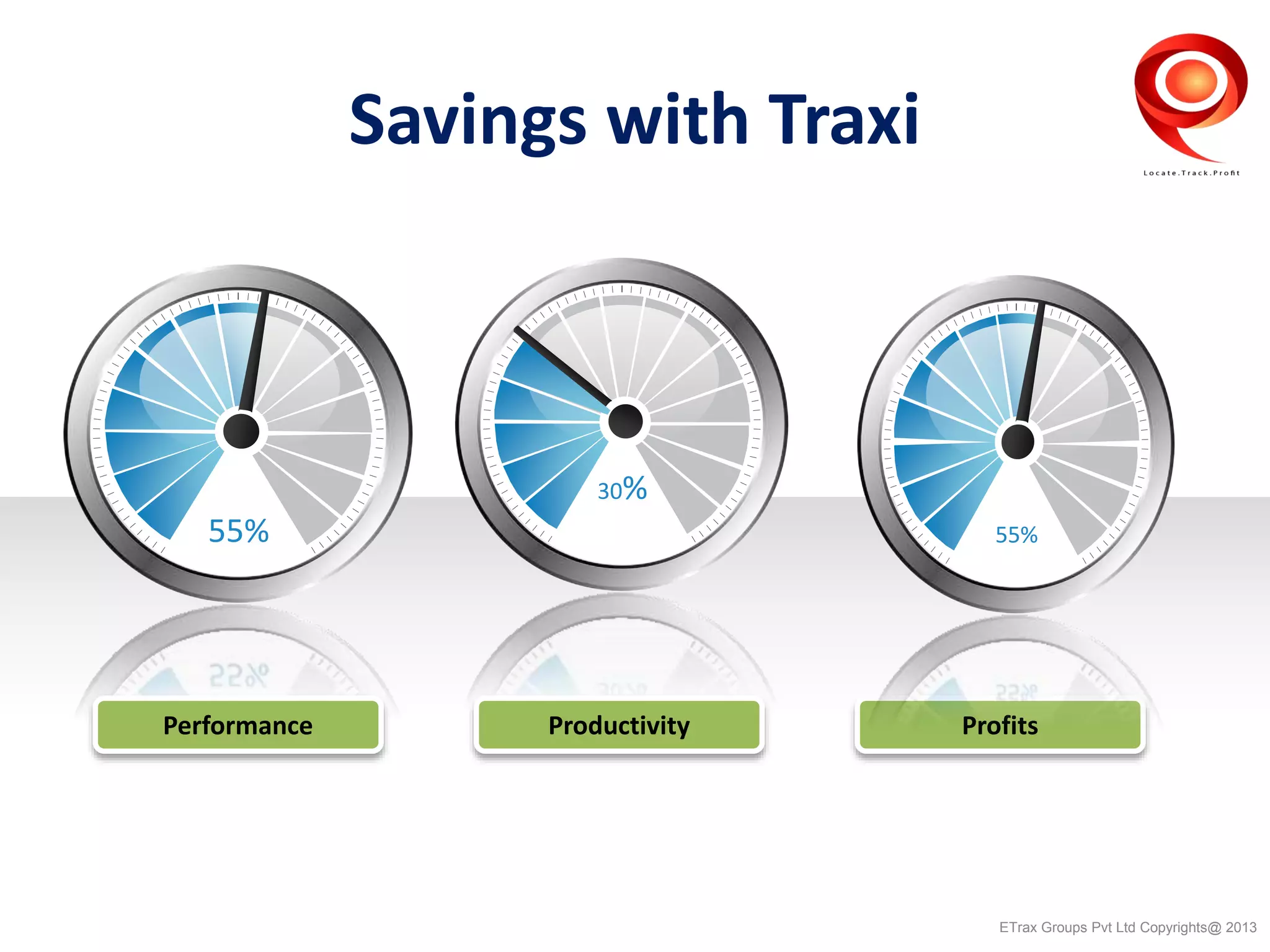

17. Savings with Traxi
55%
30%
Performance Productivity Profits
ETrax Groups Pvt Ltd Copyrights@ 2013
55%

18. Advantage Traxi
Knowledge & Experience (over 8 years and 2000
vehicles on road) makes the difference between
solutions & products
Solutions designed inhouse
Premium international clients such as US Defense,
SABIC – Saudi, MoI, United Transport UAE, TSG –
UAE, Group4 Security, Globe Marine, Budget Rent
a Car, Avis Rent a Car, etc…
Indian clients include Thane Police, Time
Technoplast, Jindal Transport, IOC,, Reliance
Energy.
ETrax Groups Pvt Ltd Copyrights@ 2013

19. uBLOX module
Input Voltage +12V ~ +24V DC
Power Consumption Transmitting: 12 Volt – 100mAh ; 12 Volt – 130mAh (Peak)
Power Saving Mode: 12 Volt – 30mAh ~ 40mAh
Power Sleep Mode: Under 2 mAh
Backup Battery Rechargeable Li Battery at 1600mAh
Backup Battery Life Approx. 6 to 8 hours with GPS and Communication ONLINE
Depends on set tracking interval, the estimated battery age, and time last charged
Memory Backup Flash Memory 2MB
Outputs 2 negative outputs (500mA max per output)
Inputs 1 Ignition Input, 1 Panic Input
G-Sense – Motion Sensor
SiRFstarIII GPS Specifications
Frequency L1, 1575.42 MHz
Tracking Sensitivity -159 dBm or -186 dBW
Protocol NMEA0183 Ver3.0
Channels Up to 20
Position 10 meters
Hot Start < 1 sec average
Warm Start < 35 sec average
Cold Start < 42 sec average
Etrack Groups Pvt Ltd Copyrights@ 2013
Technical Specifications

20. Target Markets
Automobile
Manufacturer Defense Insurance Publicity
Dealer
Troop Movement
Automobile Insurance
Company Mobile Publicity Agency
Accessories Dealer Supply Chain Address Authentication Railways
Service Dealer Ammunition Movement International Schools Wagon Tracking
Adventure Sport Disaster Management Investigation Agency Passenger information system
Trekking Emergency Response Agency Kid Tracking Real Estate
Motor CAR-Bike Rally Forestry Logistics Safety – Security
Bank Guarding Loan Recovery Agency Personal Tracking
Automobile Finance Animal Tracking & Census Manufacturing Company Sales, Service Company
Fund Management Fleet Management Field work force monitoring
Address Verification Taxi, Cargo, Container Supply chain Schools Bus
Document Movement FMCG Consignment Tracking Taxi Service
Car Rental and Leasing Distribution Monitoring Mining Traders
Construction Gem & Gold Traders Earth Mover Data Logger Cash Bag
Material Movement
Management GIS Company
Navigation
High value
Earth Movers Survey, Mapping, POI builder Transport Company
Call Centers Hospital Oil, Gas - Chemical Company Telecom Company
Man Power Movement & Safety Emergency Medical Services Packers and Movers Tours – Travels Company
Hotel Police Domestic & International
Guest Safety and Security Investigation Tourism-Traveler
Criminal Tracker Navigation
Emergency Response System Baggage Tracking
Urban Planning
Vehicle owners
Etrack Groups Pvt Ltd Copyrights@ 2013

21. Advanced Options
• Video Surveillance
• Video Based Tracking
• Mobile Tracking Interface
• Personal Tracking
– Senior Citizens
– Children
– Working Females
Etrack Groups Pvt Ltd Copyrights@ 2013
