Enterprise Security Architecture:
From access to audit
Paul Andres
Director, Enterprise Architecture

3. Why Security?

4. Changing Business Climate
Challenges Our Customers Face…
"In a time of accelerating turbulence, the
valuation of a company will be strongly
affected by how it executes change."

5. Today’s IT Challenges
More Compliant Business
• Increasing regulatory demands
• Increasing privacy concerns
• Business viability concerns
More Agile Business More Secured Business
• More accessibility for employees, • Organized crime
customers and partners • Identity theft
• Higher level of B2B integrations • Intellectual property theft
• Faster reaction to changing requirements • Constant global threats

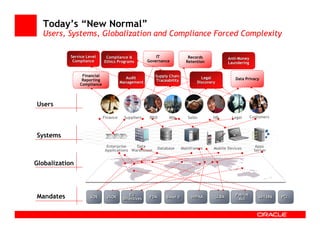

6. Today’s “New Normal”
Users, Systems, Globalization and Compliance Forced Complexity
Service Level Compliance & IT Records Anti-Money
Anti-
Compliance Ethics Programs Governance Retention Laundering
Financial Supply Chain
Audit Legal Data Privacy
Reporting Traceability
Management Discovery
Compliance
Users
Finance Suppliers R&D Mfg Sales HR Legal Customers
Systems
Enterprise Data Database Mainframes Mobile Devices Apps
Applications Warehouse Server
Globalization
EU Patriot
Mandates SOX JSOX Directives FDA Basel II HIPAA GLBA Act SB1386 PCI…

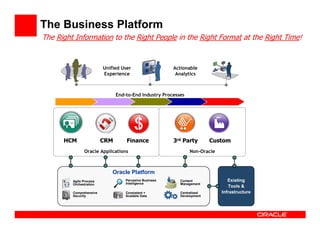

7. The Business Platform
The Right Information to the Right People in the Right Format at the Right Time!
Unified User Actionable
Experience Analytics
End-to-End Industry Processes
HCM CRM Finance 3rd Party Custom
Oracle Applications Non-Oracle
Oracle Platform
Agile Process Pervasive Business Content Existing
Orchestration Intelligence Management
Tools &
Comprehensive Consistent + Centralized Infrastructure
Security Scalable Data Development

8. Oracle is ‘Information Driven’
• Manage It…
• Use It…
• Share It…
• Protect It…

9. Security for Apps, Middleware, Data and Infrastructure
Comprehensive ‘Defense in Depth’ Approach
Applications Automated Controls
Automated Controls
Monitoring and Configuration
Monitoring and Configuration
Enterprise Visibility
Enterprise Visibility
Access to Business Services
Access to Business Services
Fusion Lower Cost of User Lifecycle
Lower Cost of User Lifecycle
Middleware
Data Protection and Privacy
Data Protection and Privacy
Database and
Infrastructure Unbreakable Linux
Unbreakable Linux
Copyright © 2008, Oracle and/or its affiliates. All rights reserved. 9

10. Industry Frameworks

11. Oracle Enterprise Architecture Framework
Methodology Business Architecture Governance
Motivation Function Organization
Drivers Models Products Mission Finance
Reference Goals Strategy Services Roles
Architectures Objectives Processes People
EA Governance
Strategy Applications Architecture Performance
Principles Reference Architectures Functional Services Products
Standards Risk
Strategy General General General Components Security Policy
Principles Industry Industry Industry Cost Integrity Business
Continuity
Capabilities Information Architecture Compliance
Reference Architectures Entities Structures Portfolio
Requirements Strategy Management
Standards Models
Design Principles Components
Development Structures Data Quality
Standards
Test SLA’s
Production
Reference Technology Architecture
Architectures Platform Services Products
General Services
Strategy SOA/ EDA Infrastructure Components
Principles Cost
Standards Data Management Development
Security Management
Version 2 (Draft)

12. Enterprise Architecture Security Model
Assess Business Objectives
Vulnerability
Penetration Testing
Assessment
Quantitative & Define Risks &
Qualitative Risk Risk Analysis
Threats
Assessment
Protection Data Functionality
Requirements Classification Evaluation
Security System Policy &
Legal Liabilities
Awareness Reliability Procedures
Cost Effective
Safeguards Counter Measures
Solutions
Data Integrity Confidentiality Security Assurance
Security Domains
Access Control Systems Security Management
& Methodology Security Architecture & Operations Security
Practices Models
Laws, Investigations, & App and Systems Business Continuity &
Ethics Development Security Disaster Recovery
Telecommunications &
Network Security Cryptography Physical Security
* CISSP, Shone Harris

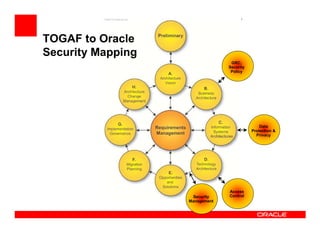

13. TOGAF to Oracle
Security Mapping
GRC,
Security
Policy
Data
Protection &
Privacy
Access
Security Control
Management

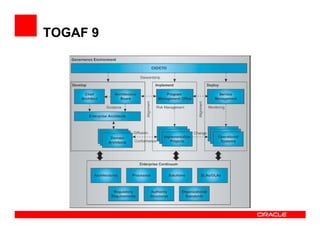

14. TOGAF 9

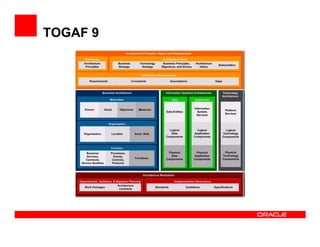

15. TOGAF 9

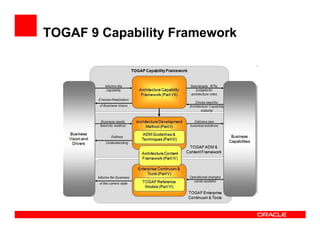

16. TOGAF 9 Capability Framework

17. Burton Group Security Framework

18. Oracle Security Solutions

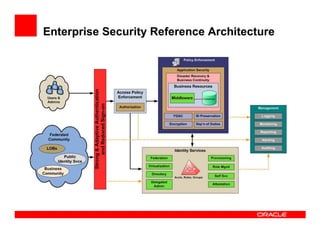

19. Enterprise Security Reference Architecture

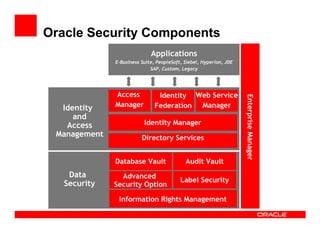

20. Oracle Security Components
Applications
E-Business Suite, PeopleSoft, Siebel, Hyperion, JDE
SAP, Custom, Legacy
Access Identity Web Service
Enterprise Manager
Identity Manager Federation Manager
and
Access Identity Manager
Management Directory Services
Database Vault Audit Vault
Data Advanced
Label Security
Security Security Option
Information Rights Management

21. Oracle’s “Top to Bottom” GRC Strategy
Analytics
Define Your Policy…Connect to IT Controls…Analyze Your Results!
• Real-time
Leveraged Output and visibility
Compliance Visibility • Pre-Made
reports and
dashboards
Analyze Policy and Controls
Map Risks-Policy-Controls Track
Policy
• By Standard
Test & Gather Evidence GRC Manager • By Cycle
• By Application
Track Issues + Remediate
• By Process
Connect Policies to Controls
• Embedded and
Controls
Set Control Rules
Embedded Identity Access Enterprise-
Low-Level Detail App Controls Management Management Wide Controls
Configuration Database Information • Oracle and
Handle Exceptions Management Controls Rights Mgmt Non-Oracle

22. Orace Identity Management Components
Oracle Role Manager
Oracle Identity Manager
Enterprise Applications
Basic Authentication / Course-Grained
Authorization / Audit / User Administration
Business Custom Helpdesk Email Portals
Apps Apps Employees
Customers
Suppliers
Oracle Access Manager - Identity
Oracle Internet (Meta) Directory
Oracle Virtual Directory
Data and User Stores
Directories Databases Operating
Systems
Oracle Identity Manager
Oracle Role Manager

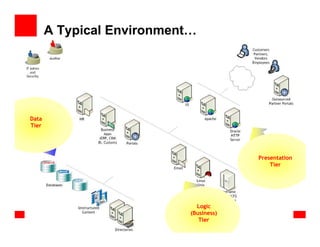

23. A Typical Environment…
Data
Tier
Presentation
Tier
Logic
(Business)
Tier

24. Identity and Access Challenges
Problems
• No Ability to Establish User Roles
• Manual User Administration (Int + Ext)
• No knowledge of “Who has access to what?”
• Multiple Sign-Ons + Forgotten Passwords
Problems
• No Self Service or Password Management
• Unstructured Content is not controlled
• Access to sensitive DB data is not controlled
• Difficult to Manage Environment

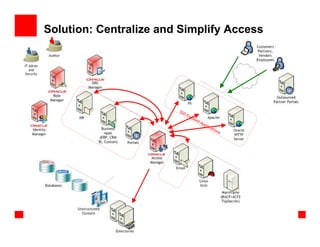

25. Solution: Centralize and Simplify Access
SSO
En
ab
led
Ap
pli
cat
ion
s

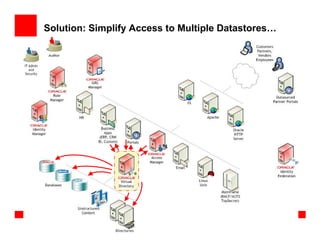

26. Solution: Simplify Access to Multiple Datastores…

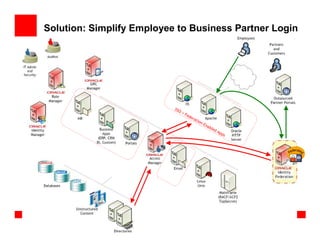

27. Solution: Simplify Employee to Business Partner Login
SSO
+F
ed
e rat
i on
-En
ab
l ed
Ap
p s

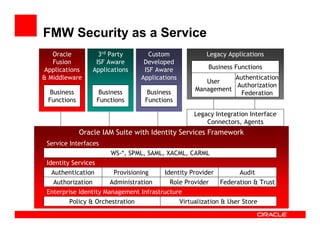

28. FMW Security as a Service
Oracle 3rd Party Custom Legacy Applications
Fusion ISF Aware Developed
Applications Applications ISF Aware Business Functions
& Middleware Applications Authentication
User
Authorization
Business Business Business Management
Federation
Functions Functions Functions
Legacy Integration Interface
Connectors, Agents
Oracle IAM Suite with Identity Services Framework
Service Interfaces
WS-*, SPML, SAML, XACML, CARML
Identity Services
Authentication Provisioning Identity Provider Audit
Authorization Administration Role Provider Federation & Trust
Enterprise Identity Management Infrastructure
Policy & Orchestration Virtualization & User Store

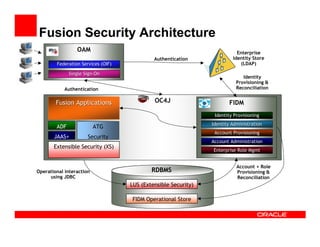

29. Fusion Security Architecture
OAM Enterprise
Authentication Identity Store
Federation Services (OIF) (LDAP)
Single Sign-On
Sign-
Identity
Provisioning &
Authentication Reconciliation
Fusion Applications OC4J FIDM
Identity Provisioning
Identity Administration
ADF ATG
Account Provisioning
JAAS+ Security
Account Administration
Extensible Security (XS)
Enterprise Role Mgmt
Account + Role
Operational Interaction RDBMS Provisioning &
using JDBC Reconciliation
LUS (Extensible Security)
FIDM Operational Store

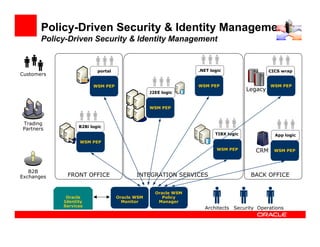

30. Policy-Driven Security & Identity Management
Policy-Driven Security & Identity Management
portal .NET logic CICS wrap
Customers
WSM PEP WSM PEP WSM PEP
J2EE logic
Legacy
WSM PEP
Trading
B2Bi logic
Partners
TIBX logic App logic
WSM PEP
WSM PEP CRM WSM PEP
B2B
Exchanges FRONT OFFICE INTEGRATION SERVICES BACK OFFICE
Oracle WSM
Oracle Oracle WSM Policy
Identity Monitor Manager
Services
Architects Security Operations

31. Expose, Secure and Manage Web Services…
Auditor Security IT Admin
Partner Portal
Portals Outsourced
Provider
AD / Exchange
IIS/ASP
Apps
| Peoplesoft
Virtual Access Manager
HR Mainframe Web SSO &
(RACF /ACF2/TS Directory
Environment) Web IdMgt
Packaged
Applications
using Sun
or Apache
`
Business Users Unix
Linux
Customers
Partners ,
Vendors
Employees
Apps w / Portals
Web Service Web using
Services Web Services
Manager

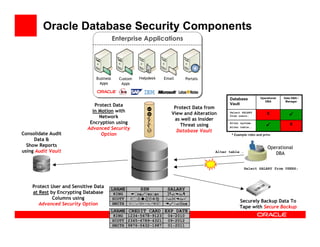

32. Oracle Database Security Components
Enterprise Applications
Business Custom Helpdesk Email Portals
Apps Apps
Database Operational Data DBA /
DBA Manager
Protect Data Vault
Protect Data from
in Motion with
View and Alteration Select SALARY
X
Network from users;
as well as Insider
Encryption using Alter system.
X
Threat using Alter table..
Advanced Security
5
Database Vault
Consolidate Audit Option * Example roles and privs
Data &
Show Reports Operational
using Audit Vault Alter table ….
DBA
Select SALARY from USERS;
Protect User and Sensitive Data
LNAME SSN SALARY
at Rest by Encrypting Database KING 123-45-6789 $125,000
Columns using SCOTT 987-65-4321 $229,500 Securely Backup Data To
Advanced Security Option SMITH 345-67-8912 $ 53,700
Tape with Secure Backup
LNAME CREDIT_CARD EXP_DATE
KING 1234-5678-9123 04-2010
SCOTT 2345-6789-4321 09-2012
SMITH 9876-5432-1987 01-2011

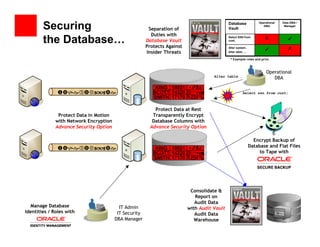

33. Securing Database Operational Data DBA /
DBA Manager
Separation of Vault
Duties with
the Database… Database Vault
Protects Against
Select SSN from
cust;
X
Alter system.. X
Insider Threats Alter table ….
* Example roles and privs
Operational
Alter table ….
DBA
KING 18031
KING, 18031, $1,800
5 0 SCOTT 14220 Select ssn from cust;
SMITH 17170 ִ
Protect Data at Rest
Protect Data in Motion Transparently Encrypt
with Network Encryption Database Columns with
Advance Security Option Advance Security Option
Encrypt Backup of
KING, 18031, $1,800 Database and Flat Files
5 0 KING 18031
SCOTT 14220 to Tape with
SMITH 17170 ִ
Consolidate &
Report on
Audit Data
Manage Database IT Admin with Audit Vault
Identities / Roles with IT Security Audit Data
DBA Manager Warehouse

34. Other Supporting Slides

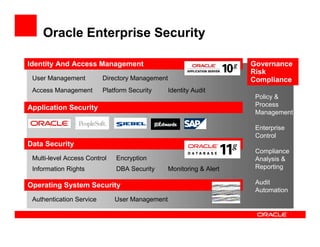

35. Oracle Enterprise Security
Identity And Access Management Governance
Risk
User Management Directory Management Compliance
Access Management Platform Security Identity Audit
Policy &
Process
Application Security
Management
Enterprise
Control
Data Security
Compliance
Multi-level Access Control Encryption Analysis &
Information Rights DBA Security Monitoring & Alert Reporting
Operating System Security Audit
Automation
Authentication Service User Management
