End-to-End Test Automation for Both Horizontal and Vertical Scale
1. End to End Test Automation for Both
Horizontal and Vertical Scale
Erdem YILDIRIM
2. 2000 – Software Developer
2006 – Discovered Test Automation &
Decided to be Test Engineer
2010 – Test Lead at Defence Technologies
and Engineering (STM)
2013 – Test Lead at İnnova
(Telecommunication)
About Me
Linkedin: https://tr.linkedin.com/in/erdem-yildirim-0b5ab466
3. E2E Test Automation
(Definition, Improvements, Vertical & Horizontal Scale,
Prerequisites, Advantages of Each Test Levels & Both Scales)
Test Automation Strategy
(Approaches, How to Form, Criteria/Principles, Key Factors For
a Successful Strategy, Gains)
E2E Test Automation Experiences
(ROI, The Problems Faced In the Process)
Need for Both Manual and Automated Testing
(Is Manual Tests Still Needed? Cross Tests)
Agenda

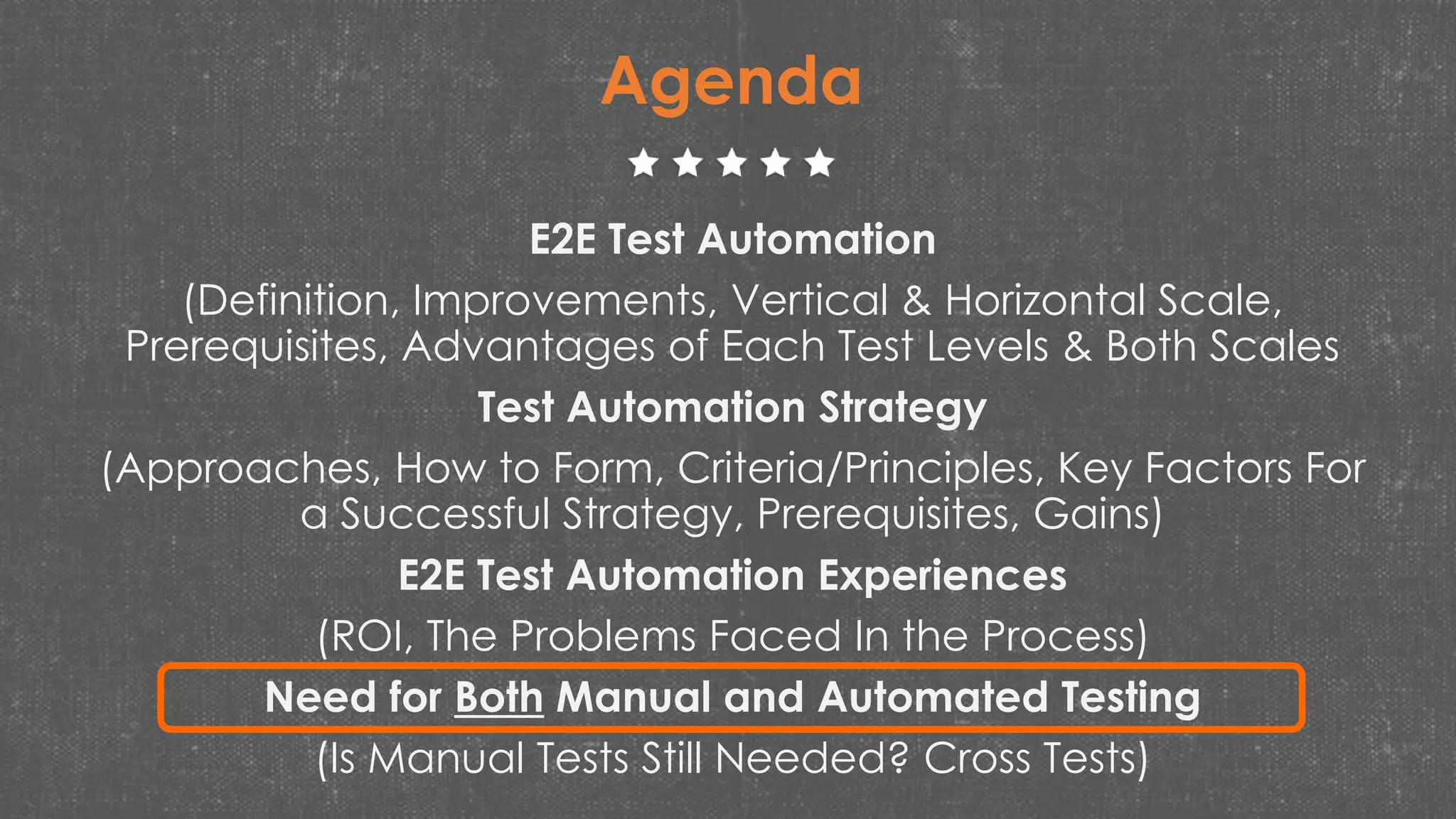

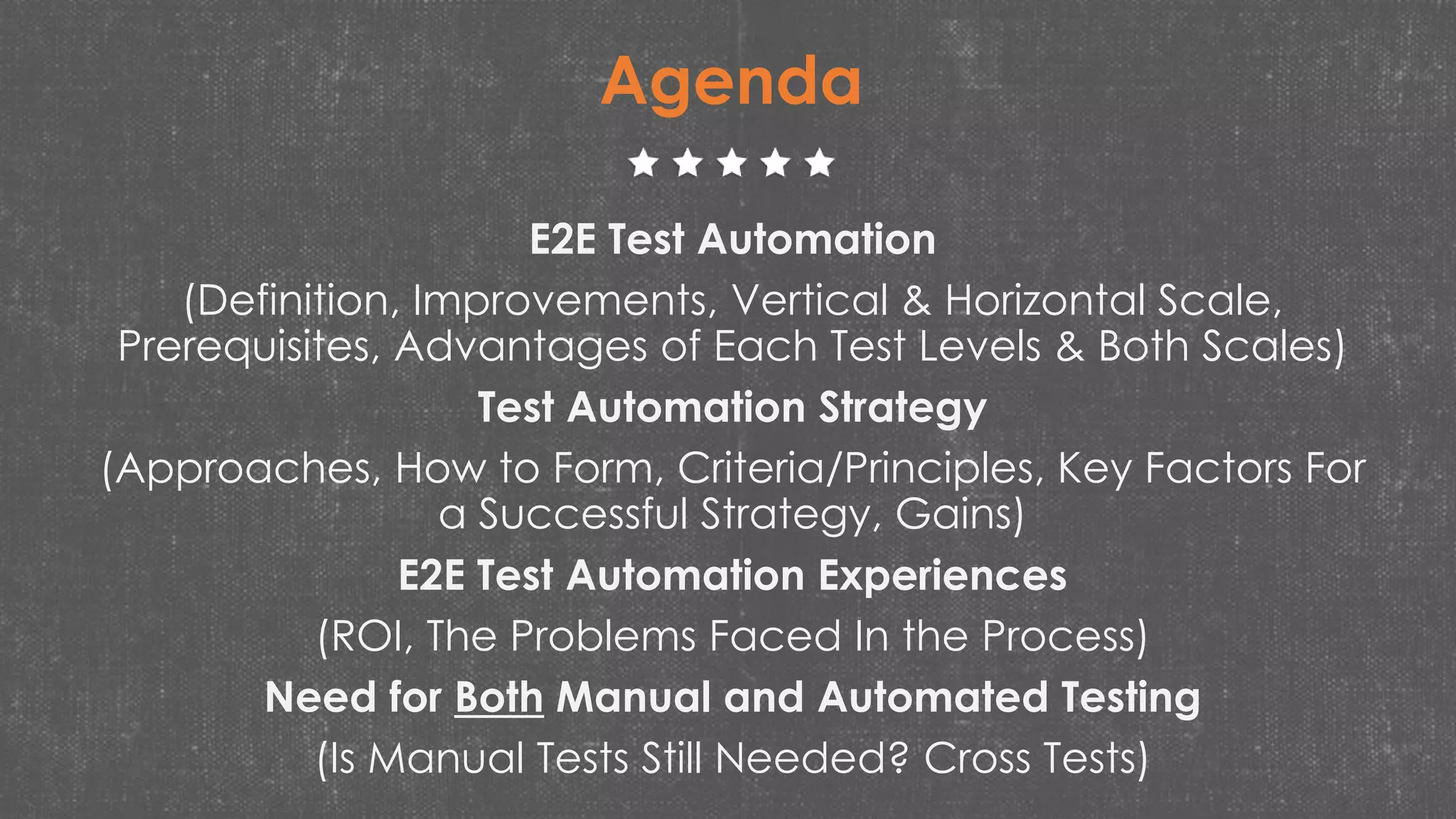

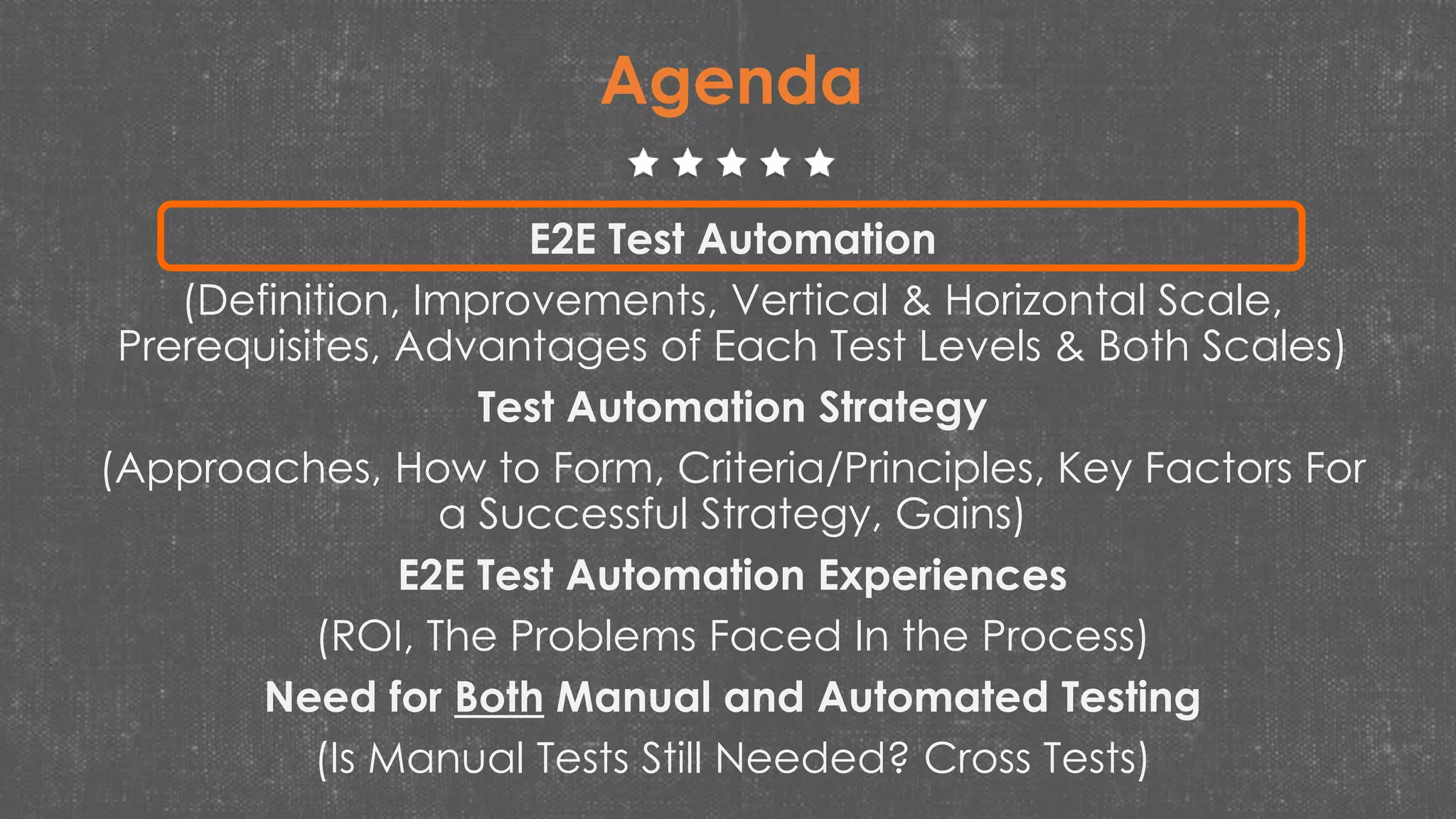

4. Agenda
E2E Test Automation
(Definition, Improvements, Vertical & Horizontal Scale,
Prerequisites, Advantages of Each Test Levels & Both Scales)
Test Automation Strategy
(Approaches, How to Form, Criteria/Principles, Key Factors For
a Successful Strategy, Gains)
E2E Test Automation Experiences
(ROI, The Problems Faced In the Process)
Need for Both Manual and Automated Testing
(Is Manual Tests Still Needed? Cross Tests)

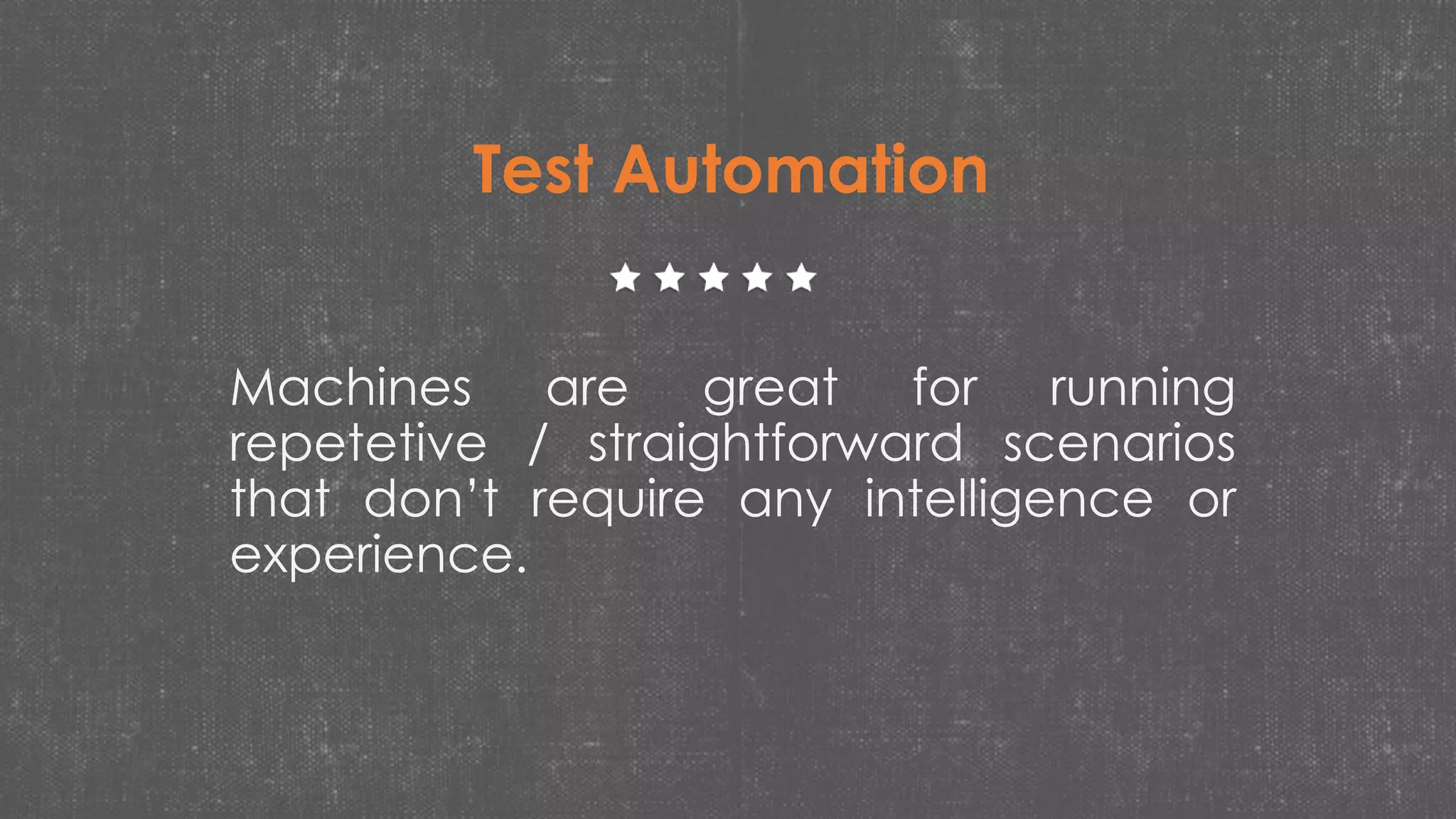

5. Machines are great for running
repetetive / straightforward scenarios
that don’t require any intelligence or
experience.
Test Automation

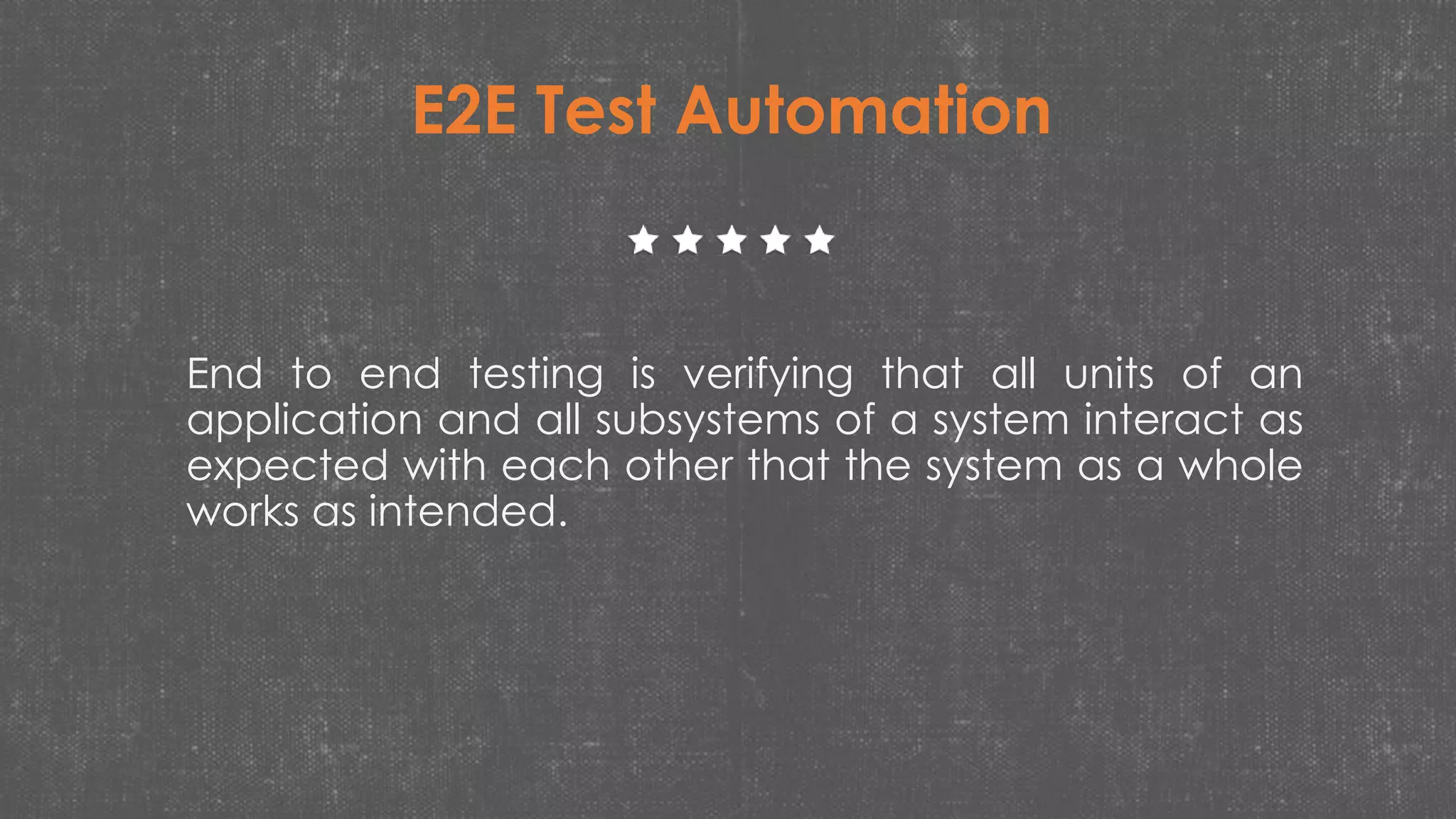

6. End to end testing is verifying that all units of an
application and all subsystems of a system interact as
expected with each other that the system as a whole
works as intended.
E2E Test Automation

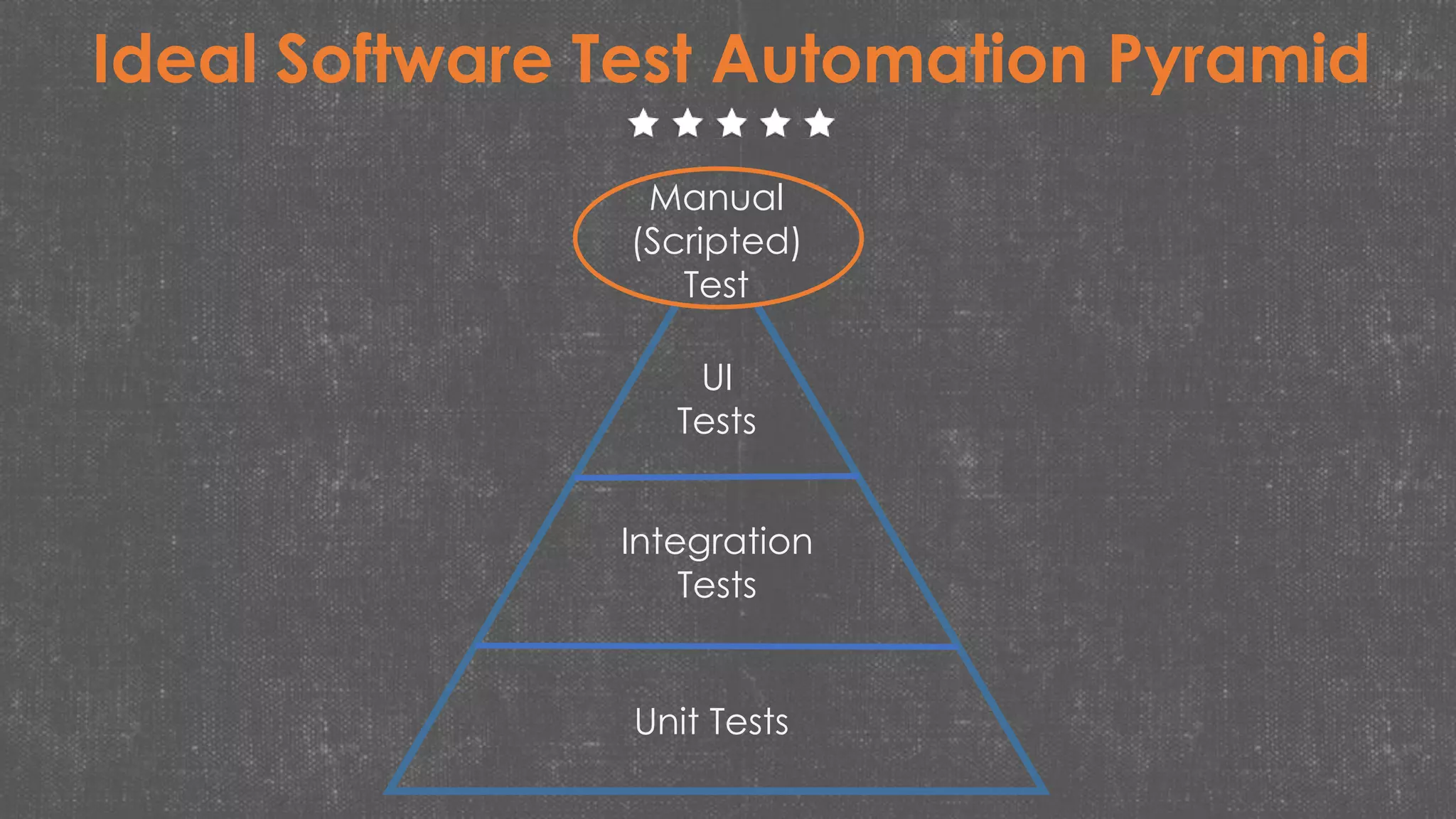

7. Ideal Software Test Automation Pyramid
UI
Tests
Integration
Tests
Unit Tests
Manual
(Scripted)
Test

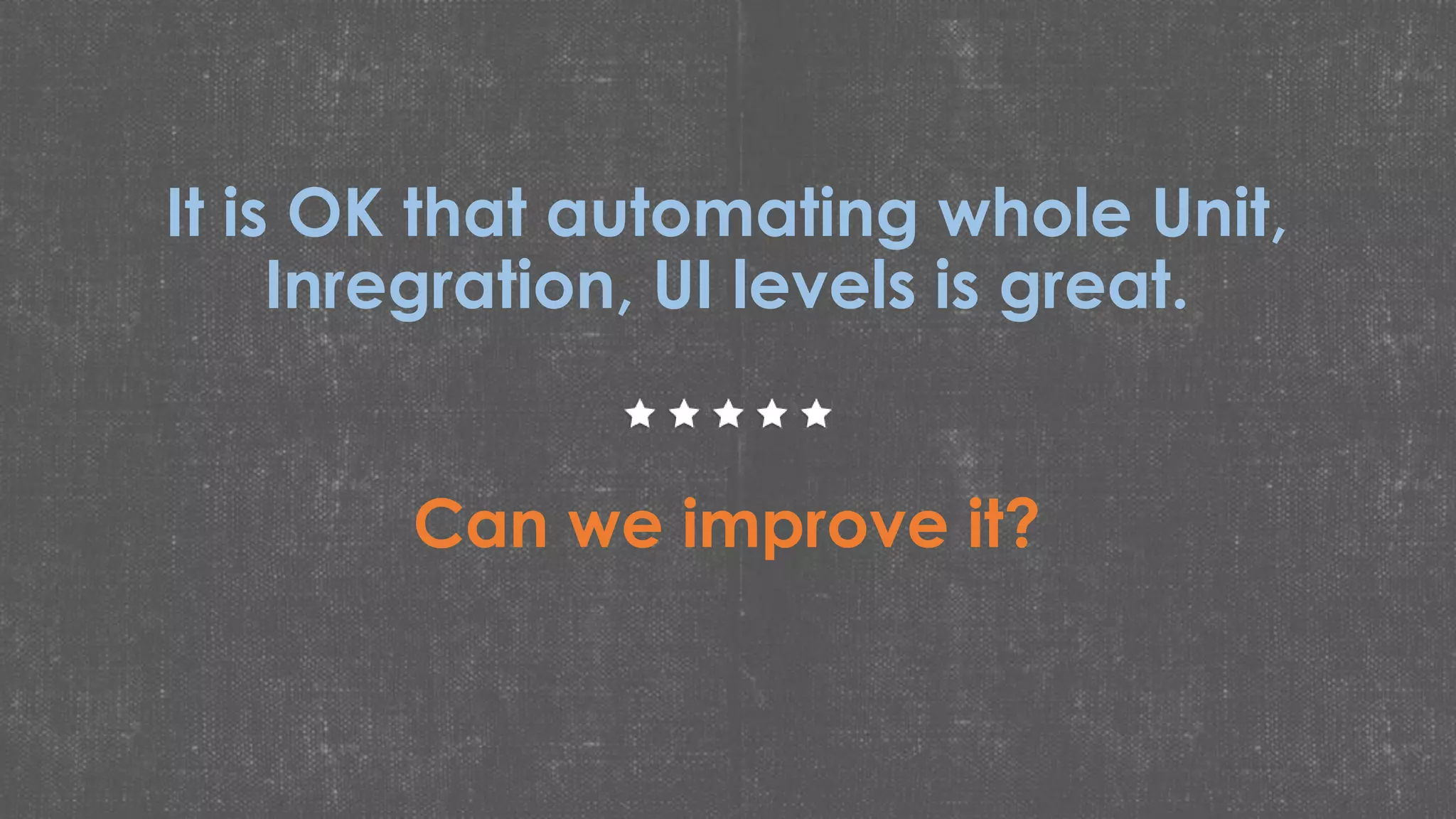

8. It is OK that automating whole Unit,
Inregration, UI levels is great.
Can we improve it?

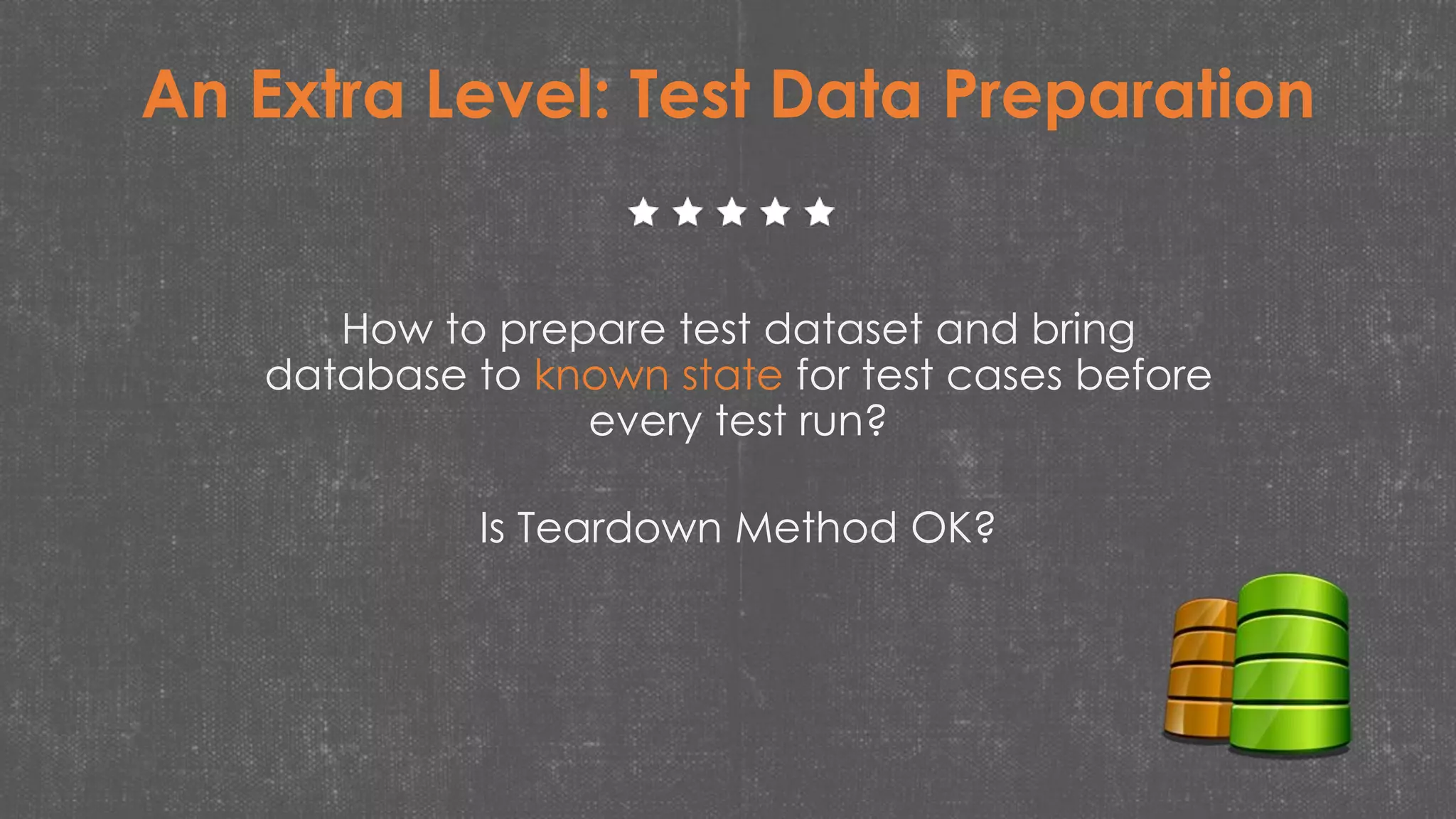

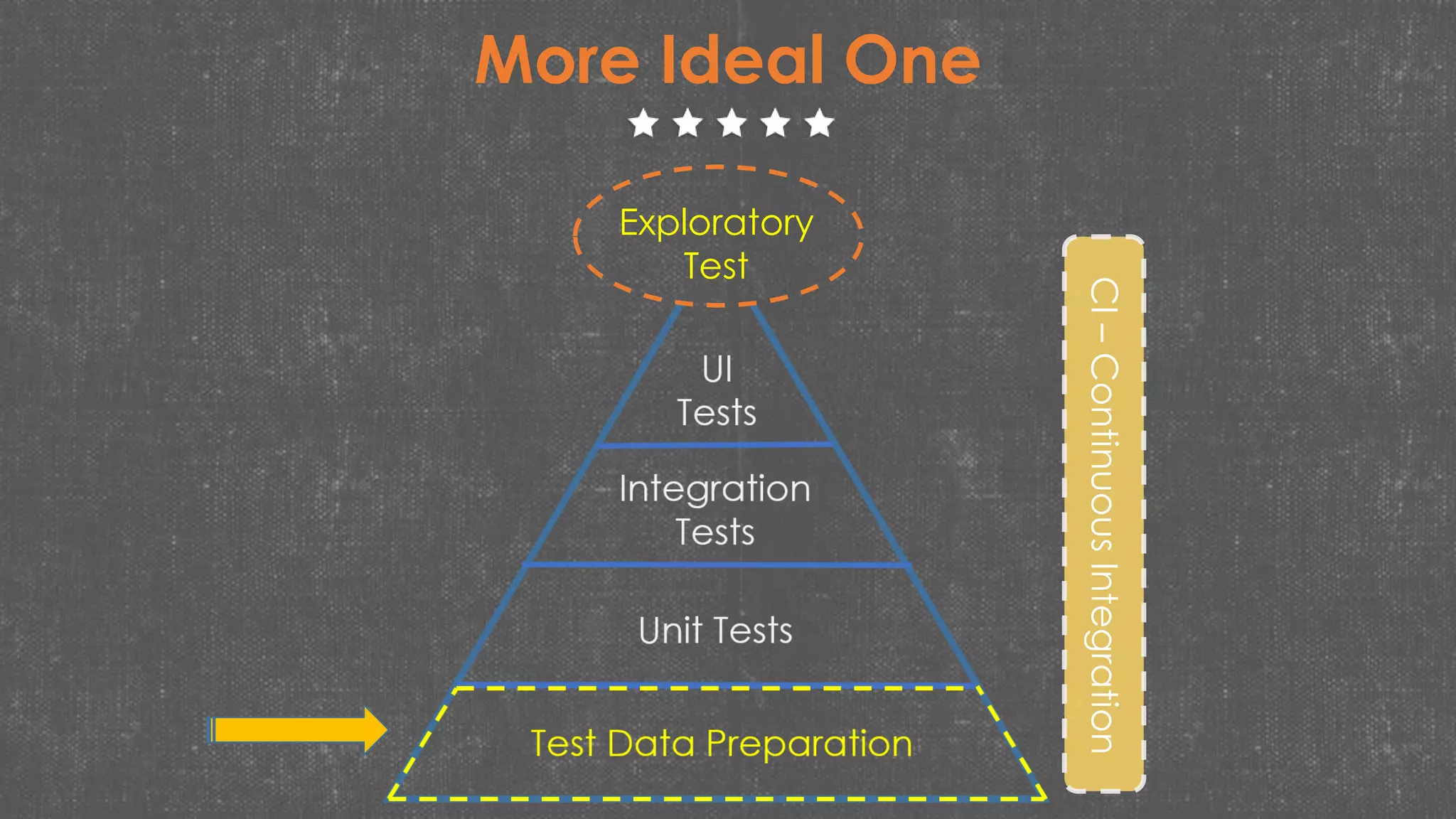

10. An Extra Level: Test Data Preparation
How to prepare test dataset and bring
database to known state for test cases before
every test run?
Is Teardown Method OK?

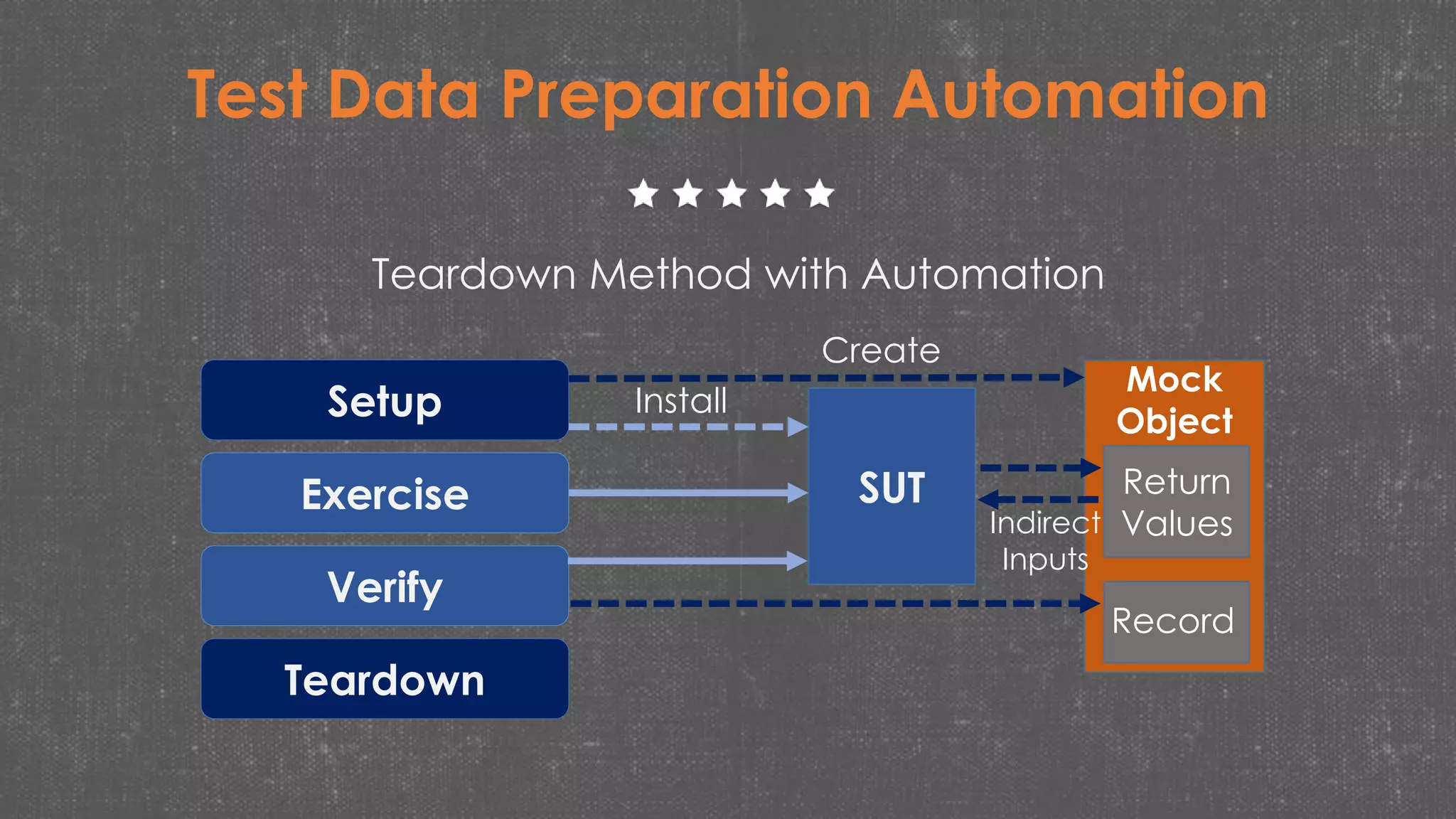

11. Test Data Preparation Automation
Teardown Method with Automation
Setup
Exercise
Verify
Teardown
SUT
Install
Create
Return
ValuesIndirect
Inputs
Record
Mock
Object

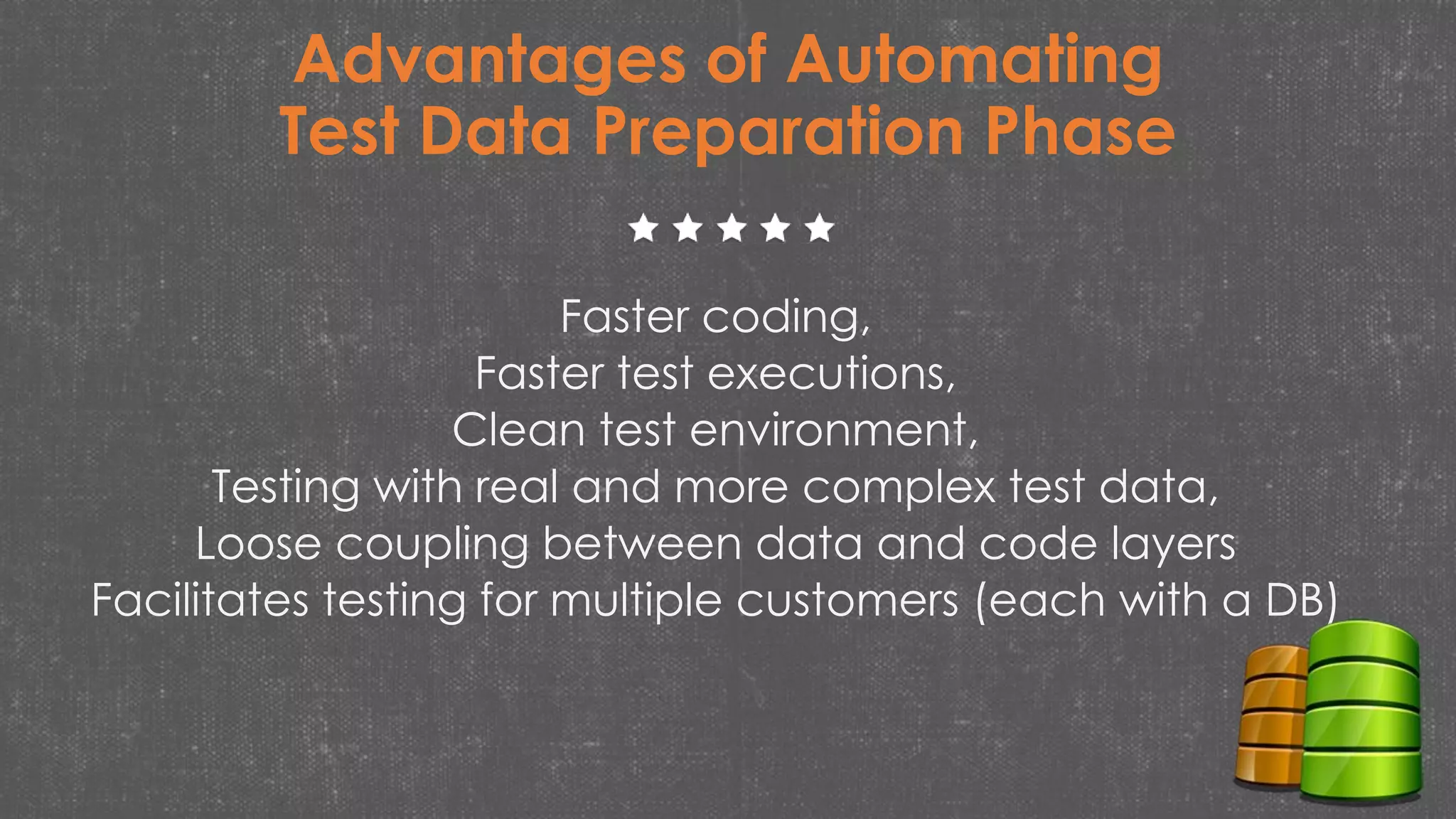

12. Advantages of Automating
Test Data Preparation Phase
Faster coding,
Faster test executions,
Clean test environment,
Testing with real and more complex test data,
Loose coupling between data and code layers
Facilitates testing for multiple customers (each with a DB)

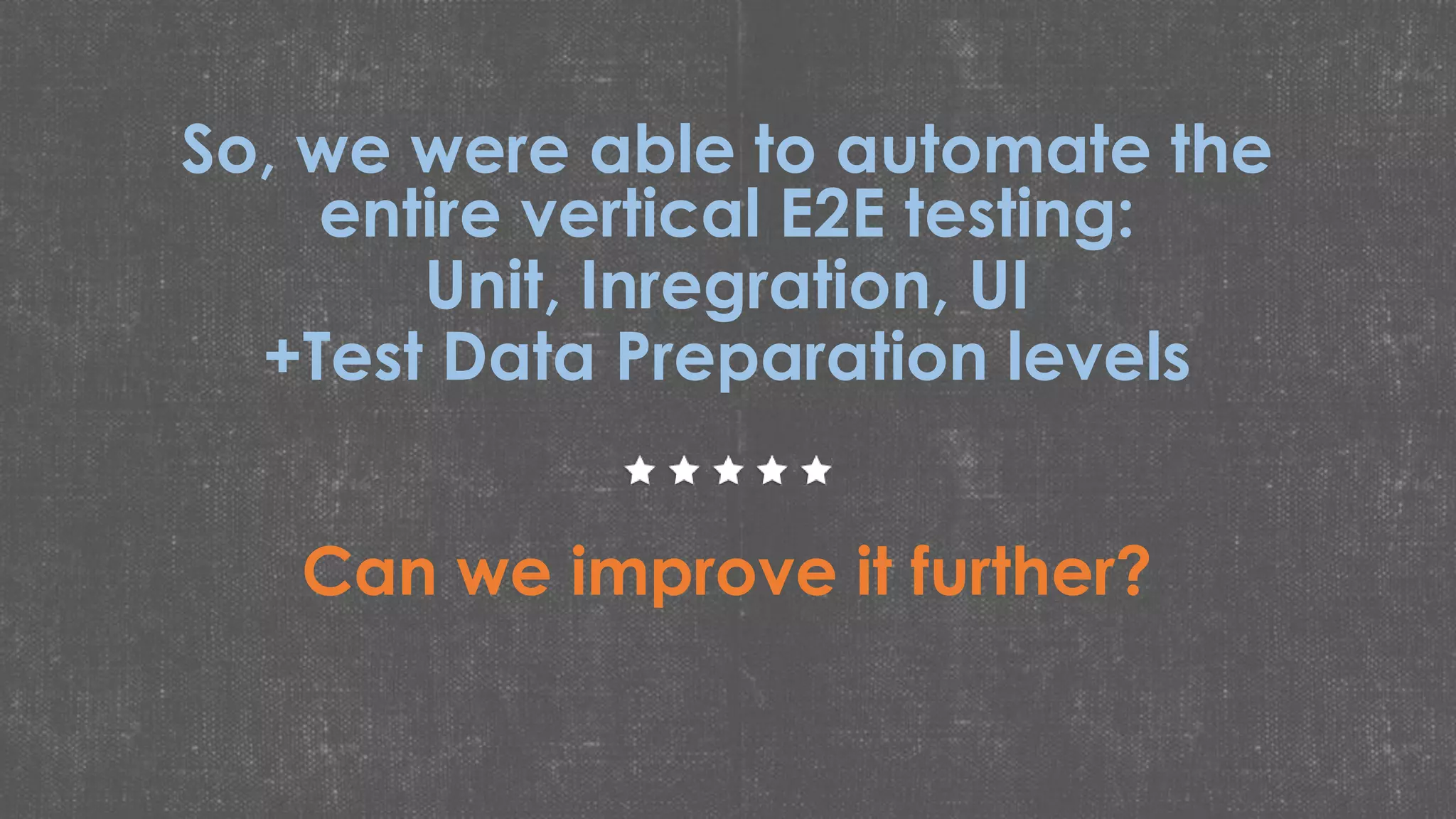

13. So, we were able to automate the
entire vertical E2E testing:
Unit, Inregration, UI
+Test Data Preparation levels
Can we improve it further?

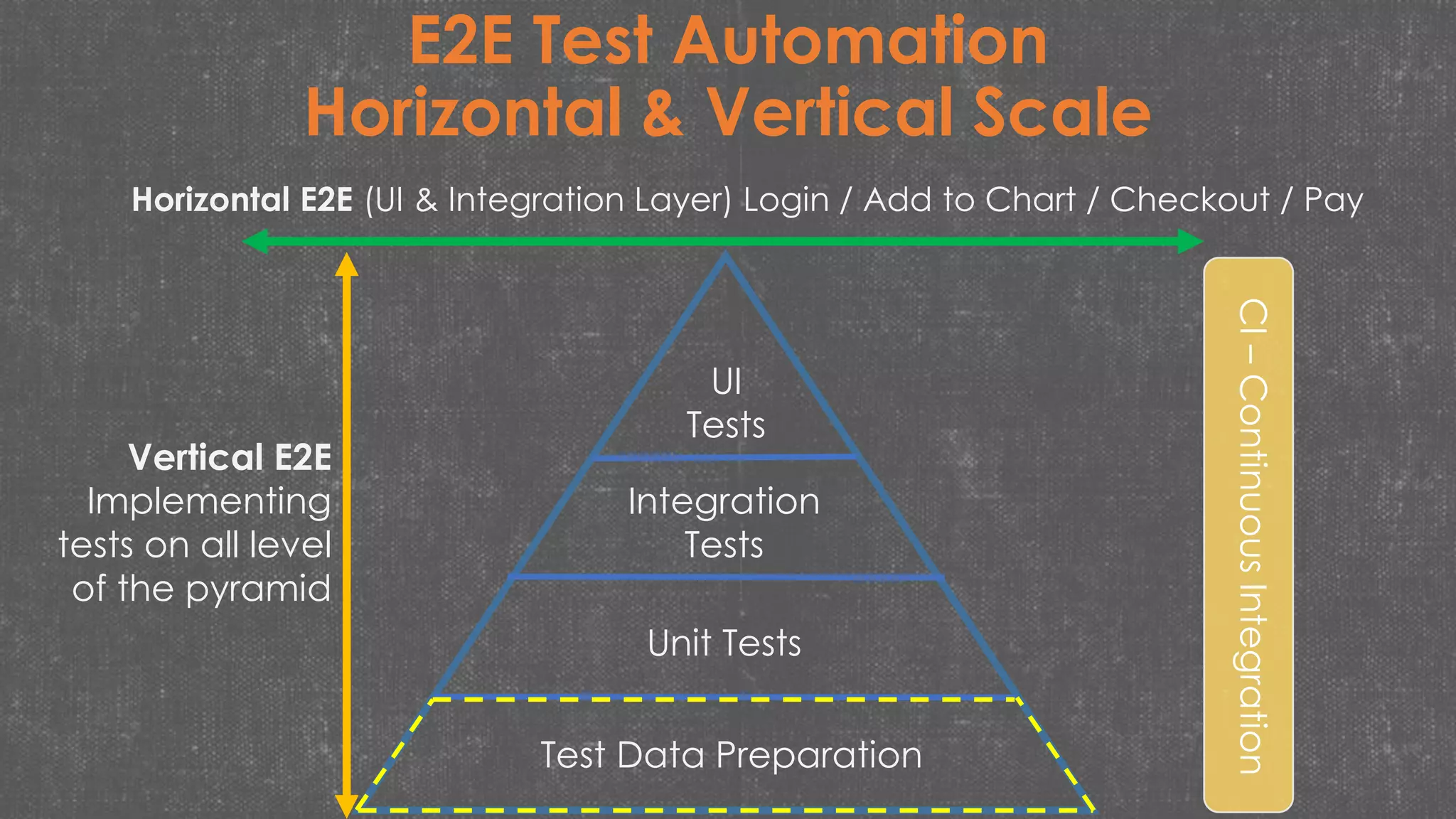

14. E2E Test Automation
Horizontal & Vertical Scale
UI
Tests
Integration
Tests
Unit Tests
Test Data Preparation
CI–ContinuousIntegration
Horizontal E2E (UI & Integration Layer) Login / Add to Chart / Checkout / Pay
Vertical E2E
Implementing
tests on all level
of the pyramid

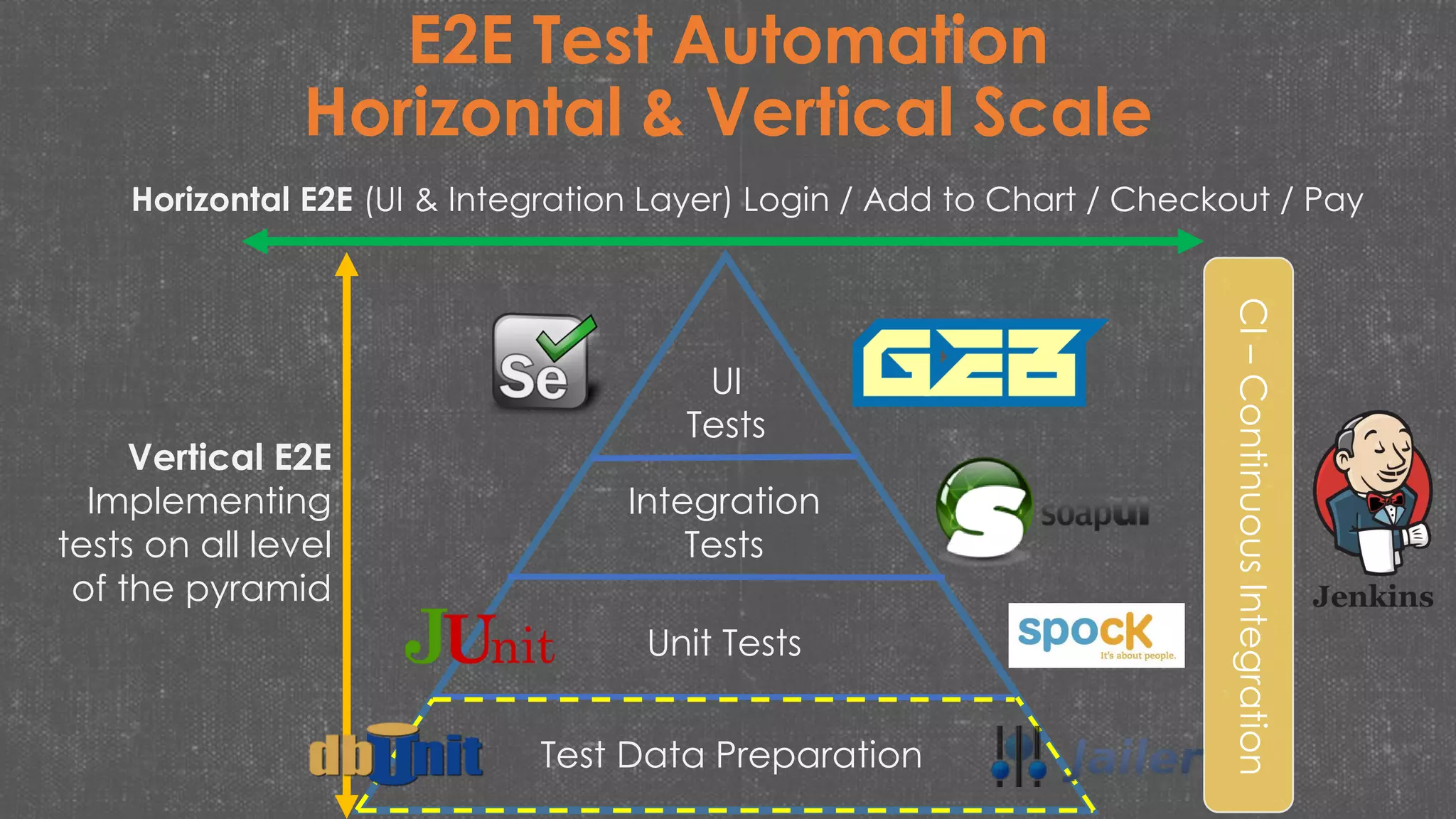

15. E2E Test Automation
Horizontal & Vertical Scale
UI
Tests
Integration
Tests
Unit Tests
Test Data Preparation
CI–ContinuousIntegration
Horizontal E2E (UI & Integration Layer) Login / Add to Chart / Checkout / Pay
Vertical E2E
Implementing
tests on all level
of the pyramid

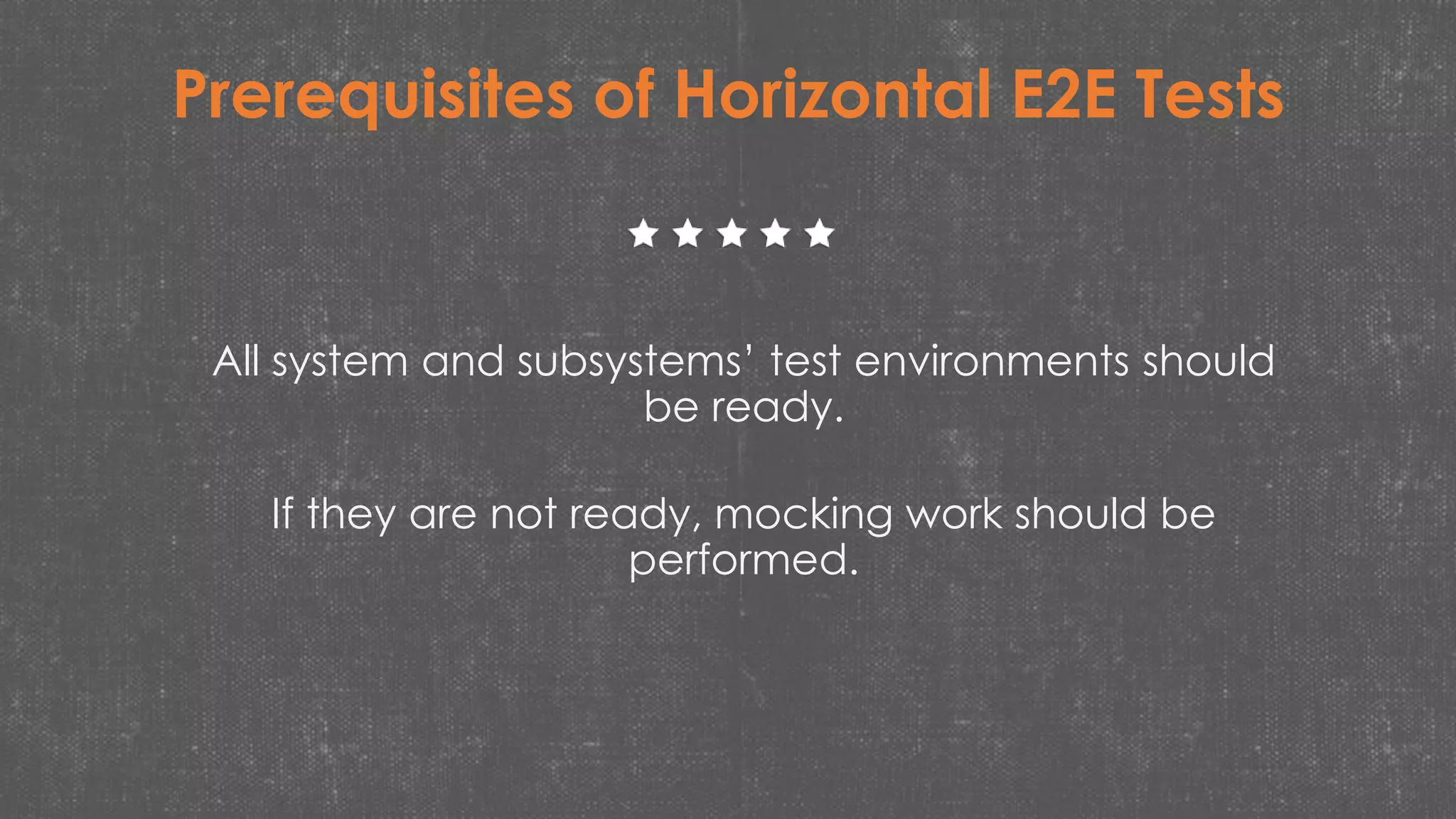

16. Prerequisites of Horizontal E2E Tests
All system and subsystems’ test environments should
be ready.
If they are not ready, mocking work should be
performed.

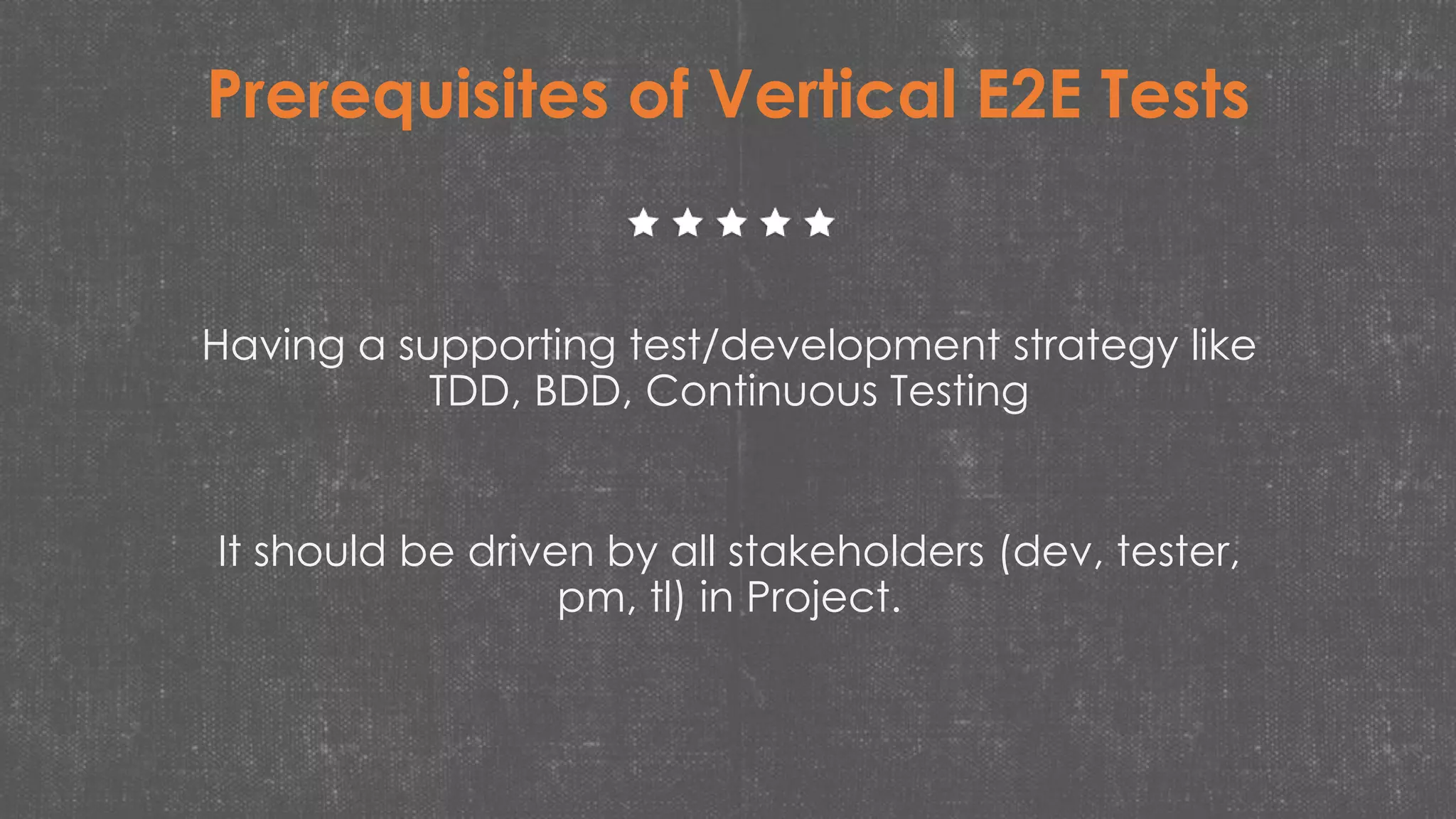

17. Prerequisites of Vertical E2E Tests
Having a supporting test/development strategy like
TDD, BDD, Continuous Testing
It should be driven by all stakeholders (dev, tester,
pm, tl) in Project.

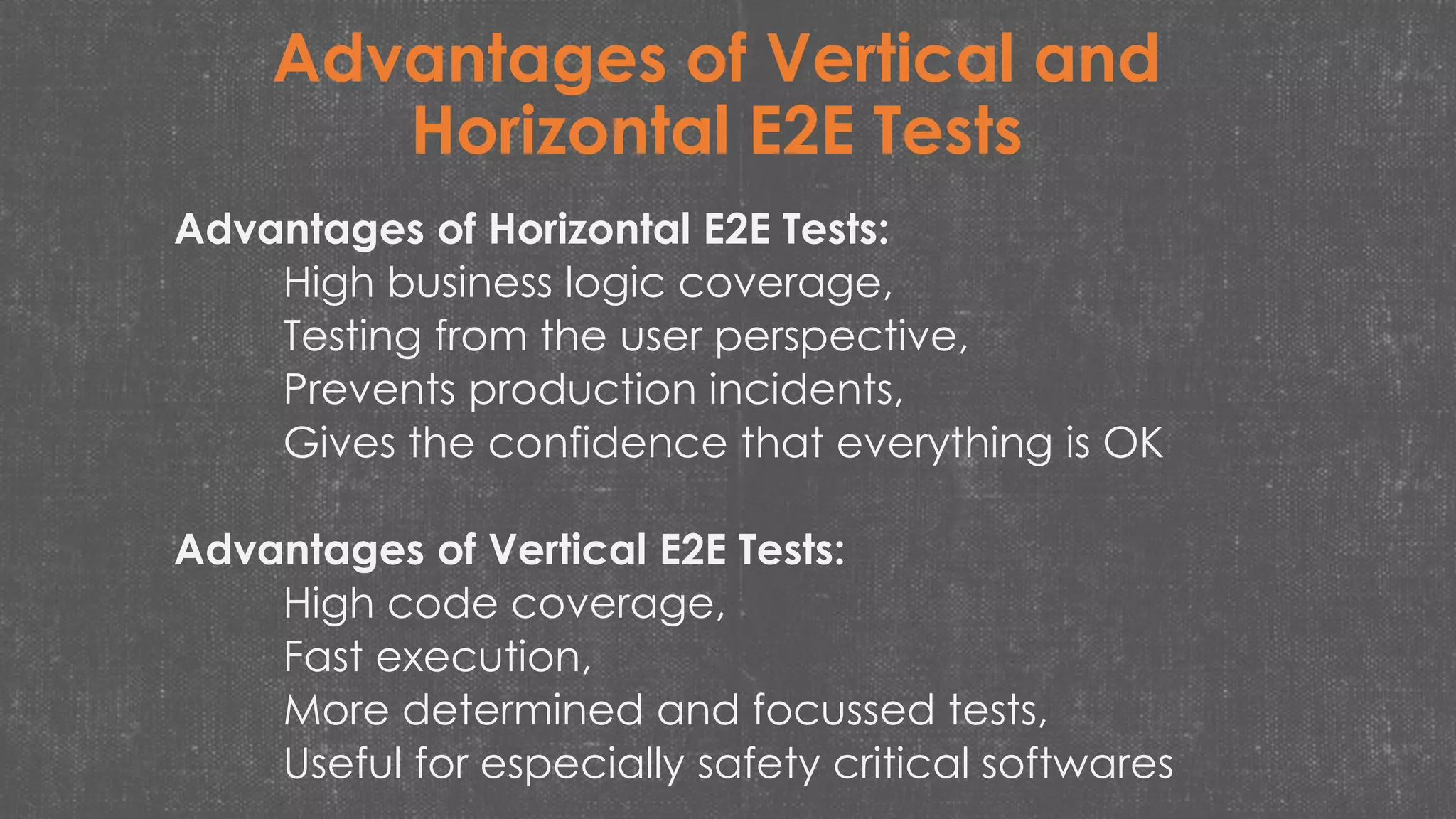

18. Advantages of Vertical and
Horizontal E2E Tests
Advantages of Horizontal E2E Tests:
High business logic coverage,
Testing from the user perspective,
Prevents production incidents,
Gives the confidence that everything is OK
Advantages of Vertical E2E Tests:
High code coverage,
Fast execution,
More determined and focussed tests,
Useful for especially safety critical softwares

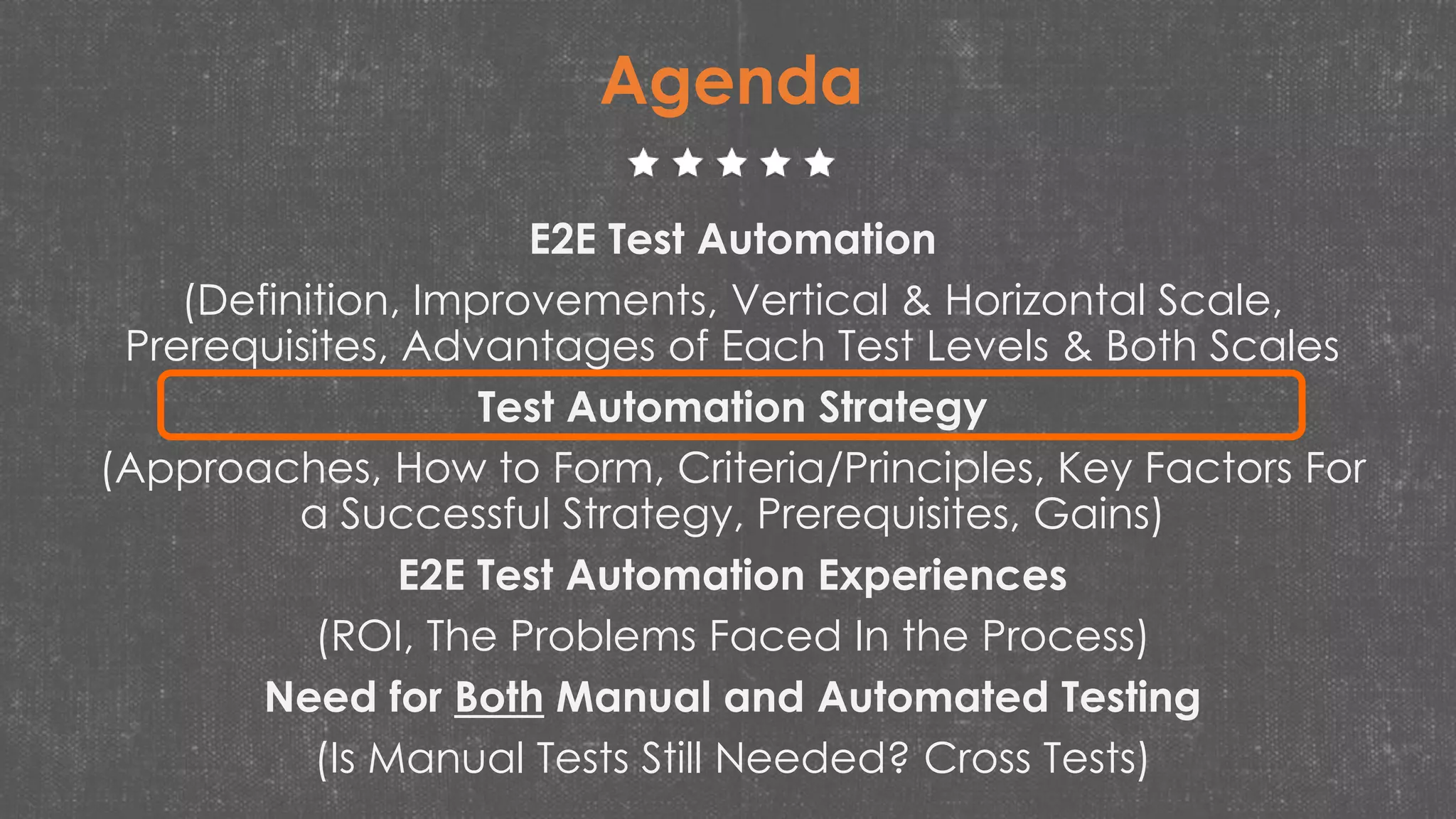

20. E2E Test Automation
(Definition, Improvements, Vertical & Horizontal Scale,
Prerequisites, Advantages of Each Test Levels & Both Scales
Test Automation Strategy
(Approaches, How to Form, Criteria/Principles, Key Factors For
a Successful Strategy, Prerequisites, Gains)
E2E Test Automation Experiences
(ROI, The Problems Faced In the Process)
Need for Both Manual and Automated Testing
(Is Manual Tests Still Needed? Cross Tests)
Agenda

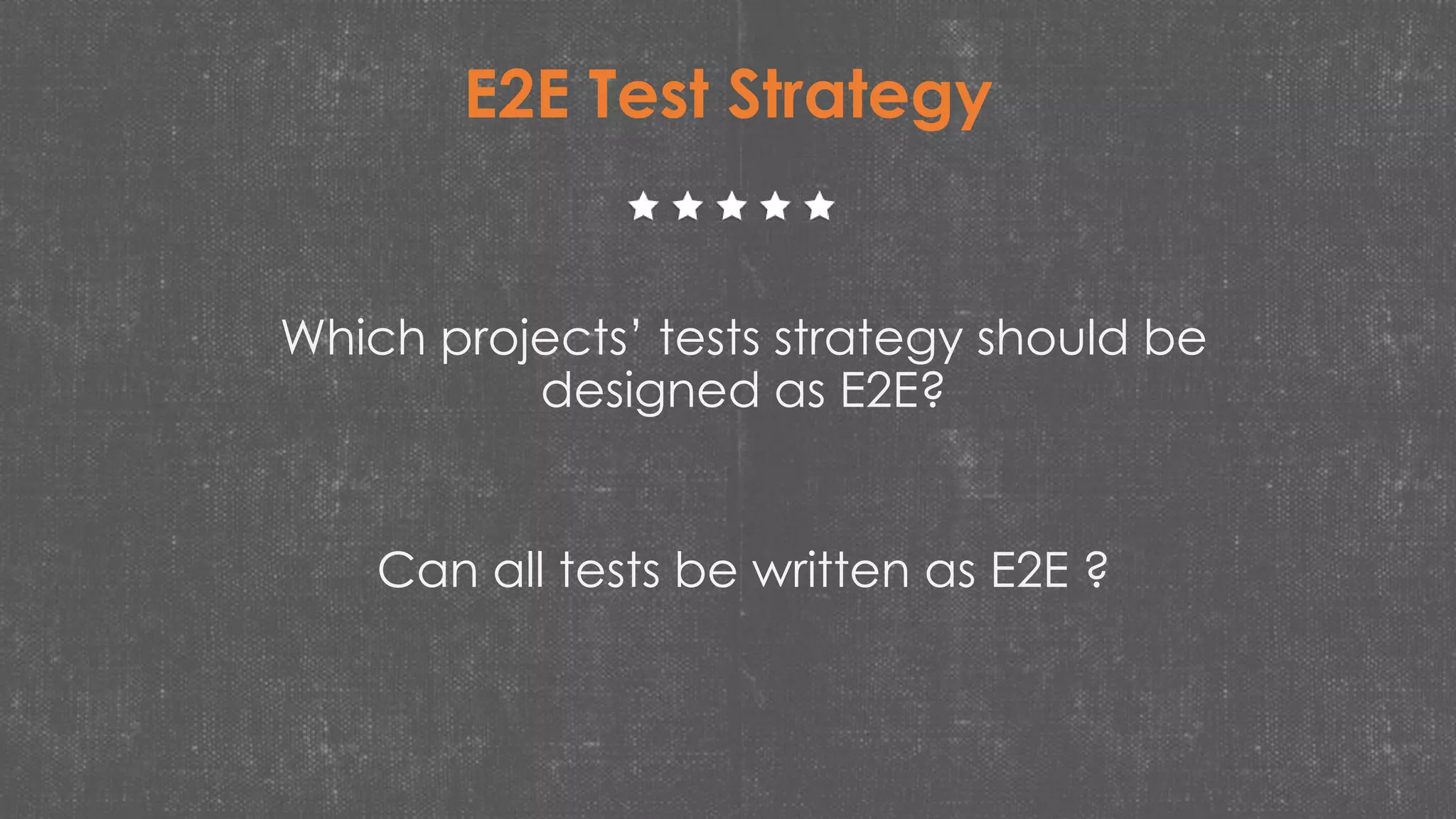

21. E2E Test Strategy
Which projects’ tests strategy should be
designed as E2E?
Can all tests be written as E2E ?

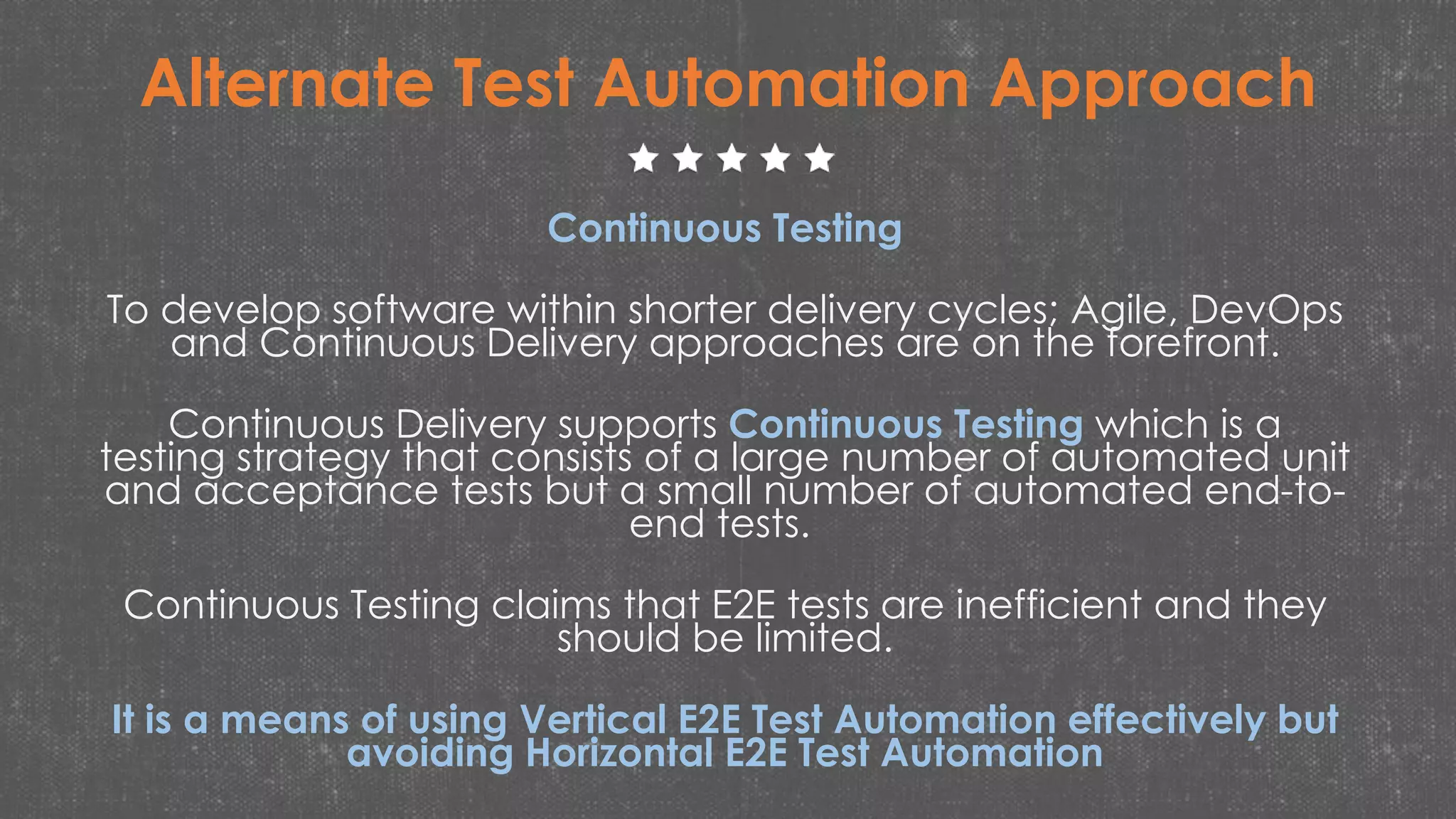

23. Alternate Test Automation Approach
Continuous Testing
To develop software within shorter delivery cycles; Agile, DevOps
and Continuous Delivery approaches are on the forefront.
Continuous Delivery supports Continuous Testing which is a
testing strategy that consists of a large number of automated unit
and acceptance tests but a small number of automated end-to-
end tests.
Continuous Testing claims that E2E tests are inefficient and they
should be limited.
It is a means of using Vertical E2E Test Automation effectively but
avoiding Horizontal E2E Test Automation

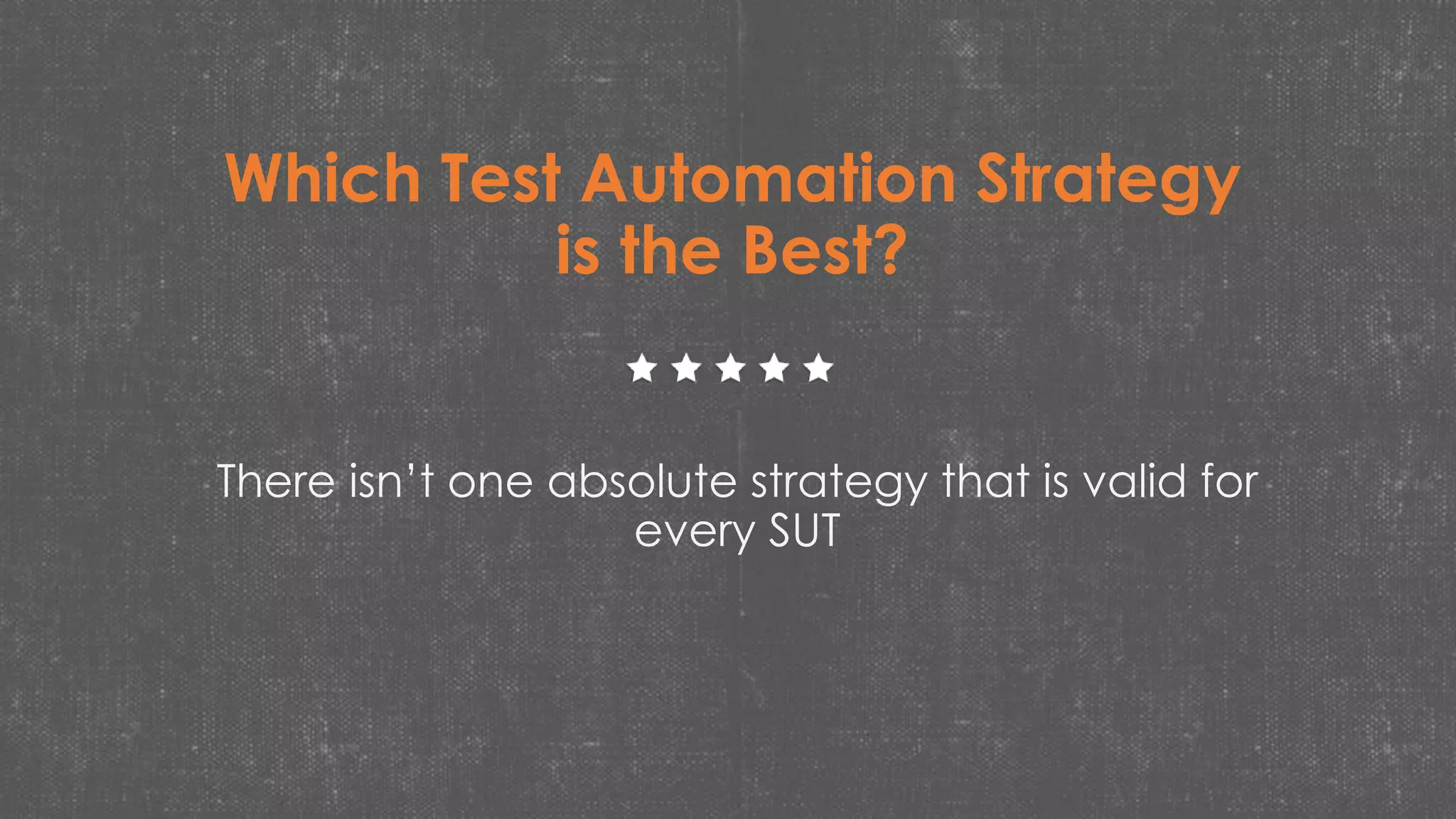

24. Which Test Automation Strategy
is the Best?
There isn’t one absolute strategy that is valid for
every SUT

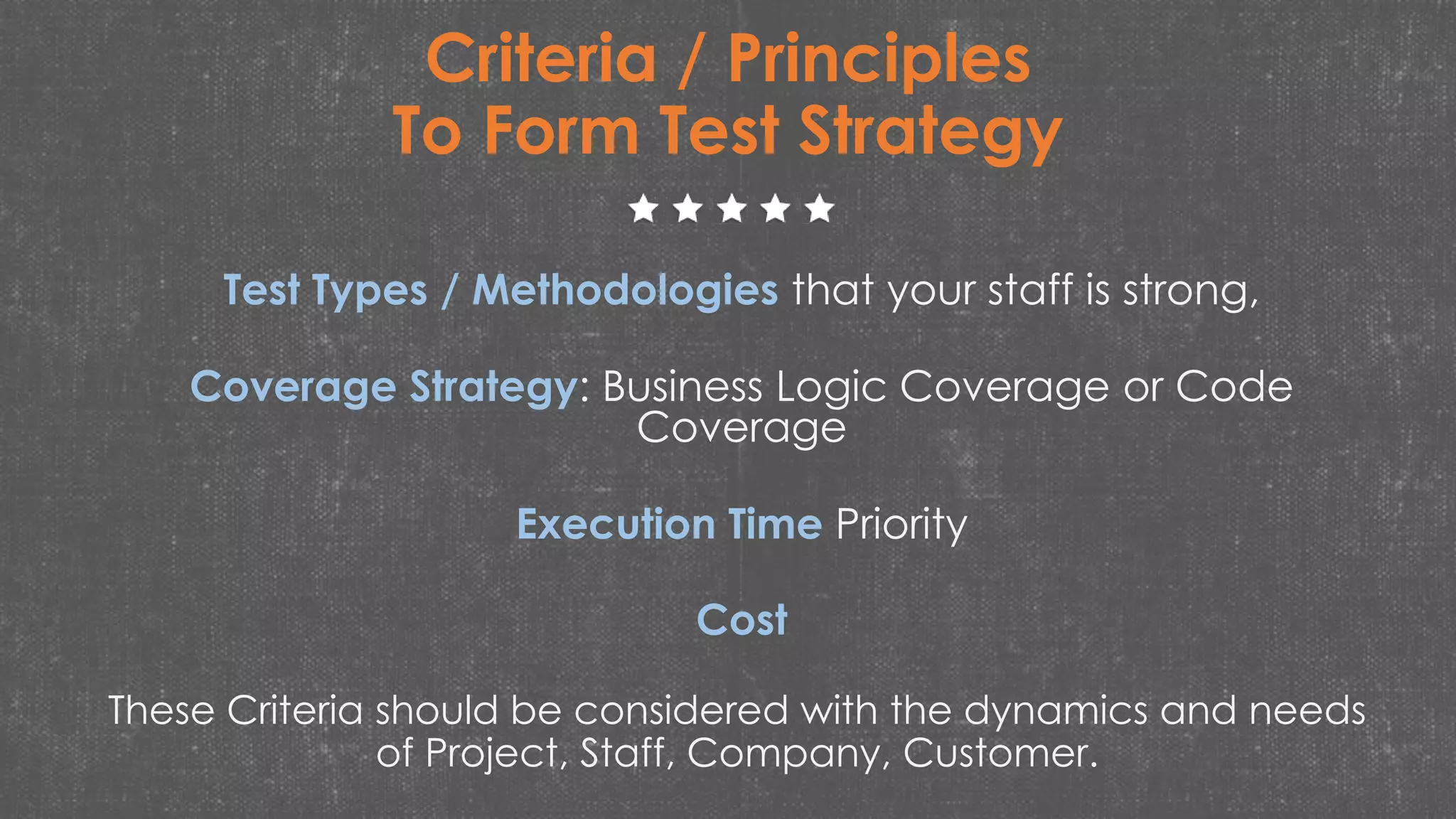

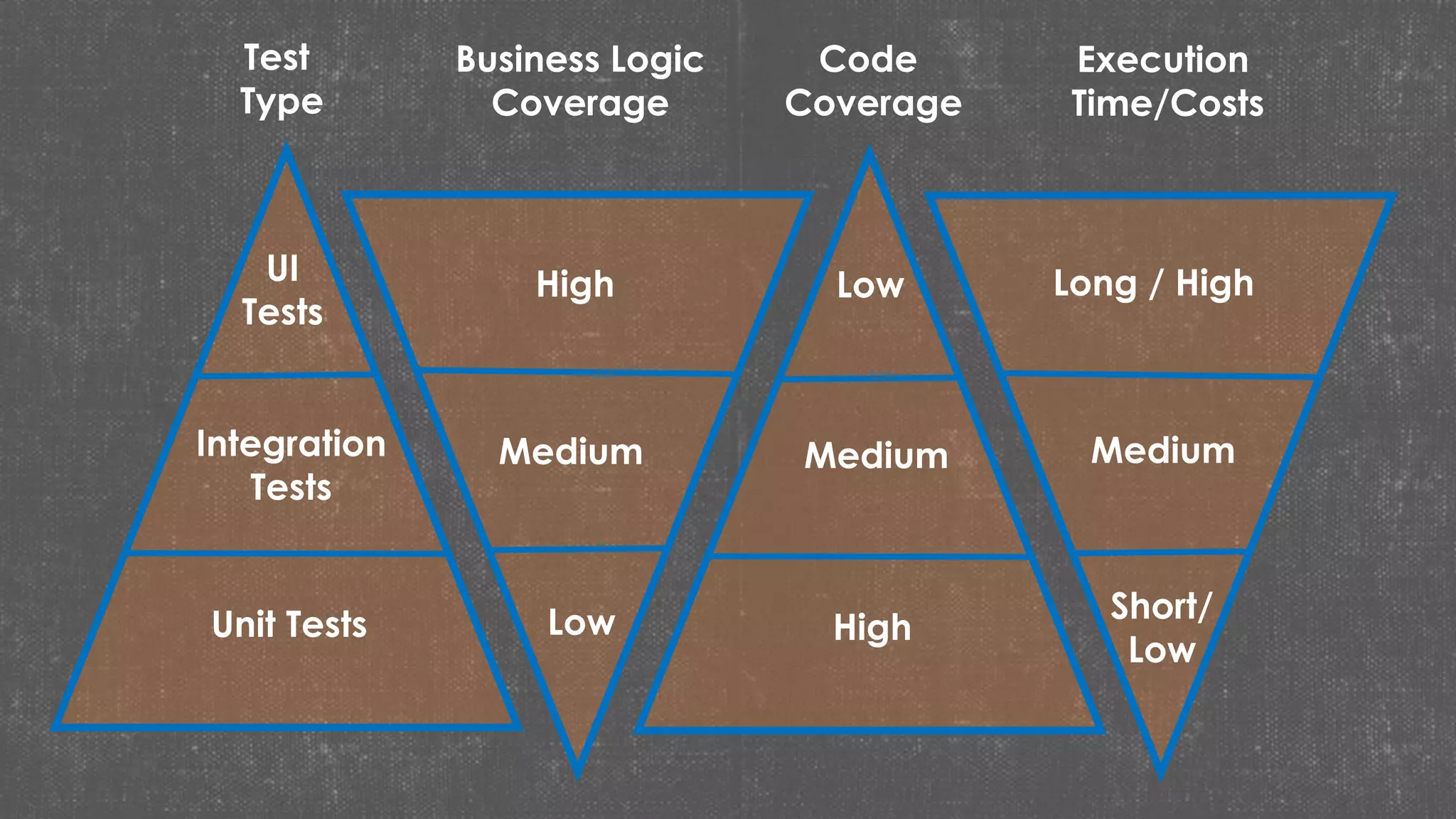

25. Criteria / Principles
To Form Test Strategy
Test Types / Methodologies that your staff is strong,
Coverage Strategy: Business Logic Coverage or Code
Coverage
Execution Time Priority
Cost
These Criteria should be considered with the dynamics and needs
of Project, Staff, Company, Customer.

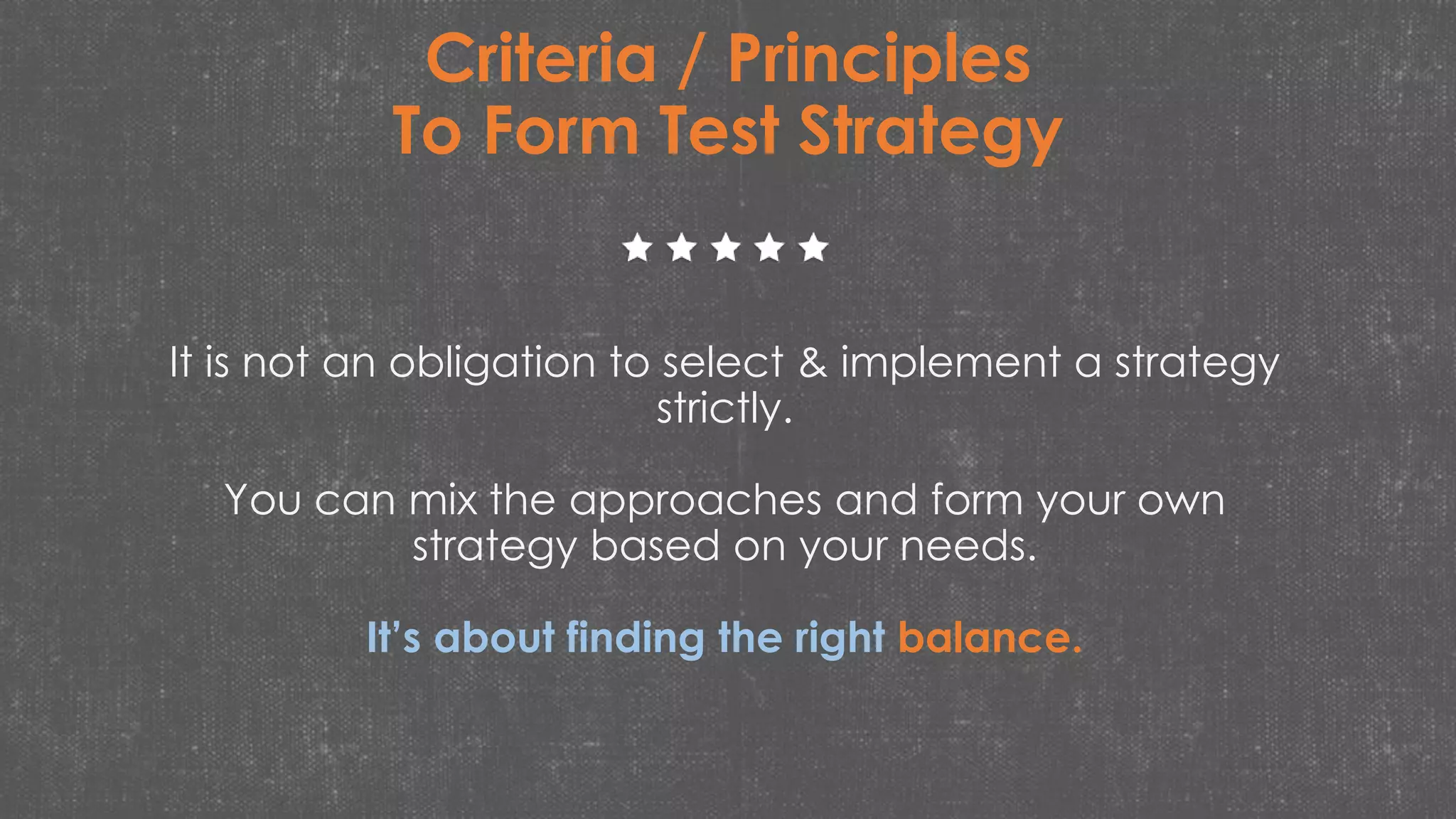

26. It is not an obligation to select & implement a strategy
strictly.
You can mix the approaches and form your own
strategy based on your needs.
It’s about finding the right balance.
Criteria / Principles
To Form Test Strategy

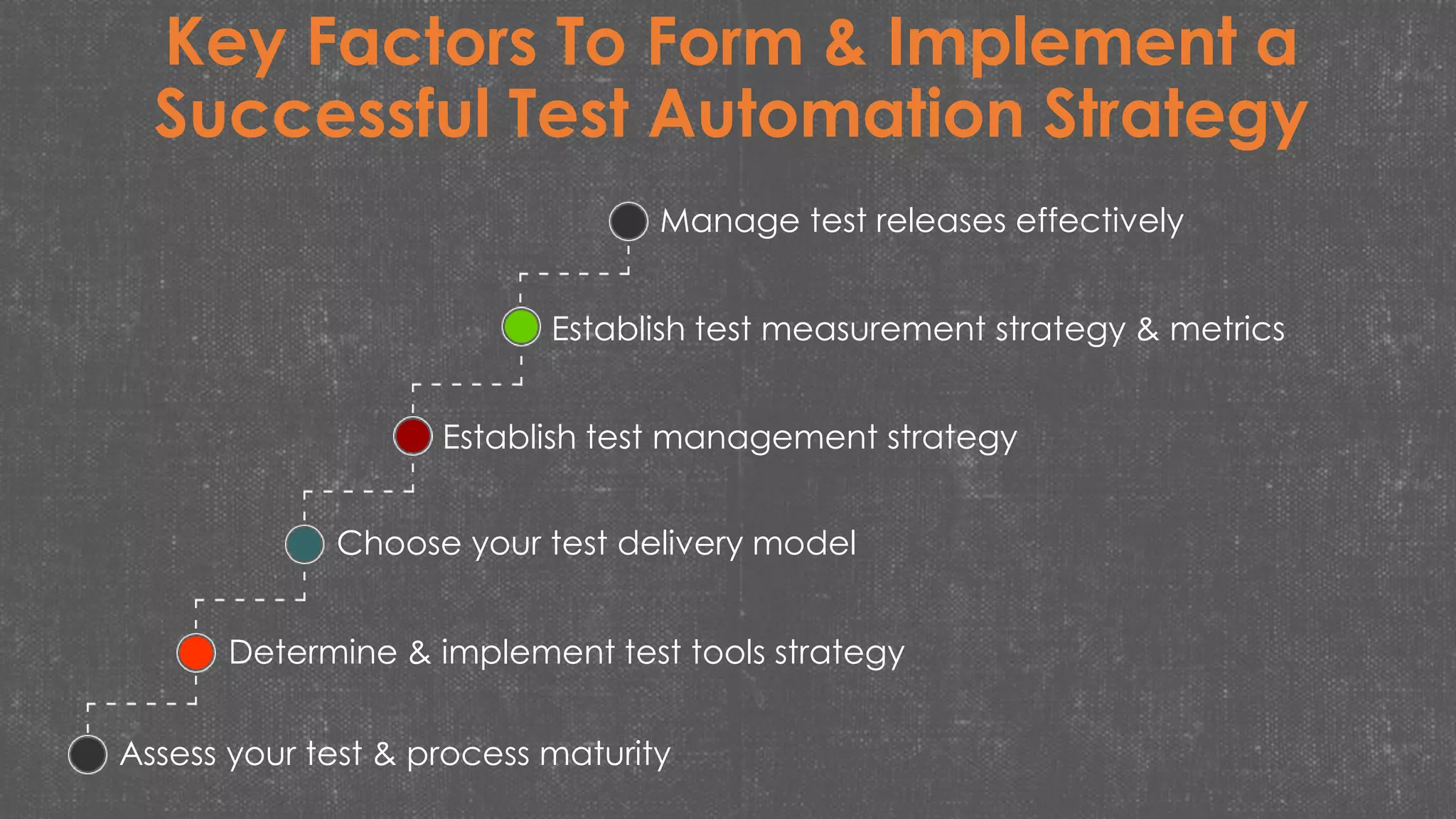

27. Key Factors To Form & Implement a
Successful Test Automation Strategy
Manage test releases effectively
Establish test measurement strategy & metrics
Establish test management strategy
Choose your test delivery model
Determine & implement test tools strategy
Assess your test & process maturity

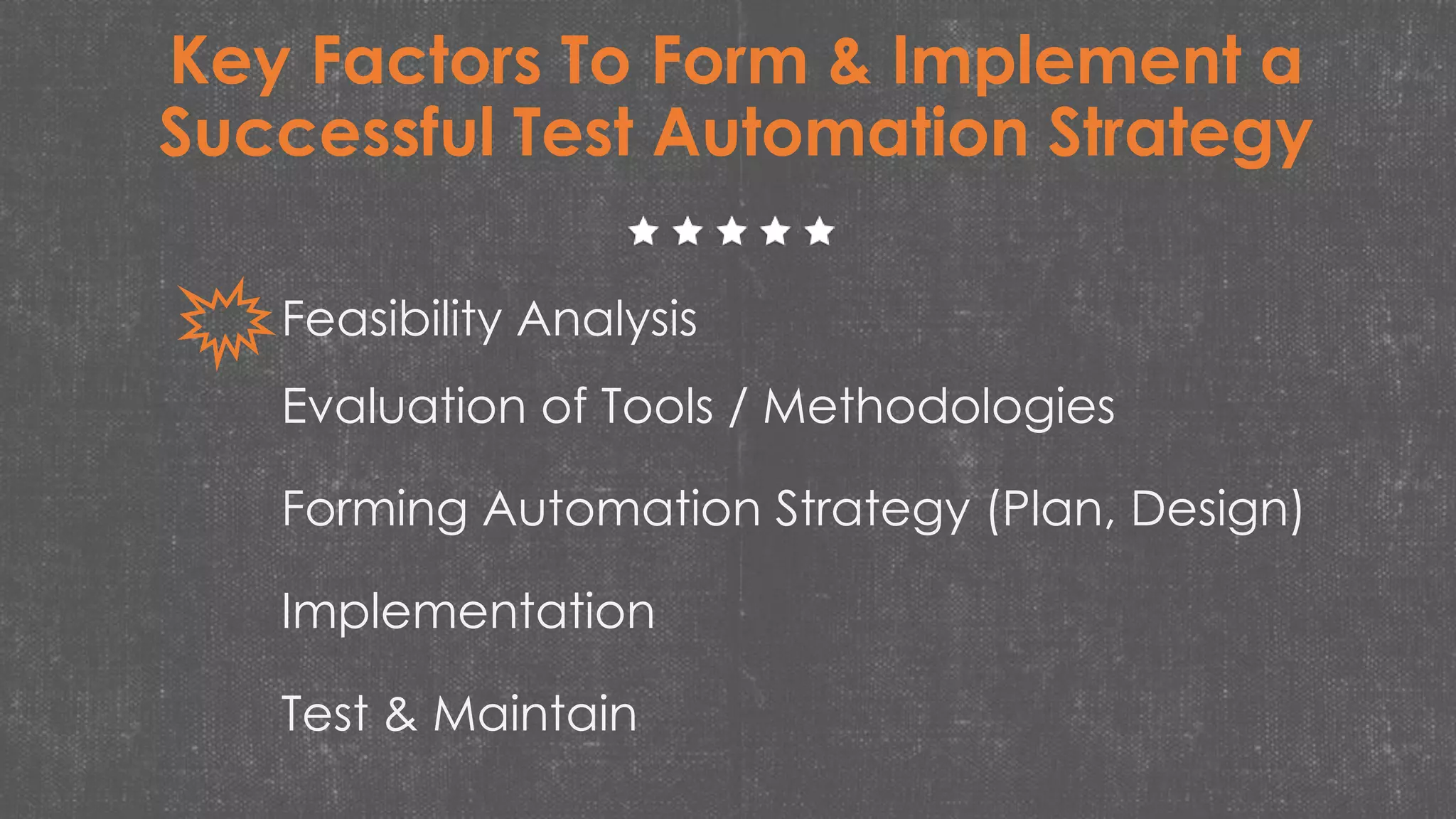

28. Feasibility Analysis
Evaluation of Tools / Methodologies
Forming Automation Strategy (Plan, Design)
Implementation
Test & Maintain
Key Factors To Form & Implement a
Successful Test Automation Strategy

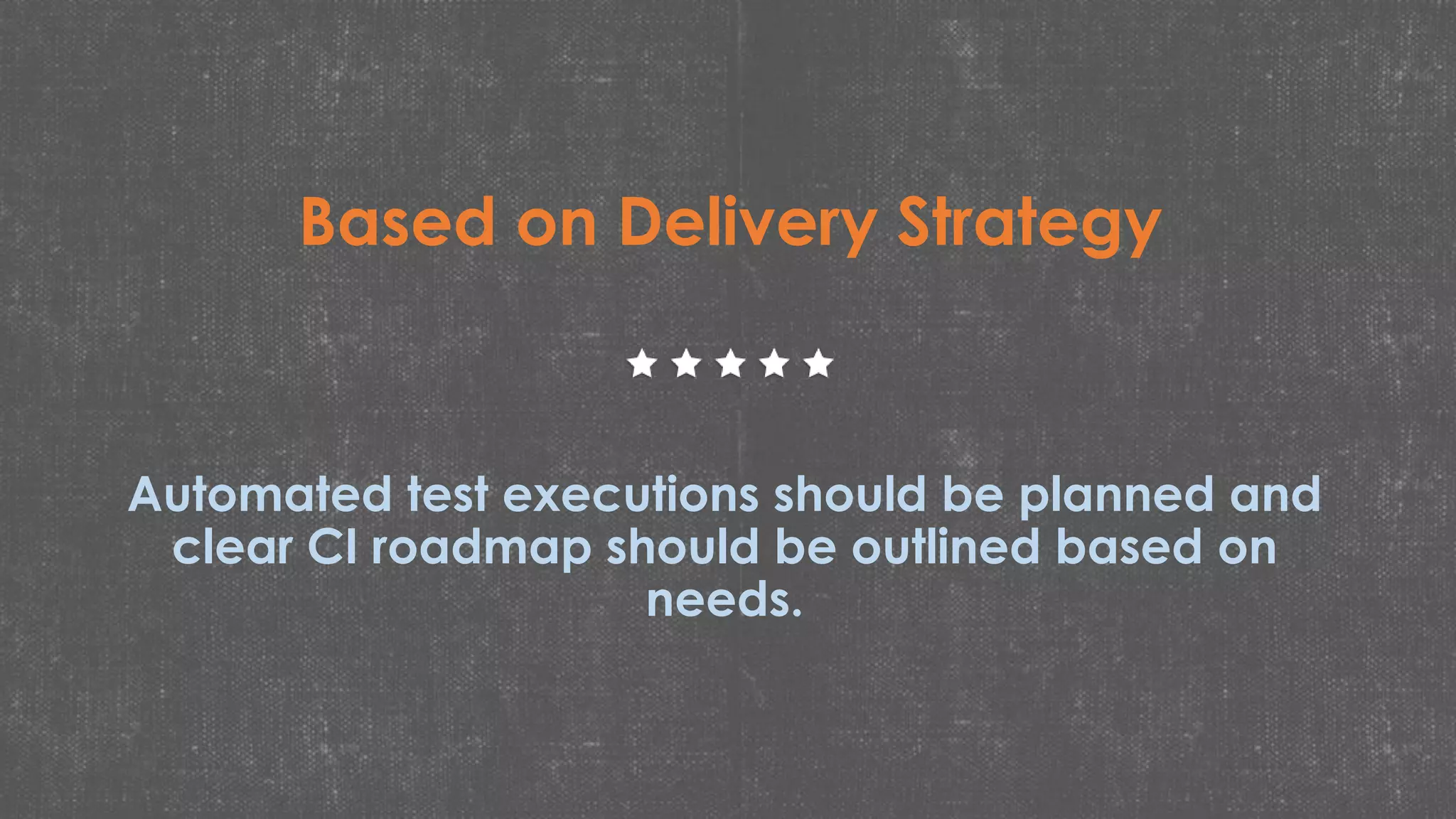

29. Based on Delivery Strategy
Automated test executions should be planned and
clear CI roadmap should be outlined based on
needs.

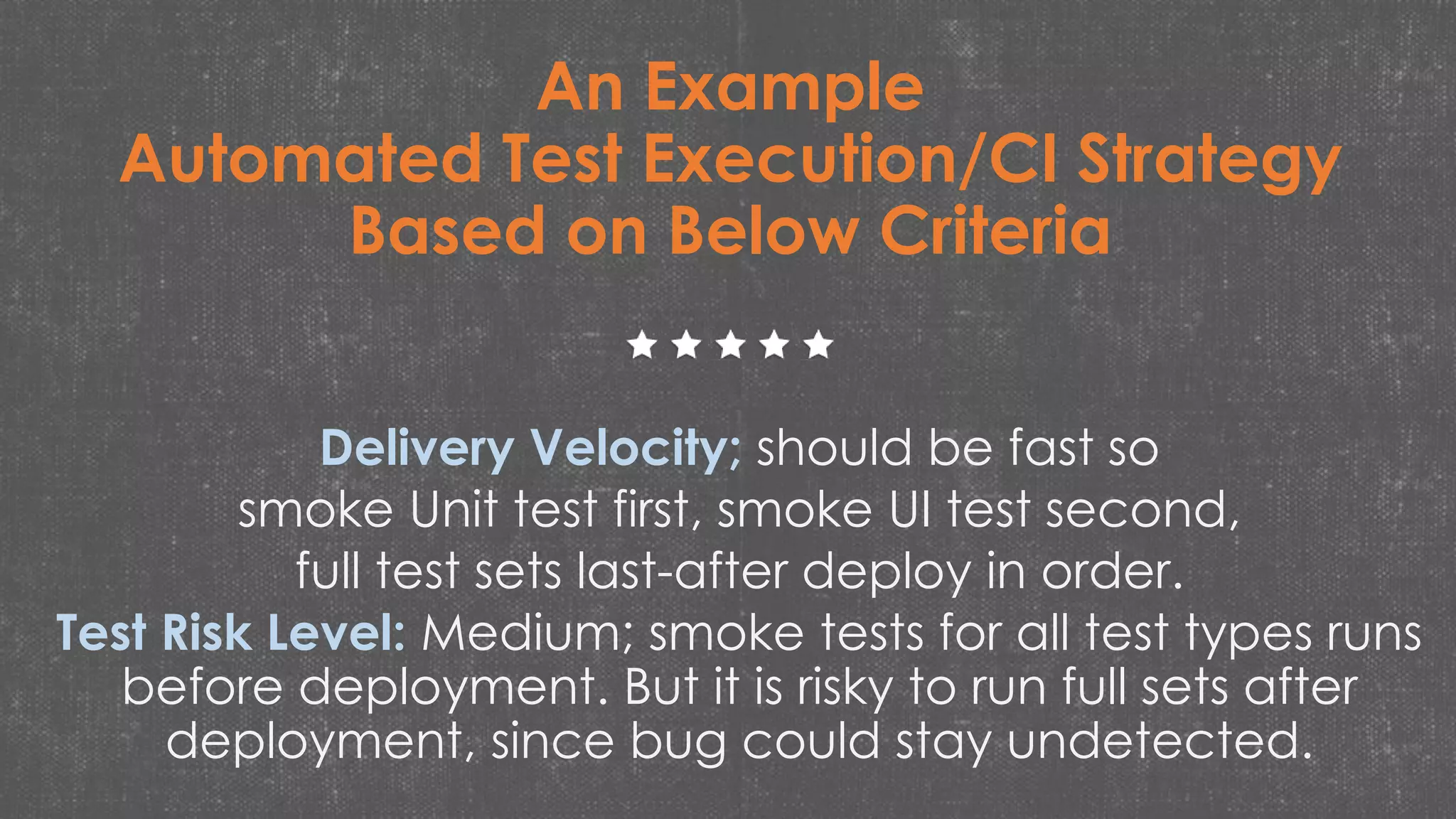

30. An Example
Automated Test Execution/CI Strategy
Based on Below Criteria
Delivery Velocity; should be fast so
smoke Unit test first, smoke UI test second,
full test sets last-after deploy in order.
Test Risk Level: Medium; smoke tests for all test types runs
before deployment. But it is risky to run full sets after
deployment, since bug could stay undetected.

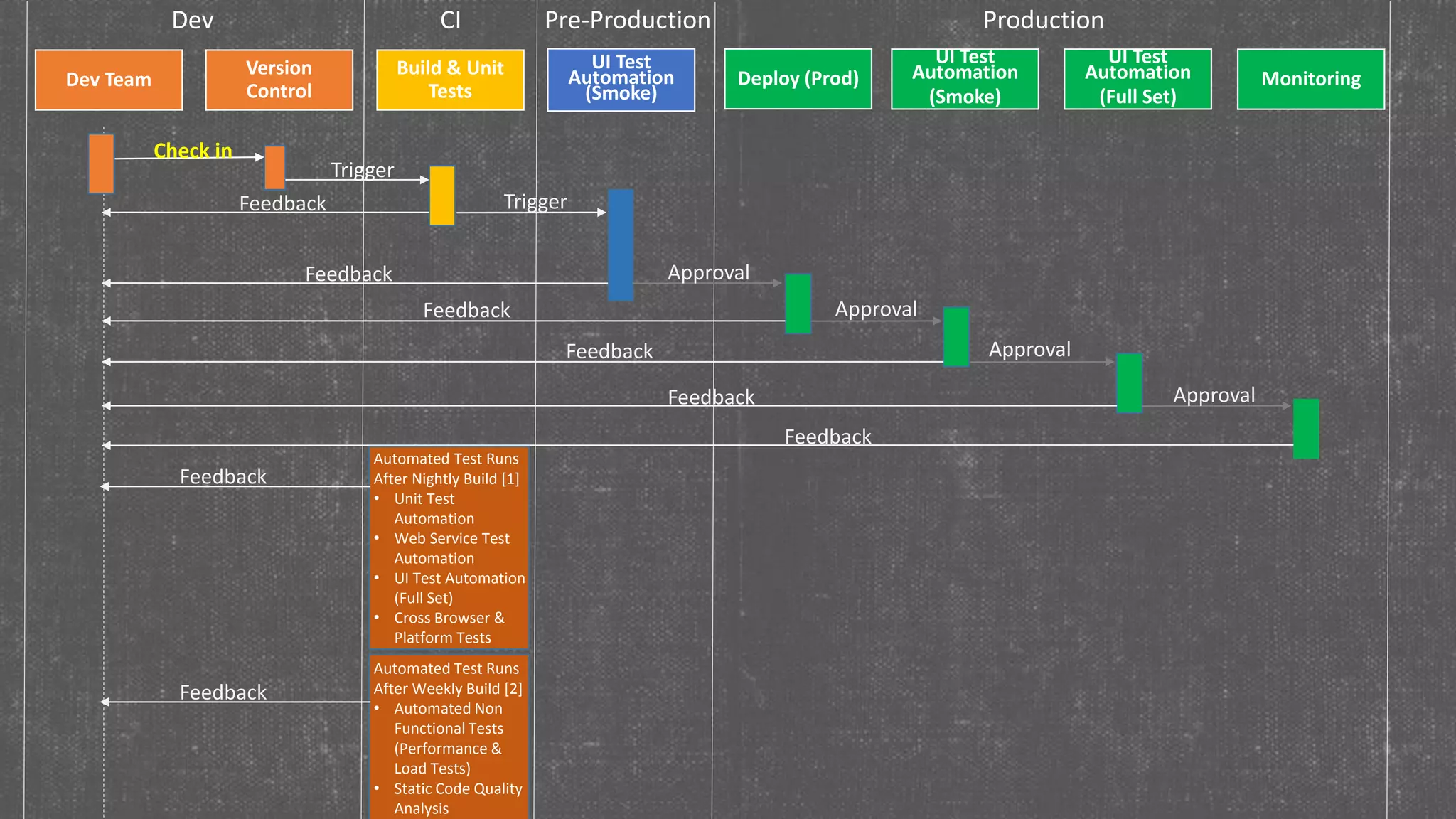

31. Dev Team
Version
Control
Build & Unit
Tests
UI Test
Automation
(Smoke)
Deploy (Prod)
UI Test
Automation
(Smoke)
UI Test
Automation
(Full Set)
Monitoring
Dev CI Pre-Production Production
Check in
Trigger
Trigger
Approval
Approval
Approval
Approval
Feedback
Feedback
Feedback
Feedback
Feedback
Automated Test Runs
After Nightly Build [1]
• Unit Test
Automation
• Web Service Test
Automation
• UI Test Automation
(Full Set)
• Cross Browser &
Platform Tests
Automated Test Runs
After Weekly Build [2]
• Automated Non
Functional Tests
(Performance &
Load Tests)
• Static Code Quality
Analysis
Feedback
Feedback
Feedback

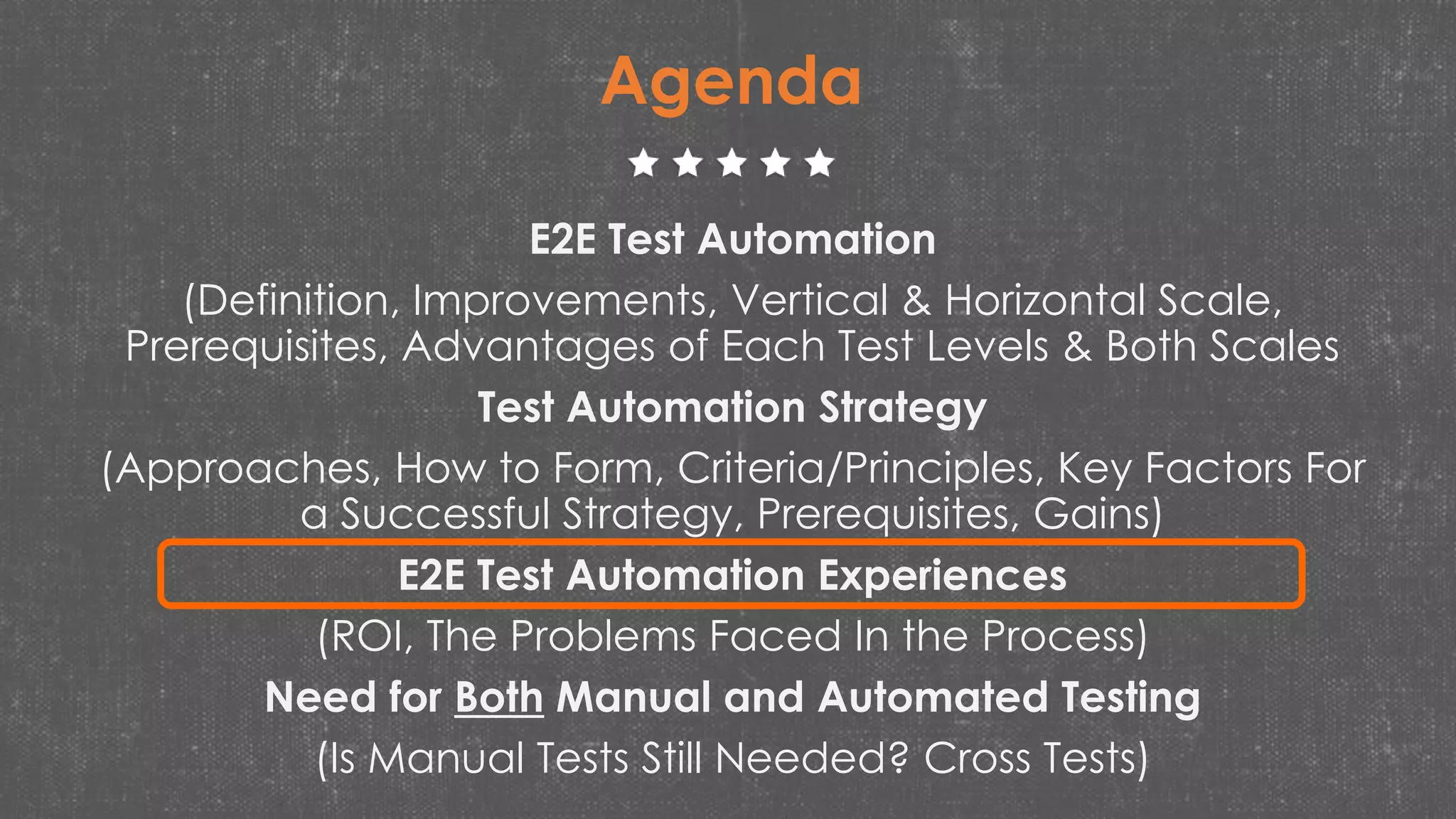

34. E2E Test Automation
(Definition, Improvements, Vertical & Horizontal Scale,
Prerequisites, Advantages of Each Test Levels & Both Scales
Test Automation Strategy
(Approaches, How to Form, Criteria/Principles, Key Factors For
a Successful Strategy, Prerequisites, Gains)
E2E Test Automation Experiences
(ROI, The Problems Faced In the Process)
Need for Both Manual and Automated Testing
(Is Manual Tests Still Needed? Cross Tests)
Agenda

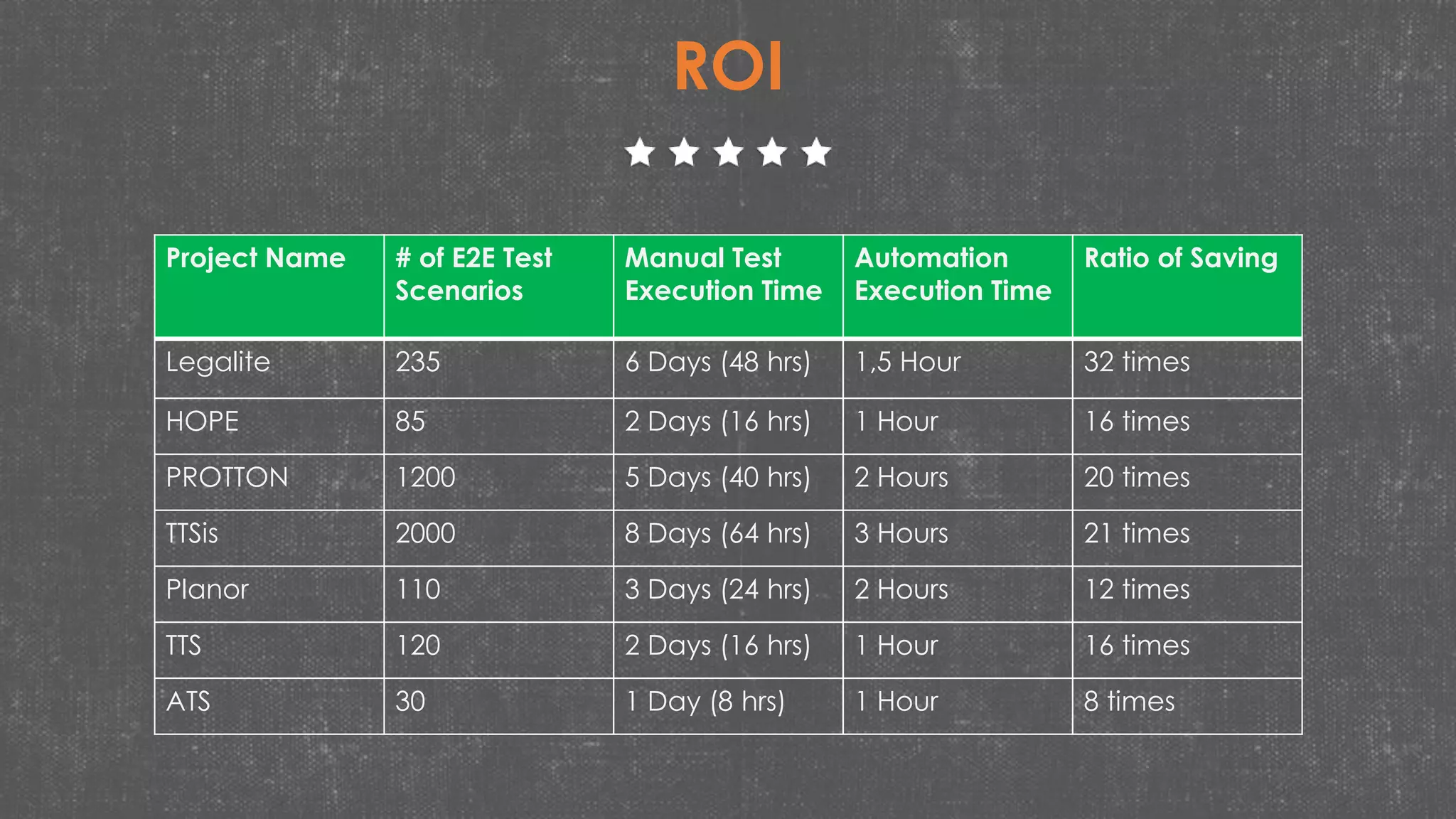

36. ROI
Project Name # of E2E Test
Scenarios
Manual Test
Execution Time
Automation
Execution Time
Ratio of Saving
Legalite 235 6 Days (48 hrs) 1,5 Hour 32 times
HOPE 85 2 Days (16 hrs) 1 Hour 16 times
PROTTON 1200 5 Days (40 hrs) 2 Hours 20 times
TTSis 2000 8 Days (64 hrs) 3 Hours 21 times
Planor 110 3 Days (24 hrs) 2 Hours 12 times
TTS 120 2 Days (16 hrs) 1 Hour 16 times
ATS 30 1 Day (8 hrs) 1 Hour 8 times

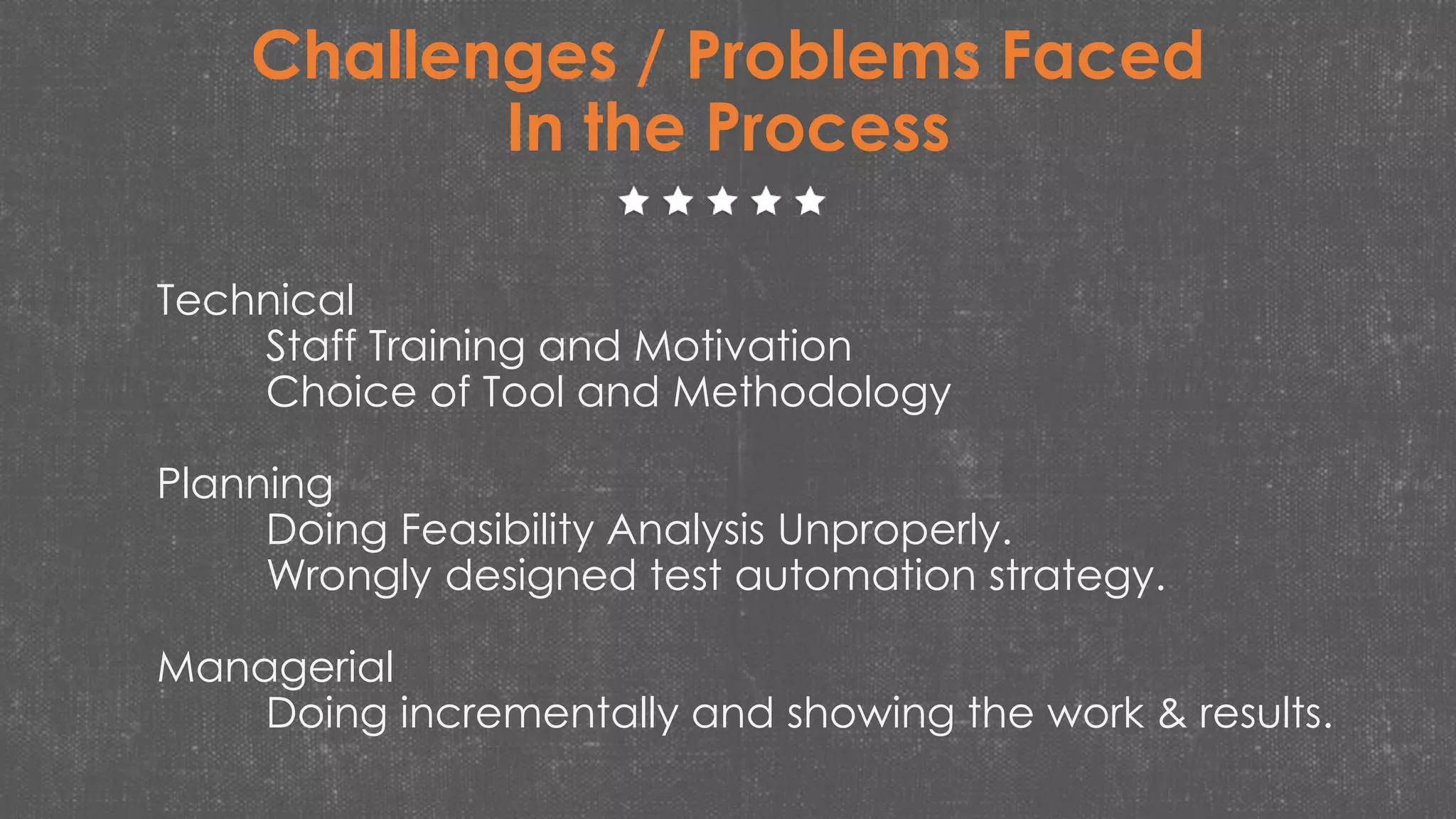

37. Challenges / Problems Faced
In the Process
Technical
Staff Training and Motivation
Choice of Tool and Methodology
Planning
Doing Feasibility Analysis Unproperly.
Wrongly designed test automation strategy.
Managerial
Doing incrementally and showing the work & results.

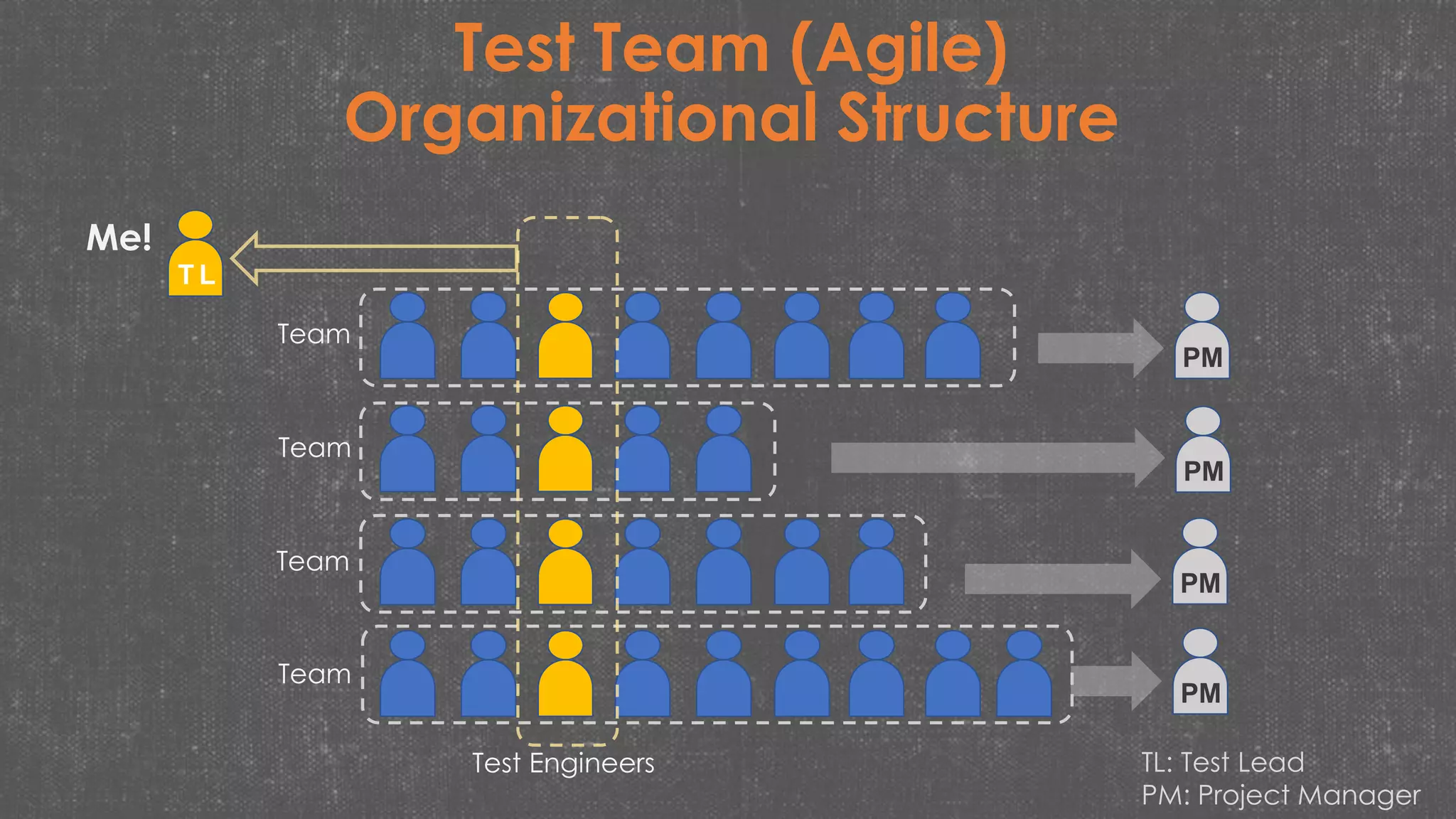

38. Test Team (Agile)
Organizational Structure
PM
PM
PM
PM
Team
Team
Team
Team
T L
Test Engineers TL: Test Lead
PM: Project Manager
Me!
39. E2E Test Automation
(Definition, Improvements, Vertical & Horizontal Scale,
Prerequisites, Advantages of Each Test Levels & Both Scales
Test Automation Strategy
(Approaches, How to Form, Criteria/Principles, Key Factors For
a Successful Strategy, Prerequisites, Gains)
E2E Test Automation Experiences
(ROI, The Problems Faced In the Process)
Need for Both Manual and Automated Testing
(Is Manual Tests Still Needed? Cross Tests)
Agenda
40. Testing cost: testing accounts for roughly 26% of IT budgets
*According to a 2014 industrial survey of 1543 executives from 25
countries
Lack of testing is even more costly; the global cost of locating
and removing bugs from software has risen to $312 billion
annually and it makes up half of the development time of the
average project.
* A 2013 study by the Cambridge University

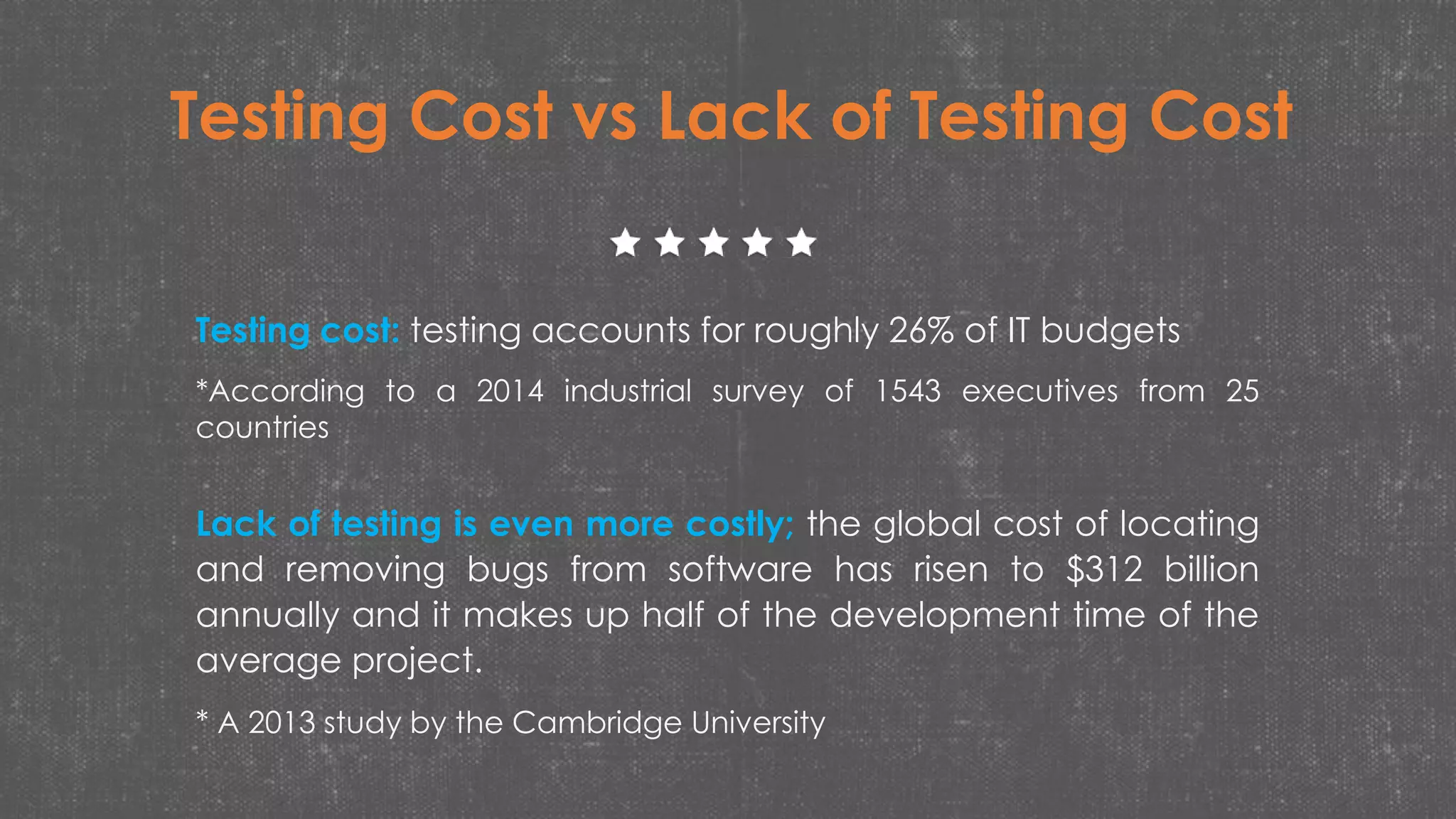

Testing Cost vs Lack of Testing Cost

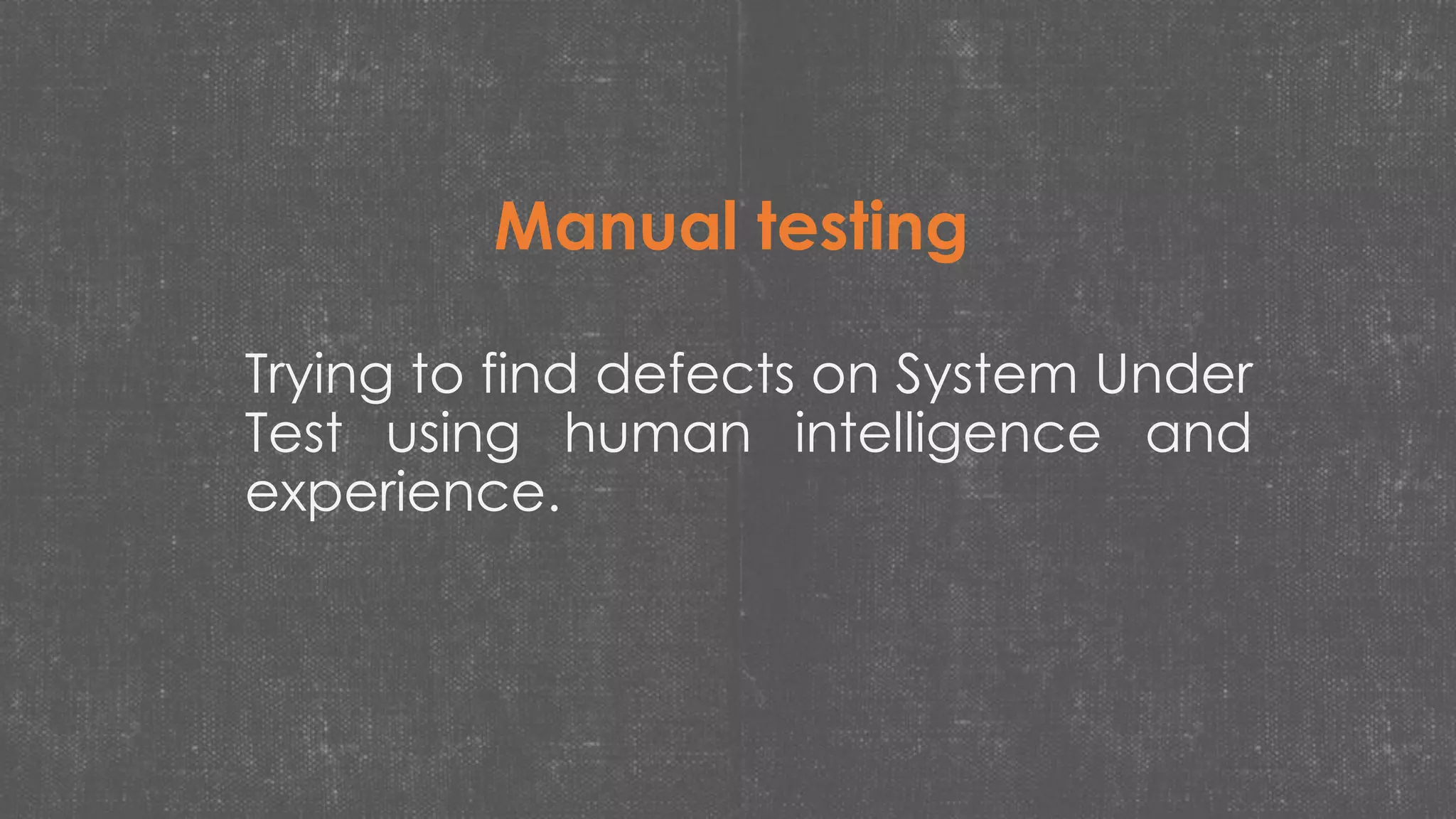

41. Trying to find defects on System Under
Test using human intelligence and
experience.
Manual testing

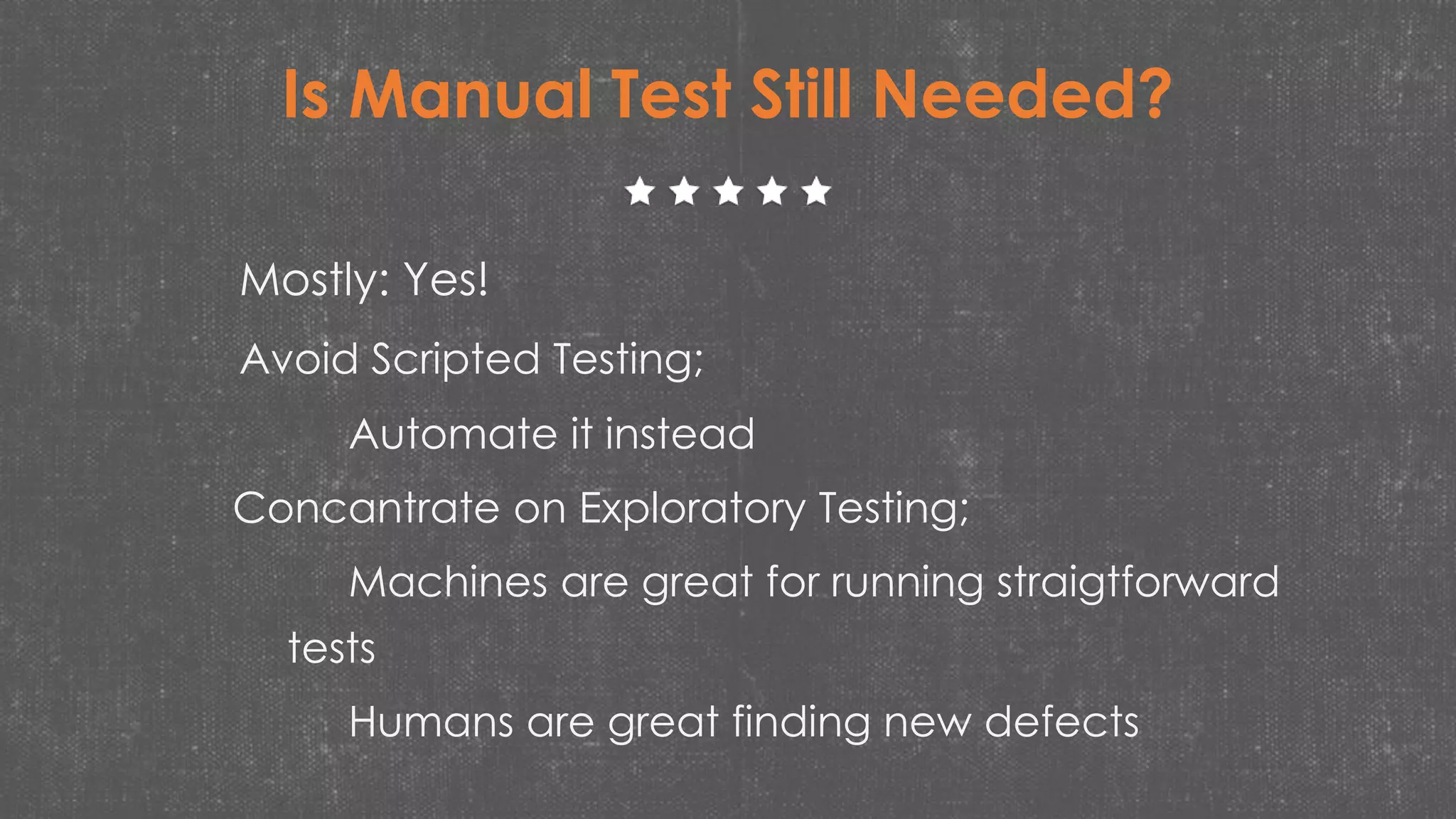

42. Is Manual Test Still Needed?
Mostly: Yes!
Avoid Scripted Testing;
Automate it instead
Concantrate on Exploratory Testing;
Machines are great for running straigtforward
tests
Humans are great finding new defects
... so we are tring to take advantage of this oppurtunity by automating our tests.
...automating tests in this style is called E2E Test Automation in grey literature, especially it is called Horizontal E2E Test Automation.
Unit Test; a unit is defined as the smallest testable part of an application. each test case is independent from the others.
Integration testing tests integration or interfaces between components, system or hardware.
UI Test is also called as acceptance test means testing from the user perspective and validating requirements or user stories.
At the top; some limited mauel testing activity.
1. We can replace manuel test with exploratory test which is an approach not a technique and more productive than scripted testing more traceable than ad-hoc testing.
2. We can add one more layer to the bottom; test data preparation automation layer.
3. We can add Continuous integration that we can execute test automation projects automatically.
Why are we adding test data preparation layer as an extra layer: answer is again a question.
... instead of doing it in extra level, you can also do it using teardown method in coding phase.
Sometimes applying Teardown Method as hardcoded in your test automation code is OK.
But we can ask the question that is it the best approach all the time?
A good automation architect ensures that scripts are reusable.
A great automation architect ensures that scripts and test data, both are reusable.
Have a look at the four steps of test automation. Note that teardown is the 4.th step.
Setup phase of the test, establishes the prior state of the test. The exercise phase is where we execute our test actions. In the Verify phase; we specify and verify the expected outcome. The final phase teardown, is all about housekeeping, we clean up the test environment and put the world back into the state in which we found it.
İf we want to syncronize with BDD given/when/then logic; setup means(given) exercise means(when) action, verify mean(then).
This is the ideal scenario that integrated systems are up and ready for testing. When they are not; we should prepare mock objects to emulate real systems. So we can test our system and integration in earlier phase without waiting other systems to be ready.
When we use mock objects; Setup Works on mock object, mock objects feeds SUT and verification is done over mock object.
.... it is useful for especially SUT is a Midddleware or you have different test environments that you should run your tests.
For example; if you have 5 customers and these customers have different production environments.
------
------
How can we do this;
First extract data from DB, put your DB into that known state
DbUnit is a JUnit extension, puts your database into a known state between test runs.
Jailer simplifies the extraction of referentially intact data. Once you have defined an extraction model, it can be used to extract data from the production database fast and easy whenever up-to-date test data is required.
...
...
there are two different views on this topic. One says writing tests independent and loosing test cases from each other is better. And the other says writting dependent scenarios from the end user perspective is better. Both of them have some advantages & disadvantages that we will have a look this again on following slides.
Tools can be changed based on the needs, these are the ones we prefer.
... if they are not even mockable, you can not perform horizontal E2E tests.
1. Let’s have a look at the advantages & disadvantages based on the test types.
2. If you want to cover business logic with your tests; UI test automation is the right choice.
3. If code coverage is more important then you should perform unit test automation in first order.
4. And also for the short execution time and low costs, you can prefer unit tests.
It can not be used in all projects. It should be applied only for the proper ones... We will have a look how can we know and decide our project is proper for E2E
...it claims that E2E GUI automation is always tougher than other types of automated tests. So if there is a situation when you can achieve your target by not automating the GUI, but by some other levels like unit and integration.
You should select the test type that your staff is strong or you should be confident to be able to train them.
For the coverage strategy: You should make a choice between Business Logic Coverage or Code Coverage
For the Execution Time: You should determine your priorities and limits.
Cost: you should evaluate your human resources situation that will work for the automation.
These are the steps you should consider to form a automation strategy
In a nutshell, we should work on following topics;
Feasibility Analysis
Eveluate Project, Staff, Company Culture.
There is an important and also trendy topic in test automation World is that you should consider: two W’s of automated testing: when and what
Many organizations see software test automation as a solution to decrease testing costs and toreduce cycle time in software development. However, establishment of automated testing may fail if testautomation is not applied in the right time, right context and with the appropriate approach.
Eveluate Tools / Methodologies
[Consider Project Dynamics, third party components that are being used by development team], BDD, TDD
Form the Automation Strategy (Plan-Design)
“Automating without good test design may result in a lot of activity, but little value.”
[Consider reusability & modularity]
Test & Maintain
[Eveluate defect cause analysis with cause effect analysis]
Lets design a CI-delivery strategy for executions of automated tests.
Firstly, we should work on our criteria; the values written next critearia are complete fictitious values. Normally we should form up them based on your Project dynamics and needs.
And we formed up our test execution and delivery strategy.
Automation means running fewer tests more often.
You have to start small by attacking your build acceptance tests first.
Then cover your smoke tests. Then move onto your time taking fulls set of tests.
Here in this design the critical question is where you put these automated tests? Before or after deployment?
But make sure every test you automate, it saves time for a manual tester to focus on more important things.
Automate few tests that are valuable and time savers or difficult to do for manual testers. If you did that, the task of automation is done.
http://www.softwaretestinghelp.com/bvt-build-verification-testing-process/
The given part describes the state of the world before you begin the behavior you're specifying in this scenario. You can think of it as the pre-conditions to the test.
The when section is that behavior that you're specifying.
Finally the then section describes the changes you expect due to the specified behavior

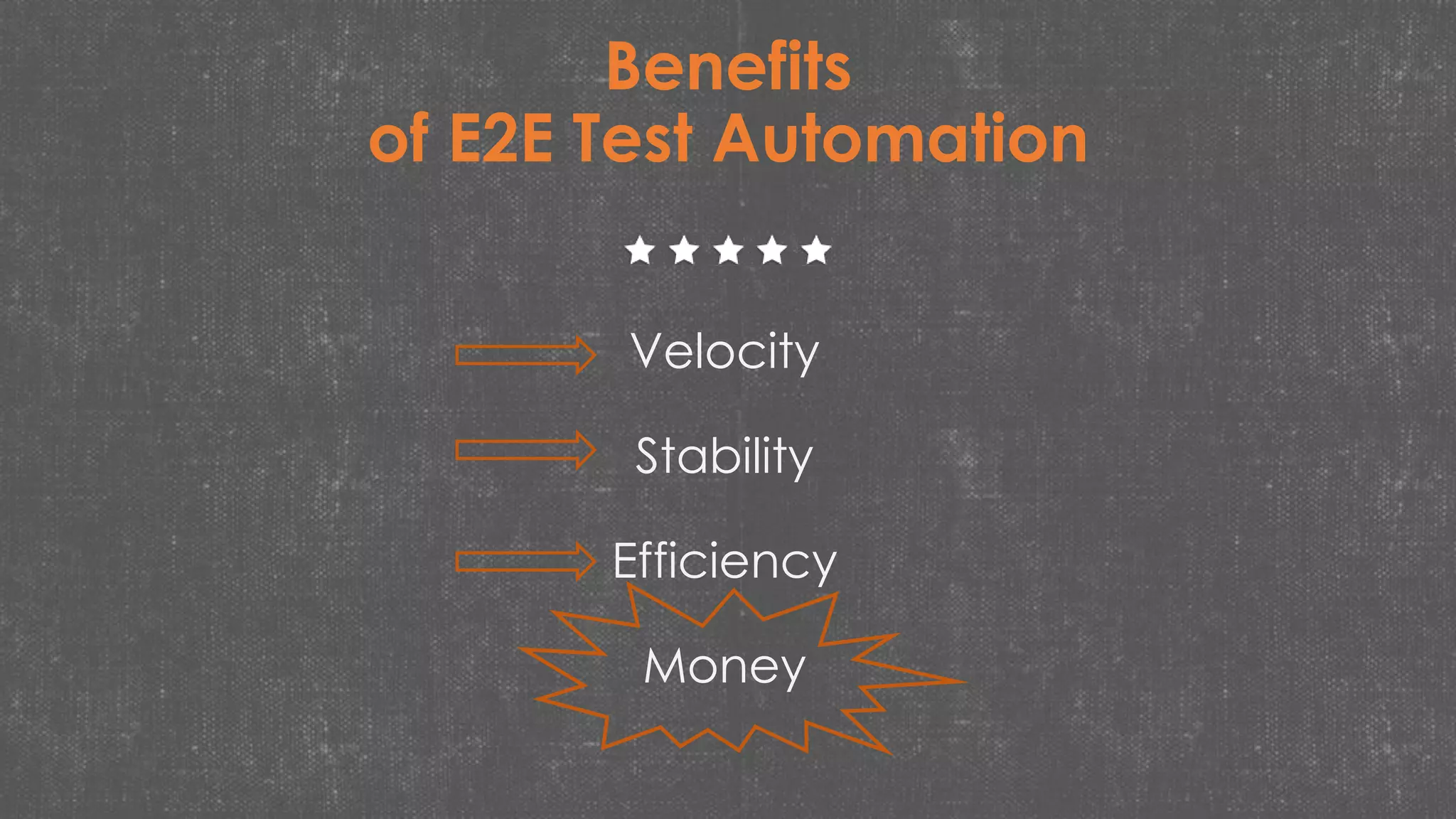

Velocity: faster bug finding & fixation process. It means reducing cycle time for software development.
Stability: We have more stable and robust products. You became more comfident before deployment to production environment.
Efficiency: We can test more with less effort.
And these three bullets means Saving Money

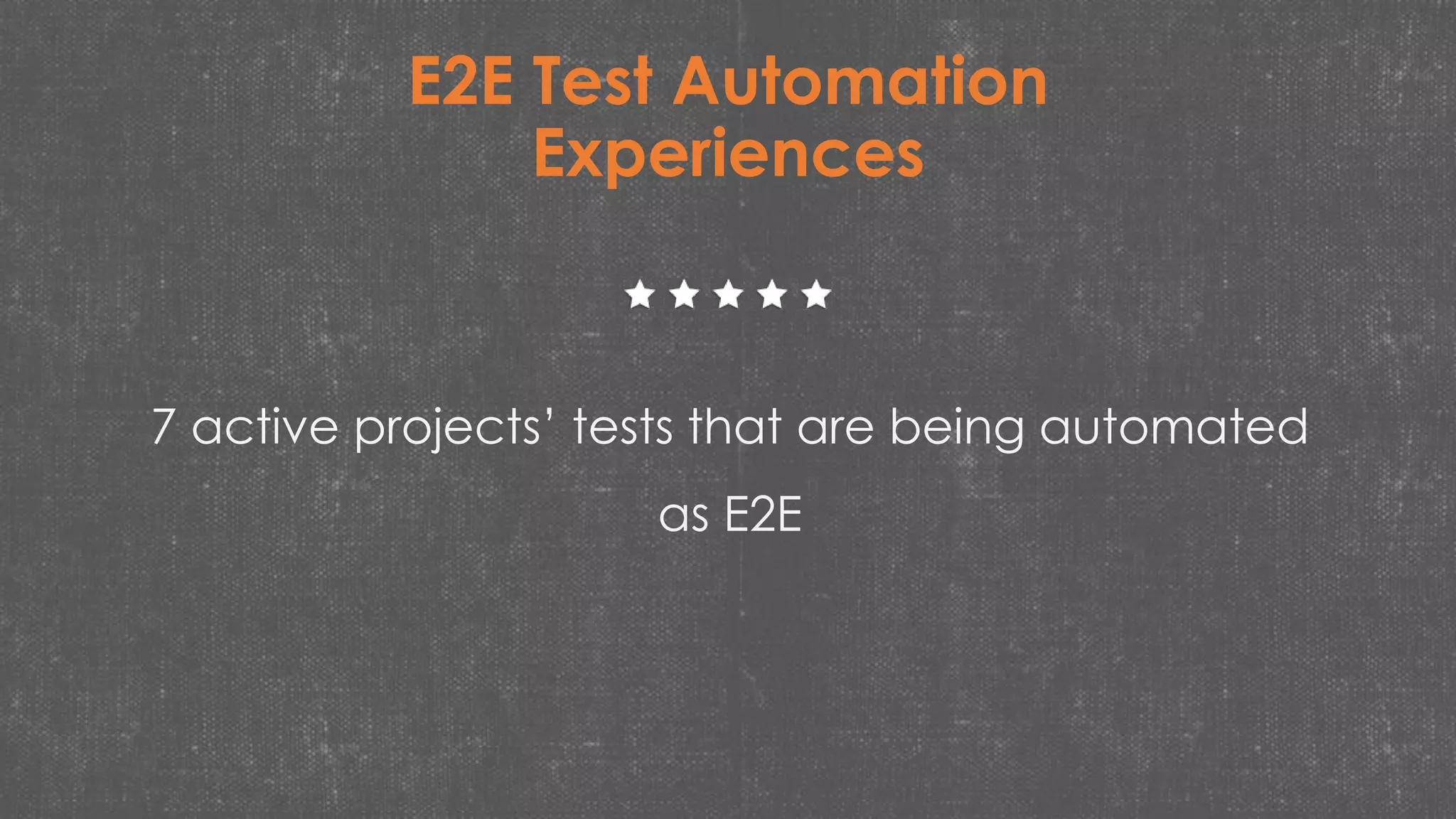

We have 7 active projects whose tests are being automated as E2E
Legalite: Low automation Project works on cloud. It is being automated from the starting point of Project to now with %80 of coverage.
In TTSis project: we experienced different kind of FAT (Factory accaptance tests). In this Project test automation coverage is 100 percent. FAT would normally be performed in two weeks with the customer by running all scanarios manually. But we showed them our automated tests and then we executed automated tests instead of manuel tests for FAT. FAT was done in 3 Hours instead of 2 weeks. At the end; customer appraciated us and we had the reputation of doing the product right and our approach of running the automated tests with less effort in less time.
Technical, Staff: You should prepare and trainn your staff for the tools you select. It sometimes means training them but also sometimes mentoring and motivating them and taking care of their problems. Technical, Tools: Sometimes it is hard to find or buy the proper tool for the Project. You might select hybrid solution and use multiple tools like using SeleniumWebDriver as main tool and sometimes Sikuli to automate the components/objects hard to catch with object based test atumation tools like Selenium.
Organizational structure of test team and development teams working for projects using agile methodology.
Our test team consists of 14 test engineers working in 8 projects.
They work generally with the PM. Daily asignment are made by PM’s. I determine the test strategy for the technical test works (test automation, performance, ui test, BDD, ALM) with the test team.
Test engineers do the Daily tasks; write test automation-performance test code. Big thanks to them for their great effort.
I work on strategy, roadmap, training and career paths of the team members and things that increase the efficiency of the test activities and test team effort.
Sometimes it is not easy to understand the impact of the testing over product quality and SDLC
According to a 2014 industrial survey of 1543 executives from 25 countries, testing and quality assurance of software-intensive systems accounts for roughly 26% of IT budgets [1], but lack of testing is even more costly. A 2013 study by the Cambridge University [2] states that the global cost of locating and removing bugs from software has risen to $312 billion annually and it makes up half of the development time of the average project.
If your project is not suitable for automating all tests with full coverage then somewhere you will need the experience and intelligence of the test engineer.
But avoid manually testing of straightforward scenarios that machines are great for running straightforward scenarios as we mentioned in first slide.
Take care of choosing the test cases that can not be automated.
We perfromed BugFest testing activity. Here our aim was testing the application from end-to-end maunally across different projects.
Normally testers works on their daily tasks generally testing a specific development or bugfix. But after I investigated that when ı put a different tester on a Project, new tester could some bugs be fould?
If there is any questions I would like to answer. You can also ask questions by email or linkedin. Thank you.
If we have time I want to give brief information about GEB.
