Emflux one specs sheet
The document provides specifications for an electric motorcycle, including its tubular steel trellis frame and swingarm, 43mm upside down forks, 46mm rear shock, 300mm front and 220mm rear disc brakes, 17" wheels, 169kg curb weight, 9.7 kWh liquid cooled battery pack, 84 Nm peak torque electric motor, direct drive transmission, 200km city range and 150km highway range at 80kph, 6.8" touchscreen display, GPS navigation, Bluetooth and WiFi connectivity, and additional features like parking assist and charger locator. The battery, motor, motor controller, and charger are all liquid cooled and rated IP67 for dust and water resistance.
More Related Content
Emflux one specs sheet

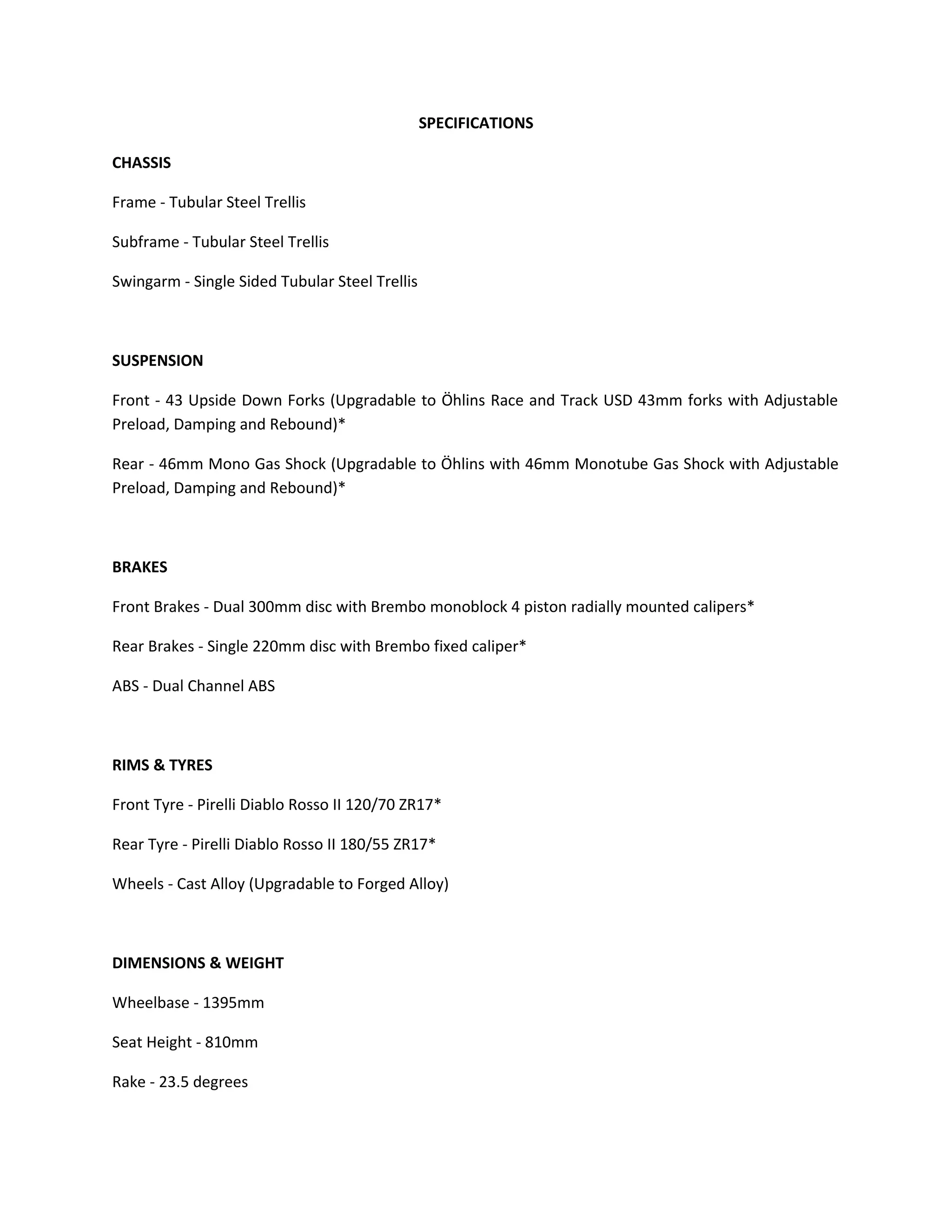

- 1. SPECIFICATIONS CHASSIS Frame - TubularSteel Trellis Subframe - Tubular Steel Trellis Swingarm - Single Sided Tubular Steel Trellis SUSPENSION Front - 43 Upside Down Forks (Upgradable to Öhlins Race and Track USD 43mm forks with Adjustable Preload, Damping and Rebound)* Rear - 46mm Mono Gas Shock (Upgradable to Öhlins with 46mm Monotube Gas Shock with Adjustable Preload, Damping and Rebound)* BRAKES Front Brakes - Dual 300mm disc with Brembo monoblock 4 piston radially mounted calipers* Rear Brakes - Single 220mm disc with Brembo fixed caliper* ABS - Dual Channel ABS RIMS & TYRES Front Tyre - Pirelli Diablo Rosso II 120/70 ZR17* Rear Tyre - Pirelli Diablo Rosso II 180/55 ZR17* Wheels - Cast Alloy (Upgradable to Forged Alloy) DIMENSIONS & WEIGHT Wheelbase - 1395mm Seat Height - 810mm Rake - 23.5 degrees

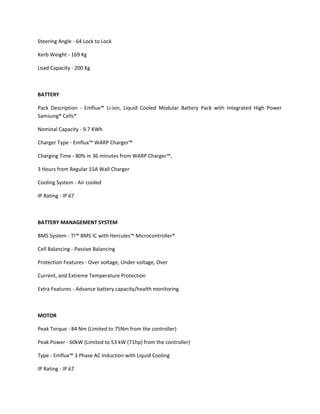

- 2. Steering Angle -64 Lock to Lock Kerb Weight - 169 Kg Load Capacity - 200 Kg BATTERY Pack Description - Emflux™ Li-ion, Liquid Cooled Modular Battery Pack with Integrated High Power Samsung® Cells* Nominal Capacity - 9.7 KWh Charger Type - Emflux™ WARP Charger™ Charging Time - 80% in 36 minutes from WARP Charger™, 3 Hours from Regular 15A Wall Charger Cooling System - Air cooled IP Rating - IP 67 BATTERY MANAGEMENT SYSTEM BMS System - TI™ BMS IC with Hercules™ Microcontroller* Cell Balancing - Passive Balancing Protection Features - Over voltage, Under voltage, Over Current, and Extreme Temperature Protection Extra Features - Advance battery capacity/health monitoring MOTOR Peak Torque - 84 Nm (Limited to 75Nm from the controller) Peak Power - 60kW (Limited to 53 kW (71hp) from the controller) Type - Emflux™ 3 Phase AC Induction with Liquid Cooling IP Rating - IP 67

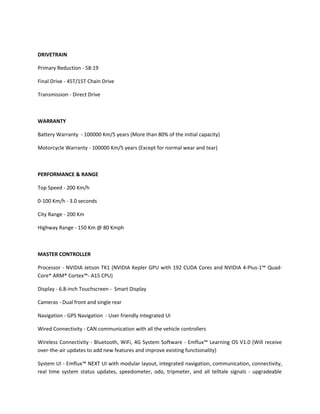

- 3. DRIVETRAIN Primary Reduction -58:19 Final Drive - 45T/15T Chain Drive Transmission - Direct Drive WARRANTY Battery Warranty - 100000 Km/5 years (More than 80% of the initial capacity) Motorcycle Warranty - 100000 Km/5 years (Except for normal wear and tear) PERFORMANCE & RANGE Top Speed - 200 Km/h 0-100 Km/h - 3.0 seconds City Range - 200 Km Highway Range - 150 Km @ 80 Kmph MASTER CONTROLLER Processor - NVIDIA Jetson TK1 (NVIDIA Kepler GPU with 192 CUDA Cores and NVIDIA 4-Plus-1™ Quad- Core* ARM® Cortex™- A15 CPU) Display - 6.8-inch Touchscreen - Smart Display Cameras - Dual front and single rear Navigation - GPS Navigation - User friendly integrated UI Wired Connectivity - CAN communication with all the vehicle controllers Wireless Connectivity - Bluetooth, WiFi, 4G System Software - Emflux™ Learning OS V1.0 (Will receive over-the-air updates to add new features and improve existing functionality) System UI - Emflux™ NEXT UI with modular layout, integrated navigation, communication, connectivity, real time system status updates, speedometer, odo, tripmeter, and all telltale signals - upgradeable

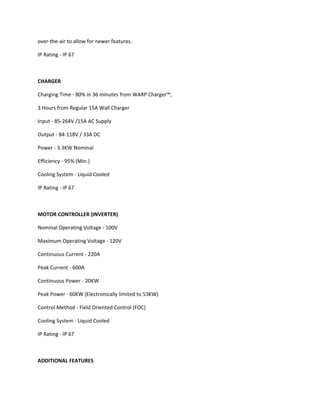

- 4. over-the-air to allowfor newer features. IP Rating - IP 67 CHARGER Charging Time - 80% in 36 minutes from WARP Charger™, 3 Hours from Regular 15A Wall Charger Input - 85-264V /15A AC Supply Output - 84-118V / 33A DC Power - 3.3KW Nominal Efficiency - 95% (Min.) Cooling System - Liquid Cooled IP Rating - IP 67 MOTOR CONTROLLER (INVERTER) Nominal Operating Voltage - 100V Maximum Operating Voltage - 120V Continuous Current - 220A Peak Current - 600A Continuous Power - 20KW Peak Power - 60KW (Electronically limited to 53KW) Control Method - Field Oriented Control (FOC) Cooling System - Liquid Cooled IP Rating - IP 67 ADDITIONAL FEATURES

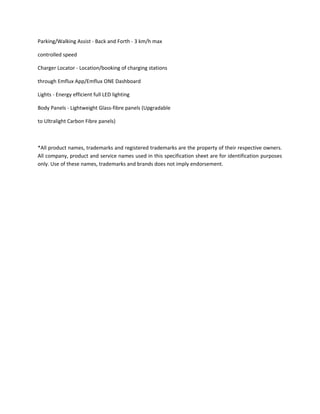

- 5. Parking/Walking Assist -Back and Forth - 3 km/h max controlled speed Charger Locator - Location/booking of charging stations through Emflux App/Emflux ONE Dashboard Lights - Energy efficient full LED lighting Body Panels - Lightweight Glass-fibre panels (Upgradable to Ultralight Carbon Fibre panels) *All product names, trademarks and registered trademarks are the property of their respective owners. All company, product and service names used in this specification sheet are for identification purposes only. Use of these names, trademarks and brands does not imply endorsement.
