This document provides specifications for three electric vehicle models from TVS: iQUBE, iQUBE S, and iQUBE ST. The iQUBE ST has the longest range of 145km, largest battery capacity of 4.56kWh, and fastest charging capability. Both the iQUBE S and ST have larger touchscreen clusters than the base iQUBE and additional connectivity and safety features like telematics and crash detection. The iQUBE ST is the top of the line model with more customization, connectivity features, and storage space compared to the other two models.

1. VEHICLE
CHASSIS
EV POWER TRAIN
BATTERY
CHARGING
CLUSTER
CONNECTIVITY
CLUSTER -
FEATURES
TELEMATICS -
FEATURES

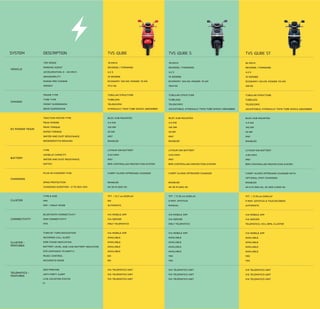

DESCRIPTION TVS iQUBE TVS iQUBE S TVS iQUBE ST
TOP SPEED 78 KM/H 78 KM/H 82 KM/H
PARKING ASSIST REVERSE / FORWARD REVERSE / FORWARD REVERSE / FORWARD
ACCELERATION, 0 - 40 KM/H 4.2 S 4.2 S 4.2 S
GRADEABILITY 10 DEGREE 10 DEGREE 10 DEGREE
RANGE PER CHARGE ECONOMY: 100 KM, POWER: 75 KM ECONOMY: 100 KM, POWER: 75 KM ECONOMY: 145 KM, POWER: 110 KM
WEIGHT 117.2 KG 118.8 KG 128 KG
FRAME TYPE TUBULAR STRUCTURE TUBULAR STRUCTURE TUBULAR STRUCTURE
TYRE TYPE TUBELESS TUBELESS TUBELESS
FRONT SUSPENSION TELESCOPIC TELESCOPIC TELESCOPIC
REAR SUSPENSION HYDRAULIC TWIN TUBE SHOCK ABSORBER ADJUSTABLE, HYDRAULIC TWIN TUBE SHOCK ABSORBER ADJUSTABLE, HYDRAULIC TWIN TUBE SHOCK ABSORBER
TRACTION MOTOR TYPE BLDC HUB MOUNTED BLDC HUB MOUNTED BLDC HUB MOUNTED
PEAK POWER 4.4 KW 4.4 KW 4.4 KW
PEAK TORQUE 140 NM 140 NM 140 NM
RATED TORQUE 33 NM 33 NM 33 NM
WATER AND DUST RESISTANCE IP67 IP67 IP67
REGENERATIVE BRAKING ENABLED ENABLED ENABLED
TYPE LITHIUM ION BATTERY LITHIUM ION BATTERY LITHIUM ION BATTERY
USABLLE CAPACITY 3.04 KWH 3.04 KWH 4.56 KWH
WATER AND DUST RESISTANCE IP67 IP67 IP67
SAFTEY BMS CONTROLLED PROTECTION SYSTEM BMS CONTROLLED PROTECTION SYSTEM BMS CONTROLLED PROTECTION SYSTEM
PLUG-IN CHARGER TYPE CARRY ALONG OFFBOARD CHARGER CARRY ALONG OFFBOARD CHARGER CARRY ALONG OFFBOARD CHARGER WITH
OPTIONAL FAST CHARGING
SPIKE PROTECTION ENABLED ENABLED ENABLED
CHARGING DURATION - 0 TO 80% SOC 4H 30 M (650 W) 4H 30 M (650 W) 4H 6 M (950 W), 2H 30M ((1500 W)
TYPE & SIZE TFT / 12.7 cm DISPLAY TFT / 17.78 cm DISPLAY TFT / 17.78 cm DISPLAY
HMI NO 5-WAY JOYSTICK 5-WAY JOYSTICK & TOUCHSCREEN
DAY / NIGHT MODE AUTOMATIC MANUAL AUTOMATIC
BLUETOOTH CONNECTIVITY VIA MOBILE APP VIA MOBILE APP VIA MOBILE APP
GSM CONNECTIVITY VIA SERVER VIA SERVER VIA SERVER
OTA ONLY TELEMATICS ONLY TELEMATICS TELEMATICS, VCU, BMS, CLUSTER
TURN BY TURN NAVIGATION VIA MOBILE APP VIA MOBILE APP VIA MOBILE APP
INCOMING CALL ALERT AVAILABLE AVAILABLE AVAILABLE
SIDE STAND INDICATION AVAILABLE AVAILABLE AVAILABLE
BATTERY LEVEL AND LOW BATTERY INDICATOR AVAILABLE AVAILABLE AVAILABLE
DTE (DISTANCE TO EMPTY) AVAILABLE AVAILABLE AVAILABLE
MUSIC CONTROL NO YES YES
INCOGNITO MODE NO YES YES
GEO FENCING VIA TELEMATICS UNIT VIA TELEMATICS UNIT VIA TELEMATICS UNIT
ANTI-THEFT ALERT VIA TELEMATICS UNIT VIA TELEMATICS UNIT VIA TELEMATICS UNIT
LIVE LOCATION STATUS VIA TELEMATICS UNIT VIA TELEMATICS UNIT VIA TELEMATICS UNIT
TT
SYSTEM

2. FEATURES
DESCRIPTION TVS iQUBE TVS iQUBE S TVS iQUBE ST
FLIP KEY WITH LED LIGHT AVAILABLE AVAILABLE AVAILABLE
USB CHARGER FOR MOBILE, ETC., CHARGING YES YES YES
PARKING BRAKE LEVER AVAILABLE AVAILABLE AVAILABLE
CUSTOMER RIDE, RIDING MODES ECO & POW YES YES YES
TFT CLUSTER, SIZE & TYPE 5 INCH TFT 7 INCH TFT, WITH HMI 7 INCH TFT, TOUCH SCREEN
TURN BY TURN NAVIGATION YES YES YES
BATTERY LEVEL AND LOW BATTERY INDICATOR YES YES YES
DISTANCE TO EMPTY (DTE) YES YES YES
SIDE STAND INDICATION YES YES YES
CONNECTED CLUSTER VIA BLUETOOTH & MOBILE APP YES YES YES
SYNC SMARTPHONE AND RIDE DATA ACCESS
YES YES YES
VIA TELEMATICS
ALL L.E.D LAMPS YES YES YES
(HL, TSL, BRAKE LAMP, NUMBER PLATE)
ILLUMINATING LOGO YES YES YES
PLUG-IN CHARGER OFFBOARD OFFBOARD OFFBOARD
CHARGER - WALL MOUNTING BOX OPTION YES YES YES
HAZARD LAMP YES YES YES
CRASH & FALL ALERT YES YES YES
REAR SHOCK ABSORBER HYDRAULIC, DUAL HYDRAULIC, DUAL, ADJUSTABLE HYDRAULIC, DUAL, ADJUSTABLE
CALL ACCEPT & REJECT THROUGH HMI NO YES YES
MOBILE APP ALERTS YES YES YES
SERVICE REMINDER YES YES YES
CLUSTER THEMES 2 2 4
DOCUMENT STORAGE IN CLUSTER NO YES YES
CALLER IMAGE DISPLAY ON CLUSTER NO YES YES
COLOUR 3 4 4
BODY COLOUR MIRROR YES YES YES
UTILITY SPACE 1 HELMET 1 HELMET 2 HELMET
HOME FAST CHARGING OPTION NO NO YES
SYSTEM
