1. Mobile apps & Server
APIs, the weak link?

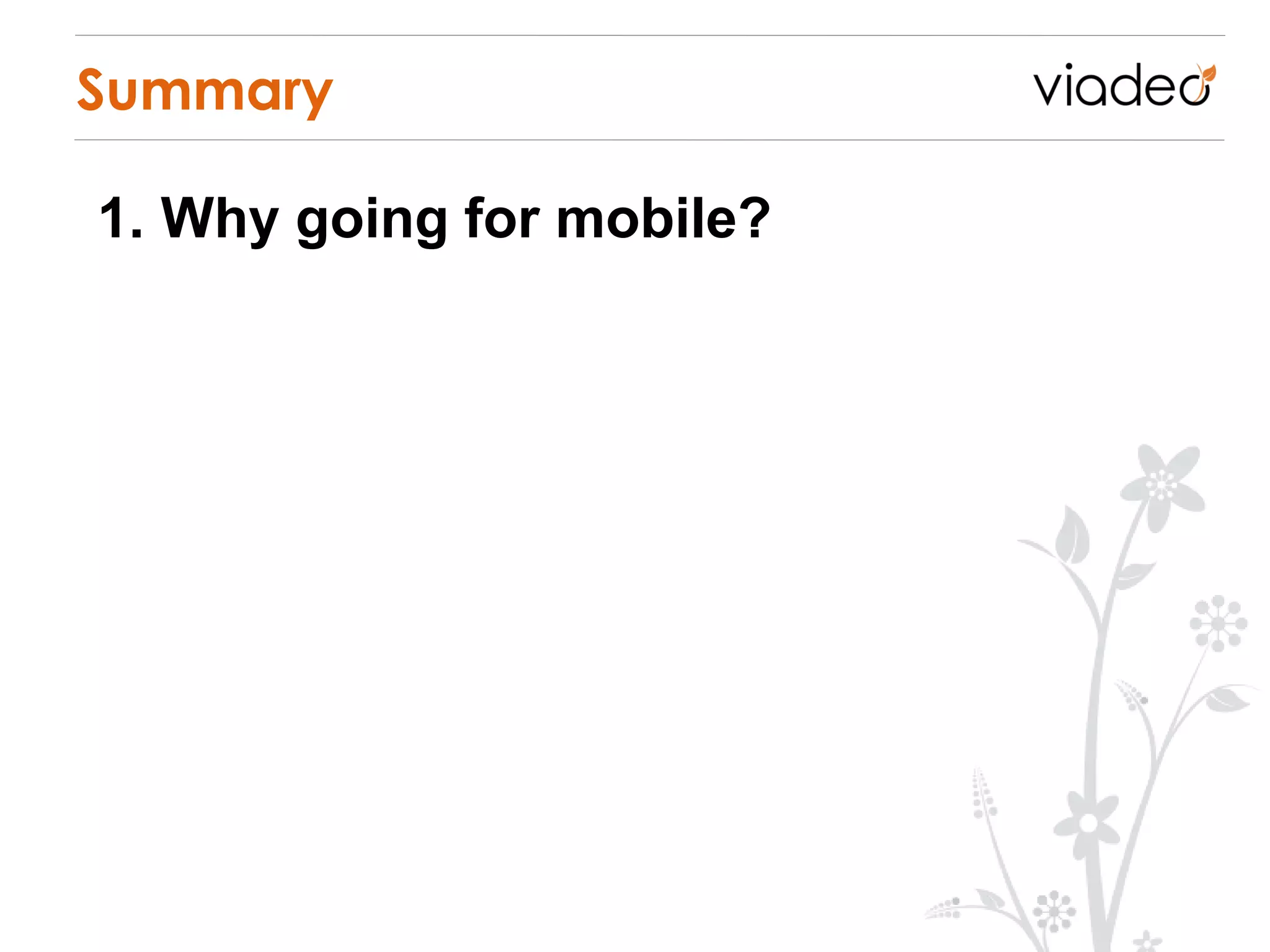

2. Summary
1. Why going for mobile?

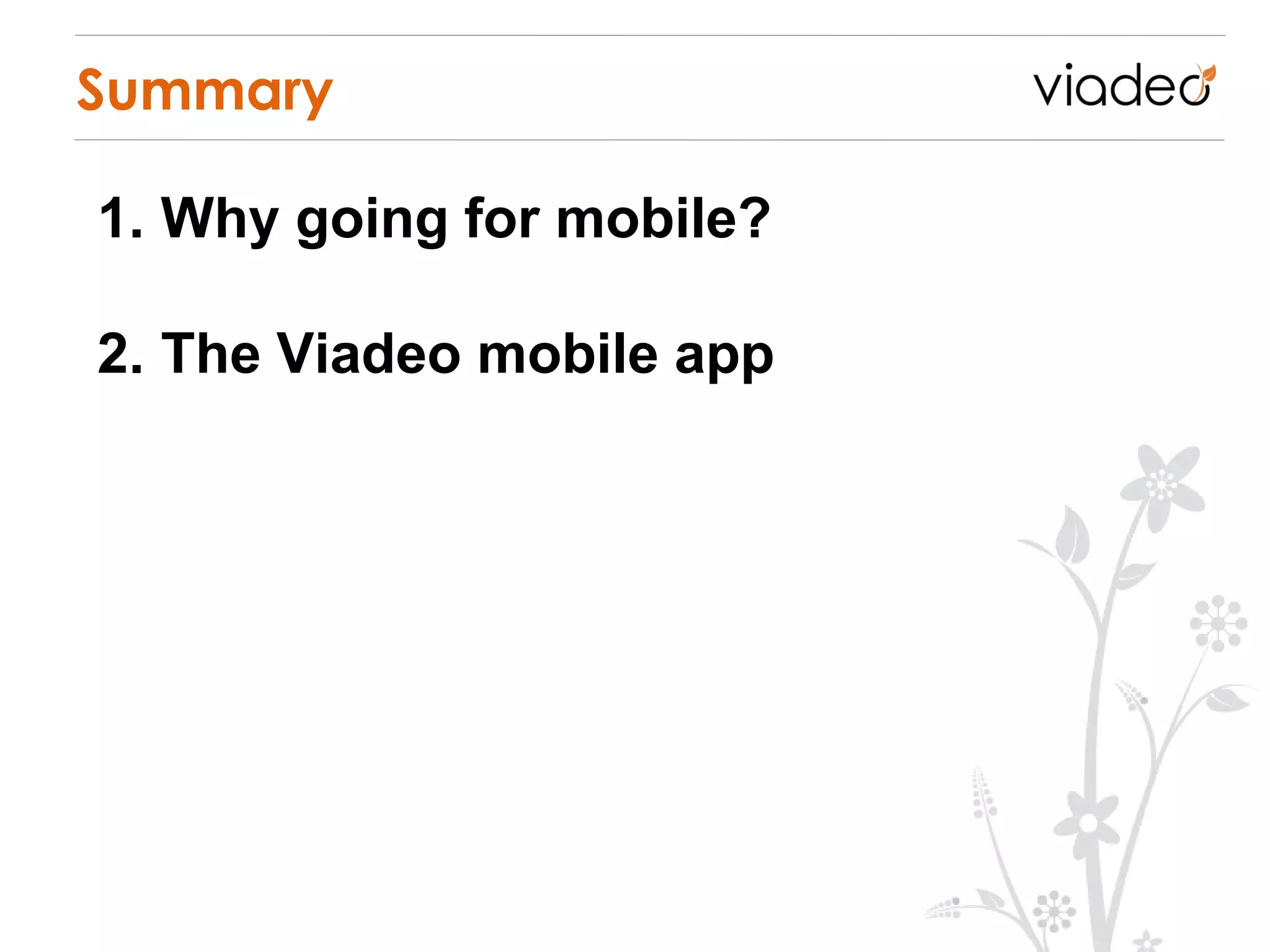

3. Summary
1. Why going for mobile?
2. The Viadeo mobile app

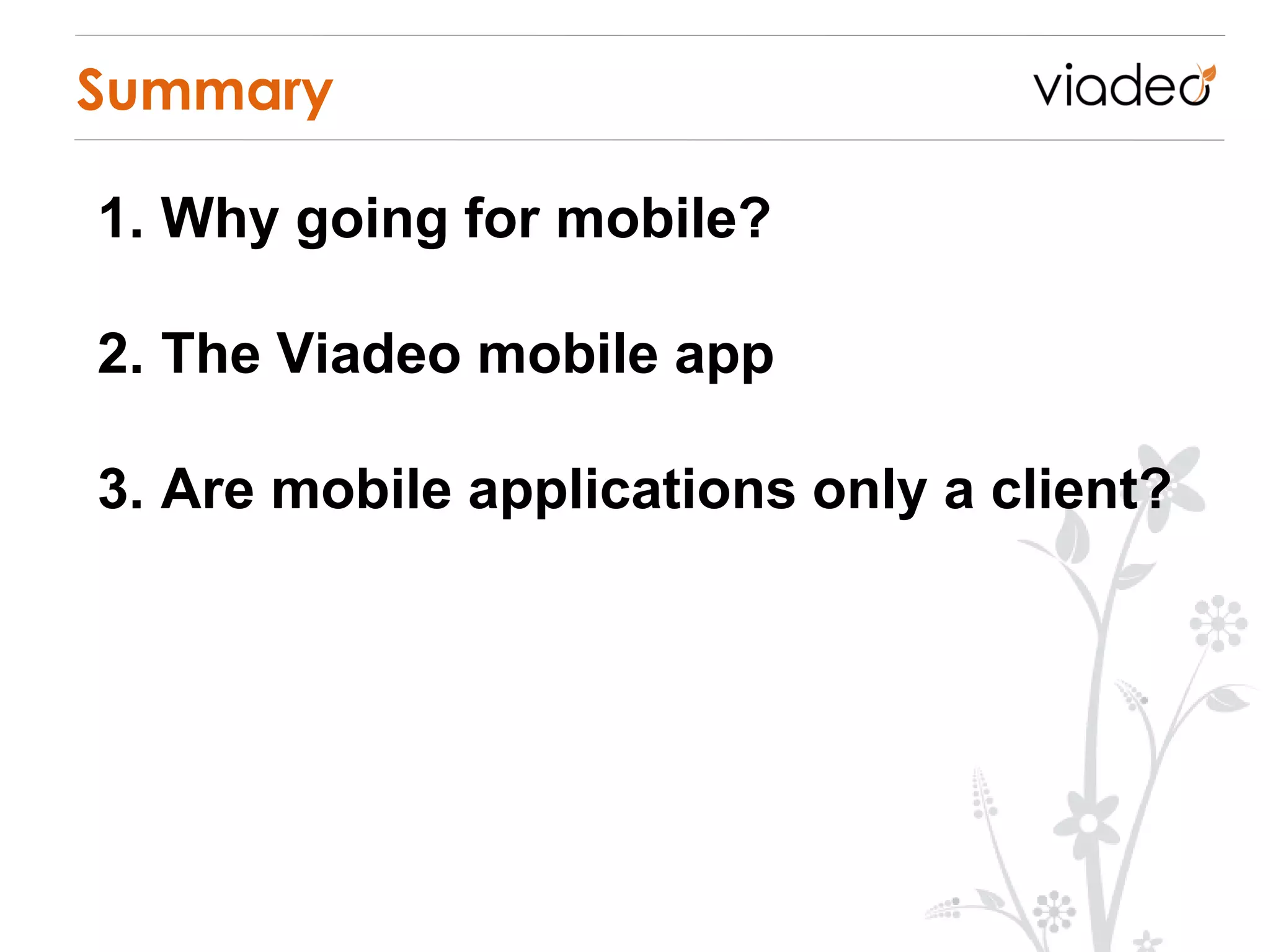

4. Summary
1. Why going for mobile?
2. The Viadeo mobile app
3. Are mobile applications only a client?

5. Summary
1. Why going for mobile?
2. The Viadeo mobile app
3. Are mobile applications only a client?
4. Our architecture

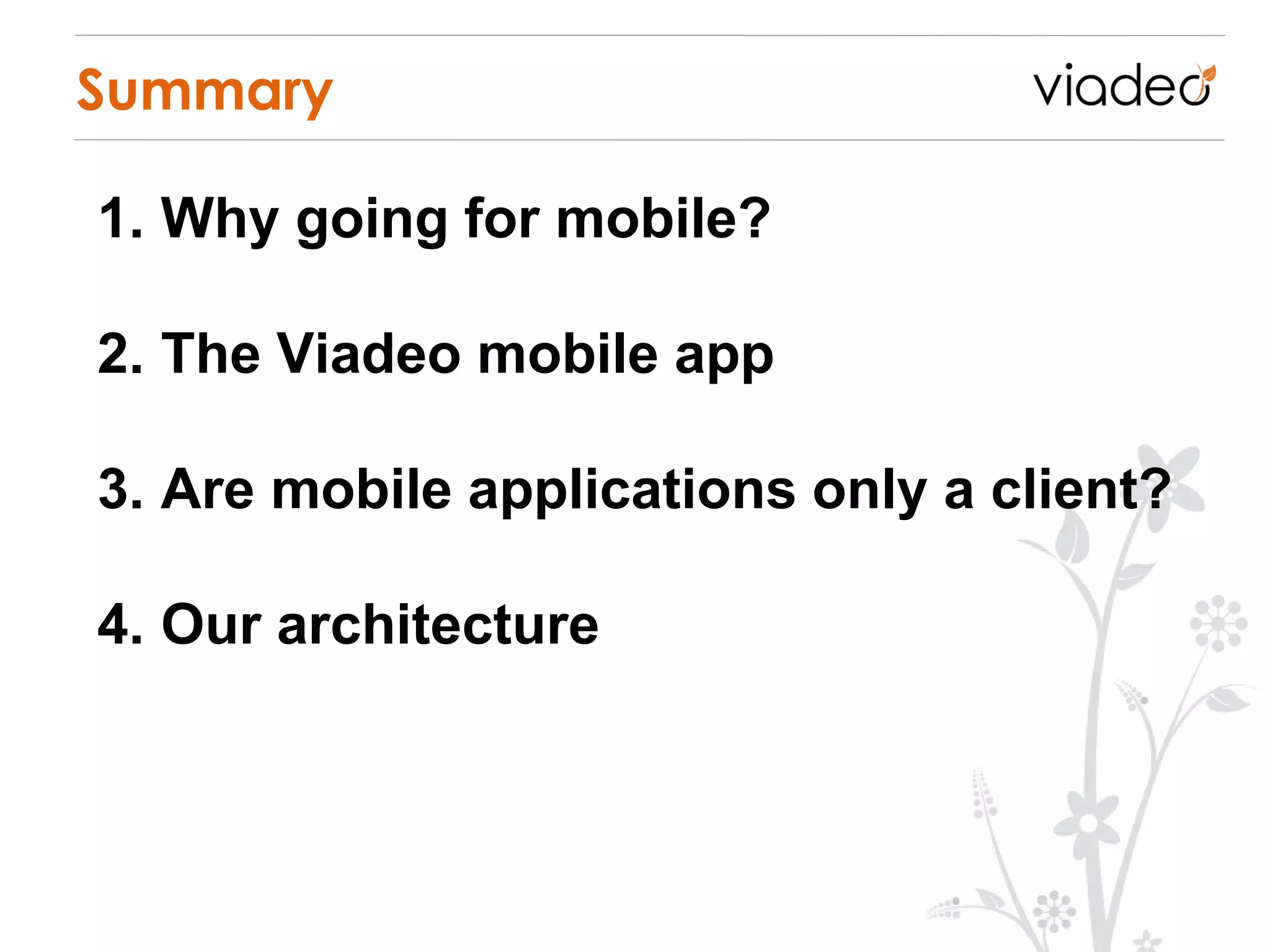

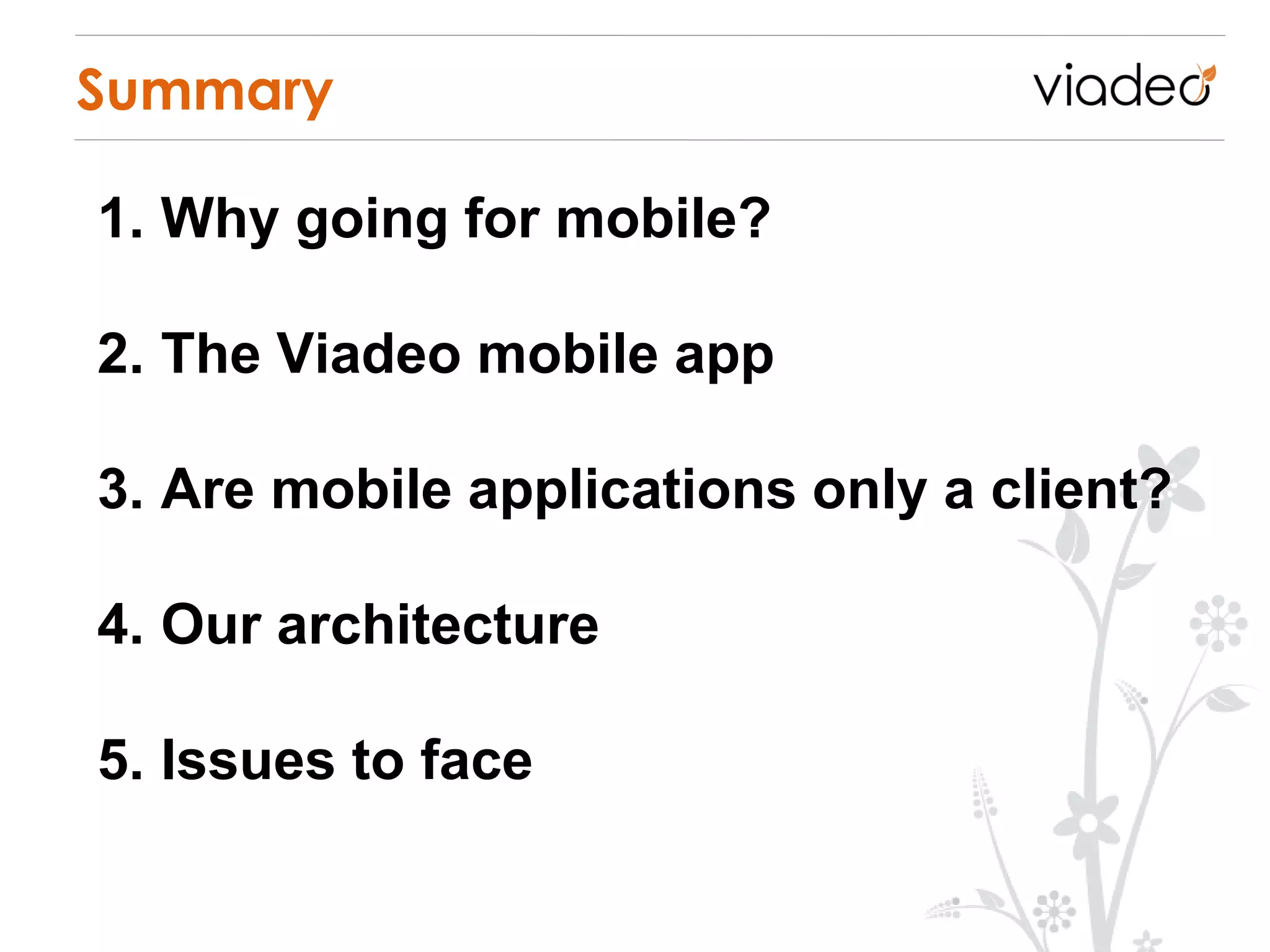

6. Summary
1. Why going for mobile?
2. The Viadeo mobile app
3. Are mobile applications only a client?
4. Our architecture
5. Issues to face

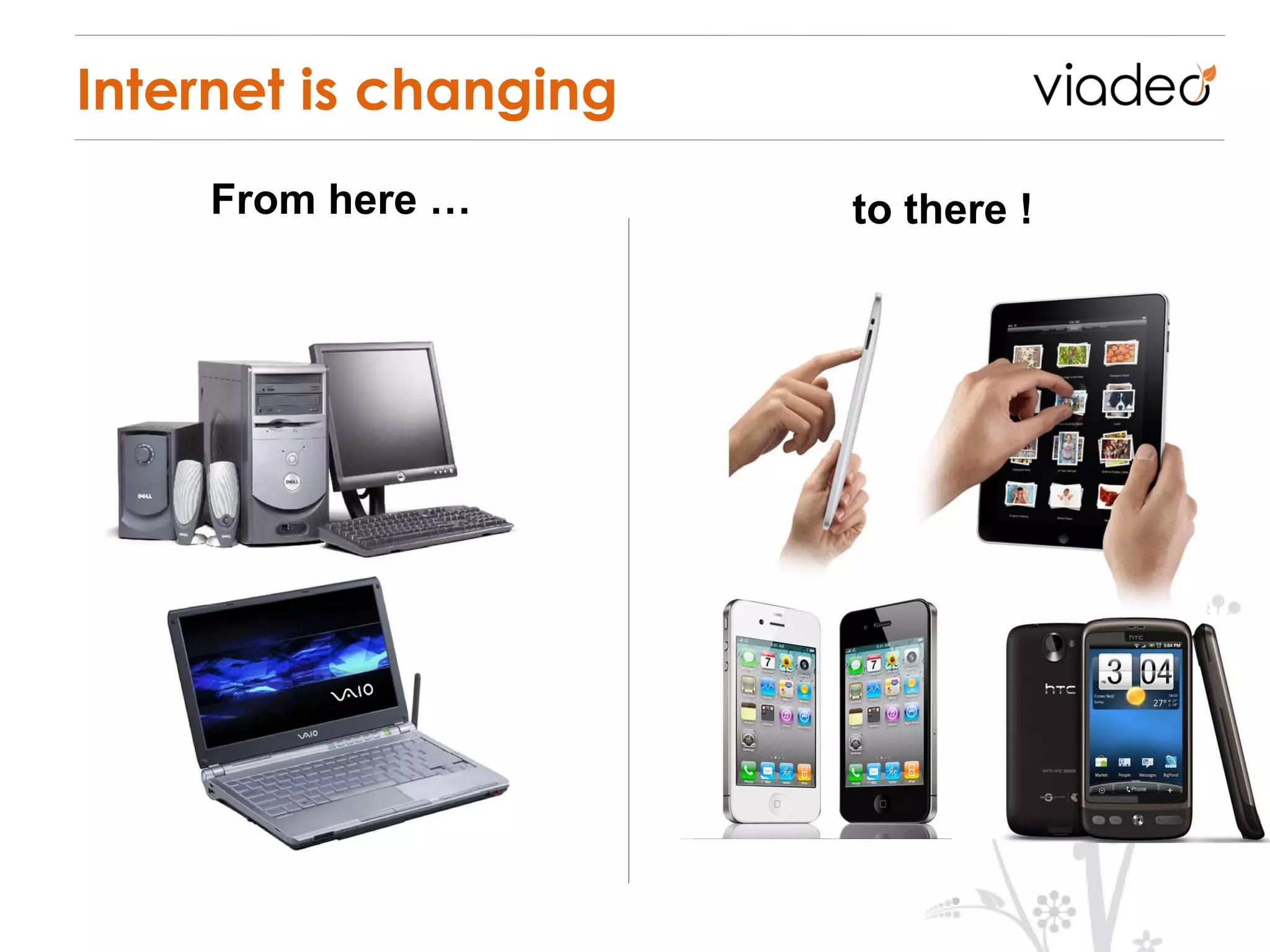

7. Internet is changing
From here … to there !

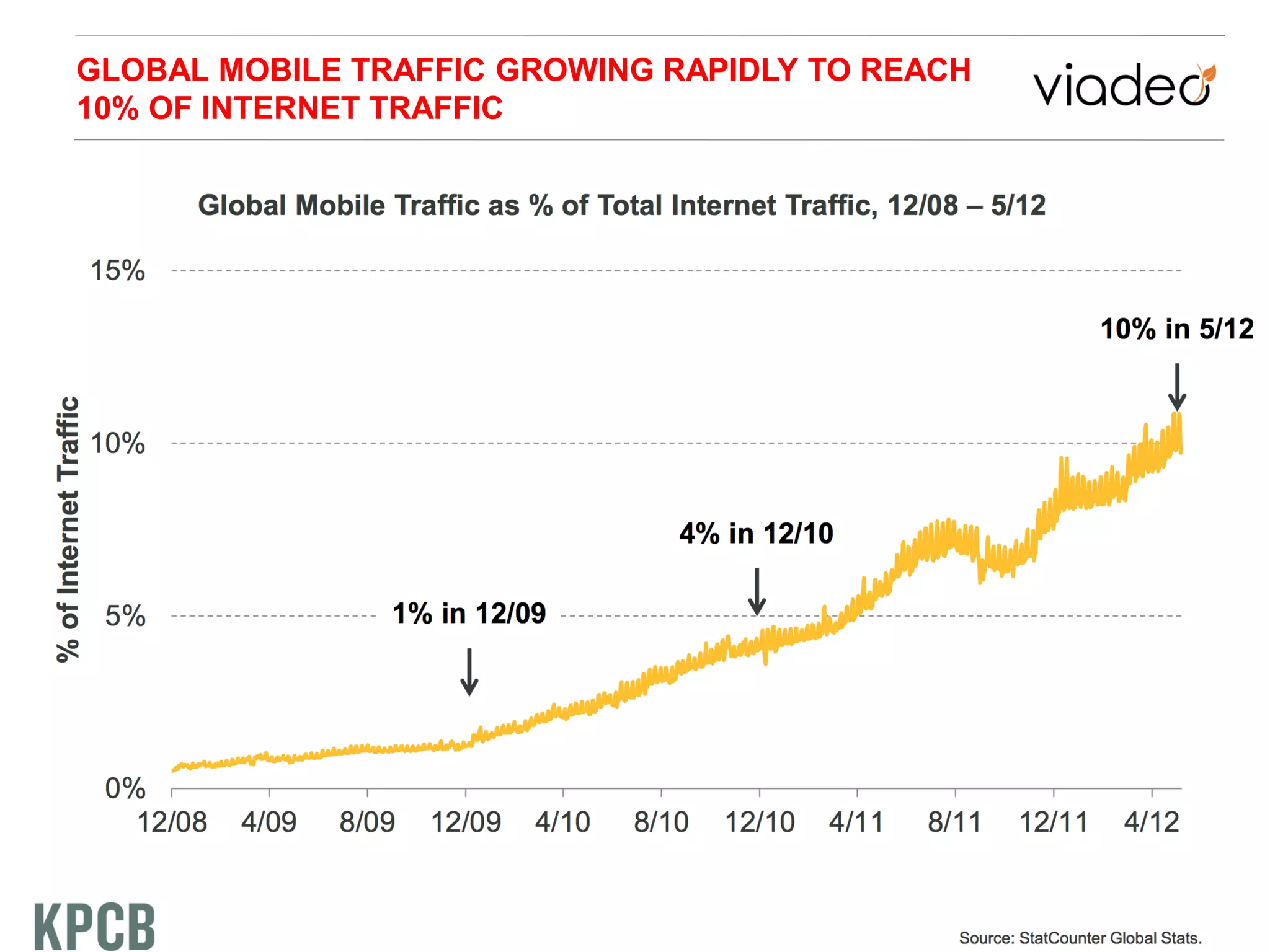

8. GLOBAL MOBILE TRAFFIC GROWING RAPIDLY TO REACH
10% OF INTERNET TRAFFIC

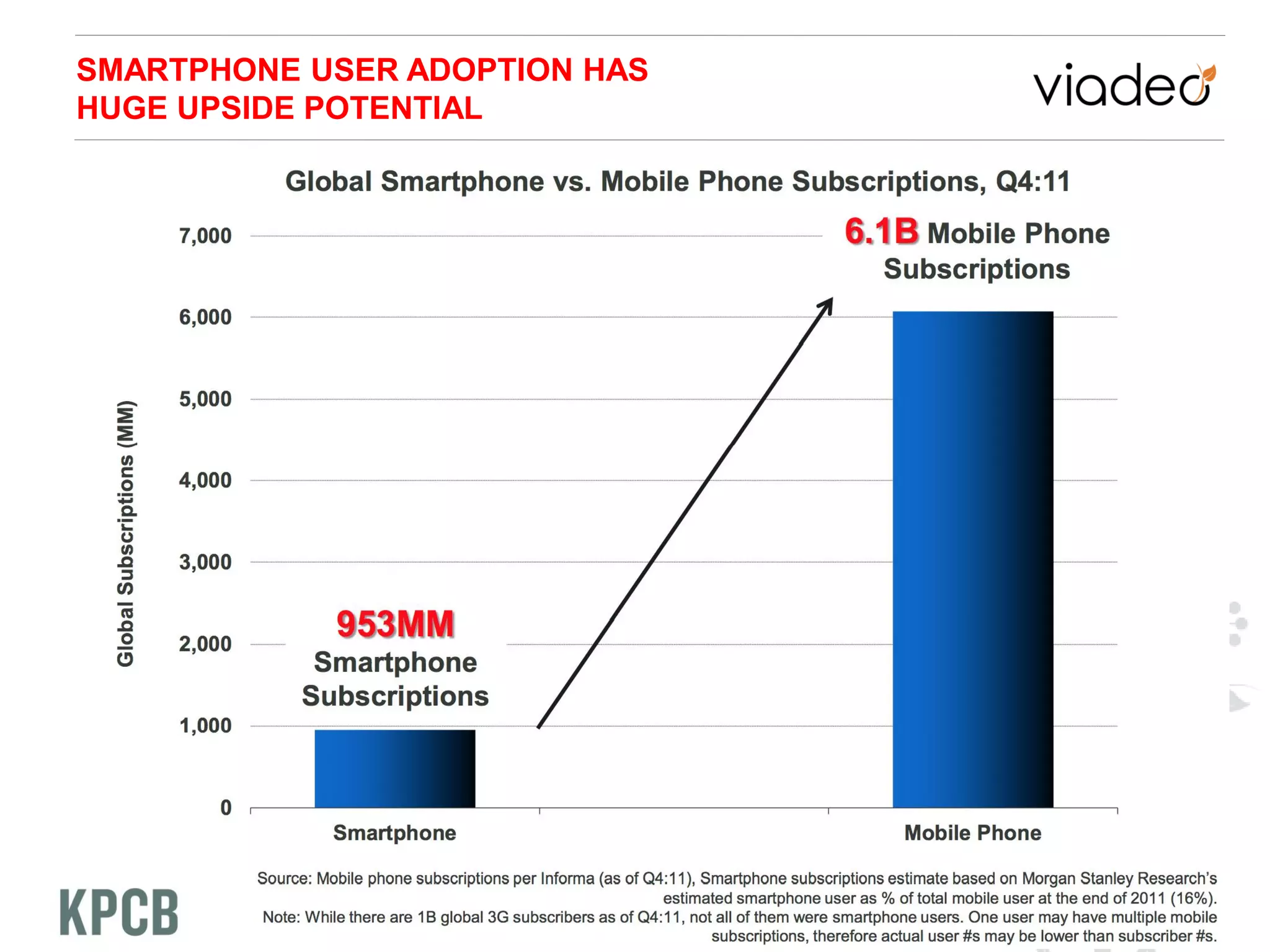

9. SMARTPHONE USER ADOPTION HAS
HUGE UPSIDE POTENTIAL

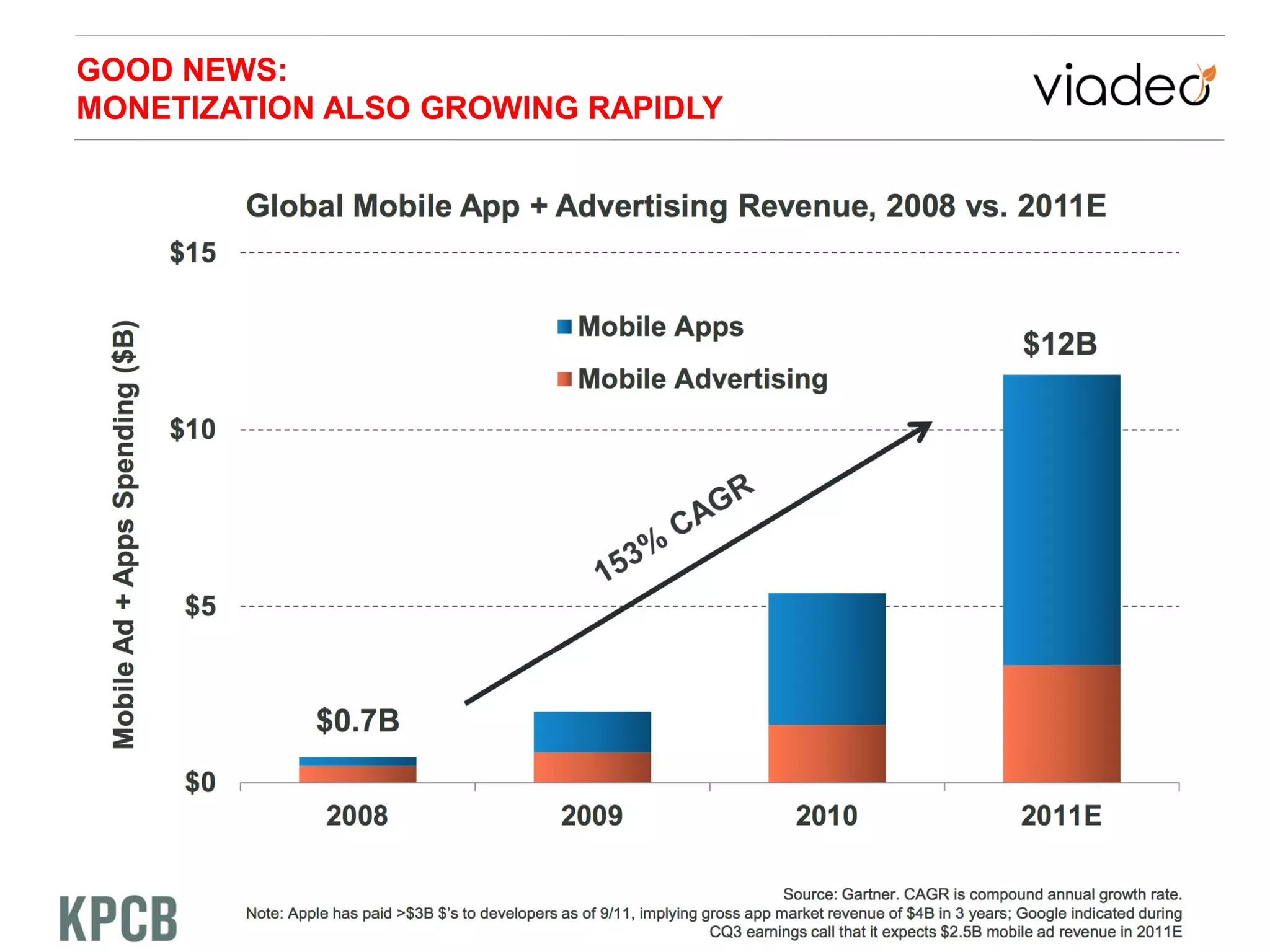

10. GOOD NEWS:
MONETIZATION ALSO GROWING RAPIDLY

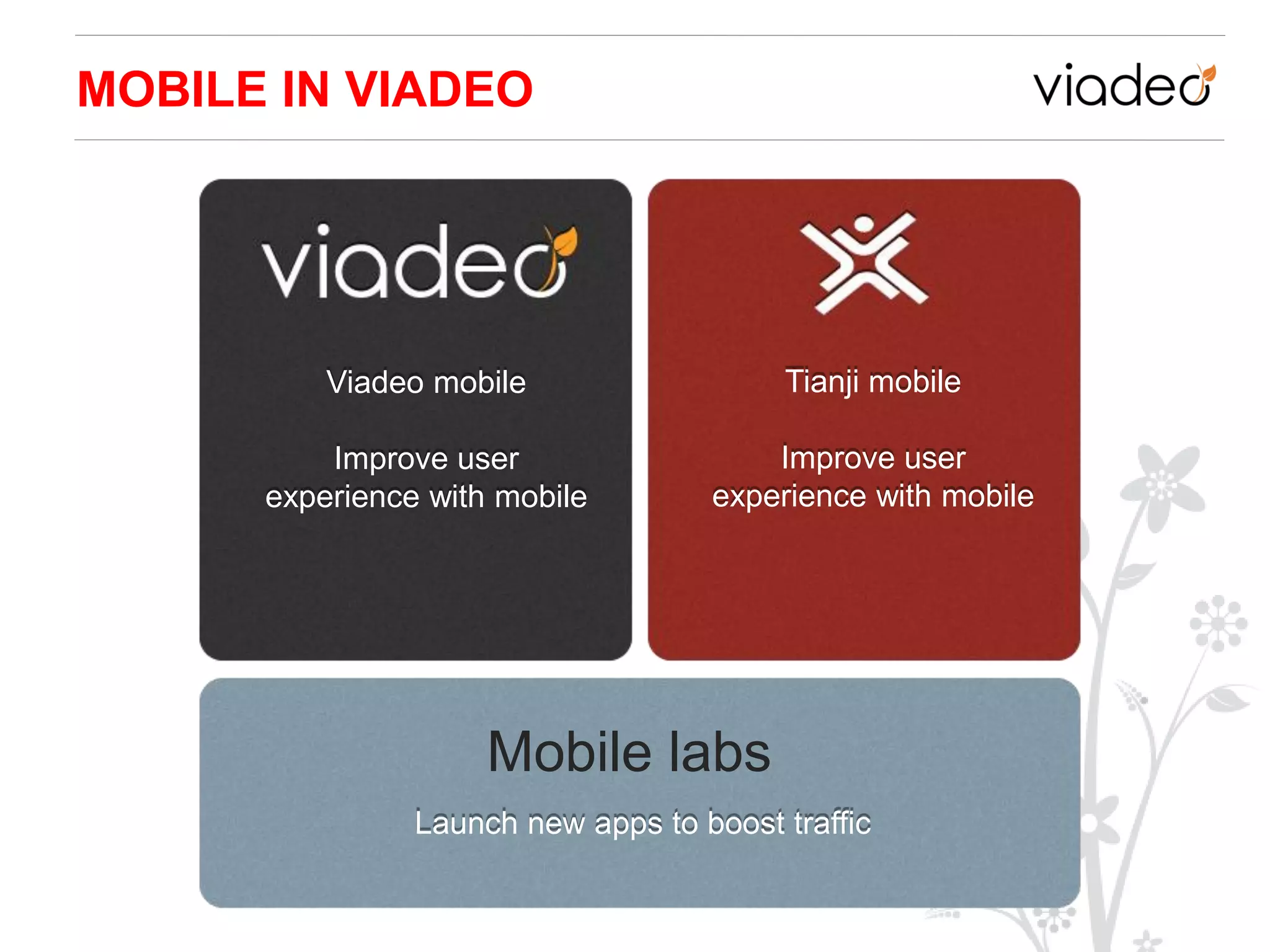

11. MOBILE IN VIADEO
Viadeo mobile Tianji mobile
Improve user Improve user
experience with mobile experience with mobile
Mobile labs
Launch new apps to boost traffic

12. NEW: VIADEO MOBILE BUSINESS UNIT
→ Go Fast !
→ Autonomous - not independant ;-)
→ Lean Startup mode

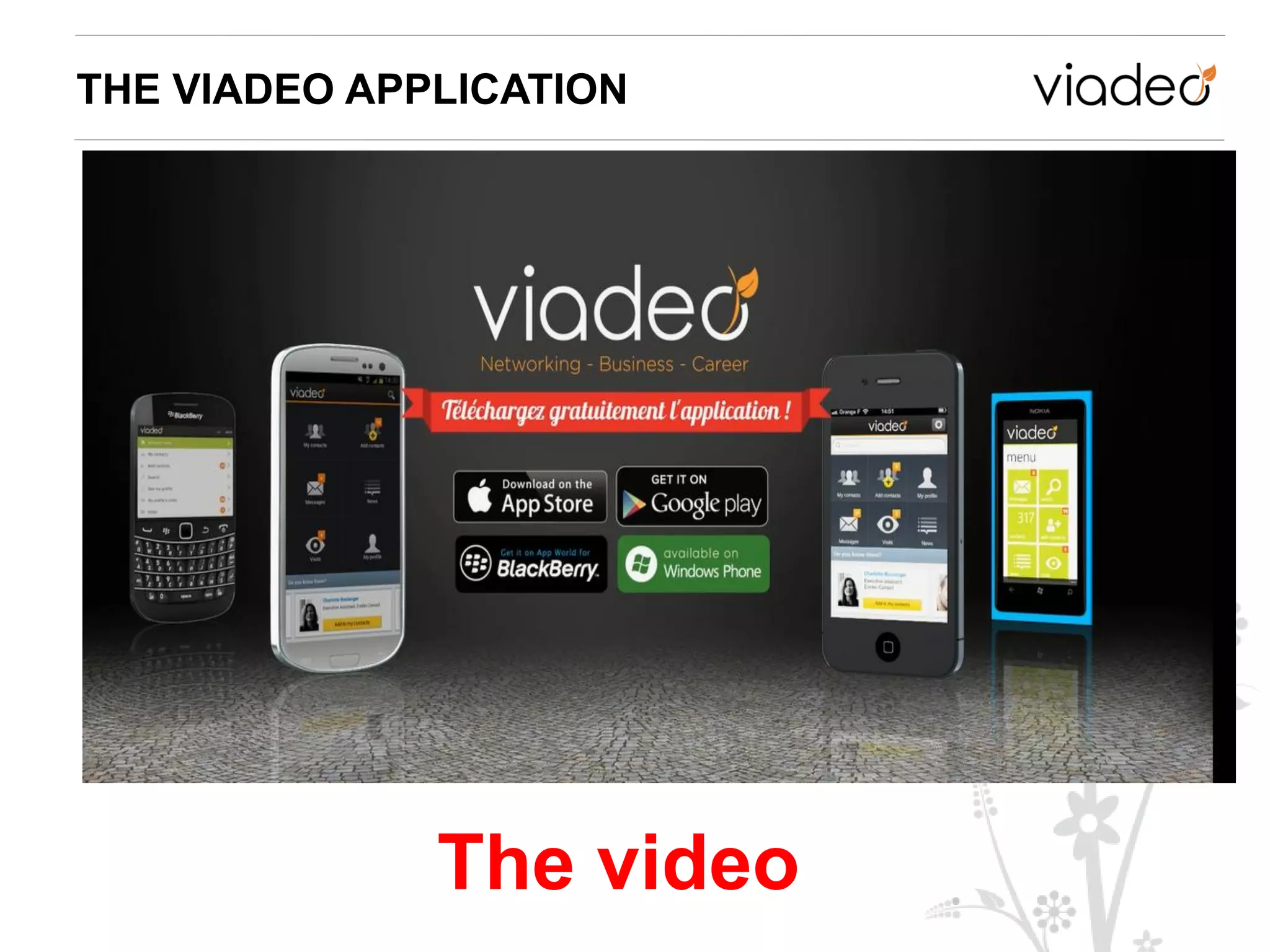

13. THE VIADEO APPLICATION
The video

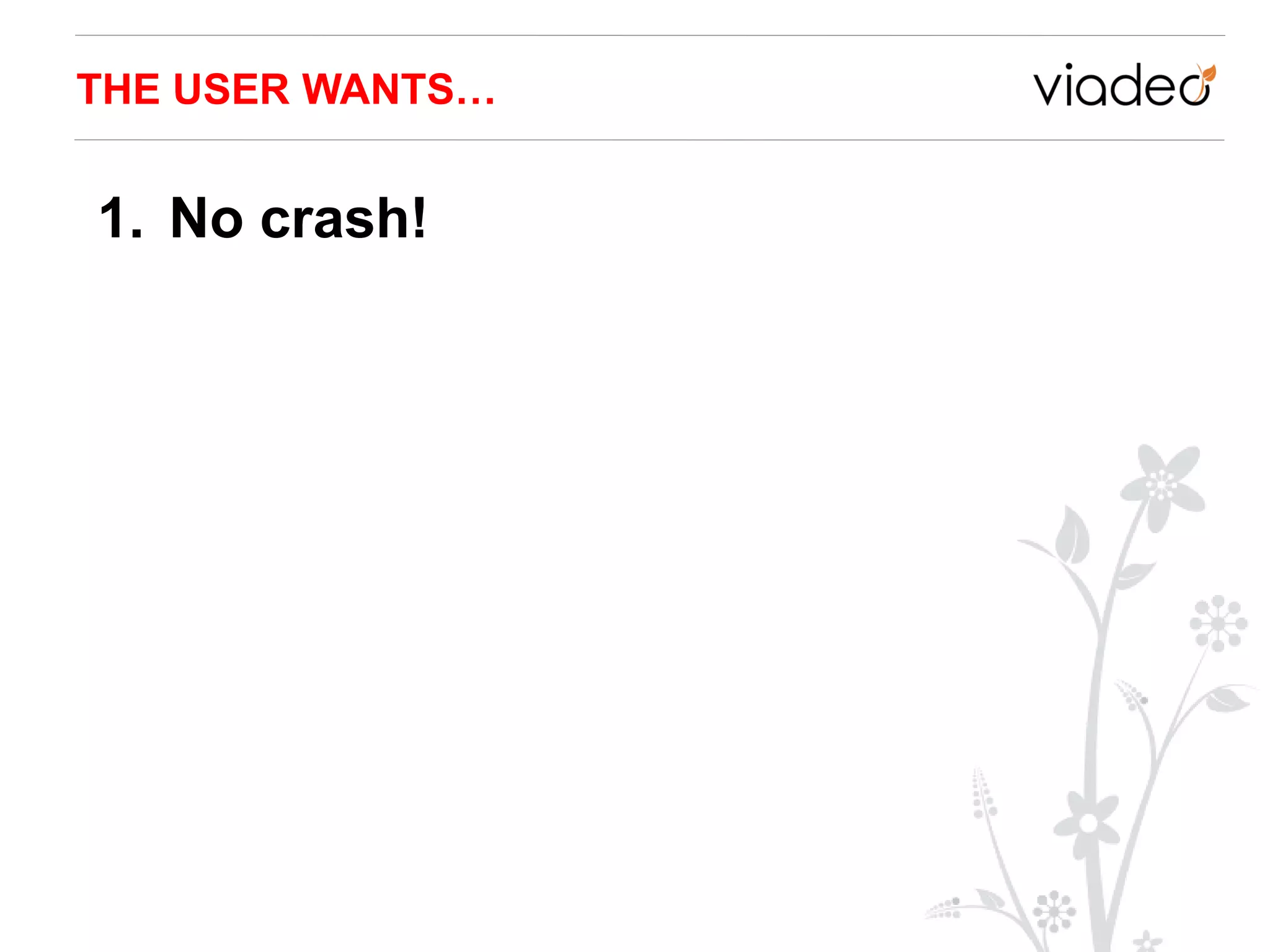

14. THE USER WANTS…
1. No crash!

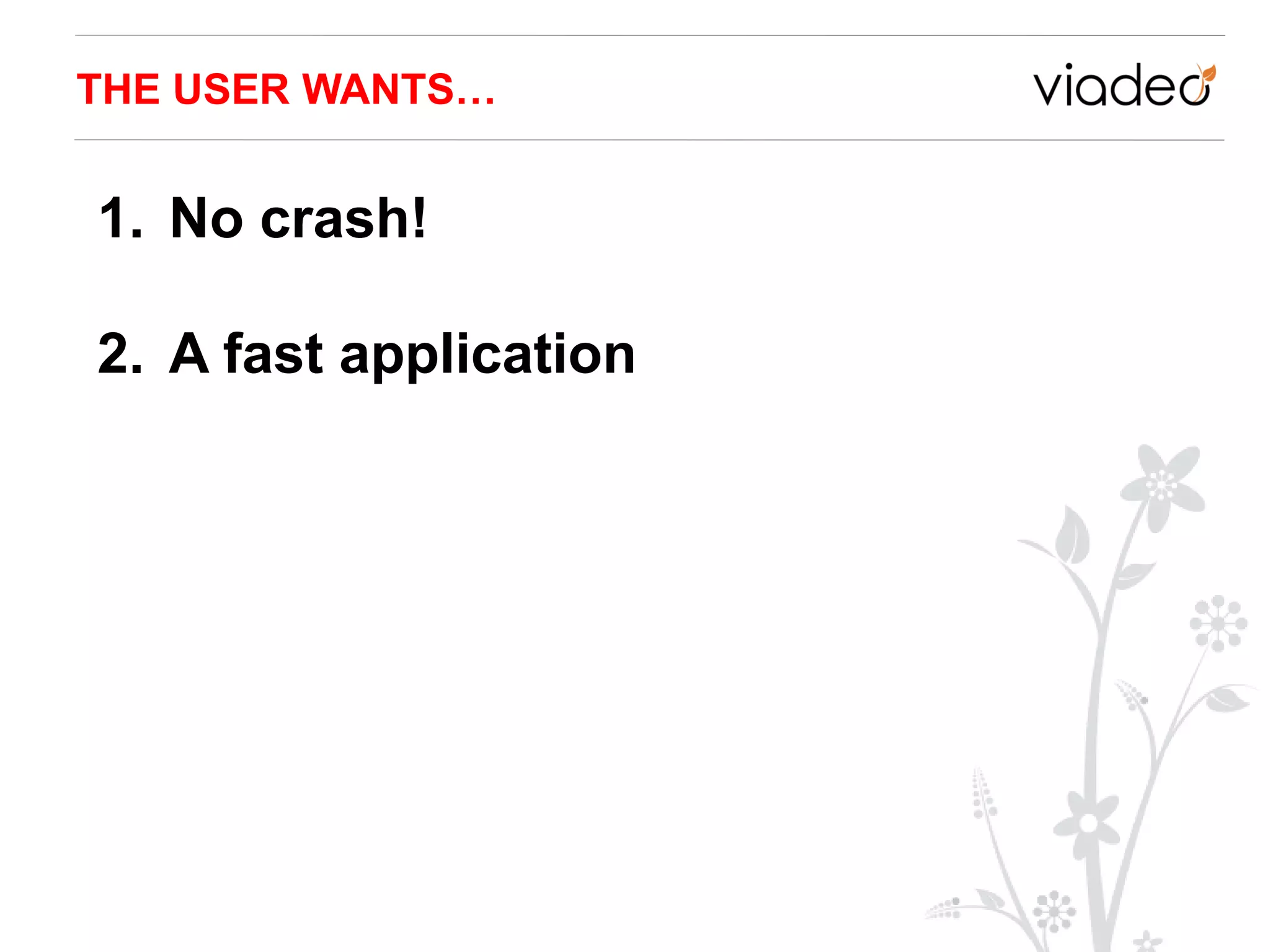

15. THE USER WANTS…
1. No crash!
2. A fast application

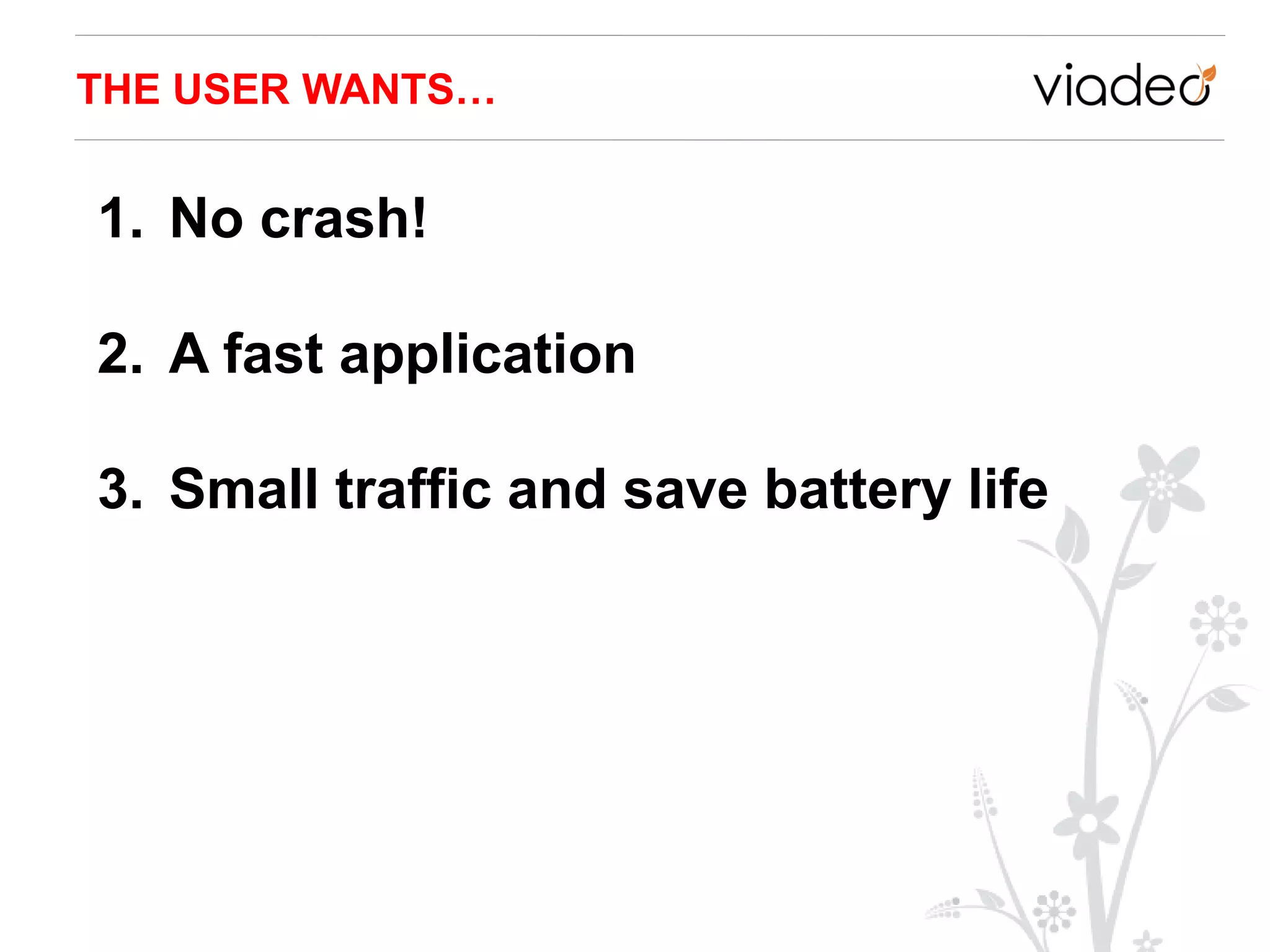

16. THE USER WANTS…
1. No crash!
2. A fast application
3. Small traffic and save battery life

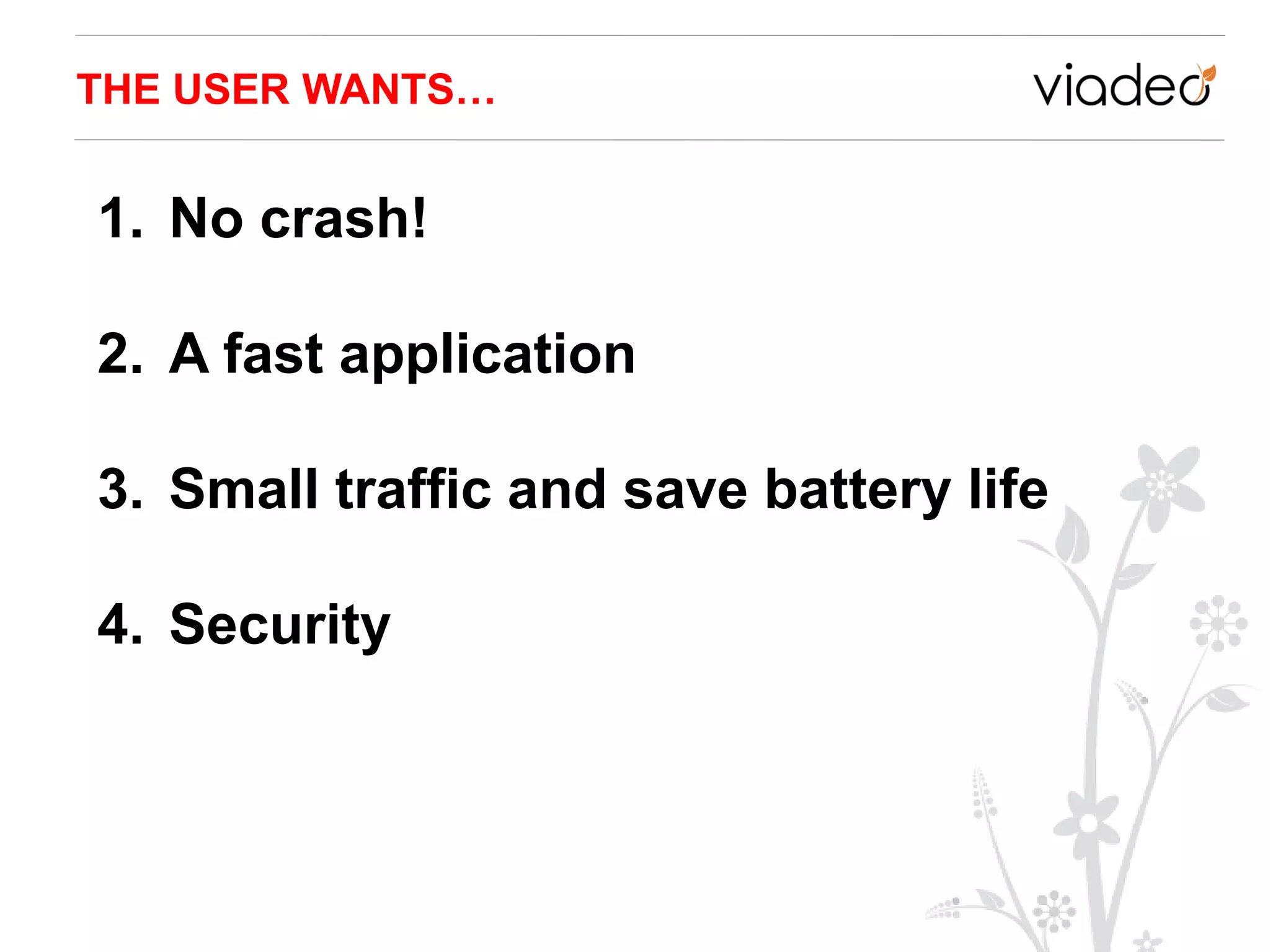

17. THE USER WANTS…
1. No crash!
2. A fast application
3. Small traffic and save battery life
4. Security

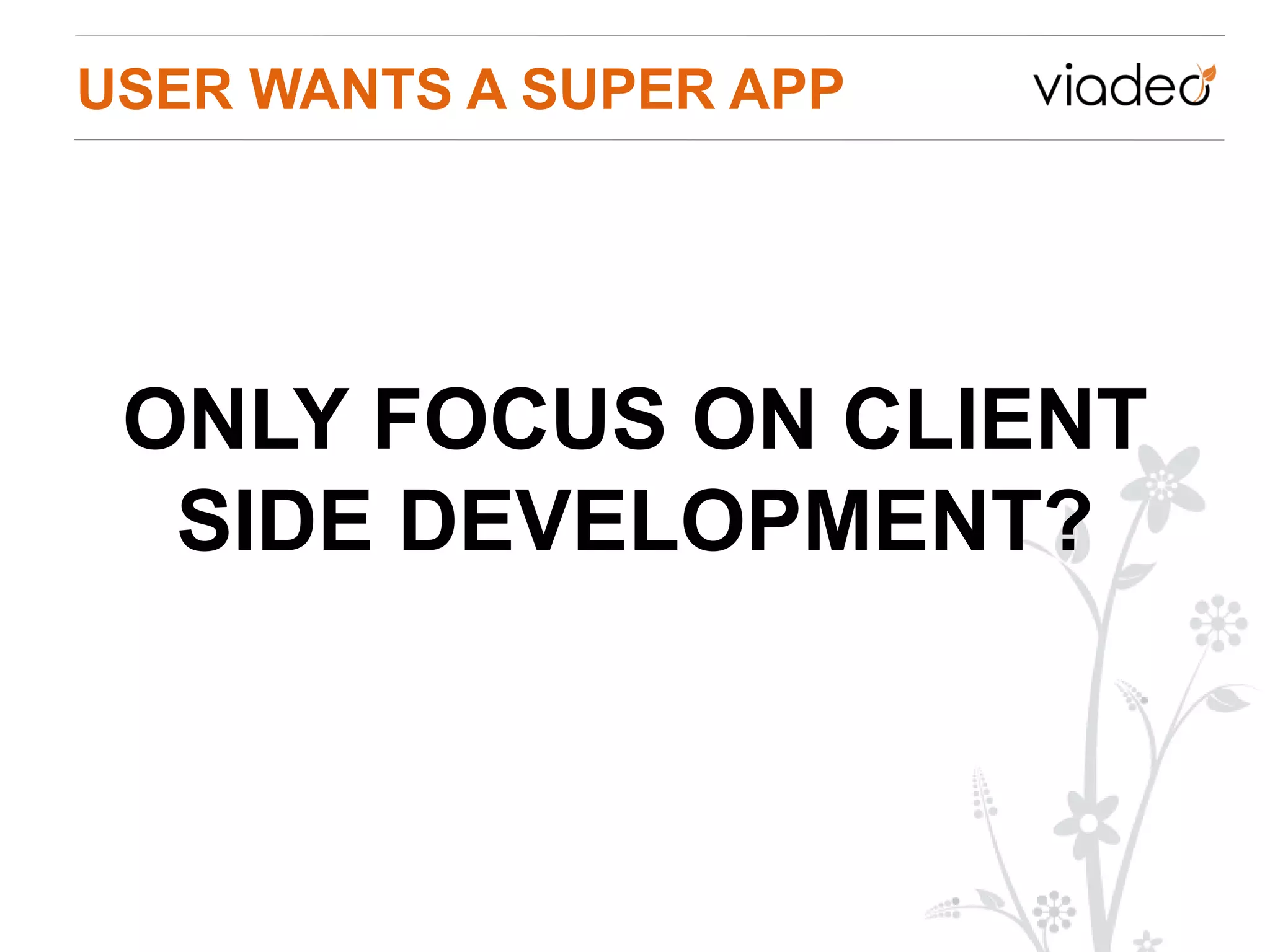

18. USER WANTS A SUPER APP
ONLY FOCUS ON CLIENT
SIDE DEVELOPMENT?

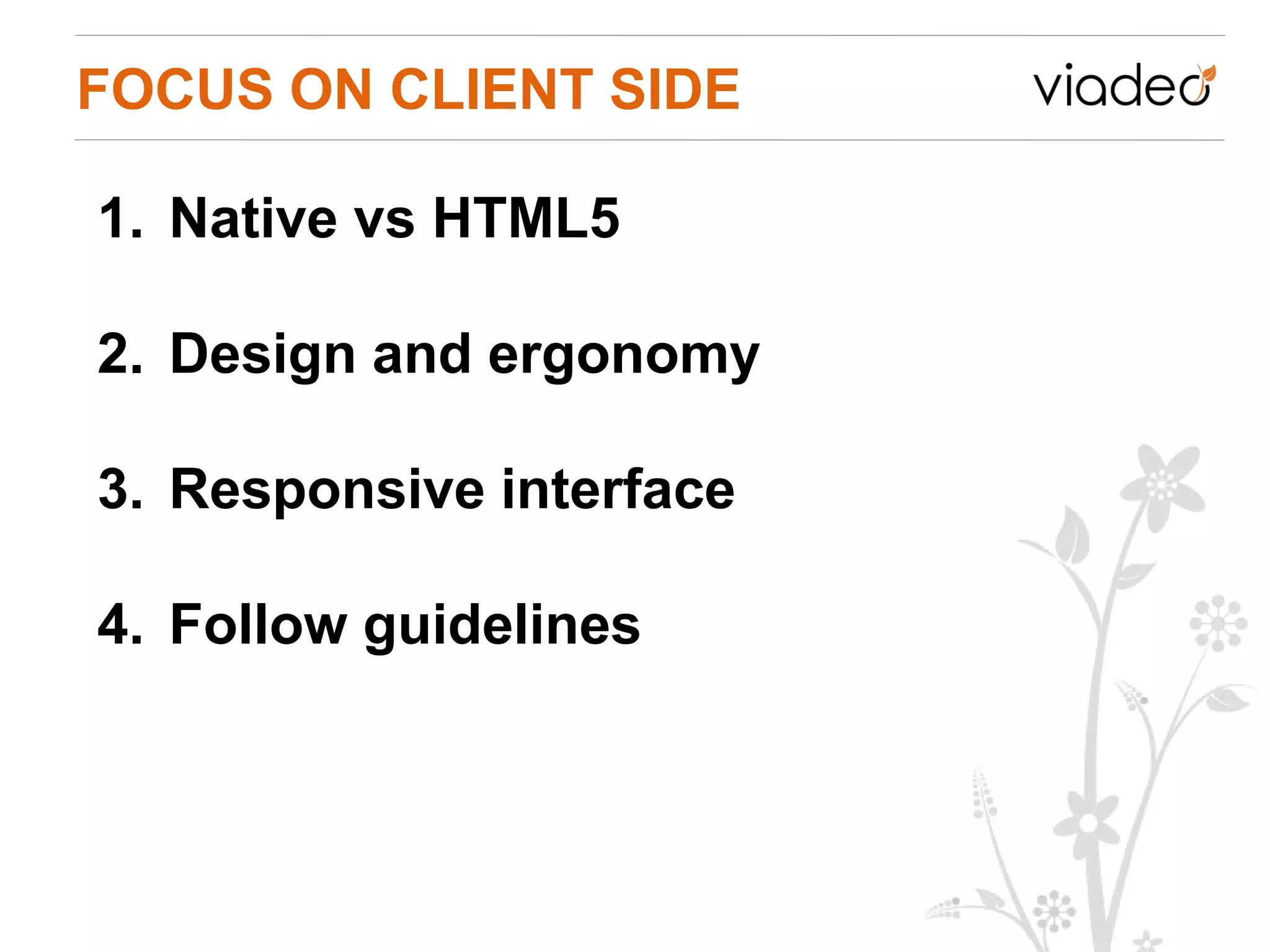

19. FOCUS ON CLIENT SIDE
1. Native vs HTML5
2. Design and ergonomy
3. Responsive interface
4. Follow guidelines

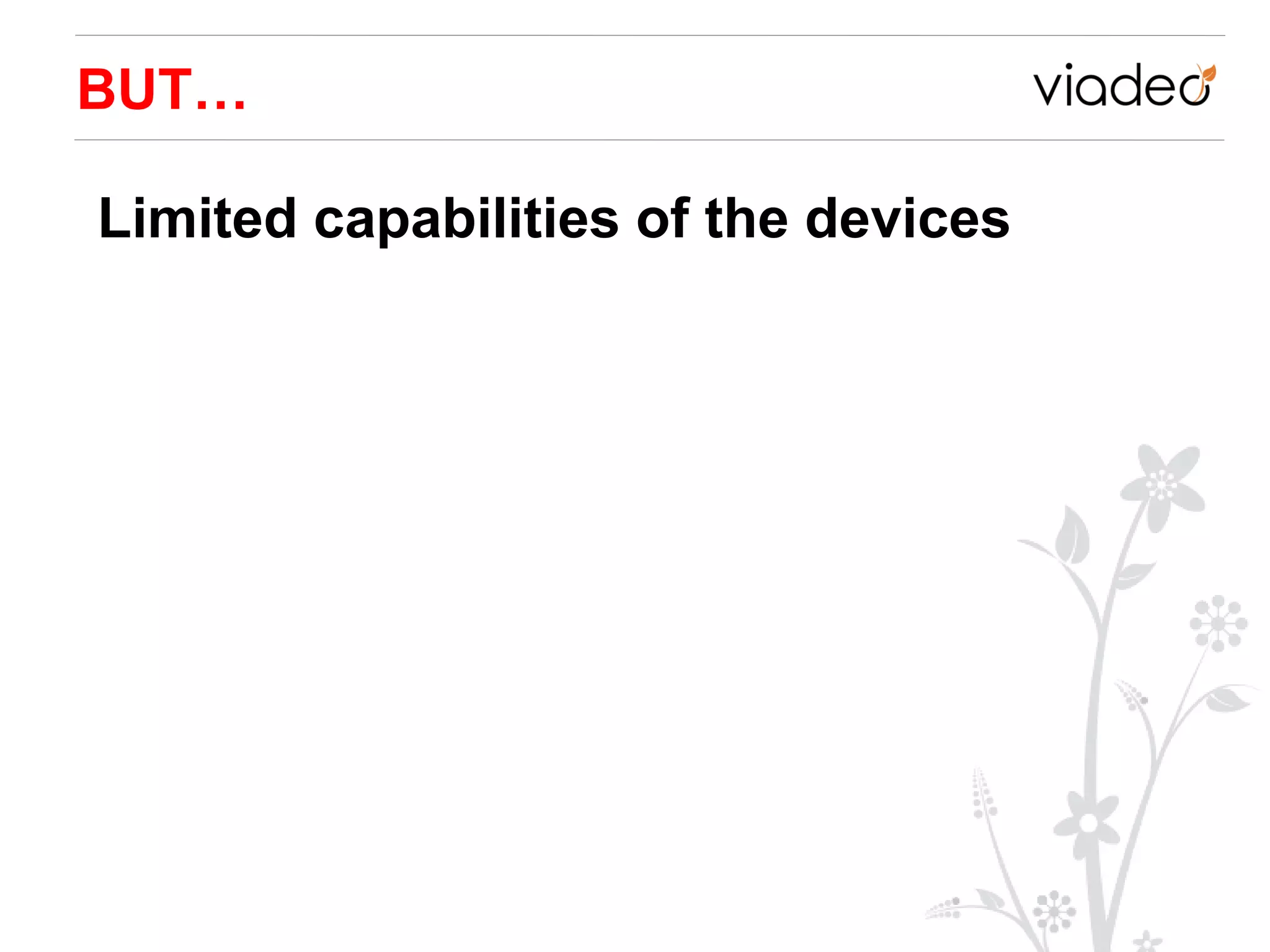

20. BUT…
Limited capabilities of the devices

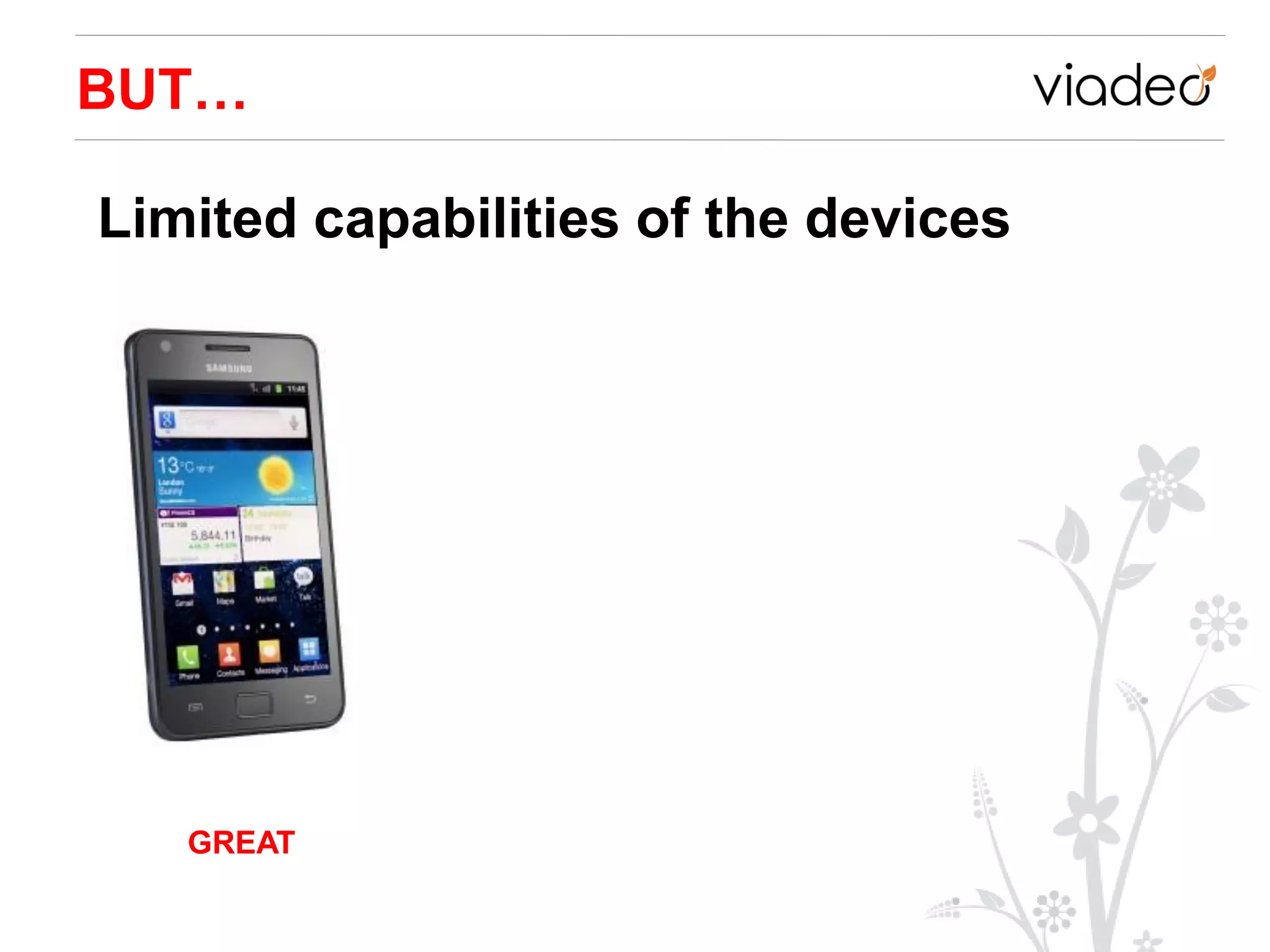

21. BUT…
Limited capabilities of the devices
GREAT

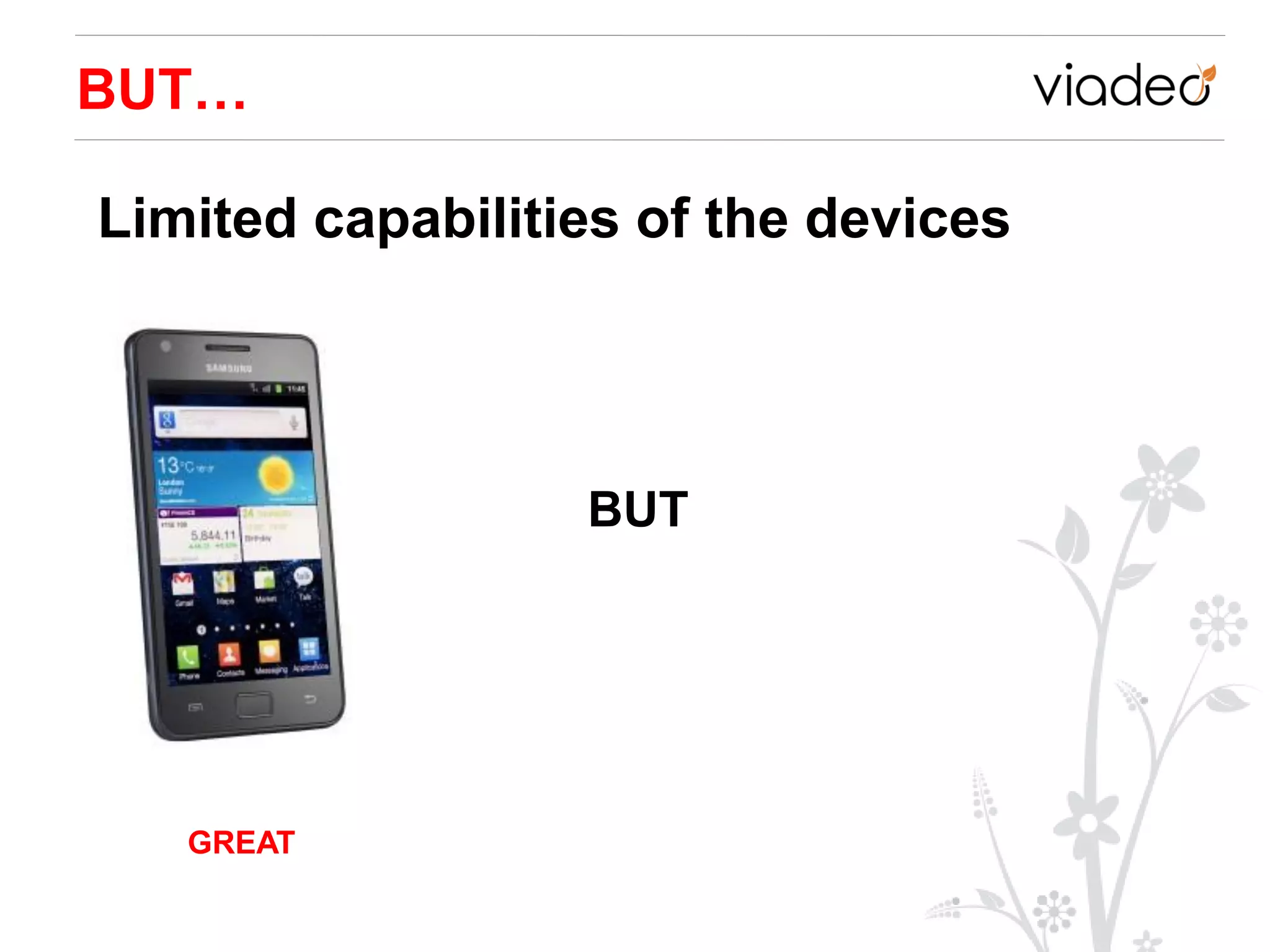

22. BUT…
Limited capabilities of the devices
BUT
GREAT

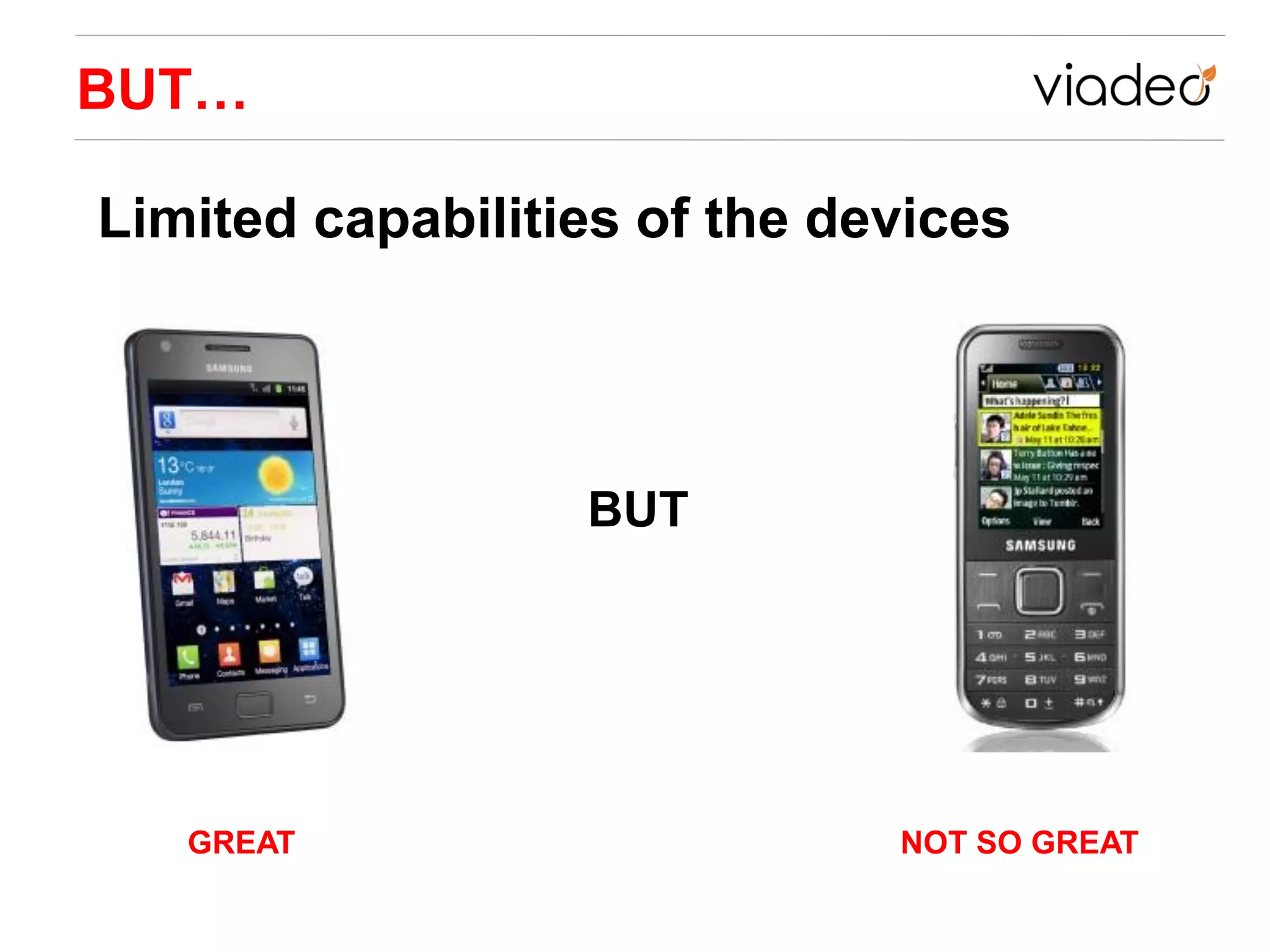

23. BUT…
Limited capabilities of the devices
BUT
GREAT NOT SO GREAT

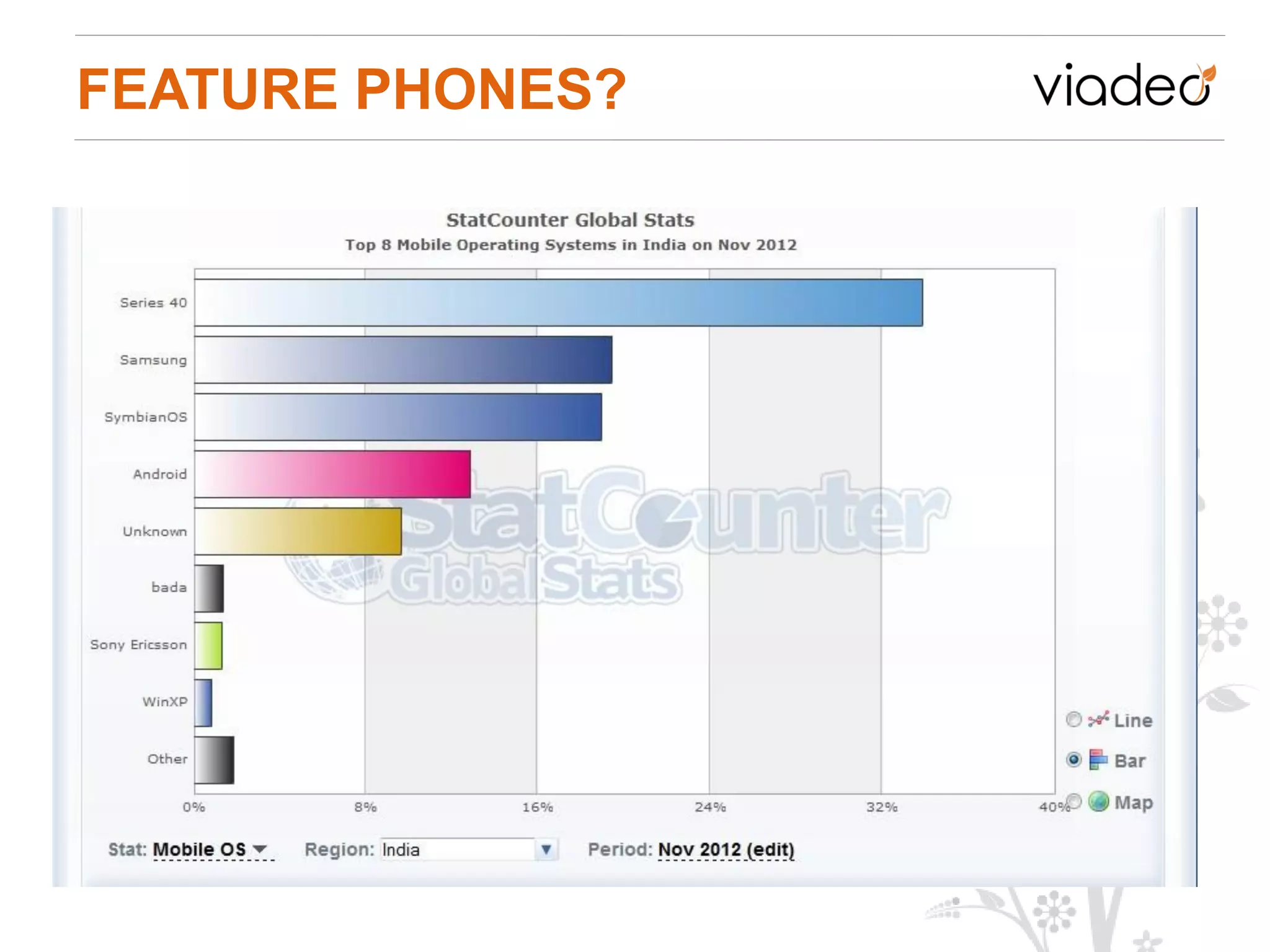

24. FEATURE PHONES?

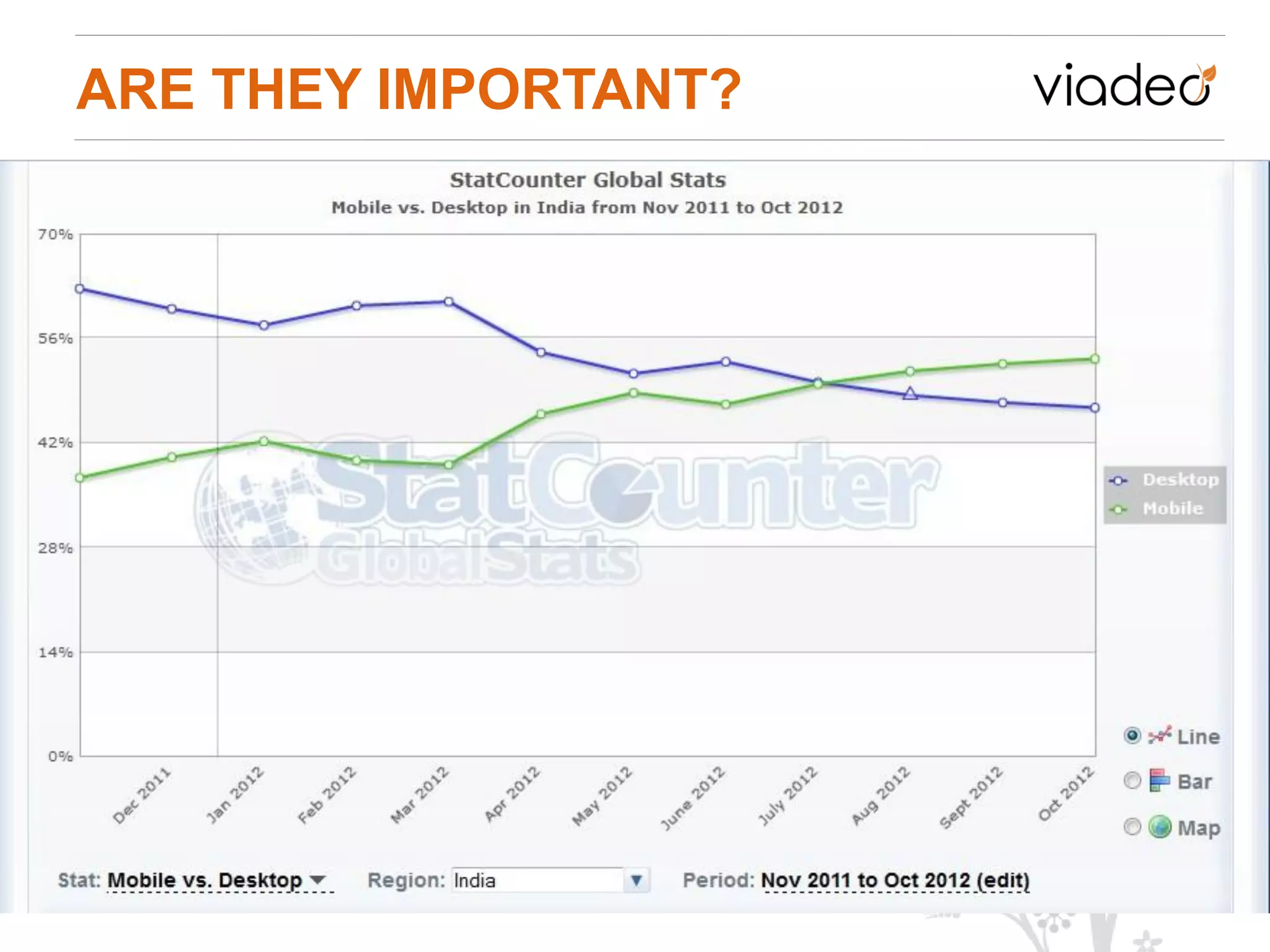

25. ARE THEY IMPORTANT?

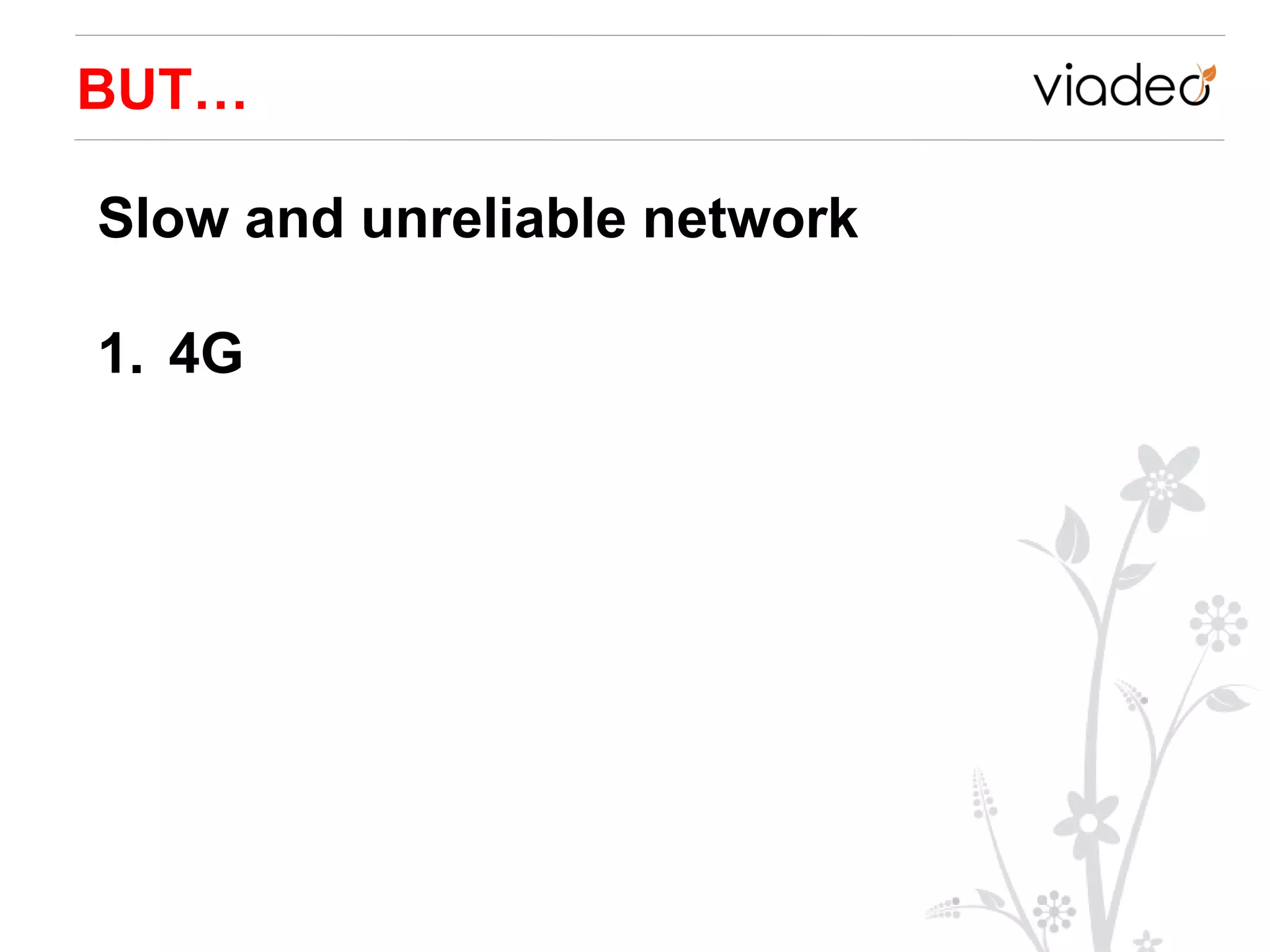

26. BUT…
Slow and unreliable network
1. 4G

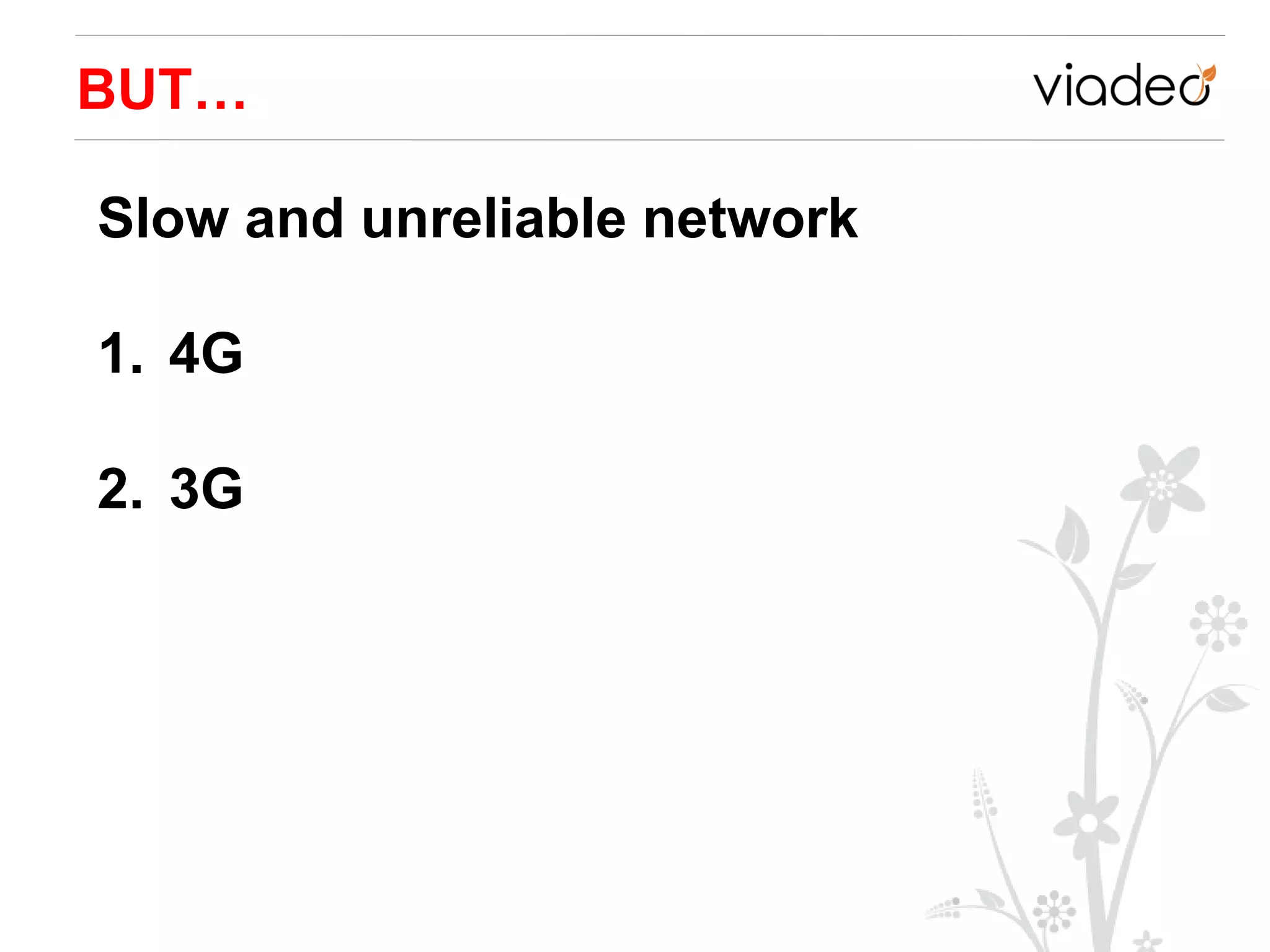

27. BUT…
Slow and unreliable network
1. 4G
2. 3G

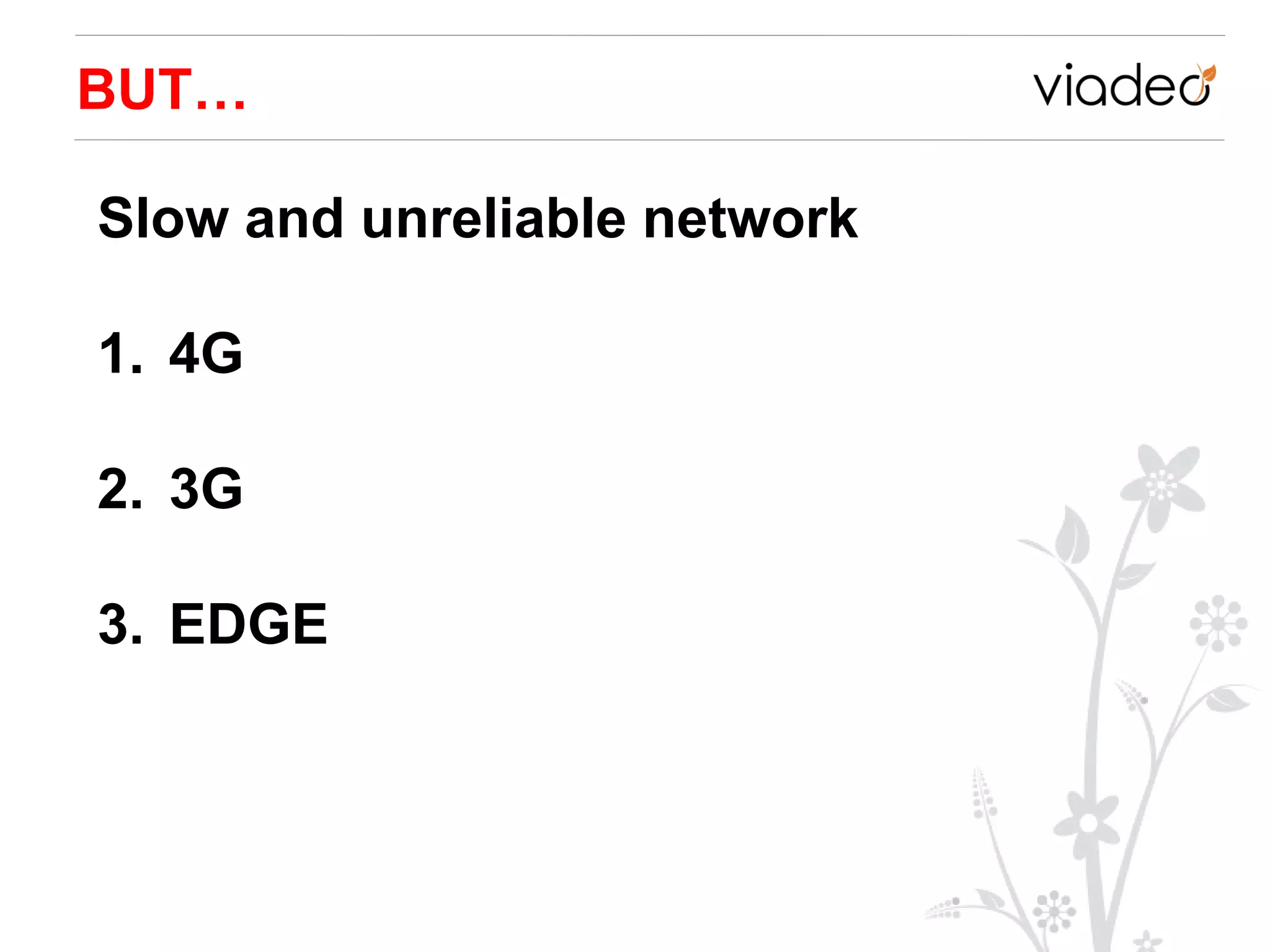

28. BUT…
Slow and unreliable network
1. 4G
2. 3G
3. EDGE

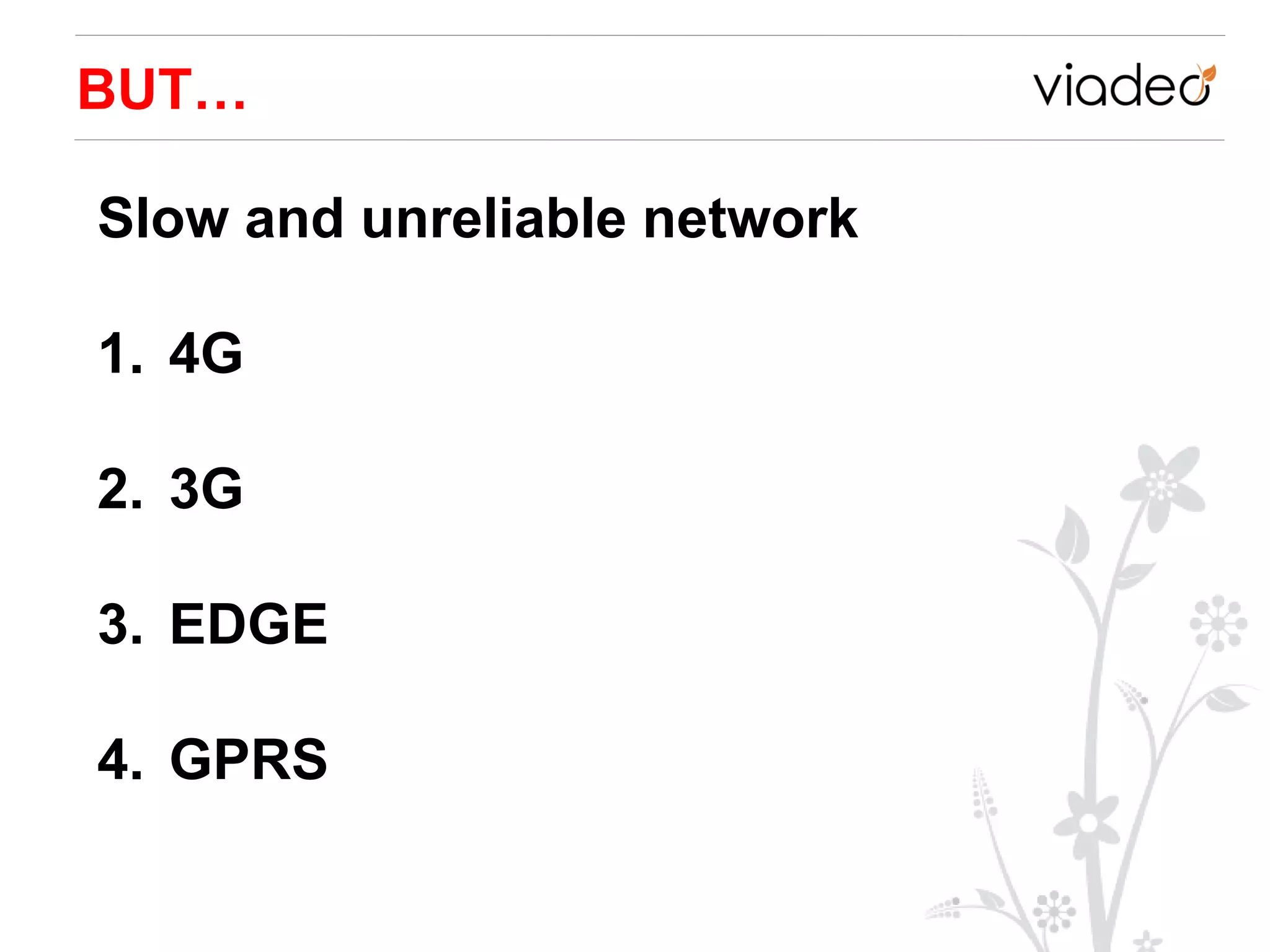

29. BUT…
Slow and unreliable network
1. 4G
2. 3G
3. EDGE
4. GPRS

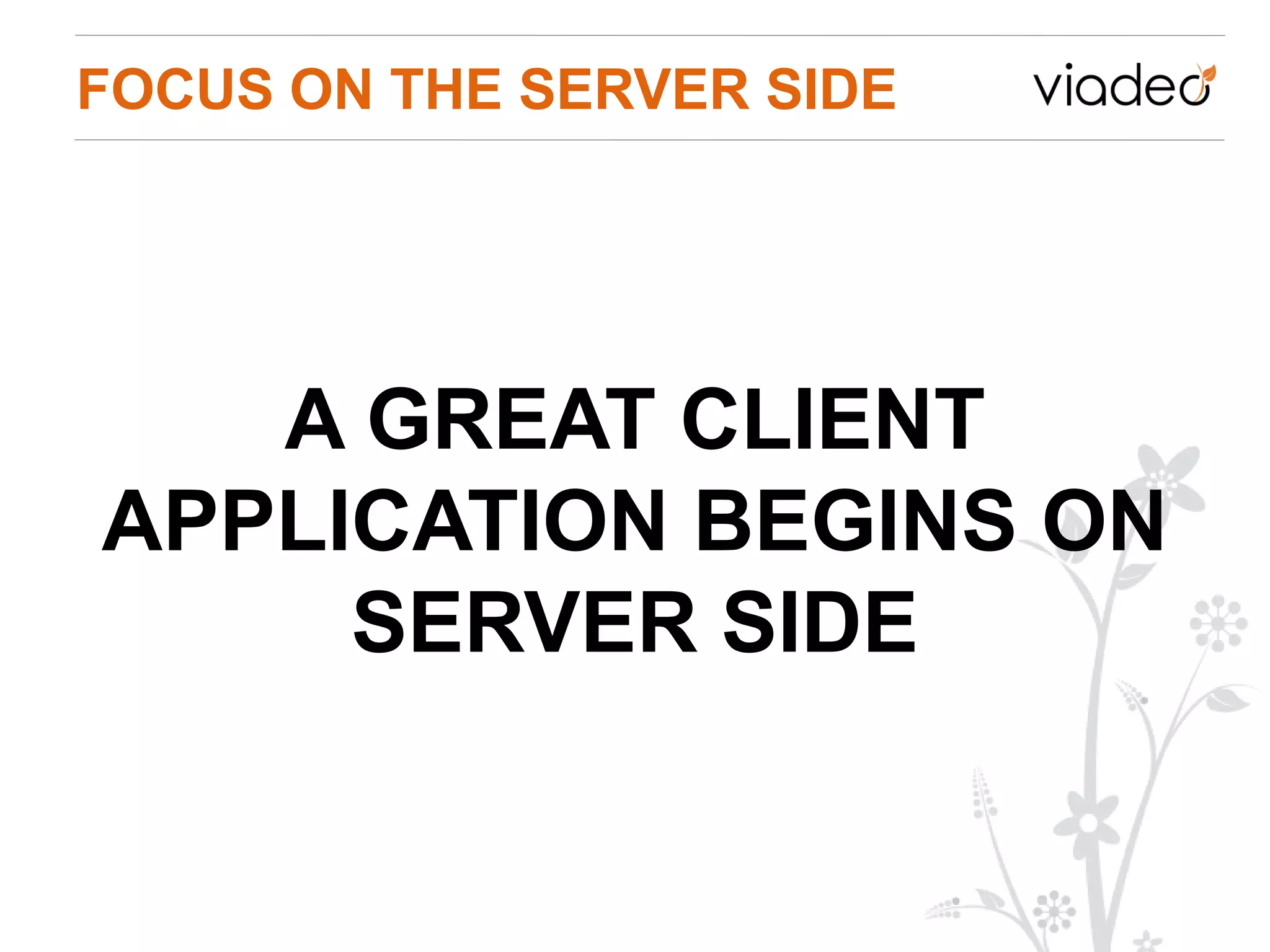

30. FOCUS ON THE SERVER SIDE
A GREAT CLIENT
APPLICATION BEGINS ON
SERVER SIDE

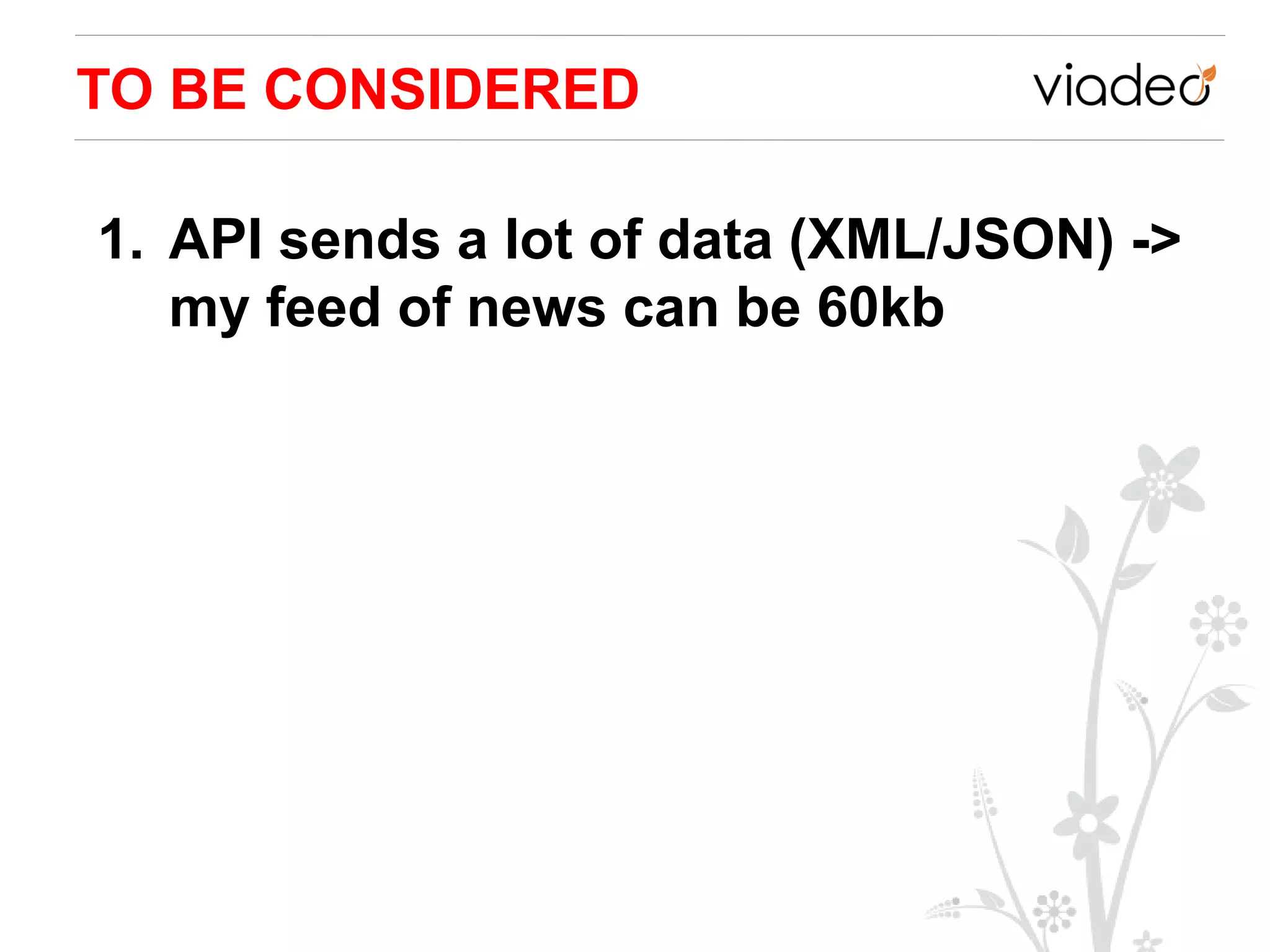

31. TO BE CONSIDERED
1. API sends a lot of data (XML/JSON) ->
my feed of news can be 60kb

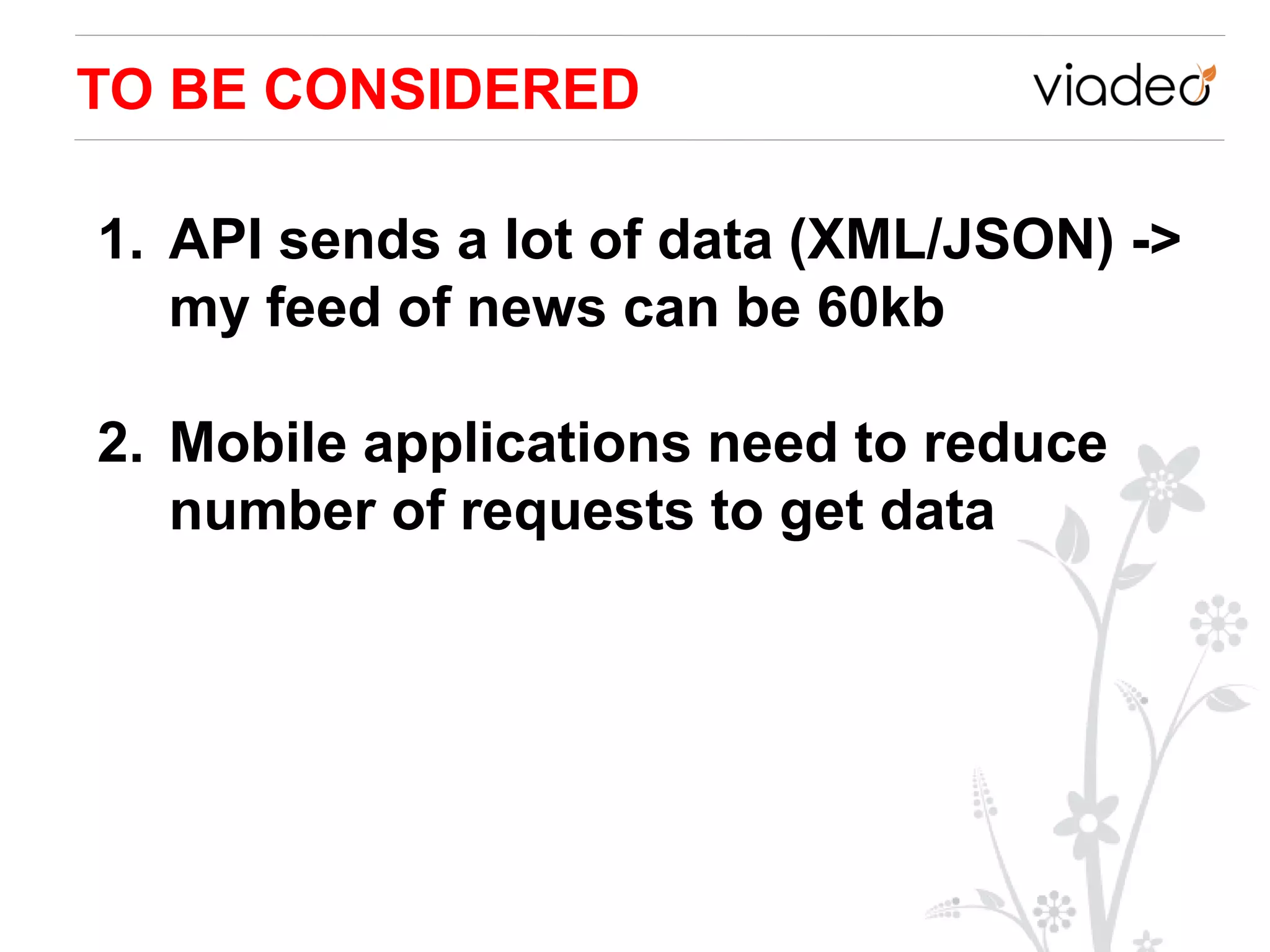

32. TO BE CONSIDERED
1. API sends a lot of data (XML/JSON) ->
my feed of news can be 60kb
2. Mobile applications need to reduce
number of requests to get data

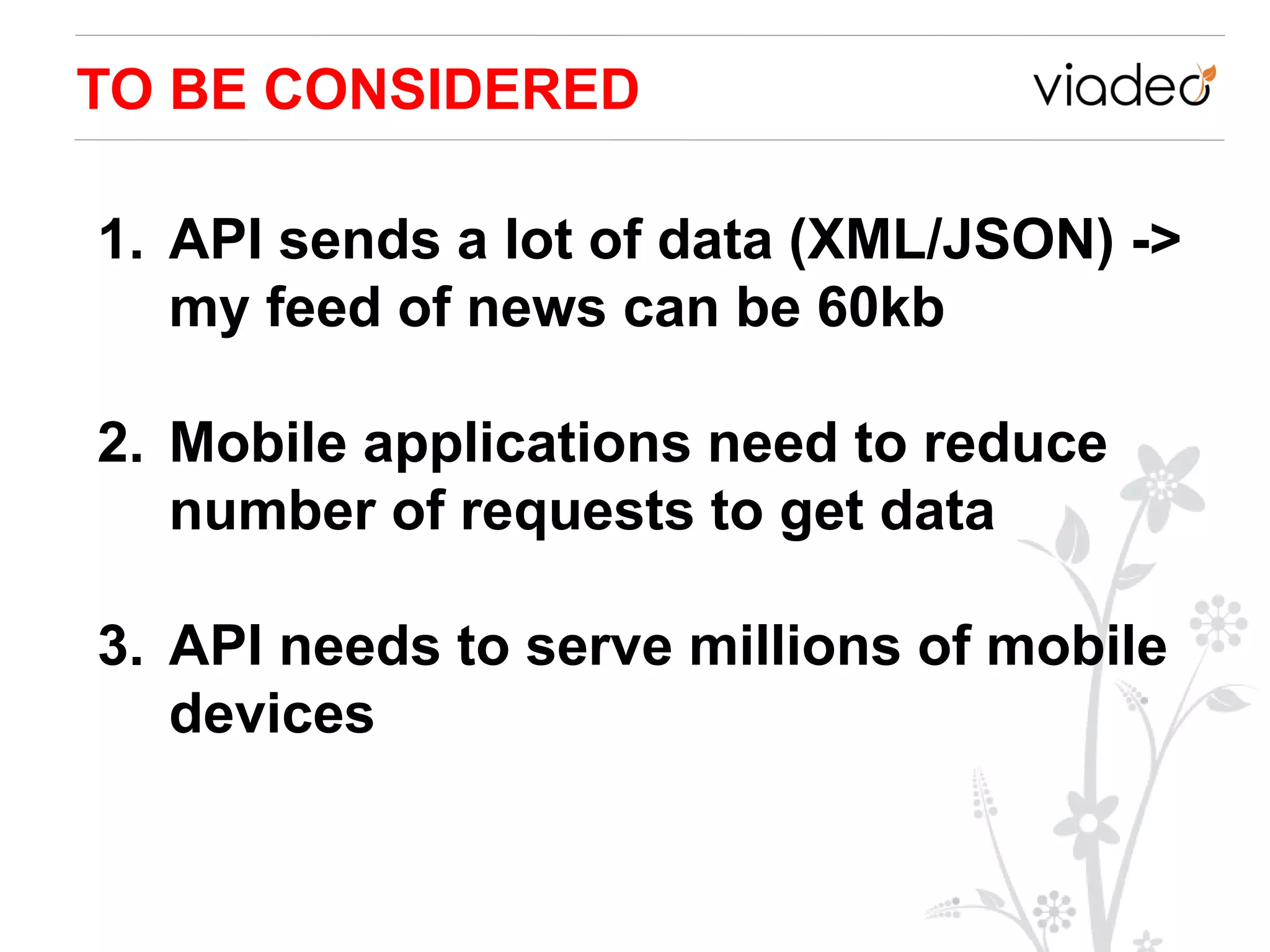

33. TO BE CONSIDERED
1. API sends a lot of data (XML/JSON) ->
my feed of news can be 60kb
2. Mobile applications need to reduce
number of requests to get data
3. API needs to serve millions of mobile
devices

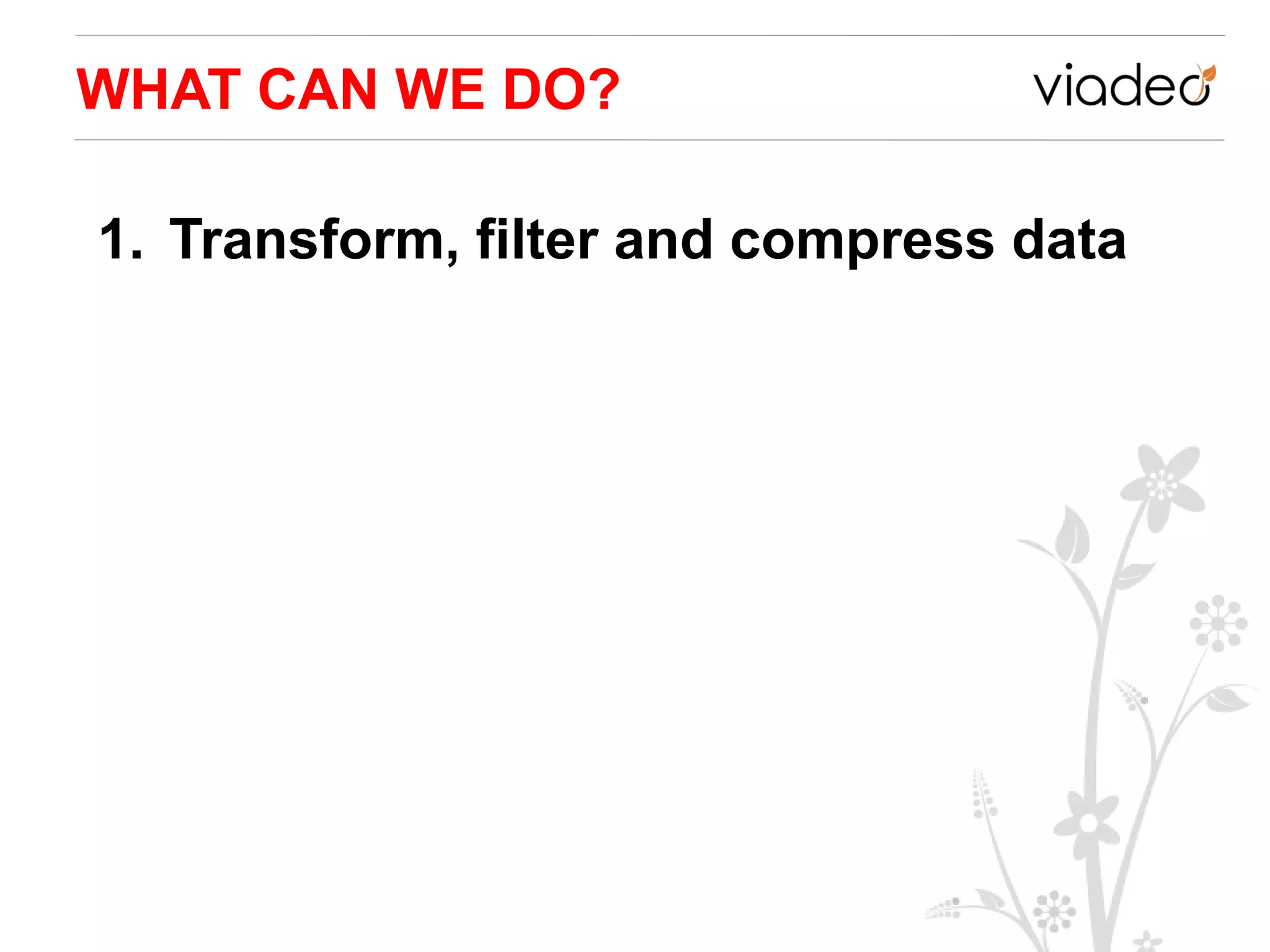

34. WHAT CAN WE DO?
1. Transform, filter and compress data

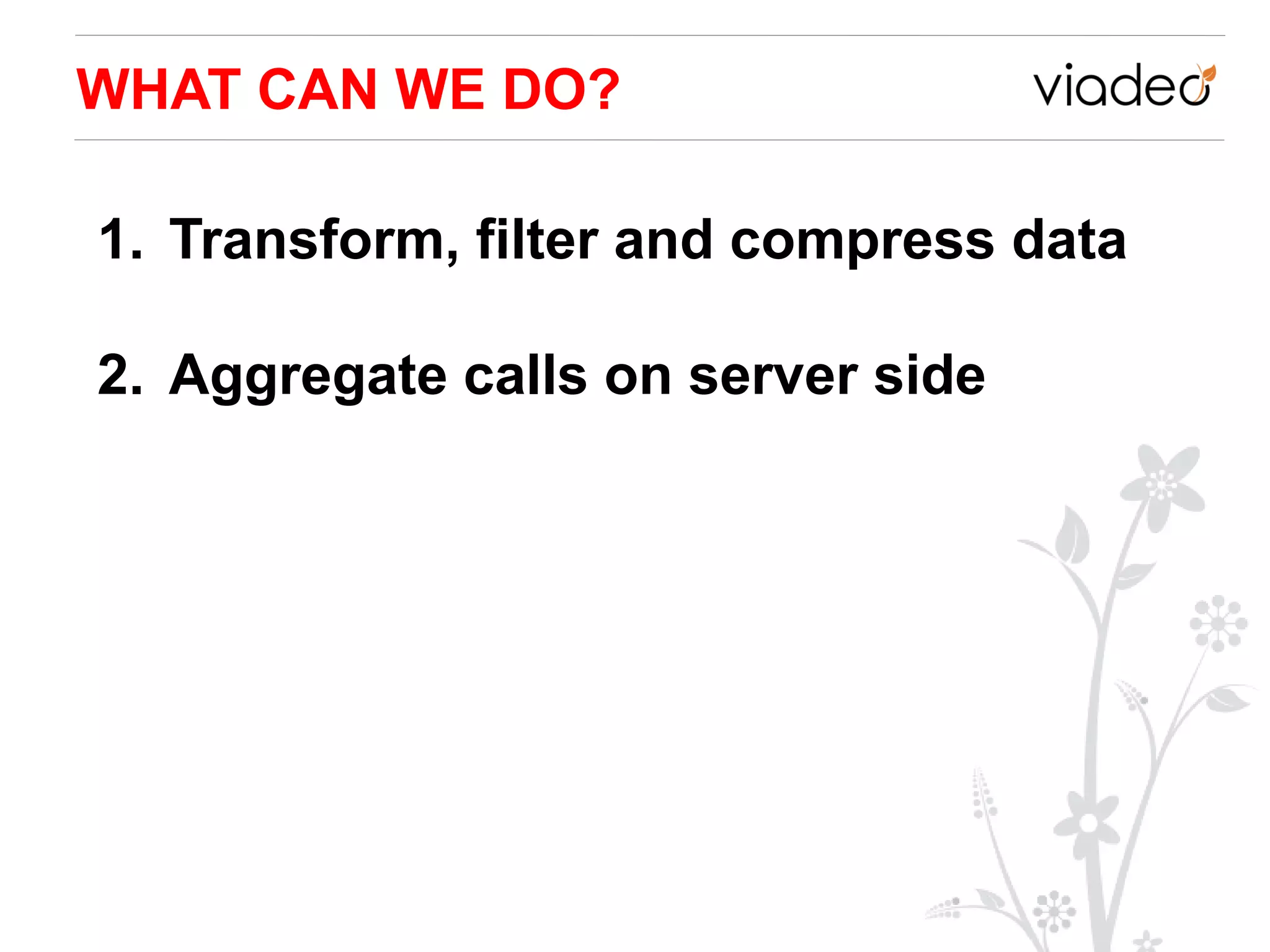

35. WHAT CAN WE DO?
1. Transform, filter and compress data
2. Aggregate calls on server side

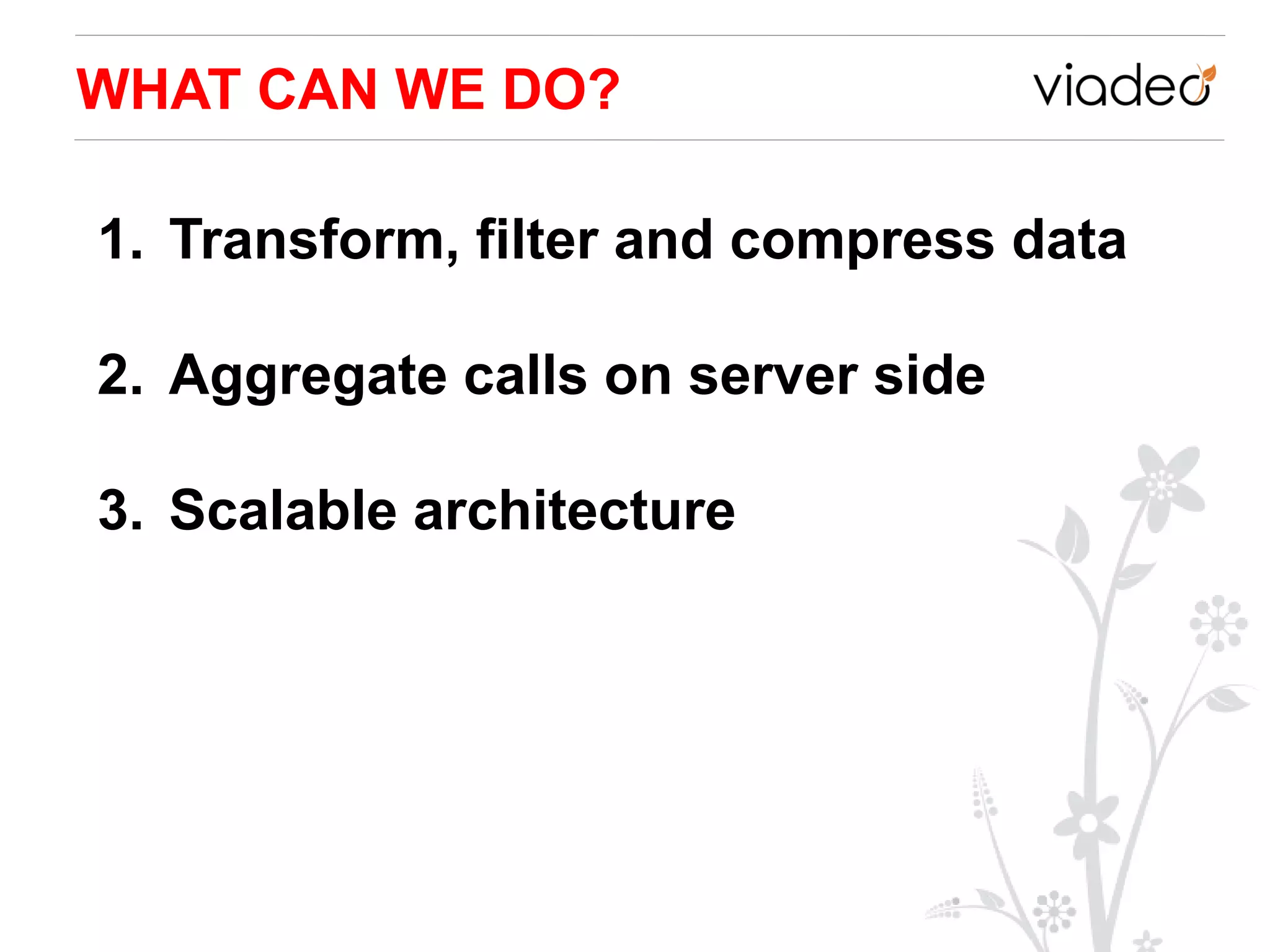

36. WHAT CAN WE DO?
1. Transform, filter and compress data
2. Aggregate calls on server side
3. Scalable architecture

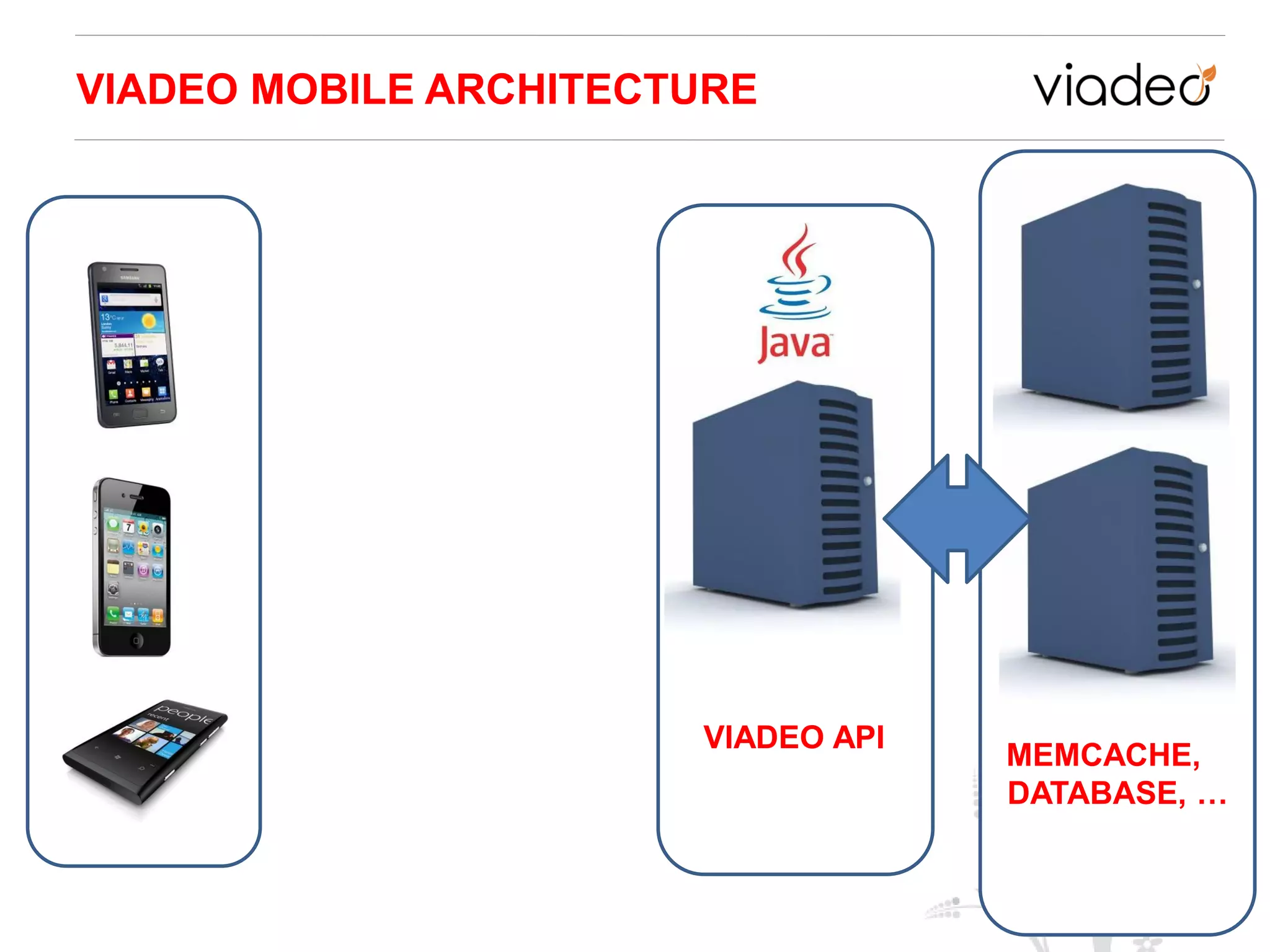

37. VIADEO MOBILE ARCHITECTURE
VIADEO API
MEMCACHE,
DATABASE, …

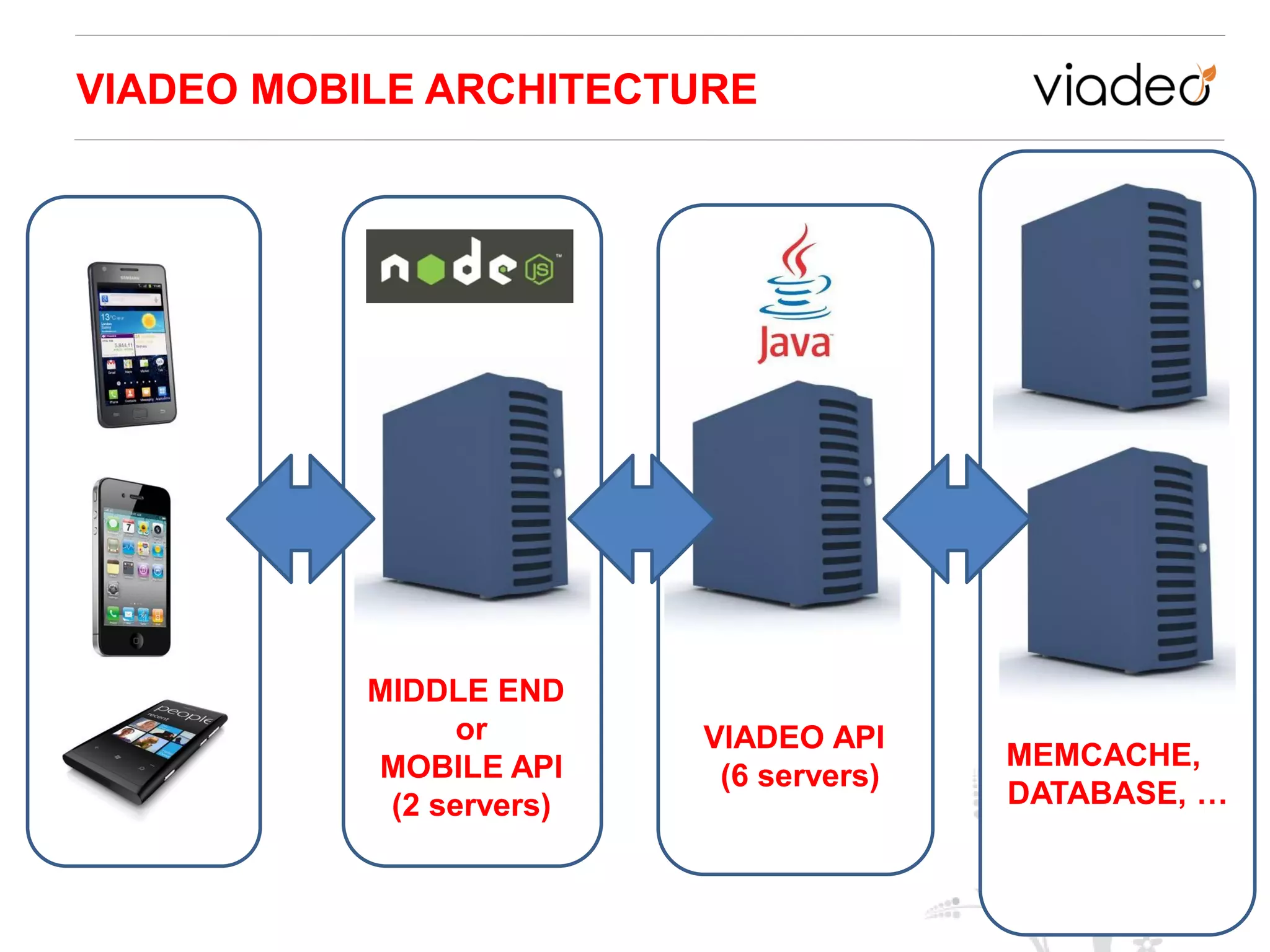

38. VIADEO MOBILE ARCHITECTURE
MIDDLE END
or VIADEO API
MOBILE API MEMCACHE,
(6 servers)
(2 servers) DATABASE, …

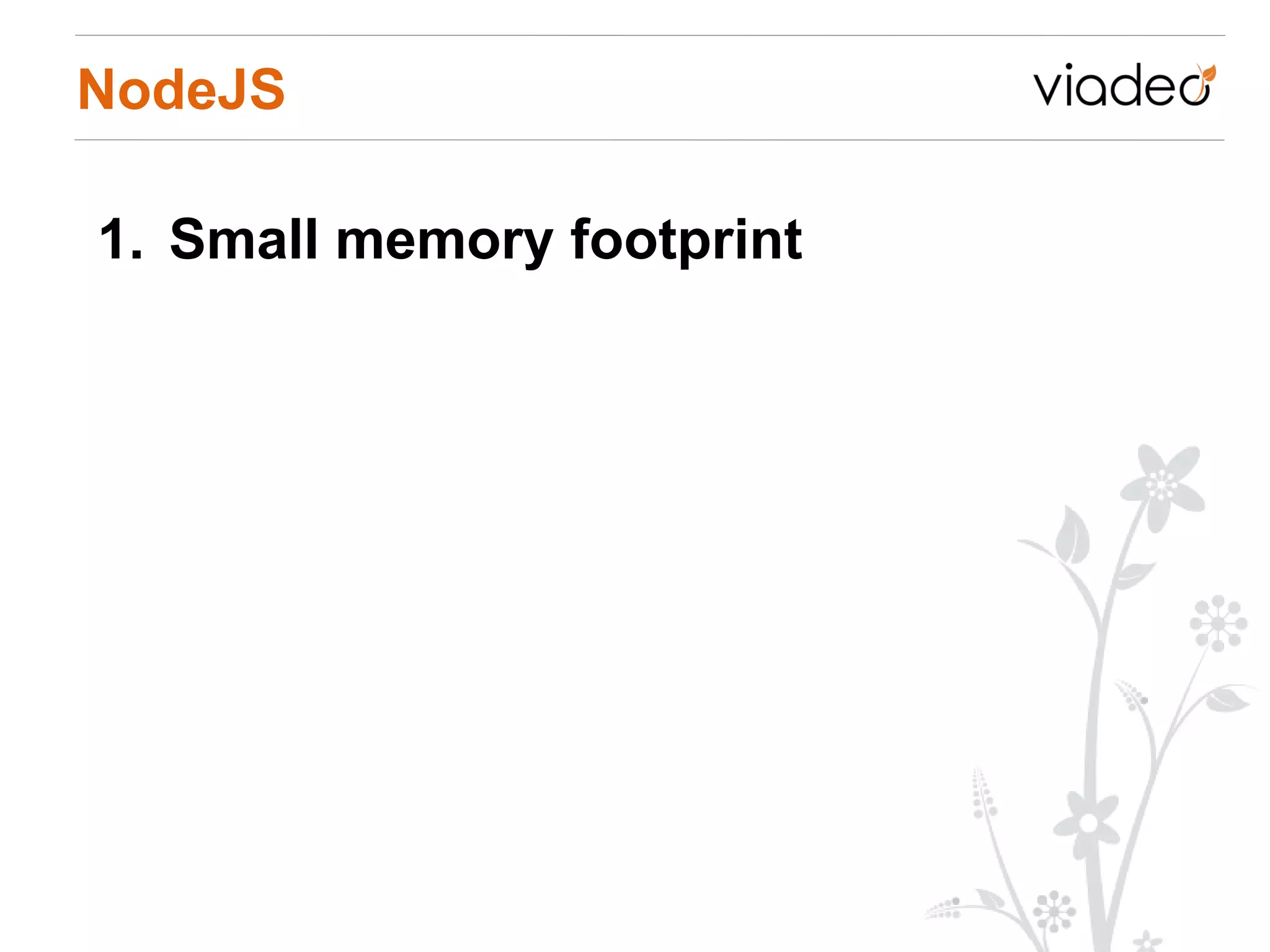

39. NodeJS
1. Small memory footprint

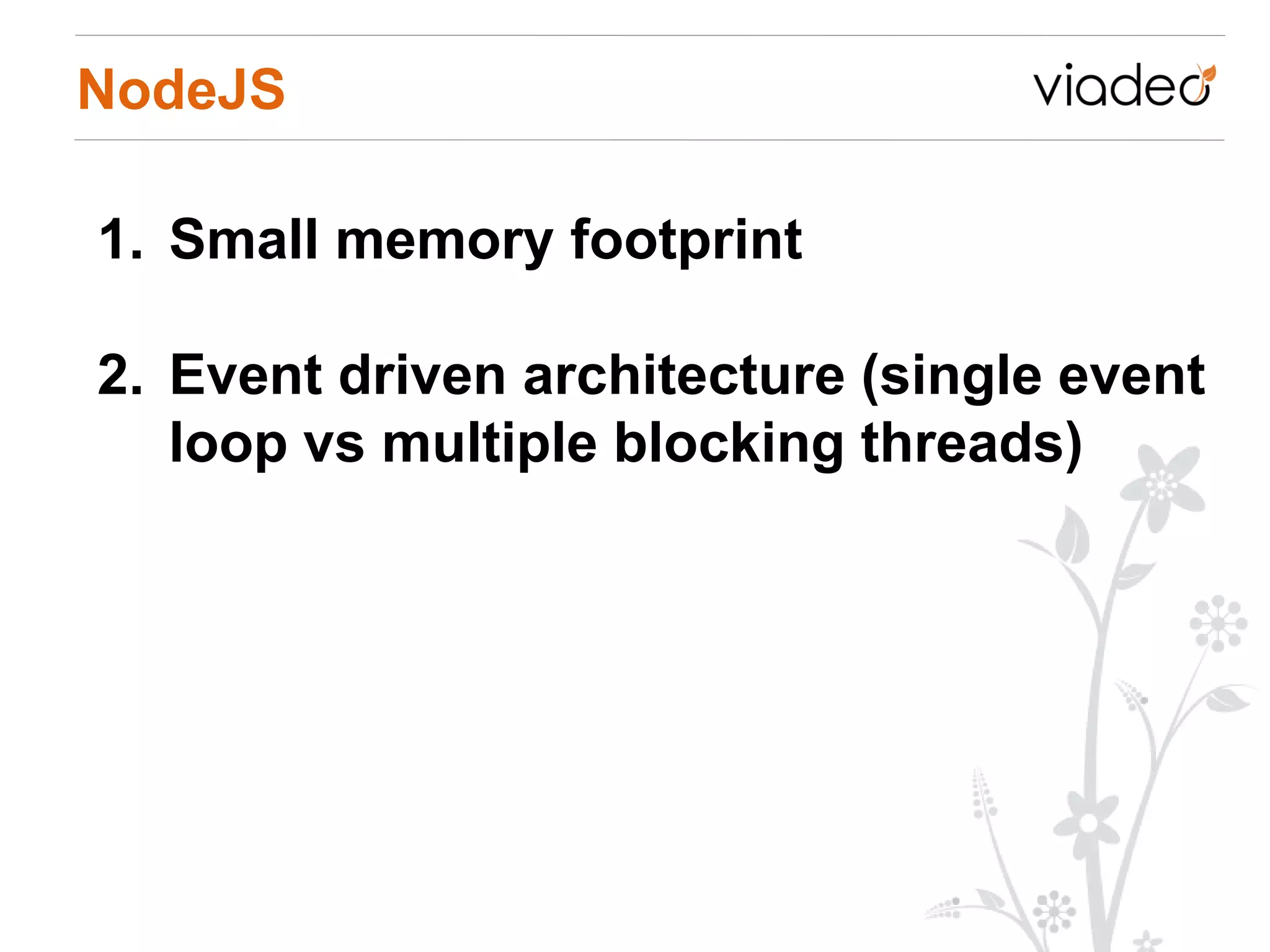

40. NodeJS
1. Small memory footprint
2. Event driven architecture (single event
loop vs multiple blocking threads)

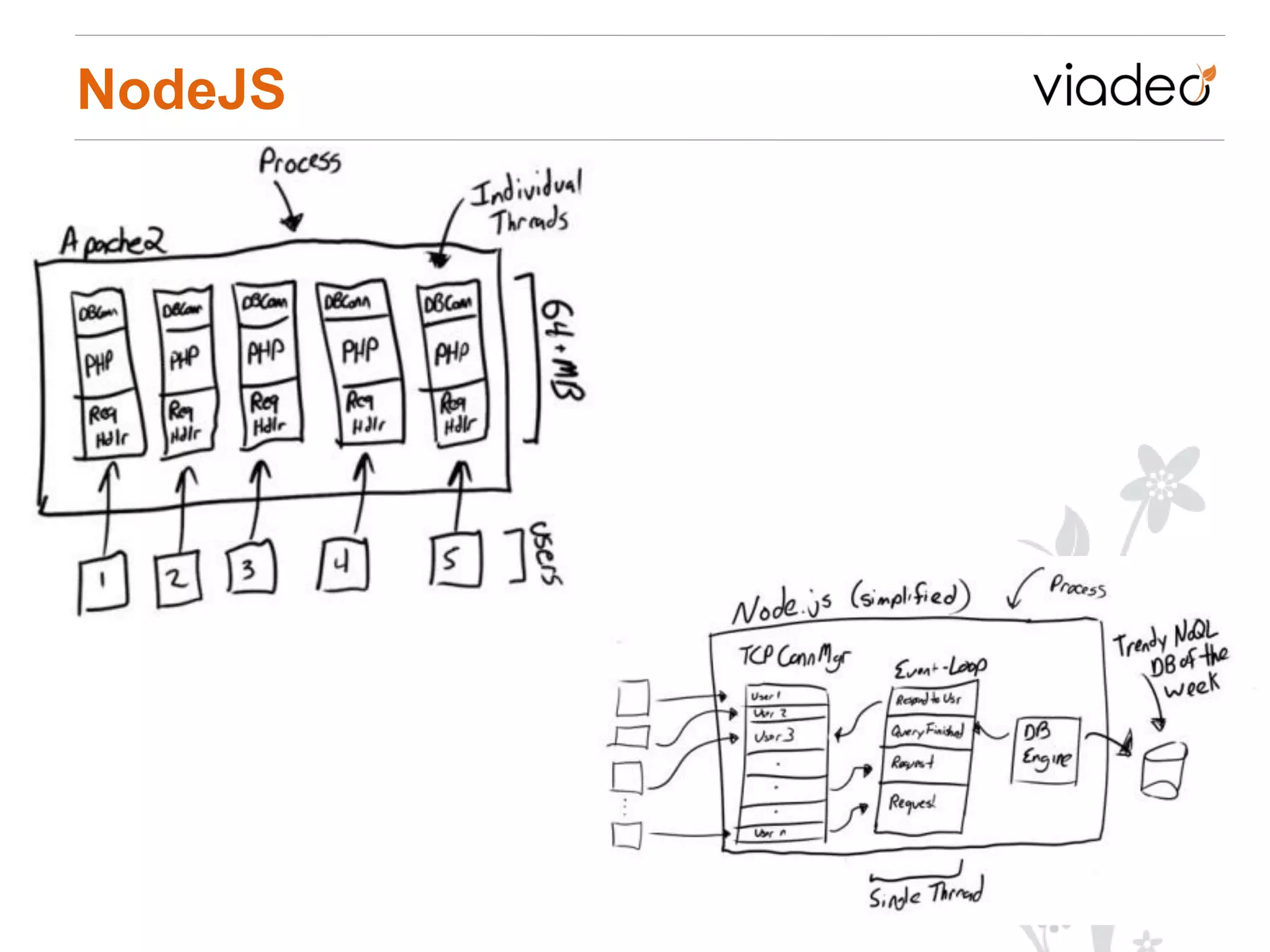

41. NodeJS

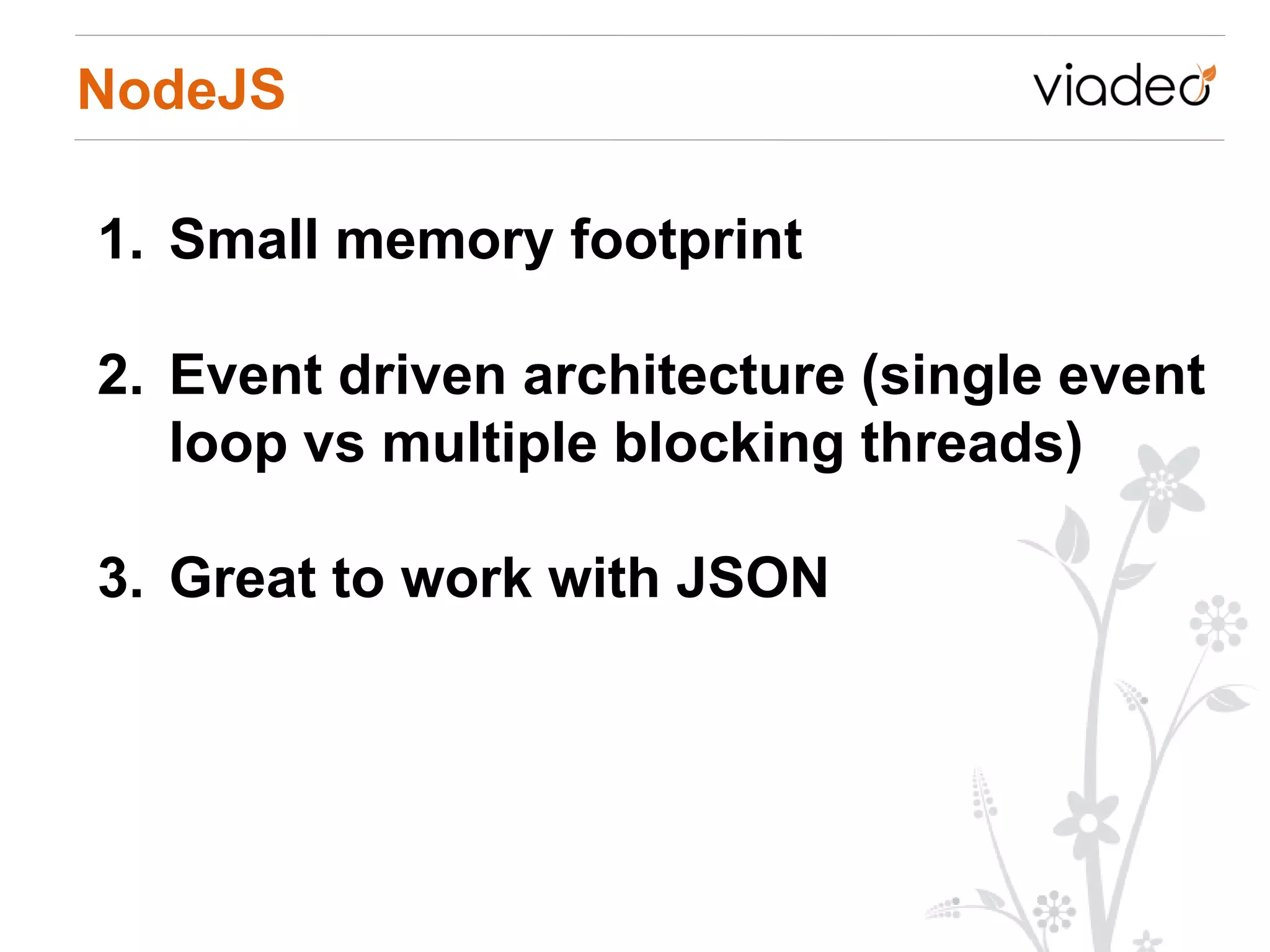

42. NodeJS
1. Small memory footprint
2. Event driven architecture (single event
loop vs multiple blocking threads)
3. Great to work with JSON

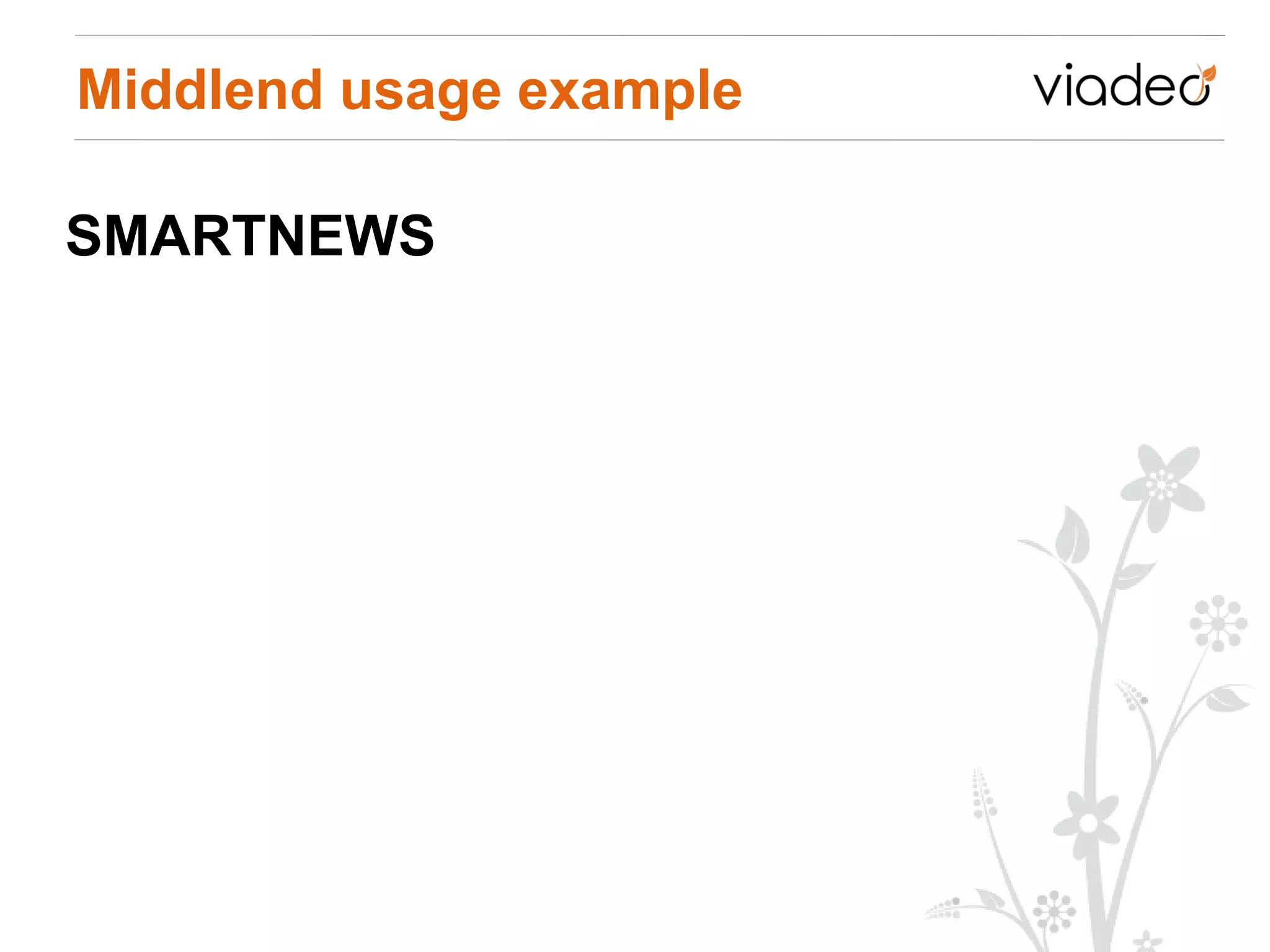

43. Middlend usage example
SMARTNEWS

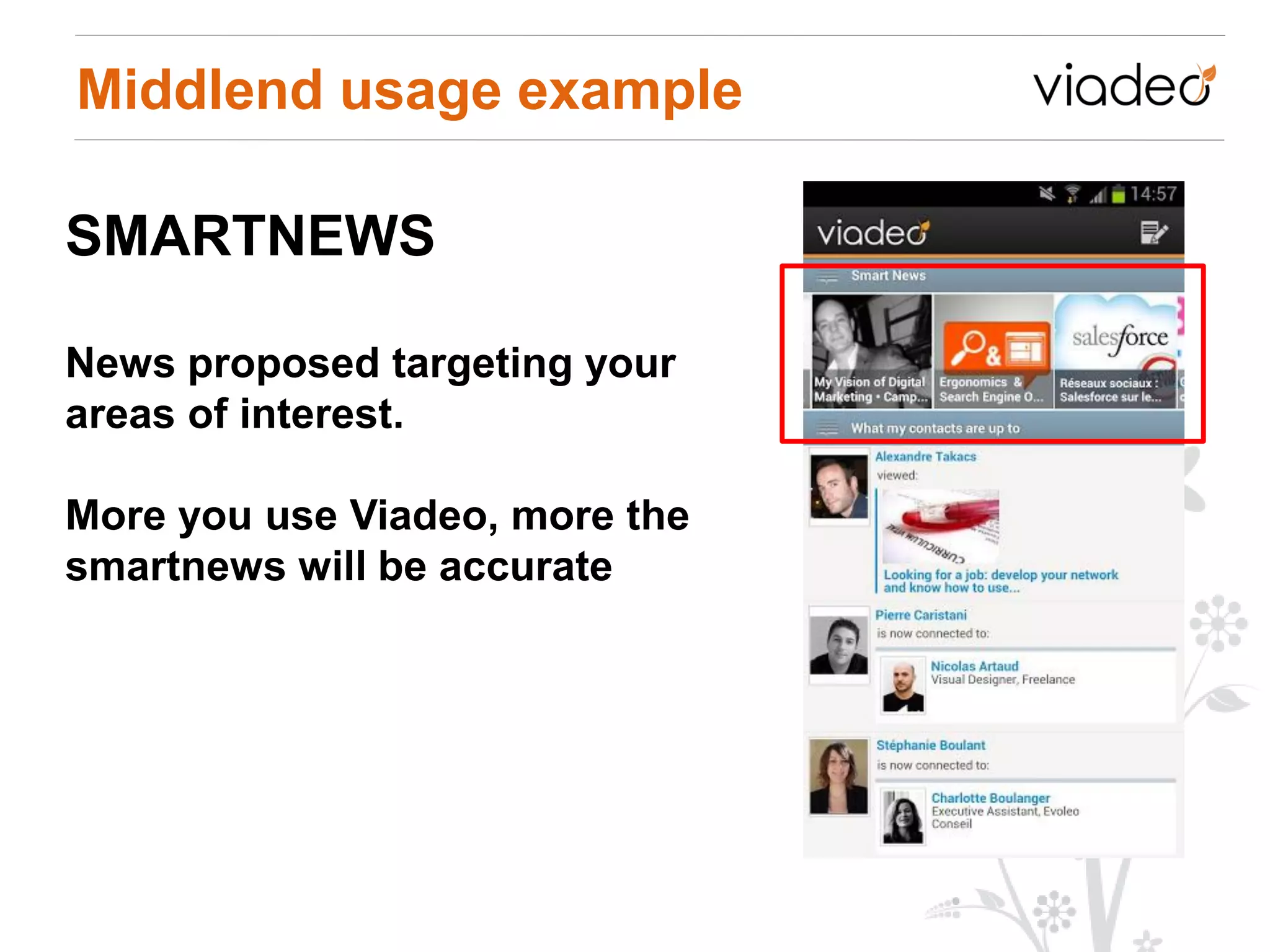

44. Middlend usage example
SMARTNEWS
News proposed targeting your
areas of interest.
More you use Viadeo, more the
smartnews will be accurate

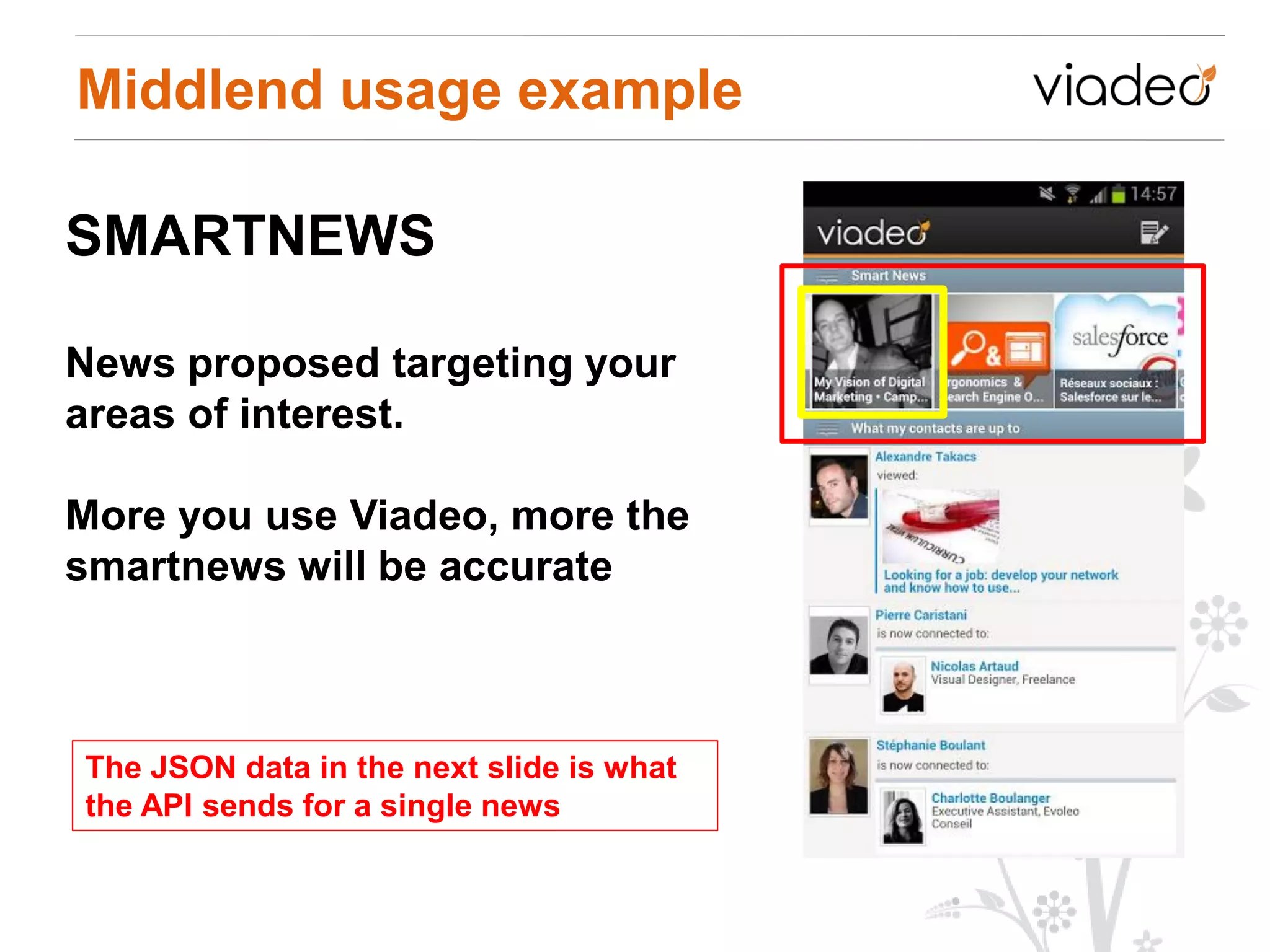

45. Middlend usage example
SMARTNEWS
News proposed targeting your
areas of interest.
More you use Viadeo, more the
smartnews will be accurate

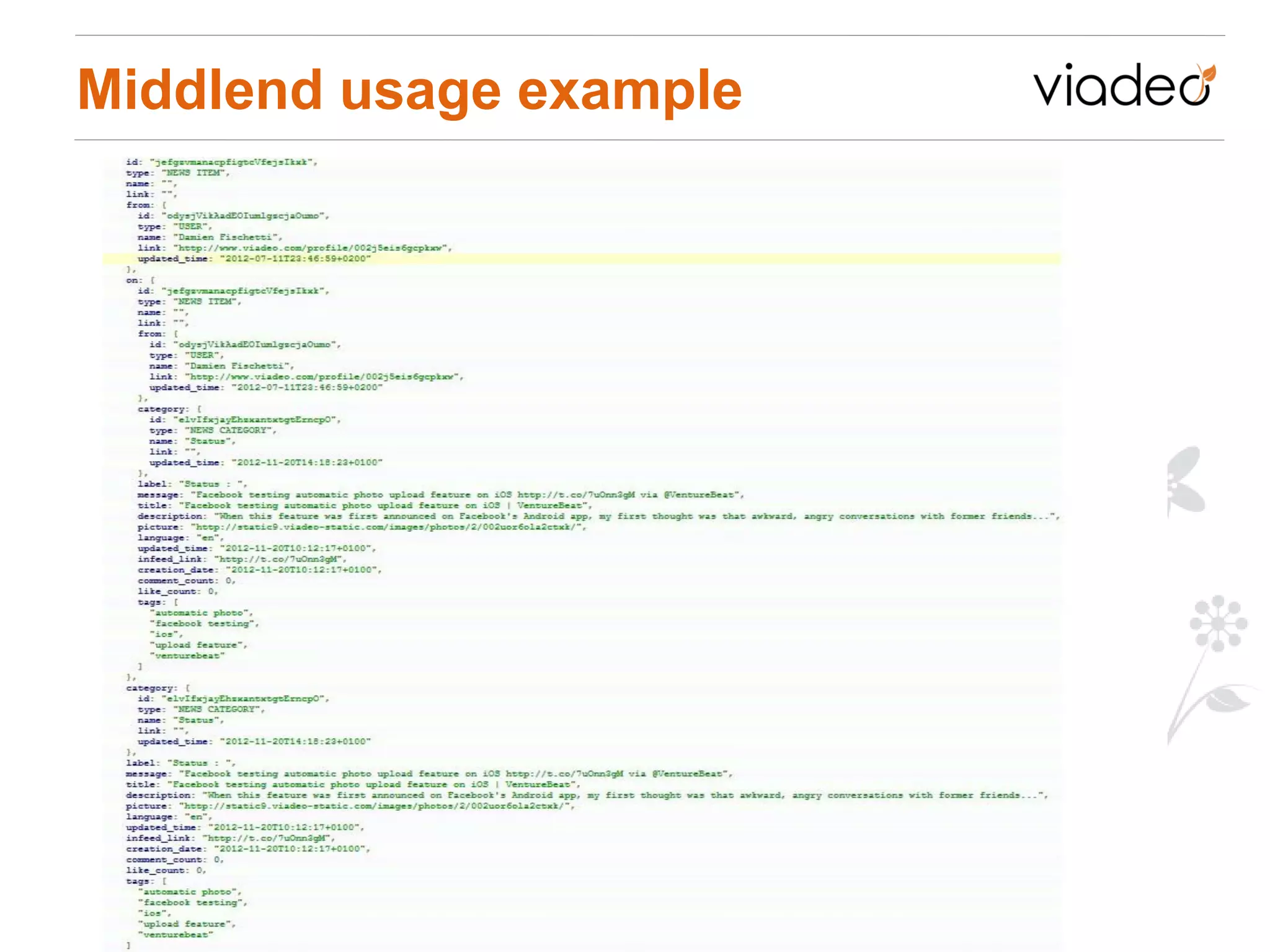

The JSON data in the next slide is what
the API sends for a single news

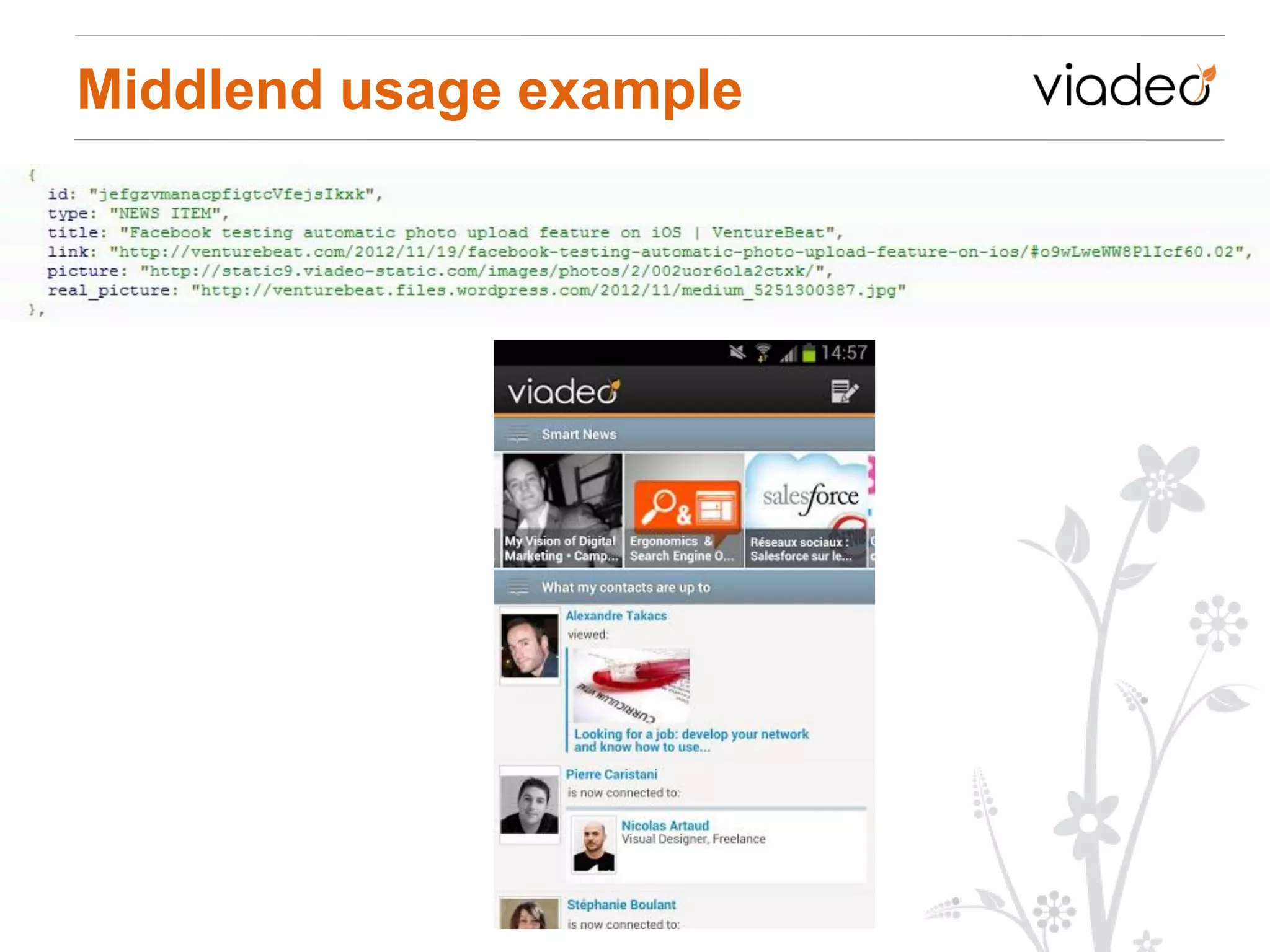

46. Middlend usage example

47. Middlend usage example

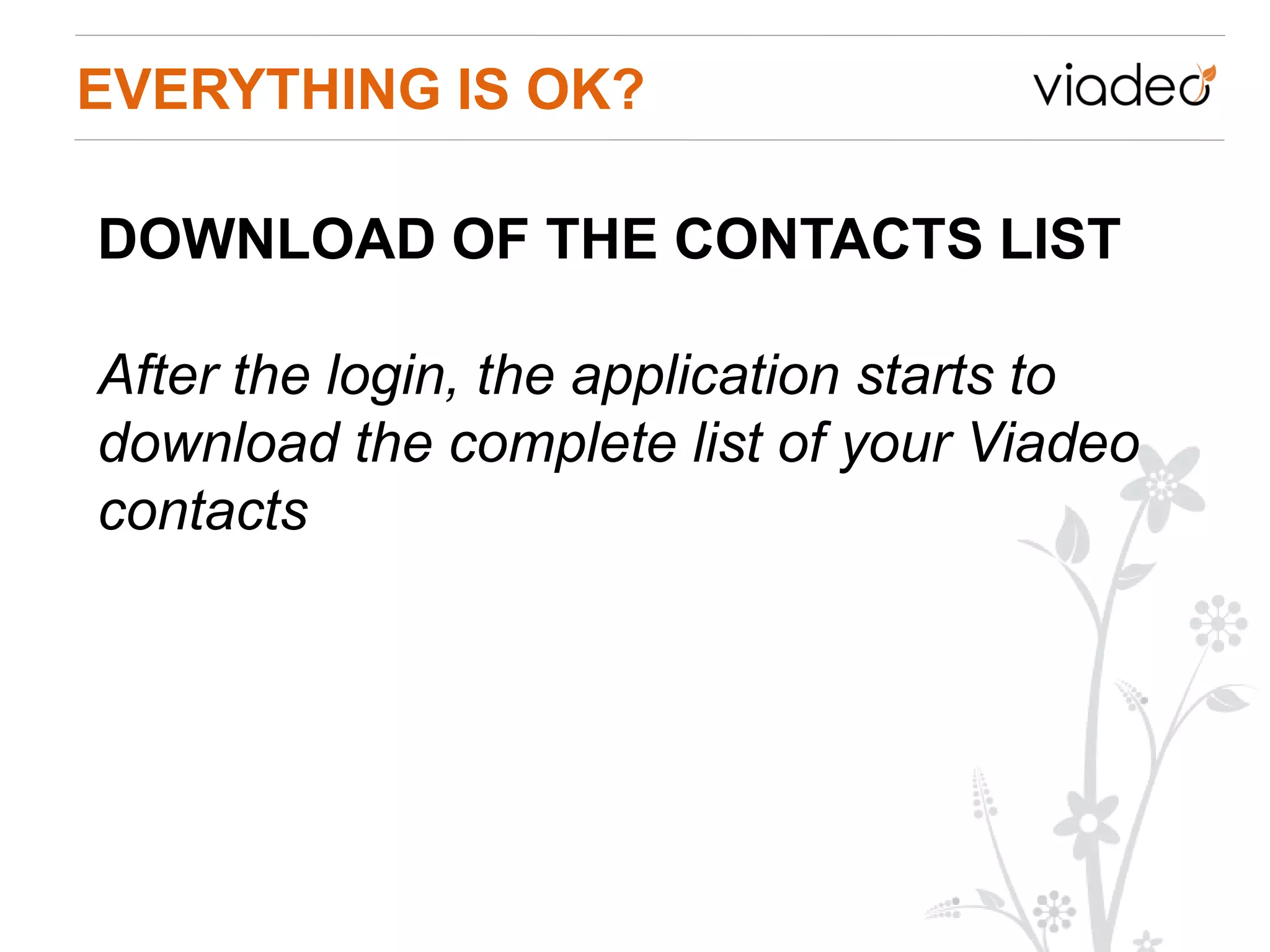

48. EVERYTHING IS OK?
DOWNLOAD OF THE CONTACTS LIST
After the login, the application starts to
download the complete list of your Viadeo
contacts

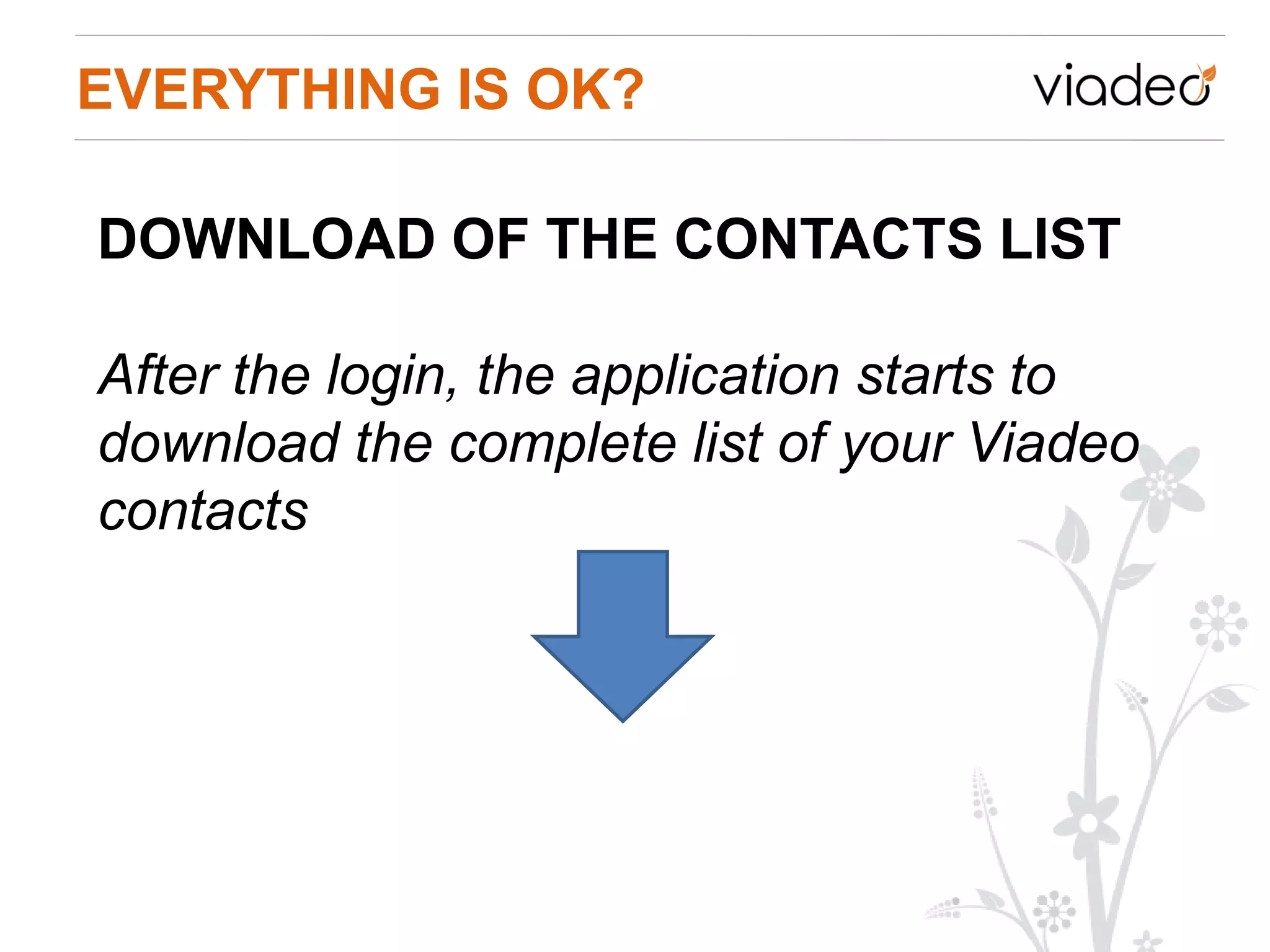

49. EVERYTHING IS OK?
DOWNLOAD OF THE CONTACTS LIST
After the login, the application starts to
download the complete list of your Viadeo
contacts

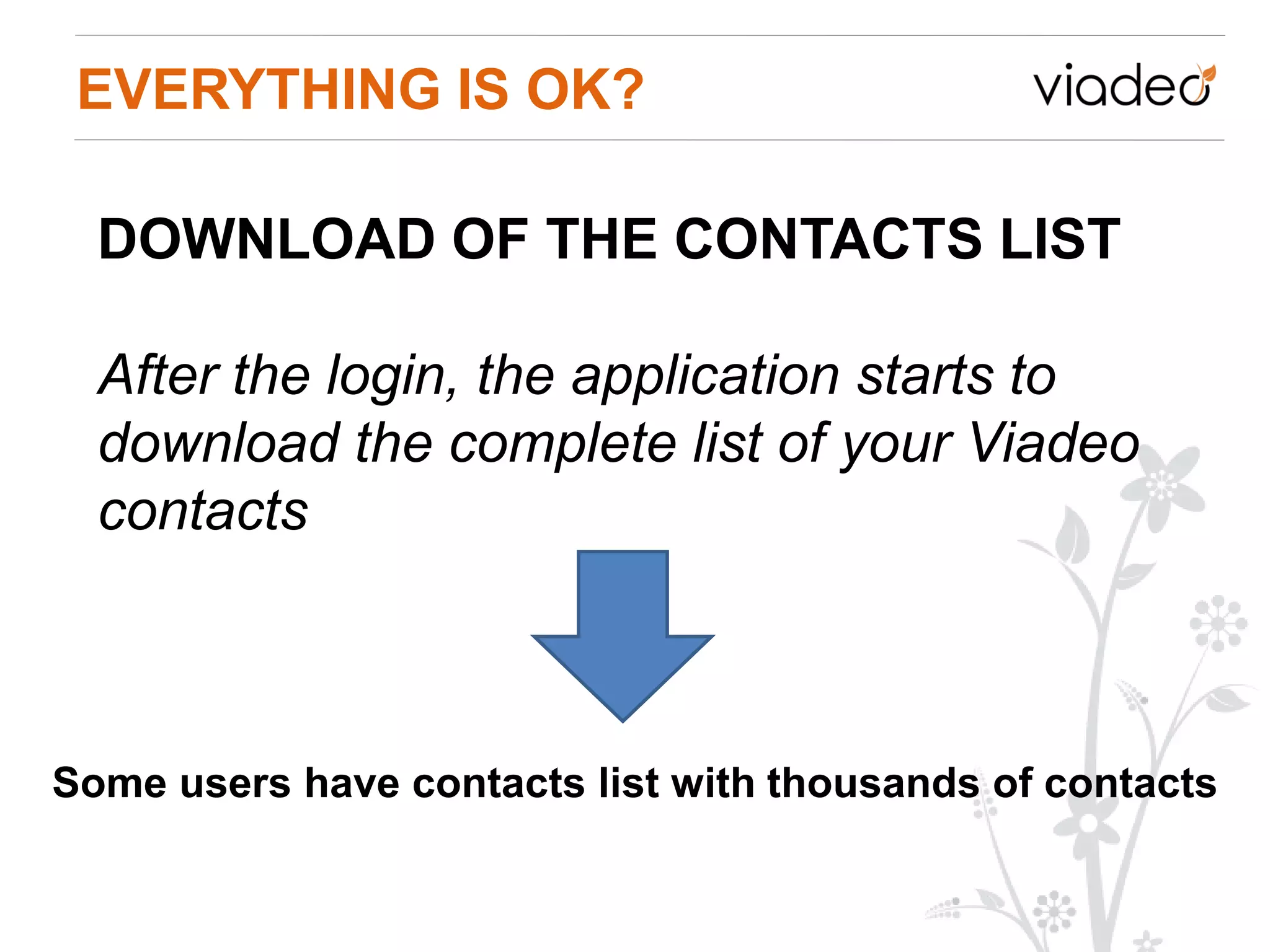

50. EVERYTHING IS OK?
DOWNLOAD OF THE CONTACTS LIST
After the login, the application starts to
download the complete list of your Viadeo
contacts
Some users have contacts list with thousands of contacts

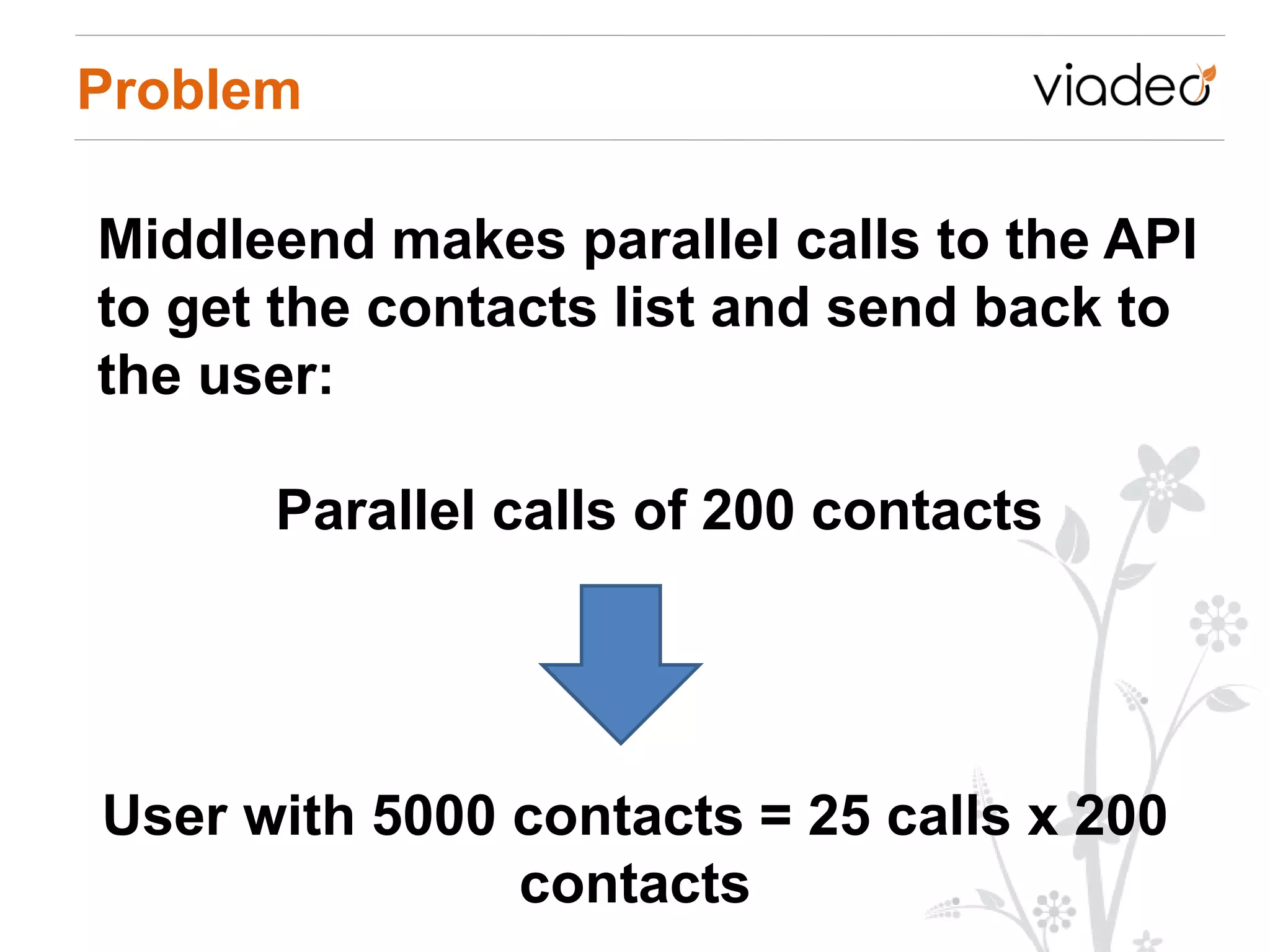

51. Problem
Middleend makes parallel calls to the API
to get the contacts list and send back to
the user:
Parallel calls of 200 contacts
User with 5000 contacts = 25 calls x 200
contacts

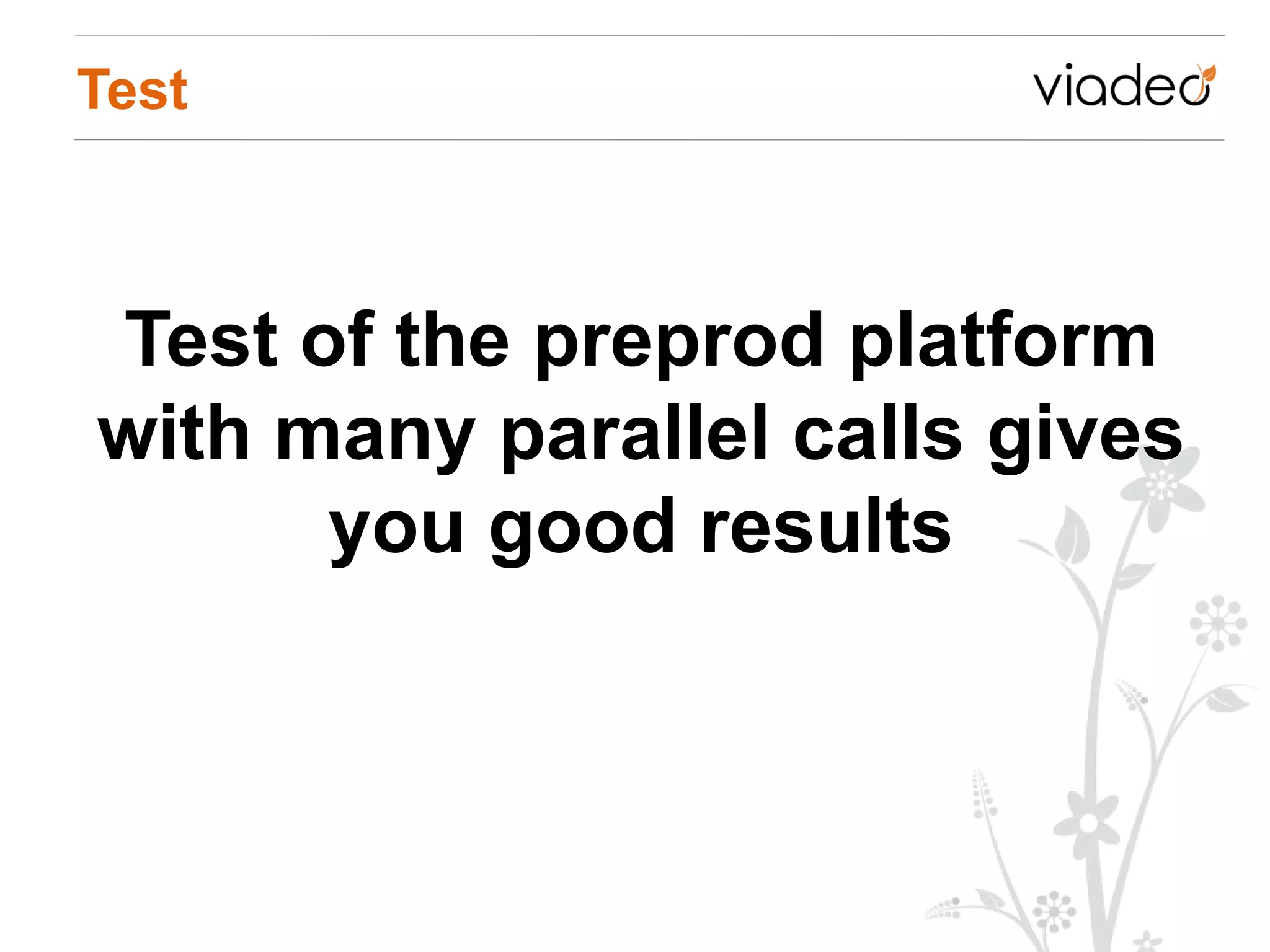

52. Test
Test of the preprod platform
with many parallel calls gives
you good results

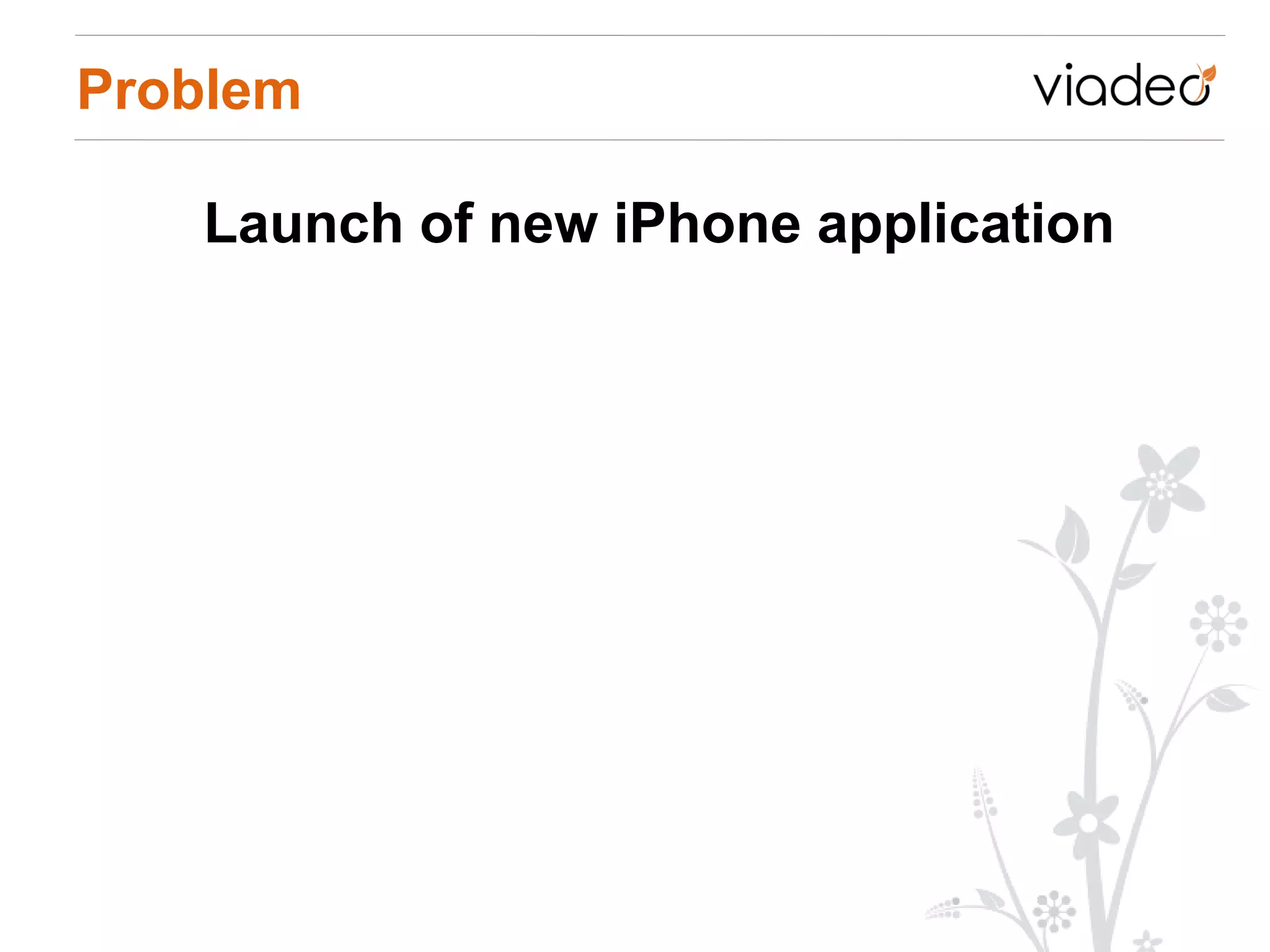

53. Problem
Launch of new iPhone application

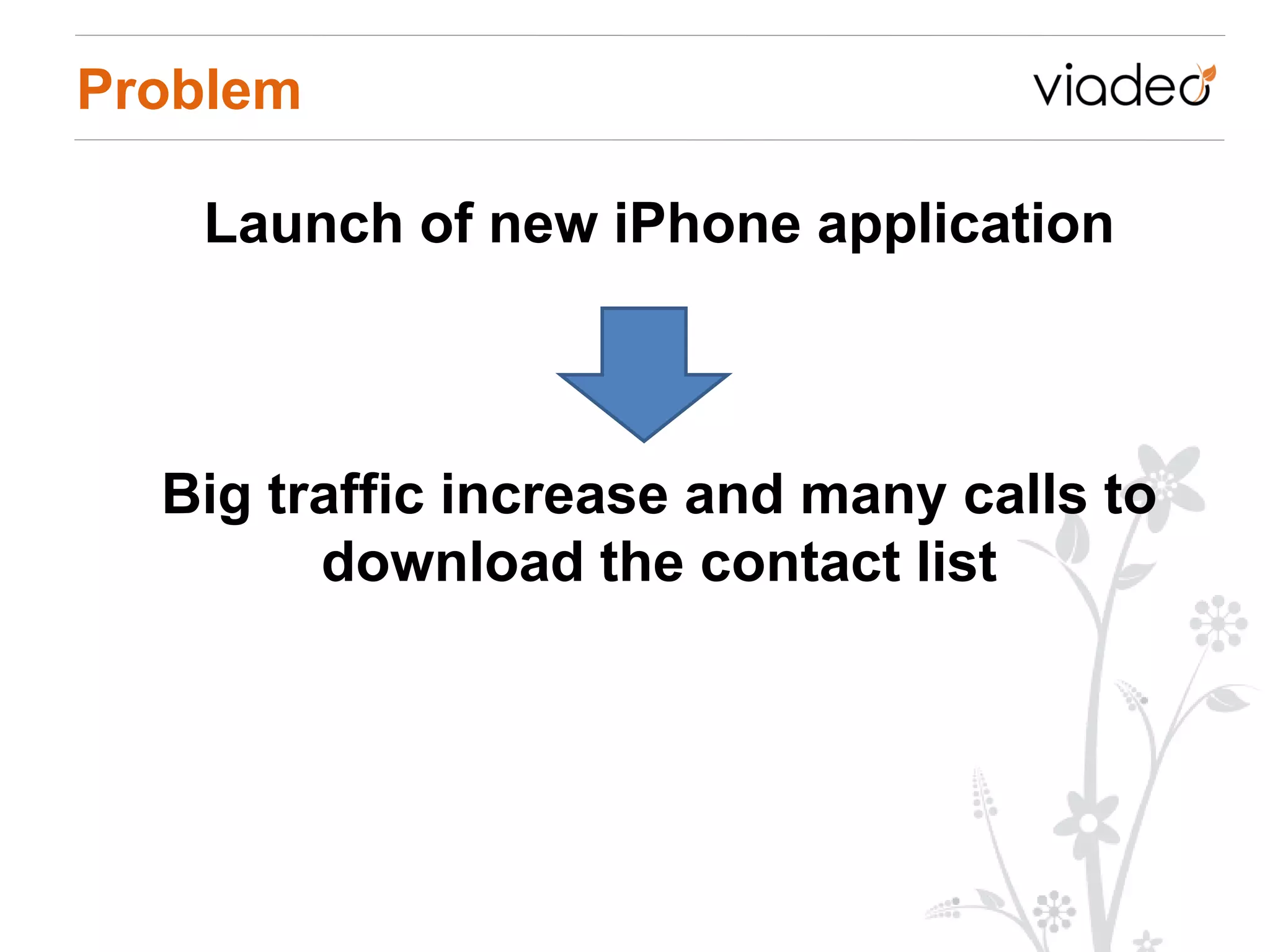

54. Problem
Launch of new iPhone application
Big traffic increase and many calls to
download the contact list

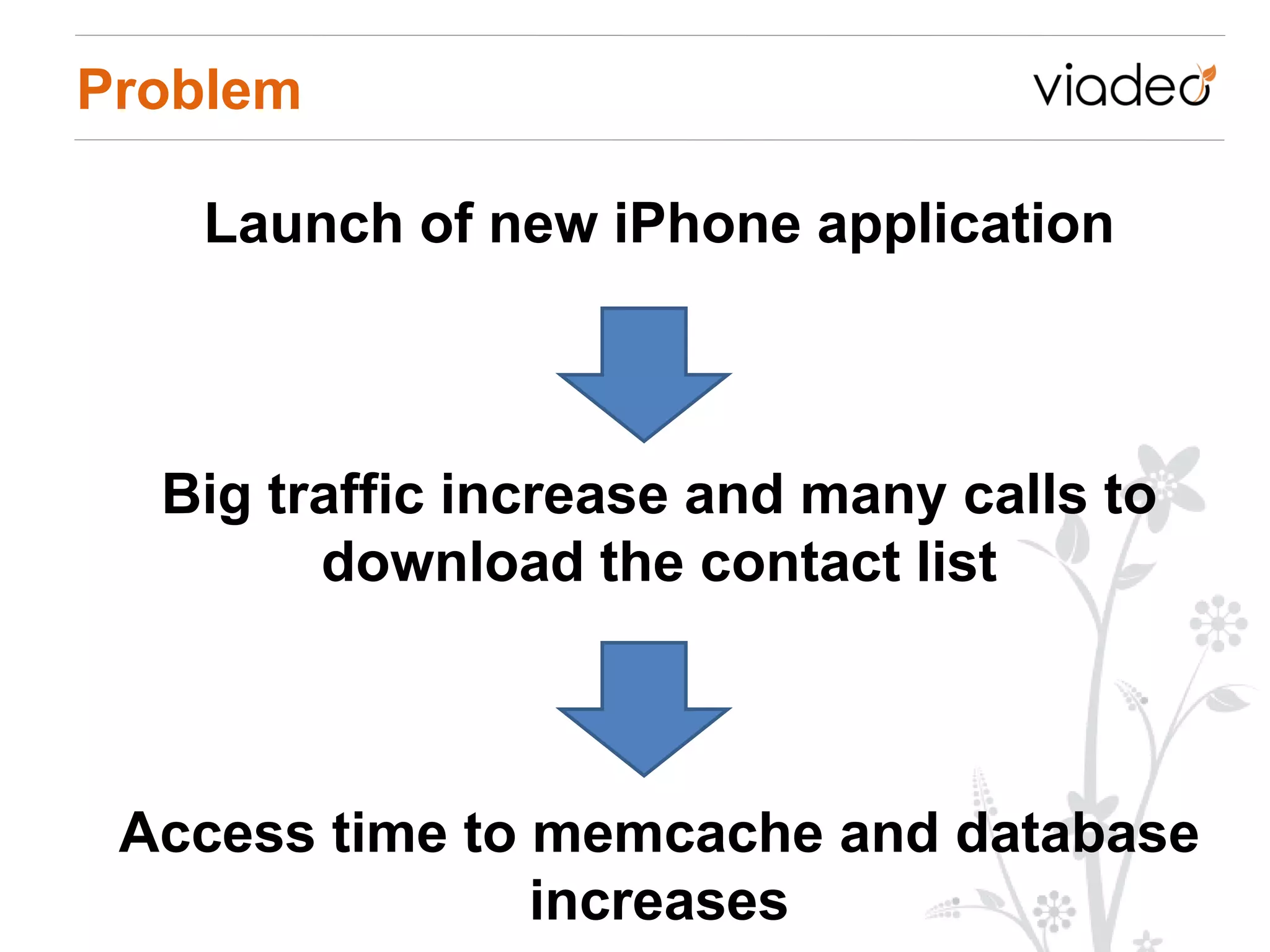

55. Problem
Launch of new iPhone application
Big traffic increase and many calls to
download the contact list
Access time to memcache and database
increases

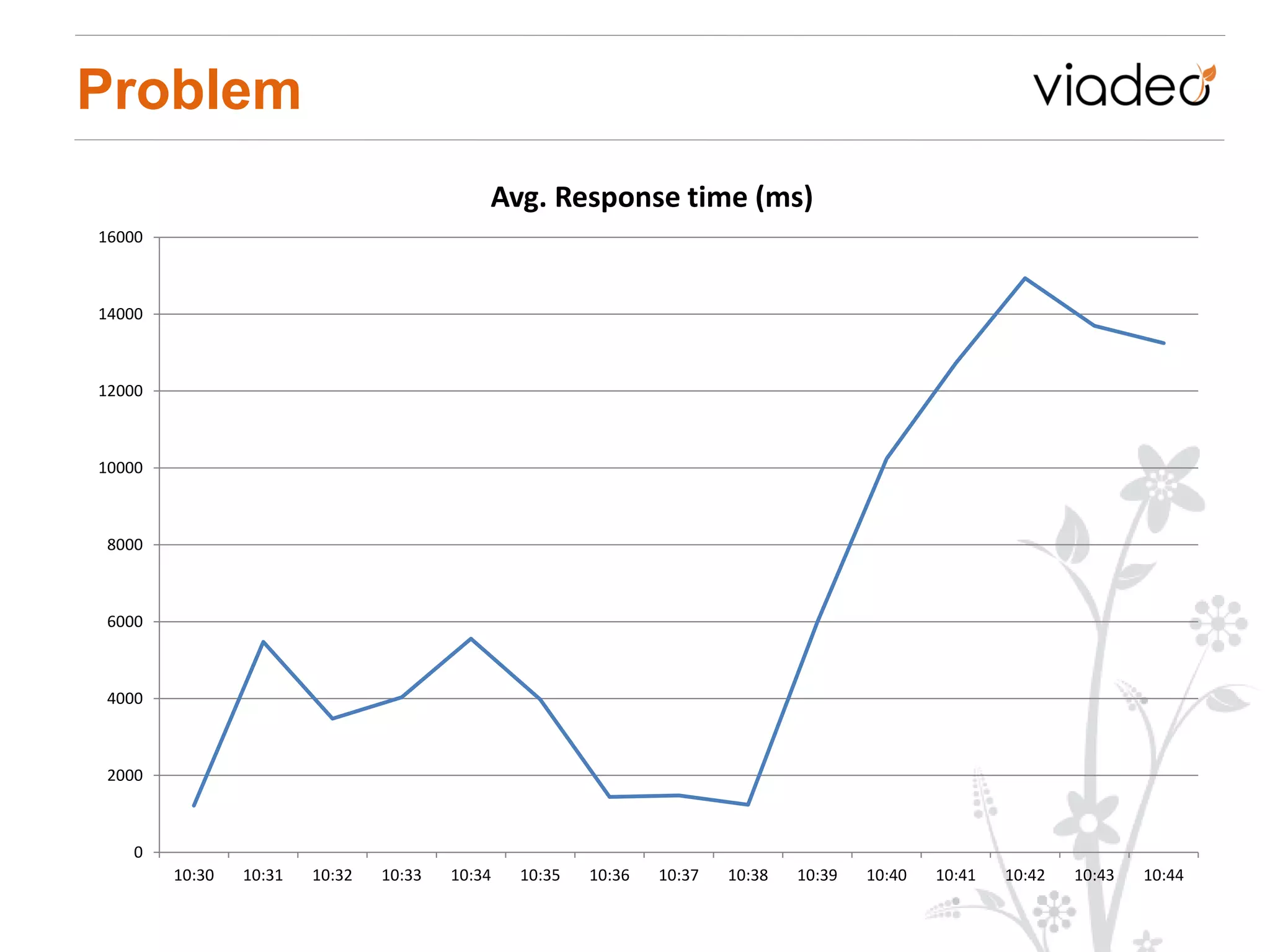

56. Problem
Avg. Response time (ms)
16000
14000
12000
10000
8000
6000
4000
2000
0
10:30 10:31 10:32 10:33 10:34 10:35 10:36 10:37 10:38 10:39 10:40 10:41 10:42 10:43 10:44

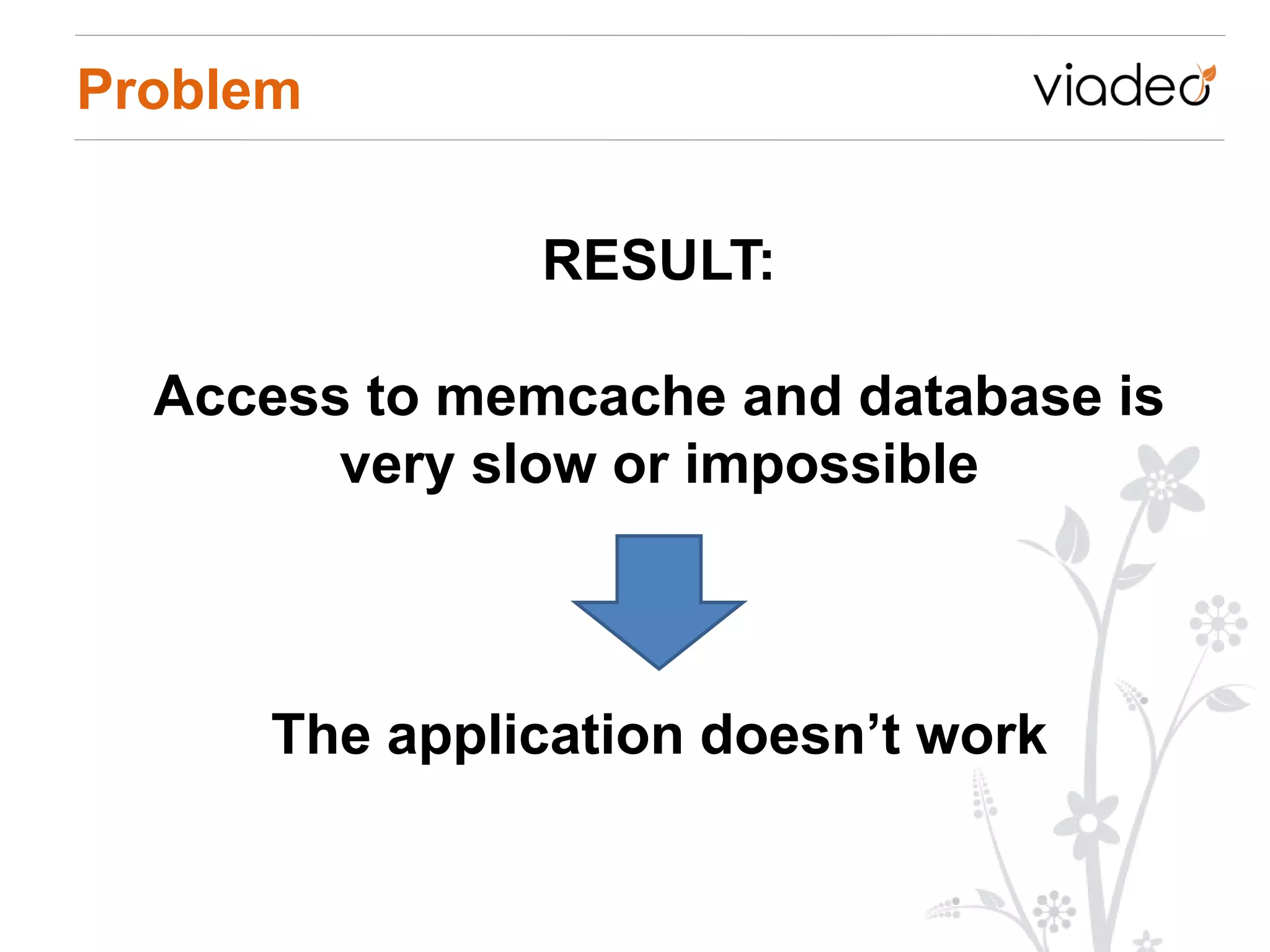

57. Problem
RESULT:
Access to memcache and database is
very slow or impossible
The application doesn’t work

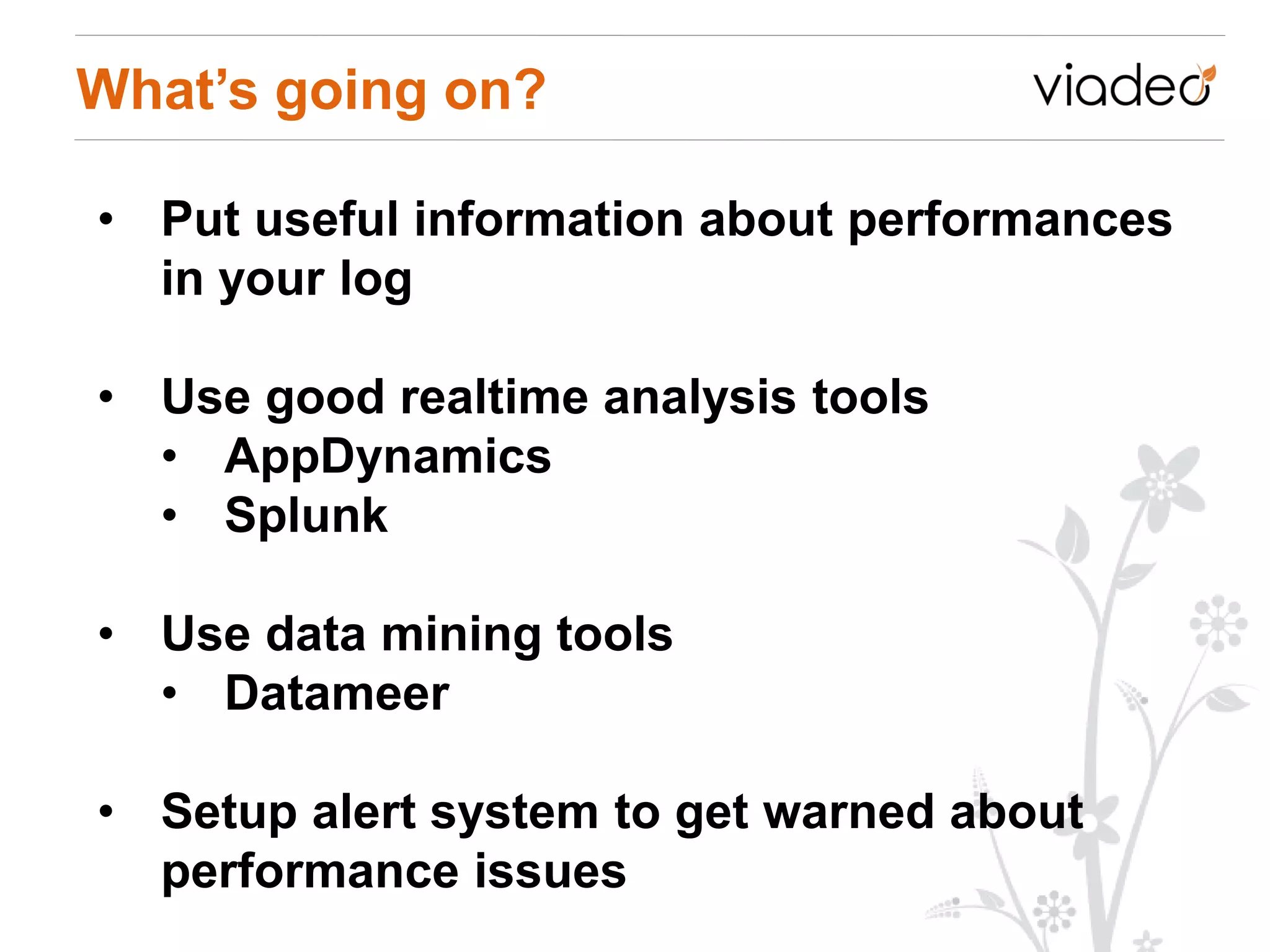

58. What’s going on?
• Put useful information about performances
in your log
• Use good realtime analysis tools
• AppDynamics
• Splunk
• Use data mining tools
• Datameer
• Setup alert system to get warned about
performance issues

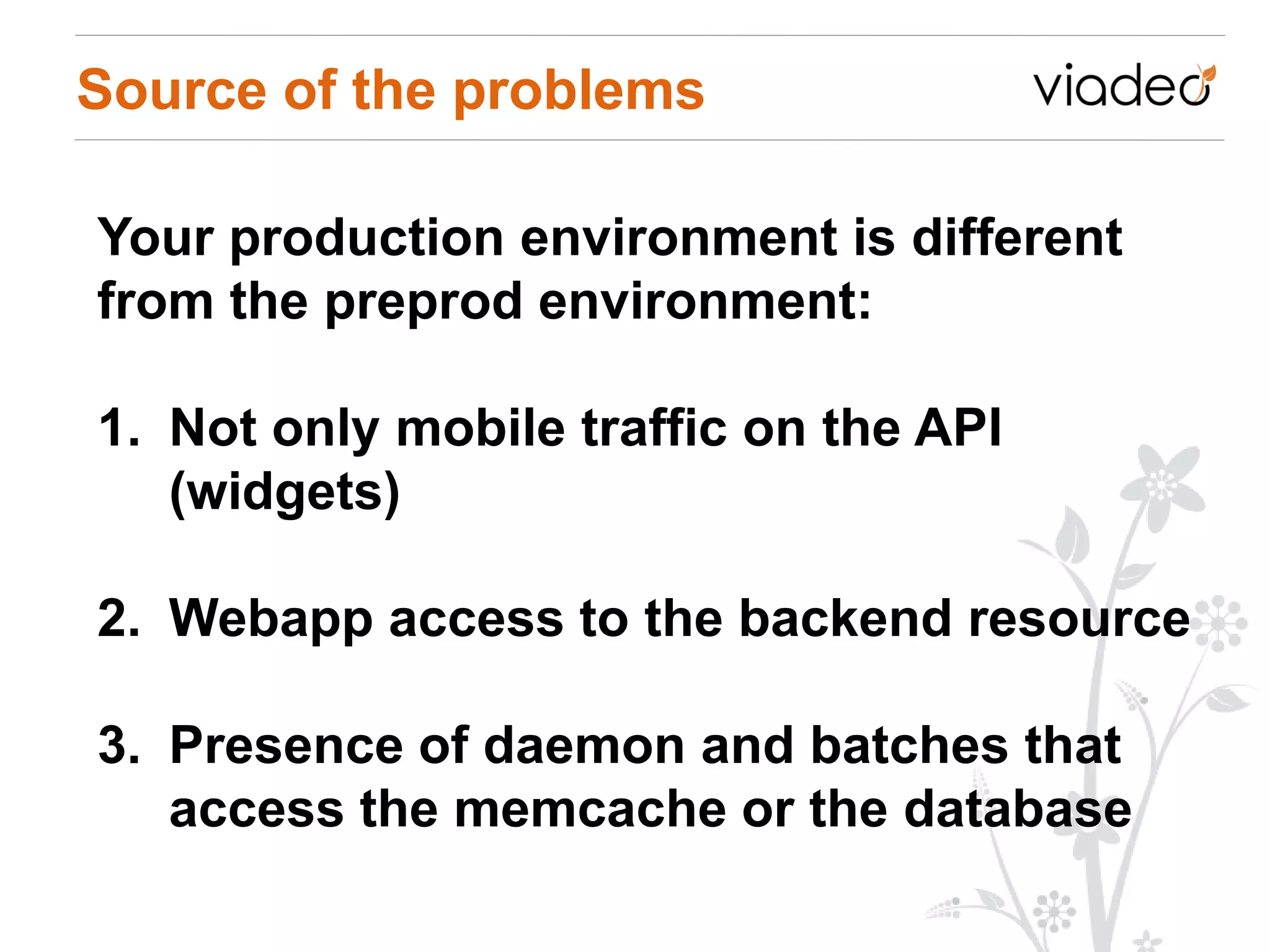

59. Source of the problems
Your production environment is different
from the preprod environment:
1. Not only mobile traffic on the API
(widgets)
2. Webapp access to the backend resource
3. Presence of daemon and batches that
access the memcache or the database

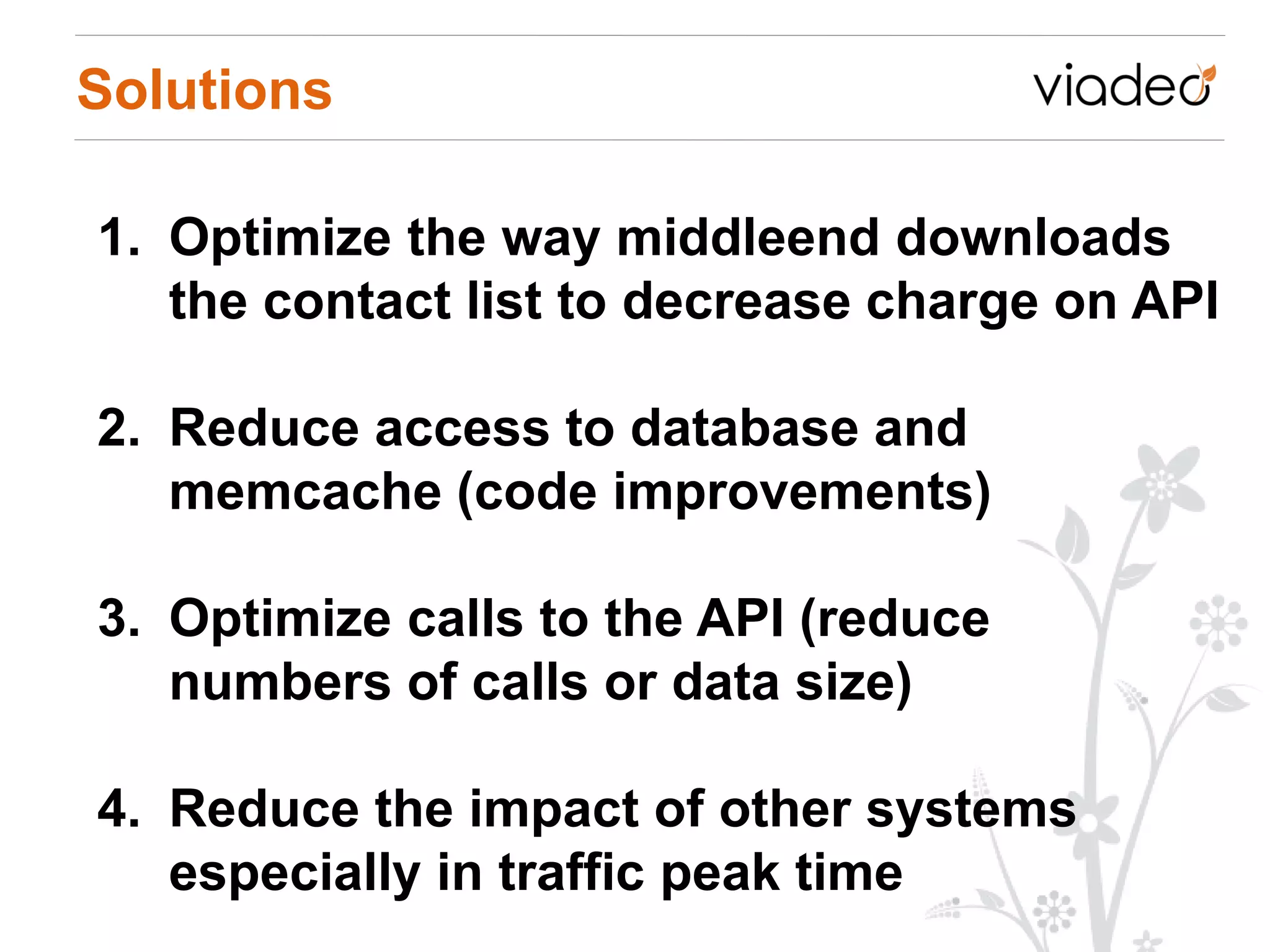

60. Solutions
1. Optimize the way middleend downloads
the contact list to decrease charge on API
2. Reduce access to database and
memcache (code improvements)
3. Optimize calls to the API (reduce
numbers of calls or data size)
4. Reduce the impact of other systems
especially in traffic peak time

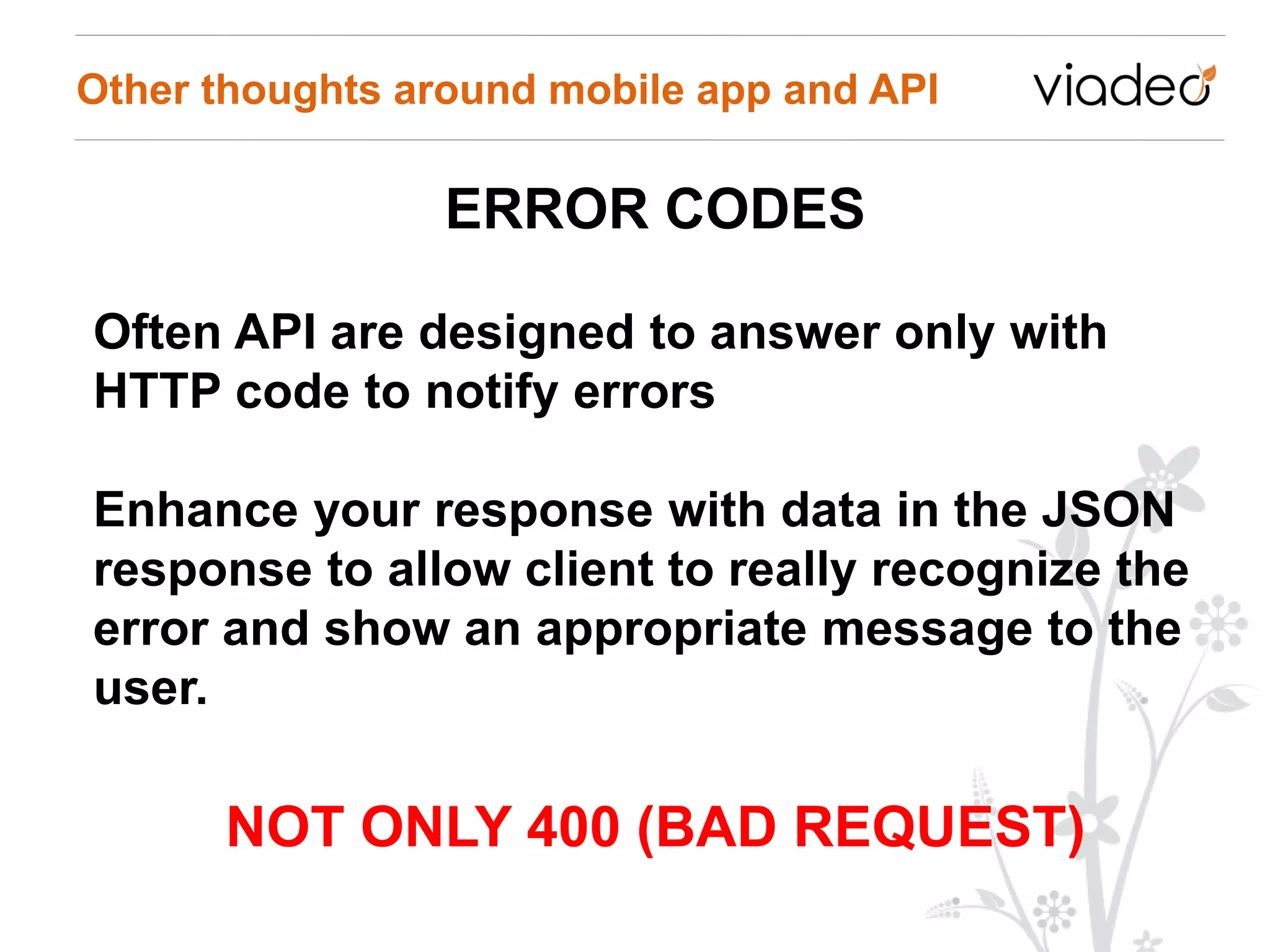

61. Other thoughts around mobile app and API
ERROR CODES
Often API are designed to answer only with
HTTP code to notify errors
Enhance your response with data in the JSON
response to allow client to really recognize the
error and show an appropriate message to the
user.
NOT ONLY 400 (BAD REQUEST)

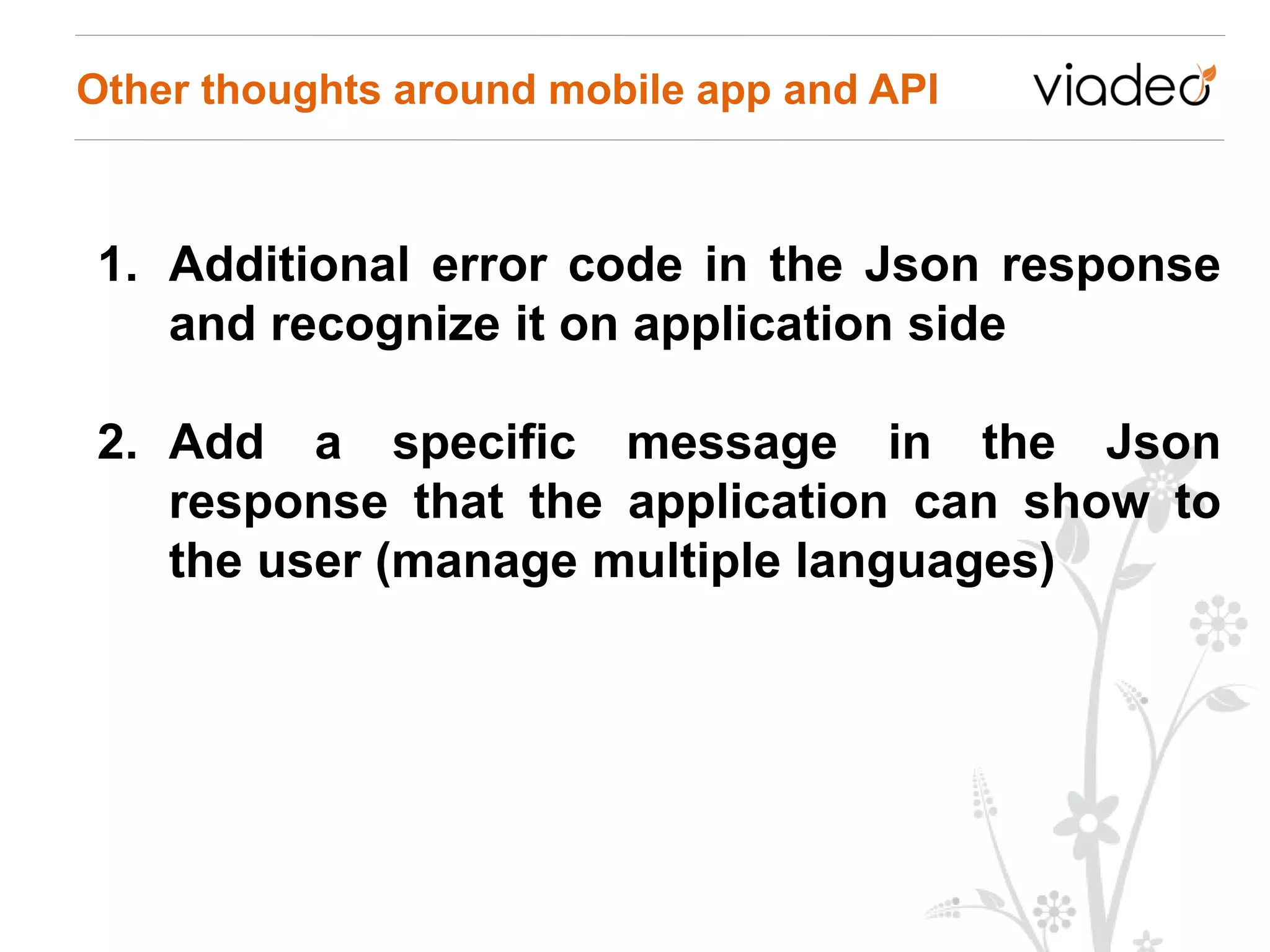

62. Other thoughts around mobile app and API
1. Additional error code in the Json response
and recognize it on application side
2. Add a specific message in the Json
response that the application can show to
the user (manage multiple languages)

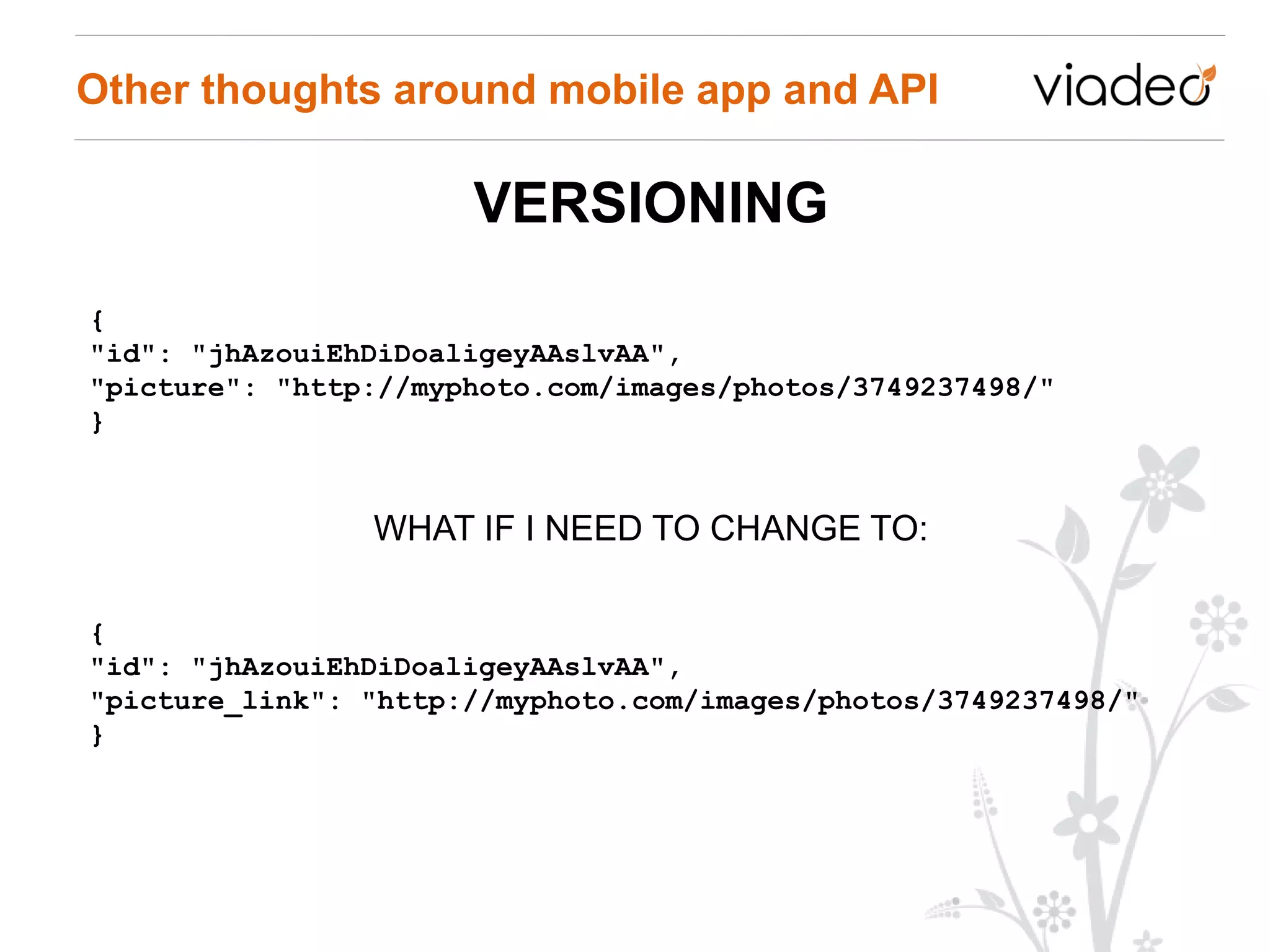

63. Other thoughts around mobile app and API
VERSIONING
{
"id": "jhAzouiEhDiDoaligeyAAslvAA",
"picture": "http://myphoto.com/images/photos/3749237498/"
}
WHAT IF I NEED TO CHANGE TO:
{
"id": "jhAzouiEhDiDoaligeyAAslvAA",
"picture_link": "http://myphoto.com/images/photos/3749237498/"
}

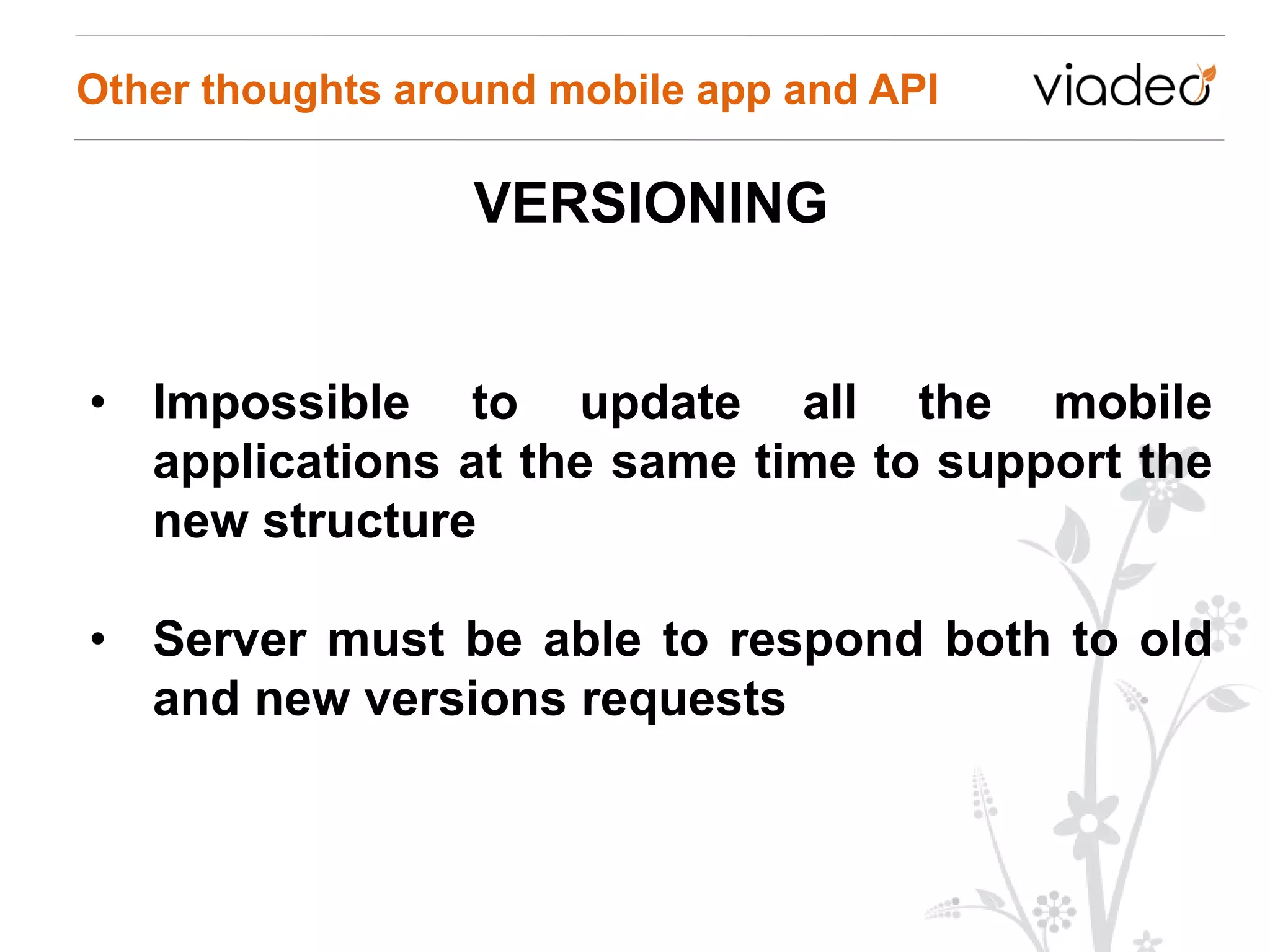

64. Other thoughts around mobile app and API
VERSIONING
• Impossible to update all the mobile
applications at the same time to support the
new structure
• Server must be able to respond both to old
and new versions requests

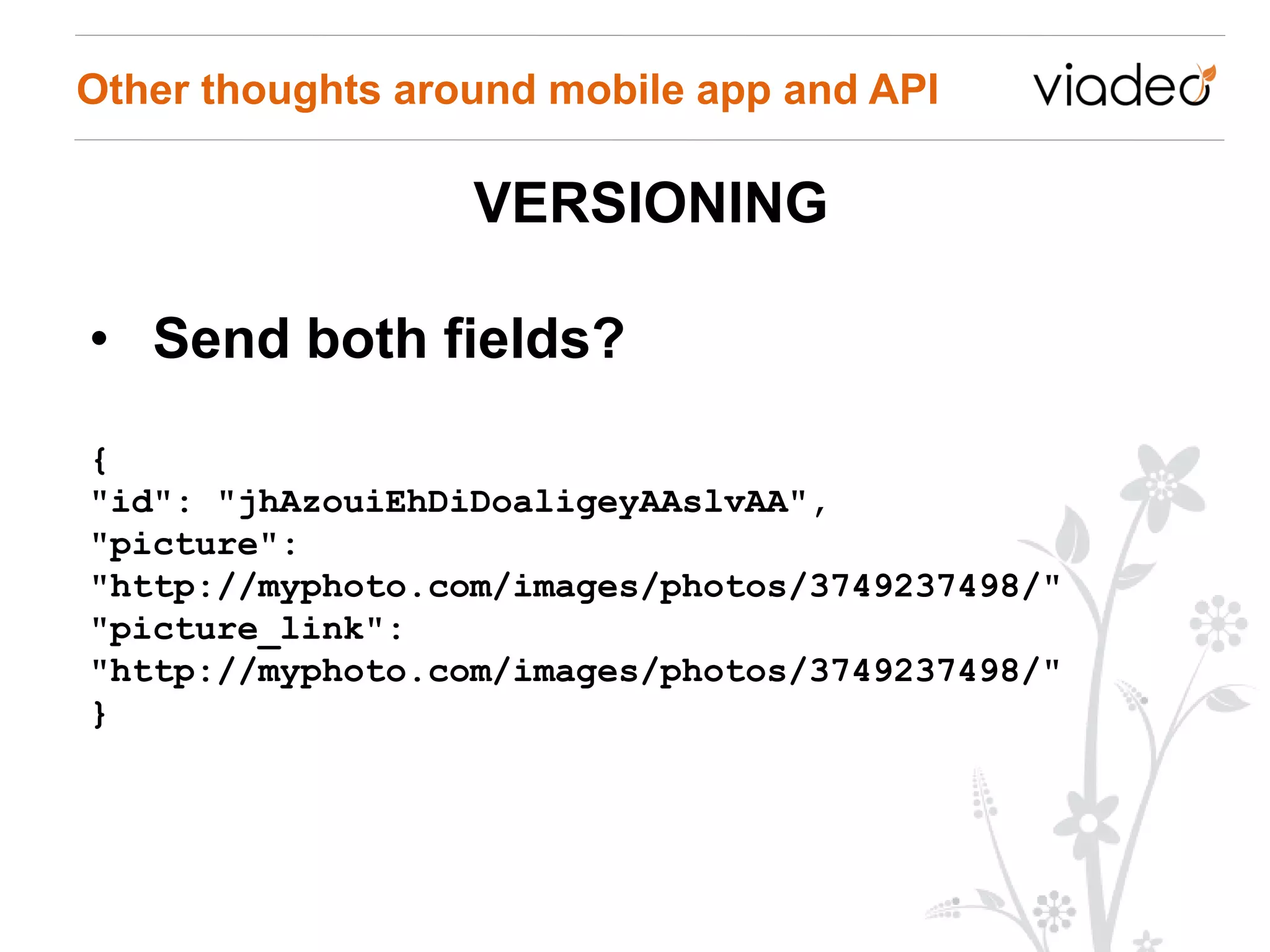

65. Other thoughts around mobile app and API
VERSIONING
• Send both fields?
{
"id": "jhAzouiEhDiDoaligeyAAslvAA",
"picture":
"http://myphoto.com/images/photos/3749237498/"
"picture_link":
"http://myphoto.com/images/photos/3749237498/"
}

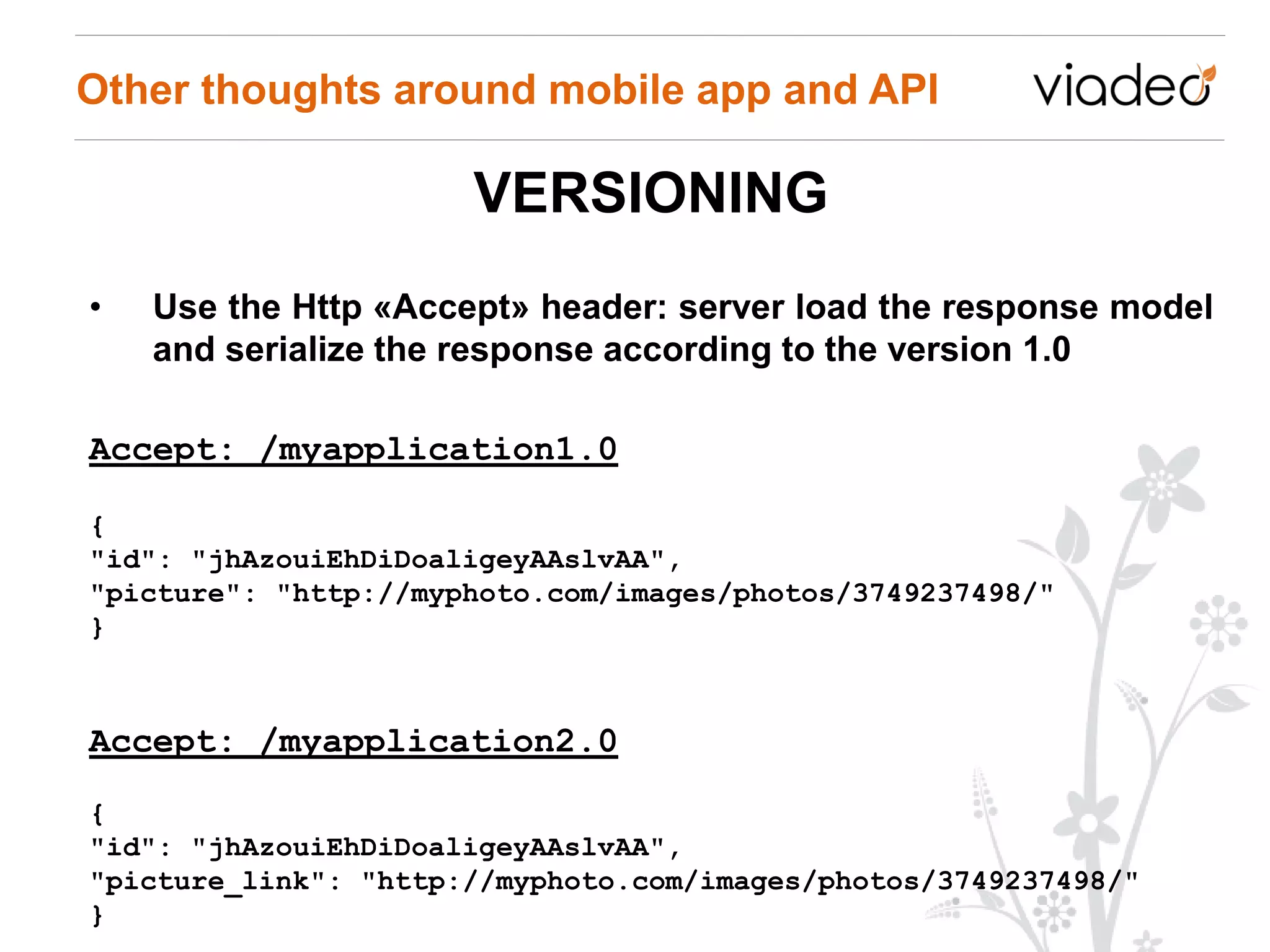

66. Other thoughts around mobile app and API
VERSIONING
• Use the Http «Accept» header: server load the response model
and serialize the response according to the version 1.0
Accept: /myapplication1.0
{
"id": "jhAzouiEhDiDoaligeyAAslvAA",
"picture": "http://myphoto.com/images/photos/3749237498/"
}
Accept: /myapplication2.0
{
"id": "jhAzouiEhDiDoaligeyAAslvAA",
"picture_link": "http://myphoto.com/images/photos/3749237498/"
}

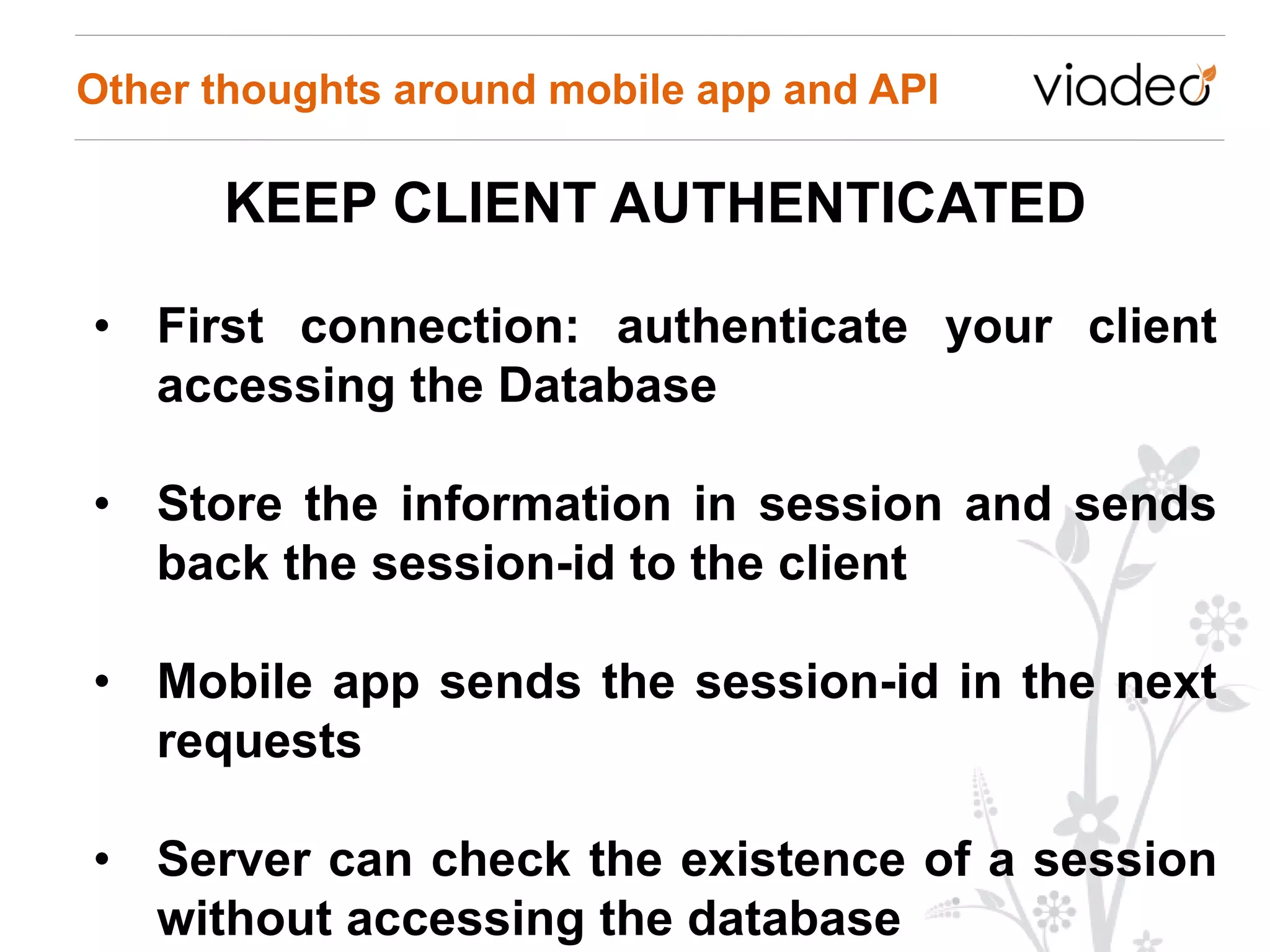

67. Other thoughts around mobile app and API
KEEP CLIENT AUTHENTICATED
• First connection: authenticate your client
accessing the Database
• Store the information in session and sends
back the session-id to the client
• Mobile app sends the session-id in the next
requests
• Server can check the existence of a session
without accessing the database

68. MOBILE TEAM IS HIRING
PASSIONATE ABOUT
MOBILE?
SEND US YOUR CV:
hrit@viadeo.com

69. Thanks a lot for your attention!
Q&A
Emanuele Pecorari
Mobile Architect
epecorari@viadeoteam.com
http://fr.viadeo.com/en/profile/emanuele.pecorari
