This document provides specifications for an AOC LED monitor model e970Swn. It is a 19-inch widescreen LED monitor with a resolution of 1366x768 pixels. Key features include a high dynamic contrast ratio of 20,000,000:1, 5ms response time, and connectivity options of VGA and D-sub ports. Dimensions and other technical details are provided.

1. Visualiza el futuro
una mirada inteligente AOC VISION
e970Swn

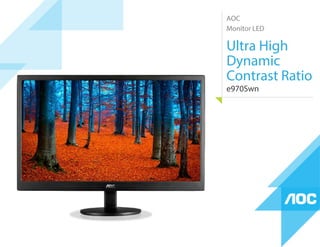

2. AOC
Monitor LED
Ultra High
Dynamic
Contrast Ratio
e970Swn

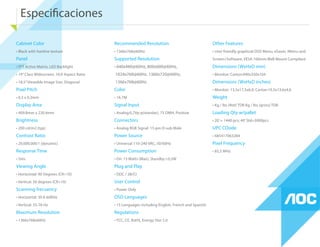

3. Especificaciones
Cabinet Color
• Black with hairline texture
Panel
• TFT Active Matrix, LED Backlight
• 19”Class Widescreen, 16:9 Aspect Ratio
• 18.5”Viewable Image Size, Diagonal
Pixel Pitch
• 0,3 x 0,3mm
Display Area
• 409.8mm x 230.4mm
Brightness
• 200 cd/m2 (typ)
Contrast Ratio
• 20,000,000:1 (dynamic)
Response Time
• 5ms
Viewing Angle
• Horizontal: 90 Degrees (CR>10)
• Vertical: 50 degrees (CR>10)
Scanning frecuency
• Horizontal: 30 K-60KHz
• Vertical: 55-76 Hz
Maximum Resolution
• 1366x768x60Hz
Recommended Resolution
• 1366x768@60Hz
Supported Resolution
• 640x480@60Hz, 800x600@60Hz,
1024x768@60Hz, 1360x720@60Hz,
1366x768@60Hz
Color
• 16.7M
Signal Input
• Analog:0,7Vp-p(standar), 75 OMH, Positive
Connectors
• Analog RGB Signal: 15-pin D-sub Male
Power Source
• Universal 110-240 VAC, 50/60Hz
Power Consumption
• On: 15 Watts (Max), Standby:<0,5W
Plug and Play
• DDC / 2B/CI
User Control
• Power Only
OSD Languages
• 15 Languages including English, French and Spanish
Regulations
• FCC, CE, RoHS, Energy Star 5.0
Other Features
• User friendly graphical OSD Menu, eSaver, iMenu and
Screen+Software, VESA 100mm Wall Mount Compilant
Dimensions (WxHxD mm)
• Monitor: Carton:490x350x104
Dimensions (WxHxD inches)
• Monitor: 13,5x17,5x6,9, Carton:19,5x13,6x4,6
Weight
• Kg / lbs (Net) TDB Kg / lbs (gross) TDB
Loading Qty w/pallet
• 20’= 1440 pcs; 40’Std=3000pcs
UPC COode
• 685417063284
Pixel Frequency
• 85,5 MHz
