1. Towards the Long-Term Preservation of Building
Information Models
Jakob Beetz, Stefan Dietze, René Berndt, Martin Tamke
Jakob Beetz (Eindhoven University of Technology, NL) & DURAARK consortium
1 / 20
2 / 26 / 13

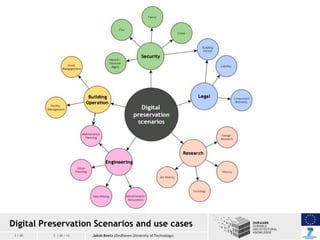

2. Digital Preservation Scenarios and use cases
2 / 20
2 / 26 / 13
Jakob Beetz (Eindhoven University of Technology)

3. SotA: „Archival system‟ at project hand over
3 / 20
2 / 26 / 13
Jakob Beetz – Eindhoven University of Technology

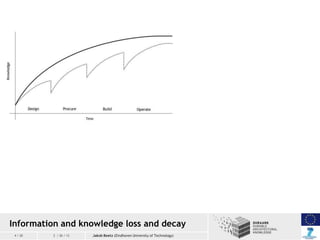

4. Information and knowledge loss and decay
4 / 20
2 / 26 / 13
Jakob Beetz (Eindhoven University of Technology)

5. Building and construction
•
PROBADO [DFG 2007-2011]
•
•
•
•
Music and 3D geometry
No BIM models
OAIS compliant
FACADE [US 2006-2009]
•
•
•
Proprietary CAD models of buildings
No BIM Models
Identifies BIM as next necessary step
Other engineering domains
•
LOTAR
•
•
•
•
•
•
Remove dependence from proprietary software
formats
Aerospace and defense
STEP
OAIS
SHAMAN [EU-funded 2007-2011]
• Various engineering domains
• PLM-centric independent of format
VDA 2958
• Long-term archiving of STEP domain-based
schemas by German Association of the
Automobile Industry
Digital preservation: past efforts
5 / 20
2 / 26 / 13
Jakob Beetz – Eindhoven University of Technology

6. Goal

Methods and tools for sustainable long-term
preservation of building data (3D and BIM
models, metadata, related knowledge & Web
data)
Challenges

Diverse stakeholders: architects, building
operators, urban planners, archivists, …

Diversity of data - interoperability: low-level
point clouds & legacy 3D models up to enriched
Building Information Models (BIM), higher-level
semantics and Web data / knowledge

Building, model and data evolution: document
temporal evolution, documentation of „as-build‟ in
addition to „as-planned‟ to prevent information
loss and enable repair
Goals and Challenges (1/2)
6 / 20
2 / 26 / 13
Jakob Beetz (Eindhoven University of Technology)

7. Challenges

“Semantic” enrichment of building
knowledge: exploiting Web data and
knowledge to enrich low-level building
data.

Inconsistent vocabularies: adopting
state of the art vocabularies and
schemas towards sustainability

Enrichment of point clouds:
Compartmentalize / cluster huge data
sets (1GB upwards per partial scan) by
semantic tagging.

Long-term readability / renderability
of architectural models: addressing
digital decay (eg due to deprecated
file formats) and model evolution
Goals and Challenges (2/2)
7 / 20
2 / 26 / 13
Stefan Dietze (L3S Research Center)

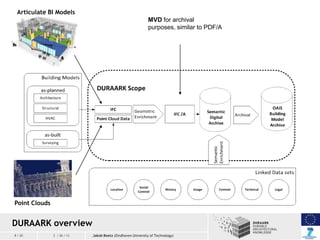

8. Articulate BI Models
MVD for archival
purposes, similar to PDF/A
Point Clouds
DURAARK overview
8 / 20
2 / 26 / 13
Jakob Beetz (Eindhoven University of Technology)

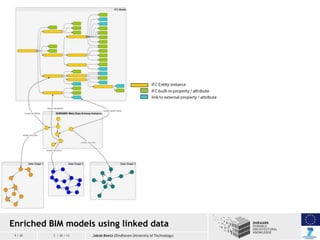

9. Enriched BIM models using linked data
9 / 20
2 / 26 / 13
Jakob Beetz (Eindhoven University of Technology)

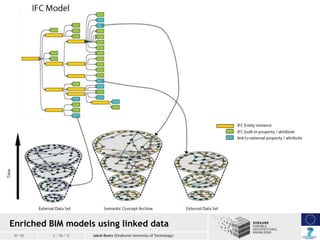

10. Enriched BIM models using linked data
10 / 20
2 / 26 / 13
Jakob Beetz (Eindhoven University of Technology)

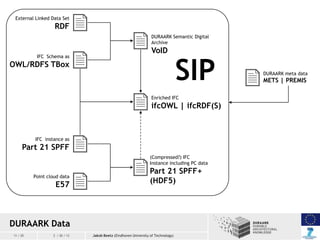

11. External Linked Data Set
RDF
DURAARK Semantic Digital
Archive
IFC Schema as
VoID
OWL/RDFS TBox
SIP
Enriched IFC
ifcOWL | ifcRDF(S)
IFC instance as
Part 21 SPFF
(Compressed?) IFC
Instance including PC data
Point cloud data
E57
Part 21 SPFF+
(HDF5)
DURAARK Data
11 / 20
2 / 26 / 13
Jakob Beetz (Eindhoven University of Technology)
DURAARK meta data
METS | PREMIS

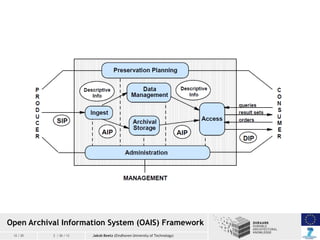

12. Open Archival Information System (OAIS) Framework
12 / 20
2 / 26 / 13
Jakob Beetz (Eindhoven University of Technology)

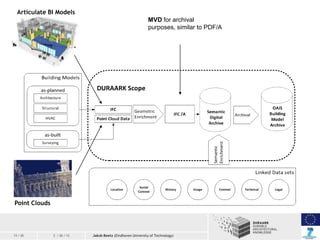

13. Articulate BI Models
MVD for archival
purposes, similar to PDF/A
Point Clouds
13 / 20
2 / 26 / 13
Jakob Beetz (Eindhoven University of Technology)

14. UBO: Universität Bonn
- Technical Coordinator
- WP4/WP5: change management, shape
recognition
Luleå University of Technology
- WP8 leader, dissemination/exploitation
CITA, Center for Information Technology
and Architecture Copenhagen
- WP7 leader, evaluation, test
TUE, Department of the Built Environment,
Eindhoven University of Technology
- WP3 leader, semantics & metadata
Catenda, SME
- User perspective, market requirements, evaluation
Fraunhofer Austria
- WP2 leader, system specification
& integration
Consortium
14 / 20
2 / 26 / 13
Jakob Beetz (Eindhoven University of Technology)
LUH: German National Library of
Science and Technology (TIB) &
L3S Research Center Hannover
-Coordinator
- WP3 Semantic Enrichment
- WP6 leader, long-term preservation

15. http://www.duraark.eu
j.beetz@tue.nl
Thank you. Questions? Suggestions?
15 / 20
2 / 26 / 13
Jakob Beetz (Eindhoven University of Technology, NL)
