DTprime real-time PCR instrument is used for qualitative and quantitative analysis of DNA and RNA targets. It is suitable for diagnostic laboratories with high throughput workflows and for research organizations requiring optimization. The DT Prime system can analyze human genetics, gene expression profiling, pathogen detection, quantification and genotyping, and complex bacteria community testing. It offers high performance and flexibility to analyze samples in tubes, strips or plates. The software allows advanced users to obtain specific data and finely tune the instrument for various tasks.

1. DT Prime 5M1
DNA Technology Real-Time PCR

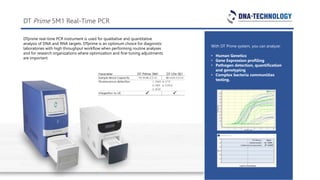

2. DT Prime 5M1 Real-Time PCR
DTprime real-time PCR instrument is used for qualitative and quantitative
analysis of DNA and RNA targets. DTprime is an optimum choice for diagnostic
laboratories with high throughput workflow when performing routine analyses
and for research organizations where optimization and fine-tuning adjustments
are important.
With DT Prime system, you can analyze:
• Human Genetics
• Gene Expression profiling
• Pathogen detection, quantification
and genotyping
• Complex bacteria communities
testing.

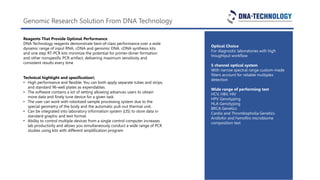

3. Genomic Research Solution From DNA Technology
Reagents That Provide Optimal Performance
DNA Technology reagents demonstrate best-of-class performance over a wide
dynamic range of input RNA, cDNA and genomic DNA. cDNA synthesis kits
and one step RT-PCR kits minimize the potential for primer-dimer formation
and other nonspesific PCR artifact, delivering maximum sensitivity and
consistent results every time
Optical Choice
For diagnostic laboratories with high
troughtput workflow
5 channel optical system
With narrow spectral range custom-made
filters account for reliable multiplex
detection
Wide range of performing test
HCV, HBV, HIV
HPV Genotyping
HLA Genotyping
BRCA Genetics
Cardio and Thrombopholia Genetics
Andlofor and Femoflro microbiome
composition test
Technical highlight and spesification
• High performance and flexible: You can both apply separate tubes and strips,
and standard 96-well plates as expendables.
• The software contains a lot of setting allowing advances users to obtain
more data and finely tune device for a given task
• The user can work with robotized sample processing system due to the
special geometry of the body and the automatic pull-out thermal unit.
• Can be integrated into laboratory information system (LIS) to store data in
standard graphic and text format.
• Ability to control multiple devices from a single control computer increases
lab productivity and allows you simultaneously conduct a wide range of PCR
studies using kits with different amplification program

4. Advantages of DT Prime
• Tubes Height Measurement system provides "openness" of the instrument to different types of
plastic (low and high profile; flat and domed caps; strips, plates).
• Simultaneous detection of a fluorescent signal in all wells of the matrix provides uniformity of
detection and high speed of the instrument;
• Narrow range filters (cross-talk cut-off function);
• No "edge effect" - the thermo-block moving and positioning system ensures its movement in the
horizontal and vertical positions, which guarantees complete isolation of the reaction tubes from the
influence of environmental factors such as light penetration into the optical path and temperature non-
uniformity between the edge rows of the matrix and its central part.
• The hot lid module provides reliable heat contact between tubes and the thermal block plate
maintaining temperature of the tube caps at the level of 105±1°С in order to prevent condensate
formation on the tube caps, since it may cause substantial distortions in the luminous flux
measurements;
• Data protection system provides stable and safe operation of the instrument in the event of an
unstable power supply. All parameters of the current run are recorded in the instrument's own memory;
• The software has a plenty of settings allowing advanced users to obtain specific data and finely tune
instrument for a given task;
• Can be integrated into laboratory information systems (LIS) to store data in standard graphic and text
formats;
• The narrow body and compact design allow you to place several instruments in a small area.

5. Advantages of DT Prime
